Product type	DLP laser projector
Brand	Optoma
Model	ZW340E
Native resolution	WXGA (1280 x 800)
Display technology	Texas Instruments DMD 0.65" S450
Light source	Laser (class 1, risk group 2)
Lens	Zoom 1.1x, focal length 21.85-24.00 mm, aperture f/2.41-2.53
Image size	From 30 to 300 inches (16:9)
Projection distance	1 to 10 meters (optimized 1 to 5 m)
Keystone correction	Automatic, vertical and horizontal (±40°), 4-corner adjustment
Built-in speaker	15 W
Video inputs	HDMI 1 (1.4b), HDMI 2 (HDCP 2.0)
Other connections	RS-232, 3.5mm audio output, USB type A (5 V/1.5 A)
3D features	Compatible with DLP-Link, formats: frame packing, side-by-side, top-and-bottom
Game mode	Low latency up to 8.6 ms (1080p@120 Hz)
Power consumption	89 W (Eco mode), 140 W (Bright mode) typical
Power supply	19.5 V DC, 9.23 A (power adapter included)
Dimensions (W × D × H)	274 × 216 × 108.5 mm (without feet); 274 × 216 × 114 mm (with feet)
Weight	3.0 ± 0.2 kg
Operating temperature	0 to 40 °C, humidity 80% max without condensation
Mounting	Table front/rear, ceiling front/rear, 360° rotation
Security	Kensington lock, password, sleep timer, clock security

Frequently Asked Questions - ZW340E OPTOMA

How to install the projector?

Place the projector on a flat surface, at 90° to the screen. Use the adjustable feet to adjust tilt. For ceiling mounting, use an Optoma kit with M4x10 mm screws. Leave 30 cm around the ventilation vents.

How to clean the lens?

Turn off the projector and unplug it. Use compressed air to remove dust, then a special lens cloth. Do not use alkaline, acidic, or volatile solvents like alcohol. Do not touch the lens with fingers.

The remote control does not work, what to do?

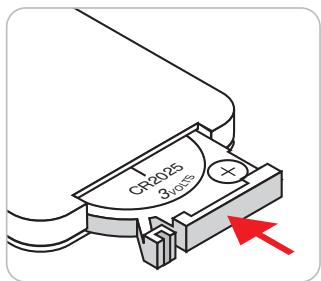

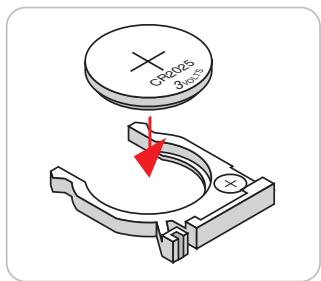

Check that the batteries are inserted correctly (CR2025, + side up). Make sure there are no obstacles between the remote and the projector, and that you are within 6 meters and within an angle of ±15° to the IR receiver. Replace the batteries if necessary.

How to activate 3D mode?

Use DLP-Link glasses. In the OSD menu, go to Image > 3D and set 3D Mode to On. Select the appropriate 3D format (frame packing, side-by-side, top-and-bottom). The input signal must be at 60 Hz and the resolution 1920x1080 is recommended.

How to correct a distorted image?

Use automatic or manual keystone correction in the Display > Geometric Correction menu. You can adjust vertical and horizontal keystone (±40°), or use four-corner adjustment for precise correction. Note that the image size will be slightly reduced.

How to adjust image sharpness?

Turn the focus ring on the lens until the image is sharp. In the OSD menu (Image > Sharpness), you can fine-tune the sharpness level (1 to 15). For size, use the zoom lever.

What is the lifespan of the light source?

The projector uses a laser light source. The manual does not provide a precise lifespan, but Optoma DLP lasers generally offer more than 20,000 hours in standard mode. The projector automatically detects the light source lifespan.

Can I use the projector at high altitude?

Yes. In the Configuration > High Altitude menu, set it to On. This will spin the fans faster to compensate for thin air and prevent overheating.

How to reset to factory settings?

Go to the Configuration > Reset Device menu. You can choose Reset Menu (OSD settings) or Reset All Settings (everything). Select Yes to confirm.

What screen formats are available?

In the Display > Screen Type menu, you can choose 4:3, 16:9, or 16:10. The aspect ratio can be set to 4:3, 16:9, 16:10, Native, or Auto. The projector adapts automatically to the source if Auto is selected.

USER MANUAL ZW340E OPTOMA

Line drawing of a projector with visible internal components and ventilation grille (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

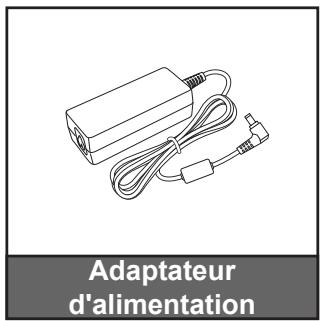

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級

IEC 60825-1:2014 1类激光产品RG2危险等级

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN." Additional warning against eye exposure for close exposures less than 1 m.

This Class B digital apparatus complies with Canadian ICES-003.

https://www.optoma.com/support/download

INTRODUCTION

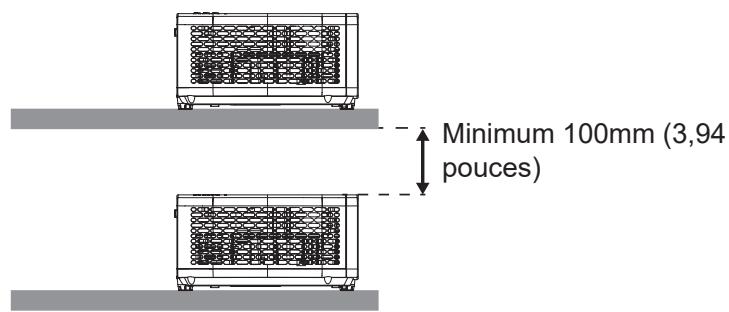

Line drawing of a person sitting in a chair watching a small screen on a desk (no text or symbols present)

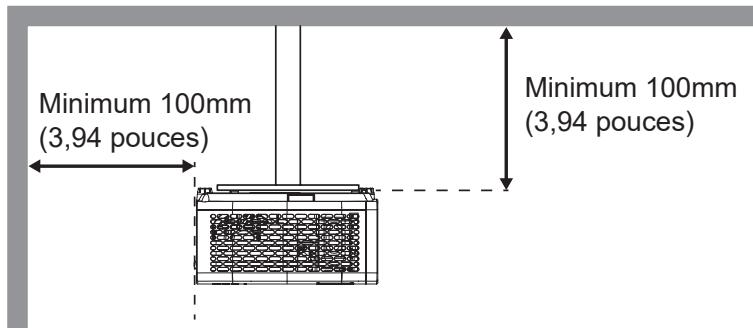

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Line drawing of a person sitting in a chair watching a wall-mounted screen (no text or symbols)

Exterior view of a multi-level industrial machine with red X-shaped prohibition symbol (no text or labels)

Illustration of a hand using a tool to adjust or install a small object, with red arrows indicating direction (no text or symbols present)

Marche

UTILISER LE PROJECTEUR

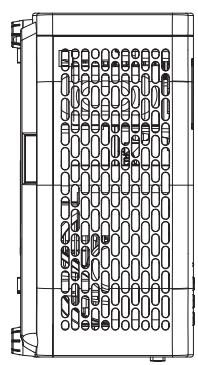

Technical line drawing of a projector with no visible text or symbols

Technical line drawing of a mechanical component with symmetrical slots and mounting brackets (no text or symbols)

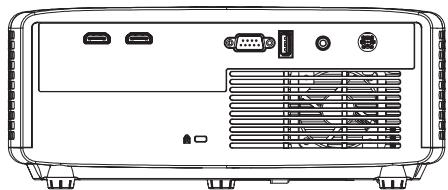

Front view of a projector rear panel with ports and ventilation slots (no text or symbols visible)

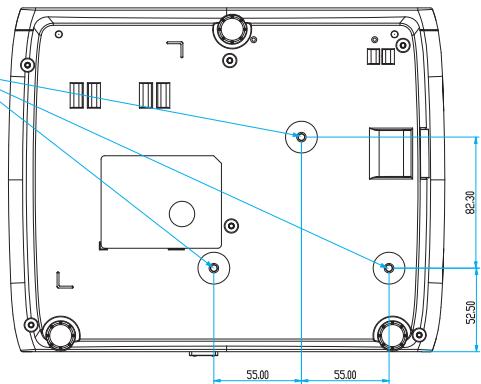

M4*10 mm

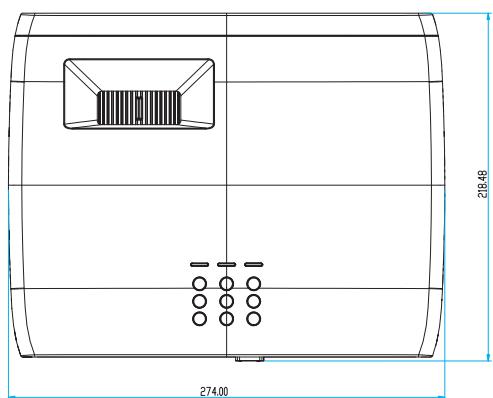

Unité : mm
