S300 Xi - Network audio player ELIPSON - Free user manual and instructions

Product type	Audio network player (streamer)
Brand	Elipson
Model	S300 Xi
Dimensions (W x D x H)	78.5 x 83.2 x 15.3 mm
Net weight	80 g
Power supply	5V 1A via USB-C
Built-in DAC	ESS SABRE ES9028
Signal-to-noise ratio	110 dB
Wi-Fi connectivity	IEEE 802.11 a/b/g/n/ac, 2.4/5 GHz
Bluetooth	Version 5.2
Ethernet	Yes (front and rear ports, switchable)
Audio inputs	Aux 3.5mm mini-jack (analog), RJ45, Wi-Fi
Audio outputs	Analog 3.5mm mini-jack output, optical digital 3.5mm mini-jack output
Streaming services	AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, Deezer, Qobuz, web radios
Multiroom	Yes, via Elipson Multiroom app
Control app	Elipson Multiroom (iOS and Android)
Warranty	2 years (parts and labor)
Maintenance and cleaning	Do not use solvents; contact customer service for repair
Safety	Do not open the device; maintain a distance of 20 cm for RF exposure
Operating temperature	0°C to 40°C

Frequently Asked Questions - S300 Xi ELIPSON

How to connect the S300 Xi to the Wi-Fi network?

To connect the S300 Xi to your Wi-Fi network, download the Elipson Multiroom app on your smartphone or tablet (iOS or Android). Follow the instructions in the app to configure the Wi-Fi connection. Make sure the device is powered on and the network LED is blinking (ready to connect mode).

How to reset the S300 Xi to factory settings?

To reset the S300 Xi, press and hold the RESET button on the front of the device until the "Power", "LAN", "BT", and "AUX" LEDs flash simultaneously. The device will restart and automatically start the Wi-Fi network connection procedure.

Which streaming services are compatible with the S300 Xi?

The S300 Xi supports AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, Deezer, Qobuz, and over 15,000 web radios via the Elipson Multiroom app.

Can I use the S300 Xi with an amplifier without an optical input?

Yes, the S300 Xi has a 3.5mm mini-jack analog output that you can connect to the line input (Aux) of your amplifier. If your amplifier has an optical input, you can use the optical output for better audio quality.

How does the multiroom function of the S300 Xi work?

The multiroom function allows you to stream music to multiple compatible Elipson devices simultaneously. Use the Elipson Multiroom app to group devices, select the source, and control the volume in each room.

What to do if the S300 Xi keeps disconnecting from Wi-Fi?

Check that the Wi-Fi signal is strong enough: move the device closer to the router or use an Ethernet connection via an RJ45 cable. If the problem persists, reset the network settings via the app or perform a factory reset.

Is the S300 Xi compatible with AirPlay 2 and Google Cast?

Yes, the S300 Xi integrates AirPlay 2 and Google Cast. You can stream music directly from an Apple or Android device, or via Cast-compatible apps.

What is the required power supply for the S300 Xi?

The required power supply is 5V 1A via a USB-C connector. Use the supplied cable and an appropriate power source (wall outlet or computer USB port). Avoid non-compliant phone chargers.

How can I connect the S300 Xi to my TV?

The S300 Xi is not designed for direct connection to a TV. It is intended to be connected to an amplifier or powered speakers. You can use it with a TV if it has an optical or analog audio output, but this exceeds the intended use.

What if I have no sound on one channel (left or right)?

Check the connections between the S300 Xi and your amplifier. Make sure the mini-jack cables are properly inserted. Try changing the source on the amplifier. If the problem persists, test with another cable or input.

USER MANUAL S300 Xi ELIPSON

elipson® | Stream S300 Xi

LECTEUR RÉSEAU AUDIO - STREAMER HI-RES HI-RES AUDIO STREAMER

WiFi

multi- room

sonmultiroom App

Works with Apple AirPlay 2

Chromecast built-in

Spotify

Bluetooth

MANUEL D'UTILISATION USER MANUAL

Cher client,

https://www.spotify.com/connect/third-party-licenses

IV. UTILISATION DU LECTEUR STREAMER S300 Xi

Thank you for choosing our Epilson Stream S300 Xi.

Please take the time to read this manual carefully before installing your device. It contains all the safety and operating instructions that should be followed. We strongly recommend that you keep both packaging and this user manual for future use.

SUMMARY

I.Description 15

II. Specification 16

III. General informations 17

In the box 17

Front panel 18

Rear panel 19

Application 20

IV. Using the Stream S300 Xi 22

Wi-Fi connection 22

Resetting parameters 22

V. In case of breakdown 23

VI. FCC, CE & UKCA statements 24

VII. Warranty 28

WARNING

MAKE SURE TO READ THIS INSTRUCTION MANUAL BEFORE TURNING THE POWER ON OR HOOKING UP THIS DEVICE.

I. DESCRIPTION

Elipson S300 Xi network streamer is a perfect solution for connecting your basic audio setup to your home network. It works with any integrated amplifier, preamplifier or powered speaker by connecting directly to a line or optical Toslink input, taking advantage of the digital-to-analogue conversion of your current device.

Its wireless (Wi-Fi and Bluetooth) and wired (Ethernet) connection options provide instant access to millions of music tracks in high definition.

As part of our Epipson Multiroom product range, the streamer S300Xi is equipped with the latest Google Cast & AirPlay2 technologies, allowing you to control your music from anywhere in your home.

Browse and play your audio files from streaming services or your own music library using your WiFi network and your Elipson Multiroom smartphone app. If you don't have WiFi, you can connect via Bluetooth or wired

Now it's your turn to enjoy the Epilson experience.

II. SPECIFICATIONS

Streaming Service & network protocols	AirPlay 2 Amazon Music Deezer Qobuz Spotify Spotify Connect Tidal Tidal Connect Web radios
Inputs	Bluetooth 5.2 Aux (mini jack 3.5) RJ45 Wi-Fi
Outputs	Optical (mini jack 3.5) Aux (mini jack 3.5)
DAC	ESS SABRE ES9028
Signal-to-noise ratio	110 dB
Wi-Fi network	EEE 802.11 a/b/g/n/ac 2.4GHzEEE 8702.11 a/n/ac 5GHz
Ethernet port	Yes (front and rear panel) switchable
Power supply	5V 1A - USB C
Dimensions	L78,5 x W83,2 x H15,3 mm
Net weight	80 g

III. GENERAL INFORMATION

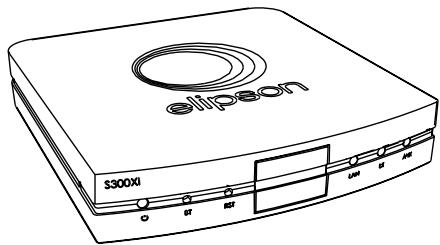

INSIDE THE BOX :

1-Stream S300 Xi device
2- Power cable USB C 5V (1 m)
3- 3.5 mini-jack stereo cable (1.5m)

①

2

3

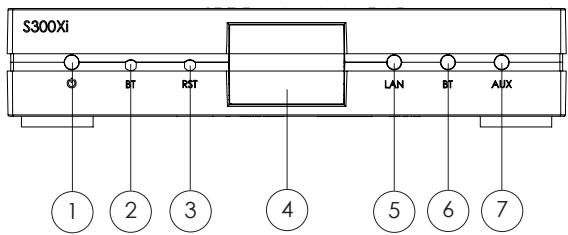

FRONT PANEL :

1- Led power (ON: white / Stand by: red - low consumption)
2- Bluetooth pairing button
3- Reset button
4-Ethernet port (switchable from the back)
5- Led for network mode (flashing white : in process / solid white : connected)
6- Led for Bluetooth mode (flashing white : in process / solid white : connected)
7- Led for AUX input

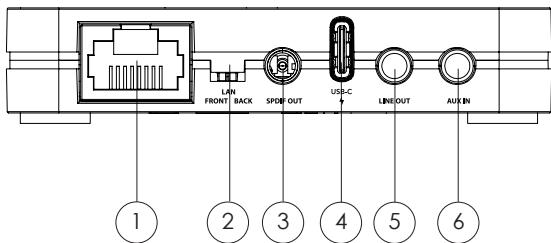

REAR PANEL :

1-Ethernet port (switchable from the back)
2- Switch to select front or back ethernet port
3- Toslink optical mini-jack 3.5 output (digital)
4-USB-C main plug 5V 1A
5- Analog mini-jack 3.5 output
6- Analog mini-jack 3.5 input

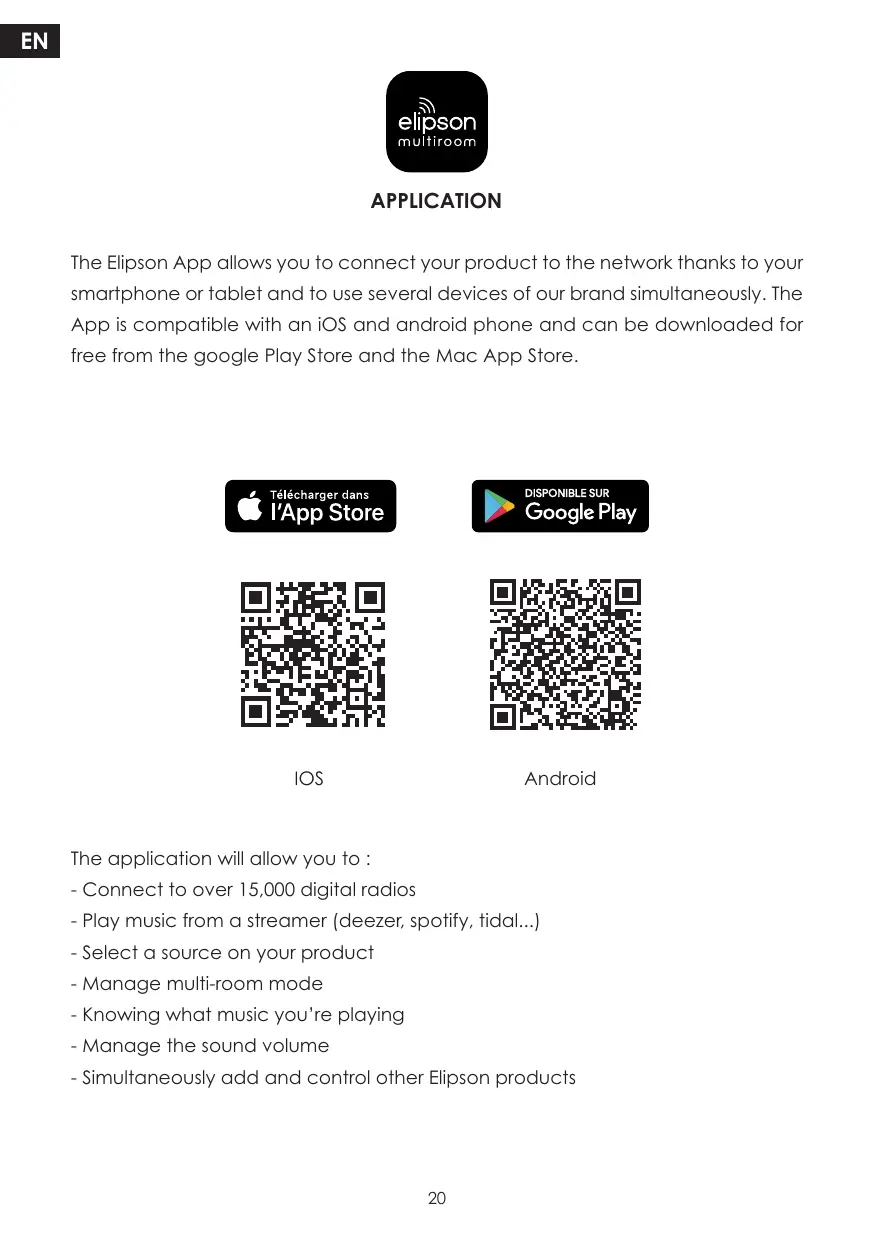

APPLICATION

The Elvis App allows you to connect your product to the network thanks to your smartphone or tablet and to use several devices of our brand simultaneously. The App is compatible with an iOS and android phone and can be downloaded for free from the google Play Store and the Mac App Store.

IOS

Android

The application will allow you to :

• Connect to over 15,000 digital radios
• Play music from a streamer (deezer, Spotify, tidal...)
• Select a source on your product
• Manage multi-room mode
• Knowing what music you're playing
• Manage the sound volume
• Simultaneously add and control other Epilson products

multi- room

elipsonmultiroom App

Works with Apple AirPlay 2

Chromecast built-in

Bluetooth

Spotify

Use your phone, tablet or computer as a remote control for Spotify.

Go to spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here:

https://www.spotify.com/connect/third-party-licenses.

IV. USING THE STREAM S300 Xi

After connecting the streamer to your amplifier, plug in the power supply.

Depending on your system, you can either use the optical output on an external DAC or connect the analogue output to an amplifier (line or AUX input).

WI-FI CONNECTION :

In order to successfully connect your Elipson Stream S300 Xi to your home network follow the detailed instructions in our Elipson Multiroom application.

Do not hesitate to refer to the tutorials on our website if you encounter any difficulties during the process.

RESETTING PARAMETERS :

Press and hold the "RESET" button on the front of the unit until the "Power", "LAN", "BT", "AUX", LEDs flash simultaneously. Once the restoration is complete, the unit will automatically start the Wi-Fi network connection procedure.

DO NOT USE ANY KIND OF CLEANING SOLUTION OR CLEANER ON THESE UNITS. IF FOR SOME REASON THE DEVICE NEEDS TO BE REPAIRED, PLEASE CONTACT US IMMEDIATELY. WE WILL ISSUE A RETURN AUTHORIZATION NUMBER. THIS UNIT SHOULD NOT BE SHIPPED BACK TO ELIPSON WITHOUT THE RA#.

DO NOT ATTEMPT TO OPEN OR DISMANTLE THIS DEVICE.
THIS WILL Void THE WARRANTY!

POSSIBLE BREAKDOWN :

The product connects and disconnects from the Wi-Fi network.

• Check that the broadband of your Wi-Fi network is sufficient.
• Check that the device is not too far from the router
• Prefer the ethernet connection via an RJ45 cable

No sound on a channel:

• Check the connection to the amplifier

VI. 2.4G & 5G DÉCLARATION / STATEMENTS

RF Exposure Information: To maintain compliance with FCC RF exposure requirements, use the product that maintain a 20cm separation distance between the user's body and the host. MPE (Maximum Permissible Exposure) limit for RF exposure at prediction frequency and satisfy RF exposure compliance.

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

FCC/ IC Radiation Exposure Statement

This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.

Do not use the device in the environment at too high or too low temperature, never expose the device under strong sunshine or too wet environment. The suitable temperature for the product and accessories is 0^ - 40^ .

Operating frequency range and maximum transmit power

• Bluetooth: 2402MHz 2480MHz, < 9.11dBmEIRP
• WLAN 2.4GHz: 2412MHz ~ 2472MHz, <20 dBm EIRP
• WLAN 5GHz: 5150MHz 5825MHz, < 20dBmEIRP

The device for operation in the band 5150~5350 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

This product can be used across EU member states & UK.

Hereby, Epipson using Linkplay Technology Inc. Corporation, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

DECLARATION CE & UKCA :

The WEEE symbol indicates this ELIPSON product complies with the European Parliament and Council Directive 2012/19/EU concerning Waste Electrical and Electronic Equipment (WEEE). This product must be appropriately recycled or processed in accordance with these directives. Consult your local waste disposal

authority for guidance.

WARRANTY

These device has a limited 2 year warranty. This warranty includes 2 year parts and repair labor on all components.

The warranty extends only to the original purchaser of the product and not to any subsequent owner.

Elipson's obligation under these warranties is limited to repairing or replacing any component found defective in material or workmanship under normal conditions of use with an equal and/or current product.

These warranties shall not apply to products which have been abused, modified, or disassembled.

Products to be repaired or returned under this warranty must be returned to the factory through an authorized Epilson dealer with all transportation and insurance charges prepaid.

TOCLAIM REPAIR UNDER WARRANTY

To claim repair or service under warranty you simply have to contact your local Epilson dealer, from whom your equipment has been purchased. To ensure that you will be able to ship your damaged product in correct manner, always retain the original packaging of your Epilson equipment. If you cannot contact your original dealer, or if you are using your Epilson product outside the purchase country, you should contact Epilson national distributor in the residence country, who will advise where the equipment can be serviced.

You can also visit our web site to check our contact information : www.elipson.com

To validate your warranty, you need to produce, as a proof of purchase, your original purchase invoice specifying the date of purchase and stamped by your dealer.

ELIPSON'S POLICY IS TO CONTINUOUSLY INCORPORATE IMPROVEMENTS INTO OUR PRODUCTS.

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TO FIND OUT MORE ABOUT THE ADVANCED OPTIONS OF THIS PRODUCT OR IF YOU HAVE ANY QUESTIONS, PLEASE VISIT OUR WEBSITE :

WWW.ELIPSON.COM

OR CONTACT US :

[e-mail]

elipson | Stream S300 Xi

LECTEUR RÉSEAU AUDIO - STREAMER HI-RES
