Product Type	Marine Source Unit
Brand	Clarion
Model	CMM-10i
Receiver Dimensions (W x H x D)	110 mm x 63 mm x 80 mm
Mounting Hole (W x H)	72 mm x 46 mm
Operating Voltage	14.4 V DC (10 V - 16 V)
Current Consumption / Fuse Rating	15 A (max.) / 40 mA (standby) / 15 A
Amplified Output Power	20 W x 4 RMS at 4 Ω
Display	53 mm (2.09 in) TFT LCD backlit
Tuner	FM / AM / DAB+
Bluetooth	Version 5.0, range up to 11 m
USB Interface	USB 2.0 high speed, 1 A charging
Supported Audio Formats (USB)	MP3, WMA, FLAC, WAV
Preamp Audio Outputs	2 stereo RCA pairs (1.5 V RMS)
Zone 2 Configuration	Z2 (rear) or Subwoofer
Operating Temperature	-20 °C to +35 °C
Water Resistance	Yes (do not immerse)
Maintenance and Cleaning	Clean with a soft, dry cloth. Avoid solvents.
Safety	Use on 12 V negative ground vehicles. Secure firmly. Do not use in aircraft.
Spare Parts and Repairability	Consult a professional for any repairs. 15 A fuse replaceable.
General Information	Complies with FCC Part 15 and IC RSS-102. Minimum distance 20 cm.

Frequently Asked Questions - CMM-10i CLARION

How to turn the device on and off?

Briefly press the SOURCE button to turn on; press and hold to turn off.

How to adjust the volume?

Rotate the Volume/Select knob to increase or decrease the volume.

How to mute the sound?

Briefly press the II (Mute/Pause) button to mute or unmute.

How to connect a phone via Bluetooth?

Access the Bluetooth menu via BACK/MENU, select PAIR NEW DEVICE, then enable Bluetooth on your phone and select 'CMM-10i'.

What audio formats are supported via USB?

Supported formats are MP3, WMA, FLAC and WAV. Limit of 255 folders and 3000 files per folder.

How to adjust the bass and treble?

Briefly press SETTINGS to access the audio menu, then rotate to navigate to BASS or TREBLE and adjust from -10 to +10.

How to configure the output for a subwoofer?

Press and hold SETTINGS, select Z2/SUB and set to SUB. Then, in the audio menu, adjust the SUB level from 0 to +10.

How to save a radio station as a favorite?

Tune to the desired station, then press and hold the FAVORITES button to save it. You can store up to 9 FM, 9 AM and 9 DAB+ presets.

How to reset the device?

There is no direct reset via menus. You can disconnect the vehicle battery for a few minutes or consult a professional.

Is the device waterproof?

It is water resistant but should not be immersed or subjected to high-pressure water jets. Install it in a dry location or protected from heavy splashes.

USER MANUAL CMM-10i CLARION

Marine Source Unit with LCD Display

OWNER'S MANUAL

MANUEL D'UTILISATION

MANUAL DEL PROPIETARIO

BEDIENUNGSANLEITUNG

MANUALE DEL PROPRIETARIO

CMM-10i only

Clarion

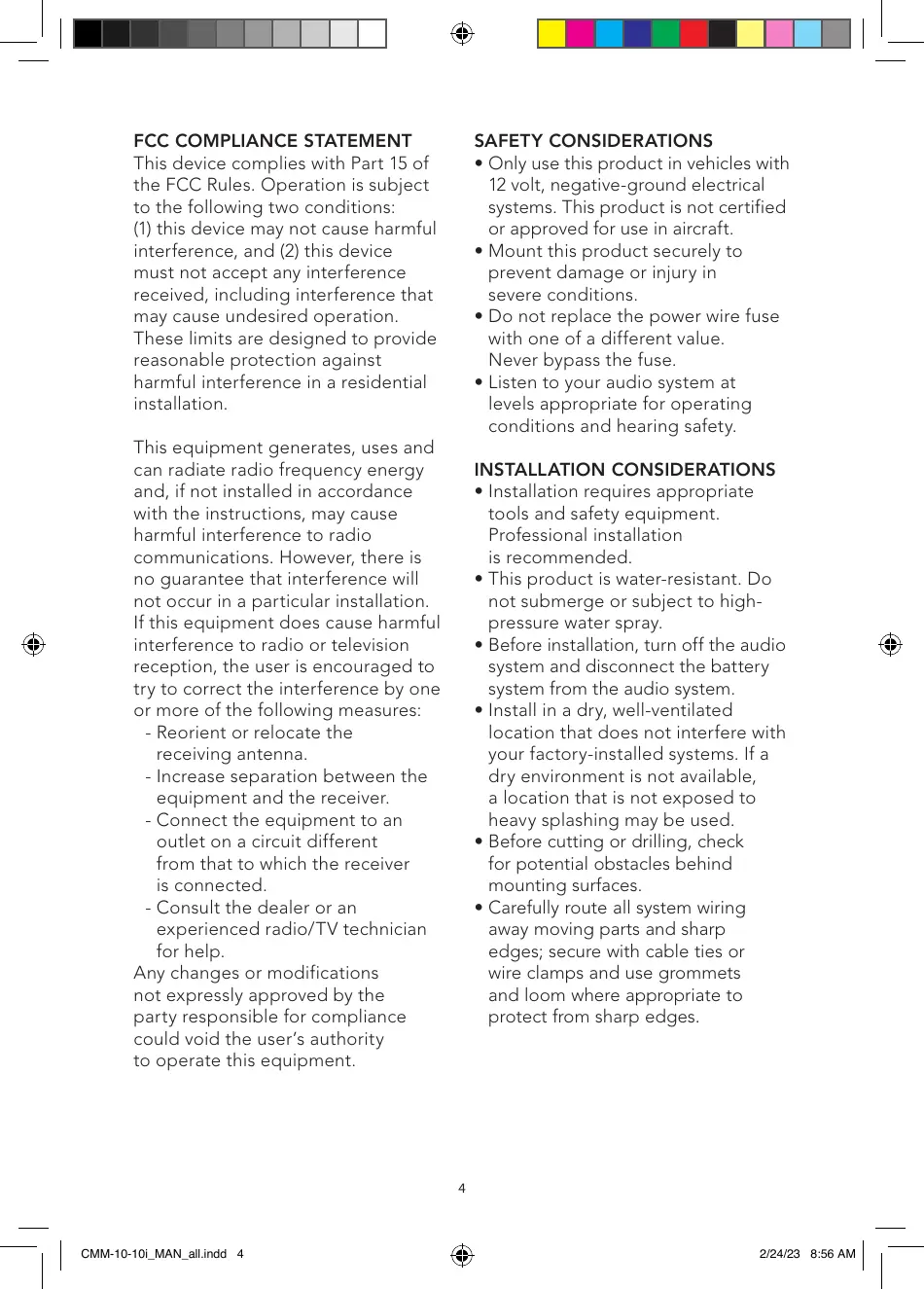

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

SAFETY CONSIDERATIONS

• Only use this product in vehicles with 12 volt, negative-ground electrical systems. This product is not certified or approved for use in aircraft.
• Mount this product securely to prevent damage or injury in severe conditions.
• Do not replace the power wire fuse with one of a different value. Never bypass the fuse.
• Listen to your audio system at levels appropriate for operating conditions and hearing safety.

INSTALLATION CONSIDERATIONS

• Installation requires appropriate tools and safety equipment. Professional installation is recommended.
• This product is water-resistant. Do not submerge or subject to high-pressure water spray.
• Before installation, turn off the audio system and disconnect the battery system from the audio system.

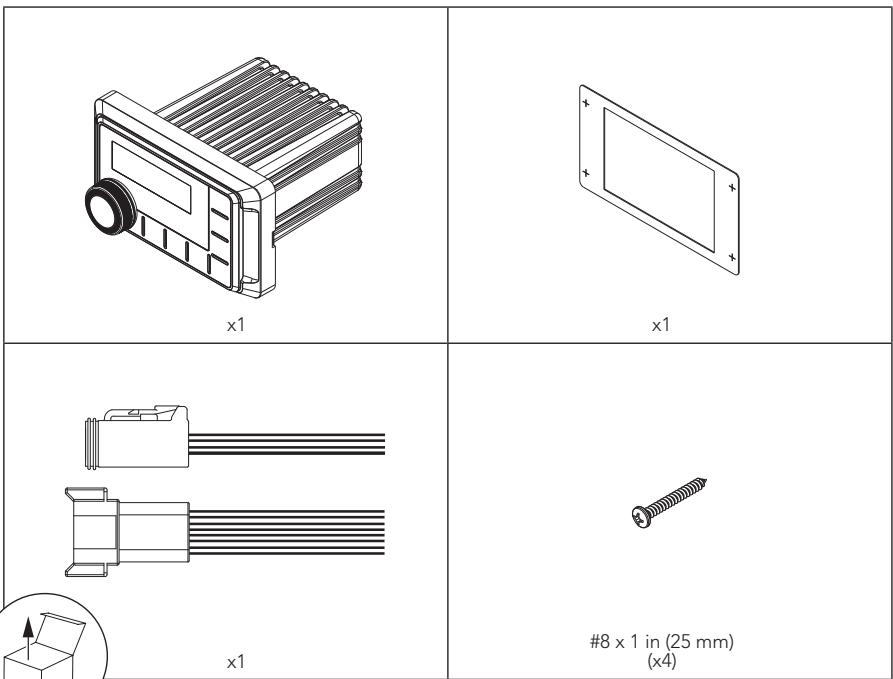

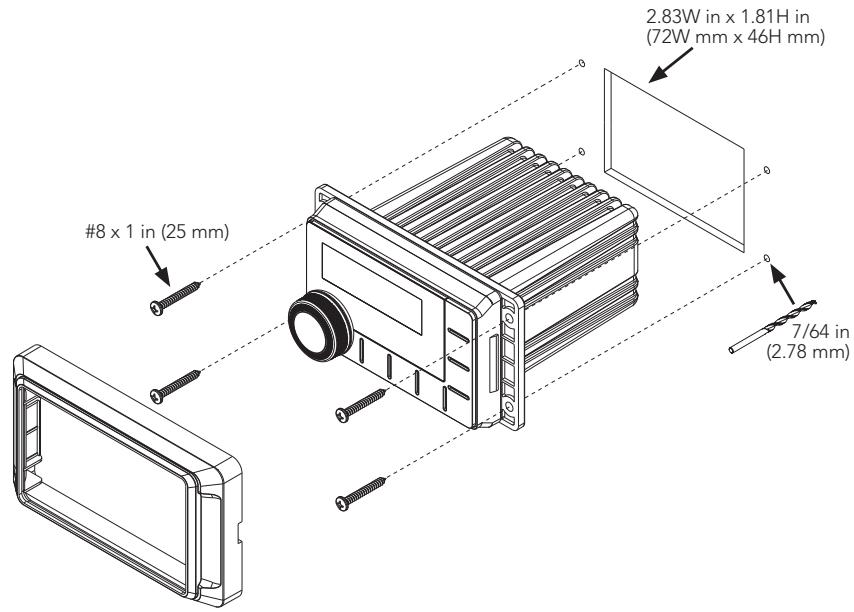

• Install in a dry, well-ventilated location that does not interfere with your factory-installed systems. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.
• Before cutting or drilling, check for potential obstacles behind mounting surfaces.
• Carefully route all system wiring away moving parts and sharp edges; secure with cable ties or wire clamps and use grommets and loom where appropriate to protect from sharp edges.

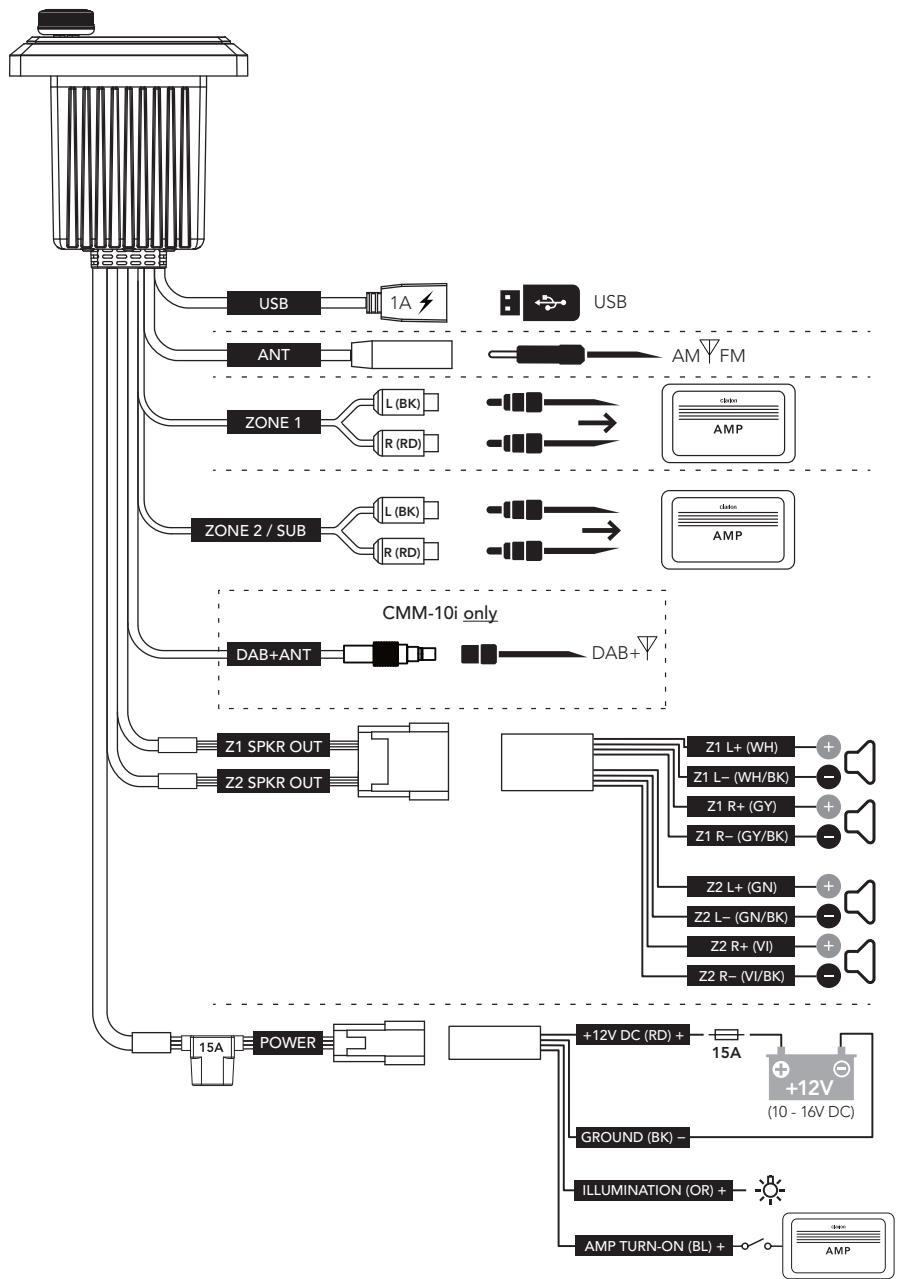

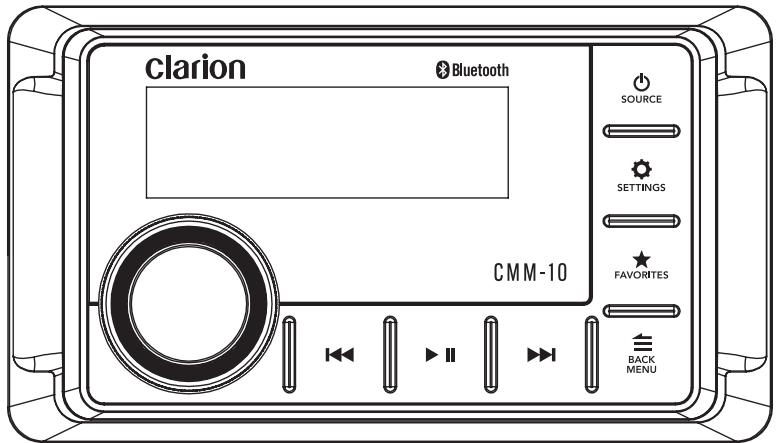

GENERAL CONTROL FUNCTIONS

Z

Control		Function
	Volume/Select	• Rotate to adjust volume • Rotate/press for navigation and making selections
SOURCE	Source/Power	• Short press to turn ON; Long press to turn OFF • Short press to advance through available sources
SETTINGS	Settings	• Short press to access audio settings (Bass/Treble/Balance/Fader) • Long press to access system settings (Z2-Sub/Beep/Area/Dimmer/Diagnostic)
BACK MENU	Back/ Menu	• Short press to go back one step or access source specific menus
FAVORITES	Favorites	• Short press to access stored presets • Long press to store a frequency as a preset (up to 9 FM, 9 AM and 9 DAB+)
II	Mute/Pause	• Short press to mute/unmute audio (AM/FM/DAB+) or pause/resume the current selection (USB/Bluetooth)
	Forward	Short press to: • Manually adjust tuner forwards (AM/FM/DAB++) • Select the next track (USB/Bluetooth) Long press to: • Seek to the next channel (AM/FM/DAB++) • Fast-forward (USB/Bluetooth)
	Backward	Short press to: • Manually adjust tuner backwards (AM/FM/DAB++) • Restart track/select the previous track (USB/Bluetooth) Long press to: • Seek to the previous channel (AM/FM/DAB++) • Fast-rewind (USB/Bluetooth)

SYSTEM MENU SETTINGS

SETTINGS	• Long press to access settings
	• Rotate to navigate • Press to make selections
Setting	Function
Z2/SUB	Configs preamp outputs: Z2 (rear) or Subwoofer
BEEP	Audible button press confirmation: On or Off
AREA	Configs tuner region: USA, Europe, Australia or Other
DIMMER	Configs display and button brightness from 0 to +10
DIAG	Displays software version for diagnostics

AUDIO MENU SETTINGS

SETTINGS	·Short press to access settings
	·Rotate to navigate ·Press to make selections
Setting	Function
BASS	Bass level control from -10 to +10
TREBLE	Treble level control from -10 to +10
BALANCE	Balance control from full left (L10) to full right (R10)
FADER	Fader control from full front (Z1: 10) to full rear (Z2: 10)
SUB	Subwoofer preamp level control from 0 to +10 (Z2/SUB must be set to SUB)

FAVORITES MENU SETTINGS

★ FAVORITES	• Short press to access settings/stored presets • Long press to store a frequency as a preset (up to 9 FM, 9 AM and 9 DAB+)
	• Rotate to navigate • Press to make selections
Setting	Function
DELETE	Select from stored presets for removal
REPLACE	Permits replacement when all preset locations are occupied

BLUETOOTH MENU SETTINGS

BACK/MENU	• Short press to access settings
	• Rotate to navigate • Press to make selections
Setting	Function
PAIR NEW DEVICE	Initiates Pairing Mode (current connected devices will be disconnected)
CONNECT PAIRED DEVICE	Display all paired devices for connection
SET PRIMARY DEVICE	Assign priority to a paired device for automatic connection
DELETE PAIRED DEVICE	Select from paired devices for removal
DELETE ALL DEVICES	Removes all paired devices from memory

Z

USB MENU SETTINGS

BACK/MENU	• Short press to access settings
	• Rotate to navigate • Press to make selections
Setting	Function
RANDOM	Random playback of all tracks within all folders: On or Off
REPEAT	Repeats playback of the current track: On or Off
PLAY ALL	Plays all tracks within all folders: On or Off
FOLDERS	Displays folders within the USB
TRACKS	Displays tracks not located within a folder

SPECIFICATIONS

Electrical
Operating Voltage	14.4V DC (10V – 16V)
Operating Temperature	-4° F to +95° F (-20°C to +35°C)
Current Draw / Fuse Value	15 A (max) / 40 mA (standby) / 15 A
Remote Turn-On Output	500 mA
Display	2.09 in. TFT LCD backlit
Tuner
FM Tuner	USA: 87.9 MHz to 107.9 MHz (0.2 MHz step) EUR: 87.50 MHz to 108.00 MHz (0.05 MHz step) AUS: 87.50 MHz to 108.00 MHz (0.10 MHz step) OTHER: 87.50 MHz to 108.00 MHz (0.05 MHz step)
AM Tuner	USA: 530 kHz to 1710 kHz (10 kHz step) EUR: 531 kHz to 1602 kHz (9 kHz step) AUS: 531 kHz to 1629 kHz (9 kHz step) OTHER: 531 kHz to 1629 kHz (9 kHz step)
Favorites	Up to 9 FM, 9 AM and 9 DAB+
Bluetooth®
Profile	5.0
Core Specification / Codec	Version 2.1 + EDR / SBC
Connection Range	Up to 35 ft / 11 m
USB
Interface	USB 2.0 High Speed
Supported Audio Formats	MP3, WMA, FLAC, WAV
File Limits	Folders: 255 Files in a single folder: 3,000 Total Files: 9,999
Charging Output	1 A
Preamp Audio Outputs
Output Channels	Two stereo pairs of RCA plugs (1.5V RMS)
Zone 2 Configuration	Z2 (Rear) or Subwoofer
Amplified Audio Outputs
Rated RMS Power @ 14.4V	20W x 4 @ 4 Ω
Audio Control Options
Tone & Balance	Bass, Treble, Balance, Fader (Zone 1 / Zone 2 or Subwoofer)
Dimensions
Unit W x H x D	4.33 in. x 2.48 in. x 3.15 in. (110 mm x 63 mm x 80 mm)
Mounting Hole W x H	2.83 in. x 1.81 in. (72 mm x 46 mm)

RF exposure statement

This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

For the following equipment:

Product Name: Marine Source Unit

Brand Name: --

Model No.: CMM-10i, CMM-10

JL Audio, Inc.

E-mail: [e-mail]

hereby declares that this [Name: Marine Source Unit, Model: CMM-10i, CMM-10] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and Radio Equipment Regulations 2017 (SI 2017 No. 1206, as amended by SI 2019 No. 696).

This product is intended for sale and application in a business environment.

RED Article 10 2

-This product can be used across EU member states

RED Article 10 10

• The product is class 1 product, No restrictions

The RF distance between body and product is 0mm

Bluetooth

Bluetooth Version: Bluetooth V5.0(BR/EDR Mode)

Frequency Range: 2402MHz-2480MHz

Max.RF Output Power: 3.95dBm (EIRP)

AM

Frequency Range: 526.5-1606.5kHz Receiving

FM

Frequency Range: 87.5~108.0MHz Receiving

DAB

Frequency Range: 174-240MHz Receiving

DECLARATION DE COMPATIBILITÉ FCC
