USER MANUAL Kombi - STYLE DOUBLE KRAMPOUZ

Electric plancha Instructions for use

4 mm Allen key (supplied)

4 mm iInbusschlüssel (wird mitgeliefert)

Phillips screwdriver (not supplied)

1 destornillador de estrella (no incluido) Kreuzschraubenzieher (wird nicht mitgeliefert)

1 clé plate de 13 mm (non fournie)

13 mm open end wrenches (not supplied)

Insert the feets into the slots in the tray

EN Tighten the screw until it is completely locked.

© — ©: œ fe | ARS É ©) 1 2 3

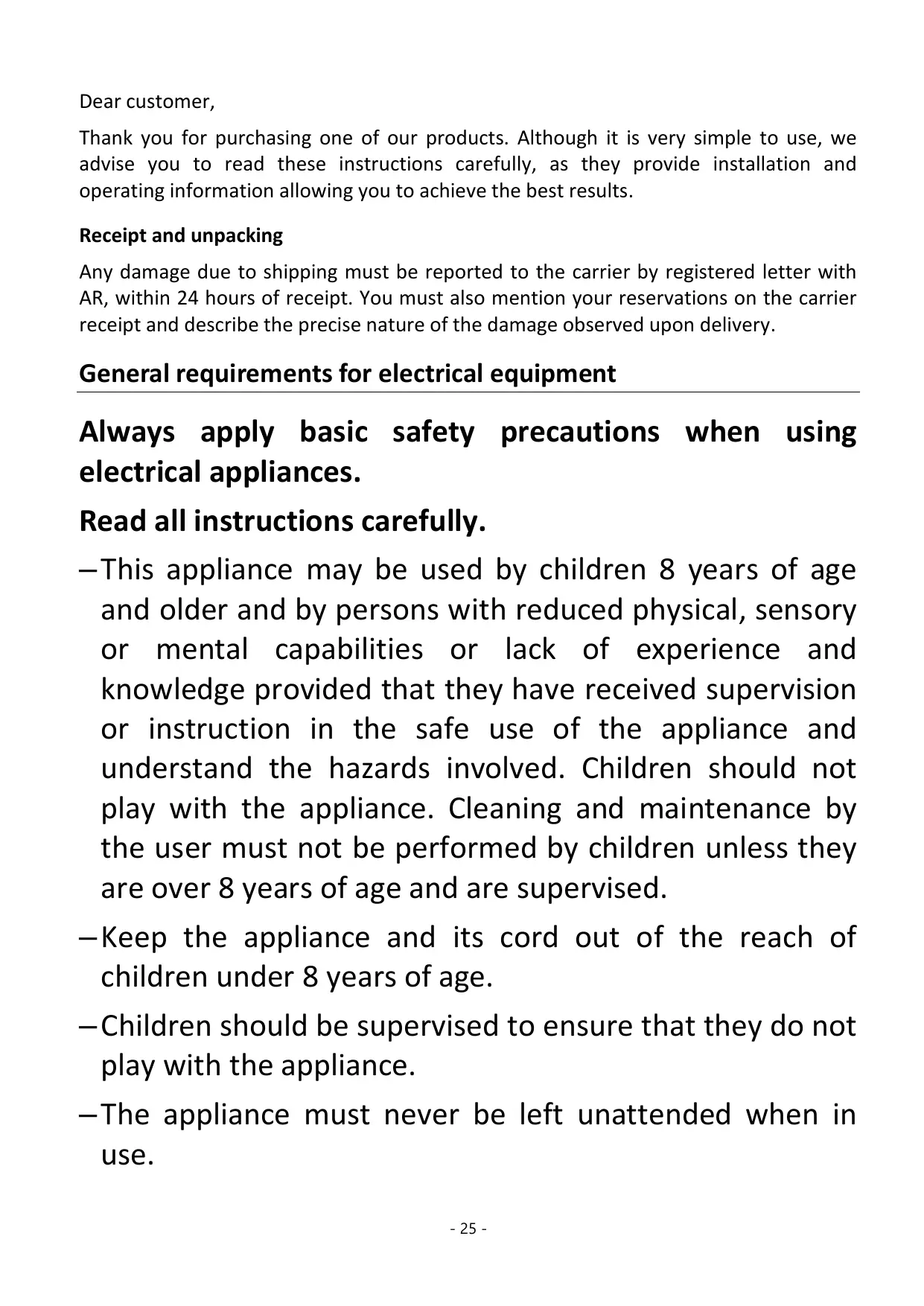

Thank you for purchasing one of our products. Although it is very simple to use, we advise you to read these instructions carefully, as they provide installation and operating information allowing you to achieve the best results.

Receipt and unpacking

Any damage due to shipping must be reported to the carrier by registered letter with AR, within 24 hours of receipt. You must also mention your reservations on the carrier receipt and describe the precise nature of the damage observed upon delivery.

General requirements for electrical equipment

Always apply basic safety precautions when using electrical appliances.

Read all instructions carefully.

—This appliance may be used by children 8 years of age and older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided that they have received supervision or instruction in the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and maintenance by the user must not be performed by children unless they are over 8 years of age and are supervised.

—Keep the appliance and its cord out of the reach of children under 8 years of age.

—Children should be supervised to ensure that they do not play with the appliance.

—The appliance must never be left unattended when in use.

—This appliance is intended for domestic or similar use only, and not for intensive use, such as: in kitchenettes for staff in stores, offices and other work environments: on farms; by guests in hotels, motels and other residential environments; in bed & breakfast-type establishments.

—The drip tray must always be attached when the appliance is in use. Wait until the plancha has cooled before removing.The appliance is to be used indoors under an extractor hood.

—The appliance is suitable for outdoor use.

—Do not use the appliance for a purpose other than the oneit is intended for.

—Do not move the appliance during operation.

—The use of accessories not recommended by the appliance's manufacturer may cause accidents.

—The appliance must be connected to an earthed (3- point) power socket.

—The appliance must be powered by means of a residual current device with a rated residual operating current of 30 mA or below.

—When using an extension cord, it must be unwound fully to prevent the cable from overheating. Ensure the socket is not overloaded (check the wattage of the appliance).

—To guard against electric shocks, do not immerse the lead, connector or body of the appliance in water or any other liquid. Do not handle with wet hands.

—Do not leave the lead hanging from a table or counter.

—Do not place the appliance and its lead on or near a surface which is likely to become hot (cooking plate, gas burner, oven, etc.).

—Place the appliance on a stable and dry surface, slightly away from the edge and further than 20 cm away from any wall and heat-sensitive element.

—Do not cover the vents, otherwise you may trigger the thermal protection system due to the product overheating internally.

— Warning: do not use this appliance with charcoal or an energy source other than the one it was designed for (electric power).

— Disconnect the plug when the appliance is not in use or before cleaning it.

— Always connect and disconnect the power lead when the temperature is set to the minimum and to stop.

— Before use, wash the cooking plate with warm, soapy water.

—Leave the appliance to cool down before handling or cleaning it. Do not handle the appliance when hot.

—Do not clean the appliance with a high or low pressure

—We advise you to keep the original packaging to store the appliance.

—We recommend that you inspect the power cable regularly for any sign of damage.

—Do not connect or use an appliance with a damaged lead or plug. If the power supply cable is damaged it must be replaced by the distributor, its after-sales service or qualified persons to avoid any danger.

—In the event of a failure, inspection and repairs must be performed by an approved technician.

—The appliance is not intended to be operated using an external timer or a separate remote control system.

KEEP THESE INSTRUCTIONS

Technical description

Characteristics — Stainless steel frame and cooking plate — Food-grade certified plate — IPX4 certified appliance (Suitable for outdoor use) — Tofix to stainless steel support — Edges on the 3 sides — Stainless steel protective lid — Removable, disposable cooking waste collector — Single phase 220-240 V power supply — 2 heating zones regulated by 2 thermostats (adjustable from 50 to 300 °C) — 2heatingindicators

— Power : 2 x 1250 W, or 2500 W This appliance complies with the CE European Directives.

For more instructions on how to assemble the appliance, please refer to page 3 of the assembly instructions.

Once the appliance is fixed to its cart, remove the protective films on the cooking plate before using it for the first time.

Place the appliance on a solid, flat, heat-resistant surface. If this appliance must be placed in close proximity to a wall, partition, kitchen furniture, decorative borders, etc.they should be of non-flammable material. If not, they should be covered by appropriate heat insulating, non-combustible material, with particular attention paid to fire prevention regulations.

Set the plancha in a sheltered location, away from wind and draughts. The lid will protect your appliance from the elements. Make sure that the lid is open before using the plancha and do not close it during cooking. After the appliance has been switched off, wait for it to cool completely before cleaning and closing the lid. Hold the lid handle securely when closing the lid and check nothing is trapped between the lid and the

plate and/or outer casing of the appliance. We recommend storing the appliance with the lid closed.

Connect the plancha to the nearest power source (see technical specifications of the appliance). Caution! When you connect the plancha, it switches on automatically.

Turn the temperature controls to the minimum position and disconnect the appliance.

Cooking Choose the cooking temperature according to the food (see cooking chart).

Preheat the plancha for 10 minutes by setting the selected temperature. If necessary, coat the plate evenly with oil using a pad or brush. Place the food on the plate and cook according to your taste.

With time, you will come to learn the most suitable temperatures for the items to be cooked according to their thickness, texture and your personal tastes.

The temperatures and times below are provided as a guide only.

ADVICE In order to avoid making deep scratches on the plate, do not cut your food directly on it.

Do not leave kitchen utensils on the plancha, such as cutlery, wooden spoons, plastic utensils, etc.

Do not cook at too high a temperature as this may char the plate and make it difficult to clean.

The plancha can be used at the end of cooking to keep the food hot at temperatures from 50 to 100 °C.

For all our recommendations for use and recipes, go to our website at www.krampouz.com

Maintenance and cleaning

Scratches and black spots appear soon during the normal course of use of the appliance. This will not impair cooking in any way.

Cleaning is performed with the plancha switched off and the power lead disconnected. It is easier if the plancha is still lukewarm. Beware risks of burns.

Use a rigid spatula to remove the bulk of the juices adhering to the cooking plate by pushing them towards the removable tray for collecting cooking residues.

Then thoroughly moisten the cooking plate to water down the remaining juices (using a sponge filled with water or by dropping ice cubes ont). Leave for a few minutes.

Use the rigid spatula to remove the remaining watered down juices by pushing them towards the removable tray for collecting cooking residues. A stainless steel scrubber can be used to to remove any juices stuck to the plate.

Finish cleaning with a soft sponge. Pour white vinegar onto the plate to remove odours and residual flavours.

After cooking salty preparations, the cooking plate must be cleaned promptly (risk of the plate being corroded by the salt). Do not use cleaning products that contain chlorine on stainless steel, as they may cause corrosion.

The frame, the side shelf and the cover

Clean the ferritic stainless steel outer, side shelf and cover casing with a damp sponge. Do not use an abrasive sponge, scourer or brush. Ensure the appliance is cold before cleaning.

Cooking waste collector This collects the cooking waste. It must be handled once the appliance is cool and then emptied and cleaned before the next use.

Store your plancha in a dry and safe location where it will not be damaged. Before storing away for the winter, clean your plancha thoroughly and apply a stainless steel protector.

CAT Our maintenance advice is available at www.krampouz.com :

Discover below the indispensable accessories for your plancha. For more information on these accessories, go to www.krampouz.com

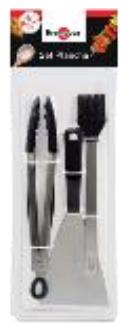

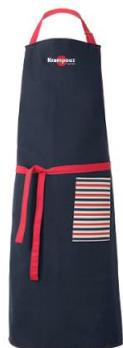

Cooking , mg | (l ô 2? Plancha set (Ref. ASP1) Stainless steel cooking dome Apron (Ref. ATC5) (Ref. ACC1) Cleaning Cleaning kit (Ref. AKN1)

Guarantee and After-sales service

This appliance is guaranteed for 2 years for the spare parts. The cooking plate is guaranteed for 10 years in terms of cooking capacity.

We do our very best to ensure that our appliances reach you in perfect operating condition. If you find a fault when unpacking, report this to the shop within 48 hours.

If during this period, you observe a malfunction, refer to your retailer. The following is excluded from the guarantee:

1. Normal wear of the product not impairing the operation of the appliance (scratches, the beginnings of superficial corrosion, black spots, impacts, colour changes, etc.)

2. Damage resulting from an abnormal event or use, a modification of the product or non compliance with the indications provided in the operating instructions.

3. Damage resulting from a professional, industrial or collective use. 4. Damage resulting from a fall or impact.

Krampouz may not be held liable for damage caused to objects or persons resulting from improper installation or use of the appliance.

The crossed out bin symbol, affixed to the product or its packaging, indicates that the product must not be treated as household waste. It must be disposed = of at a collection point suitable for recycling electric and electronic equipment:

"_inretail points if purchasing equivalent equipment,

“in collection points made available to you locally (drop-off centre, selective collection, etc.).

By ensuring that this product is indeed scrapped appropriately, you will help to prevent potential negative consequences for the environment and human health. Material recycling will help to preserve natural resources. For any additional information about the recycling of this product, call your local authorities, your drop-off centre or the store where you purchased the product.

Please send us your suggestions.
