English Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers’ requirements. The products are designed for reliability even under extreme con- ditions. STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support. STIHL expressiy commit themselves to a sus- tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmental friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

KEEP IN A SAFE PLACE FOR REFERENCE. 2 Guide to Using this Manual

2.1 Applicable Documentation

Local safety regulations apply. Read, understand and save the following documents in addition to this instruction man- ual: — Safety information for STIHL batteries and products with built in batteries: www.stihl.com/safety-data-sheets

À onncrr = This nolice refers Lo risks Which result in Sert- ous or fatal injury. + Serious or fatal injuries can be avoided by taking the precautions mentioned. À WARNING = This notice refers Lo risks Which can result in serious or fatal injury. + Serious or fatal injuries can be avoided by taking the precautions mentioned. 2 Guide to Using this Manual NOTICE = This notice refers {o risks Which can result in damage to property. > Damage to property can be avoided by tak- ing the precautions mentioned

[A ris symbol refers 10 a chapter in this instruction manual. 3 Overview

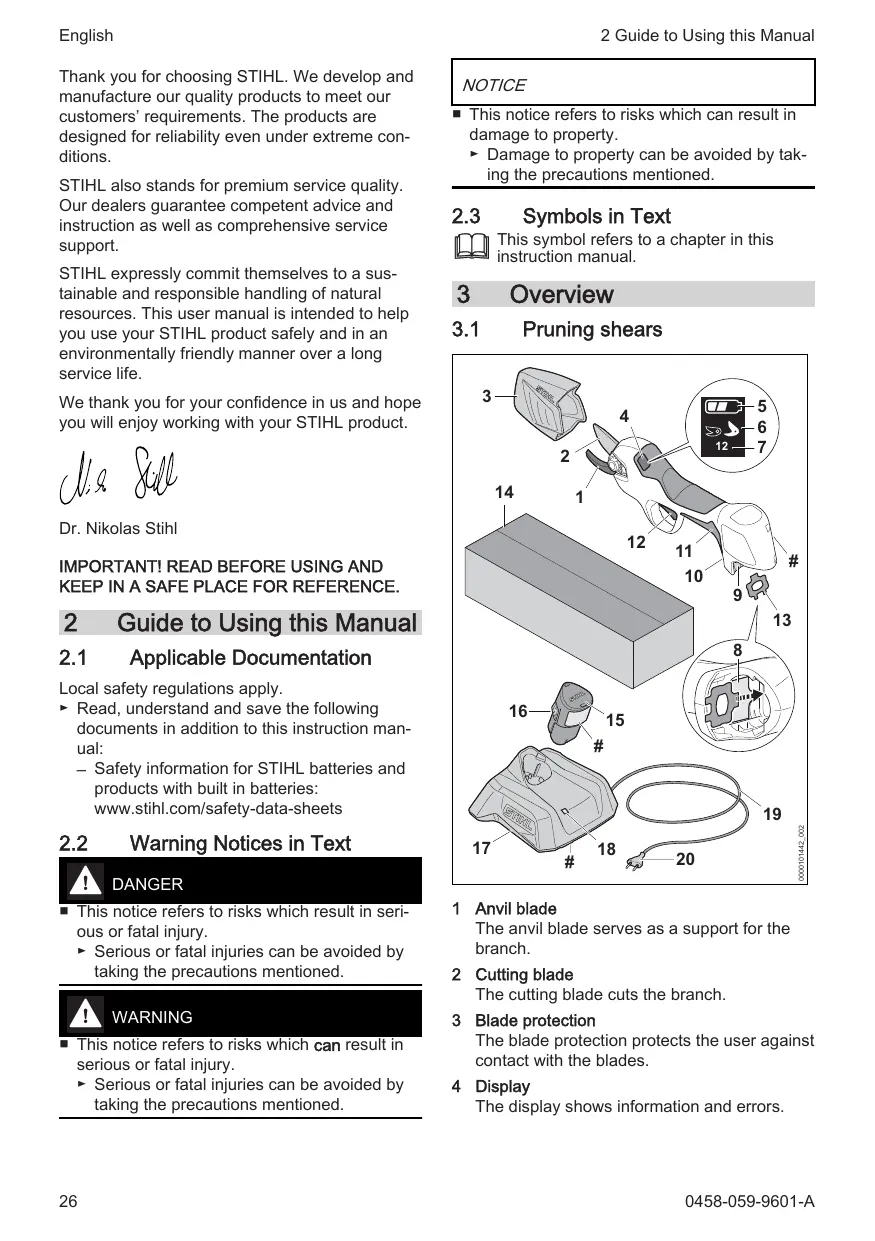

1 Anvil blade The anvil blade serves as a support for the branch. Cutting blade The cutting blade cuts the branch. Blade protection The blade protection protects the user against contact with the blades. 4 Display The display shows information and errors.

4 Safety Precautions 5 Display The display shows the state of charge of the battery. 6 Display The display shows the configured opening width of the blade. 7 Number of cuts display The display shows the total number of cuts. 8 Bracket for combination wrench The bracket is used for storing the combina- tion wrench in the battery compartment. 9 Battery compartment The battery compartment holds the battery. 10 Pushbutton D The pushbutton switches the pruning shears on and off. 11 Control handle The control handle is used to operate, hold and guide the pruning shears. 12 trigger The trigger opens and closes the cutting blade. 13 Combination wrench The combination wrench is used to release the fittings of the cover and blades. 14 Packaging The packaging is used for storing and trans- porting the pruning shears. In the set (consist- ing of pruning shears, battery and charger) the packaging is used for storing and trans- porting the pruning shears, the battery and the charger. 15 Battery The battery supplies power to the pruning shears. 16 Locking hook Holds the battery in the battery compartment. 17 Charger The charger charges the battery. 18 LED The LED indicates the status of the charger. 19 Connecting cable The connecting cable connects the charger to the mains plug. 20 Mains plug The mains plug connects the connecting cable with a socket # Rating plate with machine number 0458-059-9601-A English

Meanings of symbols that may be on the pruning shears, battery and charger: The LED lights up or flashes green. (=) The battery is charging. The LED flashes red. There is no elec- trical contact between the battery and the charger or there is a fault in the battery or in the charger. The information next to the symbol indi- cates the energy content of the battery according to (he cell manufaclurers speci. cation. The energy content available in operation is lower. Operate the electric product in a dry place, indoors only. Do not dispose of the product with your household waste. Read and understand the User Manual and keep it in a safe place for reference. LÈ— The trigger has various - functions. 4 Safety Precautions

Meanings of warning signs on the pruning shears: Pruning shears Observe safety notices and take the necessary precautions. Read and understand the User Manual and keep it in a safe place for refer- ence. 0 Do not touch the moving cutting blade. Remove the battery during work inter- ruptions, transport, storage, mainte- nance or repair.

English NN Protect the pruning shears from rain (N) and dampness.

Meaning of warning symbols on the battery: Observe safety notices and take the necessary precautions. Read and understand the User Manual and keep it in a safe place for refer- ence. fire. Do not immerse the battery in liquids: © Protect the battery against heat and

Meanings of the warning signs on the charger: Observe safety notices and take the necessary precautions. Charger and keep it in a safe place for refer- ence. Protect the charger from rain and dampnecs. 42 Intended Use STIHL pruning shears are designed for cutting trees, shrubs, bushes, ornamental plants, grape- vines and similar woody shrubs with a maximum stem diameter of 25 and at an average cutting frequency of up to 12 cuts per minute in vine- yards, orchards and for landscaping. @ Read and understand the User Manual The pruning shears must not be used in the rain. The pruning shears are not suitable for commer- cial use. The STIHL AS battery supplies power to the pruning shears The STIHL AL 1 charger recharges the STIHL AS battery. 4 Safety Precautions A WARNING = Batteries and chargers not explicitly approved for the pruning shears by STIHL may cause a fire or explosion. Persons may be seriously or fatally injured, and property may be damaged. + Use the pruning shears with a STIHL AS battery. + Recharge the STIHL AS battery with a STIHL AL 1 charger Using the pruning shears, battery or charger for purposes for which they were not designed can cause material damage and serious or fatal injuries. + Use the pruning shears, battery and charger as described in this User Manual. 43 Requirements for users A WARNING = Users without adequate training or instruction cannot recognize or assess the risks involved in using the pruning shears, battery and charger. The user or other persons may sus- tain serious or fatal injuries. > Read and understand the User Man- ual and keep it in a safe place for reference. > Ifthe pruning shears, battery or charger are passed on to another person: AIWays give them the User Manual. + Make sure that the user meets the following conditions: — The user is rested. — The user must be in good physical con- dition and mental health to operate and work with the pruning shears, battery and charger. If the user is able to oper- ate the equipment but is physically, hearing, visually or mentally impaired, the user may only work with the equip- ment under the supervision of or after receiving instruction from a responsible person. — The user is able to recognize and assess the risks involved in using the pruning shears, battery and charger. — The user is an adult or is being trained in an occupation under supervision according to national regulations. — The user has received instruction from a STIHL authorized dealer or other expe- rienced user before working with the pruning shears and using the charger for the first time. 0458-059-9601-A

4 Safety Precautions — The user is not under the influence of alcohol, medication or drugs. + If you are unsure: Contact a STIHL author- ized dealer. 44 Clothing and equipment À WARNING = Objects can be thrown at high speed during operation. This may result in injury to the user. + Wear close-fiting safety glasses. Suitable protective glasses tested to standard EN 166 or national standards and bearing the corresponding label are available from retailers. + Wear a long-sieeved, close-fiting top and long pants. = Inappropriate clothing can snag on wood, brush or the pruning shears. Users not wear- ing suitable clothing may be seriously injured. + Wear close-fitting clothing. + Remove scarves and jewelry. + Tie up and secure long hair above your shoulders. The user can come into contact with the cut- ting blade during cleaning and maintenance work. This may result in injury to the user. + Wear work gloves made of robust material. Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user. > Wear sturdy, closed-toed footwear with non-slip soles.

4.5 Work Area and Surroundings

À WARNING = Bystanders, children and animals are not aware of the dangers of the pruning shears or flying debris. This may result in serious injury to bystanders, children and animals and dam- age to property. + Keep bystanders, children and animals away from the working area. + Do not leave the pruning shears unatten- ded. + Make sure that children cannot play with the pruning shears. The pruning shears are not waterproof. If you work in rain or in a damp environment, an electric shock may oceur. This can result in injuries to the user and may damage the prun- ing shears. 0458-059-9601-A English > Do not work in the rain or in a damp environment.

Electrical components of the pruning shears can produce sparks. Sparks may cause fires and explosions in highly flammable or explo- sive environments. Persons may be seriously or fatally injured, and property may be dam- aged. > Do not work in a highly flammable or explo- sive environment.

A WARNING = Bystanders, children and animals cannot rec- ognize or assess the dangers of the battery. Bystanders, children and animals may be seri- ously injured. > Keep bystanders, children and animals away from the work area. > Do not leave the battery unattended. + Make sure that children cannot play with the battery. The battery is not protected against all ambi- ent conditions. If the battery is exposed to cer- tain ambient conditions, the battery may catch fire, explode or be irreparably damaged. This may result in serious injury to people and damage to property. + Protect battery from heat and fire. > Do not throw ihe battery into a fire. + Do not charge, use and store the battery outside of the specified temperature limits,

> Do not immerse the battery in lig- uids. Keep battery away from small metal parts. Do not expose the battery to high pressure. Do not expose the battery to microwaves. Protect the battery against chemicals and salts.

À WARNING = Bystanders and children are not aware of and cannot assess the dangers of a charger or electric current. Bystanders, children and ani- mals may be seriousiy or fatally injured. > Keep bystanders, children and animals away from the work area. vor

English + Make sure that children cannot play with the charger. 4 Safety Precautions

Install accessories as described in this User Manual or in the User Manual for the acces- = The charger is not waterproof. If you work in rain or in a damp environment, an electric shock may occur. The user may be injured and the charger may be damaged. > Do not operate it in the rain or in a ( K) damp environment. The charger is not protected against all ambi- ent conditions. If the charger is exposed to certain ambient conditions, it may catch fire or explode. This may result in serious injury to people and damage to property. Operate the charger in an enclosed, dry room. Do not operate the charger in a flammable environment or in an explosive environ- ment. Do not operate the charger on a readily combustible surface. Do not use and store the charger outside of the specified temperature limits, CA 18.5. People may trip over the connecting cable. People may be injured and the charger may be damaged. + Lay the connecting cable flat on the floor.

The pruning shears are in a safe condition if the following conditions are met: — The pruning shears are not damaged. — The pruning shears are clean and dry. — The controls function properly and have not been modified. — Original STIHL accessories designed for these pruning shears are installed. — The accessories are correctly installed. À WARNING = lnot in safe condition, components may no longer operate correctly, and safety devices may be rendered ineffective. Persons may be seriously injured or killed. Work only with undamaged pruning shears. Ifthe pruning shears are dirty or wet: Clean the pruning shears and allow them to dry. Do not modify the pruning shears. Ifthe controls do not function properly: Do not use your pruning shears. Install original STIHL accessories designed for these pruning shears.

sories. Never insert objects into the openings of the pruning shears. Replace worn or damaged warning signs. If you are unsure: Consult a STIHL author- ized dealer. 462 Cutting blade The cutting blade is in a safe condition if the fol- lowing conditions are met: — The cutting blade is not damaged. — The cutting blade is not deformed. — The cutting blade moves freely. — The cutting blade is lubricated. — The cutting blade is properly installed. — The cutting blade is properly sharpened. — The cutting blade is free from burrs. A WARNING = Ifitis in an unsafe condition, parts of the cut- ting blade may come loose and be ejected. People may suffer serious injuries as a result. > Work only with an undamaged cutting blades. Correctly lubricate the cutting blade. Properly install the cutting blade. Ifthe cutting blade is not sharp or if there is à burr on the cutting edge: Replace the cut- ting blade. If you are unsure: Consult a STIHL author- ized dealer. 463 Battery The battery is in a safe condition if the following points are observed: — Battery is undamaged. — The battery is clean and dry. — Battery functions properly and has not been modified. A WARNING = A battery that is not in a safe condition cannot operate safely. Persons may be seriously injured. Never work with a damaged battery. + Never attempt to charge a damaged or defective battery. Ifthe battery is dirty: Clean the battery. Ifthe battery is wet or damp: Allow the bat- tery to dry, LA 18.6. Never attempt to modify the battery. Never insert objects in the battery's open- ings.

4 Safety Precautions + Never bridge the battery's contacts with metallic objects (short circuit). > Do not open the battery. + Replace worn or damaged labels. Fluid may leak from a damaged battery. If that liquid comes into contact with the skin or eyes, the skin or eyes may be irritated. + Avoid contact with the liquid. + If skin contact occurs: Wash affected areas of skin with plenty of water and soap. + In the event of contact with eyes: Rinse eyes with plenty of water for at least 15 minutes and consult a doctor. A damaged or defective battery may smell unusual, emit smoke or burn. Persons may be seriously or fatallÿ injured, and property may be damaged. + Ifthe battery smells unusual or emits smoke: do not use the battery and keep it away from combustible substances. + lfthe battery catches fire: Attempt to extin- guish the battery with a fire extinguisher or water.

The charger is in a safe condition if the following points are observed: — Charger is undamaged. — Charger is clean and dry. À WARNING = lf components do not comply with safety requirements, they will no longer function properlÿ and safety devices may be rendered inoperative. This can result in serious or fatal injuries. + Do not use a damaged charger. + Ifthe charger is dirty or wet: Clean the charger and allow it to dry. Never attempt to modify the charger. Never insert objects in the charger's open- ings. Never bridge the charger's contacts with metallic objects (short circuit). Do not open the charger.

47 Operation À WARNING = Always work within calling distance of others so that you can summon help in an emer- gency. + Make sure that people are within earshot outside the working area. = In certain situations, the user may no longer be able to concentrate on their work. The user 0458-059-9601-A English may lose control of the pruning shears and may trip, fall and be seriously injured. > Work calmlÿ and methodically. + flight conditions and visibility are poor: Do not use the pruning shears. Operate the pruning shears alone. Do not work above shoulder height. Watch out for obstacles. Work standing on the ground and keep your balance. If you have to work at a height: Use a mobile elevating work platform or secure scaffolding. + If you start feeling fatigue: Take a break. The cutting blade can be damaged if it makes contact with a hard object. + Before starting work, check the work area for hard objects and remove them. > Do not cut into wire. The moving cutting blade can seriously injure the user. If the behavior of the pruning shears changes during operation or feels unusual, they may no longer be in a safe condition. This may result in serious injury to people and damage to property. > Stop working, remove the battery and con- tact a STIHL authorized dealer. = Vibrations may occur while using the pruning shears. > Wear gloves. + Take breaks. + Ifsigns of a circulatory disorder occur: Con- sult a doctor. À DANGER = Working near live electric cables can result in accidental contact with the cutting blade and damage the cables. This may result in serious or fatal injury to the user. > Do not operate in the vicinity of live cables.

À WARNING = A damaged or defective charger may produce an unusual smell or emit smoke during the charging process. This may result in personal injuries and damage to property. + Disconnect the plug from the wall outlet. vor Keep your free hand at least 40 cm away from the cutting blade. Never touch the cutting blade. Before a changing a work location, close the cutting blade. Ifthe pruning shears are briefly put down: Switch off the pruning shears.

English = The charger can overheat and cause a fire if heat dissipation is inadequate. This can result in serious or fatal injuries and damage to prop- erty. + Do not cover the charger. 49 Connecting to the power supply Contact with live components may occur for the following reasons: — The connecting cable or the extension cord is damaged. — The mains plug of the connecting cable or extension cord is damaged. — The socket is not properly installed. À DANGER = Contact with live parts may result in electric shock. This may result in serious or fatal injury to the user. + Make sure that the connecting cable, exten- sion cord and their mains plugs are undam- aged. cord is damaged: > Do not touch the damaged area. + Disconnect the mains plug from the power supply. Make sure your hands are dry before touch- ing the connecting cable, extension cord or mains plugs. Plug the mains plug of the connecting cable or extension cord into a properly installed, shockproof socket with the correct fuse rat- ing. Install the charger with a ground fault circuit interrupter (30 mA, 30 ms). A damaged or unsuitable extension cable can result in electric shock. There is a risk of seri- ous or fatal injury. + Use an extension cable with the correct cable cross-section, A 18.4. À WARNING = Overvoltage can occur in the charger if the line voltage or frequency are incorrect during charging. The charger may be damaged. + Make sure that the mains voltage and the mains frequency of the power supply match the data on the rating plate of the charger. Ifthe charger is connected to a power strip, electrical components may be overloaded dur- ing the charging process. The components may overheat and cause a fire. Persons may be seriously or fatally injured, and property may be damaged.

If the connecting cable or the extension 4 Safety Precautions + Ensure that the technical specifications for the power strip are not exceeded by the information on the rating plate of the charger and of all electrical devices connec- ted to the power strip. = Anincorrecilÿ routed connecting cable or extension cord may be damaged, and people may trip over it. People may be injured, and the connecting cable or extension cord may be damaged. + Route and mark the connecting cable and extension cord so that people will not trip over them. Route the connecting cable and extension cord so that they are not under tension or tangled. + Route the connecting cable and extension cord so that they will not be damaged, kinked or crushed and will not be chafed. + Protect the connecting cable and extension cord from heat, oil and chemicals. Lay the connecting cable and extension cord on a dry surface. The extension cable warms up in operation. If that heat cannot escape, it may cause a fire. + Ifusing a cable reel: completely unrol the cable reel. If wiring and pipes are laid in the wall, they may be damaged if the charger is mounted on the wall. Contact with wiring can result in elec- tic shock. This may result in serious injury to people and damage to property. > Make sure there is no wiring or pipes in the wall at the proposed mounting site. If the charger is not mounted on the wall as described in this User Manual, the charger or the battery may fall or the charger may over- heat. This may result in injury to people and damage to property. > Mount the charger on a wall as described in this User Manual. Ifthe charger is mounted on a wall with the battery inserted, the battery may fall out of the charger. This may result in injury to people and damage to property. > Mount the charger on the wall first before inserting the battery.

410 Transporting 4101 Pruning shears A WARNING = The pruning shears may tip over or shift during transport. People may be injured or property may be damaged. 0458-059-9601-A

4 Safety Precautions + Close the cutting blade and switch off the pruning shears. + Remove the battery. + Push the blade protection over the cutting blade so that it snaps into place and fully covers the cutting blade. + Transport the pruning shears in the packag- ing supplied. + Secure the packaging so that it cannot move.

À WARNING = The battery is not protected against all ambi- ent conditions. The battery may be damaged if itis exposed to certain ambient conditions, and damage to property may occur. + Never transport a damaged battery. + Transport the battery with the packaging. = The battery may tip over or shift during trans- port. People may be injured or property may be damaged. + Secure the packaging so that it cannot move.

À WARNING = The charger can tip over or shift while being transported. Persons may be injured or prop- erty may be damaged. + Disconnect the mains plug from the socket. + Remove the battery. + Secure the charger with lashing straps, belts or a net to prevent it turning over and moving. = The connecting cable must not be used for carrying the charger. The connecting cable and the charger may be damaged. > Wind up the connecting cable and attach it to the charger.

4111 Pruning shears À WARNING = Children are not aware of and cannot assess the dangers of the pruning shears Children may be seriously injured. + Close the cutting blade and switch off the pruning shears. 0458-059-9601-A English > Remove the battery. + Push the blade protection over the cutting blade so that it snaps into place and fully covers the cutting blade. > Store the pruning shears out of the reach of children. = Dampness can corrode the electrical contacts on the pruning shears and metal components. This can damage the pruning shears. > Close the cutting blade and switch off the pruning shears. > Remove the battery. > Store the pruning shears in a clean and dry condition. 4112 Battery À WARNING = Children are not aware of and cannot assess the dangers of the battery. Children may be seriously injured. > Store the battery out of the reach of chil- dren. The battery is not protected against all ambi- ent conditions. If the battery is exposed to cer- tain ambient conditions, the battery may be irreparably damaged. > Store the battery in a clean and dry condi- tion. Store the battery in an enclosed space. Store the battery separately from the prun- ing shears. Ifthe battery is stored in the charger, dis- connect the mains plug and store the bat- tery at a state of charge between 40% and 60%. Do not store the battery outside of the specified temperature limits, LA 18.5.

A WARNING = Children are not aware of and cannot assess the dangers of a charger. Children can be seri- ously injured or killed. + Disconnect the plug from the wall outlet. + Store the charger out of reach of children. The charger is not protected against all ambi- ent conditions. If the charger is exposed to certain ambient conditions, the charger may be damaged.

Disconnect the plug from the wall outlet Ifthe charger is hot: Allow the charger to cool down. Store the charger in a clean, dry place. Store the charger in an enclosed room. Do not store the charger outside of the specified temperature limits, LA 18.5 The connecting cable should not be used for carrying the charger or hanging up the charger. The connecting cable and the charger may be damaged. + Hold the charger by the housing in a secure grip + Hang the charger on the wall mounting.

4.12 Cleaning, maintenance and

repair À WARNING = The pruning shears may start unintentionally if the battery is left in place during cleaning, maintenance or repair work. This may result in serious injury to people and damage to prop- erty. + Remove the battery. = Harsh cleaning agents, cleaning with a water jet or pointed objects can damage the pruning Shears, the cutting blade, the battery and the charger. If the pruning shears, cutting blade, battery or charger are not cleaned correctly, components may no longer function properly or safety devices may be rendered inopera- tive. People may suffer serious injuries as a result. + Clean the pruning shears, cutting blade, battery and charger as described in this User Manual. Ifthe pruning shears, cutting blade, battery and charger are not cleaned correctly, compo- nents may no longer function properly or safety devices may be rendered inoperative. Persons may be seriously injured or killed Service or repair the cutting blade as described in this User Manual. Do not attempt to service or repair the prun- ing shears, battery or charger. Ifthe pruning shears, battery or the charger require servicing or repairs: Contact a STIHL authorized dealer for assistance. The user can be cut by the sharp cutting blade while cleaning, maintaining or repairing the cutting blade. This may result in injury to the user.

5 Preparing Pruning Shears for Operation > Wear work gloves made of robust material 5 Preparing Pruning Shears for Operation

5.1 Preparing the pruning shears

for operation The following steps must be performed before commencing work: + Ensure that the following components are in a safe condition: — Pruning shears, (A 4.6.1. — Cutting blade, LA 4.6.2. — Battery, [1 4.6.3. — Charger, (4.6.4. Check the battery, A 9.2. Fully charge the battery, [A 6.2 Clean the pruning shears, LA 14.1. Clean the cutting blade, LA 14.2. Check the controls, LA 9.1 If you cannot carry out this work: Do not use the pruning shears and contact a STIHL authorized dealer for assistance. 6 Chargingthe Battery, LEDS and Signals

6.1 Mounting the charger on a wall

The charger can be mounted on a wall. vrrrur

+ Check the following points when mounting the charger on a wall: — Use suitable mounting materials. — The charger is level. The following dimensions are observed: 62 Charging the Battery The charging time depends on various factors, e.g. the battery temperature or the ambient tem- perature. For optimum performance, note the 0458-059-9601-A

7 Removing and Fitting the Battery recommended temperature ranges, A 18.6. The actual charging time may vary from the charging time indicated. The charging time is indicated at www.stihl.com/charging-times. The charging process starts automatically when the mains plug is plugged into a socket and the battery is inserted into the charger. The charger switches off automatically when the battery is fully charged. The battery and the charger warm up during charging.

oco-ceso3-a0 Insert the mains plug (5) in a convenient wall outlet (6). The charger (2) runs a self test. The LED (3) glows green for about 1 second and then red for about 1 second. Fit the connecting cable (4). Insert the battery (1) in the guides in the charger (2) and press it home as far as stop. The LED (3) glows or flashes green. The bat- tery (1) is being charged. When the LED (3) stops glowing: The battery (1) is fully charged and can be taken out of the charger (2). If the charger (2) is no longer being used: Dis- connect the mains plug (5) from the socket (6).

6.3 Displaying the state of charge

= 6" > Insert the battery. > Switch on the pruning shears. > Ifthe left light bar flashes white: Charge bat- tery. 0458-059-9601-A English 64 LED on Charger The LED indicates the operating status of the charger or faults. The LED can glow or flash green or red. Ifthe LED glows or flashes green, the battery is being charged. + Ifthe LED glows or flashes red: Troubleshoot- ing. A 17. There is a malfunction in charger or battery.

The beeps can indicate the status of the pruning shears and malfunctions. When the pruning shears are switched on or off, a long beep sounds. Ifthe cutting blade is opened or permanently closed, three short beeps sound. Ifthe cutting blade opening width is adjusted, a short beep sounds. > Ifsix short beeps sound: Troubleshooting, LA There is an error in the pruning shears or bat- tery. 7 Removing and Fitting the Battery

7.1 Inserting the Battery

> Push the battery (1) into the battery compart- ment (2) as far as stop. The battery (1) engages in position with a click.

7.2 Removing the Battery

> Depress both locking hooks (1) The battery (2) is now unlocked and can be removed. 8 Switching the pruning shears on/off

8.1 Switching on the pruning

shears Hold the pruning shears firmiy with one hand on the control handle. Wrap your thumb around the handle and operate the trigger with your index finger. ” Press and hold the pushbutton (1) © until a long beep sounds. The display switches on, and the pruning shears are ready for operation. > Press the trigger (2) twice in quick succession. You will hear three short beeps. The cutting blade (3) opens fully. The pruning shears switch off automatically if they are not operated for more than 2 minutes. > Switch the pruning shears on again.

8 Switching the pruning shears on/off 82 Switching off the pruning shears

Press and hold the trigger (2) A short beep will sound after 3 seconds. Press the trigger (2) and keep it pressed until three short beeps sound. The cutting blade (1) closes and remains closed. Ifthe cutting blade does not close: Remove the battery and contact a STIHL authorized dealer. The pruning shears are defective. Press and hold the pushbutton (3) © until a long beep sounds. The display switches off, and the pruning shears are switched off.

NOTICE The irigger is released before ihree short beeps sound, the cutting blade opening width may be displaced and the cutting blade will not close. > To close the blade, press the trigger (2) and keep it pressed for at least 5 seconds until three short beeps sound. 9 Testing the Pruning Shears and Battery

9.1 Checking the controls

Trigger > Remove the battery. > Depress the trigger. > Ifthe trigger is stiff or does not spring back to its idle position: Do not use the pruning shears and contact a STIHL authorized dealer for assistance. The trigger is defective. Switching on the pruning shears > Insert the battery. 0458-059-9601-A

10 Operating the Pruning Shears Press and hold the pushbutton (D until a long beep sounds. The display switches on, and the pruning shears are ready for operation. Press trigger twice in quick succession. You will hear three short beeps. The cutting blade opens fully. Depress the trigger The cutting blade closes and opens. Ifthe cutting blade does not close and open: Remove the battery and contact a STIHL authorized dealer. The pruning shears are defective.

9.2 Checking the battery

Insert the battery. Press and hold the pushbutton (D until a long beep sounds. The pruning shears are ready for operation, and the display switches on. Ifthe display does not switch on: Do not use the pruning shears and battery and contact a STIHL authorized dealer for assistance. There is an error in the pruning shears or bat- tery. 10 Operating the Pruning Shears Holding and controlling the pruning shears

> Hold the pruning shears firmly with one hand on the control handle. Wrap your thumb around the handle and operate the trigger with your index finger. > Keep your free hand well away from the cut- ting blade.

10.2 Adjusting blade opening width

Depending on the branch thickness, two cutting blade opening widths can be set (19 mm/25 mm). The configured cutting blade opening width is shown in the display with a white illuminated symbol. 0458-059-9601-A English

+ Press trigger (1) and hold for 3 seconds until a short beep sounds. The cutting blade opening width increases or decreases. The white illuminated symbol in the display switches over.

The pruning shears are subject to comprehen- sive quality tests by STIHL before delivery. Therefore a few cuts are already shown in the display upon delivery. + Position the anvil blade (2) against the under- side of the branch. WARNINI # The moving cutiing blade can serious! the user. > Keep your free hand at least 40 cm away from the cutting blade: > Never touch the cutting blade. + Pull the trigger (3). The cutting blade (1) closes and the branch is cut. The cutting blade (1) then opens automat- ically. The cutting blade can jam during cutting work. A jammed blade opens automatically.

English Ifthe cutting blade is jammed: > Swing the pruning shears upward and pull them out of the cut. > Do not leverage the pruning shears sideways or downward. NOTICE The control handle becomes 100 hot during operation, the pruning shears may become damaged + Switch off the pruning shears and let them cool down. + Reduce the number of cuts per minute or diameter of the branches to be cut For optimum performance, note the recommen- ded temperature ranges, [A 18.6. 11 After Finishing Work

11.1 After finishing work

Switch off the pruning shears and remove the battery. The cutting blade must be closed. Ifthe pruning shears are wet: Allow the prun- ing shears to dry. If the battery is moist or wet: Allow the battery to dry, LA 18.6. Clean the pruning shears. Clean the cutting blade. Push the blade protection over the cutting blade so that it snaps into place and fully cov- ers the cutting blade. Clean the battery. 12 Transporting

12.1 Transporting the pruning

shears > Switch off the pruning shears and remove the battery. The cutting blade must be closed > Push the blade protection over the cutting blade so that it snaps into place and fully cov- ers the cutting blade.

11 After Finishing Work Carrying the pruning shears > Carry the pruning shears with one hand on the control handle. Transporting the pruning shears in a vehicle + Transport the pruning shears in the packaging supplied. + Secure the packaging so that it cannot move.

12.2 Transporting the battery

Switch off the pruning shears and remove the battery. The cutting blade must be closed. Check that the battery is in a safe condition. Pack the battery in packaging in such a way that it cannot move inside the packaging. + Secure the packaging so that it cannot move.

The battery is subject to the Carriage of Danger- ous Goods regulations. The battery is classified as UN 3480 (lithium ion batteries) and has been tested pursuant to UN Manual Tests and Criteria Part Ill, Subsection 38.3. The transport regulations can be found at www.stihl.com/safety-data-sheets.

12.3 Transporting the charger

Disconnect the mains plug from the socket. Remove the battery. Wind up the connecting cable and attach it to the charger. Transporting the charger in a vehicle: Secure the charger with lashing straps, belts or a net to prevent it tipping over and shifling. 13 Storing

13.1 Storing the pruning shears

Switch off the pruning shears and remove the battery. The cutting blade must be closed. Push the blade protection over the cutting blade so that it snaps into place and fully cov- ers the cutting blade. The pruning shears should be stored so that the following conditions are met: — The pruning shears cannot tip over or move. — The pruning shears are out of the reach of children. — The pruning shears are clean and dry.

13.2 Storing the battery

STIHL recommends storing the battery in a state of charge between 40% and 60%

14 Cleaning The battery should be stored in such a way that the following conditions are met: — The battery is out of the reach of children. — The battery is clean and dry. — The battery is in an enclosed space. — The battery is stored separately from the pruning shears. — Ifthe battery is stored in the charger, dis- connect the mains plug and store the bat- tery at a state of charge between 40% and 60%. — Do not store the battery outside of the specified temperature limits, A 18.5. NOTICE = The battery is not stored as described in (is user manual, the battery may become deeply discharged and irreparably damaged. + Charge a discharged battery before storing it. STIHL recommends storing the battery in a state of charge between 40% and 60%. > Store the battery separately from the prun- ing shears.

13.3 Storing the Charger

+ Disconnect the mains plug from the power supply. 0000-cxxse0ear Wind up the connecting cable and attach it to the charger. Observe the following points when storing the charger: — Charger is out of the reach of children. — The charger is clean and dry. — Charger is in an enclosed space. — The charger is not suspended from the con- necting cable or the holder (3) for the con- necting cable. — Do not store the charger outside of the specified temperature limits, CA 18.5. 14 Cleaning

14.1 Cleaning the pruning shears

> Switch off the pruning shears and remove the battery. The cutting blade must be closed. 0458-059-9601-A English

Clean the pruning shears with a damp cloth or STIHL resin solvent. Remove foreign objects from the battery com- partment and clean the battery compartment with a damp cloth. Clean the electrical contacts in the battery compartiment with a paintbrush or soft brush.

14.2 Cleaning the blade

The cutting blade must be open for cleaning. + Switch on the pruning shears.

• Press and hold the pushbutton () until a long beep sounds. The display switches off, and the pruning shears are switched off. The cutting blade remains open. Remove the battery. Clean cutting blade with a damp cloth and warm soapy water. Spray both sides of the cutting blade with STIHL resin solvent.

14.3 Cleaning the Battery

+ Clean the battery with a damp cloth.

14.4 Cleaning the Charger

+ Disconnect the mains plug from the power supply. + Clean the charger with a damp cloth. + Clean the charger's electrical contacts with a paintbrush or a soft brush. 15 Maintenance

15.1 Maintenance Intervals

Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance inter- vals: Every 4000 cuts + Lubricate the cutting blade. Annually > Have pruning shears checked by a STIHL authorized dealer.

15.2 Lubricating the blade

STIHL Multioil Bio or an equivalent biodegrada- ble multifunctional oil lubricates and cools the cutting blade and anvil blade. The cutting blade must be open for lubrication. + Switch on the pruning shears.

• Press and hold the pushbutton (D until a long beep sounds. The display switches off, and the pruning shears are switched off. The cutting blade remains open. > Remove the battery. > Remove combination wrench (1) from the bracket (2) in the battery compartment. > Clean the cutting blade. + Place your pruning shears on a level surface so that the display faces up. > Use the combination wrench to loosen the screw (3) and adjusting nut (4). > Apply multifunctional oil in the gap between the cutting blade and anvil blade. 4 —

16 Repairing + Tighten the adjusting nut (4) so that the cutting blade (5) can no longer be moved sideways in relation to the anvil blade (6) and can easily slide past the anvil blade (6) without play. Tighten the screw (3). Insert the battery. Switch on the pruning shears. The multifunctional oil is distributed over the cutting blade and anvil blade. The cutting blade and anvil blade are lubricated.

Lubricating the cutting blade with a grease gun Alternatively, the cutting blade can be lubricated with a grease gun via the grease nipple.

1 i > Pull chain to remove plug (1) from the grease gun (3).

Fill the grease gun (3) two-thirds full with STIHL multi-purpose grease (2). Press the plug (1) firmly onto the grease gun (3). Position grease gun (3) on grease nipple (4). Press grease gun (3) and push STIHL multi- purpose grease through the grease nipple (4) with one or two strokes. 16 Repairing

16.1 Repairing pruning shears, bat-

tery and charger The pruning shears, cutting blade, battery and charger cannot be repaired by the user. + Ifthe pruning shears or cutting blades are damaged: Do not use the pruning shears or cutting blades and contact a STIHL authorized dealer for assistance. Ifthe battery is defective or damaged: Replace the battery. Ifthe charger is defective or damaged: Replace the charger. Ifthe connecting cable is defective or dam- aged: Do not use the charger and have the connecting cable replaced by a STIHL author- ized dealer.

17 Troubleshooting 162 Replacing the cutting blade > Switch on the pruning shears.

• Press and hold the pushbutton (D until a long beep sounds. The display switches off, and the pruning shears are switched off. The cutting blade remains open. > Remove the battery. > Unscrew the screws (1). > Remove the cover (2). > Loosen the screw (3) > Unscrew the adjusting nut (5). + Remove bearing pin (4). English + Remove locking segment (6). + Remove and dispose of cutting blade (7). + If grease is on the anvil blade (8): Clean the anvil blade (8). + Insert new cutting blade (7). + Insert locking segment (6). + Insert bearing pin (4) into the bearing position of the new cutting blade. + Screw in the adjusting nut (5) and tighten so that the cutting blade (7) can no longer be moved sideways in relation to the anvil blade (8) and the cutting blade (7) easily slides past the anvil blade (8) without play. + Tighten the screw (3). 17 Troubleshooting + Fitthe cover (2) in position. + Insert screws (1) and tighten them: after they are switched on or suddenly stop working.

17.1 Troubleshooting the pruning shears and battery

Error Display on the [Cause Remedy pruning shears and beeps Pruning shears [1 light bar fla- [The state of charge of |» Charge the battery. do not operate |shes white. |the battery is too low. 0458-059-9601-A

English 17 Troubleshooting 6 short beeps the battery is too low or the battery is dee- ply discharged Error Display on the |Cause Remedy pruning shears and beeps EOt The state of charge of |». Try to charge the battery. > Ifthis step cannot be carried out: Do not use the battery anymore; contact a STIHL authorized dealer. E03 Battery is oo cold. |» Remove the battery 6 short beeps + Allow battery to warm up. E04 The bateryistoo |» Remove he battery. 6 short beeps |warm. > Wait for the battery to cool down. E02 There is an errorin [> Remove the battery and putit backin. 6 short beeps he battery. > Switch on the pruning shears. + Ifthe error continues to be shown: Do not use the battery; consult a STIHL authori- zed dealer. ET0-E1S 6 short beeps There is an error in he pruning shears. > Remove the battery and putit back in. > Switch on the pruning shears. + Ifthe error continues to be shown: Do not use the pruning shears; consult a STIHL authorized dealer. E14 6 short beeps The cutting blade is jammed. > Remove the battery. > Remove the jam > Insert the baitery. > Switch on the pruning shears. + Ifthe error continues to be shown: Do not use the pruning shears; consult a STIHL authorized dealer.

The diameter of the branches to be cut is too great. > Cut cuttings with a smaller branch diame- ter. Ifthe cutting blade is jammed while cut- ‘ing: Release cutting blade, LA 10.3

The cutting frequency is too high. + Reduce number of cuis per minute.

Pruning shears are too hot. > Allow the pruning shears to cool down. Reduce the number of cuts per minute or diameter of the branches to be cut.

No electrical contact between the pruning shears and battery. > Remove the battery. > Clean the electrical contacts in the bat- tery compartment. Insert the battery.

The pruning shears or battery are damp. > Allow he pruning shears or battery to dry, (A 186. The cutting per- formance of the pruning shears deteriorates or is insufficient. 7 Hight bar fla- shes white. The state of charge of the battery is too low. + Charge the battery. The cutting blade is insufficiently lubrica- ted. + Lubricate the cutting blade. The cutting blade is dull. + Replace the cutting blade. The cutting frequency is too high. + Reduce number of cuis per minute. Pruning shears runtime is too short.

The battery is not fully charged. > Fully charge the battery. 0458-059-9601-A

18 Specifications English Error Display on the |Cause Remedy pruning shears and beeps The battery service |” Replace battery. life has been excee- ded.

17.2 Troubleshooting the Charger

Fault LED on Char- |Cause Remedy ger Battery not being [One LED glows [The battery is too F Leave battery inserted In charger. charged. red. warm or too cold. Charging starts automatically as soon as the permitted temperature range is rea- ched. The LED fla- No electrical contact |» Remove the battery. shes red. between charger and |» Clean contacts on charger. battery. > Insert battery. There is a malfunction |» Do not use the charger and contact your in the charger STIHL dealer for assistance. battery. There is a fault inthe |» Do not use the battery. Consult a STIHL dealer. The charger [The LED does not run a self test. about 1 second |interrupted. land then red for about 1 second. Electrical contactto |» Disconnect the mains plug from the glows green for |charger was briefly power supply. Wait for 1 minute. Insert the mains plug in a wall outlet

Shears — Approved battery: STIHL AS — Average cutting frequency: up to 12 cuts/ minute — Maximum cutting blade opening: 25 mm — Maximum stem diameter: 25 mm (depending on wood) — Weight without battery: 760 g For runtime, see www.stihl.com/battery-life.

18.2 STIHL AS Battery

— Battery Technology: Lithium-ion — Voltage: 10.8 V — Capacity in Ah: see rating label — Energy content in Wh: see rating label — Weight in kg: see rating label

18.3 STIHL AL 1 Charger

— Rated voltage: see rating pate — Frequency: see rating plate — Rated power: see rating plate — Charging current: see rating plate — Maximum energy content of approved STIHL AS battery: 12.5 Ah 0458-059-9601-A For charging times see www.stihl.com/charging- times.

18.4 Extension Cords

If an extension cord is used, the cross sectional area of its conductors must meet the following minimum requirements — depending on the line voltage and length of the extension cord If rated voltage on the rating label is 220V to 240V: — Cord length up to 20 m: AWG 15 / 1.5 mm? — Cord length 20 m up to 50 m: AWG 13 /

If rated voltage on the rating label is 100V to 127V: — Cord length up to 10 m: AWG 14 / 2.0 mm? — Cord length 10 m up to 30 m: AWG 12/

Temperature limits WARNING = The battery is not protected against all ami ent conditions. If the battery is exposed to cer- tain environmental conditions, it may catch fire or explode. This may result in serious injury to people and damage to property. + Do not charge the battery below -20°C or above 50°C. + Do not use the pruning shears, battery or charger below -20°C or above 50°C. + Do not store the pruning shears, battery or charger below -20°C or above 70°C.

18.6 Recommended temperature

ranges For optimum performance of the pruning shears, battery and charger, note the following tempera- ture ranges: — Charging: 5°C to 40°C — Use: -10°C to 40°C — Storage: -20°C to +50°C Ifthe battery is charged, used or stored outside the recommended temperature ranges, perform- ance may be restricted. Ifthe battery is wet or moist, allow the battery to dry for at least 48 h between 15°C and 50°C and with less than 70% humidity. Higher humidity may extend the drying time.

18.7 Sound and vibration values

The K-value for the sound pressure level is 2 dB(A). The K-value for the vibration level is 2 m/s?. STIHL recommends wearing hearing protection: — Sound pressure level LL measured according to EN 62841-1: < 70 dB(A). — Vibration level a, measured according to EN 62841-1: — Control handle: < 2.5 m/s?. The sound and vibration levels indicated were measured according to a standardized test method and can be used as a basis for compar- ing electric power tools. The actual sound and vibration levels may vary from the values indica- ted, depending on the type of application. The sound and vibration levels indicated can be used for an initial estimate of the sound and vibration stress. The actual sound and vibration stress has to be estimated. The times can be taken into account in the estimate when the electric power

19 Spare Parts and Accessories tool is switched off and also when it is switched on but running without any load For information on compliance with the Physical Agents (Vibration) Directive 2002/44/EC, see www.stihl.comivib.

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances. For information on compliance with the REACH regulation see www.stihl.com/reach. 19 Spare Parts and Accesso- ries

19.1 Spare parts and accessories

STIHL These symbols indicate original STIHL & spare parts and original STIHL acces- sories. STIHL recommends the use of original STIHL spare parts and accessories. Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitabil- ity of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts. Original STIHL spare parts and original STIHL accessories are available from STIHL dealers. 20 Disposal

20.1 Disposing of pruning shears,

battery and charger Contact local authorities or a STIHL authorized dealer for information on disposal. Improper disposal can be harmful to health and pollute the environment. + Take STIHL products including packaging to a suitable collection point for recycling in accord- ance with local regulations. Do not dispose with domestic waste. 21 EC Declaration of Con- formity STIHL ASA 20.0 Pruning Shears ANDREAS STIHL AG & Co. KG BadstraRe 115 D-71336 Waiblingen

22 UKCA Declaration of Conformity Germany declares under its sole responsibility that — Category: Battery pruning shears — Manufacturer's brand: STIHL — Model: ASA 20.0 — Serial identification number: VAO5 conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manu- factured in compliance with the following stand- ards in the versions valid on the date of produc- tion: EN 55014-1, EN 55014-2, EN 62841-1, EN ISO 12100. The technical documents are stored at ANDREAS STIHL AG & Co. KG Produktzulas- sung. The year of manufacture, country of manufacture and serial number are indicated on the pruning shears. Waiblingen, 10.01.2024 ANDREAS STIHL AG & Co. KG LUE Robert Olma, Vice President, Regulatory Affairs & Global Governmental Relations 22 UKCA Declaration of Con- formity STIHL ASA 20.0 Pruning Shears

declares under its sole responsibility that — Category: Battery pruning shears — Manufacturer's brand: STIHL — Model: ASA 20.0 — Serial identification number: VAO5 conforms to the relevant provisions of UK regula- tions The Restriction of the Use of Certain Haz- ardous Substances in Electrical and Electronic Equipment Regulations 2012, Supply of Machi- 0458-059-9601-A English nery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Noise Emis- sion in the Environment by Equipment for use Outdoors Regulations 2001 and has been manu- factured in compliance with the following stand- ards in the versions valid on the date of produc- tion: EN 55014-1, EN 55014-2, EN 62841-1, EN ISO 12100. The technical documentation is stored at ANDREAS STIHL AG & Co. KG. The year of manufacture, country of manufacture and serial number are indicated on the pruning shears. Waiblingen, 10.01.2024 ANDREAS STIHL AG & Co. KG LUE Robert Olma, Vice President, Regulatory Affairs & Global Governmental Relations 23 Addresses www.stihl.com 24 General Power Tool Safety Warnings

This chapter reproduces the pre-formulated, gen- eral safety precautions specified in the IEC 62841 standard for hand-held motor-oper- ated electric tools. STIHL is obliged to publish these texts. The safety precautions and warnings on avoiding an electric shock given under “Electrical Safety" do not apply to STIHL cordiess products. WARNING Read all safety warnings, tions and specifications provided with this power tool. Failure to follow all instructions lis- ted below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "electric power tool” in the safety warn- ings refers to mains-operated (corded) power tools or battery-operated (cordless) power tools.
