USER MANUAL CAMP SULION

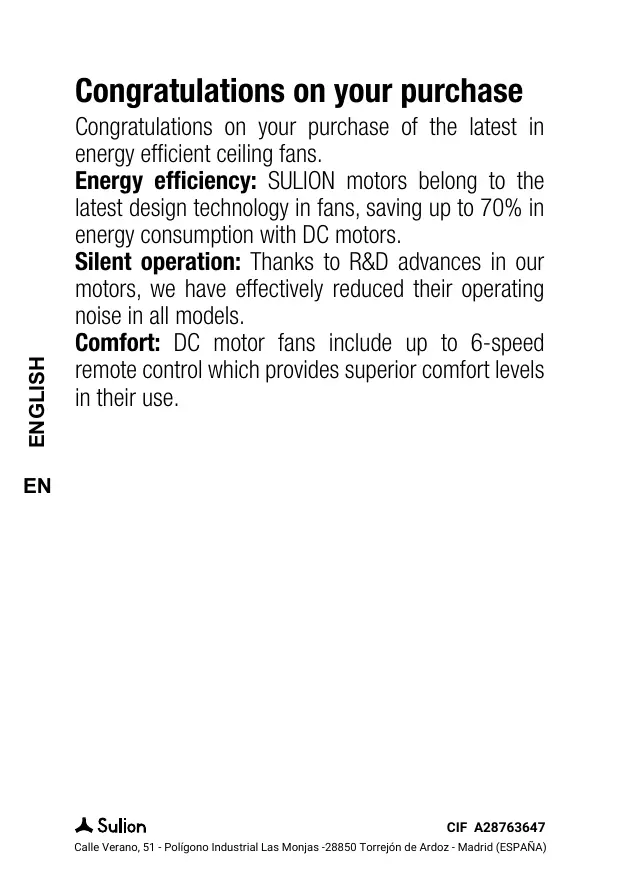

Z Congratulations on your purchase Congratulations on your purchase of the latest in energy efficient ceiling fans.

Energy efficiency: SULION motors belong to the latest design technology in fans, saving up to 70% in energy consumption with DC motors.

Silent operation: Thanks to R&D advances in our motors, we have effectively reduced their operating noise in all models.

Comfort: DC motor fans include up to 6-speed remote control which provides superior comfort levels in their use.

À Sulion CIF A28763647 Calle Verano, 51 -Poligono Industrial Las Monjas 28850 Torrején de Ardoz - Madrid (ESPARA)

Follow these instructions carefully to enjoy maximum safety in the installation and operation of this equipment.

This device can be used by children aged 8 years and above and people with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they have been given appropriate supervision or training regarding the use of the device and they understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision.

The product must be installed on a fixed surface, not suitable for elements that can be rolled up on themselves.

=== The fan must be installed in such a way that the Ë blades are more than 2,3m above the ground. —— Make sure that there is a space of at least 30cm between the fan's blades and any wall or other obstacle that they could hit. lt is important to note that the greater the distance, the more efficient

the air flow produced will be.

His recommended not to use these types of fans © along with gas installations simultanéously in the same room.

+34 916774540 www.sulion.es ATC:916749481 -info@sulion.es / SAT :916749483 - sat@sulion.es

e Do not insert anything that could hit the fan's @°æ blades into its pathway while it is moving, as this could cause damage to people, can damage the blades, and can offset the balance of the unit, causing vibrations and wobbling.

[ess Do not use the fan while being charged.

a Only suitable for indoor.

Do not throw away electrical products together with household waste. We ask you to recycle the packaging at the collection points provided for this purpose. Contact local authorities or your provider for recycling advice. Thank you for recyclng at the collection points provided for this manual

Note: The important warnings and instructions indicated in this manual are not guaranteed to cover all possible conditions and situations.

À Sulion CIF A28763647 Calle Verano, 51 -Poligono Industrial Las Monjas 28850 Torrején de Ardoz - Madrid (ESPARA)

Device technical specifications

Protection category Class III Ingress protection IP20 Nominal voltage and frequency 3.7V DC 8000mAh Work temperature -10 60°C Weight 0,34Kg Fan

Z Tum on (Speed 1) / Tum off

1. Long press: Turn on (speed 1) /off the fan One press: Adjust the speed from 1 to 3 2. Red light: Charging Green light: Fully charged How to charge the battery

1. Switch the fan off.

2. Connect the charging cable into the Type micro B port.

3. Connect the USB into a computer or power adapter

4. Unplug the charging cable when the light indicators goes green

Note: Do not use the fan while being charged.

Z Maintenance and information of warranty

Maintenance and cleaning:

1. Clean the fan periodically to help maintain its new appearance.

2. Use only a microfiber cloth not to scratch the finish.

Note: Failure to comply with these instructions results

in the loss of the equipment warranty

The manufacturer's warranty covers real failures that may occur but not minor complaints such as the noise generated by the device, as all electric motors generate a certain amount of noise.

increased perception of noise during nighttime operation:

The manufacturer's warranty does not cover the fact that during the night, when the surrounding envi- ronment is quieter, the fan's operating noise is more apparent.

À Sulion CIF A28763647 Calle Verano, 51 -Poligono Industrial Las Monjas 28850 Torrején de Ardoz - Madrid (ESPARA)

Manufactures guarantees the proper functioning of this equipment, repairs or spare parts of the model owing to faulty manufacture during 3 years after the surrender date, 8 years exclusively in the case of the fan motor. Responsibility will not be accepted, howe- ver, for damages or injury caused through misuse. For any claims the sale ticket must be presented. The company agrees to repair any defect or malfunction found in the item and any damages said defect or malfunction might directly provoke. If the reparation should fail to satisfy the customer and/or the object fail to present the optimum condition for the use to which it is destined the guarantee holder will have the right to the substitution of the acquired item for ano- ther identical characteristics or a complete refund of the purchase price. Terms and conditions of warranty www.sulion.es

SULION declare under our own responsibility that the pro- ducts listed below have been manufactured in accordance with the following European standards.
