| Product Type | Ceiling fan with LED lighting |
| Brand | SULION |
| Model | CAMP LED |
| Blade Diameter | 132 cm (52 inches) |
| Number of Blades | 5 reversible blades |
| Blade Material | Composite wood or MDF |
| Color | White or black (depending on version) |
| Integrated Lighting | Interchangeable LED bulb (E27, 18W) |
| Color Temperature | 3000K (warm white) to 6000K (cool white) |
| Luminous Flux | 1500 lumens |
| Power Supply | 220-240 V ~ 50 Hz |
| Motor Power | 55 W |
| Speeds | 3 speeds (low, medium, high) |
| Reversible Function | Yes (summer/winter) |
| Remote Control Included | Yes, with light dimmer and direction reverser |
| Net Weight | 6.2 kg |
| Recommended Ceiling Height | 2.4 to 3 meters |
| Maintenance and Cleaning | Clean with a soft, dry cloth. Do not use abrasive products. |
| Safety | Appropriate circuit breaker or fuse required. Do not immerse in water. |
| Spare Parts and Reparability | Replaceable LED bulb and remote receiver. Available upon request. |
| Warranty | 2 years |
| General Information | CE compliant |
Frequently Asked Questions - CAMP LED SULION
User questions about CAMP LED SULION
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ceiling fan in PDF format for free! Find your manual CAMP LED - SULION and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CAMP LED by SULION.
USER MANUAL CAMP LED SULION
Ref. 1005448
In the event of any questions, incidents, or missing parts, before consulting with your retailer, call our customer service department at 916749481 email: info@sulion.es or with technical department at 916749483 email: sat@sulion.es. Before calling, note of the reference, name, IMP (located on the product sticker or next to the barcode on the box) and description of the problem. If you have photos or videos, fast resolution can help. Customer service opening times is from 9 a.m.- 6:30 p.m. from Monday-Thursday or 9 a.m.-2 p.m. on Fridays. You can also contact us via Whatsapp at 621262721 and our web www.sulion.es, where you will find videos, instruction manuals and our FAQs.
ESPAÑOL
ES
Sulion
ES
Download the userguide in our web: sulion.es/ean/8426107054487
FR


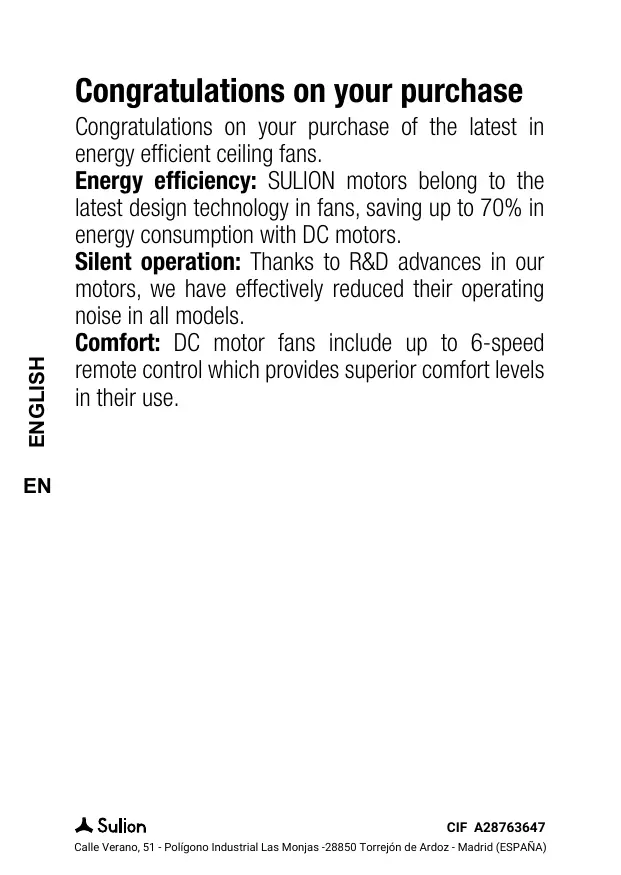

Congratulations on your purchase
Congratulations on your purchase of the latest in energy efficient ceiling fans.
Energy efficiency: SULION motors belong to the latest design technology in fans, saving up to 70% in energy consumption with DC motors.
Silent operation: Thanks to R&D advances in our motors, we have effectively reduced their operating noise in all models.
Comfort: DC motor fans include up to 6-speed remote control which provides superior comfort levels in their use.
Safety precautions
Follow these instructions carefully to enjoy maximum safety in the installation and operation of this equipment.
This device can be used by children aged 8 years and above and people with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they have been given appropriate supervision or training regarding the use of the device and they understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision.
The product must be installed on a fixed surface, not suitable for elements that can be rolled up on themselves.
The fan must be installed in such a way that the blades are more than 2,3m above the ground. Make sure that there is a space of at least 30cm between the fan's blades and any wall or other obstacle that they could hit. It is important to note that the greater the distance, the more efficient the air flow produced will be.
It is recommended not to use these types of fans along with gas installations simultaneously in the same room.
Do not insert anything that could hit the fan's blades into its pathway while it is moving, as this could cause damage to people, can damage the blades, and can offset the balance of the unit, causing vibrations and wobbling.
Do not use the fan while being charged.
Only suitable for indoor.
Replaceable LED.
Do not throw away electrical products together with household waste. We ask you to recycle the packaging at the collection points provided for this purpose. Contact local authorities or your provider for recycling advice. Thank you for recycling at the collection points provided for this manual.
Note: The important warnings and instructions indicated in this manual are not guaranteed to cover all possible conditions and situations.
Device technical specifications
General
| Protection category | Class III |
| Ingress protection | IP20 |
| Nominal voltage and frequency | 3.7V DC8000mAh |
| Work temperature | -10 ↔60°C |
| Weight | 0,38Kg |
| LED | |
| Wattage | 1W |
| Flux | 6lm |
| Color temperature | 6000K |
| RGB | No |
| Data measurement | 360° Sphere |
| N° of ON/OFF cycles | 10000 |
| N° of hours of lifespan | 30000h |
| Dimmable | Yes |
| Angle | 120° |
| CRI | >80 |
| This product have a light source of energy efficiency class | G |
| Fan | |
| Speed | 4 |
| Power (W) | 4,4 |
| RPM | 1170 |
| Airflow (m3/min) | 118 |
| Airflow (m3/h) | 7100 |
| Max noise level (dB) | 46 |
| Service value SV ((m3 / min) / W) | 26,81 |
| Maximum air speed (m / sec) | 56,78m/s |
| Battery | |
| Type | Ion-Lithium |
| Autonomy | Up to 16h |
| USB | |
| Type | USB-C (5V DC) |
How to charge the battery
- Switch the fan off.
- Connect the charging cable into the Type C port.
- Connect the USB into a computer or power adapter
- Unplug the charging cable when the light indicators goes green
Note: Do not use the fan while being charged.

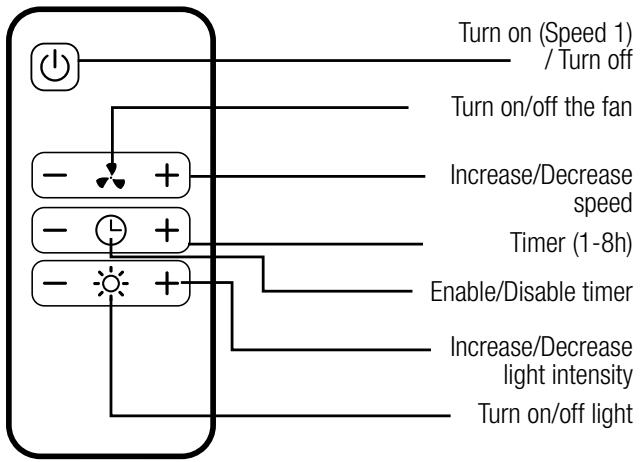

Remote control
Green light flash: Charging
Green light: Fully charged
Long press: Turn on/off the fan
One tap: Adjust the speed from 1 to 4
Doble tap: Turn on/off the light
Speed indicator
Timer indicator from 1 to 8h
Maintenance and information of warranty
Maintenance and cleaning:
- Clean the fan periodically to help maintain its new appearance.
- Use only a microfiber cloth not to scratch the finish.
Note: Failure to comply with these instructions results in the loss of the equipment warranty
Warranty service:
The manufacturer's warranty covers real failures that may occur but not minor complaints such as the noise generated by the device, as all electric motors generate a certain amount of noise.
Increased perception of noise during nighttime operation:
The manufacturer's warranty does not cover the fact that during the night, when the surrounding environment is quieter, the fan's operating noise is more apparent.
Warranty:
Manufactures guarantees the proper functioning of this equipment, repairs or spare parts of the model owing to faulty manufacture during 3 years after the surrender date, 8 years exclusively in the case of the fan motor. Responsibility will not be accepted, however, for damages or injury caused through misuse. For any claims the sale ticket must be presented. The company agrees to repair any defect or malfunction found in the item and any damages said defect or malfunction might directly provoke. If the reparation should fail to satisfy the customer and/or the object fail to present the optimum condition for the use to which it is destined the guarantee holder will have the right to the substitution of the acquired item for another identical characteristics or a complete refund of the purchase price. Terms and conditions of warranty www.sulion.es
SULION declare under our own responsibility that the products listed below have been manufactured in accordance with the following European standards.
Madrid, 05 / 11 / 2021
C. Schuller
CEO
LAMPARAS SCHULLER SA
| RED 2014/53/EU |
| Article 3.1a |
| EN 60598-1:2015 + A1:2018 |
| EN 60598-2-1:1989 |
| EN 60335-1:2012 + A11:2014 + A13:2017 |
| EN 60335-2-80:2003 + A1:2004 + A2:2009 |
| EN 62233:2008 |
| EN 62471:2008 |
| EN 62493:2010 |
| Article 3.1b |
| EN 55014-1:2006 + A1:2009 + A2:2011 |
| EN 55014-2:1997 + A1:2001 + A2:2008 |
| EN 55015:2013 |
| EN 61000-3-2:2014 |
| EN 61000-3-3:2013 |
| EN 61547:2009 |
| EN 301 489-1 V2.1.1 |
| EN 301 489-17 V3.1.1 |
| Article 3.2 |
| EN 300 328 V2.1.1 |
| RoHS 2015/863/EU |
| ErP Directive 2009/125/EC |
| Regulation 2015/1428 |
| Regulation 2019/2020 |
| Directive LVD 2014/35/EU |
| EN 60335-1:2012 + A11:2014 + A13:2017 |
| EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 |
| EN 62233:2008 |
| EN 62471:2008 |
| EN 62493:2010 |
| EN 60598-1:2015 + A1:2018 |
| EN 60598-2-4:2018 |
| Directive EMC 2014/30/EU |
| EN 55014-1:2017 + A11:2020 |
| EN 55014-2:1997 + A1:2001 + A2:2008 |
| EN 55015:2019 + A11:2020 |
| EN 61547:2009 |
| Directive RoHS 2015/863/EU |
| ErP Directive 2009/125/EC |
| Regulation 2015/1428 |
| Regulation 2019/2020 |
