USER MANUAL WALLY SULION

Do you have questions about the installation? Any problem or

missing components? At Sulion we help you. Contact us, tell us your problem, the IMP and reference that you will find behind the control.

Customer service: Monday to Thursday from 9:00 a.m. to 6:00 p.m., Friday from

9:00 a.m. to 2:00 p.m. Time Spain.

Download the userguide in our web:

sulion.es/ean/8426107058805

FR

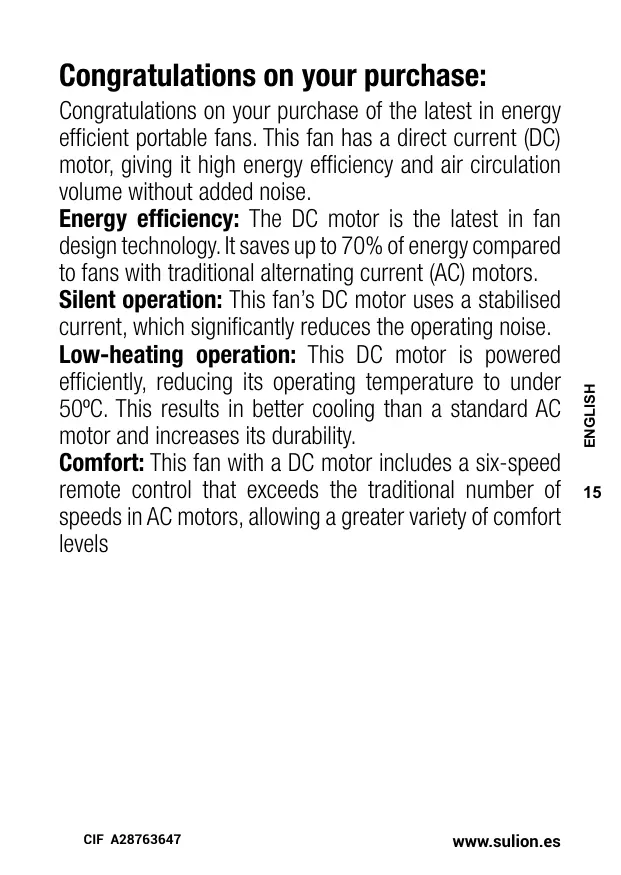

Congratulations on your purchase:

Congratulations on your purchase of the latest in energy efficient portable fans. This fan has a direct current (DC) motor, giving it high energy efficiency and air circulation volume without added noise.

Energy efficiency: The DC motor is the latest in fan design technology. It saves up to 70% of energy compared to fans with traditional alternating current (AC) motors.

Silent operation: This fan's DC motor uses a stabilised current, which significantly reduces the operating noise.

Low-heating operation: This DC motor is powered efficiently, reducing its operating temperature to under 50^ . This results in better cooling than a standard AC motor and increases its durability.

Comfort: This fan with a DC motor includes a six-speed remote control that exceeds the traditional number of speeds in AC motors, allowing a greater variety of comfort levels

Safety precautions

Follow these instructions carefully to enjoy maximum safety in the installation and operation of this equipment.

This device can be used by children aged 8 years and above and people with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they have been given appropriate supervision or training regarding the use of the device and they understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision.

The product must be installed on a fixed surface, not suitable for elements that can be rolled up on themselves.

The fan must be installed in such a way that the blades are more than 2,3m above the ground. Make sure that there is a space of at least 30cm between the fan's blades and any wall or other obstacle that they could hit. It is important to note that the greater the distance, the more efficient the air flow produced will be.

It is recommended not to use these types of fans along with gas installations simultaneously in the same room.

Do not insert anything that could hit the fan's blades into its pathway while it is moving, as this could cause damage to people, can damage the blades, and can offset the balance of the unit, causing vibrations and wobbling.

After installing the fan, ensure that all the fastenings are secure and tightened in order to avoid any noise caused by loose elements.

Some fastenings may become loose due to the fan's movement. Check all fastenings at least twice a year to ensure that they are tight enough. If necessary, they must be retightened.

It is not recommended to use the product while it is charging as it reduces the life of the battery.

The product does not support the use of fast chargers.

Only suitable for indoor.

Non replaceable LED

Non replaceable driver

Do not dispose of electrical products with household waste. Please recycle the packaging at designated collection points. Contact the local authorities or your service provider for recycling advice. Thank you for recycling at the designated collection points.

Note: The important warnings and instructions in this manual are not guaranteed to cover all possible conditions and situations that may arise. Products do not come with common sense, caution and care. Users must use the fan with due care and caution, employing common sense, to make good use of the fan.

How to charge the battery

1. Turn off the fan.
2. Plug the charger cable into the C type USB port.
3. Plug the USB end into a computer or power adapter. Make sure it has an output of at least 0.8A at 5V.
4. When the charging indicator turns off, disconnect the cable.

Note: It is not recommended to use the product while it is in charging mode.

Device technical specifications

General

Voltage and nominal frequency	3.7V DC 2000mAh
Energy rating	Class III
Ingress protection	IP20
Working temperature	-10 ↔ 60°C
Weight	0,32Kg

Fan

No. of speeds	3
Power (W)	1,6
RPM max	200
Airflow (m3/min)	2
Airflow (m3/h)	120
Max noise level (dB)	44
Service value SV ((m3/min)/W)	1,25
Maximum air speed (m/s)	1,2 m/s

Battery

Type	Ion-Litio
Autonomy	Up to 5 hours

USB

Type

USB-C (5V DC)

LED

Power	2W
Light output	5lm
Color temperature	6000K
RGB	No
Light data measurement	Esfera 360°
ON/OFF cycles	10.000
Life hours	30.000h
Dimmable	No
Light beam angle	120°
CRI	>80
This product have a light source of energy efficiency class	G

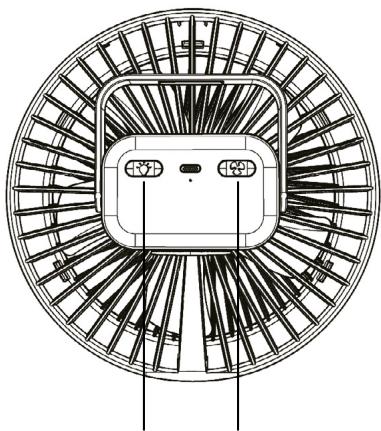

Control

1
2

1 1^ click: Turn on (50% brightness)
20 click: 100% brightness
2^ click: Turn off.

(2) 1^0 click: Turn on (Speed 1)

2o click: Speed 2
3^o click: Speed 3
4^ click: Turn off.

Maintenance and information of warranty

Maintenance and cleaning:

1. Clean the fan periodically to help maintain its new appearance.
2. Use only a microfiber cloth not to scratch the finish.

Note: Failure to comply with these instructions results in the loss of the equipment warranty

Warranty service:

The manufacturer's warranty covers real faults that may occur but not minor complaints, such as the noise generated by the appliance, as all electric motors generate a certain amount of noise.

Operating the fan with slightly loose components (i.e. screws that have not been tightened enough) or deformed blades due to excessively vigorous cleaning may cause excessive noise and wobbling that will not be covered by the warranty. Regularly retightening elements and non-aggressive cleaning are enough to prevent these problems.

Increased perception of noise during nighttime operation:

The manufacturer's warranty does not cover when the user perceives the fan's operating noise as being more apparent during the night when the surrounding area is quieter. In addition, the power supply may experience alterations that could cause the device to make more noise, which does not indicate any malfunctioning or manufacturing fault.

Warranty:

Sulion guarantees the correct functioning of the equipment and the possible repairs or supply of spare parts in the event of manufacturing defects for up to 3 years from the date of sale. This warranty is 5 years for the LED diodes and 8 years for the DC fan motor. Sulion is not responsible for improper use.

More info on warranty terms and conditions at: https://sulion.es/es/content/12-terminos-y-garantia

EC DECLARATION OF CONFORMITY

SULION declare under its own responsibility that the products listed below have been manufactured in accordance with the following European standards.

Déclaration de CONFORMITE CE

EN Take care of the planet

At Sullion we have it clear, we are at your disposal to solve any incident with your product, before returning an item to the store, please contact Sullion. Most problems have an easy and quick solution, we offer spare parts with minimal handling and easy replacement. We want to avoid throwing away products and creating unnecessary waste. Think about the environment, choose to repair and not throw away.

Thanks for helping.
