USER MANUAL CAMP FLY - 2182391 / 2181264 SULION

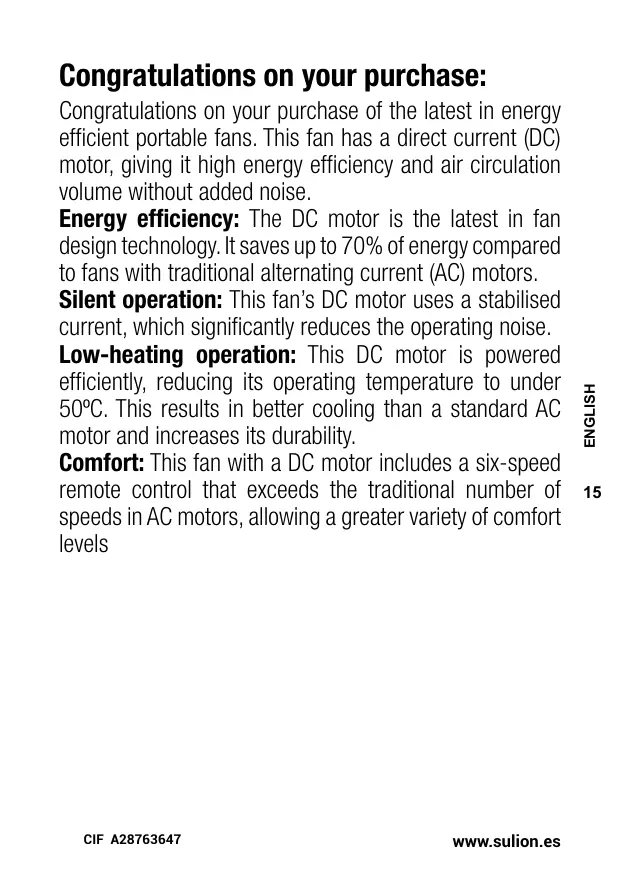

Congratulations on your purchase: Congratulations on your purchase of the latest in energy efficient portable fans. This fan has a direct current (DC) motor, giving it high energy efficiency and air circulation volume without added noise. Energy efficiency: The DC motor is the latest in fan design technology. lt saves up to 70% of energy compared to fans with traditional alternating current (AC) motors. Silent operation: This fan's DC motor uses a stabilised current, which significantly reduces the operating noise. Low-heating operation: This DC motor is powered efficiently, reducing its operating temperature to under 50°C. This results in better cooling than a standard AC motor and increases its durability. Comfort: This fan with a DC motor includes a six-speed remote control that exceeds the traditional number of speeds in AC motors, allowing a greater variety of comfort levels CIF A28763647 www.sulion.es ENGLISH ec]

Follow these instructions carefully to enjoy maximum safety in the installation and operation of this equipment. This device can be used by children aged 8 years and above and people with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they have been given appropriate supervision or training regarding the use of the device and they understand the dangers of its use. Children should not play with the device. The cleaning and maintenance of the device should not be carried out by children without supervision. The product must be installed on a fixed surface, not suitable for elements that can be rolled up on themselves. The fan must be installed in such a way that the blades are more than 2,3m above the ground. Make sure that there is a space of at least 30cm —— between the fan's blades and any wall or other À Sulion obstacle that they could hit. It is important to note that the greater the distance, the more efficient the air flow produced will be. It is recommended not to use these types of fans along with gas installations simultaneously in the same room. Calle Verano, 51 - 28850 Torrején de Ardoz - Madrid (ESPANA)

e Do not insert anything that could hit the fan's blades S°% into its pathway while itis moving, as this could cause damage to people, can damage the blades, and can offset the balance of the unit, causing vibrations and wobbling. After installing the fan, ensure that all the fastenings d are secure and tightened in order to avoid any noise caused by loose elements. Some fastenings may become loose due to the fan's Dmovement. Check all fastenings at least twice a year to ensure that they are tight enough. If necessary, they must be retightened. @ Itis not recommended to use the product while it is charging as it reduces the life of the battery. The product does not support the use of fast chargers. A Only suitable for indoor. [RÉ] Not replaceable receiver and remote control A&f3 Not replaceable LED ÊxË Not replaceable driver CIF A28763647 www.sulion.es ENGLISH

waste. Please recycle the packaging at designated collection points. Contact the local authorities or your service provider for recycling advice. Thank you for recycling at the designated collection points. Do not dispose of electrical products with household Note: The important warnings and instructions in this manual are not guaranteed to cover all possible conditions and situations that may arise. Products do not come with common sense, caution and care. Users must use the fan with due care and caution, employing common sense, to make good use of the fan. How to charge the battery À. Turn off the fan.

2. Plug the charger cable into the C type USB port.

3. Plug the USB end into a computer or power adap-

ter. Make sure it has an output of at least 0.8A at 5V.

4. When the charging indicator turns green, discon-

Remote control Turn on (Speed 1) 1 Turn off Increase/Decrease speed Turn on/off light Increase/Decrease light intensity Buttons Bm 1. Green light flash: Charging

2. Green light x4: Fully charged

[Ô) Long press: Turn on/off the fan 1° click: Speed 1 2° click: Speed 2 3° click: Speed 3 4 click: Nature wind > One tap: Turn on/off the light. Increase/Decreaselight intensity CIF A28763647 www.sulion.es ENGLISH

Maintenance and information of warranty Maintenance and cleaning:

1. Clean the fan periodically to help maintain its new

2. Use only a microfiber cloth not to scratch the finish.

Note: Failure to comply with these instructions results in the loss of the equipment warranty Warranty service: The manufacturer's warranty covers real faults that may occur but not minor complaints, such as the noise generated by the appliance, as all electric motors generate a certain amount of noise. Operating the fan with slightly loose components (ie. screws that have not been tightened enough) or deformed blades due to excessively vigorous cleaning may cause excessive noise and wobbling that will not be covered by the warranty. Regularly retightening elements and non-aggressive cleaning are enough to prevent these problems. A Sulion Calle Verano, 51 - 28850 Torrejôn de Ardoz - Madrid (ESPANA)

increased perception of noise during nighttime operation: The manufacturer's warranty does not cover when the user perceives the fan's operating noise as being more apparent during the night when the surrounding area is quieter. In addition, the power supply may experience alterations that could cause the device to make more noise, which does not indicate any malfunctioning or manufacturing fault. Warranty: Sulion guarantees the correct functioning of the equipment and the possible repairs or supply of spare parts in the event of manufacturing defects for up to 3 years from the date of sale. This warranty is 5 years for the LED diodes and 8 years for the DC fan motor. Sulion is not responsible for improper use. More info on warranty terms and conditions at: https://sulion.es/es/content/12-terminos-y-garantia CIF A28763647 www.sulion.es ENGLISH

EC DECLARATION OF CONFORMITY

SULION declare under its own responsibility that the products listed below have been manufactured in accordance with the following European standards.
