USER MANUAL TELICA EVO DELTACALOR

 ELECTRIC RADIATOR INSTALLATION MANUAL These instructions should be reading carefully for your safety and for ensuring the product operates properly. Therefore, it is strongly recommend reading this instruction before starting on installation and keep them as future reference. Contact a qualified personnel for assistance if you have any doubts about the product installation

Deltacalor cares about the planet. The complete version of the instruction, use and maintenance manual is always available on the website: www.deltacalor.com/en/download/

or, if prefer, you can scan the QR code here at the side with your mobile phone

DOC.S.005170 M 28.01.2021

@® 15 cm MIN 12 cm MIN Le © 500 cm MIN =

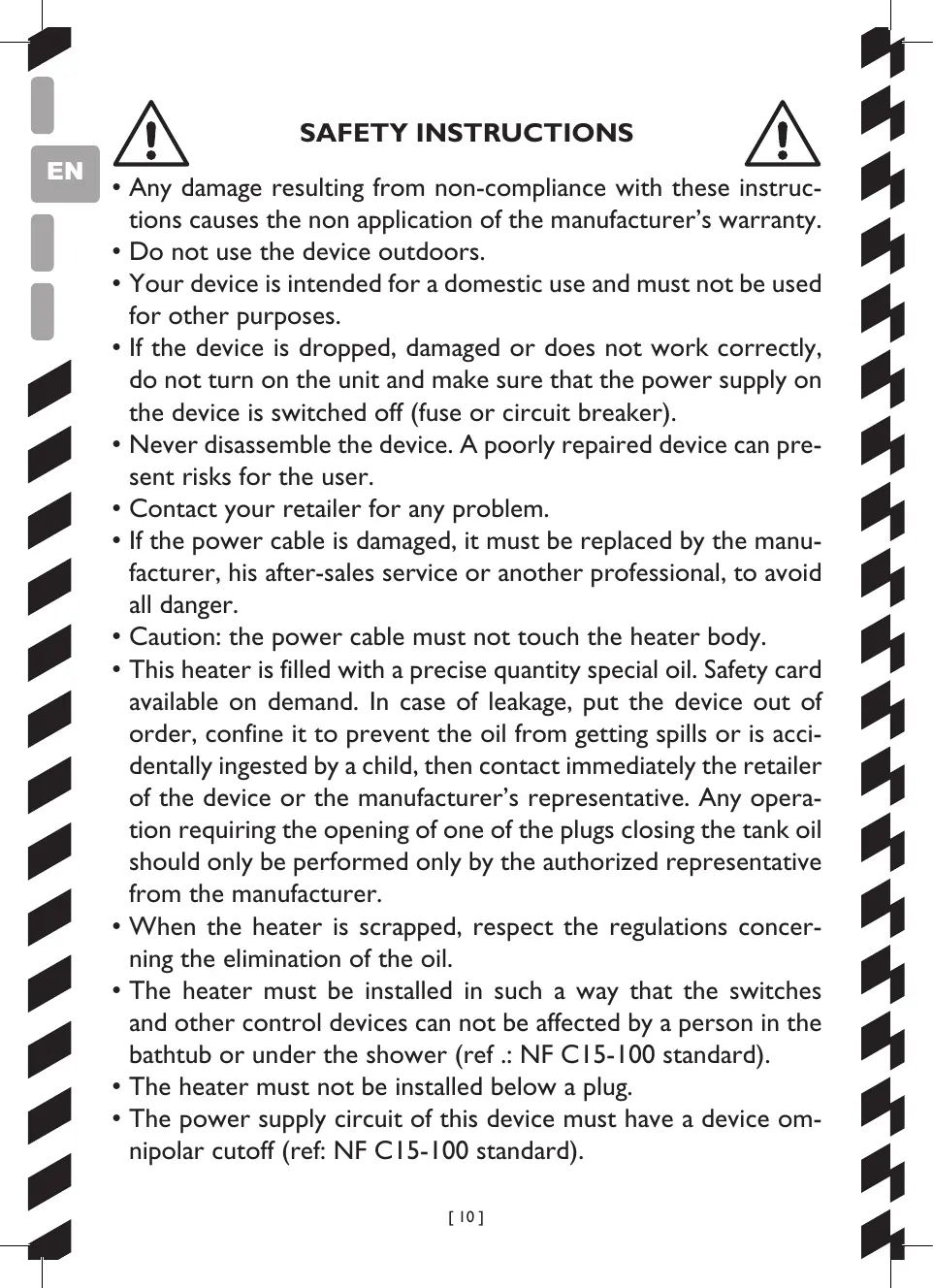

AAA U AAAARARRARRRRRUU A SAFETY INSTRUCTIONS A

+ Any damage resulting from non-compliance with these instruc- tions causes the non application of the manufacturer’s warranty.

* Do not use the device outdoors.

+ Your device is intended for a domestic use and must not be used for other purposes.

+ f the device is dropped, damaged or does not work correctly, do not turn on the unit and make sure that the power supply on the device is switched off (fuse or circuit breaker).

+ Never disassemble the device. À poorly repaired device can pre- sent risks for the user.

+ Contact your retailer for any problem.

+ fthe power cable is damaged, it must be replaced by the manu- facturer, his after-sales service or another professional, to avoid all danger.

+ Caution: the power cable must not touch the heater body.

+ This heater is filled with a precise quantity special oil. Safety card available on demand. In case of leakage, put the device out of order, confine it to prevent the oil from getting spills or is acci- dentally ingested by a child, then contact immediately the retailer of the device or the manufacturer’s representative. Any opera- tion requiring the opening of one of the plugs closing the tank oil should only be performed only by the authorized representative from the manufacturer.

+ When the heater is scrapped, respect the regulations concer- ning the elimination of the oil.

+ The heater must be installed in such a way that the switches and other control devices can not be affected by a person in the bathtub or under the shower (ref .: NF C15-100 standard).

+ The heater must not be installed below a plug.

+ The power supply circuit of this device must have a device om- nipolar cutoff (ref: NF C15-100 standard).

BÉSSSSSSSSSSSRSSSRSRSRERS D” sd

TT TT TT TT TT TTT TS Warning: In order to avoid overheating, do not cover the device. If the device is covered, the rise in temperature will activate the built-in protection device.

WARNINGS FOR PEOPLE WITH DISABILITIES AND CHILDREN This equipment may not be used by people with reduced physi- cal, sensory, or mental capacity, those without any knowledge of the equipment, or children over 8 years of age, unless super- vised and instructed on safe use of the equipment, and aware of all the risks.

Children must not play with the equipment.

Cleaning and maintenance tasks must not be done by children without supervision.

We recommend keeping the device out of reach of children below 3 years of age, unless under constant adult supervision. Children between 3 and 8 may only switch the device on and off, providing it is installed regularly in the stipulated position, that the children are under constant adult supervision or have been instructed in the safe use of the equipment, and that they fully understand potential dangers.

Children between 3 and 8 must not set up, regulate or clean the device, nor undertake maintenance on it.

WARNING In order to avoid any hazard to young children, it is recommended to install the unit so that the lower radiant bar is at least 600 mm above the floor.

AAAARARRARRRRRUU WARNING FOR WIFI THERMOSTAT The device allows remote control through a WI-FI connection

It is mandatory to respect a minimum distance of at least 20 cm from the habitable area for humans.

BÉSSSSSSSSSSRRSREE LLC CTI CETTE TET-

INSTALLING THE DEVICE Before connecting the heater, turn off the electricity at the general circuit breaker.

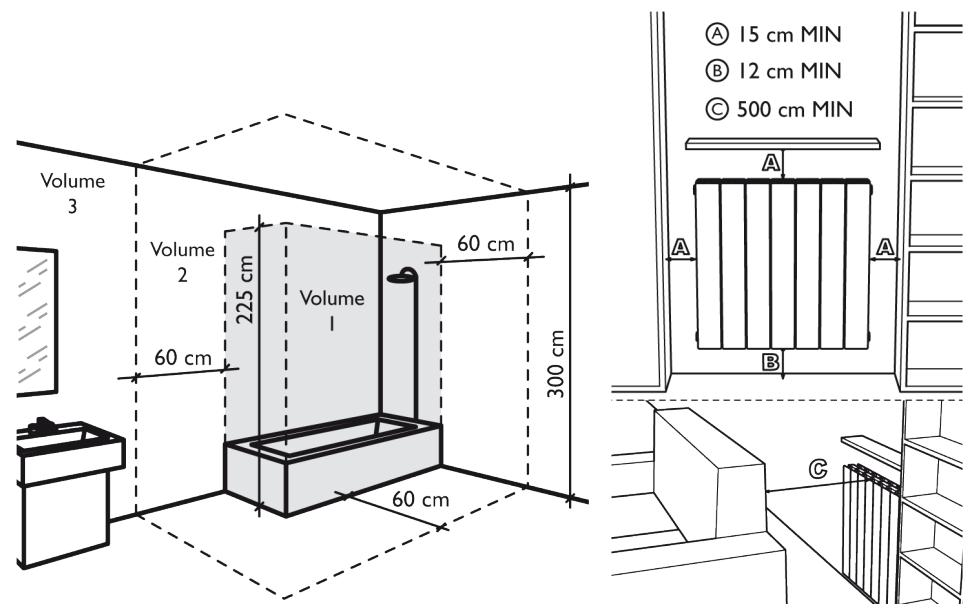

+ _ The heater is a class Il appliance, so it can be installed in all rooms of the house including in volumes protection 2 and 3 of a bathroom (IP24). You should check the protection grade (IPXX) of your own appliance.

+ __ The heater must be installed 15 cm minimum of any obstacle (shelves, curtains, furniture etc.).

@® 15 cm MIN 12 cm MIN © 500 cm MIN =

AAA U AAAARARRARRRRRUU POWER SUPPLY AND ELECTRICAL CONNECTIONS The power supply to the heater must be protected, according to the standards in force, by a 30 mA differential switch and a protection device against overcurrents adapted to the charac- teristics of the connecting line.

Before the first use, check that the voltage used corresponds to to the one indicated on the device.

This heater is a Class Il appliance (double electrical insulation). The connection to earth is prohibited.

The three wires must be connected in one electrical connec- tion box complies with the standards in force.

For security issues, you must isolate the pilot wire if it is not used.

Single phase power supply 230 V - + 10% 50 Hz.

Blue / gray thread: Neutral

Black wire: Pilot wire

DIAGRAMM FOR THE CORRECT USE OF THE PILOT WIRE Configuration in which the pilot wire is used.

N (Blue or grey) Neutral L (Brown) Phase Pilote wire (Black) Pilote wire Central

Configuration in which the pilot wire is not used.

BÉSSSSSSSSSSSRSSSRSRSRERS LLC CTI CETTE TET-

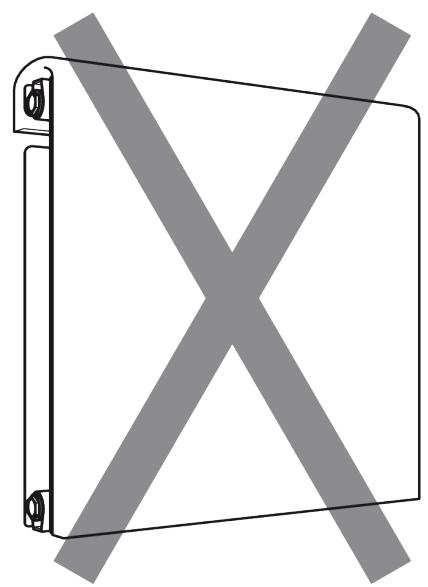

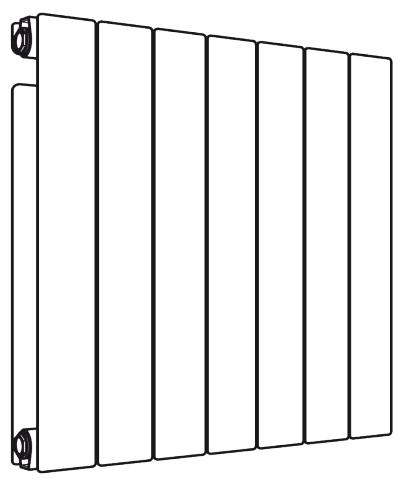

CORRECT USE Use the product as shown in Figure 1. Do not ever put towels or clothing on the outer frame (figure 2). Incorrect use may cause dangerous overheating and compromise the operation of the de- vice.

To clean the unit, do not use any chemicals, but use a damp, no- nabrasive cloth.

The symbol placed on the device indicates the obligation to dispose of the device by entrusting to a specialized selective collection center, in accordance with Directive 2012/19 / EU. If the device needs to be replaced, it can be returned to the dealer. This device does not belong to the category of ordinary household waste. By eliminating it correctly you participate in protecting the environment and limiting the exploitation of natural resources.

Declaration of conformity: The manufacturer declares, under his exclusive responsibility, that the product concerned by this manual conforms to the prescriptions of the Low Voltage Directives 2014/35 / EU, EMC 2014/30 / EU and RoHS 201 1/65 / EU.
