DOC.IS.006559 - Electric heater DELTACALOR - Free user manual and instructions

Brand	DeltaCalor
Model	DOC.IS.006559
Product type	Electric heater / Mixed towel warmer (water + electric)
Supply voltage	230 V~ ±10 %, 50 Hz, single-phase
Electrical class	Class II (double insulation)
Protection rating	IP24
Required electrical protection	30 mA residual current device + appropriate overcurrent protection
Electrical connection	Wires: blue/grey (neutral), brown (phase), black (pilot wire)
Minimum installation distance	15 cm from any obstacle (shelves, furniture, curtains)
Minimum mounting height	Lowest heating bar at 600 mm from the floor (recommended for children)
Intended use	Drying of water-washed laundry, indoor domestic use
Pilot wire function	Yes, 6 programming orders
Room compatibility	Bathroom (volumes 2 and 3), IP24
Cleaning	Damp, non-abrasive cloth, no chemical products
Child safety	Bar below 600 mm from floor; children aged 3-8 only on/off under supervision
Water filling condition	Must always be filled with water from the hydraulic system, even during electric operation
Prohibitions	Do not cover; do not place under a power outlet; do not use outdoors
Conditional warranty	Subject to compliance with installation and usage instructions
Compliance standards	Directives 2014/35/EU, 2014/30/EU, 2011/65/EU
Recycling	Compliant with WEEE, possible return to retailer

Frequently Asked Questions - DOC.IS.006559 DELTACALOR

Can I install this device in my bathroom?

Yes, the device has an IP24 protection rating and can be installed in volumes 2 and 3 of a bathroom, in accordance with standard NF C15-100.

What is the recommended installation height?

For children's safety, the lowest heating bar must be installed at least 600 mm above the floor.

Do I need to fill the radiator with water even in electric mode?

Yes, the hydraulic circuit must always be filled with water, even during electric operation, otherwise there is a high risk of overheating.

How to clean the device?

Use a damp, non-abrasive cloth. Never use chemical or abrasive products.

What to do if the power cable is damaged?

The cable must be replaced by the manufacturer, its after-sales service, or a qualified professional to avoid any danger.

Can I cover the device with towels?

No, it is forbidden to cover the device as this causes overheating and damages the product. Only drying of water-washed laundry is allowed, following the diagrams in the manual.

Is the device compatible with a programmer?

Yes, thanks to the pilot wire (black wire), you can connect a centralized programmer to manage up to 6 orders.

What type of electrical protection is required?

The power supply must be protected by a 30 mA residual current device and an appropriate overcurrent protection device.

Can children use the device?

Children over 8 years old can use the device under supervision. Children aged 3 to 8 can only turn it on or off. Children under 3 must be kept away.

What to do in case of malfunction?

Never disassemble the device. Consult your point of sale or a qualified professional. The device is guaranteed subject to compliance with the instructions.

USER MANUAL DOC.IS.006559 DELTACALOR

SÈCHE-SERVIETTES MIXTES

INSTALLATION MANUEL

MIXED HEATED TOWEL RAILS

INSTALLATION MANUAL

These instructions should be reading carefully for your safety and for ensuring the product operates properly.

Therefore, it is strongly recommend reading this instruction before starting on installation and keep them as future reference.

Contact a qualified personnel for assistance if you have any doubts about the product installation

Deltacalor cares about the planet.

The complete version of the instruction, use and maintenance manual is always available on the website:

www.deltacalor.com/en/download/

or, if prefer, you can scan the QR code here at the side with your mobile phone

SCALDASALVIETTE MISTI

TOALLERO MIXTOS

FRANÇAIS......[4]

ENGLISH......[9]

ITALIANO......[14]

ESPAÑOL......[19]

CONSIGNES DE SÉCURITÉ

UTILISATION CORRECTE

• Should damages be caused from breach of these regulations, the manufacturer's guarantee shall be invalidated.
• Do not use the appliance outdoors.
• Your appliance is intended for domestic use. It may not be used for other purposes.
• If the appliance has been dropped, has been damaged or does not function correctly, do not use it and ensure that the appliance power supply has been disconnected (fuse or switch).
• Do not dismantle the appliance. A poorly-repaired appliance can cause risks for the user. Contact your retailer for any problem.
• If the power lead has been damaged, it must be replaced by the manufacturer, after-sales service or another professional to avoid all danger.
• Warning: the power lead must not touch the heating body.
• Warning: to avoid a risk of overheating, do not cover the unit.
• If you do, the rise in temperature will activate the built-in protection device.
• This appliance is intended only to dry laundry washed with water.
• The heater must be installed in such a way that the switches and other control devices can not be affected by a person in the bathtub or under the shower (ref.: NF C15-100 standard).
• The heater must not be installed below a plug.
• The power supply circuit of this device must have a device om-nipolar cutoff (ref: NF C15-100 standard).
• Warning: for correct operation, the appliance must always be filled with water that comes from the hydraulic system of th house, even for operation in electric mode. Otherwise there is a high risk of overheating.
• For correct electrical operation, after having filled the radiator with water, it is necessary to completely close the lockshield.

WARNING

In order to avoid any hazard to young children, it is recommended to install the unit so that the lower radiant bar is at least 600 mm above the floor.

WARNINGS FOR PEOPLE WITH DISABILITIES AND CHILDREN

- This equipment may not be used by people with reduced physical, sensory, or mental capacity, those without any knowledge of the equipment, or children over 8 years of age, unless supervised and instructed on safe use of the equipment, and aware of all the risks.

children must not play with the equipment.

• Cleaning and maintenance tasks must not be done by children without supervision.
  • We recommend keeping the device out of reach of children below 3 years of age, unless under constant adult supervision.
• Children between 3 and 8 may only switch the device on and off, providing it is installed regularly in the stipulated position, that the children are under constant adult supervision or have been instructed in the safe use of the equipment, and that they fully understand potential dangers.
• Children between 3 and 8 must not set up, regulate or clean the device, nor undertake maintenance on it.

ATTENTION

Some parts of this product may overheat and cause burns. Be especially careful in the presence of children and vulnerable adults.

INSTALLING THE DEVICE

Before connecting the heater, turn off the electricity at the general circuit breaker.

• The heater is a class II appliance, so it can be installed in all rooms of the house including in volumes protection 2 and 3 of a bathroom (IP24). You should check the protection grade (IPXX) of your own appliance.
• The heater must be installed 15 cm minimum of any obstacle (shelves, curtains, furniture etc.).

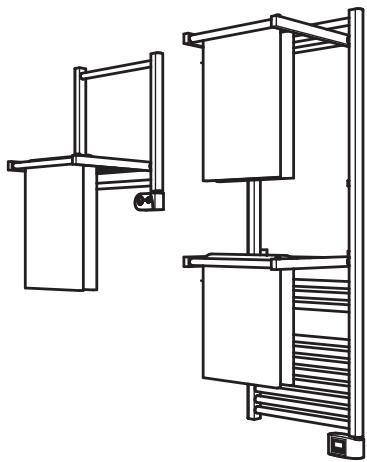

This image is representative of a generic towel warmer

POWER SUPPLY AND ELECTRICAL CONNECTIONS

• The power supply to the heater must be protected, according to the standards in force, by a 30 mA differential switch and a protection device against overcurrents adapted to the characteristics of the connecting line.
• Before the first use, check that the voltage used corresponds to to the one indicated on the device.
  • This heater is a Class II appliance (double electrical insulation).
  • The connection to earth is prohibited.
• The three wires must be connected in one electrical connection box complies with the standards in force.
• For security issues, you must isolate the pilot wire if it is not used.
• Single phase power supply 230 V \~ ± 10% 50 Hz.
  • Blue / gray thread: Neutral
• Brown Wire: Phase
• Black wire: Pilot wire

DIAGRAMM FOR THE CORRECT USE OF THE PILOT WIRE

Configuration in which the pilot wire is used.

Configuration in which the pilot wire is not used.

CORRECT USE

Use the product as shown in figure 1. Never cover the entire unit with towels or clothing (figure 2). The manifolds (vertical pipes) cannot be covered. Incorrect use can cause dangerous overheating, and compromise how the equipment works.

To clean the equipment, do not use chemical products, but only a non abrasive damp cloth.

l)

2)

IMAGES ARE PROVIDED FOR ILLUSTRATIVE PURPOSES ONLY. PRODUCTS MAY BE DIFFERENT.

The symbol ✉ placed on the device indicates the obligation to dispose of the device by entrusting to a specialized selective collection center, in accordance with Directive 2012/19 / EU. If the device needs to be replaced, it can be returned to the dealer. This device does not belong to the category of ordinary household waste. By eliminating it correctly you participate in protecting the environment and limiting the exploitation of natural resources.

Declaration of conformity: The manufacturer declares, under his exclusive responsibility, that the product concerned by this manual conforms to the prescriptions of the Low Voltage Directives 2014/35 / EU, EMC 2014/30 / EU and RoHS 2011/65 / EU.
