TOWELBOX - Electric heater DELTACALOR - Free user manual and instructions

Product type	Electric towel warmer
Brand	DeltaCalor
Model	TOWELBOX
Category	Electric radiator
Power supply	230 V ~ ±10%, 50 Hz, single-phase
Rated power	250 W
Electrical class	Class I (earthing mandatory)
Protection rating	IP20
Heating element type	PTC (self-regulating)
Power cord	Length 1 m, Schuko plug with integrated On/Off switch
Main functions	Heating and drying of water-washed laundry
Safety	Overheat protection (internal limiter), requires installation at >= 600 mm from floor, do not cover
Maintenance	Clean with a non-abrasive damp cloth, without chemicals
Installation	Do not install in protection volumes 1 and 2 of a bathroom, at least 15 cm from obstacles, not under a power outlet
Spare parts and repairability	Power cord not replaceable, appliance not user-serviceable
Compliance	Low Voltage Directive 2006/95/EC, EMC 2004/108/EC, RoHS 2011/65/EU
Usage	Domestic, indoors only
Operating environment	Operating temperature +7°C to +35°C

Frequently Asked Questions - TOWELBOX DELTACALOR

What is the power of the DeltaCalor TOWELBOX?

The rated power is 250 W.

Can I install the radiator in a bathroom?

Yes, but not in protection volumes 1 and 2. The switch must not be accessible from the bathtub or shower.

How to clean the appliance?

Use a non-abrasive damp cloth without chemicals.

What to do if the power cord is damaged?

The cord is not replaceable. The appliance must be disposed of.

Can the appliance be used by children?

Yes, from 8 years under supervision. Children aged 3 to 8 can only turn it on/off. Children under 3 must be kept away.

Why does the appliance stop suddenly?

This is normal if the appliance is covered: an internal limiter triggers to prevent overheating. Do not cover.

What is the minimum installation height?

The lowest heating bar must be at least 600 mm from the floor to prevent burns.

Is the appliance suitable for drying towels?

Yes, it is designed for drying water-washed laundry. Do not place towels on the outer frame.

What is the electrical protection?

Protection rating IP20 (protected against solid objects, not against water). Do not use outdoors.

Where can I find the complete manual?

The manual is available on the manufacturer's website. Consult your point of sale for more information.

USER MANUAL TOWELBOX DELTACALOR

SLIM C

SLIM Q

FREESYSTEM

TOWEL BOX

[IT]

These instructions must be read carefully to ensure the product operates safely. We would therefore strongly recommend reading them before starting on installation and keep them for future reference. Call a qualified technician for help if you have any doubts about installing the product.

[FR]

• Filo blu/grigio: Neutro
• Filo marrone: Fase

• Filo verde/giallo: Messa a terra

• Should damages be caused from breach of these regulations, the manufacturer's guarantee shall be invalidated.

• Do not use the appliance outdoors.
• Your appliance is intended for domestic use. It may not be used for other purposes.
• If the appliance has been dropped, has been damaged or does not function correctly, do not use it and ensure that the appliance power supply has been disconnected (fuse or switch).
• Do not dismantle the appliance. A poorly-repaired appliance can cause risks for the user. Contact your retailer for any problem.
• The power supply cord can not be replaced. If the power supply cord is damaged the whole appliance must be scrapped. Warning: the power cord must not touch the heating body.
• Warning: to avoid a risk of overheating, do not cover the unit. If you do, the rise in temperature will activate the built-in protection device.
• This appliance is intended only to dry laundry washed with water.

WARNING

In order to avoid any hazard for very young children this appliance must be installed so that the lowest heated rail is at least 600mm from the floor.

• This equipment may not be used by people with reduced physical, sensory, or mental capacity, those without any knowledge of the equipment, or children over 8 years of age, unless supervised and instructed on safe use of the equipment, and aware of all the risks.
  • Children must not play with the equipment.
• Cleaning and maintenance tasks must not be done by children without supervision.
  • We recommend keeping the device out of reach of children below 3 years of age, unless under constant adult supervision.
• Children between 3 and 8 may only switch the device on and off, providing it is installed regularly in the stipulated position, that the children are under constant adult supervision or have been instructed in the safe use of the equipment, and

that they fully understand potential dangers.

• Children between 3 and 8 must not set up, regulate or clean the device, nor undertake maintenance on it.

ATTENTION

Some parts of this product may overheat and cause burns. Be especially careful in the presence of children and vulnerable adults.

WARNING

This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

PREPARATION FOR INSTALLATION

Before connecting the heating appliance, disconnect the power supply using the general switch.

Class I device that can be installed in all the rooms around the home with exception of volume 1 and 2 of the bathroom.

The heating appliance must be installed in such a way that the switches and other control devices cannot be touched by someone in the bath or shower.

The heating appliance must not be installed beneath a socket. The heating appliance must be installed at least 15 cm away from all obstacles (shelves, curtains, furniture, etc.).

The power circuit of this appliance must include an all-pole circuit breaking device.

[9 - EN]

POWER SUPPLY AND ELECTRICAL CONNECTIONS

• In accordance with the rules in force, the power of the heating appliance must be protected by an RCD with Idm ≤ 30mA and an overcurrent protection device, suitable to the characteristics of the connection line.
• Before using the appliance the first time, check that the voltage used corresponds to that specified on the appliance.
• This heating device is equipped with Class I electrical resistance immersed in water and glycol.
• Earth-connection required.
• The connection to the power supply of the towel warmer needs to be made by using the appropriate plug.

Single-phase power supply 230V\~ ±10% 50 Hz.

FREESYSTEM

SLIM C

1

2

3

4

SLIM Q

4 ×

4 ×

1

2

3

4

[IT] - UTILIZZO CORRETTO

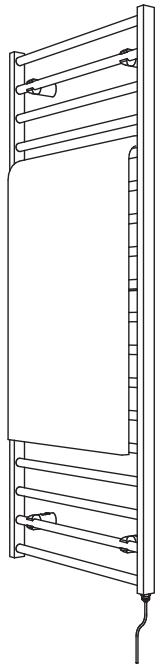

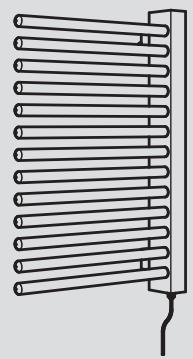

Use the product as shown in figure 1. Never cover the entire unit with towels or clothing (figure 2). The external frame or the manifold (vertical pipes) cannot be covered. Incorrect use can cause dangerous overheating, and compromise how the equipment works.

To clean the equipment, do not use chemical products, but only a non abrasive damp cloth.

[FR] - UTILISATION CORRECTE

FREESYSTEM

2

SLIM C

1

2

SLIM Q

1

2

FREESYSTEM

	CHROME
	150 W	300 W
H	300 mm	550 mm

SLIM C

	WHITE
	300 W	500 W	750 W
L	300 mm	300 mm	300 mm
H	560 mm	1050 mm	1470 mm

	CHROME
	300 W	500 W
L	300 mm	300 mm
H	1050 mm	1470 mm

SLIM Q

	WHITE
	300 W	500 W	750 W
L	470 mm	470 mm	470 mm
H	560 mm	1050 mm	1470 mm

	CHROME
Potenza	300 W	500 W
L	470 mm	470 mm
H	1050 mm	1470 mm

[IT] - CARATTERISTICHE TECNICHE

	Towel Box	Freesystem	Slim C Slim Q
Ambient (temperature)OperationTransportation and storage	+7°C ÷ +35°C-10°C ÷ +50°C	+7°C ÷ +35°C-10°C ÷ +50°C	+7°C ÷ +35°C-10°C ÷ +50°C
Operating voltage	230V CA ±10%50Hz	230V CA ±10%50Hz	230V CA ±10%50Hz
Immersion heater	Class I, typePTC	Class I, typePTC	Class I, resistive type
Power	250 W	150 W, 300 W	300 W, 500 W,750 W
Cable length	1 m	1 mt	1 m
Plug	Schuko plugwith integratedON/OFF switch	Schuko	Schuko plugwith integratedON/OFF switch
Electrical protection	IP20	IP64	IP20

[FR] - CARACTÉRISTIQUES TECHNIQUES

Instruction manual available from:

http://www.lfantoni.com/d/DOC.IS.002739-IT-EN-FR-ES-DE-elettrici-classe-I.pdf

The symbol applied to the product means that it is compulsory to consign the appliance to a special waste collection centre in case of disposal, in conformity to the 2002/96/EC Directive. The appliance may also be returned to the dealer if it is being replaced. This product is not included in the ordinary domestic waste category. A correct waste disposal implies protecting the environment and limiting exploitation of natural resources.

Declaration of conformity: The manufacturer hereby declares, under own exclusive responsibility, that the product subject to this manual satisfies the essential requirements of Low Voltage Directives 2006/95/EC, CEM 2004/108/EC and RoHS 2011/65/CE.

CE

DELTACALOR

EN Use and installation manual

These instructions must be read carefully to ensure the product operates safely. We would therefore strongly recommend reading them before starting on installation and keep them for future reference. Call a qualified technician for help if you have any doubts about installing the product.

OPERATING INSTRUCTIONS

The manufacturer's guarantee will be cancelled against any damages derived from failing to observe these instructions.

Do not use the appliance out of doors.

• This appliance is designed for domestic use and must not be used for any other purpose.
• Should the appliance fall down, be damaged or fail to work, do not try to make it work again and check that it has been switched off from the mains.
• Do not dismantle the appliance for any reason. An incorrectly repaired appliance could expose the user to various risks. Call your local dealer in case of problems.
• A damaged mains cable must be replaced by the manufacturer, their servicing centre or a qualified technician to avoid any risk of danger.
• This appliance has not been designed to be used by persons (including children) otherwise physically, sensorially or mentally disabled, nor by persons either inexpert or not knowledgeable, unless under the supervision of persons responsible for their safety or who have not been taught how to use the appliance beforehand. Care with children is recommended to prevent them from playing with this appliance.
• Warning: installing the appliance with the bottom hot bar at least 500 mm from the floor is recommended to prevent any hazards for babies and toddlers.

INITIAL OPERATIONS

Being a class 1 appliance it can be installed in any room in the house excluding bathrooms with rated protections 1 and 2. The heating appliance must not be installed where anyone in the bath or under the shower could accidentally touch the switches and other control devices (in accordance with the NF C15-100 standard). The towel heater must not be installed underneath a socket and must be installed at a distance of at least 15 cm from any obstacle (shelves, curtains, furniture, etc.). The appliance electrical supply must include an omnipolar switch (in accordance with the NF C15-100 standard).

ELECTRICAL CONNECTIONS

Electrical wiring must be installed by a qualified professional technician.

An Idm<30 mA residual current device and a safety device against overcurrent, corresponding to the connection line characteristics, must be used to protect the power supply to the towel heater, in conformity to standards in force.

Make sure the mains voltage effectively corresponds to the one shown on the appliance, before use.

This towel heater is fitted with class 1 immersion heating element in water and glycol and must be earthed.

The three cables must be coupled up in a terminal box conforming to standards in force, or by using a Schuko plug.

Single phase power supply 230 V\~ 50Hz:

• Blue wire: Neutral
• Brown wire: Phase
• Green and yellow wire: Earth lead

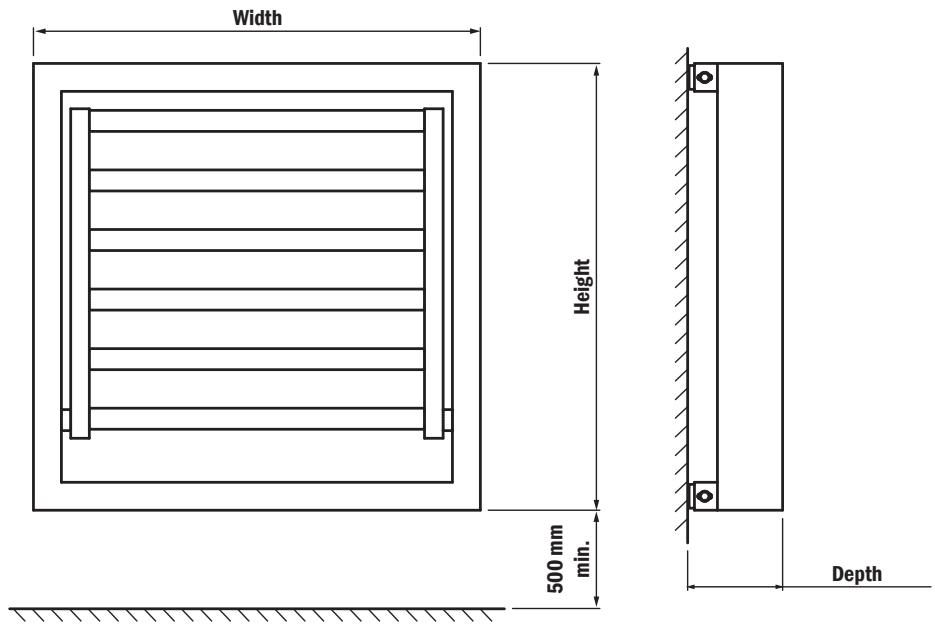

RANGE AND DIMENSIONS

Models	Power	Height	Width	Depth
TB048048ESTB048048EK	200 W	480 mm	480 mm	100 mm

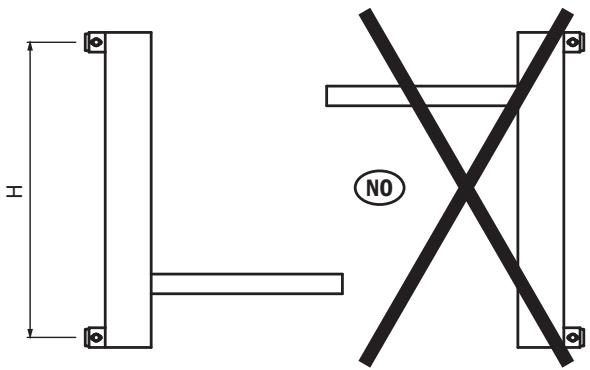

FIXING THE TOWEL HEATER

Models	H
TB048048ESTB048048EK	450 mm

DESCRIPTION OF FIXTURES

1. Fix brackets to wall (A), using the supplied screws and screw anchors (B).

Install the collector supports (C) onto the brackets fixed to the wall (A).

Fix the collector by the supplied screws (D).

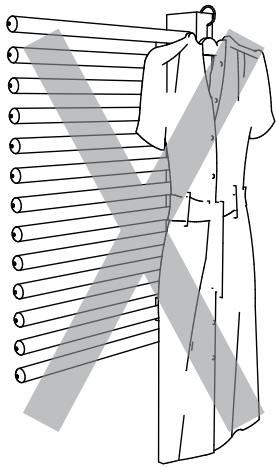

Use the product as shown in fig. 1. Never hang towels or garments onto the outer frame (fig. 2). Incorrect usage could cause dangerous overheating and the product's malfunction.

Do not use chemical products to clean the radiator but just a damp, non-abrasive cloth.

TECHNICAL SPECIFICATION

Working voltage: 230V ±10% 50Hz AC

Immersion heater class I, IP64:

• Max. power 200 W, resistive load.
• PVC cable Length 1200 mm
• Schuko plug with On/Off switch

Safety standards:

• Working temperature: from 0 °C to +50 °C.
• Storage temperature: from -20^ircC to +70^ircC .

TRACEABILITY, CERTIFICATION AND QUALITY

A traceability tag has been applied to the towel heater showing the serial code n., name of manufacturer, factory and product quality certification.

yymmxxxxxx

The serial code comprises the date of production (yy = last 2 digits of year; mm = month) followed by a 6-digit progressive number.

IP ..

Degree of protection.

CE MARKING

Manufacturer: DELTACALOR

Declaration of conformity: The manufacturer hereby declares, under own exclusive responsibility, that the product subject to this manual satisfies the essential requirements of Low Voltage Directives 2006/95/EC, CEM 2004/108/EC and RoHS 2002/95/EC.

CE

The symbol applied to the product means that it is compulsory to consign the appliance to a special waste collection centre in case of disposal, in conformity to the 2002/96/EC Directive. The appliance may also be returned to the dealer if it is being replaced. This product is not included in the ordinary domestic waste category. A correct waste disposal implies protecting the environment and limiting exploitation of natural resources.

DELTACALOR s.r.l.

Via Mazzini

23801 - Calolziocorte - Lecco

Italy

www.deltacalor.com
