Notice HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - page 20
View the manual : Français FR English EN
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Electric radiator
Brand HEALLUX
Models EHC11B-10RFW (1000 W), EHC11B-15RFW (1500 W), EHC11B-20RFW (2000 W)
Rated thermal power 1.0 kW / 1.5 kW / 2.0 kW depending on model
Power supply 230 V ~ 50 Hz
Control type Electronic with weekly timer
Operating modes Comfort, Eco, Frost protection, Programming (P1, P2, P3)
Special functions Open window detection, Timer, Screen lock
Connectivity Wi-Fi, control via Smart Life app
Display LCD screen
Installation Wall mounting (bracket provided)
Electrical compliance NF C 15-100 (volume 2 or outside bathroom volume)
Recommended protection Residual current device ≤ 30 mA
Safety Automatic shutdown in case of sudden temperature drop (open window)
Cleaning Soft damp cloth, no detergent or solvent
Country of origin China (PRC)
Importer HEALLUX SAS, 31 Rue de Metz N°46, 31000 Toulouse, France

Frequently Asked Questions - PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W HEALLUX

How to install the radiator on the wall?
Drill the holes according to the diagram, insert the wall plugs, attach the brackets, hang the radiator then lock the lever. Make sure the unit is firmly fixed before use.
How to set the time and date?
Press and hold the M button for 3 seconds. The hour flashes, use + and - to adjust, then % to move to minutes and days. Confirm with OK. You can also connect Wi-Fi for automatic synchronization.
How to use the P3 programming?
In P3 mode, hold M for 3 seconds. For each hour, choose the mode (Comfort, Eco, Frost protection) with M, then press to go to the next hour. After 24 hours, confirm with OK and move to the next day.
How to connect the radiator to Wi-Fi?
Download the Smart Life app, create an account, then follow the instructions. Enable Bluetooth on your phone for a quick connection. If the Wi-Fi icon flashes, press the corresponding button for 3 seconds to reset.
What to do if the radiator does not heat?
Check that the unit is powered on, that the selected mode is Comfort or another heating mode, and that the set temperature is higher than the room temperature. If the problem persists, contact after-sales service.
How to lock/unlock the screen?
The screen locks automatically after 1 minute of inactivity. To unlock, press the + and - buttons simultaneously.
How to clean the radiator?
Unplug the unit, let it cool down, then gently wipe with a soft damp cloth. Never use detergents, solvents or water inside.
Can the radiator be used in a bathroom?
Yes, but only in volume 2 or outside volume according to standard NF C 15-100. Do not place the unit directly under a power outlet and respect safety distances.
How to set the open window function?
The function is active by default. If a temperature drop of 2°C within 2 minutes is detected, the radiator automatically stops and the icon flashes. Press any key to restart.
What to do in case of malfunction?
First consult the full manual. If the problem persists, contact customer service at the importer's address: HEALLUX SAS, 31 Rue de Metz N°46, 31000 Toulouse, France.

User questions about PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W HEALLUX

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Electric heater in PDF format for free! Find your manual PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - HEALLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W by HEALLUX.

USER MANUAL PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W HEALLUX

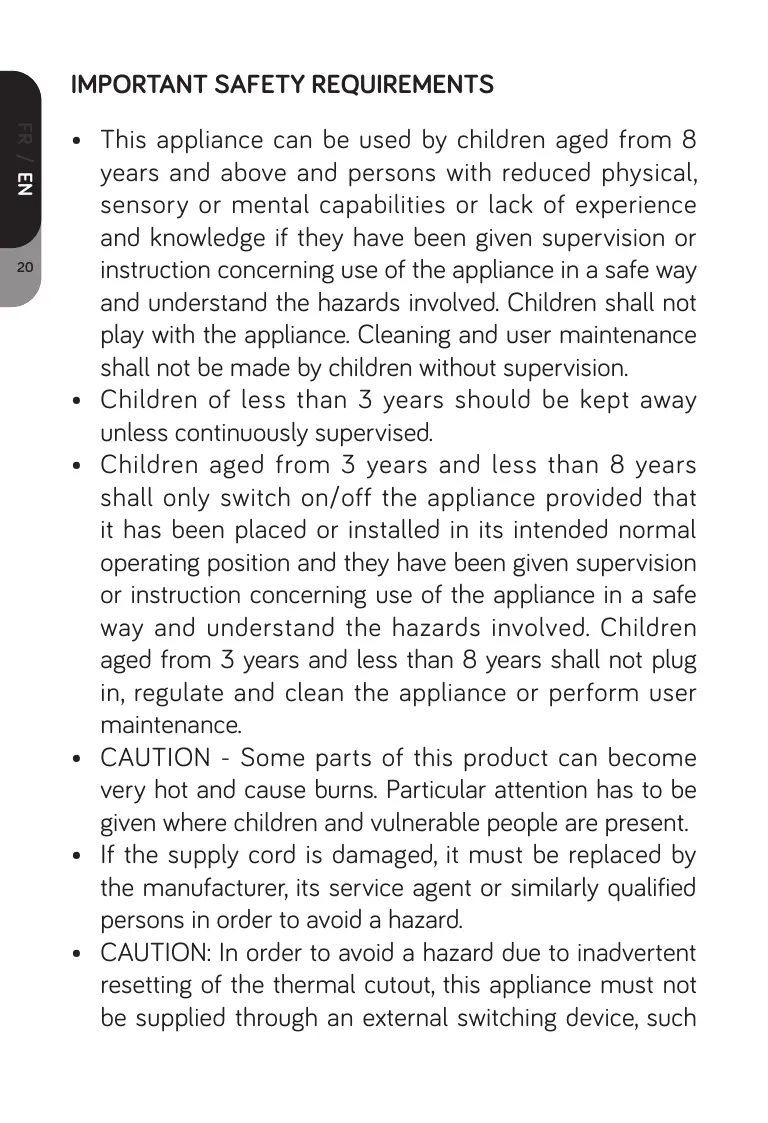

  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
    Children of less than 3 years should be kept away unless continuously supervised.
  • Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
  • CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such

as a timer, or connected to a circuit that is regularly switched on and off by the utility.

  • The heater must not be located immediately below a socket-outlet.
  • The heater must not be located directly in front of a socket outlet.
  • Means for disconnection having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.
  • For correct installation on the wall, thanks to refer to 'Installation on wall' part.
  • Fixed heaters are to be installed so that switches and other controls cannot be touched by a person in the bath or shower.
  • Connect the two conductors and the pilot wire of the supply cord to a connection box in respecting the following polarities:

Live: Brown
- Neutral: Blue
- Pilot wire: Black

  • WARNING: In order to avoid overheating, do not cover the heater.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 1

Warning: this product shall be installed in the volume 2 or hors volume only according to the national wiring rules (For France NF C 15-100)

Note: The below drawing is for reference only.

We suggest you to contact a professional electrician for

assistance.

In the case as of buildings room, a room receiving a bath or a shower and socket-outlets lower or equal to 32 A the circuit corresponding must be protected by a device with differential residual current (RCD) lower or equal to 30mA .

1) Drill holes on the wall according to the instruction inside the box.
Warning: Be sure to keep the safety distances as shown on the above drawing.
2) Fit the fasten tube in the hole and fit the bracket on the wall with screws
3) Hang the unit on the bracket gently, after ensuring the unit is right fixed, turn the lock in the bracket as picture show.

Warning: Before using the heater, make sure it's mounted tightly on the wall.

III. Instructions for use

1/Control panel and screen.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 1/Control panel and screen. - 1

6 Button:

Power on /stand by
(+) Increasing; Keep pressing for quick increasing; Forward the hour in 24 hour program setting.
(-) Decreasing; Keep pressing for quick decreasing; Backward the hour in 24 hour program setting.
M Select mode or program

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Button: - 1

_K Timer / Date set / Confirm
Open-window /WiFi resetting

2/Quick start

Press to turn on the screen, the equipment will work under COMFORT mode, press + - to set the desired temperature.

3/Clock setting:

Pls connect the WiFi with APP firstly, if the WiFi is connected, the clock will be updated automatically.

If the WiFi is not connected, for first using of program, the clock will required setting before use the P1/P2/P3, only when the clock setting is finished, the program can work.

When in clock setting, the hour will twinkle first, press + / - to set the right time (0-23) and press %K to get into minute setting, press + / - to set the right time (0-59) and press %K to get into date setting, press + / - to set the date from 1-7,

press _K^ to finish the date setting.

Clock modification: Long press (36) 3 seconds to modify the clock.

4 / Function setting:

  1. (20 3→ Press M to choose the mode or the program;
  2. Press (+) to choose the temperature.

Comfort mode: Setting temp. from 5^ to 35^
Eco mode: Setting temp. from 1.5^ to 31.5^ ; 3.5^ less than comfort mode, when you set up the temp. of comfort mode.
Anti-frost mode: Setting 7^ for room temp; Cannot change the temp.

  1. Program modification:

It's with factory presetting of the program P1P2P3, this program P3 can get modified according to the requirement of customer.

Press M to choose the program, when program P3 get selected, long press M for 3 seconds to modify the program. P3 LOGO and the fist hour LOGO start to twinkle. Use M to choose the mode for each hour and use + - to move the twinkle hour LOGO till finish 24 hours mode setting. Press OK to confirm the 24 hour setting and turn from Monday program to Tuesday program setting. When finish 7 days setting press OK to confirm and quit.

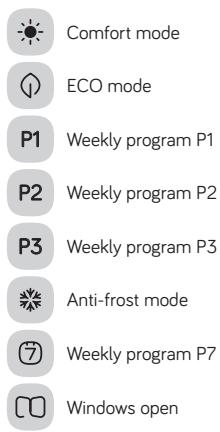

  • means comfort mode;
  • means ECO mode;
    • means Anti-frost mode;

NOTE: the block against the clock will twinkle when the block against the program is working.

5) Program factory presetting:

P: Same program from Monday to Sunday, custom can not modify the program.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 5) Program factory presetting: - 1

P2: Same program from Monday to Friday and same program from Saturday to Sunday, custom can not modify the program.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 5) Program factory presetting: - 2
Working day

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 5) Program factory presetting: - 3
Weekend

P3: Can set different program for each day.

Factory presetting is with same program from Monday to Friday, same program from Saturday to Sunday.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 5) Program factory presetting: - 4
Working day

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - 5) Program factory presetting: - 5
Weekend

6/Countdown timer setting:

Press (%%) , the clock in screen will display 00:00, press (+) to set the desired hours to turn off the heater, press (%%) to confirm the set of timer.

7/Windowsdetectorfunction:

Press to turn on/off the windows function, when the logo display in the screen, it means window function is on.

If temperature goes down, heater will stop working and the window logo is twinkling. When the function is active, a drop in temperature by 2^ in less than 2 minutes, the heater will stop working and the window logo.

Press ( v t) , the heater will go back to former running program, then the windows logo stop twinkling.

8 / Screen lock

No operation for 1 min, keyboard lock automatically.

Press (+) together unlock the keyboard.

S will showed only the unit is heating.

WiFi Connection

Use your phone to scan the QR code below or search for the "Smart Lift" App to download and generate a free account. You can also visit www.tuya.com for more information. Please note Tuya are constantly developing and upgrading their Apps to make them more user friendly and sometimes, displays may differ slightly to the display shown in this manual due to upgrades.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - WiFi Connection - 1

Select your country code, enter your mobile number and select "Get" to receive a message containing your verification code.

Enter your verification code and select "Login".

When the first using to turn on the heater, the WiFi indicator logo will flash, connect it in the APP.

Reset the WiFi, press (12) for 3 secs, the WiFi indicator logo will flash rapidly, you can now connect within the APP

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - WiFi Connection - 2

Quick connection :

Turn on your bluetooth in you mobile phone, then set as following steps.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 1
Press "+" in the right-top position and go to next step

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 2

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 3
Press "Go to add"

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 4
Select 2.4 GHz WiFi Network and enter the password, press next

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 5
Wait it's connected and press "Next", the APP will show as below

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 6

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 7
You can press to modify the name of the product

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Quick connection : - 8

Normal connection :

If the bluetooth is not on, pls follow the next step.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 1
Press "+" in the right-top position and go to next step

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 2

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 3
Choose small home appliance and heater

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 4

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 5
Select 2.4 GHz WiFi Network and enter the password, press next

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 6
Wait it's connected and press "Next", the APP will show as below

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 7

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 8
You can press to modify the name of the product

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 9
UI interface :

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 10

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 11

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 12

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Normal connection : - 13

Temperature correction: Use this function to set the Room Temperature Calibration to the correct room temperature if it is reading incorrect. Select temp calibration and then adjust temperature to current room temperature and select the tick box. The current room temperature is now set.

Note: to calibrate the temperature, pls ensure the heater already worked for more than 1 hour.

Customer can preset usual using way in different situation and name it (can keep 2 quick set).

Weekly program (P7): Set the working time and working temperature for every hour in everyday.

IV. Cleaning & maintenance

  • Switch off from the power supply before cleaning.
  • Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.
  • CAUTION: Allow the product to completely cool before handling or cleaning it.
  • Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.
  • We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.
  • CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Cleaning & maintenance - 1

HEALLUX PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W - Cleaning & maintenance - 2

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Model identifier(s): EHC11B-10RFW
ItemSymbolValueUnitItemUnit
Heat outputType of heat input, for electric storage local space heaters only (select one)
Nominal heat outputPnom1.0kWManual heat charge control, with integrated thermostat[no]
Minimum heat output (indicative)Pmin0kW
Maximum continuous heat outputPmaxc1.0kWManual heat charge control with room and/or outdoor temperature feedback[no]
Auxiliary electricity consumptionElectronic heat charge control with room and/or outdoor temperature feedback[no]
At nominal heat outputelmax0kW
At minimum heat outputelmin0kW
In standby modeelsb0kWFan assisted heat output[no]
Model identifier(s): EHC11B-15RFWType of heat output/room temperature control (select one)
ItemSymbolValueUnitSingle stage heat output and no room temperature control[no]
Heat outputTwo or more manual stages, no room temperature control[no]
Nominal heat outputPnom1.5kW
Minimum heat output (indicative)Pmin0kWWith mechanical thermostat room temperature control[no]
Maximum continuous heat outputPmaxc1.5kWWith electronic room temperature control[no]
Auxiliary electricity consumptionElectronic room temperature control plus day timer[no]
At nominal heat outputelmax0kW
At minimum heat outputelmin0kWElectronic room temperature control plus week timer[yes]
In standby modeelsb0kWOther control options (multiple selections possible)
Model identifier(s): EHC11B-20RFW
ItemSymbolValueUnitRoom temperature control, with presence detection[no]
Heat outputRoom temperature control, with open window detection[yes]
Nominal heat outputPnom2.0kW
Minimum heat output (indicative)Pmin0kWWith distance control option[yes]
Maximum continuous heat outputPmaxc2.0kWWith adaptive start control[no]
Auxiliary electricity consumptionWith working time limitation[no]
At nominal heat outputelmax0kW
At minimum heat outputelmin0kWWith black bulb sensor[no]
In standby modeelsb0kW
Contact detailsImporté par : HEALLUX SAS31 Rue De Metz N°46 - 31 000 Toulouse - France
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HEALLUX

Model : PALMA - EHC11B-10RFW : 1000W EHC11B-15RFW : 1500W EHC11B-20RFW : 2000W

Category : Electric heater
