TAO - EPC07-10R : 1000W EPC07-15R : 1500W EPC07-20R : 2000W - Electric heater HEALLUX - Free user manual and instructions

Product Type	Ceramic Panel Electric Heater
Brand	HEALLUX
Models	EPC07-10R (1000W), EPC07-15R (1500W), EPC07-20R (2000W)
Power Supply	220-240 V ~ 50 Hz
Nominal Heat Output	0,6 kW (1000W), 0,9 kW (1500W), 1,2 kW (2000W)
Dimensions (approx.)	Approximately 60 x 40 x 10 cm (depending on model)
Weight (approx.)	Approximately 4 to 6 kg
Operating Modes	Comfort, Eco, Frost Free, Programming (P1, P2, P3), Pilot Wire
Comfort Temperature Adjustment Range	5 °C to 35 °C
Eco Temperature Adjustment Range	1.5 °C to 31.5 °C (3.5 °C below Comfort)
Frost Free Temperature	7 °C (fixed)
Schedule Programming	Daily (P1), Weekday/Weekend (P2), Day by Day (P3)
Open Window Function	Detection of temperature drop of 2°C in 2 minutes, automatic shutdown
Pilot Wire Function	Orders: Comfort, Comfort-1, Comfort-2, Eco, Frost Free, Standby
Installation Type	Wall Mounting
Protection Rating	Volume 2 or outside volume (bathroom) according to NF C 15-100
Maintenance and Cleaning	Unplug, clean with soft damp cloth, do not immerse
Safety	Overheating protection, screen lock, thermal cut-off
Warranty	2 years (upon presentation of receipt)
Repairability	Return to point of sale for malfunction; parts available through HEALLUX after-sales service

Frequently Asked Questions - TAO - EPC07-10R : 1000W EPC07-15R : 1500W EPC07-20R : 2000W HEALLUX

How to set the time and date on the TAO EPC07 heater?

Press and hold the M button for about 3 seconds. The time display flashes. Use the + and - buttons to set the hour (0-23), then press M to go to minutes. Set the minutes, then press M to set the day of the week. Press M one last time to confirm.

What are the available operating modes?

The modes are: Comfort (adjustable temperature from 5 to 35 °C), Eco (automatically 3.5 °C below Comfort), Frost Free (fixed temperature of 7 °C), Programming P1 (single program 7 days a week), P2 (weekday and weekend program), P3 (day by day program), and Pilot Wire (controlled by an external manager).

How to use the open window function?

Activate the function via the dedicated button. If a temperature drop of 2°C is detected in less than 2 minutes, the heater automatically stops and the open window logo flashes. Press any button to restart.

Can I install the heater in a bathroom?

Yes, this device can be installed in volume 2 or outside volume of a bathroom, in accordance with French standard NF C 15-100. Do not install it in volumes 0 or 1.

How to lock or unlock the screen?

The screen locks automatically after 1 minute of inactivity. To unlock, press the + and - buttons simultaneously.

What to do if the heater is not heating?

First check that the device is powered on and the thermostat is set above the room temperature. Make sure the open window function is not activated. If the problem persists, contact customer service.

How to clean the heater?

Always unplug the device before cleaning. Let it cool completely. Clean the exterior with a soft damp cloth (with or without mild soap). Never use harsh detergents, solvents, or water inside.

What does Pilot Wire mode mean?

In Pilot Wire mode, the heater is controlled by an external energy manager. The possible orders are: Comfort, Comfort-1, Comfort-2, Eco, Frost Free, and Standby. The user can only adjust the temperature and activate the open window function.

How to customize a P1 program?

Select P1 mode. Press M once: the P1 symbol and the first hour flash. Use M to choose the mode (Comfort, Eco or Frost Free) for each hour of the day. Press + to go to the next hour. Once the 24 hours are set, press M to confirm.

What is the warranty of this heater?

The heater is guaranteed for 2 years from the date of purchase. Keep your receipt as proof. In case of malfunction, return the product to your point of sale.

USER MANUAL TAO - EPC07-10R : 1000W EPC07-15R : 1500W EPC07-20R : 2000W HEALLUX

V. CONDITIONS DE GARANTIE

Always read this instruction manual before installing or using your appliance and always keep for future reference.

□

IP24

EPC07-10RF : 1000W

EPC07-15RF : 1500W

EPC07-20RF : 2000W

230V~50Hz

Fabrique en RPC

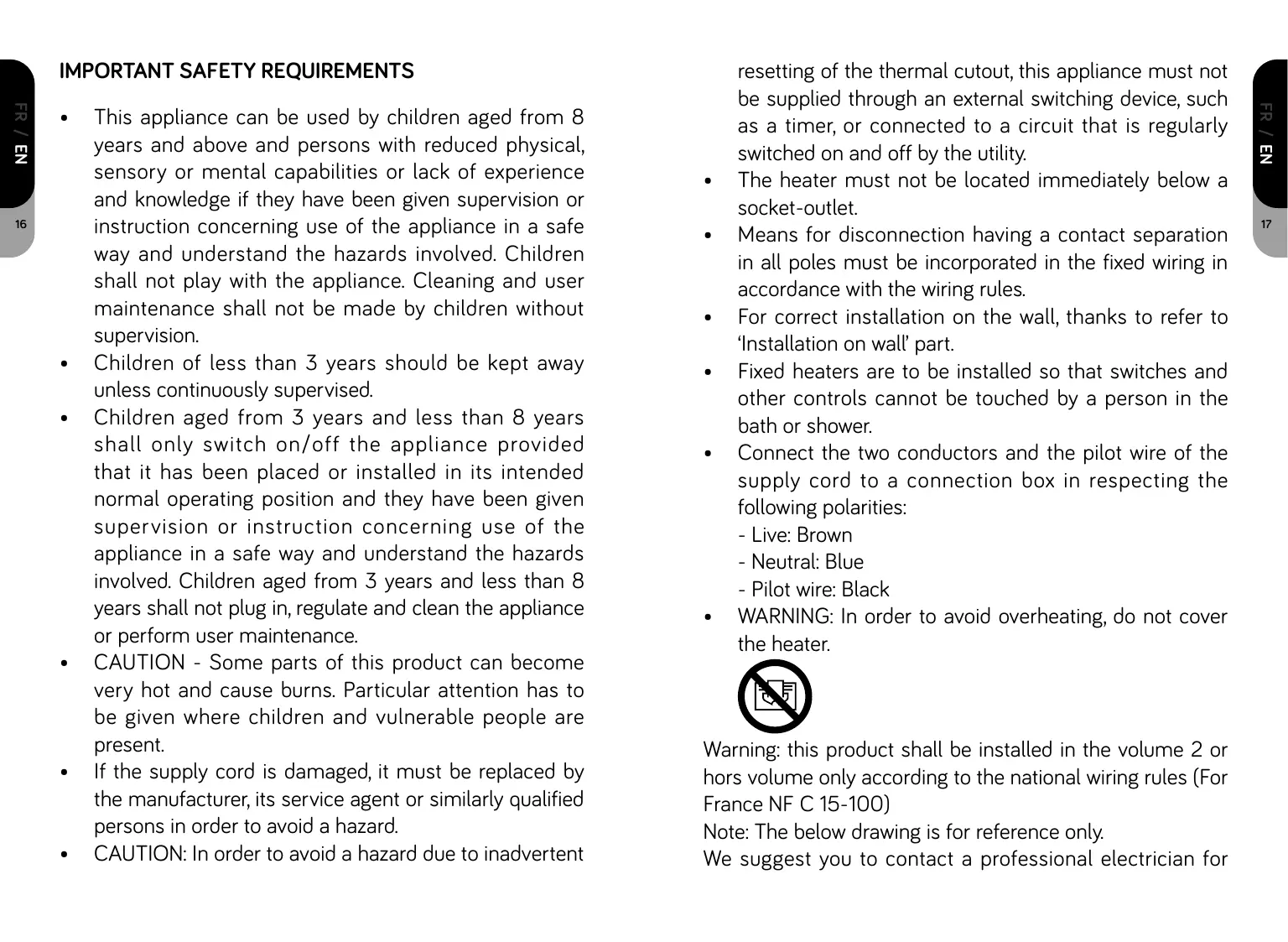

IMPORTANT SAFETY REQUIREMENTS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• The heater must not be located immediately below a socket-outlet.
• Means for disconnection having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.
• For correct installation on the wall, thanks to refer to 'Installation on wall' part.
• Fixed heaters are to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

• Connect the two conductors and the pilot wire of the supply cord to a connection box in respecting the following polarities:

• Live: Brown

• Neutral: Blue
• Pilot wire: Black

WARNING: In order to avoid overheating, do not cover the heater.

Warning: this product shall be installed in the volume 2 or hors volume only according to the national wiring rules (For France NF C 15-100)

Note: The below drawing is for reference only.

We suggest you to contact a professional electrician for

assistance.

In the case as of buildings room, a room receiving a bath or a shower and socket-outlets lower or equal to 32 A the circuit corresponding must be protected by a device with differential residual current (RCD) lower or equal to 30 ~mA .

1) Drill holes on the wall according to the instruction inside the box. Warning: Be sure to keep the safety distances as shown on the above drawing.
2) Fit the fasten tube in the hole and fit the bracket on the wall with screws
3) Hang the unit on the bracket gently, after ensuring the unit is right fixed, turn the lock in the bracket as picture show.

Warning: Before using the heater, make sure it's mounted tightly on the wall.

III. INSTRUCTIONS FOR USE

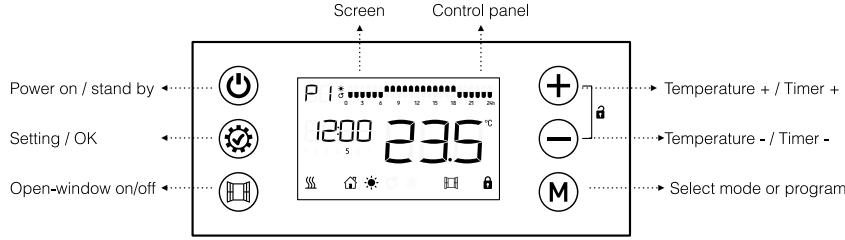

1/Control panel and screen.

6 Button:

Power on /stand by
Increasing; Keep pressing for quick increasing; Forward the hour in 24 hour program setting.
Decreasing; Keep pressing for quick decreasing; Backward the hour in 24 hour program setting.
M Select mode or program

Setting/OK
Open-window on/off

2/Quick start

Press to turn on the screen, the equipment will work under COMFORT mode, press to set the desired temperature.

3 / Clock setting:

For first using of program, the clock will required setting before use the P1/P2/P3, only when the clock setting is finished, the program can work.

When in clock setting, the hour will twinkle first, press +/- to set the right time (0-23) and press 心 to get into minute setting, press +/- to set the right time (0-59) and press 心 to get into date setting, press +/- to set the date from 1-7, press 心 to finish the date setting.

Clock modification: Long press 3 seconds to modify the clock.

4 / Function setting:

1. to choose the mode or the program;
2. Press to choose the temperature.

Comfort mode: Setting temp. from 5^ to 35^

ECO mode: Setting temp. from 1.5^ to 31.5^ ; 3.5^ less than comfort mode, when you set up the temp. of comfort mode.

Anti-frost mode: Setting 7^ for room temp; Cannot change the temp.

1. Program modification:

It's with factory presetting of the program P1P2P3, this program can get modified according to the requirement of customer.

Press M to choose the program, only when the program get selected, press to modify the program.

When you're in P, press o once, LOGO and the fist hour LOGO start to twinkle. Use M to choose the mode for each hour and use + to move the twinkle hour LOGO till finish 24 hour mode setting. Press to confirm the 24 hour setting and quit the setting status.

When you're in P2, press once, P2 LOGO and the fist hour LOGO start to twinkle. Use M to choose the mode for each hour and use + to move the twinkle hour LOGO till finish 24 hour mode setting. Press to confirm the 24 hour setting and turn from working days program 12345 to weekend program 67 setting. When finish the setting press to confirm and quit.

When you're in P3, press once, P3 LOGO and the fist hour LOGO start to twinkle. Use M to choose the mode for each hour and use + to move the twinkle hour LOGO till finish 24 hours mode setting. Press to confirm the 24 hour setting and turn from Monday program to Tuesday program setting. When finish 7 days setting press to confirm and quit.

• means comfort mode;
• means ECO mode;
• means Anti-frost mode;

NOTE: the block against the clock will twinkle when the block against the program is working.

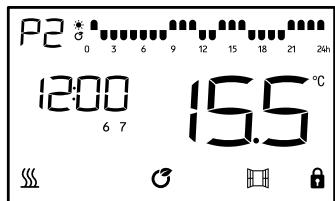

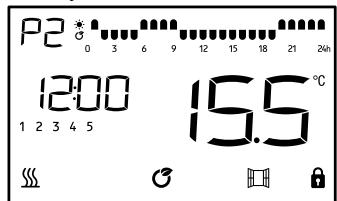

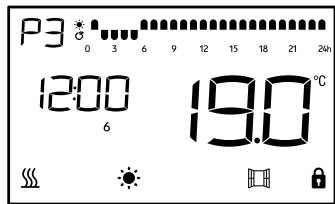

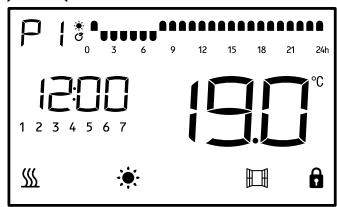

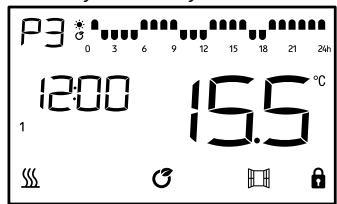

5) Program factory presetting:

P: Same program from Monday to Sunday, custom can modify the program.

P2: Same program from Monday to Friday and same program from Saturday to Sunday.

Working day

Weekend

P3: Can set different program for each day.

Factory presetting is with same program from Monday to Friday, same program from Saturday to Sunday.

Working day

Weekend

6 / Pilot mode:

In this mode, the heater will be controlled by pilot wire. Client can only change the temperature and open-window on/off.

Comfort

Comfort -1

Comfort -2

ECO

Anti-frost

Stand-by

NOTE: When in Comfort-1 or Comfort-2, the temperature can't get set.

7/Windowsdetectorfunction:

Press to turn on/off the windows function, when the logo display in the screen, it means window function is on.

If temperature goes down, heater will stop working and the window logo is twinkling.

Press , the heater will go back to former running program, then the windows logo stop twinkling.

8 / Screen lock

No operation for 1 min, keyboard lock automatically.

Press ( +) together unlock the keyboard.

will showed only the unit is heating.

IV. CLEANING & MAINTENANCE

• Switch off from the power supply before cleaning.
• Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.
• CAUTION: Allow the product to completely cool before handling or cleaning it.
• Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.
• We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.
• CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

V. WARRANTY TERMS

Therefore, the warranty period is two years from the date of purchase. Keep your cash receipt as proof of purchase.

In case of any problems, be sure to return the product to your point of sale.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Information requirements for electric local space heaters

Model identifier(s): EPC07-10R
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0.6	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	N.A.	kW
Maximum continuous heat output	Pmaxc	0.6	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Electronic heat charge control with room and/or outdoor temperature feedback	[no]
At nominal heat output	elmax	0	kW
At minimum heat output	elmin	0	kW	Fan assisted heat output	[no]
In standby mode	elsb	0,000	kW
Model identifier(s): EPC07-15R				Type of heat output/room temperature control (select one)
Item	Symbol	Value	Unit	Single stage heat output and no room temperature control	[no]
Heat output				Two or more manual stages, no room temperature control	[no]
Nominal heat output	Pnom	0.9	kW	With mechanical thermostat room temperature control	[no]
Minimum heat output (indicative)	Pmin	N.A.	kW	With electronic room temperature control	[no]
Maximum continuous heat output	Pmaxc	0.9	kW	Electronic room temperature control plus day timer	[no]
Auxiliary electricity consumption				Electronic room temperature control plus week timer	[yes]
At nominal heat output	elmax	0	kW	Other control options (multiple selections possible)
At minimum heat output	elmin	0	kW
In standby mode	elsb	0,000	kW
Model identifier(s): EPC07-20R
Item	Symbol	Value	Unit	Room temperature control, with presence detection	[no]
Heat output				Room temperature control, with open window detection	[yes]
Nominal heat output	Pnom	1.2	kW
Minimum heat output (indicative)	Pmin	N.A.	kW	With distance control option	[no]
Maximum continuous heat output	Pmaxc	1.2	kW	With adaptive start control	[no]
Auxiliary electricity consumption				With working time limitation	[no]
At nominal heat output	elmax	0	kW
At minimum heat output	elmin	0	kW	With black bulb sensor	[no]
In standby mode	elsb	0,000	kW
Contact details	Importé par : HEALLUX SAS31 Rue De Metz N°46 - 31 000 Toulouse - France
