TH4 - Thermometer EQUATION - Free user manual and instructions

Brand	EQUATION
Model	TH4
Product type	Indoor thermometer and hygrometer
Power supply	2 LR44 batteries (1.5 V each)
Temperature units	Celsius or Fahrenheit (selectable)
Time display	12h or 24h (adjustable)
Memory	Maximum and minimum temperature and humidity values
Approximate dimensions	70 x 70 x 15 mm
Approximate weight	50 g (without batteries)
Maintenance and cleaning	Wipe with a soft dry cloth. Do not use abrasive products.
Safety	Keep batteries out of reach of children. Remove batteries if not used for an extended period.
Spare parts and repairability	Not user-repairable. Only batteries are replaceable.
Disposal	Do not dispose of with household waste. Follow WEEE recycling guidelines.

Frequently Asked Questions - TH4 EQUATION

How to change the temperature unit between Celsius and Fahrenheit?

Press the SET button to toggle between °C and °F.

How to set the time on the TH4 thermometer?

Press and hold SET for 3 seconds. The 12h/24h display flashes, adjust with the buttons. Press SET again to set the hour, then minutes. Press SET to exit.

How to display the minimum and maximum temperatures?

Press MEM repeatedly to successively view the max, min, then current values.

How to reset the maximum and minimum values?

When max or min value is displayed, press and hold the MEM button to clear the memory.

What type of batteries to use and how to replace them?

Use 2 LR44 1.5 V batteries. Open the cover in the direction of the arrow, insert the batteries respecting polarity, then close.

What to do if the device does not turn on?

Check that the batteries are installed correctly (polarity) and are fresh. Replace them if necessary.

How to clean the TH4 thermometer?

Wipe the device with a soft dry cloth. Do not use chemical or abrasive products.

Can this thermometer be used outdoors?

No, the TH4 is designed for indoor use only.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Drop it off at a WEEE collection point or return it to the store.

What to do if a battery is ingested?

Consult a doctor immediately. Keep batteries out of reach of children.

USER MANUAL TH4 EQUATION

Press SET to choose unit (Degrees Celcius or Fahrenheit)

Set Time

• Hold SET during 3 seconds, display mode (12h/24h) is flashing
• Adjust with button
• Press SET, hour is flashing
• Adjust with button
  Press SET, minutes are flashing
• Adjust with button
• Press SET to exit the setting cycle.

Maximum and minimum values memory

The memory is used to store the maximum and minimum values of temperature and humidity.

• Press MEM several times to successively display the maximum and minimum values, then return to the current values.
• While displaying maximum or minimum values, hold the MEM button to reset the values.

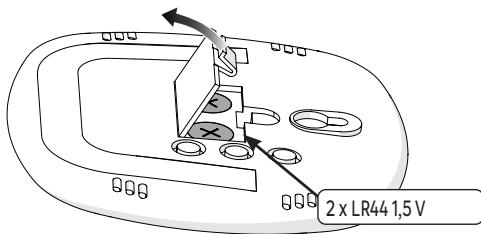

Replacing batteries

• Open the cover in the direction of the arrow.
• Insert 2 LR44 1,5V batteries in the compartment. Make sure you observe the right polarity (^+ + " and " - "
• Place the cover of the battery compartment back.

Important!

• Do not let children play with batteries
• Do not ingest batteries
  Non-rechargeable batteries are not to be recharged;
• Different types of batteries are not to be mixed;
• New and used batteries are not to be mixed;

• Batteries are to be inserted with the correct polarity;

• Exhausted or leaking batteries are to be removed from the appliance and safely disposed of;

• If the appliance is to be stored unused for a long period, the batteries should be removed;
• The supply terminals are not to be short-circuited;
• The batteries must be removed from the appliance before it is scrapped.

Warning:

• Danger to life and risk of accidents for infants and children!
• Keep the batteries out of the reach of children. Do not leave the batteries lying around. There is a risk of children or animals swallowing them.
• Consult a doctor immediately if a battery is swallowed.
• Never throw batteries into fire or water

Processing waste of electronic and electric devices at life-cycle end.

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by

approved organisations.

For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

Garantie 5 ani / 5-year guarantee

Made in China

ADEO Services - 135 Rue Sadi Carnot

CS 00001-59790 RONCHIN-France
