USER MANUAL PRPVC1201AUTO / 511726 RIBIMEX

Carefully read this instruction manual before operating this product.

Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVVERTENZA:

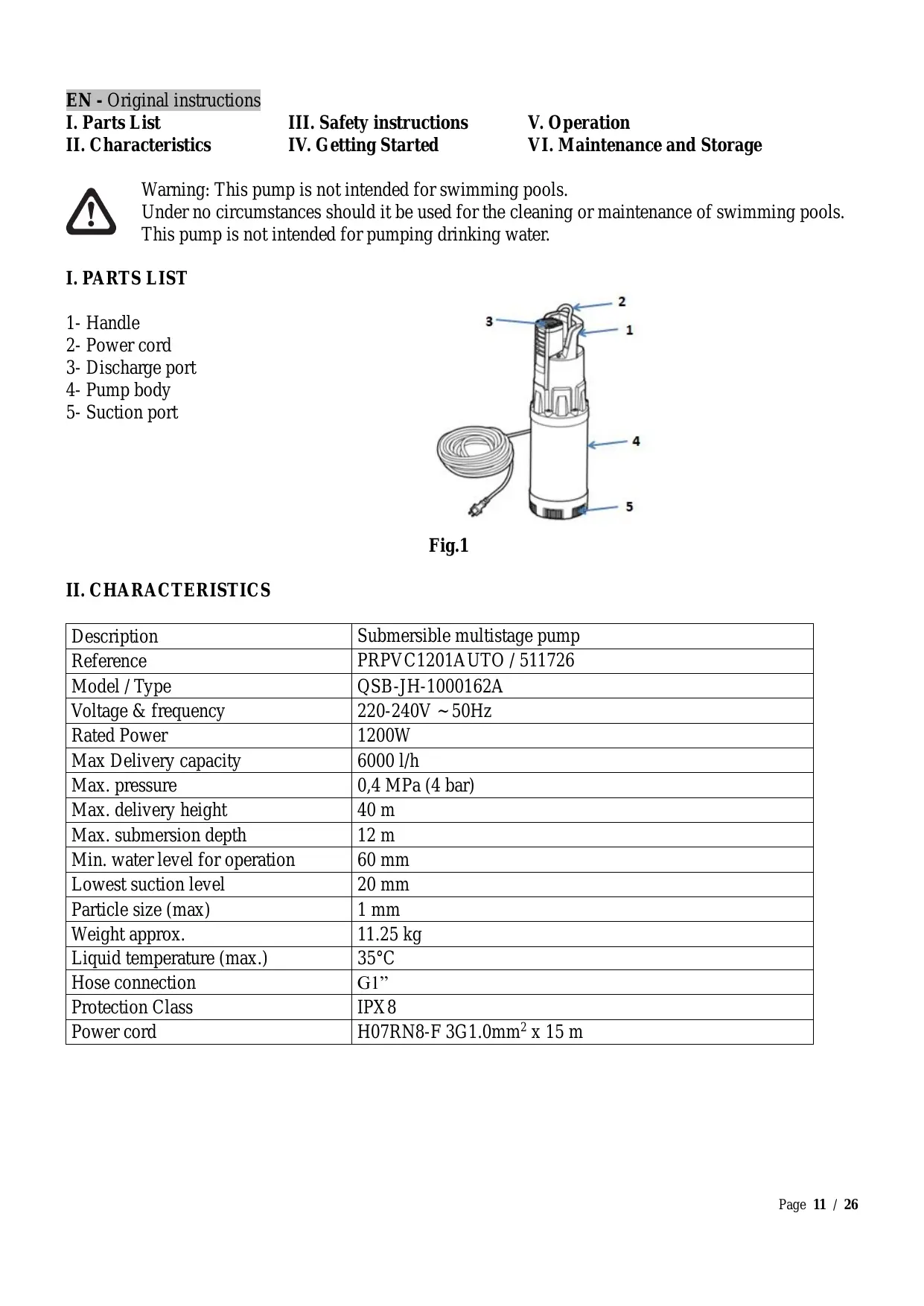

EN - Original instructions

I. Parts List

II. Characteristics

III. Safety instructions

IV. Getting Started

V. Operation

VI. Maintenance and Storage

Warning: This pump is not intended for swimming pools.

Under no circumstances should it be used for the cleaning or maintenance of swimming pools.

This pump is not intended for pumping drinking water.

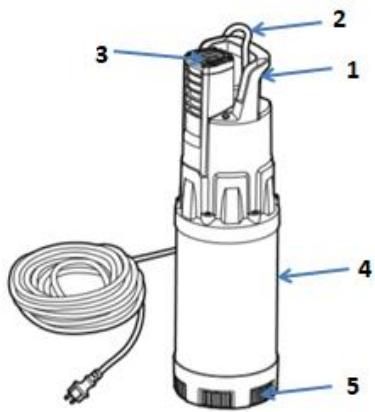

I. PARTS LIST

1- Handle
2- Power cord
3- Discharge port
4-Pump body
5-Suction port

Fig.1

II. CHARACTERISTICS

Description	Submersible multistage pump
Reference	PRPVC1201AUTO / 511726
Model / Type	QSB-JH-1000162A
Voltage & frequency	220-240V ~ 50Hz
Rated Power	1200W
Max Delivery capacity	6000 l/h
Max. pressure	0,4 MPa (4 bar)
Max. delivery height	40 m
Max. submersion depth	12 m
Min. water level for operation	60 mm
Lowest suction level	20 mm
Particle size (max)	1 mm
Weight approx.	11.25 kg
Liquid temperature (max.)	35°C
Hose connection	G1”
Protection Class	IPX8
Power cord	H07RN8-F 3G1.0mm² x 15 m

III. SAFETY INSTRUCTIONS

Before using this product, read and understand all safety instructions.

Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to persons and animals.

3.1- Symbols

	Caution! Risk of injury and/or damage and/or deterioration of product in case of non-compliance to safety requirements
	Read the instructions manual.
	Keep persons (esp. children) and animals away from product and working area
	Disconnect product from its power source before maintenance, cleaning or any intervention on product; or when you do not use product. Disconnect product from its main power source, if product, power cable, or extension cord is damaged or cut during operation. Unplug product by pulling the plug. Do not pull the cable.
	Do not dispose of this product with household rubbish. Disposition of this product in the nearest recycle centre. Please contact your local authority or local recycle centre for further information for its safe disposal.

3.2- READ ALL THE INFORMATION BEFORE OPERATING THE PRODUCT.

1. Keep work area clean

Cluttered areas and benches invite accidents and injuries.

1. Consider work area environment

Keep work area well lit (natural light or sufficient artificial lighting).

Keep work area well ventilated.

Do not use product where there is risk to cause fire or explosion (in the presence of flammable liquids, solids or gas).

1. Guard against electric shock

Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

1. Keep children away

Do not let bystanders touch the product or its power cable or extension cord.

All bystanders (esp. children) should be kept away from product and work area.

Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the appliance.

1. Store idle products

When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

1. Do not force the product

It will do the job better and safer at the rate speed for which it is intended.

Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

1. Use the right product

Do not force small products or attachments to do the job of a heavy duty product.

1. Dress properly

When installing, do not wear loose clothing or jewellery; they can be caught in moving parts.

Wear protecting hair covering to contain long hair.

1. Use protective equipment

When installing, wear protective equipment appropriate to working conditions and work environment Wear protective helmet, safety goggles, ear mufflers, face or dust mask, rubber gloves and non-skid footwear to reduce the risk of personal injury during products use or manipulation.

1. Do not abuse the power cable

Never carry the product by the cable or yank it to disconnect it from the socket.

Keep the cable away from heat, oil and sharp edges.

Inspect product cable periodically and if damaged have it repaired by an authorized service facility.

Inspect extension cords periodically and replace, if damaged.

1. Do not overreach

When installing, keep proper footing and balance at all times.

1. Maintain product with care

Keep product clean for better and safer performance.

1. Disconnect product

When not in use, before servicing and when changing accessories.

1. Avoid unintentional starting

Ensure switch is off when plugging in.

Always ensure that a device which has been switched off cannot be restarted unintentionally

1. Use of extension leads

When product is used with extension cord, ensure that extension cord withstands product ratings.

If used outdoors, use only extension cords intended for outdoor use.

1. Stay alert

Watch what you are doing. Use common sense.

Do not operate product when you are tired, under the influence of alcohol, prescription medicines or drugs.

1. Check damaged parts

Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

1. Defective switches or other part that is damaged should be properly repaired or replaced by an authorized service centre. Do not use the product if the switch does not turn it on and off.

2. Warning

The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

1. Have your product repaired by a qualified person

Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorized service centre is recommended.

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

1. Remarks:

The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

3.3- Special warnings when using the pump

1. Become familiar with the controls and the proper use of the equipment.
2. The use of this product by children, without adult supervision, is forbidden.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

4. children shall not play with the appliance.

5. cleaning and user maintenance shall not be made by children without supervision

6. If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or a person with similar qualification in order to avoid any danger.
   If the power cable or extension cord is damaged or cut during operation, immediately disconnect plug from its main power source. Do not touch the cable or extension cord before unplugging from main power.

7. Make sure the electrical connection is carried out in a dry location, and protected from water.
8. Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
   7.-
9. Do not aim the water jet directly toward the product or other electrical components! Mortal danger due to electric shock!
10. Lay the extension cord in such a way that it cannot get into contact with the liquid being conveyed.
11. Do not install or turn on the product if there are persons or animals in the conveying medium. (e. g. basin) or making contact with the conveying medium.
12. Do not leave the device unsupervised. Unplug the mains plug during periods of extended absence.
13. As a general rule, repairs are only to be carried out by an electrician. If repairs are performed improperly, there is danger of liquid getting into the electronic components of the device.
14. Symbols affixed to the tool may not be removed or covered. Information on the product that is no longer legible must be replaced immediately. Contact your dealer to get new labels.

3.4- Safety prescriptions

1. The supply voltage should correspond to that given on the description label (220-240V ~ 50Hz).
   Do not use any other type of power supply.
2. The pump should be supplied by a circuit containing a residual current device (circuit breaker, RCD) with a sensitivity not exceeding 30mA .

Consult with a qualified electrician.

1. The supply cable should be checked periodically and before each use to see if there are any signs of ageing or damage.
   If the pump is not in good condition, do not use it. Have it repaired by an authorized centre.
2. If an extension is used, ensure that it is officially approved. Keep it well away from sharp edges, heat sources and combustibles.
3. The plug-in connector for the extension should be of the 2 pole + earth type of 10-16A/250V, in accordance with EEC standards.

The wire section in the cable should be equal to or greater than 1mm^2

The cable should not be lighter than cables of H07 RN8-F.

1. When disconnecting the power cable from the socket, always grip the plug itself and not the cable.
   Do not remove the plug from the socket by pulling on the cable but by pulling on the plug.
2. If the pump is used for emptying a pond, it should not be used when there are people in the pond.

Similarly, to avoid accidents during pump operation: washing, swimming or domestic animals bathing is strictly forbidden around the operating area.

1. When the pump is immersed, handling should not be carried out using the power cable, but using a device (for ex. a rope) connected to the carrying handle

2. Do not transport, carry or hang the pump by its cable, use the carrying handle.

3. DANGER! Electric Shock!

Moisture can penetrate into the electrical part of the power cord through a cut plug, and cause a short circuit.

Never cut the plug (eg. For electrical installation through a wall).

IV. GETTING STARTED

Before any intervention on product, ensure that product is disconnected from its power source.

4.1- Unpacking

• Remove product from its packaging.
• Check that product and accessories are not damage

WARNING!

• The warranty does not cover accidents due to improper installation. This pump must be installed in accordance with local standards and by a qualified person (we recommend you to contact an electrician).
• The fixed pipeline that will connect the pump must include a separation device having contacts with the opening distance of at least 3mm in all poles.
• The total head must not exceed 40m

4.3- Electrical connection

IMPORTANT! If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or a person with similar qualification in order to avoid any danger.

a) Make sure that the power supply corresponds with the connection specifications of the device (see rating label).
b) Check that the power cable is not damaged. The cable must be at least one cable H07 RN8-F 3 × 1.0 ~mm^2 (or exceed 1 ~mm^2 ) (line, neutral and earth).
c) Connect plug to a wall socket 10/16A fitted with a ground connection.
d) Turn the pump for 2 to 3 seconds to perform a dry run of the pump.

Do not operate the pump without water for more than 2 to 3 seconds to avoid overheating. This will cause permanent damage.

e) Disconnect the pump from the power supply (remove the plug from the wall socket), and then proceed with delivery/discharge line connection, as described in the following paragraph.
f) Ensure that the electrical connection is protected against water splashing.
g) When operating outdoors, the electrical connections must be splash-proof; they must not lie in water.
h) Extension cords must have sufficient wire cross section; cable drums must be complete unwound.

4.3- Connecting the discharge line (not supplied)

a) Wedge the discharge hose (not supplied) on to the connector.
b) Add a fixing collar (hose clamp not supplied) to complete the seal.

Notes: - The discharge hose (not supplied) must have a minimum diameter of 25mm and must be rigid and kink resistant to prevent crushing.

• To avoid leakages in the delivery line and get the best performance, ensure to seal the fittings with Teflon.

Remarks: - All components of the discharge line must be compression-proof.

• All components of the discharge line must be professionally installed

• If the components are not compression-proof or if they are improperly installed, the pressure line could burst during operation. Risk of injury from liquid spurting out!

4.4- Start-up

1. The pump must be installed in a vertical position: ensure that it is stable during operation.
2. The suction holes must never be obstructed. It is therefore preferable that the pump should never be placed directly on the ground or on the bottom of the well, pond or vessel.

For example, use a brick to support the pump.

V. OPERATION

5.1- Intended use

1. This clear water pump is a submersible pump intended for domestic use.
   The pump is not intended for artisanal, industrial and/or commercial uses (for ex. Public parks, sports grounds ...)
2. The pump is designed for routine household uses such as gardening, irrigation systems, pumping water from tanks, well...
   It can be used to suck up clear water from flooded premises with particles in suspension that are less than [see table II] in diameter. When used to dry out premises (for ex. cellar draining) it is recommended to place the pump below floor level.
3. The pump is fully submersible: the immersion depth must not exceed [see table II].
4. The pump should not be used for:
5. for sucking up liquids or materials that are corrosive, flammable/combustible, explosive r any other dangerous liquid; fats, oils, sea water, dirty water and waste water (e.g. from toilet, industrial...)
6. for swimming pool cleaning; in fountains or aquariums...
7. for pumping or transferring water intended for human consumption or any other food liquids.
8. The pump must not be used for operations not described in this manual.

Any other use, other than that described in the instructions, is likely to damage the pump and to put the user in serious danger.

1. The temperature of clear water sucked up should not exceed 35^ .

5.2- Operation - automatic functioning mode

Connect pump to mains power.

As this pump is an automatic water pump, it starts operating as soon as it is connected to the electricity supply, even when there is no water.

5.2.1- Water parameters

Here are the operating settings for this pump:

After 10 seconds, in the condition of no water or when water level is below 40mm , the pump stops operating.

Then the pump will try to detect the presence of water and restart working, if it detects any water which level is higher than 40mm , the pump will re-start

The re-start up settings are as follow:

After 6 seconds (1 time),

After 30 seconds (1 time),

After 10 minutes (1 time),

After 1 hour (1 time),

After 5 hours (1 time),

After 24 hours (1 time),

If the pump does not detect water, the pump will stop automatically 10 seconds after the re-start up.

After 24 hours, the pump will repeat over the same re-start up and stop cycle.

5.2.2- Pressure parameters

The pump starts operating as soon as it is connected to the electricity supply, when water is still detected after 10 seconds, the pump will keep operating.

When the pump pressure reaches the Max pressure setting (the internal pump pressure is over 3.5-4.0bar), or when there is no water coming out from the outlet, the pump stops working automatically.

When the pump pressure is lower than the Min. pressure setting (the internal pump pressure is lower than 1.5 bar), the pump starts operating again.

Warning!

Never operate the pump without water (dry running).

The pump is not designed for continuous operation! (e.g. continuous water circulating operation).

The submersible pump must be immersed before switching on.

Place pump into water, then let it purge the air (air bubbles) then only you can connect it.

Important advice

Sand and other abrasive substances increase wear and tear and reduce the pump's performance.

Do not use the pump in such environment.

VI. MAINTENANCE AND STORAGE

Before any intervention on product, ensure that product is disconnected from its power source.

6.1- Maintenance

• In winter, the pump must be carefully drained or placed in "frost" protected condition.
• Regularly rinse with clear water pump, including the suction line.
• Avoid pumping liquid containing abrasive materials such as sand.
• Before restarting, make sure of the good condition of every part of the pump.
• Clean plastic parts with a clean, soft cloth.
• Do not use aggressive cleaning product (solvents, detergents) or abrasive sponges or sharp or pointed objects.

ATTENTION: This pump is intended for clean water and is equipped with a filter sponge, in the bottom, to filtrate the particles. It is therefore recommended that the filter sponge be cleaned very often.

6.2-Breakdown

• Never attempt to dismantle the pump.
• If necessary, have it checked and repaired by an authorized centre (consult your dealer).

6.3- Trouble shooting

Incidents	Causes	Remedies
Pump does not start	-Power supply not connected -Floater does not switch	-Check power supply -Raise position of floating switch
No flow	-Inlet sieve is clogged -Pressure hose in bent	-Clean inlet sieve water jet -Reset hose
Pump does not switch off	-Floater cannot sink down	-Place pump vertically underwater
Insufficient flow	-Inlet sieve is clogged -Reduced pumping capacity by dirty and abrasive water	-Clean inlet sieve -Clean pump and replace worn-out parts
Pump switches of after short operating period	-Dirty water: thermal cut-out stops pump -Water too hot: thermal cut-out stops pump	-Remove mains plug. Clean pump and shaft -Make sure that a water temperature of max.35°C is not exceed

6.4- Storage

• Clean the pump.
• Pump must be stored in a dry, ventilated location. Always lock up product and keep out of reach of children.

6.5- Disposal

• Do not dispose the product with household garbage. Do not throw into the environment.
• Dispose of the product in a collection centre for waste of electrical and electronic equipment, or a waste drop-off centre; or seek advice from your local municipality.
• Disposal of the product, accessories and packaging should be carried out according to local regulations governing environment protection.
