USER MANUAL MILANO ROINTE
INSTALLATION AND USER MANUAL
Page 26
ES
MANUAL DE INSTALLACION Y USO
Page 48
PT
LE KIT DE FIXATION CONTIENT
FIXATION AU MUR
DANGER. This symbol indicates a moderately high risk that may result in serious injury or death.
DO NOT COVER. Do not dry or leave clothes or towels on the heater. Do not leave or place magazines, aerosol cans, volatile substances or similar objects within 250~mm of the heater.
HOT SURFACE. This symbol indicates that your surfaces are hot during and immediately after use. These must not be touched: risk of burns.
FOLLOW THE INSTRUCTIONS IN THE MANUAL. Please read this manual carefully before installing and using the product. Keep it for future use. Read all instructions and safety warnings. Failure to do so may result in electric shock, fire or serious injury.
Complies with the European regulations applicable to the product.
INDEX
- General warnings 28
- Technical information 31
- Installation 32
- Control panel and display 37
- Functionality and programming 38
5.1. Quick start 38
5.2.Setting the time and date 38
5.3.Mode selection 39
5.4.Description of the p1/p2/p3 programmes 40
5.5.Modification of programme 3 42
5.6. Timer operation 43
5.7.Open window function 43
5.8. Operation of the fan 43
- Maintenance and cleaning 44
- European regulation (weee) 2012/19/eu 44
8.Guarantee 44
9.How to register your product guarantee. 47
Directive ERP Commission Regulation 92
EU Declaration of Conformity 93

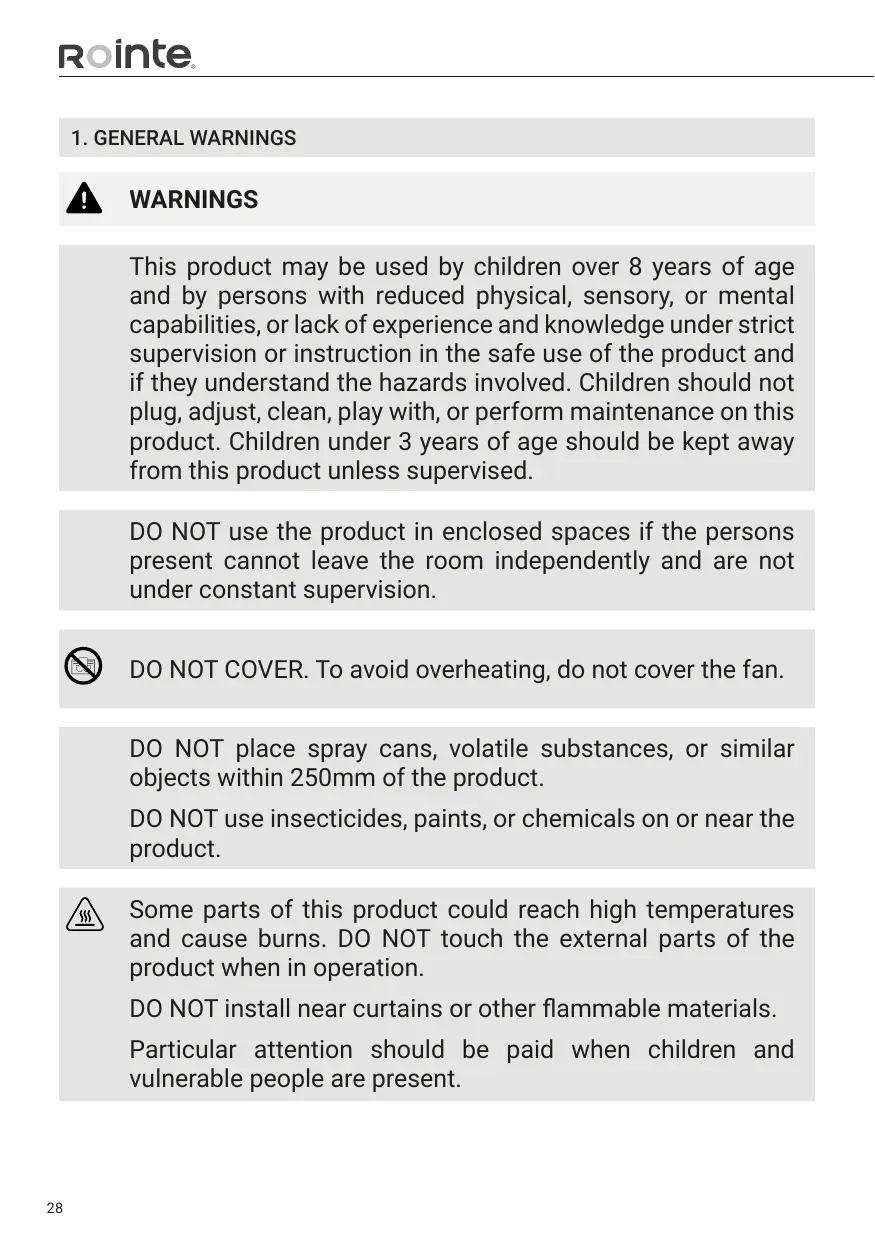

1. GENERAL WARNINGS
WARNING
This product may be used by children over 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge under strict supervision or instruction in the safe use of the product and if they understand the hazards involved. Children should not plug, adjust, clean, play with, or perform maintenance on this product. Children under 3 years of age should be kept away from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons present cannot leave the room independently and are not under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the fan.
DO NOT place spray cans, volatile substances, or similar objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the product.
Some parts of this product could reach high temperatures and cause burns. DO NOT touch the external parts of the product when in operation.
DO NOT install near curtains or other flammable materials.
Particular attention should be paid when children and vulnerable people are present.
When using electrical appliances, precautions should be
- taken to reduce the risk of fire, electric shock and injury.
Never insert fingers, body parts or objects inside the product.
Make sure that the voltage indicated on the product's
- technical information corresponds to the voltage output you have at your socket.
Any repair or maintenance that requires the product to be opened the product must be carried out by personnel authorised by ROINTE, who must also be notified if a lea
- is observed. Only official spare parts approved by ROINTE should be used. Please observe the current and relevant regulations when disposing of this product.
If the power cable is damaged, it must be replaced by personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging - including bags and other items within reach of babies or children.
The product has an IP24 degree of protection and can be used in bathrooms, but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where it, the switches or the control panel are within the reach of people in the water. Never use the product with wet hands. Do not place any water containers (glasses, vases, etc.) on or near the product.
IMPORTANT
Disconnect the product from the power supply and make sure the product is at room temperature before any cleaning
- or maintenance. Do not use any abrasive substances on the product, such as (but not limited to) chemicals, coarse cloths, brushes, hard bristle, or wire/steel wool.
- To disconnect the product from the power source, remove the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
- the product unless it has been followed by an official ROINTE technical study.
Before the first start-up, or before the start of winter, or when
- the product has not been used for many days, the appliance should be cleaned (follow the steps in the "maintenance" section of this manual).
- Do not sit or lean on the product.
Temperature contrasts can generate " clicks" or noises in
- the device. This is not a fault of the product, but due to the expansion/contraction of the materials.
When disposing of the product, the requirements set out in
- the legislation for the waste treatment and recycling must be followed. See WEEE in section 8.
2. TECHNICAL INFORMATION
| MODEL WIDTH 500 | TMILN50B115 | |
| DIMENSIONS | ||
| Width (mm) | 500 | |
| Height without control panel (mm) | 1.000 | |
| Height with control panel (mm) | 1.150 | |
| Depth (mm) | 110 | |
| Installed depth (mm) | 140 | |
| Weight (Kg) | 14,4 | |
| MECHANICAL FEATURES | ||
| Armoured steel heater | ✓ | |
| Thermal fluid | ✓ | |
| Digital control panel | ✓ | |
| Finishing | White RAL 9016 | |
| ELECTRICAL FEATURES | TOWEL RAIL | FAN |
| Nominal Power (W) | 500 | 1.000 |
| Voltage (V) | 230 V ~ | 230 V ~ |
| Intensity (A) | 2,2 | 4,4 |
| Class II | ✓ | |
| INSTALLATION AND PROTECTION | ||
| Installation kit included | ✓ | |
| Safety thermostat | ✓ | |
| Protection level | IP 24 | |
| EAN Code | 8435556147626 | |
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the nearest one by calling us onor using the locator on
Prior to installation, please locate the metal tag located at the back of the product and note the product reference and serial number. You will need this information to register your guarantee. See section 9 for help on how to register the guarantee.
Do not install the product directly over an electrical outlet or junction box. Do not install the product or use it outdoors. Do not install directly under a shelf. This product is designed to be installed on an interior wall using the ROINTE template, the installation kit and the fixings supplied. Do not install the product in such a way that it encounters the power cable.

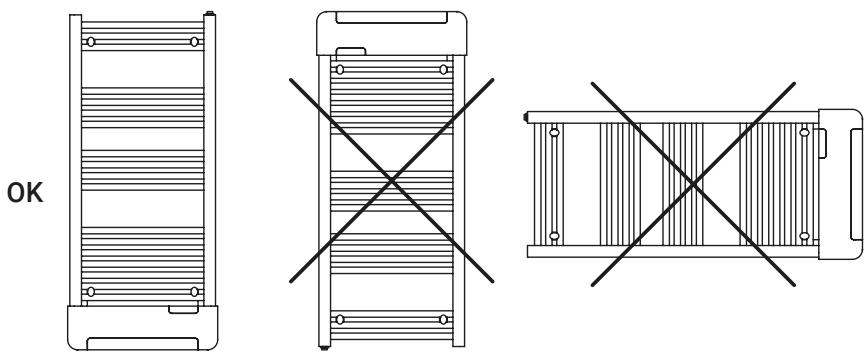

This product must never be installed with its control box in a raised position. The vertical product must not be used horizontally. During installation, use shims to prevent the control box from resting on the floor.
The mains connection must be made in compliance with the voltage indicated on the product's technical data label. This product is intended to be permanently connected to a fixed installation. The supply circuit of theproduct must be fitted with a single-pole circuit breaker with a contact separation of at least 3mm . The product should be installed, if possible, away from draughts (windows, doors) or anything else that could interfere with its
control. This will provide the best thermal comfort. Place any object that could impede air circulation (furniture, armchairs) 50~cm from the front of the appliance. The product must not be placed in front of or directly below a fixed socket. The bottom of the control panel must be at least 15cm from the wall or ceiling and 60cm from the floor.
For any prodcut, if the power supply cable is damaged, it must be replaced with a specific cable. The replacement of the cable must be carried out by ROINTE, our after-sales service or qualified personnel. The technical characteristics of your product are indicated on the technical characteristics label.
This product complies with CLASS II safety standards (double insulation). It can be installed in Zones 2 and 3, positions A and B provided that the following rules are observed:
- In bathrooms, the product must never be installed in such a way that the control panel can be reached by a person in the bath or shower. The control panel must be located at a minimum distance of 1000mm from any wet areas. The body of the product can be placed in Zone 2 if the control panel is located within Zone 3.
The weight of some of the products may be heavy. The installation may require two people.
Please follow these instructions carefully.

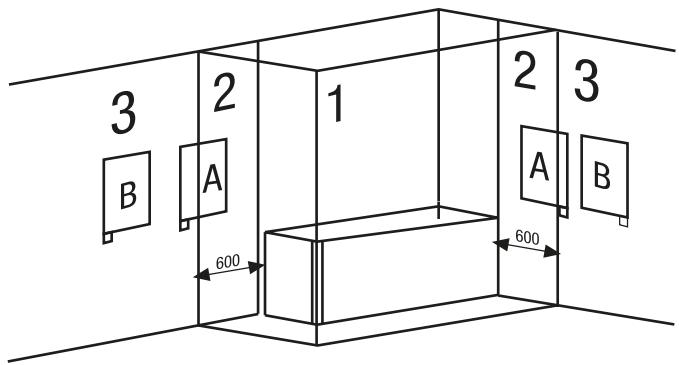

IMPORTANT: The towel rail can only be installed in the following areas:
Zone 2 / Out of zone

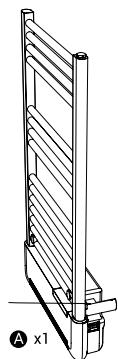

DESCRIPTION

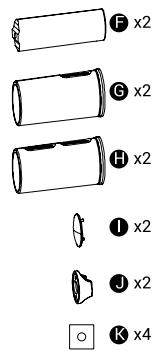

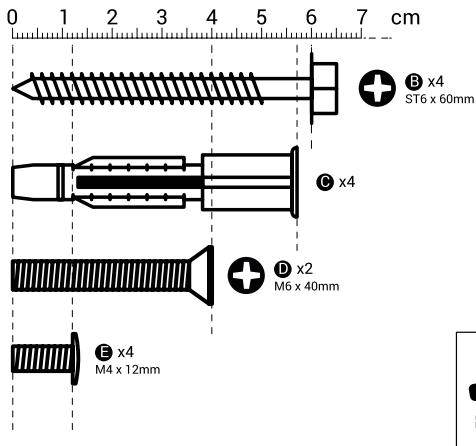

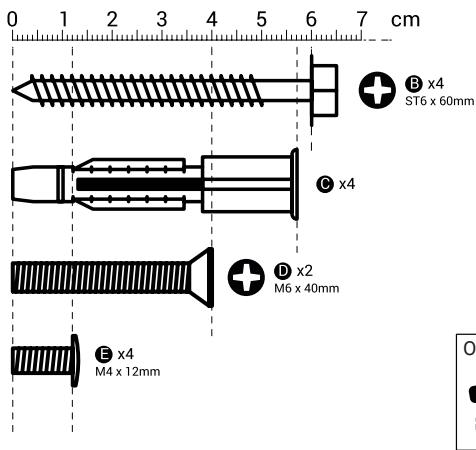

THE FIXING KIT CONTAINS

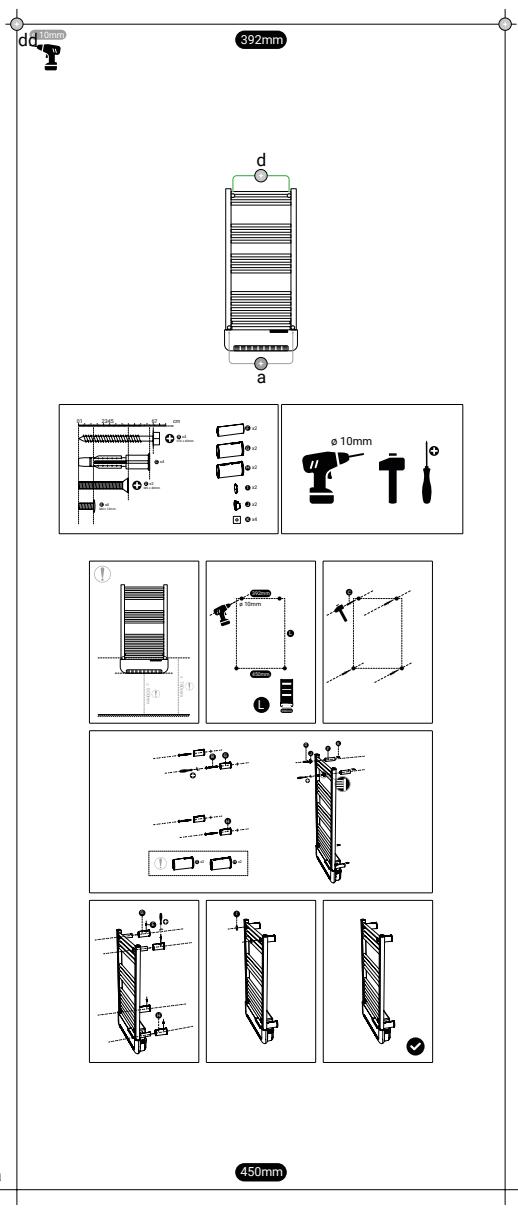

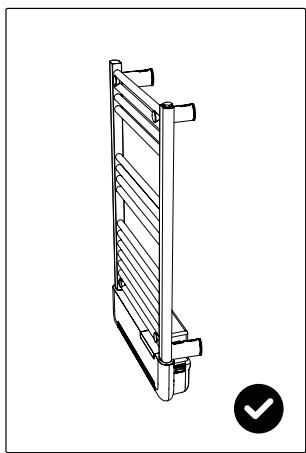

WALL MOUNTING
Installation instructions:
DO NOT THROW AWAY THE PACKAGING. Inside the box is the drilling template.

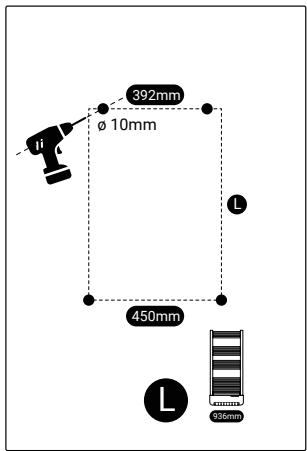

Using a level, place it correctly against the wall where the towel rail is to be installed.

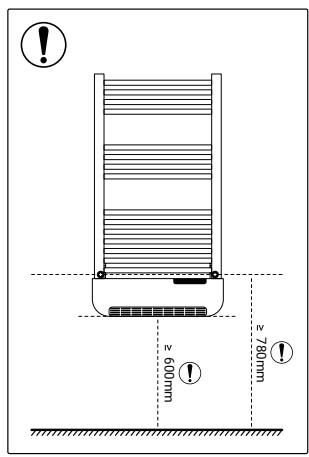

Observe the distances between the holes as well as the safety distances to the surrounding walls and furniture. The distance between the bottom holes and the floor must be at least 780 mm.
Once the holes have been correctly drilled:

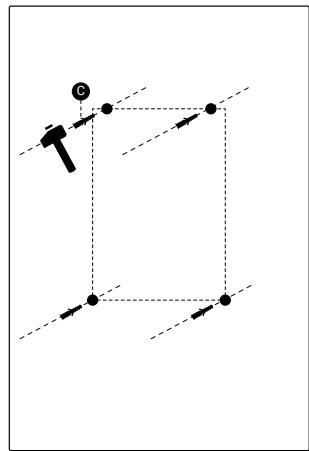

- Insert the plugs C into the holes.

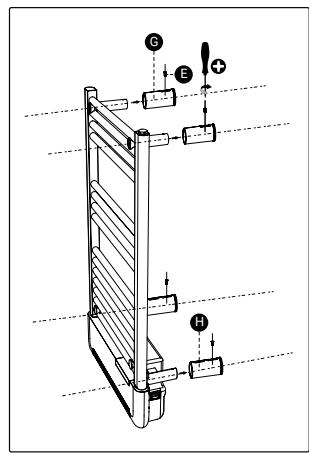

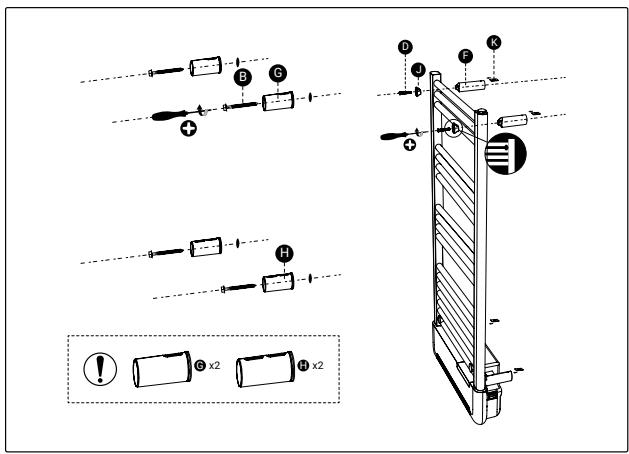

- Place the long brackets G on the top holes. Fix them with the screws B. The hole on the bracket faces upwards.
- Place the short supports H on the bottom holes. Fix them with the screws B. With the hole on the bracket facing downwards.
- Insert the brackets F into the brackets G, secure them with the screws E and nuts K.
- Fix the towel rail by placing it between the brackets F and the spacers J. Make sure that the narrowest part of the spacer C faces the inside of the radiator.

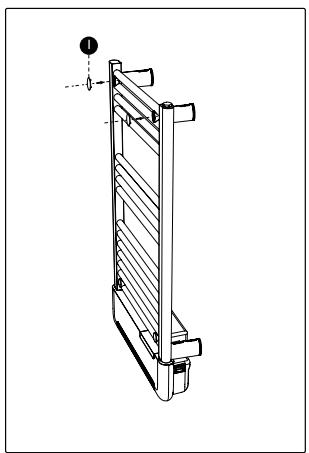

- Screw it in with the screws D and cover it with the screw covers I.
COMMISSIONING
- Check that the appliance is powered from the mains and then test the various functions of the thermostat and adjust the set temperature.
- In case of malfunction, check that the appliance is properly powered by the electrical network. If the appliance is properly powered and is not working properly, contact your installer or the manufacturer.

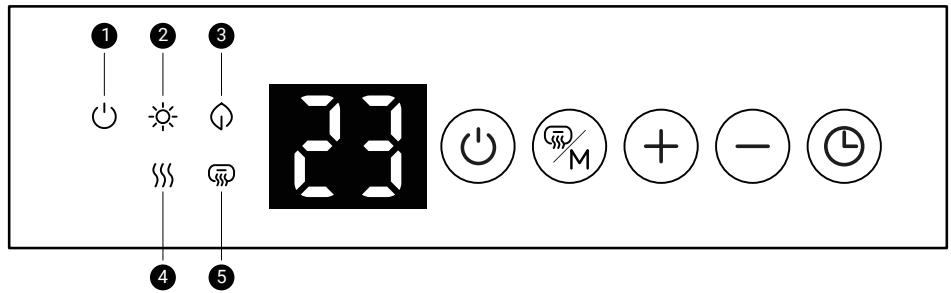

4. CONTROL PANEL AND DISPLAY
The 6 Buttons of the keyboard:
| Switching on / standby |
| Turning on the blower/ selecting the mode |
| Temperature setting+: Press this button for a quick temperature increase. This button is also used to select the time slots when setting the daily program. |
| - | Temperature setting :- Press this button for a quick temperature reduction. This button is also used to select the time slots when setting the daily program. |
| ◎ | Setting the time / timer |
| 1 Switching on / standby | 2 Comfort mode |
| 3 ECO mode | 4 Heating indicator |
| 5 Blower in operation | |
5. FUNCTIONALITY AND PROGRAMMING
5.1. QUICK START
- Once your device is correctly installed and connected to the mains, press the switch on the back of your device to switch it on. A short sound will be heard and the lights up, the device is in standby mode.
- Press to switch on the towel rail.
- When the unit is started for the first time, it is set as follows (ATTENTION: If the default settings are different, it is only because the unit has been tested for quality after production):
Heating mode: comfort - Setpoint temperature: 25^ C
Date: 1 (Monday)
Time: 00:00 (Off) - Open window function: Off
Timer:Off
To stop the appliance press again , the device is in standby mode.
5.2. SETTING THE TIME AND DATE
In order to use the unit in P1/P2/P3 programming mode, it is necessary to set the time and date. Programming can only be carried out after the time has been set.
To change the time: press and hold the button (S) for about 3 seconds to change the time.
The “ 1 ” symbol appears on the display, press (+) or (- to select the day (from 1 to 7)
| 1 Monday | 2 Tuesday | 3 Wednesday | 4 Thursday | 5 Friday | 6 Saturday | 7 Sunday |
- Once you have made your choice, press ⑥ to confirm and proceed to the time setting. The symbol appears on the display.
- Press (+) or (-) to select the time.
Once you have made your choice, press to confirm and proceed to the time setting. The symbol appears on the display. - Press (+) or (-) to select the minutes.
- When you have made your choice, press ⑨ to finish.
In case of a power failure, the unit will not remember the time setting. You will have to repeat the procedure when restarting.
5.3. MODE SELECTION
- Keep the button pressed for about 3 seconds, press + or - to select the desired mode or program.
To confirm your choice press again or wait 10 seconds for automatic confirmation.
- Comfort mode: Constant temperature adjustable between 5^ and 35^ . Adjustable with the (+) and (-) buttons.
Economy mode: Constant temperature adjustable between 1^ and 31^ . 4°C lower than comfort mode. Adjustable with the (+) and (-) buttons.
- Frost protection mode: The logo - + . appears on the screen. Temperature of 7^ cannot be changed.
The ECO and COMFORT mode temperatures are linked. The modification of one of the two, leads to the automatic modification of the other (temperature 4 C lower than that of the COMFORT mode).
5.4. DESCRIPTION OF THE P1/P2/P3 PROGRAMMES
ATTENTION: Before using the machine for the first time, it is essential to set the time.
P1: A single programme from Monday to Sunday, the programme is NOT customizable.
Figure 1
From 00:00 to 01:00 Operation in comfort mode
From 01:00 to 07:00 Operation in ECO mode
From 07:00 to 24:00 Operation in comfort mode

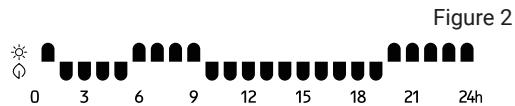

P2: A single programme from Monday to Friday, the programme is NOT customizable.
From 00:00 to 01:00 Operation in comfort mode
From 01:00 to 05:00 Operation in ECO mode
From 05:00 to 09:00 Operation in comfort mode
From 9:00 to 19:00 Operation in ECO mode
From 19:00 to 24:00 Comfort mode operation

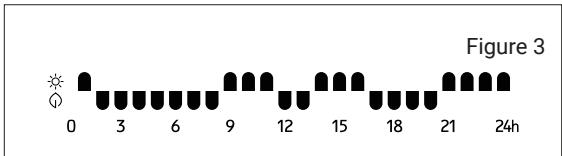

P2: A unique programme from Saturday to Sunday, the programme is NOT customisable.
From 00:00 to 01:00 Operation in comfort mode
From 01:00 to 08:00 Operation in ECO mode
From 08:00 to 11:00 Operation in comfort mode
From 11:00 to 13:00 Operation in ECO mode
From 13:00 to 16:00 Comfort mode operation
From 16:00 to 20:00 ECO mode operation
From 20:00 to 00:00 Comfort mode operation
P3: A single programme from Monday to Friday, the programme is customisable.
From 00:00 to 01:00 Operation in comfort mode
From 01:00 to 05:00 Operation in ECO mode
From 05:00 to 09:00 Operation in comfort mode
From 09:00 to 12:00 Operation in ECO mode
From 12:00 to 16:00 Comfort mode operation
From 16:00 to 18:00 ECO mode operation
From 18:00 to 24:00 Comfort mode operation

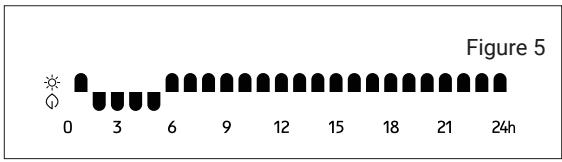

P3: A single programme from Saturday to Sunday, the programme is customisable.
From 00:00 to 01:00 Operation in comfort mode
From 01:00 to 05:00 Operation in ECO mode
From 05:00 to 24:00 Operation in comfort mode
5.5. MODIFICATION OF PROGRAMME 3
- When your device is in standby, press the button ( 喝 M ) for about 3 seconds to select the day.
- On the display the symbol “ ” - Monday appears, press (+) or (-) to select the day (from d1 to d7)
| 1 Monday | 2 Tuesday | 3 Wednesday | 4 Thursday | 5 Friday | 6 Saturday | 7 Sunday |
Once you have made your choice, press to confirm and move on to the hours setting.
- Start with the first hour , press to select the operating mode for that hour. Each press changes the mode (Comfort, Economy (no capital letter), Frost protection).
Once you have chosen your heating mode for the first hour, press (+) to confirm your choice and move on to the next hour, and so on up to 24 hours.
- Once the last time of - (Monday) has been set, - (Tuesday) will appear on the display, Repeat the previous operation to set each time of the day Tuesday. Repeat the previous step to set each hour of Tuesday. Do this for all days of the week. When the last day has been programmed - (Sunday), the logo will appear on the display, your towel rail will then run under the programme you have just selected.
Press the button once, the symbol “” flashes on the display. adjust the timer, from 0 to 9 hours with the (+) and (-) buttons. Press again on () to confirm your choice.
5.7. OPEN WINDOW FUNCTION
To activate the open window function, press the () and (+) buttons at the same time, the display shows for 3 seconds and then disappears.
When the room where the towel rail is located is ventilated, the temperature drops the temperature drops sharply. The towel rail switches off automatically and the logo flashes on the on the display.
When the windows are closed, press the button to switch the towel rail on again. the towel rail starts again. Without any action on your part, the towel rail will automatically automatically after 20 minutes.
To deactivate the open window function, press the buttons () and (-) . will appear on the display for 3 seconds and then disappear.
Press the button once to start the blower of your device. The logo will light up on your screen.
Press again to remove the remaining hot air from the unit, This is helps extend the life of the unit. The logo will disappear from the display.
6. MAINTENANCE AND CLEANING
The product does not require any maintenance. We recommend cleaning the product (back, bottom of the product, etc.). Do not use abrasive substances on the product, clean it with a damp cloth and neutral pH soap and the screen with a dry cloth. Before carrying out any cleaning operation, make sure that the product is switched off and at room temperature.
7. EUROPEAN REGULATION (WEEE) 2012/19/EU
Based on the European regulation 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), these appliances cannot be thrown in the usual council bins; they must be collected selectively to optimise the recovery and recycling of the components and materials that make them up, and reduce the impact on human health and the environment. The crossedout wheelie bin symbol on a horizontal bar is marked on all ROINTE products to remind the consumer of the obligation to separate them for separate collection. The consumer should contact the local authority or the retailer for information regarding the correct disposal of their product.
EN
This appliance and accessories are recyclable
RETURN ON
DELIVERY
OR
DROPPED OFF
IN SHOP
OR
TE DISPOSAL
CENTRE
Collection points on www.quefairedemesdechets.fr
Preferably repair or donate your device!
8. GUARANTEE
1. Agreement
1.1. This section describes the guarantee conditions available to the buyer when purchasing a new product of the Rointe brand. These conditions include all the rights that the buyer has in accordance with current national legislation, as well as the guarantee and additional rights offered by the brand. Any incident detected in your Rointe product can be dealt with by the seller of the product or in a more agile way through the manufacturer itself.
1.2. Rointe offers you Technical Assistance from our After-Sales Service by telephone at +44 (0)203 321 5929 or email to support@rointe.co.uk, where we will indicate the steps to follow to solve the incident. You will need the product reference (located on the metal characteristics label), serial number, date of purchase and the nature of the fault when contacting us. In addition, you must have a copy of the proof of purchase of the product.
1.3. ROINTE guarantees there are no material defects of design or manufacture at the time of original purchase. ROINTE guarantees the body for 120 months (10 years) and the electrical plus electronic components for 36 months (3 years) for this product only, from the date of purchase, or delivery if later, provided it has not been modified, and in accordance with the provisions of the following stipulations.
2. Conditions
2.1. If during the guarantee period, the product under normal use, and with proper maintenance, fails to function properly and is found to be defective in design, material, or workmanship, it will be repaired or replaced at the customer's option, in accordance with the provisions of the law, and subject to the following terms and conditions:
2.1.1. The guarantee is only applicable if the original guarantee is issued by the seller and when such guarantee has been registered with Rointe correctly, including the product reference, serial number (marked on the metal label of the product), date of purchase and proof of purchase. The product guarantee can be registered on our website at www.rointe.co.uk or can be emailed to support@rointe.co.uk within 90 days of installation. ROINTE reserves the right to refuse a guarantee when this information has been removed or modified after the original product purchase.
2.1.2. The guarantee is only applicable if the product has been installed by a competent person in accordance with this installation manual and all regulations in force at the time of installation.
2.1.3. The guarantee is only applicable to those cases that refer to defects in material, design and manufacture, and in no case covers damage to the product for the following reasons:
i) Damage caused by negligence and/or misuse of the product, i.e. used for purposes other than its normal use, or by not respecting the instructions for use, maintenance and cleaning given by ROINTE, as well as by incorrect or inadequate installation or use of the product that may not comply with the technical safety standards in force.
ii) Corrosion of any part of the product caused by direct exposure to saltwater. Where the product is installed within 200m of the coast, the guarantee period for damage caused by corrosion shall be reduced by 50% .
iii) Any unauthorised modifications or repairs to the product carried out by third parties or unauthorised persons, or the opening of the product by third parties or
unauthorized persons.
iv) Any accident deemed to be beyond ROINTE's control, such as (but not limited to): lightning, fire, flood, natural disasters, public disorder, atmospheric or geological phenomena, and all those of a similar nature.
v) Failures resulting from incorrect installation. In case of doubt, please contact ROINTE.
2.2. Any repair or replacement carried out as part of this guarantee service does not allow for extension periods or new guarantee periods, i.e. your guarantee will not be extended in the event that a repair or replacement of this product is carried out, but will be suspended until the product is returned repaired or a new one is delivered.
2.3. Any repair or replacement covered by this guarantee must be a functionally equivalent part. Defective parts or parts removed or replaced shall become the property of ROINTE and must be returned as such.
2.4. The product must be installed in such a way as to allow access by ROINTE technicians or authorised persons in the event that they need to access the product for repair or maintenance. The user/customer is responsible for the organisational means necessary to allow access to the products by ROINTE for repair or replacement.
2.5. ROINTE's Technical Support department will advise you if you need to purchase any parts not covered by this guarantee or outside of this guarantee.
2.6. This guarantee will not be valid if the product has been tampered with, modified and/or repaired in any way and/or by unauthorised persons. This guarantee will also not be valid if the product is not correctly installed.
2.7. This guarantee is not transferable and does not include claims for limescale or frost damage.
2.8. This guarantee does not affect the purchaser's statutory rights under applicable national legislation, nor does it affect any rights contracted with the dealer or installer that may arise in performance of the contract of sale.
2.9. ROINTE, its offices, employees, distributors and installers shall not be liable for any incidental damages arising from the infringement of any rule implied in this product, as well as for its improper or incorrect use.
2.10. Check the EULA conditions (supplied with the product for Wi-Fi connected products) for information on the legal agreement you accept when installing a ROINTE product. For product or guarantee assistance, please contact ROINTE by telephone at +44 (0)203 321 5929 or by email to support@rointe.co.uk.
9. HOW TO REGISTER YOUR PRODUCT GUARANTEE
IMPORTANT: It is important that you register your ROINTE product as part of our guarantee service, in case you wish to make a claim.
You can register your ROINTE product in the following ways:
WEB
- Go to https://rointe.com/uk/register-your-guarantee/
- Log in to your existing account or create a new account if necessary.
- Click on "My products".
- Enter your product reference (alphanumeric and in capital letters).
- Enter your serial number (26 digits located on the metal tag of your product starting with 84).
- Upload your proof of purchase, such as your invoice in PDF, JPEG or PNG format. This is not mandatory, but doing so ensures that your warranty period is accurate.
- Click on "Register".
- Congratulations! Your product is now registered.
-
Send an email to support@rointe.com with the following information:
-
Customer name
Address and postcode
Telephone number and email address
Product reference
Serial number - The date of purchase of the product and proof of purchase (as described in the WEBSITE section above).
- Our technical support team will confirm product registration and request any additional information needed by email.
POSTAL
- Send the information listed in the EMAIL section to:
INDUSTRIAS ROYAL TERMIC, S.L. - Rointe, C/E Parcela 43, 30140, Santomera (ESPAN). - Please ensure you obtain proof of postage.
SIMBOLOS
6. MANUTENÇA E LIMPEZA
Declares under his responsibility / declara / declara:
Product / producto / produto: Rointe MILANO
Models / models / models: TMILN50B115
The company declares that the above equipment has been designed to comply with the relevant sections of the above specifications. The equipment complies with all applicable essential requirements of the Directives.
Hampton Business Park, Club Way, Peterborough PE7 8JA
T.02033215928
Rointe Ireland
20 Harcourt Street, #247
Dublin 2, D02 H364
T. +44 (0)203 321 5929 / 01 553 0523
Rointe Nederland
3197 LG Botlek, RT
T.0107420046
Copyright © Rointe Heating 2022.
All rights reserved. As part of our policy of continuous improvement, we reserve the right to alter or modify any product or specifications without prior notice. This also applies to products that have already been ordered, provided that such alterations can be made without subsequent changes to the already agreed specifications. We cannot accept responsibility for any errors in catalogues or other printed materials.
