USER MANUAL MODULE RANGEMENT NAPOLEON POUR CUISINE EXTéRIEURE NAPOLEON GRILLS

(APPLY SERIAL RUMBER LABEL FROM CARTON Se

Napoleon President’s 10 Year Limited Warranty

NAPOLEON products are designed with superior components and materials, and are assembled by trained craftsmen who take great pride in their work. This product has beenthoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you

expect from NAPOLEON.

NAPOLEON NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and

workmanship from the date of purchase, for the following period:

Aluminum castings / stainless steel base Stainless steel tube burners Ceramic infrared burners (excluding screen) Stainless steel li, door and drawer panels

Porcelain-enameled cast iron cooking grids Stainless steel or porcelain sear plates Hinges, slides and enclosures Allother parts

“Conditions and Limitations

This Limited Warranty creates a warranty period as specified in the aforementioned table, for any product purchased through an authorized NAPOLEON dealer, and entiles the original purchaser to the specified coverage in respect of any component replaced within the warranty period, either by MPOLEON or an authorized NAPOLEON dealer, to replace a component of such product that has failed in normal private use as a result of a manufacturing defect. The “50% off” indicated in the table means the component is made available to the purchaser at à 50% discount of the regular retail prce of the component fo the period indicated. This Limited Warranty does not cover accessories or bonus items.

For greater certainty, “normal private use” of a product means that the product: has been installed by a licensed, authorized service technician or contractor, in accordance with the installation instructions included with the product and all local and national building and fie codes; has been properiy maintained, and has not been used as a communal amenity or in a commercial application.

Similar, “ailure” does not include: over-fing, blow outs caused by environmental conditions such as strong winds or inadequte ventilation, scratches, dents, corrosion, deteroration of painted and platedfinishes, discolaration caused by heat, abrasive or chemical cleaners or UV exposure, chipping of porcelain enameled parts, or damages caused by misuse, accident, hail, grease ies, lack of maintenance, hostile environment such as salt or chlorine, alterations, abuse, neglect or parts installed from other manufacturers.

5 years full coverage, plus 50% off u 5 years full coverage, plus 50% off u 5 years full coverage, plus 50% off until the 10th year 3 years full coverage, plus 50% off until the 10th year 2 years

10 years 10 years 5 years full coverage, plus 50% off until the 10th year

the 10th year the 10th year

Should deterioration of parts occur to the degree of non-performance (rusted through or burnt through) within the duration of the warranted coverage, a replacement part will be provided. The replacement component is the sole responsibility of NAPOLEON defined by this Limited Warranty, in no event will MPOLEON be responsible for installation, labor or any other costs or expenses related to the re-installation of a warranted part, for any incidental, consequential, or indirect damages or for any transportation charges, labor costs or export duties.

This Limited Warranty is provided in addition to any rights afforded to you by local laws. Accordingl, this Limited Warranty imposes no obligation upon NAPOLEON to keep parts in stock. Based on the availabiliy of parts, NAPOLEON may at its discrétion discharge al obligations by providing a customer a prorated credit towards à new product. After the first year, with respect to this Limited Warranty MPOLEON may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON.

MMAPOLEON reserves the right to have ts representative inspect any product or part prior to honoring any warranty claim. You must contact NAPOLEON Customer Service ar an authorized NAPOLEON dealer to obtain the benefit of the warranty coverage.

www.napoleongrills.com

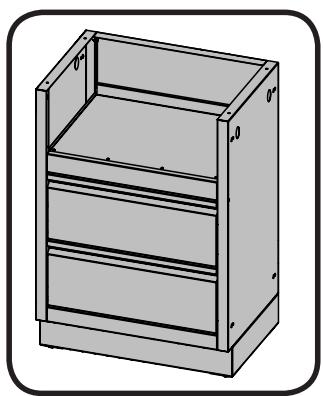

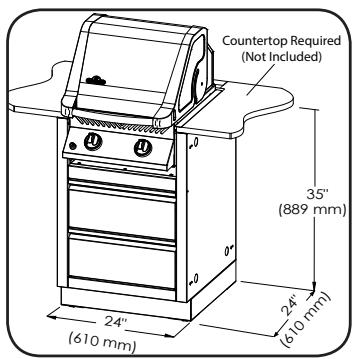

IM-UGC300 245/300 UNDER.G

under grill cabinet required for BISZ300 or BISB245 units

grill head not included

2 drawers on roller slides

rear and side panels have removable knockouts for gas piping stainless steel drawer fronts

adjustable leveling feet

shipped fully assembled

IM-UGC485 485 UNDER.GRI

under grill cabinet required for BILEX485 units

grill head not included

2 drawers on roller slides

rear and side panels have removable knockouts for gas piping stainless steel drawer fronts

adjustable leveling feet

shipped fully assembled

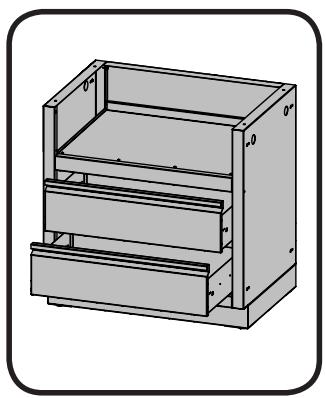

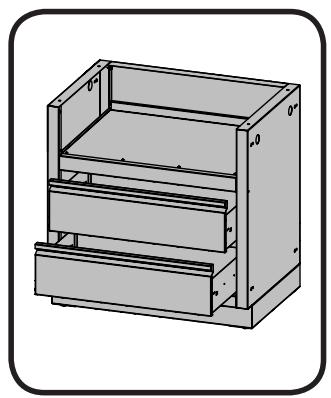

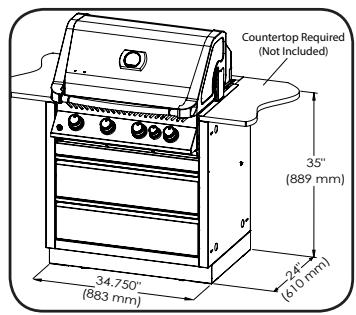

IM-UGC500 500 UNDER:GR

under grill cabinet required for BIP500 / BIPRO500 units

grill head not included

2 drawers on roller slides

rear and side panels have removable knockouts for gas piping

stainless steel drawer fronts

adjustable leveling feet

shipped fully assembled

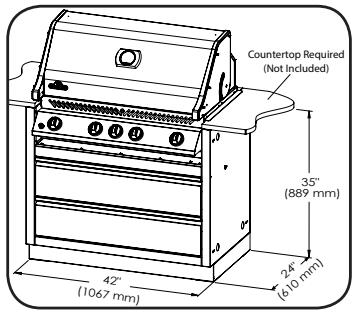

(Countertop Required

IM-UGC600 600 UNDER:GR

under grill cabinet required for BIPT600 / BIPRO6OO units

grill head not included

2 drawers on roller slides

rear and side panels have removable knockouts for gas

piping stainless steel drawer fronts adjustable leveling feet

shipped fully assembled

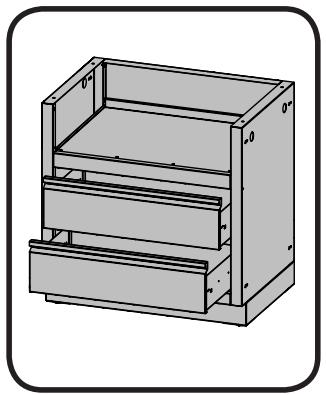

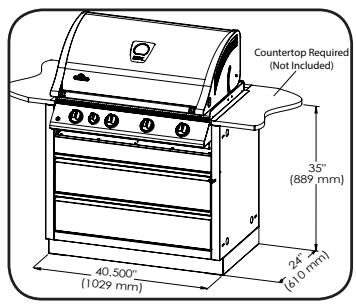

IM-UGC605 605 UNDER.G

under grill cabinet required for BILEX605 units

grill head not included

2 drawers on roller slides

rear and side panels have removable knockouts for gas

piping stainless steel drawer fronts adjustable leveling feet

shipped fully assembled

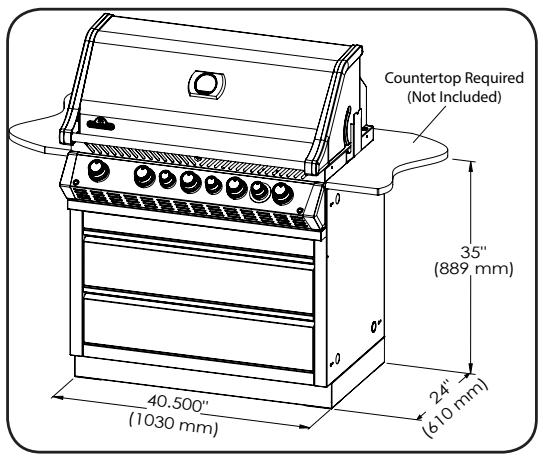

under grill cabinet required for BIPRO665 units

grill head not included 2 drawers on roller slides

rear and side panels have removable knockouts for gas piping

stainless steel drawer fronts adjustable leveling feet

shipped fully assembled

Countertop Required {Not included)

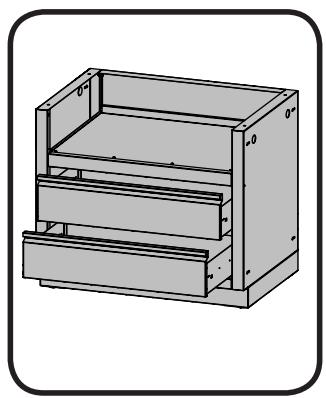

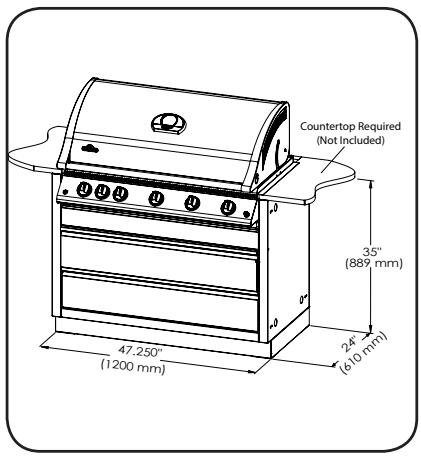

IM-UGC730 730 UNDER.G

under grill cabinet required for BILEX730 units

grill head not included

2 drawers on roller slides

rear and side panels have removable knockouts =4 for gas piping CE

stainless steel drawer fronts

adjustable leveling feet

shipped fully assembled

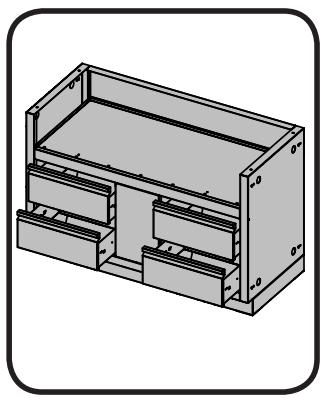

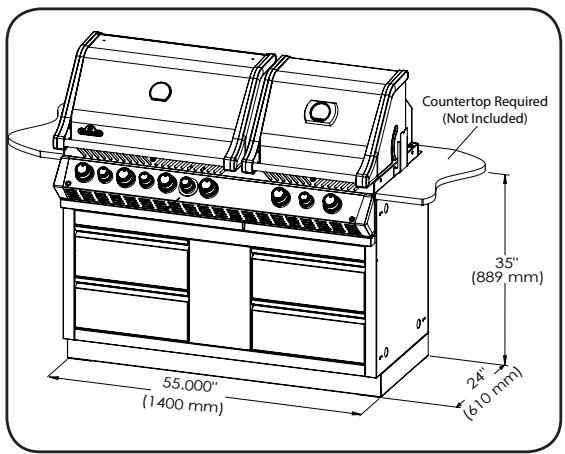

IM-UGC825 825 UNDER:GR

under grill cabinet required for BIPRO825 units

Countertop Required {Not included)

grill head not included

4 drawers on roller slides

rear and side panels have } removable knockouts for gas piping (88m)

stainless steel drawer fronts

adjustable leveling feet

shipped fully assembled

N415-0417 APR 18.18 www.napoleongrills.com

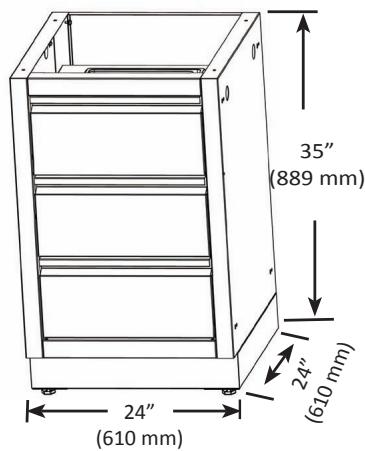

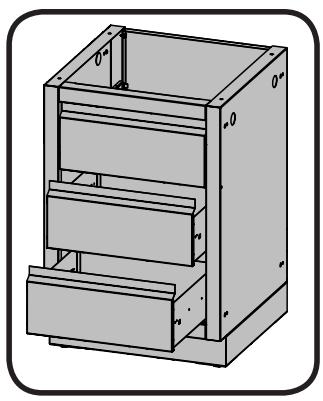

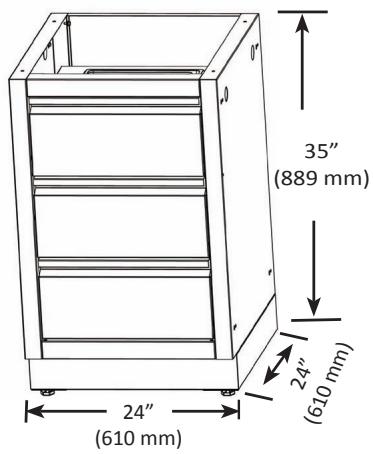

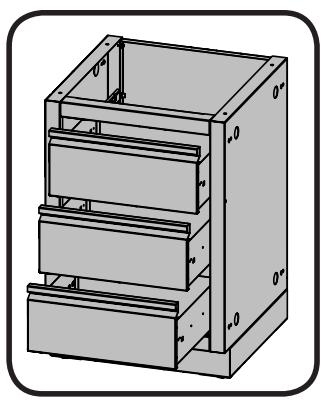

3 drawers on roller slides

stainless steel drawer fronts

adjustable leveling feet

shipped fully assembled

2 drawers on roller slides

stainless steel drawer fronts

adjustable leveling feet

top drawer is a false drawer

use this when installing a sink or side burner above the cabinet

shipped fully assembled

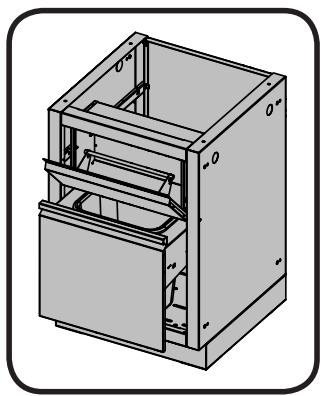

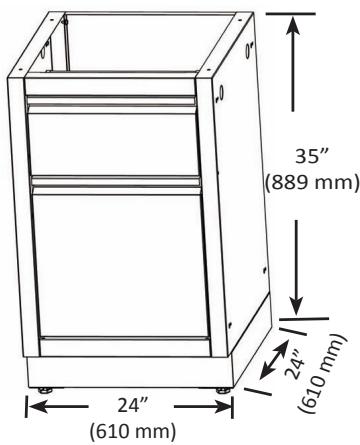

+ 1 waste drawer on roller slides

< sturdy removable waste bucket

+ top level enclosed paper towel holder

+ stainless steel drawer fronts

+ adjustable leveling feet

+ cannot be used under optional side burner or sink

+ shipped fully assembled

+ a minimum gap of 6”(150mm) is required between the rear of the cabinet and adjacent structures

+ adjustable leveling feet

+ Napoleon model NFRO55ORSS.

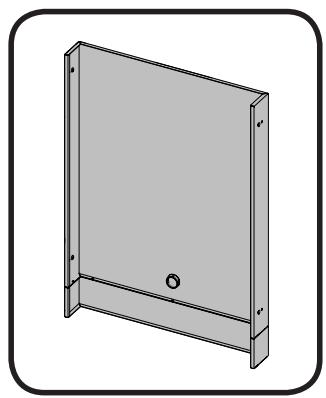

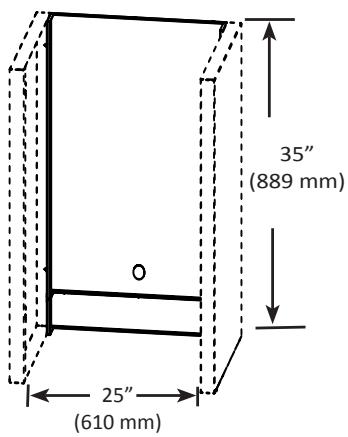

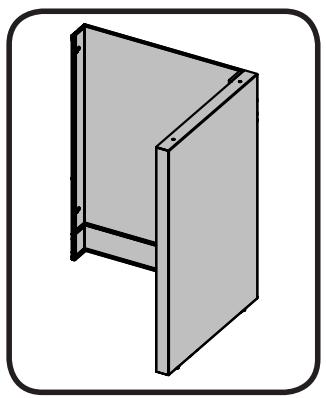

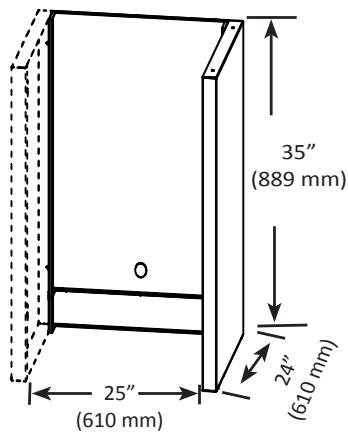

IM-FMP FRIDGE CABIN N415-0417 APR 18.18

+ do not place directly beside barbecue + cannot be used under optional side burner or sink

+ a minimum gap of 6”(150mm) is required between the rear of the cabinet and adjacent structures

+ Napoleon model NFRO55ORSS.

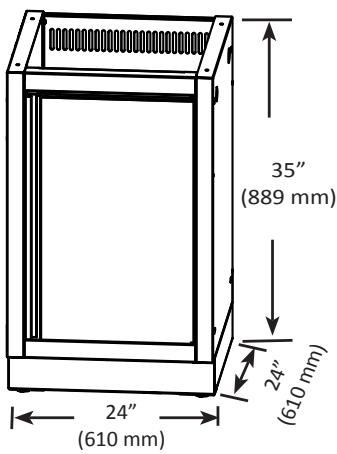

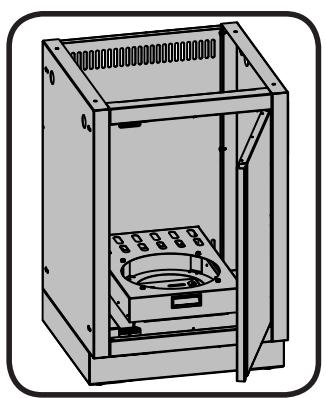

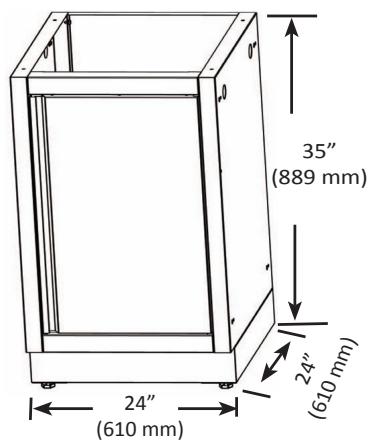

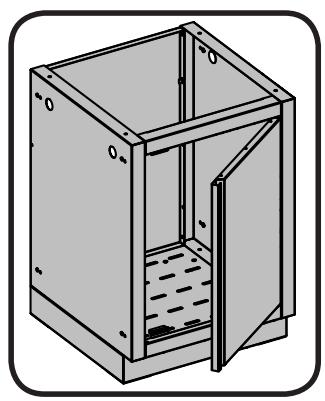

+ propane tank storage cabinet + stainless steel door front + universal door, right or left opening

+ _pullout shelf for easy propane tank installation

+ adjustable leveling feet

+ shipped fully assembled

reversible door, left or right opening

stainless steel door

excellent outdoor storage

adjustable leveling feet

shipped fully assembled

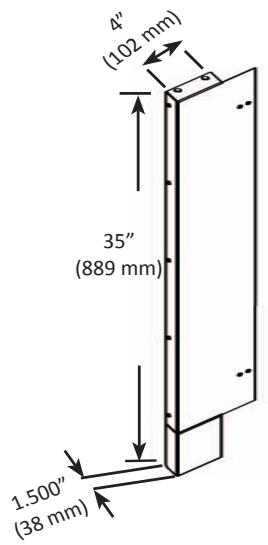

maintain required offset for installations fit against wall of house or landscaping (for lid to open)

clearance to combustibles must be maintained according to the rating plate on the grill

block off gap between cabinet and house

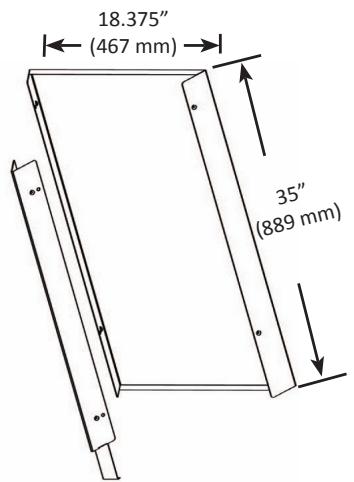

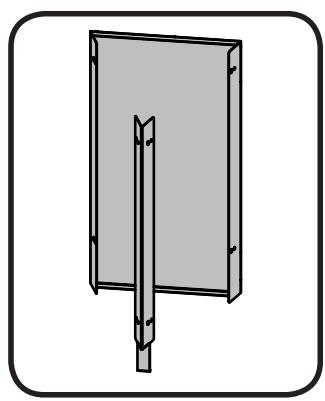

IM-45T 45 DEGREEXTRAI

7 + painted transition panels to join 2 cabinets at 45 \ degree angle. : can be doubled up to create 90 degree transition 35" mi (889 M if a transition is used directly beside a grill, an IM- 2DC (2 drawer module must be used on the other side of the transition (other drawer/door modules may interfere with the grill control panel.) Le

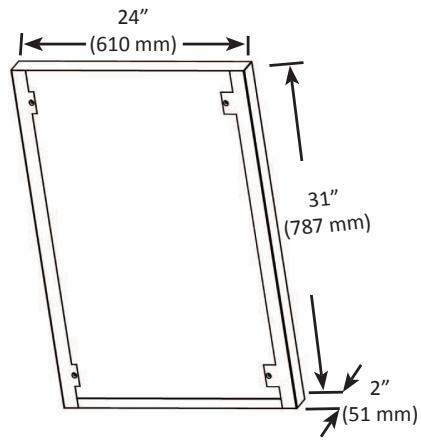

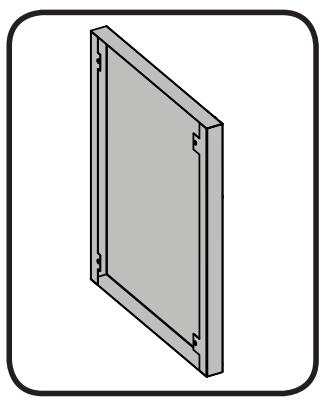

a" - used at the end of run of cabinets to cover knock- {787 mm)

outs and mounting holes

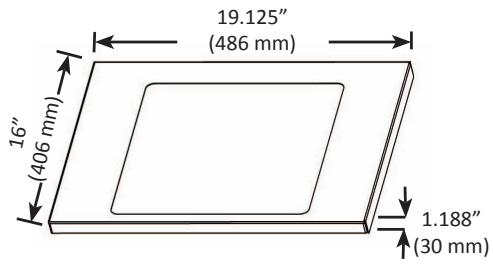

IM-IBA ICE BUCKET HO]

Ke (486mm) —»1 + stainless steel tray F

+ fits on top of standard drawer 5 E Se

+ holds standard stainless steel serving trays £ large to small combinations J LY 1188"

N415-0417 APR 18.18 www.napoleongrills.com

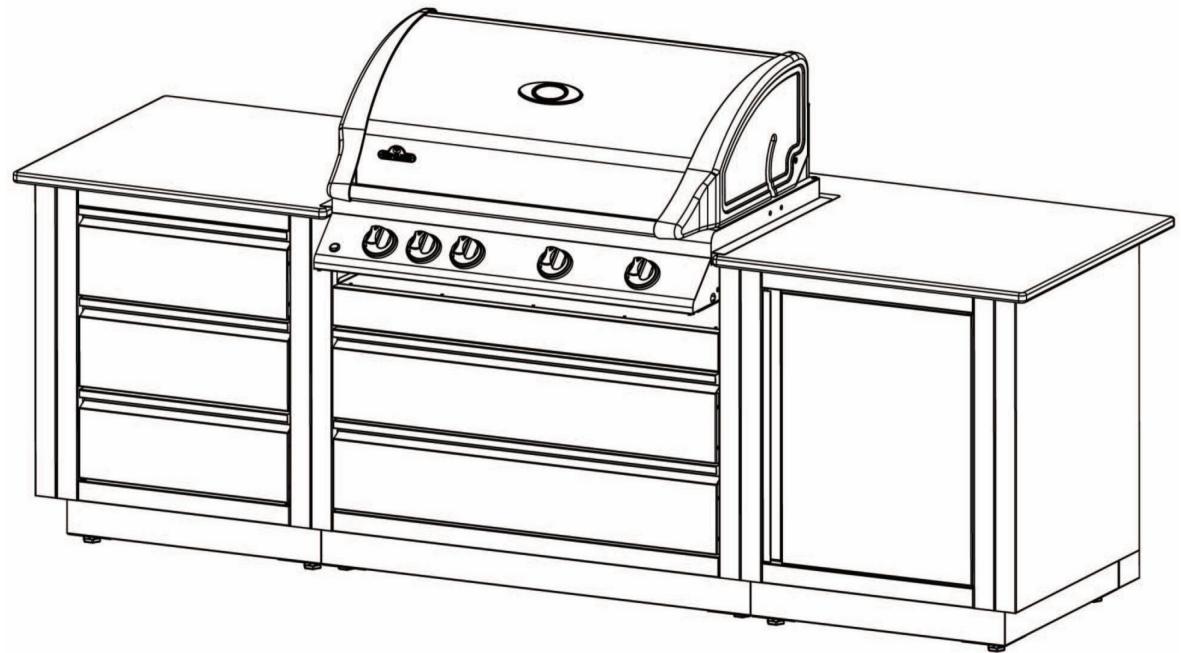

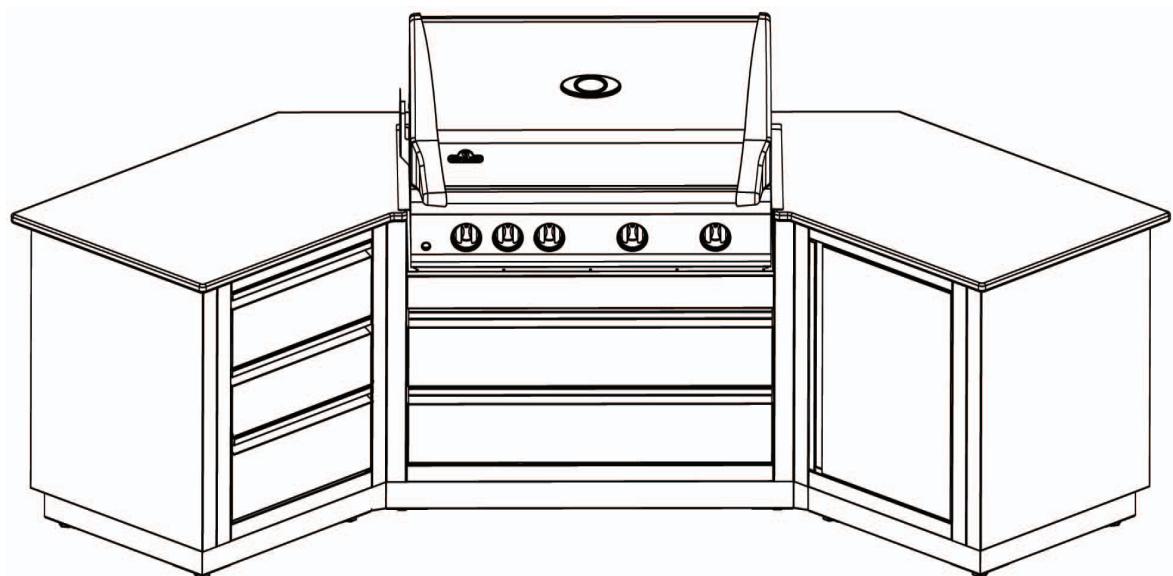

PLANNING YOUR NAPOLEON.MODU The Napoleon Outdoor Modular Island series has been developed with versatility in mind. The cabinets can be assembled in virtually any combination to suit your individual needs. They can be assembled against a house wall or as a standalone island, becoming the focal point of your backyard. With multi- function and storage capabilities, your backyard island can be transformed into an outdoor kitchen, placing the host in the center of the action when entertaining guests.

The cabinets are designed to be easy to assemble and install for either the home owner or private contractor. All cabinets are 35” (889 mm) tall by 24” (610 mm) deep. All cabinets are 24” (610 mm) wide except for the BUILT-IN grill cabinets whose width correspond to the width of the unit it was designed for. The temperature control is located at the back of the fridge. The cabinet has a removable panel which allows access to the temperature control. Ensure that there is access to the panel when the cabinet is installed. Each cabinet has 4 leveling feet for adjustment on even surfaces. The 2 drawer cabinets are made to fit the Napoleon BUILT-IN series of grills only, available in several different sizes. BUILT-IN grills come in several different sizes. Refer to the installation manuals that come with the grill head for proper installation and operating instructions.

The BUILT-IN series of grills can be ordered in your choice of propane or natural gas configuration. Natural gas is an obvious selection for many people that already have it available in their home. All gas modifications or installations must be done by a qualified gas installer. Knockouts are present in the side and rear panels for easy piping and installation. For those who order a propane grill, a propane tank cabinet is available.

The cabinets can be installed against a NON-COMBUSTIBLE wall of a house, a masonry or stucco half-wall, or freestanding in an island configuration. Ensure there is adequate ventilation behind the fridge cabinet — a minimum gap of 6”(150mm) is required between the back of the cabinet and adjacent structures. Never block the vents located on the back of the cabinet. Failure to do so can result in the fridge overheating. An optional 4” (102 mm) spacer panel must be purchased and installed when placing an island against a wall to allow clearance for the grill lid to open. The spacer also provides closure for the cabinet to prevent debris or rodents from entering behind the cabinets. A powdercoated, 2” (51 mm) wide end panel can be purchased to cover the knockouts and mounting holes in the outside panels in a run of cabinets, giving a more finished look.

When utilizing 45° and 90° transitions in your design, modules on either side of the transition need to be chosen carefully. If doors or drawers are used on either side of the transition, they will interfere with each other when opened. If a drawer module is placed next to a grill, the control panel on the grill will prevent the top drawer from opening. The same applies to the paper towel/garbage module. Door modules can be used with 45° transitions, but the control panel will prevent the door from fully opening and may damage the door. The best module for this application is the 2 drawer module (false drawer at the top).

Optional built-in sideburner kits are available through your Napoleon Gas Grill dealer. These sideburner kits are an excellent complement to the BUILT-IN series of grills. We recommend that the sideburner kit be installed over top of the IM-2DC cabinet. It has the false drawer front at the top of the cabinet which allows clearance for the sideburner valve and hose routing. The IM-2DC cabinet also provides the necessary clearance for those who would like to install a sink in their outdoor kitchen.

Countertops must be ordered and supplied locally by the homeowner. The countertop material must be NON-COMBUSTIBLE if a grill is to be installed into it. They can be ordered in advance by drawing out the floorplan of how the cabinets will be situated and adding up the width measurements, allowing 1-2 inches (25 mm-51 mm) of countertop overhang. Most countertop manufacturers are willing to come and take measurements after assembly of the cabinets is complete to ensure a perfect fit.

The built-in grillhead comes with stainless steel brackets and hardware that allow the unit to rest on the countertop above the corresponding island cabinet for that unit. Granite or Corian are excellent choices of countertop materials. In order for the drip pan to slide in and out properly, the grill head must be supported by a countertop with a thickness between Z” (13mm) and 1 Z” (38mm).

Decorative countertops made of ceramic tile set on top of cement tiling board can be made to match your surrounding backyard furniture colors.

www.napoleongrills.com N415-0417 APR 18.18

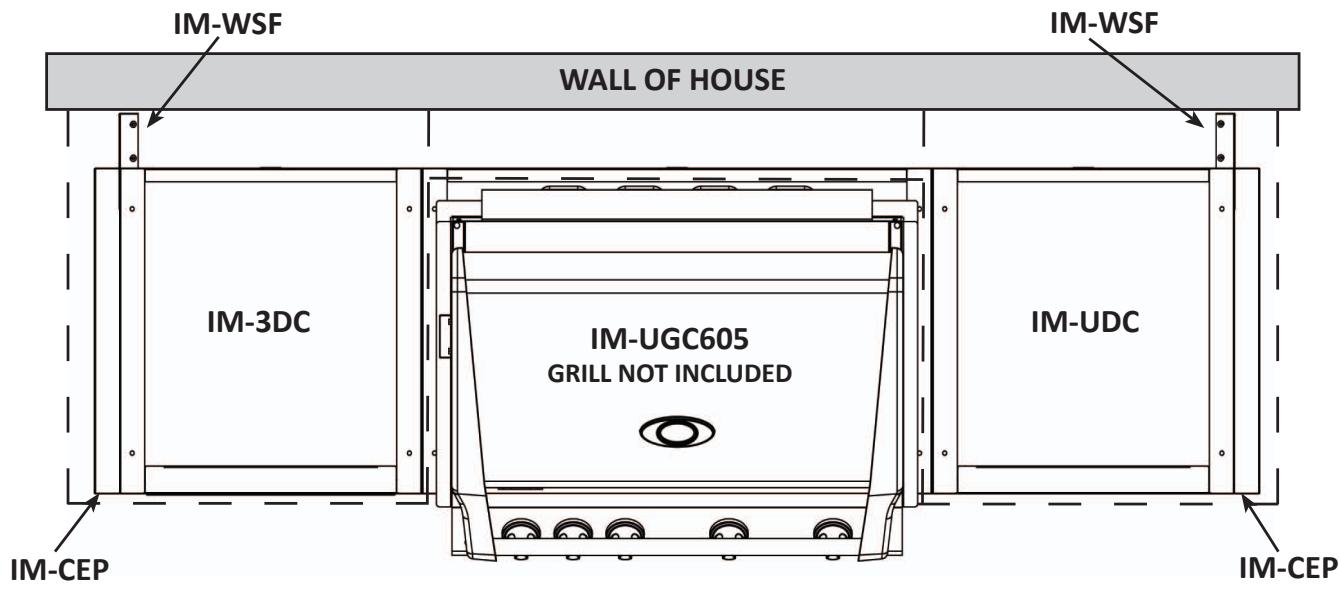

EXAMPLE 1: 605 BUILT-INISLAND'AGAIN The above example is shown built against a non-combustible house wall. Below, the dashed line represents the perimeter of the countertop (not supplied). It has the IM-WSF kit in 2 places which stands the unit of from the wall the required 4” (102 mm) to create clearance for opening the lid of the grill. The WSF (wall spacer kit) does not provide enough offset to allow the unit to be placed against a combustible wall. The clearance marked on the rating plate of the grill still needs to be maintained. The kit extends from the countertop to the patio or deck surface, blocking off the area behind the island, preventing debris from entering behind the cabinet. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

GRILL NOT INCLUDED IM-CEP MODULE DESCRIPTION QTY |SUBSTITUTE DESCRIPTION QTY # | IM-UGC605-CN UNDER UNIT CABINET 605 1 # | BILEX605RB-N LEX 605 BUILTIN NATURAL 1 BILEX605RB-P LEX 605 BUILTIN PROPANE 1 IM-UDC-CN SINGLE DOOR CABINET 1 IM-UTC-CN PROPANE TANK CABINET 1 IM-3DC-CN THREE DRAWER CABINET 1 IM-CEP-CN CABINET END PANEL 2

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit. N415-0417 APR 18.18 www.napoleongrills.com

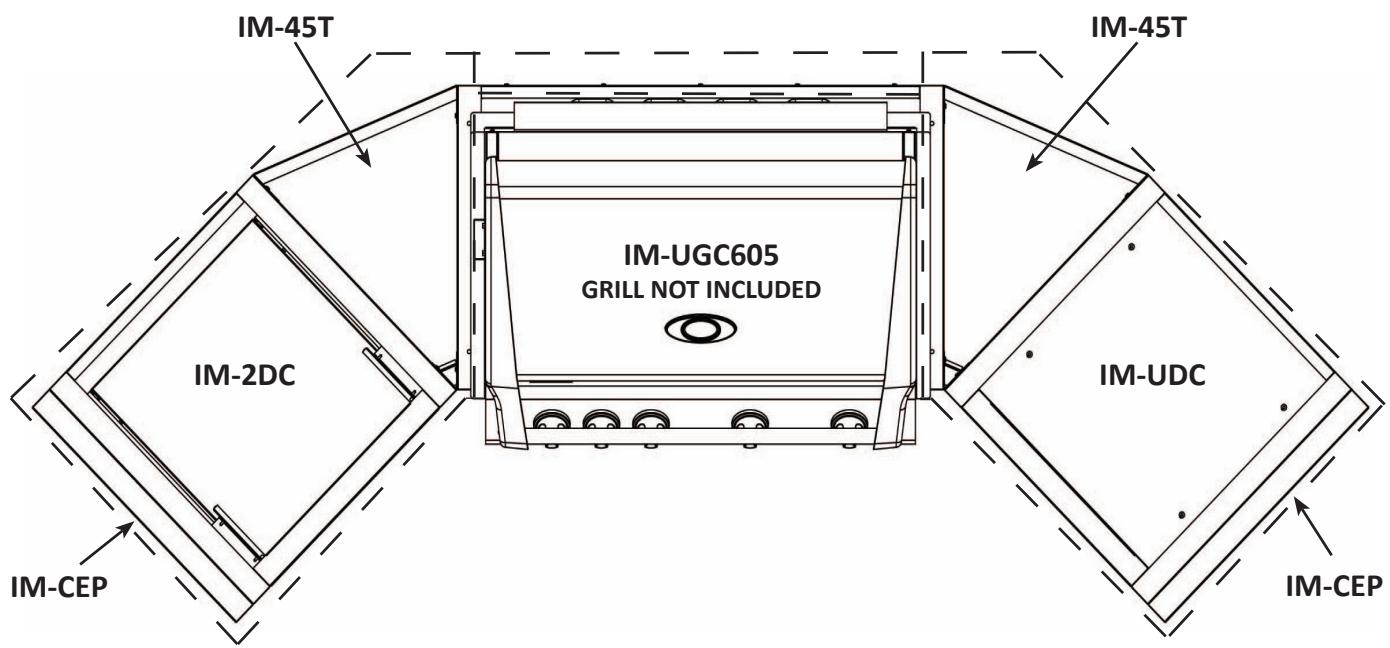

EXAMPLE 2: 605 BUILT-IN The above example is shown built as a stand alone island. Below, the dashed line represents the perimeter of the

countertop (not supplied). The unit is angled by applying the IM-45T kit on either side of the unit which rotates the side cabinets at a 45° angle. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

GRILL NOT INCLUDED Ke»

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit.

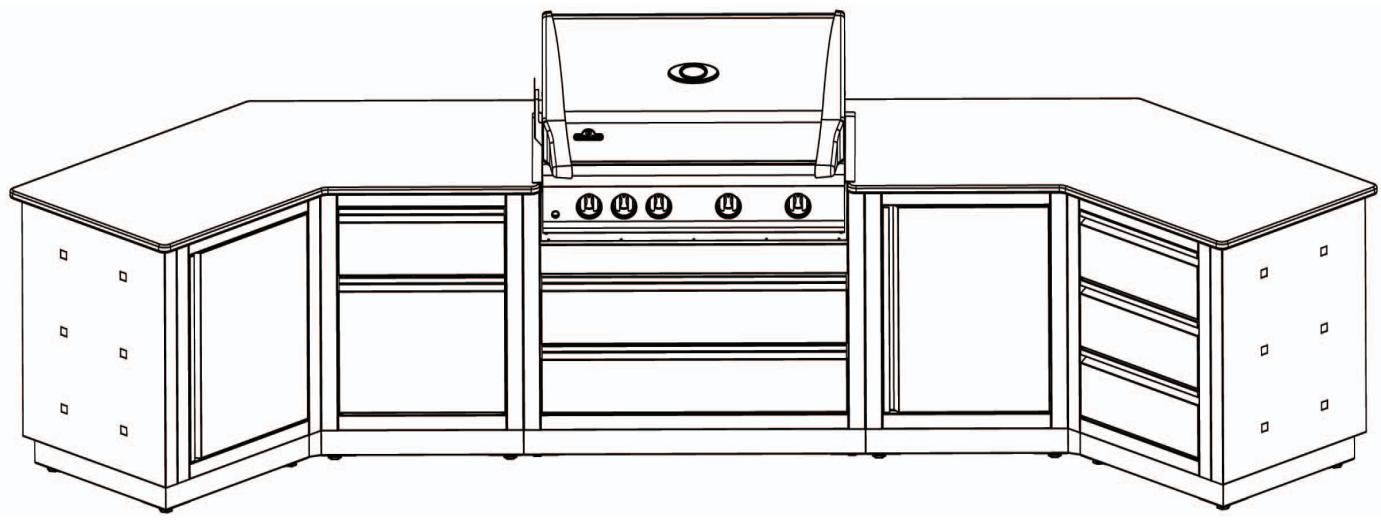

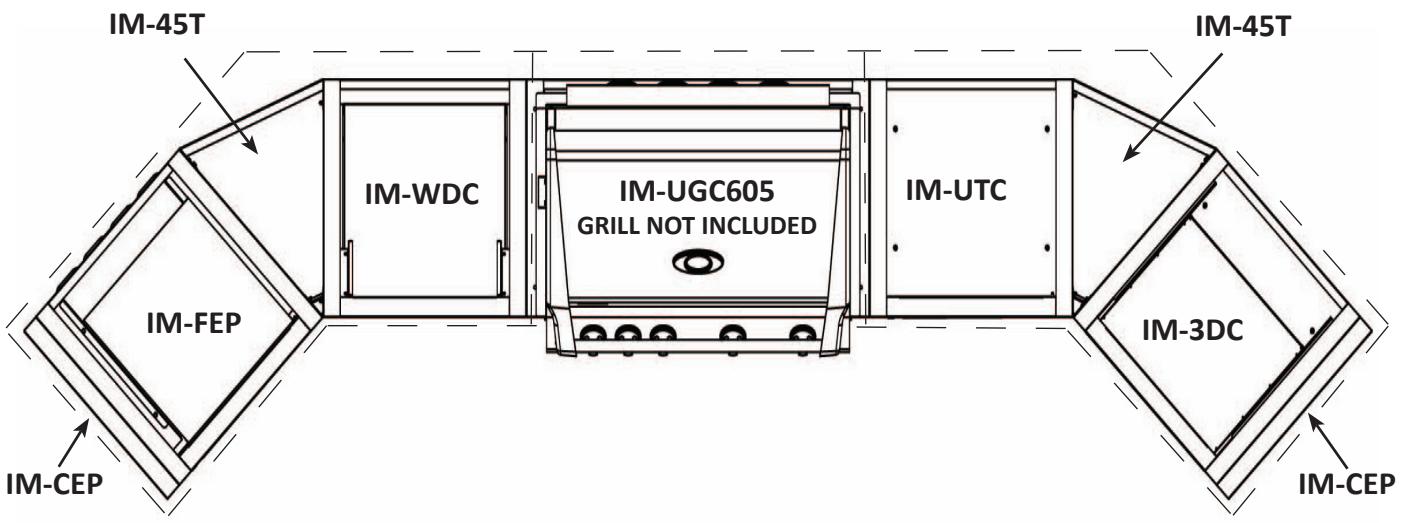

The above example is shown built as a stand alone island. Below, the dashed line represents the perimeter of the countertop (not supplied). The unit is angled by applying the IM-45T kit between the cabinets which rotates the side cabinets at a 45° angle. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

IM-45T IM-45T ME Re IN 74 | ||. d N / N mm-woc ||f| im-ucceo5 I | IM-UTC 7 GRILL NOT INCLUDED N y | | | e | N L IM-FEP a — L___— S K Y amaan An Al] N IM-3DC »” N / N A PANYA NAN IM-CEP IM-CEP V7 7 MODULE DESCRIPTION QTY SUBSTITUTE DESCRIPTION QTY * | IM-UGC605-CN UNDER UNIT CABINET 605 1 * | BILEX605RB-P LEX 605 BUILTIN PROPANE 1 BILEX605RB-N LEX 605 BUILTIN NATURAL 1 IM-UTC-CN PROPANE TANK CABINET 1 IM-UDC-CN SINGLE DOOR CABINET 1 IM-FEP-CN FRIDGE CABINET END 1 IM-3DC-CN THREE DRAWER CABINET 1 IM-3DC-CN THREE DRAWER CABINET 1 IM-FEP-CN FRIDGE CABINET END 1 IM-WDC-CN WASTE DRAWER CABINET 1 IM-45T-CN 45 DEGREE PANEL KIT 2 IM-CEP-CN CABINET END PANEL 2

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit. Napoleon model NFRO550RSS.

www.napoleongrills.com

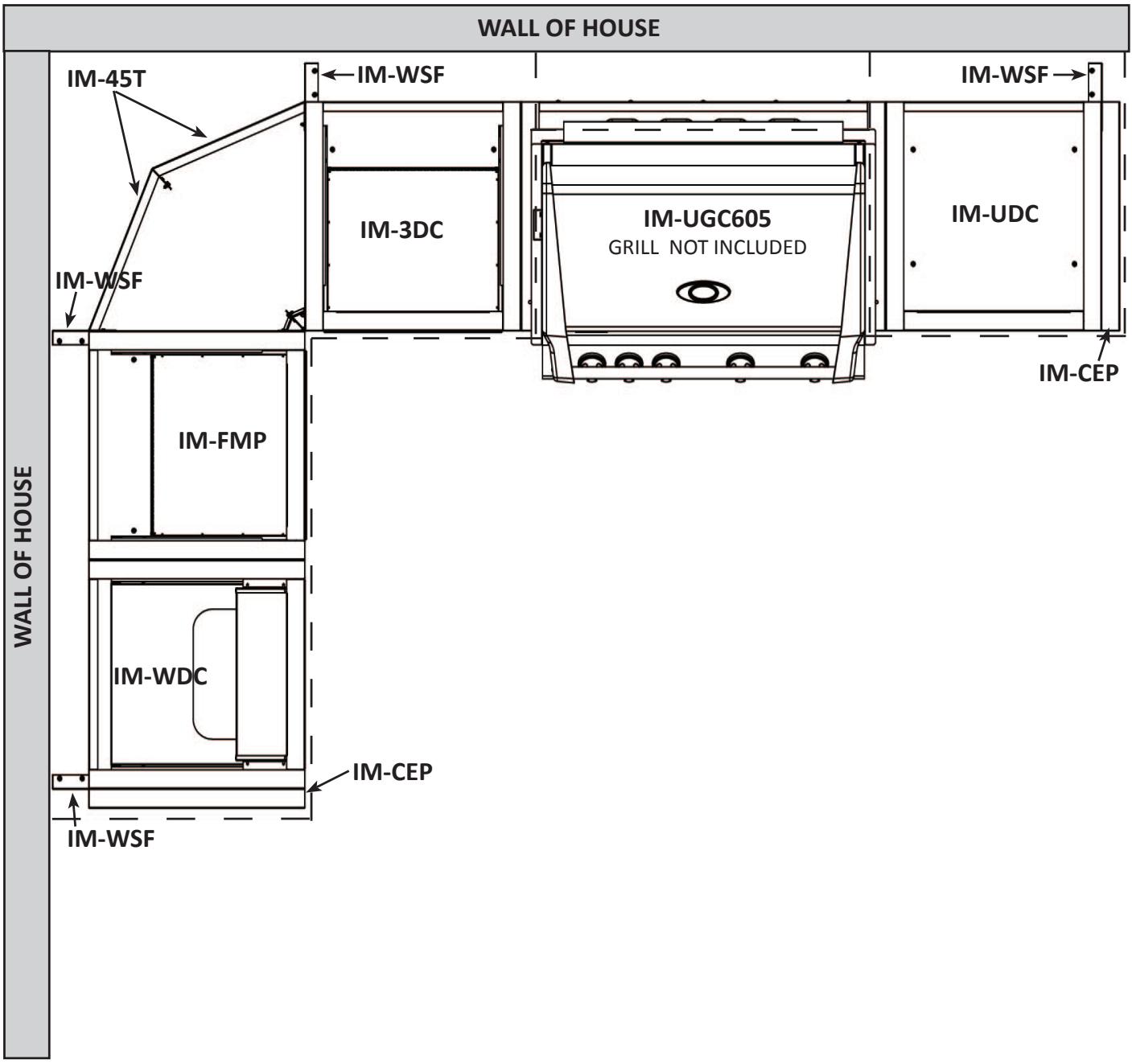

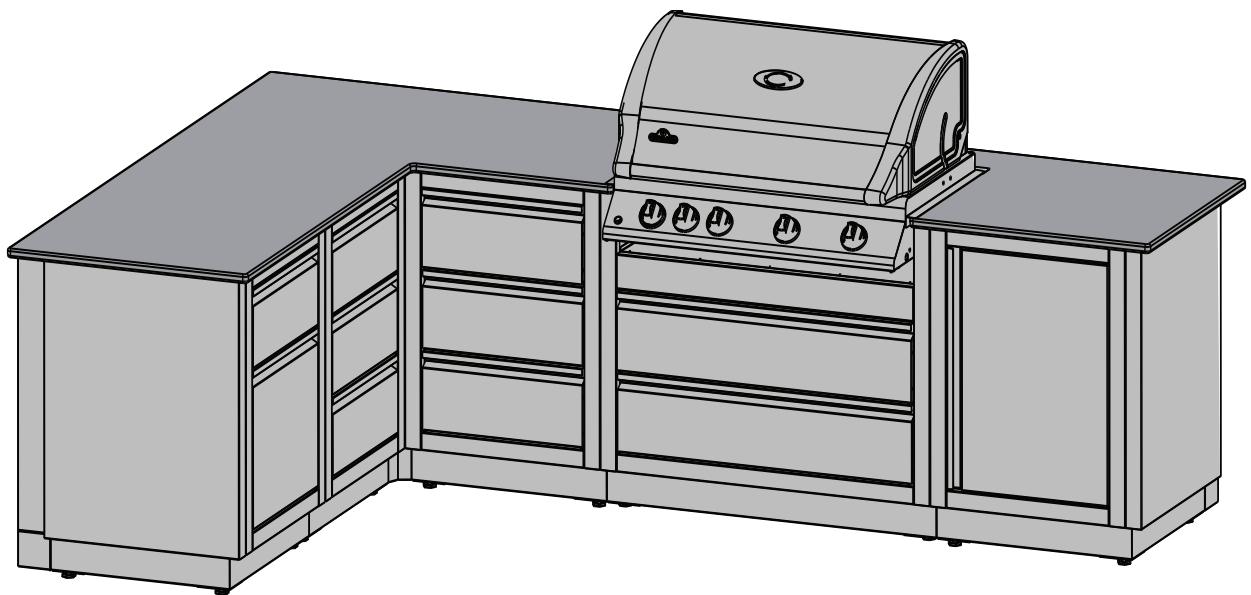

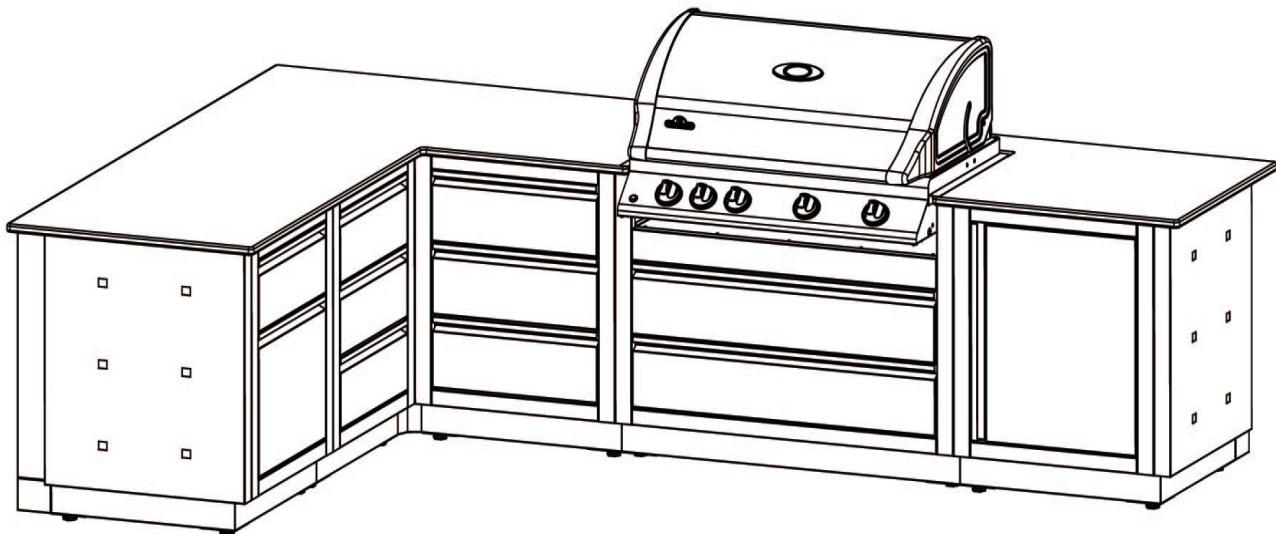

EXAMPLE 4: 605 BUILT-IN 90 ISLAND'AGAI The following example is shown built against a non-combustible house wall. Below, the dashed line represents the perimeter of the countertop (not supplied). It has the IM-WSF kit in 4 places, which stands the unit of from the wall the required 4” (102 mm) to create clearance for opening the lid of the grill. The WSF (wall spacer kit) does not provide enough

offset to allow the unit to be placed against a combustible wall. The clearance marked on the rating plate of the grill still needs to be maintained.

The kit extends from the countertop to the patio or deck surface blocking off the area behind the island, preventing debris from entering behind the cabinet. The 90° bend in the cabinet is created by attaching together 2 IM-45T kits, which also lend support to the countertop. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

www.napoleongrills.com N415-0417 APR 18.18

*Other grill heads can also be substituted. Ensure the under grill cabinet correspondés to the unit. Napoleon model NFRO550RSS.

NAPOLEON Napoleon products are protected by one or mare US. and Canadian and/or foreign patents or patents pending
