USER MANUAL GISELLA OPTIFLAME DIMPLEX

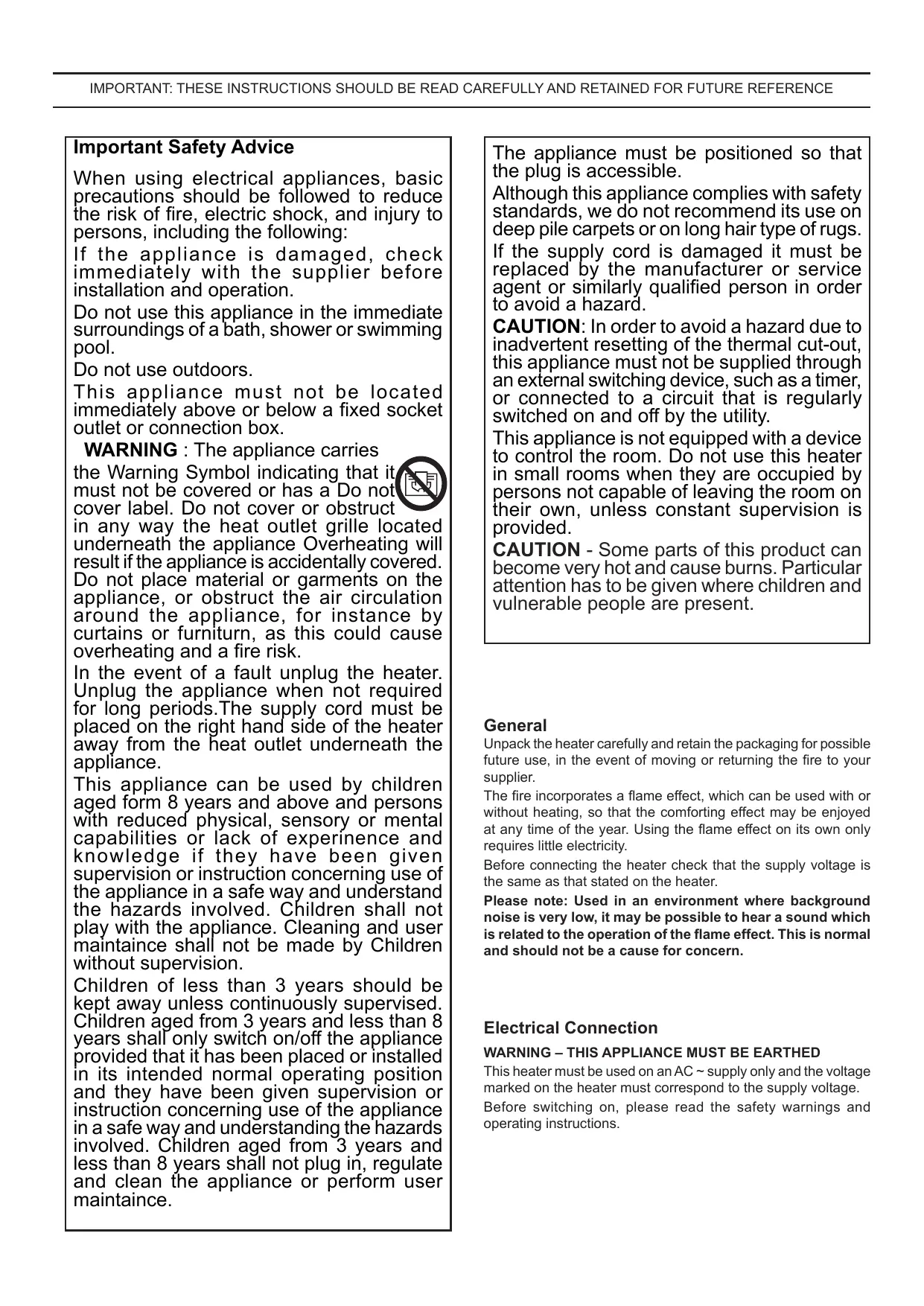

Important Safety Advice

When using electrical appliances, basic precautions should be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

If the appliance is damaged, check immediately with the supplier before installation and operation.

Do not use this appliance in the immediate surroundings of a bath, shower or swimming pool.

Do not use outdoors.

This appliance must not be located immediately above or below a fixed socket outlet or connection box.

WARNING : The appliance carries

the Warning Symbol indicating that it must not be covered or has a Do not cover label. Do not cover or obstruct in any way the heat outlet grille located underneath the appliance Overheating will result if the appliance is accidentally covered. Do not place material or garments on the appliance, or obstruct the air circulation around the appliance, for instance by curtains or furniturn, as this could cause overheating and a fire risk.

In the event of a fault unplug the heater. Unplug the appliance when not required for long periods.The supply cord must be placed on the right hand side of the heater away from the heat outlet underneath the appliance.

This appliance can be used by children aged form 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by Children without supervision.

Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understanding the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

The appliance must be positioned so that the plug is accessible.

Although this appliance complies with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs. If the supply cord is damaged it must be replaced by the manufacturer or service agent or similarly qualified person in order to avoid a hazard.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

This appliance is not equipped with a device to control the room. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

General

Unpack the heater carefully and retain the packaging for possible future use, in the event of moving or returning the fire to your supplier.

The fire incorporates a flame effect, which can be used with or without heating, so that the comforting effect may be enjoyed at any time of the year. Using the flame effect on its own only requires little electricity.

Before connecting the heater check that the supply voltage is the same as that stated on the heater.

Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is related to the operation of the flame effect. This is normal and should not be a cause for concern.

Electrical Connection

WARNING - THIS APPLIANCE MUST BE EARTHED

This heater must be used on an AC~ supply only and the voltage marked on the heater must correspond to the supply voltage. Before switching on, please read the safety warnings and operating instructions.

Controls - See Fig. 2

Three switches provide a choice of heat settings. The appliance is in standby mode when the mains lead is plugged in. This is indicated by the red neon behind the flame effect screen. The two selector switches are in the ON position when the side with the markings on (i.e. I, or II) are pushed in.

Push button switch 1

Controls the electricity supply to the heater and flame effect.

If both selector switches 2 and 3 are in the OFF position, the product works on flame effect only.

Selector switch 2 (I)

Provides 750W heat output

Selector switch 3 (II)

Provides 1500W output with switch 2 also pressed.

Remote control - see Fig. 3

The maximum range of use is 15 metres.

Warning: It takes time for the receiver to respond to the transmitter.

Do not press the buttons more than once within two seconds for correct operation.

Battery Information - see Fig. 3

1. To activate the remote control remove the battery isolation strip, which is used to ensure your remote control reaches you fully charged.
2. To replace the remote control battery, turn over the remote control, and follow the diagram embossed on the remote control
3. Only use CR2025 or CR2032 size of batteries.

Discard Leaking Batteries

Dispose of batteries in the proper manner according to provincial and local regulations.

Any battery may leak electrolyte

• if mixed with a different battery type,
• if inserted incorrectly,
• if all the batteries are not replaced at the same time,
• if disposed of in a fire,
• if an attempt is made to charge a battery not intended to be recharged.

Disposal of Used Batteries.

Batteries may contain hazardous substances which could be endangering to the environment and human health.

The symbol marked on the battery and /or packaging indicates that used batteries should not be treated as municipal waste. Instead they should be left at the appropriate collection point for recycling.

By ensuring used batteries are disposed of correctly, you will help to prevent potential negative consequences on the environment and human health. The recycling of materials will help to conserve natural resources.

For more information please contact your local authority.

Thermal Safety Cut-out

The built-in overheat cut-out switches off the appliance automatically in the event of a fault! Switch off the appliance or disconnect the mains plug from the socket.

Remove any obstructions which may have caused the overheating. After a short cooling down phase, the appliance is ready for use again! If the fault should occur again, see your local dealer!

WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Maintenance

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE.

Light Emitting Diode

This fire is fitted with LED (Light Emitting Diode) lamps. These LED lamps are maintenance-free and should not require replacing during the life of the product.

Wall fixing - see Fig. 1

The appliance should be securely fixed to the wall using the wall plugs and screws supplied for block/brick walls.

Note - for studded walls special fasteners are required, see diagram for recommended position of fixing screw.

Remove wall fixing before attempting any maintenance.

Cleaning

WARNING - ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE HEATER.

For general cleaning use a soft clean duster – never use abrasive cleaners. The glass viewing screen should be cleaned carefully with a soft cloth.

DO NOT use proprietary glass cleaners.

To remove any accumulation of dust or fluff the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater.

It is possible to clean the inner glass and logset by removing the outer glass panel. To remove the outer glass, remove the 4 screws holding the grille in position, (see Fig.4), remove the grille and lift clear the outer glass.

Refit the outer glass in reverse of above.

WARNING: do not operate the product without the grille and outer glass in position as this may effect the operation of the heater.

Recycling

For electrical products sold within the European Community.

At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your countr

After Sales Service

Your product is guaranteed for one year from the date of purchase.

Within this period, we undertake to repair or exchange this product free of charge (excluding lamps & subject to availability) provided it has been installed and operated in accordance with these instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee.

Should you require after sales information or assistance with this product, please contact the relevant sales company for your location based on the information located at the back of this leaflet.

Please retain your receipt as proof of purchase.

WAARSCHUWING -DIT APPARAAT MOET WORDEN GEAARD.

A B T O M A T N U C E K N TepM N U C E K N B b i k J I O u c a T e J b

BcTpoeHHbIe npedeoxpaHnteTIOn OT nepepeBa ABToMaTHueckn BblKnUOaHT np6Op B cnyae c6o! BbIKNChTe np6Op nIOTcoEduHNTe BNlky NtAHnO T 3NeKTPop03ETkn.

YdaInte Bce 3aqrpaJdeHn, KOtOpbIE MOryT Bbl3BaTb NpeperpeB. Pnp6op MOxHNOcNoJIb3ObaTb CHOBA, BblKdAB HeKOtOpoe BpeMn DnI oxJaKeHnE. EcIn c6oB Bo3HnKaet CHOBA, ObpatNTecb K MeCTHomy dnilepy!

BHIMAHHE! Bo n36exaHne BO3HKnHOBeHn ONaCHOCTn 13-3a HnpeHaMepeHHoro BO3BpTa TeNIOBOr BbIKIouaTeJI B INCXoJHOe NIOLOXeHne, 3JeKTPoNITaHne DaHHOR npIbOpa He DOnJxHO NOCTynatb Chee3 TaImeP iDpyNe BHeuHne BbIKNoUOuOHe yCTpoNCTBa, TAKKe npIbOp He DOnJxEN bItb NODKlUoyen K 3JeKTPocETn, KOtopa 3anporpaMMnpOBaHa Ha peryIrpHOe BKJIOUeHne IN BbIKIIOUeHne.

TexobcnykBaHne

BHIMAHNE! IPEPeB BbIIOJIHEHEm TEXHNueCKOTo OBCJyKJBAHNBACErdaOTKJIIOUaHTe OBOIPEBATeJIb OT NCTOCHNKA PINTAHNIA

CBetOndno

KamnH OcnaueH CBETOINoINbIMn lamnamn (LED). 3TN CBETOINoINbIe lamnbI He Tpe6yOT OBCJyKbAHnI N 3aMeHbI B TeueHne BCero cpoKa Cnyk6bl npu6opa.

KpenJIeHne Ha cTeHe - CM. pnc. 1.

Pn6bOp cneJyET HaedjXHO 3akpeINtB Ha CTHe C NOMOJIbIO npnlaraeMbIX IIO6eNeI BUNTOB DJI ENoHbIX/KnprNNUhBX CTHe.

Примочанe: Ддя Каркachbix CTeh TpebyOTc Cneцильные Крени，在 CM. Схему pekomehdyemoro paconnoJIOXeHnKpenexkhbIX BINTOB.

Ipeed npoBeHnem TexHnueckoro o6cJyKuBaHncaJeNyet ydaJIbTb HacteHHbIe KpeJIeHnI.

UncTka

BHNMAHNE! NEPED YNCTKOJ OBOPPEBATEJIb HEOBXOДIMO OTCOEINHЯrTb OT NCTOCHNKA 3JIeKTPONITAHnI.

O6uay uctka BbIOnHaeTc MrgKo, uCToT TpRKnO, HN B Koem clyue He NcPONb3yIte a6pa3nBhble uCtAune CpeDCTBa.

CTeKJIHHbI CMOTPOBoi 3KpaH cneNyET aKKypaTHO npoTepeTb MraKoI TKaHbIO.

HE nCnojB3yIte CneuaJbHbIe OuNCTTeJI dJIa CTekOI.

Дя удаленя nbлл nll nyxa n ouinctkn Bbttjxho Bo3dyoxopacnpedeelenteIbHoi pewetkn BeHTnIyTopa nepnoDnueckn nCNoIb3yIte HacaIky nbInecoa B φOpme MЯrkOJ ξeTKN.

Iocne ChTnHapyKHO CTekJHHO nHeJI NMeetcB O3MOXHOCTb YnCTKn BHyTpEHHero CTekJa. YTo6bl CHaTB HapyKHOe CTekNO,OTkpyTnte 4 BNHTa,ydepXnBaIOuIX peWETky, (CM.Pnc.4),CHIMITE ee n CHIMITE HapyKHOe CTekNO,POdHRe BO BBepx.

YctaHaBJIbAaTe HapyKHoe CTeKJIO B O6paTHOM NopJKe.

BHIMAHHE! He 3Kcnpnyatnpyte yctpoiCtBO 6e3 peweTkn HapyHKHO CTeKJa, TAK KAK 3TO MOKeT NOBnIaTb Ha pa6Oty oborpeBaTeIa.

Yttnnaa

OTHOCHTcK 3JIeKTpO np6opam, npoJaBaembIM B cTpaHax EC.

3NeKtpponp6opbl, BbipabOtaBwne cBoi pecypc, He CJIeDyET ydaJtB B OTOXbI BMeCTe C 6bITOBbIM Mycopom. HeoXoDnMo ocUeCTBjTb Nx yTuINl3aCIno

B CπeuaJIbHo 6ObpyoBaHbIX MecTax.ДЯ ПОЛуЧЕпЯ

INHOpMaun O npaBnJax yTnJIm3aun B CBoeI CTpaHe ObpaNTecb B MeCThBiE OprAhblAtract NIn K P03HuHOMy IpoDaBcy.

PoclenpoaJHoe o6cIyXbAHne

ГараHTиньсрКДЯданHOrOпriбopa coCTaBJIeT OdINH roD coДнЯ nOKyPkN.

Ha npotjxhen 3TOro BpeMeHn Mbl o63yemc 6ecnIaTHo BbINOHNrB peMOHT nIN 3ameHy n3deJInra (KpOME JAmn, pIn HAnuHn HeO6XOnIMbIX IN3deJIn) pN yCNOBN, YTO yCTaHOKa n 3KcPnyataunry BbIOHNrJIncB B COOTBETCTBn C daHHbIMn IHCTpyKUmaN.

Bau n npaba no 3toi rapaHTn DOnonHraT 3akOHhIe npaba notpebnteI n He yuemJIOT ux.

EcnBam Tpe6yUcraHOpMaunO nocnepoJaxHom 0cbnykubAHnn nn NOMObC 3KcNpyataunei DaHHoro n3dien, obaaainTecb B COOTBeTCTByuOe e TopROoe npednpnTne B Baewem pernohe, corlaacHO HOpMaunu, yka3aHHo Ha 3aDHe Oblonke 3tOro 6yKneta.

Heo6xOJIMO coXpaHbT TOBapHbI Yek KaK DoKa3aTeJIbCTBO COBepSeHnI NOKynI.

UK - Warranty The warranty conditions in the country of purchase apply to this appliance. Information can be obtained at any time from the retailer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced and the claims must be forwarded within the guarantee period. The right to claim under guarantee expires in case that the device has been damaged, used in an inappropriate way or that unauthorized manipulations have been carried out.

Glen Dimplex Benelux B.V. – Netherlands

Antennestraat 84

1322 AS Almere,

Nederland

E-mail: [e-mail]

www.glendimplex.nl

BE

Glen Dimplex Benelux B.V. - Belgium

Gentsestraat 60

B-9300 Aalst,

Belgie/ Belgique

E-mail: [e-mail]

www.glendimplex.be

DE

1. Warranty Card
2. Guarantee Period (in Years)
3. Model(s)
4. Date of Purchase
5. Stamp & Signature of retailer
6. Fault/Defect
7. Contact Number & Address

FR
