USER MANUAL HI2421HD-EL HIGH ONE

Thank youl Thank you for choosing this HIGHONE product HIGHONE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't Let you down. We're confident your new device will be a pleasure to use every day! Welcome to ELECTRO DEPOT. 1 EN

Safety Information High voltages are used in the operation of this product.to reduce the risk of electric shock,do not remove cover ofthe cabinet, RISK OF ELECTRIC SHOCK refer servicing to qualified service personal

Ifthe TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul. The exclamation point within an equilateral triangle is intended to alertthe usertothe presence of important operating in the literature accompanying the appliance. Warning The lightning flash with arrowhead symbol within an equilateral triangle,is inten dedto alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. 3 EN

Important Safety Precautions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth

7) Do not block any ventilation openings. Install in accordance with the manufacturer instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. À polarized plug has two

blades with one wider than the other. À grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outiet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Oniy use attachments /accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless

proper ventilation is provided or the manufactures instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filed with liquid, such as

vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candies)

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as

recommended by the manufacturer.

21) © Never place the TV, remote control or batteries near naked flames or other heat

sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times:

22) The USB terminal should be loaded with 0.5 À under normal operation

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) [El This equipment is a Class 11 or double insulated electrical appliance. Ithas been designed in

such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees.

The Maximum using altitude is 2000 meters

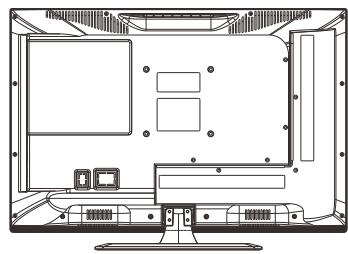

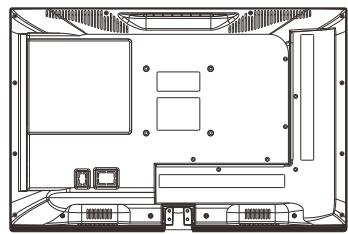

TV Bracket assemble Fix the TV onthe wall 1.First,put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen 2.User the screw driver to take offthe screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1).And take off the bottom stand(please take off the screws and bottom stand carefully) 3.Make one bracket which can fix on the wall according to the size of arrow direction of photo? and photos. 4.Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) 5.according to the step 4,use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall. Note: © 1.The bracket fixed on the wall is optional part. 2.when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles. 3.When assemble the TV, please ask the career man to fix in order to avoid the danger. 4.The fixing picture is only for reference. 5.Please follow the use manual about bracket assemble to fix the TV. 6.Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface TV Buttons Note: The key instructions are subject to below Display \Hide key icon: When there is no button icon popping up, press the key, the key icon will pop up like the picture shows above, the key icon will automatically turn off after 5 seconds of inactivity Icon selection: Short press the button, move the loop to the right, select the icon. Icon function selection: Long press the key to achieve the function of the selected icon Icon Description

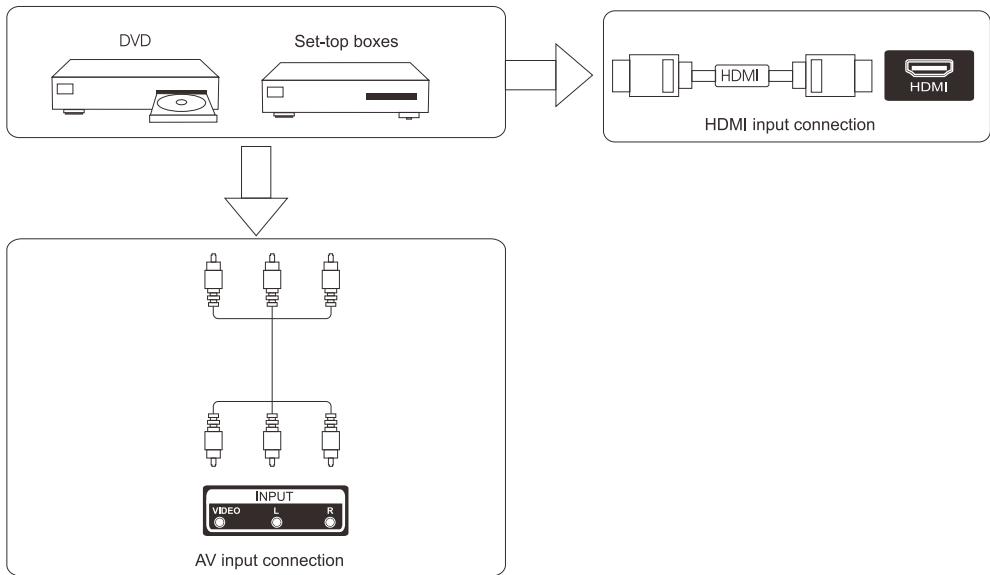

Terminal Interface Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different. CH+ Icon: Corresponding to the "CH+" button of remote. CH- Icon: Corresponding to the "CH-" button of remote. Power off Icon: Corresponding to the "POWER" button of remote Menu Icon: Corresponding to the "MENU" button of remote. Source Icon: Corresponding to the "SOURCE" button of remote. Volume+ Icon: Corresponding to the "VOL+" button of remote. Volume- Icon: Corresponding to the "VOL-" button of remote: AV input External AV Signal mput And Relevant RighLeft Sound Channel USB input Connect a USB device here to play its media les or Lo recordprograms. via the PVR function. Ts end rescer input Ccommon COAXIAL COAXIAL Connect the SPDIF receiver. HOMI input Digital signal input rom HDMI video connector. ANT 75 Connect Ihe antenalcadie tv input (FSNHFIUHE) EARPHONE output When earphones are plugged in, speakers are disabled

USB connection LI input connection

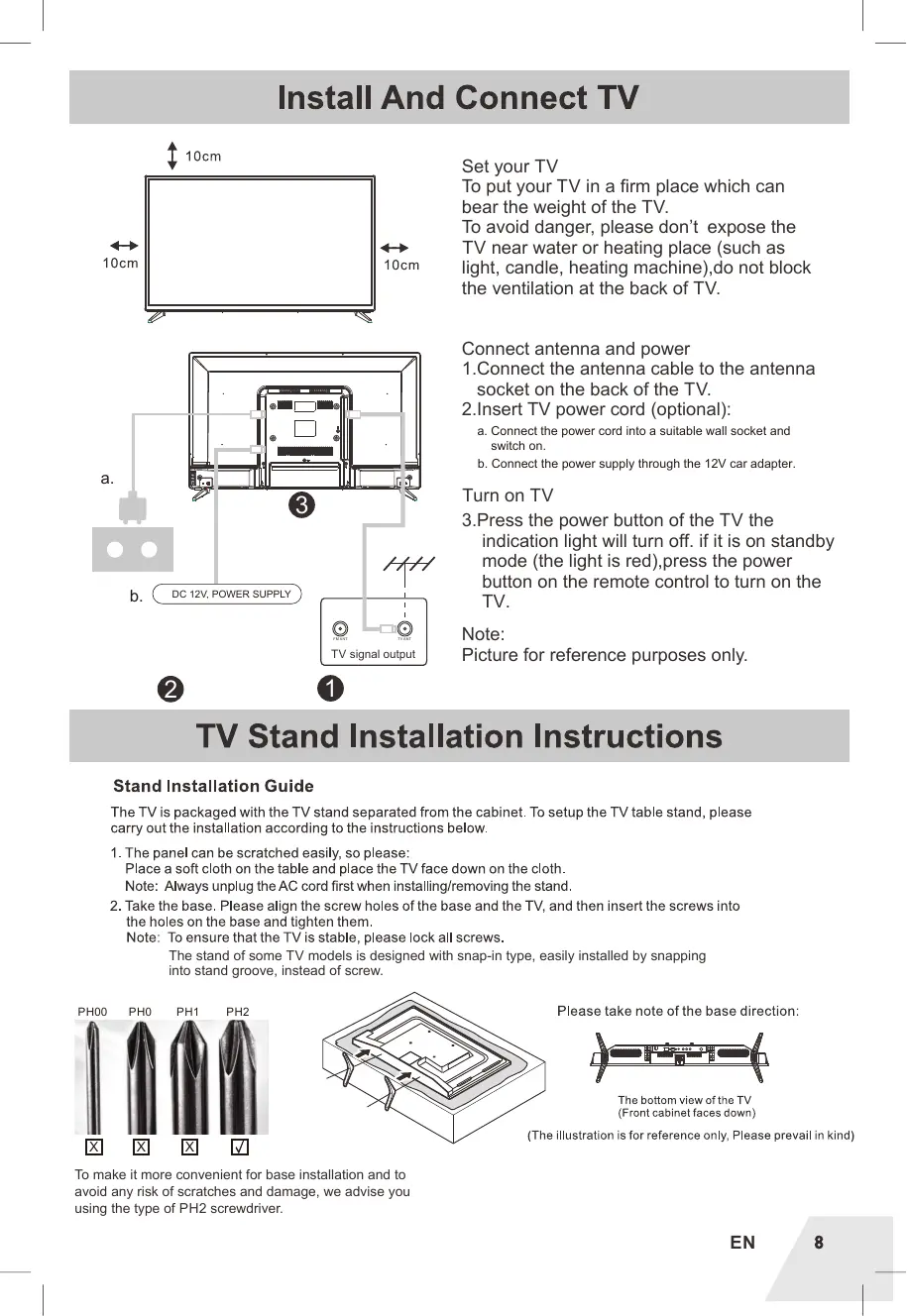

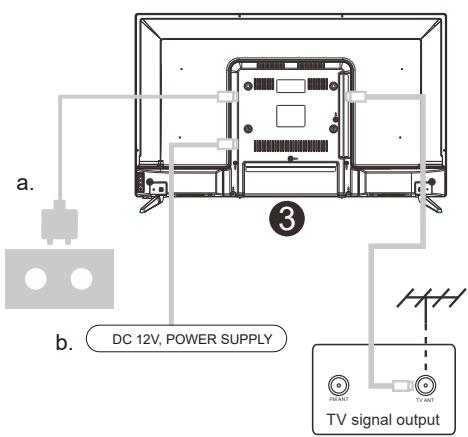

Install And Connect TV î 10cm Set your TV To put your TV in a firm place which can bear the weight of the TV. To avoid danger, please don't expose the + — TV near water or heating place (such as 10cm 00m light, candle, heating machine),do not block the ventilation at the back of TV. Connect antenna and power 1.Connect the antenna cable to the antenna socket on the back of the TV. 2.Insert TV power cord (optional):

8. Connect the power cord into a suitable wall socket and

Switch on. b. Connect the power supply through the 12V car adapter. Turn on TV 3.Press the power button of the TV the indication light will turn off. if it is on standby mode (the light is red),press the power button on the remote control to turn on the TV.

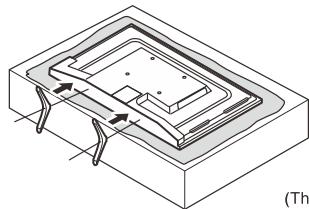

b. (oct PonER sure ) É Note: TV signal output Picture for reference purposes only. (2) 1] TV Stand Installation Instructions Stand Installation Guide The TVis packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry outthe installation according to the instructions below. The panel can be scratched easily, so please: Place a soft cloth on the table and place the TV face down on the cloth Note: Always unplug the AC cord first when instaling/removing the stand . Take the base, Please align the screw holes of the base and the TV, and then insert the screws into the holes on the base and tighten them: Note: To ensure that the TV is stable, please lock all screws. The stand of some TV models is designed with snap-in type, easily installed by snapping into stand groove, instead of screw:

PHoo Please take note of the base direction:

The bottom view oftne TV. {Front cabinet faces down) {The illustration is for reference only, Please prevail in kind) To make it more convenient for base installation and to avoid any risk of scratches and damage, we advise you using the type of PH2 screwdriver. EN 8

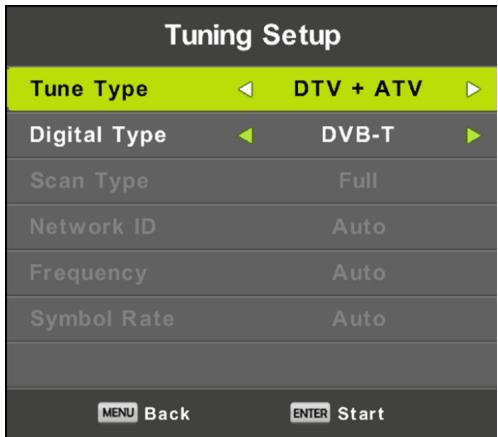

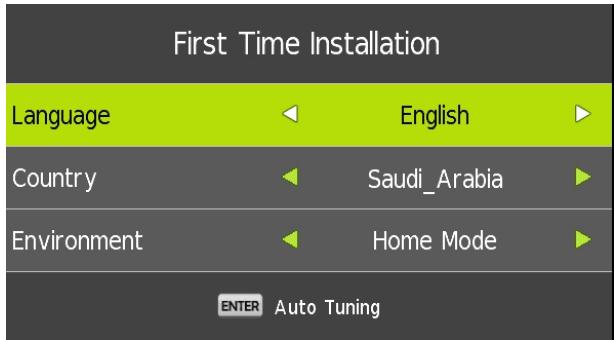

First Time Installation Connect an RF cable from the T's input called *RF-In” and to your TV Aerial socket. Select Language Press 4/ » button to select the language to be used for menus and message Select Country Press Y / A button to highlight country menu Press 4/ à button to select the country you want to First Time Installation Saudi_Arabia Environment Home Mode ES auto Tuning Tuning Setup

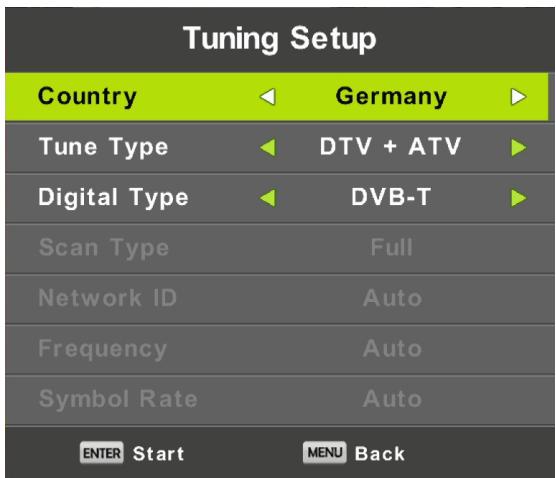

Auto Tuning First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning Channel Tuning 0 Programme 0 Programme Do you want to skip ATV 0 Programme Et 0 Programme h 46.25 MHz (Tv) Please press MENU key to skip Channel Tuning 0 Programme 0 Programme Do you want to exit tuning? 0 Programme 0 Programme 50% VHF CH 1 (TV) Please press MENU key to exit

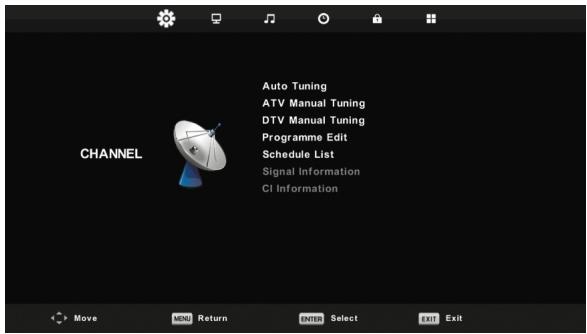

1. Press w/A button to select the option that you want to adjust in the CHANNEL menu

2. Press Enter button to adjust

8. After finishing your adjustment, Press Enter button to save and return to the previous menu

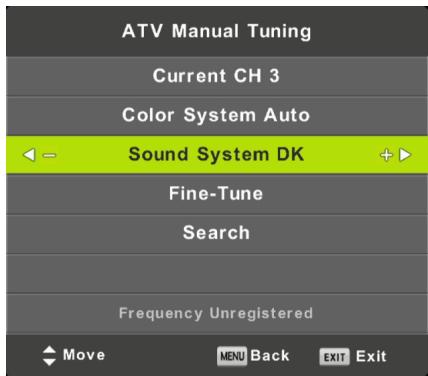

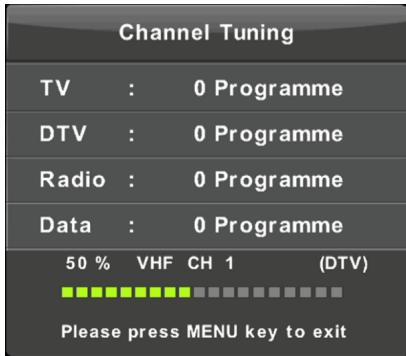

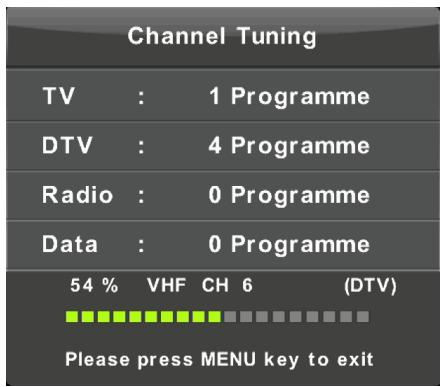

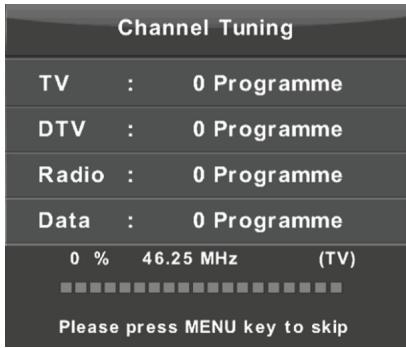

press MENU key to skip Channel Tuning 1 Programme 4 Programme 0 Programme 0 Programme VHF CH 6 Tv) Please press MENU key to exit ATV Manual Tuning ATV Manual Tuning Current CH 3 Color System Auto Sound System DK Fine-Tune Search ünregistered EBak EDeExit Do you want to skip ATV tuning? Do you want to exit tuning? Current CH Set the channel number. Color System Select the color system (Available System: AUTO, PAL , SECAM ) Sound System Select the Sound system Fine-Turn Adjust the frequency ofthe channel finely. Search Start searching channel. EN 12

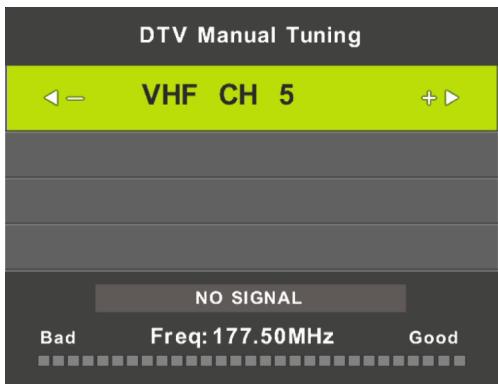

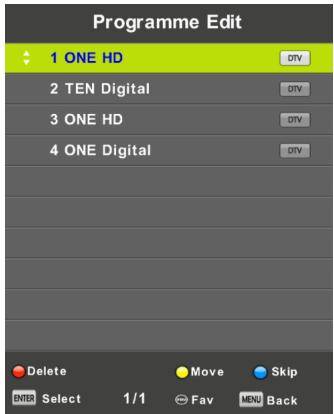

DTV Manual Tuning Press Y/A button to select DTV Manual Tuning, then press Enter button to enter sub-menu Press 4/» button to select channel, then press Enter button to search program DTV Manual Tuning NO SIGNAL Freq:177.50MHz Program Edit Press w/A button to select Program Edit, then press Enter button to enter sub-menu Programme Edit 2 TEN Digital 3 ONE HD 4 ONE Digital The three colored key is the shortcut key for programming the channel. Firstpress v/4 to highlight the channel you want to select, then Press the Red button to delete the program in the list. Press the Ye10w button to move the channel in the list. Press the Blue button to skip the selected channel. Press Fav button to add or remote the channel to your favorite list. (Your TV set will skip the channel automatically when using CH+/- to view the channels.) 13 EN

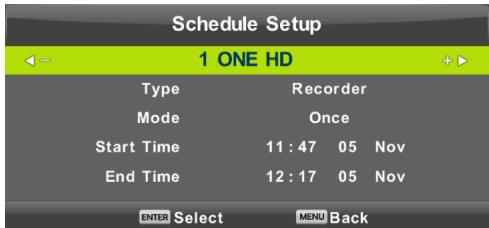

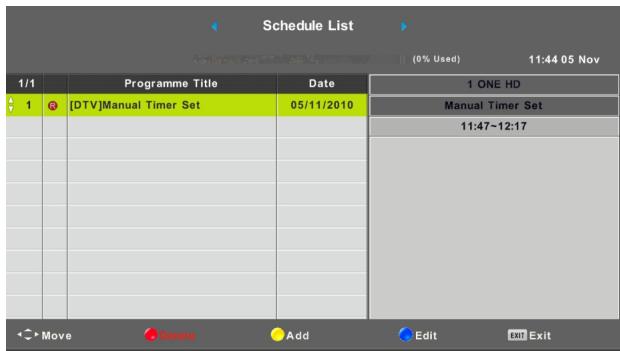

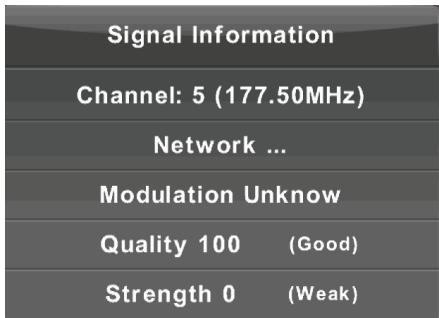

Schedule List Press Y/A button to select Schedule List, then press Enter button to enter sub-menu. Itis available in DTV and satellite source Schodul List Press the *: ! | 0} buttonto enterthe When the time appointment is conflict , interface below. itwill produce a warning message Schedule Setup Type Recorder Mode Once un HO TE Timer was saved Successfully End Time 12:17 05 Nov Record 47-12:17 on CHA TD select CB ack 05/11/2010 ET Exit Signal Information Press Y / A button to select Signal Information, press the Enter button to see the detail information about the signal. Only available when there is signal in DTV. Signal Information Channel: 5 (177.50MHz) Network Modulation Unknow Quality 100 (Good) Strength 0 (Weak) CI Information (Need to support the CI function) Press V/ Abutton to select CI Information, then press the Enter button to display detail if you has inserted the CI card EN 14

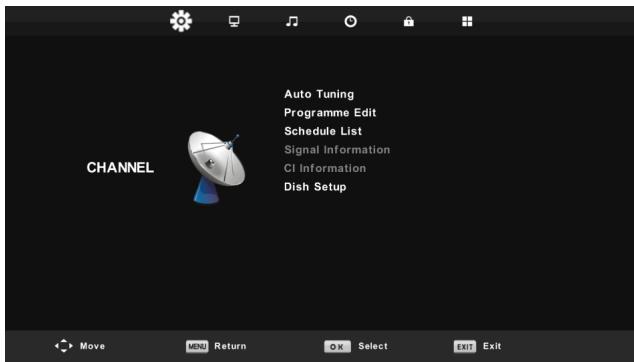

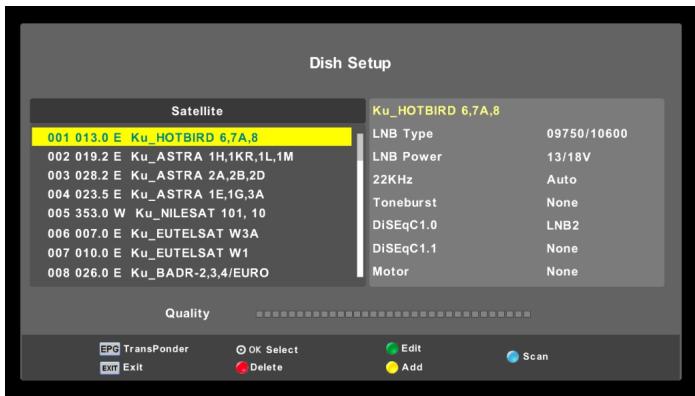

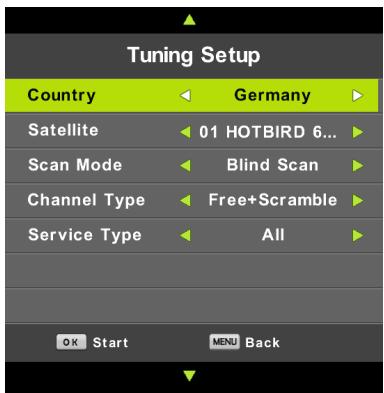

The CHANNEL List in Satellite Source.(Need to support the DVB-S2 function) ae |. Auto Tuning Press v / A button to select Auto Tuning, then press Enter/} button to enter. o Channel Tuning Tuning Setup Country Germany OIBLE Drame Satellite « 01 HOTBIRD 0 Programme Scan Mode < Blind Scan 0 Programme

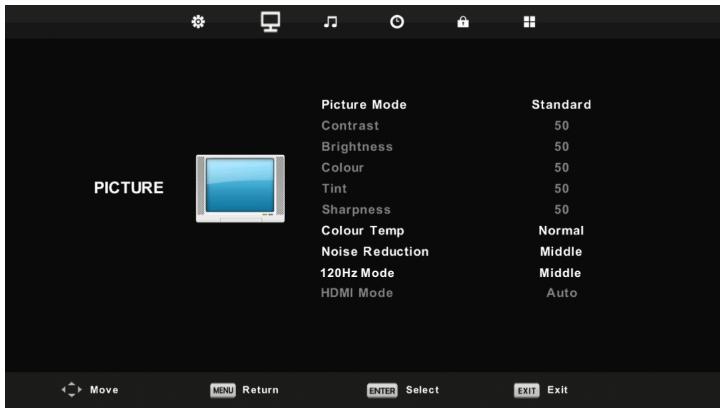

1. Press Y / A button to select the option that you want to adjust in the PICTURE menu

2. Press OK button to adjust

3. After finishing your adjustment, Press MENU button to save and return back to the previous menu

Picture Mode Press y / A button to select Picture Mode, then press OK button to enter sub-menu You can change the value of contrast, brightness, color, sharpness and tint when the picture is in Personal mode TIPS: You can press PMODE button to change the Picture Mode directly, Picture Mode Standard Personal EMsciect (sack Contrast/Brightness/ Color! Tint/Sharpness Press y / A button to select option, then press Enter/k button to adjust Contrast Adjust the highlight intensity of the picture, but the shadow ofthe picture is invariable Brightness Adjustthe optical fiber output ofthe entire picture, it will effect the dark region of the picture. Color Adjust the saturation of the color based on your own like Tint Use in compensating color changed with the transmission in the NTSC code Sharpness Aadjustthe peaking in the detail of the picture EN 16

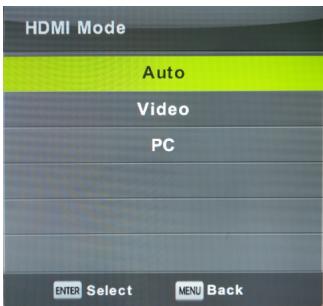

Color Temp Colour Temp Change the overall color cast of the picture. Press v / A button to select Color Temperature , then press OK button to enter sub-menu. Cold PressA/v button to select. (Available Picture mode: Cool, Medium, Warm). Cold Increase the blue tone for the white. Normal Increase the sex-linked colors forthe white. EMseict [Mes Warm Increase the red color for the white. e Reduction To filter out and reduces the image noise and improve picture quality. Press v / A button to select Noise Reduction , then press OK button Noise Reduction off to enter sub-menu. Low HER off Select to turn off video noise detection. Low Detect and reduce low video noise. CIEL Detect and reduce moderate video noise. High Detect and reduce enhanced video noise. Set as Default. EDselect (Back 120Hz MODE (Only with UHD TV) Adjust the motion compensation. Higher setting may improve the motion performance when watching sports or playing games Press v/A button to select(Off/Low/Middle/High) HDMI Mode HDMI Mode Press v / A button to select HDMI Mode, then press OK button to enter sub-menu. Press v / A button to select (Available Picture mode:Auto, Video, PC). 17 EN

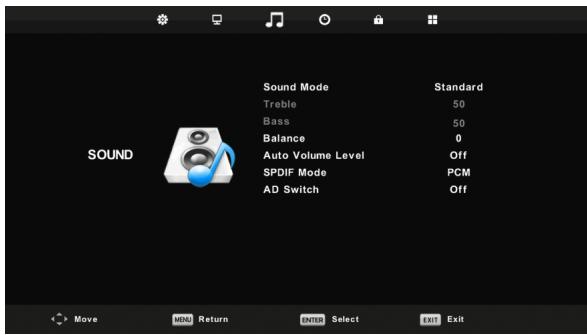

Sound Menu Press MENU button to display the main menu! Press 4/R button to select SOUND in the main menu

1. Press v/A button to select the option that you want to adjust in the SOUND menu

2. Press Enter button to adjust

3. After finishing your adjustment, Press Enter button to save and return to the previous menu

Sound Mode Sound Mode Press v / A button to select Sound Mode then press Enter button to enter sub-menu Movie Pressw/A button to select Music Sports Personal EDsoilect (Back You can change the value of Treble and Bass when the sound is in Personal mode. TIPS: You can press SMODE button on the remote control to change the Sound Mode directly. Standard Produces a balanced sound in all environments. Music Preserves the original sound.Good for musical programs. Movie Enhances treble and bass for a rich sound experience. Sports Enhances vocals for sports. Personal Select to customize picture settings. Note:The treble and bass are only available in personal mode, you can adjust them as you like Balance Press y /A button to select option, Press 4/} button to adjust. Auto Volume level Press w /A button to select Auto Volume Level, then press 4/à button to select On or Off SPDIF Mode Press y /A button to select SPDIF Mode, then press 4/ button to select Off / PCM / Auto AD Switch Press Y / A button to select AD Switch, then press 4/» button to select On or Off Amblyopia function for the blind, the tracks will be mixed describe the current screen Itneed codestream to support NOTE: Balance: This item can adjust the speaker's output, it enables you to listen to best at your position Auto Volume: This item is used for reducing the difference between channel and program's volume automatically. EN 18

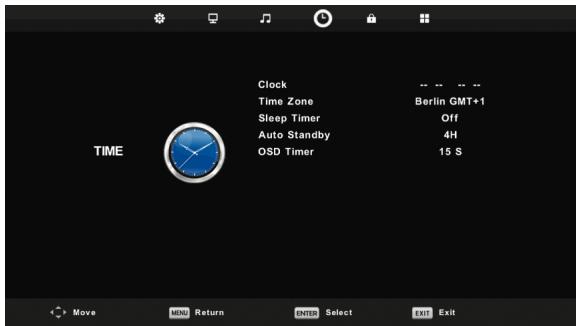

Time Menu Press MENU button to display the main menu! Press 4/» button to select TIME in the main menu

1. Press /A button to select the option that you want to adjust in the TIME menu

2. Press Enter button to adjust

8. After finishing your adjustment, Press Enter button to save and return to the previous menu

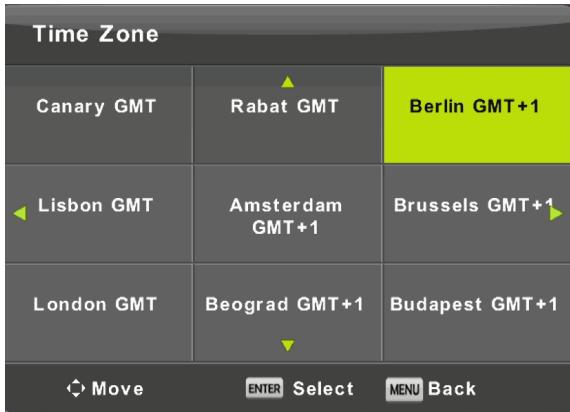

Time Zone Press Y / A button to select Time Zone, then press Enter button to enter sub-menu Time Zone Canary GMT London GMT < Move Sleep Timer Sleep Timer 19 EN Rabat GMT Press v / A /4/» button to select time zone Amsterdam | Brussels GMT+4 GMT+1 Beograd GMT+1 | Budapest GMT+1 EM Select ([MBack Pressy/abutton to select Sleep Timer, then press Enter button to enter sub-menu Press v/A button to select. (Available options are:Off,15min,30min,45min,60min,90min, 120min,240min).

Auto Standby OSD Timer OSD Timer Press v/A button to select Auto Standby, then press Enter button to enter sub-menu. Press w/A button to select Tips: The remote control does not make any operation in the hypothesis time, itwill close down automatically. If you do any operation, it will reset the time. Press v/A button to select OSD Timer, then press Enter button to enter sub-menu. Press v/A button to select. EN 20

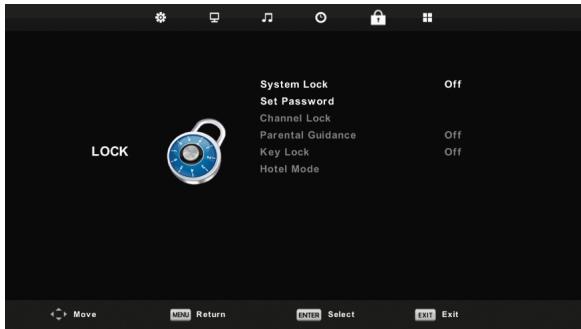

Lock Menu Press MENU button to display the main menu! Press 4/} button to select Lock in the main menu 1.Press w / A button to select the option that you want to adjust in the LOCK SYSTEM menu

2. Press Enter/4/à button to adjust

3. After finishing your adjustment, Press MENU button to return back to the previous menu

Lock System Press v / A button to select System Lock, then press Enter button to make the following 3 options valid enter password Default password is 0000/8888 and if forget what you set please CT: callthe service center. Set Password Please enter old password Please enter new password Press v / A button to select Set Password then press Enter button to enter sub-menu to set new password 21 EN

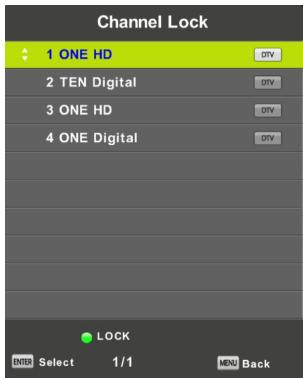

Channel Lock Channel Lock 2 TEN Di 3 0N€ HD Press v / A button to select Channel Lock then press Enter button to enter sub-menu to select. SEULE) Press Green button to lock or unlock the channel Parental Guidance Parental Guidance Press y / A button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children. East (Msack Key Lock Press v / A button to select Key Lock, then press 4/» button to select Off or On When Key Lock's statue is on, you can’tuse the Key panel button.

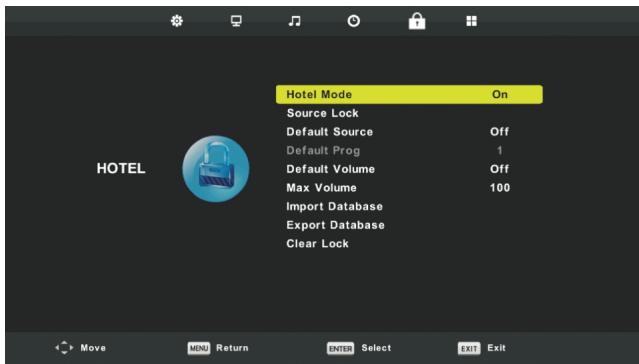

Hotel Mode(Need support the Hotel Mode) Press Y / A button on the remote control to select hotel mode in the Lock menu

2. Press Enter button on the remote control to enter the sub-menu

3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Hotel Mode Press v / A button to select Hotel Mode, then press 4/2 button to select on or off Source Lock Press v / A button to select Source Locke, then press Enter button to enter sub-menu to select Default Source Press v / A button to select Default Source, then press Enter button to enter sub-menu to select Default Prog Press w / A button to select Default Prog, then press 4/» button to adjust Itis available when the default source is TV. Max Volume Press y / A button to select Max Volume, then press 4/R button to adjust. Clear Lock Press v / A button to select Clear Lock, then press Enter button to clear the setting you have done before. 23 EN

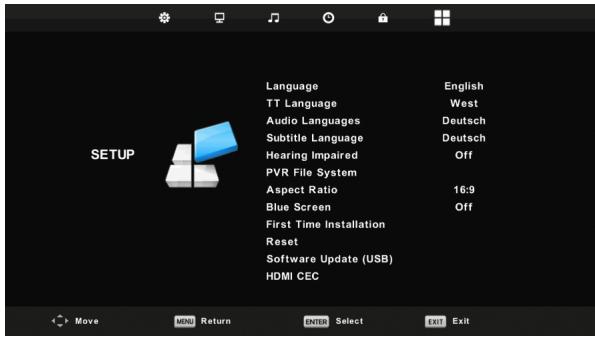

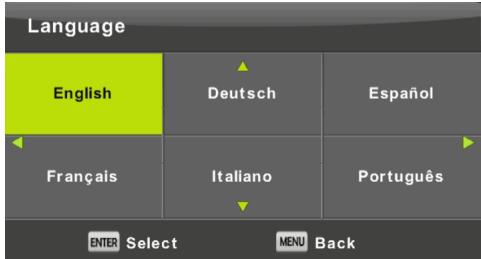

1. Press y/A button to select the option that you want to adjust in the SETUP menu

2. Press Enter button to adjust

8. After finishing your adjustment, Press Enter button to save and return to the previous menu

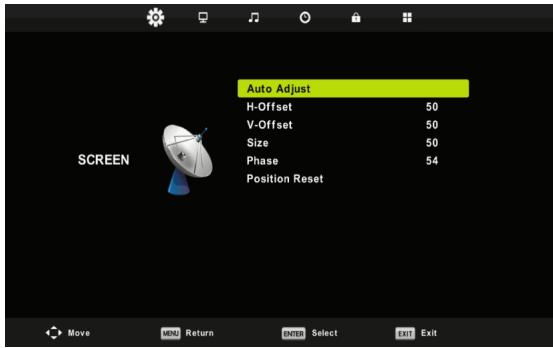

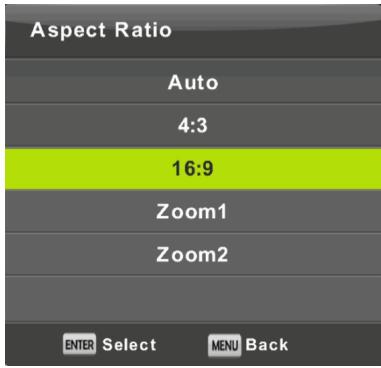

1. Press w/A button to select the option that you want to adjust in the SCREEN menu

2. Press Enter button to adjust

8. After finishing your adjustment, Press Enter button to save and return to the previous menu

1. Noise Reduction in PICTURE option is invalid

2. AD Switch in SOUND option is invalid

3. TIME menu and description are the same as that for Air mode

4. Block Program and Parental Guidance in LOCK option is invalid

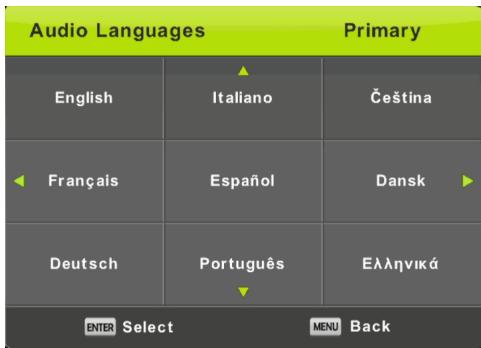

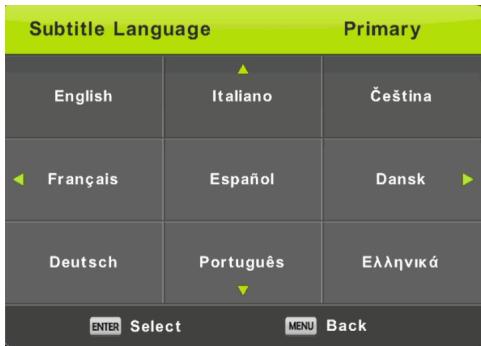

5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System

in SETUP option is invalid. \6.PC mode has no CHANNEL menu 27 EN

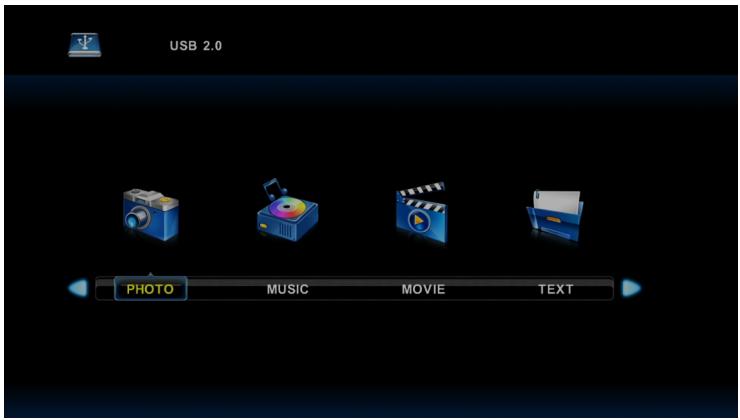

Media OPERATION Note: Before operating Media menu,Plug in USB device then press Source button to set the Input Source to Media Press Y / A butin to select Media in the Source menu, then press Enter button to enter. Press4/Bbutton to select the option you want to adjust in the main Media menu, then press Enter button to enter.

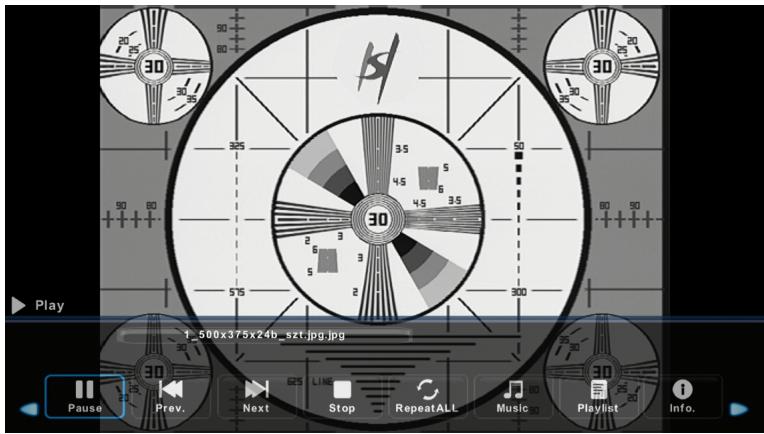

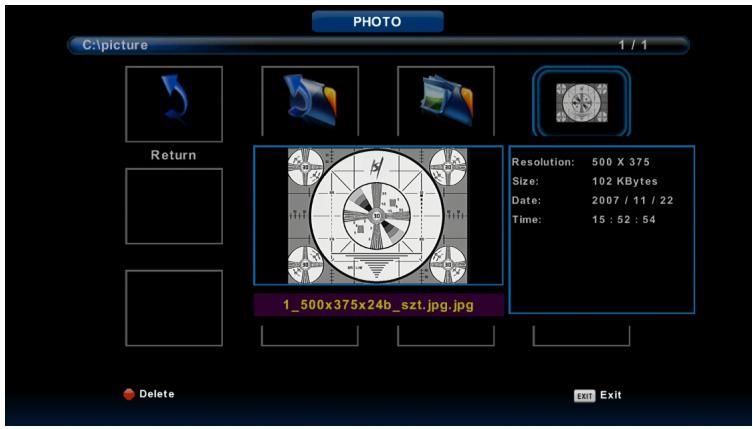

Photo Menu Press €/B-button to select PHOTO in the main menu, then press Enter button to enter. Press Exit button to retum to the previous menu and exit menu Lo quit Press 4/à button to selectthe file you want to watch in the file selecting menu, then press enter button to display picture. When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center. 29 EN

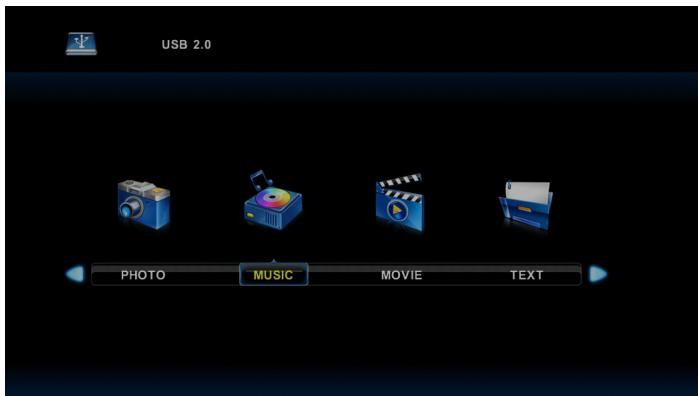

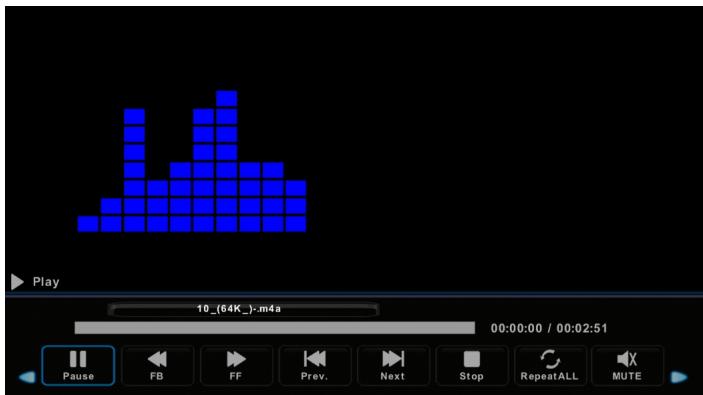

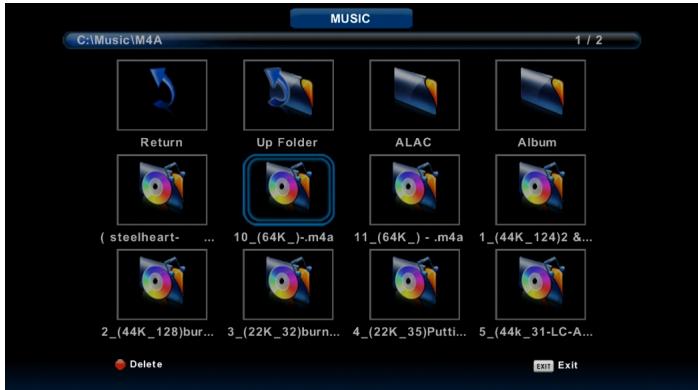

Music Menu Press /B button lo select MUSIC in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit “eistemen (a) [ù Press} button to select drive disk you want to watch, then press Enter button to enter. Press 4/ button to select retum option to the previous menu:

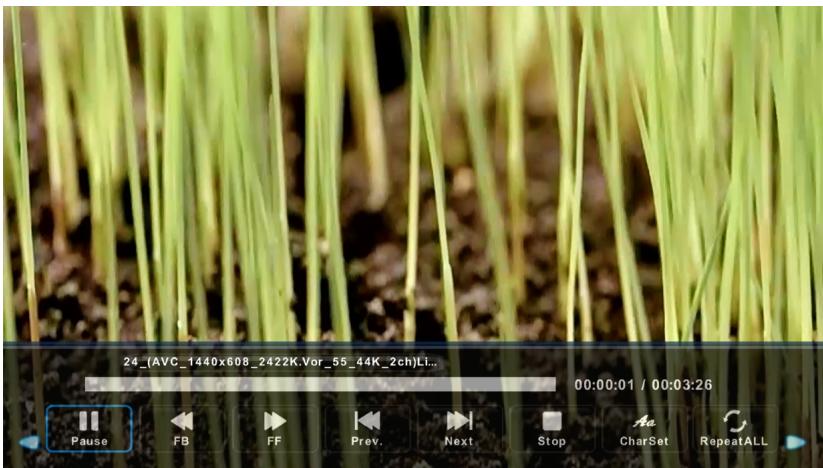

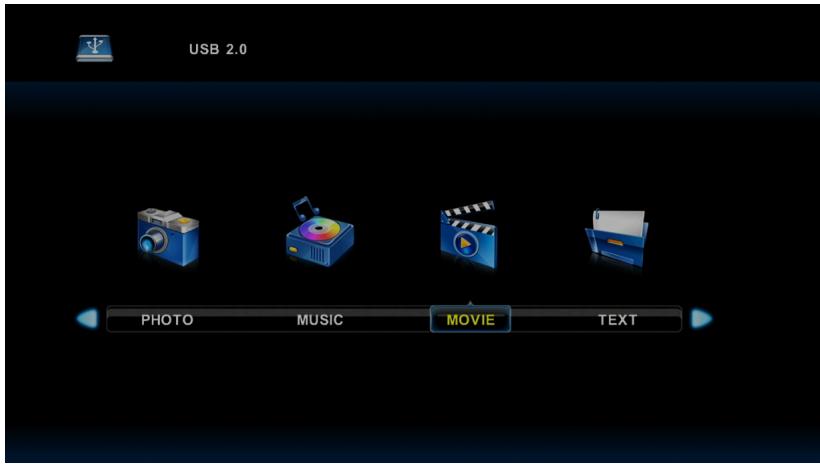

Movie Menu Press/Bbution to select MOVIE in the main menu, then press Enter button to enter. Press Exit bution to retum to the previous menu and exit menu to quit. MUSIC Press 4/ button Lo select drive disk you want to watch, then press Enter button to enter. Press enter button to play the selected movie: Press display button to select menu in the bottom you want to run, then press Enter button to operate. Press Exit button to back to the previous menu and exit button to qui the entire menu. {| \\l 60:00:0-1f 000:

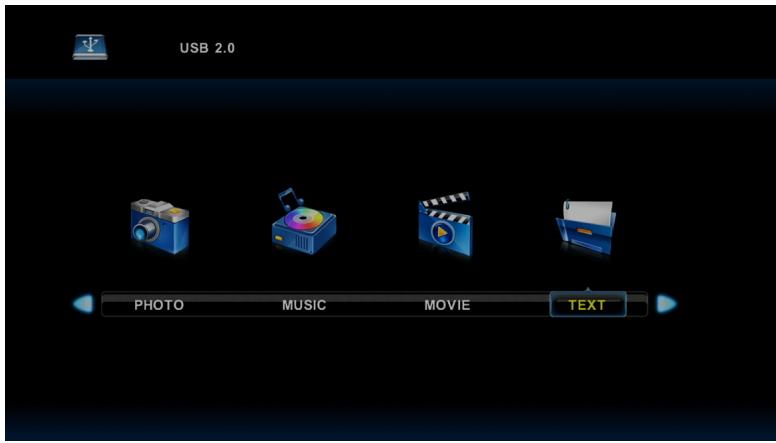

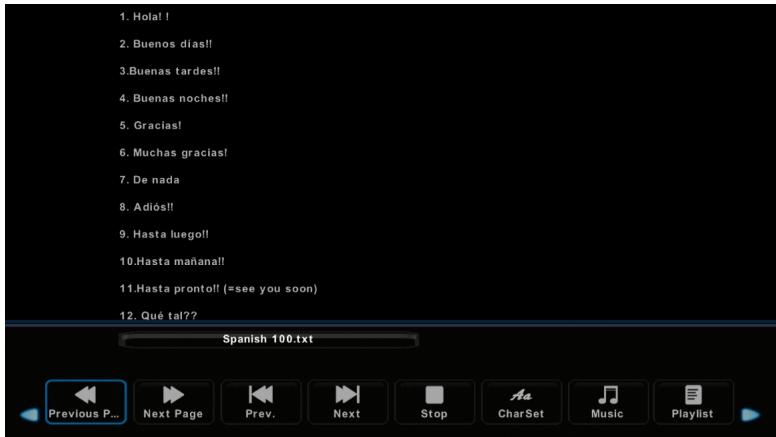

Text Menu Press 4/B button lo select TEXT in the main menu, then press Enter button lo enter. Press Exit button to return to the previous menu and exit menu to quit C0 Muse Press 4 button to select drive disk you want to watch, then press Enter button to enter. Press 4 /p button to select return option to back to the previous menu

Help Fe Check ifthe AC cord of TV is plugged in or not, If there's still no power, No power please disconnect the plug, and reconnect to the socket after 60 seconds Turn the power back on. Signal not le Double or phantom images may appear on your TV ifthere are high buildings received properly or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna. ef ou use an indoor antenna, under certain circumstances signal reception may be more difficult. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna No picture le Check if the antenna at the back of the TV is connected propery. « View other channels to see if the problem still occurs Video appears with no audio

• Try increasing the volume. « Check ifthe TV's sound is on mute or not Audio is present, but video does not appear oris discolored le Try adjusting the contrast and brightness. Static noise affects video and audio quality le Check if the antenna at the back of the TV is connected properly. Broken lines on screen Fe Electrical appliances such as hair diyers or vacuums etc. may be interfering with your TV set. Switch these appliances off. Remote doesn't work + Make sure the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement ofthe batteries is correct, or try using new batteries with the remote control. le The TV will go into Standby mode if it receives no response in a few minutes. No video (PC mode) Fe Please check ifthe cable is connected to the HDMI port correctly, or if the cable is bent in some places. Vertical line blinking Fe Enter the main menu, and adjust the vertical placement to eliminate the {PC Mode) vertical line: Horizontal tearing (PC Mode) * Adjust the horizontal placement of the screen to clear any horizontal lines. Screen is too bright or dark (PC Mode) + Adjust the brightness or contrast in the main menu No response from the PC Je Check if the PC's display resolution is set to a compatible resolution for the TV. Lines appearing when a device is connected to the RCA port le Make sure you are using a cable of good quality. Problems are unresolved Ée Unplug the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindiy contact the service center. Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

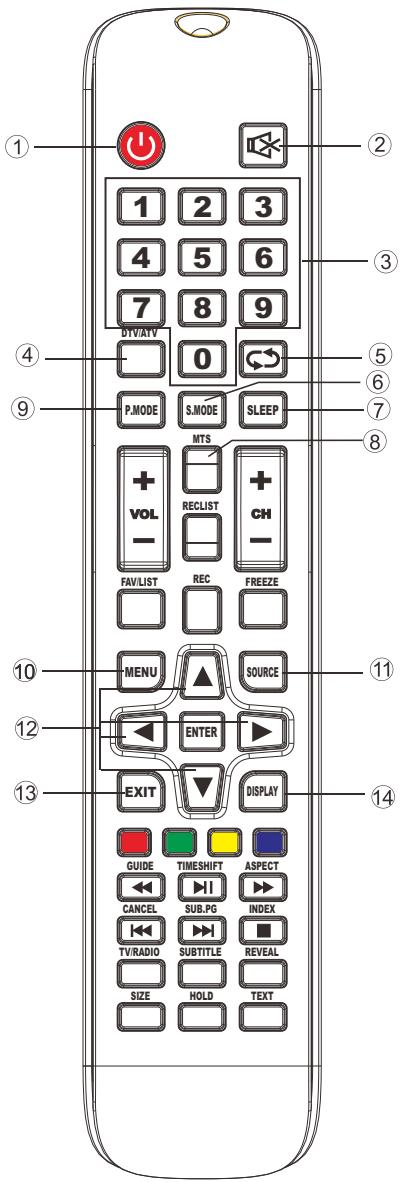

watching TV. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on

4. DTV/ATV: Switch between Analog and Digital TV

5. 9 Retum to the previous viewed program.

6. S.MODE: Press to cycle through the different sound

7. SLEEP: Select amount of time before TV turn itself

off automatically. 8 MTS : Press to search the NICAM modes

9. PMODE!: Press to cycle through the different picture

10. MENU: Allow you to navigate the on-screen menus.

11. SOURCE: Open the main menu ,press to list the

12. AY 4DENTER:Alow you to navigate the on-screen

menus and adjust the system settings to your preference. 10

13. EXIT: Exit from the menu or sub-menu and cancel

the function in process (if applicable)

14. DISPLAY: Press to display the source and channel's e

info. Battery Installation: Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and- ends aligned as indicated. Do not mix old and new batteries or different types of batteries. Slide the lid until you hear it click into place. Using the Remote Control: Unless stated, otherwise, the remote control can operate all the features ofthe TV. Always point the remote control directly atthe remote sensor in front ofthe TV

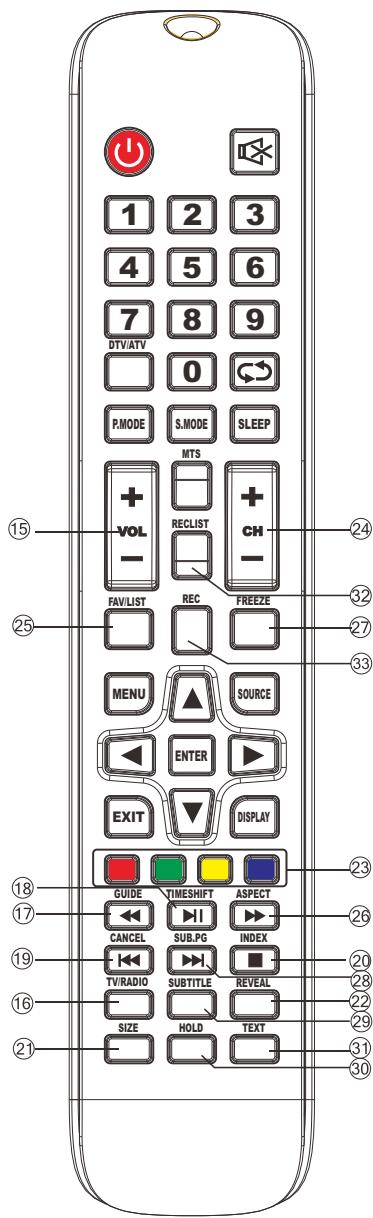

Remote Controller . VOL+/VOL- Press to increase / decrease the sound level TV/RADIO : When watching channel, allows you to switch between TV and Radio modes GUIDE:1. Launches the EPG (Electronic Program Guide) 2. Fast reverse in PVR or Media Player mode. TIME SHIFT: 1.DTV channel time shift Function 2.play on PVR or Media Player mode. CANCEL:1. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found , the page number will appear at the top of the TV picture, press the CANCELKey to return to the mode of text for you to browse this page

2. Previous chapter in PVR or Media Player mode

INDEX: 1. Request the Index page in Teletext mode 2.Exit the playing function in PVR or Media Player E mode. . SIZE: Change the size of display in Teletext mode

REVEAL: Reveal or Hide the hidden words.

COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu. CH#/CH-: Press to scan through channels. FAVILIST: press to open the favorite list. then you can select the favorite channel. ASPECT:1 Select picture scale

2.fast forward in PVR or Media Player mode. @ FREEZE: press to freeze the picture SUB. PG 1.Press to access sub page.

2. Next chapter in PVR or Media Player mode. &

SUBTITLE:To show and set the language of Lu current DTV. @ HOLD: HOLD On or Off for current page display TEXT: Switch the teletext on and off. RECLIST: Show the recorded list. REC: Record begin in PVR mode.

HET PRODUCT OF ANDERE

WARRANTY CONDITIONS This product is guarant ects in manufacturing or the materials used for a peric h g from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the pr *proof of purchase required
