USER MANUAL FLOORWASHER FL3 VALBERG
EN This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required
CONDITION DE GARANTIE
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.
Table of Contents
Parts
Product overview
Intended use
Specifications
Before using the product
Operations
Cleaning and maintenance
Troubleshooting
Storage
Parts
A On/Off button
B Mode switching button
Self-clean button
D Status icon display panel
Standard mode icon - default mode.
Brush stuck icon - On when the Rolling brush is stuck.
3 Dirty water cup full icon - On when the Dirty water cup is full.
Battery level icon - the icon animates while charging.
5 Power mode icon - for cleaning tougher dirt and stains
Self-clean icon - On when Self-clean function is in progress.
E Clean water cup release button
F Clean water cup
6 Dirty water cup release button
H Dirty water cup
HEPA filter
Lid
3 Float
4 Separator
Rolling brush release button
J Handle
Aluminum tube
L Main body handle
M Rolling brush
Charging base
0 Cleaning brush
Charging cable with power plug
Product overview
- Unpack and remove all labels from the unit except the nameplate. Please check that all the product's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This product is for domestic use only. It has not been designed for industrial or professional use by cleaning companies. Any other use may damage the product or cause injury. Only use the product indoors, in a dry place.
Specifications
| Model: | 984070 - FL3 |
| Power: | 160 W |
| Operating voltage: | 21.6 V |
| Clean water cup capacity: | 700ml |
| Dirty water cup capacity | 600ml |
| Battery: | 2500mAh
Model: Li Shen LR1865LD |
| Battery charging time: | 4.5 ± 0.5h |
| Operating time: | ≈30min |
AC adapter
| Published information | Value and precision | Unit |
| Company name or registered trademark, business registration number and manufacturer's address: | ELECTRO DEPOT/R.C.S. 433 744 539
1 route de Vendeville, 59155 Faches Thumesnil, FRANCE | - |
| Model reference: | CZH013260050EUWQ | - |
| Input voltage: | 100-240 | V |
| Input current frequency: | 50/60 | Hz |
| Output voltage: | 26 | V |
| Output current: | 0.5 | A |
| Output power: | 13 | W |
| Average efficiency in active mode: | ≥83.39% | % |
| Low load efficiency (10%): | ≥78% | % |
| No-load power consumption: | ≤0.1 | W |
| Protection class: | Class II | |
Before using the product
WARNING!
- Never use the product without the filter, clean water cup or dirty water cup.
- Make sure the product is powered off and unplugged from the mains socket before attaching or changing any tools.
Attach the handle
1 Attach the handle with the aluminum tube to the slot of the main body vertically.
When you hear a click sound, it indicates the handle and the tube are stable and are properly assembled.
Detach the handle
2 1 Unplug the Floorwasher from the power supply.
Use a slender tool, for example, a small screwdriver, to insert into the hole at the back of the main body and press it.
Hold the tube and pull out the tube and the handle.
Detach the clean water cup
3 While pressing the clean water cup release button downward, pull out the clean water cup.
Attach the clean water cup
Put the clean water cup into the slot of the main body.
Push the cup in until it clicks into place.
Detach the dirty water cup
5 While pressing the dirty water cup release button downward, pull out the dirty water cup.
Attach the dirty water cup
Put the dirty water cup into the slot of the main body.
Push the cup in until it clicks into place.
B Product usage
Detach the rolling brush
7 ① Press the rolling brush release button on the left side.
Pull the rolling brush upward at the left end, and then pull outward to detach the rolling brush.
Attach the rolling brush
8 ① Insert the right side of the rolling brush into the spindle at the right end.
Put the left side of the rolling brush into the left end and align with the slot.
Push the rolling bush in until it clicks into place.
Operations
WARNING!
- Never use the product to clean the following substances: explosive or flammable gases, liquids and dust (reactive dust), in addition to magnetic, toxic, flammable or combustible reactive metal dust (e.g. aluminium). Do not use the product to clean sharp, hot or incandescent objects at temperatures above 40^ , such as cigarettes or hot ashes.
- Do not use this product near working fireplaces or heaters. Doing so may result in deformation of the product casing.
- Unplug the charging cable after the Floorwasher is fully charged. Do not overcharge the battery. Doing so may cause overheating or deformation of the battery.
CAUTION!
- Never use the product without the filter or water cups.
This product is suitable for hard floor of indoor environment, including waxed floor, stone floor, rubber floor, marble floor, granite floor, terrazzo floor, solid wood floor, composite floor, bamboo floor, and all kinds of mirror tiles, porcelain tiles, etc.
If the product is used on uneven surface, the best cleaning effect may not be achieved.
- When the Floorwasher is not in use, place it upright against a wall corner to prevent from tripping over and causing any injuries.
Charge the Floorwasher
- Place the Floorwasher on the charging base.
- Connect the charging cable to the charging base and the power socket.
NOTE:
When charging, the battery level icon on the display panel animates
Make sure the Floorwasher is fully charged before use.
- Place the charging base in a dry place.
Use the Floorwasher
Fill the clean water cup
Before using the Floorwasher, fill the clean water cup with tap water to the MAX line marked on the cup. Do not allow water to exceed the MAX line.
NOTE: You can fill the cup with warm water; however, do not use water with temperature over 60 degrees.
1 While pressing the clean water cup release button downward, pull to remove the cup.
Open the lid and fill the cup with tap water. Do not allow water to exceed the MAX line.
NOTE: You can fill the cup with warm water; however, do not use water with temperature over 60 degrees.
Close the lid and make sure the cup is closed tight and no leakage.
Place the clean water cup back to the main body, and then push the cup in until it clicks into place.
Power on the Floorwasher
- Press the On/Off button on the handle to power on the Floorwasher.
- Tilt the Floorwasher backward to start cleaning.
NOTE:
- When standing upright, the Floorwasher will be powered off even if you press the On/Off button.

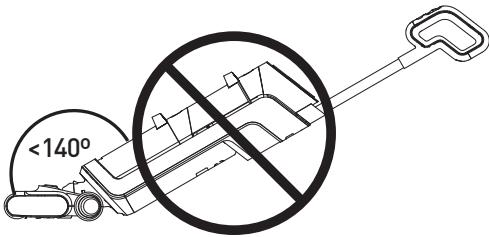

- Do not tilt the Floorwasher over 140 degrees. Doing so might result in water leakage from the water cups.
B Product usage
Power off the Floorwasher
- Press the On/Off button on the handle.
Switch modes
- While the Floorwasher is powering on and cleaning the floor, you can press on the handle to switch to Power mode .
NOTE: Standard mode is the default mode.
- Press on the handle to switch the cleaning mode between Standard mode and Power mode .

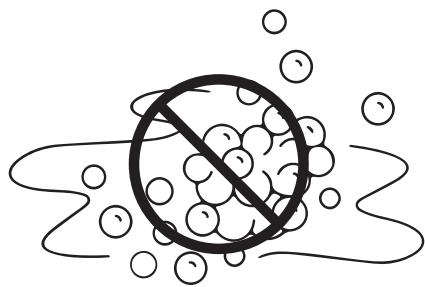

CAUTION: Do not use the Floorwasher to clean surface with foam liquid. It is recommended using Power mode for tougher dirt and stains.
- Currently selected mode will be shown on the display panel.
Clean the dirty water cup
NOTE:
After using the Floorwasher, check the suction nozzle regularly and clean the dirty water cup timely to keep the air tunnel unblocked so as to prevent from any blockages that might cause suction dropping and motor overheating, thus affecting the performance and service life of the product.
B Product usage
11 1 While pressing the dirty water cup release button downward, pull to remove the cup.
Hold the cup and remove the HEPA filter and the lid, and then pull out the separator in the cup.
Empty the cup, and then place the cup back to the main body. Push the cup in until it clicks into place.
Self-clean
NOTE:
We recommend that you:
Clean the dirty water cup before and after performing the Self-clean function.
- Clean the charging base right away if any dirty residues remain on the charging base after using the Self-clean function.
- To perform rolling brush self-cleaning, place the Floorwasher back to the charging base after use.
- While the Floorwasher is in the charging base, standing upright, press the Self-clean button on the handle to start .
- After performing the self-cleaning, the Floorwasher enters charging mode.
Cleaning and maintenance
WARNING!
- To prevent the risk of electrocution, always turn off and unplug the product from the mains supply before cleaning.
- Never immerse the main body or power cord in water or any other liquid. Never rinse them under the tap.
- Use a neutral floor liquid detergent (to be purchased separately) according to the instructions. Acid, aqueous alkali or other environmental harmful substance must not be used. (For example: fill the clean water cup with tap water and add 10ml to 15ml of neutral floor liquid detergent).
- Liquid detergent should be kept out of the reach of children. If the liquid detergent gets into the eyes accidentally, rinse them thoroughly with clean water; seek medical attention immediately in case of accidental ingestion.
- Follow the local environmental protection regulations when disposing of sewage and liquid detergent.
NOTE:
- Never use solvents, chemical or abrasive cleaning products, wire brushes, sharp objects or scouring pads to clean the product.
In order to achieve its best performance, we recommend that you maintain the product regularly.
Clean the main body
12 1 Make sure the Floorwasher is powered off before cleaning.
2 Clean the main body with a soft cloth. It can be slightly damp with clean water or neutral detergent. Be caution not to get the internal components wet.
Clean and empty the dirty water cup
When the dirty water cup is full, the Floorwasher will turn off automatically. The Dirty water cup full status icon will appear on the display panel.
1 While pressing the dirty water cup release button, pull the cup out.
2 Remove the HEPA filter, the lid and the separator from the cup.
3 Empty the cup and clean the residues on the inner wall of the cup with the cleaning brush provided. Then, rinse the cup clean.
If you find blockage in the dirty water cup, rinse the lid, the float and the separator with tap water.
Clean the HEPA filter
We recommend that you clean the HEPA filter after each use.
1 Remove the HEPA filter from the dirty water cup.
2 Clean the filter under running tap water.
3 After cleaning, allow the filter to air dry.
Re-attach the dirty water cup
15 After cleaning, allow the cup, the HEPA filter, the lid and the separator to dry.
1 Place the separator, the lid and the HEPA filter back to the dirty water cup.
2 Insert the dirty water cup back to the main body. Push the cup in until it clicks into place.
Clean the rolling brush
Tips:
- If there are residual stains on the suction nozzle, please wipe it clean with a damp cloth,. Do not rinse with water.
- We recommend that you clean and dry the rolling brush after each use.
16 ① Press the rolling brush release button on the left side.
Pull the rolling brush upward at the left end, and then pull outward to detach the rolling brush.
Use the hook end of the supplied cleaning brush to remove any tangled hair or debris from the rolling brush.
Then rinse the rolling brush with tap water.
Wipe clean any stains on the entrance to the suction nozzle with a damp cloth.
6 Attach the rolling brush back to the Floorwasher.
Troubleshooting
Use this troubleshooting guide to resolve any common problems that you may encounter with the product. If the problem persists, do not use the product and contact an authorised repair centre to have it inspected and if necessary, repaired.
| Problem | Possible Cause | Solution |
| Battery level icon flashing | • Motor abnormal | • Clean the clog in the tube and restart the appliance. |
| Appliance does not work | • Out of power or low battery
• The rolling brush is entangled with objects like hair | • Fully recharge the appliance before use.
• Clean the rolling brush. |
| Weak suction power | · Dirty water has reached its designated capacity
· The rolling brush or the dirty water cup may have been attached incorrectly
· The rolling brush is entangled with objects like hair
· The suction nozzle is blocked
· The HEPA filter mesh above the float is dirty
· Low battery | · Detach the dirty water cup and empty the water.
· Re-attach the rolling brush or the dirty water cup correctly.
· Clean the rolling brush.
· Clean the suction nozzle.
· Clean the HEPA filter
· Fully recharge the appliance before use. |
| There is abnormal sound in motor operation | · The suction nozzle is blocked
· Dirty water has reached its designated capacity
· The HEPA filter mesh above the float is dirty | · Clean the suction nozzle.
· Detach the dirty water cup and empty the water.
· Clean the HEPA filter |
| Cannot be charged | · The appliance and the charging slot are not properly contacted | · Check and properly attach the appliance to the charging base. |
| No water is sprayed from the rolling brush | · Clean water cup is empty
· Clean water cup is not properly attached | · Fill up the clean water cup.
· Re-attach the clean water cup correctly. |
| There is water leakage from the air outlet | · Missing HEPA filter
· Missing float indicator
· HEPA filter is not dry enough after washing
· Dirty water has reached its designated capacity | · Re-attach the HEPA filter to the dirty water cup.
· Re-attach the float indicator.
· Allow the HEPA filter to completely bair dry before re-attaching it to the dirty water cup.
· Detach the dirty water cup and empty the water. |
Storage
- Always unplug the product before storing it.
- Store the product in a fresh, dry and dust-free place, out of thereach of children and pets.
- Please retain the packaging and use it to store the product when it is not in use for an extended period of time.
Merci!
