GAIA Blanc - Soda maker SODASTREAM - Free user manual and instructions

USER MANUAL GAIA Blanc SODASTREAM

SAY GOODBYE to single use plastic bottles

AND HELTO a perfect carbonation experience

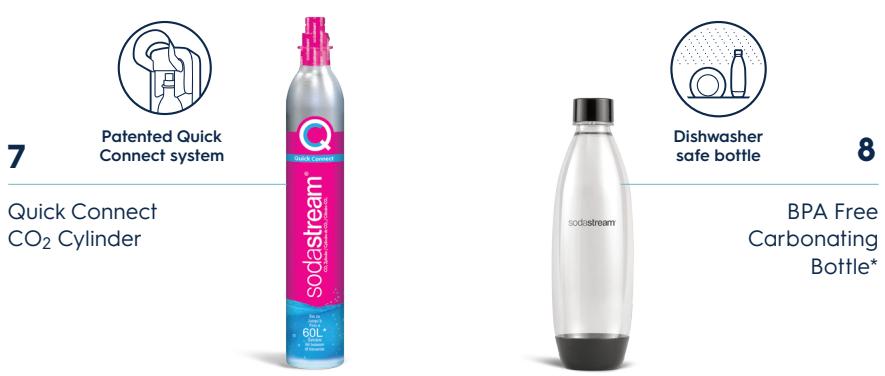

Patented Quick Connect system

Dishwasher safe bottle

Cordless

CONTENTS

SOMMAIRE · CONTENUTI · INHOUD

ENGLISH

GETTOKNOWYOURGAIA

HOW TO'S 6

USERLICENSE, SAFETY & WARRANTY 10, 14-19

FRANÇAIS

DECOUVREZ VOTRE GAIATM 5

MODE D'EMPLOI 7

LICENCE UTILISATEUR, SECURITE ET GARANTIE 11, 20-25

ITALIANO

CONOSCILTUOGAIATM 5

COME FUNZIONA 7

LICENZA D'USO, SICUREZZA E GARANZIA 12, 26-31

NEDERLANDS

MAAK KENNIS MET JOUW GAIATM 5

HOEWERKT HET 7

GEBRUIKERSLICENTIE,VEILIGHEID & GARANTIE 13,32-37

For your safety, please read the set up and safety instructions on pages 14 and 16-17 before using the Sparkling Water Maker. Save these instructions and provide them to any subsequent users.

For more details and information regarding our sparkling water makers, including how to use and troubleshooting guide, please go to support at sodastream.com.

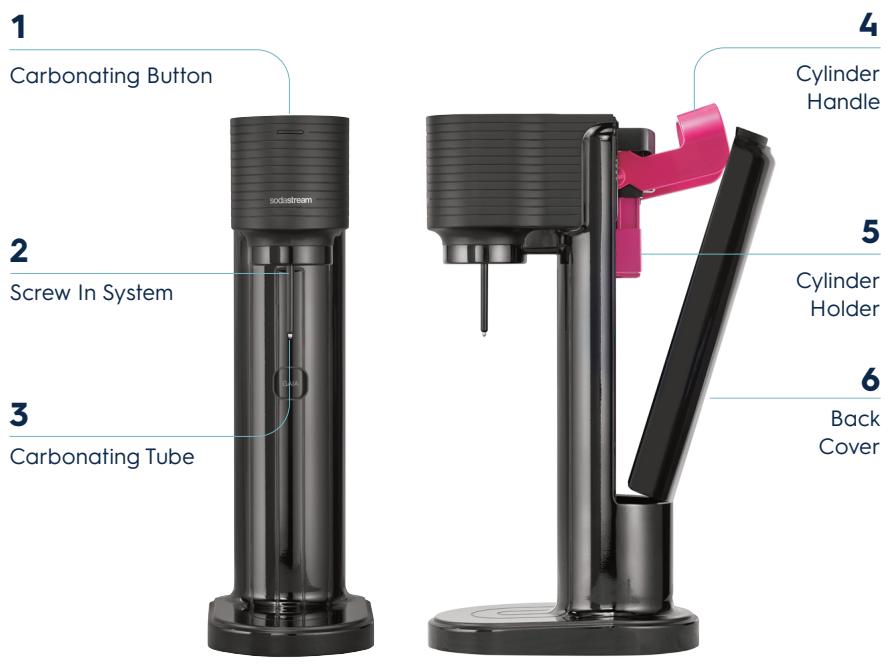

GET TO KNOW YOUR GAIATM

*Check for compatibility on the Bottle pack.

FR DÉCOUVREZ VOTRE GAIATM

CONOSCI ILTUO GAIATM

NAAK KENNIS MET JOUW GIAATM

SIMPLY SCAN AND WATCH

1 Remove the seal and pull off the cap.

2 Pull open the back cover.

3 Raise the cylinder handle.

4 Insert the cylinder*, bottom first.

5 Lower the handle for a quick connect.

6 Replace the back cover.

*Make sure the carbonation bottle is not connected to the Sparkling Water Maker before inserting the cylinder.

CYLINDRE DE GAZ QUICK CONNECT

VOUS PRÉFÉRZ UNE VIDEO? Scannez simplement le QR code

1 Fill the BPA free carbonating bottle with cold water up to the fill line.

Always fizz water before adding any flavor.

2 Insert the BPA free carbonating bottle into the Screw-In system.

3 Screw counter-clockwise until FIRMLY in place.

FIZZING

1 Firmly push the carbonating button all the way down. Hold down the button for 1 second, and release.

2 Repeat as desired: 3 times for standard fzz 5 times for strong fzz.

3 Unscrew the BPA free carbonating bottle clockwise to release.

TADA! ENJOY YOUR FIZZY DRINK!

REGISTER NOW!

AND UPGRADE YOUR

SODASTREAM EXPERIENCE

FLESBEVESTIGING MET SCHROEFSYSTEEM

This is a legally binding document between SodaStream Industries Ltd. or its affiliates ("SodaStream") and the consumer regarding the right to use a SodaStream CO_2 Quick Connect Cylinder (the "Cylinder").

The Cylinder is proprietary to SodaStream, patent pending and protected by other intellectual property rights. Further, to protect users' safety and health, various directives and regulations govern and regulate the use, refilling, maintenance, retesting and repair of the Cylinder. SodaStream possesses the legally required knowledge and expertise to be responsible for strict legal compliance that can only be guaranteed if the Cylinder is maintained, examined, retested and refilled by it. Thus, the Cylinder remains the property of SodaStream and is provided under License.

1. When empty, please return the Cylinder to either SodaStream or an authorized SodaStream distributor in exchange for a full Cylinder, for the price of the gas refill only. This License will continue to bind the use of each subsequent Cylinder.
2. Refilling an empty Cylinder by third parties may infringe SodaStream's intellectual property rights, including patents and other proprietary rights, may be risky and may violate certain laws. SodaStream only warrants the safety of Cylinders refilled by it, bearing a SodaStream tamper proof valve seal. You may not remove or change any proprietary notice appearing on or accompanying the Cylinders.
3. If you return the Cylinder to SodaStream or an authorized SodaStream distributor, without exchanging it for a full one, you will be entitled to a return fee of 2 or local equivalent.
4. The Cylinder, together with this User License, may be transferred to a third party provided the third party agrees to be bound by the conditions and ownership rights expressed herein. Possession of this User License proves the right of its holder to use one Cylinder under the terms herein.

For questions, please contact SodaStream International BV, Dongenseweg 200, 5047 SH Tilburg, The Netherlands.

Please keep in a safe place

www.sodastream.com

LICENCE UTILISATEUR

POUR UN (1) CYLINDRE SODASTREAM QUICK CONNECT

(SodaStream® Quick Connect Cylinder)

NON COMMERCIALisable

PROPRIETE DE SODASTREAM INDUSTRIES LTD. OU DE SES AFFILIES

FOURNISOUS LICENCE ET EN INSANTE DE BREVET

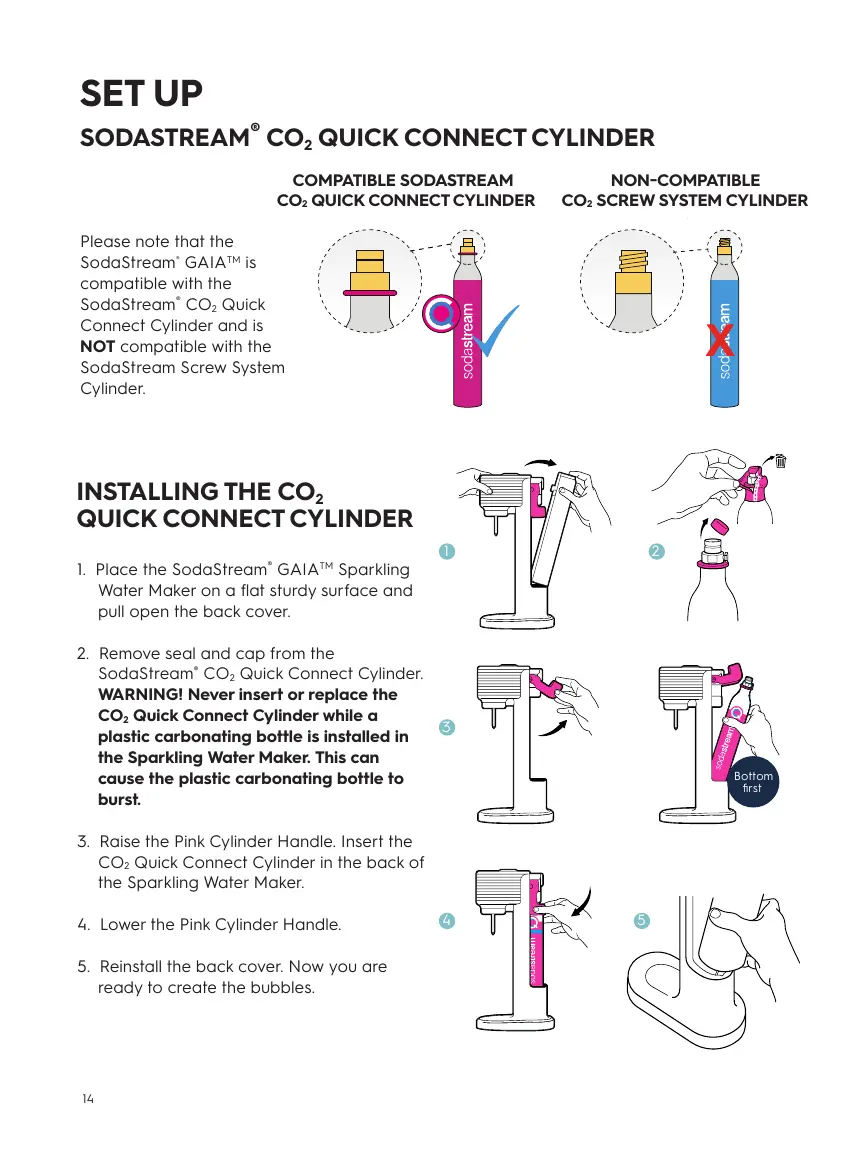

Please note that the SodaStream GAIA™ is compatible with the SodaStream CO₂ Quick Connect Cylinder and is NOT compatible with the SodaStream Screw System Cylinder.

COMPATIBLE SODASTREAM CO2 QUICK CONNECT CYLINDER
NON-COMPATIBLE CO2 SCREW SYSTEM CYLINDER

INSTALLING THE CO_2 QUICK CONNECT CYLINDER

1. Place the SodaStream® GAIA™ Sparkling Water Maker on a flat sturdy surface and pull open the back cover.
2. Remove seal and cap from the SodaStream® CO₂ Quick Connect Cylinder. WARNING! Never insert or replace the CO₂ Quick Connect Cylinder while a plastic carbonating bottle is installed in the Sparkling Water Maker. This can cause the plastic carbonating bottle to burst.
3. Raise the Pink Cylinder Handle. Insert the CO_2 Quick Connect Cylinder in the back of the Sparkling Water Maker.
4. Lower the Pink Cylinder Handle.
5. Reinstall the back cover. Now you are ready to create the bubbles.

1

3

4

CREATE THE BUBBLES

COMPATIBLE WITH THE FOLLOWING ONLY:

Check for compatibility on the Bottle pack.

1L

0.5 L

1L
SodaStream® plastic carbonating bottles

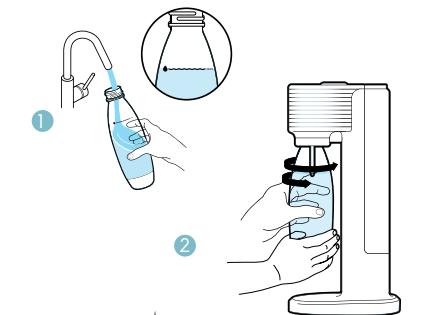

1. Fill the plastic carbonating bottle with cold water up to the fill line. WARNING! Do not carbonate anything other than water. Other liquids can contaminate and clog internal parts, potentially resulting in excessive pressure, bottle failure during carbonation and serious injury. Never carbonate after flavoring has been added.
2. To insert the plastic carbonating bottle screw the plastic carbonating bottle into the Sparkling Water Maker. WARNING! Never use a Sparkling Water Maker with a broken carbonating tube. This can cause excessive pressure, bottle failure and serious injury.

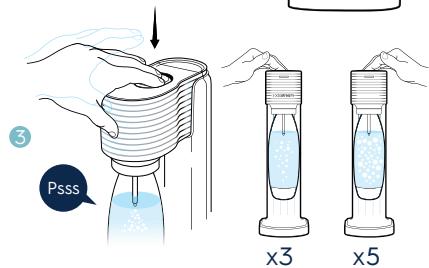

3. To carbonate, press the carbonating button in short 1 second presses; 3 presses for standard carbonation and 5 presses for strong carbonation.
4. When the desired level of carbonation is achieved, unscrew the plastic carbonating bottle. As you start un-screwing the bottle you will hear the pressure being released from the bottle.

Note: You may see small pieces of ice appear in the water during carbonation of very cold water. Any ice created will simply melt.

CARE

SPARKLING WATER MAKER CARE

• Never use abrasive cleaners or sharp tools to clean. If needed, use a mild liquid dish soap and a soft damp cloth to gently clean.
• Wipe spills to keep base dry.
• Do not place in water or wash in a dishwasher, doing so will seriously damage your Sparkling Water Maker.

PLASTIC CARBONATING BOTTLE CARE

• For plastic carbonating bottles which are not "dishwasher safe", to clean, rinse plastic carbonating bottles with cold or lukewarm water. WARNING! Do not expose to heat above 50^ / 120^ . Never wash or rinse in hot water. Do not wash in dishwasher.
• For "dishwasher safe" plastic carbonating bottles, to clean, either wash in dishwasher or rinse plastic carbonating bottles with cold or lukewarm water. WARNING! Do not expose to heat above 70^ / 158^ .

FOR YOUR SAFETY

SAVE THESE INSTRUCTIONS AND PROVIDE THEM TO ANY SUBSEQUENT USERS.

WARNING! Before using the Sparkling Water Maker, to reduce risk of personal injury and damage to your product, please read this important safety information.

Before allowing anyone to use your Sparkling Water Maker, please be sure they understand how to do so safely. Any servicing or repair should be performed by a SodaStream®-authorized service representative. The Sparkling Water Maker is only intended for use by people over the age of 12. People with reduced physical or mental capabilities should only use the product if they are supervised by an adult responsible for their safety and after they have been given instruction concerning the safe use of the product.

TO REDUCE THE RISK OF EITHER SERIOUS INJURY OR DAMAGE TO THE SPARKLING WATER MAKER DURING CARBONATION:

• Only use your Sparkling Water Maker in its upright position, on a flat, stable surface.
• Do not place your Sparkling Water Maker on a hot surface (e.g. kitchen oven/stove) and never use it close to a flame or leave in direct sunlight.
• Carbonate water only.
• Do not add flavor before carbonation. Other liquids (except water) can contaminate and clog internal parts, potentially resulting in excessive pressure and bottle failure during carbonation.
• Do not use the Sparkling Water Maker if the carbonating tube is broken or missing.
• Check that your plastic carbonating bottle is properly connected before carbonating.
• Do not move your Sparkling Water Maker or remove the plastic carbonating bottle during carbonation.
• Do not carbonate an empty plastic carbonating bottle.

CARBON DIOXIDE CO_2 CYLINDER

To reduce the risk of a CO_2 leak, personal injury and property damage:

• Do not use any cylinder other than the SodaStream® CO₂ Quick Connect Cylinder compatible with the GAIATM Pink Handle System.
• Do not insert a CO_2 Cylinder into the Sparkling Water Maker when a plastic carbonating bottle is installed.
• Do not use if damaged. Inspect the CO2 Cylinder and CO2 Cylinder valve prior to use for dents, punctures, or other damage. If damaged, contact a SodaStream-authorized service representative.

• Do not tamper with the CO_2 Cylinder in any way, including puncturing, incinerating or removing the valve.

• Do not expose the CO_2 Cylinder to heat above 50^ C / 120^ F . Protect from sunlight. Store in a well-ventilated area.

• Do not remove a CO_2 Cylinder from the Sparkling Water Maker when it is being operated.
• Do not handle or remove a CO2 Cylinder while it is discharging CO2 .
• In the event of a CO_2 leak, ventilate the area, breathe fresh air and if feeling unwell seek immediate medical attention.

PLASTIC CARBONATING BOTTLE

To reduce the risk of bottle failure which can result in personal injury and property damage:

• For plastic carbonating bottles not marked as "dishwasher safe", do not expose to heat above 50^ / 120^ . Never wash or rinse in hot water. Do not wash in dishwasher.
• For "dishwasher safe" plastic carbonating bottles, do not expose to heat above 70^ / 158^ .
• Do not place the plastic carbonating bottle next to a heat source such as your kitchen oven/stove.
• Do not leave the plastic carbonating bottle in a car.
• Do not place the plastic carbonating bottle in the freezer or in extreme cold below 1^ C / 34^ F .
• Do not use the plastic carbonating bottle if damaged, deformed, changes in shape, scratched, worn, or discolored.
• Do not use a plastic carbonating bottle after its expiration date.
• Only carbonate with plastic carbonating bottles specifically designed to work with this Sparkling Water Maker, as shown on page 15 above.

BOTTLE WARNING ICONS:

Read the manual

Bottle failure may result in personal injury

Never use after expiry date

Never wash in dishwasher

Never expose to temperatures above 120^ / 50^ or below 34^ / 1^

Carbonate water only

Never use if damaged or deformed

FOR DISHWASHER-SAFE BOTTLES

Dishwasher safe

SODASTREAM® LIMITED WARRANTY

SODASTREAM SPARKLING WATER MAKERS

Great care has been taken to ensure that your Sparkling Water Maker was delivered to you in good condition. SodaStream warrants, subject to the terms and conditions set forth in this limited warranty, that your Sparkling Water Maker will be free of defects in materials and workmanship under normal home use for 2 (two) years following the date of purchase. It is recommended that you register your Sparkling Water Maker online by visiting www.sodastream.com and completing the product registration form available on the website.

If your Sparkling Water Maker malfunctions within the warranty period, and we determine the problem is due to faulty workmanship or materials, SodaStream will repair or replace it free of charge at SodaStream's discretion within the limitations set out in this warranty. SodaStream may replace your Sparkling Water Maker with a reconditioned Sparkling Water Maker, or an equivalent one if the model you purchased is no longer available. No refunds shall be given. This limited warranty is available to consumers who purchased the Sparkling Water Maker for personal, family or household use.

This warranty DOES NOT cover damages to Sparkling Water Maker resulting from:

• Abuse, misuse, alteration of the Sparkling Water Maker, or commercial use.
• Carbonating liquids other than water.
  Normal wear and tear (e.g. discoloration).
• Product malfunctions that were a result, in whole or in part, by alteration, disassembly, or repair of the Sparkling Water Maker by a servicer other than an authorized SodaStream Service Center.
• The use of CO_2 Cylinders or carbonating bottles other than those approved by SodaStream for use with your Sparkling Water Maker.
• The use of the Sparkling Water Maker with an adapter connected to the Cylinder valve or to the Sparkling Water Maker.
• The use of an expired plastic carbonating bottle.
• Accident, shipment or anything other than normal household use.

This warranty DOES NOT cover the carbonating bottles and CO_2 Cylinders.

SodaStream is not liable for incidental or consequential damages. The consumer's sole and exclusive remedy shall be repair or replacement according to the terms and conditions of this warranty. Some local laws do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. To the extent that this warranty is inconsistent with local law, this warranty shall be deemed modified to be consistent with such local law.

You may also have other rights, which vary in accordance with local laws. The benefits given to the consumer by this warranty are in addition to other rights and remedies that may be afforded to the consumer by law in relation to this Sparkling Water Maker.

TO OBTAIN WARRANTY SERVICE FOR YOUR SPARKLING WATER MAKER

If your Sparkling Water Maker is in need of warranty service, please contact SodaStream Customer Service by visiting www.sodastream.com. A SodaStream representative will give you specific instructions on how to arrange for the shipment of your Sparkling Water Maker, at your expense, to one of our authorized service centers. Only SodaStream, or its agents, are authorized to provide warranty repairs or service to your Sparkling Water Maker.

NON-WARRANTY SERVICE

If SodaStream or its authorized agents determine that the malfunction or damage to your Sparkling Water Maker is not covered by the warranty, SodaStream will repair the Sparkling Water Maker only upon payment of the determined repair charge.

FOR AUSTRALIAN RESIDENTS

Our Sparkling Water Maker comes with guarantees that cannot be excluded under the Australian Consumer Law. Australian residents are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. Australian residents are also entitled to have the Sparkling Water Maker repaired or replaced if it fails to be of acceptable quality and the failure does not amount to a major failure. The issuer of this warranty is SodaStream Australia Pty Ltd., 21 Henderson Road, Knoxfield, Victoria 3180, Australia, Telephone No.: 1300 763 278, email: [e-mail] Should the Sparkling Water Maker suffer a major failure or other reasonably foreseeable damage, contact us at the above phone number, email or mailing address to present your claim for the warranty. If Australian residents are returning the Sparkling Water Maker in accordance with their rights under the Australian Consumer Law: (a) the Sparkling Water Maker does not need to be in its original packaging to be returned, however you must ensure that the Sparkling Water Maker is adequately protected for transit; and (b) Australian residents will be required to pay any delivery costs when returning items to us, however SodaStream Australia Pty Ltd., will refund reasonable delivery costs if they are entitled to a remedy under the Australian Consumer Law (subject to you providing proof of these costs). The benefits to the Australian consumer given by this warranty are in addition to other rights and remedies that may be afforded to the Australian consumer by law in relation the Sparkling Water Maker.

SODASTREAM CO2 QUICK CONNECT CYLINDERS

Your Sparkling Water Maker has been designed to operate with a SodaStream CO2 Quick Connect Cylinder. The use of other CO2 Cylinders is not recommended as they may not be compatible with a SodaStream Sparkling Water Maker. Damages resulting from the use of a cylinder other than a the SodaStream CO2 Quick Connect Cylinder or use of the SodaStream CO2 Quick Connect Cylinder not in accordance with the instructions included in this User Guide are not covered by the warranty.

The SodaStream CO2 Quick Connect Cylinder is provided to you under license. The license allows you to exchange your empty Cylinder for a full one for the price of the CO2 only.

SODASTREAM PLASTIC CARBONATING BOTTLES

Your Sparkling Water Maker has been designed to operate with a compatible SodaStream® plastic carbonating bottle. Damages resulting from the use of a carbonating bottle other than a compatible SodaStream® plastic carbonating bottle or use of SodaStream® plastic carbonating bottles not in accordance with the instructions included in this User Guide are not covered by the warranty. SodaStream® plastic carbonating bottles are available from authorized SodaStream® retailers.

TERMS AND CONDITIONS for all EXCEPT U.S.A. consumers:

Any and all claims, complaints, demands for judgment or legal actions brought hereunder relating in any way to your Sparkling Water Maker, plastic carbonating bottles or CO_2 Quick Connect Cylinder shall be governed by, and construed in accordance with the local laws of the country in which the SodaStream Sparkling Water Maker was purchased.

PRODUCT DISPOSAL INSTRUCTIONS

Please recycle your expired and damaged plastic carbonating bottles in accordance with local recycling laws. The packaging in which SodaStream® products are supplied is made of recyclable materials. Contact your local authority for further information on recycling.

MACHINE RATING INFORMATION

Maximum Working Pressure: 116 psi/8 bar

Maximum Allowed Operating Temperature: 40^ / 104^
