USER MANUAL E5 PRO OCEAN DRIVE

(Translation from original language)

Données techniques

User height. 130/200 cm

Maximum speed 25 km/h (may vary based on terrain and weight)
Maximum autonomy Up to 20 km
Climbing angle 15% max.
Operating temperature -10°C / +40°C
Storage temperature -20°C / +45°C
Impermeability level IPX5

Battery Lithium
Capacity 6 Ah
Rated voltage 36 V
Charge maximum voltage 42 V
Charge time Approximately 3/5 h
AC adapter GJS150-4200150

Motor type. High-torque brushless Nominal power. 36 V - 0.35 kW Output power. 71 W Output voltage. 42 V Output current. 1,5 A

Wheels type. Wide tread Diameter. 8,5" Characteristics. Honeycomb

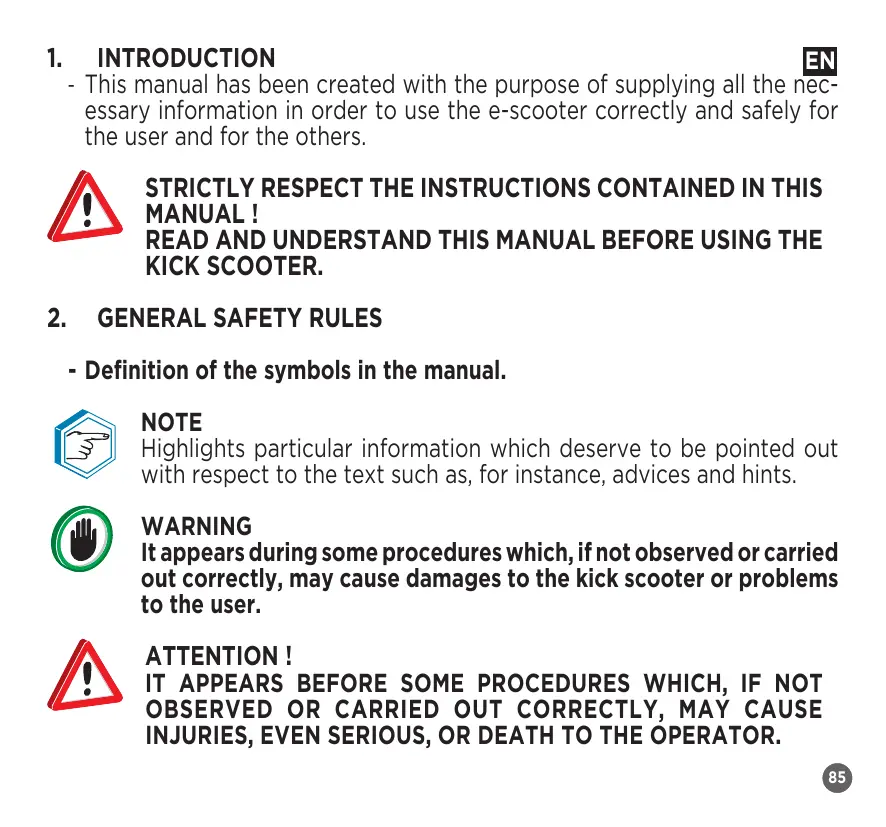

1. INTRODUCTION

6. DÉCLARATION DE CONFORMITÉ CE

• Voir la page 110.

7. MISE AU REBUT CORRECTE DE CE PRODUIT

Application de la Directive 2006/66/UE

• This manual has been created with the purpose of supplying all the necessary information in order to use the e-scooter correctly and safely for the user and for the others.

STRICTLY RESPECT THE INSTRUCTIONS CONTAINED IN THIS MANUAL!

READ AND UNDERSTAND THIS MANUAL BEFORE USING THE KICK SCOOTER.

2. GENERAL SAFETY RULES

• Definition of the symbols in the manual.

NOTE

Highlights particular information which deserve to be pointed out with respect to the text such as, for instance, advices and hints.

WARNING

It appears during some procedures which, if not observed or carried out correctly, may cause damages to the kick scooter or problems to the user.

ATTENTION!

IT APPEARS BEFORE SOME PROCEDURES WHICH, IF NOT OBSERVED OR CARRIED OUT CORRECTLY, MAY CAUSE INJURIES, EVEN SERIOUS, OR DEATH TO THE OPERATOR.

EN 3. INTENDED USE

• The e-scooter, subject of this manual, is an ecological vehicle designed and built for transport of one person at a time.

THE IMPROPER USE OF THE E-SCOOTER MAKES THE USER THE ONLY ONE RESPONSIBLE IN CASE OF DAMAGES TO HIMSELF AND/OR OTHER PEOPLE, PROPERTY OR ANIMALS.

4. GENERAL SAFETY WARNINGS

• Carefully read this instruction manual before the use of the e-scooter and store it with care for future uses.
• Before each use, check the mechanical integrity of the e-scooter. If anomalies, cracks or other signs of deterioration are encountered, do not use the e-scooter and have it checked by the retailer or by qualified and authorized personnel.
• A failure to respect what is indicated in this instruction manual exposes the use to the risk of falling or of running over other people or property with consequences which may also be serious.
• To prevent injuries, a few symbols are also present in the manual (described in paragraph "2") and they are used to mark safety precautions. The warnings which accompany these symbols must be followed carefully.

• The use of the e-scooter by people of an age included between 14 EN and 18 years includes the mandatory use of a homologated helmet which must be worn correctly (check the age limit provided for by the laws in the place of use). In any case, it is advised to ALWAYS use the helmet and other personal protective equipment such as knee pads, elbow guards and gloves. Always wear flat shoes with rubber soles and never drive barefoot or in sandals.
• This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Possible repairs must be carried out ONLY by qualified and authorized personnel. Repairing the e-scooter by yourself could be dangerous!
• Before using the e-scooter, especially in crowded areas or on the road, it is advised to become familiar with it.
• Check there are no Local standards of the Street Code that limit or prohibit the use of e-scooters on particular types of roads. Please consult the appropriate local services and respect the road signs.
• When you access public spaces, always respect the local regulations and laws.
• As well as with other vehicles, higher speeds require a larger braking distance. Sudden braking, especially in the presence of wet or nonhomogeneous surfaces (for instance in the presence of soil or sand) may result in slipping and/or falling.

EN Pay attention and always maintain a safe distance between yourself and or other people or vehicles while driving; decelerate when you enter unknown areas.

• Respect pedestrians by always giving them priority.

• Overtake on the left ONLY when possible.

• When a pedestrian is approached from the front, remain on the right and decelerate. Avoid insecure pedestrians during their march.
• When a pedestrian is approached from the back, get noticed using the bell located on the handlebars and decelerate up to normal march speed while overtaking; the e-scooter is highly silent, for this reason avoid scaring the pedestrians.

Cross protected passages by walking
- When you access places not protected by law, respect the safety guidelines described in this manual and drive carefully and prudently.
- In order to drive safely, it is necessary to be clearly visible to others and be able to clearly see what is in front of you; good visibility is the first safety condition.
- A few people must NOT drive the e-scooter:

• Anyone under the influence of alcohol or drugs.
• Those who suffer from illnesses which put them at risk when they perform a hard physical activity.
• Anyone with balance problems or motor difficulties which may interfere with his capacity to maintain balance.

• Anyone with a weights which exceeds the indicated limits (see Specifications).
  Pregnant women.

• Do not lend the e-scooter to someone who has not been trained on its use and who does not wear appropriate protective equipment.

• Avoid using the e-scooter under the rain.

• Decelerate on potholed roads, pavements or on other particular and non-homogeneous road surfaces. On highly potholed roads it is advises to maintain low speed (between 5 and 10km/h maximum). Remaining flexible on your knees will help to adapt to potholed roads.

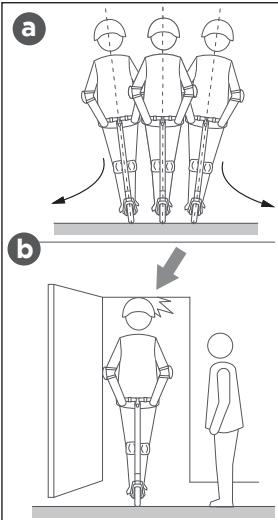

• Pay attention to doors or other obstacles at a height
• Do not accelerate when driving downhill
• Do not accelerate while walking next to the vehicle
• Pay attention to possible obstacles which may be encountered during the use of the e-scooter.
• ALWAYS drive in a calm and focused manner, do not do stunts with the e-scooter.
• Do not change direction suddenly at high speed.
• Do not drive on water, mud, snow, oil stains or icy surfaces.
• Do not ride the e-scooter with a child.
• It is prohibited to position yourself and concentrate the load on the rear mudguard.
• Do not touch the disc brake; burning hazard!
• Do not let the handlebars go while driving; grasp the grips firmly.
• Do not jump over obstacles and do not climb stairs with the e-scooter; there is the risk of accidents and damages to the vehicle.
• The e-scooter is equipped with a kickstand; while parking, make sure the e-scooter is stable and that it cannot fall accidentally. It may get damaged or cause damages to people or property.
• Optimal operating temperature of the e-scooter: -10^ / +40^
  Storage temperature of the e-scooter: -20^ / +45^
  EN

EN The prolonged exposition of the e-scooter to UV rays, rain and other atmospheric agents may damaged the materials of the casing. Store the e-scooter indoor or in a protected place when not in use.

• Before any use of the e-scooter, make sure there are no loosened components.
• The e-scooter cannot be used by people whose total weight is lower than 45kg or higher than 110kg .
• The A-weighted emission sound pressure level at the driving position does not exceed 70dB(A).
• Any load attached to the handlebars will have an impact on the stability of the vehicle, please do not carry a heavy load or hang additional accessories or elements not approved by the manufacturer as this could make driving very unstable.
• No parts of the e-scooter can be repaired by the user. Risk of fire and electric shock.

5. WARNINGS FOR USE OF THE BATTERY

• Do not use the e-scooter if the battery is in one of the following conditions:

• The battery is damaged.

• The battery emits abnormal odour and/or heat.

• Liquid comes out from the battery.

• Do not start the e-scooter when the battery is charging.

• If the battery charge marks show a red light, it is advised to decelerate and stop driving.

• ONLY use the battery charger supplied with the e-scooter to charge the battery; a different battery charger may damage it irreparably or cause fire.

• Do not touch the battery contacts and do not open the battery compartment. Do not place metallic objects in contact with the battery: that may cause short circuits and damage the battery or even injure, also seriously, the user.

• In case of dismantling of the e-scooter or replacement of the battery, do not dispose of the latter with household waste. Follow the local environmental standards on recycling.
• Do not use batteries of a model different from the original one; the use of a different battery charge may damaged the device or cause fire.
• Charging the battery after each use of the e-scooter will extend its resistance and performance.
• Do not use the battery in extreme environments (-20^; +50^) , this may cause malfunctions or even risk of fire.
• Do not expose the battery to sun for too long (for instance, in the boot of the car) and do not throw it in fire, this may cause an explosion.
• It is necessary to completely charge the battery each month to avoid damaging it. If that does not happen, the battery enters a self-protection status and cannot be charged. In this case, contact your retailer.
• Excessively long periods of time between one charge and the next one may damage the battery irreversibly.
• Proceed with the charge of the battery in dry environments, away from combustibles and flammable elements.
• Battery replacement must ONLY be carried out by authorized repairers.
• Do not let children or animals touch the battery or the battery charger during charge phase.
• Battery charge temperature: +10^ C / +40^ C .

When the battery charger is connected to the e-scooter, all the electric functions and the motor are disabled to avoid overheating or damages to the components.

• The external flexible cable or cord of this transformer cannot be replaced if damaged; if the cord is damaged, the transformer shall be scrapped.
• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the supply mains when removing the battery.
  The battery is to be disposed of safely.

For the purposes of recharging the battery, ONLY use the detachable supply unit (GJS150-4200150) provided with this appliance.

Any tampering or modification of the e-scooter relieves the manufacturer and/or the retailer from all liability and makes the user himself the only one responsible towards the competent bodies.

In case of problems on the appliance, please contact the authorized assistance centres. Avoid trying to repair the appliance by yourself. Any repair intervention on the appliance carried out by unauthorized personnel automatically invalidates warranty even if its duration has not come to an end.

6. EC DECLARATION OF CONFORMITY

• See page 110.

7. CORRECT DISPOSAL OF THIS PRODUCT

Implementation of the Directive 2006/66/EU

The e-scooter works with batteries which are covered by the European Directive 2006/66/EC and that cannot be disposed of as normal household waste. Inform yourself about local regulations on waste sorting of the batteries: a correct disposal allows to avoid negative consequences for the environment and health. The battery must be disposed of at the end of the service life of the product. The recovery and recycling centres can disassemble the product and remove the battery.

Implementation of the European Directive 2012/19/EU on waste of electrical and electronic equipment (WEEE)

The crossed out wheelie bin symbol on the equipment indicates that the product, at the end of its useful life, must be collected separately from other waste. The user should, therefore, take the equipment complete of its essential components at the end of its service life to the appropriate sorting waste centres for electrical and electronic waste, or hand it to the dealer when buying a new equipment of the same type on a one for one basis, or on a one for zero basis for equipment with a major side lower than 25~cm . Correct waste sorting for the next start of the equipment disposed for recycling, compatible environmental disposal and treatment, helps to avoid possible negative effects on the environment and on health and eases the recycling of the materials of which the equipment is composed. Abusive disposal of the product by the user involves the application of the administrative sanctions provided for by law.

8. REMOVAL OF THE PACKAGING

• The e-scooter is contained in a cardboard packaging with specific guards to preserve it from possible impacts or damages.
• Once the packaging is open, proceed with the removal of the e-scooter and of the other components.

Considering the weight of the e-scooter (kg 12,0), it is advised to carry out the operation with the help of another person.

The elements of the packaging (plastic bags, expanded polystyrene, etc.) must NOT be left within the reach of children as they are potential sources of danger.

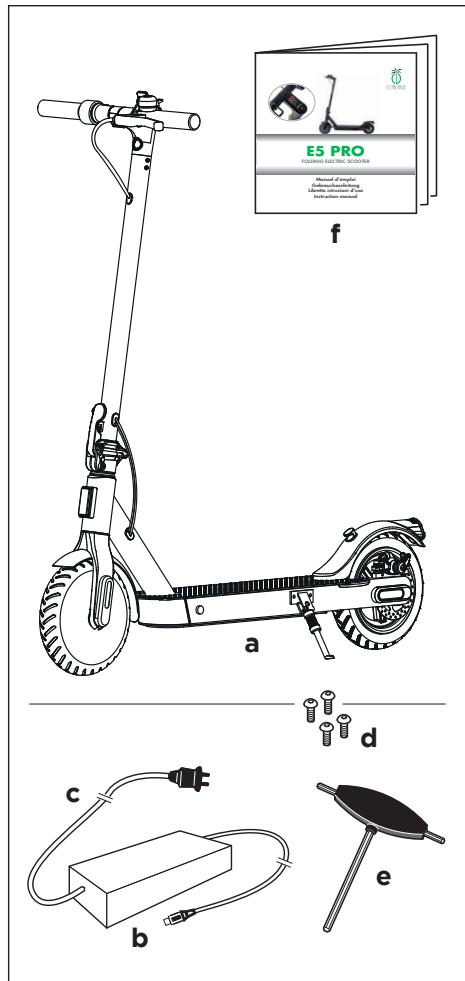

• Content of the packaging:

a-E-scooter
b· Battery charger
C Battery charger power cord
d· Screws (4 pcs.)
eAllen key
f Instruction manual

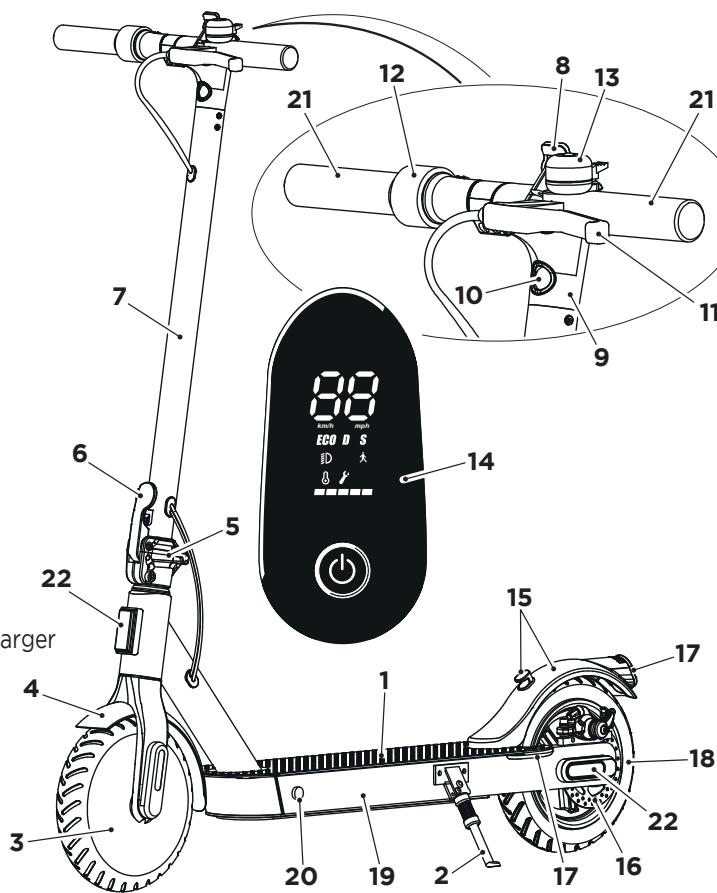

9. DESCRIPTION OF THE E-SCOOTER

1- Frame/Deck
2- Kickstand
3- Front wheel/Motor
4· Front mudguard
5- Folding intersection
6- Locking lever
7- Handlebars stem
8- Hook
9- Handlebars
10·Front light | ID
11- Brake lever
12-Throttle lever
13·Bell
14. Display
15. Rear mudguard/Folding closure
16. Disc brake
17·Rear light | D
18Rear wheel
19·Battery
20·Socket for battery charger
21. Grips
22 · Reflector

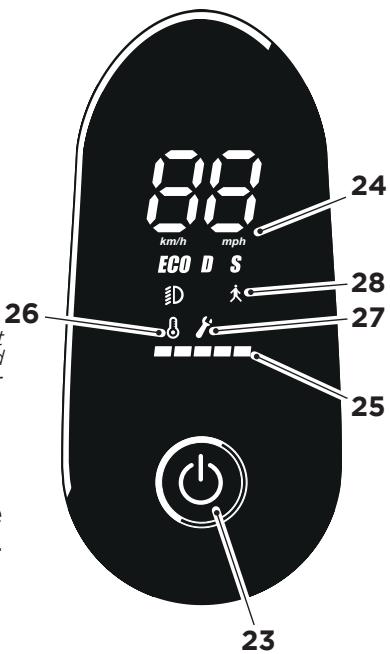

EN 10. DISPLAY AND FUNCTION KEYS

23·ON/OFF key - Function selection

• Long pressing: display ON/OFF;
• Once pressing: front light ON/OFF (the icon on the display turns on too);
• Twice pressing: speed selection
  WALK: speed of 6km / h (approx.)
• ECO : speed of 15 km/h (approx.)
  D: speed of 20km / h
  S: speed of 25km / h

On WALK mode, the tail light is always on and flashing slowly; it flashing quick when braking. In other modes, the tail light is switched on/off according to the light control and flashing quickly when braking.

24- Odometer (KM/H).
25. Charge level of the battery.
26- Components overheating indicator. Lights up when temperature reaches 80^ ; stop the e-scooter and wait a few minutes before resuming travel.
27 Anomaly report indicator. Please contact an authorized assistance centre.
28·WALK mode indicator.

CRUISE CONTROL mode

• Activate CRUISE CONTROL mode: press and hold the accelerator lever (12) at the same speed for 5 sec.
• Turn off CRUISE CONTROL mode: Braking with the brake lever (11), the cruise control mode turns off.

When using CRUISE CONTROL mode, the user must always be on the scooter and keep both hands firmly on the handlebars to allow this mode to be activated/deactivated safely.

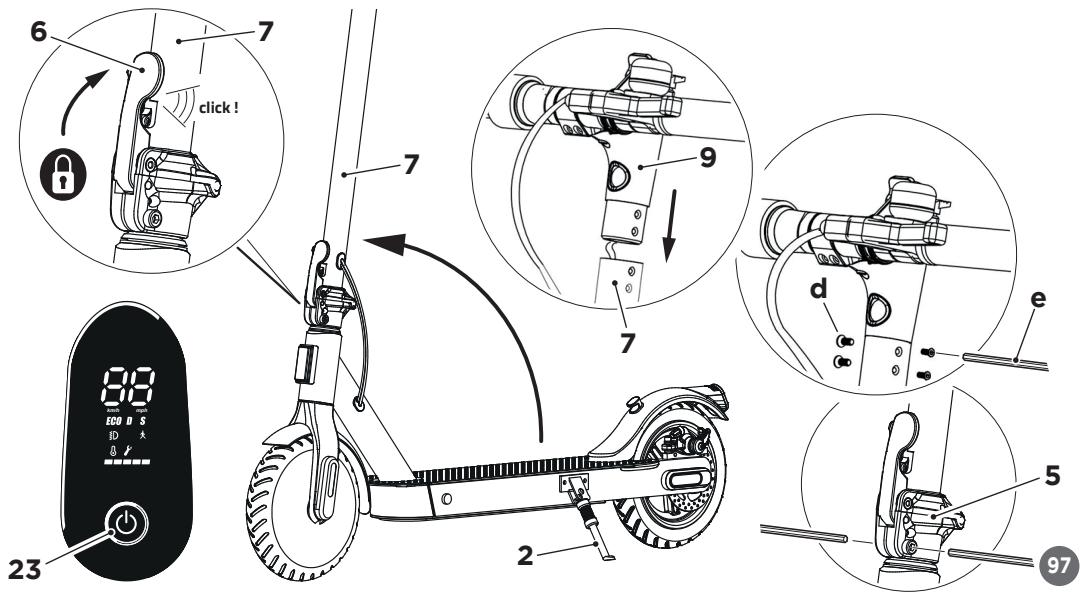

11. ASSEMBLING THE E-SCOOTER

• After removing the e-scooter from the packaging and checking that everything is compliant with what is indicated in paragraph "8", it is necessary to assemble the dismounted components.

a Open the kickstand (2) and position the e-scooter on a flat surface.
b- Raise the handlebars stem (7).
c- Raise the locking lever (6) and push it against the handlebars stem (7) until a hooking "click" is heard.
d- Insert the handlebars (9) on the handlebars bar (7). Use the Allen wrench (e) to tighten the screws (d) on both sides. If you notice any vibration of the handlebars, check the screws of the folding intersection (5); if necessary use the Allen wrench to lock the two screws. The suggested tightening force for handlebar screws is about 5-8 N·m.
e- Press the ON/OFF button (23) to check that the e-scooter is switched on correctly.

EN

12. CHARGE OF THE BATTERY

• The e-scooter is equipped with a rechargeable Lithium-ion battery and with a battery charger suitable for correct charge.

ONLY use the battery charges (GJS150-4200150) supplied as a standard to charge the battery.

• Upon first use, it is advised to charge the battery completely.
• Whenever it is necessary to charge the battery (the residual charge level is indicated by the LEDs on the display (see paragraph "10"), work as follows:

a- Open the kickstand (2) and position the e-scooter on a flat surface.
b- Remove the cap (30) from the charge socket of the battery.
c- Insert the jack (31) in the charge socket (32) of the battery.
d- Insert the plug (34) of the battery charger (33) in the power socket.

When the battery charger is connected to the e-scooter, all the electric functions and the motor are disabled to avoid overheating or damages to the components.

Make sure that mains voltage corresponds to what is indicated on the battery charger.

e- Once charge is complete, disconnect the cables and close the cap (30) in the battery charge socket.

12.1 - CARE OF THE BATTERY

• The battery must be charged after each use.
• If the e-scooter is not used for a prolonged period of time, it is recommended to charge the battery at least once a month. If that does not happen, the battery enters a self-protection status and cannot be charged. In this case, contact your retailer.
• The battery charger is equipped with a self-protections function against overcharging, the battery automatically stops charging once 100% of the charge is reached.
• Do not use the battery charge in wet or damp environments.
• Do not charge the battery if the socket (32), the charge cables or the battery charge are wet or damp.
• Charge the battery when only the last notch remains on the display.
• Do not charge the battery if it shows signs of damage or leaks of liquid.
• Damage caused by under-charging will not be covered by the warranty.

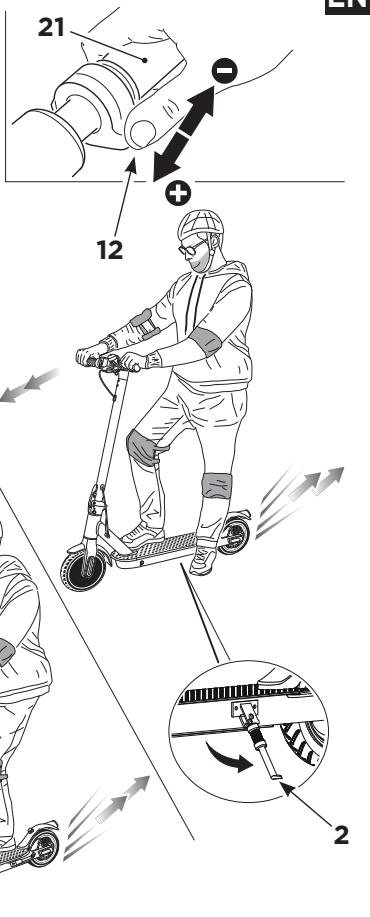

EN 13. USE OF THE E-SCOOTER

Before using the e-scooter, make sure you have read and understood all the indications in this manual. Possible injuries or damages resulting from incorrect use of the e-scooter relieve the manufacturer and the retailer from all liability and make the user himself the only one responsible towards the competent bodies.

Wear the helmet and other personal protective equipment such as knee pads, elbow guards and gloves correctly.

It is advised to wear flat footwear.

• Before using the e-scooter, ensure that all the components are intact (brakes, wheels, lights, structure, etc.).
• Hold the grips (21) correctly and raise the kickstand (2).
• Keep the ON/OFF key (23) pressed to switch on the display (14).
• Make sure that the battery is sufficiently charged.
• Press the key (23) twice to select the desired level of speed (WALK / ECO = Economy / D = Drive / S = Sport).
• Position one foot on the deck and use the other to push yourself forward while maintaining your balance.
• Simultaneously, press the throttle lever (12); when speed exceeds 4km/h , the motor connects.

• Position the other foot on the deck and drive carefully and with caution.

• During use it is possible to change speed by pressing or releasing the throttle lever (12) or modifying the desired speed level.

• To decelerate:

• Release the throttle lever (12);

• Or pull the brake levers (11) (in this condition, the motor deactivates).

• It is also possible to use all these options simultaneously.

• Braking with determination exposes the user to possible slips or falls; maintain a moderate speed and pay attention to potential risks.
• Do not brake by stepping on the mudguard (15).
• Do not touch the disc brake after braking, it is very hot!

EN

13.1 - ADVICES FOR CORRECT USE

a· To turn, move the weight of your body and slightly turn the handlebars.
b· Pay attention to your head when passing under an obstacle.

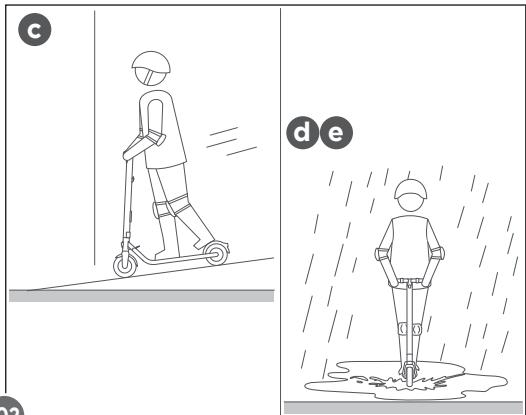

c- Control speed downhill; use both brakes when driving at high speed.
d- DO NOT use the e-scooter under the rain.
e. Do not drive the e-scooter through puddles or other obstacles (with water). In such cases, reduce speed and avoid the obstacle.

f- DO NOT use the e-scooter in pairs, nor transport any passengers.

Do not transport a child.

g. Maintain a moderate speed (between 5 and 10km / h ) while driving on speed retarders, potholed roads or other irregular surfaces.

Slightly bend your knees to better adapt to those surfaces.

h. DO NOT transport heavy or cumbersome objects on the handlebars.

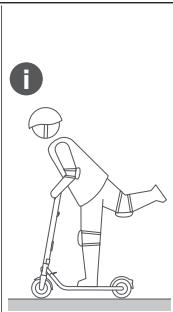

i· DO NOT drive the e-scooter with one foot.

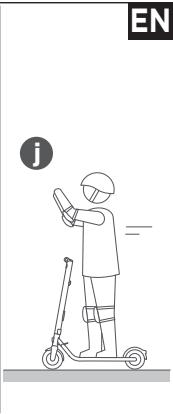

j. DO NOT remove your hands from the handlebars while driving. Do not drive with one hand.
k. DO NOT climb the stairs up and down nor jump over obstacles.
1. DO NOT turn the handlebars sharply, especially if you are driving at high speed.

Max 5-10 km/h

EN

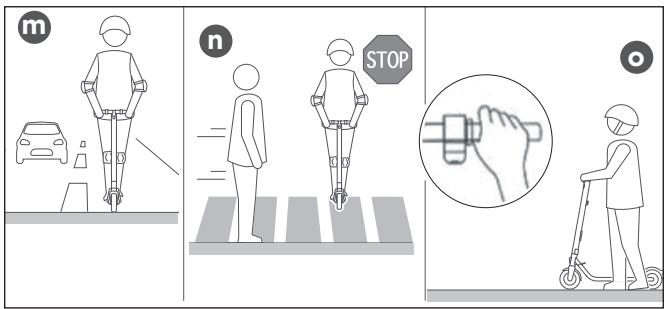

m· Adjust speed based on the type of road and on the conditions of the road surface.
n· Give priority to pedestrians.

o- Do not press the throttle if you are not positioned correctly on the e-scooter.
p· Do not make modifications to the e-scooter.

14. CLOSING AND TRANSPORTING THE E-SCOOTER

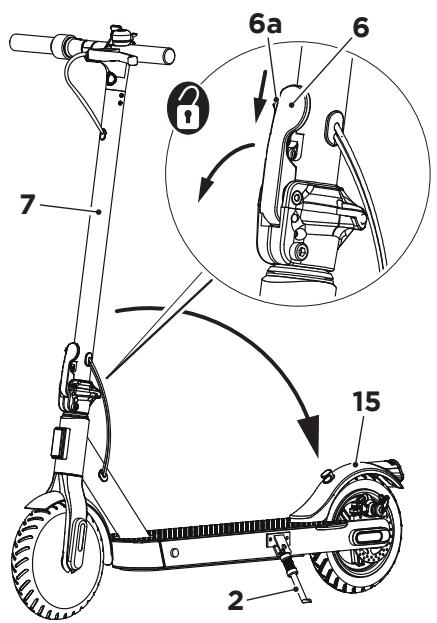

a· Open the kickstand (2) and place the e-scooter on a flat surface.
b- Switch off the appliance.
c Grasp the handlebars stem (7) with one hand.
d. Use your other hand to unlock the latch (6a) and pull the hooking lever (6) downwards.

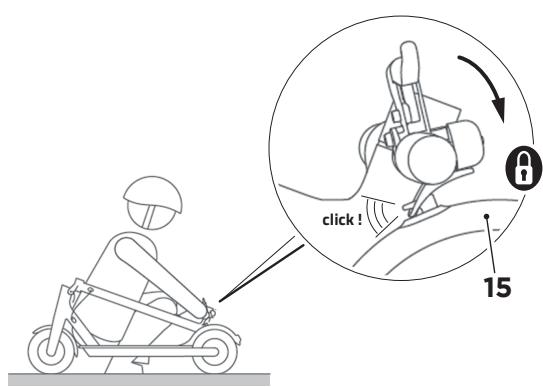

e· Fold the handlebars stem (7) on the rear mudguard (15), then press it downwards to hook it (until a "click" is heard).

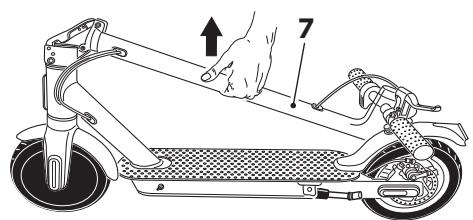

f· To lift the e-scooter, grasp the handlebars stem (7) balancing its weight.
g- Store the e-scooter in a dry environment and away from humidity.

Do not store the e-scooter outdoors.

Excessive exposition to sun, heat or cold may damage the e-scooter and accelerate tires and batteries wear. If necessary, store the e-scooter in its original box.

EN 15. MAINTENANCE

• In general, when you are cleaning the e-scooter, make sure it is switched off, that the battery charge cable is disconnected and that the cap of the charge socket on the appliance is closed (see paragraph "12" - step "e").
• To clean the e-scooter, use a soft and slightly damp cloth. If cleaning is more difficult than expected, it is advised to use a toothbrush and to add toothpaste to remove most tenacious dirt. Remove the toothpaste and residues with a soft and slightly damp cloth.

DO NOT use alcohol, petrol or other solvents, corrosive chemical products in order to avoid damaging the e-scooter both aesthetically and in its internal structure.

DO NOT use high pressure guns to clean the e-scooter.

• When the e-scooter is not used, store it in a dry environment away from humidity.
• Do not store the e-scooter outdoors.

Excessive exposition to sun, heat or cold may damage the e-scooter and accelerate tires and batteries wear.

Do not touch the disc brake right after use of the e-scooter. Danger of burns!

• If the brake is too tight, use the supplied Allen key to undo the locking screw, then release the brake cable pressure. Shorten the cable and tighten the locking screw. If the brake is too loose, carry out the opposite operation and extend the brake cable.

16. INCONVENIENCES AND SOLUTIONS

• The e-scooter does not move after start-up.

• The brake has not restored completely. This interrupts power supply.

• Move the brake back in position.

• The e-scooter moves at low speed or does not move at all.

Battery is low.

• Charge the battery.

• The motor starts and switches off again.

• Battery is low.

• Replace the battery (1).

• The controller is damaged.

• Replace the controller (1).

• The battery connection is loose.

• Adjust the battery connectors (1).

• The battery cannot be charged or has charged slowly.

• Voltage is not correct.

• Carry out maintenance of the battery or replace the battery (1).

• The battery does not charge.

• The battery life cycle has come to an end.

• Replace the battery (1).

• The battery charger does not emit power.

• Replace the battery charger (1).

• The charge socket is damaged.

• Replace the charge socket (1).

EN 17. WARRANTY

• Carefully read the instructions of this manual before using the e-scooter.
• Do not use the e-scooter when it is prohibited by law. Do not use the e-scooter when it may cause danger to the driver and to people/property near it.
• The product is covered by warranty for a period of 2 years from the date of purchase with receipt. Warranty is only valid if it is evidenced by a valid proof of purchase (receipt for the Customer), which must be shown at the request for intervention.

The non-compliant product must be returned in its original packaging, complete of all its accessories.

• End of warranty of the battery: 6 months.
• Warranty does not apply in case of damages resulting from neglect, use or installation not in compliance with the supplied instructions, tampering, modifications of the product or of the serial number due to accidental causes or negligence of the purchaser, with particular reference to external parts. Components subject to wear after use are excluded from the warranty: cables, connectors, external parts and plastic supports which do not show manufacturing defects.
• For technical assistance of the products covered by warranty, please refer to the Retailer where the product has been bought, which will carry out the preliminary check of the defect and will send the product to the assistance centre.
• The guaranty don't cover the corrosion of the product.

18. DANGEROUS MATERIALS AND CONTENTS

Material product	Dangerous materials
	Lead (Pb)	Mercury (HG)	Cadmium (Cd)	Hexavalent Chromium (Cr(VI))	Polybrominated Biphenyls (PBB)	Ethers of Polybrominated Biphenyls (PBDE)
Charger	X	O	O	O	O	O
Battery	X	O	O	O	O	O
Air tap	X	O	O	O	O	O
Charging port	X	O	O	O	O	O
Master control board	X	O	O	O	O	O
Instrumentation circuit board	X	O	O	O	O	O
Wheel motor	X	O	O	O	O	O
Frame	O	O	O	O	O	O
Tire	O	O	O	O	O	O

This chart is subject to the regulation of SJ/11364
O - means that the ratio of the dangerous materials in the parts falls within the standard GB/T 26572
X - means that the ratio is beyond the standard GB/T 26572 in at least one part

EU Declaration of Conformity

Manufacturer:

Power Data SA

Route de Lully 5C

1131 Tolochenaz - Switzerland

Generic denomination: Electrical Kickscooter

Trademark: OCEAN DRIVE

Product name: E5 Pro

Type Model: OD-KICK-E5-PRO-BK-EU

Serial number:JE96H854xMxYxZZZZ

(M" indicates the month of production (1 = January, 2 = February,...), "Y" indicates the year of production (N

= 2022,0 = 2023,P = 2024 , "ZZZZZ" indicates the frame number of the product with an unique number)

THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE SOLE RESPONSIBILITY OF:

Power Data SA

Route de Lully 5C, 1131 Tolochenaz, Switzerland

THE PRODUCTS MENTIONED IN THIS DECLARATION ARE IN CONFORMITY WITH:

EU Community Legislation:

Machinery Directive 2006/42/EC, LVD Directive 2014/35/EU, EMC Directive

2014/30/EU, Restriction of Hazardous Substances (RoHS) Directive

2011/65/EU, Radio Equipment Directive (RED) 2014/53/EU

Harmonized standards:

Safety of machinery

EN 60204-1:2018, EN ISO 12100:2010

Safety of electrical equipment

IEC62368-1:2018

Radio equipment

EN 300 328 V2.2.2 (2019-07)

Exposure of humans to electromagnetic fields (EMF)

EN 62479:2010, EN 50665:2017

Electromagnetic Compatibility (EMC)

ETSI EN 301489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

EN IEC 55014-1:2021, EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021+AC:2022-01

Low Voltage Directive (LVD)

EN 17128:2020

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 62233:2008

Signed for and on behalf of:

Place and date of issue: Tolochenaz, 12 December 2023

Signature:

Name, position: Alexandre COLOT, CEO

Company Name: Power Data SA
