USER MANUAL HI3219HD-VE HIGH ONE

KRRTSETSETSETS [I a] a] re]

ing this HIGHONE product are chosen, tested

Welcome to ELECTRO DEPOT.

Safety Information …. .24 Markings on he Product. .24 Environmental Information. .25 Features . .26 Accessories Induded .26 Standby Notifications. . .26 TV Control Button & Operation. .26 Inserting the Batteries into the Remote 27 Connect Power . .27 Antenna Connection. | License Notification en 27 Specification . .28 Remote Control. .29 Connections... .30 Switching On/Off. 31 First Time Installation: nn 81 Media Playback via USB Input... 31 Media Browser Menu: .32 CE .32 TV Menu Contents... .33 General TV Operation .37 Using the Channel List … .37 Configuring Parental Settings. .37

Electronic Programme Guide (EPG)…………… 37

Teletext Services .38 Software Upgrade. .38 Troubleshooting & Tips. .38 AV and HDMI Signal Compatibilty 39 Supported File Formats for USB Mode ……… 40 Supported DVI ReSOIUtIONS 41

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER. SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains:

The mains plug is used to disconnect TV set from the mains and therefore it must remain ready operable. Ifthe TV set is not disconnected electrcally from the mains, the device will stil draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions fer operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

À waRNING: Never let people (including

children) with reduced physical, sensory or

mental capabilities or lack of experience and / or

knowledge use electrical devices unsupervised.

+ Use this TV set at an altitude ofless than 5000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.

+ The TV set is intended for household and similar indoor use but may also be used in public places.

+ For ventilation purposes, leave at least 5cm of free space around the TV.

+ The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

+ The power cord plug should be easily accessible. Do not place the TV, fumiture, etc. on the power cord. À damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

+ Do not expose the TV to dripping or splashing of

liquids and do not place objects filed with liquids,

such as vases, cups, etc. on or over the TV (e.g..

on sheives above the unit).

Do not expose the TV to direct sunlight or do not

place open flames such as lit candles on the top of

+ Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

+ Do not place the TV on the floor and inclined surfaces.

+ To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.

+ Carefully attach the stand to the TV. Ifthe stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.

+ Do not dispose of the batteries in fire or with hazardous or flammable materials.

Warning: Batteries must not be exposed to excessive

heat such as sunshine, fire or the like.

À ais of clore shock Important maintenance

Z\ siaintenance component

Markings on the Product

The following symbols are used on he product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class 11 Equipment: This appliance is ! designed in such a way that it does not require

Serious injury or death risk

Dangerous voltage risk

a safety connection to electrical earth.

Class Il Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.

es) Protective Earth Connection: The marked

terminal is intended for connection of the protective earthing conductor associated with the supply wiring. Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

af Caution, See Operating Instructions: The A

marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

LASER PRODUCT English -24-

WARNING Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cel battery. Ifthe coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children If the battery compartiment does not close securely, stop using the product and keep it away from children:

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WALL MOUNTING WARNINGS

+ Read the instructions before mounting your TV on the wall.

+ The wall mount Kitis optional. You can obtain from your local dealer, if not supplied with your TV.

+ Do notinstall the TV on a ceiling or on an inclined wall

+ Use the specified wall mounting screws and other accessories.

+ Tighten the wall mounting screws firmiy to prevent the TV from fall. Do not over-tighten the screws.

WARNING Atelevision may fall causing serious personal injury

or death. Many injuries, particular to children, can

be avoided by taking simple precautions such as:

+ ALWAYS use cabinets or stands or mounting

methods recommended by the manufacturer of

ALWAYS use furniture that can safely support the

+ ALWAYS ensure the television set is not

overhanging the edge of the supporting furniture.

ALWAYS educate children about the dangers of

climbing on furniture to reach the television set

ALWAYS route cords and cables connected to

your television so they cannot be tripped over,

NEVER place a television set in an unstable

NEVER place the television set on tall furniture

for example, cupboards or bookcases) without

anchoring both the furniture and the television set

to a suitable support.

NEVER place the television set on cloth or other

materials that may be located between the

television set and supporting furniture.

NEVER place items that might tempt children

to climb, such as toys and remote controls, on

the top of the television or furniture on which the

television is placed.

+ The equipment is only suitable for mounting at heights <2 m

If the existing television set is going to be retained

and relocated, the same considerations as above

WARNING Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing — and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. lf you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu.

The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavaïlable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds.

Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption

Features + Remote controlled colour TV

+ Fully integrated digital terrestrial/cable TV (DVB- T-T2C)

+ HDMI inputs to connect other devices with HDMI sockets

+ USB input + OSD menu system

+ Stereo sound system

+ Headphone connection

+ Automatic programming system

+ Automatic power down after up to eight hours. + Sleep timer

+ Automatic sound mute when no transmission. + NTSC playback

+ PLL (Frequency Search)

+ Picture off function

+ Batteries not included

Standby Notifications

Ifthe TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.” Press OK to continue.

Ifthe TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. “TV switched to stand-by mode automatically because no operation was made for a long time.” Press OK to continue

TV Control Button & Operation

Note: The position of the control button may differ depending on the model

Your TV has a single control button. This button allows you to control the Standby-On / Source / Programme and Volume functions of the TV.

Operating with the Control Button

+ Press the control button to display the function options menu.

+ Then press the button consecutively to move the focus to the desired option if needed.

+ Press and hold the button for about 2 seconds to activate the selected option. The icon colour of the option changes when activated.

+ Press the button once again to use the function or enter the sub menu

+ To select another function option, you will need to deactivate the last activated option first. Press and hold the button to deactivate it. The icon colour of the option changes when deactivated.

+ To close the function options menu do not press the button for a period of about 5 seconds. The function options menu will disappear.

To turn the TV off: Press the control button to display the function options menu, the focus will be on the Standby option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option changes when activated. Then press the button once again to turn the TV off.

To turn on the TV: Press the control button, the TV will turn on.

To change volume: Press the control button to display the function options menu and then press the button consecutively to move the focus to Volume + or Volume - option. Press and hold the button for about 2 seconds to activate the selected option. The icon colour of the option changes when activated. Then press the button to increase or decrease the volume.

To change channel: Press the control button to display the function options menu and then press the button consecutively to move the focus to Programme + or Programme - option. Press and hold the button for about 2 seconds to activate the selected option

The icon colour of the option changes when activated. Then press the button to switch to the next or previous channel in the channel list.

To change source: Press the control button to display the function options menu and then press the button consecutively to move the focus to Source option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option changes when activated. Then press the button once again to display the sources list. Scroll through the available sources by pressing the button. TV will automatically switch to the highlighted source.

Note: Main menu OSD cannot be displayed via the control button.

Operation with the Remote Control

Press the Menu button on your remote control to display main menu. Use the directional buttons and OK button to navigate and set. Press Return/Back or Menu button to quit a menu screen

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Programme #/- and Volume +/- buttons on the remote.

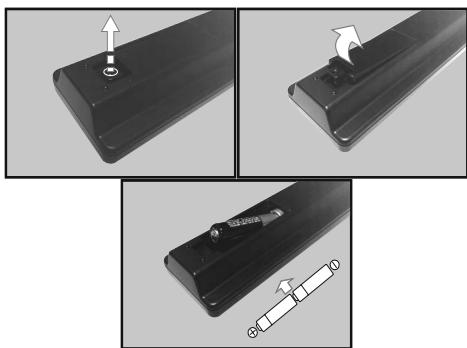

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connectthe settothe mains. Plug the power cable to the mains socket outlet.

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

The terms HDMI, HDMI High-Derfinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

HOME Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

The “CI Plus” Logo is a trademark of CI Plus LLP.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

TV Broadcasting PAL 8/G DK K UT VHF (BAND 1/1) - UHF

(BAND U) - HYPERBAND Receiving Channels

Fuly integrated digital terrestrial-cable TV (OVB-T-C)

Power Consumption (W) | 60

Operation temperature | 0°C up to 40°C, 85%, and operation humidity __| humidity max

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. À confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function

Note that if you perfomm First Time Installation, MY BUTTON 182 will return to their default function:

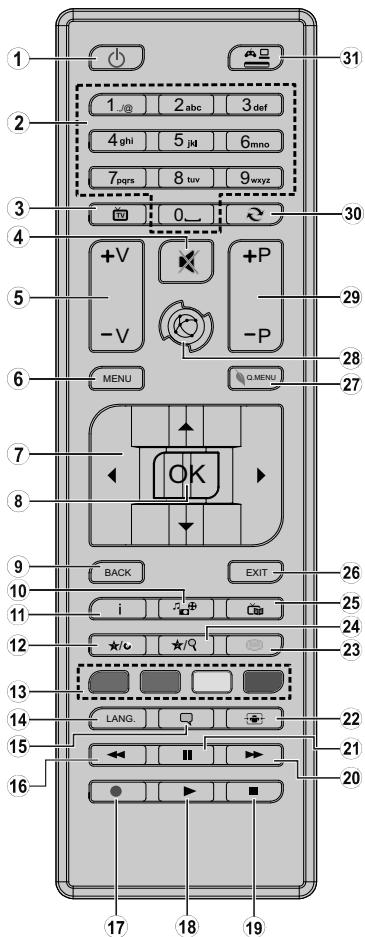

Standby: Switches On / Offthe TV Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.

TV: Switches to TV Source

Mute: Completely turns off the volume of the TV Volume +-

Menu: Displays TV menu

Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left

OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)

Back/Return: Returns to previous screen, opens index page (in TXT mode)

Media browser: Opens the media browsing screen Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)

Coloured Buttons: Follow the on-screen instructions for coloured button functions

Language: Switches between sound modes (analogue TV), displays and changes audio/subtitie language {digital TV, where available)

Subtitles: Turns subtiies on and off (where available)

Rapid reverse: Moves frames backwards in media such as movies

Play: Starts to play selected media

Stop: Stops the media being played

Rapid advance: Moves frames forward in media such as movies

Pause: Pauses the media being played

Screen: Changes the aspect ratio of the screen

Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)

EPG (Electronic programme guide): Displays the electronic programme guide

Exit: Closes and exits from displayed menus or retums to previous screen

Quick Menu: Displays a list of menus for quick access No function

Swap: Quicky cycles between previous and current channels or sources

Source: Shows all available broadcast and content sources

See the illustrations on the

Connector | Type Cables (not supplied) left side. When using the wall

mounting kit (available from a

HDMI —= third party in the market, if not Connection | [| 1bn ti] En Éupplied), we recommend that (back&side) |

you plug all your cables into the

back of the TV before mounting

SIDE AV tr. de lon the wall. Insert or remove the ® Side AV mn D | module onty when the TV is (AudioVideo) ar. a ISWITCHED OFF. if a CI module is

Connection | side AudiaVidco … AudoVideo [l used, it may block te headphone (Side) land Side AV inputs. In this case, it is recommended to make the

Connection Cable Cable

headphone and the Side AV con- SPDIF SPDIF hections before the CI module is (Coaxial Out) = inserted. You should refer to the

© Connection module instruction manual for (side) details of the settings. ThelEach

USB input of your TV supports

[] devices up to 500mA. Connecting

Headphone PS, |éevices that have current value Connection | = above 500mA may damage your (side) TV. When connecting equipment using a HDMI cable to your TV,

Lo guarantee suficient immunity

usB against parasitic frequency radia- Connection XX ion, you have to use a high speed (side) > shielded (high grade) HDMI cable

lwith ferrites. ci eux La ti

ernecten XX If you want to connect a device to the TV, make sure that both the TV and the device are tumed off before making any connection. After the connection is done, you can tum on the units and use them.

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either

+ Press the Standby button, Programme #/- or a numeric button on the remote control:

+ Press the control button on the TV. To Switch the TV Off + Press the Standby button on the remote control.

+ Press the control button on the TV, the function options menu will be displayed. The focus will be on the Standby option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option will change. Then press the button once again, the TV will switch into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: Wen the TV is sitched into standby mode, the standby LED can blink to indicate that features such as Standby Mode Search or Over Air Download is active. The LED can also blink when you switch on the TV from standby mode.

First When turned on for the first time, the language

selection screen is displayed. Select the desired language and press OK.

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked Lo set and confirm a PIN at this point, The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type

1 Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

1 Cable: |f Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed According to your other preferences a confirmation message may be displayed before starting to search Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network 1D and Search Step. When finished, press OK button Note: Searching duration will change depending on the selected Search Step.

Analogue: |f Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue

You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned offlon later.

Press OK button on the remote control to continue. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LON(*). Select Yes and press OK to confirm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

CCE You can connect 2.5" and 3.5" inch (hdd wilh extemal power supply) extemal hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

Wait a lite while before each plugging and unplugging as the player may still be reading files . Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your TV's USB inputs. Extemal power supplied USB hubs are recommended in such a case

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again wil exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffie Mode Operation

En nE Alfies in the list wil be

continuous} paye in original

button and actvate F3] S Star playback win he OK | The same fe le paye Button and actvate [EE] coninuouiy (epaa)

Sr playback wine Play | Alflesinthe let we button and actvate|E3 phayed once in random order

Alfies in the list wil be continuousiy played in the same random order.

Start playback with the Play

CEC This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press and hold the “O-Zero" button on the remote control for 3 seconds. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Retum Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system {AW receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other

optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device. When using the ARC connection, some incompatibilities may occur between the TV and the connected sound system due to the difference of the used volume ranges.

Note: ARC is supported only via the HDMI2 input.

System Audio Control

Alows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

System - Picture Menu Contents

You can change the picture mode to sui your preference or requirements. Picture mode can be

Use set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on 1he screen.

Brightness Adjusts he brighiness values on he screen.

Sharpness Sets the sharpness value for the objects displayed on the screen.

Colour Sets the colour value, adjusting the colors

For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Energy Saving Off or Of. Note: Available options may differ depending on the selected Mode

This setting controls the backlight level. The backlight function wil be inactive if the Energy

Backlight Saving is set lo an option other then Custom.

Dynamic Contrast … | You can change the dynamic contrast ratio to desired value.

Ie signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the

Noise Reduction amount of noise:

Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are

CET I the Colour Temp option is set as Custom, this setting will be available. Increase the warmth' or ‘coolness’ of the picture by pressing Left or Right buttons.

Picture Zoom Sets the desired image size format.

EC Fims are recorded at a different number of frames per second to normal television programmes. ‘Tum this feature on when you are watching fims to see the fast motion scenes clear.

Skin Tone Skin tone can be changed between -5 and 5.

Colour Shift Adjust the desired colour tone.

While watching from a HDMI source, this feature wil be visible. You can use this feature to

BORNE enhance blackness in the picture.

Reset Resets the picture settings to factory defaut settings (except Game Mode).

Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing. Sound Mode You can select a sound mode (If the viewed channel supports).

AVL (Automatic Volume Limiting)

Sets the sound 10 obtain fixed output level between programmes.

When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. f you have connected headphones to the TV, set this option 25 Headphone

Please ensure before using headphones that this menu item is set to Headphone. fit is set to Lineout, the output from the headphone socket wil be set to maximum which could damage your hearing.

Controls conditional access modules when available

Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the 1 Default CICAM PIN using the related options.

Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. fou have defined the PIN(Is requested depending on he country selection) during the First Time Installation use the PIN that you have delned.

Sets sleep timer to tum off the TV after a certain time. Sets timers for selected programmes.

Sources Enables or disables selected source options. Accessibility Displays accessibilty options of the TV. Hard of Hearing Enables any special feature sent from the broadcaster.

Anorration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it

Displays other setting options ofthe TV.

Changes timeout duration for menu screens.

Standby Mode LED I set as Off the standby mode LED wil not light up when the TV is in standby mode.

Ensures that your TV has the latest firmware. Press OK to see the menu options.

Displays current software version

This option is used to select which subüile mode wil be on the screen (DVB subtile / Teletext

Subtitle Mode subitle) both is available. Defautt value is DVB subite. This feature is available only for the country option of Norway.

‘Auto TV OFF Sets the desired time for the TV to automatically go into standby mode when not being operated

Gen D Selectthis mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available

Power Up Mode This setting configures the power up mode preference. Last State and Standby Mode options are available

& With this setting you can enable and disable CEC functionalty completely. Press Left or Right

button to enable or disable the feature.

This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.

To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.

Displays Open Source Software license information.

Note: Some options may not be available depending on the model of your TV, its features and the selected country in the First Time instalation.

Installation Menu Contents

Automatic channel can (Retune)

Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations.

This feature can be used for direct broadcast entry.

Network Channel Scan

Searches forthe linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.

You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.

Installation Settings (Optional)

Displays installation settings menu. Standby Mode Search(*): Your TV wi search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*) : Ifthis option is set as Enabled, the changes on the broadcasts such as frequency, channel name. subtile language etc., will be applied automatically while watching.

(‘) Availabilty depends on model.

Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland

Select Active Network

This setting allows you to select only the broadcasts within the selected network to be listed in the channel list, This feature is available only for the country option of Norway.

You can use this menu item to monitor signal related informations such as signal level/quality, network name etc for available frequencies.

Deletes al stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.Press the OK button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Selectthe desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Setthe desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanentiy according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed everytime the Channel list is opened The fitering function in the Channel list menu will only fier the currently displayed Channel list in order to find a channel and tune in to i. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after fitering while the Channel list is displayed on the screen.

Configuring Parental Settings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.

To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: Ifthis option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast

Note: I the country option in the First Time Installation is set as France, laly or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and NowlNext Schedule. To switch between them follow the instructions on the bottom of the screen.

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval.

Filter (Blue button): Views filtering options. Highlight Genre (Subtitles button): Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options. Event Details (Info button): Displays detailed information about selected events.

Next/Prev Day (Programme #/- buttons): Displays the events of previous or next day.

Search (Text button): Displays Guide Search menu Now (Source button): Displays current event of the highlighted channel

(*) In this layout option, only the events of the highlighted channel wi be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice.

Next/Prev Day (Programme #/- buttons): Displays the events of previous or next day.

Event Details (Info button): Displays detailed information about selected events.

Filter (Text button): Views fitering options.

Next Time Slice (Green button): Displays the events of next time slice.

Options (OK button): Displays event options. Now/Next Schedule

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Filter (Blue button): Views fltering options.

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel.

Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled

Notes: You cannot switch to any other channel or source while there is an active timer on Îhe current channel His not possible to set timer for two or more individual events atthe same time interval

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Your TV is capable of finding and updating the firmware automatically via the broadcast signal

Software upgrade search via user interface On the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade

If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 ‘clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while ledis linking during the reboot process. Ifthe TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

+ Check if you have selected the correct TV system:

+ Low signal level can cause picture distortion. Please check antenna access.

+ Check if you have entered the correct channel frequency if you have done manual tuning

+_ The picture quality may degrade when to devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

+ This means your TV is not receiving any transmission Make sure the correct source has been selected

+ Is the antenna connected properiy? - Is the antenna cable damaged?

+ Are suitable plugs used to connect the antenna? + If you are in doubt, consult your dealer.

+ Check ifthe TV is muted. Press the Mute button or increase the volume to check.

+ Sound may be coming from only one speaker. Check the balance settings from Sound menu

Remote control - no operation

+ The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

+ If you cannot select an input source, it is possible that no device is connected. If not:

+ Check the AV cables and connections if you are

trying to switch to the input source dedicated to the connected device.

In some cases a signal on the TV may not be displayed propeny. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the

Supported File Formats for USB Mode

CE Video Meg MPEG1-2 MPEG1: 7684576 @ 30P. MPEG2:1920x1080 @ 30P vob MPEG2 mp4 MPEGA, Xvid H264 mkv H264, 1920x1080 @ 30P MPEGA VC-1 a MPEG2, MPEGA, Xvid H264 m H254VPET H2SAVPE: 19201080 @ 30P Soranson Sorenson: 3521288 @ 30P. pa mov, 3gpp. 3gp. MPEG transport |HEVCH.265 | 1080P@60fPs - 5oMbps stream, ts, tp. mkv 39p MPEG4 , H264 | 19201080 @ 30P mp3 MPEG Layer | Layer2: 32Kbps - 448Kbps (Bi rate) / 32kHz, 44.1KHz, 48kHz, 16kHz, 28 22.05kHz, 24kHz (Sampling rate) Layer3: 32Kbps — 320Kbps (Bit rate) / 32kHz, 44.1KHz, 4BKHz, 16kHz, 22.06kHz, 24kHz, 8kHz, 11.025kHz, 12kKHz (Sampling rate) (ons — |AC3 32Kbps — 640Kbps (Bit rate) / 32KHz, 44.1KHz, 48kKHZ (Sampling rate) coin. Cake As = S7EKDpe (ra) AB, 4 7 SA, 2, 2 08H le) 16kHz, 12khz, 11.025KHz, BKHz (Sampling rate) EACS 32Kbps = 6Kbps (Bitrate)/ 32KHz, 44.1KHz, 48KHZ (Sampling rate) LPCM Unsigned 8bit PCM, Signed/Unsigned 16bit PCM (big / ile endian), 24bit PCM (big endian), DVD LPCM 16/20/24bit (Bit rate) 16kHz, 8kHz, 11.025kHz, 12kHz, 16KHz, 22.05KHz, 24kHz, 32kHz, 44.1KHz, 48kHz , 88.2kHz, 96kHz, 176.4KHz, 192kHz (Sampling rate) IMA-ADPCM/ ke MA ADPOM | a84kbps (Bit rate) / 8KHz - 48khz (Sampling rate) LER 32Kbps = 96Kbps (Bit rate) / 32KHz, 44.1KHz, 48kHZ (Sampling rate) Picture Basaline Resolution(NxH)}: 1700010000 jpeg Progressive Resolution(NxH}: 4000%4000 bmp - Resolution(WxH}: 5760x4096

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information

KTRRTSETSETSETS [a] a] a] re]

800x600 El El El El]

{WRMS.) (10% THD) 2x6

KTRRTSETSETSETS [a] a] a] re]

audio (WRMS.) (10% 2x6 THD)

KTRRSETSETSETS [a] a] a] re]

{WRMS.) (10% THD) 2x6

KTRRTSETSETSETS [a] a] a] re]

monsonnonnese [mere | a on] ae

EN FR NL ES DE WARRANTY CONDITIONS This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required

CONDITION DE GARANTIE Ce produit est garanti pour une période de 2 ans à partir de la date d'achat, contre toute défaillance résultant d'un vice de fabrication ou de matériau. Cette garantie ne couvre pas les vices ou Les dommages résultent d'une mauvaise installation, d'une utilisation incorrecte ou de l'usure anormale du produit

Hereby, ELECTRO DEPOT declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53 / EU. The declaration of conformity can be consulted on the site: http:/mwu.electrodepot fr/sav/notices
