USER MANUAL CYCLONIC-S10 VALBERG
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.
We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

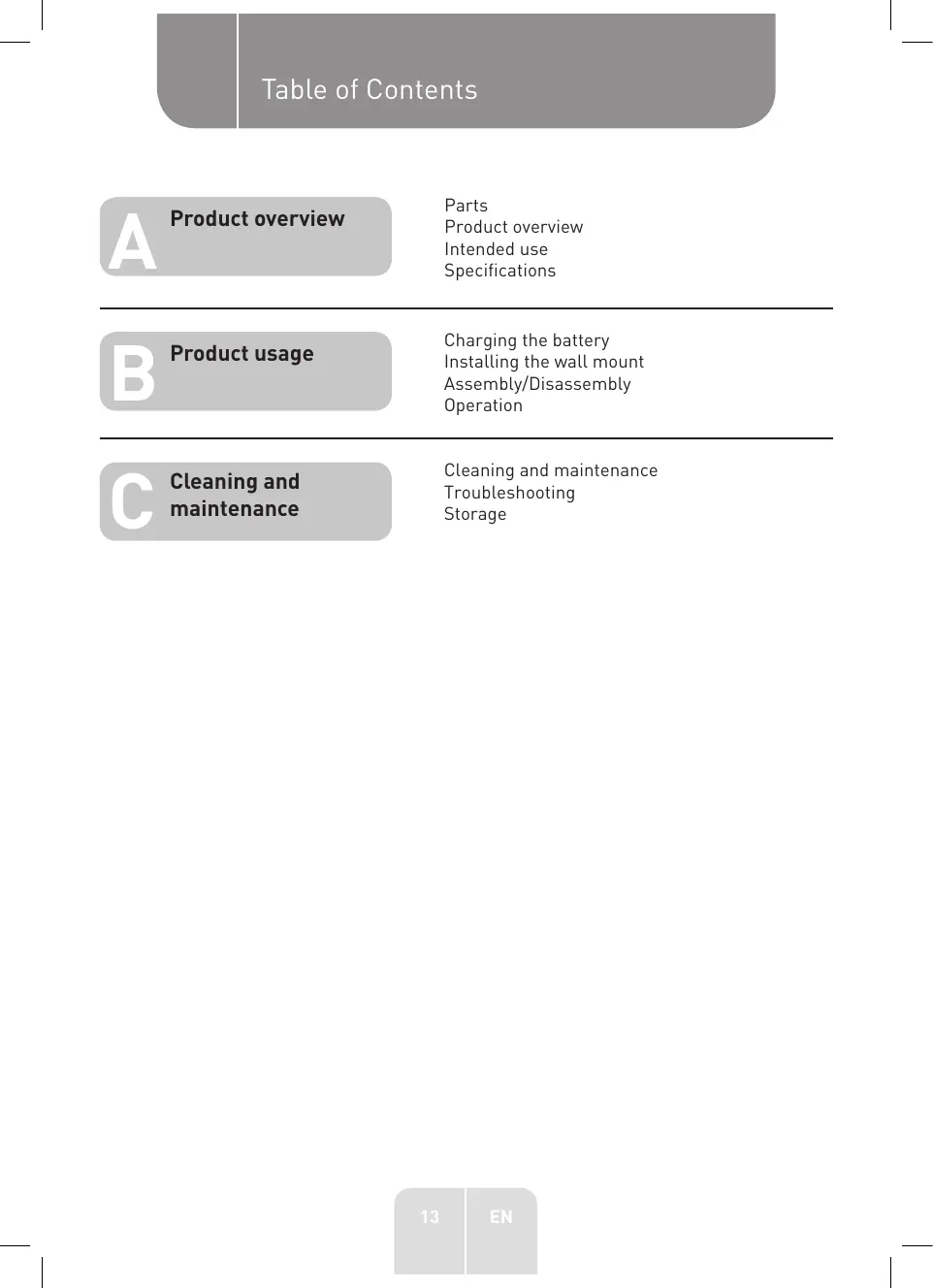

Table of Contents
| A Product overview | Parts Product overview Intended use Specifications |
| B Product usage | Charging the battery Installing the wall mount Assembly/Disassembly Operation |
| C Cleaning and maintenance | Cleaning and maintenance Troubleshooting Storage |
Parts
A Battery charging port
B On/Off switch
Power button (for high, medium and low speed)
D Power LED indicator
E Battery LED indicators
HEPA filter cover
Dust cup release button
Dust cup foam filter
Dust cup
Dust cup clip
K Dust cup lid
L Tube release button
M Notch that attaches to the wall mount
Assembled filter [inside the dust cup]
0 Handheld vacuum nozzle
P Tube
Floor brush release button
Floor bristle brush (for all types of flooring)
LED indicators
HEPA filter
Power roller brush (for removing dust from hard/smooth surfaces or those that scratch easily)
Crevice tool (for hard-to-reach places)
W Mini brush (for stubborn dirt on furniture, floors and carpets)
Wall plugs and screws (x 3) for the wall mount
Y Wall mount plate
Z AC charger
Product overview
- Unpack and remove all labels from the unit. Please check that all of the unit's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This vacuum cleaner is for household use only. It has not been designed for industrial or professional use by cleaning companies.
Any other use may damage the unit or cause injury.
Specifications
| Model: | 972027 - CYCLONIC-S10 |
| Vacuum power output: | 350 W max. |
| Dust cup capacity: | 0.7 L |
| Suction power: | 95 W (high), 22 W (medium), 8 W (low) |
| Noise level: | 81 dB (high), 76 dB (medium), 74 dB (low) |
| Vacuum pressure: | 17 kPa (high), 8 kPa (medium), 3 kPa (low) |
| Rechargeable battery: | 25.0 V - 0.5 A (max. 29.0 V - 0.5 A) |
| Operating voltage: | 100-240 V ~, 50/60 Hz |
| Protection class: | Class II |
Charging the battery
The battery must be charged before first use and whenever the vacuum will not turn on because the battery is too low.
NOTE: When the power is too low and the battery needs to be charged, the vacuum will automatically turn off.
1 ① Insert the charger into the battery charging port.
2 Insert the plug into the mains socket.
It takes approximately 6 hours to fully charge the battery for the first time. Any subsequent charges will then take up to 3 hours.
- The different battery LED indicator statuses are indicated below:
| LED indicators | Battery level |
| 1 LED indicator flashing | Battery low - Charge the vacuum |
| 1 LED indicator lit | 50% |
| 1 LED indicator lit 1 LED indicator flashing | 50% and charging |
| 2 LED indicators lit | 100% (once fully charged for 10 minutes, the LEDs will turn off.) |
- When the battery is charged, the usage times are as follows:
| Vacuum type | Level 1 (low) | Level 2 (medium) | Level 3 (high) |
| Handheld vacuum | 55 minutes | 25 minutes | 10 minutes |
| Stick vacuum | 48 minutes |
WARNING!
After charging, always unplug the charger from the battery charging port and mains socket.
- Do not charge the battery at temperatures below 5^ C or above 40^ C .
CAUTION: To recharge the battery, only use the removable power supply unit supplied with the device. MC2805B-V
Installing the wall mount
NOTE: Find a suitable location for the wall mount.
- Preferably install the wall mount near an mains socket.
- Only install the wall mount in a location where the ambient temperature is constant and between +5^ C and 40^ C .
- Place it in a clean, dry place, away from heaters and direct sunlight.
- Make sure that the wall on which the wall mount will be secured is able to support the weight of the unit.
2 1 Position the wall mount plate on the wall. Make sure that the base of the wall mount is approximately 110~cm above the ground so that the brush of the assembled stick vacuum gently rests on the floor. Mark the drill holes for the screws with a pencil.
② Then use a 6.3 ~mm drill bit to drill the screw holes, and insert the appropriate wall plugs. Position the wall mount plate on the wall. Screw the mount to the wall.
NOTE:
- Slide the charging cable through the clip on the wall mount.
The vacuum cleaner can be charged whilst suspended on the wall mount.
DANGER! RISK OF ELECTRIC SHOCK!
- Do not pierce the electric cables (or water pipes) located in the wall.
- Do not install the wall mount on a metal wall.
Assembly/Disassembly
Mounting the vacuum cleaner:
3 ① Attach the desired brush or crevice tool to the tube until it is firmly secured.
② Floor brush/power brush only - Rotate the tube attached to the floor/power brush clockwise until the brush release button is facing forward. Next, press down so that the underside of the brush comes into full contact with the floor.
Push the tube into the handheld vacuum until it clicks into place.
OR
Push the desired brush or crevice tool directly onto the handheld vacuum.
- Floor bristle brush - Use it to clean carpets or hard and smooth surfaces. Directly attach the floor brush (or power brush, depending on the floor surface being cleaned), to the handheld vacuum cleaner in order to be able to easily vacuum the stairs. The brush's LED indicators are useful for poorly lit areas.
- Power roller brush - Use it on surfaces that scratch easily, in addition to hard or smooth surfaces, such as parquet flooring, to optimally remove dust.
- Crevice tool - Use the brush with or without the bristles to remove dirt from tight or hard-to-reach corners.
- Mini brush - Use the bristle brush to remove stubborn dirt from furniture, blinds, floors and carpets. Use the soft felt brush to clean delicate surfaces.
Press the button on the mini brush and slide the brush up or down to use the bristled or felt section of the brush.
Disassembly:
Make sure the unit is switched off.
5 Detach the tube from the floor brush or handheld vacuum by pressing the appropriate release button and pulling the two components apart.
Store the unit on the wall mount and the accessories in the vacuum cleaner packaging or any other suitable container.
Operation
- Once the unit is assembled, it is ready for use.
7 ① Press the On/Off button to turn on the vacuum. The battery LED indicators will light up.
Press the power button as required to toggle between power levels. The LED indicator will change colour as follows:
White = medium power
Blue = high power
No light = low power
③ To turn off the vacuum, press the On/Off button again.
WARNING: Moving Parts!
Always turn off the vacuum before attaching or changing accessories.
NOTE: For best performance, empty the dust cup when it is full or after each use (as shown in the Cleaning and maintenance section).
Cleaning and maintenance
WARNING!
Always turn off and unplug the unit from the power supply before cleaning.
- Never immerse the unit in water or any other liquid.
- Detach all accessories from the main unit.
- Clean the unit with a soft, slightly damp cloth. Make sure that no liquid enters the unit.
- When cleaning the unit, never use abrasive products, metal brushes, scourers, wire sponges or sharp utensils.
After cleaning, dry the unit thoroughly.
Cleaning the dust cup and filters
Clean the dust cup after each use or when it is full and has reached the MAX mark. Clean the filters and central part of the filter whenever they are full, there is a loss of suction or on a quarterly basis.
Press the latch to release the base of the dust cup and empty its contents.
9 ① Press the dust cup release button.
② Remove the dust cup.
③ Remove the foam filter from the top of the dust cup via the ribbon.
Wipe all parts with a dry cloth, then clean the filter with water and dry it thoroughly.
10 ① Turn the HEPA filter anticlockwise towards the unlock symbol to remove it.
Pull the HEPA filter out to remove and clean it.
Clean all the filters with water and leave them to thoroughly dry naturally before using them again.
WARNING! To prevent damage to the unit, only use dry, intact filters!
12 Cleaning the floor brush
Press the brush release button downwards and remove the clip that secures the right side of the brush in place.
Pull the right side of the brush as shown, then slide the left side off the pin that holds it in place.
13 Cleaning the power brush
Use a coin or flat-head screwdriver to turn the screw clockwise towards the unlock symbol . Remove the clip that secures the right side of the brush in place.
② Pull the right side of the brush, then slide the left side off the pin that holds it in place.
NOTE: Regularly remove all hair, fur and debris to ensure your vacuum cleaner maintains its optimal performance. If the brush is very dirty, wash it with water and let it dry completely.
Cleaning the accessories
Separate the tube or handheld vacuum from the brushes/crevice tool. Remove any obstructions and wash with water. Dry thoroughly before using the unit again or putting it away for a long period of time.
Troubleshooting
| Problem | Possible Cause | Solution |
| The unit does not work. | ·The unit is not charged. ·The charging indicator light does not light up while charging. ·The dust cup is full. | ·Fully charge the battery. ·Check that the charger is securely plugged into the mains socket and the battery charging port. Press the On/Off button. If the unit is still not working, get it checked by a qualified technician. ·Empty the dust cup. |
| The suction power is weak, there is no suction or the motor vibrates. | ·The nozzle is blocked. ·The filter is blocked, dirty or broken. | ·Remove the blockage. ·Clean the filter. ·If necessary, replace the filter with a new one. |
| The operating time is too short after charging. | ·It has not been charged for enough time. ·The battery is old. | ·Fully charge the battery as indicated in the charging section. ·Ask a qualified technician to install a new battery. |
| The brush is not spinning. | ·The brush is clogged with debris, such as hair/fur. | ·Cut the tangled threads with scissors. ·Remove the brush to clean it. Make sure it spins smoothly when you put it back in place. |
Storage
- Always unplug the unit before storing it.
- Store the unit in a fresh, dry and clean place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
Bedankt!
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
