USER MANUAL TVSAND50UHD POLAROID

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

ATTENTION : POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE COUVERCLE (NI LE PANNEAU ARRIÈRE).

AUCUNE PIÈCE N'EST REMPLAÇABLE PAR L'UTILISATEUR. CONTACTEZ UN PERSONNEL QUALIFIÉ EN CAS DE PANNE.

Diagram showing a TV screen with three labeled components: a remote control, a circular display, and a 30-degree angle indicator.

Vue de dessous

Diagram of a horizontal bar with supports and a numbered label (③), no readable text or symbols present.

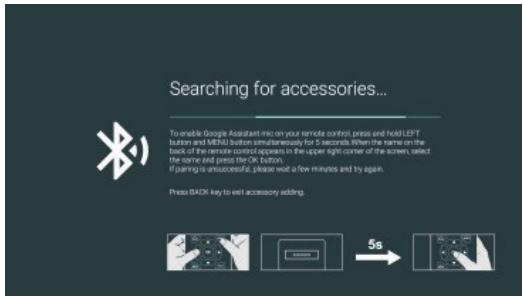

Searching for accessories... To enable (Google Assistant mic on your remote control, press and hold-LIFT button and MENU) button simultaneously for 5 seconds. When the name on the back of the remote control app appears in the upper right corner of the screen, select the audio and press the OK button. If panning is unsuccessful, please wait a few minutes and try again. Press BACK key to exit accessory adding.

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. GET Email File: JAV-808 FTP:200_200ML-2014 FTP:200_200ML-81787 mail.ru FTP:200_200ML-81787 95 Other networks... Send Email Send

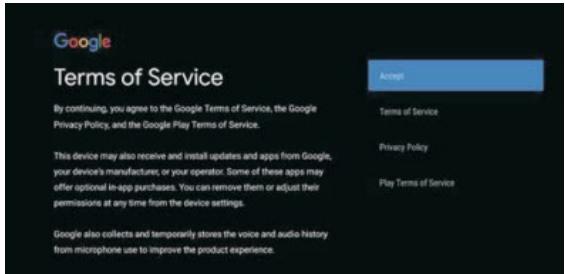

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

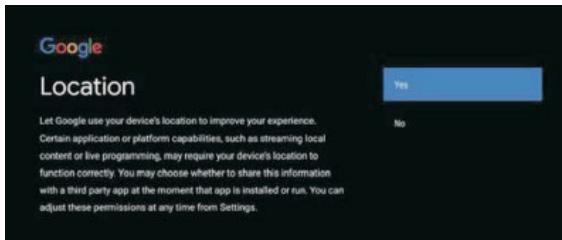

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

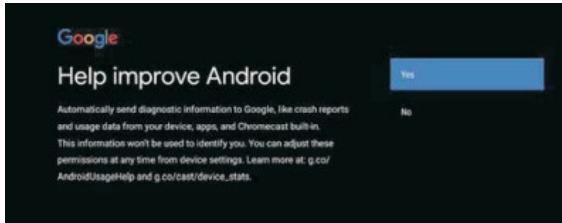

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ AndroidUsageHelp and g.co/cast/device.stats.

Your EU 4K Android TV is powered by androidiv Let us through the future of your device. Get apps from Google Play The Google Play Store offers apps you're more to have. Match all others, explain free sports, play games and more. Google Play Cast to your TV With Chinese users, you can identify cast phones, emails, and more then you play right to your TV.

Country Please select your country Denmark Spain Finland France United Kingdom Italy Luxembourg

Password Please set password. '0000' is invalid. Input Password

Input Password New Password

Confirm Password Confirm Password

FONCTIONNEMENT DE BASE

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized to store demo with fixed settings. Home Retail

Select Home Mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off. Off On

Tuner Mode Please click your 'Tuner Mode' Alstria Cello

Channel Scan First, please connect antenna. Start channel scan now? If you skip this step, the channel scan could be performed in Menu. Scan Skip Scan

Setup is completed. Enjoy! FINISH Congratulations! Initial Setup is completed. Please press [INTO] to exit the wizard.

Disclaimer Polaroid, Polaroid & Pixel are registered trademarks of PLR IP Holdings, LLC, used under license. This Polaroid TV is produced by Shenzhen MTC CO.,LTD for Market Maker Brand Licensing.

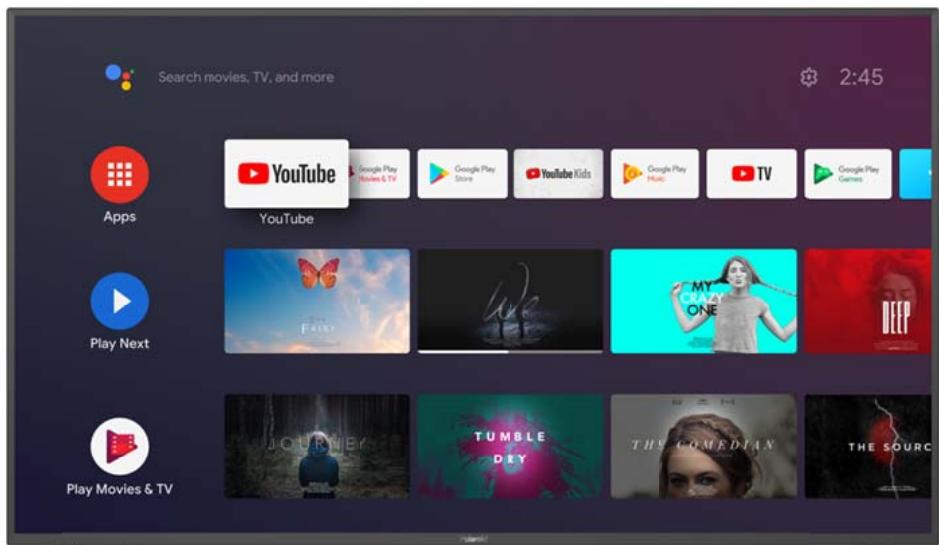

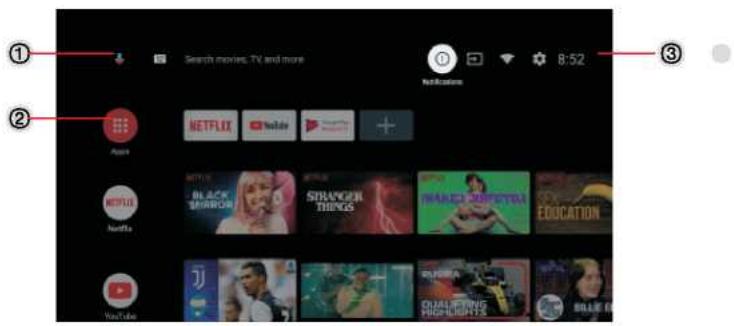

Search movies, TV and more Netflix Netflix YouTube YouTube Black Shawker THINGS WHOLE TARGET EDUCATION

Channels TV options Speakers Power Di Card Manual SIM Advanced Options Settings Record

Settings Details Dismiss

Settings Quick Settings Take bug report General Settings Network & internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Network & Internet Wi-Fi Available networks 3686 ChinaNet-Wepx iServer-CTS See all Other options Add new network Scanning always available Let Google's location service and other apps scan for networks, even when Wi-Fi is off

Network & Internet ADD NEW NETWORK Scanning always available Let Google's location service and other apps scan for networks, even when Wi-Fi is off Wow wake on wireless network Wol wake on LAN Ethernet Not connected Proxy settings IP settings

CHAÎNE

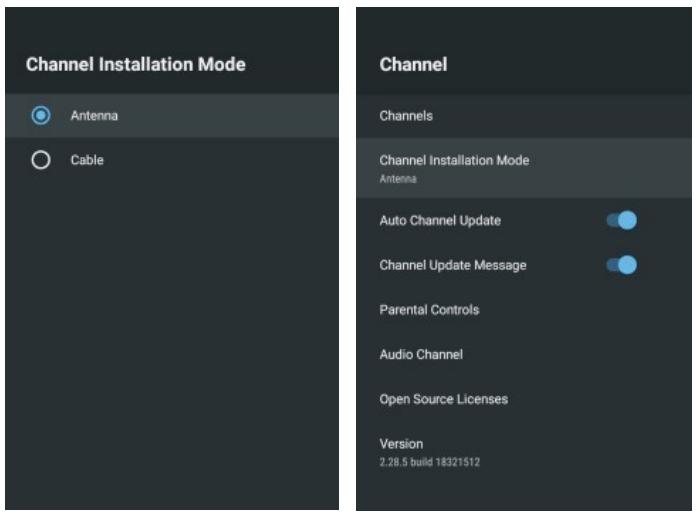

Channel Channels Channel Installation Mode Antenna Auto Channel Update Parental Controls Audio Channel Open Source Licenses Version 2.28.5 build 18321512

Channel Installation Mode Antenna Cable Channel Channels Channel Installation Mode Antenna Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licenses Version 2.28.5 build 18321512

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan LCN Default Channel Scan Type All Channel Store Type All Favorite Network Select

Status: Scanning Antenna Analog Channels0 Digital Channels0 3% Exit

Search for Analog Channels Start Frequency (MHz) 47.00 Scan Up Scan Down

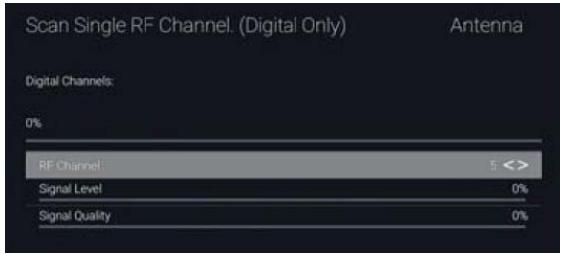

Scan Single RF Channel. (Digital Only) Antenna Digital Channels: 0% RF Channel 5 <> Signal Level 0% Signal Quality 0%

Channel Installation Mode Antenna Cable Channel Scan Nuclear cable Others

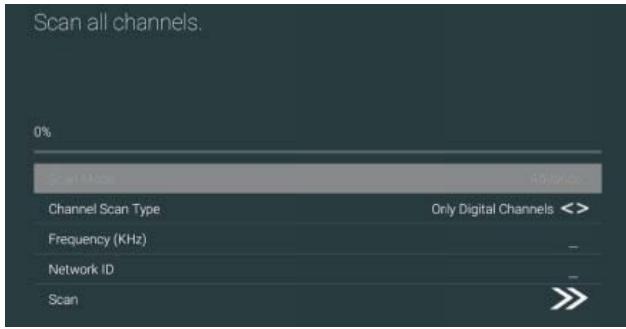

Scan all channels. 0% Scan All Channels Only Digital Channels <> Channel Scan Type Only Digital Channels <> Frequency (KHz) - Network ID - Scan >

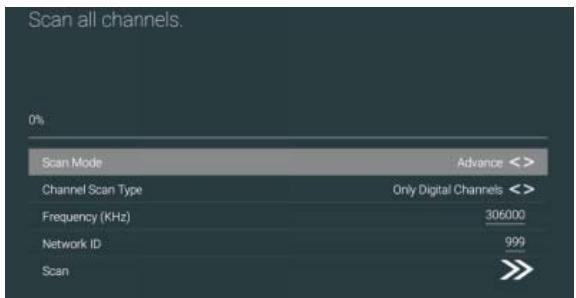

Scan all channels. 0% Scan Mode Advance < > Channel Scan Type Only Digital Channels < > Frequency (KHz) 306000 Network ID 999 Scan >>

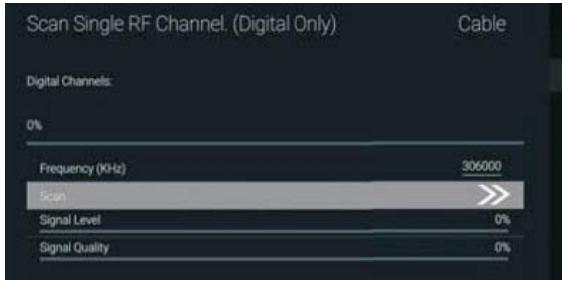

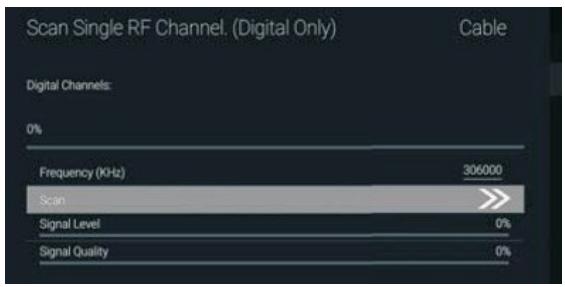

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 306000 Scan Signal Level 0% Signal Quality 0%

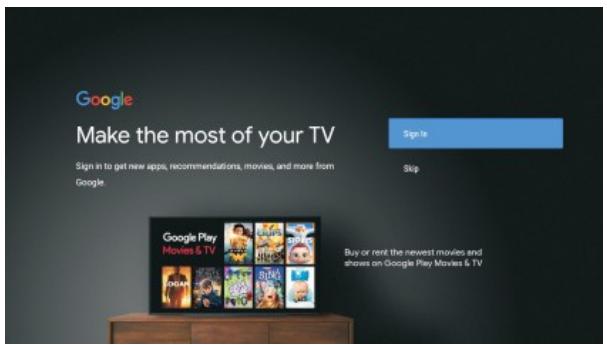

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google Sign In Skip Google Play Movies & TV Buy or rent the newest movies and shows on Google Play Movies & TV

Apps Recently opened apps Live TV 11 minutes ago Google Play Store 14 minutes ago Google Play Movies & TV 19 minutes ago See all apps Permissions App permissions Special app access

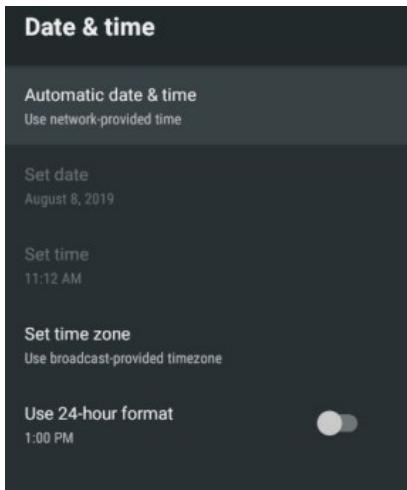

Date & time Automatic date & time Use network-provided time Set date August 8, 2019 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Sound Equalizer Detail Speakers External Audio System Digital Output PDM SPOIF Delay Auto Volume Control Downmix Mode Streco Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

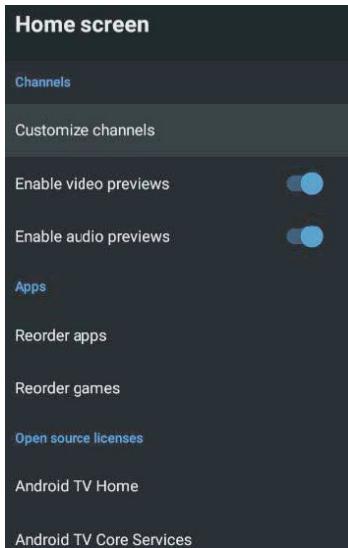

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

MODE VENTE AU DÉTAIL

Retail Mode Retail Mode Off

Google Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.154871

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

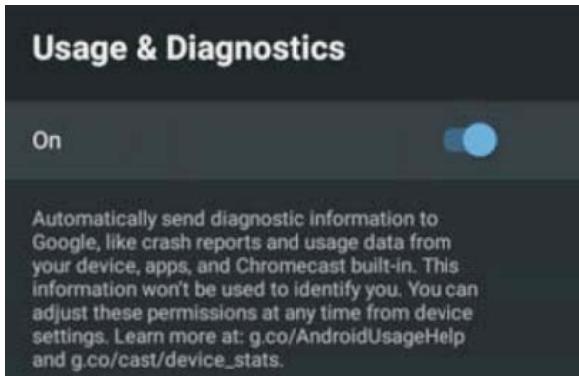

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

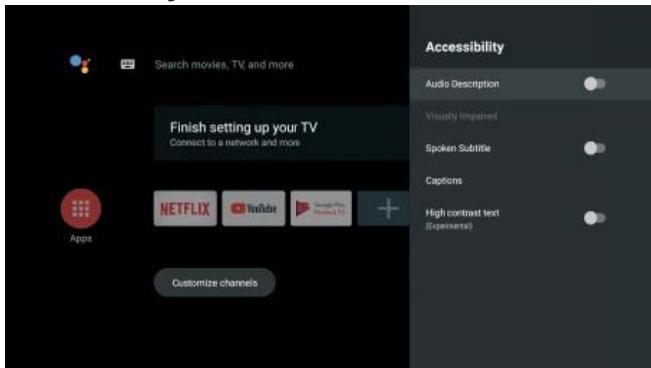

Search movies, TV, and more Finish setting up your TV Connect to a network and more Apps NETFLIX YouTube High contrast text (Experienced) Customize channels Accessibility Audio Description Visually Impaired Spoken Subtile Captions High contrast text (Experienced)

Reset This will erase Alt data from your device's internal storage, including: your Google account, system and app data and settings, and downloaded apps Cancel Reset

TÉLÉCOMMANDE ET ACCESSOIRES

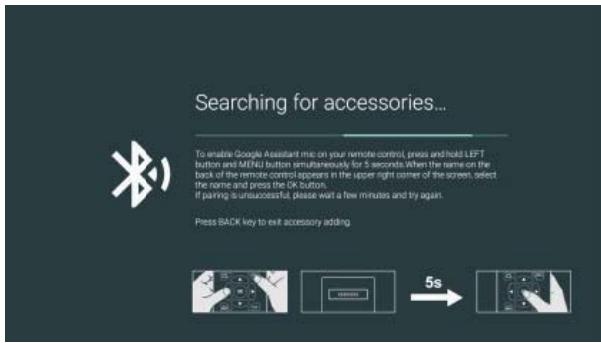

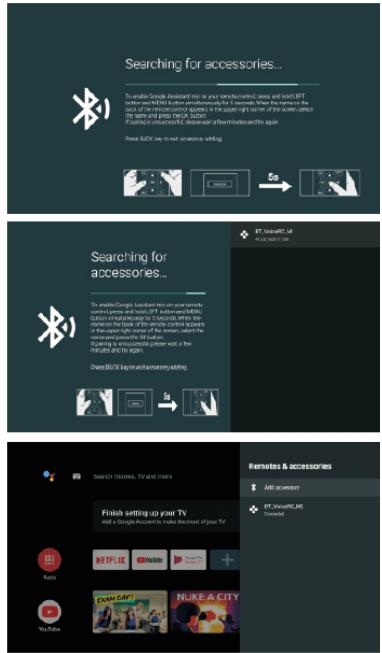

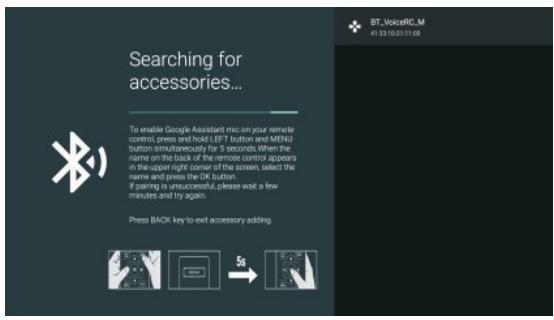

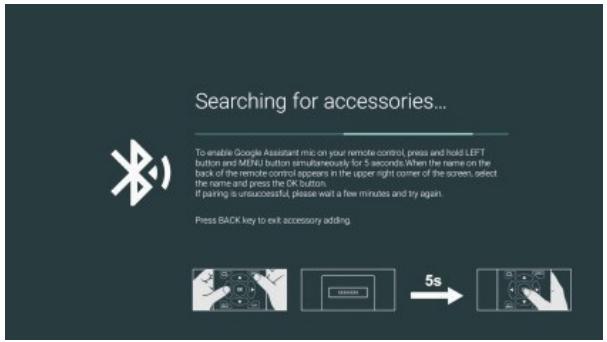

Searching for accessories... To enable Google Assistant mic on your remote control, press and hold LEFT button and MENU button simultaneously for 5 seconds. When the name on the back of the remote control appears in the upper right corner of the screen, select the name and press the OK button. If pairing is unsuccessful, please wait a few minutes and try again. Press BACK key to exit accessory adding. 5s

Searching for accessories... To enable Google Assistant mc on your remote control, press and hold LEFT button and MENU button simultaneously for 5 seconds. When the name on the back of the remote control appears in the upper right corner of the screen, select the name and press the OK button. If pairing is unsuccessful, please wait a few minutes and try again. Press BACK key to exit accessory adding.

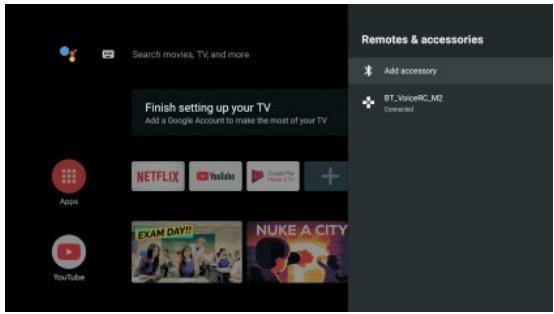

Search movies, TV, and more Finish setting up your TV Add a Google Account to make the most of your TV Apps YouTube NETFLIX YouTube + EXAM DAY!! NUKE A CITY Remotes & accessories Add accessory BT_VoiceRC.M2 Connected

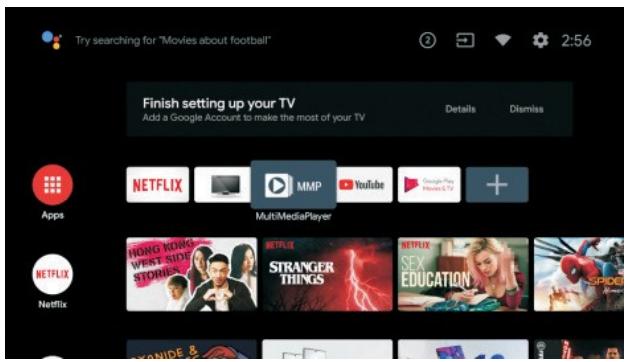

Try searching for "Movies about football" Finish setting up your TV Add a Google Account to make the most of your TV Details Dismiss Apps NETFLIX MultiMediaPlayer NETFLIX HONG KONG WEST SIDE STORIES STRANGER THINGS NETFLIX SEX EDUCATION Netflix

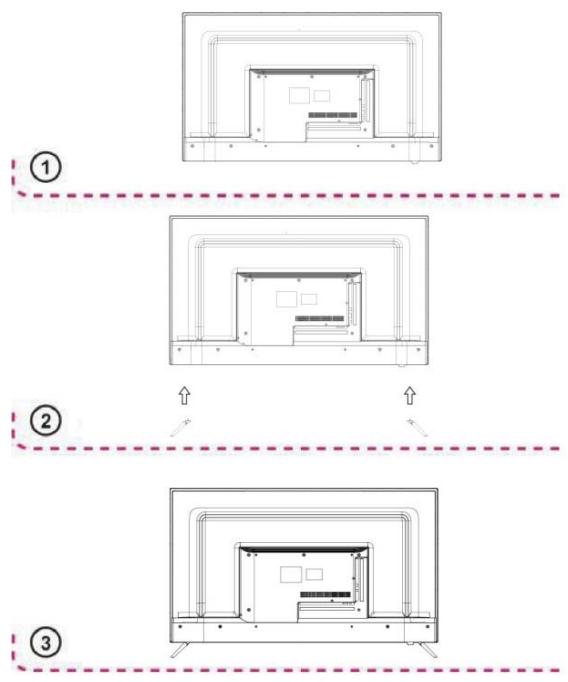

Technical diagram showing three-step layout of a device with labeled components and directional arrows indicating assembly or positioning.

SPÉCIFICATIONS

EXCLUSIONS DE GARANTIE

EXCLUSIONS DE GARANTIE LIÉES À L'ORIGINE DU DOMMAGE

Imported by Market Maker Brand Licensing – 79/81 Ancienne Route Nationale 7-69570 Dardilly, France

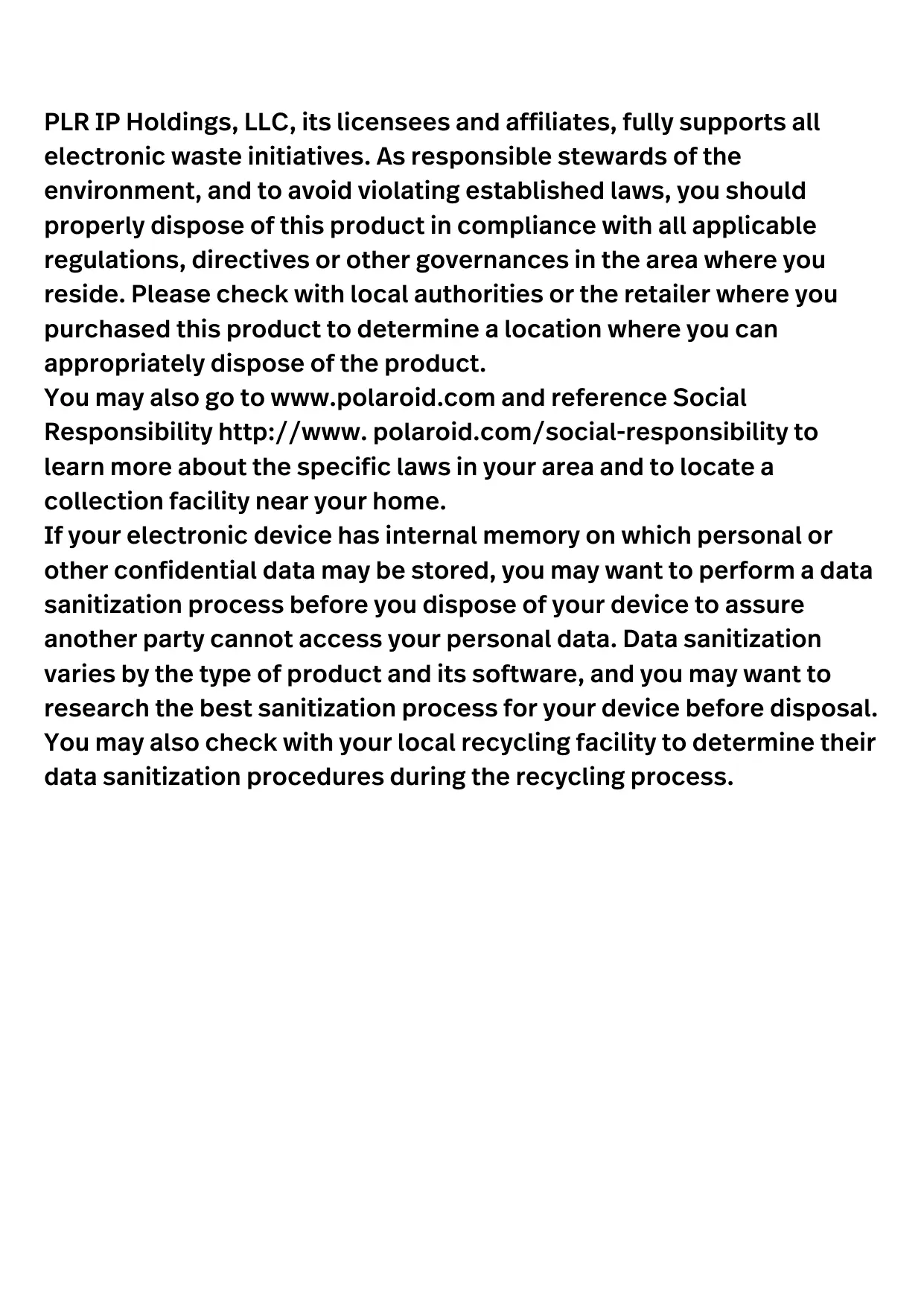

PLR IP Holdings, LLC, its licensees and affiliates, fully supports all electronic waste initiatives. As responsible stewards of the environment, and to avoid violating established laws, you should properly dispose of this product in compliance with all applicable regulations, directives or other governances in the area where you reside. Please check with local authorities or the retailer where you purchased this product to determine a location where you can appropriately dispose of the product.

You may also go to www.polaroid.com and reference Social Responsibility http://www.polaroid.com/social-responsibility to learn more about the specific laws in your area and to locate a collection facility near your home.

If your electronic device has internal memory on which personal or other confidential data may be stored, you may want to perform a data sanitization process before you dispose of your device to assure another party cannot access your personal data. Data sanitization varies by the type of product and its software, and you may want to research the best sanitization process for your device before disposal. You may also check with your local recycling facility to determine their data sanitization procedures during the recycling process.

IMPORTANT INSTRUCTIONS

SAFETY PRECAUTIONS

	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
The warning sign showing a lightning bolt in a triangle indicates that this product contains "dangerous electrical voltages".	CAUTION: TO AVOID THE RISK OF ELECTROCUTION, DO NOT REMOVE THE COVER (OR THE BACK OF THE DEVICE). NO PARTS ARE REPLACEABLE BY THE USER. PLEASE CONTACT QUALIFIED PERSONNEL IN CASE OF FAILURE.	The warning sign showing an exclamation point in a triangle indicates that this point of the manual requires special attention.

CAUTION: - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY:

Read these safety instructions before using your device and store them for possible future reference.

• This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate.
• The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.
• To disconnect the device from the mains, the plug must be disconnected. Hold the mains cable by its plug. Do not pull on the mains cable to disconnect the plug.
• The mains cables must be routed so that they are not trampled upon or pinched by objects placed on or against them.
• If the mains cable of the device is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger.
  ● The device must not be exposed to dripping or splashing water, moisture or liquids.
• Do not place the device near water, for example in a bathroom or near a sink.
  ● No objects filled with liquids such as vases should be placed on or above the device.
  ● Never touch the mains cable with wet hands, this could cause a short circuit or electric shock.
• To avoid the risk of fire, do not place sources of open flames, such as lighted candles, or heat sources such as radiators, on or near the device.
  ● The device is intended for use only in a temperate climate.

• If smoke, an unusual odour or strange noise is emitted by the device: unplug the mains cable from the electrical outlet and consult the after-sales service or repair centre. Never attempt to make repairs yourself, this could be potentially dangerous.

• Do not attempt to open or disassemble the device. This would expose you to dangerous voltages.

• The slots and openings of the device are intended for ventilation and to ensure its operation. To prevent overheating, these openings must not be obstructed or covered in any way, such as by newspapers, tablecloths or curtains.
  ● Always leave a minimum distance of 10 cm around the device for sufficient ventilation.
• Never push any object to the device through one of its openings, as it may come into contact with electrical components, which can cause an electric shock or fire.
• In case of thunderstorm or lightning, immediately unplug the mains cable from the electrical outlet when the device will not be used for a long period of time.
• Unplug the device from the electrical outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry, soft cloth for cleaning.
• If the product does not bear the logo, it's a Class I device. It must then be connected to a mains socket with a protective earth connection.

CAUTION -:TO AVOID RISK OF INJURY OR DAMAGE TO THE PRODUCT OR OTHER EQUIPMENT:

• This product is intended for household and personal use only. Do not use this product for commercial, industrial or other purpose.
• Do not subject the product to strong shocks, extreme temperatures or direct sunlight for prolonged periods.
• Keep the product away from magnetic objects, motors and transformers.
• Do not use the product outdoors, regardless of weather conditions.
• Install the device only on a stand (forniture, wall...) that can support it's weight safely.
• WARNING: never place a TV on an unstable location. This can fall, causing injuries or even the death of a person. Many injuries, especially in the case of children, can be avoided by taking simple precautions such as:
• The use of furniture or stands recommended by the TV manufacturer.
• The exclusive use of furniture that can support the weight of the TV safely.
• Make sure that the device does not protrude from the deg of the furniture on which it is placed.
• Never place the device on a tall piece of furniture (e.g. cabinets or bookcases) without attaching both the furniture and the device to a suitable stand.
• Do not place the device on a trolley or on a stand that is not stable. Do not install the device on any fabric or other materials placed between its base and the supporting furniture. The device could fall and be damaged or seriously injure a person.
• Do not use or with the TV while driving. This is dangerous and illegal in some countries.
• Explain to children the dangers they face when climbing on the furniture to reach the device or its controls.
• If you keep this device and change the location, you should apply the same considerations.

- CAUTION: to avoid accidents, this device must be securely attached to the floor or wall according to the installation instructions.

CAUTION: TO AVOID EYE HAZARDS:

- It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain.

USE AND HANDLING OF BATTERIES

• CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
• Replace the batteries only with batteries of the same type or equivalent type.
• Batteries must not be exposed to excessive heat such as that from the sun, fire or similar origin.
  ● Never throw batteries into fire and never expose them to heat sources.
• Do not mix different types of batteries, or new and used batteries.
• The batteries must be inserted according to the polarities indicated on the battery and in the battery case of the remote control.
  ● Used batteries must be removed from the remote control.
• The batteries must be disposed of safely at the assigned specific collection points to preserve the environment. Follow the disposal instructions indicated on the batteries and at the collection points.
• Keep batteries out of the reach of children and animals. Only adults are capable of handling the batteries.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user manual.

ACCESSORIES

User Manual....1

Remote Control....1

Stand 2

All the pictures in this manual are just for your reference, appearance and display should subject to the final product.

TABLE OF CONTENTS

GETTING STARTED

IMPORTANT INSTRUCTIONS....1-3

ACCESSORIES....3

FEATURES....5

GENERAL PARTS....6-7

REMOTE CONTROL....8-9

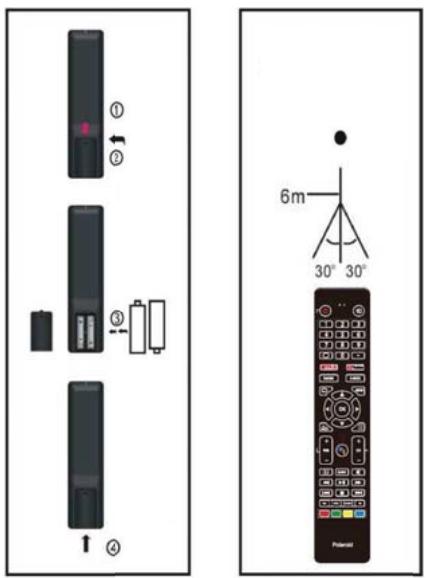

REMOTE CONTROL PREPARATION....10

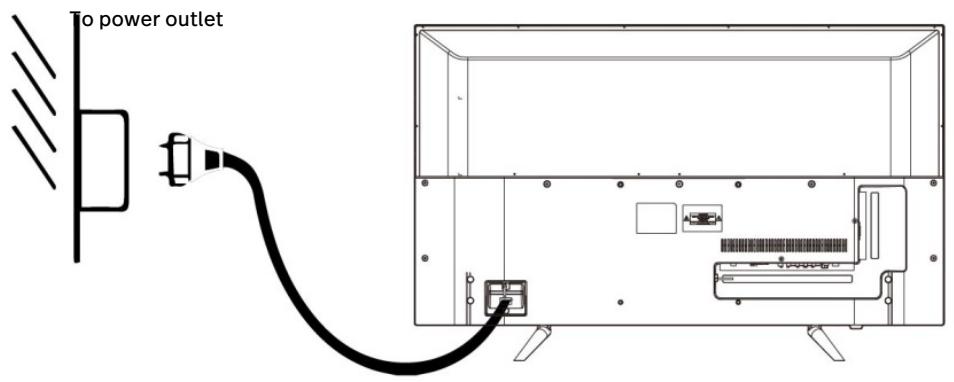

BASIC CONNECTION....11-13

OPERATIONS

BASIC

OPERATIONS....14-33

FOR REFERENCE

MAINTENANCE....34

WALL MOUNTING.... 34

STAND INSTALLATION....35

SPECIFICATIONS....36

TROUBLESHOOTING....39

WARRANTY CONDITIONS....40

FEATURES

50" LED Display

This unit has a built-in LED display window to provide clear vision and low radiation.

Support Auto TV Scanning

Support Digital Broadcasting Reception

Support TV Guide Function

Support TELETEXT (Europe) Function

Support USB Multimedia Playback

Support Multi-languages On Screen Display

Support Full Function Remote Control

Support HDMI, ANT,RJ 45,USB, AV and CI Input

Support EARNPHONE and OPTICAL

With Detachable Stand Holder

With External Antenna Jack

With Built-in Speakers

GENERAL PARTS

MAIN UNIT

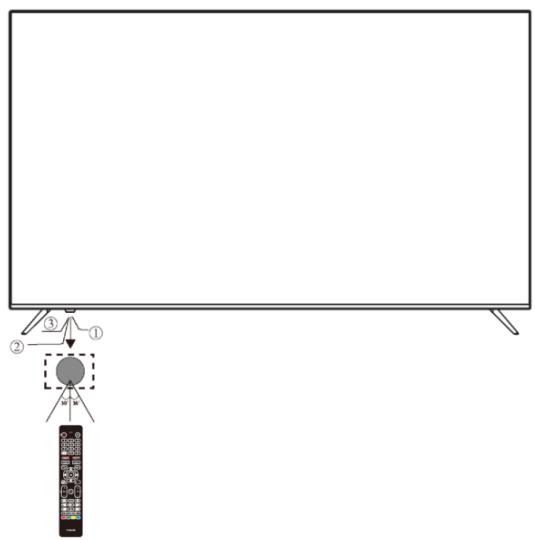

Front View

Diagram showing a monitor with three labeled components: a control panel, a circular icon with 'w' and 'w' labels, and an attached remote.

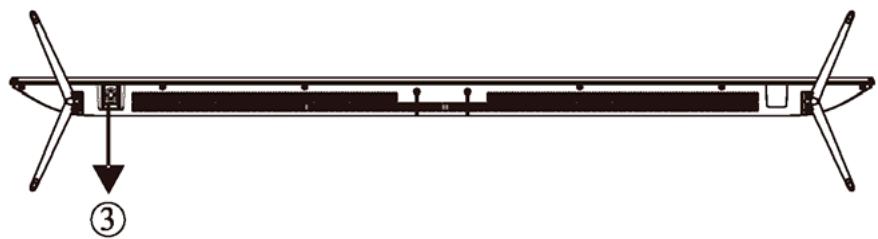

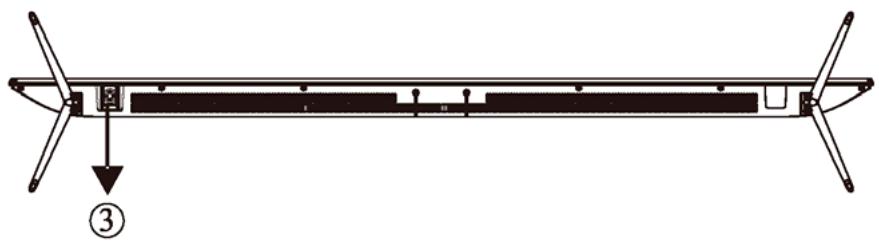

Bottom view

Pure diagram of a horizontal beam with supports and a downward arrow, no text or symbols present

1: Remote control sensor.
2: Indicator-LED: RED ● STANDBY.
3: "=" VOL- and move left
" + " VOL+ and move right
"^" CH- and move down
"♥" CH+ and move up
- short press to confirm enter the menue.
- long press to power off.

GENERAL PARTS

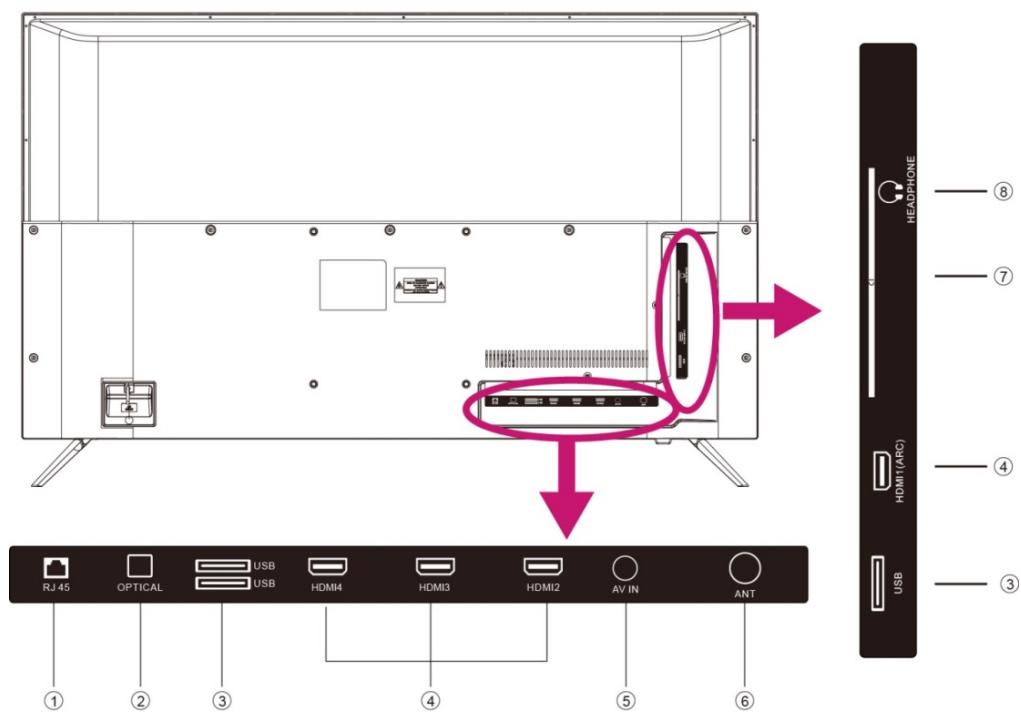

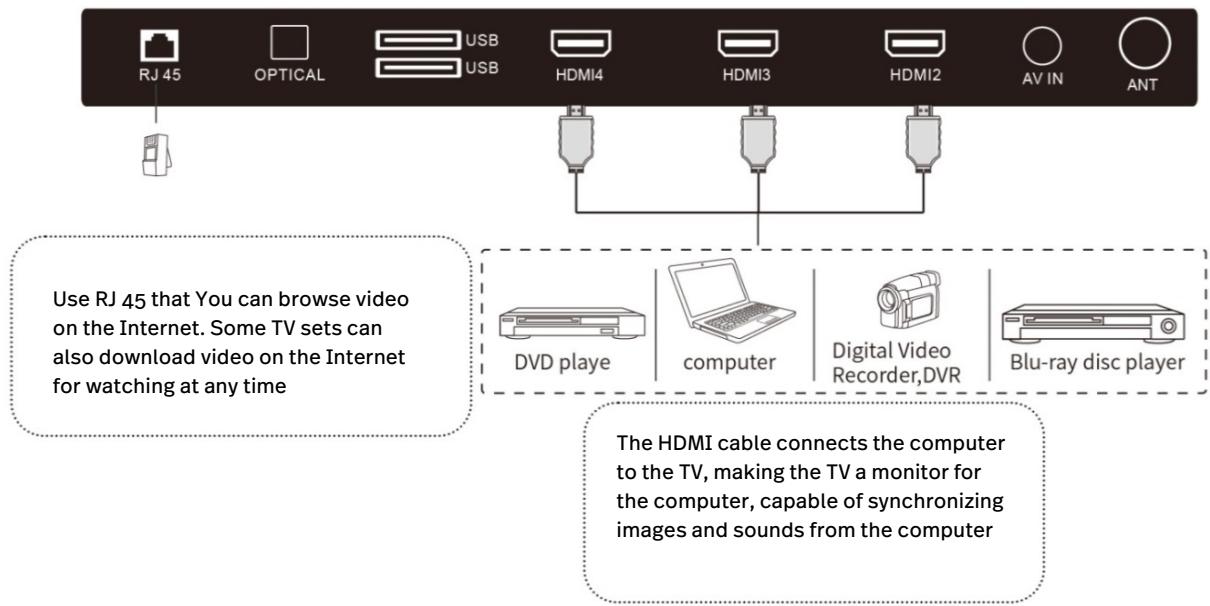

Back View

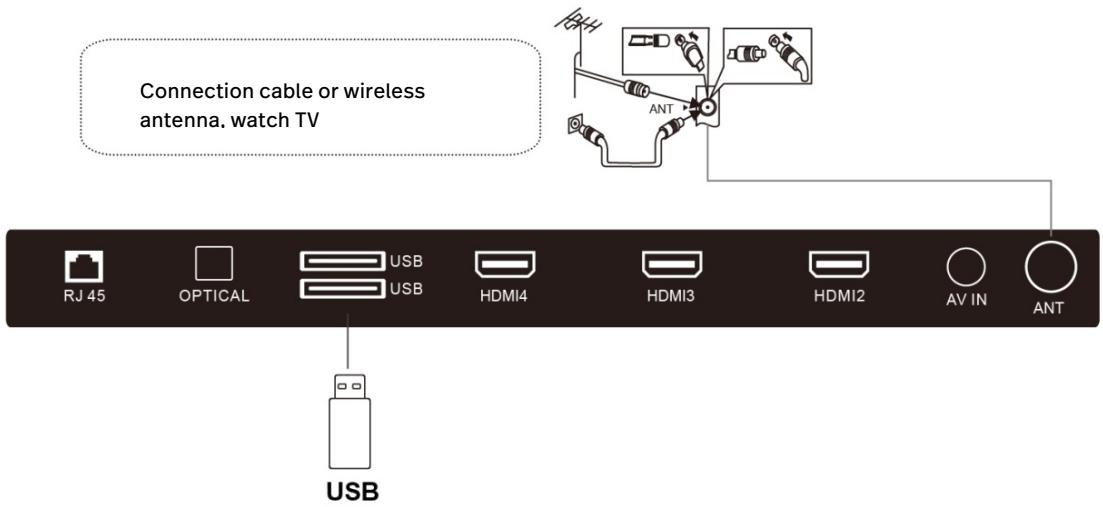

RJ 45 OPTICAL USB USB HDMI4 HDMI3 HDMI2 AV IN ANT ① ② ③ ④ ⑤ ⑥ HEADPHONE ⑧ ⑦ HDMI(ARC) ④ USB ③

1.RJ 45

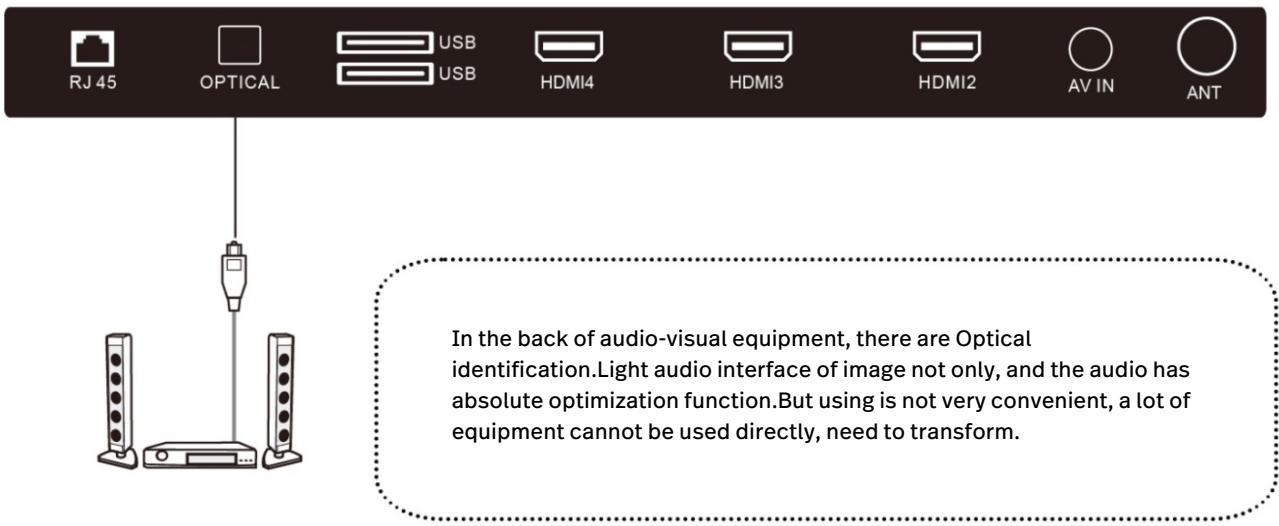

2.OPTICAL
3. USB INPUT
4.HDMI
5.AV IN.
6.ANT
7.CI slot.

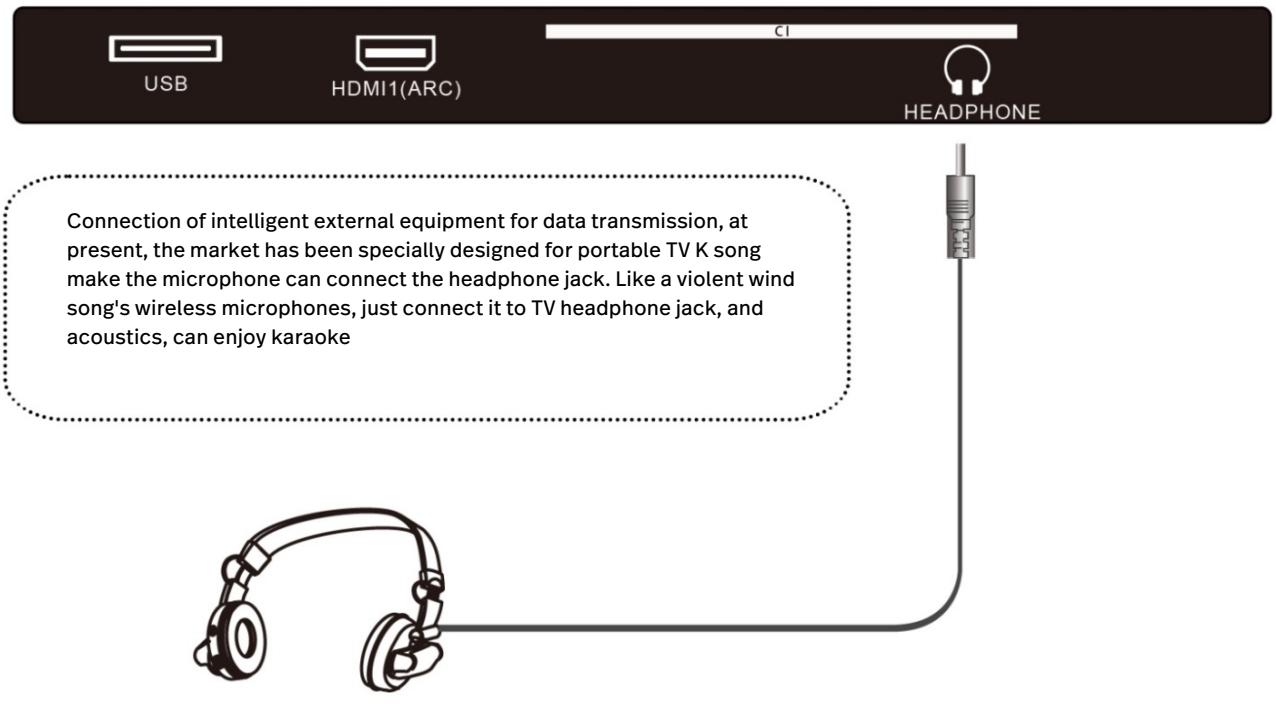

8. Headphone output.

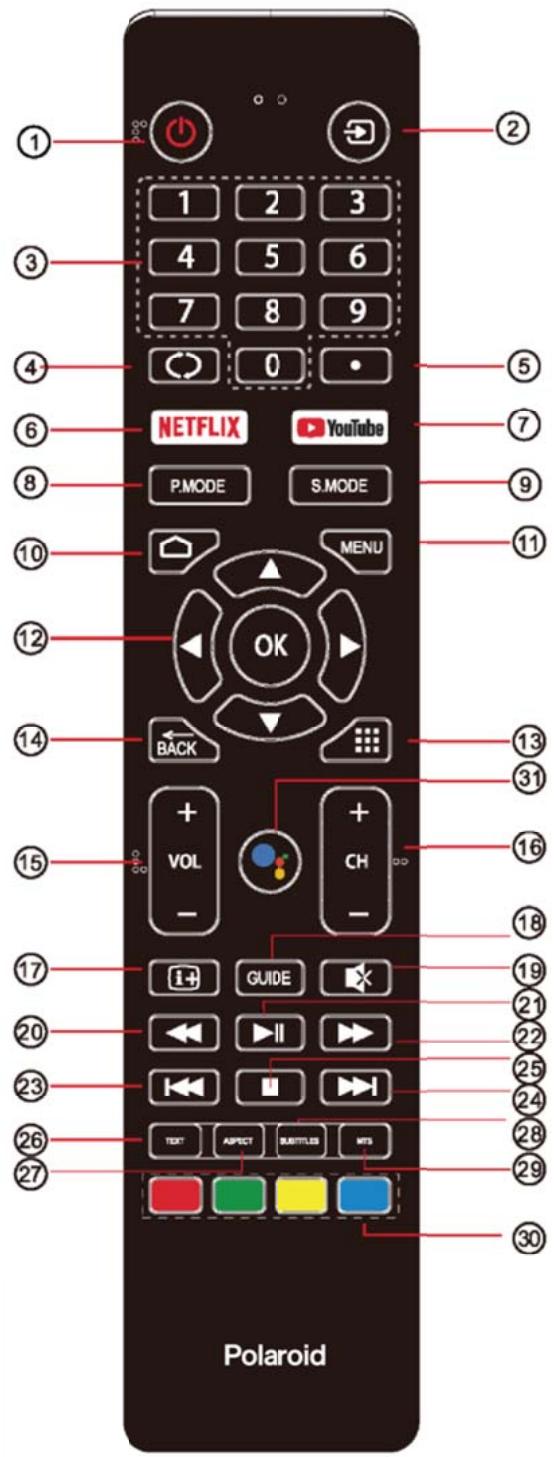

REMOTE CONTROL

1: Power: To set the TV to Standby or Power On modes.

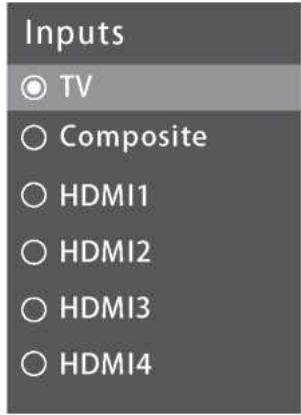

2: ➞: Select among the different input signal sources.
3: NUMBER KEY : For direct access to channels.
4: ↻: Jumps to last channel viewed.
5: ●Input the character "dot".
6: NETFLIX: NETFLIX : Press to open NETFLIX
7: YouTube: press to open YouTube

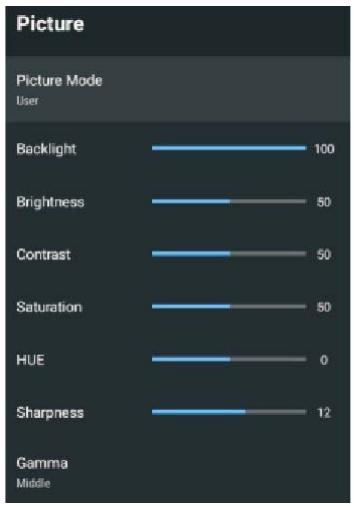

8: P.MODE: Press to switch the picture mode.
9: S.MODE: Press to switch the sound mode.
10: △: press to open the home page.
11: MENU: Press to open or close the on-screen menu.
12: OK: Confirm selection.
13: press to open the app list.
14: BACK: Return to the previous menu.
15: VOL+/-: To adjust the sound level.
16: CH+/CH-: To access the next or previous channel.
17: i+: Press to display the channel information.

REMOTE CONTROL

1 2 3 4 5 6 7 8 9 0 5 6 7 8 NETFLIX YouTube P.MODE S.MODE MENU OK BACK 13 31 15 VOL + CH - - 16 18 17 GUIDE X 20 21 22 23 24 25 26 TEXT ASPECT SUBTITLES MTS 27 28 29 30 Polaroid

18: GUIDE: Press to display electronic programme guide in TV mode.
19: MUTE : To disable or enable the speaker sound output.
20: ← (Reverse) : Reverse playback rapidly.
21: ▶ (Play/Pause): Start playback or Pause playback.
22: ▶▶(Forward): Advance playback rapidly.
23: (Prev) To skip to the beginning of the previous chapter/track/photo.
24: ▶▶▶ (Next): Skip to the beginning of the next chapter/track/photo.
25: ■ (Stop) : Press to stop multimedia playback.
26: TEXT : Press to select the teletext mode.
27: ASPECT : Press to change the picture aspect ratio.
28: SUBTITLES : To turn on subtitles in DTV mode.
29: MTS : Press to select Mono, Nicam, Stereo for ATV channel. Audio language for DTV Channel.
30: Coloured Buttons : Press to Implement the relevant operations according to the prompt at the button of the menu in the text.
31: Google Assistant : Press to open the google assistant or start a voice search.

REMARQUE :

Install the batteries as the following pictures. Be sure + and - terminals are positioned as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

• The batteries normally last for one year although this depends on how often the remote control is used.
• If the remote control fails to work even when it is operated near the player, replace the batteries.
• Use two size AAA dry batteries.

NOTE:

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
• If the remote control is not going to be used for a long time, remove the batteries.

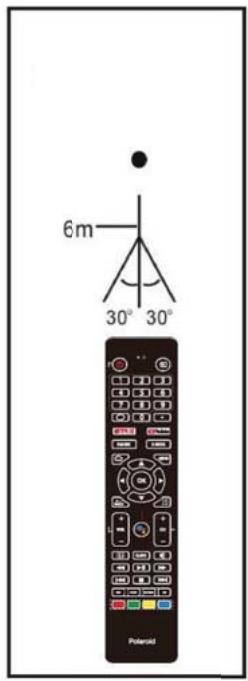

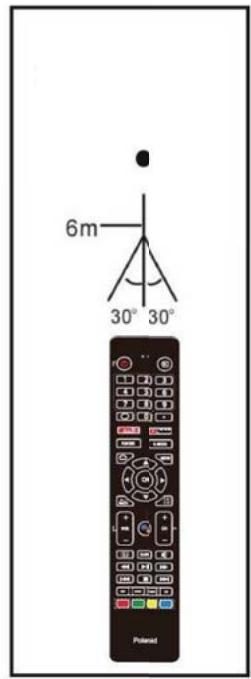

Point the remote control from no more than about 6m from the remote control sensor and within about 60^ of the front of the player (Fig2).

NOTES:

• The operating distance may vary according to the brightness of the room.
• Do not point bright light at remote control sensor.
• Do not place objects between the remote control and the remote control sensor.
• Do not use this remote control while simultaneously operating the remote control of any other equipments.

Diagram showing remote control panel and remote device with labeled components and angular measurement

BASIC CONNECTION

• Ensure all the cables are disconnected from the main unit before connecting to AC power source.
• Read through the instructions before connecting other equipments.

CONNECTING TO AC POWER SOURCE

To power outlet

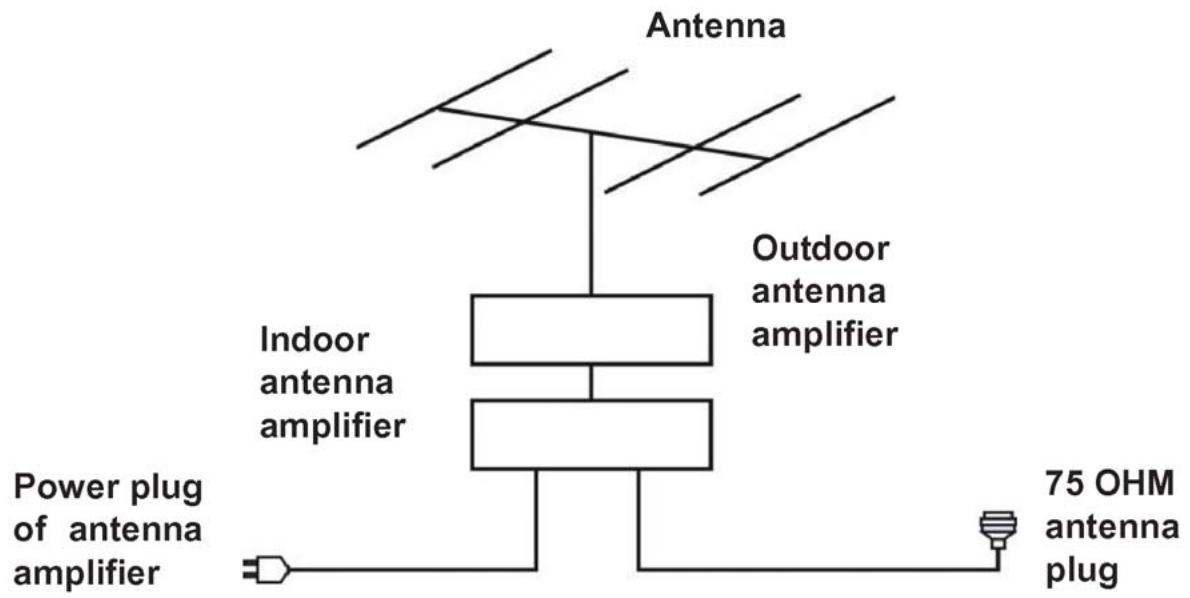

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

Antenna Outdoor antenna amplifier Indoor antenna amplifier Power plug of antenna amplifier 75 OHM antenna plug

HEADPHONE

USB HDMI1(ARC) CI HEADPHONE Connection of intelligent external equipment for data transmission, at present, the market has been specially designed for portable TV K song make the microphone can connect the headphone jack. Like a violent wind song's wireless microphones, just connect it to TV headphone jack, and acoustics, can enjoy karaoke

OPTICAL

RJ 45 OPTICAL USB USB HDMI4 HDMI3 HDMI2 AV IN ANT In the back of audio-visual equipment, there are Optical identification.Light audio interface of image not only, and the audio has absolute optimization function.But using is not very convenient, a lot of equipment cannot be used directly, need to transform.

Use RJ 45 that You can browse video on the Internet. Some TV sets can also download video on the Internet for watching at any time The HDMI cable connects the computer to the TV, making the TV a monitor for the computer, capable of synchronizing images and sounds from the computer

USB and ANT

Connection cable or wireless antenna, watch TV RJ 45 OPTICAL USB USB HDMI4 HDMI3 HDMI2 AV IN ANT USB

USB interface is used to and other USB devices (such as mobile hard disk, U disk, etc.), direct broadcast audio and video files in USB devices. Turn it also has a memory function, such as on a USB interface with the digital camera, another interface to connect mobile hard disk, you can easily move the photos from digital camera to hard disk.

MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS.

BASIC OPERATION

• Press POWER button on the unit or remote control to power ON the unit; press it again to power OFF (standby mode) the unit (indicator will glow red).
• Press SOURCE button on the remote control to switch the unit to Composite or HDMI mode.

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program

VOLUME CONTROL

- Press VOL+ or VOL- to adjust the level of current volume. Available range: 0-100

MUTE CONTROL

- Press MUTE button to mute the sound, press it again to turn on the sound.

SOURCE SETTING

• Press SOURCE button on the remote control to display the sources list.
• Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection.

Available options: TV, Composite, HDMI.

BASIC OPERATION

INITIAL SETUP

The first you turn your TV, the setup wizard will guide you through setting up basic settings. Please according to the text tip to first time setup

Searching for accessories... To enable Google Assistant mini on your remote control press and hold LEFT button and MENU button simultaneously for 3 seconds. When the name on the book of the remote control app appears in the upper light corner of the screen, check the same bit press the OK button. If planning is unsuccessful, please wait a few minutes and try again. Press BACK key to exit accessory adding.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

If you don't need to use the Bluetooth remote control, you can press the BACK button to skip this step.

Welcome English Catalá Čeština Dansk Deutsch Español Espana

Press ▼▲ to select the system language and press OK to confirm the language.

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Connect your Android phone to your TV, select Continue to continue the connection, and choose Skip to skip this step.

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. Hi: 10.0000 Pw: JAC, RGB 79-268, 2,400, 357/50 79-268, 2,400, 357/50 Add My 79-268, 2,400, 357/50 (E) + New email. → Use Email → May

Press ▼▲ to select the WIFI to connect. Press OK and enter the password to confirm the connection is successful.

You can also try use Ethernet and skip select network.

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

By accepting the Google Terms of Service to improve the product experience, select “accept” to accept this condition.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Agree to Google to get the location information of your device to get more features, choose "YES" to accept.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ AndroidUsageHelp and g.co/cast/device.stats.

By agreeing to automatically send diagnostic information to Google to improve discriminative power, choose “YES” to accept.

1. Your device is powered by Android TV and press ▶ button to select the browsing feature.
2. You can get mroe apps from Google Play and press ▶ button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the browsing.

Country Please select your resources Denmark Spain Finland France United Kingdom Italy Luxembourg

Press ▼▲ to select the country of your device and press OK to confirm.

Password Please set password. '0000' is invalid. Input Password

Used to set your device's password to ensure security and privacy.

Input Password New Password

Press OK to pop up the soft keyboard and use the remote control to enter the 4 digit password automatically jump to the next interface.

Confirm Password Confirm Password

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password confirmation.

Select TV mode "Home" mode is optimized for efficient energy usage for home use "Retail" mode is optimized to store demo with fixed settings. Home Retail

For selecting the mode, press ▼ ▲ to select Home mode and press OK to confirm.

Select Home Mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Confirm the selected mode again. Select “YES” to confirm the selected mode and select “No” to return to the previous step.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off. Off On

Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your Tuner mode Antenna Cable

To select the tuner mode for searching. Press ▼ ▲ to select and press OK to confirm

Channel Scan First, please connect antenna. Start channel scan now? If you skip this step, the channel scan could be performed in Menu. Scan Skip Scan

Press ▼▲ to select whether to search. Select “Scan” to search and select “Skip Scan” to skip search.

Setup is completed. Enjoy! FINISH Congratulations! Initial Setup is completed. Please press [OK/OK] to exit the wizard.

Press OK to complete the setup.

Disclaimer Polaroid: Polaroid & Pixel are registered trademarks of PLR IP Holdings, LLC, used under license. This Polaroid TV is produced by Shenzhen MTC CO.,LTD for Market Maker/Brand Licensing.

Press OK button to agree to (Disclaimer). After setting is complete, you can watch TV.

HOME SCREEN

Press the HOME button to go to the home page

Search movies, TV and more Netflix Netflix YouTube YouTube Black Shawshen Strawshen THINGS MANSO SCOTY EDUCATION Challuding SHAWSHEN BLUE

① open the google assistant start a voice search or use keyboard search.
② Among the applications installed on the TV, the icons for the favourite applications are shown inside here.(Favourite applications can be added/deleted/ changed its order by users.)

Apps: Click to jump to Apps screen where all the installed applications are listed.

Notificaties: Display the notifications

Inputs: Icon to select an input source.
Netwerk & Internet: Icon to Setup Network, Such as wifi.
Settings: Various settings can be configured here.

For details on the settings, see the next explanation.

INPUT SOURCE

1. In the HOME interface, press ▼▲◀▶ to select the "Inputs" icon, press OK to open the input source list, then press up to highlight an input and press OK to switch.

2 Inputs Details Dism Inputs Channels HDMI 1 HDMI 2 HDMI 3 Composite

1. Under Live TV, press the "SOURCE" button to display the list of input sources. you can select the desired source.

1. There are two says to enter. First, in Live TV, press the menu button to display TV options. Press ▼ ▲ ◀ ▶ select the settings menu and press OK to confirm. Second, in the HOME interface, press the ▶ key to select the icon of the circular settings menu, press OK to confirm.

Channels TV options Speaker Power Video Gigil Menshop Advanced system Settings Selected 11:42 Settings Details Dimensions

1. Press ▼ ▲ button to select what you want set.
2. Press OK to enter setting.

Settings Quick Settings Take bug report General Settings Network & internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Press BACK to return to the previous menu if the main menu is displayed, pressing BACK will close the on-screen menu.

Netwerk & Internet

1. Press ▼ ▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press OK button to save and return to the previous menu.

Network & Internet Wi-Fi Available networks 3686 ChinaNet-Wepx iServer-CTS See all Other options Add new network Scanning always available Let Google's location service and other apps scan for networks, even when Wi-Fi is off

Network & Internet ADD NEW NETWORK Scanning always available Let Google's location service and other apps scan for networks, even when Wi-Fi is off Wow wake on wireless network Wol wake on LAN Ethernet Not connected Proxy settings IP settings

CHANNEL

Channel Channels Channel Installation Mode Antenna Auto Channel Update Parental Controls Audio Channel Open Source Licenses Version 2.28.5 build 18321512

Channels: Display the scan sub menu based on different Channel installation modes.

Channel installation mode: :Select on screen display channel sources, you can select the signal

type. Antenna: Set the signal type to antenna. When set to Antenna, the TV can receive analog and digital (DVB-T/DVB-T2) broadcasting signals.

Cable: :Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting signals.

Auto Channel Update

Parental controls: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Audio Channel: press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Open source licenses: press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Antenna

Channel Installation Mode Antenna Cable Channel Channels Channel Installation Mode Antenna Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licenses Version 2.28.5 build 18321512

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan LCN Default Channel Scan Type All Channel Store Type All Favorite Network Select

1. Menu->Settings->Channel->Channel Installation Mode enter, choose Antenna or cable.
2. Enter Menu-> Settings -> Channel -> Channels.

Status: Scanning Antenna Analog Channels:0 Digital Channels:0 3% Exit

1. Channel Scan directly enters the ATV+DTV automatic search platform interface of Antenna.

Update scan: Re-automatically search for frequency points outside the station.

Search for Analog Channels Start Frequency (MHz) 47.00 Scan Up Scan Down

Analog Manual Scan: Manual ATV search station. After input the frequency point, you can select up or down search station..

Scan Single RF Channel. (Digital Only) Antenna Digital Channels: 0% RF Channel 5 <> Signal Level 0% Signal Quality 0%

Single RF-scan: DTV manual search, left and right after selecting RF Channel, directly OK search.

Cable

Channel Installation Mode Antenna Cable Channel Scan Luminated Cable Others

1. Menu->Settings->Channel->Channel Installation Mode, select cable
2. Enter Menu-> Settings -> Channel -> Channels.

Scan all channels. 0% Scan all lanes 40+ lanes Channel Scan Type Only Digital Channels <> Frequency (KHz) - Network ID - Scan >

1. Enter Channel Scan, where Numericable are the local operators, and the default Scan Mode is Advance; Others have Advance, Quick and Full Scan modes.

Scan all channels. 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHz) 306000 Network ID 999 Scan >>

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 306000 Scan Signal Level 0% Signal Quality 0%

Single RF-scan: manual search station.

ACCOUNTS & SIGN IN

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google Skip Google Play Movies & TV Buy or rent the newest movies and shows on Google Play Movies & TV

Press UP/DOWN button to select Sign in or Skip

APPS

Apps Recently opened apps Live TV 11 minutes ago Google Play Store 14 minutes ago Google Play Movies & TV 10 minutes ago See all apps Permissions App permissions Special app access

In this menu, you can set the APP permissions, and read the app lists.

1. Press ▼ ▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press BACK button to return to the previous menu.

DEVICE PREFERENCES

About

About System update Device name hasieATV Restart Status Network, serial numbers and other information Legal information Model hasieATV Version 9 Software version

In this menu, you can read the information and settings of TV.

1. Press ▼ ▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press BACK button to return to the previous menu.

Date & time

Date & time Automatic date & time Use network-provided time Set date August 8, 2019 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Automatic date&time-Press▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional:Use network-provided time,Off)

Set date: press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Set time: press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Set time zone: press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Use 24-hour format: press ▼ ▲ button to select the option then press OK button to choose ON/OFF.

TIMER:

Timer Power On Timer Type Off Power On Timer 00:00 Power Off Timer Type Off Power Off Timer 00:00

Power On Timer Type: Press ▼ ▲ button to select the option then press OK button to choose ON/OFF/ONCE.

Power On Timer: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Power Off Timer Type: Press ▼ ▲ button to select the option then press OK button to choose ON/OFF/ONCE.

Power Off Timer: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. LANGUAGE:

Language Català Čeština Dansk Deutsch English Español Français Hrvatski Indonesia

Language: Press ▼ ▲ button to select the option then press OK button to enter the select language.

KEYBOARD

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Current keyboard: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Gboard Settings: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Mange Keyboards: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

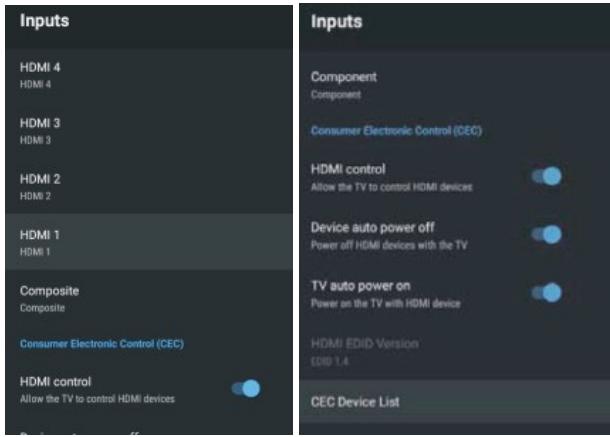

INPUT

Inputs HDMI 4 HDMI 4 HDMI 3 HDMI 3 HDMI 2 HDMI 2 HDMI 1 HDMI 1 Composite Composite Consumer Electronic Control (CEC) HDMI control Allow the TV to control HDMI devices Inputs Component Component Consumer Electronic Control (CEC) HDMI control Allow the TV to control HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI EDID Version EDID 1.4 CEC Device List

Input: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

HDMI Control: Press ▼ ▲ button to select the option then press OK button to select ON/OFF.

Device auto power off :Press ▼ ▲ button to select the option then press OK button to choose ON/OFF.

TV auto power on: Press ▼ ▲ button to select the option then press OK button to select ON/OFF.

HDMI EDID-version: show EDID version

CEC Device List: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Power

Power Sleep Timer Off Picture off Switch off timer Off No Signal Auto Power Off 15 Minutes

Sleep Timer: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

(Optional: off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes).

Picture off: Press ▼ ▲ button to select the option then press OK button to turn off the TV.

Switch off Timer: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

(Optional: off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, 210 minutes, 240 minutes).

No signal Auto Power Off: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

(Optional: off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes).

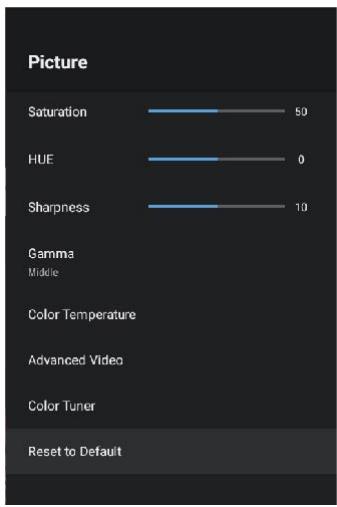

Picture Mode: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

(Optional: user, Standard, Vivid, Sport, Movie, Game, Energy, saving).

Backlight/Brightness/Contrast/Saturation/HUE/Sharpness: Press ▼ ▲ button to select the option. press ◀ to decrease the parameter. Press ▶ increase the parameter

Gamma: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

(Optional: Dark, middle, Bright).

Color Temperature: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Advanced Video: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Reset to Default: :Reset all settings to the factory defaults.

SOUND

Sound Sound Style Standard Balance 0 Sound Surrounded 0 Equalizer Detail Speakers External Audio Squeeze Digital Output PDM SPDIF Delay 0 Auto Volume Control

Sound Equalizer Detail Speakers External Audio System Digital Output PCM SPOIF Delay 0 Auto Volume Control Downmix Mode Stereo Reset to Default

Sound Style: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional: user, Standard, Vivid, Sport, Movie, Music, News).

Balance: press ◀ to decrease the parameter. Press ▶ increase the parameter

Sound Surround: Press ▼ ▲ button to select the option then press OK button to select ON/OFF. Equalizer Detail: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Speakers: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional: TV Speaker, External Audio System).

Digital Output: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional: Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital).

SPDIF Delay: Press ▼ ▲ button to select the option. press ◀ to decrease the parameter. Press ▶ increase the parameter

Auto Volume Control: Press ▼ ▲ button to select the option then press OK button to select ON/OFF. Downmix-modes: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu (

Optional: Stereo, Surround)

Reset to Default: Reset all settings to the factory defaults.

storage

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Internal shared storage: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Removeable Storage: Press ▼ ▲ button to select the option then press OK button to enter the submenu.(Note:Show external devices if available)

HOME SCREEN

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

In this menu, you can set channels, apps, open source licenses.

1. Press ▼ ▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

Retail Mode

Retail Mode Retail Mode Off

Retail-mode: Press ▼ ▲ button to select the option then press OK button to select ON/OFF.

GOOGLE

Google Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

In this menu, you can set searchable apps, safe search filter, block offensive words, open source licenses.

1. Press ▼ ▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

CHROMECASE BUILT-IN

Chromecast built-in

About

Open source licenses

Version number

1.36.154871

In this menu, you can read the information and settings of Chromecast.

1. Press ▼ ▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

SCREEN SAVER

Screen saver

Screen saver

Backdrop

When to start

After 5 minutes of inactivity

Put device to sleep

After 30 minutes of inactivity

Start now

Screen saver: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional: Tum screen off, Backdrop, Colors).

When to Start: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional: 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours).

Put device to sleep: Press ▼ ▲ button to select the option then press OK button to enter the submenu. (Optional:30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, Never).

Start Now: Press ▼ ▲ button to select the option then press OK button to enter screen saver.

LOCATION

Location

Location status

Use Wi-Fi to estimate location

Recent location requests

No apps have requested location recently

Location status: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu. (Optional: Use Wi-Fi to estimate location, off)

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Usage & diagnostics: Press ▼ ▲ button to select the option then press OK button to choose ON/OFF.

Accessibility

Search movies, TV, and more Finish setting up your TV Connect to a network and more Apps NETFLIX YouTube High contrast text (Experiences) Customize channels Accessibility Audio Description Vividually Impaired Spoken Subtitle Captions High contrast text (Experiences)

Audio Description: Press ▼ ▲ button to select the option then press OK button to choose ON/OFF..

Visually Impaired: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.

Spoken Subtitle: Press ▼ ▲ button to select the option then press OK button to choose ON/OFF.

Captions: Press ▼ ▲ button to select the option then press OK button to enter the sub-menu.Tekst met hoog

High contrast text: Press ▼ ▲ button to select the option then press OK button to choose ON/OFF.. RESET

Press OK button to enter the sub-menu

Reset-Erase everything.

Reset This will erase all data from your device's internal storage, including: your Google account, system and app data and settings, and downloaded apps Cancel Reset

REMOTE & ACCESSOIRES

Searching for accessories... To enable Google Assistant mix on your remote control, press and hold LEFT button and MENU button simultaneously for 5 seconds. When the name on the back of the remote control appears in the upper right corner of the screen, select the route and press the OK button. If pairing it unsuccessful, please wait a few minutes and by again. Press BACK key to exit accessory adding 5s

Searching for accessories... To enable Google Assistant msc on your remote control, press and hold LEFT button and MENU button simultaneously for 3 seconds. When the name on the back of the remote control appears in the upper right corner of the screen, select the name and press the UK button. If pairing it unsuccessful please wait a few minutes and try again. Press BACK key to exit accessory adding.

Search movies, TV, and more Finish setting up your TV Add a Google Account to make the most of your TV Apps YouTube NETFLIX YouTube + EXAM DAY!! NUKE A CITY Remotes & accessories Add accessory BT_VoiceRC_M2 Connected

In this menu, you can pair Bluetooth devices.

1. Press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't pair appears, the connection fails. Wait for 30 seconds and then press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds to repeat the previous steps.
5. Press BACK button return to the previous menu.

MULTIMEDIA PLAYER

Try searching for "Movies about football" Finish setting up your TV Add a Google Account to make the most of your TV Details Dismiss Apps NETFLIX MuniMediaPlayer NETFLIX STRAWER THINGS NETFLIX SEX EDUCATION Netflix Netflix

In the HOME interface, select the MMP APP to display Video, Photo, Audio, Text. After inserting the USB flash drive, you can view the corresponding files in the USB flash drive.

Playback Video Photo Audio Text

NOTE:

The menu may be different depending on when you purchased the TV.

MAINTENANCE

• Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player.
• Wipe the player with a dry, soft cloth.
• If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth. ● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.
• Do never insert any object nor liquid into ventilation areas. It may damage the product, create short-circuit or electric shock danger

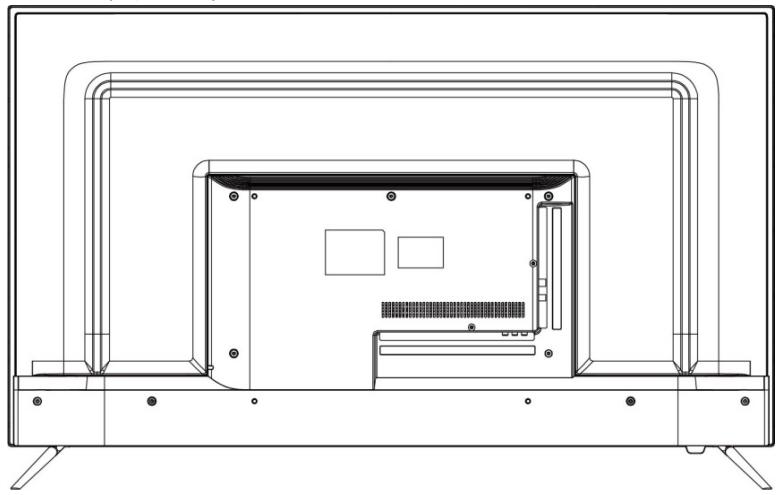

WALL MOUNTING

• Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
• Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.
• Use standard M4*5mm screws (4 pieces) to mount this TV.

Technical line drawing of a flat-screen TV unit with internal components and mounting feet (no text or symbols)

STAND INSTALLATION

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below.

Step 1

Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

Step 2

Align the Stand with TV bottom and then force the end of stand until the TV is fully seated on the stand.

Step 3

Tighten the included screws with a screw driver.

NOTES:

1) Unplug the power plug first when installing or removing the TV Stand.
2) To avoid any damage to this TV, contact one or more partner for assistance when installing or removing the TV stand

SPECIFICATIES

REFERENTIE	TVSAND50UHDPR01.133
MODEL N°	TVSAND50UHDPR01
Model title	LED screen 50 inches
Resolution	3840x2160 pixels
Color number	1.07billion
Contrast	5000:1
Ratio	16:9
Lifetime	30000 uur
Tuner	DVB-T, DVB-C, DVB-T2
TV rated voltage	100-240V-50/60HZ 1.5A
Consumption	120W
Dimensions	1121x231x707.8mm
Weight	(ca.) 9.1 kg
Base	2 pieces, removable
Operating temperature	5-35°C
Remote control rated voltage	DC1.5Vx2(Battery is not included)
Loudspeakers	2x10W
Inputs	HDMIx4, RF, CI, USBx3, RJ45,AV IN
Outputs	HOOFDTELEFOONx1, OPTISCH
Functions via USB	Y
Compatible multimediaformats via USB	Film: FLV, MKV, MPEG, MOV, AVI, H.264
	Music: MP3, WAV, M4A, AMR
	Photos: JPG, BMP, PNG, JPEG
	Text: TXT
VGA supported formats	N
Frequency range	BT: 2402MHz-2480MHzwifi: 2400MHz-2483.5MHz/5150MHz-5350MHz/5470MHz-5825MHz
Max RF power output	100mW

4K

UHD

Specification are subject to change without notice.

ACCESSORIES:

Stand 2 pieces

Remote control.... 1

User manual 1

All the pictures in this manual are just for your reference, appearance and display should subject to the final product.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Spec sheet about energy
Brand	Polaroid
Reference	TVSAND50UHDPR01
Energy efficiency grade	A
Screen size	125.6 cm; 49.4 inch
Eletrical consumption in on mode (W)	91W
Annual electric consumption for 4 hours/day, 365 days/year	133kWh/jaar
Eletrical consumption in sleep mode (W)	<0,5W
Eletrical consumption in off mode (W)	N/A
Screen resolution (pixels)	3840x2160

Specifications are subject to change without notice

4K

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI.

ENERG

енергия • ενεργεια

Polaroid

TVSAND50UHDPR01

A+++

A++

A+

A

B

C

D

A

ENERGIA • ЕНЕРГИЯ ENEРГЕИА • ENERGIJA ENERGY • ENERGIE ENERGI

91 Vatt

133

kWh/annum

125.6 cm

49.4 inch

2010/1062-2020

GENERAL TROUBLESHOOTING

Check the following points before assuming malfunctions of this unit:

Symptom[COMMON]	Remedy
No power.	Insert the power plug securely into the power outlet
No picture.	Ensure that the equipment is connected properly
● No sound.● Distorted sound	● Ensure that the equipment is connected properly.● Ensure that the input setting for the TV and stereo system are correct.● Adjust the master volume to a suitable volume by pressing VOL+/VOL- button.
No operations can be performed with the remote control unit.	● Check the batteries are installed with the correct polarities.● The batteries are exhausted: replace them with new ones.● Point remote control at the remote control sensor and operate it again.● Operate the remote control unit at a distance of no more than 6m from the remote control sensor.● Remove the obstacles between the remote control and remote control sensor.
No key operation (by the main unit and/or the remote control unit) is effective	Disconnect the power plug and then reconnect it. (The player may not be operating properly due to lightning, static electricity or some other factors.)
Symptom[TV]	Remedy
No or poor picture.	● Adjust antenna or use an external antenna.● Relocate the unit near a window (if inside a building).● Move units away from this product that causes interference.● Do Auto Tuning again.● Try another channel.
No sound or poor sound.	● Check the audio settings● Press MUTE button on remote control to cancel mute function.● Unplug the headphone.
Noise or other interface.	Electronic equipment near the unit is causing interface. Relocate the unit or move the equipment.

Warranty conditions

OPERATING MANAGEMENT:

Your product is guaranteed 2 years.

To request support, contact the customer service at 0 900 778 899.

You will then be asked the defective part and the original invoice stating the product regulation. We may ask you for photos of your appliance.

FAILURE TO PACKING:

If it appeared, after unpacking the product or device, a vice preventing the use of the product in its expected configuration, contact the customer service within 72 hours worked.

DISCLAIMER OF WARRANTY

DISCLAIMER OF WARRANTY RELATED TO THE ORIGIN OF DAMAGES

The guarantee does not apply in case of accidental physical damage, it does not cover such damage and failures that resulted:

• improper installation (of a bad installation) or a misuse or poor maintenance of the product.
• improper use of the material or not complying with the instructions in the user manual. ● lightning, flood, fire, power surge, shock, poor ventilation, a fall, discoloration due to the action of light, burning, humidity, excessive heating without humidifier, or irregular ground or insects.
• repairs made and / or working on the hardware and / or opening of it by an unauthorized person by the manufacturer.
• maintenance, repair or replacement of parts due to normal usury or failure to maintain.
• modification of the construction and original features of the guaranteed product.
• corrosion, oxidation, a bad connection nor an external power supply problem.

EXCLUSION OF WARRANTIES RELATING TO THE NATURE OF DAMAGES (INDIRECTS DAMAGES)

The guarantee covers only the right to repair or replace the guaranteed product. Consequently, the indirect damage resulting from the failure or damage not covered by warranty, including:

• Commissioning costs, adjusting, cleaning;
• Damage of any kind resulting from the unavailability of the product guaranteed during the period between deterioration and failure and repair or the replacement of the product guaranteed.

OTHER EXCLUSIONS

• Damage and faults under specific exclusions in the warranty manufacture guaranteed product, as mentioned in the product instructions for use;
  ● The aesthetic damage;
• The products guarantee that the customer is not able to return or those who returned without their accessories.

PIXEL POLICY

- In accordance with the ISO 13406-2 norm, a product is considered defective when the number of dead or lit pixels is over 3.

SUPPORT

Please refer you to the board below to find easily your after sales number:

LAND		TELEFOONNUMMER	E-MAIL	WEB
FR (alleen voor grootstedelijk Frankrijk)		([phone]	[e-mail]	www.mms-support.net
BEL NL		+352.26.11.00.90	[e-mail]
DE		[phone]	[e-mail]
IT		199 309 314	[e-mail]
ES		[phone]	[e-mail]
PT		([phone]	[e-mail]
CH		0900 77 88 99	[e-mail]

PLR IP Holdings, LLC, its licensees and affiliates, fully support all electronic waste initiatives. As responsible stewards of the environment, and to avoid violating established laws, you should properly dispose of this product in compliance with all applicable regulations, directives or other governances in the area where you reside. Please check with local authorities or the retailer where you purchased this product to determine a location where you can appropriately dispose of the product.

THE DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE PRODUCTS ON THE PART OF FINAL USERS IN THE EUROPEAN UNION This symbol on the product or on the container indicates that this product cannot be eliminated with the general waste. The user is responsible for eliminating this kind of waste by throwing them away at a “recycling point” specifically for electrical and electronic waste. Selective collection and electrical equipment recycling contribute to preserve natural resources and warrant waste recycling to protect environment and health. In order to receive further information about electrical and electronic waste collecting and recycling, contact your Local Council, the service of household waste or the establishment where the product was acquired.

CE

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

Product features, specifications and appearances are subject to change without notice.

Declaration of conformity EU:

Market Maker Brand Licensing, hereby declares that this equipment, conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_MMBL_TVSAND50UHDPRO1

√ Have questions? We’ve got Answers.

Visit us at polaroid.com/support or give us a call at 1-800-123-4567

Instantly recognizable. Instantly reassuring. The Polaroid Classic Border and Polaroid Color Spectrum logos let you know you've purchased a product that exemplifies the best qualities of our brand and that contributes to our rich heritage of quality and innovation.

© 2020. All Rights Reserved. Polaroid, Polaroid Color Spectrum and Polaroid Classic Border Logo are trademarks of PLR IP Holdings, LLC, used under license. PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer's Warranty or support.

TVSAND50UHDPR01

TV LED UHD 50" /ACCESS 50 SERIE 8000

User Manuel

TVSAND50UHDPR01

Search movies, TV, and more 2:45 Apps YouTube Play Next Play Movies & TV Google Play Movies & TV Google Play Store YouTube Kids Google Play Music YouTube Google Play Games My CRAZY ONE DEEP JOURNEY TUMBLE DHY THE COMEDIAN THE SOURC

PROBLEEMOPLOSSING 33

GARANTIEVOORWAARDEN 34

KENMERKEN

50" LED-scherm

Diagram showing a remote control system with labeled components: TV, screen, and remote device.

Onderaanzicht

Technical line drawing of a mechanical assembly with supports and a numbered component (no text or symbols)

Diagram showing three labeled components of a remote control device with numbered parts and directional arrows indicating movement.

6m 30° 30° Poland

BASISVERBINDING

Searching for accessories... To enable Google Assistant mini on your remote control, press and hold LEFT button and MENU button simultaneously for 3 seconds. When the name on the back of the remote control appears in the upper light corner of the screen, select the name and press that OK button. If pairing is unsuccessful, please wait a few minutes and try again. Press BACK key to exit accessory adding.

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. Hi: 123044 Fan: JRC, RGB TP-2/86, 2.4GHz, 252743 TP-2/86, 2.4Hz, 251007 Net 2.5Gy TP-2/86, 2.4Hz, 251007 (E) + Other networks... 6-3 Use Ethernet → Help

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ Android/UsageHelp and g.co/cast/device.stats.

Your EU 4K Android TV is powered by androidv Let's walk through the Bottoms of your Europe

Get apps from Google Play The Google Play also offers app downloads to live. Watch apples, Google Play, play games and more.

Cast to your TV with Diversified downloads, you can access your phone, wireless, and music. from your phone right to your TV.

Country Please refer your country Denmark Spain Finland France United Kingdom Italy Luxembourg

Password Please set password. '0000' is invalid. Input Password

Input Password New Password

Confirm Password Confirm Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use "Retail" mode is optimized to store demo with fixed settings. Home Retail

Select Home Mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off. off On

Tuner Mode Please select your tuner mode: Antenna Cable

Channel Scan First, please connect antenna. Start channel scan now? If you skip this step, the channel scan could be performed in Menu. Scan Skip Scan

Setup is completed. Enjoy! FINISH Congratulations! Initial Setup is completed. Please press [ENTER] to exit the wizard.

Druk op OK om de instelling af te ronden.

Disclaimer Poland, Poland & Pixel are registered trademarks of PLR IP Holdings, LLC, used under license. This Poland TV is produced by Shenzhen MTC CO.,LTD for Market Maker Brand Licensing.

Channels TV options Speakers Power Card Mixed Media Advanced Options Settings Record

Settings Quick Settings Take log report External Settings Networks & Internet To network connected Channel Accounts & login No accounts Appn Device Preferences Remodels & accessories

Network & Internet Wi-Fi Available networks ✓ Slots ✓ ChandraNet-Waps ✓ Server-CTS See all Other options Add new network Scanning always available Add to a network service and other options on the network, even when it is off!

Network & Internet W/2012 100% OFFICER Scanning always available in Bright weather service and other apps used for wireless, even when W/2012 is all Wor while on wireless network Wel Wes of LTE Ethernet Not connected Proxy settings IF settings

KANAAL

Channel Channels Channel Installation Mode Antenna Auto Channel Update Parental Controls Audio Channel Open Source Licenses Version 2.26.5 Suite 18321512

Channel Installation Mode Antenna Cable Channel Channels Channel Installation Mode Antenna Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licensee Version 2.36.14 (0:00:00:00)

Channels Channel Scan Update Scan Analog Manual Scan Single MF Scan LON Default Channel Scan Type All Channel Store Type All Functional Network Select

1. Menu->Instellingen->Kanaal->Installatiemodi kanalen, kies Antenne of Kabel.

2. Open Menu->Instellingen->Kanaal->Kanalen.

Status: Scanning Analog Channels:0 Digital Channels:0 Antenna 3% Exit

1. Kanaalscan opent de ATV+DTV automatische zoekinterface van Antenne automatisch.

Search for Analog Channels Start Frequency (MHz) 47.00 Scan Up Scan Down

Scan Single RF Channel. (Digital Only) Antenna Digital Channels 0% RF Channel : <> Signal Level 0% Signal Quality 0%

Scan all channels. 0% Scan Mode Advance Channel Scan Type Only Digital Channels <> Frequency (KHz) - Network ID - Scan

Scan all channels. 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHz) 306000 Network ID 999 Scan Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 306000 Scan Signal Level 0% Signal Quality 0%

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google Sign in Skip Google Play Movies & TV Buy or rent the newest movies and shows on Google Play Movies & TV

Apps Recently opened apps Live TV 11 minutes ago Google Play Store 14 minutes ago Google Play Movies & TV 18 minutes ago See all apps Permissions App permissions Special app access

About System update Device name NanRIV Restart Status Network, serial numbers and other information Legal information Model NanRIV Version Software version

Date & time Automatic date & time Use network provided time Set date August 8, 2019 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Component Component Consumer Electronic Control (CEC) HDMI control allow the TV to control HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI EDVD Version USB 1.4 CEC Device List

Sound Sound Style Standard Balance 0 Sound Surround Equalizer Detail Speakers External Audio System Digital Output PDM SPDIF Delay 0 Auto Volume Control

Sound Equalizer Detail Speakers External Audio System Digital Output PWM SPOIF Delay Auto Volume Control Downmix Mode Stereo Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source Scenarios Android TV Home Android TV Core Services

Retail Mode Retail Mode Off

Google Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.154871

Screen saver Screen saver Backup When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Search movies, TV and more Finish setting up your TV Connect to a network and more iTFLU YouTube Accessibility Audio Description Security Required Speaker Subscribers Captures High contrast text Experimental App Customer channels

Reset This will erase all data from your device's internal storage, including your Google account, system and app data and settings, and downloaded apps Cancel Reset

AFSTANDSBEDIENING & ACCESSOIRES

Searching for accessories... To enable Guide Assistant me or your service-control, access and touchLIFT weaker and MVR buttons are personalized for 2 sessions. When the moment is the user will be recommended, it is the right gift of the computer used Public services to get a new product after making updates again. Press BOOT say in well as necessary adding Searching for accessories... To enable Guide Assistant me on your service- control program and touchLIFT (accessions/MSRs) with an application by a company when the personal should be able to manage changes in session in the app's right member of the room, select the minutes/suppression screen. If coming a recommendation, please visit a few minutes/suppression apps. Does BOOT say more times on your setting. Remote & accessories AVI accessibility ET-ServiceLANE Converted Search Home, TV and more Finish setting up your TV and a Google Ads version to use the most of your TV AIDS YouTube NUKE A CITY

Try searching for "Movies about football" Finish setting up your TV Add a Google Account to make the most of your TV Details Dennis Apps NETFLIX MultiMediaPlayer Netflix STRANGER THINGS EDUCATION

Technical line drawing of a flat-screen TV unit with internal components and mounting feet (no text or symbols)

STEUNINSTALLATIE

Technical diagram showing three-step installation of a TV or audio device with labeled steps and directional arrows.

SPECIFICATIES

Diagram showing a remote control system with labeled components and a 30°/30' angle indicator.

Vista inferior

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram showing three different remote control devices with labeled components and directional arrows indicating movement or change.

6m 30° 30° Polaroid

CONEXIÓN BÁSICA

Searching for accessories... To enable Google Assistant mic on your remote control, press and hold LEFT button and MENU button simultaneously for 5 seconds. When the name on the back of the remote control appears in the upper right corner of the screen, select the name and press that OK button. If pairing is unsuccessful, please wait a few minutes and try again. Press BACK key to exit accessory adding.

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. Buy Use Email

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ AndroidUsageHelp and g.co/cast/device_stats.

Your EU, IK Android TV is powered by androidly Left with Through the Platform of your own 0...

Get apps from Google Play The Google Play has offers apps to save a new game. Watch all games, create live sports, play games and more.

Cast to your TV with Disneycard business, you can quick access photos, videos, and music from your phone right to your TV.

Country Please order your country Denmark Spain Finland France United Kingdom Italy Luxembourg

Password Please set password. '0000' is invalid. Input Password

Input Password New Password

Confirm Password Confirm Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized to store-demo with fixed settings. Home Retail

Select Home Mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off. or On

Tuner Mode Please select your tuner inside Antenna Cable

Channel Scan First, please connect antenna Start channel scan now? If you skip this step, the channel scan could be performed in Menu. Scan Skip Scan

Setup is completed. Enjoy! FINISH Congratulations! Initial Setup is completed. Please press [ENTER] to exit the wizard.

Disclaimer Polaroid, Polaroid & Pixel are registered trademarks of PLR IP Holdings, LLC, used under license. This Polaroid TV is produced by Shenzhen MTC CO.,LTD for Market Maker Brand Licensing.

Channels TV options Sounders Power Fi Card Masterbox Advanced Sports Settings Record

Settings Open Settings Take log report General Settings Network & Internet to network connected Channel Accounts & sign in to account Apps Device Preferences Remoties & accessories

Network & Internet Wi-Fi Available networks Sales Chrome-Wipe iServer-CTS See all Other options Add new network Steaming always available Use the network, even when we do it off

Network & Internet PASS FROM ECONOMICS Scanning always available Let us go to a better service and other apps provide for wireless, more than 90% to all Wire write on wireless network Wet write on LRT Othernet Not connected Proxy settings IP settings

CANAL

Channel Channels Channel Installation Mode Antenna Auto Channel Update Parental Controls Audio Channel Open Source Licenses Version 2.20.5 build 18.8215/12

Channel Installation Mode Antenna Cable Channel Channels Channel Installation Mode Antenna Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licensee Version 2.36.1.04 (1007513) Channels Channel Scan Update Scan Analog Manual Scan Single MF Scan LOI Session Channel Scan Type all Channel Store Type all Favorite Network Connection

Search for Analog Channels Start Frequency (MHz) 47.00 Scan Up Scan Down

Scan Single RF Channel. (Digital Only) Antenna Digital Channels 0% RF Channel : <> Signal Level 0% Signal Quality 0%

Scan all channels. 0% Scan Mode Advance Channel Scan Type Only Digital Channels <> Frequency (KHz) - Network ID - Scan >

Scan all channels. 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHz) 306000 Network ID 999 Scan Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 306000 Scan Signal Level 0% Signal Quality 0%

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google Sign in Skip Google Play Movies & TV Buy or rent the newest movies and shows on Google Play Movies & TV

Apps Recently opened apps Live TV 11 minutes ago Google Play Store 14 minutes ago Google Play Movies & TV 18 minutes ago See all apps Permanials App permissions Special app access

About System update Device name NanRNTV Restart Status Network, serial numbers and other information Legal information Model NanRNTV Version Software version

Date & time Automatic date & time Use network provided time Set date August 8, 2019 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Component Component Consumer Electronic Control (EIC) HDMI control allow the TV to control HDM devices Device auto power off Power off HDM devices with the TV TV auto power on Power on the TV with HDM device HDMI EIDD Version USB 1.4 OEC Device List

Sound Sound Style Standard Balance 0 Sound Surround Equalizer Detail Speakers External Audio System Digital Output POM SPOIF Delay 0 Auto Volume Control

Sound Equalizer Detail Speakers External Audio System Digital Output PDM SPOIF Delay Auto Volume Control Downmix Mode Streco Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source Scenders Android TV Home Android TV Core Services

Retail Mode Retail Mode Off

Google Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.154871

Screen saver Screen saver Backup When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Search movies, TV and more Finish setting up your TV Connect to a network and more Accessibility Audio Description Audio Required Speaker Subscribers Captimes High contrast text Experimental Apps NETFLX YouTube + Customer channels

Reset This will erase all data from your destark internal storage, including your Google account, system and app data and settings, and downloaded apps Cancel Reset

MANDO A DISTANCIA Y ACCESORIOS

Searching for accessories... To make Double Driver or a key environment case without ETT buffer and KDDI buffer completion, and I have been done. When the system is the 100% of the network is completed in the copyright section of the computer, then the same key component is closed after making any other key components again. Press B2C (see next accessory setting) 5s

Searching for accessories... To enable Charge saturation on your own control group and/or (IP) network (MIP) solution if I have a 100% of the target. When the control group is required, the target is on the upper light source of the system, which is the lower light source of the system, which is in running to an automatic power test with a few Rapid access points. Direct BLOCK in anti-assembly editing.

SELECT ITEMS, TV & LINE ITEMS Fremates & accessories Add accessory TV: You're #LE I am tired Finish setting up your TV Add a Google Account to make the most of your TV NEFLIX YouTube NI LIKE A CITY

Try searching for "Movies about football" Finish setting up your TV Add a Google Account to make the most of your TV Details Diplines Apps NETFLIX MultiMediaPlayer NetFLIX Stranger Things EDUCATION

Technical line drawing of a flat-screen TV unit with internal components and mounting feet (no text or symbols)
