USER MANUAL TVSAND554K POLAROID

TV LED UHD 55" ACCESS 55 SÉRIE 8000

TVSAND55KPR01

GUIDE D'UTILISATION

CONSIGNES DE SÉCURITÉ IMPORTANTES

PRECAUTIONS DE SECURITÉ

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

ATTENTION:POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION,NE RETIREZ PAS LE COUVERCLE (NI LE PANNEAU ARRIÈRE). AUCUNE PIECE N'EST REMPLAÇABLE PAR L'UTILISATEUR. CONTACTEZ UN PERSONNEL QUALIFIÉ EN CAS DE PANNE.

MODE VENTE AU DÉTAIL

Use Wi-Fi to estimate location

Recent location requests

No apps have requested location recently

Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device.stats.

EXCLUSIONS DE GARANTIE

EXCLUSIONS DE GARANTIE LIÉES À L'ORIGINE DU DOMMAGE

The warning sign showing a lightning bolt in a triangle indicates that this product contains "dangerous electrical voltages".

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTROCUTION, DO NOT REMOVE THE COVER (OR THE BACK OF THE DEVICE). NO PARTS ARE REPLACEABLE BY THE USER. PLEASE CONTACT QUALIFIED PERSONNEL IN CASE OF FAILURE.

The warning sign showing an exclamation point in a triangle indicates that this point of the manual requires special attention.

CAUTION: - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY:

Read these safety instructions before using your device and store them for possible future reference.

• This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate.
• The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.
• To disconnect the device from the mains, the plug must be disconnected. Hold the mains cable by its plug. Do not pull on the mains cable to disconnect the plug.
• The mains cables must be routed so that they are not trampled upon or pinched by objects placed on or against them.
• If the mains cable of the device is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger.
  The device must not be exposed to dripping or splashing water, moisture or liquids.
• Do not place the device near water, for example in a bathroom or near a sink.
• No objects filled with liquids such as vases should be placed on or above the device.
• Never touch the mains cable with wet hands, this could cause a short circuit or electric shock.

• To avoid the risk of fire, do not place sources of open flames, such as lighted candles, or heat sources such as radiators, on or near the device.

• The device is intended for use only in a temperate climate.

• If smoke, an unusual odour or strange noise is emitted by the device: unplug the mains cable from the electrical outlet and consult the after-sales service or repair centre. Never attempt to make repairs yourself, this could be potentially dangerous.
• Do not attempt to open or disassemble the device. This would expose you to dangerous voltages.
• The slots and openings of the device are intended for ventilation and to ensure its operation. To prevent overheating, these openings must not be obstructed or covered in any way, such as by newspapers, tablecloths or curtains.
• Always leave a minimum distance of 10cm around the device for sufficient ventilation.
• Never push any object into the device through one of its openings, as it may come into contact with electrical components, which can cause an electric shock or fire.
• In case of thunderstorm or lightning, immediately unplug the mains cable from the wall outlet.
• Always turn off the device when not in use. Unplug the mains cable from the electrical outlet when the device will not be used for a long period of time.

• Unplug the device from the electrical outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry, soft cloth for cleaning.

• If the product does not bear the logo, it is a Class I device. It must then be connected to a mains socket with a protective earth connection.

CAUTION --: TO AVOID RISK OF INJURY OR DAMAGE TO THE PRODUCT OR OTHER EQUIPMENT:

• This product is intended for household and personal use only. Do not use this product for commercial, industrial or other purposes.
• Do not subject the product to strong shocks, extreme temperatures or direct sunlight for prolonged periods.
• Keep the product away from magnetic objects, motors and transformers.
• Do not use the product outdoors, regardless of weather conditions.

• Install the device only on a stand (furniture, wall...) that can support its weight safely.

• WARNING: never place a TV on an unstable location. This can fall, causing injuries or even the death of a person. Many injuries, especially in the case of children, can be avoided by taking simple precautions such as:

• The use of furniture or stands recommended by the TV manufacturer.
• The exclusive use of furniture that can support the weight of the TV safely.
• Make sure that the device does not protrude from the edge of the furniture on which it is placed.
• Never place the device on a tall piece of furniture (e.g. cabinets or bookcases) without attaching both the furniture and the device to a suitable stand.
• Do not place the device on a trolley or on a stand that is not stable. Do not install the device on any fabric or other materials placed between its base and the supporting furniture. The device could fall and be damaged or seriously injure a person.
• Do not use or watch the TV while driving. This is dangerous, and illegal in some countries.
• Explain to children the dangers they face when climbing on the furniture to reach the device or its controls.
• If you keep this device and change the location, you should apply the same considerations.
• CAUTION: to avoid accidents, this device must be securely attached to the floor or wall according to the installation instructions.

CAUTION: TO AVOID EYE HAZARDS:

• It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain.

USE AND HANDLING OF BATTERIES:

• CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
• Replace the batteries only with batteries of the same type or equivalent type.

• Batteries must not be exposed to excessive heat such as that from the sun, fire or similar origin.

• Never throw batteries into fire and never expose them to heat sources.

• Do not mix different types of batteries, or new and used batteries.
• The batteries must be inserted according to the polarities indicated on the battery and in the battery case of the remote control.
  Used batteries must be removed from the remote control.
• The batteries must be disposed of safely at the assigned specific collection points to preserve the environment. Follow the disposal instructions indicated on the batteries and at the collection points.
• Keep batteries out of the reach of children and animals. Only adults are capable of handling the batteries.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user manual.

ACCESSORIES

User Manual 1

Remote Control 1

Stand 2

All the pictures in this manual are just for your reference, appearance and display should subject to the final product.

TABLE OF CONTENTS

GETTING STARTED

IMPORTANT INSTRUCTIONS 1-4
ACCESSIONS 4
FEATURES 6
GENERAL PARTS 7-8
REMOTE CONTROL 9-10
REMOTE CONTROL PREPARATION 11
BASIC CONNECTION 12-14

OPERATIONS

BASIC OPERATIONS 15-25

FOR REFERENCE

MAINTENANCE 26

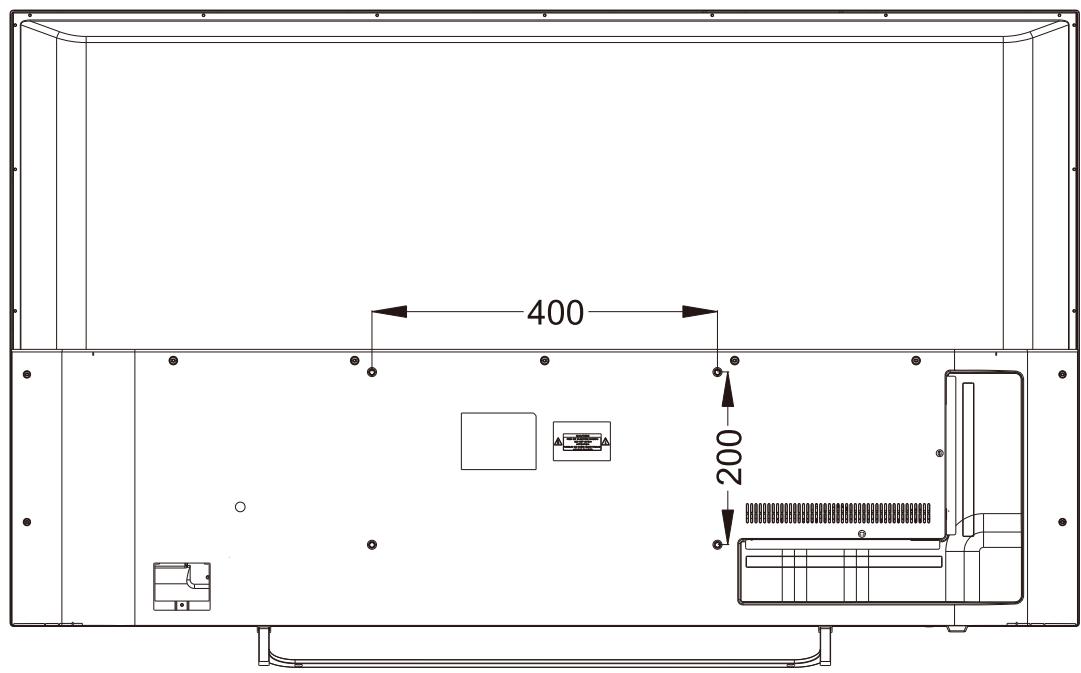

WALL MOUNTING 26
STAND INSTALLATION 27
SPECIFICATIONS 28
TROUBLESHOOTING. 31
WARRANTY CONDITIONS 32

FEATURES

55" LED Display

This unit has a built-in LED display window to provide clear vision and low radiation.

Support Auto TV Scanning

Support Digital Broadcasting Reception

Support TV Guide Function

Support TELETEXT (Europe) Function

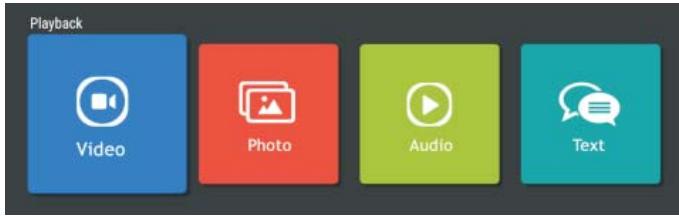

Support USB Multimedia Playback

Support Multi-languages On Screen Display

Support Full Function Remote Control

Support HDMI, ANT,RJ 45,USB, AV and CI Input

Support EARPHONE and OPTICAL

With Detachable Stand Holder

With External Antenna Jack

With Built-in Speakers

MAIN UNIT

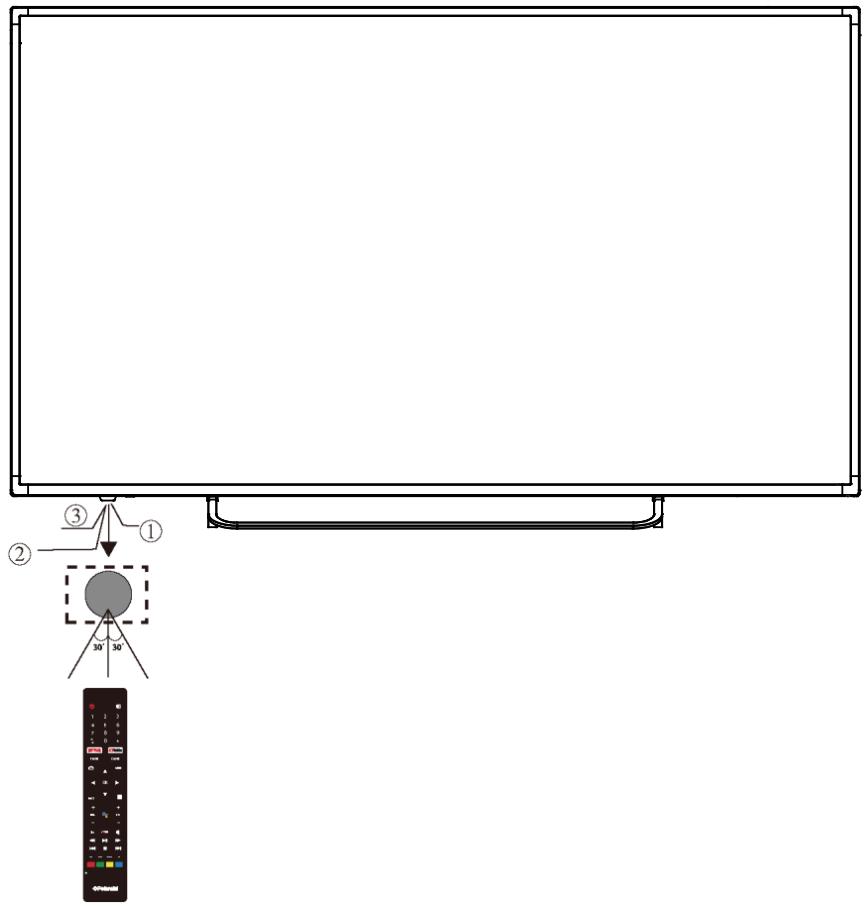

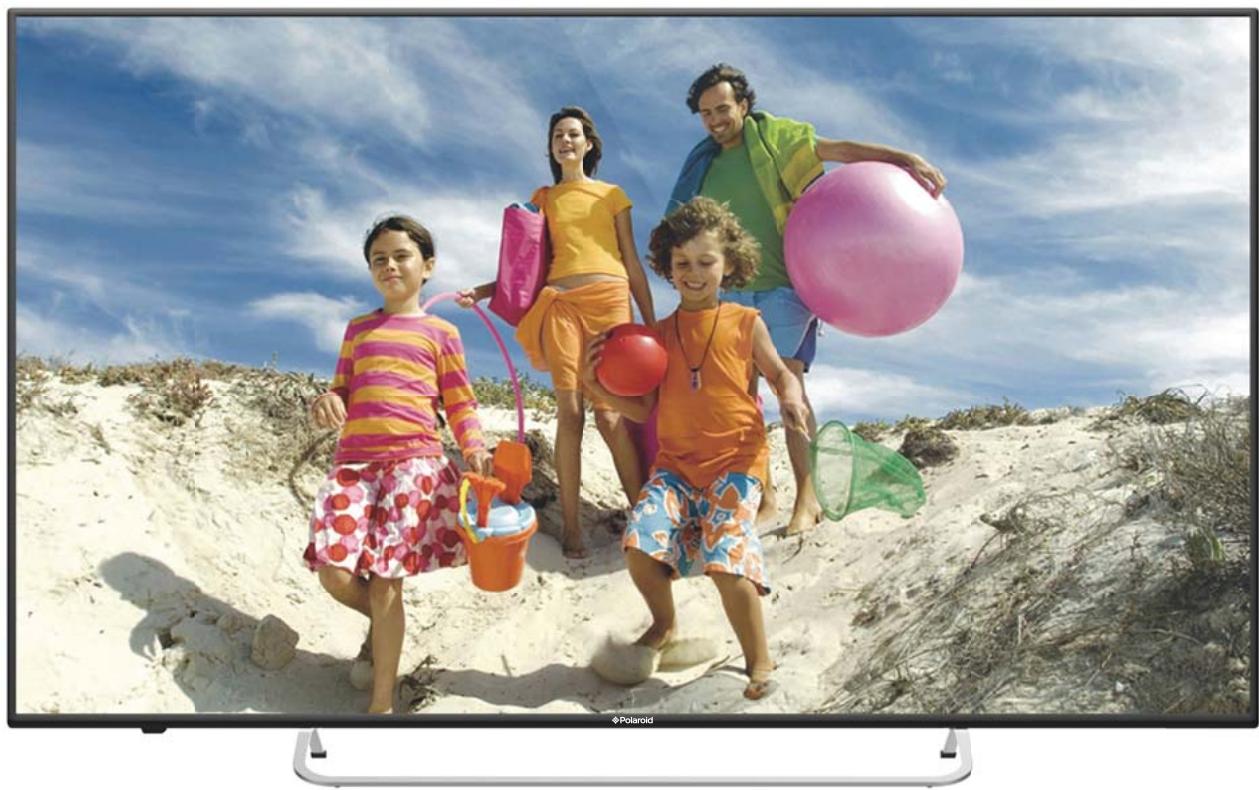

Front View

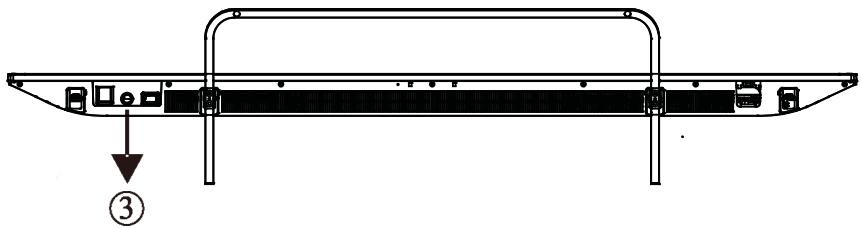

bottom View

1: Remote control sensor.
2: Indicator LED: RED STANDBY.

3: “ ” VOL- and move left

“+” VOL+ and move right
"∧" CH- and move down
“ ≈ ” CH+ and move up
- Short press to confirm or enter the menu
-Long press to Power off

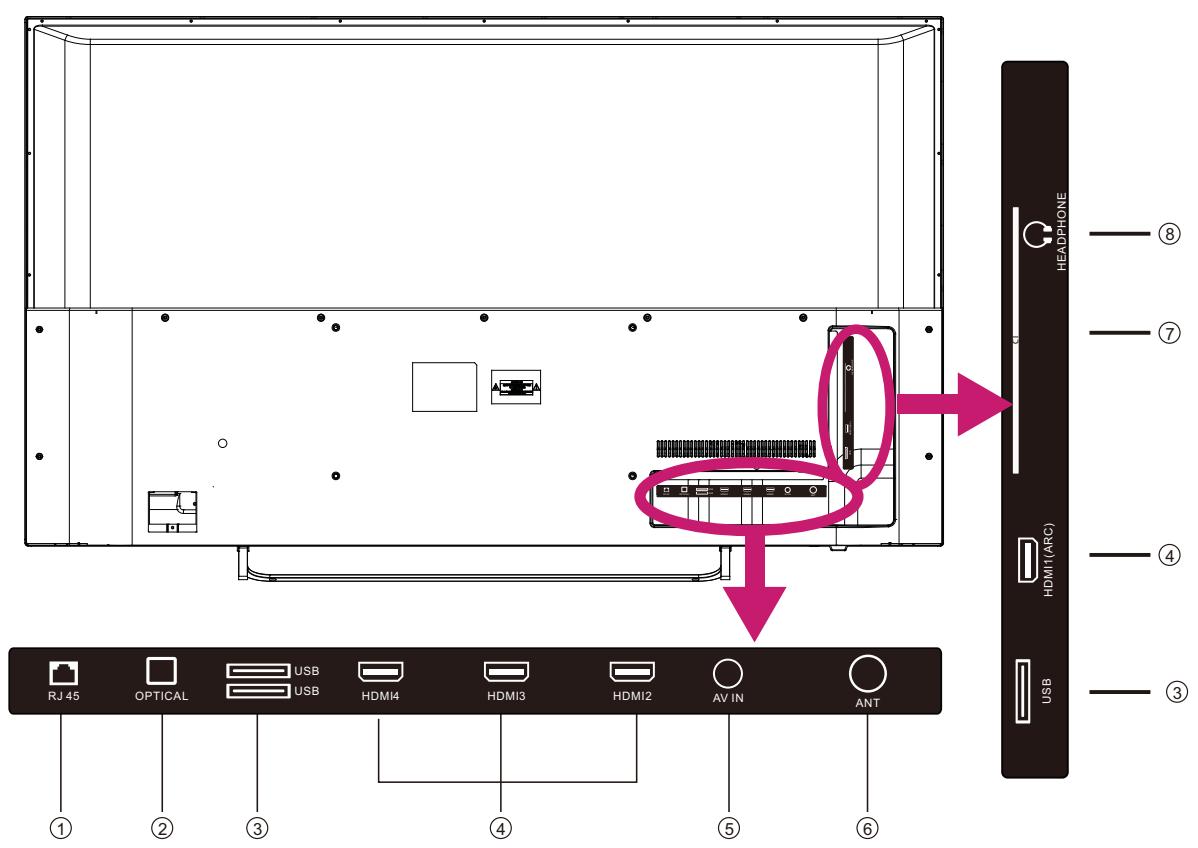

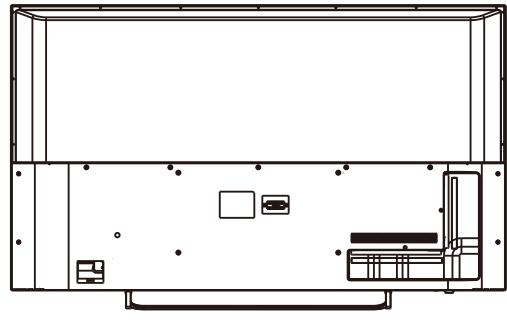

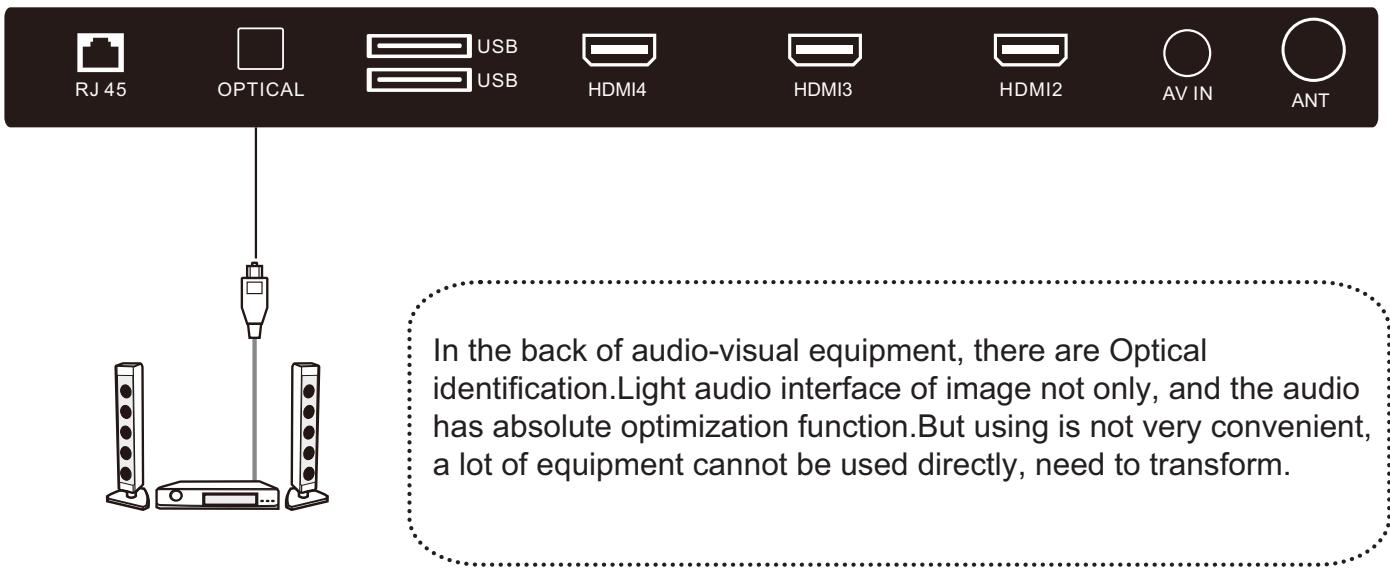

Back View

1.RJ 45
2 OPTICAL
3.USB INPUT
4.HDMI
5.AV IN.
6.ANT
7.CI slot.

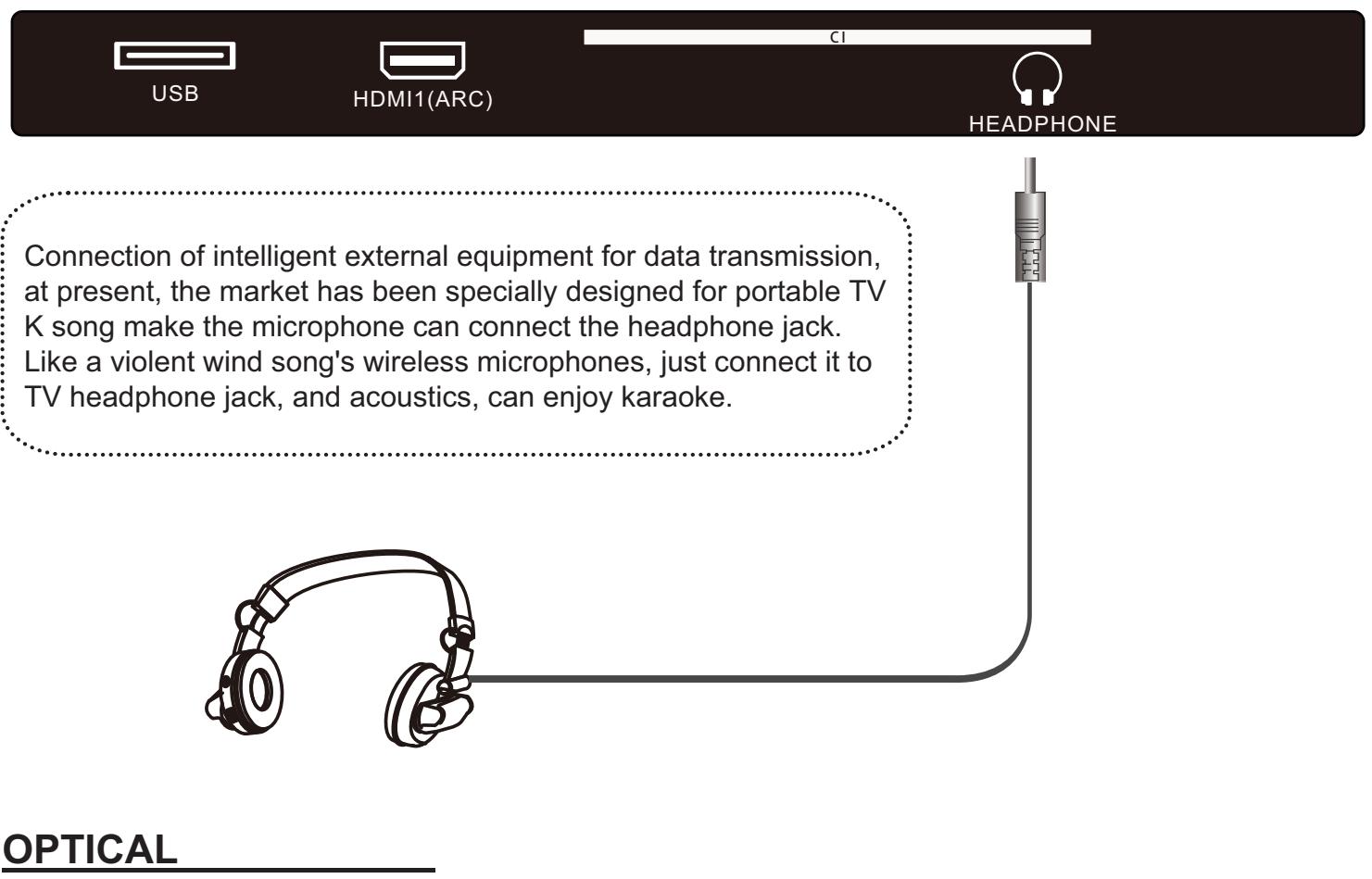

8. Headphone output.

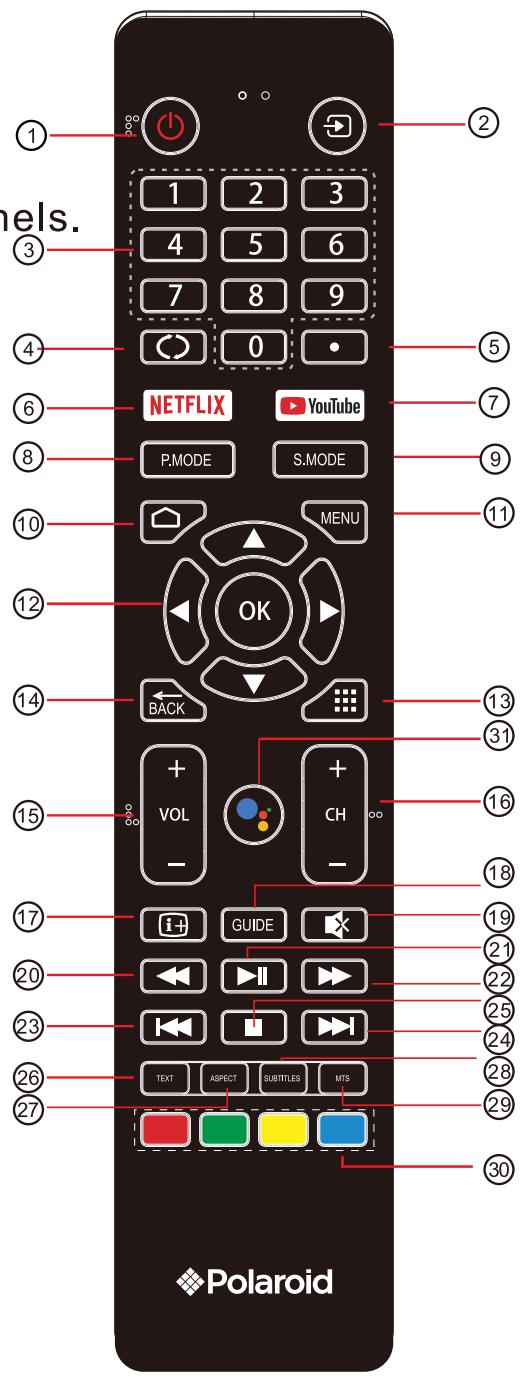

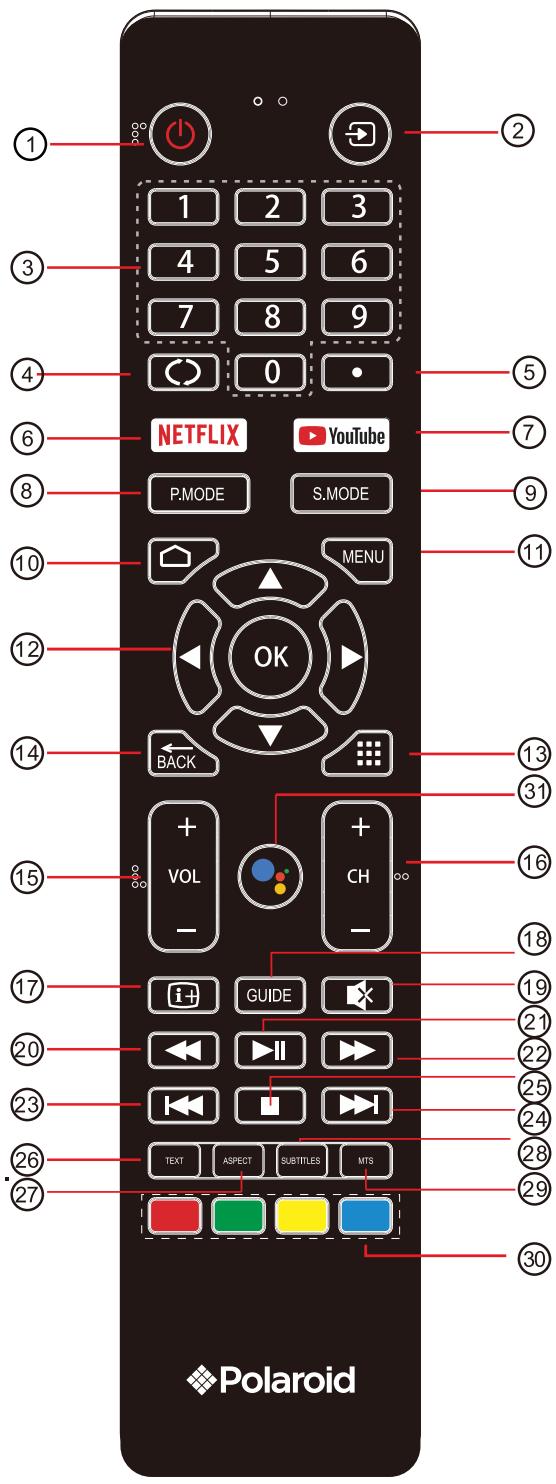

REMOTE CONTROL

1: POWER: To set the TV to Standby or Power On modes.
2: : Select among the different input signal sources.
3: NUMERIC KEY: For direct access to channels.
4: Jumps to last channel viewed.
5: (dot): Input the character "dot".
6 :NETFLIX: Press to open NETFLIX.
7 : YouTube : Press to open the YouTube.
8 :P.MODE : Press to switch the picture mode.
9 :S.MODE: Press to switch the sound mode.
10: Press to open the Home Page.
11: MENU: Press to open or close the on-screen menu.
12:OK: Confirms selection.
13: Press to open the app list.
14:Back: Return to the previous menu.
15:VOL+/- : To adjust sound level.
16:CH+/CH-: To access the next or previous channels.
17: + :Press to display the channel information

REMOTE CONTROL

REMOTE CONTROL

18:GUIDE:Press to display electronic programme guide in TV mode
19:MUTE:To disable or enable the speaker sound output.
20: (Reverse) : Reverse playback rapidly.
21: (Play/Pause) : Start playback or Pause playback.
22: (Forward): Advance playback rapidly.
23: (Prev) : To skip to the beginning of the previous chapter/track/photo.
24:▶I(Next): Skip to the beginning of the next chapter/track/photo
25: ■ (Stop): Press to stop multimedia playback
26: TEXT: Press to select the teletext mode.
27: ASPECT : Press to change the picture aspect ratio.
28:SUBTITLE: To turn on subtitles in DTV mode
29:MTS : Press to select Mono, Nicam, Stereo for ATV channel,Audio language for DTV channel.
30:Coloured buttons: Implement the relevant operations ccording to the prompt at the botton of the menu in the text.
31: Google Assistant : Press to open the google assistant or tart a voice search

NOTE:

This Remote Control is used across a range of TV models with differing capabilities. Some functions listed above may not be applicable to your TV model.

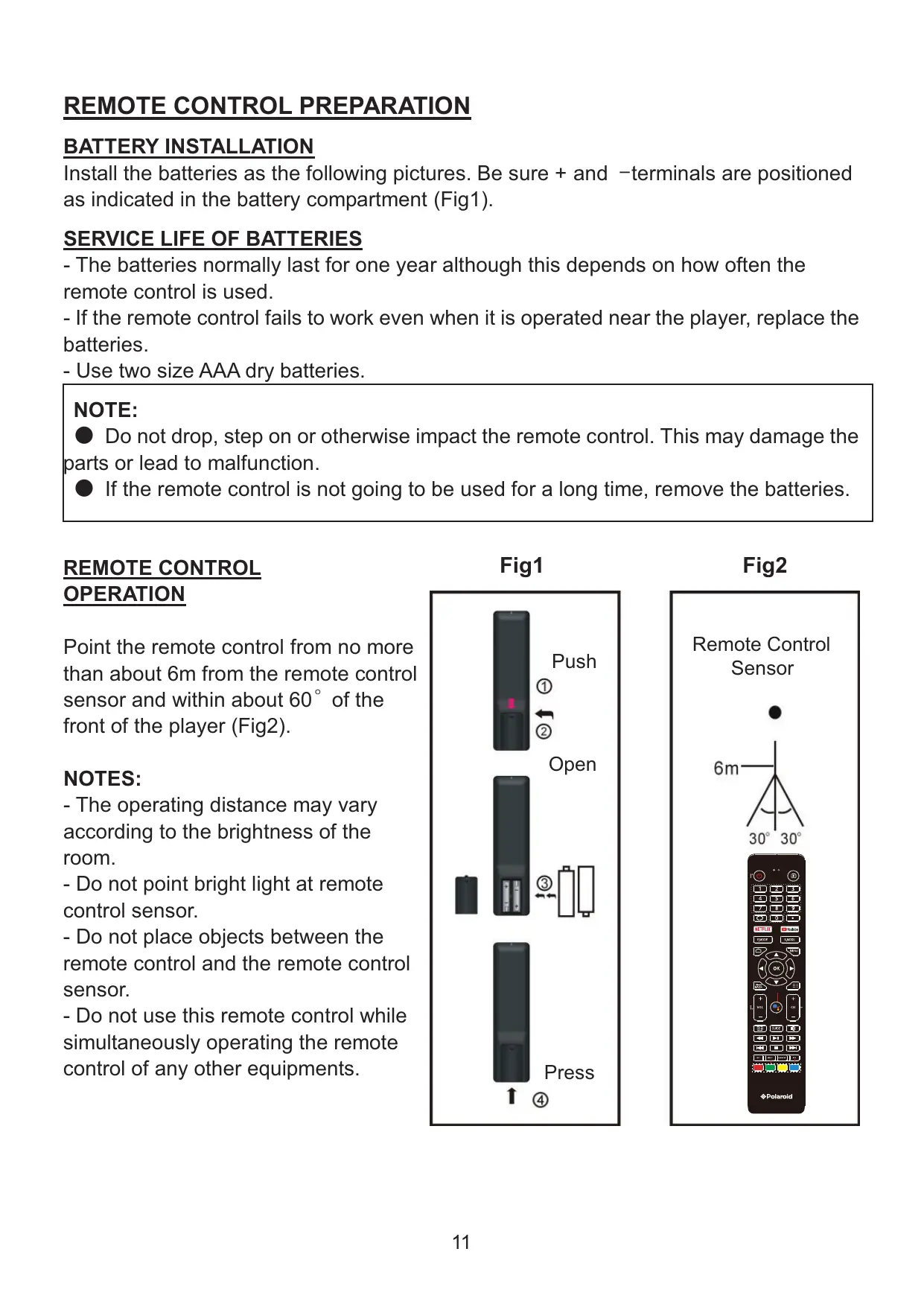

REMOTE CONTROL PREPARATION

BATTERY INSTALLATION

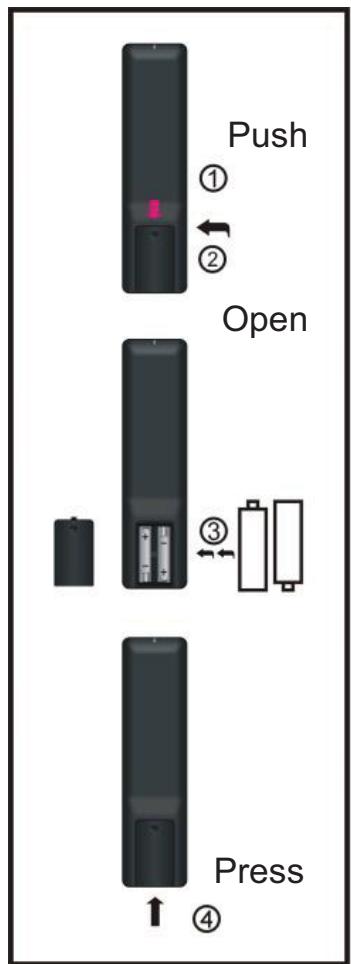

Install the batteries as the following pictures. Be sure + and -terminals are positioned as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

• The batteries normally last for one year although this depends on how often the remote control is used.
• If the remote control fails to work even when it is operated near the player, replace the batteries.
• Use two size AAA dry batteries.

NOTE:

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
• If the remote control is not going to be used for a long time, remove the batteries.

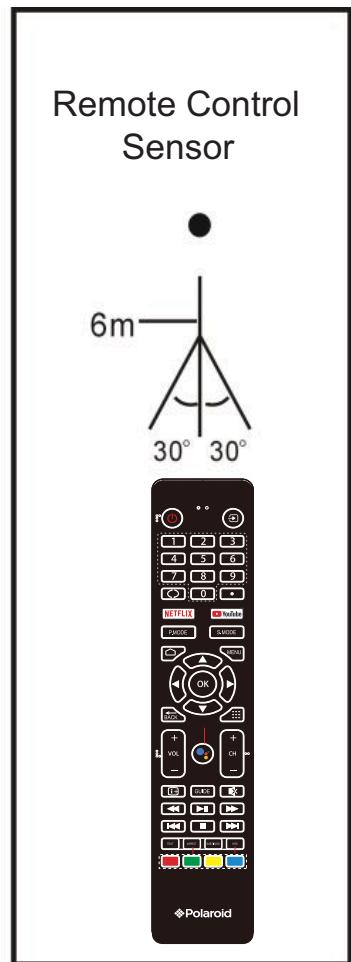

Point the remote control from no more than about 6m from the remote control sensor and within about 60^ of the front of the player (Fig2).

NOTES:

• The operating distance may vary according to the brightness of the room.
• Do not point bright light at remote control sensor.
• Do not place objects between the remote control and the remote control sensor.
• Do not use this remote control while simultaneously operating the remote control of any other equipments.

Fig1

Fig2

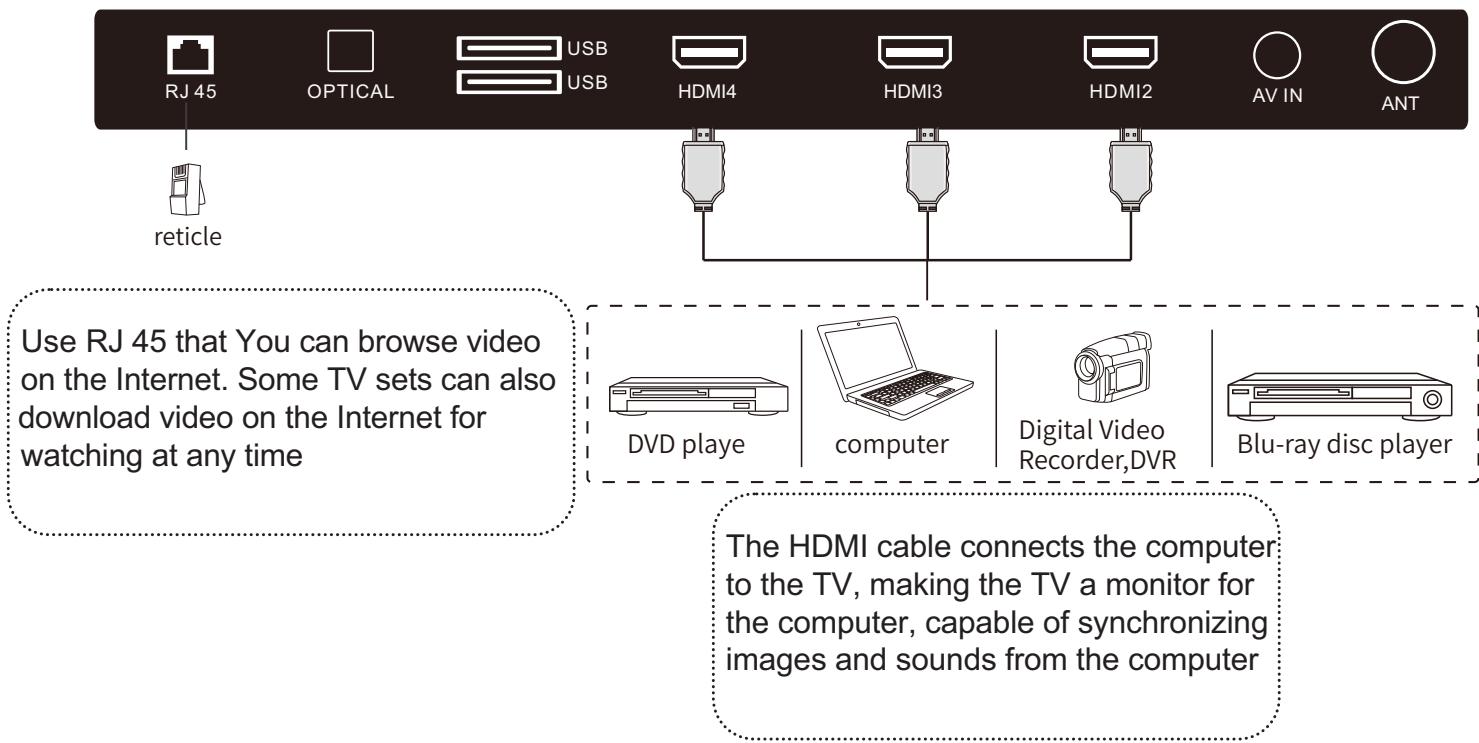

BASIC CONNECTION

• Ensure all the cables are disconnected from the main unit before connecting to AC power source.
• Read through the instructions before connecting other equipments.

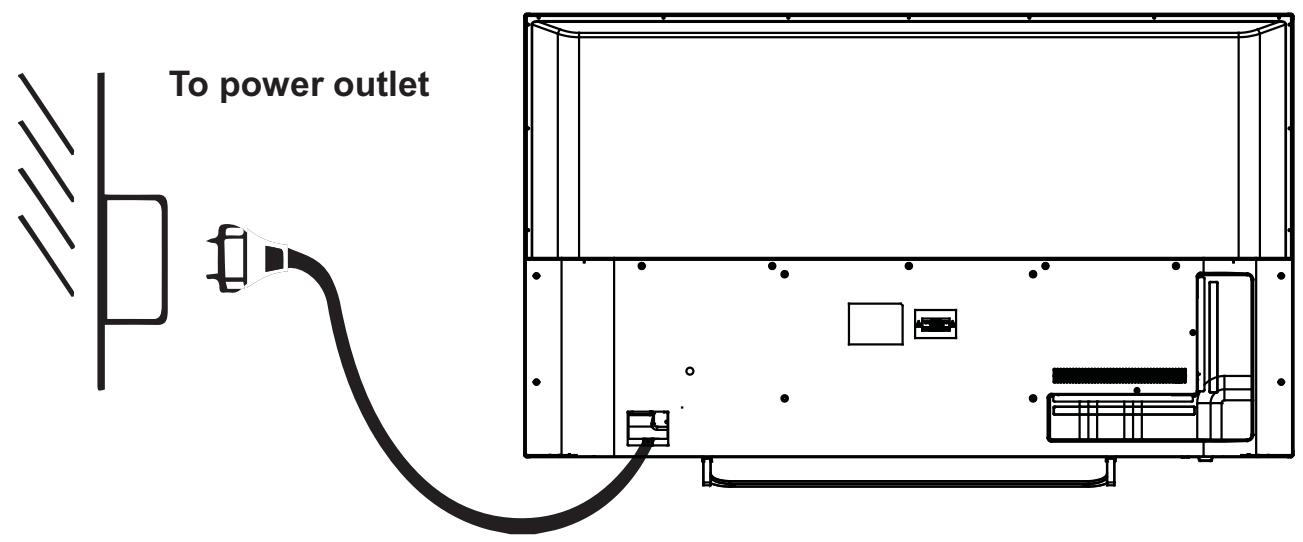

CONNECTING TO AC POWER SOURCE

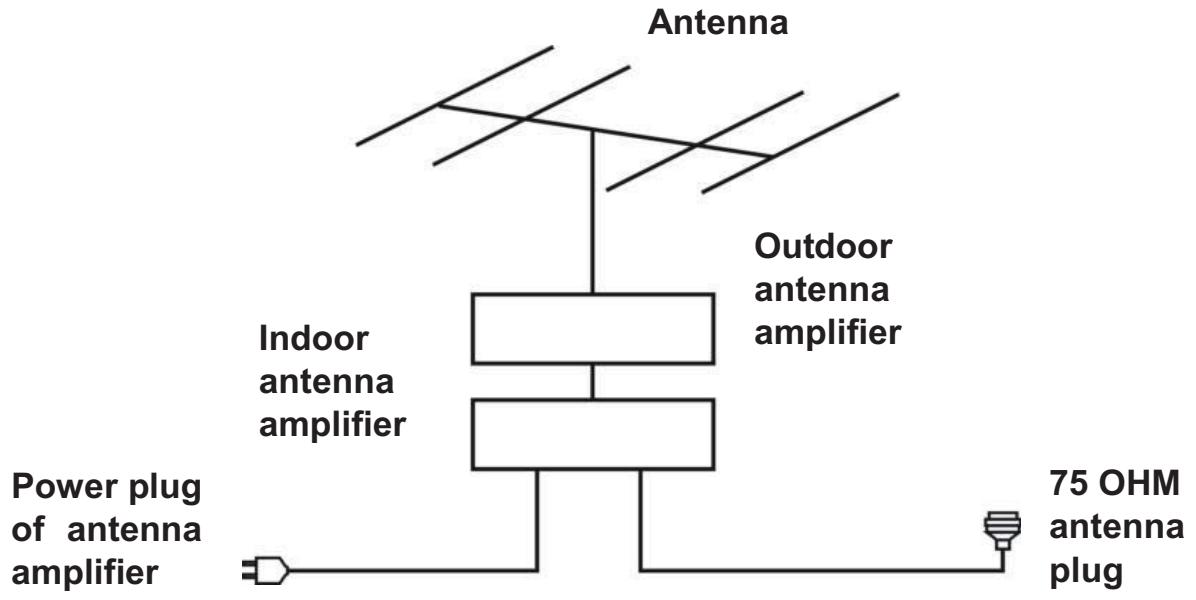

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

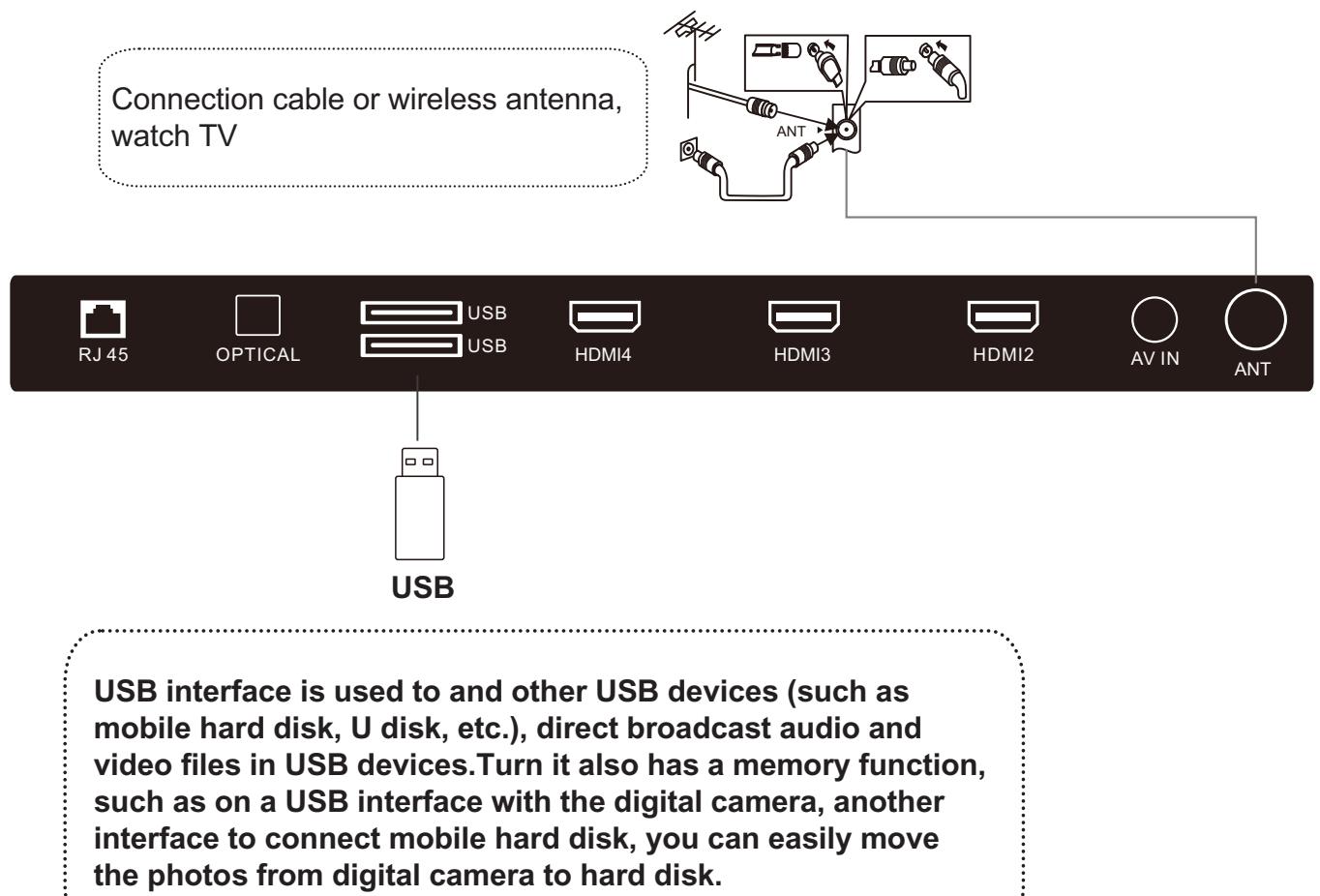

USB and ANT

MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS.

BASIC OPERATIONS

• Press POWER button on the unit or remote control to power ON the unit ; press it again to power OFF (standby mode) the unit (indicator will glow red).
• Press SOURCE button on the remote control to switch the unit to TV or Composite or HDMI

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.

NOTE: Press -/-- button repeatedly to switch the digit.

VOLUME CONTROL

• Press VOL+ or VOL- to adjust the level of current volume.

Available range: 0-100.

MUTE CONTROL

• Press MUTE button to mute the sound, press it again to turn on the sound.

SOURCE SETTING

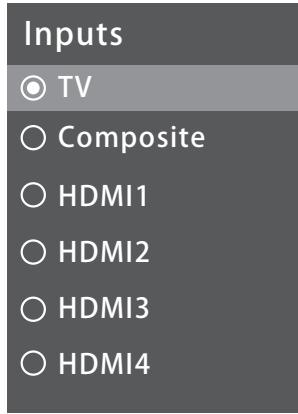

• Press SOURCE button on the remote control to display the sources list.
• Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection.

Available options: TV, Composite, AV, HDMI

VIDEO SIZE SETTING

• Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly.

Available options: Auto, 4:3, Wide screen, Full, Super zoom

NOTE: If there's no signal, pressing ASPECT button will not work. And the available video size may be different for different input source.

INITIAL SETUP

The first you turn your TV, the setup wizard will guide you through setting up basic settings.

Please according to the text tip to first time setup.

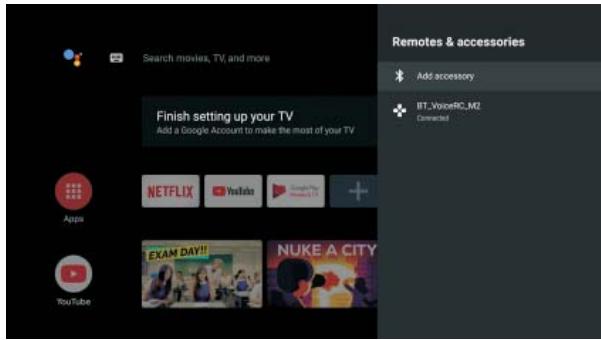

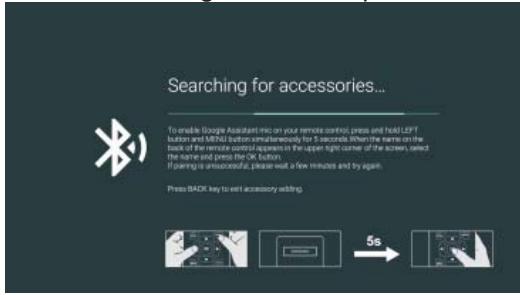

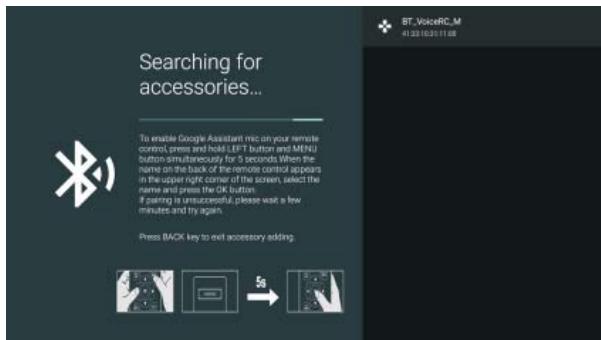

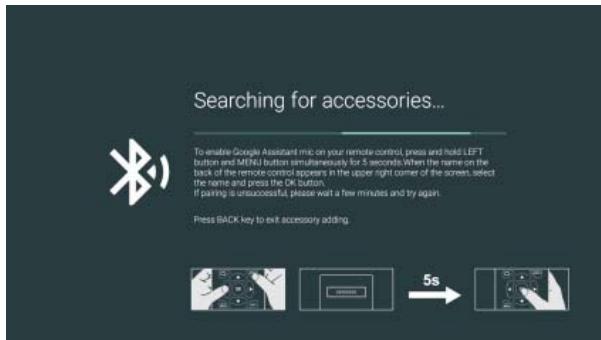

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV. If you don't need to use the Bluetooth remote control, you can press the BACK button to skip this step.

Press▼▲ to select the system language and press OK to confirm the language.

Connect your Android phone to your TV, select "Continue" to continue the connection, and choose "Skip" to skip this step.

Press to select the the Wifi to connect, press OK and enter the password to confirm the connection is successful. You can also try use Ethernet and skip select network.

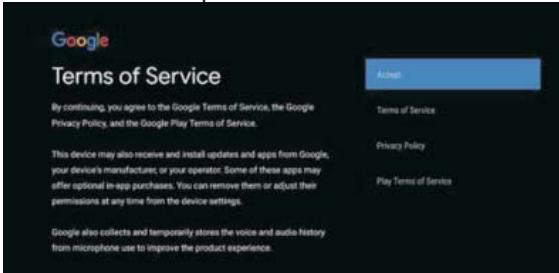

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

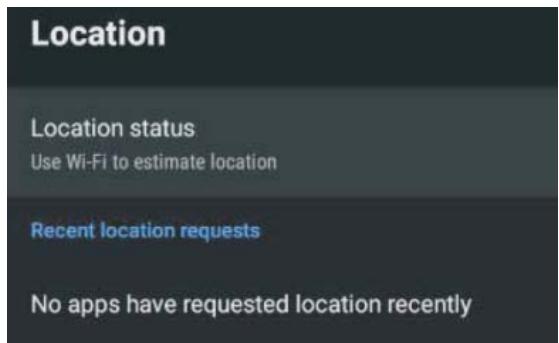

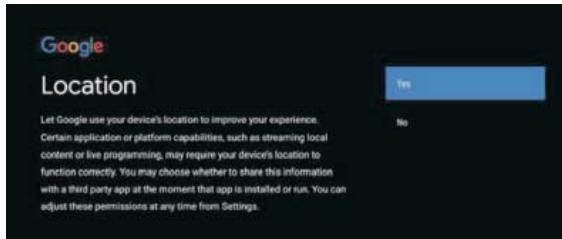

Agree to Google to get the location information of your device to get more features,choose "YES" to accept.

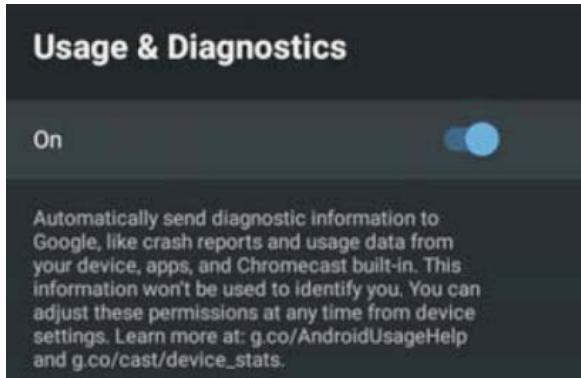

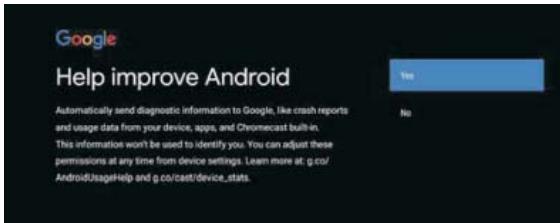

By agreeing to automatically send diagnostic information to Google to improve discriminative power, choose "YES" to accept.

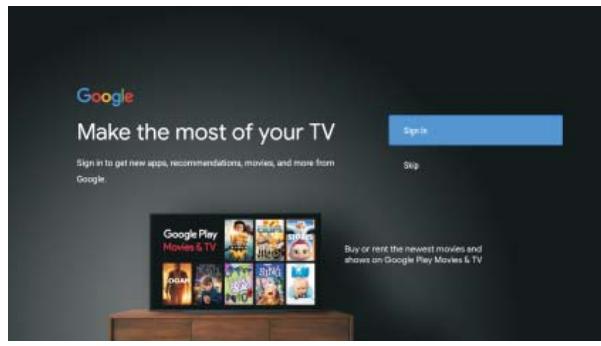

1. Your device is powered by Android TV and press the button to select the browsing feature.
2. You can get more apps from Google Play and press the button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the browsing.

Press to select the country of your device and press OK to confirm.

Used to set your device's password to ensure security and privacy.

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

BASIC OPERATIONS

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password confirmation.

For selecting the mode, press key to select Home mode and press OK to confirm.

Confirm the selected mode again, select "Yes" to confirm the selected mode, and select "No" to return to the previous step.

Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

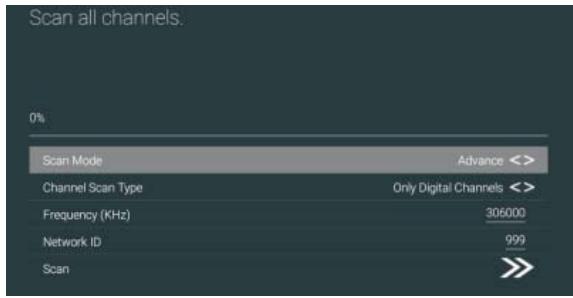

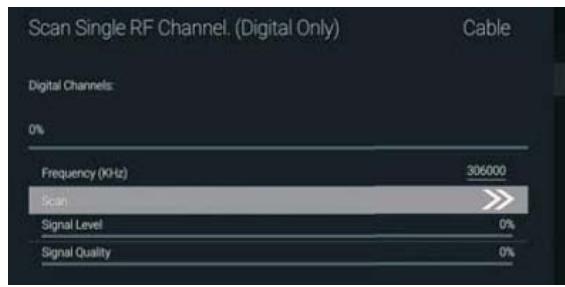

To select the Tuner mode for searching, press to select and press OK to confirm.

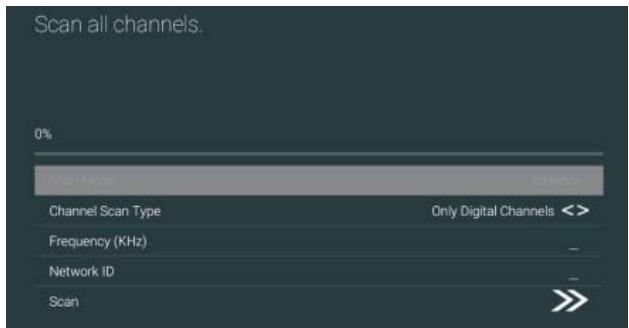

Press to select whether to search, select "Scan" to search, select "Skip Scan" to skip the search.

Press OK to complete the setup.

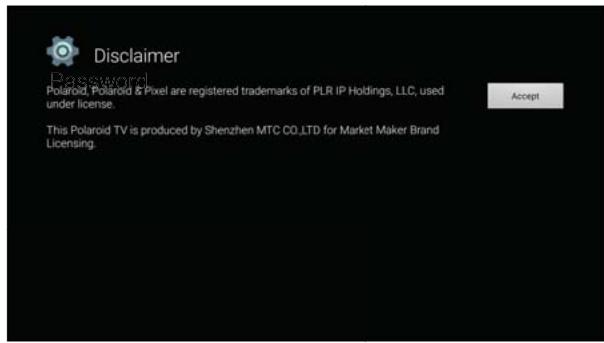

Press the OK button to agree to (Disclaimer). After setting is complete, You can watch TV.

BASIC OPERATIONS

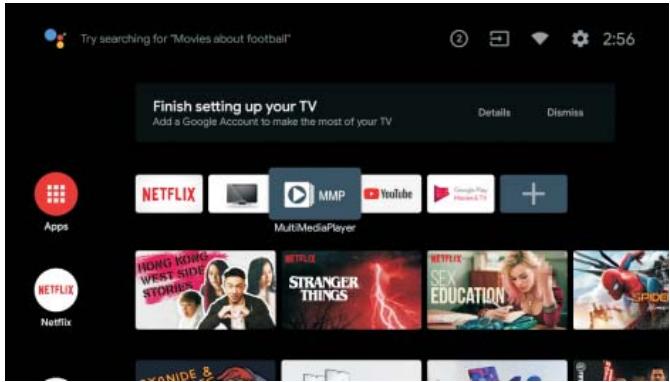

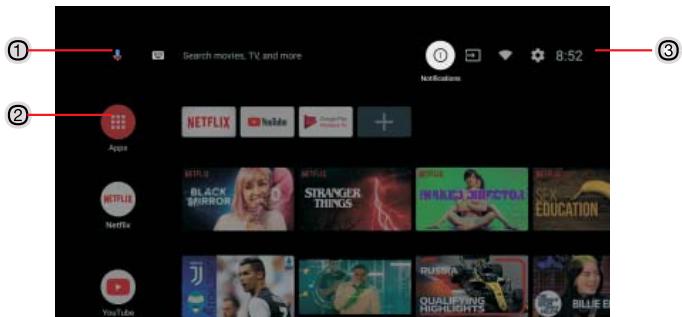

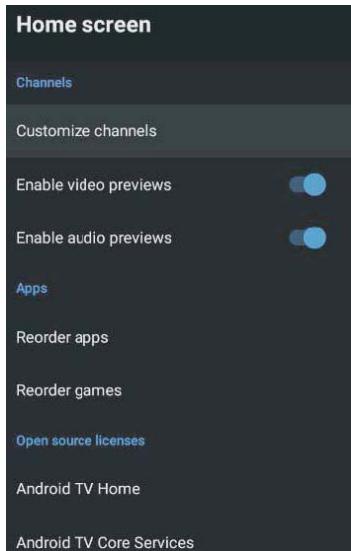

HOME SCREEN

Press the HOME button to go to the home page

① open the google assistant start a voice search or use keyboard search
② Among the applications installed on the TV, the icons for the favourite applications are shown inside here.(Favourite applications can be added/deleted/ changed its order by users.)

• Apps: Click to jump to Apps screen where all the installed applications are listed.
  Notification: Display the notifications.
  Inputs: Icon to select an input source.
  Network&Internet: Icon to Setup Network, Such as wifi.
  Settings: Various settings can be configured here. For details on the settings, see the next explanation.

INPUT SOURCE

1. In the HOME interface,press to select the "Inputs" icon,press OK to open the input source list, then press up to highlight an input and press OK to switch.

1. Under Live TV, press the SOURCE button to display the list of input sources. You can select the desired source.

NAVIGATING THE ON-SCREEN MENU

1. There are two ways to enter. First, in Live TV, press the menu button to display TV options, press select the settings menu and press OK to confirm. Second, in the HOME interface, press the key to select the icon of the circular settings menu, press OK to confirm.

1. Press button to select what you want set.
2. Press OK to enter setting.

Press BACK to return to the previous menu. If the main menu is displayed, pressing BACK will close the onscreen menu.

Network & Internet

1. Press button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press OK button to save and return to the previous menu.

BASIC OPERATIONS

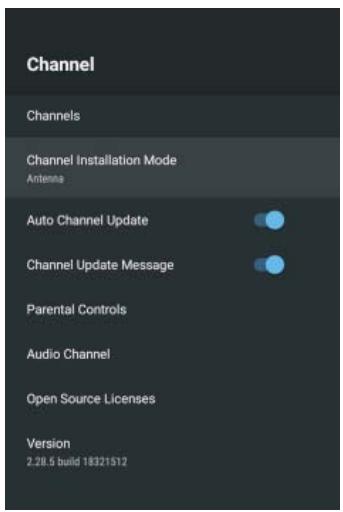

CHANNEL

Channels :Display the scan sub-menu based on different Channel installation modes.

Channel installation mode:Select on-screen display channel sources. You can select the signal type.

• Antenna: Set the signal type to antenna. When set to Antenna, the TV can receive analog and digital (DVB-T/DVB-T2) broadcasting signals.
• Cable : Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting signals.

Auto Channel Update

Parental controls: Press button to select the option then press OK button to enter the sub- · menu. Audio Channel: Press button to select the option then press OK button to enter the sub- · menu. Open source licenses: Press button to select the option then press OK button to enter the sub- · menu.

Antenna

1. Menu->Settings->Channel-> Channel Installation Mode enter, choose Antenna or Cable.
2. Enter Menu->Settings-> Channel->Channels.

1. Channel Scan directly enters the ATV + DTV automatic search platform interface of Antenna. Update Scan:Re-automatically search for frequency points outside the station.

Analog Manual Scan : Manual ATV search station. After input the frequency point, you can select up or down search station.

Single RF Scan : DTV manual search, left and right after selecting RF Channel, directly OK search.

Cable

1. Menu->Settings->Channel->Channel Installation Mode, select Cable.
2. Enter Menu->Settings->Channel->Channels.

BASIC OPERATIONS

1. Enter Channel Scan, where Numericable are the local operators, and the default Scan Mode is Advance; Others have Advance, Quick and Full Scan modes.

Single RF Scan : manual search station.

ACCOUNTS&SIGN IN

Press UP/DOWN button to select Sign in or Skip.

APPS

In this menu, you can set the APP permissions, and read the app lists.

1. Press button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

DEVICE PREFERENCES

ABOUT

In this menu, you can read the information and settings of TV.

1. Press button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

BASIC OPERATIONS

DATE&TIME

Automatic date&time- Press button to select the option then press OK button to enter the sub-menu. (Optional:Use network-provided time,Off)

Set date:Press button to select the option then press OK button to enter the sub-menu.

Set time:Press button to select the option then press OK button to enter the sub-menu.

Set time zone:Press button to select the option then press OK button to enter the sub menu.

Use 24-hour format :Press▼▲ button to select the option then press OK button to choose ON/OFF.

TIMER:

PowerOnTimerType: Press button to select the option then press OK button to choose ON/OFF/ONCE.

PowerOnTimer :Press▼▲button to select the option then press OK button to enter the sub-menu.

PowerOffTimerType :Press button to select the option then press OK button to choose ON/OFF/ONCE.

PowerOffTimer :Press button to select the option then press OK button to enter the sub-menu.

LANGUAGE:

Language: Press button to select the option then press OK button to enter the select language.

BASIC OPERATIONS

KEYBOARD

Current keyboard :Press button to select the option then press OK button to enter the sub-menu.

Gboard Settings :Press▼▲button to select the option then press OK button to enter the sub-menu.

Manage keyboards :Press button to select the option then press OK button to enter the sub-menu.

INPUTS

Inputs: Press button to select the option then press OK button to enter the sub-menu.

HDMI control: Press button to select the option then press OK button to choose ON/OFF.

Device auto power off :Press button to select the option then press OK button to choose ON/OFF.

TV auto power on :Press▼▲ button to select the option then press OK button to choose ON/OFF.

HDMI EDID Version :show EDID version.

CECDeviceList :Press▼▲button to select the option then press OK button to enter the sub-menu.

POWER

Sleep Timer :Press▼▲button to select the option then press OK button to enter the sub-menu.(Optional: off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes).

Picture off:Press button to select the option then press OK button to turn off the TV.

Switch off timer :Press button to select the option then press OK button to enter sub-menu.(Optional: off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, 210 minutes, 240 minutes).

No signal Auto Power Off :Press▼▲button to select the option then press OK button to enter sub-menu.

(Optional: off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes).

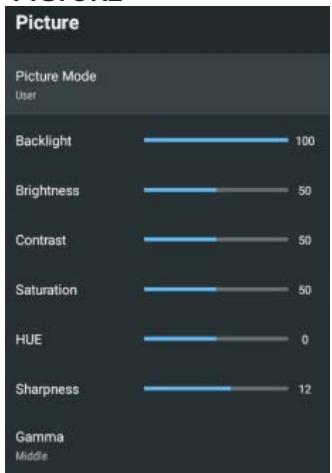

Picture Mode:Press button to select the option then press OK button to enter sub-menu.(Optional: user, Standard, Vivid, Sport, Movie, Game, Energy saving).

Backlight /Brightness /Contrast /Saturation/HUE/ Sharpness :Press▼▲button to select the option.

Press to decrease the parameter. Press to increase the parameter.

Gamma:Press button to select the option then press OK button to enter sub-menu.(Optional: Dark, middle, Bright).

Color Temperature: Press button to select the option then press OK button to enter sub-menu.

HDR:Press button to select the option then press OK button to enter the sub-menu. (Optional:on, off)

Advanced Video:Press button to select the option then press OK button to enter the sub-menu.

Reset to Default:Reset all settings to the factory defaults.

BASIC OPERATIONS

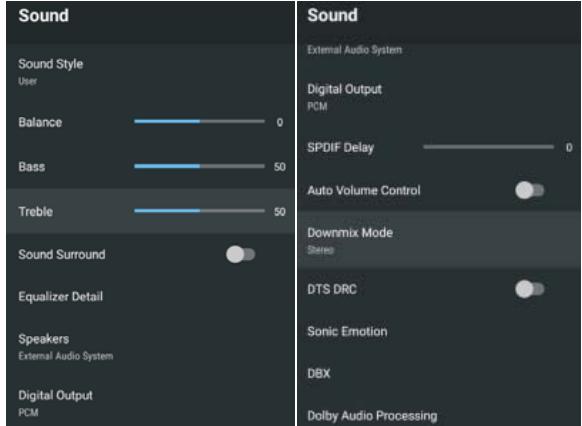

SOUND

Sound style: Press button to select the option then press OK button to enter the sub- · menu. (Optional: user, Standard, Vivid, Sports, Movie, Music, News)

Balance /Bass /Treble: Press button to select the option. press to decrease the parameter. Press to increase the parameter.

Sound Surround: Press button to select the option then press OK button to choose ON/OFF.

Equalizer Detail: Press button to select the option then press OK button to enter the sub-menu.

Speakers : Press▼▲button to select the option then press OK button to enter the sub-menu. (Optional: TV Speaker, External Audio System )

Digital Output: Press button to select the option then press OK button to enter the sub-menu. (Optional: Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital) SPDIF Delay: Press button to select the option. Press to decrease the parameter. Press to increase the parameter.

Auto Volume Control: Press button to select the option then press OK button to choose ON/OFF.

Downmix Mode: Press button to select the option then press OK button to enter the sub-menu. (Optional: Stereo, Surround)

Reset to Default: Reset all settings to the factory defaults.

STORAGE

Internal shared storage: Press button to select the option then press OK button to enter the sub-menu.

Removeable Storage: Press button to select the option then press OK button to enter the sub-menu. (Note: Show external devices if available)

HOME SCREEN

In this menu, you can set channels, apps, open source licenses.

1. Press button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

RETAIL MODE

Retail mode: Press button to select the option then press OK button to choose ON/OFF.

BASIC OPERATIONS

GOOGLE

In this menu, you can set searchable apps, safe search filter, block offensive words, open source licenses.

1. Press button to select what you want set.
2. Press ok button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

CHROMECASTBUILT -IN

In this menu, you can read the information and settings of Chromecast.

1. Press button to select what you want set.
2. Press ok button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

SCREENSAVER

Screen saver: Press button to select the option then press OK button to enter the sub-menu.(Optional: Tum screen off, Backdrop, Colors).

When to Start: Press button to select the option then press OK button to enter the sub-menu.(Optional: 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours).

Put device to sleep: Press button to select the option then press OK button to enter the sub-menu. (Optional: 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, Never).

Start now: Press button to select the option then press OK button to enter screen saver. LOCATION

Location status: Press button to select the option then press OK button to enter the sub-menu.

(Optiona:Use Wi-Fi to estimate location, Off).

Usage & diagnostics -Press button to select the option then press OK button to choose ON/OFF.

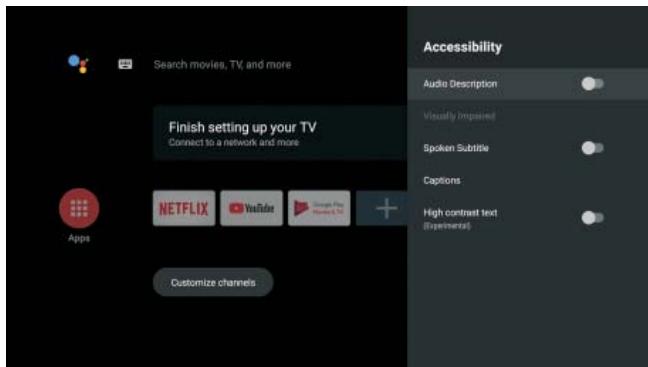

ACCESSIBILITY

Audio Description : Press▼▲button to select the option then press OK button to choose ON/OFF.

Visually Impaired : Press button to select the option then press OK button to enter the sub- menu.

Spoken Subtitle : Press▼▲button to select the option then press OK button to choose ON/OFF.

Captions: Press button to select the option then press OK button to enter the sub-menu.

High contrast text: Press button to select the option then press OK button to choose ON/OFF.

RESET

Press OK button to enter the sub-menu.

Reset-Erase everything.

BASIC OPERATIONS

RESET

Press OK button to enter the sub-menu Reset-Erase everything.

REMOTE & ACCESSORIES

In this menu, you can pair Bluetooth devices.

1. Press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't pair appears, the connection fails. Wait 30 seconds and then press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds to repeat the previous steps
5. Press BACK button return to the previous menu.

MULTIMEDIA PLAYER

In the HOME interface, select the MMP APP to display Video,Photo,Audio,Text.After inserting the USB flash drive, you can view the corresponding files in the USB flash drive.

NOTE:

The menu may be different depending on when you purchased the TV.

MAINTENANCE

• Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player.
• Wipe the player with a dry, soft cloth.
• If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
• Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.
• Do never insert any object nor liquid into ventilation areas. It may damage the product, create short-circuit or electric shock danger.

WALL MOUNTING

• Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
• Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.
• Use standard M6*18mm screws (4 pieces) to mount this TV.

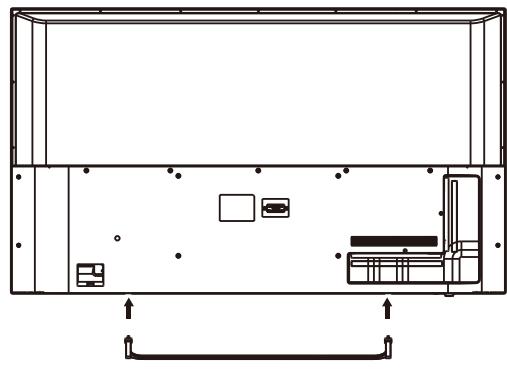

Back of your TV

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below.

Step 1

Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

Step 2

Align the Stand with TV bottom and then force the end of stand until the TV is fully seated on the stand.

Step 3

Tighten the included screws with a screw driver.

NOTES:

1) Unplug the power plug first when installing or removing the TV Stand.
2) To avoid any damage to this TV, contact one or more partner for assistance when installing or removing the TV stand.

(1)

SPECIFICATIONS

REFERENCE	TVSAND55KPR01.133
MODEL N°	TVSAND55KPR01
Model title	LED screen 55 inches
Resolution	3840x2160 pixels
Color number	1.07G
Contrast	4000:1
Ratio	16:9
Lifetime	30000hrs
Tuner	DVB-T,DVB-C,DVB-T2
TV rated voltage	100-240V~50/60Hz 2.0 A
Consumption	150W
Dimensions	1238x761x255mm
Weight	(approx.)14 kg
Base	2 pieces, removable
Operating temperature	5-35°C
Remote control rated voltage	DC1.5Vx2(Battery is not included)
Loudspeakers	2x10W
Inputs	HDMIx4, ANT, CI, USBx3, RJ45,AV IN
Outputs	HEADPHONEx1, OPTICAL
Functions via USB	Y
Compatible multimedia formats via USB	Film : FLV,MKV,MPEG,MPEG-4,MOV,AVI,H.264
	Music : MP3,WAV,M4A,AMR
	Photos : JPG,BMP,PNG,JPEG
	Text : TXT
VGA supported formats	N

4K

UHD

Specifications are subject to change without notice.

ACCESSORIES :

Stand 2 pieces

Remote control 1

User manual 1

All the pictures in this manual are just for your reference, appearance and display should subject to the final product.

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Spec sheet about energy
Brand	Polaroid
Reference	TVSAND55KPR01
Energy efficiency grade	A
Screen size	138.7 cm ; 54.6 inches
Eletrical consumption in on mode (W)	108W
Annual electric consumption for 4 hours/day, 365 days/year	158 kWh/year
Eletrical consumption in sleep mode (W)	<0.5W
Eletrical consumption in off mode (W)	N/A
Screen resolution (pixels)	3840x2160

Specifications are subject to change without notice.

UHD

ENERG

eHepnra · Evpeyela

Polaroid

TVSAND55KPR01

A+
A++
A+
A
B
C
D

ENERGIA·EHEPTRNA

ENEPTEIA · ENERGIJA

ENERGY·ENERGIE

ENERGI

108

Watt

158

kWh/annum

138.7

cm

54.6

inch

2010/1062- 2020

GENERAL TROUBLESHOOTING

Check the following points before assuming malfunctions of this unit:

Symptom[COMMON]	Remedy
No power.	Insert the power plug securely into the power outlet.
No picture.	Ensure that the equipment is connected properly.
● No sound. ● Distorted sound.	● Ensure that the equipment is connected properly. ● Ensure that the input setting for the TV and stereo system are correct. ● Adjust the master volume to a suitable volume by pressing VOL+/VOL- button.
No operations can be performed with the remote control unit.	● Check the batteries are installed with the correct polarities. ● The batteries are exhausted: replace them with new ones. ● Point remote control at the remote control sensor and operate it again. ● Operate the remote control unit at a distance of no more than 6m from the remote control sensor. ● Remove the obstacles between the remote control and remote control sensor.
No key operation (by the main unit and/or the remote control unit) is effective.	Disconnect the power plug and then reconnect it. (The player may not be operating properly due to lightning, static electricity or some other factors.)
Symptom[TV]	Remedy
No or poor picture.	● Adjust antenna or use an external antenna. ● Relocate the unit near a window (if inside a building). ● Move units away from this product that causes interference. ● Do Auto Tuning again. ● Try another channel.
No sound or poor sound.	● Check the audio settings. ● Press MUTE button on remote control to cancel mute function. ● Unplug the headphone.
Noise or other interface.	Electronic equipment near the unit is causing interface. Relocate the unit or move the equipment.

Warranty conditions

OPERATING MANAGEMENT:

Your product is guaranteed 2 years.

To request support, contact the customer service at 08 11 48 22 02

You will then be asked the defective part and the original invoice stating the product regulation. We may ask you for photos of your appliance.

FAILURE TO PACKING:

If it appeared, after unpacking the product or device, a vice preventing the use of the product in its expected configuration, contact the customer service within 72 hours worked.

DISCLAIMER OF WARRANTY

DISCLAIMER OF WARRANTY RELATED TO THE ORIGIN OF DAMAGES

The guarantee does not apply in case of accidental physical damage, it does not cover such damage and failures that resulted:

• improper installation (of a bad installation) or a misuse or poor maintenance of the product.
• improper use of the material or not complying with the instructions in the user manual.
• lightning, flood, fire, power surge, shock, poor ventilation, a fall, discoloration due to the action of light, burning, humidity, excessive heating without humidifier, or irregular ground or insects.
• repairs made and / or working on the hardware and / or opening of it by an unauthorized person by the manufacturer.
• maintenance, repair or replacement of parts due to normal usury or failure to maintain.
• modification of the construction and original features of the guaranteed product.
• corrosion, oxidation, a bad connection nor an external power supply problem.

EXCLUSION OF WARRANTY RELATING TO THE NATURE OF DAMAGES (INDIRECTS DAMAGES)

The guarantee covers only the right to repair or replace the guaranteed product.

Consequently, the indirect damage resulting from the failure or damage not covered by

warranty, including:

• Commissioning costs, adjusting, cleaning;
• Damage of any kind resulting from the unavailability of the product guaranteed during the period between deterioration and failure and repair or the replacement of the product guaranteed.

OTHER EXCLUSIONS

• Damage and faults under specific exclusions in the warranty manufacture guaranteed product, as mentioned in the product instructions for use;
  The aesthetic damage;
• The products guarantee that the customer is not able to return or those who returned without their accessories.

PIXELPOLICY

• In accordance with the ISO 13406-2 norm, a product is considered defective when the number of dead or lit pixels is over 3.

SUPPORT

Please refer you to the board below to find easily your after sales number:

COUNTRY		PHONE NUMBER	EMAIL	WEB
FR (only for metropolitan France)		([phone]	[e-mail]	www.mms-support.net
BEL NL		+352.26.11.00.90	[e-mail]
DE IT		[phone]	[e-mail]
		199 309 314	[e-mail]
ES PT		[phone]	[e-mail]
		([phone]	[e-mail]
CH CH		0900 77 88 99	[e-mail]

PLR IP Holdings, LLC, its licensees and affiliates, fully support all electronic waste initiatives. As responsible stewards of the environment, and to avoid violating established laws, you should properly dispose of this product in compliance with all applicable regulations, directives or otherGovernances in the area where you reside. Please check with local authorities or the retailer where you purchased this product to determine a location where you can appropriately dispose of the product.

THE DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE PRODUCTS ON THE PART OF FINAL USERS IN THE EUROPEAN UNION

This symbol on the product or on the container indicates that this product cannot be eliminated with the general waste. The user is responsible for eliminating this kind of waste by throwing them away at a "recycling point" specifically for electrical and electronic waste. Selective collection and electrical equipment recycling contribute to preserve natural resources and warrant waste recycling to protect environment and health. In order to receive further information about electrical and electronic waste collecting and recycling, contact your Local Council, the service of household waste or the establishment where the product was acquired.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

Product features, specifications and appearances are subject to change without notice.

Declaration of conformity EU:

Market Maker Brand Licensing, hereby declares that this equipment, conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_MMBL_TVSAND55KPR01.pdf

Instantly recognizable. Instantly reassuring. The Polaroid Classic Border lets you know you've purchased a product that exemplifies the best qualities of our brand and that contributes to our rich heritage of quality and innovation.

© 2019. All Rights Reserved

Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo and Polaroid Color Spectrum are trademarks of PLR IP Holdings, LLC, used under license. PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer's Warranty or support.

www.polaroid.tech

Market Maker Brand Licensing -79/81 Ancienne Route Nationale 7-69570 Dardilly, France

TVLED UHD 55”/ACCESS 55 SERIE 8000

TVSAND55KPR01

MANUALE DELL'UTENTE

ISTRUZIONI IMPORTANTI

PRECAUZIONI PER LA SICUREZZA

Use Wi-Fi to estimate location

Recent location requests

No apps have requested location recently

Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device.stats.

In this menu you can choose between the Open-Source-Lizenzen and Open-Source-Menus.

In this menu you can use the following commands to open the Open-Source-Lizenzen.

USB interface is used to and other USB devices (such as mobile hard disk, U disk, etc.), direct broadcast audio and video files in USB devices. Turn it also has a memory function, such as on a USB interface with the digital camera, another interface to connect mobile hard disk, you can easily move the photos from digital camera to hard disk.

English	Espanol
Connection cable or wireless antenna, watch TV	Conexión por cable o antenna inalábrica para ver el TV
USB	USB
USB interface is used to and other USB devices (such as mobile hard disk, U disk, etc.), direct broadcast audio and video files in USB devices. Turn it also has a memory function, such as on a USB interface with the digital camera, another interface to connect mobile hard disk, you can easily move the photos from digital camera to hard disk.	La toma USB se usa para algunos dispositivos USB (como discosuros externos, U disks, etc.), para reproducir directamente los ARCHivos de audio y video desdelos mismos. Tiene también una funciona de memoria, como si se conecta una cárra digital a una toma USB y a另一边 se conecta un disco duro externo, pueda moverse fácilmente las fotos desdela cárra digital al disco duro.

Polaroid, Polaroid & Pixel are registered trademarks of PLR IP Holdings, LLC, used under license.

This Polaroid TV is produced by Shenzhen MTC CO.,LTD for Market Maker Brand Licensing.

Accept

convenient, a lot of equipment cannot be used directly, need to transform.

USB interface is used to and other USB devices (such as mobile hard disk, U disk, etc.), direct broadcast audio and video files in USB devices. Turn it also has a memory function, such as on a USB interface with the digital camera, another interface to connect mobile hard disk, you can easily move the photos from digital camera to hard disk.
