USER MANUAL MGK 3025, MGK 3020, SK 3000 BRAUN

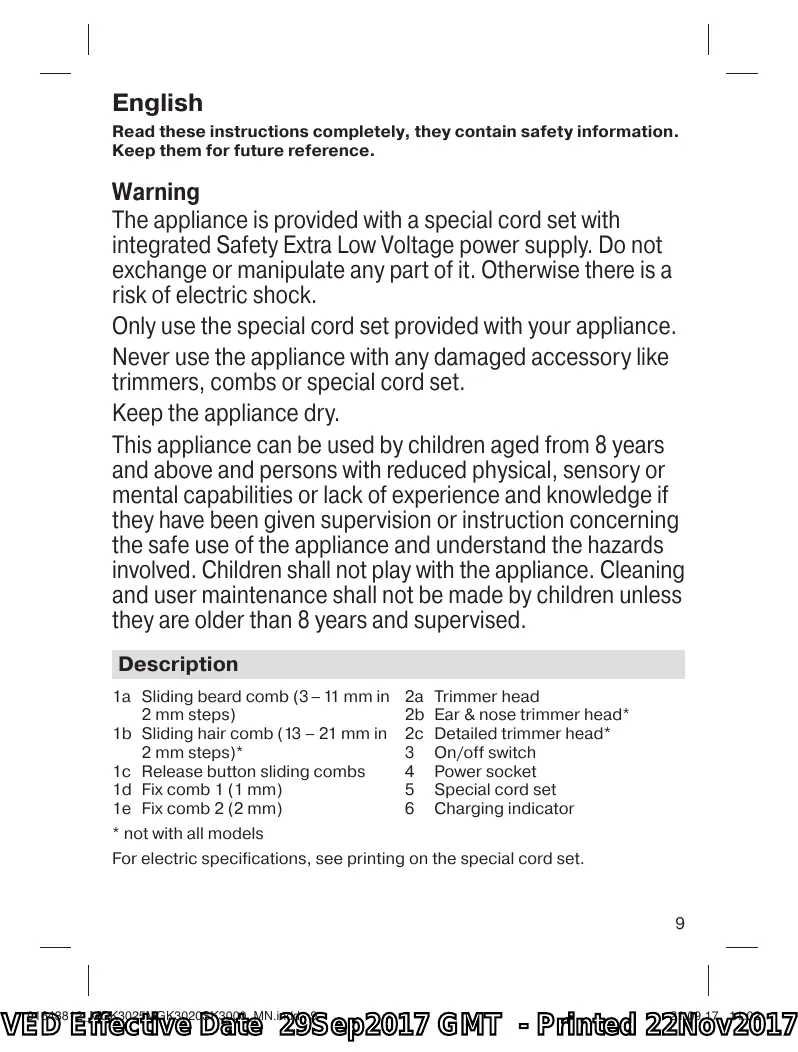

English Read these instructions completely, they contain safety information. Keep them for future reference.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Keep the appliance dry.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Description 1a Sliding beard comb (3-11 mmin 2a Trimmer head 2 mm steps) 2b Ear & nose trimmer head”

1b Sliding hair comb (18-21 mmin_ 2c Detailed trimmer head* 2 mm steps)” Onoff switch

14 Fix comb 1 (1 mm) Special cord set

1e Fix comb 2 (2 mm) Charging indicator

* not with all models

For electric specifications, see printing on the special cord set.

| | VED'Etfétuvé Daté 295ep2017 GMT - Printed 22N6v2017

Charging The appliance will only charge when it is switched off.

Recommended ambient temperature for charging is 5 ‘C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 C to 35 "C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

+ Connect the appliance via the special cord set (5) to an electrical outlet.

+ Afull charge takes approx. 10 hours and provides up to 40 minutes of cordless operation time.

+ The charging indicator (6) in the special cord set lights up continuously when the appliance is being charged.

+ Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity.

Attach or exchange the attachments only when the appliance is switched off. To turn the appliance on, slide the on/off switch (3) up.

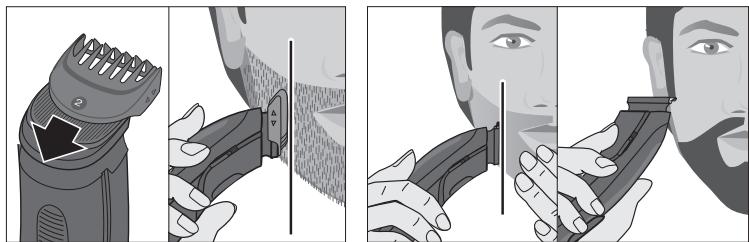

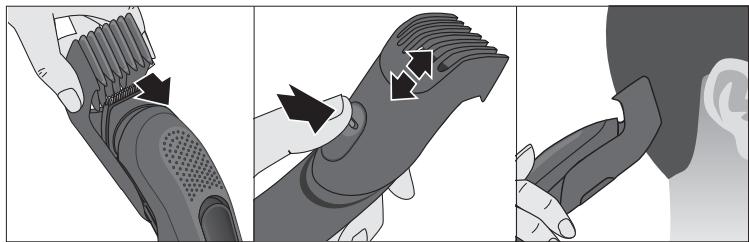

Beard Trimming / H: ping Sliding combs (a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

+ Trim against hair growth by guiding the flat comb part over the skin. + Do not force the appliance through the hair faster than it can be cut. + Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, moustaches and partial short beards.

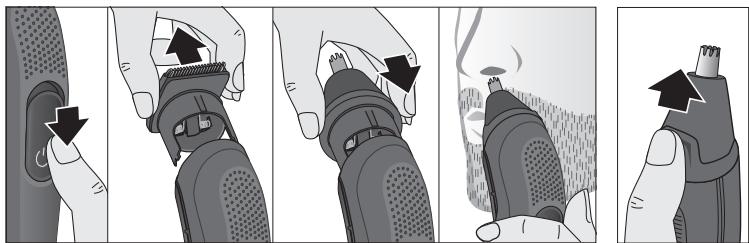

+ Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.

+ Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm {1/4°) into nose or ear.

| | ED ERRCUVE Dit" 29Sep2017 GMT - Printed 22N6v2017

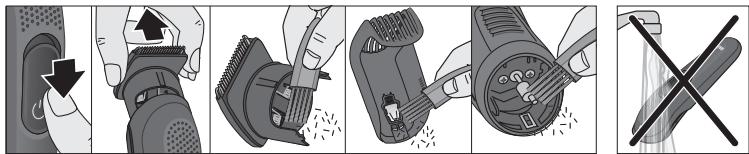

Cleaning and maintenance

+ Switch off the appliance.

+ Take off head and comb.

+ Use the brush to clean the heads, combs and the appliance.

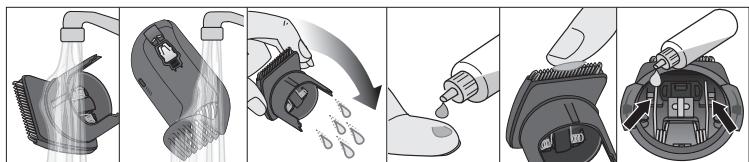

+ The removed head and the combs can be cleaned under running water. Let them dry completely before reattaching them.

+ To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or opera- tion of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only: This guarantee in no way affects your rights under statutory law.

| | ED ERRCUVE Dit" 29Sep2017 GMT - Printed 22N6v2017

For Australia & New Zealand only:

Warranty In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For claims in Australia please contact:

Procter & Gamble Australia Pty Ltd

1 Innovation Road, Macquarie Park

Email: gillette@au.pgconsumers.com

For claims in New Zealand please contact: Procter & Gamble Distributing New Zealand Limited c/o Simpson Grierson

88 Shortland Street, Auckland 1010

Email: gillette@nz.pgconsumers.com

Our Warranty This appliance is also covered by a 24 Month Replacement Warranty com- mencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand andis in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

| | ED EME Dit" 29Sep2017 GMT - Printed 22N6v2017

Our Warranty does not cover: Damage arising from improper use or operation on incorrect voltages. Breakages to shaver foils, glass jars, etc.

Normal wear due to moving parts.

Repairs undertaken by unauthorised service personnel or use of non genuine parts.

E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

Ifthe appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splas- hing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia

and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manu- facturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense.

For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time — in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1 800 641 820

New Zealand Consumer Service (free call): 0 800 108 909

| | ED ERRCUVE Date" 29Sep2017 GMT - Printed 22N6v2017

Australian & New Zealand Service Agents

VICTORIA & TASMANIA Statewide Services Pty Ltd trading as J A Appliances

17-19 Hossack Avenue

Coburg North, VIC 3058

QUEENSLAND Waters Import trading as Brisbane Appliance Service Centre

WESTERN AUSTRALIA Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104

Rooty Hill, NSW 2766

Email: fas16@bigpond.com

SOUTH AUSTRALIA & NT Adelaide Service Centre Shop B2,

Parkholme Shopping Centre 319 Oaklands Road, Parkholme Adelaide, SA 5043
