USER MANUAL TVLED654KP POLAROID

TV UHD 65 4K | SERIE 4000

TVLED654KPR001

MANUEL D'UTILISATION

INSTRUCTIONS IMPORTANTES DE SECURITE

RISQUES D'ELECTROCUTION, NE

PAS RETIRER LE CAPOT (NI

L'ARRIÈRE DE L'APPAREIL).

AUCUNE PIECE N'EST REMPLAACABLE PAR

L'UTILISATEUR. VEUILLEZ

CONTACTER LE PERSONNEL QUALIFIÉ EN CAS DE DÉFAILLANCE.

CONDITIONS DE GARANTIE 40-41

FONCTIONNALITÉS

ÉCRAN LED 65"

Confirmer la selection.

22 ▲/▼/▲/

CONNECTER AU SECTEUR

CONNECTER UNE ANTENNE EXTERNE

Due to the location of the SCART socket, please use a SCART cable with a rear and non-lateral socket as shown.

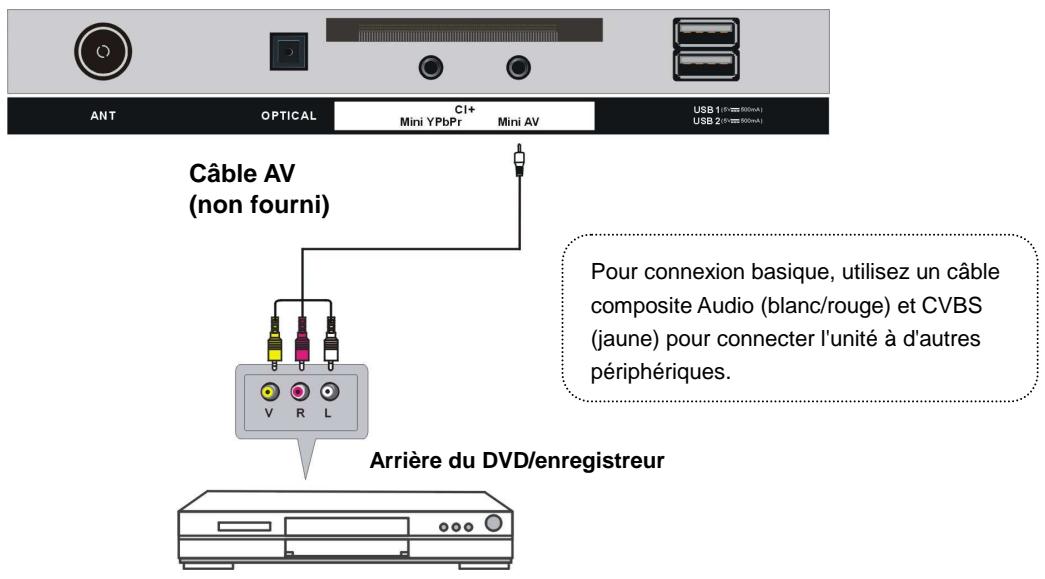

CONNEXION AV (VIDÉO COMPOSITE)

CONNEXION YPBPR

TERMINAL D'ENTRÉE USB

INSÉRER UNE CARTE CI

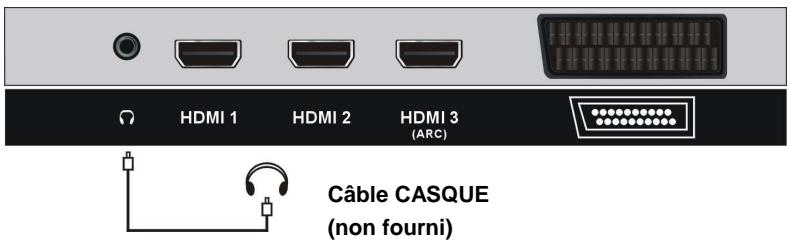

CONNEXION CASQUE

CONNEXION OPTIQUE

First Time Installation
Language	English
Country	Spanish
Energy Mode	Home Mode
OK Auto Tuning

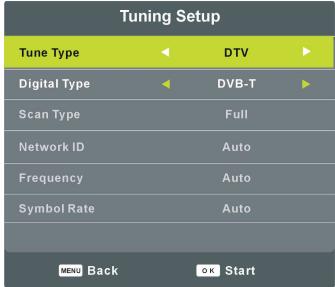

Tuning Setup
Tune Type	DTV	>
Digital Type	DVB-T	>
Scan Type	Full
Network ID	Auto
Frequency	Auto
Symbol Rate	Auto
MENU Back	OK Start

4.4 Réveil programme

EXCLUSIONS DE GARANTIE

EXCLUSIONS DE GARANTIE LIÉES À L'ORIGINE DU DOMMAGE

The warning sign showing a lightning bolt in a triangle indicates that this product contains "dangerous electrical voltages".

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTROCUTION, DO NOT REMOVE THE COVER (OR THE BACK OF THE DEVICE). NO PARTS ARE REPLACEABLE BY THE USER. PLEASE CONTACT QUALIFIED PERSONNEL IN CASE OF FAILURE.

The warning sign showing an exclamation point in a triangle indicates that this point of the manual requires special attention.

CAUTION: - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY:

Read these safety instructions before using your device and store them for possible future reference.

• This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate.
• The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.
• To disconnect the device from the mains, the plug must be disconnected. Hold the mains cable by its plug. Do not pull on the mains cable to disconnect the plug.
• The mains cables must be routed so that they are not trampled upon or pinched by objects placed on or against them.
• If the mains cable of the device is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger.
• The device must not be exposed to dripping or splashing water, moisture or liquids.
• Do not place the device near water, for example in a bathroom or near a sink.
• No objects filled with liquids such as vases should be placed on or above the device.
• Never touch the mains cable with wet hands, this could cause a short circuit or electric shock.
• To avoid the risk of fire, do not place sources of open flames, such as lighted candles, or heat sources such as radiators, on or near the device.
  The device is intended for use only in a temperate climate.

• If smoke, an unusual odour or strange noise is emitted by the device: unplug the mains cable from the electrical outlet and consult the after-sales service or repair centre. Never attempt to make repairs yourself, this could be potentially dangerous.

• Do not attempt to open or disassemble the device. This would expose you to dangerous voltages.

• The slots and openings of the device are intended for ventilation and to ensure its operation. To prevent overheating, these openings must not be obstructed or covered in any way, such as by newspapers, tablecloths or curtains.
• Always leave a minimum distance of 10 cm around the device for sufficient ventilation.
• Never push any object into the device through one of its openings, as it may come into contact with electrical components, which can cause an electric shock or fire.
• In case of thunderstorm or lightning, immediately unplug the mains cable from the wall outlet.
• Always turn off the device when not in use. Unplug the mains cable from the electrical outlet when the device will not be used for a long period of time.

• Unplug the device from the electrical outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry, soft cloth for cleaning.

• If the product does not bear the logo, it is a Class I device. It must then be connected to a mains socket with a protective earth connection.

• If it is a class I appliance, the user's protection is grounded. The appliance must be connected to a power supply base with a connection to the protective earth.

CAUTION --: TO AVOID RISK OF INJURY OR DAMAGE TO THE PRODUCT OR OTHER EQUIPMENT:

• This product is intended for household and personal use only. Do not use this product for commercial, industrial or other purposes.
• Do not subject the product to strong shocks, extreme temperatures or direct sunlight for prolonged periods.
• Keep the product away from magnetic objects, motors and transformers.
• Do not use the product outdoors, regardless of weather conditions.
• Install the device only on a stand (furniture, wall...) that can support its weight safely.

• WARNING: never place a TV on an unstable location. This can fall, causing injuries or even the death of a person. Many injuries, especially in the case of children, can be avoided by taking simple precautions such as:

• The use of furniture or stands recommended by the TV manufacturer.

• The exclusive use of furniture that can support the weight of the TV safely.
• Make sure that the device does not protrude from the edge of the furniture on which it is placed.
• Never place the device on a tall piece of furniture (e.g. cabinets or bookcases) without attaching both the furniture and the device to a suitable stand.
• Do not place the device on a trolley or on a stand that is not stable. Do not install the device on any fabric or other materials placed between its base and the supporting

furniture. The device could fall and be damaged or seriously injure a person.

• Do not use or watch the TV while driving. This is dangerous, and illegal in some countries.
• Explain to children the dangers they face when climbing on the furniture to reach the device or its controls.
• If you keep this device and change the location, you should apply the same considerations.
• CAUTION: to avoid accidents, this device must be securely attached to the floor or wall according to the installation instructions.

CAUTION: TO AVOID EYE HAZARDS:

• It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain.

USE AND HANDLING OF BATTERIES:

• CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
• Replace the batteries only with batteries of the same type or equivalent type.
• Batteries must not be exposed to excessive heat such as that from the sun, fire or similar origin.
• Never throw batteries into fire and never expose them to heat sources.
• Do not mix different types of batteries, or new and used batteries.
• The batteries must be inserted according to the polarities indicated on the battery and in the battery case of the remote control.
• Used batteries must be removed from the remote control.
• The batteries must be disposed of safely at the assigned specific collection points to preserve the environment. Follow the disposal instructions indicated on the batteries and at the collection points.
• Keep batteries out of the reach of children and animals. Only adults are capable of handling the batteries.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user manual.

——	This symbol indicates DC Voltage (for USB only).
~	This symbol indicates AC Voltage.
	This symbol indicates “Indoor use only”.

ACCESSIONS

User Manual. 1

Remote Control. 1

Stand. 2

All the pictures in this manual are just for your reference, appearance and display should subject to the final product.

TABLE OF CONTENTS

GETTING STARTED

IMPORTANT INSTRUCTIONS 1-4

ACCESSIONS 4

FEATURES. 6

GENERAL PARTS 7-8

REMOTE CONTROL. 9-10

REMOTE CONTROL PREPARATION 11

BASIC CONNECTION. 12-15

OPERATIONS

BASIC OPERATIONS. 16-22

MAIN MENU 23-31

FIRST TIME INSTALLATION 23

DTV MODE 24-32

ATV AND OTHER MODES. 32

FOR REFERENCE

MAINTENANCE 33

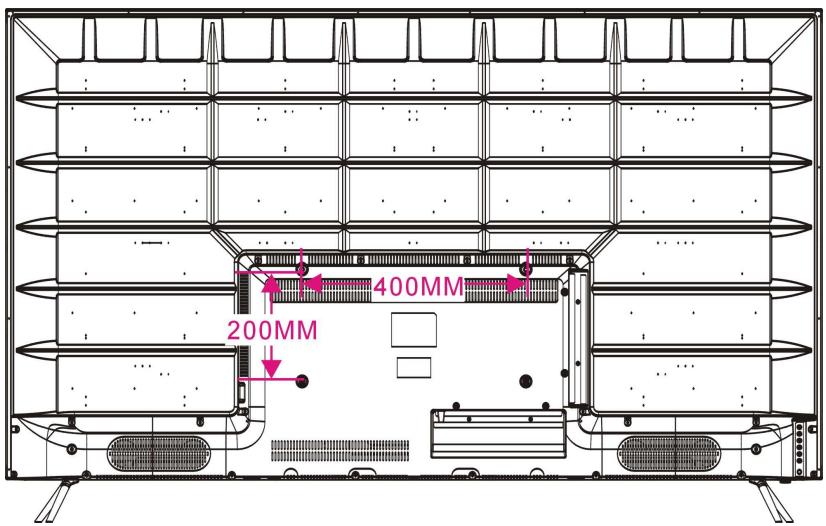

WALL MOUNTING. 33

STAND INSTALLATION 34

SPECIFICATIONS. 35-36

TROUBLESHOOTING. 38

WARRANTY CONDITIONS 39-40

FEATURES

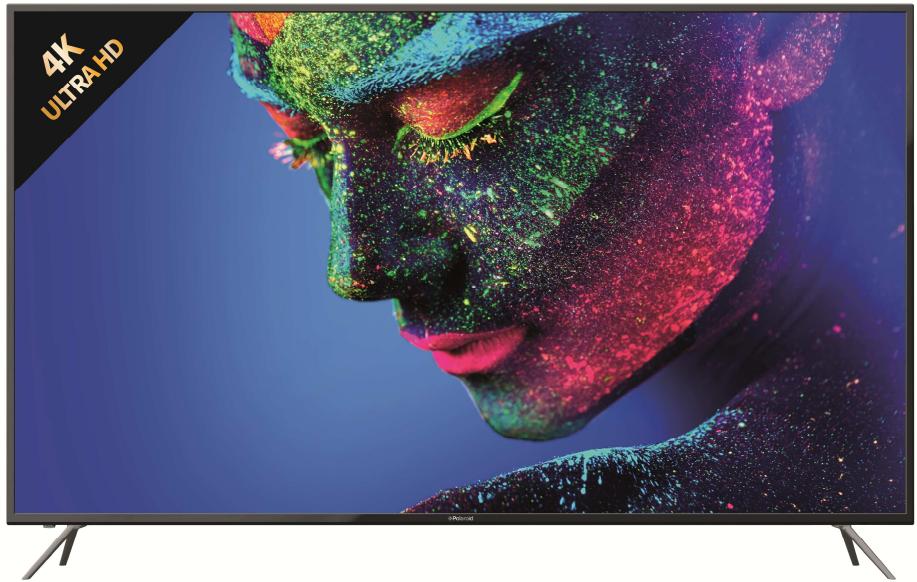

65" LED Display

This unit has a built-in LED display window to provide clear vision and low radiation.

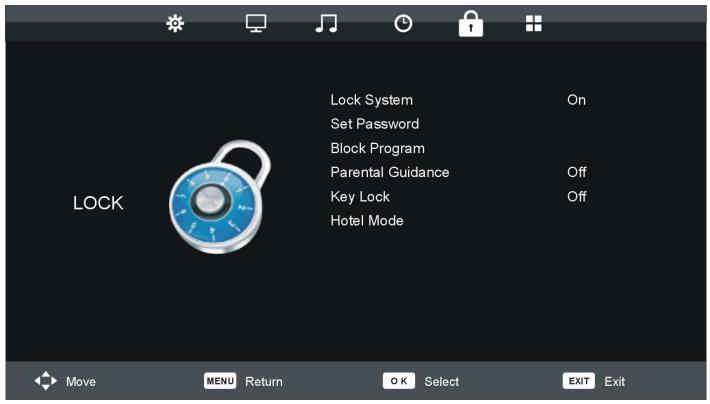

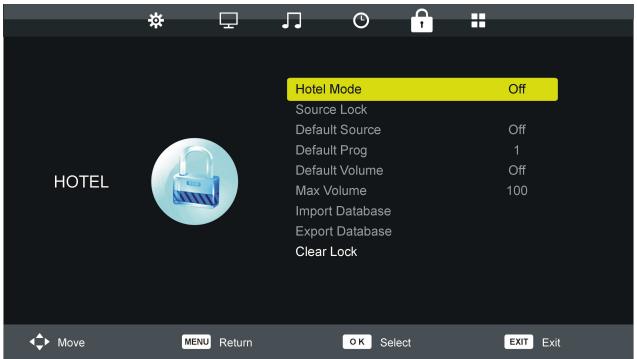

With Hotel Lock

Support Auto TV Scanning

Support Digital Broadcasting Reception

Support TV Guide Function

Support USB MultimediaPlayback

Support Multi-languages On Screen Display

Support Full Function Remote Control

Support HDMI, SCART, YPBPR, AV and CI Input

Support EARPHONE and OPTICAL Output

Support PVR Function

Support TIME SHIFT Function

With Detachable Stand Holder

With External Antenna Jack

With Built-in Speakers

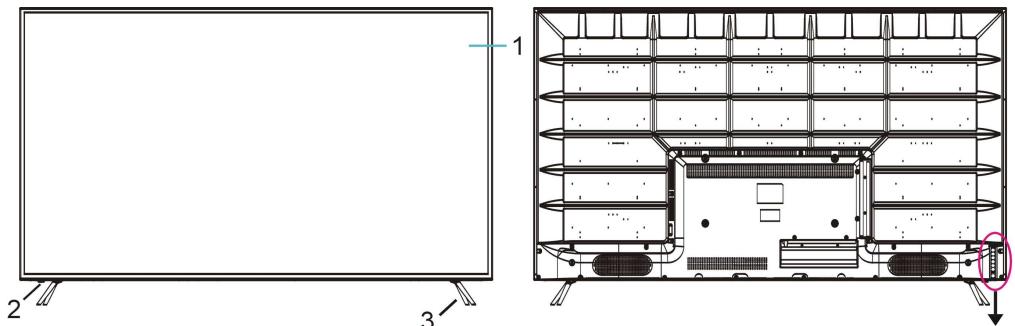

MAIN UNIT

1. LED display screen
2. Remote control sensor / Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color.
3. Stand holder
4. VOL +/- button- To increase/decrease the volume level or move left/right.
5. CH +/- button- To select next/previous channel or move up/down.
6. MENU button- To enter menu setting page.
7. SOURCE button- To select the input source.
8. STANDBY button- To turn the TV ON/OFF.

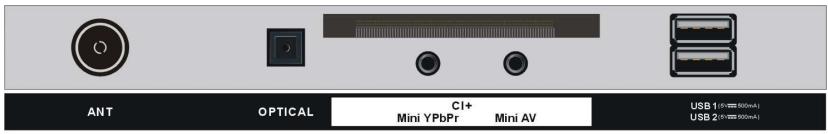

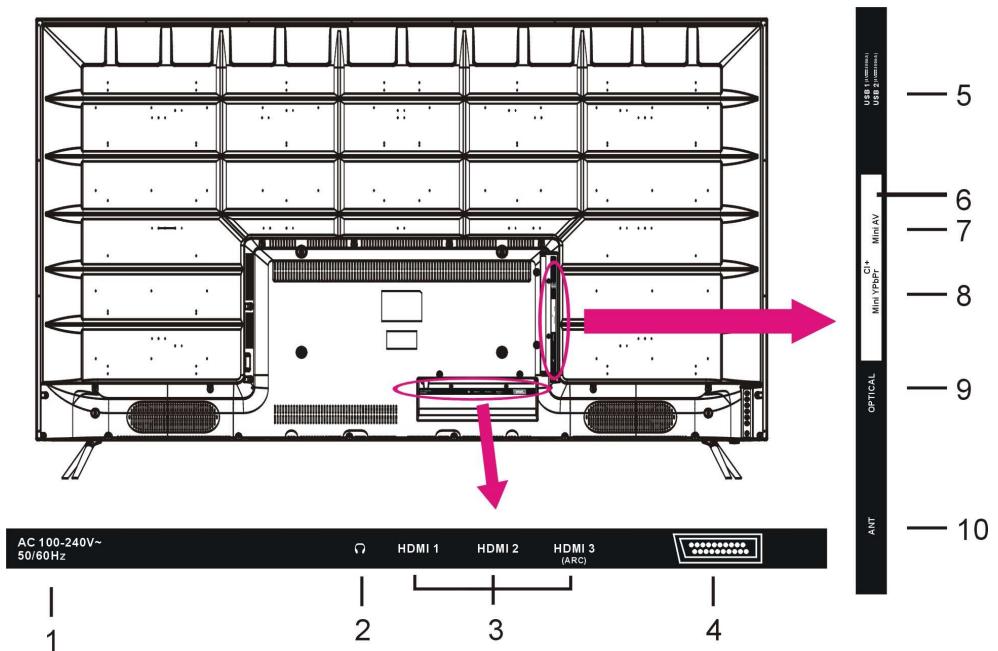

Back View

1. Power input
2. EARPHONE output terminal
3. HDMI 1/2/3 input terminal
4. SCART input terminal
5. USB 1/2 input terminal
6. Cl+ input terminal
7. Mini AV input terminal
8. Mini YPbPr input terminal
9. OPTICAL output terminal
10. ANT input terminal- To connect the external TV antenna.

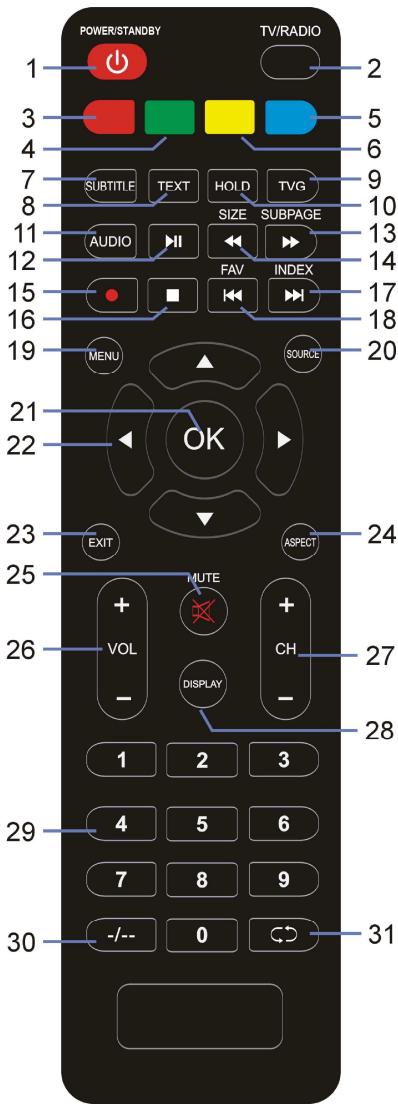

1 POWER/STANDBY

Set the unit in standby mode; press it again to switch it on.

2 TV/RADIO

Switch the unit between TV and Radio.

3 RED button

4 GREEN button

5 BLUE button

6 YELLOW button

The colored buttons are used in submenus.

7 SUBTITLE

Enable/disable subtitles.

8 TEXT

Display the available Teletext.

9 TVG

Display electronic program guide.

10 HOLD

Hold the Teletext.

11 AUDIO

Switch the available sound-track.

12

Start/pause playing.

13 SUBPAGE

Enter Teletext sub-page.

Move fast forward.

14 SIZE

Switch Teletext size.

Move fast backward.

15 DTV

Start RECORDING when watching available digital programs.

16

Stop playing.

17

Play the next file.

INDEX

Display the record list or Teletext index.

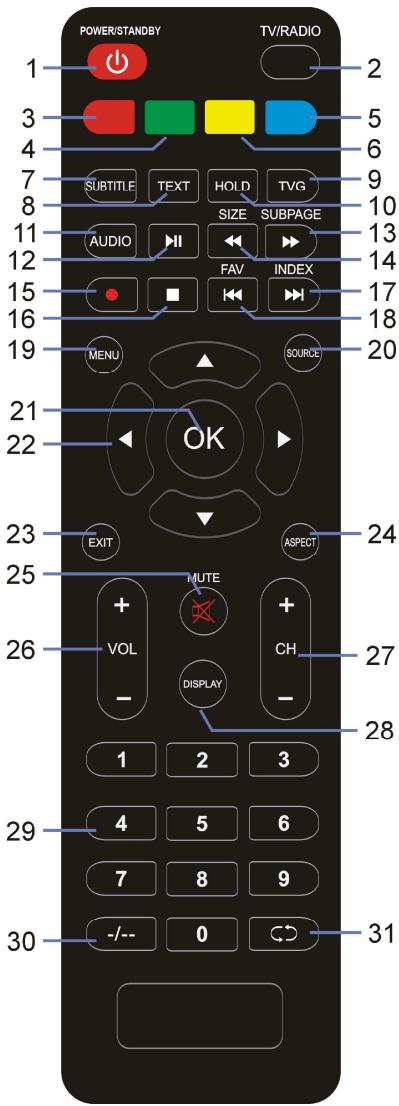

REMOTE CONTROL

18

Play the previous file.

FAV

Display the favorite channels list.

19 MENU

Call out the main menu or return to previous menu.

20 SOURCE

Select desired input source.

21 OK

Confirm selection.

22 ▲/▼/▲/

Navigation buttons

23 EXIT

Exit the menu page.

24 ASPECT

Press it repeatedly to select desired screen size.

25 MUTE

Mute the sound.

26 VOL +/-

Increase/decrease the volume level.

27 CH +/-

Play the next/previous program.

28 DISPLAY

Display the available program information.

29 Number buttons (0-9)

Input the number information, such as channel number and so on.

30 ---

Switch the digit when watching TV programs.

31 CD

Return to previous channel.

REMOTE CONTROL PREPARATION

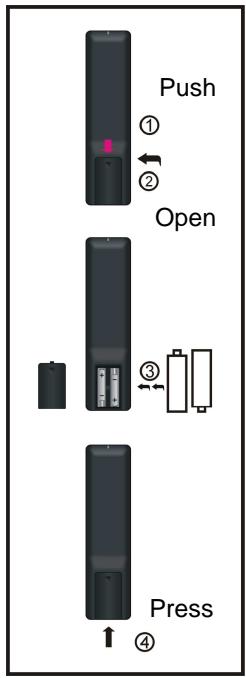

BATTERY INSTALLATION

Install the batteries as the following pictures. Be sure + and - terminals are positioned as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

• The batteries normally last for one year although this depends on how often the remote control is used.
• If the remote control fails to work even when it is operated near the player, replace the batteries.
• Use two size AAA dry batteries.

NOTE:

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
• If the remote control is not going to be used for a long time, remove the batteries.

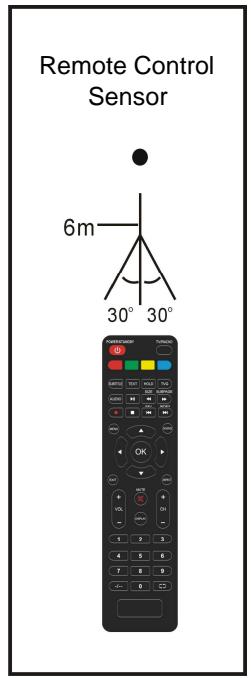

Point the remote control from no more than about 6m from the remote control sensor and within about 60^ of the front of the player (Fig2).

NOTES:

• The operating distance may vary according to the brightness of the room.
• Do not point bright light at remote control sensor.
• Do not place objects between the remote control and the remote control sensor.
• Do not use this remote control while simultaneously operating the remote control of any other equipments.

Fig1

Fig2

BASIC CONNECTION

• Ensure all the cables are disconnected from the main unit before connecting to AC power source.
• Read through the instructions before connecting other equipments.

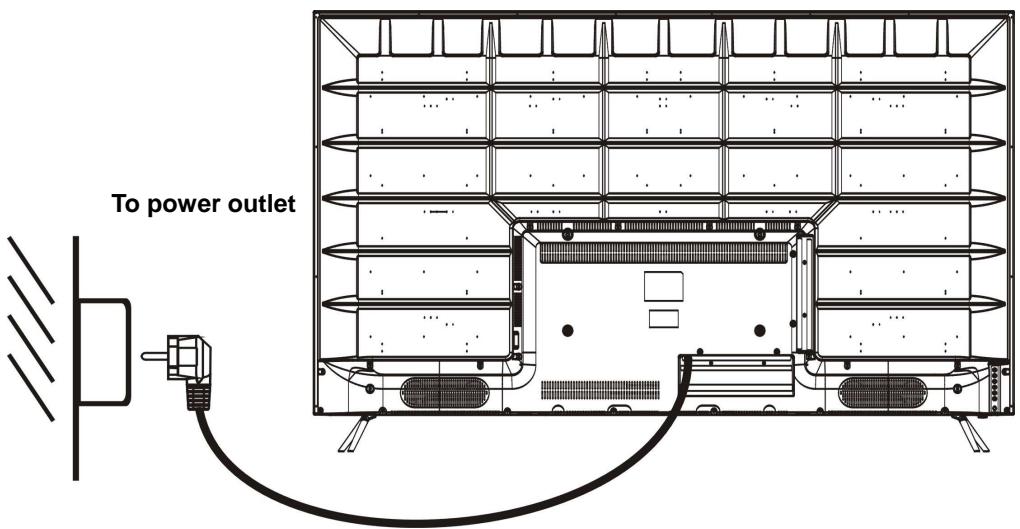

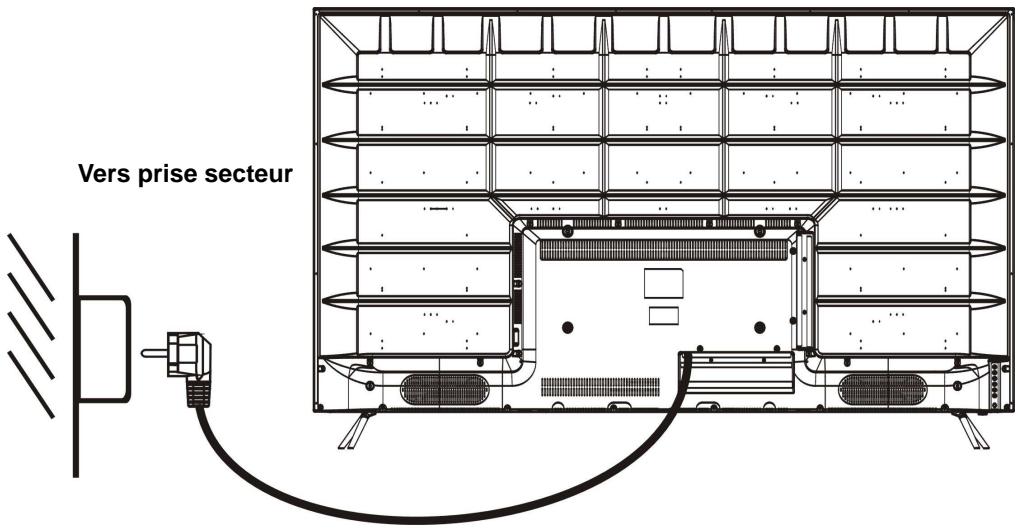

CONNECTING TO AC POWER SOURCE

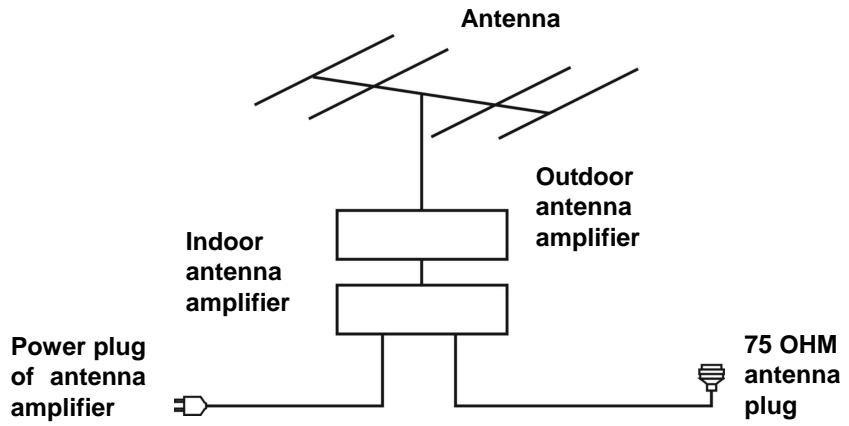

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

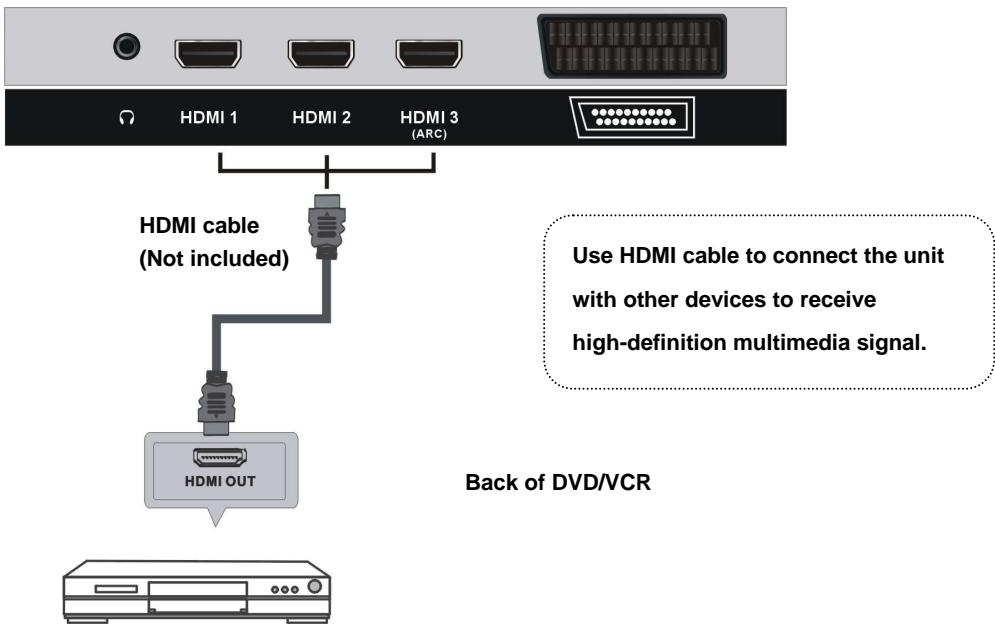

HDMI CONNECTION

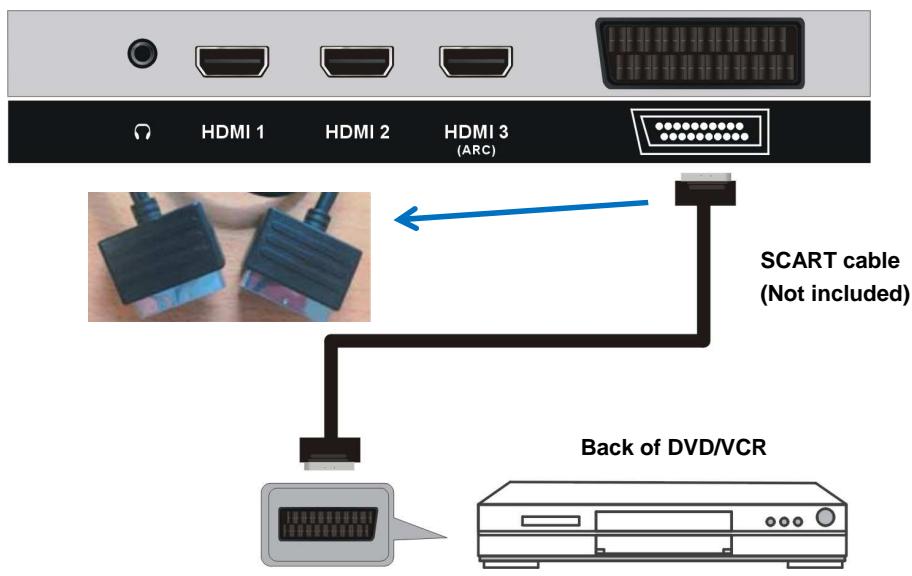

SCART CONNECTION

Due to the location of the SCART socket, please use a SCART cable with a rear and non-lateral socket as shown.

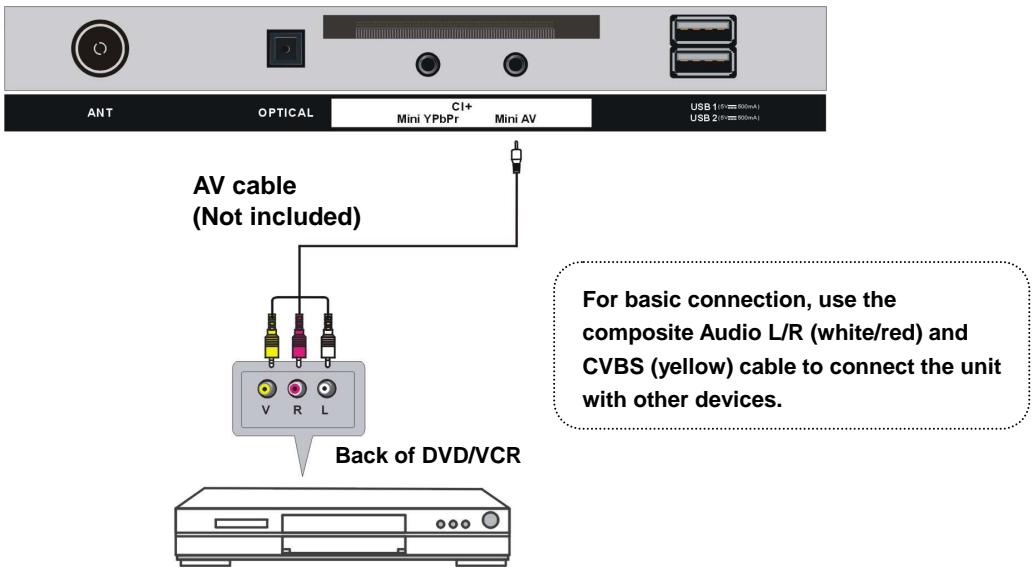

AV (COMPOSITE VIDEO) CONNECTION

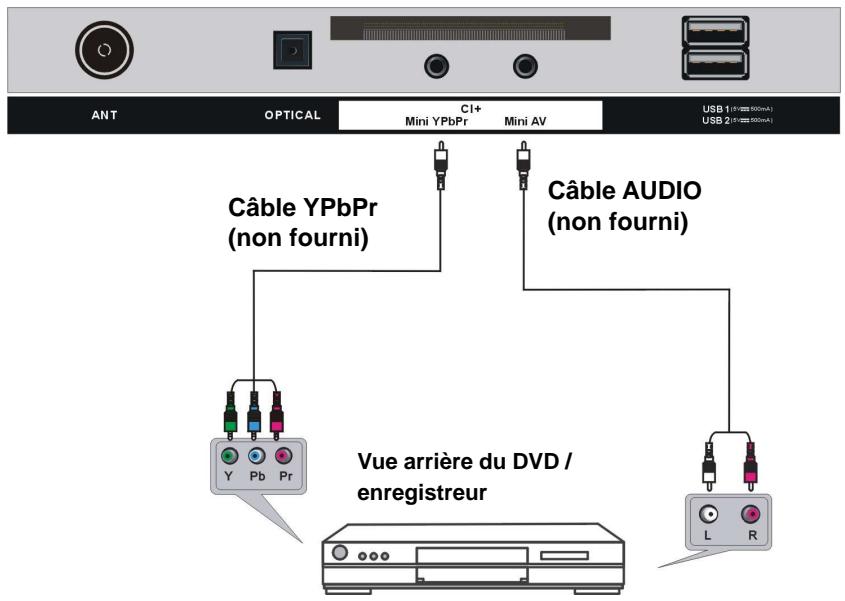

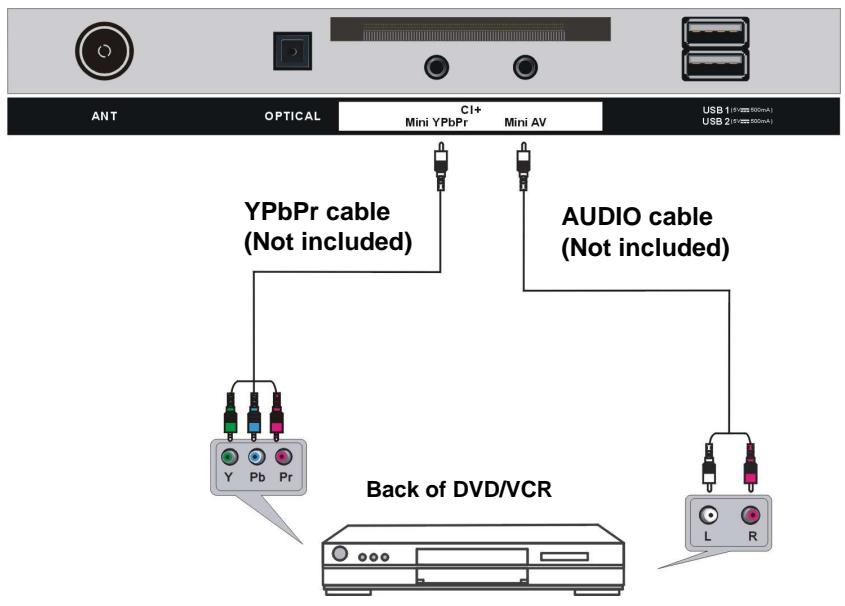

YPBPR CONNECTION

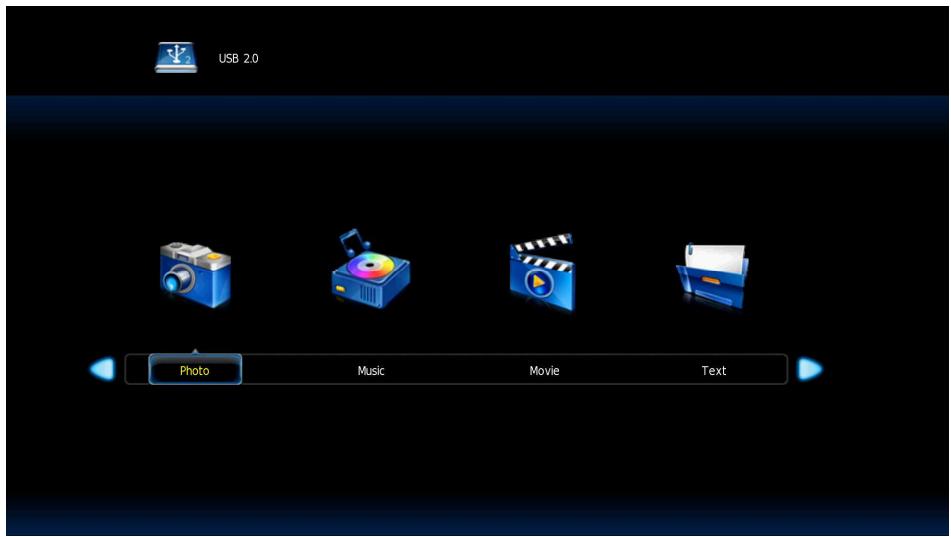

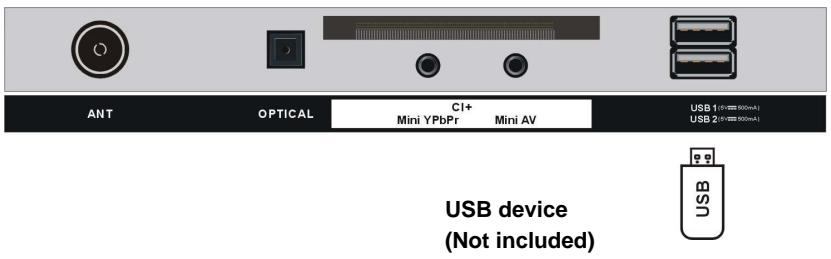

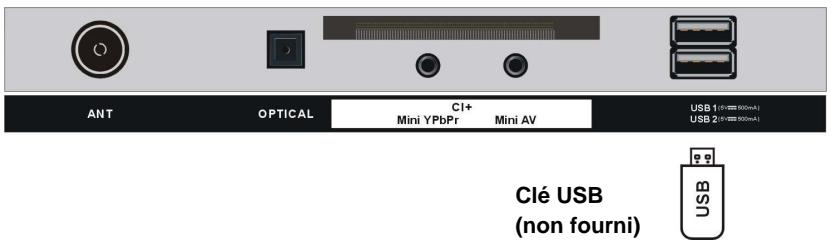

USB CONNECTION

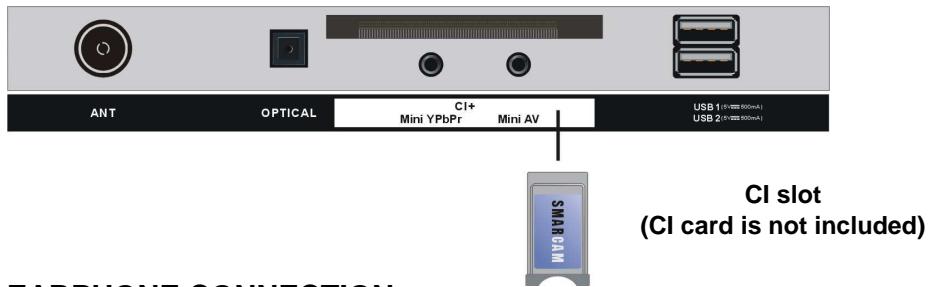

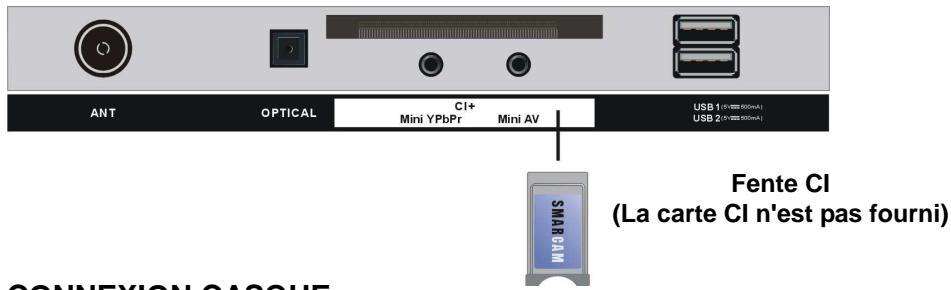

INSERT A C I CARD

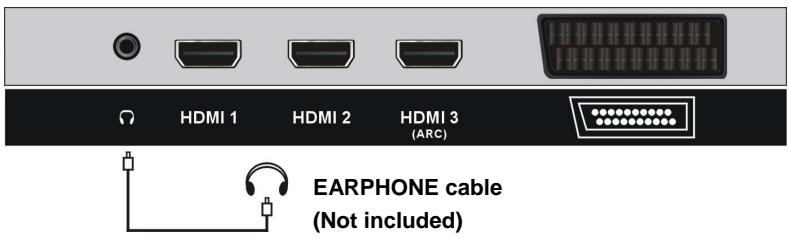

EARPHONE CONNECTION

OPTICAL CONNECTION

Use OPTICAL cable to connect the unit with amplifier or other audio decoding devices for audio signal output. (OPTICAL cable is not included)

MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS.

BASIC OPERATIONS

• Press STANDBY button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
• Press SOURCE button on the remote control to set the unit in DTV or ATV mode.

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.

NOTE: Press -/-- button repeatedly to switch the digit.

VOLUME CONTROL

• Press VOL+ or VOL- to adjust the level of current volume.

Available range: 0-100.

MUTE CONTROL

• Press MUTE button to mute the sound, press it again to turn on the sound.

SOURCE SETTING

• Press SOURCE button on the remote control to display the sources list.
• Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection.

VIDEO SIZE SETTING

• Press the ASPECT button on the remote control repeatedly to select the VIDEO SIZE directly.

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: The available video size may be different for different input sources.

MULTIAUDIO SETTING

• Press the AUDIO button on the remote control repeatedly to select the desired audio language.

NOTE: To enable this function, make sure that the channel you are viewing supports multi-audio languages.

INFORMATION DISPLAY

• Press the DISPLAY button on the remote control to display information of current programs.

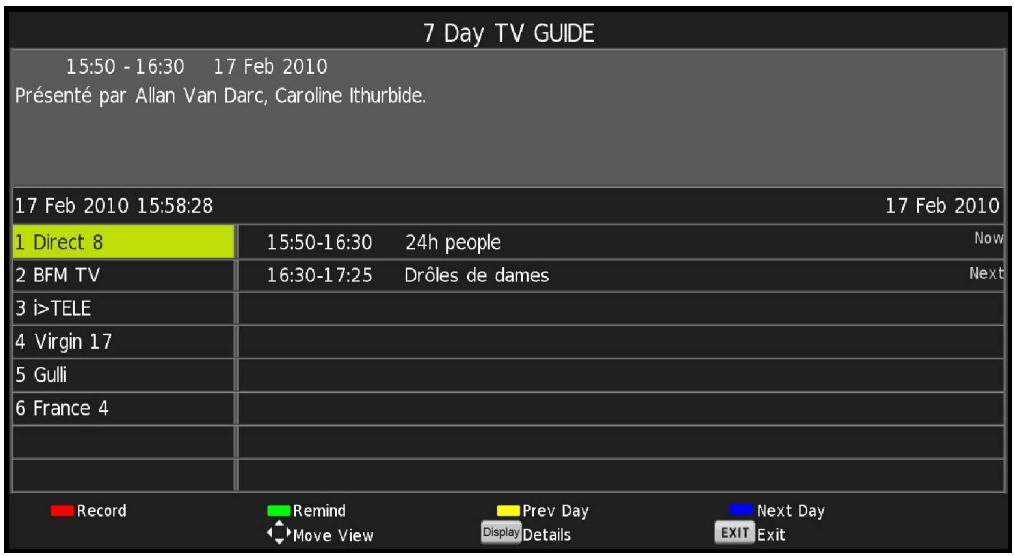

TV GUIDE (FOR DTV MODE ONLY)

• Press the TVG button on the remote control to display the programme guide.

• Press the UP/DOWN navigation button to select a preferred program

• Press the LEFT/RIGHT navigation button to switch between the left column and right column.

• Press RED button on remote control to enter Record menu page.

• Press GREEN button on remote control to select desired Remind mode, when the cursor is on the right column.
• Press YELLOW button on remote control to display program guide of previous day.
• Press BLUE button on remote control to display program guide of next day.

FAVORITE LIST

When viewing an available channel, press FAV button on remote control to enter Favorite List menu page.

• Press UP or DOWN navigation button to select preferred channel.
• Press OK button to confirm selection.

QUICK SELECT

• Press OK button on remote control to enter Channel List page directly.

• Press UP or DOWN navigation button to select desired channel and press OK button to watch it.
• Press OK button to confirm selection.

TELETEXT

• Press TEXT button on remote control to display the available teletext information and press it repeatedly to stop playing the teletext.

TV/RADIO (FOR DTV MODE ONLY)

• Press TV/RADIO button on remote control to switch the unit between TV and radio mode.

SUBTITLE

• Press SUBTITLE button on remote control repeatedly to select desired subtitle.

NOTE: To enable this function, make sure that the channel you are viewing supports multi-subtitle.

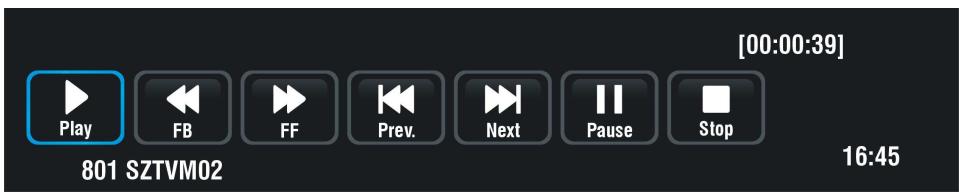

RECORDER (FOR DTV MODE ONLY)

• Insert your USB memory device into USB slot first.
• When watching digital programs, press (REC) button on remote control and below tool bar will appear on the screen:

• Press LEFT or RIGHT navigation button to select desired option. Press OK button to confirm selection.
• If the tool bar disappeared, press EXIT button on remote control to display it again.
• Press button to call out a reminding message. Use LEFT/RIGHT navigation button to exit or continue recording.

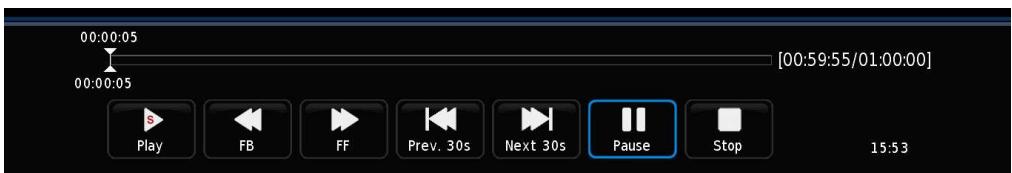

TIMESHIFT (FOR DTV MODE ONLY)

• Insert your USB memory device into USB slot first.
• When watching digital programs, press button to enable TIMESHIFT function.

• Press LEFT or RIGHT navigation button to select desired option. Press OK button to confirm selection.
• If the tool bar disappeared, press EXIT button on remote control to display it again.
• Press button to call out a reminding message. Use LEFT/RIGHT navigation button to exit or continue time-shifting.

MEDIA PLAYBACK

• Insert a USB memory device into USB slot.
• Press SOURCE button on the unit or remote control to switch this unit to Media mode.
• Press EXIT button on remote control to return to previous menu page.

1. PHOTO

• Press the LEFT/RIGHT navigation button to select "Photo" in the main menu and press the OK button to enter it.
• Use the navigation buttons to select a file and press the OK button to add it to the Playlist.
• Press the button to start playback.

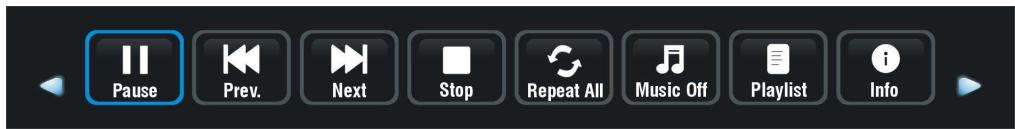

• Press the DISPLAY button to call out the tool bar below. Use the navigation buttons to select a desired option and press OK to confirm it.

• Press the EXIT button to dismiss the tool bar.

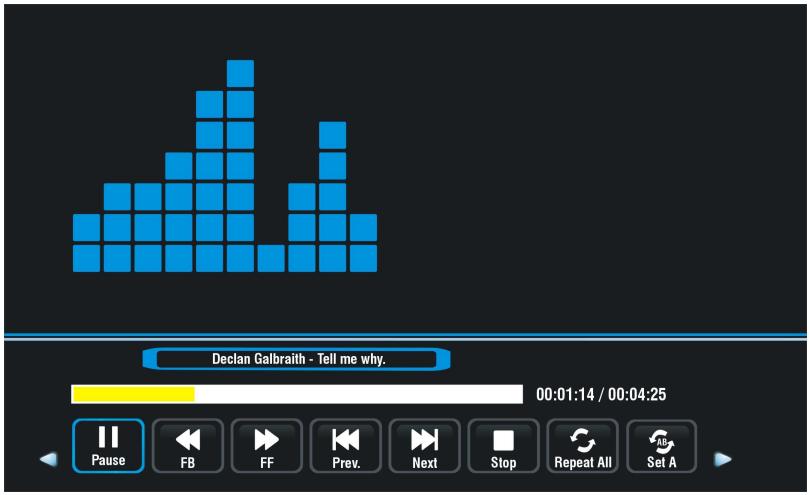

2. MUSIC

• Press the LEFT/RIGHT navigation button to select "Music" in the main menu and press the OK button to enter it.
• Use the navigation buttons to select a file and press the OK button to add it to the Playlist.
• Press the button to start playback.
• Press the DISPLAY button to call out the tool bar below. Use the navigation buttons to select a desired option and press OK to confirm it.

• Press the EXIT button to dismiss the tool bar.

3.MOVIE

• Press the LEFT/RIGHT navigation button to select "Movie" in the main menu and press the OK button to enter the selection.
• Use the navigation buttons to select a file and press the OK button to add it to the Playlist.
• Press the button to start playback.

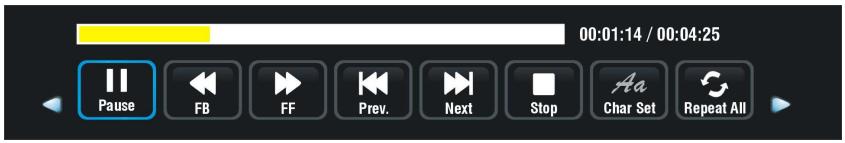

• Press the DISPLAY button to call out the tool bar below. Use the navigation buttons to select a desired option and press OK to confirm it.

• Press the EXIT button to return.

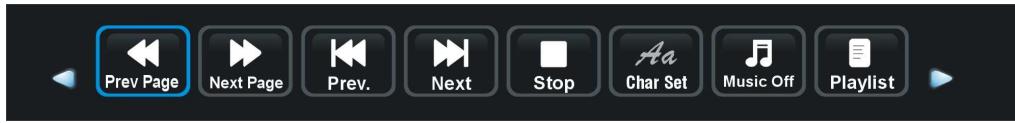

4. TEXT

• Press the LEFT/RIGHT navigation button to select "Text" in the main menu and press the OK button to enter the selection.
• Use the navigation buttons to select a file and press the OK button to add it to the Playlist.
• Press the button to start playback.
• Press the DISPLAY button to call out the tool bar below. Use the navigation buttons to select a desired option and press OK to confirm it.

• Press the EXIT button to return.

Remote control operations when playing multimedia files:

• Press the button on the remote control to play or pause playing.
• Press the button on the remote control to stop playing.
• Press the button on the remote control to move fast backward.
• Press the button on the remote control to move fast forward.
• Press the button on the remote control to play the previous file.
• Press the button on the remote control to play the next file.

NOTE: To play your multimedia files, make sure you have selected the correct icon in the main menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO mode, Music files in MUSIC mode, and so on.

MAIN MENU

• The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions.
• The settings will be remained in the memory until the settings are changed ever after setting the player to standby mode.

Common procedure for initial settings

• Press MENU button on unit side or remote control to display the main menu.
• Press LEFT or RIGHT navigation button to select different menus.
• Press UP or DOWN navigation button to select the item that want to adjust.
• Press OK button to enter adjusting menu page.
• Press MENU button to save current setting and return to previous menu page.
• Press EXIT button to exit menu page.

First Time Installation

If first time using, below menu page will appear on the screen after turning on this TV:

Language: Select the on-screen menu language.

Country: Select your country. If you do not find your country listed, select 'Other'

Energy Mode: Select Home or Store mode.

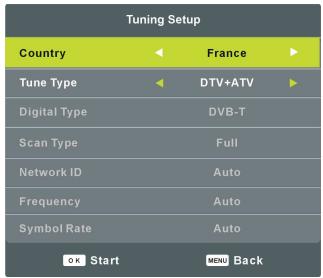

Tuning Setup

• After completing the above selections, press the OK button to display Tuning Setup menu.
• Select the preferred Tuning Option using the navigation buttons and press the OK button to start auto tuning.

Note: Scan Type and following tuning options are adjustable only when "Digital Type" is DVB-C.

DTV MODE

• Press SOURCE button on remote control to select DTV input source.

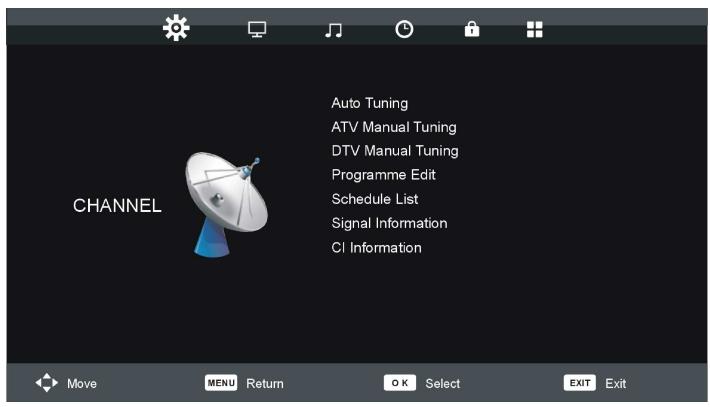

1. CHANNEL

1.1 Auto Tuning

• Press UP or DOWN navigation button to select this item, and then press OK button to enter it.
• Select preferred Tune Type using navigation buttons and press OK button to start auto tuning.

Note: Scan Type and some other tuning options are adjustable only when "Digital Type" is DVB-C.

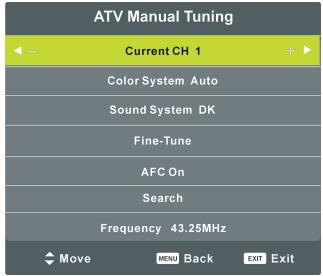

1.2 ATV Manual Tuning

• Press UP or DOWN navigation button to select this item, and press OK button to enter it.
• Press UP or DOWN navigation button to select the second option.
• Press LEFT or RIGHT navigation button to adjust it.

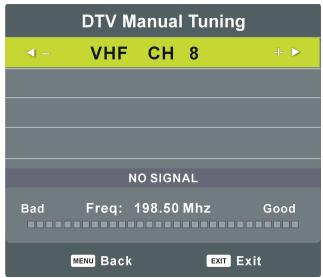

1.3 DTV Manual Tuning

• Press UP or DOWN navigation button to select this item, and press OK button to enter it.
• Press LEFT or RIGHT navigation button to select channel, then press OK button to start searching.

Note: Menu and operations mentioned here will vary for DVB-T and DVB-C.

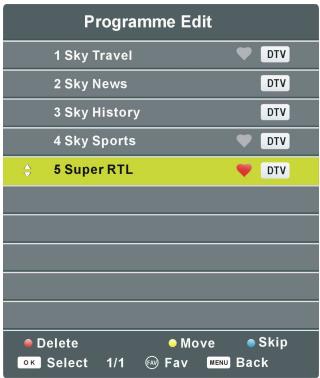

1.4 Program Edit

• Press UP or DOWN navigation button to select this item, and press OK button to enter it.

• Press RED button to delete current channel.

• Press YELLOW button to move current channel.
• Press BLUE button to skip current channel.
• Press FAV button to add highlighted channel to Favorite List and press FAV again to remove it.

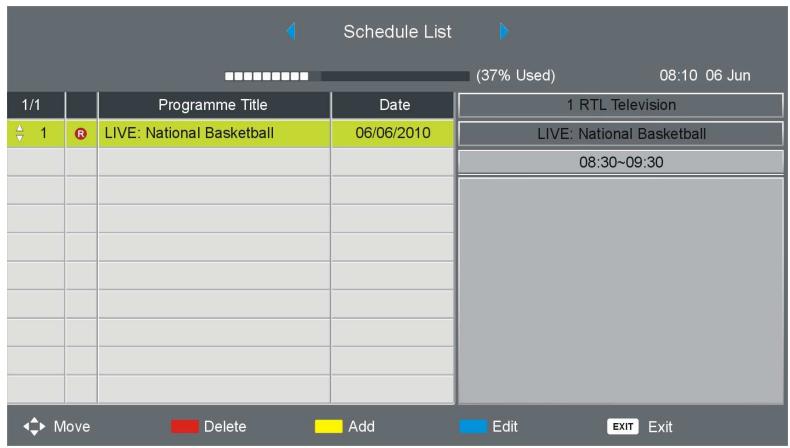

1.5 Schedule List

• Press UP or DOWN navigation button to select this item, and press OK button to enter it. If any programs are scheduled through Add menu (press YELLOW on remote control), below menu will appear.

• Press LEFT/RIGHT navigation button to switch between Schedule List and Recorded List.
• Press RED button to delete highlighted option.
• Press YELLOW button to enter Add menu page.
• Press BLUE button to enter Edit menu page.

1.6 Signal Information

• Press UP or DOWN navigation button to select this item, and press OK button to display signal details, including Channel Number, Frequency, Quality and Strength.

1.7 CI information

When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.

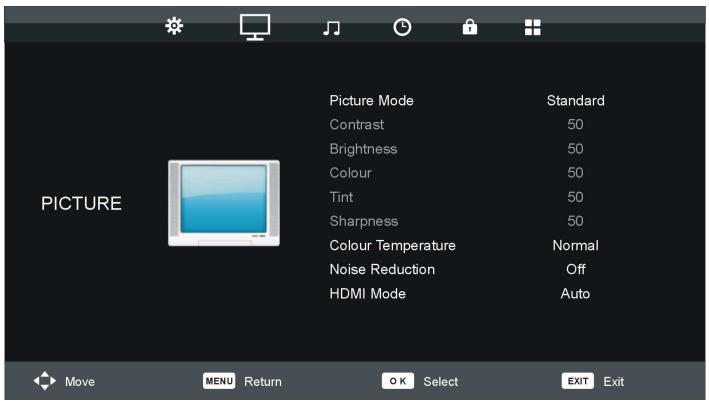

2. PICTURE

2.1 Picture Mode

Available options: User, Dynamic, Standard, Mild.

NOTE: The value of Contrast, Brightness, Colour, Tint and Sharpness is adjustable only when Picture Mode is "User".

2.2 Contrast

The value of contrast can be adjusted from 0-100.

2.3 Brightness

The value of brightness can be adjusted from 0-100.

2.4 Colour

The value of colour saturation can be adjusted from 0-100.

2.5 Tint

The value of tint can be adjusted from 0-100.

NOTE: This item is available only in NTSC system.

2.6 Sharpness

The value of sharpness can be adjusted from 0-100.

2.7 Colour Temperature

This item is used to adjust the optimum colour temperature for suitable viewing.

Available options: Normal, Cool, Warm.

2.8 Noise Reduction

Available options: Off, Low, Middle, High, Default.

2.9 HDMI Mode

Select HDMI mode to fit external Device that connected.

Available options: Auto, Video, PC.

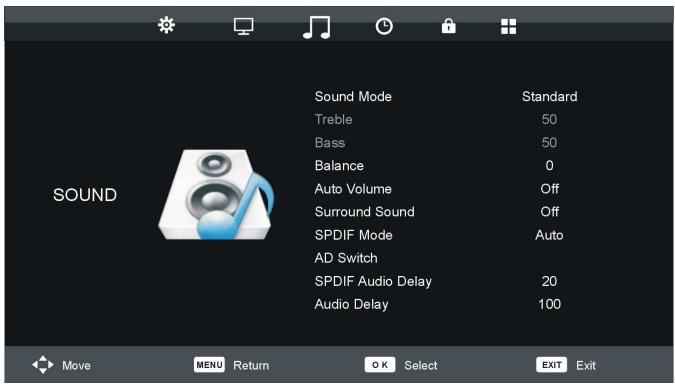

3. SOUND

3.1 Sound Mode

Available options: Standard, Music, Movie, Sports, User.

NOTE: The value of Treble and Brass is adjustable only when Sound Mode is "User".

3.2 Treble

This item is used to adjust the level of higher-pitched sounds from 0-100.

3.3 Bass

This item is used to adjust the level of lower-pitched sounds from 0-100.

3.4 Balance

This item is used to adjust the audio output between left and right speakers from -50 to 50.

3.5 Auto Volume

This item is used to set Auto Volume ON or OFF.

3.6 Surround Sound

This item is used to turn on/off Surround Sound.

3.7 SPDIF Mode

This item is used to select SPDIF mode.

Available options: Auto, PCM, Off.

3.8 AD Switch

This item is used to set AD Switch ON or OFF. For Visually Impaired users, this function can help to know a certain scene or action through the narration, instead of see it.

NOTE: AD Switch function works only when you are viewing programs that contain related narration information.

3.9 SPDIF Audio Delay

Adjust this item if you found the SPDIF sound is not totally simultaneous with TV picture.

3.10 Audio Delay

Adjust this item if you found the sound is not totally simultaneous with TV picture.

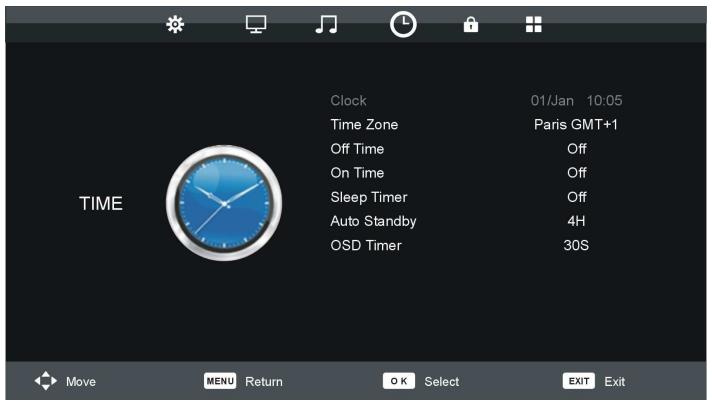

4. TIME

4.1 Clock

When an available digital program saved successfully, TV will get the time information automatically and it's not user adjustable.

4.2 Time Zone

This item is used to select desired time zone.

4.3 Off Time

• Press LEFT/RIGHT navigation button to select an available option.
• Press navigation buttons to adjust the Hour / Minute when "Off Time" is not "Off".

4.4 On Time

• Press LEFT/RIGHT navigation button to select an available option.
• Press navigation buttons to adjust the Hour / Minute / Source / Channel / Volume when "On Time" is not "Off".

4.5 Sleep Timer

This item is used to set the automatic sleep time in standby mode.

Available options: Off, 10/20/30/60/90/120/180/240 minutes.

4.6 Auto Standby

This item is used to set the auto standby duration.

Available options: Off, 3H, 4H, 5H.

4.7 OSD Timer

This item is used to set the OSD (on screen display) time.

Available options: 5S, 15S, 30S.

5. LOCK

NOTES:

• To set Lock System and 5.2 5.6 items, you need to enter the password first and the factory default password is "0000".

NOTE: If you forget the password, please use the universal password "8899".

• To enable below lock functions, turn on Lock System.

5.1 Lock System

This item is used to turn on/off Lock System.

5.2 Set Password

This item is used to change the password.

5.3 Block Program

When highlighted, press OK to enter and press GREEN button to lock a program.

5.4 Parental Guidance

Available options: Off, 4-18.

5.5 Key Lock

This item is used to lock the key board.

Available options: On, Off

5.6 Hotel Mode

• When highlighted, press OK to enter:

• Press UP/DOWN navigation button to move the cursor.
• Press LEFT/RIGHT navigation button to adjust the value.
• Press OK or RIGHT navigation button to enter submenu.
• Press MENU button to return to previous page.

Warm Tip: We strongly advise that you use "Hotel Mode" in hotels and you should just ignore it if take this TV for home use only.

Hotel Mode: Turn on/off Hotel lock.

Source Lock: Turn on/off the lock of all available sources.

Default Source: Select the default source.

Default Prog: Select the default channel.

Default Volume: Set the default volume.

Max Volume: Set the maximum volume.

Import Database: Import database from other devices.

Export Database: Export database to other devices.

Clear Lock: Clear above settings.

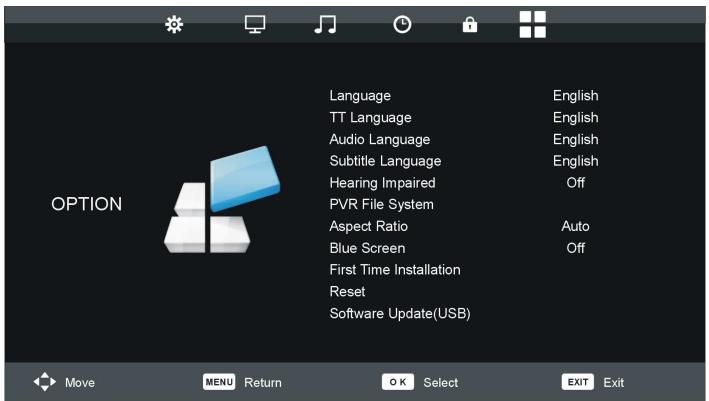

6. OPTION

6.1 Language

This item is used to select desired On Screen Display language.

6.2 TT Language

This item is used to select desired TT language.

6.3 Audio Language

This item is used to select an available audio language.

6.4 Subtitle Language

This item is used to select an available subtitle language.

6.5 Hearing Impaired

This item is used to set Hearing Impaired function ON or OFF. For Hearing Impaired users, this function can assist them know a certain scene or action through the caption, instead of hearing it.

NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.

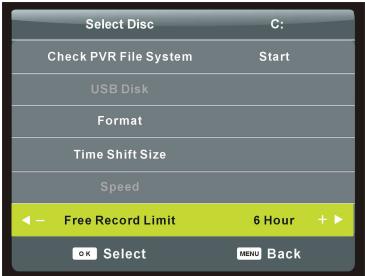

6.6 PVR File System

• Highlight this item and press OK button to enter it.
• Press UP/DOWN navigation button to select desired option. In this part, you can check PVR File System, format your USB memory device and set desired Free Record Limit time.

6.7 Aspect Ratio

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: Aspect Ratio may not be adjustable if no available signals.

6.8 Blue Screen

This item is used to set the blue background ON or OFF. The screen background will turn blue at very weak or no signal condition, if BLUE SCREEN is ON.

6.9 First Time Installation

This item is used to display First Time Installation.

6.10 Reset

This item is used to reset the unit to factory default settings.

6.11 Software Update (USB)

This item is used to update software through inserting USB device.

6.12 HDMI CEC

• Press UP/DOWN navigation button to highlight it and press OK button to enter.
• Make sure the HDMI device (Amplifier, etc.) is connected correctly.
• Press SOURCE button on remote control to select HDMI input source.

CEC Control: turn on/off CEC Control.

Audio Receiver (ARC): if this function is enabled, the users can use external amplifier or audio decoding device which featured with ARC.

Note: "ARC" function in "HDMI 3" port only.

Device Auto Power Off: if this function is enabled, external connected CEC device will power off automatically when turn off this TV.

TV Auto Power On: if this function is enabled, this TV will power on automatically when turn on external connected CEC device.

Device List: list devices that connected.

Device Menu: call out the menu of connected device.

6.13 Energy Mode

This item is used to select Home or Store mode.

ATV AND OTHER MODES

• Press SOURCE button on the unit or remote control to select desired input source.
• For other menus, please refer to the operations of DTV mode.

MAINTENANCE

• Be sure to press STANDBY button to set the player to the standby mode and disconnect the power plug before maintaining the player.
• Wipe the player with a dry, soft cloth.
• If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
• Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

WALL MOUNTING

• Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
• Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.
• Use standard M6*12mm screws (4 pieces) to mount this TV.

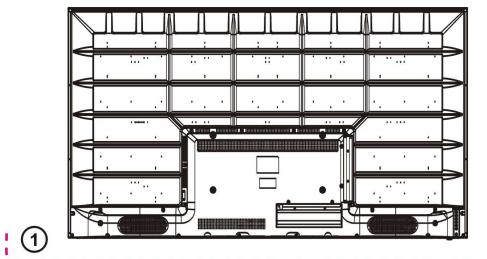

Back of your TV

STAND INSTALLATION

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below.

Step 1

Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

Step 2

Align the Stand with TV bottom and then force the end of stand until the TV is fully seated on the stand.

Step 3

Tighten the included screws with a screw driver.

NOTES:

1) Unplug the power plug first when installing or removing the TV Stand.
2) To avoid any damage to this TV, contact one or more partner for assistance when installing or removing the TV stand.

SPECIFICATIONS

Reference	TVLED654KPR001
Model No.	DVB-PM8650082HCAT
Model title	65" LED UHD
Resolution	3840×2160
Color number	16.7M
Contrast	1400 :1
Ratio	16 :9
Lifetime	30,000 Hours
Tuner	DVB-T/T2/C
TV rated voltage	AC 100-240V~50/60Hz, 5A
Consumption	Max.145W
Dimensions	1460 (W)×250(D)×916(H)mm
Weight	Approx. 16.6 Kg
Base	2 pcs, removable
Operating temperature	-5℃ to 45℃
Remote control rated voltage	1.5V×2 (battery not included)
Loudspeaker	2×8W
Hotel Lock	YES
Inputs	RF, HDMI, SCART, CI+, YPbPr, AV, USB
Outputs	EARPHONE, OPTICAL
Functions via USB	PVR, Timeshift, Multimedia playback
Compatible multimedia formats via USB	Film : AVI, MPG, MKV
	Music : MP3
	Photos : JPG/JPEG
Spec sheet about energy
Brand	Polaroid
Reference	TVLED654KPR001 (Model: DVB-PM8650082HCAT)
Energy efficiency grade	A+
Screen size	165cm; 65 inches
Eletrical consumption in on mode (W)	110W
Annual electric consumption for 4 hours/day, 365 days/year	161 kWh/year
Eletrical consumption in sleep mode (W)	<0.5W
Eletrical consumption in off mode (W)	0W
Screen resolution (pixels)	3840×2160

Specifications are subject to change without notice.

HOMI®

HIGH DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

GENERAL TROUBLESHOOTING

Check the following points before assuming malfunctions of this unit:

Symptom[COMMON]	Remedy
No power.	Insert the power plug securely into the power outlet.
No picture.	Ensure that the equipment is connected properly.
● No sound. ● Distorted sound.	● Ensure that the equipment is connected properly. ● Ensure that the input setting for the TV and stereo system are correct. ● Adjust the master volume to a suitable volume by pressing VOL+/VOL- button.
No operations can be performed with the remote control unit.	● Check the batteries are installed with the correct polarities. ● The batteries are exhausted: replace them with new ones. ● Point remote control at the remote control sensor and operate it again. ● Operate the remote control unit at a distance of no more than 6m from the remote control sensor. ● Remove the obstacles between the remote control and remote control sensor.
No key operation (by the main unit and/or the remote control unit) is effective.	Disconnect the power plug and then reconnect it. (The player may not be operating properly due to lightning, static electricity or some other factors.)
Symptom[TV]	Remedy
No or poor picture.	● Adjust antenna or use an external antenna. ● Relocate the unit near a window (if inside a building). ● Move units away from this product that causes interference. ● Do Auto Tuning again. ● Try another channel.
No sound or poor sound.	● Check the audio settings. ● Press MUTE button on remote control to cancel mute function. ● Unplug the headphone.
Noise or other interface.	Electronic equipment near the unit is causing interface. Relocate the unit or move the equipment.

Warranty conditions

OPERATING MANAGEMENT:

Your product is guaranteed 2 years.

To request support, contact the customer service at 0811 482 202.

You will then be asked the defective part and the original invoice stating the product regulation. We may ask you for photos of your appliance.

FAILURE TO PACKING:

If it appeared, after unpacking the product or device, a vice preventing the use of the product in its expected configuration, contact the customer service within 72 hours worked.

DISCLAIMER OF WARRANTY

DISCLAIMER OF WARRANTY RELATED TO THE ORIGIN OF DAMAGES

The guarantee does not apply in case of accidental physical damage, it does not cover such damage and failures that resulted:

• improper installation (of a bad installation) or a misuse or poor maintenance of the product.
• improper use of the material or not complying with the instructions in the user manual.
• lightning, flood, fire, power surge, shock, poor ventilation, a fall, discoloration due to the action of light, burning, humidity, excessive heating without humidifier, or irregular ground or insects.
• repairs made and / or working on the hardware and / or opening of it by an unauthorized person by the manufacturer.
• maintenance, repair or replacement of parts due to normal usury or failure to maintain.
• modification of the construction and original features of the guaranteed product.
• corrosion, oxidation, a bad connection nor an external power supply problem.

EXCLUSION OF WARRANTY RELATING TO THE NATURE OF DAMAGES (INDIRECTS DAMAGES)

The guarantee covers only the right to repair or replace the guaranteed product. Consequently, the indirect damage resulting from the failure or damage not covered by warranty, including:

• Commissioning costs, adjusting, cleaning;
• Damage of any kind resulting from the unavailability of the product guaranteed during the period between deterioration and failure and repair or the replacement of the product guaranteed.

OTHER EXCLUSIONS

• Damage and faults under specific exclusions in the warranty manufacture guaranteed product, as mentioned in the product instructions for use;
  The aesthetic damage;
• The products guarantee that the customer is not able to return or those who returned without their accessories.

PIXELPOLICY

• In accordance with the ISO 13406-2 norm, a product is considered defective when the number of dead or lit pixels is over 3.

SUPPORT

Please refer you to the board below to find easily your after sales number:

COUNTRY	PHONE NUMBER	EMAIL	WEB
FR (only for metropolitan France)	([phone]	[e-mail]	www.mms-support.net www.polaroid.tech
BEL	+352.26.11.00.90	[e-mail]
NL
DE	[phone]	[e-mail]
IT	199 309 314	[e-mail]
ES	[phone]	[e-mail]
PT	([phone]	[e-mail]
CH	0900 77 88 99	[e-mail]

PLR IP Holdings, LLC, its licensees and affiliates, fully support all electronic waste initiatives. As responsible stewards of the environment, and to avoid violating established laws, you should properly dispose of this product in compliance with all applicable regulations, directives or otherGovernances in the area where you reside. Please check with local authorities or the retailer where you purchased this product to determine a location where you can appropriately dispose of the product.

THE DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE PRODUCTS ON THE PART OF FINAL USERS IN THE EUROPEAN UNION

This symbol on the product or on the container indicates that this product cannot be eliminated with the general waste. The user is responsible for eliminating this kind of waste by throwing them away at a "recycling point" specifically for electrical and electronic waste. Selective collection and electrical equipment recycling contribute to preserve natural resources and warrant waste recycling to protect environment and health. In order to receive further information about electrical and electronic waste collecting and recycling, contact your Local Council, the service of household waste or the establishment where the product was acquired.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

Product features, specifications and appearances are subject to change without notice.

Declaration of conformity EU:

Market Maker Brand Licensing, hereby declares that this equipment, conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_MMBL_TVLED654KPR001.pdf

Instantly recognizable. Instantly reassuring. The Polaroid Classic Border lets you know you've purchased a product that exemplifies the best qualities of our brand and that contributes to our rich heritage of quality and innovation.

© 2019. All Rights Reserved

Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo and Polaroid Color Spectrum are trademarks of PLR IP Holdings, LLC, used under license. PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer's Warranty or support.

www.polaroid.tech

Market Maker Brand Licensing - 79/81 Ancienne Route Nationale 7-69570 Dardilly, France

TV UHD 65 4K | SERIE 4000

TVLED654KPR001

GEBRUIKSHANDLEIDING

VEILIGHEIDSVOORZORGSMAATREGELEN

Beschikbare opties: Uit, 10/20/30/60/90/120/180/240 minutes.

4.6 Auto Slaaptimer

ALGEMENE PROBLEEMOPLOSSING

(Polaroid Classic Border)
