USER MANUAL NESSA CONNECT 1500W - HT10-23AEW, HT15-23AEW, HT20-23AEW BESTHERM

rage dy alert rrage Okwn Oh @ 100% @ 100% On August 1, the electricity consumption was the highest 0 Total of 0 hours of operation, al © 100%

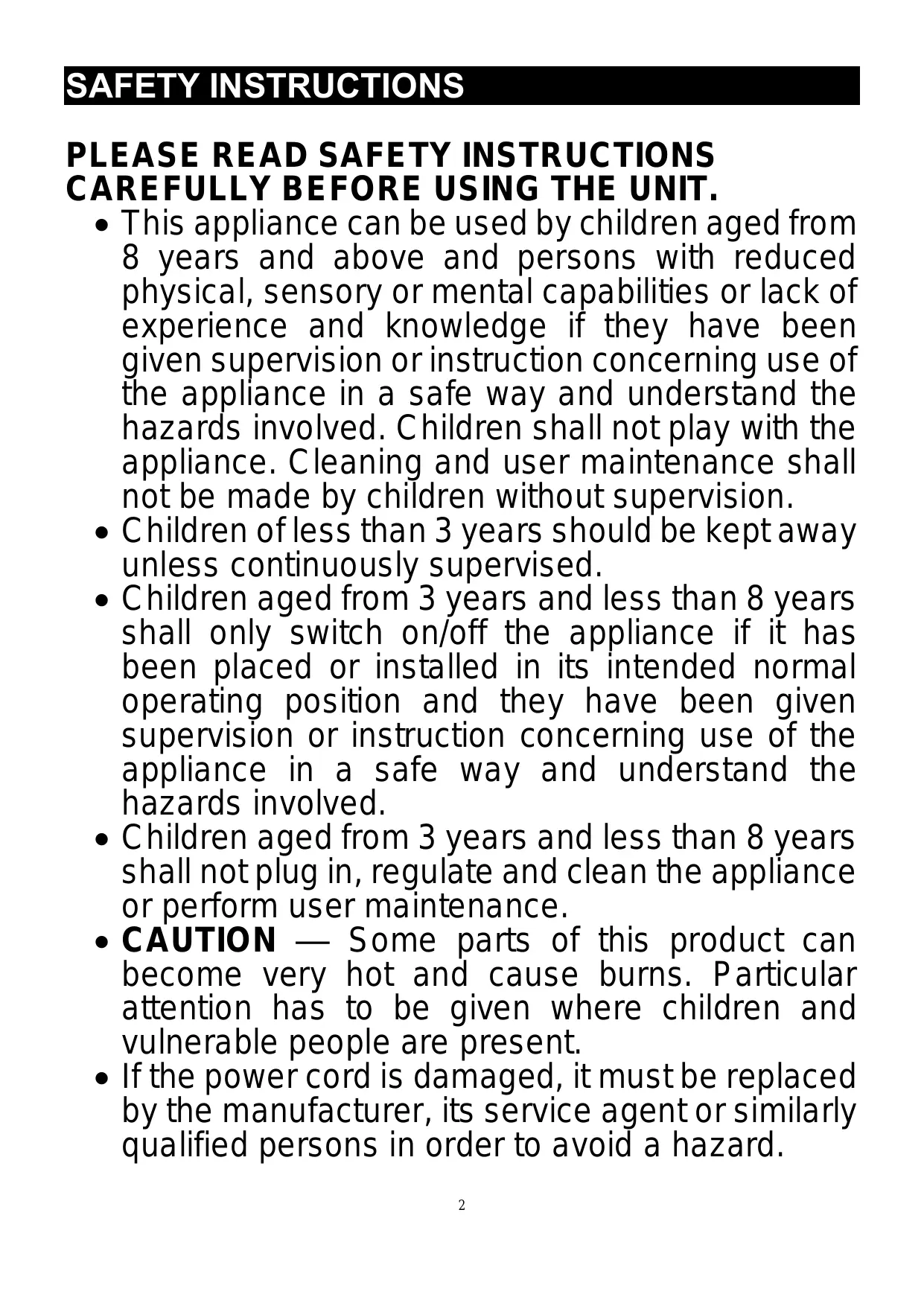

CAREFULLY BEFORE USING THE UNIT. ° This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. e Children ofless than 3 years should be kept away unless continuously supervised. e Children aged from 3 years and less than 8 years shall only switch on/off the appliance if it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. e Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. e CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. e Ifthe power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

° The appliance should not be placed immediately below à socket. . © WARNINGS: In order to avoid overheating, do not cover the heater. ° Do not use this heater with a programmer, timer, separate remote-control system or any other device that turns on the heater automatically because there is a risk of fire if the device is covered or placed incorrectly. e CAUTION: To avoid hazard due to inadvertent resetting of the thermal cutout, this appliance must not be powered via an external switch, such as a timer, or connected to a circuit that is regularly switched on and off by the electricity supplier. This heater must not be disposed of with household waste; it must be taken to a local center of recovery and recycling of electrical appliances. ° The heater must be installed so that switches and other control devices cannot be touched by a person in the bath or shower. ° À means of disconnection from the power supply having a contact opening distance of all poles must be included in the fixed wiring in accordance with the installation requirements. e WARNING: If this device is installed in a bathroom, it must be installed at least 60 cm from a bath or shower, in accordance with the

requirements of the French electrical standards NFC15-100. ° The device must be powered through a Residual Current Device (RCD) having a rated differential operating current not exceeding 30 mA. e If being fitted in a bathroom, a 30mA RCD must be used. e With respect to the details of how to install the appliance onto the wall, refer to part "INSTALLATION". eRegarding the detailed information on the connection of the electric cable, refer to the section "ELECTRICAL CONNECTION". INSTALLATION

IMPORTANT RECOMMENDATIONS TO READ

BEFORE INSTALLATION - Do not install the unit directly below a socket. - Do not install the unit in a damp room or near a Water source. - Do not use the appliance outdoors. - Do not install the unit in an air current that could disrupt its regulation. - Do not place the unit near a barrier limiting the airflow around it. - Attach the heater vertically to the wall as described below. - Choose screws and plugs suitable for the wall

material and weight of the unit. To hang the heater on the wall:

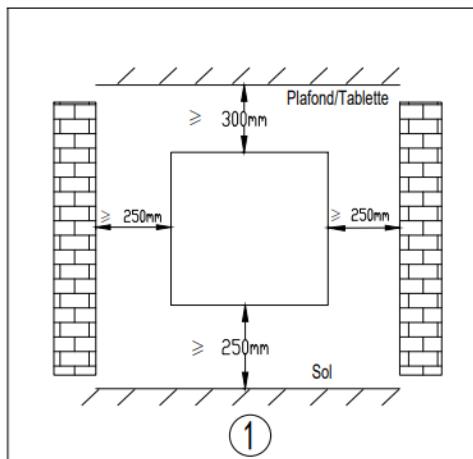

1. Choose a suitable installation location for the

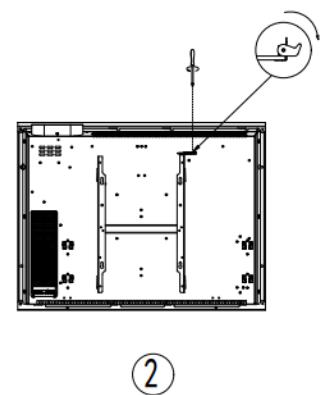

2. Disassemble the wall bracket by loosening the

screw (do not remove, only loosen) and slide the metal plate out of the hole. Take out the bracket by pulling down. (Fig 2)

3. Verify that the bracket is horizontal with a spirit

level and mark the location of 4 holes on the wall. Drill 4 holes in the wall using a drill adapted to the diameter of wall plug. Insert the wall plug into the holes, then screw securely wall mount bracket onto the wall. (Fig 3)

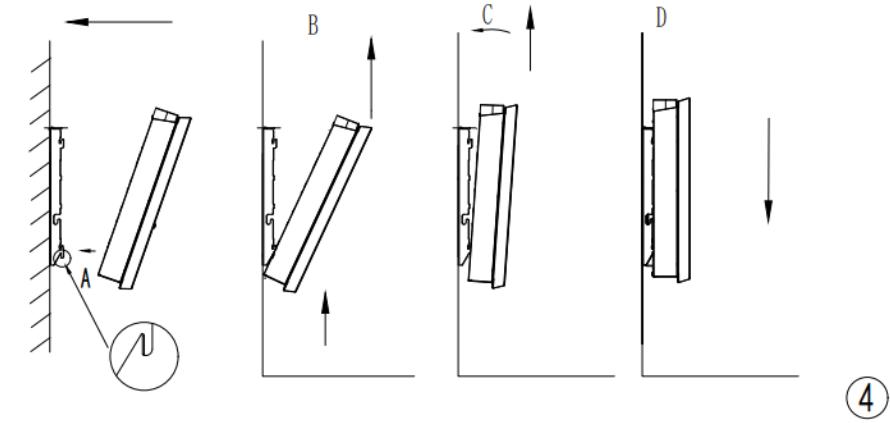

4. Place the heater against bracket (Fig 4):

À : Align the heater on the 2 lower hooks that are downwards. B : Pull the heater upwards whilst retaining it in the 2 lower hooks. C : Align the heater on the 2 upper hooks that are upwards. D : Pullthe heater down.

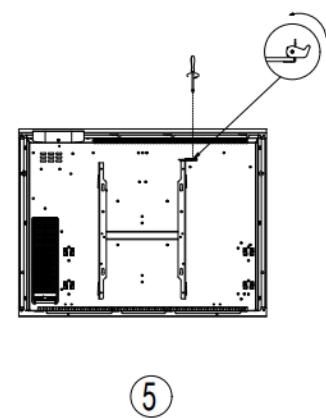

5. Slide the metal plate into the hole, and fasten the

screw to lock the wall mount bracket. (Fig 5)

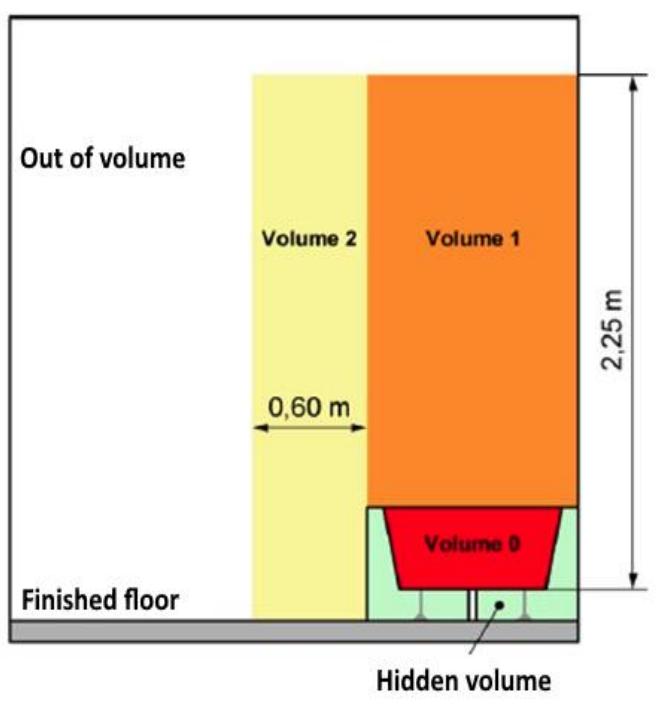

INSTALLATION IN THE BATHROOM

Warning: This appliance must be only installed in the

volume 2 or out of volume ofthe bathroom, as stated in the French standard NF C 15-100 for electrical installation inside the house. Note: The drawing is for reference only. We suggest that you to contact a professional electrician for assistance. Out of volume 2,25m 0,60 m | Finished floor 1 [ei

ELECTRICAL CONNECTION CAUTION: Before any intervention, turn off the electricity at the main circuit breaker. - The installation must be carried out according to the requirements and meetthe standards enforced in the country (NF C 15-100 in France). - The unit must be connected to a standard wall box placed at least 25 cm from the floor. - The appliance must not be connected to an outlet with a power plug. - The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA. - The appliance must not be connected to the earth wire (yellow and green wire). ELECTRICAL CONNECTION Blue or light gray wire connect to Neutral (230V) Brown or red wire connect to Phase (230V) Black wire connect to pilot wire. (O ptional function to use in case of control by pilot wire box) WARNING! Do not connect the black wire to the earth connection. - In the absence of pilot wire, insulate the bare end of the black wire to prevent electrical contact with the other wires or earth.

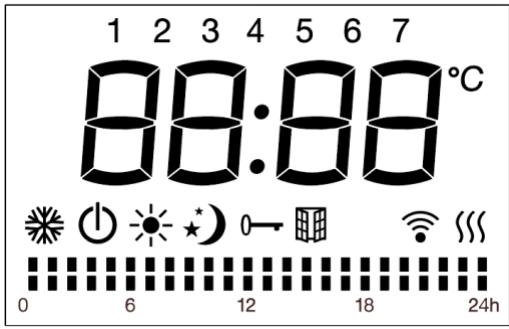

Symbol Function &o Stand-by mode (the appliance will not work but will receive power) Fa Anti-freeze mode (the appliance maintains a temperature of 7 around 7°C) 2e Comfort mode (desired set temperature)

2) Eco mode (ECO maintains a temperature 3.59C lower than the

selected Comfort temperature.) pu Pilot wire mode (to setthe programs via pilot wire programmer) Window detector function Keyboard lock WiFi Heating indicator (When appliance is heating up, this icon will ((( be displayed at the screen. The icon will disappear when the room temperature reaches the selected temperature) °C Temperature (centigrade) Weekly personalized modes: Mode Comfort active [I Mode ECO active

Control panel Bestherm Function Stand-by Personalized programs Window detector function Comfort mode Economy mode Anti-freeze mode P1/P2/P3/P Touch TI Set the time, day of the week, the temperature; or under weekly personalized programs, to choose between comfort mode, or eco mode. OPERATIO When you first use the appliance, there might be some slight smell which is normal. Allow the appliance to work for one hour to make it disappear.

1. Setting the time and turning on the device

To be able to use the preset programs (P1/P2/P3 /Personalized programs), the date and time must have been set on the device. For more details on the content of the preset programs (P 1 / P2 / P3) refer to the following point. Two different methods to set the time:

1. lfthe appliance was not connected to the power supply, after connection the time will appear on the

screen for setting. Press TS to toggle between hours / minutes / day of the week (1-7). Press the SN button to set the hours / minutes / day of the week. Press the o) button to complete the setting and return to Stand-by mode, otherwise after 10 seconds without action the device will automatically return to stand-by mode as if it was the first time you use the device.

2. lfthe appliance is in operation and you want to change the time setting, press the TS and NX” at

the same time to enter the time setting. Press Ÿ to toggle between hours / minutes / day of the week (1-7). Press the “ button to set the hours / minutes / day of the week. Press any button other than TS or N/ to save the setting, otherwise after 10 seconds without the setting will be saved automatically.

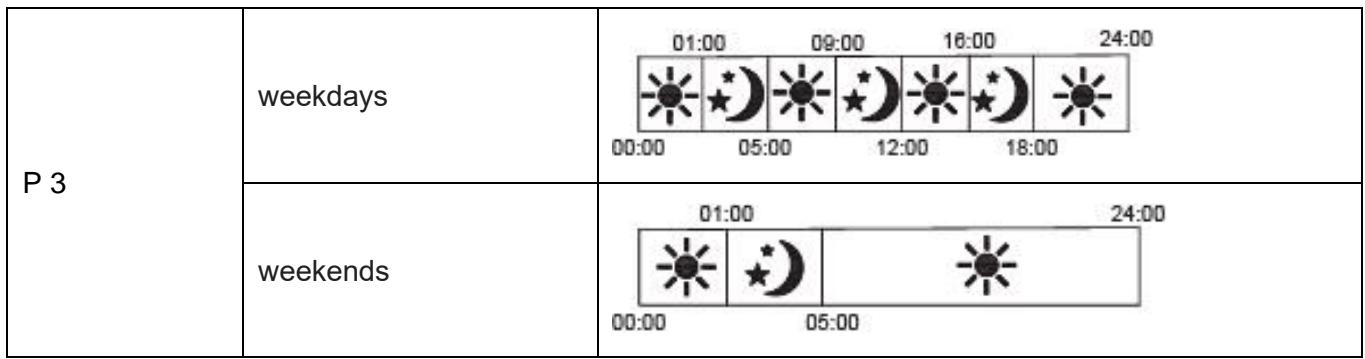

Press the Æ button to choose one of the programs. In program mode, Press = button to select between “day (1 for Monday -7 for Sunday)” and “heating mode of different periods (00:00-24:00)". Select the desired day (1-7) by pressing / 7 buttons. Press the Æ button to set the "heating mode of different period (00:00-24:00)" When you set the "heating mode of different period (00:00-24:00)", press 7 button to choose hours, and

7 to choose among function: comfort E,or economy mode Il . After 30 seconds it will automatically save. For example: to select the day 1, temperature of 19°C, comfort mode for 24 hours:

1. Press %Æ, then /7 buttons to choose day 1.

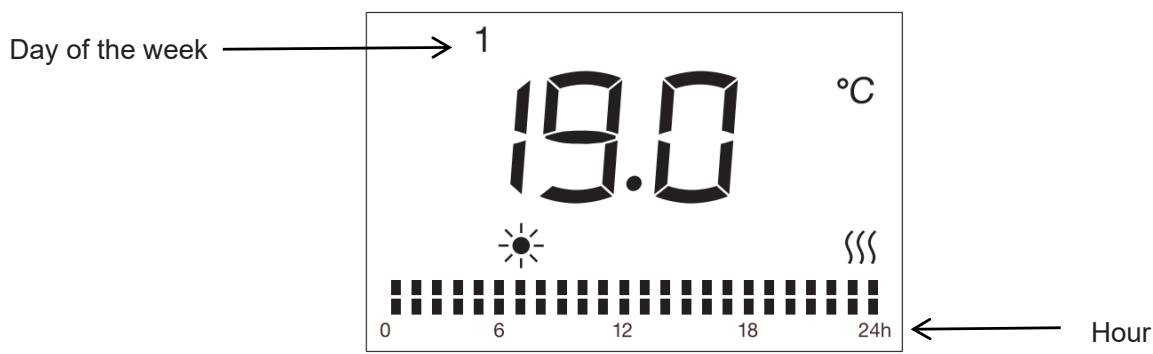

Day of the Week ——> L

2. Press the = button again, press 7 to choose the hour, to “choose comfort mode and then repeat

for the entire 24 hours.

3. After 30 seconds without action, the setting is saved.

In comfort mode 7%, or Pilot wire mode P or Eco mode *2 (exciuding anti-freeze mode 5), press Vor N/to select the desired set temperature. The temperature range for comfort mode and Pilot wire mode is between 5°C and 29°C and for Eco mode is between 1.5°C and 25.5°C. The temperature difference between the ECO mode and the COMFORT mode must be at least 3.5°C. Each time you press the buttons to adjust the temperature, you increase or decrease the temperature by 0.5°C. Press any other button except PIS to finish the setting, otherwise after 5 seconds without action the setting is automatically saved. When the room temperature is the same or higher than the selected temperature, the heater will stop heating.

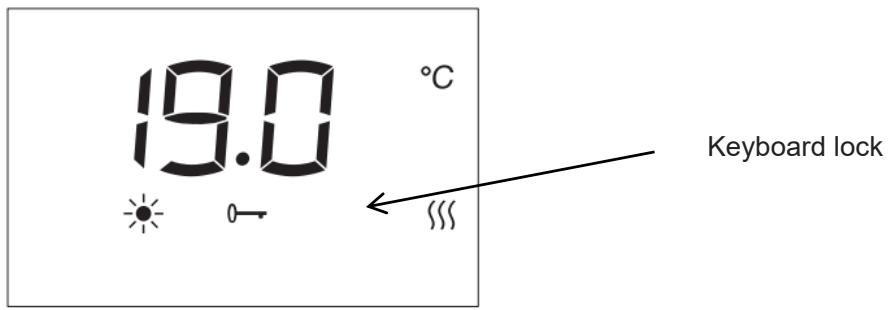

Press M button for three seconds to activate the keyboard lock function ÜÙ—+, to unlock, press M again for three seconds. je, En | C RES I JL. | Keyboard lock + fe Remarks:

1. The keyboard lock function does not lock the standby [o] button.

2. The keyboard lock function will automatically be deactivated under the below circumstances.

1) the appliance is put into standby mode by pressing standby oO) button.

2) the appliance suffers power disconnection.

If you want this option to be activated again you will need to press the M button for 3 seconds.

6. Window detector function

Press D] to enter window detector function. Then press * 7SIS/" to choose “ON” or “OFF”. If “ON” is selected, the window detection function is activated and icon will show on the screen. When temperature drop is detected, the appliance will automatically enter anti-freeze mode with icon flashing. If temperature rises up, the appliance will go back to previous mode with icon on. You can choose “OFF” to disable the window detection function. Remarks: the window detector function is not available under anti-freeze mode.

In standby mode, press == and D] at the same time for 5 seconds to enter the temperature calibration setting. The default temperature is OC. press or NZto set compensated temperature range from minus 5C to 5C . fthere is no action after 10 seconds, setting will be saved automatically and go back to previous interface. For example, the temperature displayed on your radiator is 20°C. The one displayed on your thermometer is 18°C , choose the calibration value -2°C.

8. In case of power failure

All of the above settings for temperature, time, date of the week, and programs remain valid until the power is removed. After a power failure, when power is restored, the device will go back to the mode and temperature selected before the power failure. In the event of a power failure, the device only saves the following parameters: temperature and operating mode. When the power is restored, the date and time must be set in order to make the various programs work correctly. Please check our video on Youtube for the process of installation and operation.

9. Connect WiFi by TuyaSmart

You can download the app by searching for “TuyaSmart” App in your app store or by scanning the following QR code. (successfully installed)

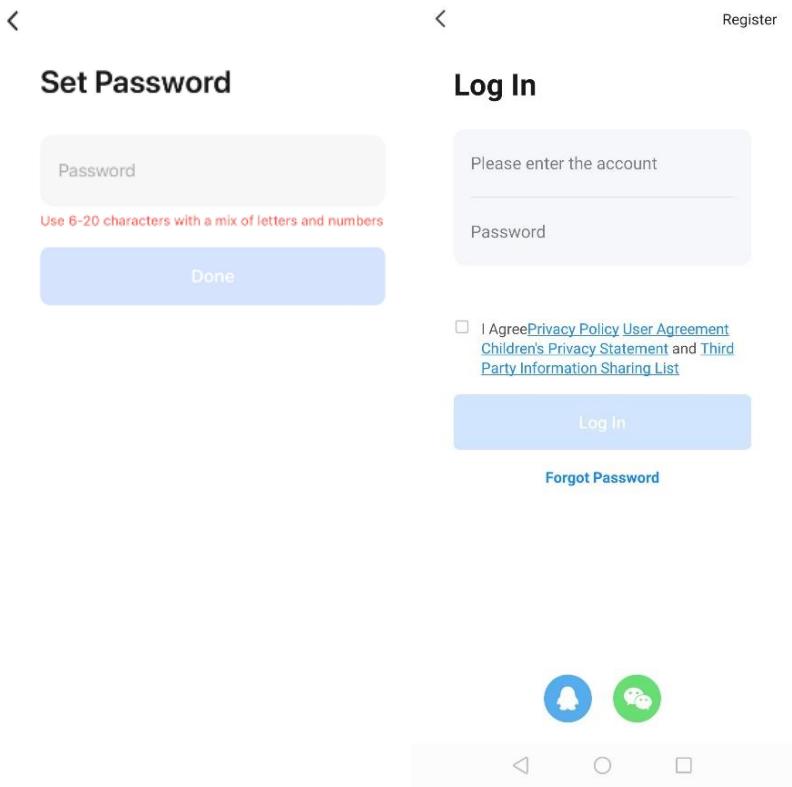

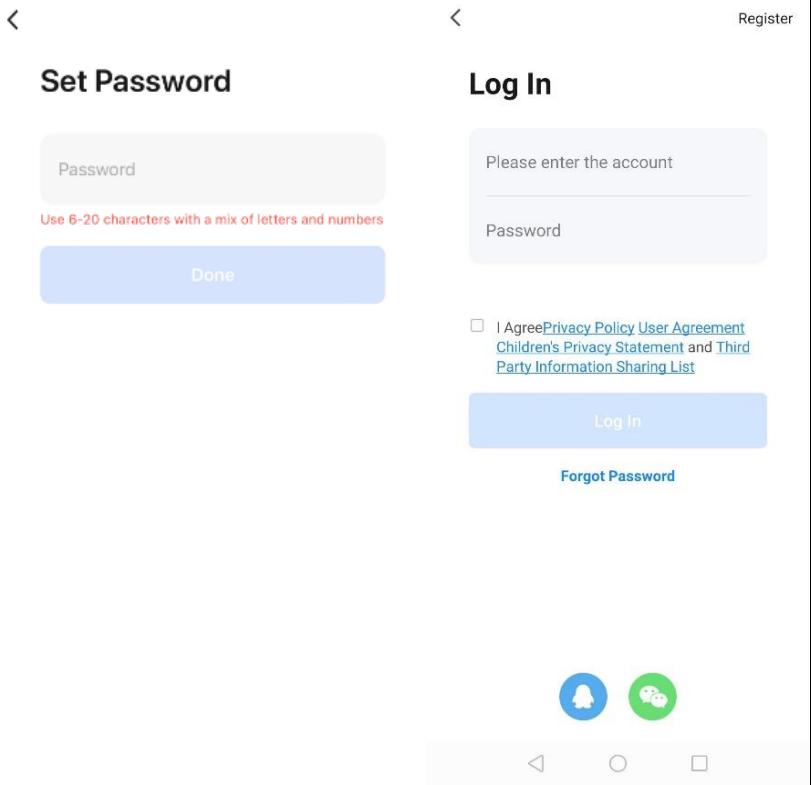

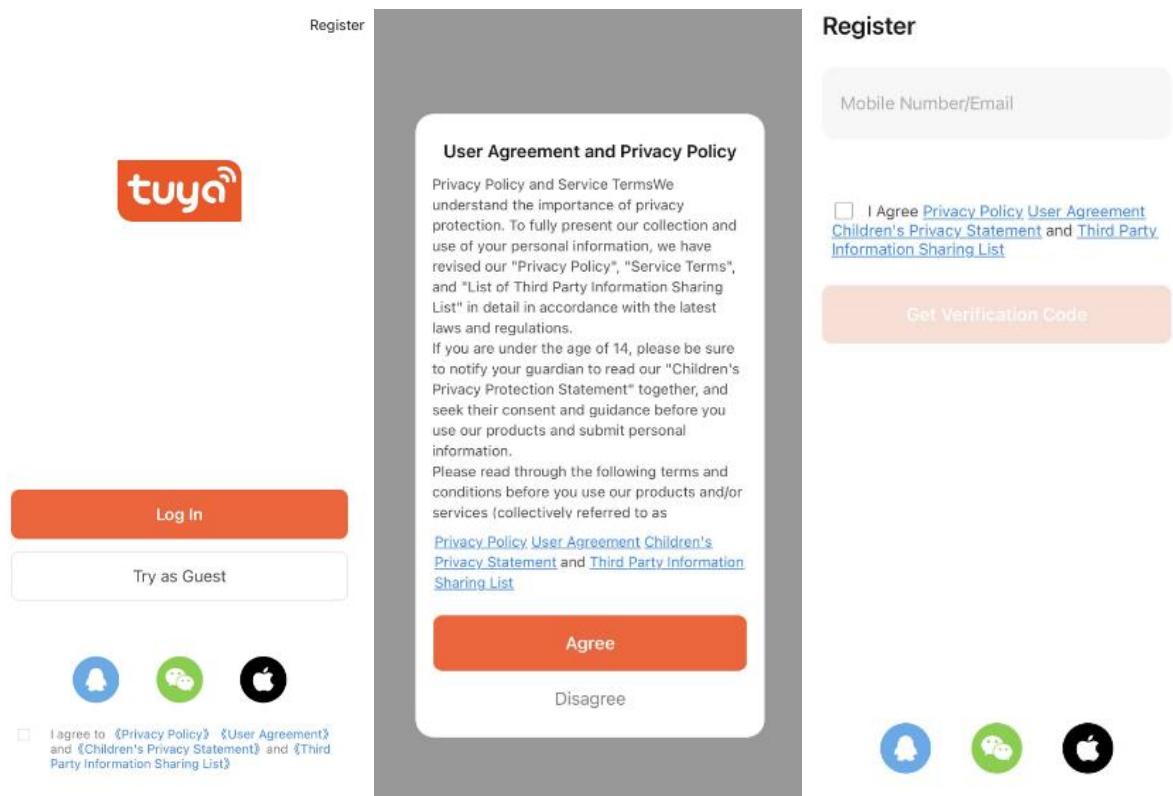

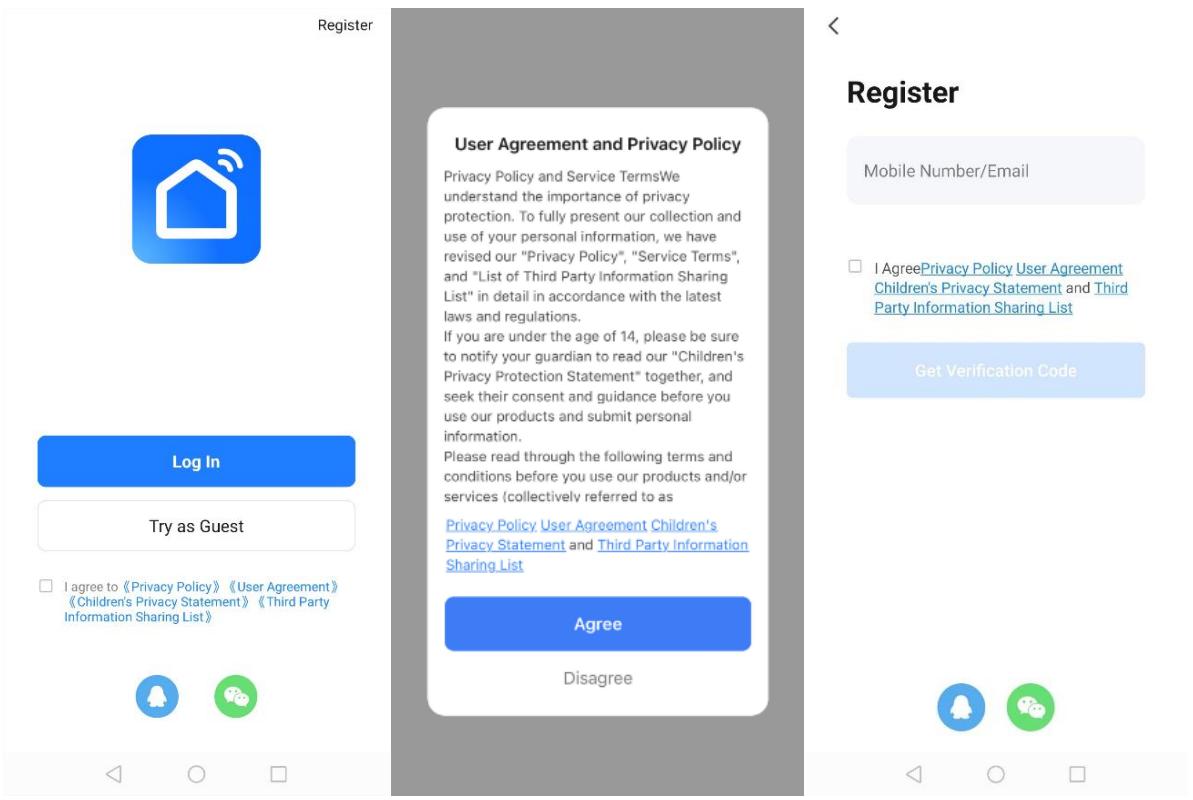

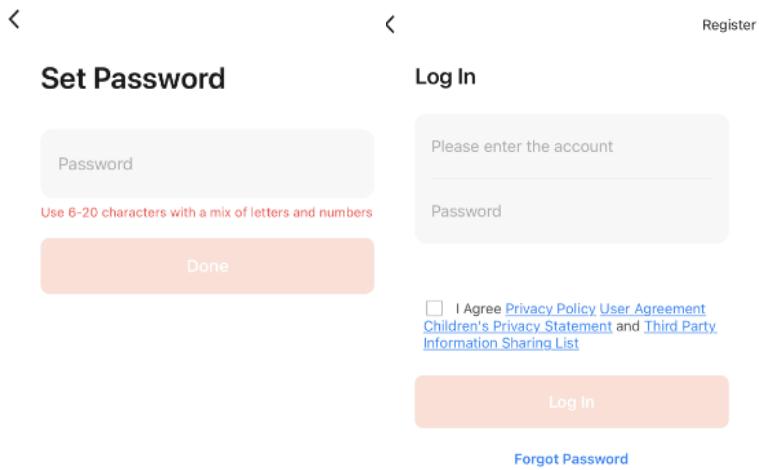

Open the “TuyaSmart” App, register an account: you can use either phone no. or email address to register. You will get a verification code. Enter the verification code and then set your own password. Use your password to log in. Rogister Register User Agreement and Privacy Policy Privacy Policy and Service Termswe ‘Try as Guest understand the importance of privacy protection, To fuly present ur collection and use of your personal information, we have revised our "Privacy Policy”, "Service Terms”, land “List of Third Party Information Sharing List* in detail in accordance with the latest laws and regulations. I you are under the age of 14, please be sure to notify your guardian to read our "Children's Privacy Protection Statement” together, and seek their consent and guidance before you use our products and submit personal information. Please read through the following terms and conditions before you use our products and/or seruices (collectivels referred to as Privacy Polloy Usar Agreement Children's Privacy Statement and Third Party Information Sharing List 1 Agree Privacy Policy User Agreement Children's Privacy Statement and Third Party Information Sharing List 000 pen Lagres ta EPrvacy Pac} FUser Agreementé an6 (Ghldren' Privacy Statement} and EThird Par Iformation Sharing Lt

< < Register Enter Verification Code Set Password Login 1 kgroe DrivacyPoliey User Agreement Children's Privacy Statement and Third Party Hformation SnaringList Forgot Password

3. Add and connect device

1) Insert the power plug and turn on the power switch. Choose “Stand by” mode by pushing the “ d ” button

until the “Stand by” symbol is displayed. Keep pressing “ d ” for more than 2 seconds and the icon “7” will flash.

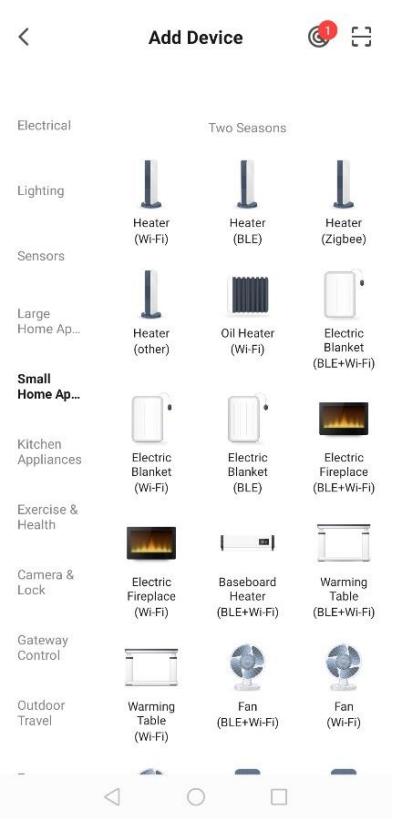

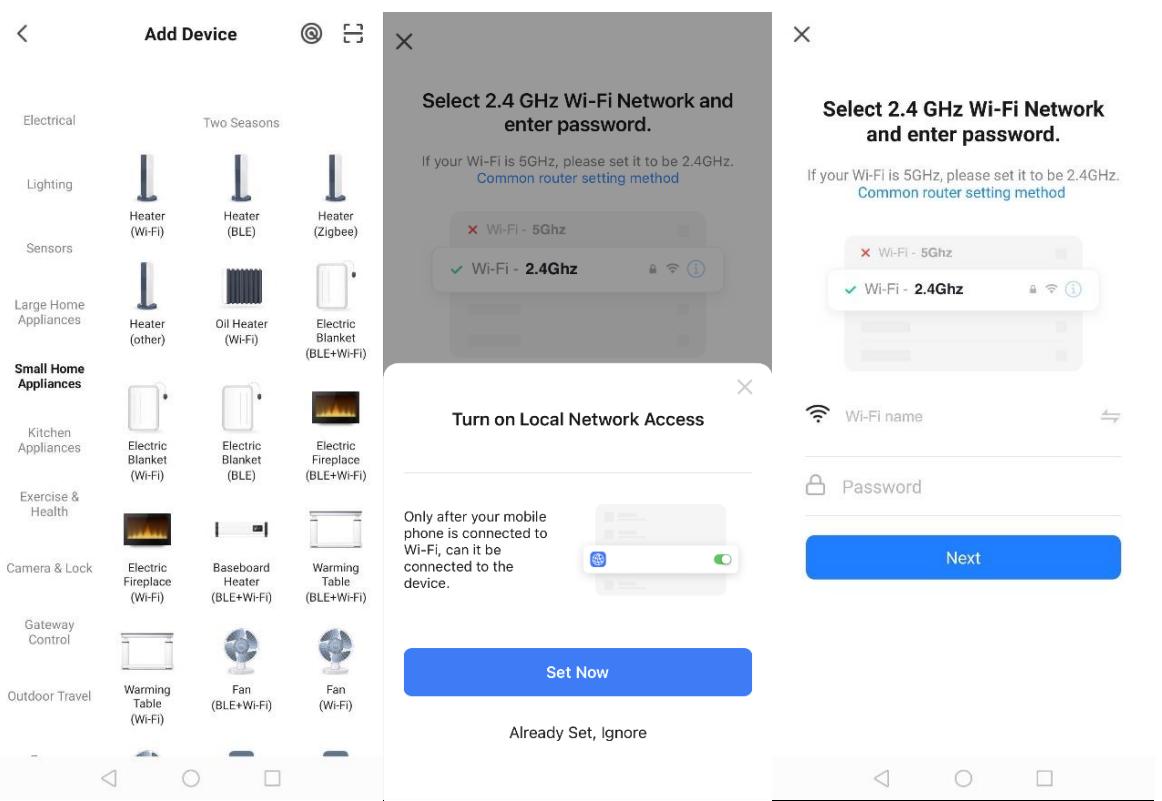

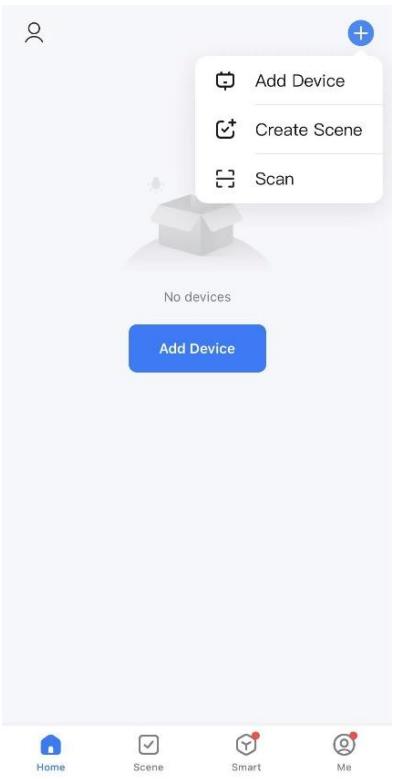

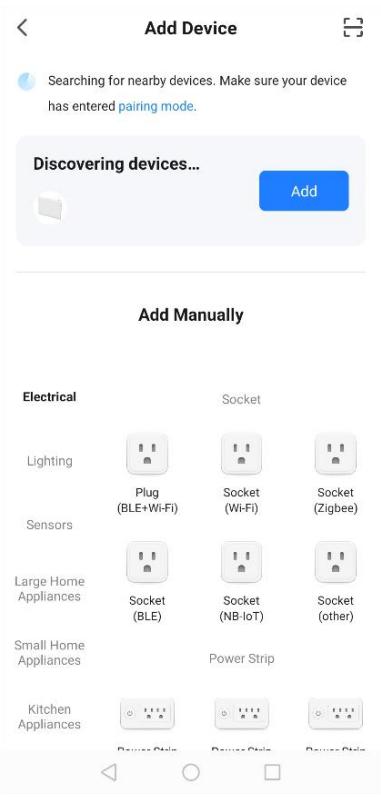

2) Press “+” icon on right top page or the “Add Device” button in the middle page to start adding device.

© Add Device LC Create Scene 5 Scan

3) There are 2 methods to connect the service:

Method 1: Press “Add” button in the middle page(in this case, you need to keep your phone bluetooth on).Then enter the Wi-Fi password . Press “next” to start connecting. (Now only 2.4G Wi-Fi is supported. Please make sure your Wi-Fi is 2.4.) < Add Device 5 x x Add Device Enter Wi-Fi Information 1 de Fi and enter pas: Discovering devices... : L Panel heater : Being sde & Password Add Manually Eectreal Socke té " . . Big Socket Sachet CCR bee) Home Ap set Soctet Sostet Go BD men Method 2: Choose “Small Home appliance” under “Add Manually”. And then choose “Heater”. Then enter the Wi-Fi password. Press “next” to and choose your preferred indicator status to the start connecting. (Now only 2.4G Wi-Fi is supported. Please make sure your Wi-Fi is 2.4.)

Elec Botket LEA) Elec Freplecs LEA) Select the status of the indicator light or hear the beep: Blink Slowiy. link Quick Select 2.4 GHz Wi-Fi Network and enter password. 7 GMERT & Paronord Connecting Device Power on the device. 02:00 Scan dec.

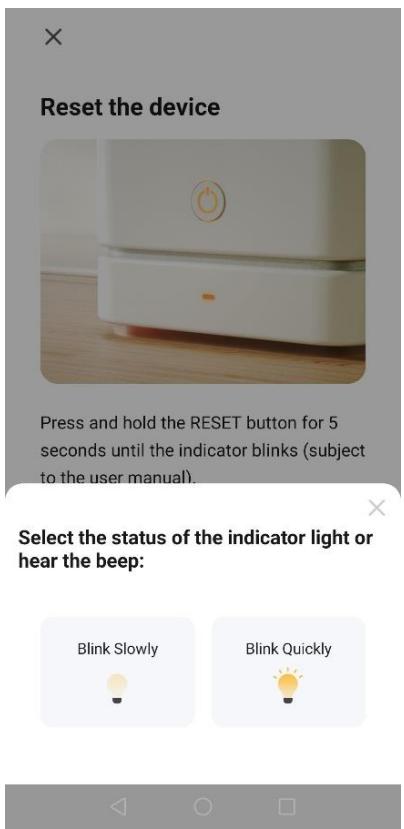

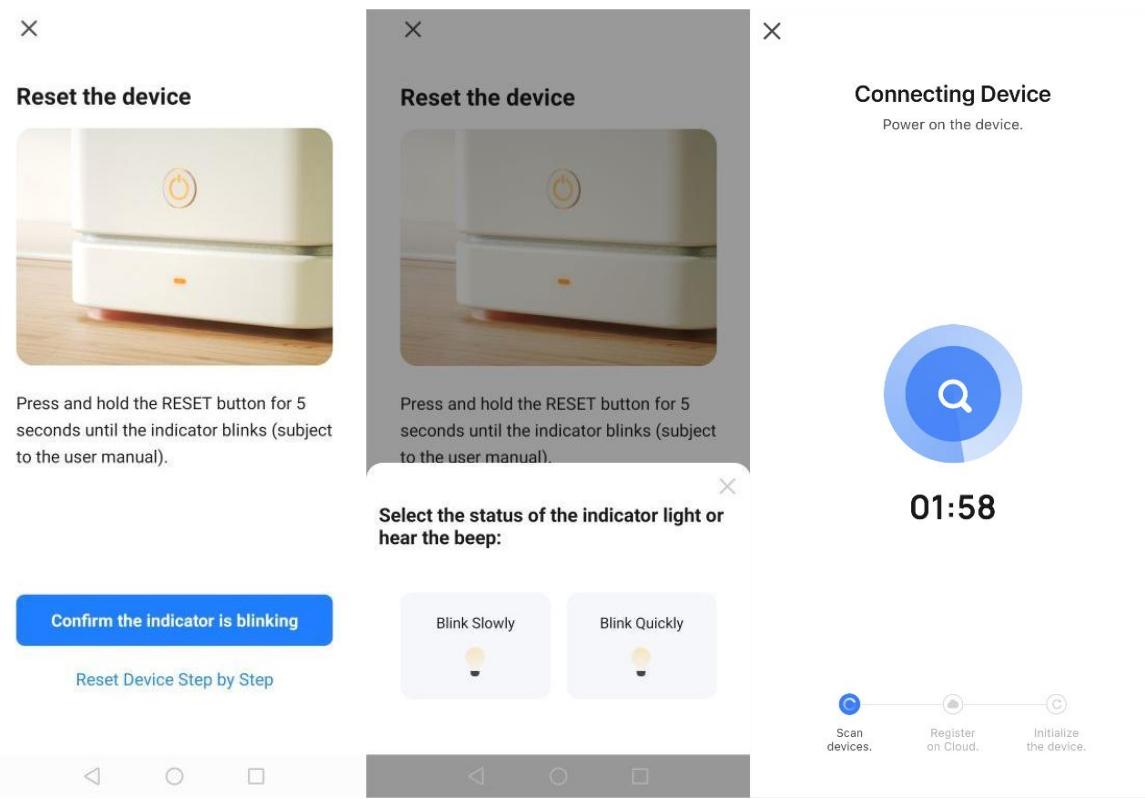

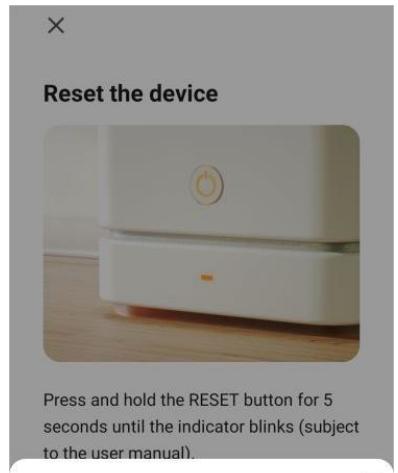

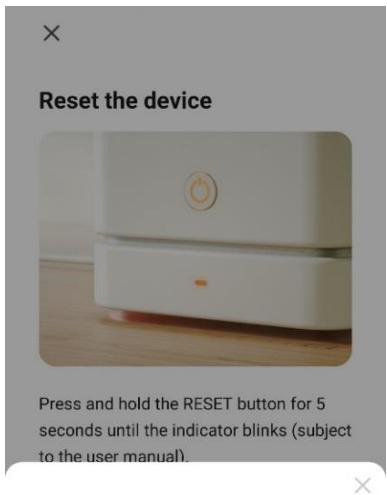

Reset the device Press and hold the RESET button for 5 seconds until the indicator blinks (subject to the user manual) Reset Device Step by Step < (mi) x Add Device Panel heater Bcing added

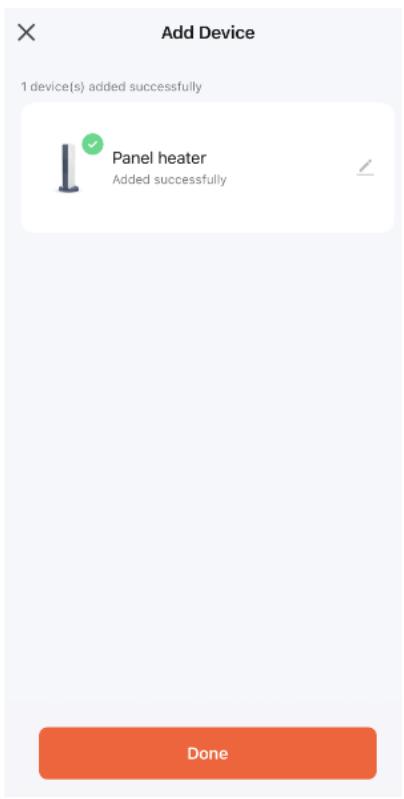

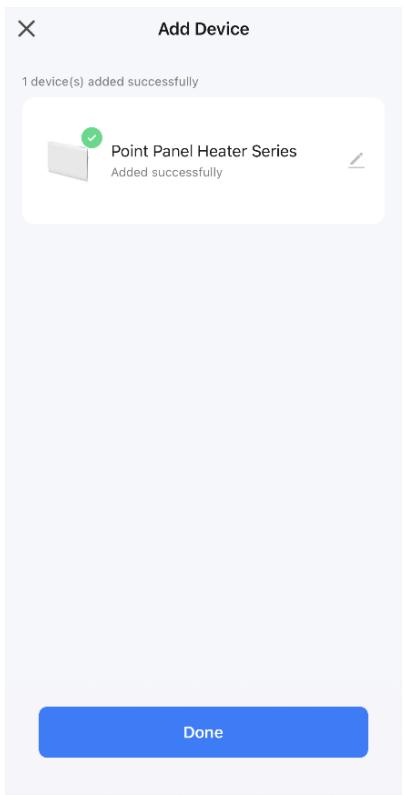

4. Connect successfully

When it's successfully connected, the Wi-Fi icon will stop flashing and keep on (including Stand by mode). And the App will show “Device added successfully”. Press “done” to start your operation for the appliance over your phone. x Add Device L° Panel heater Notes: L. If there is no operation in 3 minutes after pressing “ d *_ for more than 2 seconds, then the WiFi function will stop flashing and disappear from the screen.

2. If you need to re-connect your WiFi for the appliance, repeat step 3.

You can check energy consumption and heating time from APP. < Energy Saving Statistics: August 2023 v Window detector function Electrcity this month Month Keyboard lock Okwn # cum Time calibration Temperature Calibration verage dal alctric Average dat Ouh 0h @ 100% © 100% On August 1, the slectricity consumption was the

11. Connect WiFi by Smart Life

You can download the app by searching for “Smart Life” App in your app store or by scanning the following QR code. (successfully installed)

Open the “Smart Life ” App, register an account: you can use either phone no. or email address to register. You will get a verification code. Enter the verification code and then set your own password. Use your password to log in. Register Register User Agreement and Privacy Policy Privacy Policy and Service Termsve Mobile Number/Email understand the importance of privacy Protection, To fully present our collection and {use of your personal information, we have revised our “Privacy Policy”, "Service Terms”, and “List of Third Party Information Sharing l'Agreef User Agreement List in detail in accordance with the latest Ghildrente Privacy Statement and Third As and regutstions, Party Information Sharing List 1 you are under the age of 14, please be sure to notiy your guardian to read our “Children's Privacy Protection Statement” tagether, and seek their consent and guidance before you {uso our products and submit personal Try as Guest Privacy Policy User Agreement Children's Privacy Statement and Third Party Information Sharing List services (collective 1 Lagroeto EPrvacy Polly} {User Agreement A Chien Privacy Statement} à Third Par Informaion Sharing Lt} A O © Disagree < Register Enter Verification Code Set Password Log In Password Please enter the account Use 6-20 characters with à mi of letters and numbers: Verification code has been sent to your mobile Password phone: Resend (545) Didn't get a code? D l'AgreePrivaoy Policy User Agreement Chldrenis Prvacy Statement and Third Party Information Sharing List Forgot Password

3. Add and connect device

1) Insert the power plug and turn on the power switch. Choose “Stand by” mode by pushing the “ d ” button

until the “Stand by” symbol is displayed. Keep pressing “ d ” for more than 2 seconds and the icon “7” will flash.

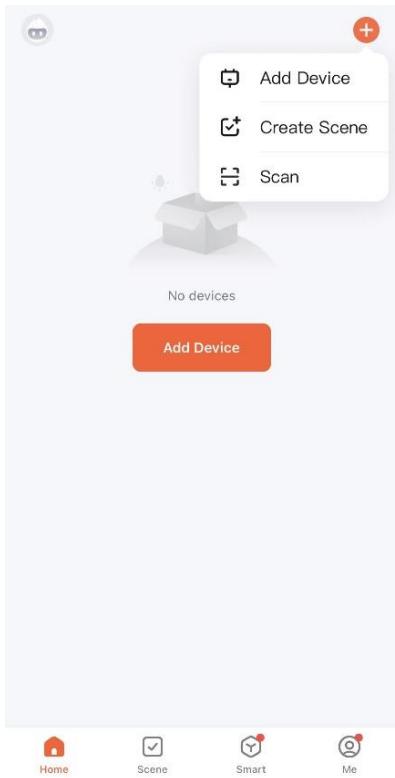

2) Press “+” icon on right top page or the “Add Device” button in the middle page to start adding device.

© Add Device & create Some Scan

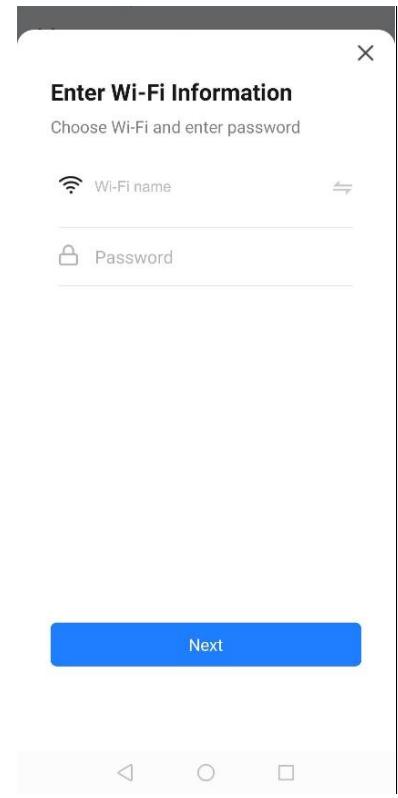

3) There are 2 methods to connect the service:

Method 1: Press “Add” button in the middle page(in this case, you need to keep your phone bluetooth on).Then enter the Wi-Fi password . Press “next” to start connecting. (Now only 2.4G Wi-Fi is supported. Please make sure your Wi-Fi is 2.4.)

formes Enter Wi-Fi Information émet) na sdded Discovering devices Being added & Password Add Manually Lerce Home ° . ° ‘Aprliances Socket Socket Sockat Method 2: Choose “Small Home appliance” under “Add Manually”. And then choose “Heater”. Then enter the Wi-Fi password. Press “next” to and choose your preferred indicator status to the start connecting. (Now only 2.4G Wi-Fi is supported. Please make sure your Wi-Fi is 2.4.) < Add Device © = Select 2.4 GHz Wi-Fi Network and enter password. jlibiel Common router setting method suture . = um on Local Network Acc2ss Æ wésinone Exercise & oO ea . = | onb after vour mobile = phone is connected to Pepe Hamon Table | device CEE Gateway e e door rave Mermine Lo Ci si UOOHbe Que) Gr) Ca] Already Set, lgnare

Connecting Device Power on the device Reset the device Press and hold the RESET button for 5 seconds until the indicator blinks (subject ta the user manual). Select the status of the indicator light or 01:58 hear the beep: or AinkStowy ink Quick Reset Device Step by Step Sea Rogstr aie

4. Connect successfully

When it's successfully connected, the Wi-Fi icon will stop flashing and keep on (including Stand by mode). And the App will show “Device added successfully”. Press “done” to start your operation for the appliance over your phone. x Add Device 1 devices) added success |” Paint Panel ester Series Ado surcnsstlh

3. If there is no operation in 3 minutes after pressing “ 0] ”_ for more than 2 seconds, then the WiFi

function will stop flashing and disappear from the screen.

4. If you need to re-connect your WiFi for the appliance, repeat step 3.

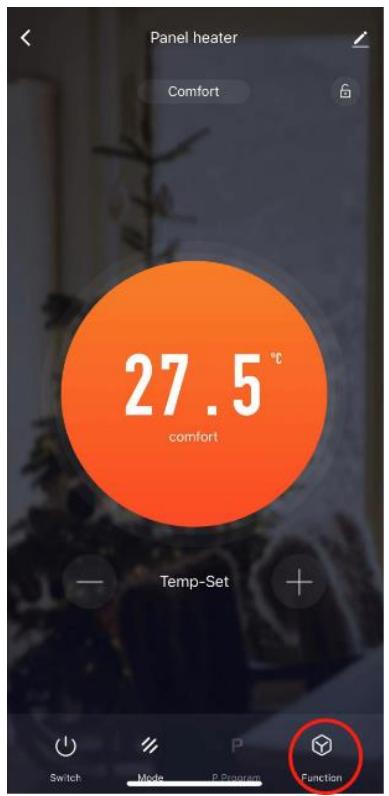

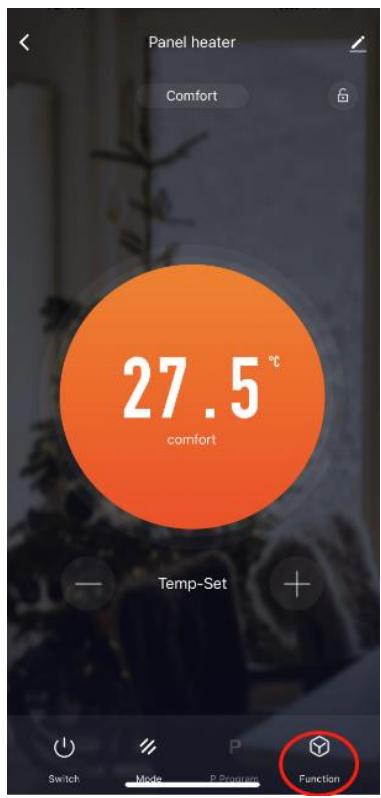

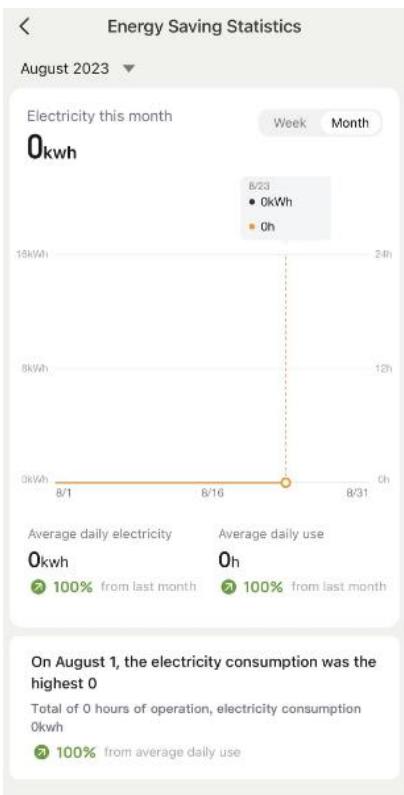

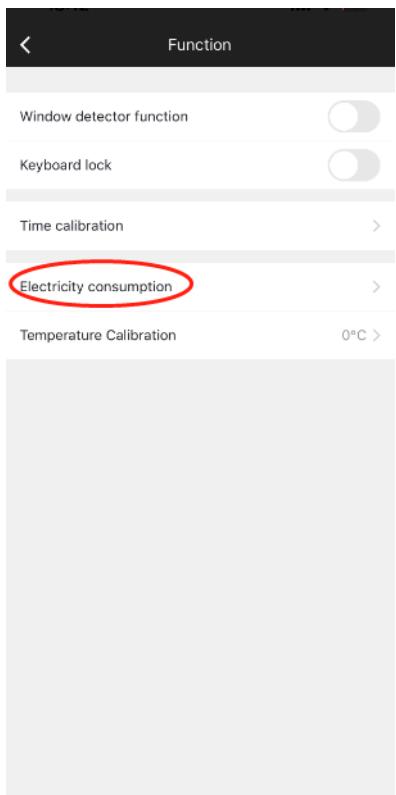

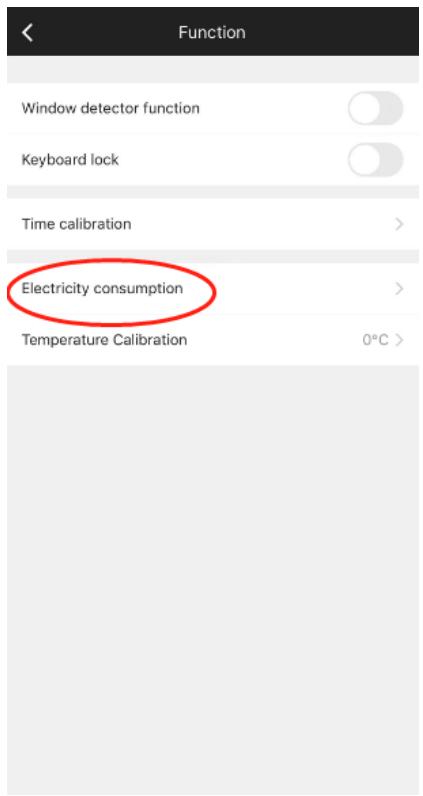

12. Electricity consumption function

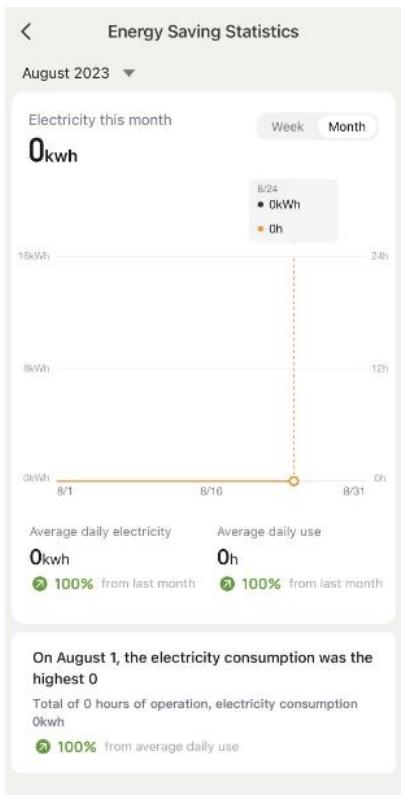

You can check energy consumption and heating time from APP. August 2023 w Window detector function Electricity this month Okuh Mont Keyboard lock Time calbration a ‘Temperature Calibration

rage dy alert rrage Okwn Oh @ 100% @ 100% On August 1, the electricity consumption was the highest 0 Total of 0 hours naumption © 100%

Model HT10-23AEW HT15-23AEW HT20-23AEW Voltage 230 V - 230 V - 230 V- Frequency 50 Hz 50 Hz 50 Hz Rated power 1000 W 1500 W 2000W Protection Il class IP Protection IP24 IP24 IP24 Pilot wire 6 orders 6 orders 6 orders Operating frequency: WiFi 2.4GHz (2412-2472MHz) Max. radio-frequency power transmitted: 17.97dBm Information requirements for electric local space heaters Model identifier(s): HT10-23AEW Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output | Prom 1 KW manual heat charge control, with No integrated thermostat Minimum heat output! Pin N/A KW manual heat charge control with room No (indicative) and/or outdoor temperature feedback Maximum continuous| Pmax.c 1 KW electronic heat charge control with No heat output room and/or outdoor temperature] feedback Auxiliary electricity fan assisted heat output No consumption At nominal heat| ex 0 KW Type of heat output/room temperature control output (select one) At minimum heat) eh 0 KW single stage heat output and no room No output temperature control In standby mode else 0.00046 | kw Two or more manual stages, no room No temperature control : No with mechanic thermostat room temperature control With electronic room temperature No

electronic room temperature control plus day timer Yes electronic room temperature control plus week timer Other control options (multiple selections possible) room temperature control, with] presence detection room temperature control, with open Yes window detection With distance control option Yes With adaptive start control No with working time limitation No with black bulb sensor No Contact details HOM'Y SAS GREEN PARK - Bat À, 61 rue de la cimaise, 59650 Villeneuve, d'Ascq, FRANCE Model identifier(s): HT15-23AEW Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output | Prom 1.5 kW manual heat charge control, with No integrated thermostat Le N/A . No Minimum heat output} Prin KW manual heat charge control with room (indicative) and/or outdoor temperature feedback Maximum continuous| Pmax,c 1.5 KW electronic heat charge control with No heat output room and/or outdoor temperature feedback Auxiliary electricity| fan assisted heat output No consumption At nominal heat) e/hx 0 KW Type of heat output/room temperature control output (select one) At minimum heat| eh 0 KW single stage heat output and no room No

output temperature control In standby mode else 0.00046 | kw Two or more manual stages, no room No temperature control : No with mechanic thermostat room temperature control : No With electronic room temperature control electronic room temperature control plus day timer Yes electronic room temperature control plus week timer Other control options (multiple selections possible) room temperature control, with] presence detection room temperature control, with open Yes window detection With distance control option Yes With adaptive start control No with working time limitation No with black bulb sensor No Contact details HOM'Y SAS GREEN PARK - Bat À, 61 rue de la cimaise, 59650 Villeneuve, d'Ascq, FRANCE Model identifier(s): HT20-23AEW Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output | Prom 2.0 kW manual heat charge control, with No integrated thermostat Le N/A . No Minimum heat output} Prin KW manual heat charge control with room (indicative) and/or outdoor temperature feedback Maximum continuous| Pmax,c 2.0 KW electronic heat charge control with No

heat output room and/or outdoor feedback temperaturel Auxiliary electricity| consumption fan assisted heat output At nominal heat) e/h 0 KW Type of heat output/room temperature control output (select one) At minimum heat| eh 0 KW single stage heat output and no room No output temperature control In standby mode else 0.00046 | kw Two or more manual stages, no room No temperature control : No with mechanic thermostat room temperature control With electronic room temperature No control

electronic room temperature control plus day timer Yes electronic room temperature control plus week timer Other control options (multiple selections possible)

room temperature control, with] presence detection room temperature control, with open Yes window detection With distance control option Yes With adaptive start control No with working time limitation No with black bulb sensor No HOM'Y SAS Contact details GREEN PARK - Bat À, 61 rue de la cimaise, 59650 Villeneuve, d'Ascq, FRANCE

1. Before cleaning the appliance, switch off the

appliance from the power supply and wait until it is completely cold.

2. Use a damp cloth to clean the casing ofthe device.

3. Clean grill and air outlet regularly. Never immerse

the appliance in water or allow water to enter the appliance. RECYCLING (DISPOSAL OF THE PRODUCT AT THE END OF ITS LIFE The crossed-out wheeled bin symbol indicates that the item should be disposed of TT separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a mm marked item from household waste, you will help reduce the volume of waste sent to incinerators or landfill and minimize any potential negative impact on human health and the environment. (2 LE TRI eni Çç* EMA / ) rs Imported by: HOM'Y SAS GREEN PARK - Bat À, 61 rue de la cimaise, 59650 Villeneuve, d'Ascq, FRANCE Fabriqué en Chine www.bestherm.eu

Rogister ‘Try as Guest

agree lo EPrvacy Palcy} User Agreement an Khdren's Privacy Statement} and EThrd Party information Sraring Lt Enter Verification Code Verification code has been sent to your mobile phone: Resend (545) Didn't get a code? User Agreement and Privacy Policy Privacy Policy and Service TermsWe understand the importance of privacy protection. To fully present our collection and use of your personal information, we have revised our "Privacy Policy", "Service Term and “List of Third Party Information Sharing List in detai in accordance with the latest laws and reguiations. If you are under the age of 14, please be sure 0 not your guardian to read our "Children's Privacy Protection Statement” together, and ‘seek their consent and guidance before you use our products and submit personal information. Please read through the following terms and conditions before you use our products and/or services {collectively referred to 25 Privacy Palioy User Agreement Children's Privacy Statement and Third Party Information Sharing-List Disagree Set Password Password Use 6-20 characters with à mix of letters and numbers

Register Mobile Number/Email 1 Agree Privacy Policy User Agreement y. Statement and Third Parts

Register Log In Please enter the account Password

© Add Device CS Create Scene S Scan Add Device

Select 2.4 GHz Wi-Fi Network and enter password.

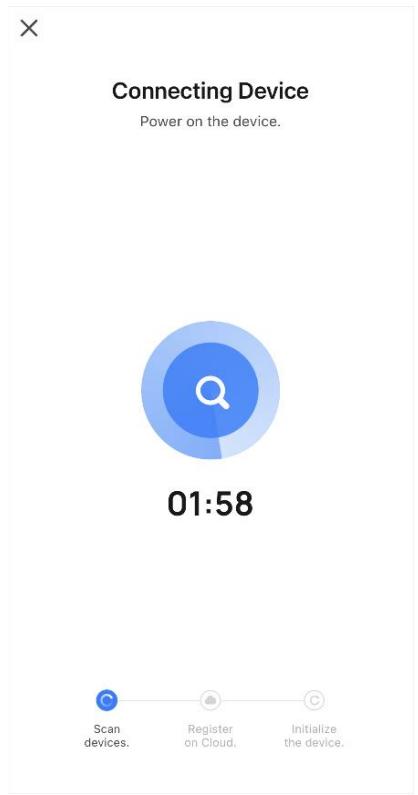

x x Add Device 1 device) being ace Connecting Device Power on the device. L Panel heater Being dde 02:00 Select the status of the indicator light or hear the beep: Blink Siowiy Blink Quickiy - ' Scan 2

< Add Device E searching for neatby devices, Make sure your Geiee has entered pag mode. Lee |

Connecting Device Power on the device Reset the device Press and hold the RESET button for 5 seconds until the indicator blinks (subject ta ne user manual Select the status of the indicator light or 01:58 hearthe beep: onfirm Bink lou Bink quiet Reset Device Step by Step Sean à :

Lagres ta EPrvacy Pac} FUser Agreementé an Khdren's Privacy Statement} and EThrd Par Iformation Sharing Lt Enter Verification Code Verification code has been sent to your mobile phone: Resend (545) Didn't get a code? User Agreement and Privacy Policy Privacy Policy and Service TermsWe {understand the importance of privacy protection, To fuly present our collection and {use of your personal information, we have revised our "Privacy Policy”, "Service Terms*, land “List of Third Party Information Sharing List in detail in accordance with the latest laws and regulations. If you are under the age of 14, please be sure 0 notfy jour guardian to read our "Children's Privacy Protection Statement” together, and seek their consent and guidance before you use our products and submit personal information. Please read through the following terms and conditions befare you use our products andor services (collectively referred to as Privacy Policy User Agreement Childcan's: Privacy Statement and Third Party Information Sharing-List Disagree Set Password Passwo Une 6-20 characters with a mix of letters and numbers

Mobile ! 1 Agree Privacy Policy User Agreement tement and Third Party

Register Log In enter the account Password

Connecting Device Power on the device. Select the status of the indicator light or hear the beep: Bink Slowiy link Quickiy © f Scon ter on S - devices.

Reset the device Press and hold the RESET button for 5 seconds until the indicator blinks (subject to the user manual). indicator is bl king Reset Device Step by Step x Add Device 1 device) being ace Panel heater ä Being addeé

Register Register User Agreement and Privacy Policy Privacy Policy and Service TermsWe Mobile Number/Email understand the importance of privacy protection. To full present our collection and {use of your personal information, we have revised our "Privacy Palicy”, "Service Terms”, and “List of Third Party Information Sharing PA rires ao omapgenere List* in detail in accordance with the latest Ste Prhacy Statement and Tic vs and regulations, Pary Information Sharing List If you are under the age of 14, please be sure to notfy your guardian to read our “Children's. Privacy Protection Statement” tagether, and seek their consent and guidance before you {uso our products and subit personal information. Please read through the following terms and conditions before you use our products andlor services (collectively referred to 25

Tiy as Guest Pracy Policy Uaer Agcsemant Chldcan'a Privacy Statement and Third Party Information Sharing List lagrote kPrvacy Poly} User Agreement} Fétidre Pey Statement À Tu Par tofemanon Sang Lt __. Oo © … 00 (e] D a (e) (el < < Register Enter Verification Code Set Password Log In Password Please enter the account Use 8-20 characters with à mx of letters and numbers: Verification code has been sent to your mobile Password phone: Resend (545) Didn't get a code? l'AgreePrivacy Policy User Agreement Childrenis Privacy Statement and Third Party Information Sharing List Forgot Password «4 [e] (a)

ar) Turn on Local Network Access Ont after your mobile phone is connected to Wi-Fi, canit be comected to the e device Select 2.4 GHz Wi-Fi Network and enter password. I your Wi-Fi SGHz, please set it 10 be 2 4GHz ‘Common router setting method X WiFi. sGhe 2 WF. 24Ghz 2+

Reset the device Connecting Device n Power on tne device Press and hold the RESET button for 5 à seconds until the indicator blinks (subject 0 the user manual) Select the status of the indicator light or 01:58 hear the beep: Bink Slow Blink Quick Reset Device Step by Step
