HC7390 - Electric mower BRAUN - Free user manual and instructions

Product type	Electric trimmer
Brand	Braun
Model	HC7390
Use	Domestic
Power supply	Rechargeable via special power cord
Runtime	Approximately 40 minutes cordless
Charging time	1 hour (first charge: 4 hours)
Charge indicator	Flashing green (charging), steady green (full), flashing red (low)
Trimmer types	Wide trimmer (32 mm), precision trimmer (16 mm)
Included combs	Beard comb, hair comb
Cutting lengths (beard)	1, 3, 5, 7, 9, 11 mm
Cutting lengths (hair)	10, 12, 14, 16, 18, 20 mm
Cleaning	Under running water or with brush
Lubrication	After each use with the supplied oil
Charging temperature	5 °C to 35 °C
Safety	Do not use in shower or in water; disconnect before cleaning
Warranty	2 years (Canada) - housing, grid and blade set excluded
Box contents	Appliance, beard comb, hair comb, oil, pouch, power cord

Frequently Asked Questions - HC7390 BRAUN

How to change the combs on the Braun HC7390 trimmer?

Press the ejection buttons (1c) on the sides of the comb with your thumb and index finger to remove it.

How to adjust the cutting length for the beard?

Place the beard comb (1a) on the device (turned off), then press the cutting length selector (6) and slide the comb to the desired length (1, 3, 5, 7, 9 or 11 mm). Start with the longest and gradually reduce.

How to trim hair with the HC7390 model?

Hair should be clean, dry and detangled. Place the hair comb (1b) on the device (turned off), set the length (10, 12, 14, 16, 18 or 20 mm) with the selector, then trim in the opposite direction of growth. For lengths shorter than 10 mm, first use the 10 mm hair comb then the beard comb.

How long does it take to charge the trimmer?

The first charge takes 4 hours, subsequent charges about 1 hour. A full charge provides 40 minutes of runtime.

What to do if the charge indicator turns red?

The flashing red light indicates low battery. You can still finish your shave, but it is recommended to recharge the device as soon as possible.

How to clean the Braun HC7390 trimmer?

Unplug the device. You can clean it with a brush or rinse it under hot running water by opening the wide trimmer. Let it dry completely before reuse.

Do I need to lubricate the trimmer?

Yes, after each use, lubricate the cutting system with the supplied oil to maintain optimal performance.

Can I use the trimmer in the shower?

No, the device must not be used in water or in the shower. It is designed for dry shaving only. Water cleaning is possible only after unplugging.

How to maintain the battery to extend its life?

Every 6 months, let the device completely discharge by using it, then recharge it to full capacity. This optimizes the performance of the rechargeable batteries.

What does the warranty of the Braun HC7390 cover?

In Canada, the limited 2-year warranty covers defects in materials and workmanship, excluding the housing, grid and blade set. A refund or exchange is possible within 60 days of purchase if you are not satisfied.

USER MANUAL HC7390 BRAUN

Thank you for purchasing a Braun product.

We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

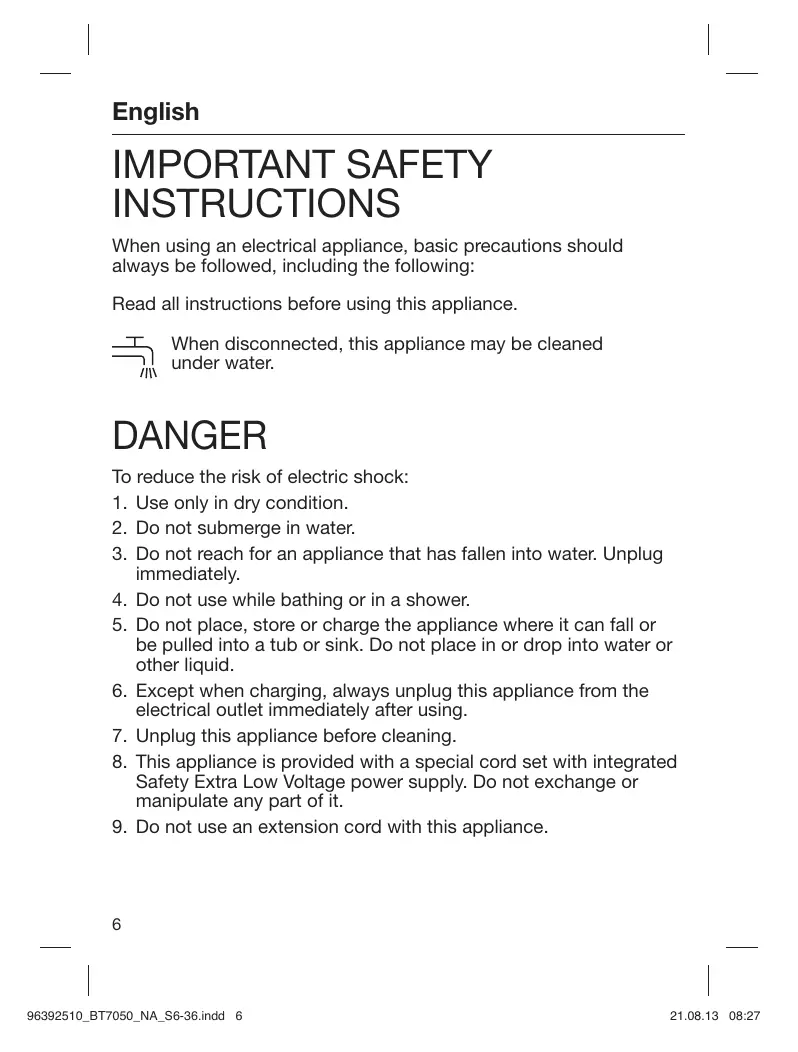

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, this appliance may be cleaned under water.

DANGER

To reduce the risk of electric shock:

1. Use only in dry condition.
2. Do not submerge in water.
3. Do not reach for an appliance that has fallen into water. Unplug immediately.
4. Do not use while bathing or in a shower.
5. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
6. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
7. Unplug this appliance before cleaning.
8. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
9. Do not use an extension cord with this appliance.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

12. Oil bottle

1. Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of this appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
10. The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100^ (212°F) or incinerate.
11. Only use the special cord set provided with the appliance.

Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

SAVE THESE INSTRUCTIONS

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun product.

This appliance is designed for household use only.

Description

1a Beard comb for trimming beard and short hair
1b Hair comb for cutting hair
1c Release buttons for comb
2 Wide trimmer (32 mm)
3 Precision trimmer (16 mm)
4 Release button precision trimmer
5 Charge Indicator
6 Length selector
7 On/off switch
8 Special cord set
8a Charging stand
9 Pouch

Charging

Recommended ambient temperature for charging is 41^ to 95^ / 5^ to 35^ . The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 60^ to 95^ / 15^ to 35^ . Do not expose the shaver to temperatures higher than 122^ / 50^ for extended periods of time.

• Place the appliance (switched off) in the charging stand (8a) or connect it directly to an electrical outlet via the special cord set (8).
• When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for 4 hours.
• Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• A full charge provides up to 40 minutes of cordless operating time. This may vary according to your beard growth.
• Maximum battery capacity will only be reached after several charging/ discharging cycles.

Charge Indicator (5)

• The charge indicator shows the status of the batteries.

• The charge indicator blinks green when the appliance is being charged. When the battery is fully charged, the charge indicator shines permanently green provided the appliance is connected to an electrical outlet.

• During cordless use the charge indicator blinks green.

• The charge indicator flashes red when the battery is running low. You should be able to finish your current trimming sequence.

Comb attachments (1a, 1b)

• The combs can be taken off by pressing the release buttons (1c) with your thumb and forefinger.

Beard trimming

• Place the beard comb (1a) on the appliance with the appliance turned off (a).
• Press length selector (6) and slide the beard comb up to your desired beard length (possible length settings: 1, 3, 5, 7, 9, 11 mm).
• It is advisable to begin with the highest setting and then reduce the setting until you reach the desired beard length.
• Press the on/off switch (7). Hold the beard comb with the angled edge against your beard and guide the trimmer against the direction of the hair growth (a).
• To avoid clogging the beard comb with hair, clean it from time to time with a brush.

Contour Trimming / Styling

• The wide trimmer (2) evenly cuts and trims large areas. It is ideal for shaping sideburns, moustaches and partial short beards. Take off the comb. While stretching the skin, guide the wide trimmer against the direction of hair growth (b).
• The precision trimmer (3) precisely defines lines and edges and is ideal for precise contouring. To use the precision trimmer, press the release button (4) and slide it up (c).

Hair cutting

The hair should be clean, well combed, tangle-free and dry.

• Place the hair comb (1b) on the appliance with the appliance turned off (d).

• Press the length selector (6) and slide the hair comb up to your desired hair length (possible length settings: 10, 12, 14, 16, 18, 20 mm). If you are not used to clipping hair, begin with a highest setting and then reduce the setting to avoid cutting more hair than desired. If you want to cut your hair shorter than 10mm , we advise to first cut it with the hair comb (1b) down to 10mm and then use the beard comb for the desired length.

• Use a slow and controlled movement. Do not force the appliance through the hair faster than it can be cut.

• In between, shake or blow off the hair. If too much hair is caught in the comb, remove and clean it.

Cleaning

The appliance should be detached from the power supply cord before cleaning it with water. The appliance should not be used until it has dried. Regular cleaning ensures better trimming performance.

Cleaning with a brush

• Switch off the appliance. Open the wide trimmer by pressing with the thumb against the trimmer from the front side. It opens by ca. 45^ and can also be taken off (h).
• Using a brush clean the trimmers and the space behind the wide trimmer (inside the housing).

Cleaning with water

• Switch off the appliance and rinse the head and trimmers under warm running water. You can also rinse the opened wide trimmer.
• Leave the appliance with opened wide trimmer to dry.

Keeping your appliance in top shape

To keep the cutting system working properly, oil it with light machine oil after each use (i).

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by trimming/cutting) every 6 months approximately. Then recharge the appliance to full capacity.

Environmental notice

This appliance contains rechargeable batteries. To protect the environment, do not dispose of the appliance in the household waste at the end of its useful life. Disposal can take place at a Braun Service Center or appropriate collection sites.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

How to obtain service in the USA 60 day money back satisfaction guarantee

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the

Authorized Braun Service Center closest to you.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada 60 day money back satisfaction guarantee

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.
Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men’s grooming products

Braun Shavers Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTYES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty (foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.
