| Product type | Microwave oven with grill |
| Brand | Whirlpool |
| Model | GT287NB |
| Microwave power | 700 W |
| Functions | Microwave, Grill, Quick defrost |
| Included accessories | Glass turntable, Turntable support, Metal rack |
| Interior material | Stainless steel (estimated) |
| Control type | Mechanical (estimated) |
| Power supply | Check the rating plate (230 V / 50 Hz typical) |
| Dimensions (W x H x D) | Approximately 48 x 28 x 36 cm (estimated for standard model) |
| Net weight | Approximately 12 kg (estimated) |
| Capacity | 20 L (estimated) |
| Safety | Door safety lock, mandatory grounding, microwave protection |
| Maintenance | Clean with a soft cloth and mild detergent; do not use steam cleaner |
| Accessory cleaning | Turntable, support and rack dishwasher safe |
| Repairability | Do not disassemble; contact authorized service |
| Recycling | Compliant with WEEE directive; do not dispose with household waste |
| Intended use | Domestic use only |
| Warranty | Refer to warranty booklet |
Frequently Asked Questions - GT287NB WHIRLPOOL
User questions about GT287NB WHIRLPOOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave in PDF format for free! Find your manual GT287NB - WHIRLPOOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GT287NB by WHIRLPOOL.
USER MANUAL GT287NB WHIRLPOOL
Instructions for use
Mode d'emploi
Gebruiksaanwijzing
SENSING THE DIFFERENCE

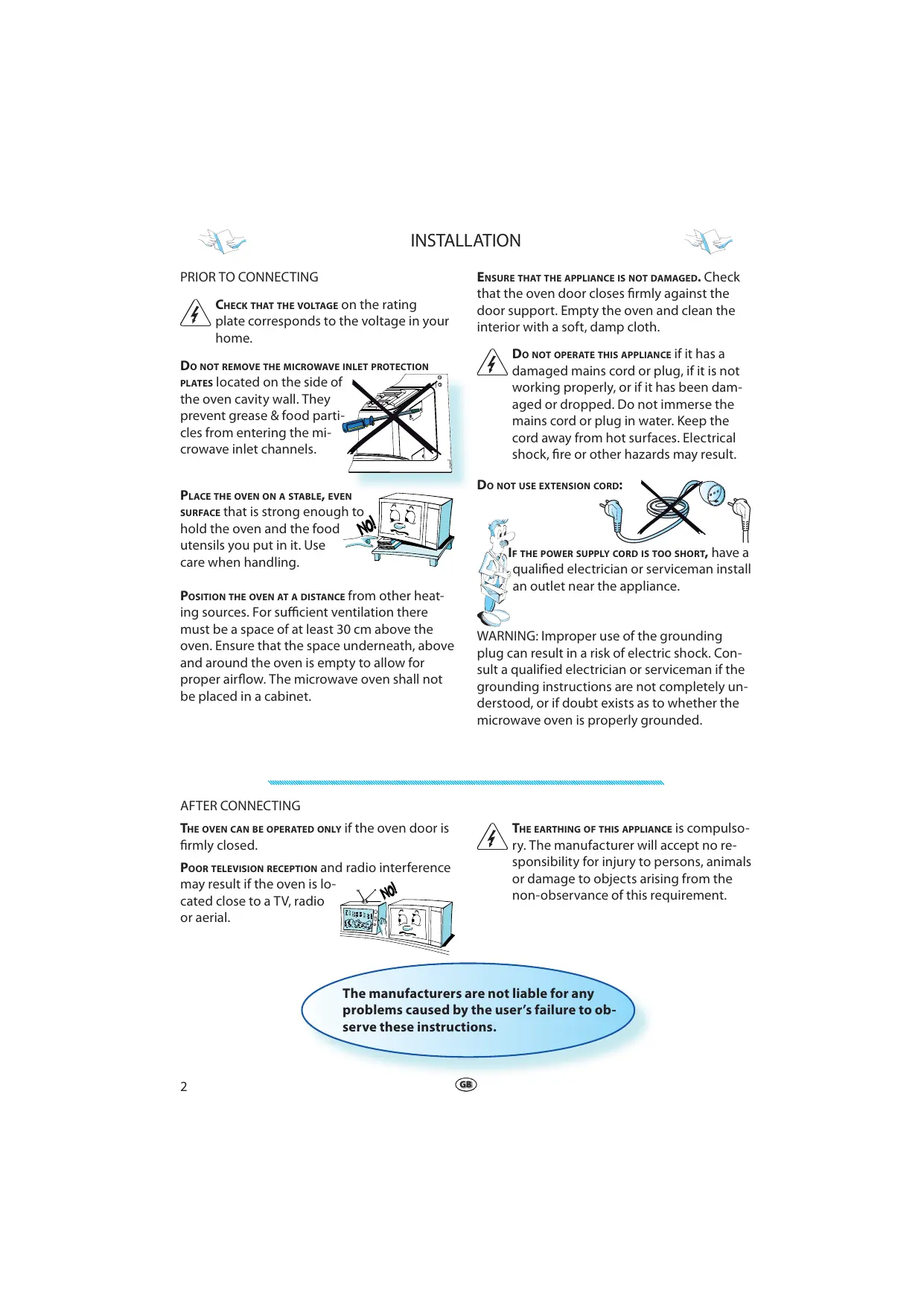

PRIOR TO CONNECTING
CHECK THAT THE VOLTAGE on the rating plate corresponds to the voltage in your home.
DO NOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side of the oven cavity wall. They prevent grease & food particles from entering the microwave inlet channels.
PLACE THE OVEN ON A STABLE, EVEN
SURFACE that is strong enough to hold the oven and the food utensils you put in it. Use care when handling.
POSITION THE OVEN AT A DISTANCE from other heating sources. For sufficient ventilation there must be a space of at least 30~cm above the oven. Ensure that the space underneath, above and around the oven is empty to allow for proper airflow. The microwave oven shall not be placed in a cabinet.
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check that the oven door closes firmly against the door support. Empty the oven and clean the interior with a soft, damp cloth.
DO NOT OPERATE THIS APPLIANCE if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces. Electrical shock, fire or other hazards may result.
DO NOT USE EXTENSION CORD:
If the POWER SUPPLY CORD IS TOO SHORT, have a qualified electrician or serviceman install an outlet near the appliance.
WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.
AFTER CONNECTING
THE OVEN CAN BE OPERATED ONLY if the oven door is firmly closed.
POOR TELEVISION RECEPTION and radio interference
may result if the oven is located close to a TV, radio or aerial.
THE EARTHING OF THIS APPLIANCE is compulsory. The manufacturer will accept no responsibility for injury to persons, animals or damage to objects arising from the non-observation of this requirement.
The manufacturers are not liable for any problems caused by the user's failure to observe these instructions.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
DO NOT HEAT, OR USE FLammable MATERIALS in or near the oven. Fumes can create a fire hazard or explosion.
DO NOT USE YOUR MICROWAVE oven for drying textiles, paper, spices, herbs, wood, flowers, fruit or other combustible materials. Fire could result.
IF MATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE OR SMOKE IS OBSERVED, keep oven door closed and turn the oven off. Disconnect the power cord or shut off power at the fuse or circuit breaker panel.
DO NOT OVER-COOK FOOD. Fire could result.
DO NOT LEAVE THE OVEN UNATTENDED, especially when using paper, plastic or other combustible materials in the cooking process. Paper can char or burn and some plastics can melt if used when heating foods. Do not leave the oven unattended if you are using a lot of fat or oil since they can overheat and cause a fire!
DO NOT USE CORROSIVE CHEMICALS OR VAPORS in this appliance. This type of oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use.
DO NOT HANG OR PLACE heavy items on the door as this can damage the oven opening and hinges. The door handle should not be used for hanging things on.
ONLY ALLOW CHILDREN to use the appliance without adult supervision after adequate instructions have been given, so that the child is able to use the appliance in a safe way and understands the hazards of improper use. Children should be supervised when using other heatsources (if avail
able) separately or in combination with microwaves due to the high temperatures generated.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
CHILDREN SHOULD BE SUPERVISED to ensure that they do not play with the appliance.
DO NOT USE YOUR MICROWAVE oven for heating anything in airtight sealed container. The pressure increases and may cause damage when opening or may explode
THE DOOR SEALS AND THE DOOR SEAL AREAS must be regularly inspected for damage. If these areas are damaged the appliance should not be operated until it has been repaired by a trained service technician.
THE APPLIANCES ARE NOT INTENDED to be operated by means of an external timer or separate remote-control system.
EGGS
DO NOT USE YOUR MICROWAVE oven for cooking or reheating whole eggs with or without shell since they may explode even after microwave heating has ended.
PRECAUTIONS
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food in the oven when using microwaves. Operation in this manner is likely to damage the appliance.
THE VENTILATION OPENINGS on the oven must not be covered. Blocking the air intake or exhaust vents may cause damage to the oven and poor cooking results.
IF YOU PRACTICE OPERATING the oven, put a glass of water inside. The water will absorb the microwave energy and the oven will not be damaged.
Do NOT STORE or use this appliance outdoors.
Do NOT use this product near a kitchen sink, in a wet basement, or near a swimming pool, or similar.
DO NOT USE THE CAVITY for any storage purposes.
REMOVE WIRE TWIST-TIES from paper or plastic bags before placing bag in the oven.
DEEP-FRYING
DO NOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur without evidence of bubbling.
This could result in a sudden boil over of the hot liquid.
To prevent this possibility the following steps should be taken:
- Avoid using straight-sided containers with narrow necks.
- Stir the liquid before placing the container in the oven and let the teaspoon remain in the container.
- After heating, allow standing for a short time, stirring again before carefully removing the container from the oven.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food jar, always stir and check the temperature before serving.
This will ensure that the heat is evenly distributed and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed before heating!
USE HOT PADS OR OVEN MITTS to prevent
burns, when touching containers, oven parts, and pan after cooking. Accessible parts may become hot during use, young children should be kept away.
GENERAL
THERE ARE a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use.
ENSURE THAT THE UTENSILS YOU USE ARE OVEN PROOF
and allow microwaves to
pass through them before cooking.
WHEN YOU PUT FOOD AND ACCESSORIES in the microwave oven, ensure that they do not come in contact with the interior of the oven.
This is especially important with accessories made of metal or metal parts.
If ACCESSORIES CONTAINING METAL comes in contact with the oven interior, while the oven is in operation, sparking can occur and the oven could be damaged.
ALWAYS ENSURE that the turntable is able to turn freely before starting the oven. If the turntable isn't able to turn freely you should use a smaller vessel.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the Glass turntable. Never put any other utensils on the turntable support.
Fit the turntable support in the oven.
GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking methods. It collects the dripping juices and food particles that otherwise would stain and soil the interior of the oven.
Place the Glass turntable on the turntable support.
WIRE RACK
USE THE WIRE RACK with Grill functions.
TROUBLE SHOOTING GUIDE
IF THE OVEN DOES NOT WORK, do not make a service call until you have made the following checks:
The Turntable and turntable support is in place.
The Plug is properly inserted in the wall socket.
The Door is properly closed.
Check your Fuses and ensure that there is power available.
Check that the oven has ample ventilation.
Wait for 10 minutes, then try to operate the oven once more.
Open and then close the door before you try again.
THIS IS TO AVOID unnecessary calls for which you will be charged.
When calling for Service, please give the serial number and type number of the oven (see Service label). Consult your warranty booklet for further advice.
IF THE MAINS CORD NEEDS REPLACING it should
be replaced by the original mains cord, which is available via our service organization. The mains cord may only be replaced by a trained service technician.
SERVICE ONLY TO BE CARRIED OUT
BY A TRAINED SERVICE TECHNICIAN.
It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the re
moval of any cover, which gives protection against exposure to microwave energy.
DO NOT REMOVE ANY COVER.
MAINTENANCE & CLEANING
CLEANING IS THE ONLY MAINTENANCE normally required. It must be carried out with the microwave oven disconnected.
FAILURE TO MAINTAIN THE OVEN in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
DO NOT USE METAL SCOURING PADS,
ABRASIVE CLEANERS, STEEL
wool pads, gritty washcloths, etc. which can damage the control par
el, and the interior and exterior oven surfaces. Use a cloth with a mild detergent or a paper towel with spray glass cleaner.
Apply spray glass cleaner to a paper towel.
DO NOT SPRAY directly on the oven.
AT REGULAR INTERVALS, especially if spill overs have occurred, remove the turntable, the turntable support and wipe the base of the oven clean.
THIS OVEN IS DESIGNED to operate with the turntable in place.
Do NOT operate the microwave oven when the turntable has been removed for cleaning.
USE A SOFT AND DAMP CLOTH with mild detergent to clean the interior surfaces, front and rear of the door and the door opening.
DO NOT ALLOW GREASE or food particles to build up around the door.
FOR STUBBORN STAINS, boil a cup of water in the oven for 2 or 3 minutes. Steam will soften the marks.
ADDITION SOME LEMON JUICE to a cup of water, placing this on the turntable and boiling for a few minutes can eliminate odors inside the oven.
DO NOT USE STEAM CLEANING APPLIANCES when cleaning your microwave oven.
THE OVEN should be cleaned regularly and any food deposits removed.
THE GRILL ELEMENT does not need cleaning since the intense heat will burn off any splashes, but the ceiling beneath it may need regular cleaning. This should be done with a soft and damp cloth with mild detergent.
If the Grill is not used regularly, it should be run for 10 minutes a month to burn off any splashes, in order to reduce the risk of fire.
DISHWASHER SAFE:
TURNTABLE SUPPORT.
GLASS TURNTABLE.
WIRE RACK
ENVIRONMENTAL HINTS
THE PACKING BOX may be fully recycled as confirmed by the recycling symbol. Follow local disposal regulations. Keep potentially hazardous packaging (plastic bags, polystyrene etc.) out of the reach of children.
THIS APPLIANCE is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
DISPOSAL must be carried out in accordance with local environmental regulations for waste disposal.
FOR MORE DETAILED INFORMATION about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
BEFORE SCRAPPING, cut off the mains cord so that the appliance cannot be connected to the mains.
IN ACCORDANCE WITH IEC 60705.
THE INTERNATIONAL ELECTROTECHNICAL COMMISSION has developed a standard for comparative testing of heating performance of different microwave ovens. We recommend the following for this oven:
| Test | Amount | Approx. time | Power level | Container |
| 12.3.1 | 1000 G | 14 MIN | 700 W | PYREX 3.227 |
| 12.3.2 | 475 G | 6 MIN | 700 W | PYREX 3.827 |
| 12.3.3 | 900 G | 16 MIN | 700 W | PYREX 3.838 |
| 13.3 | 500 G | 3 MIN 6 SEC | JET DEFROST |
