USER MANUAL T10 HOMEDICS

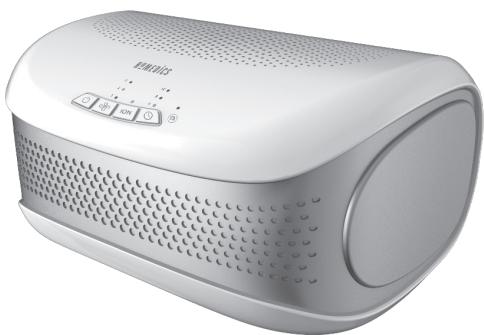

3YEARGUARANTEE AP-DT10-EU AP-DT10-SA PRODUCT FEATURES CONTROL PANEL ALL-IN-ONE HEPA TYPE FILTER GRILLE COVER OIL TRAY CONTROL PANEL REPLACE FILTER LIGHT POWER ALL-IN-ONE HEPA-TYPE FILTRATION SYSTEM HEPA-TYPE FILTRATION Removes up to 99% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odour, mould spores, and smoke from air that passes through the filter. CARBON ODOUR FILTRATION Reduces household odours and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing. PRE-FILTER Captures large particles. IONISER WITH ON/OFF When on, the ioniser assists in the air purification process. 3 SPEEDS Low, medium, and high speeds. BUILT-IN TIMER Choose from 4, 8, or 12 hours. REPLACE FILTER INDICATOR Illuminates when it is time to replace the filter. SUGGESTED ROOM SIZE 55.2 M2/H /595.2 FT2/H. Portable air purifiers will be more effective in rooms where all the doors and windows are closed. AIR CHANGES PER HOUR This air purifier will purify the air in a 55.2 M2 /595.2 FT2 room (assuming an 2.43 M/8 FT ceiling) once per hour on high speed in a closed room. The airflow rate is 134.1 M3/H / 4761.6 F3/H OIL TRAY Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

FAN SPEED IONISER ON/OFF TIMER OPERATING INSTRUCTIONS BEFORE TURNING THE UNIT ON • Take the air purifier out of the box and remove the clear protective plastic bag. • Place the air purifier on a firm, level surface. • Plug the power cord into a standard AC outlet. POWER BUTTON AND FAN SPEED SETTINGS • To turn the air purifier on, press the power button. • This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. To select or change fan speed, press the fan speed button until the desired setting is reached. IONISER SETTING WITH ON/OFF Ion particles have a positive or negative charge that attach to airborne particles, making them easier to be captured by the filtration system. Press the ioniser ION button to turn the ioniser on. The blue light will glow to indicate the ioniser is in use. Press the ioniser ION button again to turn the ioniser off. NOTE: Dust particles may accumulate on surfaces around the air purifier when the ioniser is in use. These dust particles can be vacuumed or wiped away with a soft, damp cloth. NOTE: You may hear occasional popping sounds when the ioniser is used. This is normal. NOTE: The ioniser produces less ozone than the UL-established limits of 0.05 ppm. Ozone may be harmful around birds and small pets. To prevent ozone buildup, use the ioniser feature in a well-ventilated area. TIMER Press the timer button until the desired timer setting is lit on the display. The timer button will cycle through the following settings: 4 hours, 8 hours, 12 hours, and off. To cancel the timer at any time, press the timer button until all timer LEDs are off. The air purifier will run continuously when the timer function is off.

2 I GB R OIL TRAY Use essential oil (not included) to deliver scent into the air. NOTE: For use with the included HoMedics essential oil pads only. Do not add essential oils anywhere else in the unit as it may cause damage. NOTE: Do not leave a filled essential oil pad in the air purifier if it will be out of use for a long period of time.

4. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference.

WARNING: Only place essential oil on the pad and NOT directly into the tray.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS? We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don’t like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

5. Place the oil tray back in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

ADDING ESSENTIAL OILS This air purifier has been certified by the European Centre for Allergy Research Foundation (ECARF) as an allergy-friendly product. Please note that allergy friendliness is no longer guaranteed if the Essential Oil Scent Tray function is used, since essential oils may lead to allergic reactions. WARNING: Putting oil anywhere but the oil tray will damage the air purifier. 1. The oil tray is located on the left side of the air purifier.

FILTER REPLACEMENT REPLACE FILTER LIGHT The replace filter light illuminates when it is time to replace the HEPA-type filter based on the air purifier’s hours of use. REPLACING THE HEPA-TYPE FILTER For optimal performance, replace every 12 months under normal usage conditions. Once the filter has been replaced, press and hold the ioniser ION button for 3 seconds to reset the indicator. 1. Unplug the air purifier. Open the filter grille cover on the back of the unit by pulling the tab located at the bottom of the cover. 2. Pull up until the grille easily slides away from the unit.

3. Pull the tabs to remove the old filter. 2. Push to open and remove the tray. 4. Install a new genuine HoMedics replacement filter with the white side facing out (tabs will be visible). 3. Place 1 aroma pad (3 included) into the oil tray.

5. Align the tab at the top of the grille cover with the top of the unit. Gently push the grille cover until it snaps back into place. 6. Plug the power cord into a standard AC outlet. Press and hold the ioniser

ION button for 3 seconds to reset the indicator.

CLEANING & MAINTENANCE CLEANING THE HEPA-TYPE FILTER NOTE: For best performance, vacuum the HEPA-type filter once a month under normal usage. 1. Unplug the air purifier. 2. Remove the HEPA-type filter as described in the Replacing the HEPA Type Filter section. 3. Vacuum the white side of the HEPA-type filter using the brush attachment of your vacuum cleaner, cleaning it thoroughly. 4. Place the HEPA-type filter back into the air purifier and close grille. 5. Plug the power cord into a standard AC outlet.

FOR BEST PERFORMANCE • NEVER use water or any household cleaners or detergents to clean the HEPA-type filter. • Clean off the outside of the unit with a dry cloth as needed. • NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit. • Clean off the grille cover using a damp cloth or the brush attachment of your vacuum as needed. • Vacuum the pre-filter monthly under normal usage conditions. • Replace the HEPA-type filter every 12 months under normal usage conditions. • Always use a genuine HoMedics replacement filter for optimal performance.

TO CLEAN THE OIL TRAY Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of the oil tray with a soft cloth. Place the essential oil pad back in the tray and close. NOTE: Leave the essential oil pad out of the oil tray when storing.

To purchase genuine HoMedics replacement/spare parts please visit www.homedics.co.uk 3 Pack of aroma pads - ARM-PAD3

Aroma tray - AP-DT10ARMTR HEPA filter - AP-DT10FL TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit will not operate

• Unit is not plugged in • Power button not pressed • No power to unit

• Plug unit in • Press the power button to turn the power on • Check fuses, try a different outlet

• The back grille may be blocked

• The filter needs to be replaced

• Check to make sure nothing is blocking the back grille and air outlet • Vacuum the pre-filter with the brush attachment of your vacuum cleaner • Replace the filter

Reduced odour removal

• The filter needs to be replaced

• Replace the filter

• The unit is not level

• Place the unit on a flat, level surface

Replace filter light remains lit after filter replacement

• The replace filter indicator needs to be reset

• Press and hold the ioniser button for 3 seconds until the replace filter light turns off

• Pre-filter needs vacuuming

4 I GB CARACTÉRISTIQUES DU PRODUIT PANNEAU DE CONTRÔLE FILTRE HEPA TOUT-EN-UN GRILLE DE PROTECTION PLATEAU À
