USER MANUAL QuickCam Messenger LOGITECH

• 623925-0403 Messenger.book Page 3 Friday, June 3, 2005 6:32 PM Contents English p. 1
• Español p. 5
• Français p. 9

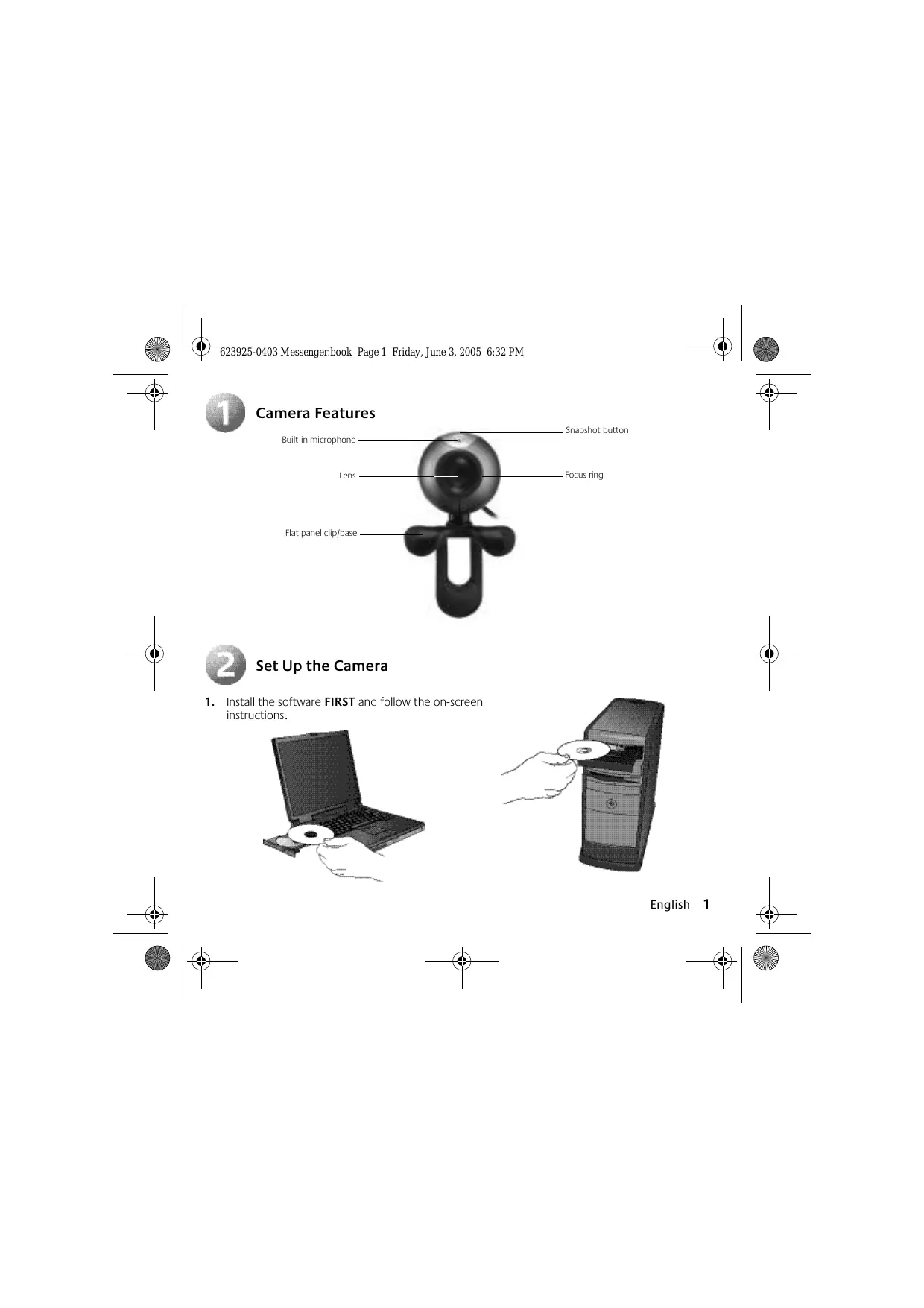

• Português iii 623925-0403 Messenger.book Page 1 Friday, June 3, 2005 6:32 PM Camera Features Built-in microphone Lens Snapshot button Focus ring Flat panel clip/base Set Up the Camera p. 13

1. Install the software FIRST and follow the on-screen

instructions. English

623925-0403 Messenger.book Page 2 Friday, June 3, 2005 6:32 PM

2. During software installation, you are prompted to connect the camera USB cable to the USB port:

• Wait until you receive the software prompt before inserting the cable into the computer’s USB port.

Complete software and hardware installation. Launch the Software

1. To launch the software, double-click the Logitech® QuickCam® shortcut on the desktop.

Or click Start on the Windows® Taskbar, and then select Programs\Logitech\Logitech QuickCam.

2. Choose your favorite video instant messaging application, or choose one of the other available

software activities. 2 English 623925-0403 Messenger.book Page 3 Friday, June 3, 2005 6:32 PM Position the Camera

1. Place the camera in the middle of

your computer monitor for optimal eye contact.

2. The camera can be placed on a tabletop

or held in your hand to snap a picture or video.

3. Rotate the focus ring to get a sharp

4. View live video to guide your focus

5. Pivot the camera up or down,

left or right for the best position. Flatten out legs to place camera on any flat surface. Tips Lighting. Shoot videos with bright light sources behind the camera and out of the picture area. Software Updates. To check for new software updates, go to www.logitech.com/support. Learning More About the Camera To learn more about your camera and its software, access the Logitech QuickCam ® software (Programs\Logitech\Logitech QuickCam), and then click the Help button. For additional information about Logitech QuickCam web cameras, as well as other Logitech® products, please visit www.logitech.com. English

623925-0403 Messenger.book Page 4 Friday, June 3, 2005 6:32 PM Warranty Limited Warranty. Logitech warrants that any hardware product accompanying this documentation shall be free from significant defects in material and workmanship for a period of two (2) years from the date of purchase. Logitech's limited warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws. Remedies. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a) repair or replace the hardware, or (b) refund the price paid, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct, with a copy of the sales receipt. Any replacement hardware will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident, abuse, misapplication, or any unauthorized repair, modification or disassembly. Further, for cordless devices, these remedies are void if you use battery types other than those recommended by Logitech. Upon request from Logitech, you must prove the date of the original purchase of the hardware by a dated bill of sale or dated itemized receipt. DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES. LOGITECH AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT TO THE HARDWARE, SOFTWARE, DOCUMENTATION AND ANY OTHER MATERIALS PROVIDED BY LOGITECH AND/OR ITS SUPPLIERS, AND ANY WARRANTIES OF NON-INTERFERENCE OR ACCURACY OF INFORMATIONAL CONTENT. NO LOGITECH DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. LIMITATION OF LIABILITY. IN NO EVENT WILL LOGITECH OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY LOGITECH PRODUCT OR SERVICE, EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LOGITECH'S AND ITS SUPPLIERS' TOTAL LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LOGITECH PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability. Logitech camera products are intended to be used in a lawful manner. Certain uses of digital PC camera products may be prohibited by local laws in some countries or states, such as the surreptitious recording of audio and/or video communications for certain purposes. If you have any question about whether a proposed use of your product is lawful, you should consult a local legal authority before proceeding. 4 English 623925-0403 Messenger.book Page 5 Friday, June 3, 2005 6:32 PM Componentes de la cámara Micrófono Objetivo Botón de captura de instantáneas Control de enfoque Soporte/clip para monitores planos Instalación de la cámara
