PROLINECadre photonumériquePL-DPF720 - Digital photo frame DARRY - Free user manual and instructions

Product type	Digital photo frame
Brand	DARRY
Model	PL-DPF720
Screen resolution	800 x 480 pixels
Screen format	16:9
Screen type	LCD
Supported media	SD/MMC/SDHC card, USB key
Photo format	JPEG
Input power	AC 100-240V, 50/60Hz, 0.2A max
Output power	DC 5V, 1A
Power consumption	5 W
Operating temperature	5°C to 35°C
Connections	1x USB port, 1x SD slot, 1x PC port (USB)
Package contents	Photo frame, power adapter, instruction manual, strap
Main functions	Slideshow, calendar, clock, date/time setting, auto on/off
Slideshow settings	Interval (5s to 30min), transition, scale, repeat
Rotation and zoom	Rotation 0/90/180/270°, zoom x1 to x4
Double insulation	Yes
Usage	Household use only, indoor
Safety	Do not block vents, avoid heat sources, do not expose to water
Maintenance	Clean with a soft dry cloth
Auto power on	Yes, programmable
Auto power off	Yes, programmable

Frequently Asked Questions - PROLINECadre photonumériquePL-DPF720 DARRY

How to turn the photo frame on and off?

To turn it on, plug the power adapter into the DC5V IN jack and into a power outlet. The screen displays the welcome image. To turn it off, press the power button, then unplug the adapter.

How to set the date and time?

Press MEN to access the home screen. Select the setting option, then choose the date or time. Use the △/▽ buttons to change and ▶ to confirm.

How to display photos from a memory card?

Insert an SD/MMC/SDHC card firmly into the slot. The slideshow starts automatically. You can pause using the ▶ button.

How to connect the photo frame to a PC to copy photos?

Use a USB cable to connect the frame to the PC. The screen displays 'Connecting USB device'. You can then copy-paste photos between the PC and the frame.

How to adjust the slideshow speed?

During playback, press MEN for 3 seconds to display the menu. Select Interval and choose from 5s, 10s, 15s, 1min, 15min or 30min.

What to do if the screen freezes and becomes unresponsive?

This may be a malfunction. Turn off the device, wait a few minutes, then turn it on again. If the problem persists, contact customer service.

How to correctly insert a memory card?

Insert the card into the slot until it clicks. Do not force it. Check the orientation (contacts must face down).

What memory card formats are supported?

The photo frame supports SD, MMC, and SDHC cards. It also accepts USB devices.

How to reset to factory settings?

In the settings menu, select Reset settings. Confirm 'Yes' to restore factory settings.

Where to find the after-sales service number?

In France, call 0 978 970 970 (local call rate) 7 days a week, 24 hours a day. In Belgium, contact Vanden Borre at [phone] Monday to Saturday from 8 am to 6 pm.

USER MANUAL PROLINECadre photonumériquePL-DPF720 DARRY

Hotline Darty France

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment.

- Ventilation

Allow at least a 10 ~cm gap all around the product.

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• No naked flame sources, such as lighted candles, should be placed on the apparatus.

• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

This apparatus is not suitable for use in a tropical climate.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

• To protect the environment, use local recycling facilities for battery disposal.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Where the MAINS plug or an appliance couple is used as the disconnect device, the disconnect device shall remain readily operable.

. CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

This equipment is double insulated and an earth connection

is not required.

This mark is applied to show the equipment conforms to

the European low voltage and electromagnetic compatibility directives.

PACKAGE CONTENT

Digital photo frame (1)
Power adapter (1)
Instruction manual (1)
- Bracket (1)

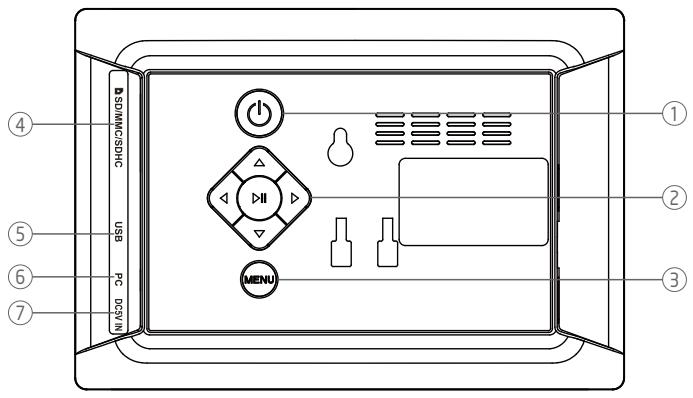

IDENTIFYING THE PARTS

1. Power button
2. / / / Buttons
3. MENU Menu button
4. SD/MMC/SDHC Card slot
5. USB Port
6. PC Port
7. DC5V IN Socket

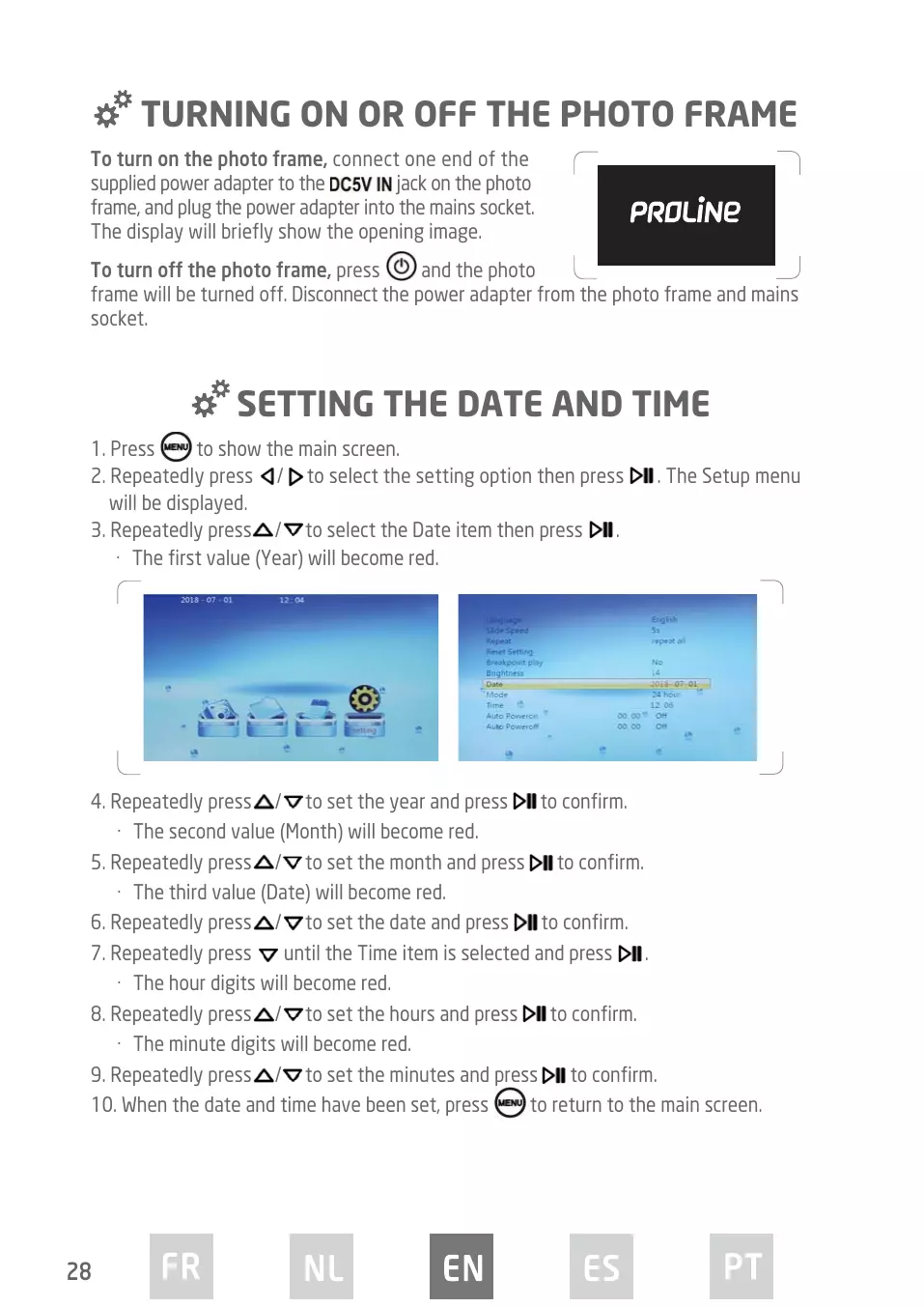

TURNING ON OR OFF THE PHOTO FRAME

To turn on the photo frame, connect one end of the supplied power adapter to the DC5V IN jack on the photo frame, and plug the power adapter into the mains socket. The display will briefly show the opening image.

PROLINE

To turn off the photo frame, press () and the photo

frame will be turned off. Disconnect the power adapter from the photo frame and mains socket.

SETTING THE DATE AND TIME

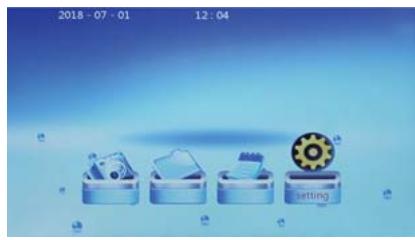

1. Press menu to show the main screen.
2. Repeatedly press / to select the setting option then press . The Setup menu will be displayed.
3. Repeatedly press / to select the Date item then press

The first value (Year) will become red.

1. Repeatedly press / to set the year and press to confirm.

The second value (Month) will become red.

1. Repeatedly press / to set the month and press to confirm.
   The third value (Date) will become red.
2. Repeatedly press / to set the date and press to confirm.
3. Repeatedly press until the Time item is selected and press

The hour digits will become red.

1. Repeatedly press / to set the hours and press to confirm.
   The minute digits will become red.
2. Repeatedly press / to set the minutes and press to confirm.
3. When the date and time have been set, press (MEN) to return to the main screen.

CONNECTING TO PC AND USING COPY FUNCTION

The photo frame has built-in memory.

1. Connect the photo frame to PC using a USB cable.
2. When connected correctly, the screen will show 'USB device is connecting'.
3. You can copy and pasta photos between PC and photo frame.

DISPLAYING PHOTOS

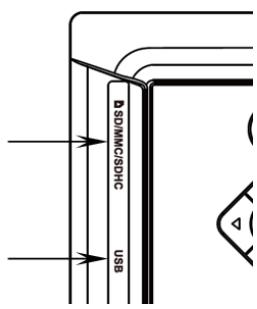

1. Insert a memory card or USB memory firmly into the corresponding slot or port of the photo frame.

2. Playback will automatically begin and images on the memory card or USB memory will be displayed one after another as a slideshow.

3. To pause, press . The photo information will be displayed.

4. To resume the slideshow, press again.

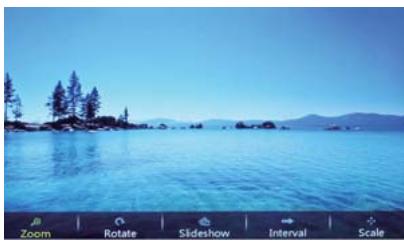

5. When playing photos, press and then press and hold (MENU) for about 3 seconds to see a menu list for you to adjust the photo.

• Use / to select Zoom and then press to set the magnification of the picture: x1, x2, x3, x4.
  Use / to select Rotate and then press to the angle of rotation: 0, 90, 180, 270.
• Use / to select Slideshow and then press to show a list. Use / to select the switching mode of slideshow and then press to confirm.
• Use / to select Interval and then press

to show a list. Use / to select a switching speed and then press to confirm.

• Use / to select Scale and then press to show a list. Use / to select a Scale type and then press to confirm.

To exit from the current setting, press (MENU).

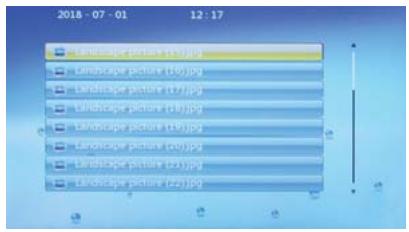

1. Press to show a thumbnail of images.

1. To exit, press (MEN) to return to the main screen.

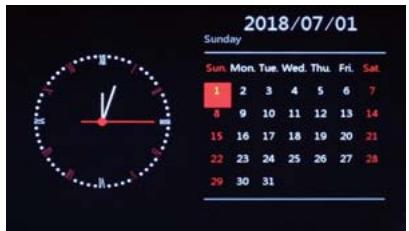

DISPLAYINGCALENDAR

1. Repeatedly press / to select the calendar option then press

1. Repeatedly press / to view the monthly calendar.
2. To exit, press (MENU) to return to the main screen.

CHANGING THE MENU SETTINGS

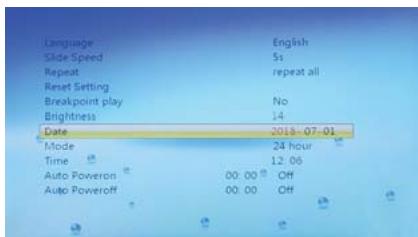

1. Repeatedly press / to select the setting option then press . The Setup menu will be displayed.
2. Repeatedly press / to select an item then press
3. Repeatedly press / to select a setting and then press to confirm.
4. To exit, press (MEN) to return to the main screen.

Language	Set the language
Slide Speed	5s /10s /15s /1min /15min /30min
Repeat	Repeat all / off / one / play random
Reset Setting	Cue: Restore factory setting? Yes or No
Breakpoint Play	Yes or NO
Brightness	1 to 15
Date	YYYY-MM-DD
Mode	24 hour or 12 hour
Time	Hour / Minute
Auto Power On	You can set the time for the photo frame to turn on or off automatically. 1. When selecting this item, press ➔ and the hour digits become red. 2. Repeatedly press ▲/ ▼to set the hours and press ➔ to confirm. · The minute digits will become red. 3. Repeatedly press ▲/ ▼to set the minutes and press ➔ to confirm. 4. Repeatedly press ▲/ ▼to set the status - Once, Every time or Off. Press ➔ to confirm.
Auto Power Off
Model	PL-DPF720
Power adapter	Input: AC100-240V~, 50/60Hz, 0.2A Max. Output: 5.0V == 1.0A
Panel resolution	800 x 480 pixels
Screen format	16:9
Media	SD / MMC / SDHC + USB
Photo format	JPEG
Operating temperature	5°C ~ 35°C

Direct current Alternating Current

EXTERNAL POWER SUPPLY

Information published	Value and precision	Unit
Manufacturer's name or trade mark, commercial registration number and address	Shenzhen Keyu Power Supply Technology Co., Ltd. 2~3F, No. 13, Lane 3, Yuquan East Road, the 2nd Industrial Guangming District, 518000 Shenzhen, P.R.China
Model identifier	KA0601A-0501000EUS
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC 5,0	V
Output current	1,0	A
Output power	5,0	W
Average active efficiency	74,0	%
Efficiency at low load (10%)	-	%
No-load power consumption	0,09	W

For indoor use only

Positive polarity

TROUBLESHOOTING

Problem	Possible Cause / Solution
No power	The power adapter is not properly connected to the unit and the mains socket.
Screen freezes and does not respond to control.	The unit may have malfunctioned. Switch it off and wait for a few minutes before turning it on again.
Unable to insert memory card or USB device	Memory card or USB device is not inserted incorrectly.
The unit fails to read memory card or USB device.	Check whether the memory card or USB device is inserted properly. Do not force the memory card in.

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Etablissements Darty & fils ©, 129 Avenue Gallieni, 93140 Bondy, France 23/06/2021

INDICE

ADVERTENCIAS. p.36
CONTENIDO. p.38
IDENTIFICACION DE PARTES. p.38
CÓMOCENCENDER O APAGAR EL MARCO DE FOTOS. .p.39
AJUSTE DE LA FECHA Y LA HORA. .p.39
CÓMOCONECTARSEAUNPCYUSARLA FUNCIONDECOPIAR. .p.40
VISUALIZACION DE FOTOS. p.40
CÓMOMOSTRARELCALENDARIO. p.41
CÓMOCAMBIAR LOS AJUSTES DEL MENU. .p.42
ESPECIFICACIONES. p.43
fuENTE DE ALIMENTACION EXTERNA .p.43
SOLUTION DE PROBLEMAS. p.44
DISPOSICION. p.45

ADVERTENCIAS

EU Declaration of Conformity

Product Description:

We declare that the above product has been evaluated and deemed to comply with the requirements of the listed European Directives and standards:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55032:2015

EN 55035:2017

EN 61000-3-2:2014

EN 61000-3-3:2013

LVD:

EN 62368-1:2014+A11:2017

ErP:

(EU) 2019/1782

EN 50563:2011+A1:2013

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Fonction - Position: General Manager Direct Sourcing

Place, Date / Lieu :

Bondy,juin 25,2021

PROLINE

Etablissements Darty & fils ©, 129 Avenue Gallieni, 93140 Bondy, France
