USER MANUAL AVR-1909 BKE2 DENON

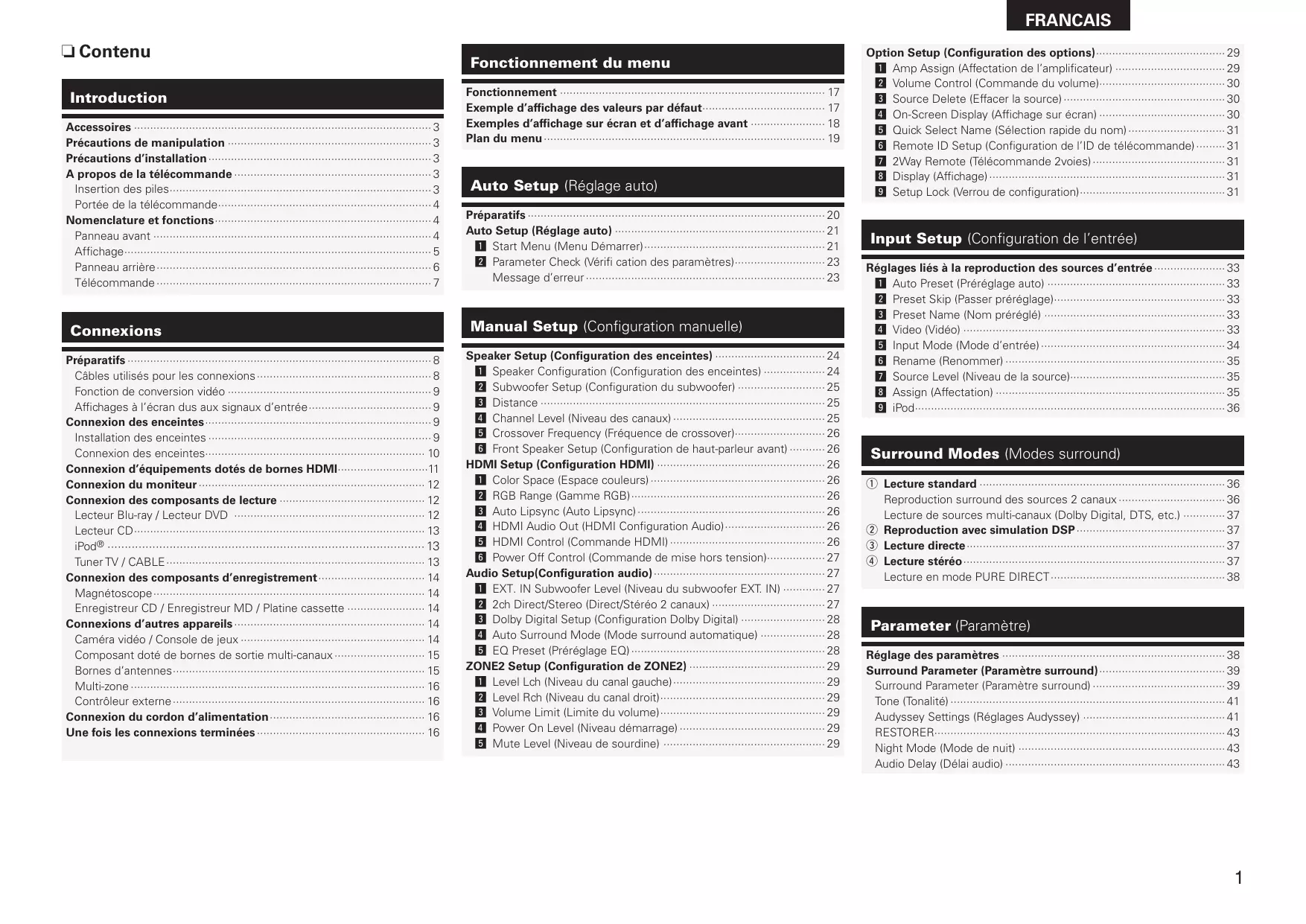

n Contenu Introduction Accessoires····························································································· 3 Précautions de manipulation································································ 3 Précautions d’installation······································································ 3 A propos de la télécommande······························································ 3 Insertion des piles·················································································· 3 Portée de la télécommande··································································· 4 Nomenclature et fonctions···································································· 4 Panneau avant······················································································· 4 Affichage································································································ 5 Panneau arrière······················································································ 6 Télécommande······················································································ 7

Connexions Préparatifs······························································································· 8 Câbles utilisés pour les connexions······················································· 8 Fonction de conversion vidéo································································ 9 Affichages à l’écran dus aux signaux d’entrée······································· 9 Connexion des enceintes······································································· 9 Installation des enceintes······································································ 9 Connexion des enceintes···································································· 10 Connexion d’équipements dotés de bornes HDMI·····························11 Connexion du moniteur······································································· 12 Connexion des composants de lecture·············································· 12 Lecteur Blu-ray / Lecteur DVD ···························································· 12 Lecteur CD··························································································· 13 iPod®····························································································· 13 Tuner TV / CABLE················································································· 13 Connexion des composants d’enregistrement·································· 14 Magnétoscope····················································································· 14 Enregistreur CD / Enregistreur MD / Platine cassette························· 14 Connexions d’autres appareils···························································· 14 Caméra vidéo / Console de jeux·························································· 14 Composant doté de bornes de sortie multi-canaux····························· 15 Bornes d’antennes··············································································· 15 Multi-zone···························································································· 16 Contrôleur externe··············································································· 16 Connexion du cordon d’alimentation················································· 16 Une fois les connexions terminées····················································· 16

Fonctionnement du menu Fonctionnement··················································································· 17 Exemple d’affichage des valeurs par défaut······································· 17 Exemples d’affichage sur écran et d’affichage avant························ 18 Plan du menu························································································ 19

Auto Setup (Réglage auto) Préparatifs····························································································· 20 Auto Setup (Réglage auto)·································································· 21 a Start Menu (Menu Démarrer)························································· 21 s Parameter Check (Vérifi cation des paramètres)····························· 23 Message d’erreur··········································································· 23

Manual Setup (Configuration manuelle) Speaker Setup (Configuration des enceintes)··································· 24 a Speaker Configuration (Configuration des enceintes)···················· 24 s Subwoofer Setup (Configuration du subwoofer)···························· 25 d Distance························································································· 25 f Channel Level (Niveau des canaux)················································ 25 g Crossover Frequency (Fréquence de crossover)···························· 26 h Front Speaker Setup (Configuration de haut-parleur avant)············ 26 HDMI Setup (Configuration HDMI)····················································· 26 a Color Space (Espace couleurs)······················································· 26 s RGB Range (Gamme RGB)····························································· 26 d Auto Lipsync (Auto Lipsync)··························································· 26 f HDMI Audio Out (HDMI Configuration Audio)································ 26 g HDMI Control (Commande HDMI)················································· 26 h Power Off Control (Commande de mise hors tension)·················· 27 Audio Setup(Configuration audio)······················································ 27 a EXT. IN Subwoofer Level (Niveau du subwoofer EXT. IN)·············· 27 s 2ch Direct/Stereo (Direct/Stéréo 2 canaux)···································· 27 d Dolby Digital Setup (Configuration Dolby Digital)··························· 28 f Auto Surround Mode (Mode surround automatique)····················· 28 g EQ Preset (Préréglage EQ)····························································· 28 ZONE2 Setup (Configuration de ZONE2)··········································· 29 a Level Lch (Niveau du canal gauche)················································ 29 s Level Rch (Niveau du canal droit)···················································· 29 d Volume Limit (Limite du volume)···················································· 29 f Power On Level (Niveau démarrage)·············································· 29 g Mute Level (Niveau de sourdine) · ················································· 29

Option Setup (Configuration des options)········································· 29 a Amp Assign (Affectation de l’amplificateur)··································· 29 s Volume Control (Commande du volume)········································ 30 d Source Delete (Effacer la source)··················································· 30 f On-Screen Display (Affichage sur écran)········································ 30 g Quick Select Name (Sélection rapide du nom)······························· 31 h Remote ID Setup (Configuration de l’ID de télécommande)·········· 31 j 2Way Remote (Télécommande 2voies)·········································· 31 k Display (Affichage)·········································································· 31 l Setup Lock (Verrou de configuration)·············································· 31

Input Setup (Configuration de l’entrée) Réglages liés à la reproduction des sources d’entrée······················· 33 a Auto Preset (Préréglage auto)························································ 33 s Preset Skip (Passer préréglage)······················································ 33 d Preset Name (Nom préréglé)························································· 33 f Video (Vidéo)·················································································· 33 g Input Mode (Mode d’entrée)·························································· 34 h Rename (Renommer)····································································· 35 j Source Level (Niveau de la source)················································ 35 k Assign (Affectation)········································································ 35 l iPod································································································· 36

Surround Modes (Modes surround) q Lecture standard············································································· 36 Reproduction surround des sources 2 canaux·································· 36 Lecture de sources multi-canaux (Dolby Digital, DTS, etc.)·············· 37 w Reproduction avec simulation DSP··············································· 37 e Lecture directe················································································· 37 r Lecture stéréo·················································································· 37 Lecture en mode PURE DIRECT······················································· 38

Parameter (Paramètre) Réglage des paramètres······································································ 38 Surround Parameter (Paramètre surround)········································ 39 Surround Parameter (Paramètre surround)·········································· 39 Tone (Tonalité)······················································································ 41 Audyssey Settings (Réglages Audyssey)············································· 41 RESTORER·························································································· 43 Night Mode (Mode de nuit)································································· 43 Audio Delay (Délai audio)····································································· 43

FRANCAIS Information Status (Etat)·························································································· 44 a MAIN ZONE (Zone principale)························································ 44 s ZONE2···························································································· 44 Audio Input Signal (Signal audio d’entrée)········································ 44 HDMI Information (Infos HDMI)·························································· 45 a HDMI Signal Information (HDMI Signal Informations)··················· 45 s HDMI Monitor Information (Informations moniteur HDMI)············ 45 Auto Surround Mode (Mode surround automatique)······················· 45 Quick Select (Sélection rapide)··························································· 45 Preset Station (Station préréglée)······················································ 45

Lecture Préparatifs····························································································· 46 Mise en marche··················································································· 46 Sélection de la source d’entrée··························································· 46 Opérations pendant la lecture······························································ 46 Lecture des équipements audio et vidéo··········································· 47 Fonctionnement élémentaire······························································· 47 Ecoute d’émissions FM/AM································································ 47 Fonctionnement élémentaire······························································· 47 Préréglage des stations radio (Mémoire préréglée)····························· 47 Ecoute des stations préréglées··························································· 47 RDS (Système de Données Radio)······················································ 48 Recherche RDS···················································································· 48 Recherche PTY····················································································· 49 Recherche TP······················································································· 49 RT (Texte Radio)··················································································· 49 Lecture d’un iPod®· ············································································· 50 Fonctionnement élémentaire······························································· 50 Écoute audio························································································ 51 Regarder des images ou des vidéos sur un iPod································· 51

Autres opérations et fonctions Autres opérations················································································· 52 Enregistrement sur un dispositif externe (mode REC OUT)················ 52 Fonctions pratiques·············································································· 53 Fonction de contrôle HDMI·································································· 53 Niveau des canaux··············································································· 54 Fonction Fader····················································································· 54 Fonction de sélection rapide································································ 55 Fonction mémoire personnelle plus····················································· 55 Fonction dernière mémoire·································································· 55 Mémoire de sauvegarde······································································ 55 Réinitialisation du microprocesseur ···················································· 55

Fonctionnement de la télécommande Fonctionnement des composants audio DENON······························ 56 Préréglage····························································································· 56 Fonctionnement des composants préréglés····································· 56 Fonction de transfert d’informations················································· 59

Affectation de l’amplificateur / Connexions et fonctionnement multi-zone Réglages multi-zone avec la fonction d’affectation d’amplificateur······················································································ 60 Réglages multi-zone et fonctionnent avec la sortie de zone··················································································· 61 Fonctionnement multi-zone································································ 62 Mise en marche et extinction······························································ 62 Sélection de la source d’entrée··························································· 62 Réglage du volume·············································································· 62 Coupure temporaire du son································································· 62

Autres informations·····························································63

Dépistage des pannes·························································71

Spécifications··········································································· 74

Liste de codes préréglés · ································································Feuille volante à la fin du livret

q Touche d’alimentation (ON/STANDBY)·········································(46) w Témoin d’alimentation····································································(46) e Interrupteur principal (hON jOFF)·············································(46) r Prise de casque audio (PHONES)···················································(46) t Touche INPUT MODE································································ (15, 34) y Touche SPEAKERS·····································································(26, 46) u Touche ZONE2 ON/OFF··································································(62) i Touches QUICK SELECT··································································(55) o Bornes V. AUX INPUT····································································· (14)

Dépistage des pannes Spécifications

Retirer le capuchon recouvrant la borne en cas d’utilisation.

Q0 Prise SETUP MIC··············································································(20) Q1 Touche MENU·················································································· (17)

Q4 Touches de curseur (ui)······························································· (17) Q5 Molette de contrôle MASTER VOLUME········································(46) Q6 Témoin AUDYSSEY DYNAMIC VOLUME·········································(42) Q7 Témoin HD AUDIO············································································(37)

E3 Touche RDS················································································(48, 49)

Q8 Témoin de volume principal Q9 Affichage·····························································································(5) W0 Capteur de télécommande································································(4) W1 Touche ZONE2/REC SELECT····················································(52, 62) W2 Molette SOURCE SELECT·······························································(46) W3 Touche SOURCE··············································································(46) W4 Touche STATUS···············································································(44) W5 Touche DIMMER··············································································(31) W6 Touche RESTORER··········································································(43) W7 Touche BAND···················································································(47) W8 Touche SHIFT···················································································(47) W9 Touches PRESET··············································································(47) E0 Touches TUNING··············································································(47) E1 Touche MULTEQ··············································································(41) E2 Touche DYNAMIC VOLUME···························································(42)

q Bornes audio numériques (OPTICAL / COAXIAL)·················(12 ~ 14) w Bornes audio analogiques (AUDIO)········································(12 ~ 14) e Bornes EXT. IN················································································· (15) r Prises REMOTE CONTROL······························································ (16) t Bornes PRE OUT·············································································· (10) y Bornes ZONE2·················································································· (16)

u Sorties CA (AC OUTLET)································································· (16) i Prise CA (AC IN)··············································································· (16) o Bornes d’enceintes (SPEAKERS)···················································· (10) Q0 Bornes d’antennes FM/AM (TUNER ANTENNA)·························· (15) Q1 Bornes HDMI·········································································(11, 12, 14) Q2 Prise RF/RC 2WAY·········································································· (16)

u Q3 Prise DOCK CONTROL····································································· (13) Q4 Bornes VIDEO / S-VIDEO························································(12 ~ 14) Q5 Bornes COMPONENT VIDEO···················································· (12, 13)

Q3 Touche MUTING···············································(46) Q4 Touche NIGHT ···············································(43) Q5 Touche MULTEQ···············································(41) Q6 Touche de sélection

de canal (CH SEL)/ENTER································(38)

u Touches de mode surround·······················(37, 38) i Touche menu Ampli. (A. MENU)·····················(17) o Touche de mode d’entrée (INPUT)············(15, 34) Q0 Touche entrée (ENT)···································(17, 38) Q1 Touche RETURN················································(17) Q2 Touches de curseur (uio p)························(17)

MAIN ZONE (MAIN)··········································(62)

volume principal···············································(46)

q Témoin·······························································(56) w Touches d’alimentation····································(46) e Touches QUICK SELECT·····························(46, 55) r Touches sélection de source····························(46) t Touches système··············································(51) y Touche AUDIO DELAY······································(43) u Touches de curseur (uio p)························(38) i Touche DYNAMIC VOLUME····························(42) o Touche RESTORER···········································(43) Q0 Commutateurs de SOURCE CONTROL·····(17, 56) Q1 Emetteur infrarouge de télécommande············(4) Q2 Touches de contrôle du

SUBWOOFER L R L R S S S S S

L R L R L R L R L R Câble coaxial · 75 Ω/ohms

1-1.Start Menu Audyssey MultEQ Step1:Speaker Detection Please place microphone at ear height at main listening position.

*Rename:DVD Rename•– Clear

q 1-1.Start Menu w Audyssey MultEQ Auto Setup Step1:Speaker Detection Audyssey MultEQ Please place microphone Step1:Speaker Detection at ear height at Yes Front Sp. main listening position. Center Sp. Yes Yes Subwoofer Front Sp. A Surround Sp. Yes Amp Assign Yes S.Back Sp. Start 2spkrs Cancel Next Retry

Auto Setup q Audyssey MultEQ Auto Setup Step2:Measurement Audyssey MultEQ Please place microphone Step2:Measurement at ear height at 2nd listening position. Now measuring 2nd listening position.

Next Calculate Cancel

Lecture Télécommande Multi-zone

r Auto Setup Audyssey MultEQ Auto Setup Step2:Measurement Audyssey MultEQ Please place microphone Step2:Measurement at ear height at 3rd listening position. All the measurements were finished. Next Calculate Retry Calculate Cancel Retry Cancel

Auto Setup Audyssey MultEQ Step4:Check Please check the results of the measured item.

––––––––––––––––––––––––––––––––––––

Speaker Config.Check Distance Check Channel Level Check Crossover Freq.Check Next

Retry Cancel Auto Setup Audyssey MultEQ Caution! Ambient noise is too high or Level is too low.

Front R :None Retry Cancel

Auto Setup Audyssey MultEQ Caution! Microphone:None or Speaker :None

Surround Speaker (Enseinte·surround)

h Front Speaker Setup

d Source Delete (Effacer la source)

iPod Dock (Station iPod)

Surround Modes (Modes·surround) q Lecture standard

h Center Image (Centrer image)

A5 SUBWOOFER ATT (Attribution subwoofer)

“Red” “Rouge” Dynamic EQ / Volume : OFF

1.Quick Select 1 2.Quick Select 2 3.Quick Select 3

–40 dB Quick Select 2

–40 dB Quick Select 3

q Volume TV d w Volume TV f

q Volume TV d w Volume TV f

q Volume DBS d w Volume DBS f

q Volume câble d w Volume câble f

q Volume TV d w Volume TV f

AMP ASSIGN R L R L SR SL Z2R Z2L

AMP ASSIGN R L R L SR SL SBR SBL

S A A A A A A A S A A A D S (OFF)

DOLBY DIGITAL S D D D D S (OFF)

A A A A A A DOLBY TrueHD S D D D D S (OFF)

A A A A A A DTS 96/24

A A A A A A DTS-HD S D D D D S (OFF)

A S A A A A A A A ROCK ARENA S D D D D S (OFF)

A A A JAZZ CLUB S D D D D S (OFF)

A A A MONO MOVIE S D D D D S (OFF)

A A A MATRIX S D D D D S (OFF)

A S A A A A S (30 ms)

A A VIRTUAL S A A A D S (OFF)

A A A A A A A A A Informations

Dynamic Volume (REMARQUE7)

RESTORER SW ATT A A A A A A S (OFF)

S (REMARQUE4) S (REMARQUE4) S (REMARQUE4)

MULTI CH DIRECT A A A A A A S (OFF)

S (REMARQUE4) S (REMARQUE4) S (REMARQUE4)

S DOLBY DIGITAL A A A A A S (0dB)

A DOLBY TrueHD A A A A A S (0dB)

A A A A A F D A A A A A A A A A A DTS ES MTRX6.1

A A A A A A F D A A A A A A A A A DTS SURROUND A A A A A S S F A A A A A A A A DTS 96/24

A A A A A A A A F A A A A A A A DTS (–HD) + PLgx CINEMA

A A A S S S S S S A A A A A A A DTS (–HD) + PLgx MUSIC

A A A S S S S S S A A A A A A A DTS (–HD) + NEO:6

A A A S S A S S S A A A A A A A DTS NEO:6 CINEMA S A S A A A A A A A A A A A A S DTS NEO:6 MUSIC S A S A A A A A A A A A A A A S DOLBY TrueHD A A A A A A A A A F A A A A A A DOLBY DIGITAL+

A A A A A A A A A A F A A A A A DOLBY SURROUND DOLBY DIGITAL EX

A A A A A A A A A A A S S S S A DOLBY (D+) (HD) +EX

A A A A A A A A A S S A A A A A A A A A A A A A A A A S F F F A A Informations

DOLBY DIGITAL Dépistage des pannes Spécifications

DOLBY (D) (D+) (HD) +PLgx CINEMA

A A A A A A A A A S S F D S S S DOLBY (D) (D+) (HD) +PLgx MUSIC

A A A A A A A A A S S S S S S A DOLBY PRO LOGIC gx CINEMA

A S A A A A A A A A A A A A A A

A S A A A A A A A A A A A A A A

A S A A A A A A A A A A A A A A

A A A A A A A A A A A A A A

M CH PURE DIRECT 7.1 DSP SIMULATION

5CH/7CH STEREO S A A S S S S A A S S S S S S S A A S S S S A A S S S S S JAZZ CLUB S S S A A S S S S A A S S S S S MONO MOVIE S S S A A S S S S A A S S S S S VIDEO GAME S S S A A S S S S A A S S S S S MATRIX S S S A A S S S S A A S S S S S VIRTUAL S S S A A S S S S A A S S S S S F S F S S S S S S S S S S S S S Dépistage des pannes Spécifications

A A A A A A A A A A A A A A A A S S S S S S S S S S S S S Signal d’entrée

[111]z (Denon 1) 121 (Denon 2)

JVC VCR A Admiral Aiko Aiwa Akai

I J Hitachi Pay TV Infinity Janeil JBL JC Penny

J M O P S Satellite Receiver
