USER MANUAL DUZ 1585i BLANC DE DIETRICH

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty.

Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

Please read this booklet carefully as it provides important guide lines for safe installation, use and maintenance and some useful advise for best results when using your washing machine.

Keep this booklet in a safe place for further consultation.

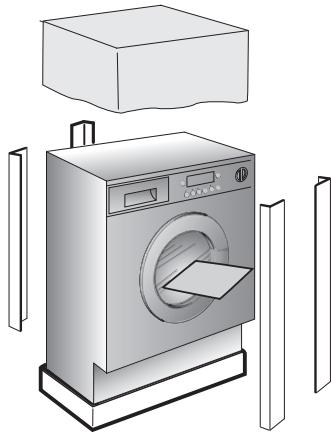

On delivery, check that the following are included with the machine:

A) INSTRUCTION MANUAL
B) CAPS
C) BEND FOR OUTLET TUBE

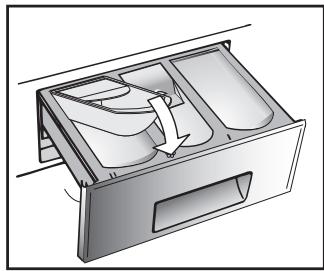

D) LIQUID DETERGENT OR LIQUID BLEACH COMPARTMENT (CONTAINER)

KEEP THEM IN A SAFE PLACE

Check that the machine has not incurred damage during transport. If this is the case, contact your nearest

Technical Assistance Centre.

CHAPTER 2

MESURES DE SECURITE

ATTENTION: EN CAS D'INTERVENTION DE NETTOYAGE ET D'ENTRETIEN

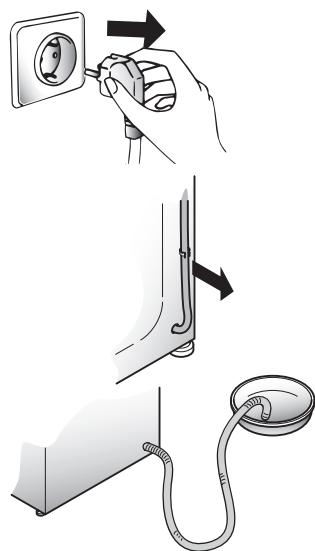

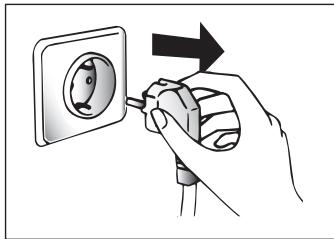

• Remove the plug
• Turn off the water inlet tap.
• All appliances are earthed. Ensure that the main electricity circuit is earthed. Contact a qualified electrician if this is not the case.

CE Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

• Do not touch the appliance with wet or damp hands or feet.
• Do not use the appliance when bare-footed.
• Extreme care should be taken if extension leads are used in bathrooms or shower rooms. Avoid this where possible.

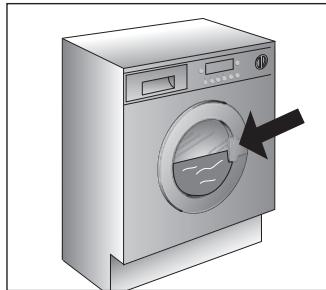

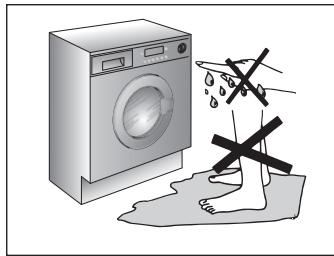

WARNING: DURING THE WASHING CYCLE, THE WATER CAN REACH A TEMPERATURE OF 90^ .

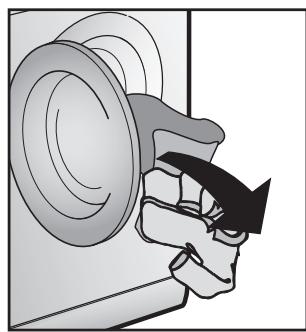

• Before opening the washing machine door, ensure that there is no water in the drum.

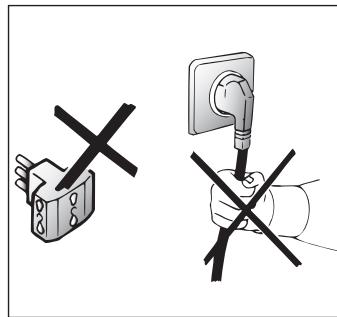

• Do not use adaptors or multiple plugs.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Do not pull the mains lead or the appliance itself to remove the plug from the socket.
• Do not leave the appliance exposed to atmospheric agents (rain, sun etc.)
• In the case of removal, never lift the appliance by the knobs or defensive drawer.

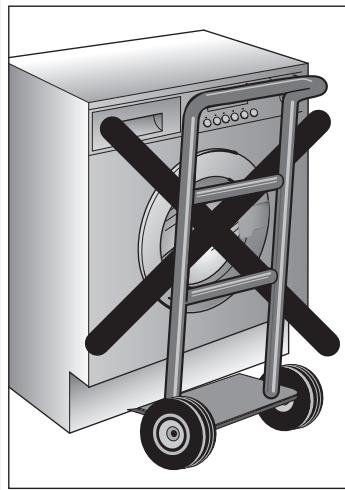

• During transportation do not lean the door against the trolley.

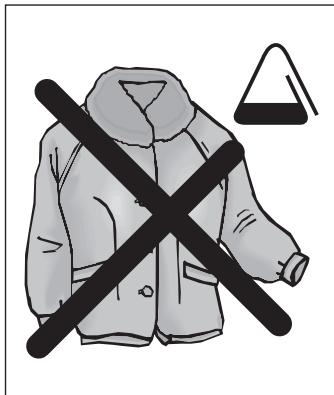

Important!

When the appliance location is on carpet floors, attention must be paid so as to ensure that there is no obstruction to the bottom vents.

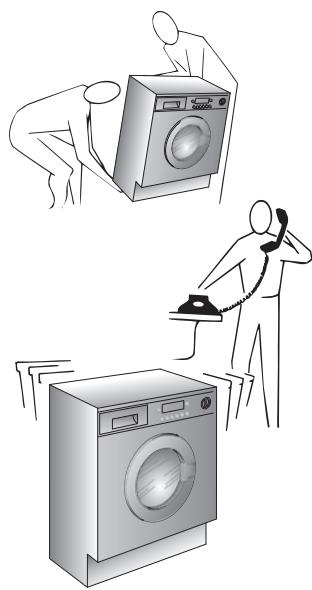

• Lift the appliance in pairs as illustrated in the diagram.
  In the case of failure and/or incorrect operation, turn the washing machine off, close the water inlet tap and do not tamper with the appliance. Contact a Technical Assistance Centre for any repairs and ask for original spare parts. Avoidance of these norms may compromise the safety of the appliance.
  Should the supply cord (mains cable) be demaged, this is to be replaced by a specific cable available from the after sales service centre.

DONNÉES TECHNIQUES	TECHNICAL DATA			Lavage Washing	Séchage Drying
CAPACITE DE LINGE SEC	MAXIMUM WASH LOAD DRY	kg		8	5

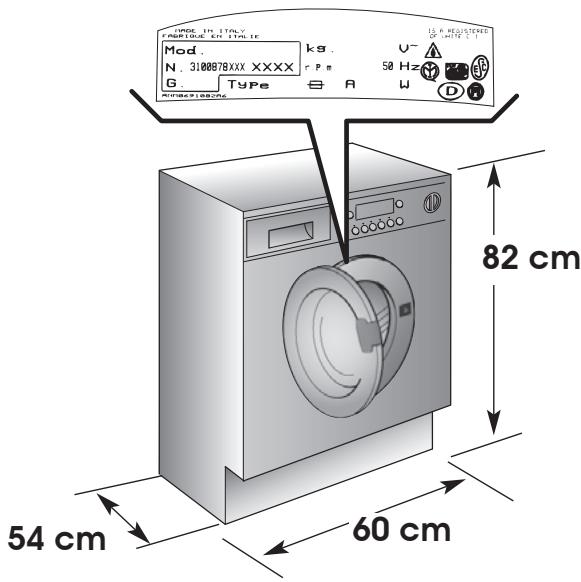

PUISSANCEABSORBEE	POWER INPUT	W	CONSULTER LA PLAQUE TECHNIQUESEE RATING PLATE
AMPERAGE	POWER CURRENT FUSEAMP	A
ESSORAGE(Tours/min.)	SPINr.p.m.
PRESSION DANSL'INSTALLATION HYDRAULIQUE	WATER PRESSURE	MPa	min. 0,05max. 0,8
TENSION	SUPPLY VOLTAGE	V	220-240

CHAPITRE 4

MISE EN PLACE INSTALLATION

SETTING UP INSTALLATION

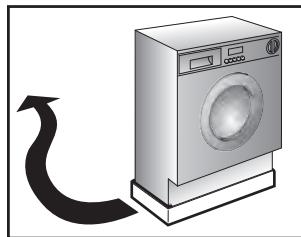

Move the machine near its permanent position without the packaging base.

Carefully cut the securing strap that holds the main cord and the drain hose.

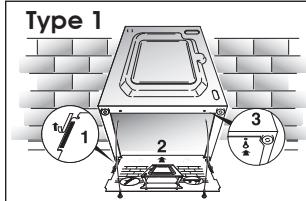

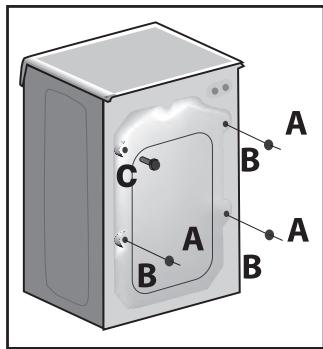

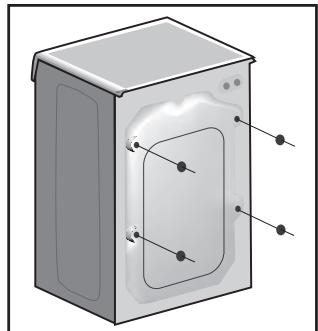

Remove the 3 fixing screws marked (A) and remove the 3 spacers marked (B)

Remove the screw (C). A spacer will fall inside the machine.

By tilting the machine, remove the above mentioned spacer.

Cover the 4 holes using the caps provided in the instruction booklet pack.

WARNING: DO NOT LEAVE THE PACKAGING IN THE REACH OF CHILDREN AS IT IS A POTENTIAL SOURCE OF DANGER.

FR

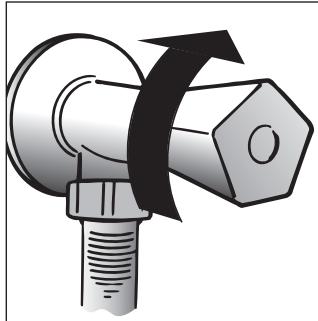

ATTENTION: NE PAS OUVRIR LE ROBINET

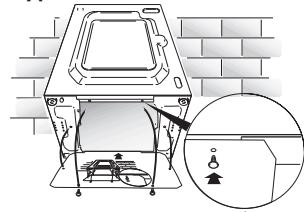

Fix the sheet of corrugated material on the bottom as shown in picture.

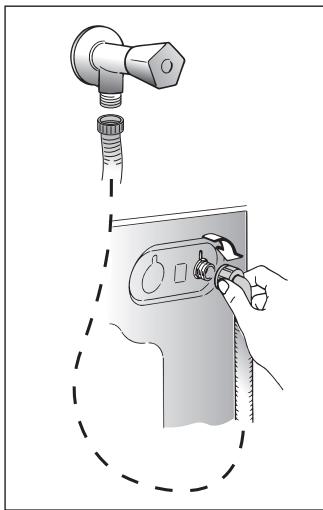

Connect the fill hose to the tap.

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

IMPORTANT: DO NOT TURN THE TAP ON AT THIS TIME.

Position the washing machine next to the wall. Hook the outlet tube to the edge of the bath tub, paying attention that there are no bends or contractions along the tube.

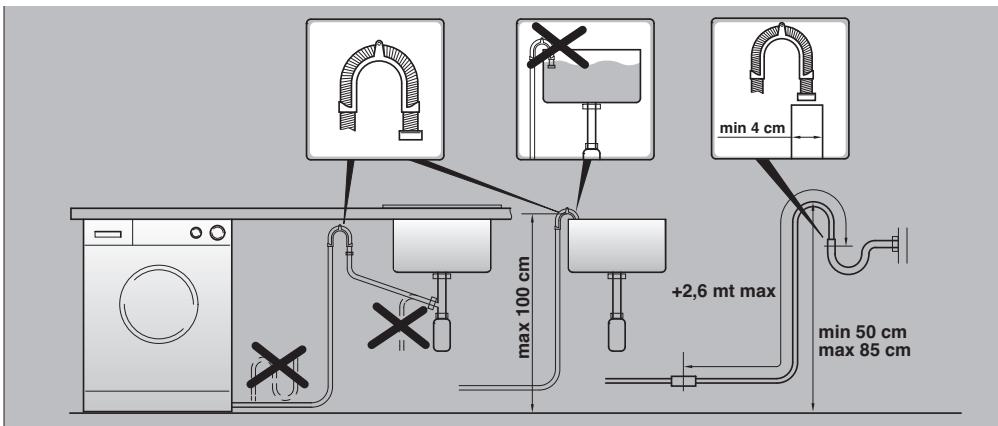

It is better to connect the discharge hose to a fixed outlet of a diameter greater than that of the outlet tube and at a height of min. 50~cm If is necessary to use the plastic sleeve supplied.

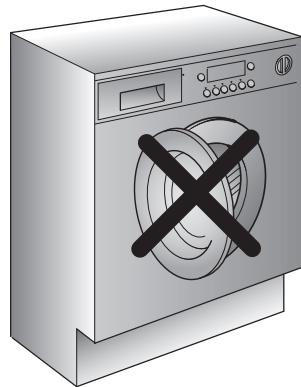

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.

Type 2

FR

Mettre la machine a niveau en reglant les 4 pieds:

Use the 4 feet to level the machine with the floor:

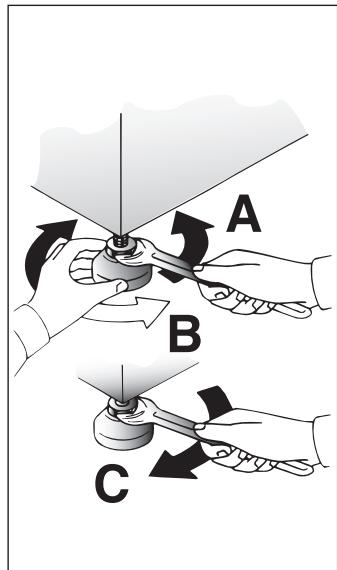

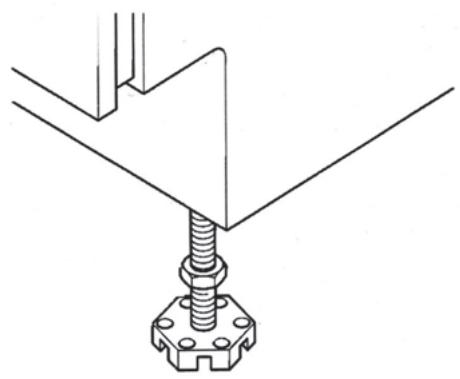

a) Turn the nut clockwise to release the screw adjuster of the foot.
b) Rotate foot to raise or lower it until it stands firmly on the ground.
c) Lock the foot in position by turning the nut anticlockwise until it comes up against the bottom of the machine.

Ensure that the knob is on the "OFF" position and the load door is closed

Insert the plug.

ATTENTION:

should it be necessary to replace the supply cord, connect the wire in accordance with the following colours/codes:

BLUE -NEUTRAL (N)

BROWN - LIVE (L)

YELLOW-GREEN - EARTH (

After installation, the appliance must be positioned so that the plug is accessible.

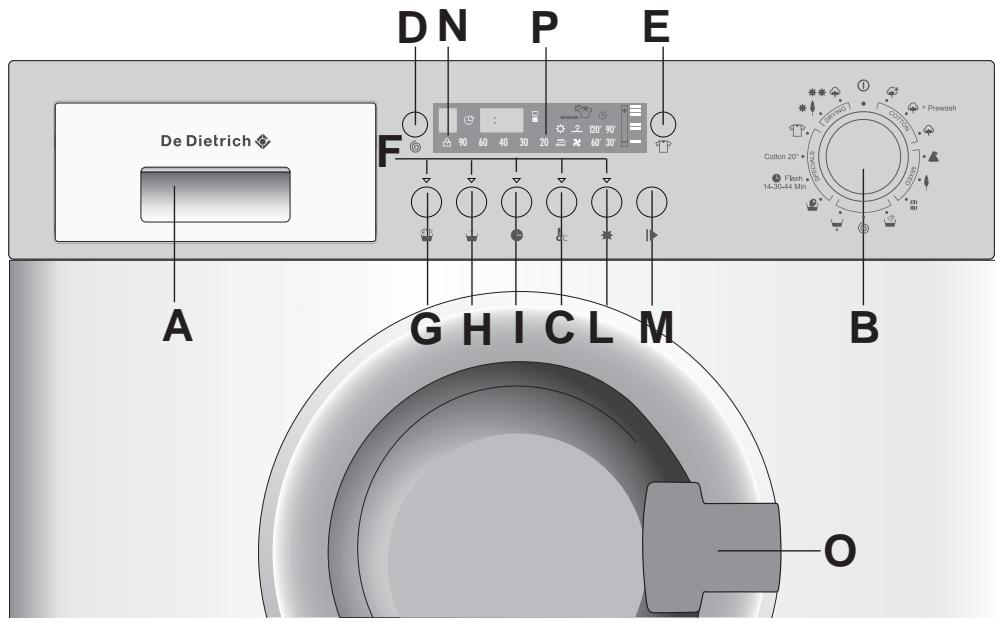

COMMANDES

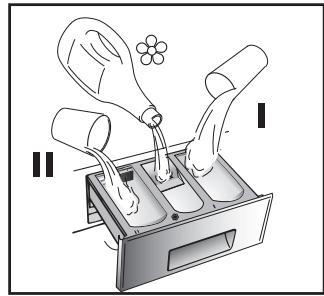

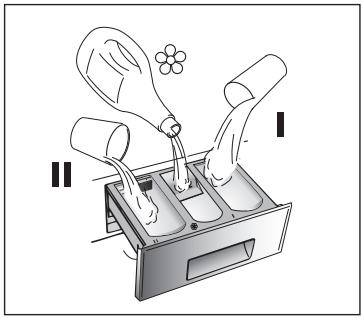

Bacs a produits

Touche Selection Temperature

Touche Essorage

Timer knob for wash programmes with OFF position

Wash Temperature button

Spin Speed button

"Wash Time" button

Buttons indicator light

Intensive button

Aquaplus button

Start Delay button

Drying programme selection button

Start button

Door locked indicator light

Door handle

Digital Display

A

B

C

D

E

F

G

H

1

L

M

N

0

P

By pressing this button you can activate a special new wash cycle in the Colourfast and Mixed Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of garments and the delicate skin of those who wear them.

The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that the detergent dissolves perfectly, ensuring an efficient cleaning action. The amount of water is also increased during the rinse procedure so as to remove all traces of detergent from the fibres.

This function has been specifically designed for people with delicate and sensitive skin, for whom even a very small amount of detergent can cause irritation or allergy. You are advised to also use this function for children's clothing and for delicate fabrics in general, or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of detergent. To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens/Handwash programs.

TOUCHE "DEPART DIFFERE"

This button allows you to preprogramme the wash cycle to delay the start of the cycle for up to 24 hours.

To delay the start use the following procedure: Set the required programme. Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

Confirm by pressing the "START/PAUSE" button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.

It is possible to cancel the delay start by taking the following action:

Press and hold the button for 5 seconds until the display will show the settings for the programme selected.

At this stage it is possible to start the programme previously selected by pressing the "START/PAUSE" button or to cancel the process by setting the selector to the OFF position and then selecting another programme.

TOUCHE DE SELECTION DU PROGRAMME DE SECHAGE

With the programme selector not in the OFF position, press the button to select the required drying programme; an indicator will light to display the drying result selected each time you press the button.

To cancel the selection before the start of a drying programme, press the button repeatedly until the indicators go out or return the programme selector to the OFF position.

To cancel the cycle during the drying phase, hold the button down for 2 seconds until the cooling indicator lights up; given the high temperature inside the drum, we recommend that you allow the dryer to complete the cool down period before returning the programme selector to the OFF position and removing the laundry.

NOTE:

Do not dry unwashed items in the washer dryer. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the washer dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the washer dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

The final part of a washer dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

WARNING:

Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

TOUCHE DEBUT/PAUSE

Press to start the selected cycle.

NOTE:

FEW SECONDS AFTER THE START THE WASH CYCLE WILL BEGIN. DURING THE FIRST 4 MINUTES OF THE WASH CYCLE, THE KG MODE (ACTIVE ONLY ON COTTON AND SYNTHETICS PROGRAMMES) WILL WEIGH THE CLOTHES AND UPDATE THE MAXIMUM WASH TIME REMAINING ON THE DISPLAY EVERY FIVE SECONDS UNTIL THE WEIGHT HAS BEEN DETERMINED. WHILE THIS FUNCTION IS OPERATING THE "Kg MODE" INDICATOR IS ON.

CHANGING THE SETTINGS

AFTER THE PROGRAMMES HAS STARTED (PAUSE)

Press and hold the "START/PAUSE" button for about 2 seconds, the flashing lights on the options buttons and time remaining indicator will show that the machine has been paused, adjust as required and press the "START/PAUSE" button again to cancel the flashing lights.

If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door. When you have carried out the manoeuvre, close the door, press START button and the appliance will continue working where it left off.

CANCELLING THE

PROGRAMME

To cancel the programme, set the selector to the OFF position. Select a different programme. Re-set the programme selector to the OFF position.

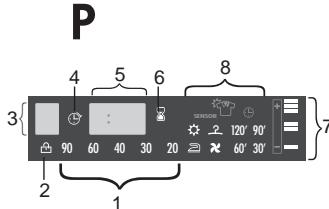

The display's indicator system allows you to be constantly informed about the status of the machine:

1) WASH TEMPERATURE When a programme is selected the relevant indicator will light up to show the recommended wash temperature. The Temperature button can be used to decrease or increase the temperature of your chosen wash cycle. Each time the button is pressed, the new temperature level is shown on the Wash Temperature Indicator. If you want carry out a cold wash all the indicators must be off.
2)DOOR LIGHT
Once the START/PAUSE button has been pressed the light first flashes then stops flashing and remains on until the end of the wash.
2 minutes after the end of the wash the light goes off to show that the door can now be opened.
3) SPIN SPEED
Once the programme has been selected, the maximum spin speed allowed for that programme appears on the display. Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is possible to omit the spin by pressing the spin button repeatedly.
4) DELAY START LIGHT
This flashes when delay start has been set.

5) DUREE DU CYCLE

When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.

Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash.

The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

If is selected the automatic washing/drying cycle, at the end of the wash phase, the drying time remaining to the end will be shown on the display.

6) PROGRAMME START LIGHT This lights up when the START button has been pressed.

7) WASH TIME

Once the programme has been selected the indicator light will automatically show the wash time set for that programme. Selecting a different wash time the relevant indicator will light up.

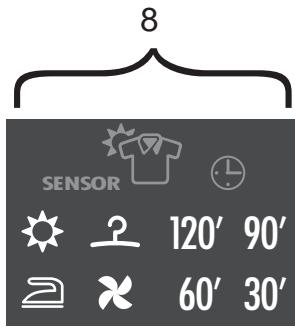

8) VOYANTS PROGRAMMES DE SECHAGE

The indicators display the type of the drying programme: Automatic Programmes: By selecting one of these 3 automatic programmes, the washer-dryer will calculate the time needed for drying and the residual dampness required, according to the load and drying type selected. After pressing the START button, the display will show the drying time remaining. The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

= Extra dry drying programme (recommended for towels, bathrobes and bulky loads)

2 = Cupboard dry drying programme

programme

USEFUL TIPS:

The 30 minute drying programme is recommended for small loads (less than 1kg ) or slightly damp loads. Your washer-dryer ends the cycle automatically when it reaches the drying level selected. For the correct operation of the appliance, it is preferable not to interrupt the drying phase unless it is really necessary.

Timed programmes:

120 minutes - 90 minutes - 60 minutes - 30 minutes: They may be used to select timed drying programmes.

Cool down phase :

Switched on during the final cool down period, in the last 10 minutes of each drying phase.

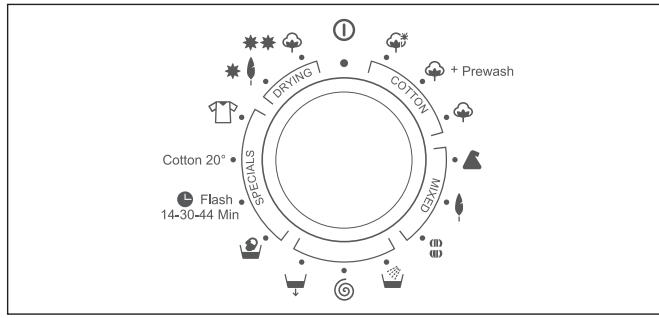

TABLEAU DES PROGRAMMES

PROGRAM FOR:	PROGRAMME SELECTOR ON:	WEIGHT MAX kg	RECOMMENDED TEMP. °C	■ MAX TEMP. °C	CHARGE DETERGENT
					II		I
Resistant fabrics Cotton, linen	1) *	8	60°	Up to: 90°	●	●
Cotton, mixed resistant, Coloureds with Prewash	1) + Prewash *	8	40°	Up to: 60°	●	●	●
Cotton, mixed resistant, Coloureds	1) **	8	40°	Up to: 60°	●	●
Mixed fabrics and synthetics Cotton, mixed fabrics, synthetics	1) *	4	40°	Up to: 60°	●	●
Very delicate fabrics		2,5	40°	Up to: 40°	●	●
"MACHINE WASHABLE" woollens		2	40°	Up to: 40°	●	●
Rinse	*	-	-	-	△	●
Fast spin	*	-	-	-
Drain only		-	-	-
Hand wash		1,5	30°	Up to: 30°	●	●
Resistant fabrics Mixed fabrics and synthetics Rapid 14 minute	2) Flash 14-30-44 Min	1,5	30°	Up to: 30°	●	●
Resistant fabrics Mixed fabrics and synthetics Rapid 30 minute		2,5	30°	Up to: 40°	●	●
Resistant fabrics Mixed fabrics and synthetics Rapid 44 minute		3,5	30°	Up to: 40°	●	●
Resistant fabrics Mixed fabrics and synthetics	Cotton 20° *	8	20°	Up to: 20°	●	●
Mixed, delicate synthetics		4	30°	Up to: 30°	●	●
Mixed - Drying		4	-	-
Cotton - Drying		5	-	-

Please read these notes

When washing heavily soiled laundry it is recommended the load is reduced to 4kg maximum.

Information for the test laboratories (Ref. EN 50229 Standards)

Washing

Use the programme ** with the maximum wash time selected, maximum spin speed and a temperature of 60^ .

Programme recommended also for test with a lower temperature.

Drying

First drying with 5kg (the load consist: pillowcases and hand-towels) selecting the cotton drying programme (串串) cupboard dry (2).

Second drying with 3kg (the load consist: 3 sheets and hand towels) selecting the cotton drying programme (** 心 ) cupboard dry ( 2 ).

The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button.

Pressing the wash temperature button makes it possible to wash at any temperature below the maximum allowed.

• Programmes for automatic drying.

1) For the programmes shown you can adjust the duration and intensity of the wash using the Wash Time button.
2) Using the Wash Time button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle.

When only a limited number of articles have stains which require treatment with liquid bleaching agents, preliminary removal of stain can be carried out in the washing machine. Pour the bleach into the liquid bleach container, inserted into the compartment marked "II" in the detergent drawer, and set the special programme "RINSE".

When this phase has terminated, turn the programme selector on the "OFF" position, add the rest of the fabrics and proceed with a normal wash on the most suitable programme.

CHAPTER 7

SELECTION

For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and lenght of cycle (see table of washing cycle programmes).

RESISTANTS FABRICS

The programmes have been designed for a maximum wash and the rinses, with spin intervals, ensure perfect rinsing.

The final spin gives more efficient removal of water.

MIXED AND SYNTHETIC FABRICS

The main wash and the rinse gives best results thanks to the rotation rhythms of the drum and to the water levels.

A gentle spin will mean that the fabrics become less creased.

DELICATE FIBRES

This is a new wash cycle which alternates washing and soaking and is particularly recommended for very delicate fabrics. The wash cycle and rinses are carried out with high water levels to ensure best results.

COTTONS

• Prewash

MIXED

PROGRAMME LAINE

A programme dedicated to washing fabrics labelled with the woolmark . The cycle comprises of alternate periods of activity and pauses. The programme has a maximum temperature of 40^ and concludes with 3 rinses and a short spin.

"RINSE" PROGRAMME

This programme carries out three rinses with a intermediate spin (which can be reduced or excluded by using the correct button). It can be used for rinsing any type of fabric, eg. use after handwashing.

This program can be also used as cycle of Bleaching (see table of washing cycle programmes).

"FAST SPIN" PROGRAMME

Programme "FAST SPIN" carries out a maximum spin (which can be reduced by using the correct button).

DRAIN ONLY

This programme drains out the water.

PROGRAMME "LAVAGE A LA MAIN"

PROGRAMME "COTTON 20^

PROGRAMME "HAND WASH"

This washing machine also has a gentle Hand Wash programme cycle. This programme allows a complete washing cycle for garments specified as "Hand Wash only" on the fabric care label. The programme has a temperature of 30^ and concludes with 3 rinses and a slow spin.

RAPID PROGRAMME

The Rapid programme allows a washing cycle to be completed in just 14 minutes! This programme is particularly suited to slightly dirty cottons and mixed fabrics.

Using the Wash Time button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle.

When selecting the rapid programme, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack.

For information about these programmes please refer to the programmes table.

"COTTON 20^ PROGRAMME

This innovative programme, allows you to wash different fabrics and colours together, such as cottons, synthetics and mixed fabrics at only 20^ and provides an excellent cleaning performance.

Consumption on this program is about 40% of a conventional 40^ cottons wash.

SPECIALS

Flash 14-30-44 Min

Cotton 20^

PROGRAMME "CHEMISES"

This programme allows a complete washing cycle for shirts.

The main wash and the rinse gives best results thanks to the rotation rhythms of the drum and to the water levels.

The programme has a maximum temperature of 30^ and concludes with 3 rinses and a short spin.

SYNTHETICS DRYING

Mixed fabrics (synthetics/cotton), synthetic fabrics.

COTTON DRYING

Cotton, terry towelling, linen, hemp fabrics, etc...

DRYING

CHAPTER 8

TIROIR A LESSIVE

The detergent draw is split into 3 compartments:

• the compartment labelled
• "I" is for prewash detergent;
• the compartment labelled " " is for special additives, fabric softeners, fragrances, starch, brighteners etc;
• the compartment labelled "I" is for main wash detergent.

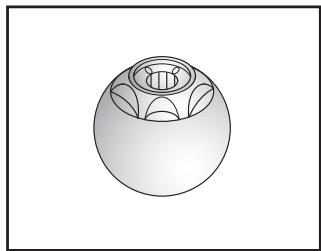

If liquid detergents are used, please insert the special container supplied into the compartment marked "II" in the detergent drawer. This ensures that the liquid detergent enters the drum at the right stage of the wash cycle.

This special container must be inserted into the compartment marked "II" in the detergent drawer, also when you wish to use the "RINSE" programme as BLEACHING cycle.

NOTE: SOME DETERGENTS ARE DIFFICULT TO REMOVE. FOR THESE, WE RECOMMEND YOU USE THE SPECIAL DISPENSER WHICH IS PLACED IN THE DRUM.

NOTE: ONLY PUT LIQUID PRODUCTS IN THE COMPARTMENT LABELLED "®". THE MACHINE IS PROGRAMMED TO AUTOMATICALLY TAK UP ADDITIVES DURING THE FINAL RINSE STAGE FOR ALL WASH CYCLES.

CHAPTER 9

LE PRODUIT

ATTENTION:

When washing heavy rugs, bed spreads and other heavy articles, it is advisable not to spin.

To be machine-washed, woollen garments and other articles in wool must bear the "Machine Washable Label".

IMPORTANT:

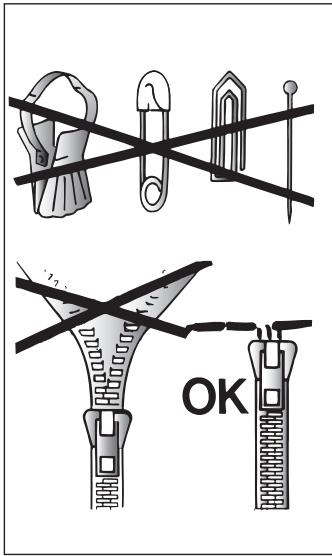

When sorting articles ensure that:

• there are no metal objects in the washing (e.g. brooches, safety pins, pins, coins etc.).
• cushion covers are buttoned, zips and hooks are closed, loose belts and long tapes on dressing gowns are knotted.
• runners from curtains are removed.
• attention is paid to garment labels.
• when sorting, any tough stains should be removed prior to washing using stain removers only recommended on label.

CHAPTER 10

CONSEILS UTILES POUR L'UTILISATEUR

SUGGESTION POUR L'UTILISATION DE VOTRE LAVE-LINGE

A guide environmentally friendly and economic use of your appliance.

MAXIMISE THE LOAD SIZE

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads.

DO YOU NEED TO PRE-WASH?

For heavily soiled laundry only!
SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

IS A HOT WASH REQUIRED?

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme. Save up to 50% energy by using a 60^ wash programme.

BEFORE USING A DRYING PROGRAMME...

SAVE energy and time by selecting a high spin speed to reduce the water content in laundry before using a drying programme.

LAVAGE

CAPACITÉ VARIABLE AUTOMATIQUE

This washing machine automatically adapts the level of the water to the type and quantity of washing. In this way it is also possible to obtain a "personalized" wash from an energy saving point of view. This system gives a decrease in energy consumption and a sensible reduction in washing times.

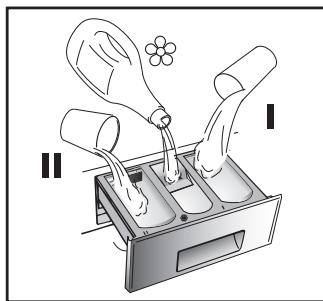

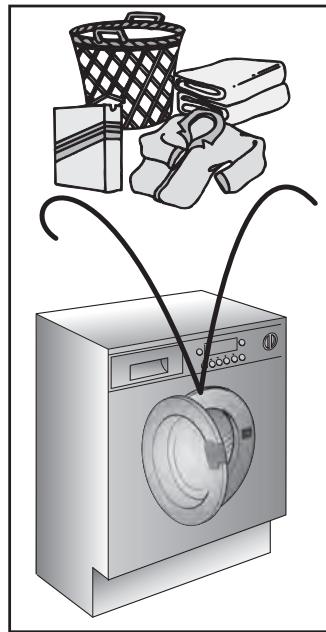

EXAMPLE:

A net bag should be used for particularly delicate fabrics.

Let us suppose that the washing consists of HEAVILY SOILED COTTON (tough stains should be removed with suitable stain removal).

It is advisable not to wash a load made up entirely of articles in towelling fabric which absorb a lot of water and become too heavy.

• Open the detergent drawer (P).
  Put 120 g in the main wash compartment marked II.
  Put 50ml of the desired additive in the additives compartment
• Close the detergent drawer (P).

• Ensure that the water inlet tap is turned on.
• And that the discharge tube is in place.

PROGRAMME SELECTION

Refer to the programme guide to select the most suitable programme.
Turning the selector knob required programme is activate.
The display will show the settings for the programme selected.

Adjust the wash temperature if necessary.

Press the option buttons (if required)

Then press the START button. When the START button is pressed the machine sets the working sequence in motion.

The programme carries out with the programme selector stationary on the selected programme till cycle ends.

Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

• When the programme has ended the word "End" will appear on the display
  Wait for the door lock to be released (about 2 minutes after the programme has finished).
• Switch off the machine by turning the programme selector to the "OFF" position.
• Open the door and remove the laundry.
• Turn off the water supply after every use.

FOR ALL TYPES OF WASH CONSULT THE PROGRAMME TABLE AND FOLLOW THE OPERATIONS IN THE ORDER INDICATED.

CHAPTER 11

SECHAGE

NE SECHER JAMAIS DES VETEMENTS EN CAOUTCHOUC MOUSSE OU DES TISSUS INFLAMMABLES.

IMPORTANT: DANS Cette MACHINE A LAYER SECHANTE, PEUT ETRE SECHE EXCLUSIVEMENT LE LINGE ESSORE ET LAVE A L'EAU.

IMPORTANT

Indications given are general, therefore some practice is needed for the best drying results. We recommend setting a lower drying time than indicated, when first using, so as to establish the degree of dryness required. We recommend not to dry fabrics that fray easily, such as rugs or garments with a deep pile, to avoid air duct clogging. The water is then conveyed to the drain circuit, which is sealed and therefore, no steam can be released outside.

ATTENTION: N'OUVREZ JAMAIS LE HUBLOT DE LA MACHINE PENDANT UN CYCLE DE SECHAGE. PATIENTEZ JUSQU'A LA PHASE DE REFROIDISSEMENT PREVUE POUR LE CYCLE.

Only dry pre-spun laundry
The washer/dryer can perform two types of drying:
1 Cotton, terry towelling, linen, hemp fabrics, etc...
Advisory note During drying phase the drum will accelerate to a higher speed to distribute the load and to optimize the drying performance
2 Mixed fabrics (synthetics/cotton), synthetic fabrics.

EXAMPLE D'UTILISATION EN SECHAGE UNIQUEMENT

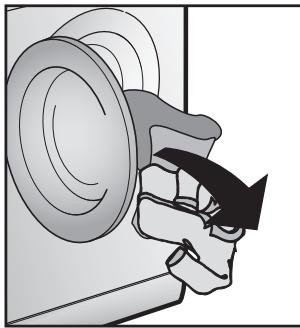

• Open door.

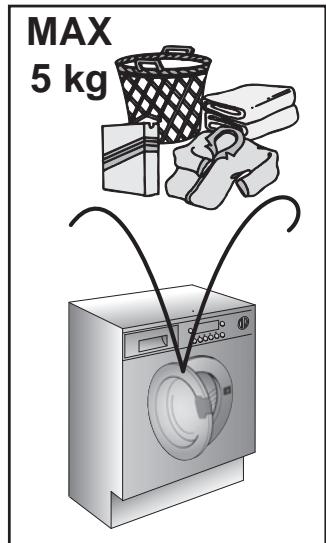

• Fill with up to 5kg - in case of large items (e.g. sheets) or very absorbent items (e.g. towels or jeans), it is a good idea to reduce the load.

• Close door.

Turn programme dial to cotton.

• Select the degree of dryness that you require. This ranges from Extra Dry (♂) for bath towels and bathrobes, through Cupboard Dry (♀) for items that will be put away without ironing, to iron dry (♂) that leaves the laundry suitable for ironing.

If you wish to select a timed drying cycle, press the "drying programme selection" button until the required time indicator lights up.

DOUBLE-SKIN DOOR

The appliance door is fitted with a protective shield to prevent contact with the glass door which can reach high temperatures, during the drying cycle.

WARNING: DO NOT TOUCH DOOR FOR ANY REASON.

Make sure water inlet valve is open.

Make sure water drain is correctly positioned.

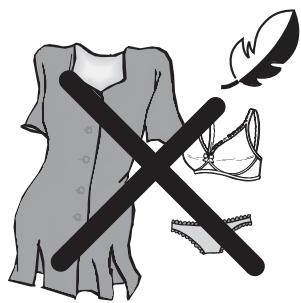

ATTENTION: NE PAS SECHER LES VETEMENTS EN LAINE, LES VETEMENTS AVEC DES REMBOURRAGES PARTICULIERS (DUVET, ANORAKS, ETC...), LES VETEMENTS TRES DELICATS. SI LES VETEMENTS SONT DU GENRE "LAVE-REPASSE", IL EST RECOMMANDE DE REDUIRE ENCORE LE CHARGEMENT POUR EVITER LA FORMATION DE PLIS.

Press the START button.
The drying phase will begin with the programme dial fixed on the symbol until the end of drying.
The drying programme indicator will be on until the cool down phase will begin and the indicator () will go on.
At the end of the programme the word "END" will appear on the display.
Wait for the door lock to be released (about 2 minutes after the programme has finished). The "Door Security" indicator light will go out.
- Switch off the machine by turning the programme selector on the "OFF" position.
- Open the door and remove the laundry.
- Turn off the water supply after every use.

CHAPTER 12

CYCLE AUTOMATIQUE LAVAGE/SECHAGE

ATTENTION:LE CYCLE COMPLET PEUT ETRE UTILISE UNIQUEMENT AVEC UNE CHARGE MAXIMALE DE 5KG DE LINGE SEC.DANS LE CAS CONTRAIRE LE RESULTAT DU SECHAGE NE SERA PAS SATISFAISANT.

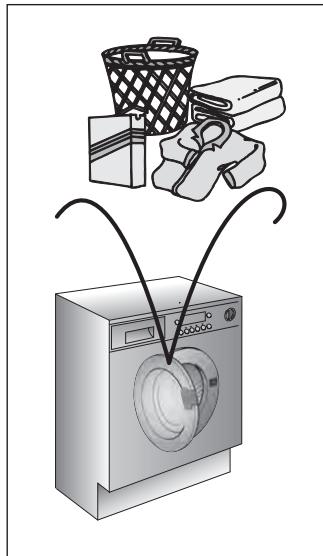

Lavage:

Open the drawer, choose the detergent and put in the correct amount.

Refer to the list of washing programmes according to fabrics to be washed (e.g. very dirty cotton) and without pressing Start button, prepare wash as described:

Turning the selector knob, the required programme is activated.

The display will show the settings for the programme selected.

Adjust the wash temperature if necessary.

Press the option buttons (if required)

Check that the tap is turned on and that the discharge hose is positioned correctly.

Drying:

Select the degree of dryness that you require. This ranges from Extra Dry ( ) for bath towels and bathrobes, through Cupboard Dry ( ) for items that will be put away without ironing, to iron dry ( ) that leaves the laundry suitable for ironing.

FR

If you wish to select a timed drying cycle, press the "drying programme selection" button until the required time indicator lights up.

Press the "Start/Pause" button.

The programme carries out with the programme selector stationary on the selected programme till cycle ends.

At the end of the wash phase the display will shown the drying time remaining.

The washer-dryer will then complete the entire drying programme.

The drying programme indicator will be on until the cool down phase will begin and the indicator (X) will go on.

At the end of the programme the word "END" will appear on the display.

Wait for the door lock to be released (about 2 minutes after the programme has finished). The "Door Security" indicator light will go out.

Switch off the machine by turning the programme selector on the "OFF" position.

Open the door and remove the laundry.

Turn off the water supply after every use.

TABLEAU DES DURÉES DE SECHAGE (EN MINUTES):

PROGRAMME	COTTON		MIXED
Extra Cupboard Iron	Min 1 Kg	Max 5 Kg	Min 1 Kg	Max 4 Kg
	from 30' from 30' from 30'	to 230' to 220' to 170'	from 30' from 30' from 30'	to 170' to 150' to 80'

The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

CHAPTER 13

NETTOYAGE ET ENTRETIEN ORDINAIRE

Do not use abrasives, spirits and/or diluents on the exterior of the appliance. It is sufficient to use a damp cloth.

The washing machine requires very little maintenance:

• Cleaning of drawer compartments.
  Filter cleaning
• Removals or long periods when the machine is left standing.

CLEANING OF DRAWER COMPARTMENTS

Although not strictly necessary, it is advisable to clean the detergent, bleach and additives compartments occasionally.

Remove the compartments by pulling gently.

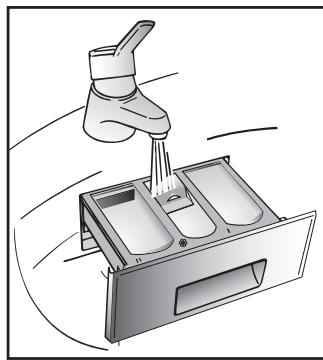

Clean with water.

Put the compartments back into place

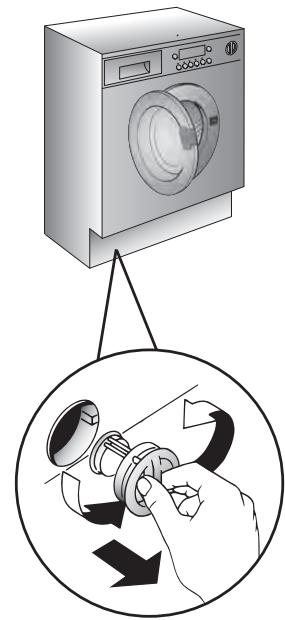

NETTOYAGE FILTRE

The washing-machine is equipped with a special filter to retain large foreign matter which could clog up the drain, such as coins, buttons, etc. These can, therefore, easily be recovered. The procedures for cleaning the filter are as follows:

Before removing the filter, place an absorbent towel below the filter cap to collect the small amount of water likely to be inside the pump

• Turn the filter anticlockwise till it stops in vertical position.

• Remove and clean.

After cleaning, replace by turning the notch on the end of the filter clockwise. Then follow all procedures described above in reverse order.

REMOVALS OR LONG PERIODS WHEN THE MACHINE IS LEFT STANDING

For eventual removals or when the machine is left standing for long periods in unheated rooms, the drain hose should be emptied of all remaining water.

The appliance must be switched off and unplugged. A bowl is needed. Detach the drainage hose from the clamp and lower it over the bowl until all the water is removed.

Repeat the same operation with the water inlet hose.

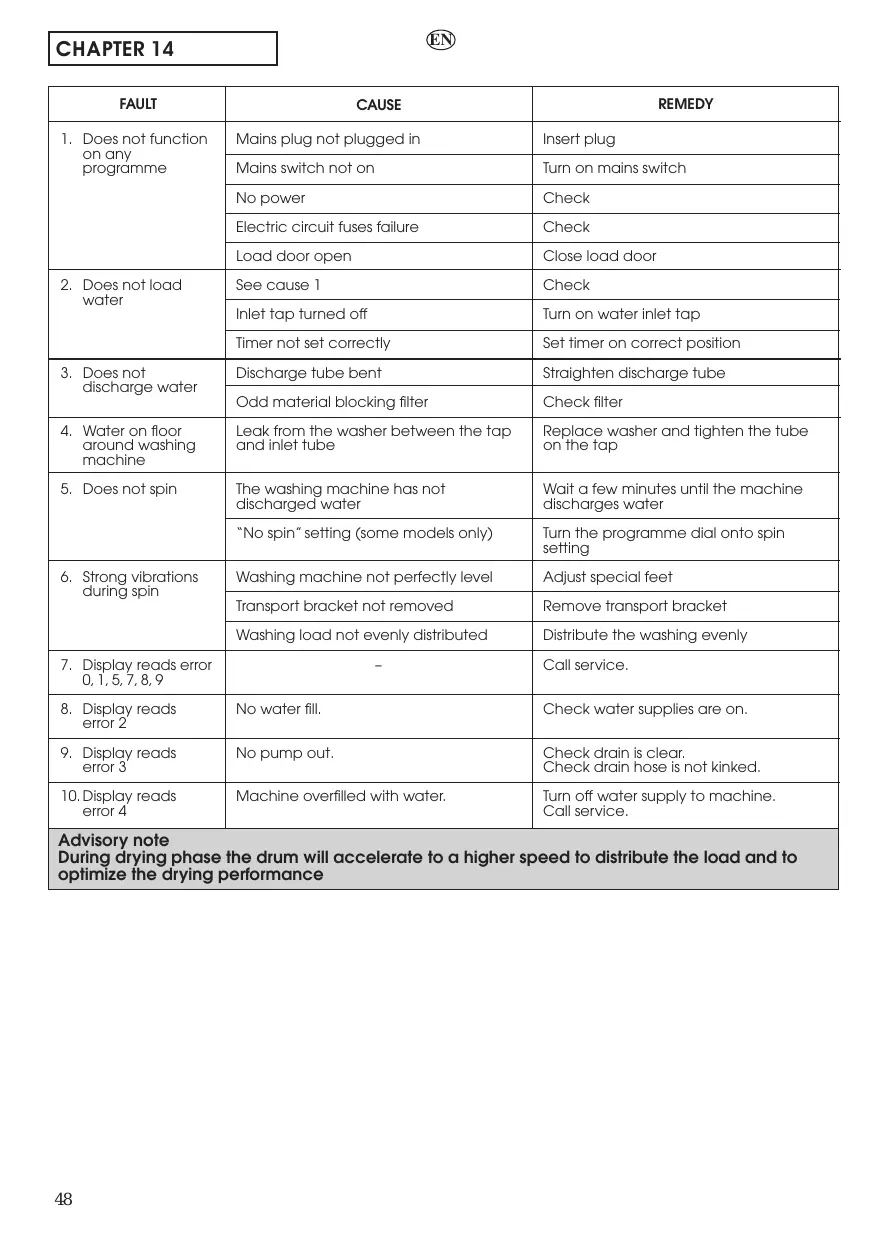

FAULT	CAUSE	REMEDY
1. Does not function on any programme	Mains plug not plugged in	Insert plug
	Mains switch not on	Turn on mains switch
	No power	Check
	Electric circuit fuses failure	Check
	Load door open	Close load door
2. Does not load water	See cause 1	Check
	Inlet tap turned off	Turn on water inlet tap
	Timer not set correctly	Set timer on correct position
3. Does not discharge water	Discharge tube bent	Straighten discharge tube
	Odd material blocking filter	Check filter
4. Water on floor around washing machine	Leak from the washer between the tap and inlet tube	Replace washer and tighten the tube on the tap
5. Does not spin	The washing machine has not discharged water	Wait a few minutes until the machine discharges water
	“No spin” setting (some models only)	Turn the programme dial onto spin setting
6. Strong vibrations during spin	Washing machine not perfectly level	Adjust special feet
	Transport bracket not removed	Remove transport bracket
	Washing load not evenly distributed	Distribute the washing evenly
7. Display reads error 0, 1, 5, 7, 8, 9	-	Call service.
8. Display reads error 2	No water fill.	Check water supplies are on.
9. Display reads error 3	No pump out.	Check drain is clear. Check drain hose is not kinked.
10. Display reads error 4	Machine overfilled with water.	Turn off water supply to machine. Call service.
Advisory note During drying phase the drum will accelerate to a higher speed to distribute the load and to optimize the drying performance

If the fault should persist, contact a Technical Assistance Centre. For prompt servicing, give the model of the washing machine, to be found on the label placed on the cabinet inside of the porthole or on the guarantee certificate.

Important

1 The use of environment friendly detersives without phosphates may produce the following effects:

• The discharge rinse water may result cloudier due to the presence of zeolites in suspension. This does not compromise the efficiency of the rinses.
• The presence of white powder (zeolites) on the washing at the end of the washing cycle. This does not remain incorporated in the fabric and does not alter the colour.
• The presence of foam in the last rinse water which is not necessarily a sign of inadequate rinsing.
• The non-ionic surface-active agents present in the composition of washing machine detersives are often difficult to remove from the washing itself and, even in small quantities, may produce visible signs of the formation of foam.
• Carrying out further rinses, in cases such as this, is not useful.

2If your washing machine fails to function, carry out the above-mentioned checks before calling the Technical Assistance Service.

Recommendations on the use of detergent at various temperatures

When washing heavily soiled whites, we recommend using cotton programs of 60^ or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results. For washes between 40^ and 60^ the type of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal powders are suitable for "white" or colour fast fabrics with high soiling, while liquid detergents or "colour protecting" powders are suitable for coloured fabrics with light levels of soiling. For washing at temperatures below 40^ we recommend the use of liquid detergents or detergents speciably labeled as suitable for low temperature washing. For washing wool or silk, only use detergents speciably formulated for these fabrics. For dosage amounts please follow the instructions on the detergent package label.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and

recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

CHAPTER 15

INSTRUCTION POUR LE MONTAGE DE LA PORTE

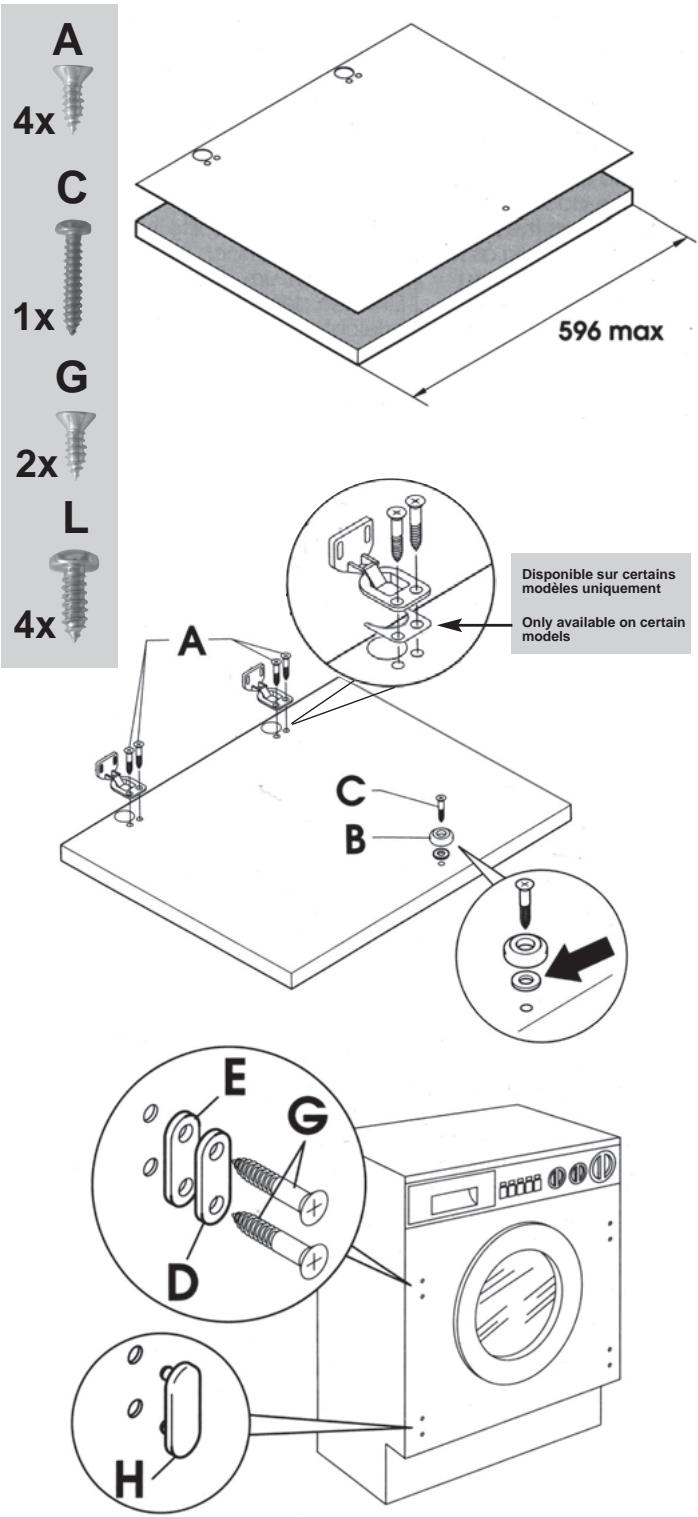

INSTRUCTIONS FOR MOUNTING DOOR

Drill holes in the door using the cardboard template as indicated in Fig. 1 to mount the hinges and closure magnet in the right or left-hand position according to your requirements. The position of the hinges refers to the upper edge.

Screw the hinges in place with the 4 screws (A).
Screw on the magnet (B) with screw (C).

Mount the plate (D) in the right or left-hand position, according to your requirements. Place the rubber washers under the plate and screw in place with screw (G). Snapmount cap (H) in the lower position.

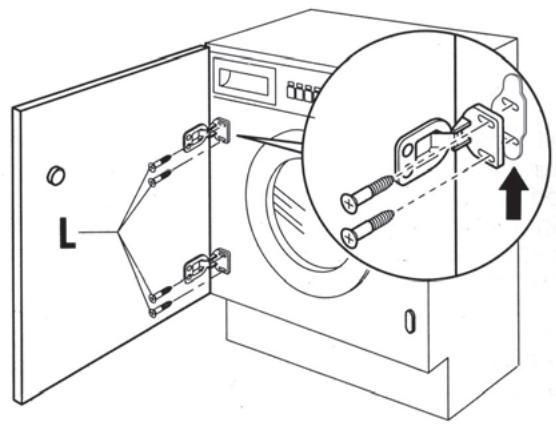

Mount the door with hinges by screwing with screws (L) to the front of the washing machine.

NOTE: You are advised to mount the door so that it opens towards the left, in the same direction as the washing machine load door for more loading space.

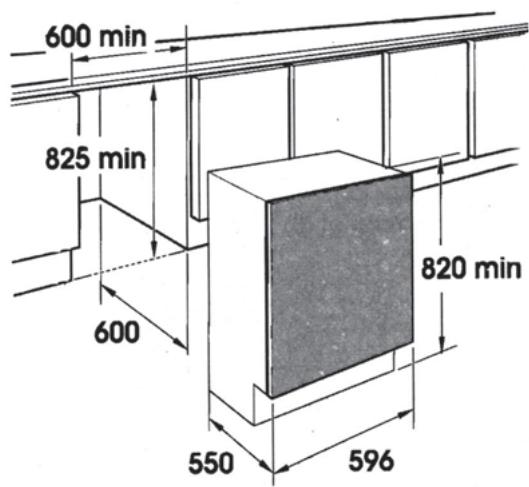

Slide the washing machine into an opening of adequate size. The lower skirting may be applied as preferred but within the size provided for.

The four adjustable feet allow the height of the washing machine to be adjusted from 820 mm (by removing the nuts supplied and substituting with 5 mm nuts) to a max. 840 mm by raising the feet and blocking the lock nut to the base of the plate.

Service ÀpRES-Vente France

RELATIONS CONSOMMATEURS
