Product Type	Freestanding Washing Machine
Brand	De Dietrich
Model	DFW814W
Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Noise Level Wash	54 dB(A)
Noise Level Spin	74 dB(A)
Water Consumption	52 L
Dimensions (H x W x D)	850 x 600 x 550 mm
Weight	72 kg
Color	White
Door Opening	Left
Display	LED
Programs	15+ (Cotton, Synthetics, Delicates, Quick Wash, etc.)
Functions	Delay Start, Remaining Time, Child Lock, Anti-Flood
Safety Features	Overflow protection, Unbalanced load detection
Maintenance	Clean filter regularly, Clean drum every 3 months
Spare Parts Availability	Easy availability through De Dietrich service
Repairability Index	8.5/10

Frequently Asked Questions - DFW814W DE DIETRICH

How to clean the filter in the De Dietrich DFW814W?

To clean the filter, first unplug the machine and remove the bottom panel. Unscrew the filter cap clockwise and pull out the filter. Clean it under running water and remove any debris. Reinsert and screw back. Ensure it is tight to avoid leaks. It is recommended to clean the filter every 3 months.

What does error code E21 mean on the DFW814W?

Error code E21 indicates a drainage problem. This could be due to a clogged filter, kinked drain hose, or a blocked pump. Check the filter first, then inspect the drain hose for obstructions. If the issue persists, contact De Dietrich service.

How to use the quick wash program?

Select the Quick Wash program using the program dial. This cycle is designed for lightly soiled laundry and reduces total wash time to approximately 30 minutes. You can also adjust temperature and spin speed if desired. Press Start to begin.

My DFW814W washing machine won't start. What should I check?

First, ensure the machine is plugged in and the door is properly closed. Check that the water supply is turned on and the filter is not blocked. Also, verify that the child lock is disabled. If none of these solve the issue, try resetting the machine by unplugging it for 1 minute.

How to manually drain water from the DFW814W?

If the machine does not drain, you can manually drain water via the emergency drain hose (if available) or by removing the filter. Place a shallow container under the filter cap and unscrew it slowly. Wait for the water to drain into the container. Be careful as water may be hot.

What type of detergent should I use for the DFW814W?

Use high-efficiency (HE) detergent suitable for front-loading washing machines. For best results, follow the dosage instructions on the detergent package. Avoid using too much detergent as it can cause excess foam and poor rinsing.

How to activate the child lock on the DFW814W?

To activate child lock, press and hold the Child Lock button (usually indicated by a padlock icon) for 3-5 seconds until the symbol appears on the display. To deactivate, repeat the same process. Child lock prevents accidental button presses during operation.

Why is my laundry not spinning properly?

Possible causes: unbalanced load, incorrect spin speed setting, or a clogged filter. Redistribute the laundry evenly if it is unbalanced. Ensure that the Spin Speed is set to at least 800 rpm. Also, check and clean the filter.

How to reset the De Dietrich DFW814W?

To reset the machine, turn off the power and unplug it for 1 minute. Plug it back in and select a program. This will clear any temporary faults. If the issue persists, consult the manual or contact service.

How to maintain the drum of the DFW814W?

To maintain the drum, run a drum cleaning cycle every 3 months using a washing machine cleaner or a cup of white vinegar without laundry. This removes lime scale and odors. Also, leave the door open after each wash to allow the drum to dry.

USER MANUAL DFW814W DE DIETRICH

H. NISTUOSTERHANDLHD NO

(1) 甲乙酰胺A和乙酰胺A的反应

75 MINI A DISTRUCION

1. MANUAL OF INSTRUCION

21 Washing machine

Lavadora

v. Miquina de lavar rouna

w. 100-126

2.5046

上

立 Pracka

-1 Mosagan

K. Pračka

1. Pralka

v. Wastecchio

1. 2016年1月8日

■ Partingulate

1. Garbogards

(4) Rentadora

LaVadora

De Dietrich

1. RENGLISH 1 2. ESPAVICL 5 3. PORTUGUES 9 4. FRANCANS 13 5. DEUTSCH 17 6. ČESKY 21 7. MAGYAR 25 8. SLOVENSKY 29 9. POLSKI 30 10. NEDERLANDS 37 11. PYKASIN 41 12. BUSKARA 45 13. CATALA 49 14. GLENBO 60

Instruction manual

Very important: Please, read the whole of this manual before installation and using the washing machine. This manual is designed with the corresponding illustration accompanying the texts.

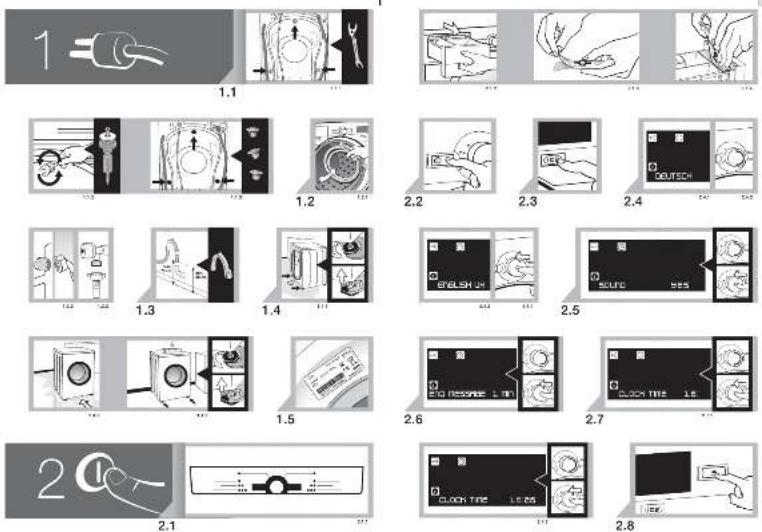

1 Installation

1.1 Unpacking the washing machine (1.1.1, 1.1.2 and 1.1.3). Remove the transit brackers and the fixing and blocking elements used for transport.
1.2 Connection to the mains water (1.2.1, 1.2.2 and 1.2.3). Always use the new hose supplied with the appliance. Remove any previously used supply tubes.
1.3 Draining. Install the elbow supplied, in accordance with the measurements shown in the diagram.
1.4 Levelling. Correctly level the washing machine to prevent any noise or shifting. The recommended order is as follows: 1. Position the rear legs and fix them in place (1.4.1). 2. Place the washing machine in its final location (1.4.2). 3. Position the front legs and fix them in place (1.4.3).
1.5 Connection to the mains electric. Refer to the plate data.

2 Use

2.1 Before using the washing machine. Find the label with your language (2.1.1.) and stick it on to the tub (2.1.2., 2.1.3 and 2.1.4.).

CONFIGURATION MENU

2.2 Switching on. Press ①.
2.3 Configuration menu. Press ICS.

2.4 Selecting the language. You can choose the language by turning the control knob (2.4.1 and 2.4.2). Press the control to select it (2.4.3 and 2.4.4).

2.5 Adjusting the sound. You can adjust the sound by turning the control knob. Press the control to select it.

2.6 Adjusting the end of programme. You can adjust the duration of the sound for the end of programme by turning the control knob. Press the control to select it.

2.7 Adjusting the clock time. Set the clock at the correct time. Turn the control knob and the two hour digits will appear. Press the control to select it (2.7.1). Turn the control knob and the two digits corresponding to minutes will appear. Press the control to select it (2.7.2).

LOADING THE WASHING MACHINE

2.8 Opening the hatch. Press ▲ .

2.9 Detergents and additives. Load the clothes into the washing machine after having separated them according to colour, level of dirt and type of fabric. The tub contains the following compartments: wash 🎯, prewash 🎯 and softener ⚙ (2.9.1).

All washing machines are prepared for powdered detergents (2.9.2).

If you wish to use liquid detergent (2.9.5), you will find a blue latch (2.9.3) in the wash compartment. Pull it outwards as far as it will go, release it and it will remain in the vertical position (2.9.4). This prevents the liquid detergent from escaping. To go back to using powdered detergent, move the blue latch to the horizontal position and push it backwards as far as it will go to open the door.

Remember that you should not exceed the MAX level marked on the softener compartment.

OPERATING MODE

2.10 The washing machine has been designed to function both in manual and automatic mode. Initial configuration is required in both cases. Press the key ICS for 3 seconds to change from one mode to another.

Manual mode: Select the programme according to the table of programmes.

Automatic mode: Select the wash either for white or coloured fabrics and the level of dirt, so that the washing machine may carry out the optimum programme.

MANUAL MODE

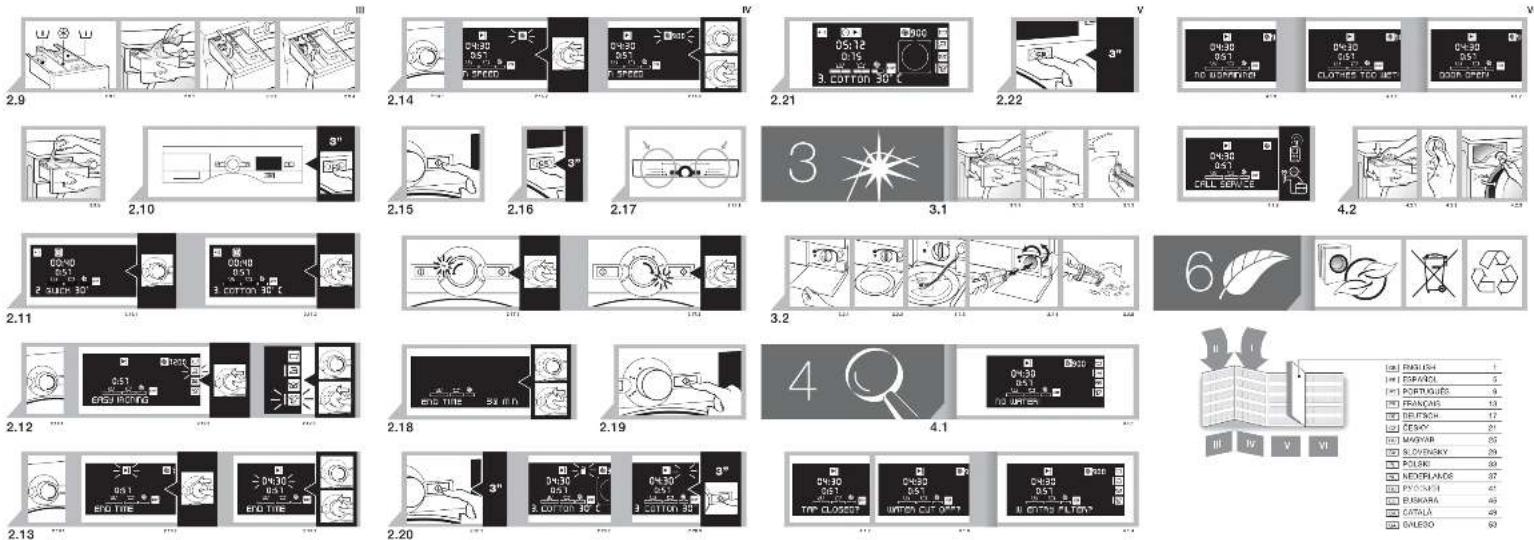

2.11 Selecting the programme. You can choose the washing programme by turning the control (2.11.1) after having checked the table of programmes. Press the control to select it (2.11.2).

2.12 Additional functions. Anti-wrinkle/Flot ☐, easy ironing ☐, extra rinse ☐ and intensive wash ☐ for very dirty clothes, Turn the control knob (2.12.1) to choose the additional function which will flashing on and off (2.12.2). Press the control to select it (2.12.3). You may select more than one additional option. These functions feed the programme times.

2.13 End of programme ▶ | . This enables you to select the time when you wish to end the washing programme (2.13.1, 2.13.2 y and 2.13.3).

2.14 Selecting the speed of the spin dry Ⓤ . You can choose the degree of spin dry or remove it by rotating the control (2.14.1). Press the control to select it (2.14.2), (2.14.3).

2.15 Starting. Press ◆

AUTOMATIC MODE

2.16 Changing the mode. Press ICS for 3 seconds.

2.17 Selecting the wash. Check the label on the tub (2.17.1) to select either the wash for white or coloured fabrics and the level of dirt of the clothes.

Selecting the white fabric wash. Turn the control knob according to the level of dirt (2.17.1). Press the control to select it (2.17.2).

Selecting the coloured fabric wash. Turn the control knob according to the level of dirt (2.17.1). Press the control to select it (2.17.3). Not very dirty colour must be selected to wash wool in automatic mode.

2.18 End of programme. This enables you to select the time when you wish to end the washing programme.

2.19 Starting. Press ◆ and the washing machine will start the automatic or manual programme selected.

2.20 Locking ☑ . In the case of both modes, press ◆ for three seconds (2.20.1), (2.20.2). This is used to prevent handling by children. Deactivate it by once again pressing the key for a further three seconds (2.20.3).

2.21 Washing process. In the case of both modes, you can check the programme phase and the time remaining.

CHANGING THE MODE

2.22 Returning to manual mode. To return to the manual programme mode, press ICS for 3 seconds.

Recommendations for use: As soon as the washing machine has been fitted, you will be able to carry out a prior cleaning and check that it is working properly (normal wash, without clothes and at 60°). Use one bag of washing for small items of clothing: handkerchiefs and underwear.

Warnings about use: 1. If you stop the washing machine to add more clothes, please ensure that the water level does not reach that of the hatch. 2. The additional functions increase washing time.

©

3

Maintenance

3.1 Cleaning the detergent compartment. It is recommendable to do this once a month.
3.2 Cleaning the filter. It is recommendable to do this once a year.

For cleaning the outside of the washing machine, use non-abrasive products and dry thoroughly with a soft cloth.

4

Troubleshooting

4.1 The washing machine incorporates a troubleshooting system that detects and warns you of any type of incident. You can display them on the screen.
4.1.1 Water does not enter the washing machine. The warnings appear together with possible solutions, which in this case are three: Tap turned off? (4.1.2), water cut off? (4.1.3) and house drainpipe? (4.1.4).
4.1.5 Does not empty the water. Check the state of the filter and the drainpipe.
4.1.6 Very damp clothes. Select programme 16.
4.1.7 Door open. Check that the hatch is properly shut.
4.1.8 With any other warning. Call customer service.
4.2 Loading door opening. In case of failure or electricity cut, pull out the detergent compartment by pulling the handle outwards and press the blue lever down (4.2.1). On the right side you will see a button with a groove. Turn this button to the left with the aid of a coin (4.2.2), and the loading door will open (4.2.3).
4.3 Vibrations or noise. Check it has been properly installed (points 1.1 and 1.4 of this manual).
4.4 Water in the detergent compartment. Check the detergent compartment is not clogged (3.1).

5

Safety

• The mains water pressure must be between 0.05 and 1 Mpa (0.5 - 10 kg/cm ^2 ).
• Do not use extension leads or adapters to connect the washing machine.
• The electrical installation must be suitably dimensioned for the maximum power indicated on the reference plate and the plug must have the regulatory earth connection.

!

- Do not interfere with the inside of the washing machine. If you have any problems you cannot solve yourself, call the technical service.

6

The environment

This washing machine has been designed with environmental protection in mind.

Respect the environment. Always load the washing machine to the maximum recommended capacity for each programme: this will save water and power. Avoid the prewash whenever you can. Do not use too much detergent. Only use the extra rinse function for garments belonging to people with sensitive skin.

Waste electrical and electronic equipment management.

Do not dispose of these appliances together with the general domestic waste.

Take your washing machine to a special waste collection centre.

Recycling domestic appliances avoids negative consequences for health and the environment and saves power and natural resources.

For further information, contact your local authorities or the shop you purchased the washing machine at.
