Product type	Compact digital camera with built-in zoom
Dimensions (W × H × D)	Approx. 95 × 55 × 23.5 mm (excluding protrusions)
Weight	Approx. 110 g (without battery and memory card), approx. 130 g with battery and card
Power supply	Rechargeable lithium-ion battery D-LI78 (included), charger D-BC78, optional AC adapter K-AC78
Sensor	1/2.3-inch CCD, 10 effective megapixels
Lens	Focal length 6.3–31.5 mm (equivalent to 36–180 mm in 35 mm format), aperture F3.5 (wide-angle) – F5.6 (telephoto)
Optical zoom	5x
Digital zoom	Up to 5.7x (combined with optical zoom: up to 28.5x)
Display	2.5-inch TFT LCD, 230,000 dots, extra-wide viewing angle
Focus	Contrast detection AF, 9 points (multi-zone/spot/predictive AF), macro, infinity, hyperfocal, manual
Shooting modes	24 modes: Auto Picture, Program, Night Scene, Night Portrait, Portrait (bust), Video, Landscape, Flower, Portrait, Surf & Snow, Motion, Digital SR, Kids, Pets, Cuisine, Fireworks, Creative Frame Composition, Voice Recording, Natural Skin Tone, Soft Light, Text, Blog, Digital Wide, Digital Panorama, Green
Video	640×480 (30 fps) or 320×240 (15 fps), AVI (Motion JPEG) format, monaural sound, Movie SR (shake reduction), sepia/B&W color modes
Built-in flash	Auto, Off, On, Red-eye reduction, Soft; wide-angle range: 0.2–4.4 m, telephoto: 0.6–2.8 m (Auto ISO)
Storage	Internal memory approx. 36.5 MB + SD/SDHC memory card
Connections	USB 2.0 (high-speed compatible), AV output (NTSC/PAL), PictBridge
ISO sensitivity	Auto (64–6400) or fixed: 64, 100, 200, 400, 800, 1600, 3200, 6400
White balance	Auto, Daylight, Shade, Tungsten, Fluorescent, Manual
Exposure compensation	±2 EV in 1/3 EV steps
Special functions	Face recognition (up to 32 faces), Smile Capture, blink detection, Digital SR (shake reduction), digital wide, panorama, creative frame composition
Care and cleaning	Clean with a dry, soft cloth. Avoid solvents, alcohol, gasoline. Protect from moisture, shocks, and extreme temperatures.
Safety	Do not disassemble the camera, keep out of reach of young children, avoid contact with the flash, use only specified accessories, respect the indicated voltages.
Spare parts and repairability	Optional accessories available (battery, charger, AC adapter, cables, straps, cases). Repairs by PENTAX authorized service center.
General information	Manufacturer's warranty 12 months. Complete user manual included. Compatible with PRINT Image Matching III and PictBridge.

Frequently Asked Questions - M60 PENTAX

How to recharge the camera battery?

Use the supplied D-BC78 battery charger. Connect the power cord to the charger, then to a wall outlet. Insert the D-LI78 battery into the charger with the PENTAX logo facing up. The indicator lights up during charging and turns off when charging is complete (approx. 150 minutes). Only recharge D-LI78 batteries.

How to insert the SD memory card?

Make sure the camera is off. Open the battery/card compartment cover by sliding the lock lever. Insert the SD memory card into the slot with the label facing forward (lens side) until it clicks. Close the cover. To remove, push the card to eject it.

How to set the initial date and time?

When turning on the camera for the first time, the setup screen appears. Use the navigation button to select the language, then set the city and daylight saving time. Then choose the date format (DD/MM/YY, etc.) and 12h/24h display. Use the ▲▼ buttons to change values, then press OK. You can also change them later in the Settings menu.

How to use the face recognition function?

Face recognition is enabled by default. Press the © button to switch between Face Priority On, Smile Capture (automatic shutter release when the subject smiles), and Face Priority Off. The camera detects up to 32 faces and automatically focuses and exposes on the main face.

How to transfer photos to a computer?

Use the supplied I-USB7 USB cable. Connect the small end to the camera and the large end to the computer. Turn on the camera in playback mode (press the ▶ button). The computer will recognize the camera as a storage device. You can then copy the files. Make sure the USB connection mode is set to Computer in the Settings menu.

How to take a night scene photo?

Press the ▼ button to open the capture mode palette. Select the Night Scene (moon) or Night Portrait icon. These modes use slower shutter speeds, so use a tripod or place the camera on a stable surface to avoid camera shake. The flash can be turned off or set to Auto depending on the mode.

What to do if the screen displays 'Battery exhausted'?

The 'Battery exhausted' message indicates that the battery is too low. Replace it with a charged D-LI78 battery or recharge it immediately. The camera will shut down after the message. If the battery is charged and the message persists, it may be at the end of its life. Replace it with a new one.

How to delete images?

In playback mode, display the image to delete. Press the green/️ button. A confirmation screen appears. Use ▲▼ to select Delete and press OK. To delete multiple images, use the 9-image display (wide zoom button) then press green to access multiple selection.

How to use the self-timer?

In capture mode, press the ▲ button (top of navigator). Each press changes the shooting mode. Select the self-timer (clock icon): Self-timer 10 s or 2 s. Press the shutter button fully; the indicator blinks and the photo is taken after the delay. To cancel, press ▲ again until returning to Single shot.

How to protect images from deletion?

In playback mode, display the image to protect. Press MENU to open the Settings menu (or from the playback mode palette). Navigate to the Protect option (or use the context menu depending on display). Select Protect to lock the image. A lock icon appears. To protect multiple images, use the 9-image display and selection. To unprotect, repeat the operation.

USER MANUAL M60 PENTAX

Batterie lithium-ion rechargeable D-Li78 (*)

(mode programme image auto)

A card has not been filled in the following circuit 38
the Memory Card is misshandled by the memory SSD. Memory Card is exposed to a static card and the card has not been used for a long time,
the card is ejected, the AC adapter is disconnected
it service life. If it is not used for a long time, this
important data on a PC,
where it may be exposed to static electricity or else
in direct sunlight or where it may be exposed to radii
with a side recording speed of 07107/2008.
the Memory Card, access the PENTAX web site 4:125
the card compatibility can also be assessed via

6

Le diaporama commence.

Batterie lithium-ion rechargeable D-LI78 (*)

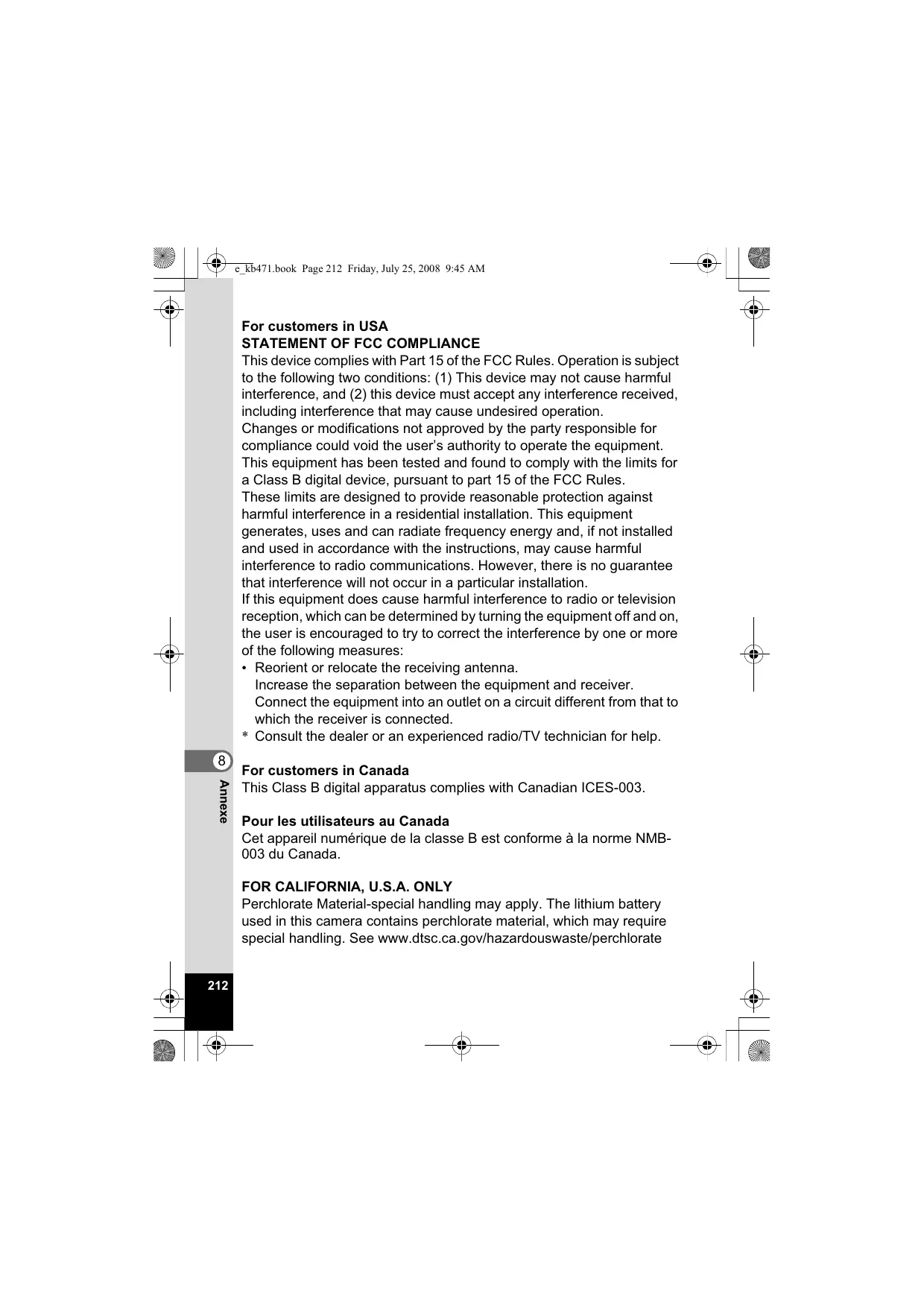

For customers in USA STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  Increase the separation between the equipment and receiver.
  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: PENTAX Imaging Company

A Division of PENTAX of America, Inc.

Located at: 600 12^th Street, Suite 300

Golden, Colorado 80401 U.S.A.

Phone: [phone] FAX: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: PENTAX Digital Still Camera

Model Number: Optio M60

Contact person: Customer Service Manager

Date and Place: August, 2008, Colorado

Auto Programme image auto ...65

Programme 66

Scène nocturne 71

4 Portrait scene nocturne ...71

Portrait (buste) 73

Movie 111

Paysage 62

Fleur 62

73

Surf & neige 76

Mouvements 76

Digital SR (anti-flou) 71

Digital SR (anti-bougede l'appareil) 130

Enfants 74

Digital SR (anti-flou) 71

Lecture 118, 119, 170, 172

Modefeuxd'artifice 71

Mode flash 89

Mode fleur 62

Mode gastronomie 62

Mode lecture 38

Mode programme image auto 65

Mode surf & neige 76

Mode texte 78

Portrait scene nocturne 71
