USER MANUAL TLR358NFW THOMSON

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/334683

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/334687

IMPORTANT SAFETY INSTRUCTIONS 7

NAMES OF PARTS 7

BEFORE INSTALLING THE APPLIANCE 8

INSTALLATION 8

AMBIENT TEMPERATURE 8

BEFORE PLACING FOOD IN THE APPLIANCE 8

ADJUSTING THE TEMPERATURES AND FUNCTIONS 9

MOVING YOUR APPLIANCE 10

STORING FOOD IN THE FRIDGE COMPARTMENT 10

DOOR CONVERSION 13

TIPS FOR SAVING ENERGY 16

OPERATINGNOISES 16

CLEANING AND MAINTENANCE 16

TROUBLESHOOTING 16

SPECIFICATIONS 17

PRODUCT INFORMATION SHEET 18

REPAIR AND SPARE PARTS SERVICE 20

DISPOSAL. 21

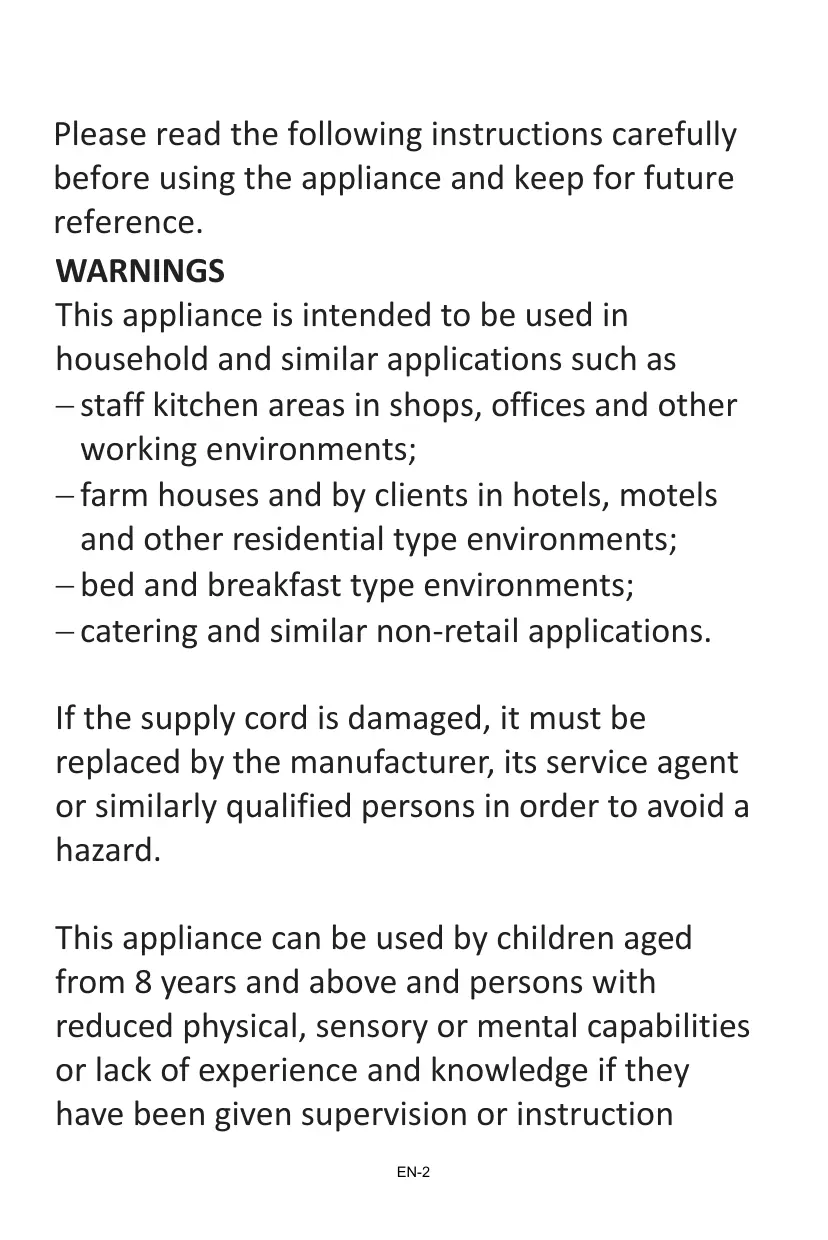

Please read the following instructions carefully before using the appliance and keep for future reference.

WARNING

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Regarding the instructions for cleaning surfaces in contact with food, refer to the section "Cleaning and Maintenance" on page EN-16 of the manual.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

Warning; Risk of fire / flammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Regarding the instructions for the blub replacement, refer to page EN-16.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old refrigerator with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not stand or support yourself on the base or doors, etc.

Dispose of your old appliance

Refrigerators contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

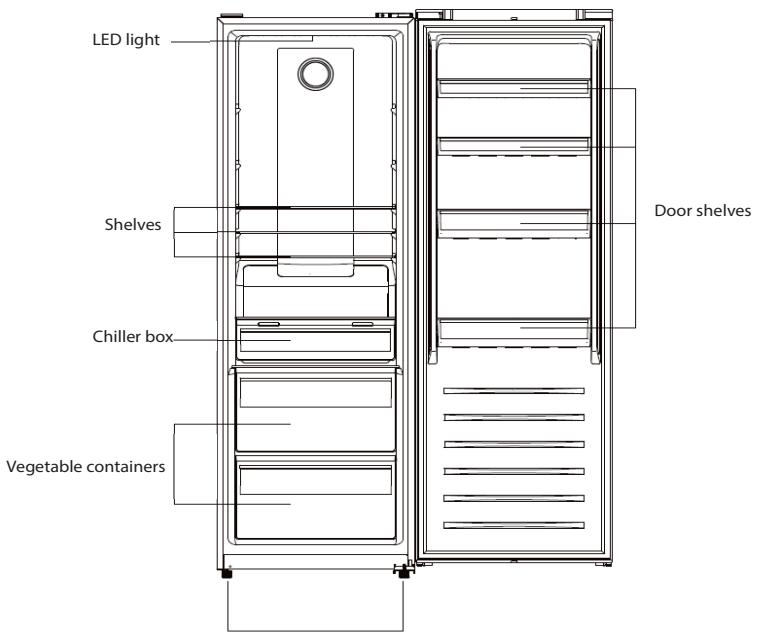

NAMES OF PARTS

Levelling feet

Recommended Food Arrangement

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Recommended food arrangement

Refrigerator compartment (2^ 8^)

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Top section:	canned food, bread, cake...
Middle section:	dairy products, readymade food, desserts...
Bottom section:	meat, meat products, delicatessen ...
Container:	fresh fruit, vegetables, salads...

Freezer compartment (-14^ 22^)

Top section: eggs, butter, cheese...

Middle beverages,cans, section: bottles...

Bottom section: beverages,cans, bottles...

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 10^ and 38^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the fridge will rise above 4^ and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartments can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

ADJUSTING THE TEMPERATURES AND FUNCTIONS

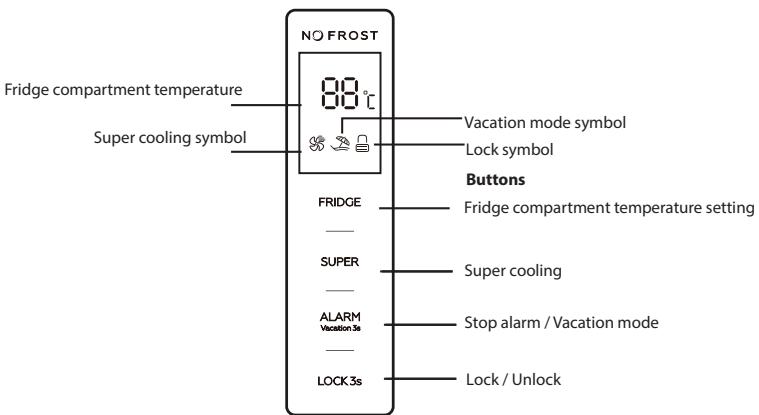

Control Panel and Display

Setting the Fridge Compartment Temperature

The fridge compartment temperature can be set between 2^ and 8^ .

Repeatedly press FRIDGE to set the desired temperature.

Super cooling

This function allows you to cool food quickly and keep food fresh for a longer period.

To activate this function, press SUPER. When this mode is activated, the display will show the symbol
The display will show 2^ .
This mode will be automatically deactivated after about 3 hours of operation. You can repeatedly press SUPER to manually

deactivate this mode. The symbol will disappear from the display.

Vacation function

This function is recommended when the appliance will not be used for a long period of time.

NOTE: Before activating this function, remove perishable foods from the fridge and close the door.

To activate this function, press and hold ALARM for about 3 seconds. When this mode is activated, the display will show the
symbol and 17^
- To deactivate this function, press and hold ALARM Vacuation 3s for about 3 seconds.

Lock/Unlock

This function allows you to disable the buttons.

To activate this function, press and hold LOCK 3s for about 3 seconds. The symbol will appear on the display.
To deactivate this function, press and hold LOCK3s again for 3 seconds. The symbol will appear on the display.

IMPORTANT! In the unlock state, if there is no operation of any button about 25 seconds, the system will automatically enter the lock state.

Door open alarm

When the door is left open or has not been closed properly for about 90 seconds, an alarm will beep.

To stop the alarm, press ALARM Vacation 3s or close the door properly.

A

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalize before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the appliance to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FOOD IN THE FRIDGE COMPARTMENT

The refrigerator compartment helps to extend the storage times of fresh perishable foods.

Fresh food care

For best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will

help maintain freshness. It will also prevent odour transfer.

• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
  Cool hot foods down before placing them in the refrigerator compartment.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended 'use by /best before/best by/' date stamped on them. Store them in the

refrigerator compartment and use within the recommended time.

• Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
• Eggs can be stored in the refrigerator compartment.

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Fish and seafood

• Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.

• If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.

• Keep shellfish chilled at all times. Use within 1 - 2 days.

Precooked foods and leftovers

• These should be stored in suitable covered containers so that the food will not dry out.
• Keep for only 1-2 days.
• Reheat leftovers only once and until steaming hot.

Vegetable and fresh fruit

• The vegetable container is the optimum storage location for fresh fruit and vegetables
• Take care not to store the following at temperatures of less than 7^ for long periods:

Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes.

• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
• Do not refrigerate avocados (until they are ripe), bananas, and mangoes.

Adjusting the vegetable container humidity

The vegetable container cover has a humidity control slider. You can use this slider to adjust the desired humidity according to the humidity and cooling condition of your food in the fresh box.

Move the slider to the left for thicker vegetables or fruits with skin. Move the slider to the right for leafy vegetables or more delicate fruits.

DEFROSTING

This appliance is equipped with a frost free system.
This system enables the refrigerator to remain permanently ice free, however the food stored inside will not defrost.

Door Conversion

1. Remove upper wire box covers.

1. Unscrew right top hinge cover, and disconnect connectors of door switch and display.

1. Unscrew and remove the top hinge, and then remove the door.

1. Remove the right aid-closer block, and take out left aid-closer block from the accessory bag and install it to the left side.

1. Unscrew the bottom hinge and remove the adjustable foot and fix it to the opposite side.

1. Unscrew the bottom hinge pin and fit it to the opposite side. Then install the bottom hinge on the opposite side.

1. Unscrew the top hinge pin and fit it from the bottom side to the upper side. Remove the door switch from the right hinge cover and then install it in left hinge cover.

1. Remove the screw and then remove the top decorative cover. Then install the cover on the opposite side with the screw.

1. Install the door, and move the connecting wires from right to the left side.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

• Ensure your appliance has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
• Ensure that the fridge and freezer doors are always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
• Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and set the temperature as desired.
6. Put the food back into the appliance.

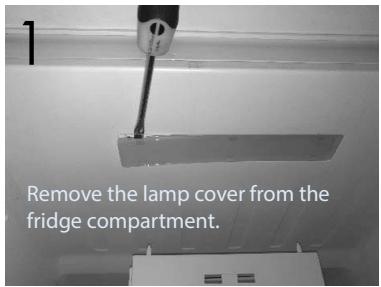

The LED lights in the fridge compartment cannot be replaced by the user. If the LED lights stop working, please contact the local authorised service agent.

Cleaning Tips

• Remove all shelves, door shelves, chiller box and vegetable containers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food.
  I bWfZWg_ VpK Ua fdaS Vds SYWsD8 S Vi SfV WsUgSf#a badi [fZ SVS_bUafZz
• Wipe all drainage area and water evacuation port with a damp cloth.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem	Possible causes	Possible solution
Appliance does not operate.	No electricity at power outlet.	Check that the plug is correctly connected and power switched on.
Noises	Cabinet not stable or level.	See installation section.
Appliance not cool	Temperature setting not correct.	See Adjusting the Temperatures and Functions section.
	Frequent door openings.	Minimise door openings to allow temperatures to stabilise.
	Large amount of food recently added.

SPECIFICATIONS

Electric shock protection class	Class I
Rated voltage and frequency	220-240V~50Hz
Rated current	0.75A
Total input power	100W
Insulation blowing gas	Cyclopentane
Refrigerant/Amount	R600a/ 73g
Maximum lamp power	2.5W
Net weight	64kg

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Fnac Darty (S.A.).

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THLR358NFIX THLR358NFWH
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1850	Total volume (dm3 or l)		359
	Width	600
	Depth	700
EEI		100	Energy efficiency class		E
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		118	Climate class:		extended temperate/ temperate/ subtropical
Minimum ambient temperature (℃), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (℃), for which the refrigerating appliance is suitable		38
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (℃)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	359,0	4	—	A
Chill	no	—	—	—	—
0-star or ice-making	no	—	—	—	—
1-star	no	—	—	—	—
2-star	no	—	—	—	—
3-star	no	—	—	—	—
4-star	no	—	—	—	—
2-star section	no	—	—	—	—
Variable temperature compartment	no	—	—	—	—
For 4-star compartments
Fast freeze facility			no
For wine storage appliances
Number of standard wine bottles			—
Light source parameters (a):
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

(^a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^' .
• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C' .
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C' .

This refrigerating appliance is not intended to be used as a built-in appliance.

This refrigerating appliance is not suitable for freezing foodstuffs.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/334683

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/334687

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Before disposing of your appliance, dismantling LED light from your appliance.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

THE COLDEST PART OF THE REFRIGERATOR

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should

increase the thermostat and wait for 12 hours before checking the indicator

again.

After loading the refrigerator or opening the door, the indicator may turn

white for a few seconds.

Correct setting

Temperature too high -adjust the thermostat

INHOU

WAARSCHUWINGEN 2

BELANGRIJKE VEILIGHEIDSINSTRUCTIES 7

BESCHRIJVING VAN DE ONDERDELEN 7

VOOR INSTALLATIE VAN HET APPARAAT 9

INSTALLATIE 9

OMGEVINGSTEMPERATUUR 9

ALVORENS LEVENSMIDDELEN IN HET APPARAAT TE PLAATSEN. 9

UW APPARAAT VERPLAATSEN 11

LEVENSMIDDELEN IN DE VRIESKAST INVRIEZEN EN BEWAREN. 11

ONTDOOIER 13

PROBLEEMOPLOSING. 18

PRODUCTINFORMATIEBLAD. 19

SERVICE VOOR REPARATIESEN RESERVEONDERDELEN. 21

VERWIJDERING 22

UW APPARAAT VERPLAATSEN

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/334683

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/334687

EU Declaration of Conformity

Product Description:

THLR358NFWH THLR358NFIX

Model number:

/Modelnummer /Numero de modelos /

Numero do modelos:

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 60335-2-24:2010+A1:2019+A2:2019

EN 62233:2008

ErP:

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/340

(EU) 2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-1:2010+A11:2012

EN 60704-2-14:2013+A11:2015+A1:2019

(EU) 2019/2015

(EU) 2019/2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 21, 2022
