USER MANUAL TH-TTR6SSA+++ THOMSON

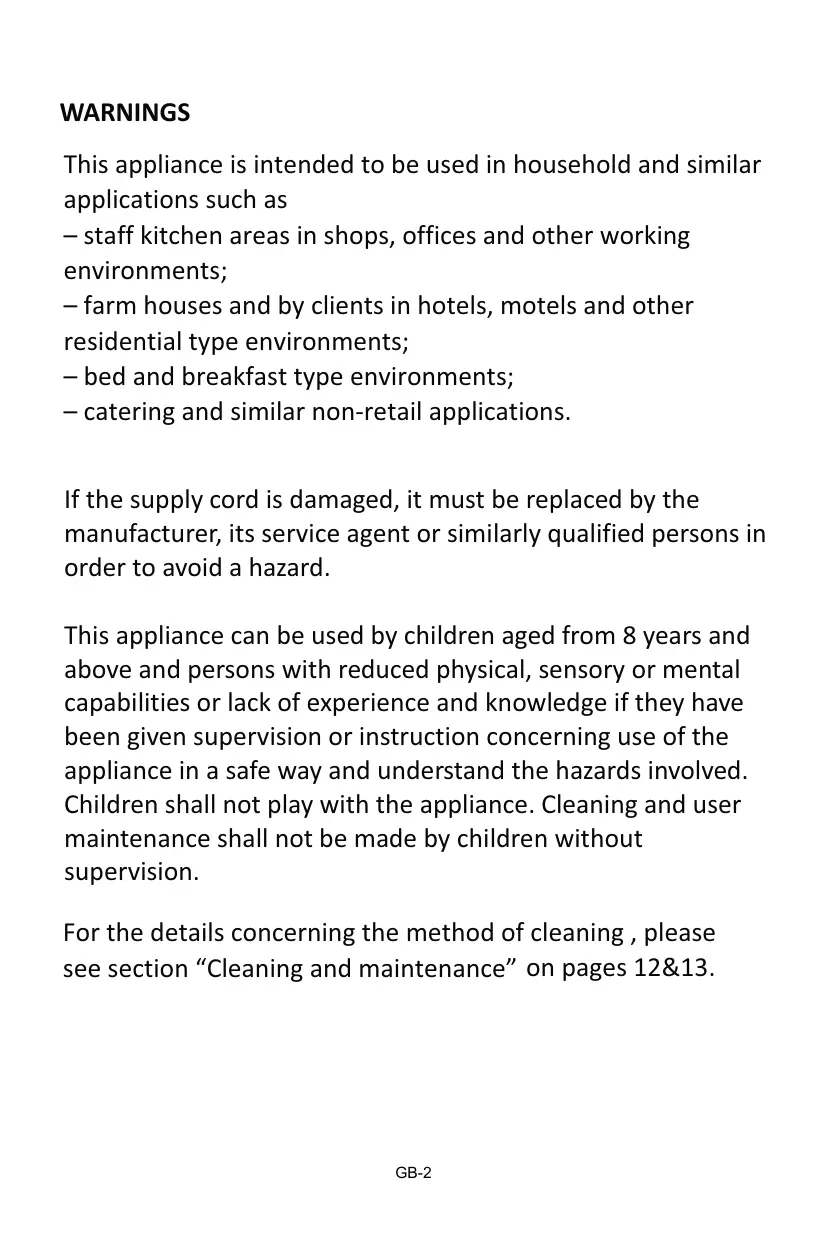

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 0 * +‘+{/3 GB-2 The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: For making ice (ice cubes), use potable water only.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal. INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. GB-3 For disposal of the appliance:

For installation, servicing: Appliance should be placed on a horizontal floor and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage. Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

IMPORTANT SAFETY INSTRUCTIONS

x If you are discarding an old fridge with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing. x Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. x Do not insert oversized food as this could cause incorrect operation. x Extreme caution must be used when moving the appliance. x Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause ‘freezer burns’ on the lips. x Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper. x Do not stand or support yourself on the base or door, etc. x ’ 5 / Dispose of your old appliance Refrigerators contain refrigerant and gases in the insulation. Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal. GB-4

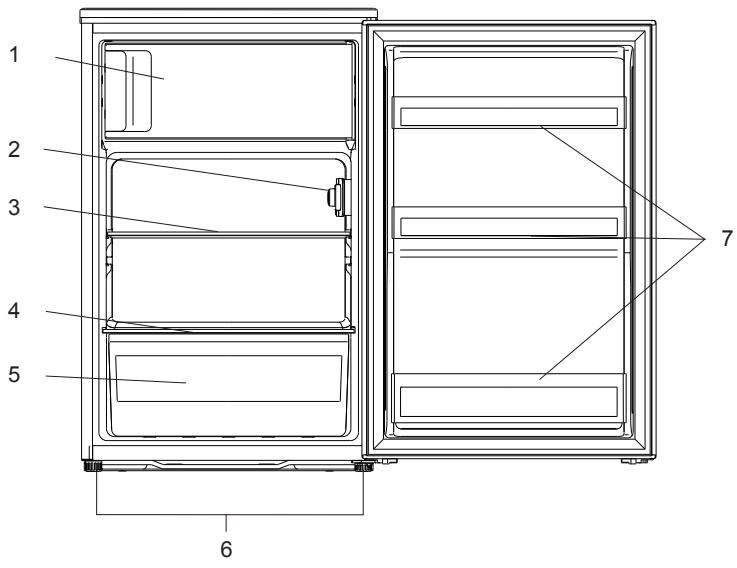

1. Freezer compartment door

2. Temperature control knob with lamp assembly

4. Vegetable container cover

Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. GB-5 The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. INSTALLATION Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. For uneven surfaces, front feet can be aligned. AMBIENT TEMPERATURE This appliance is designed to operate in ambient temperature between 16°C and 43°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above ϋ18ćand food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

x Remove all packaging. x Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature. x Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust. GB-6 POWER FAILURE If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 12 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. TEMPERATURE CONTROL The appliance is controlled with a temperature control knob located inside the appliance. Adjust the control knob as desired to suit your individual preference. 0 is off setting 1 is warmest setting 7 is coldest setting In the 0 position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted. The running time and temperature are affected by where the appliance is located, how often the door is opened and the temperature of the room the appliance is located in. When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. x Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock. x Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on. Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FOOD IN THE REFRIGERATOR COMPARTMENT

The refrigerator compartment helps to extend the storage times of fresh perishable foods. GB-7 Fresh food care For best results: x Store foods that are very fresh and of good quality. x Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. x Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours. x Cool hot foods down before placing them in the refrigerator compartment. Dairy foods and eggs x Most pre-packed dairy foods have a recommended ‘use by /best before/best by/’ date stamped on them. Store them in the refrigerator compartment and use within the recommended time. x Butter can become tainted by strong smelling foods so it is best stored in a sealed container. x Eggs can be stored in the refrigerator compartment. Red meat x Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil. x Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product. Poultry x Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil. x Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result. Fish and seafood x Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil. x If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag. x Keep shellfish chilled at all times. Use within 1 – 2 days. Precooked foods and leftovers x These should be stored in suitable covered containers so that the food will not dry out. x Keep for only 1 – 2 days. GB-8 x Reheat leftovers only once and until steaming hot. Vegetable and fresh fruit x The vegetable container is the optimum storage location for fresh fruit and vegetables. x Take care not to store the following at temperatures of less than 7°C for long periods: Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes. x Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying. x Do not refrigerate avocados (until they are ripe), bananas, mangoes. FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT Use the freezer compartment z To store deepϋfrozen food. z To make ice cubes. z To freeze food. Note: Ensure that the freezer compartment door has been closed properly. Purchasing frozen food z Packaging must not be damaged. z Use by the ‘use by /best before/best by/ date. z If possible, transport deepϋfrozen food in an insulated bag and place quickly in the freezer compartment. Storing frozen food Store at ϋ18°C or colder. Avoid opening the freezer compartment door unnecessarily. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. z The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hardϋboiled eggs, yoghurt, soured milk, sour cream, GB-9 and mayonnaise. Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

3. Seal the wrapping.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Bacon, casseroles, milk Bread, ice cream, sausages, pies, prepared shellfish, oily fish Non-oily fish, shellfish, pizza, scones and muffins Ham, cakes, biscuits, beef and lamb chops, poultry pieces Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw) Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes Storage time 1 month 2 months 3 months 4 months 6 months 12 months Never forget: x When you freeze fresh foods whit a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date. x Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. x Once defrosted, food should be consumed quickly.

Fill the ice cube tray (not supplied) with ¾ full of drinking water and place in the ice box. If the ice cube tray is stuck to the ice box, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water. DEFROSTING Refrigerator compartment defrosts fully automatically While the refrigerating unit is running, beads of condensation or hoarfrost form at the back of the refrigerator compartment. This is normal. It is not necessary to wipe off the condensation or frost. The GB-10 rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the refrigerating unit where it evaporates. Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out. Defrosting the freezer compartment The freezer compartment does not defrost automatically, otherwise the frozen food would start thawing. A layer of frost in the freezer compartment impairs refrigeration of the frozen food and increases power consumption. Remove the layer of hoarfrost regularly. Do not scrape off hoarfrost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.

2. Set the temperature control knob to the 0 position and disconnect the mains plug from the mains

3. Wipe up condensation with a cloth or sponge.

4. Wipe dry the freezer compartment.

5. Plug in the appliance and adjust the temperature control knob as desired.

6. Put the frozen food back in the freezer compartment.

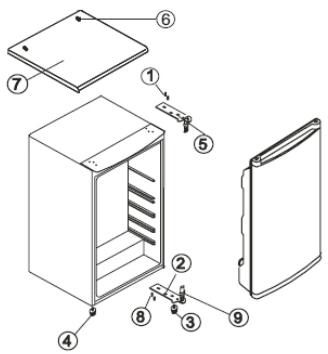

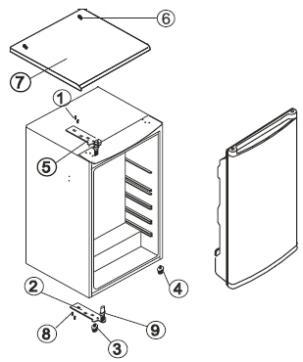

DOOR CONVERSION If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied). Before After GB-11 1.Remove the screw covers. Remove the two screws (6) holding the top cover (7) to the appliance. Remove the top cover.

2. Remove the two screws (1) holding the top hinge (5) (right side) to the frame.

Remove the top hinge (5).

3. Lift the door off the bottom hinge pin and place it on a non-scratching surface.

4. Remove the two screws (8) holding the bottom hinge (2). Remove the bottom hinge (2).

5. Remove the left front leg (4) and transfer it to the right side.

6. Before replacing the bottom hinge (2), remove the hinge pin (9) and reverse the direction of the

hinge (2). Reassemble the bottom hinge (2) on the left hand side using the two screws (8).

7. Refit the hinge pin (9) into the bottom hinge (2).

8. Lower the door onto the bottom hinge pin (9).

9. While holding the door in the closed position, reassemble the top cover (5) on the left hand side

using the two screws (1). Do not tighten the screws (1) until the top of the door is level with the counter top.

10. Refit the top cover using the screws (6).

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance: x Ensure your appliance has adequate ventilation as recommended in the installation instructions. x Allow warm food and drinks to cool down before placing in the appliance. x Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food. x Keep door openings to a minimum. x Open the appliance as briefly as possible. x Regularly defrost the freezer compartment to remove the layer of frost. x Ensure that the fridge door is always closed properly. OPERATING NOISES Normal noises x Motors are running. x Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Set the temperature control knob to the 0 position

and disconnect the mains plug from the mains socket.

2. Take out the food and store in a cool location.

3. Clean the appliance with a soft cloth, warm water

and detergent. GB-12

4. Wipe the door seal with clear water only and then

wipe dry thoroughly.

5. After cleaning reconnect and adjust the temperature

control knob as desired.

6. Put the food back into the appliance.

TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting customer service. Problem Appliance does not operate. Noises Appliance not cool Possible causes No electricity at power outlet. Cabinet not stable or level. Temperature setting not correct. Frequent door openings. Large amount of food recently added. GB-13 Possible solution Check that the plug is correctly connected and power switched on. See installation section. See temperature control section. Minimise door openings to allow temperatures to stabilise. SPECIFICATIONS Brand Thomson Model THTTR6SSA+++ 'SJEHF'SFF[FS

220-240V~ 50Hz 0.50A 70W 9WW 0.255kWh/24h Climate class + Ambient range Electric shock protection class Rated voltage and frequency Rated current Rated power input Maximum lamp power Energy consumption R600a/ 30 g Refrigerant/Amount

GB-14 5#%"/33 DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regula™ons. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. 5 ’ ™ /ƒ ™ accept appliance free of charge. š 5 ™ “ may occur as a result of product improvement and development. Ets  & fils ƒ#ƒˆ+‰, 9# Š{+‰‹Œ  03/09/2018 GB-15

THE COLDEST PART OF THE REFRIGERATOR

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf. In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area. WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose. TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance. When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct. If the indicator is white it means the temperature is too high, so you should increase the thermostat and wait for 12 hours before checking the indicator again. After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.
