RP-500C II - Home cinema KLIPSCH - Free user manual and instructions

Product Type	Home Theater Center Channel Speaker
Brand	Klipsch
Model	RP-500C II
Technology	Exclusive Klipsch horn for legendary sound
Impedance	8 ohms
Use	Center channel for dialogues and sound effects
Recommended Positioning	Directly above or below the screen
Dolby Atmos Compatibility	Yes, with RP-500SA elevation speaker (optional)
Connection Terminals	Binding posts for bi-wiring or bi-amping
Minimum Cable Gauge	1.3 mm (16 AWG)
Maintenance	Dust occasionally; clean grille with a vacuum brush
Prohibited Cleaning Products	Abrasives, solvent-based, harsh detergents
Electrical Safety	Do not let bare wires touch to avoid short circuit
Hearing Protection	Avoid prolonged excessive volume to prevent permanent damage
Recommended Amplifier	External amplifier suitable for 8 ohm impedance
Product Registration	Online at www.klipsch.com/register
Warranty	Keep the receipt for any claims
Manual Available	Free PDF download at notice-facile.com

Frequently Asked Questions - RP-500C II KLIPSCH

How to connect the RP-500C II center speaker?

Use a speaker wire with minimum gauge 1.3 mm (16 AWG). Connect the red (+) terminal of the speaker to the red terminal of your amplifier's center channel, and the black (-) terminal to the black terminal. Make sure no bare wire touches another terminal.

Where to place the center speaker in a home theater setup?

Place the center speaker as close as possible to the screen, ideally directly above or below it, so that dialogues seem to come from the screen.

What is the impedance of the RP-500C II speaker?

The impedance is 8 ohms, making it compatible with most home theater amplifiers.

Can I use any amplifier with this speaker?

Yes, but ensure the amplifier is suitable for 8 ohm impedance. Avoid overloading the amplifier to prevent speaker damage.

How to clean the center speaker?

Dust occasionally with a soft cloth. For the grille, use a vacuum brush. Never use abrasive or solvent-based products.

Is the speaker Dolby Atmos compatible?

Yes, it can be used with the optional RP-500SA height speaker for a full Dolby Atmos experience.

What to do in case of a short circuit?

A short circuit may occur if bare wires touch. Immediately cut the amplifier power and insulate the wires properly before powering on again.

How to register my Klipsch product?

Register your product online at www.klipsch.com/register to stay informed about new products and promotions. Keep your receipt for warranty.

What are the risks of excessive volume?

Excessive volume for long periods can cause irreversible hearing damage and damage your speakers. Set the volume with caution.

Can I bi-wire the RP-500C II speaker?

Yes, the terminals are binding posts. For bi-wiring, remove the jumper bar and connect two separate cables to the amplifier. Consult your amplifier manual.

USER MANUAL RP-500C II KLIPSCH

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series.

We are the Keepers of the Sound.

ENGLISH

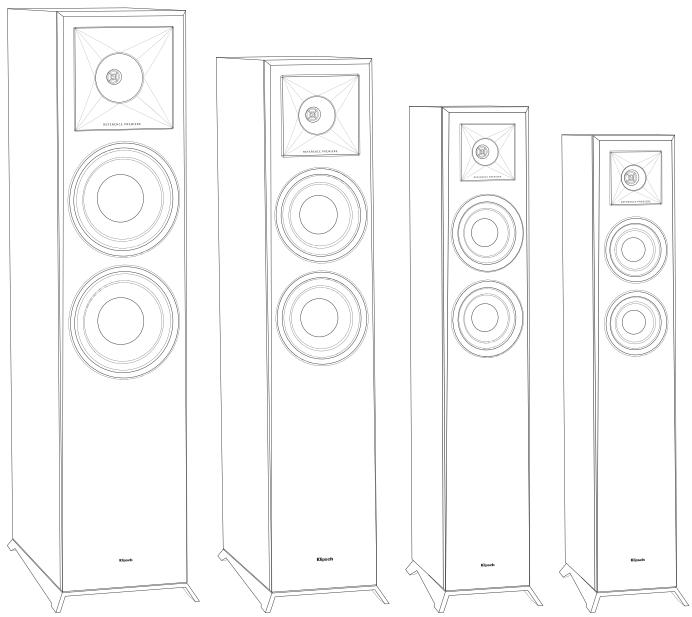

REFERENCE PREMIERE SPEAKERS

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

BEFORE YOU START

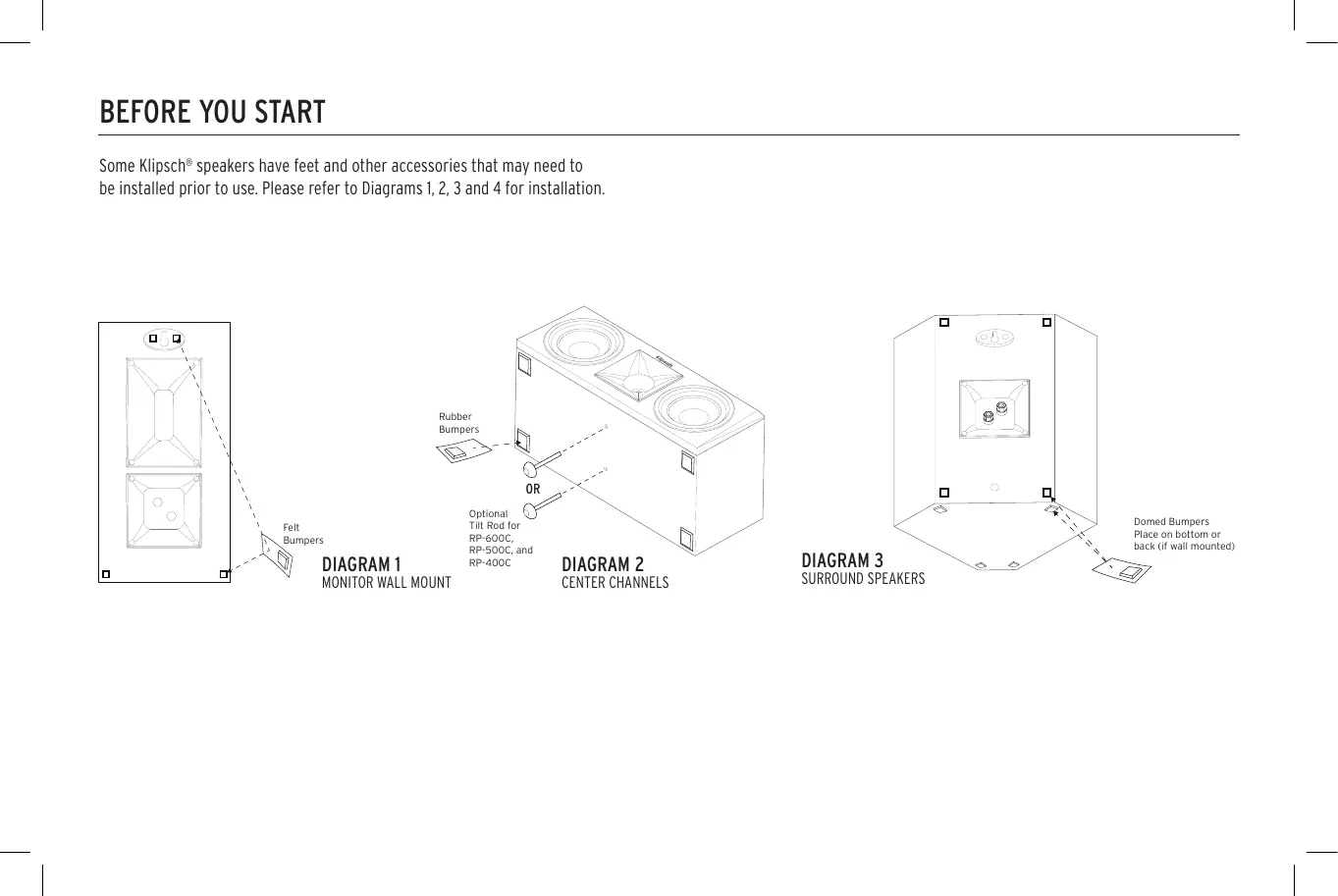

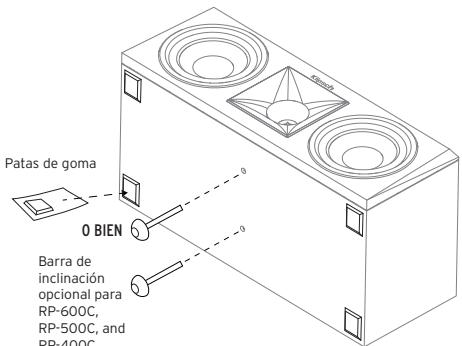

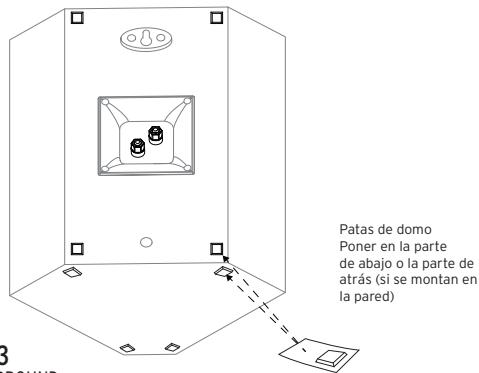

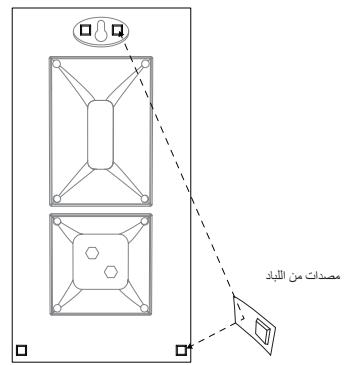

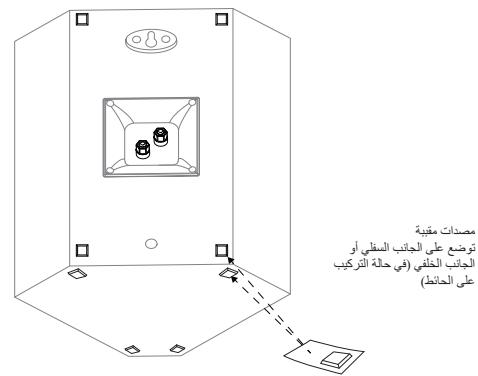

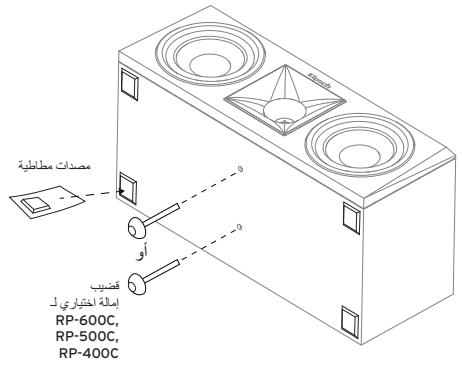

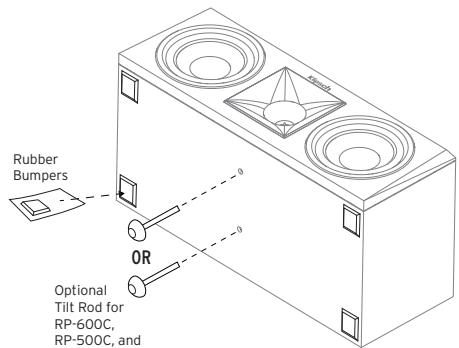

Some Klipsch® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

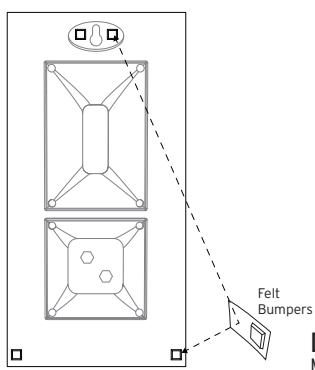

DIAGRAM 1 MONITOR WALL MOUNT

DIAGRAM 2 CENTER CHANNELS

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m ) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

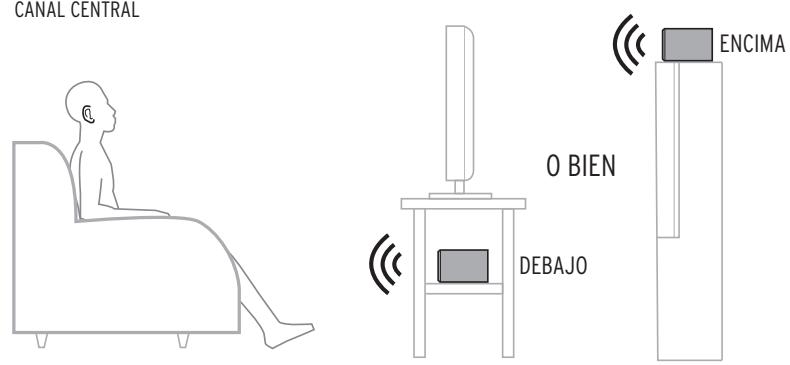

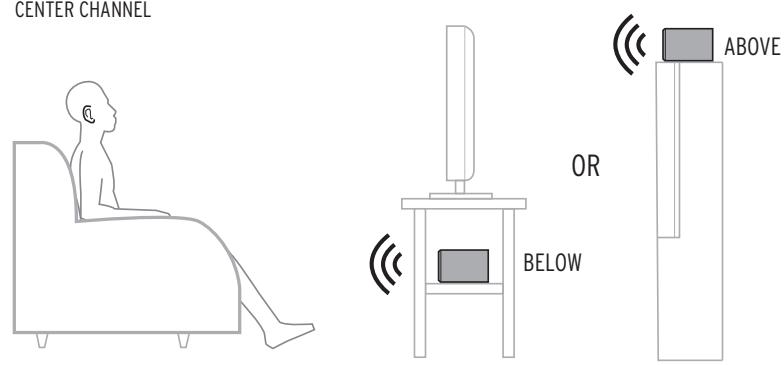

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier’s LEFT channel. Connect the BLACK “negative” (-) terminal of the LEFT speaker to the BLACK “negative” (-) terminal of your amplifier’s LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-8060FA, RP-8000F, RP-6000F, RP-5000F, RP-4000F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements - Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

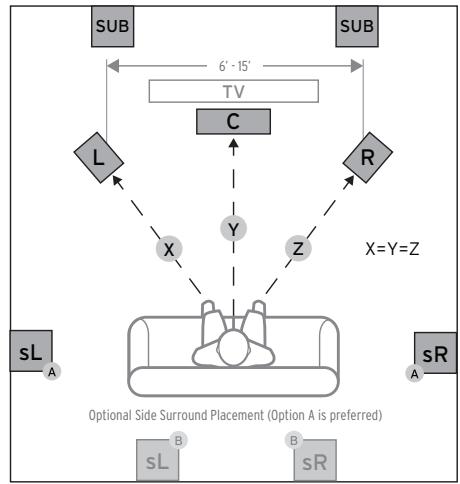

FIGURE1 SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 2 CENTER CHANNEL

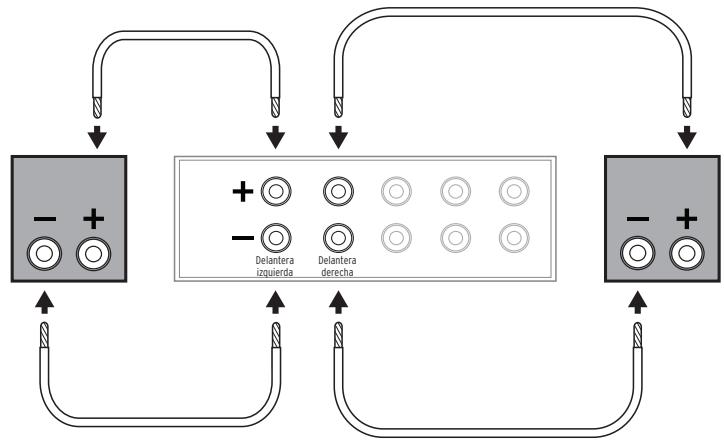

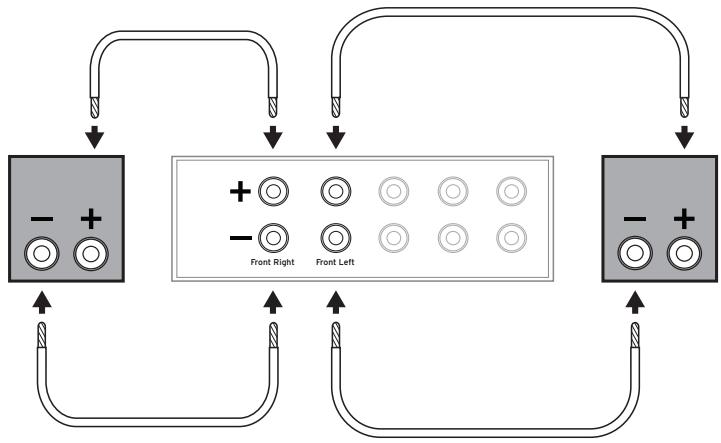

FIGURE 3 STANDARD CONNECTIONS

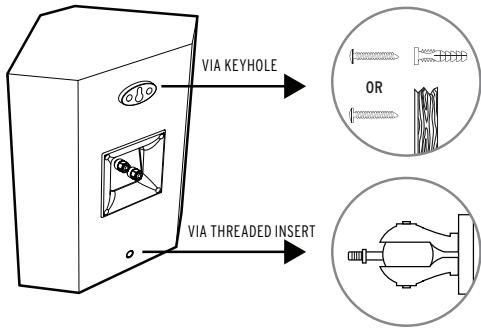

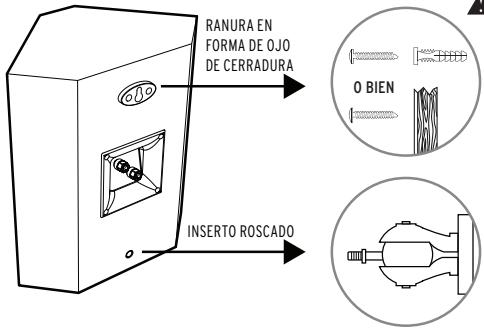

FIGURE4 WALL MOUNTING
CAUTION! Do not use keyhole for ceiling mounting! #10 2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1 / 4'' exposed

3/8 - 16 × 0.5 *Wall brackets not included

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

RP-8060FA

RP-500SA

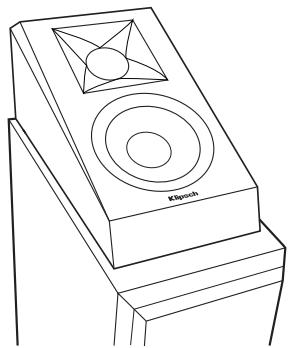

The RP-500SA can be added to any passive loudspeaker setup.

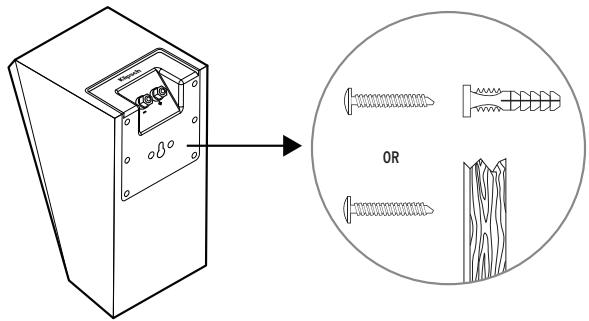

WALL MOUNTING

CAUTION!

Do not use keyhole for ceiling mounting

10

2.5^ - 3^ panhead wood screws

Mount in wall stud or use anchors -

leave 1 / 4'' exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Klipsch, Keepers of the Sound

FRANÇAIS

ENCEINTES REFERENCE PREMIERE

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

AVANT DE COMMENCER

We are the Keepers of the Sound.

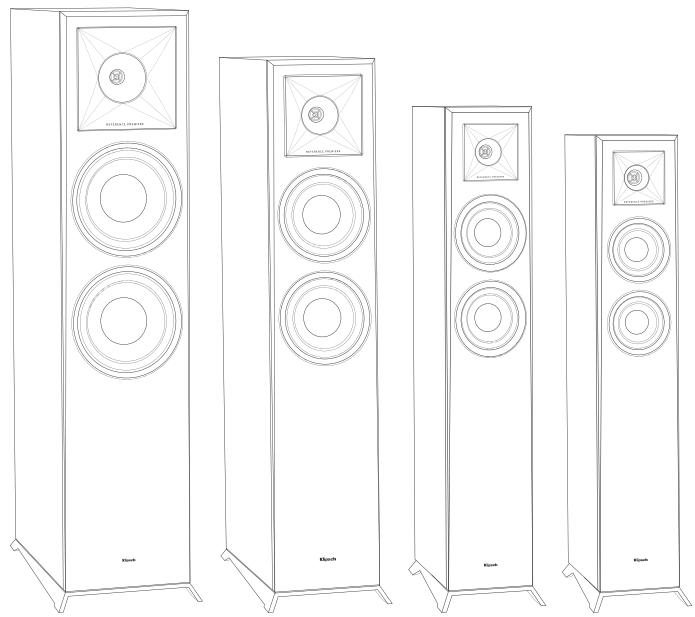

REFERENCE PREMIERE-LAUTSPRECHER

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

ERSTE SCHRITTE

DIAGRAMA 2 CANAL CENTRAL

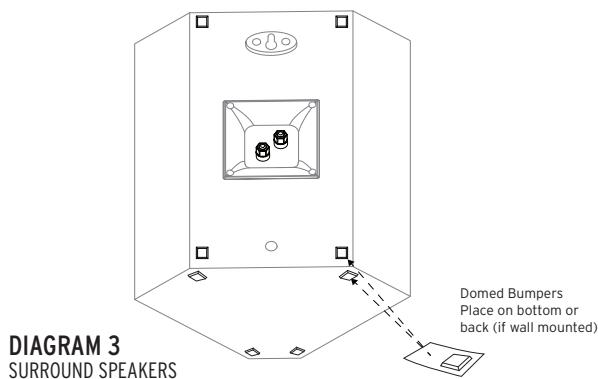

DIAGRAMA 3 ALTAVOCES SURROUND

FIGURA 2 CANAL CENTRAL

FIGURA 3 CONEXIONES ESTANDAR

FIGURA 4 MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED

PRECAUCION

Somos os Keepers of the Sound®.

PORTUGUES

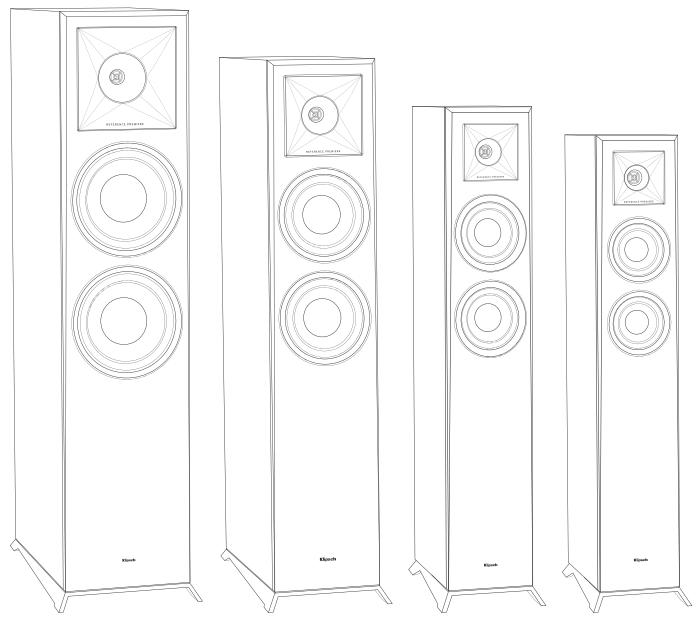

CAIXAS ACUSTICAS REFERENCE PREMIERE

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

ANTES DE COMEÇAR

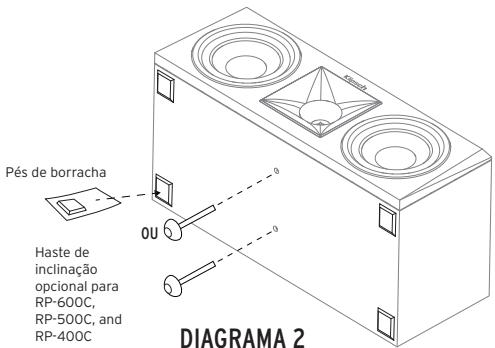

DIAGRAMA 2 CANAL CENTRAL

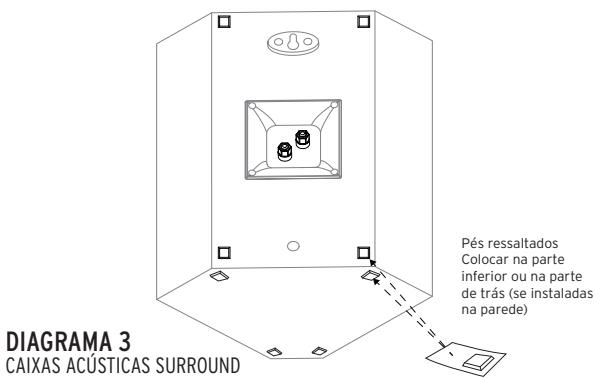

m = 311

RP-8060FA

RP-8000F

RP-6000F

RP-5000F

RP-4000F

RP-600M

RP-500M

RP-400M

RP-502S

RP-402S

RP-500SA

RP-504C

RP-404C

RP-600C

RP-500C

RP-400C

JLg 15s Jz jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz

5 321 aabaaal lglg

1 bbbll p 1

2 bbsill sall 4 jssll

3 bbsill aJ 1

Klipsch 45 Jz j 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE,INDIANAPOLIS, IN, USA

KLIPSCH.COM

DOLBY ATMOS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.

V03-180507

1-800-KLIPSCH ©2015 KILPSCH GROUP INC. ALL RIGHTS RESERVED, KIPLSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KIPLSCH GROUP INC. IN THE USA AND OTHER COUNTRIES. A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION. MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY ATMS IS A REGISTERED TRADEMARK OF DOLBY LABORATORIES.
