USER MANUAL BD-P3600 SAMSUNG

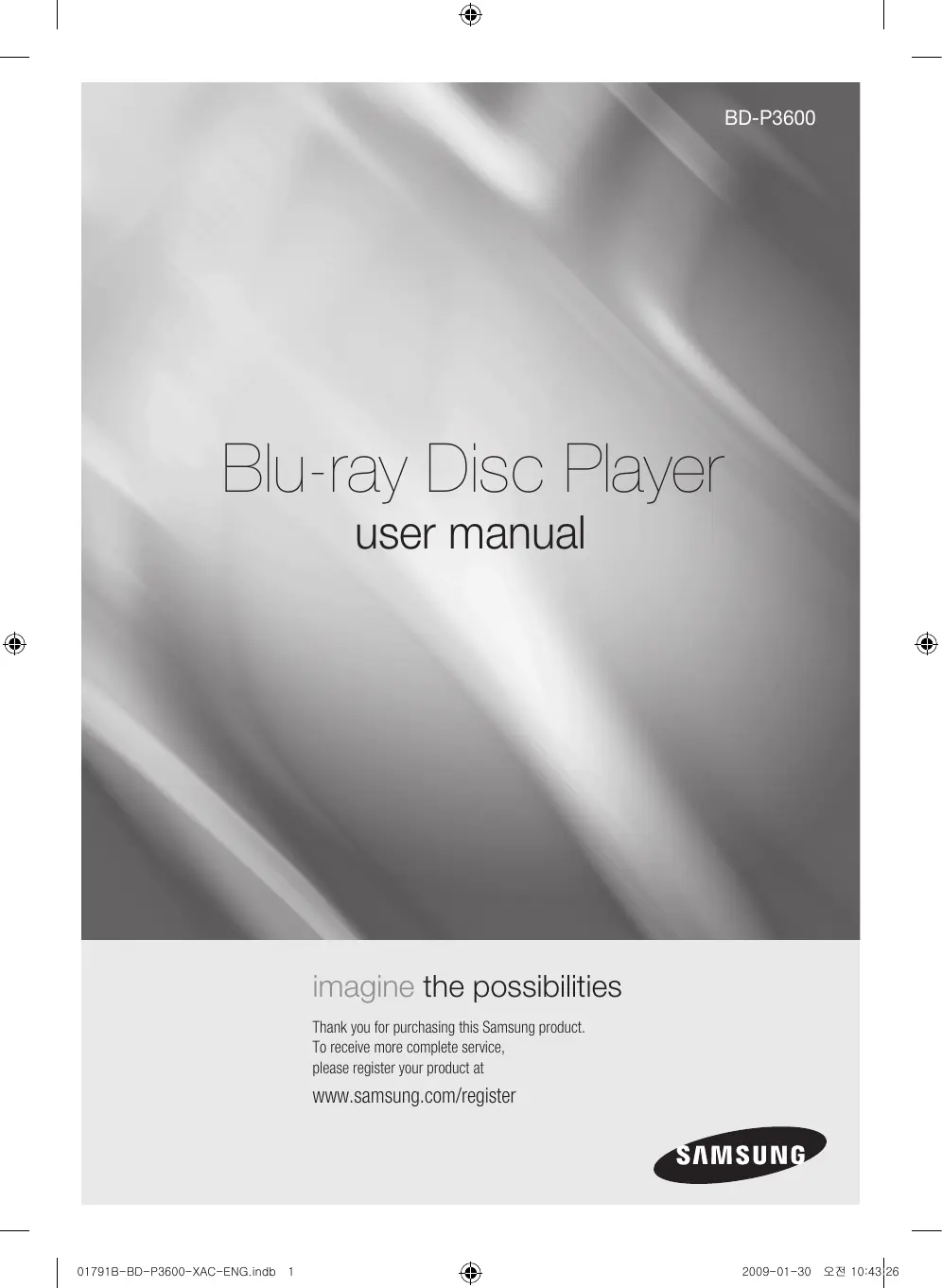

BD-P3600 Blu-ray Disc Player user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register 01791B-BD-P3600-XAC-ENG.indb 1 2009-01-30 오전 10:43:26 key features of your blu-ray disc player Player Features Supports a Variety of Disc Types

• Blu-ray (BD-ROM, BD-RE, BD-R), DVD Video, DVD-RW/-R (V mode and finalized only) discs and Audio CD.
• CD-RW/CD-R, DVD-RW/-R and USB storage device content such as MP3, JPEG and DivX files. HDMI (High Definition Multimedia Interface) HDMI reduces picture noise by allowing a pure digital video/audio signal path from the player to your TV. DivX ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device that plays DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX® Certified device must be registered in order to play DivX Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorized for your device, the message “Authorization Error” will be displayed and your content will not play.] Learn more at www.divx.com/vod DivX® is a registered trademark of DivX, Inc., and is used under license Blu-ray Disc Features Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.
• The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below. Video highlights The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2. HD video resolutions are also available:
• 1920 x 1080 High Definition
• 1280 x 720 High Definition For High-Definition Playback To view high-definition contents on a Blu-ray Disc, an HDTV (High Definition Television) is required. Some Blu-ray Discs may require using the player's HDMI OUT to view high-definition content. The ability to view high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV. _ English 01791B-BD-P3600-XAC-ENG.indb 2 2009-01-30 오전 10:43:26 graphic planes Two individual, full HD resolution (1920x1080) video layers are available on top of the HD video layer. One layer is assigned to video-related graphics (like subtitles), and the other layer is assigned to interactive elements, such as buttons or menus. Various wipes, fades and scroll effects may be available on both layers. PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS Graphic Planes

HD Video Menu graphics Support full color resolution graphics and animation, thereby greatly surpassing the capabilities of DVD-Video. Unlike DVD, Menus can be accessed during video playback. Menu sounds When you highlight or select a menu option on a disc, sounds can be heard such as button clicks or a voice-over explaining the highlighted menu choice. Multi-page/PopUp Menus Unlike DVD-Video, playback is not interrupted each time a new menu screen is accessed. Due to Blu-ray Disc's ability to preload data from the disc without interrupting playback, a menu may consist of several pages. You can browse through the menu pages or select different menu paths, while the audio and video continues playing in the background. Interactivity Certain Blu-ray Discs may contain Animated menus and Trivia games. PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS

User Browsable Slideshows With Blu-ray Discs, you can browse through various still pictures while the audio remains playing. Subtitles Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and colors for the subtitles. Subtitles may also be animated, scrolled or faded in and out. BD-LIVE You can use a Blu-ray Disc supporting BD-LIVE through network connection to enjoy various contents provided by the disc manufacturer. WHaT’S InCLUDED Check for the supplied accessories below. Composite (Video), Audio L/R Cable Batteries for Remote Control (AAA Size) Wireless LAN Adapter POWER AUDIO OPEN/CLOSE SUBTITLE REPEAT

The lighting flash and Arrowhead within CAUTION: TO REDUCE THE RISK OF ELECTRIC the triangle is a warning sign alerting you SHOCK, DO NOT REMOVE COVER (OR BACK) NO of dangerous voltage inside the product. USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product. WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this player must be securely attached to the floor/wall in accordance with the installation instructions. Note to CATV system installer This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. This class B digital player meets all requirements of the Canadian Interference - Causing Equipment Regulations. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1 PRODUCTO LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT

CLASS 1 LASER PRODUCT

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. _ safety information 01791B-BD-P3600-XAC-ENG.indb 4 2009-01-30 오전 10:43:29 This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/ IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. ● SAFETY INFORMATION Note:

• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
• This Blu-ray Disc Player is designed and manufactured to respond to the Region Management Information. If the Region number of a Blu-ray Disc/DVD disc does not correspond to the Region number of this Blu-ray Disc Player, the Blu-ray Disc Player cannot play the disc.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This product is covered by one or more of the following U.S. patents: 5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,474 6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729 7,286,454 7,304,938 This product is covered by the following U.S. patents: US4,930,158 US4,930,160 Precautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

Keep these instructions.

Follow all instructions.

Do not use this player near water.

Clean only with dry cloth.

Do not block any ventilation openings, install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, or other player (including amplifiers) that produce heat.

The polarized or the grounding type plug has an important safety purpose. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being deformed or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the player.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the player. When a cart is used, use caution when moving the cart/player combination to avoid injury from tip-over.

13) Unplug this player during lightning storms or when unused for long periods of time.

14) Refer all servicing to a qualified service personnel. Servicing is required when the player has been damaged in

any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the player, the player has been exposed to rain or moisture, does not operate normally, or has been dropped. English _ 01791B-BD-P3600-XAC-ENG.indb 5 2009-01-30 오전 10:43:29 safety information Handling Cautions

• Before connecting other components to this Blu-ray Disc Player, be sure to turn them all off.
• Do not move the Blu-ray Disc Player while a disc is being played as the disc may be scratched or broken, or the Blu-ray Disc Player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the Blu-ray Disc Player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interferences such as lightning and static electricity can affect the normal operation of this Blu-ray Disc Player. If this occurs, turn the Blu-ray Disc Player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The Blu-ray Disc Player will operate normally.
• Be sure to remove the disc and turn off the Blu-ray Disc Player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the Blu-ray Disc Player for long periods of time.
• To clean a disc, wipe it in a straight line from the inside to the outside of the disc.
• Do not expose the player to any liquid.
• When the AC plug is connected to a wall outlet, the player will still draw power (standby mode) when it is turned off.
• The player should not be exposed to dripping or splashing of any liquid and no objects filled with liquids, such as vases, should be placed on the player.
• To disconnect the player from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be easily accessible. Maintenance of Cabinet For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth. Restrictions on Playback
• This player may not respond to all operating commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the player.
• Samsung cannot assure that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care center if you have questions or encounter difficulty in playing Blu-ray Disc, DVD, CD discs in this player. Also, refer to rest of this Manual for additional information on playback restrictions. _ safety information 01791B-BD-P3600-XAC-ENG.indb 6 2009-01-30 오전 10:43:29 contents

What’s included safety information

Warning Precautions getting started

Before Using the User’s Manual Disc Type and Characteristics Disc Storage & Management description

Front Panel Front Panel Display Rear Panel remote control

Tour of the Remote Control Setting the Remote Control Regarding the Battery Controllable TV Codes connections

Connecting to a TV with an HDMI Cable (BEST QUALITY) Connecting to a TV with DVI Cable (BEST QUALITY) Connecting to a TV (Component) (BETTER QUALITY) Connecting to a TV (Video) (GOOD QUALITY) Connecting to an Audio System (2 Channel Amplifier) Connecting to an Audio System (7.1 Channel Amplifier) Connecting to an Audio System (Dolby Digital, DTS Amplifier) Connecting to an Audio System (HDMI supported Amplifier) Connecting to the network

Before Playing On-Screen Menu Navigation Playing a Disc Setting the sound Using the Search and Skip Functions Slow Motion Play/Step Motion Play

basic functions of your blu-ray disc player

● contents key features of your blu-ray disc player English _ 01791B-BD-P3600-XAC-ENG.indb 7 2009-01-30 오전 10:43:29 contents system setup

Setting the Clock language setup

Setting up the Parental Lock network setup

Connecting to a pc and playing mp3, jpeg or Divx content BD data management

Firmware Upgrade System Information Firmware upgrade notification watching a movie

● contents system upgrade English _ 01791B-BD-P3600-XAC-ENG.indb 9 2009-01-30 오전 10:43:29 getting started Before Using the User’s Manual Make sure to check the following terms before using the user’s manual. Icons that will be used in this manual Icon

Term BD-ROM This involves a function available on a BD-ROM. BD-RE This involves a function available on the BD-RE. BD-R This involves a function available on the BD-R. DVD-VIDEO DVD-RW DVD-R Audio CD

Definition This involves a function available on DVD-Video or DVD-RW/-R discs that have been recorded and finalized in Video Mode. This involves a function available on DVD-RW. (V mode and finalized only) This involves a function available on DVD-R. (V mode and finalized only) This involves a function available on an audio CD-RW/CD-R (CD-DA format). MP3 This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices. JPEG This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices. DivX This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices. USB storage device Note This involves a function available on USB storage device. This involves tips or instructions on the page that help each function operate. About the use of this user’s manual

1) Be sure to be familiar with Safety Instructions before using this product. (See pages 4~6)

2) If a problem occurs, check the Troubleshooting section. (See pages 73~74)

Copyright ©2009 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. 10_ getting started 01791B-BD-P3600-XAC-ENG.indb 10 2009-01-30 오전 10:43:30 Disc Type and Characteristics Disc types that can be played Disc Types BD-ROM BD-RE/BD-R Recorded content Disc Shape Max. Playing minute AUDIO + VIDEO Single sided Playing time depends on the Title AUDIO + VIDEO Single sided(5 inches)

(EX : Extended Play) DVD-R (V mode and finalized only) AUDIO + VIDEO 5 inches (4.7GB)

Single sided (3 1/2 inches)

Single sided (3 1/2 inches)

• This player is compatible with the NTSC color system only.
• PAL discs will not play. Logos of Discs that can be played Blu-ray Disc DTS-HD Master Audio Digital Audio Dolby TrueHD NTSC broadcast system in U.S.A, Canada, Korea, Japan Stereo DivX BD-LIVE Java Discs that cannot be played

Blu-ray Discs with a region code other than “Region A”. DVD-Video with a region number other than “1” or “ALL” HD DVD DVD-RAM

3.9 GB DVD-R Disc for Authoring.

CVD/CD-ROM/CDV/CD-G/CD-I/LD

English _11 01791B-BD-P3600-XAC-ENG.indb 11 2009-01-30 오전 10:43:31 getting started [Note]

• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “This disc can not be played.” or “Please check the regional code of the disc.” will be displayed.
• If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable. Region code Both the Blu-ray Disc Player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this Blu-ray Disc Player is described on the rear panel of the Blu-ray Disc Player. Disc Type Blu-ray DVD-VIDEO Region code

North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.

India, China, Russia, Central and South Asia. DVD Region Code Area

The U.S., U.S. territories and Canada

Europe, Japan, the Middle East, Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines, Indonesia, Hong Kong

Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia

China Blu-ray Disc Compatibility Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care center.

Playback may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback. Discs with PAL programs recorded on them cannot be played using this product. When a BD-J title is played, loading may take longer than a normal title, or some functions may perform slowly. 12_ getting started 01791B-BD-P3600-XAC-ENG.indb 12 2009-01-30 오전 10:43:31 Disc Types ❖ BD-ROM Blu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM may contain any form of data, most BD-ROM discs will contain movies in High Definition format for playback on Blu-ray Disc Player's. This unit can play back pre-recorded commercial BD-ROM discs. ❖ BD-RE/BD-R ❖ DVD-Video

• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround, allowing you to enjoy vivid and clear theatre quality images.
• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video. Pre-recorded (pre-stamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back pre-recorded commercial DVD discs (DVD-Video discs) with movies. ● GETTING STARTED Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups, or recording personal video. ❖ Audio CD
• An audio disc on which 44.1kHz PCM Audio is recorded.
• This unit can play back CD-DA format audio CD-RW and CD-R discs.
• The unit may not be able to play some CD-RW or CD-R discs due to the condition of the recording. ❖ CD-RW/CD-R
• Use a 700MB(80 minutes) CD-RW/CD-R disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.
• If the CD-RW/CD-R disc was not recorded as a closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.
• Some CD-RW/CD-R discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-RW/CD-R media from CDs for your personal use, playability may vary depending on contents and discs. ❖ DVD-R Disc Playback
• Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
• This unit can play back DVD-R discs recorded and finalized with a DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording. ❖ DVD-RW Disc Playback
• Playback can be performed with DVD-RW discs recorded in the Video Mode and finalized.
• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. Ability to play back may depend on recording conditions. English _13 01791B-BD-P3600-XAC-ENG.indb 13 2009-01-30 오전 10:43:31 getting started Disc Format ❖ DVD-RW/-R (V)
• This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by this Blu-ray Disc Player once it has been finalized. ❖ DivX

CD-R/-RW, DVD-R, USB, PC streaming Video File with following extensions can be played. : .avi, .divx, .AVI, .DIVX DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC) DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, AC3, DTS Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass You cannot play back a disc with a resolution greater than 720 x 576 pixels. ❖ AVCHD (Advanced Video Codec High Definition)

• This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format.
• Some AVCHD discs use the “x.v.Color” format.
• This player can playback AVCHD discs using “x.v.Color” format.
• “x.v.Color” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation.

Some AVCHD format discs may not play, depending on the recording condition. AVCHD format discs need to be finalized. “x.v.Color” offers a wider color range than normal DVD camcorder discs. Disc Storage & Management Disc Handling ❖ Disc Shape

• Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this Blu-ray Disc Player may be damaged. ❖ Holding discs
• Avoid touching the surface of a disc where recording is performed. ❖ Blu-ray Discs
• If the player is not used for a long period of time, remove the Blu-ray Disc from the player and store it in its case.
• Be careful not to leave fingerprints or scratches on the surface of the Blu-ray Disc. 14_ getting started 01791B-BD-P3600-XAC-ENG.indb 14 2009-01-30 오전 10:43:32 ❖ DVD-RW and DVD-R
• Clean with an optional PD disc cleaner (LF-K200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RW/-R discs. ❖ DVD-Video, Audio-CD
• Wipe off dirt or contamination on the disc with a soft cloth. ❖ Cautions on handling discs ● GETTING STARTED

• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs. Disc Storage Be careful not to damage the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Keep in a clean protection jacket.
• If you move your Blu-ray Disc Player suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, wait for two hours before connecting the plug to the power outlet. Then insert the disc and try to play back again. English _15 01791B-BD-P3600-XAC-ENG.indb 15 2009-01-30 오전 10:43:32 description Front Panel

Opens and closes the disc tray.

Goes to the next title/chapter/track or goes back to the previous title/chapter/track. STOP BUTTON Stops disc playback.

Plays a disc or pauses playback. POWER BUTTON Turns the Blu-ray Disc Player on and off. USB HOST A USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG/DivX playback. REMOTE CONTROL SENSOR Detects signals from the remote control. DISPLAY Displays the playing status, time, etc. DISC TRAY Opens to accept a disc. You must use the USB HOST on the rear panel of the Blu-ray Disc Player to connect a wireless LAN Adapter. You cannot use both front and rear USB ports simultaneously for the USB storage devices. 16_ description 01791B-BD-P3600-XAC-ENG.indb 16 2009-01-30 오전 10:43:33 Front Panel Display ● DESCRIPTION In Disc Indicator Lights when a disc is in the tray. Disc Type Indicators Lights to indicate the disc type in the tray. USB Indicator Lights to indicate when USB is connected. HDMI Indicator Lights to indicate when HDMI is connected. HD Indicator Indicates the display output is HD (High Definition). 24F Indicator Indicates the current mode is 24Fs (24 frames per second). STATUS Indicator Playing time/current status indicator. English _17 01791B-BD-P3600-XAC-ENG.indb 17 2009-01-30 오전 10:43:33 description Rear Panel Fan The fan always revolves when the power is on. Ensure a minimum of 4 inches of clear space on all sides of the fan when installing the product.

USB HOST A USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG/DivX playback, as well as for connecting to BD-LIVE with a wireless LAN adapter. LAN Can be used for connection to BD-LIVE. It can be also used for firmware upgrades. COMPONENT VIDEO OUT Connects to equipment having Component video input. HDMI OUT Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture and to your Receiver for the best quality sound.

(OPTICAL) Connects to a Receiver.

OUT Connect to a 7.1CH analog input on an A/V amplifier. (When connecting to a 5.1 channel home theater or receiver, connect all the Analog Audio output jacks from the player except for the Surround Back Left/Surround Back Right outputs) VIDEO OUT Connects the input of external equipment using a video cable. AUDIO OUT Connects to the audio input of external equipment using audio cables. Software upgrades using the USB Host jack must be performed with a USB flash drive only. Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected. 18_ description 01791B-BD-P3600-XAC-ENG.indb 18 2009-01-30 오전 10:43:35 remote control Tour of the Remote Control Installing batteries in the Remote Control Lift the cover at the back of the remote control 2. upward as shown. Install two AAA size batteries. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. OPEN/CLOSE Button To open and close the disc tray. POWER

CANCEL Button CANCEL Allows you to repeat a title, chapter, track or disc. Use this to turn the BONUSVIEW function on or off with supported Blu-ray Discs. Allows you to repeat playback of a certain section.

TV SOURCE Button TV SOURCE

BONUSVIEW Button STOP After setup, allows you to set the input source on your TV. PAUSE Button Press to pause a disc. BONUSVIEW PAUSE REVERSE/FORWARD SKIP Buttons PLAY Button PLAY Press to play a disc. Press to skip backwards or forwards. REVERSE/FORWARD SEARCH Buttons STOP Button Press to search a disc backwards or forwards. Press to stop a disc. TV VOL Button REPEAT Button REPEAT A-B Button AUDIO Button Use this to access various audio functions on a disc (Blu-ray Disc/DVD). TV volume adjustment

3. Replace the cover.

Assuming typical TV usage, the batteries last for about one year. ● REMOTE CONTROL

Mutes the speakers of your TV.

TITLE MENU COLOR Buttons : RED(A), GREEN (B), YELLOW(C), BLUE(D) Used to access special features on BD-J discs (disc dependent). POPUP MENU/TITLE MENU Button Use this to enter the popup menu/title menu. English _19 01791B-BD-P3600-XAC-ENG.indb 19 2009-01-30 오전 10:43:37 remote control SETTIng THE rEMOTE COnTrOL You can control certain functions of your TV with this remote control. Control function buttons include : TV POWEr, TV CH ,/., TV VOL +/–, TV MUTE, TV SOUrCE button. To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.

2. Point the remote control towards the television.

3. Press and hold the TV POWEr button and enter the two-figure code corresponding to the brand

of your television, by pressing the appropriate number buttons. (see the next page for the code list). If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

If several codes are indicated for your television brand, try each one in turn until you find one that works. If you replace the remote control's batteries, you must set the brand code again. You can then control the television using the following buttons after pressing the TV button. Button Function TV POWER Used to switch the television on and off. TV SOURCE Used to select an external source. TV VOL (+/–) Used to adjust the volume of the television. TV CH (,/.) Used to select the desired channel. TV MUTE Used to toggle the sound on and off.

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly. rEgarDIng THE BaTTErY If the remote does not operate properly:

Check the polarity +/– of the batteries (Dry-Cell) Check if the batteries are drained. Check if remote sensor is blocked by obstacles. Check if there is any fluorescent lighting nearby. Dispose of batteries according to local environmental regulations. Do not put them in the household trash. 0_ remote control 01791B-BD-P3600-XAC-ENG.indb 20 2009-01-30 오전 10:43:37 Controllable TV Codes Brand Code TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09 TV POWER+82 TV POWER+10, +11, +12, +13, +14, +15, +16, +17, +18 TV POWER+57 TV POWER+71 TV POWER+73 TV POWER+57 TV POWER+52 TV POWER+75 TV POWER+19, +20, +23, +24, +25, +26, +27, +28, +29, +30, +31, +32, +33, +34 TV POWER+64 TV POWER+73 TV POWER+06, +49, +57 TV POWER+57 TV POWER+84 TV POWER+70 TV POWER+49, +52, +71 TV POWER+60, +72, +73, +75 TV POWER+52 TV POWER+61, +79 TV POWER+06, +19, +20, +21, +22, +78 TV POWER+06, +69 TV POWER+06, +57 TV POWER+40 TV POWER+57 TV POWER+06, +48, +62, +65 TV POWER+52, +77 TV POWER+83 TV POWER+68 TV POWER+66 TV POWER+74 TV POWER+72, +73, +75 TV POWER+53, +54, +74, +75 TV POWER+06, +55, +56, +57 TV POWER+06, +56, +57 TV POWER+58, +59, +73, +74 TV POWER+06, +56 TV POWER+57 TV POWER+45, +46 TV POWER+74 TV POWER+57, +72, +73, +74, +75 TV POWER+74 TV POWER+41, +42, +43, +44, +48 TV POWER+06 TV POWER+74 TV POWER+36, +37, +38, +39, +48 TV POWER+71 TV POWER+57 TV POWER+57 TV POWER+35, +48 TV POWER+73 TV POWER+67, +73, +75, +76 TV POWER+72, +73, +75 TV POWER+80, +81 TV POWER+47, +48, +49, +50, +51, +52 TV POWER+57 TV POWER+06 TV POWER+63 ● REMOTE CONTROL SAMSUNG AIWA ANAM BANG & OLUFSEN BLAUPUNKT BRANDT BRIONVEGA CGE CONTINENTAL EDISON DAEWOO EMERSON FERGUSON FINLUX FORMENTI FUJITSU GRADIENTE GRUNDIG HITACHI IMPERIAL JVC LOEWE LOEWE OPTA MAGNAVOX METZ MITSUBISHI MIVAR NEC NEWSAN NOBLEX NOKIA NORDMENDE PANASONIC PHILIPS PHONOLA PIONEER RADIOLA RADIOMARELLI RCA REX SABA SALORA SANYO SCHNEIDER SELECO SHARP SIEMENS SINGER SINUDYNE SONY TELEAVA TELEFUNKEN THOMSON THOMSON ASIA TOSHIBA WEGA YOKO ZENITH English _21 01791B-BD-P3600-XAC-ENG.indb 21 2009-01-30 오전 10:43:37 connections This section involves various methods of connecting the Blu-ray Disc Player to other external components such as a TV. Connecting to a TV with an HDMI Cable (BEST QUALITY)

1. Using an HDMI cable (not included) connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to

the HDMI IN terminal of your TV.

2. Press the input selector on your TV remote control until the HDMI signal from the Blu-ray Disc Player appears

• If you have set the remote control to operate your TV (see pages 20~21), press the TV SOURCE button on the remote control and select HDMI as the external source of the TV. HDMI cable (not included)

If the HDMI cable is connected or removed during playback of a CD-DA, the player will stop playing. If the player is connected to your TV in HDMI 1080p output mode, you must use a High speed(category2) HDMI cable. 22_ connections 01791B-BD-P3600-XAC-ENG.indb 22 2009-01-30 오전 10:43:39 HDMI Auto Detection Function The player's video output will automatically change to HDMI output resolution when connecting an HDMI cable while power is on (see page 44).

Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user's manual of your TV. If an HDMI cable is connected from the player to a TV, the Blu-ray Disc Player’s output is set to HDMI output resolution automatically within 10 seconds. output resolution will automatically be set to the highest provided by the TV. If you connect a Samsung TV to the Blu-ray Disc Player using an HDMI cable, the player can be easily operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+ feature.) (See pages 46~47)

• HDMI (High Definition Multimedia Interface) HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the Blu-ray Disc Player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.
• HDMI connection description HDMI connector - Supports video and digital audio data (LPCM or Bitstream). - HDMI outputs only a pure digital signal to the TV. - If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.
• Why does Samsung use HDMI? Analog TVs require an analog video/audio signal. However, when playing a Blu-ray Disc/DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the Blu-ray Disc Player) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.
• What is the HDCP? HDCP (High-band width Digital Content Protection) is a system for protecting Blu-ray Disc/DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.
• What is Anynet+? Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature. - If your Samsung TV has an ' logo, then it supports the Anynet+ function. -If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode. - If you turn on the player and press the Play button with a disc already inserted, the TV will immediately turn on and switch to HDMI mode.
• What is BD Wise? BD Wise is Samsung's latest inter-connectivity feature. - When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically. ● CONNECTIONS If Component and HDMI are both connected, HDMI mode is automatically selected. (See page 44) When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI English _23 01791B-BD-P3600-XAC-ENG.indb 23 2009-01-30 오전 10:43:39 connections COnnECTIng TO a TV WITH DVI CaBLE (BEST QUaLITY)

1. Using the HDMI-DVI cable (not included), connect the HDMI OUT terminal on the rear of the Blu-ray Disc

Player to the DVI In terminal of your TV.

2. Using the audio cables, connect the aUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc

Player to the aUDIO (red and white) In terminals of your TV. Turn on the Blu-ray Disc Player and TV.

3. Press the input selector on your TV remote control until the DVI signal from the Blu-ray Disc Player appears on

• If you have set the remote control to operate your TV (see pages 20~21), press the TV SOUrCE button on the remote control and select HDMI as the external source of the TV. Connecting the HDMI cable while the Blu-ray Disc Player’s power is on will result in the player’s video output being changed to HDMI mode automatically (see page 44).

Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user's manual of your TV. If an HDMI-DVI cable is plugged into the TV, the Blu-ray Disc Player’s output resolution is set to HDMI automatically within 10 seconds. If Component and HDMI are both connected, HDMI mode is automatically selected. (See page 44) When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output resolution will automatically be set to the highest provided by the TV If the HDMI cable is connected or removed during playback of a CD-DA, the player will stop playing. Audio Cable HDMI-DVI cable (not included) Red White _ connections 01791B-BD-P3600-XAC-ENG.indb 24 2009-01-30 오전 10:43:41 COnnECTIng TO a TV (COMPOnEnT) (BETTEr QUaLITY) - Connecting to your TV using Component video cables. - You will enjoy high quality images with accurate color reproduction. Component video separates the picture element into black and white(Y), blue(PB) and red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

1. Using Component video cables (not included) , connect the COMPOnEnT VIDEO OUT terminals on the rear

of the Blu-ray Disc Player to the COMPOnEnT In terminals of your TV.

3. Press the input selector on your TV remote control until the Component signal from the Blu-ray Disc Player

appears on the TV screen.

• If you have set the remote control to operate your TV (see pages 20~21), press the TV SOUrCE button on the remote control and select COMPONENT as the external source of the TV. Audio Cable Component cable (not included) (Audio)Red White

2. Using the audio cables, connect the aUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc

Player to the aUDIO (red and white) In terminals of your TV. Turn on the Blu-ray Disc Player and TV. Red Blue Green Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “PB, PR, Y”. The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV. You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 480p and 480i, depending on the disc type. (See page 44) The actual resolution may differ from the setting in the SETUP menu if both Component and HDMI cables are connected. The resolution may also be different depending on the disc. (See page 44) In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 480i. English _ 01791B-BD-P3600-XAC-ENG.indb 25 2009-01-30 오전 10:43:43 connections COnnECTIng TO a TV (VIDEO) (gOOD QUaLITY)

1. Using video/audio cables, connect the VIDEO (yellow) / aUDIO (red and white) OUT terminals on the rear of

the Blu-ray Disc Player to the VIDEO (yellow) / aUDIO (red and white) In terminals of your TV.

2. Turn on the Blu-ray Disc Player and TV.

3. Press the input selector on your TV remote control until the Video signal from the Blu-ray Disc Player appears

• If you have set the remote control to operate your TV (see pages 20~21), press the TV SOUrCE button on the remote control and select VIDEO as the external source of the TV. Red

White Yellow Noise may be generated if the audio cable is placed too close to the power cable. If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 27~30) The number and position of terminals may vary depending on your TV set. Please refer to the user's manual of your TV. If there is only one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the Blu-ray Disc Player. The VIDEO source is always output in 480i resolution regardless of the resolution set in the SETUP menu. (See page 44) _ connections 01791B-BD-P3600-XAC-ENG.indb 26 2009-01-30 오전 10:43:45 COnnECTIng TO an aUDIO SYSTEM (2 CHannEL aMPLIFIEr)

1. Using the audio cables, connect the aUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc

Player to the aUDIO (red and white) In terminals of your Amplifier.

2. Using the video signal cable(s), connect the HDMI, COMPOnEnT or VIDEO OUT terminals on the rear of the

Blu-ray Disc Player to the HDMI, COMPOnEnT or VIDEO In terminal of your TV. (See pages 22~26)

3. Turn on the Blu-ray Disc Player, TV and Amplifier.

4. Press the input select button of the Amplifier to select the external input in order to hear sound from

the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input. ● COnnECTIOnS Audio Cable 2-Channel stereo amp Red

White Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved. English _ 01791B-BD-P3600-XAC-ENG.indb 27 2009-01-30 오전 10:43:46 connections Connecting to an Audio System (7.1 Channel Amplifier)

1. Using the 7.1CH Audio Cables (Not included), connect the 7.1 ANALOG AUDIO OUT (Front R, Front L,

CENTER, SUBWOOFER, Surround L, Surround R, SURR.BACK L , SURR.BACK R) terminals on the rear of the Blu-ray Disc player to the 7.1 Channel ANALOG AUDIO IN (Front R, Front L, CENTER, SUBWOOFER, Surround L, Surround R, SURR.BACK L, SURR.BACK R) terminals of your Amplifier.

2. Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the

Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 22~26)

3. Turn on the Blu-ray Disc player, TV and Amplifier.

4. Press the input select button of the Amplifier to select external input in order to hear sound from the Blu-ray

Disc player. Refer to your Amplifier's user manual to set the Amplifier's audio input. 7.1CH Audio Cables (Not included)

Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. Please set the audio in the menu screen according to the Amplifier. (See pages 39~41) The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of your Amplifier. The front left and right outputs on your player and 7.1 channel amplifier must be connected to hear disc menu audio from certain Blu-ray discs. When connecting to a 5.1 channel home theater or receiver, connect all the Analog Audio output jacks from the player except for the Surround Back Left/Surround Back Right outputs. 28_ connections 01791B-BD-P3600-XAC-ENG.indb 28 2009-01-30 오전 10:43:48 Connecting to an Audio System (Dolby Digital, DTS Amplifier)

sing the optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the Blu-ray Disc Player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier.

2. Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the

Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 22~26)

3. Turn on the Blu-ray Disc Player, TV, and Amplifier.

4. Press the input select button of the Amplifier to select the external input in order to hear sound from the

Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input. Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. Please set the audio in the menu screen according to the Amplifier. (See pages 39~41) The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of your Amplifier. When using this connection, discs with LPCM audio soundtracks will only be heard over the front two channels. English _29 01791B-BD-P3600-XAC-ENG.indb 29 2009-01-30 오전 10:43:49 connections Connecting to an Audio System (HDMI supported Amplifier)

1. Using the HDMI cable (not included), connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to

the HDMI IN terminal of your Amplifier.

2. Using the HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of your TV.

3. Turn on the Blu-ray Disc Player, TV, and Amplifier.

4. Press the input select button of the Amplifier to select the external input in order to hear sound from

the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. Please set the audio in the menu screen according to the Amplifier. (See pages 39~41) The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user's manual of your Amplifier. 30_ connections 01791B-BD-P3600-XAC-ENG.indb 30 2009-01-30 오전 10:43:51 Connecting to THE NETWORK To access network service or upgrade the current firmware, you must make one of the following connections. By connecting to a network, you can access the BD-LIVE and software upgrades from Samsung’s update server. Case 1 : Connecting a Direct LAN Cable to your Modem

1. Using the Direct LAN Cable (UTP cable, not included), connect the LAN terminal of the Blu-ray Disc

Player to the LAN terminal of your modem. ● CONNECTIONS To LAN port Connecting using a router (e.g. DSL) Broadband modem (with integrated router) Router Broadband modem Broadband service Broadband service To LAN port To LAN port

PC connection to Router for PC streaming function

To use the PC streaming function (see pages 56~58), please make a network between your PC and router. Internet access to Samsung’s update server may not be allowed, depending on the router you use or the ISP’s policy. For more information, contact your ISP (Internet Service Provider). For DSL users, please use a router to make a network connection. English _31 01791B-BD-P3600-XAC-ENG.indb 31 2009-01-30 오전 10:43:52 connections Case 2 : Connecting to a Wireless IP sharer You can connect to network with a Wireless IP sharer. See pages 52~53 for Wireless Network Setup. Modem Port Wireless IP sharer Wireless LAN Adapter Modem Cable

This unit is compatible with only Samsung Wireless LAN Adapter. (Model name: WIS09ABGN-G). You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the wireless network.) Wireless LAN, in its nature, may cause interference, depending on the use condition (AP performance, distance, obstacle, interference by other radio devices, etc). Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported. When applying the security key for the AP (wireless IP sharer), only the following is supported.

1) Authentication Mode : WEP, WPAPSK, WPA2PSK

2) Encryption Type : WEP, TKIP, AES

3_ connections 01791B-BD-P3600-XAC-ENG.indb 32 2009-01-30 오전 10:43:55 basic functions of your blu-ray disc player This section introduces basic playback functions and playback by disc type.

• Turn on your TV and set it to the correct Video Input (the input the Blu-ray Disc Player is connected to).
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input. After plugging in the player, the first time you press the POWEr button, this screen comes up: If you want to select a language, press a nUMBEr button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the SKIP (]) button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the MENU LANGUAGE SELECTION window appears again where you can reset your preferred language.

Press 1 for English Pulsar 2 para Español Touche 3 pour Français Macrovision : BBS41 Discs which can be played on this player (For the following discs, the ability to play back may depend on recording conditions.)

• The unit may not play certain CD-RW/CD-R and DVD-R due to the disc type or recording conditions. Discs which cannot be played on this player.

• CDGs play audio only, not graphics. Blu-ray is a new and evolving format. Accordingly, disc compatibility issues with new and existing format discs are possible. Not all discs are compatible and not every disc will playback. For additional information, refer to the Disc Type and Characteristics and Compliance and Compatibility Notice sections of this Manual. If you encounter compatibility problems, please contact SAMSUNG customer care center. English _33 01791B-BD-P3600-XAC-ENG.indb 33 2009-01-30 오전 10:43:56 basic functions of your blu-ray disc player On-Screen Menu Navigation System Setup Language Setup Video Music System Information Audio Subtitle Disc Menu Menu Photo Setup Audio Setup Display Setup TV Aspect Movie Frame (24 Fs) Resolution Progressive Mode Time Zone Clock Set Power On/Off sound Touch Key Sound BD Data Management DivX(R) Registration System Update Digital Output PCM Down Sampling Dynamic Compression Speaker Setup Still Mode Screen Message Front Display Anynet+ (HDMI-CEC) HDMI Setup Network Setup Network Selection Cable Network Wireless Network Proxy HDMI Format BD Wise Picture Mode NTP Server Network Connection Test BD-LIVE Internet Connection Parental Setup Parental Lock Rating Level New Password Playing a Disc

1. Press the OPEN/CLOSE button.

. Place a disc gently into the tray with the disc’s label facing up.

3. Press the PLAY button or OPEN/CLOSE button to close the disc tray.

When you stop disc play, the player remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. This is called the "Resume" function. In some BD discs(BD-J), this function may not work. Press the STOP button twice during playback to disable the Resume function. To pause the playback, press the PAUSE button during playback. To resume, press the PLAY button. If the player is left in the stop mode more than 5 minutes without any user interface, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 30 minutes, the power will automatically turn off except during playback of an CD-DA (Automatic Power-Off Function). If no buttons are pressed on the unit or remote control for more than 5 minutes when the unit is in Pause mode, operation will stop (except for some Blu-ray Discs). 34_ basic functions 01791B-BD-P3600-XAC-ENG.indb 34 2009-01-30 오전 10:43:56 SETTIng THE SOUnD Setting the Power On / Off Melody Sound A Melody sound can be set so it is heard each time you turn the player on or off.

3. Press the $% buttons to select System Setup, then

press the EnTEr or + button. Clock Set System Setup Network Setup Parental Setup . Press the $% buttons to select On or Off, then press the EnTEr or + button. . Press the MEnU button to exit the setup menu. Setting the Touch Key Sound On / Off You can set the player so a sound is heard each time a button is pressed on the front panel of the unit. To setup, follow steps 1 through 3 above. . Press the $% buttons to select Touch Key Sound, then press the EnTEr or + button. Time Zone Music Clock Set Photo . Press the $% buttons to select On or Off, then press the EnTEr or + button. No Disc . Press the MEnU button to exit the setup menu. Setup System Setup

Off HDMI Setup Network Setup Parental Setup USIng THE SEarCH anD SKIP FUnCTIOnS During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Searching through a Chapter or Track During playback, press the SEarCH ( Each time you press the SEarCH ( BD-ROM, BD-RE, BD-R, DVD-VIDEO, DVD-RW, DVD-R DivX hgfZCVD ) button. ) button, the playback speed will change as follows. ) X 2 ) X 4 ) X 8 ) X 16 ) X 32 ) X 128 ( X 2 ( X 4 ( X 8 ( X 16 ( X 32 ( X 128 )X2)X4)X8 ~ You can scan the program in reverse.

No sound is heard during search mode. English _3 01791B-BD-P3600-XAC-ENG.indb 35 2009-01-30 오전 10:43:59 basic functions of your blu-ray disc player hgfZCVD Skipping Tracks During playback, press the SKIP ( ) button. When playing a Blu-ray Disc/DVD, if you press the SKIP ( ) button, it moves to the next chapter. If you press the SKIP ( ) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter. Slow Motion Play/Step Motion Play Slow Motion Play hgfZCVD In pause mode, press the SEARCH ( ) button. ~ If you press the SEARCH ( ) button, the playback speed is reduced to *1/8 * 1/4 * 1/2

This ( ) icon indicates an invalid button press. No sound is heard during slow mode. Slow motion operates only in the forward direction. Step Motion Play hgfZCVD In pause mode, press the PAUSE button.

• Each time the PAUSE button is pressed a new frame will appear.
• To return to normal speed playback, press the PLAY button.

o sound is heard during step mode. Step motion operates only in the forward direction. 36_ basic functions 01791B-BD-P3600-XAC-ENG.indb 36 2009-01-30 오전 10:43:59 system setup For your convenience, you can set this player’s features for the best use in your home environment. SETTIng THE CLOCK

3. Press the ▲▼ buttons to select System Setup, then

If you want to choose a different audio and subtitle language while playing a disc, you can also use the disc menu to make the selection.

3. Press the ▲▼ buttons to select Language Setup, then

Press the RETURN or _ button to return to the previous menu. Press the MENU button to exit the menu. The selected language will only appear if it is supported on the disc. 3_ language setup 01791B-BD-P3600-XAC-ENG.indb 38 2009-01-30 오전 10:44:08 audio setup SETTIng UP THE aUDIO OPTIOnS Allows you to set up the Audio device and sound status depending on the audio system being used with the player.

3. Press the ▲▼ buttons to select audio Setup, then

HDMI Setup Dynamic Compression : On Bitstream(Audiophile) Network Setup Speaker Setup Parental Setup Digital Output Selections Setup PCM Bitstream (Re-encode) Bitstream (Audiophile) Definition Pro You can enjoy not only Primary audio but also Secondary and Effect audio Decodes Primary, Secondary together. and Effect audio streams This unit can decode Dolby together into PCM audio. TrueHD and DTS-HD Master Audio, the output audio quality will be same with Bitstream (audiophile) setup. Decodes Primary, Secondary You can enjoy not only and Effect audio streams Primary audio, but also together into PCM audio, then Secondary and Effect audio re-encodes the PCM audio together. into DTS bitstream. Outputs only the Primary This unit can decode Dolby audio soundtrack (main TrueHD and DTS-HD Master soundtrack of the main Audio, the output audio feature) so that your receiver quality will be same with PCM can decode the audio setup. bitstream. Con Recommended use If you are using an optical Recommended choice if you cable, you may not hear have an HDMI receiver. multichannel surround audio. Audio quaility may be lower than PCM or Bitstream (Audiophile) setups when you are using a receiver with HDMI or Optical input. Recommended choice if you don’t have an HDMI supported receiver, but have a receiver with an Optical input that can decode DTS. You will not hear Secondary and Effect audio. Recommended choice if you have an HDMI 1.3 receiver which has Dolby TrueHD and DTS-HD Master Audio decoding capability. English _3 01791B-BD-P3600-XAC-ENG.indb 39 2009-01-30 오전 10:44:11 audio setup

Be sure to select the correct Digital Output or you will hear no sound or a loud noise. If the HDMI device (Receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM. Secondary and Effect audio will not be heard with regular DVDs. Some Blu-ray Discs do not have Secondary and Effect audio. This Digital Output setup does not effect the analog (L/R) audio or HDMI audio output to your TV. It effects the optical and HDMI audio output when connected to a receiver. When the player outputs HD audio bitstream(Dolby TrueHD or DTS-HD Master Audio) from the Optical jack to an HDMI 1.3 receiver, only 2 channel PCM audio will be heard. If you play MPEG audio soundtracks, audio signal outputs PCM regardless of Digital Output Selections(PCM or Bitstream). PCM Down Sampling

• On : Select this when the Amplifier connected to the player is not 96KHz compatible. 96KHz signals will be down converted to 48KHz
• Off : Select this when the Amplifier connected to the player is 96KHz compatible. Signals will be output without any changes.

Network Setup Parental Setup Even when PCM Down Sampling is set to Off,, some discs will only output downsampled audio through the optical digital outputs. HDMI

• If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS), the unit may output PCM 2ch downmixed audio even though you set Bitstream(either Re-encode or Audiophile) on your setup menu.
• If your TV is not compatible with PCM sampling rates over 48kHz, the unit may output 48kHz downsampled PCM audio even though you set "PCM Down Sampling" to Off. Dynamic Compression This is only active when a Dolby Digital signal is detected.
• On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.
• Off : You can enjoy the movie with the standard Dynamic Range. Music Photo No Disc Setup System Setup Digital Output : PCM Language Setup PCM Down Sampling : On Audio Setup Display Setup

Off HDMI Setup Network Setup Parental Setup 0_ audio setup 01791B-BD-P3600-XAC-ENG.indb 40 2009-01-30 오전 10:44:14 Speaker Setup If you have connected this player to an Amp/Receiver or Home theater via the 7.1 channel Analog outputs you need to set the Speaker Options for the best sound. To setup, follow steps 1 to 3 in "Setting up the Audio Options" on page 39. . Press the ▲▼ buttons to select Speaker Setup, then press the EnTEr or ▶ button. System Setup Photo No Disc Setup Language Setup

Surround Back : Large Save s Select Cancel r Return Speaker

• Large : Delivers full bandwidth sound with bass below 100 Hz.
• Small : If LFE is on, bass below 100 Hz will be outputted through a Subwoofer instead of the speakers. If LFE is off and the Front Speaker is set to Large, sound will be outputted through the Front Speaker.
• none : Select to disable the speakers. Subwoofer Speaker
• On : Select to use the subwoofer speaker.
• Off : Select to disable the subwoofer speaker. (This option can only be selected when the Front (L+R) speakers are set to Large.) Press the rED(a) button
• A test tone will be sent to L ; C ; r ; rS ; rSB ; LSB ; LS ; LFE in order so you can make sure the speakers are set up correctly.
• To end the test tone, press the rED (a) button again.
• The test tone can only be activated when no discs are in the unit.
• The test tone outputs through the 7.1 channel analog outputs only.

Press the RETURN to return to the previous menu. English _1 01791B-BD-P3600-XAC-ENG.indb 41 2009-01-30 오전 10:44:17 display setup SETTIng UP THE DISPLaY OPTIOnS This function allows you to setup the TV screen settings. This function depends on the disc or TV type. It may not work with some discs or TVs.

3. Press the ▲▼ buttons to select Display Setup, then

. Each video option is described in detail below.

: Auto Still Mode : Auto Screen Message : On Front Display : Bright Press the RETURN or _ button to return to the previous menu. Press the MENU button to exit the menu. TV aspect Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen Blu-ray Disc/DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. Music Photo No Disc Setup

• 4:3 Pan-Scan : Select when you want to see the 16:9 video supplied by the Blu-ray Disc/DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).
• 16:9 Wide : You can view the full 16:9 picture on your widescreen TV. System Setup Language Setup Audio Setup Display Setup HDMI Setup

Depending on the disc type, some aspect ratios may not be available. If you select an aspect ratio which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted. _ display setup 01791B-BD-P3600-XAC-ENG.indb 42 2009-01-30 오전 10:44:22 Movie Frame (24 Fs) Movies are usually filmed at 24 frames per second. Some Blu-ray Discs have the capability of playing back at this frame rate. Setting the Movie Frame (24Fs) feature to ON allows you to adjust the Blu-ray Disc Player's HDMI output to 24 frames per second for improved picture quality. System Setup Music Language Setup Photo No Disc Audio Setup Setup TV Aspect : 16:9 Normal Movie Frame (24 Fs) : PCMOn HDMI Setup Resolution ✓ Off : 1080p Network Setup Progressive Mode Parental Setup Still Mode : Auto Screen Message : On Front Display : Bright Display Setup You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate.

: Auto Depending on the disc, two types of frame rates may be included: Movie material (24 frame) and Video material (30 frame). When the setting switches between Movie (24 frame) and Video (30 frame), the screen may blink for a few seconds. resolution Sets the output resolution of the Component and HDMI video signal.

• The number in 480i, 480p, 720p, 1080p and 1080i indicates the number of lines of video. The i and p indicate interlace and progressive scan, respectively. - BD Wise : Automatically sets the optimal resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.) - 1080p : Outputs 1080 lines of progressive video (HDMI only). - 1080i : Outputs 1080 lines of interlaced video. - 720p : Outputs 720 lines of progressive video. - 480p : Outputs 480 lines of progressive video. - 480i : Outputs 480 lines of interlaced video (Component only). No Disc If the connected TV does not support Movie Frame or the selected resolution, you will see the following message: If you select Yes and the resolution is not supported, the TV's screen will be blank. Please wait for 15 seconds and the resolution will be reverted to the previous value automatically.

System Setup Music Photo No Disc ● DISPLaY SETUP This menu can only be selected in 1080i or 1080p HDMI output resolution modes. Setup

Language Setup TV Aspect : 16:9 Normal Audio Setup Movie Frame (24 Fs) : Off If no pictures after the selection, Resolution Display Setup are shown please wait for 15 seconds. And then, Progressive Mode HDMI Setup will be reverted the resolution Still Mode to the previous Network Setup value automatically. Message Parental Setup Would you like to make aScreen selection? Front Display Yes

: Auto : Auto : On : Bright If the screen is blank, press and hold the SKIP (])) button on the front of the player for more than 5 seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support. When the factory default settings are restored, all the user data stored in the BD data will be deleted. English _3 01791B-BD-P3600-XAC-ENG.indb 43 2009-01-30 오전 10:44:26 display setup ❖ resolution according to the output mode

In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 480i. This player has the HDMI Auto Detect Feature. When the player is first connected to a TV via HDMI, the player's output will be set automatically to HDMI. If the HDMI Auto Detection feature does not work, you can't select the 1080p resolution or Movie Frame (24Fs). The Blu-ray Disc must have the 24 frame feature in order to use the Movie Frame (24Fs) mode. Progressive Mode The Progressive Mode helps to improve picture quality when viewing 480i resolution DVD discs.

• auto : Select this to have the player automatically set the System Setup TV Aspect : 16:9 Normal Music Language Setup best picture for the DVD you're watching. Movie Frame (24 Fs) : Off Photo Audio Setup Resolution : 1080p
• Video : Select this for the best picture from Concert or TV Display Setup Setup Progressive Mode : PCM ✓ Auto show DVDs. HDMI Setup Still Mode : AutoVideo

Parental Setup ● DISPLaY SETUP Set the Auto, Field or Frame setting for the best possible still picture (pause mode) from a DVD.

• auto: Select this setting to have the player automatically display the best Still picture depending on the content.
• Field Mode: Select this when pausing a scene with a lot of action.
• Frame Mode: Select this to increase the resolution of the Still picture. Screen Message
• On : Displays messages related to operation mode.

• auto : Display is dim during playback and bright when the unit is in Stop mode.

Network Setup Parental Setup . Press the ▲▼ buttons to select the desired display option, then press the EnTEr or + button. anynet+ (HDMI-CEC) (Samsung products only) When HDMI is set to on, you can operate the Anynet+ function.

• On : Anynet+ functions will work.
• Off : Anynet+ function will not work. Music Photo No Disc Setup What is anynet+? Anynet+ is a convenient function that offers linked operations with other Samsung products with the Anynet+ feature. Language Setup Audio Setup Display Setup Anynet+ (HDMI-CEC) : 16:9 Normal ✓ On Network Setup HDMI Format : Off Off Parental Setup BD Wise : On Picture Mode : Normal HDMI Setup

You can operate this unit using a Samsung TV remote control or power on your Samsung TV and Home theater and start disc playback simply by pressing the PLaY button on the TV’s remote.

This function is not available if the HDMI cable does not support CEC. To use anynet+

1. Connect the Blu-ray Disc Player to a Samsung TV with an HDMI cable. (See pages 22~24)

2. Set the Anynet+ (HDMI-CEC) to “On” on your Blu-ray Disc Player.

3. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

• One touch play You can power on your Samsung TV and Home Theater, and play the disc in this unit simply by pressing the PLaY button on the TV’s remote.
• One touch watching Select “Watching Blu-ray Disc Player” or “Connected to Blu-ray Disc Player” (depending on your TV's menu) in the Anynet+ menu on the TV. The Blu-ray Disc Player will automatically turn on and the TV will be switched to HDMI mode.
• Remote control Link You can operate this player with your Samsung TV remote control.
• Available buttons on the Samsung TV remote: These buttons work the same as this Blu-ray Disc player's remote control. - Playback control buttons : - Menu operation button : - Numeric buttons : - Color buttons : _ HDMI setup 01791B-BD-P3600-XAC-ENG.indb 46 2009-01-30 오전 10:44:34

● HDMI SETUP TV anynet+ Menu When you press the Anynet+ button on your Samsung TV's remote control, the following On-Screen Display (OSD) will BD Player be shown. View TV Select Device

• Blu-ray Disc Player Menu Record Menu on Device - When playing a movie : brings up the disc’s menu (same Device Operation as DISC MEnU button on the Blu-ray Disc Player’s Receiver : Off remote control) Setup >Move sEnter - In Stop mode : brings up the SETUP menu (same as the eExit MEnU button on the Blu-ray Disc Player’s remote control.)
• Blu-ray Disc Player Operation Menu - When playing a DVD VIDEO, DVD-RW/-R, BD-ROM, BD-RE : shows INFO OSD (same as InFO button on the player's remote control) These menus may look different depending on your Samsung TV. HDMI Format You can optimize the HDMI output for connection to a TV or Monitor.
• TV : Select if connected to a TV via HDMI. Music
• Monitor : Select if connected to a Monitor via HDMI. Photo If the player is connected to a TV, the Monitor option is Setup unavailable. No Disc

TV or monitor has to be connected to the player before you select this option. English _ 01791B-BD-P3600-XAC-ENG.indb 47 2009-01-30 오전 10:44:36 HDMI setup BD Wise (Samsung products only) BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

• On : The original resolution of the BD/DVD disc will be Language Setup Music output to the TV directly. Anynet+ (HDMI-CEC) : On Audio Setup Photo HDMI Format : TV Display Setup
• Off : The output resolution will be fixed according to the Setup BD Wise : PCM HDMI Setup ✓ On Resolution previously set, regardless of the resolution of Off Picture Mode : Dynamic Network Setup Parental Setup the disc. No Disc

If you want to change the resolution in BD Wise, you must set BD Wise to Off in advance. If you set off the BD Wise, the resolution of the connected TV will be adjusted to its maximum resolution automatically. If the player is connected to a device that does not support BD Wise, you can not use BD wise function. For a proper operation of BD Wise, set each BD Wise menu of the player and the TV to On respectively. Picture Mode This function enables you to adjust video quality when you are connected to a TV via HDMI.

• Dynamic : Choose this setting to increase Sharpness. Anynet+ (HDMI-CEC) Language Setup Music HDMI Format Audio Setup
• normal : Choose this setting for most viewing Photo BD Wise Display Setup applications. Setup Picture Mode HDMI Setup
• Movie : This is the best setting for watching movies. Network Setup No Disc

Parental Setup : On : TV : On : Normal Dynamic ✓ Normal Movie _ HDMI setup 01791B-BD-P3600-XAC-ENG.indb 48 2009-01-30 오전 10:44:38 parental setup SETTIng UP THE ParEnTaL LOCK The Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a disc.

3. Press the ▲▼ buttons to select Parental Setup, then

Music Display Setup Photo Network Setup Parental Setup Parental Setup Setup HDMI Setup Enter New password. - Number . Enter the 4-digit password using the number buttons on the remote control. The “Confirm the password.” message will be displayed. Enter your password again. ● ParEnTaL SETUP

. Press and hold the SKIP (]) button on the front panel for 5 seconds or more.

• All settings will revert to the factory settings.

When the factory default settings are restored, all the user data stored in the BD data will be deleted. Setting the rating Level

1. Press the ▲▼ buttons to select rating Level, then

press the EnTEr or + button. . Press the ▲▼ buttons to select the rating level you want, then press the EnTEr button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only. Level 1 is the most restrictive and Level 8 is the least. Music Photo No Disc Setup Display Setup HDMI Setup Network Setup Parental Setup

✓ 1(Kids) Changing the Password

1. Press the ▲▼ buttons to select new Password, then

press the EnTEr or + button. Music Photo No Disc . Enter the 4-digit password using the number buttons on the remote control. The “Enter New password.” message will be displayed. Setup Music Photo No Disc Setup Display Setup HDMI Setup Network Setup Parental Setup

3. Enter your password again using the number buttons on

the remote control. Music Photo No Disc Setup r Return Display Setup HDMI Setup Parental Lock Network Setup Rating Level Parental Setup Parental Setup New Password : Off : 1(Kids)

Confirm the password. - Number r Return 0_ parental setup 01791B-BD-P3600-XAC-ENG.indb 50 2009-01-30 오전 10:44:47 network setup SETTIng UP THE nETWOrK SETUP OPTIOnS To obtain information on the proper settings, check the network settings on your computer or contact your Internet provider. To set the network of your Blu-ray Disc player, follow the steps below. . Press the ▲▼ buttons to select Setup, then press the EnTEr or + button. Music Photo No Disc Setup ● nETWOrK SETUP

1. With the unit in Stop mode/No Disc mode, press the

3. Press the ▲▼ buttons to select network Setup, then

press the EnTEr or + button. . Press the ▲▼ buttons to select the desired network option from the options described below, then press the EnTEr or + button. . Press the ▲▼ buttons to select the desired item, then press the EnTEr button. Each network option is described in detail below. network Selection Select Cable or Wireless as the method to connect to network. To setup, follow steps 1~3 on page 51. Music Photo No Disc Setup . Press the ▲▼ buttons to select network Selection, then press the EnTEr or + button.

• Cable : Select this to connect to the network using a cable. (see page 28)
• Wireless : Select this to connect to the network wirelessly. (see page 29) Audio Setup Display Setup HDMI Setup Network Setup

NTP Server If DHCP is set to On, you can't select IP Address, Subnet : Off Network Connection Test Mask or Gateway. BD-LIVE Internet Connection : Allow (Valid Only) If DNS is set to Auto, you can’t select Primary/ Secondary DNS. Music Photo No Disc Setup Audio Setup Display SetupCable Network HDMI Setup DHCP Network Selection : On IP Address Network Setup : ◄ 0 Cable . 0 .Network

• If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and Primary DNS settings (Secondary DNS is optional). Music Photo No Disc Setup Audio Setup Cable Network Display Setup Network Selection DHCPSetup : Off HDMI IP Address : 0 Cable . 0 .Network Network Setup : 255Wireless Subnet Mask

Network Gateway : 0 Proxy DNS Setup : Manual Parental NTP Server Primary DNS : 0 . 0 . 0 . 0 Network Test Secondary DNS : 0 . 0 . 0Connection BD-LIVE Save CancelInternet BD-LIVE Internet s Select Connection r Return

• If DHCP is set to On and, DNS to Manual, enter your Primary DNS setting (Secondary DNS is optional). Music Photo No Disc Setup Music Photo No Disc Setup : (Valid Only)

• If DHCP is set to On and, DNS to Auto, you don’t need further or additional settings.

The IP address used in this manual is for illustrative purposes only. You must refer to your network settings for the actual IP address. To obtain settings for IP address, Subnet mask, Gateway and Primary DNS, check the network settings in your computer or contact your internet service provider. Wireless network To setup, follow steps 1~3 on page 51. . Press the $% buttons to select Wireless network, then press the EnTEr or + button. Music Photo No Disc Setup Audio Setup Display Setup Network Selection HDMI Setup Network Setup Parental Setup : Wireless Cable Network

Audio Setup Music Wireless Network Display Setup Photo If DHCP is set to On, you can't select IP Address, Subnet No Disc Network Selection : Not Selected HDMI Setup Access Point Setup Mask or Gateway. DHCP Setup Network : ◄ OnCable Network IP Address Parental Setup Subnet Mask

Save s Select r Return No Disc - Select your appropriate Security Access Point if it is known. If it is not, select WEP, WPAPSK or WPA2PSK from the list below and enter in the password. Keep trying each Security Access Point and enter the Password until a connection is made.

• Select an Access Point, and then press the EnTEr Audio Setup Music button to display available list of APs. Wireless Network Display Setup Photo Network Selection HDMI Setup (It may take several seconds to search.) Access Point : Not Selected Setup DHCP Setup : OnCable Network Network - When you select an AP and press the EnTEr IP Address : 0 Wireless . 0 . 0Network Parental Setup Subnet Mask : 255Proxy button, it tries to connect to the designated AP. Gateway : 0 . 0 . 0 . 0 NTP Server : Off DNS : Auto - If successful, a notification appears. Network Connection Test DNS Server : 0 . 0 . 0 . 0 BD-LIVE Internet (Valid Only) Save Cancel (If selected AP shows a Lock icon, you may need to Connection s Select r Return provide security authentication.)

I Wireless J K LNetwork M N O P Y Z a b c d e f Proxy o p q r s t u v 5 NTP 6 7Server 8 9 0 − _: Off % Network ^ & (Connection ) / ?Test| c Clear d Connect BD-LIVE Internet (Valid Only) Connection s Select r Return For further details on AP security, refer to the AP’s (Router) user manual.

• If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and DNS Server. Music Photo No Disc Setup

• If DHCP is set to On and, DNS to Auto, you don’t need further or additional settings. Music Photo No Disc Setup : (Valid Only) Audio Setup Wireless Network Display Setup Network Selection Access Point : Not Selected HDMI Setup DHCP : On Cable Network Network Setup : 0 Wireless IP Address . 0 . 0Network

The IP address used in this manual is for illustrative purposes only. You must refer to the your network settings for the actual IP address. To obtain settings for IP address, Subnet mask, Gateway and DNS Server, check the network settings in your computer or contact your internet service provider. Proxy Setting A proxy server services requests by forwarding them to other servers. If you are required to configure the proxy setting, enter the settings specified by the ISP. To setup, follow steps 1~3 on page 51. . Press the $% buttons to select Proxy, then press the EnTEr or + button.

User Password Save s Select

(Valid Only) Cancel r Return For more information, contact your ISP (Internet Service Provider). _ network setup 01791B-BD-P3600-XAC-ENG.indb 54 2009-01-30 오전 10:45:07 nTP Server (Used to retrieve Time Information from nTP Server) To setup, follow steps 1~3 on page 51. . Press the ▲▼ buttons to select nTP Server, then press the EnTEr or + button.

• On : The player automatically connects to the Internet server in order to adjust the time setting.
• Off : The player does not connect to the Internet server to adjust the time setting. Music Photo No Disc Setup Cable Network Audio Setup Wireless Network Display Setup Proxy HDMI Setup Network Setup

✓ Off : Allow (Valid Only) ● nETWOrK SETUP network Connection Test Use this menu to check whether your network connection is working or not. To setup, follow steps 1~3 on page 51. . Press the ▲▼ buttons to select network Connection Test, then press the EnTEr or + button. Music Photo No Disc Setup Wireless Network Audio Setup Proxy Display Setup Network Connection Test NTP Server HDMI Setup ✔ MAC Address (00:10:18:00:00:70) Network Connection Test Network Setup ✔ IP Address.Subnet Mask.Gateway.DNS Server BD-LIVE Internet ParentalPing Setup : Allow (Valid Only ✔ Gateway Connection Connection ✔ Internet Service Test

Your network is operating properly r Return BD-LIVE Internet Connection The Blu-ray Disc player supports BD-LIVE which enables you to enjoy a variety of interactive service contents provided by the disc manufacturer through a network connection. To enjoy this feature, you must first perform the LAN connection (see page 31) or Wireless LAN adapter connection to the USB slot. The Internet connection may be restricted while you are using BD-LIVE contents. To setup, follow steps 1~3 on page 51... Press the ▲▼ buttons to select BD-LIVE Internet Connection, then press the EnTEr or + button.

• allow (all) : The Internet connection will be allowed for all BD-LIVE contents.
• allow (Valid Only) : The Internet connection will be allowed only for BD-LIVE contents containing a valid certificate.
• Prohibit : No Internet connection will be allowed for any BD-LIVE content.

✓ Allow(Valid Only) Prohibit What is a valid certificate? When the Blu-ray Disc player uses BD-LIVE to send the disc data and request to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends the certificate back to the player. The Internet connection may be restricted while you are using BD-LIVE contents. English _ 01791B-BD-P3600-XAC-ENG.indb 55 2009-01-30 오전 10:45:11 pc streaming function COnnECTIng TO a PC anD PLaYIng MP3, JPEg Or DIVX COnTEnT You can connect the Blu-ray Disc player to a PC and play mp3, jpeg or DivX file content in a shared folder. (Refer to pages 31~32 for the connection)

1. Use a router and LAN cable or wireless LAN adapter to connect between the PC and Blu-ray Disc

player. . Create a shared folder in the PC and store desired mp3, jpeg or DivX files there.

3. Press the MEnU button.

. Press the _ button to move to "No disc" and press the rED(a) button. You will see a window where you can select a network search type. No Disc _ Video DISC Music Photo Setup a Network Search . Use the _ + button to select a network search type. A list of shared servers will appear.

• auto : Automatically searches for an available PC.
• Manual : You must enter the IP address, folder name, windows user name and password before you can find a desired PC. No Disc _ Network Search Type Video DISC Please select natwork search type Music Photo Auto Manual Setup s Select r Return a Network Search . To search a shared folder There are 2 methods to access shared folders on a PC. (If you search a folder in Auto mode. it must contain less than 12 characters. You must select manual to search for folders with 12 or more characters.)

1. Press the ▲▼ button to select a desired PC and press

the EnTEr button. (When first connected, you must enter the window user name and password to display the shared folder.) Music Photo No Disc _ Setup DISC

2. Enter the PC’s user name in the window.

3. Enter the PC’s password in the window.

The shared folder will be displayed. no Disc Password DISC No Disc +

4. Press the ▲▼ button to select a desired folder.

1. Enter in the IP address of the PC that has the shared

Please input IP address

2. Type in the name of the shared folder in the window

Please input shared folder name

The PC name should be in English excluding characters such as symbols. You can search up to 4 PCs connected to the network to play content over. According to PC environment of user, connection problem of network may occour. _ pc streaming function 01791B-BD-P3600-XAC-ENG.indb 58 2009-01-30 오전 10:45:23 BD data management BD Data (stored in internal flash memory: Approx. 1G Byte) is Blu-ray Disc content such as trailers and other special features downloaded from the BD-LIVE service or Blu-ray Discs. You can manage user data stored in BD data. . Press the ▲▼ buttons to select Setup, then press the EnTEr or + button. Clock Set Music

3. Press the ▲▼ buttons to select System Setup, then

2. The message "All BD data will be deleted. Do you want

• Total Size : Total size of the Device(Storage).

Memory size information on the current device(storage) is located to the right of the BD Data Management menu. In the external memory mode, disc playback will be stopped if you disconnect the USB device in the middle of the playback. Only those USB devices formatted in FAT file system (DOS 8.3 volume label) are supported, and it is recommended to use USB devices that support USB 2.0 protocol, 4 MB/sec or faster read/write speed. The Resume Play function may not work after formatting the storage device. DIVX(r) rEgISTraTIOn Please use the Registration code to register this Blu-ray Disc Player with the DivX(R) Video On Demand format. For more information, visit www.divx.com/vod English _ 01791B-BD-P3600-XAC-ENG.indb 59 2009-01-30 오전 10:45:27 system upgrade Samsung may offer upgrades to your Blu-ray Disc Player's firmware in the future. To upgrade this firmware you must :

1. Go to samsung.com and refer to the ‘SUPPORT’ page to download the latest firmware.

You can use a CD-R or a USB flash drive to perform the firmware upgrade. (Firmware upgrade using a USB storage is available only when no disc is in the unit.) For more information, see “Upgrade Manual” at the website mentioned above.

2. Connect the network (see pages 51~55) and follow the steps below.

Language Setup Audio SetupNow, Checking. Display SetupPlease wait... HDMI Setup Network Setup Parental Setup @ If the upgrade is possible : You will see information on the current and new versions of firmware in a message box. Setup : On BD Data Management System Update DivX(R) Registration Photo No Disc @ If the upgrade is not possible : You will see the following description in the message box.

• If the cable is not connected : “Ethernet cable is not connected. Please, check the Ethernet cable”
• If the network connection has failed : “This system can not connect to internet for update. Please, check the network setup”
• If no latest version is released (the latest version has been already installed) : "The latest version of the firmware is already installed. There is no need to update." Touch Key Sound Music

• If there is a disc in the player : "Please maintain "No Disc" state for network update." This indicates that you must remove all discs from the unit to perform the update.
• If the server service is not available : “ Update Server is under maintenance. Please try again later.” . To perform the system upgrade, press the _ + buttons to select Start and then press the EnTEr button. Touch Key Sound Music Photo No Disc Setup

Language Setup Downloading update data... Audio Setup Please, do not turn off the power. Display Setup 60% HDMI Setup Network Setup Parental Setup . If you select Cancel during the download process, you are prompted to confirm your selection in a message box. If you want to cancel the download, select Yes and press the EnTEr button. Cancel Touch Key Sound Music Photo No Disc Setup ● SYSTEM UPgraDE Language Setup TheSetup new update data was found. Audio Current Version : XXXXX Display Setup New Version : XXXXX HDMI Setup : On BD Data Management System Update DivX(R) Registration 1 2 + 3 System 4 Update _ System Setup

Language Setup Do you want to cancel the update Audio Setup operation? Display Setup HDMI Setup Network Setup Yes Parental Setup . Verification will proceed. When download is done, the firmware update process will begin automatically. Touch Key Sound Music Photo No Disc Setup

10. When the installation is done, the player will automatically turn

off in 5 seconds. All settings will revert to the factory settings the next time you start the system and you will see the menu language selection window. Touch Key Sound Music Photo No Disc Setup

Language Firmware Setup Update. Now, Processing... Audio Setup Please, do not turn off the power. Display Setup The power will be off automatically HDMI Setup after update is finished. Network Setup Parental Setup

If you want to cancel the upgrade in the process of downloading the upgrade data, press the ENTER button. You will see a confirmation message. Selecting Yes will end the upgrade process, and selecting No will continue the upgrade process. When the system upgrade is done, check the firmware details in the System Upgrade menu. Do not turn off the player during the System Upgrade, as it may cause the player to not work properly. You must use a USB Flash Drive to do software upgrades using the USB Host jack. Other USB devices(ex. MP3 player) are not guaranteed to work. There should be only one firmware upgrade file in USB flash drive for the player to properly perform an upgrade. Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected. English _1 01791B-BD-P3600-XAC-ENG.indb 61 2009-01-30 오전 10:45:39 system upgrade SYSTEM InFOrMaTIOn When the firmware upgrade is done, check the firmware details by following the steps below.

1. With the unit in Stop mode/No Disc mode, press the

MEnU button. . Press the ▲▼ buttons to select Setup, then press the EnTEr or + button. Music Photo No Disc Setup

3. Press the ▲▼ buttons to select System Setup, then

BD Data Management DivX(R) Registration FIrMWarE UPgraDE nOTIFICaTIOn The popup menu appears when a newer version of the firmware is available from SAMSUNG update server than that of the Blu-ray Disc Player, if the Blu-ray Disc Player is connected to network and powered on.

• Yes : Select this to upgrade now.
• no : Select this if you plan to upgrade later. System Update New Firmware is available. Do you want to update now? Yes

3. Press the _ + buttons to make the desired setup

change and then press the EnTEr button.

• You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from a desired time. { Change . To make the screen disappear, press the InFO button again. ● WaTCHIng a MOVIE

1. During playback, press the InFO button on the remote

• If the Blu-ray Disc has the BONUSVIEW feature, press the InFO button in the BONUSVIEW section to display BONUSVIEW-related information. s Select <INFO menu for the BONUSVIEW section>

s Select If you are playing contents from the info menu, some functions may not be enabled depending on the disc. Title : To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a Blu-ray Disc/DVD, each movie will be identified as a Title. Chapter: Most Blu-ray Disc/DVD discs are recorded in chapters so that you can quickly find a specific chapter. Audio : Refers to the film's soundtrack language. A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8. Playing Time : Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs. Subtitle : Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A Blu-ray Disc can contain up to 255 subtitle languages, and a DVD up to 32. Angle : When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function. BONUSVIEW Video/ BONUSVIEW Audio : You can make BONUSVIEW Video or BONUSVIEW Audio settings if the current title of a Blu-ray Disc appears in the BONUSVIEW section. The BONUSVIEW Video / BONUSVIEW Audio options, however, will be disabled with a Blu-ray Disc that does not support the BONUSVIEW feature. English _3 01791B-BD-P3600-XAC-ENG.indb 63 2009-01-30 오전 10:45:49 watching a movie USIng THE DISC MEnU & POPUP/TITLE MEnU

1. During playback, press the DISC MEnU button on the

remote control. PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS . Press the ▲▼_ + buttons to make the desired selection, then press the + or EnTEr button.

• The Disc menu setup items may vary from disc to disc.

1. During playback, press the TITLE MEnU button on the remote control.

. Press the ▲▼_ + buttons to make the desired selection, then press the EnTEr button.

• The Title menu setup options may vary from disc to disc.

Depending on the disc, the Title Menu may not be available. Title Menu will only be displayed if there are at least two titles on the disc.

Playing the Title List

1. With the unit in Stop mode/Playback mode, press the

DISC MEnU or TITLE MEnU button. . Press the ▲▼ buttons to select an entry you want to play from Title List, then press the + or EnTEr button. The selected entry (title) will be played back.

Using the Popup Menu

1. During playback, press the POPUP MEnU button on

the remote control. MAIN MENU

• The Popup menu setup options may vary from disc to disc. SCENE SELECTIONS

SUBTITLES hgfZCV repeat playback

1. During playback, press the rEPEaT button on the

remote control. Repeat screen appears. Repeat Off . Press the ▲▼ buttons to select Chapter or Title.

• Blu-ray Disc/DVD repeats play by chapter or title.

3. To return to normal play, press the rEPEaT button

again, then press the ▲▼ buttons to select Off.

during playback. . Press the rEPEaT a-B button at the point where you want repeat play to start (A).

3. Press the rEPEaT a-B button at the point where you

want repeat play to stop (B). . To return to normal play, press the CanCEL button. REPEAT A

Off e Exit Point B cannot be set until 5 seconds of playback has elapsed from point A. Depending on the disc, the REPEAT A-B menu may not be available. English _ 01791B-BD-P3600-XAC-ENG.indb 65 2009-01-30 오전 10:45:59 watching a movie SELECTIng THE aUDIO LangUagE hgfZD You can select a desired audio language quickly and easily with the aUDIO button. Using the aUDIO button

1. Press the aUDIO button during playback. The Audio

changes when the button is pressed repeatedly.

• The audio languages are represented by abbreviations. Audio 1/4 ENG Dolby Digital Multi CH . To remove the audio bar, press the CanCEL or rETUrn button. Using the InFO button

1. During playback, press the InFO button on the remote

2. Press the ▲▼ buttons to select audio.

3. Press the _ + buttons on the remote control to select the desired audio language.

This function depends on what audio languages are encoded on the disc and may not be available. A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8. Depending on the disc type, you can use the AUDIO button to change the audio soundtrack as well as the audio language. Some Blu-ray Discs may allow you to select either the multi-channel LPCM or Dolby digital audio soundtrack in English. Information about the primary / secondary mode will be also displayed if the Blu-ray Disc has a BONUSVIEW section. Use the _ + button to switch between primary and secondary audio modes. The _ + indicator will not be displayed on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings. SELECTIng THE SUBTITLE LangUagE You can select a desired subtitle quickly and easily with the SUBTITLE button. hZD Using the SUBTITLE button

1. Press the SUBTITLE button. The subtitle changes when

the button is pressed repeatedly. The subtitle languages are represented by abbreviations. Subtitle 0/2 Off . To remove the Subtitle bar, press the CanCEL or rETUrn button. _ watching a movie 01791B-BD-P3600-XAC-ENG.indb 66 2009-01-30 오전 10:46:05 Using the InFO button

1. During playback, press the InFO button on the remote control.

2. Press the ▲▼ buttons to select Subtitle.

3. Press the _ + buttons on the remote control to select the desired subtitle language.

Depending on the Blu-ray Disc / DVD, you may be able to change the desired subtitle in the Disc Menu. Press the DISC MENU button. This function depends on what subtitles are encoded on the disc and may not be available on all Blu-ray section. This function changes both the primary and secondary subtitles at the same time. The total number of subtitles is the sum of the primary and secondary ones. CHangIng THE CaMEra angLE ● WaTCHIng a MOVIE Discs/DVDs. A Blu-ray Disc can contain up to 255 subtitle languages and a DVD up to 32. Information about the primary / secondary mode will be also displayed if the Blu-ray Disc has a BONUSVIEW When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

buttons on the remote control to select the desired angle.

1. During playback, press the InFO button on the remote

control. Move If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature. Depending on the disc, these functions may not work. English _ 01791B-BD-P3600-XAC-ENG.indb 67 2009-01-30 오전 10:46:07 watching a movie BOnUSVIEW SETTIngS The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing.

function, you can use the BOnUSVIEW button to turn BONUSVIEW On or Off. . Each time you press the BOnUSVIEW button, you can toggle between BONUSVIEW On and BONUSVIEW Off.

You can change detailed settings of the BONUSVIEW feature in the INFO menu (see page 53: selection of secondary audio, video stream and subtitle etc.). If you switch from BONUSVIEW Video, BONUSVIEW Audio will change automatically in accordance with BONUSVIEW Video. If the Blu-ray Disc supports only BONUSVIEW Audio, you can just press the BONUSVIEW button to turn the secondary audio on or off. BD-LIVE™ The Blu-ray Disc player supports BD-LIVE which enables you to enjoy a variety of interactive service contents provided by the disc manufacturer through network connection. Using the BD-LIVE Disc

1. Connect the network (see pages 31~32) and check the network setup (see pages 51~55).

. Insert a Blu-ray disc that supports BD-LIVE.

3. Select the contents provided by the disc manufacturer to enjoy the BD-LIVE.

The way you use BD-LIVE and the features may differ, depending on the disc. _ watching a movie 01791B-BD-P3600-XAC-ENG.indb 68 2009-01-30 오전 10:46:10 listening to music You can select the data source by pressing the _ button in the menu screen. (PC/CD/DVD/USB storage device)

) button : During playback, moves to the next page in the Music List or moves to the next track in the Playlist. BONUSVIEW PAUSE STOP

3. PLAY button : Plays the currently selected track.

4. ▲▼ buttons : Selects a track(song) in the Music List or Playlist.

• RED(A) button : Selects the Play Mode(Repeat) during playback.

_ : Plays the applicable track, according to the current position. + : Moves to the menu. ENTER

7. ENTER button : Plays the selected track (song).

) button : If you pressed this button after three seconds of playback, the current track will be replayed from the beginning. But, if you pressed this button within three seconds after playback starts, the previous track will be played. Used to move to the previous page in the Music List or Playlist. Repeat Audio CD(CD-DA)/MP3 During playback, press the REPEAT or RED(A) button repeatedly to select the repeat mode you want. ❖ Audio CD (CD-DA) Normal ➝

• Normal (Audio CD (CD-DA)/MP3) : Tracks on a disc are played in the order in which they were recorded on the disc. Repeat Track (Audio CD (CD-DA)/MP3) Repeat Folder (MP3) Random (Audio CD (CD-DA)/MP3) : The random option plays a disc’s track in random order. Repeat All (Audio CD (CD-DA)) : All tracks are repeated. - To return to normal playback Press the REPEAT or RED(A) button repeatedly to return to normal playback. English _69 01791B-BD-P3600-XAC-ENG.indb 69 2009-01-30 오전 10:46:10 listening to music

• For an Audio CD, the first track will be played automatically.

a Play Mode . To move to the Music List, press the STOP or rETUrn button. The Music List screen is displayed on your TV.

3. Press the ▲▼ buttons to select the track you want to

play, and then press the EnTEr button. Video

1/18 00:02:24 / 00:05:57 Current track (song) Displays the number or title track currently being played. Play Status Bar. a Play Mode Displays the repeat status. Displays the current play index, total track number. Current /Total Play Time. Displays available COLOR buttons. 0_ listening to music 01791B-BD-P3600-XAC-ENG.indb 70 2009-01-30 오전 10:46:16

Playlist You can create a playlist with up to 99 tracks. . To move to the Music List, press the grEEn(B) or rETUrn button. The Music List screen is displayed. Video Music

00:03:54 b Playlist Page Original Playlist Video Music

3. Press the grEEn(B) button to go to the Playlist.

• For an Audio CD, the first track will be played automatically.

. If there is an undesired track in the playlist, press the +▲▼ button to select that track, and then press the EnTEr button.

TRACK 006 TRACK 007 TRACK 008 TRACK 009 b Music List . Press the YELLOW(C) button to play the selected tracks. When the track is finished, the next track will automatically play. c Playlist Play

You can enjoy listening to MP3 files while you simultaneously view JPEG files.

1. When you play MP3 file, press the BLUE(D) button.

The slide show speed screen will be displayed. . Select the desired slide show speed.

To operate this function, you have to select the folder containing both music and photo files. When you play MP3 and JPEG files simultaneously, audio drop may occur according to bitrate of MP3, size of JPEG image and method of encoding. English _1 01791B-BD-P3600-XAC-ENG.indb 71 2009-01-30 오전 10:46:28 playing back a picture

1. Insert a JPEG disc into the disc tray.

(You can watch the jpeg files using a USB storage device) Video Music

3. Press the ▲▼ buttons to select the folder you want to

gun003.jpg 03/100 -. Press the ▲▼ buttons to select the picture you want to play, and then press the EnTEr button. You can operate rotation, zoom and slide show function.

• rED(a) button : Each time this button is pressed, the picture rotates 90 degree counterclockwise.
• grEEn(B) button : Each time this button is pressed, a 90° b 90° c Zoom d Speed Slide Show the picture rotates 90 degree clockwise.
• YELLOW(C) button : Each time the this button is pressed, the picture is enlarged up to 4X (Four times the normal size).
• PLaY button : The picture enters slide show mode.

_ playing back a picture 01791B-BD-P3600-XAC-ENG.indb 72 2009-01-30 오전 10:46:36 appendix troubleshooting Before requesting service, please check the following. PROBLEM

• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• R emove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again. Disc does not play. ● APPENDIX No operation can be performed with the remote control. SOLUTION

• Ensure that the disc is installed with the label side facing up.
• Check the region number of the Blu-ray Disc/ DVD. Disc Menu does not appear.

• Check if the disc has a Menu. The

• This icon appears when an invalid button is pressed. icon appears on the screen.

• The features or action cannot be completed at this time because :

1. The Blu-ray Disc/ DVD’s software restricts it.

2. The Blu-ray Disc/ DVD’s software doesn’t support the feature (e.g., angles)

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

Play mode differs from the Setup Menu selection.

• S ome of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function. The screen ratio cannot be changed.

• The Screen Ratio is fixed on your Blu-ray Disc/ DVDs.
• This is not a problem with the player. No audio.

• Make sure you have selected the correct Digital Output in the Audio Options Menu. The screen is blocked

• P ress the SKIP (]) button (in front panel) for more than 5 seconds with no disc inside. All settings will revert to the factory settings.
• W hen the factory default settings are restored, all the user data stored in the BD data will be deleted. If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.

• P ress the SKIP (]) button (in front panel) for more than 5 seconds with no disc inside. All settings will revert to the factory settings. Forgot password

• P ress the SKIP (]) button (in front panel) for more than 5 seconds with no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.

• W hen the factory default settings are restored, all the user data stored in the BD data will be deleted.

• W hen the factory default settings are restored, all the user data stored in the BD data will be deleted. English _73 01791B-BD-P3600-XAC-ENG.indb 73 2009-01-30 오전 10:46:36 appendix PROBLEM If you experience other problems. SOLUTION
• G o to the contents and find the section of the instruction manual that contains the explanations regarding the current problem, and follow the procedure once again.
• If the problem still cannot be solved, please contact your nearest Samsung authorized service center. The picture is noisy or distorted

• Make sure that the disc is not dirty or scratched.
• Clean the disc. No HDMI output.

• C heck the connection between the TV and the HDMI jack of the Blu-ray Disc Player.

• If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection). When the factory default settings are restored, all the user data stored in the BD data will be deleted. 74_ appendix 01791B-BD-P3600-XAC-ENG.indb 74 2009-01-30 오전 10:46:36 Specifications General AC 120V, 60Hz Power Consumption 30 W Weight

F/L, F/R, R/L, R/R, C/T, S/W, SBR, SBL Digital Audio Output Optical *Frequency Response DVD : 480p, 480i 48 kHz Sampling : 4 Hz to 22 kHz 96 kHz Sampling : 4 Hz to 44 kHz *S/N Ratio 110 dB *Dynamic Range 100 dB *Total Harmonic Distortion 0.003% *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. English _75 01791B-BD-P3600-XAC-ENG.indb 75 2009-01-30 오전 10:46:36 appendix Copy Protection

• Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BDROM Mark, BD+, or this product, please contact SAMSUNG customer care center.
• Many Blu-ray Disc/DVD discs are encoded with copy protection. Because of this, you should only connect your Blu-ray Disc Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected Blu-ray Disc/DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
• This device is protected by U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other materials may subject you to civil and/or criminal liability.
• For Blu-ray Disc Players progressive scan output : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS PRODUCT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. Compliance and Compatibility Notice NOT ALL discs are compatible
• Subject to the restrictions described below and those noted throughout this Manual, including the Disc Type and Characteristics section of this Manual, disc types that can be played are: pre-recorded commercial BD-ROM, DVD-Video, and Audio CD discs; BD-RE, BD-R, DVD-RW / DVD-R discs; and CD-RW/CD-R discs.
• Discs other than the above cannot and/or is not intended to be played by this player. And some of the above discs may not play due to one or more reasons provided below.
• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE, BD-R, DVD-Video, DVD-RW/DVD-R and CD-RW/CD-R logos, and this player may not respond to all operating commands or operate all features of every disc. These and other disc compatibility and player operation issues with new and existing format discs are possible because: - Blu-ray is a new and evolving format and this player may not operate all features of Blu-ray Discs because some features may be optional, additional features may have been added to the Blu-ray Disc format after the production of this player, and certain available features may be subject to delayed availability; - not all new and existing disc format versions are supported by this player; - new and existing disc formats may be revised, changed, updated, improved and/or supplemented; - some discs are produced in a manner that allows specific or limited operation and feature during playback; - some features may be optional, additional features may have been added after the production of this player or certain available features may be subject to delayed availability; - some discs bearing the BD-ROM, BD-RE, BD-R, DVD-Video, DVD-RW/ DVD-R and CD-RW/CD-R logos may still be non-standardized discs; - some discs may not be played depending on their physical state or recording conditions; - problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the manufacture of discs; - this player operates differently than a standard DVD player or other AV equipment; and/or - for reasons noted throughout this Manual and for other reason(s) discovered and posted by SAMSUNG customer care center.
• If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care center. You may also contact SAMSUNG customer care center for possible updates on this player.
• For additional information on playback restrictions and disc compatibility, refer to the Precautions, Before Reading the User’s Manual, Disc Types and Characteristics, and Before Playing sections of this Manual. 76_ appendix 01791B-BD-P3600-XAC-ENG.indb 76 2009-01-30 오전 10:46:37

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option. All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG) LABOR PARTS One year (Carry- in) One year On carry-in models, transportation to and from the service center is the customer’s responsibility. The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested. EXCLUSIONS (WHAT IS NOT COVERED) This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada. HEADQUARTERS Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada 1-800-SAMSUNG (1-800-7267864) www.samsung.com/ca 01791B-BD-P3600-XAC-ENG.indb 77 2009-01-30 오전 10:46:37 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region North America Latin America Country 1-800-SAMSUNG(726-7864) 01-800-SAMSUNG(726-7864) 1-800-SAMSUNG(726-7864) 0800-333-3733 0800-124-421, 4004-0000 800-SAMSUNG(726-7864) 00-1800-5077267 800-7919267 0-800-507-7267 1-800-10-7267 800-6225 1-800-299-0013 1-800-234-7267 800-7267 1-800-682-3180 1-800-751-2676 1-800-SAMSUNG(726-7864) 0-800-100-5303 01-8000112112 BELGIUM
