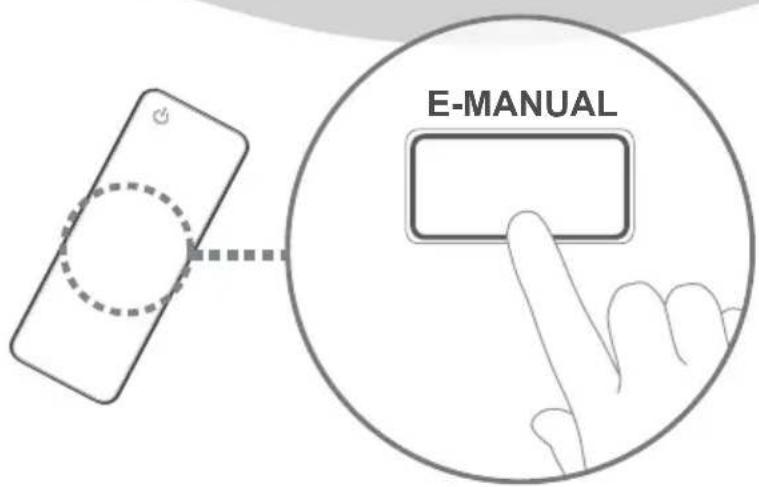

BD-H8500 BD-H8900 BD-HDD Combo user manual E-MANUAL Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register imagine the possibilities [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 1 2014-05-22 오전 11:20:242 English For more information on how to use e-Manual (P. 9) Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Available Recording Time for internal HDD You can record digital broadcast on the internal HDD as below. Depending on the actual broadcast, available recording time may be different with the table shown below. In On Screen Display, you can check available recording time as shown in "high" case in the table shown below. Broadcast Type Estimated Bitrate Recording Time BD-H8500 BD-H8900

Since the product's Timeshift and other implemented functions require a certain amount of HDD space allocated internally, the total size shown in the Storage Device Manager of Settings menu may differ from the HDD's capacity shown in the manual. Region Code Both products and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Number for this product is displayed on the rear panel of the product. Disc Type Region Code Area Blu-ray Disc

Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand. DVD-VIDEO

Europe, Japan, the Middle East, Egypt, Africa, Greenland

Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean Logos of Discs the product can play Blu-ray Disc 3D Blu-ray Disc BD-Live DivX PAL broadcast System in U.K., France, Germany, etc. Accessories Check for the supplied accessories below.

• Batteries for Remote Control(AAA Size)

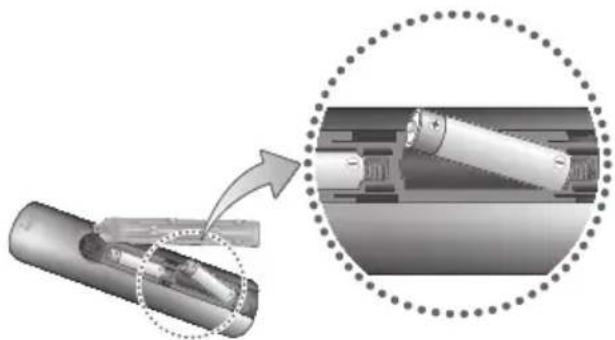

If the remote does not operate properly: - Check the polarity +/– of the batteries. - Check if the batteries are drained. - Check if the remote sensor is blocked by obstacles. - Check if there is any fluorescent lighting nearby. | CAUTION |

Dispose of batteries according to local environmental regulations. Do not put them in the household trash. Press this to operate a TV.Turn the product on and off.Press to use Tools menu.Return to the previous menu.Press numeric buttons to operate options or to access channels directly.Use to enter the disc menu.Press this to operate the product.Press to move to the home screen.Use to select menu items and change menu value.Turn the TV on and off. Press to exit the menu.Alternately selects Teletext, Double or Mix.Use to enter the popup menu/title menu.After setup, allows you to set the input source on your TV.Press this to display the playback information during playing a content in Disc/USB or display the information of TV channel.Press to search backwards or forwards.Press to skip backwards or forwards.Stops playback or recording.TV volume adjustment.Mutes the speakers of your TV.Displays channel lists on the screen.Press this to pause a playback or pause the Timeshift function.Press this to play or start the Timeshift function.Press this to select a TV channel.Displays the EPG (Electronic Programme Guide.)These buttons are used both for menus on the product and also several Blu-ray Disc functions.FUNCTIONTV SOURCEPOWERRECEIVERDIGITALSUBTITLEINPUT

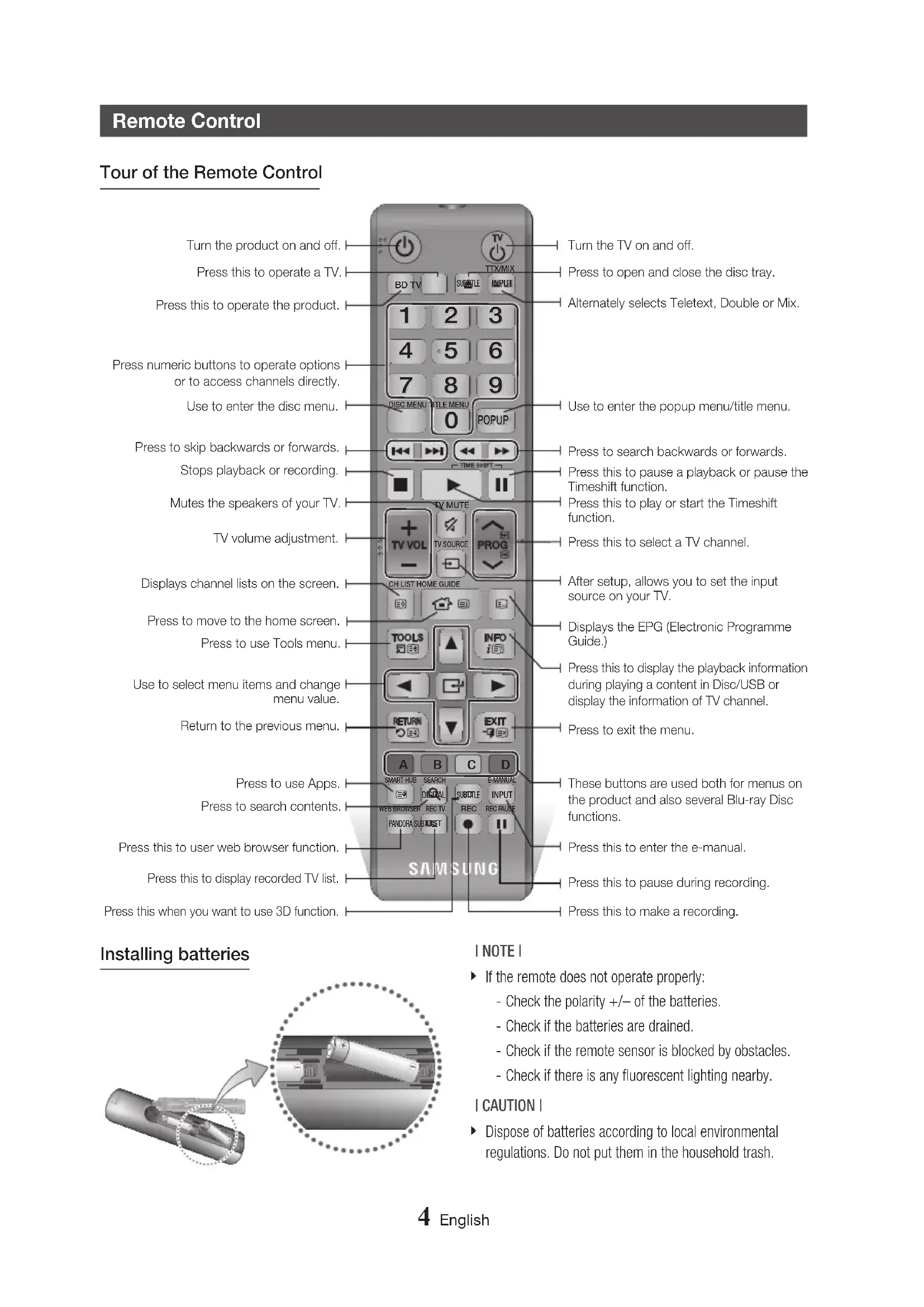

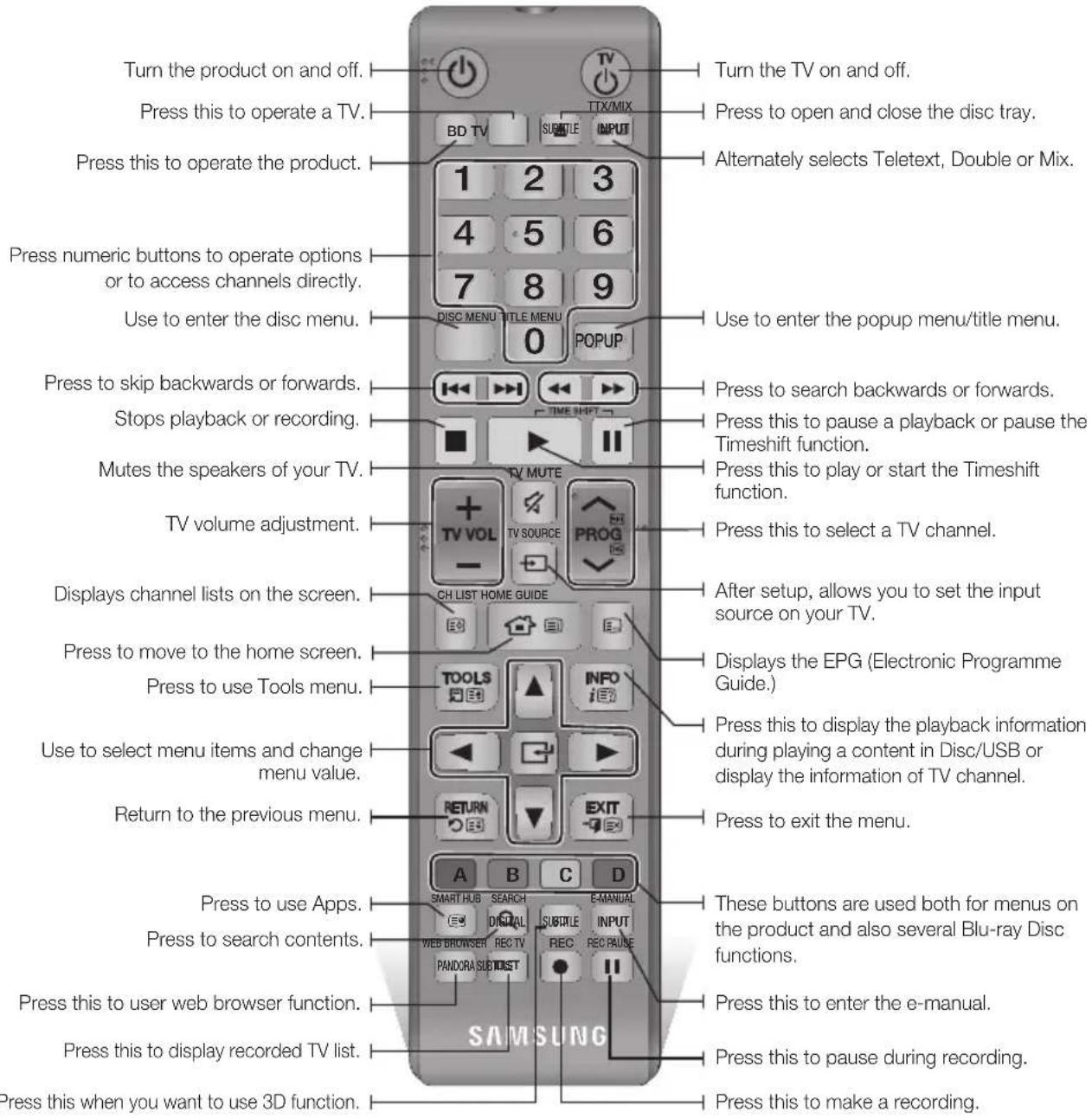

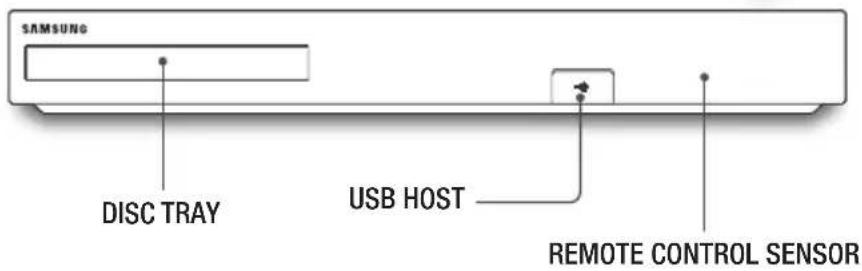

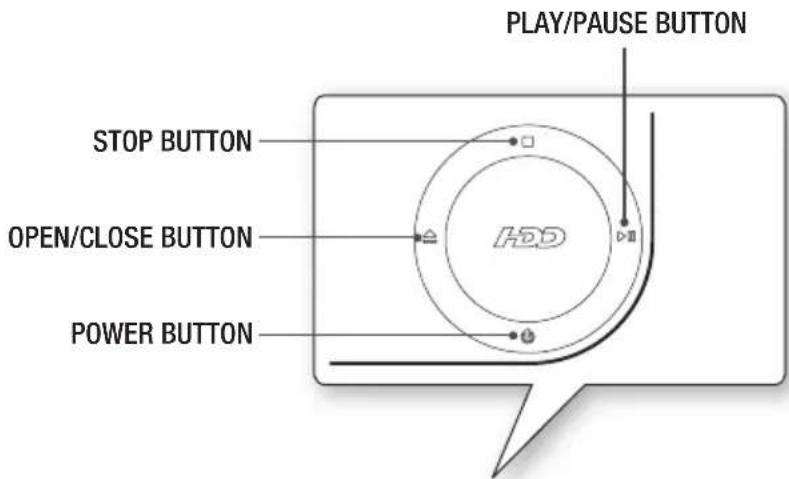

Press to open and close the disc tray.Press to use Apps.Press to search contents.Press this to user web browser function.Press this to display recorded TV list.Press this when you want to use 3D function.Press this to enter the e-manual.Press this to pause during recording.Press this to make a recording. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 4 2014-05-22 오전 11:20:255 English Setting the Remote Control to Operate Your TV

To determine whether your television is compatible, follow the instructions below.

1. Turn your television on.

2. Point the remote control towards the

4. Press and hold the TV POWER button, and

then enter the two-figure code in the table to the right that corresponds to the brand of your television by pressing the appropriate number buttons. If your television is compatible with the remote control, it will Turn off. The remote is now programmed to operate the TV. | NOTE |

If several codes are listed for your television brand, try each one in turn until you find one that works.

If you replace the remote control’s batteries, you must set the brand code again. You can control certain functions of your TV with this remote control. Button Function TV POWER Used to Turn the television on and off. Number Used to input number directly. TV VOL +/– Used to adjust the volume of the television. TV MUTE Used to toggle the sound on and off. PROG (

Used to select the desired channel. TV SOURCE Used to select an external source connected to the TV. | NOTE |

The functions listed above will not necessarily work on all televisions. If you encounter problems, use the TV remote control. TV Control Codes Brand Code

ANAM TV POWER+10, +11, +12, +13, +14, +15, +16, +17, +18BANG & OLUFSENTV POWER+57BLAUPUNKT TV POWER+71BRANDT TV POWER+73BRIONVEGA TV POWER+57CGE TV POWER+52CONTINENTAL EDISONTV POWER+75DAEWOOTV POWER+19, +20, +23, +24, +25, +26, +27, +28, +29, +30, +31, +32, +33, +34EMERSON TV POWER+64FERGUSON TV POWER+73FINLUXTV POWER+06, +49, +57FORMENTI TV POWER+57FUJITSU TV POWER+84GRADIENTE TV POWER+70GRUNDIGTV POWER+49, +52, +71HITACHITV POWER+60, +72, +73, +75IMPERIAL TV POWER+52JVC TV POWER+61, +79 TV POWER+06, +19, +20, +21, +22, +78LOEWE TV POWER+06, +69LOEWE OPTA TV POWER+06, +57MAGNAVOX TV POWER+40METZ TV POWER+57MITSUBISHITV POWER+06, +48, +62, +65MIVAR TV POWER+52, +77NEC TV POWER+83NEWSAN TV POWER+68 Brand Code NOBLEX TV POWER+66NOKIA TV POWER+74NORDMENDETV POWER+72, +73, +75PANASONICTV POWER+53, +54, +74, +75PHILIPSTV POWER+06, +55, +56, +57PHONOLATV POWER+06, +56, +57PIONEERTV POWER+58, +59, +73, +74RADIOLA TV POWER+06, +56RADIOMARELLI TV POWER+57RCA TV POWER+45, +46REX TV POWER+74 SABA TV POWER+57, +72, +73, +74, +75 SALORA TV POWER+74SANYOTV POWER+41, +42, +43, +44, +48 SCHNEIDER TV POWER+06SELECO TV POWER+74SHARPTV POWER+36, +37, +38, +39, +48 SIEMENS TV POWER+71SINGER TV POWER+57SINUDYNE TV POWER+57SONY TV POWER+35, +48TELEAVA TV POWER+73TELEFUNKENTV POWER+67, +73, +75, +76THOMSONTV POWER+72, +73, +75THOMSON ASIA TV POWER+80, +81TOSHIBATV POWER+47, +48, +49, +50, +51, +52WEGA TV POWER+57YOKO TV POWER+06ZENITH TV POWER+63 [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 5 2014-05-22 오전 11:20:256 English Connections Connecting to a TV Audio Video To ANT INPUT To TV RF cable To ANT IN Connecting to an Audio System Method 1 Connecting to an HDMI supported AV receiver

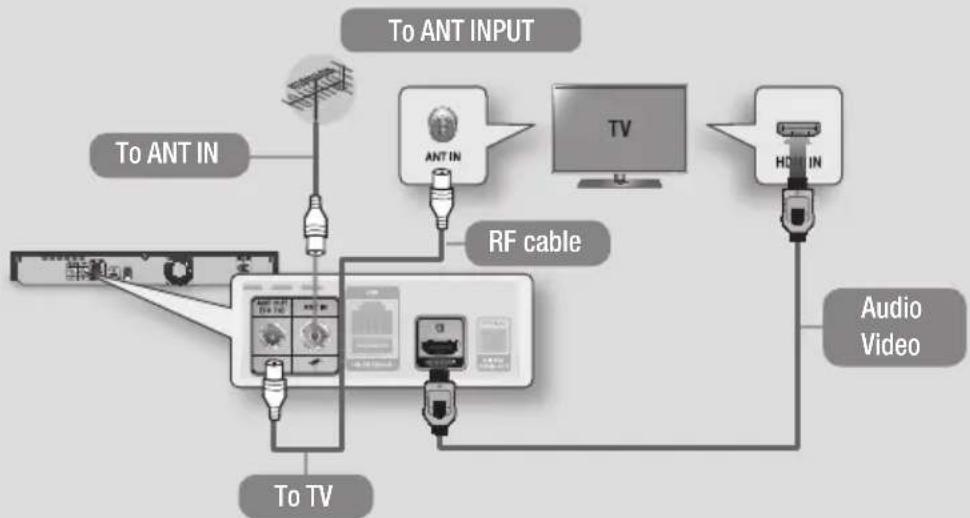

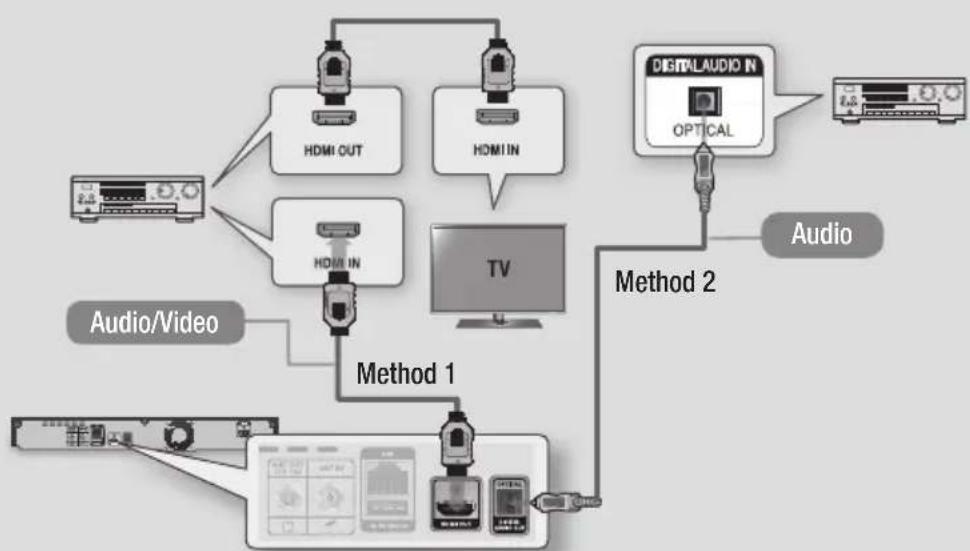

• Use an HDMI cable (not included) Method 2 Connecting to an AV receiver with Optical input

• Use an Optical Cable (not included)

• You will hear sound only through the front two speakers with Digital Output set to PCM. Method 2 Method 1 Audio/Video Audio [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 6 2014-05-22 오전 11:20:257 English Network Connection You can connect your product to your network router using one of the methods illustrated below. Wired Network

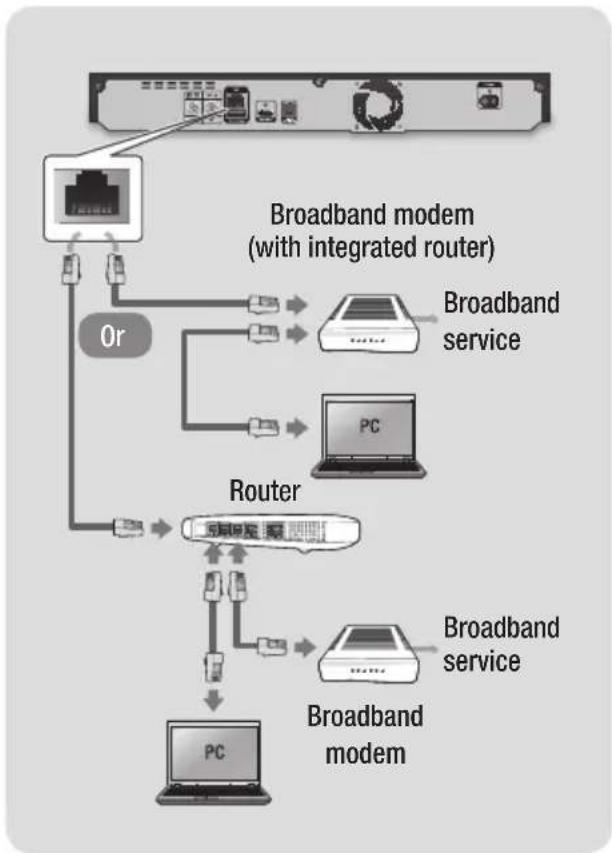

Broadband service Broadband service Broadband modem (with integrated router) Broadband modem Router | NOTE |

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or your ISP’s policy. For more information, contact your ISP (Internet Service Provider).

DSL users, please use a router to make a network connection.

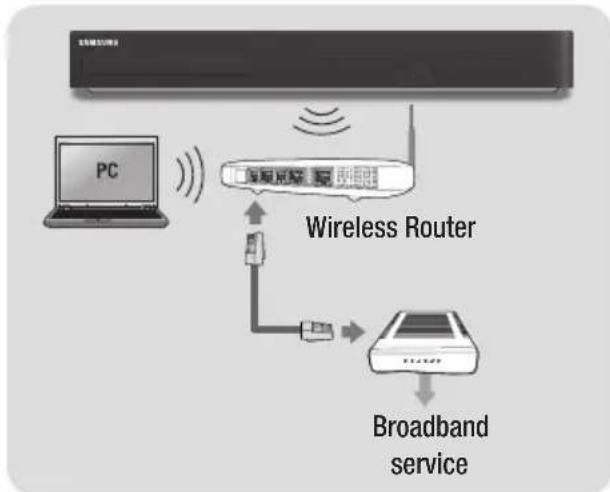

To use the AllShare function with your PC, you must connect your PC. Wireless Network Broadband service Wireless Router | NOTE |

If the wireless router supports DHCP, your product can use a DHCP or static IP address to connect to the wireless network.

Set your wireless router to Infrastructure mode. Ad-hoc mode is not supported.

The product supports only the following wireless security key protocols: - WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

Select a channel on the wireless router that is not currently being used. If the channel set for the wireless router is currently being used by another device nearby, it will result in interference and communication failure.

If you select the Pure High-throughput (Greenfield) 802.11n mode and set the Encryption type on your router or router to WEP, TKIP or TKIP-AES (WPS2Mixed), the product will not support a connection in compliance with new Wi-Fi certification specifications.

If your router supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

Wireless LAN, by its nature, may cause interference, depending on the operating conditions (router performance, distance, obstacles, interference by other radio devices, etc).

To use the AllShare function with your PC, you must connect your PC. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 7 2014-05-22 오전 11:20:268 English The Setup Procedure

• The Home screen will not appear if you do not configure the initial settings.

• The OSD (On Screen Display) of this product may change after you upgrade the software version.

• The access steps may differ depending on the menu you selected. Turn on your TV after connecting the product. When you connect the product to a TV for the first time, product turns on automatically and the Initial Settings screen appears. Start the Initial Settings Procedure. | NOTE |

When the product is connected to the TV for the first time, the product turns on automatically. This is normal operation.

1) Belgium, France, Italy, Norway : You can not set the

password to "0000". Please choose other numbers.

2) Others : Default password is set to 0000.

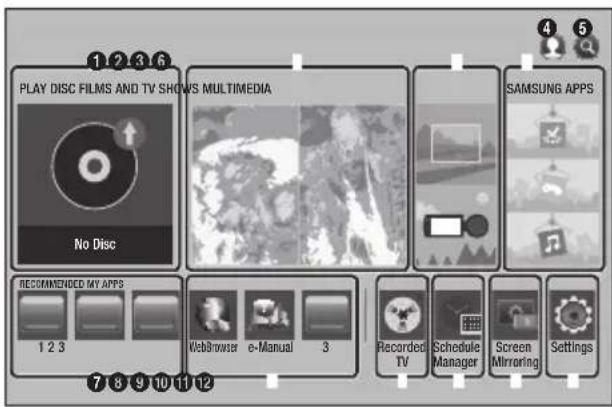

FILMS AND TV SHOWS : Lets you view Films and TV Shows from the Internet. | NOTE |

Depending on your country, this menu function may not be supported.

MULTIMEDIA : Lets you play photos, videos, or music content from USB or mobile devices, or PCs.

Sign In : Lets you log in with your Samsung account.

Search : Lets you search for contents in Films and TV Shows, Apps and YouTube by entering corresponding search words.

SAMSUNG APPS : Gives you access to various for pay or free of-charge applications you can download.

RECOMMENDED : Gives you direct access to recommended applications.

MY APPS : Apps downloaded from My Apps are displayed.

Recorded TV : Access Recorded TV directly.

Schedule Manager : Reserve the desired TV programmes.

Screen Mirroring : Lets you view the screen of your smart phone or android tablet on a TV you have connected to the product.

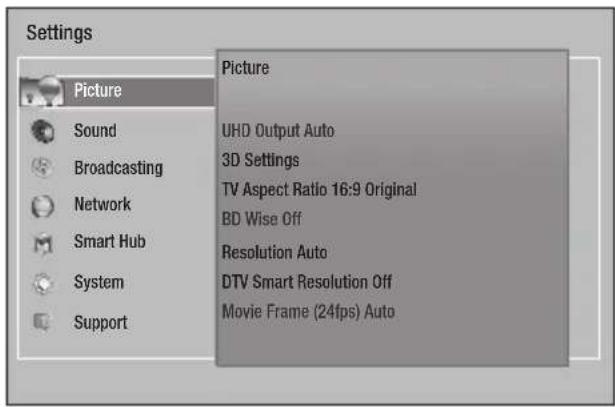

Settings : Opens the product's menu. In the menu can set various functions to suit your personal preferences. | NOTE | In the Home menu screen, it will switch to DTV Channel mode after 3 minutes. When accessing the Settings menu, the screen saver will be activated after 5 minutes. Saves power by turning off product automatically when no user operation is received for 4 hours. If Auto Power Off menu is set to Off, the power will not turn off automatically. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 8 2014-05-22 오전 11:20:279 English Accessing the Settings Screen

1. Select Settings on the Home screen, and

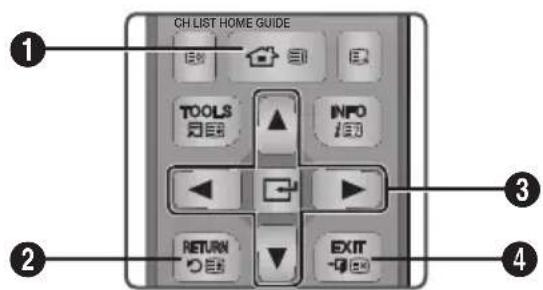

and options, please refer to the remote control illustration and the setting table. Buttons on the Remote Control used for the Settings menu FUNCTIONTV SOURCEPOWERRECEIVER DIGITAL SUBTITLE INPUT

HOME button : Press to move to the Home screen.

button to activate the currently selected item or confirm a setting.

EXIT button : Press to exit the current menu. How to use the e-Manual E-MANUAL You can find instructions about your product's features in the e-Manual in your product. To use, press the E-MANUAL button on your remote control. Press the ▲▼◄► buttons to highlight a category, and then press the

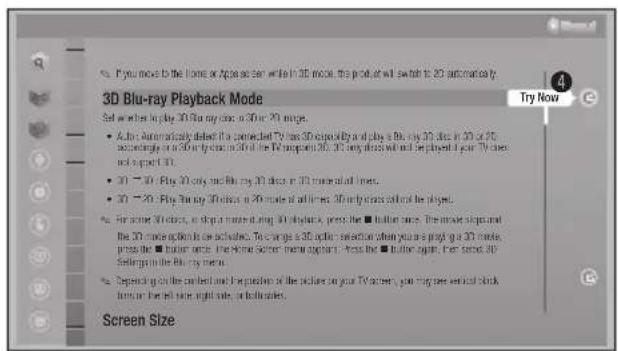

• Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played if your TV does not support 3D.

3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times.

2D : Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played. ✎ For some 3D discs, to stop a movie during 3D playback, press the @ button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the @ button once. The Home Screen menu appears. Press the @ button again, then select 3D Settings in the Blu-ray menu. ✎ Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. Screen Size ✎ If you move to the Home or Apps screen while in 3D mode, the product will switch to 2D automatically. 3D Blu-ray Playback Mode Try Now

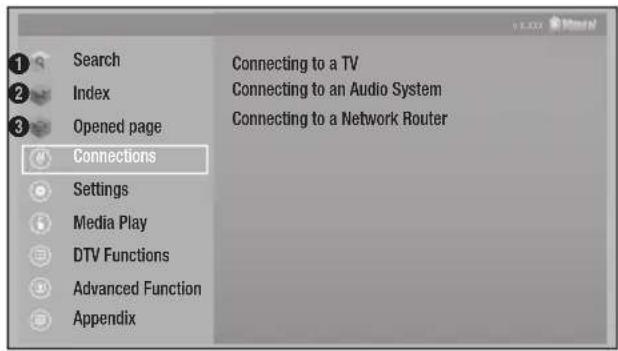

Search : Allows you to search for information by entering words.

opened page : Contents that have been searched on the E-manual screen at least once will appear.

This function is not enabled in some menus.

If displayed E-manual page on your TV screen is incomplete and partially hidden, set the Fit Screen Size to Size 1. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 9 2014-05-22 오전 11:20:2710 English Troubleshooting If the BD-HDD combo seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit “www.samsung.com”, then click on Support, or call Samsung customer service centre. PROBLEM SOLUTION The screen is blocked • If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.

(STOP) button (on top panel) for more than 5 seconds with no disc inside on the home screen. All settings will revert to the factory settings.

• When the factory default settings are restored, all stored user BD data is deleted. Forgot password • Press the

(STOP) button (on top panel) for more than 5 seconds with no disc inside on the home screen. All settings including the PIN will revert to the factory settings. Don’t use this unless absolutely necessary.

• When the factory default settings are restored, all stored user BD data is deleted. Repairs If you contact us to repair your product, an administration fee may be charged if either:

1. An engineer is called out to your home at your request and there is no defect in the product.

2. You bring the unit to a repair centre and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or begin any work on your product. We recommend you read this manually thoroughly, search for a solution on line at www.samsung.com, or contact Samsung Customer Care before seeking to repair your product. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 10 2014-05-22 오전 11:20:2711 English Disc and Format Compatibility Disc types and contents your product can play Contents Media Details VIDEO Blu-ray Disc 3D Blu-ray Disc BD-ROM or BD-RE/R disc recorded in the BD-RE format. DVD-VIDEO

CD-RW/R DVD-VIDEO, DVD±RW/±R discs that have been recorded and finalized. Media containing DivX, MKV or MP4 contents. MUSIC CD-RW/R

BD-RE/R Music recorded on CD-RW/R, DVD±RW/±R, BD-RE/R containing MP3 or WMA contents. PHOTO CD-RW/R

BD-RE/R Photos recorded on CD-RW/R, DVD±RW/±R, BD-RE/R media containing JPEG contents. VIDEO MUSIC PHOTO HDD USB Video, music and photos stored in HDD or USB. Disc types your product cannot play

• Super Audio CD (except CD layer)

• 3.9 GB DVD-R for Authoring. | NOTE |

The product may not play certain CD-RW/R and DVD±RW/±R because of the recording conditions.

If a DVD±RW/±R has not been recorded properly in DVD video format, it will not be playable.

Your product will not play content that has been recorded on a DVD±RW/±R at a bit-rate that exceeds 10 Mbps.

Your product will not play content that has been recorded on a BD-RE/R at a bit rate that exceeds 25 Mbps.

Playback may not work for some types of discs, or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly. Copy Protection

• Because AACS (Advanced Access Content System) is approved as content protection system for Blu- ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact SAMSUNG customer care centre. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 11 2014-05-22 오전 11:20:2712 English

• Many Blu-ray Disc/DVDs are encoded with copy protection. Because of this, you should only connect your Product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected Blu-ray Disc/DVDs.

• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, Blu-ray Discs, DVDs, and other materials may subject you to civil and/ or criminal liability.

• Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2014 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited. Network Service Disclaimer All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.

DISCLAIMS ANY IMPLIED WARRANTIES,

INCLUDING BUT NOT LIMITED TO, WARRANTIES

AVAILABLE THROUGH THIS DEVICE AND

FEES, EXPENSES, OR ANY OTHER DAMAGES

ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device. Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 12 2014-05-22 오전 11:20:2713 English Licence

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified

device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. - ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified

device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. - DivX Certified

video up to HD 1080p, including premium content. DivX

and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners

• Rovi Flow-Down Licence Terms (Terms of Use) - This application incorporates software and technology of Rovi Corporation ("Rovi"). The Rovi software and technology (collectively, the "Rovi Technology") allows End Users to access music-related data ("Rovi Data") over the Internet and otherwise from proprietary Rovi databases (the "Rovi Databases") located on Rovi servers (the "Rovi Servers") and to perform other functions. You may access and use Rovi Data only by means of the intended End User functions of this application software. - You agree that you will use the Rovi Data, the Rovi Technology, and the Rovi Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Rovi Data to any third party. You agree not to use or exploit Rovi Data, the Rovi Technology, the Rovi Databases, or the Rovi Servers, except as expressly permitted herein. - You agree that your non-exclusive licence to access the Rovi Databases and to use the Rovi Data, the Rovi Technology, and the Rovi Servers will terminate if you violate these restrictions. If your licence terminates, you agree to cease any and all use of the Rovi Data, the Rovi Technology, and the Rovi Servers. Rovi reserves all rights in Rovi Data, the Rovi Technology, and Rovi Servers, including all ownership rights. You agree that Rovi may enforce its rights under this Agreement against you directly in its own name. - Rovi reserves the right to delete data from the Rovi Databases or to change data categories for any cause that Rovi deems sufficient. No warranty is made that the Rovi Technology or Rovi Servers are error-free or that functioning of Rovi Technology or Rovi Servers will be uninterrupted. Rovi is not obligated to provide you with any new enhanced or additional data types or categories that Rovi may choose to provide in the future and is free to discontinue its online services at any time. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 13 2014-05-22 오전 11:20:2814 English - The data you submit to use will not be personal data or personally identifiable data, but rather only data respecting music albums and associated data that does not appear in the Rovi Lookup Database. You certify that to the best of its knowledge the album to which the submitted data corresponds is commercially available and that you End User are lawfully permitted to submit the data. - To the extent that you, the End User, provide any information or original works of authorship to be added to Rovi Databases, you represent and warrant that you are the sole author of such work(s) and further hereby assign to Rovi all rights of copyright therein, including the right to register the copyright in such work(s) as part of the Rovi Database.

OR WARRANTIES, EXPRESS OR IMPLIED,

EXPRESS OR IMPLIED, INCLUDING, BUT

PARTY FOR ANY CONSEQUENTIAL OR

INCIDENTAL DAMAGES OR FOR ANY LOST

• Open Source Licence Notice - In the case of using open source software, Open Source Licences are available on the product menu.

• Blu-ray Disc™, Blu-ray™, and the logos are trademarks of Blu-ray Disc Association.

• Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries. This equipment may only be used indoors.

• © 2014 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 14 2014-05-22 오전 11:20:2815 English Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPENCAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.This symbol indicates that important literature concerning operation and maintenance has been included with this product.
• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered. - Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided. - Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight. - Do not place vessels (vases etc.) containing water on this apparatus. A water spill can cause a fire or electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or pool, etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately.

• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.

• Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.

• Route power-supply cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at the plug end, at wall outlets, and the point where they exit from the apparatus.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.

• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

• Make sure to plug the power cord in until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug by pulling on the power cord. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service center.

• Maintenance of Cabinet. - Before connecting other components to this product, be sure to turn them off. - If you move your product suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 15 2014-05-22 오전 11:20:2816 English

• Be sure to pull the power plug out of the outlet if the product is to remain unused or if you are leaving the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house). - Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or the insulation to deteriorate.

• Contact an authorized service center for information if you intend to install your product in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failing to do so may lead to serious damage of your product.

• Use only a properly grounded plug and wall outlet. - An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn this apparatus off completely, you must disconnect it from the wall outlet. Consequently, the wall outlet and power plug must be readily accessible at all times.

• Do not allow children to hang on the product.

• Store the accessories (battery, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to vibration.

• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a service center.

• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air fresheners, lubricants, or detergent. These chemicals can damage the appearance of the product or erase the printing on the product.

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• Do not dispose of batteries in a fire.

• Do not plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire.

• There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.

• WARNING - TO PREVENT THE

SPREAD OF FIRE, KEEP CANDLES

AND OTHER ITEMS WITH OPEN

FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES.

• WARNING - This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. CLASS 1 LASER product This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION :

• THIS PRODUCT USES AN INVISIBLE LASER

BEAM WHICH CAN CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED. BE

• THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS

MAY RESULT IN HAZARDOUS RADIATION

TO QUALIFIED PERSONNEL. This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

If the Region number of a Blu-ray Disc/DVDs does not correspond to the Region number of this product, the product cannot play the disc. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 16 2014-05-22 오전 11:20:2817 English IMPORTANT NOTE The mains lead on this equipment is supplied with a molded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord. To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. Precautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

11. Only use attachments/accessories specified

by the manufacturer.

12. Use only with the cart,

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 17 2014-05-22 오전 11:20:2818 English Disc Storage & Management

• Holding Discs - Fingerprints or scratches on the disc may reduce sound and picture quality or cause skipping - Avoid touching the surface of a disc where data has been recorded. - Hold the disc by the edges so that fingerprints will not get on the surface. - Do not stick paper or tape on the disc.

• Cleaning Discs - If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. - When cleaning, wipe gently from the inside to the outside of the disc.

Do not keep in direct sunlight.

Keep in a cool ventilated area.

Keep in a clean protection jacket and store vertically. Notes on the USb connection

• Your product supports USB storage media, MP3 products, digital cameras, and USB card readers.

• Some USB/digital camera devices may not be compatible with the product.

• Your product supports the FAT16, FAT32, and NTFS files systems (read only).

• Connect USB devices directly to the product’s USB port. Connecting through a USB cable may cause compatibility problems.

• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.

• The product supports the PTP protocol.

• Do not disconnect a USB device during a "loading" process.

• The bigger the image resolution, the longer the image takes to display.

• This product cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.

• Your product only supports video that is under 30fps (frame rate).

• Your product only supports USB Mass Storage Class (MSC) devices such as thumb drives, flash card readers and USB HDD. (HUB is not supported.)

• Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this product.

• If some USB devices require excessive power, they may be limited by the circuit safety device.

• If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. If the problem continues, contact the USB HDD manufacturer.

• During the playback or copying, do not disconnect a USB device.

• SAMSUNG is not responsible for any data file damage or data loss.

• Your product does not support compression file, sparse file and encrption file of NTFS - You can repair or format a USB device on your Desktop PC. (MS-Windows OS only) [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 18 2014-05-22 오전 11:20:2819 English Connect a USB device before using the Timeshift and Recorded TV functions Do not use a USB memory stick. We do not support a USB memory stick. We recommend using a USB HDD with at least 5400 rpm, but a USB HDD of RAID type is not supported.

• To use the Timeshift mode or the Recorded TV function, a connected USB device must be execute the Device Format function to proper form for recording. - During the device formatting, do not disconnect the device while formatting is in progress. If you format the device, all files will be deleted. - Before formatting your device to this product, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

• Recorded videos are DRM (digital rights managements) protected and cannot be played on a PC or other product. Note that files saved on the TV cannot be used after the main board is changed.

• At least 100 MB of free space is required for recording.

• Recording will stop if the storage's free space becomes less than 50 MB.

• If the USB device has failed the Device Performance Test, the USB device must go through the Device Format and Device Performance Test again before you record with the Guide or Channel Manager. If the device has failed the Performance Test, It cannot be used for recording. Note on the firmware upgrade of CAM Some CAM in the market with older firmware versions are not fully interoperable with this device that is compliant to v1.3 specification. It is a problem of legacy CAM, not this CI Plus compliant device. In this case , this problem can be resolved by applying a firmware upgrade to the CAM. Please contact your network operator or CAM operator for it. check whether the firmware of CAM is upgraded for compatibility with CI+ 1.3 Version. Using the 3D function

IMPORTANT HEALTH AND SAFETY

INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.

• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.

• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.

• Do not use the 3D Active Glasses for other purposes. (such as general eyeglasses, sunglasses, protective goggles, etc.)

• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 19 2014-05-22 오전 11:20:2920 English

• When displaying 3D programme with this model, the actual screen may appear as shown below: Screen Display Description Side by Side Same screen duplicates horizontally. Top & Bottom Same screen duplicates vertically.

• 3D programme reception, recording and playback of this model may not fully support 3D, due to the 3D broadcast format is not yet standardized worldwide. It is not the product’s malfunction or disorder.

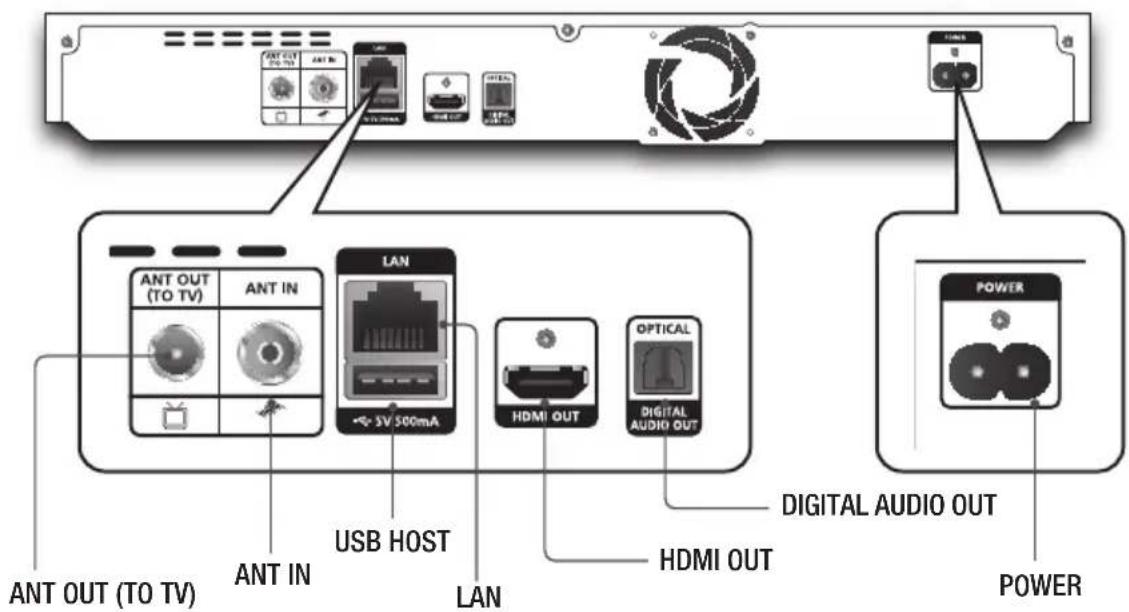

• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the product ’s HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.

• The product outputs 3D signals only through HDMI cable connected to the HDMI OUT port.

• The video resolution in 3D play mode is determined by the resolution of the original 3D video. You can not change the resolution.

• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.

• You must use a high-speed HDMI cable for proper output of the 3D signal.

• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46-inch screen, stay 138 inches (11.5 feet) from the screen.

• Place the 3D video screen at eye level for the best 3D picture.

• When the product is connected to some 3D devices, the 3D effect may not function properly.

• "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of the Blu-ray Disc Association. Specifications General Weight 2.7Kg Dimensions 430 (W) x 282 (D) x 55 (H) mm Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 % HDMI Video Resolution H8500 : 1080p, 1080i, 720p, 576p/480p H8900 : 2160p, 1080p, 1080i, 720p, 576p/480p Audio PCM, Bitstream Audio Output Digital TOS-Link Optical Network Ethernet 100BASE-TX Terminal Wireless LAN Built-in Security WEP(OPEN/SHARED) WPA-PSK(TKIP/AES) WPA2-PSK(TKIP/AES) WPS(PBC) Supported HDD Capacity BD-H8500 500 GB BD-H8900 1 TB - Network speeds equal to or below 10 Mbps are not supported. - Design and specifications are subject to change without prior notice. - For the power supply and power consumption, refer to the label attached to the product. - Weight and dimensions are approximate. [BD-H8500,H8900-XN]AK68-02466B-01ENG-.indd 20 2014-05-22 오전 11:20:29Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area Contact Centre

• Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played if your TV does not support 3D.

3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times.

2D : Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played. ✎ For some 3D discs, to stop a movie during 3D playback, press the @ button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the @ button once. The Home Screen menu appears. Press the @ button again, then select 3D Settings in the Blu-ray menu. ✎ Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. Screen Size ✎ If you move to the Home or Apps screen while in 3D mode, the product will switch to 2D automatically. 3D Blu-ray Playback Mode Try Now

CONSÉCUTIF, HONORAIRES D'AVOCAT, DÉPENSES

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

@ CONDITIONS DE GARANTIE

• Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played if your TV does not support 3D.

3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times.

2D : Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played. ✎ For some 3D discs, to stop a movie during 3D playback, press the @ button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the @ button once. The Home Screen menu appears. Press the @ button again, then select 3D Settings in the Blu-ray menu. ✎ Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. Screen Size ✎ If you move to the Home or Apps screen while in 3D mode, the product will switch to 2D automatically. 3D Blu-ray Playback Mode Try Now

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

• Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played if your TV does not support 3D.• 3D 3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times.• 3D 2D : Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played. ✎ For some 3D discs, to stop a movie during 3D playback, press the @ button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the @ button once. The Home Screen menu appears. Press the @ button again, then select 3D Settings in the Blu-ray menu. ✎ Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides.Screen Size ✎ If you move to the Home or Apps screen while in 3D mode, the product will switch to 2D automatically. 3D Blu-ray Playback ModeTry Now

• Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to vibration.

LASERPRODUCT VAN KLASSE 1

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

@ CONDITIONS DE GARANTIE
