USER MANUAL BDE5300 SAMSUNG

576p/480p 576p/480p 576p/480p

576p/480p 576p/480p14

Dimensions 360 (L) X 193 (P) X 41 (H) mm

* Abtastfrequenzen (in kHz) - 8, 11, 16, 22, 32,

www.samsung.com/be (Dutch)

(+30) 210 6897691 from mobile and land line

(+40) 21 206 01 10 from mobile and land line

user manual BD-E5200BD-E5300ENGLISH2

Blu-ray Disc FeaturesBlu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below.Video highlightsThe BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.HD video resolutions are also supported:1920 x 1080 High Definition• 1280 x 720 High Definition• For High-Definition PlaybackTo view high-definition contents on a Blu-ray Disc, you need an HDTV (High Definition Television).

Some Blu-ray Discs may require you to use the player’s HDMI OUT to view high-definition content.

The ability to view high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.BD-LIVEYou can use a Blu-ray Disc that supports BD-LIVE to download content provided by the disc manufacturer through a network connection. Blu-ray Disc Player FeaturesAllShare

You can play videos, music, and photos saved on your devices (such as your PC or NAS [Network-Attached Storage]) through a network connection.Playing multimedia files

You can use the USB connection to play various kinds of multimedia files (MP3, JPEG, DivX, etc.) located on a USB storage device. Key features

Safety Information WarningTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPENThe lighting flash and Arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.Do not install this equipment in a confined space such as a bookcase or similar unit.WARNINGTo prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.CAUTIONBlu-ray Disc Player USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE Blu-ray Disc Player CORRECTLY AS INSTRUCTED.CLASS 1 LASER productThis Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.CAUTION :CLASS 3B VISIBLE AND INVISIBLE • LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)THIS PRODUCT UTILIZES A LASER. •USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 13

This product satisfies CE regulations when

shielded cables and connectors are used

to connect the unit to other equipment.

To prevent electromagnetic interference

with electric appliances, such as radios

and televisions, use shielded cables and

connectors for connections.

IMPORTANT NOTE The mains lead on this equipment is supplied

with a moulded plug incorporating a fuse. The

value of the fuse is indicated on the pin face

If it requires replacing, a fuse approved to

BS1362 of the same rating must be used.

Never use the plug with the fuse cover

omitted if the cover is detachable. If a

replacement fuse cover is required, it must be

of the same colour as the pin face of the plug.

Replacement covers are available from your

If the fitted plug is not suitable for the power

points in your house or the cable is not long

enough to reach a power point, you should

obtain a suitable safety approved extension

lead or consult your dealer for assistance.

However, if there is no alternative to cutting

off the plug, remove the fuse and then safely

dispose of the plug. Do not connect the plug

to a mains jack, as there is a risk of shock

hazard from the bared flexible cord.

To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

The product unit accompanying this user

manual is licensed under certain intellectual

property rights of certain third parties.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below.

Keep these operating instructions handy for

Read these instructions.1.

Keep these instructions. 2.

Heed all warnings.3.

Follow all instructions.4.

Do not use this apparatus near water.5.

Clean only with a dry cloth.6.

Do not block any ventilation openings. 7.

Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such 8.

as radiators, heat registers, stoves, or

other apparatus (including AV receivers)

Do not defeat the safety purpose of 9.

the polarized or grounding-type plug.

A polarized plug has two blades with

one wider than the other. A grounding

type plug has two blades and a third

grounding prong. The wide blade or

the third prong are provided for your

safety. If the provided plug does not fit

into your outlet, consult an electrician for

replacement of the obsolete outlet.

Protect the power cord from being 10.

walked on or pinched particularly at

plugs, convenience receptacles, and the

point where they exit from the apparatus.

Only use attachments/accessories 11.

specified by the manufacturer.

Use only with the 12.

cart, stand, tripod,

cart is used, use caution when moving

the cart/apparatus combination to avoid

injury from tip-over.

Unplug this apparatus during lightning 13.

storms or when unused for long periods

Refer all servicing to qualified service 14.

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as when power-supply cord or

plug is damaged, liquid has been spilled

or objects have fallen into the apparatus,

the apparatus has been exposed to rain

or moisture, does not operate normally,

or has been dropped.

Disc Storage & Management

regular shapes. If you

use an irregular disc

(a disc with a special

shape), you can damage the player.

Avoid touching the surface •

of a disc where data has

Do not leave a Blu-ray Disc in the player for •

long periods of time. Remove the Blu-ray

Disc from the player and store it in its case.

Be careful not to scratch or leave •

fingerprints on the surface of the Blu-ray

DVD-VIDEO, Audio CD (CD-DA)

Wipe off dirt or contamination on the disc •

Be careful not to damage the disc because

the data on these discs is highly vulnerable to

Do not keep under direct sunlight.•

Keep in a cool ventilated area.•

Keep in a clean, protective jacket.•

If you move your player suddenly from a •

cold place to a warm place, condensation

may occur on the operating parts and lens

and cause abnormal disc playback. If this

occurs, unplug the player, wait for two

hours, and then connect the plug to the

power outlet. Then, insert the disc, and try

Do not write on the printed side with a ball-•

point pen or pencil.

Do not use record cleaning sprays or •

antistatic sprays to clean discs. Also,

do not use volatile chemicals, such as

Do not apply labels or stickers to discs. •

(Do not use discs fixed with exposed tape

adhesive or leftover peeled-off stickers.)

Do not use scratch-proof protectors or covers.•4

Do not use discs printed on by label •

printers available on the market.

Do not load warped or cracked discs.•

Before connecting other components to •

this player, be sure to turn them off.

Do not move the player while it is playing •

a disc. The disc can be scratched or

damaged and the player’s internal parts

Do not put a flower vase filled with water or •

any small metal objects on the player.

Be careful not to put your hand into the •

Do not place anything other than the disc •

Interference from exterior sources such as •

lightening and static electricity can affect

the normal operation of this player. If this

occurs, turn the player off and on again with

the POWER button, or disconnect and then

reconnect the AC power cord to the AC

power outlet. The player will operate normally.

Be sure to remove the disc and turn off the •

Disconnect the AC power cord from the •

AC outlet when you don’t intend to use the

player for long periods of time.

To clean a disc, wipe it in a •

straight line from the inside to

the outside of the disc.

Do not expose the player to •

When the AC plug is connected to a wall •

outlet, the player will still draw power

(standby mode) when it is turned off.

Apparatus shall not be exposed to dripping •

or splashing and no objects filled with

liquids, such as vases, shall be placed on

The main plug is used as a disconnect device •

and shall stay readily operable at any time.

Do not touch the power plug with a wet hand. •

Otherwise, it can cause an electric shock.

Do not share one power socket with •

multiple electric devices. Otherwise, it may

cause an overheat, resulting in a fire.

If you encounter an abnormal noise, burning •

smell or smoke, turn off the power switch

immediately and disconnect the power plug

from the wall outlet. Then, contact the nearest

customer centre for technical assistance.

If you still use the product as it is, this may

cause an electric shock or fire.

Maintenance of Cabinet

Before you clean the Blu-ray Disc’s cabinet,

be sure to disconnect the AC power cord

Do not use benzene, thinner, or other •

solvents for cleaning.

Wipe the cabinet with a soft cloth.•

Restrictions on Playback

This player may not respond to all operating •

commands because some Blu-ray Disc,

DVD, and CD discs allow specific or limited

operation and provide only certain features

Please note that this is not a defect in the

Samsung cannot • guarantee that this player

will play every disc bearing the Blu-ray

Disc, DVD or CD logo because disc

formats evolve, and problems and errors

may occur during the creation of Blu-ray

Disc, DVD, and CD software and/or the

manufacture of discs.

Please contact the SAMSUNG customer

care centre if you have questions or

encounter difficulty in playing Blu-ray Disc,

DVD, or CD discs in this player. Also, refer

to rest of this user manual for additional

information on playback restrictions.

KEY FEATURES Blu-ray Disc Features2

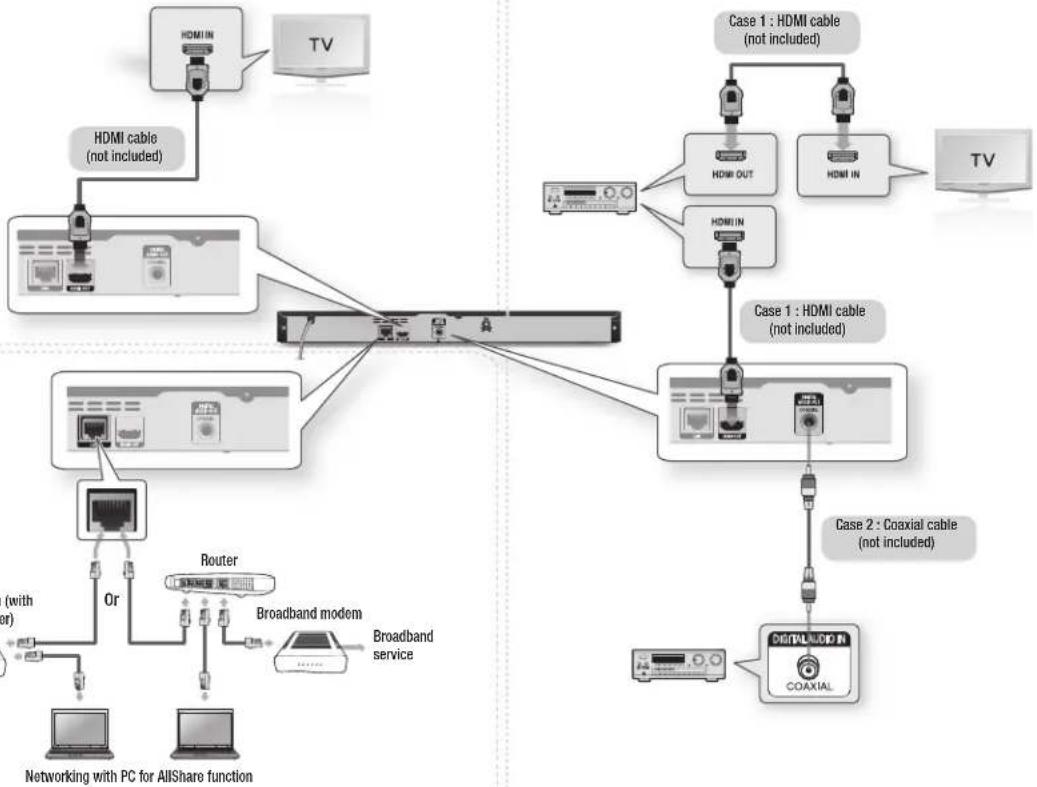

CONNECTIONS A. Connecting to a TV 9

B. Connecting to an Audio System 10

C. Connecting to a Network 10

SETUP The Initial Settings Procedure12

Using the Search and Skip Functions 19

Before using the User Manual Disc Types and Contents your player can play ContentLogo IconDefinitionVIDEO h

z Indicates a function available on a BD-ROM or BD-RE/-R disc recorded in the BD-RE format. Z

y Indicates a function available on a DVD-VIDEO or recorded DVD+RW/DVD-RW(V)/DVD-R/+R discs that have been recorded and finalized. -

x Indicates a function available on a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or in a USB storage media containing DivX, MKV, MP4 contents.MUSIC o Indicates a function available on an audio CD-RW/-R (CD-DA format). -

w Indicates a function available on a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or in a USB storage media containing MP3 or WMA contents.PHOTO -

NOTE The player may not play certain CD-RW/-R and DVD-R ▪ because of the disc type or recording conditions.If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable. ▪ Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps. ▪ Your player will not play content that has been recorded on a BD-R or USB device at a bit rate that exceeds ▪ 25 Mbps. Getting Started

Disc types your player cannot play HD DVD• DVD-ROM/PD/MV-• Disc, etcDVD-RAM• Super Audio CD • (except CD layer)DVD-RW(VR mode)• CVD/CD-ROM/CDV/• CD-G/CD-I/LD

(CD-Gs play audio only, not graphics.)3.9 GB DVD-R Disc for • Authoring. ✎

NOTE Some commercial discs and DVDs discs purchased ▪ outside your region may not play on this player.Playback may not work for some types of discs, ▪ or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.Do not allow the disc to become dirty or ▪ scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.When you play a BD-J title ▪ , loading may take longer than a normal title or some functions may perform slowly.This player may not respond to all operating ▪ commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback. Please note that this is not a defect in the player.Samsung cannot ▪ guarantee that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care centre if you have questions or encounter difficulty when playing Blu-ray Disc, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions. Blu-ray Disc Compatibility Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this user manual. Disc Types BD-ROMBlu-ray ROM discs can only be played back. This player can play back pre-recorded commercial BD-ROM discs.BD-RE/-RBlu-ray RE/-R discs can be recorded on and played back. This player can play back a BD-RE/-R disc recorded by other compatible Blu-ray Disc recorders.DVD-VIDEOThis player can play back pre-recorded • commercial DVDs (DVD-VIDEO discs) with movies. When switching from the first layer to the • second layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and sound. This is not a malfunction of the player.6

DVD-RW/-R/+RThis player can play back a DVD-RW/-R/+R disc recorded and finalized with a DVD video recorder. The ability to play back may depend on recording conditions.DVD+RWThis player can play back a DVD+RW • disc recorded with a DVD Video recorder. The ability to play back may depend on recording conditions.Audio CD (CD-DA)This player can play back CD-DA format • audio CD-RW/-R discs.The player may not be able to play some • CD-RW/-R discs due to the condition of the recording.CD-RW/-RUse a 700• MB (80 minute) CD-RW/-R disc. If possible, do not use an 800MB (90 minute) or larger disc, as the disc may not play back.If the CD-RW/-R disc was not recorded • as a closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.Some CD-RW/-R discs • may not play on this player, depending on the device which was used to burn them. For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on the contents and discs.AVCHD (Advanced Video Codec High Definition)This player can play back AVCHD format • discs. These discs are normally recorded and used in camcorders.The AVCHD format is a high definition • digital video camera format.The MPEG-4 AVC/H.264 format • compresses images with greater efficiency than the conventional image compressing format.Some AVCHD discs use the “x.v.Color” • format. This player can play back AVCHD discs that use “x.v.Color” format.“x.v.Color” is a trademark of Sony • Corporation.“AVCHD” and the AVCHD logo are • trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation. ✎ NOTESome AVCHD format discs may not play, ▪ depending on the recording condition. AVCHD format discs need to be finalized.“x.v.Color” offers a wider color range than ▪ normal DVD camcorder discs.Some DivX, MKV and MP4 format discs may ▪ not play, depending on the video resolution and frame rate condition.Region CodeBoth players and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Code for this player is displayed on the rear panel of the player.Disc TypeRegion Code

A North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia. B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand. C India, China, Russia, Central and South Asia.DVD-VIDEO 1 The U.S., U.S. territories and Canada 2 Europe, Japan, the Middle East, Egypt, South Africa, Greenland 3 Taiwan, Korea, the Philippines, Indonesia, Hong Kong 4 Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean 5 Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia 6 ChinaCopyright© 2012 Samsung Electronics Co.,Ltd.All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.Supported File FormatsNotes on the USB connection Your player supports • USB storage media, MP3 players, digital cameras, and USB card readers. The player does not s• upport folder or file names longer than 128 characters. Some• USB/External HDD/digital camera devices may not be compatible with the player. Your player supports the • FAT16, FAT32, and NTFS files systems. Connect• USB devices directly to the player’s USB port. Connecting through a USB cable may cause compatibility problems.Inserting more than one memory device • into a multi-card reader may cause the reader to operate improperly. The player does not support t• he PTP protocol.Do not disconnect a USB device during a • “loading” process. The bigger the image resolution, • the longer the image takes to display. This player cannot play MP3 files with DRM • (Digital Rights Management) downloaded from commercial sites. Your player only supports the video that is • under 30fps (frame rate).7

- Even when the file is encoded by a supported codec mentioned above, a file might not be

played if its content has a problem.

- Normal playback is not guaranteed if the file’s container information is wrong or the file itself is

Files having higher Bit rate/frame rate than standard may stutter during sound/video playback.

- The Seek (skip) function is not available if the file’s index table is damaged.

- Supports up to H.264 Level 4.1 and AVCHD

- Does not support H.264 FMO/ASO/RS, VC1 SP/MP/AP L4

Below 1280 x 720 : 60 frames max

- Does not support GMC 2 or higher

- Supports WMA 7, 8, 9 and STD

- Does not support WMA sampling rate of 22050Hz mono.

Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48

Bit rates - All bit-rates from 5kbps to 384kbps

Logos of Discs the player can play

Blu-ray Disc BD-LIVE PAL broadcast System in

U.K., France, Germany, etc

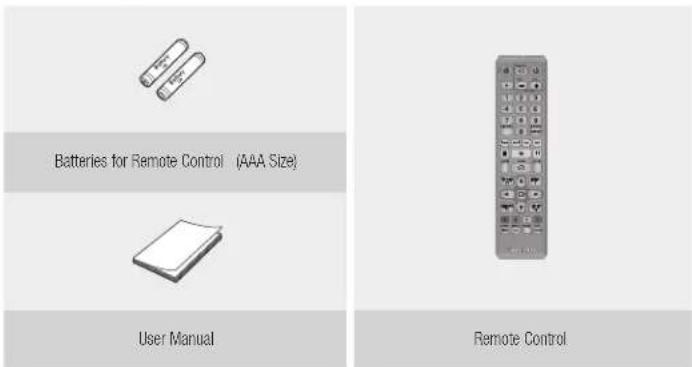

Check for the supplied accessories shown below.

Batteries for Remote Control (AAA Size)

User Manual Remote Control8

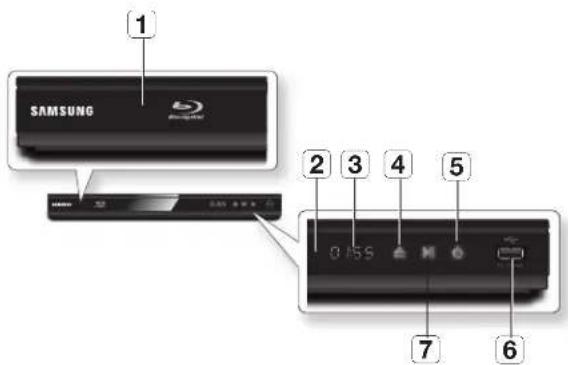

Front Panel 1 DISC TRAYOpens to accept a disc. 2 REMOTE CONTROL SENSORDetects signals from the remote control. 3 DISPLAYDisplays the playing status, time, etc. 4 OPEN/CLOSE BUTTONOpens and closes the disc tray. 5 POWER BUTTONTurns the player on and off. 6 USB HOSTYou can connect a USB memory flash stick here and use it as storage when the player is connected to BD-LIVE. You can also use the USB Host for software upgrades and MP3/JPEG/DivX/MKV/MP4 playback. 7 PLAY/PAUSE BUTTONPlays a disc or pauses playback. ✎

NOTE You can perform software upgrades using the ▪ USB Host jack with a USB flash memory stick only.When the player displays the Blu-ray Disc menu, you cannot start the movie by pressing the Play button on ▪ the player or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the ENTER button.Rear Panel 1

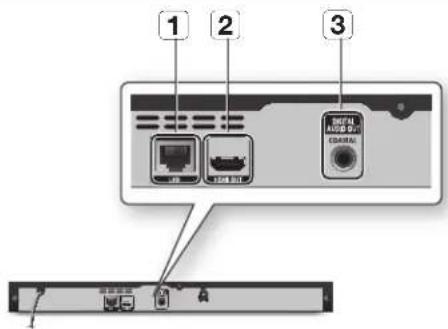

LAN Use for network based services, BD-LIVE, and software upgrades using a network connection. 2 HDMI OUTUsing an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture or to your AV receiver for the best quality sound. 3 DIGITAL AUDIO OUTConnects to an AV receiver. b ca

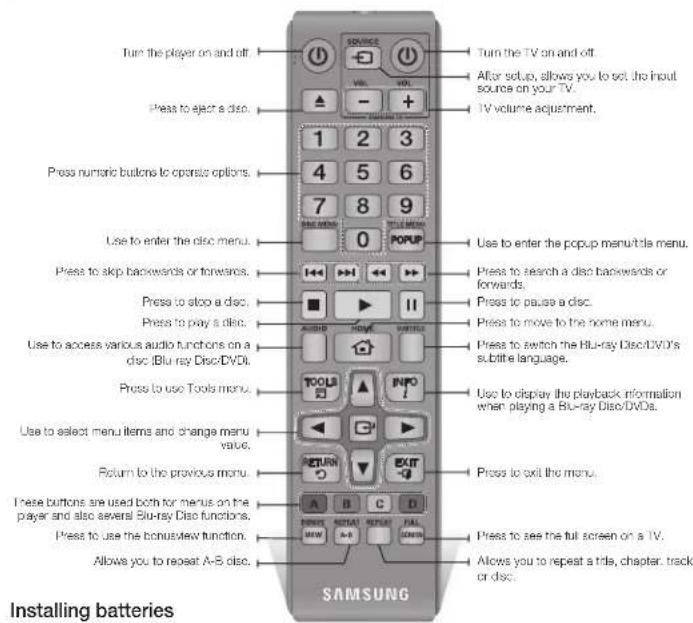

Tour of the Remote Control

 ▪ If the remote does not operate properly:   •Check the polarity (+/–) of the batteries.   •Check if the batteries are drained.   •Check if the remote sensor is blocked by obstacles.   •Check if there is any fluorescent lighting nearby. ! CAUTION  ▪ Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

A. Connecting to a TV Connecting to a TV with an HDMI Cable - Best Quality

Using an HDMI cable, connect the 1. HDMI OUT terminal on the rear of the player to the HDMI IN terminal of your TV. See page 11.Turn on the player and TV.2. Press the input selector on your TV remote control until the HDMI signal from the player 3. appears on your TV screen. ✎

NOTE An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable. ▪ If the player is connected to your TV in ▪ the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI cable.HDMI outputs only a pure digital signal to the TV. ▪ If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of ▪ your TV. When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI

▪ output resolution will be automatically set to the highest supported by the TV.A long HDMI cable may cause screen noise. ▪ If this occurs, set Deep Colour to Off in the menu. If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the Digital Audio

▪ Out to an audio system to hear audio. Connections Turn the player on and off.Allows you to repeat A-B disc.Press numeric buttons to operate options.Press to eject a disc.Use to enter the disc menu.Press to skip backwards or forwards.Press to stop a disc.Press to use the bonusview function.Return to the previous menu.These buttons are used both for menus on the player and also several Blu-ray Disc functions.Use to select menu items and change menu value.Press to use Tools menu.Use to access various audio functions on a disc (Blu-ray Disc/DVD).Press to play a disc.Press to pause a disc.Turn the TV on and off. Press to switch the Blu-ray Disc/DVD’s subtitle language.Use to enter the popup menu/title menu.Press to search a disc backwards or forwards.Press to move to the home menu.Press to see the full screen on a TV.Press to exit the menu.Use to display the playback information when playing a Blu-ray Disc/DVDs.Allows you to repeat a title, chapter, trackor disc.TV volume adjustment.After setup, allows you to set the input source on your TV.10

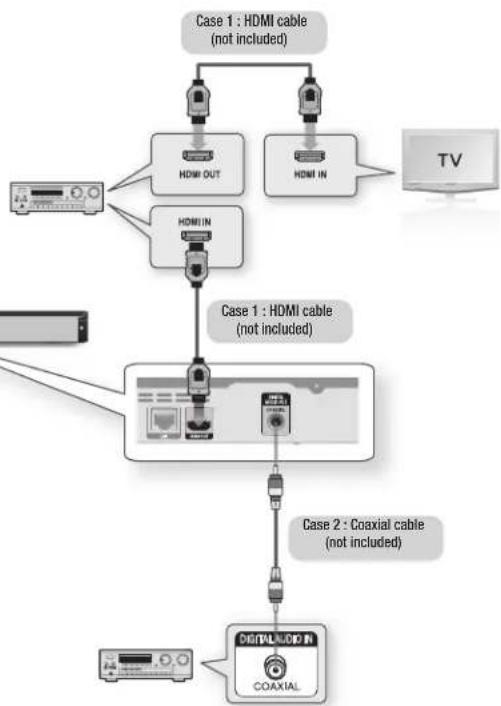

B. Connecting to an Audio System

Please turn the volume down when you turn on the AV receiver. • A sudden loud sound

may cause damage to the speakers and your ears.

Please set the audio format according to the capabilities of your AV receiver.•

The position of HDMI • input terminals may vary depending on your AV receiver. Please

refer to the user manual of your AV receiver.

Case 1 : Connecting to an Audio System (HDMI supported AV

receiver) - Best Quality (Recommended)

Using an HDMI cable, connect the 1. HDMI OUT terminal on the rear of the player to the

HDMI IN terminal of your AV receiver. See page 11.

Using an HDMI cable, connect the 2. HDMI OUT terminal of the AV receiver to the HDMI IN

terminal of your TV.

Turn on the player, 3. TV, and AV receiver.

Using the input select button of the 4. AV receiver and TV, select the correct HDMI input or

each to hear sound and see video from the player. Refer to your AV receiver’s user manual

to set the AV receiver’s audio input.

Case 2 : Connecting to an Audio System (AV receiver with Dolby

Digital or DTS decoder) - Better Quality

Using a coaxial cable, connect the 1. DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of

the player to the DIGITAL AUDIO IN (COAXIAL) terminal of your AV receiver. See page 11.

Using an HDMI cable, connect the 2. HDMI terminal on the rear of the player to the HDMI

terminal of your TV.

Turn on the player, T3. V, and AV receiver.

Press the input select button of the 4.

to select the correct external input and hear

sound from the player. Refer to your

user manual to set the

Press the input selector on your TV remote control to select the HDMI video source.5.

C. Connecting to a Network

This player lets you use network based services such as BD-LIVE and download software

upgrades when it is connected to a network. We recommend using a Broadband modem (with

integrated router) or IP router for the connection. For more information on router connections,

refer to the user manual of the router or contact the router manufacturer for technical assistance.

Using a Direct LAN (UTP) CAT 5 cable, connect the LAN terminal of the player to the LAN 1.

terminal of your modem or router. See page 11

Set the network options. See page 16.2.

or your ISP’s policy. For more information, contact your ISP (Internet Service Provider).

DSL users, please use a router to make a network connection.

To use the AllShare function, you must connect your PC to your network as shown in the figure.

The connection can be wired.11

HDMI cable(not included)Case 2 : Coaxial cable (not included)Case 1 : HDMI cable(not included)Broadband serviceBroadband modem (with integrated router)RouterBroadband modemBroadband service Or Case 1 : HDMI cable(not included)

Connecting to a TV Connecting to an Audio System

Networking with PC for AllShare function ✎

NOTE : You can only connect this unit to a network via a wired connection.12

The Initial Settings Procedure Turn on your TV after connecting the 1. player. When you connect the player to a TV for the first time, the player turns on automatically and the Initial Settings screen appears.

> Move " SelectInitial Settings I On-Screen LanguageSelect a language for the on-screen displays.EnglishFrançaisDeutschEspañolItalianoNederlandsUse the ▲▼ buttons on the remote to 2. select the desired language, and then press the ENTER button. Press the 3. ENTER button to select Start.Use the ▲▼ buttons to select an Aspect4. Ratio, and then press the ENTER button. Select 5. Auto, and then press the ENTER button. If you do not have a home network, press the BLUE (D) button on your remote. You will go directly to the Home menu.The Blu-ray player automatically verifies 6. your wired network. When verification in complete, the screen displays “Your network is operating properly.” Press the ENTER button. The “Initial settings completed.” 7. message appears, and then the Home screen appears. - If you Blu-ray player does not connect to your network or you want to connect manually, go to Network Setup on page 16. ✎

NOTE The ▪ Home menu will not appear if you do not configure the initial settings except as noted below.If you press the ▪ BLUE (D) button during network setup, you can access the Home menu even if the network setup is not completed yet.When you return to the Home menu, the full ▪ screen mode is cancelled automatically.If you want to display the Initial Setting screen again ▪

to make changes, press the PLAY/PAUSE ( ) button on the front panel of the player for more than 5 seconds with no disc inserted. This resets the player to its default settings.If you use an HDMI cable to connect the player ▪ to an Anynet+(HDMI-CEC)-compliant Samsung TV and 1.) You have set the Anynet+(HDMI-CEC) feature set to On in both the TV and the player and 2.) You have set the TV to a language supported by the player, the player will select that language as the preferred language automatically.If you leave the player in the stop mode for more ▪ than 5 minutes without using it, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 25 minutes, the power will automatically turn off. Menu Navigation

1 Selects Videos. 2 Selects YouTube. 3 Selects Photos. 4 Selects Music. 5 Selects Settings. 6 Displays the buttons you can use on the remote to access functions. Accessing the Settings Menu To access the Settings menu and sub-menus, follow these steps:Press the 1. POWER button. The Home Menu appears. Press the ◄► buttons to select 2. Settings, and then press the ENTER button.Press the ▲▼ buttons to select the 3. desired submenu, and then press the ENTER button.Press the ▲▼ buttons to select the desired 4. item, and then press the ENTER button.Press the 5. EXIT button to exit the menu. ✎

NOTE The access ▪ steps may differ depending on the menu you selected. The OSD (On Screen Display) may change in this player after you upgrade the software version.13

Display You can configure various display options such as the TV Aspect Ratio, Resolution, etc. TV Aspect Ratio Depending on the type of television you have, you may want to adjust the screen size setting.16:9 Original• : Select when you connect the player to a 16:9 TV screen. The player will display all content in its original aspect ratio. Content formatted in 4:3 will be displayed with black bars on the left and right.16:9 Full• : Select when you connect the player to a 16:9 TV screen. All content will fill the full screen. Content formatted in 4:3 will be stretched.4:3 Letter Box• : Select when you connect the player to a 4:3 TV screen. The player will display all content in its original aspect ratio. Content formatted in 16:9 will be displayed with black bars on the top and bottom.4:3 Pan-Scan• : Select when you connect the player to a 4:3 TV screen. 16:9 content will have the extreme left and right portions cut off. ✎

NOTE Depending on the disc type, some aspect ratios ▪ may not be available.If you select an aspect ratio and option which is ▪ different than the aspect ratio of your TV screen, then the picture might appear to be distorted.If you select the 4:3 Pan-Scan or 4:3 Letter ▪ Box, pressing the FULL SCREEN button on the remote will not bring up a full screen picture. If you select the 16:9 ▪ Original, your TV may display 4:3 Pillar-box (black bars on sides of picture). If this occurs, pressing the FULL SCREEN button on the remote will not bring up a full screen picture. BD Wise (Samsung Players only) BD Wise is Samsung’s latest inter-connectivity feature.When you connect a Samsung player and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the player and TV, the player outputs video at the video resolution and frame rate of the Blu-ray Disc/DVDs.Off• : The output resolution stays fixed at the resolution you set previously in the Resolution menu, regardless of the resolution of the disc. On• : The player outputs video at the original resolution and frame rate of the Blu-ray Disc/DVDs. ✎

NOTE When BD Wise is on, the Resolution setting ▪ automatically defaults to BD Wise and BD Wise appears in the Resolution menu. If the player is connected to a device that does ▪ not support BD Wise, you can not use the BD Wise function.For proper operation of BD Wise, set the BD Wise ▪ menu of both the player and the TV to On. Resolution Lets you set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p or 576p/480p. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher the quality. Auto • : Automatically sets the output resolution to the connected TV’s maximum resolution. BD Wise • : Automatically sets the resolution to the resolution of the Blu-ray Disc/DVDs if you have connected the player via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On. See BD Wise above.) 1080p • : Outputs 1080 lines of progressive video. 1080i • : Outputs 1080 lines of interlaced video. 720p • : Outputs 720 lines of progressive video. 576p/480p • : Outputs 576/480 lines of progressive video. Resolution according to the output mode

Blu-ray Disc• /E-contents/Digital Contents playback Output SetupHDMI / connectedHDMI ModeBlu-ray Disc E-contents/Digital contentsBD Wise Resolution of Blu-ray Disc 1080pAuto Max. Resolution of TV input Max. Resolution of TV input1080p@60F(Movie Frame : Off)1080p@60F 1080p@60FMovie Frame : Auto (24Fs)1080p@24F 1080p@24F1080i 1080i 1080i720p 720p 720p576p/480p 576p/480p 576p/480pDVD playback• Output SetupHDMI / connectedHDMI ModeBD Wise 576i/480iAuto Max. Resolution of TV input1080p 1080p1080i 1080i720p 720p576p/480p 576p/480p14

NOTE If the TV you connected to the player does not

support Movie Frame or the resolution you

selected, the message “If no pictures are shown

after selecting ‘Yes’, please wait for 15 seconds

to return to the previous resolution. Do you want

to change the resolution?” appears. If you select

Yes, the TV’s screen will go blank for 15 seconds,

and then the resolution will revert to the previous

resolution automatically.

If the screen stays blank after you have changed

the resolution, remove all discs, and then press

and hold the PLAY/PAUSE (

front of the player for more than 5 seconds. All

settings are restored to the factory default. Follow

the steps on the previous page to access each

mode and select the Display Setup that your TV

When the factory default settings are restored, all

stored user BD data is deleted.

The Blu-ray Disc must have the 24 frame feature

for the player to use the Movie Frame (24Fs)

Setting the Movie Frame (24Fs) feature to Auto

allows you to adjust the player’s HDMI output to

24 frames per second for improved picture quality.

You can enjoy the Movie Frame (24Fs) feature

only on a TV supporting this frame rate.

You can select Movie Frame only when the

player is in the HDMI 1080i or 1080p output

Auto• : Movie Frame (24Fs) functions work.

Off• : Movie Frame (24Fs) functions are off.

Lets you set the colour space format for

HDMI output to match the capabilities of the

connected device (TV, monitor, etc).

Auto • : Automatically sets the player to the

optimum format supported by your device.

YCbCr (4:4:4) • : If your TV supports the

normal RGB colour gamut.

RGB (Enhanced) • : If you have connected

the player to a DVI display device such as a

monitor, select this to output the enhanced

Lets you output video from the HDMI OUT

jack with Deep Colour. Deep Colour provides

more accurate colour reproduction with

greater colour depth.

Auto• : The player outputs video with Deep

Colour to a connected TV which supports

Off• : The picture is output without Deep

Lets you improve picture quality when viewing

Auto • : Select to have the player

automatically select the best picture quality

for the DVD you’re watching.

Video • : Select for the best picture quality

from concert or TV show DVDs.

Set the Digital Output to match the capabilities

of the AV receiver you’ve connected to the

PCM• : This is the default setting. It is

compatible with most TVs and receivers.

Bitstream (Unprocessed)• : Choose if you

want your receiver to decode all the audio.

Bonusview audio will not be available.

Bitstream (Re-encoded DTS)• : The

original audio will be re-encoded into DTS.

Bitstream (Re-encoded Dolby D)• : The

original audio will be re-encoded into Dolby

For more details, please refer to the Digital

Output Selection table.

Digital Output Selection

PCM 2ch PCM PCM 2ch DTS re-encoded

Dolby Digital DTS re-encoded

Dolby TrueHD Dolby Digital DTS re-encoded

DTS PCM 2ch PCM 2ch DTS DTS DTS re-encoded

DTS-HD HRA DTS DTS re-encoded

DTS PCM 2ch PCM 2ch DTS DTS DTS DTS15

Setup PCMBitstream (Unprocessed)Bitstream (Re-encoded DTS) Bitstream (Re-encoded Dolby D)ConnectionHDMI supported AV receiverCoaxialHDMI supportedAV receiverCoaxialHDMI supportedAV receiver or CoaxialHDMI supportedAV receiver or CoaxialDefinition for Blu-ray Disc

Any Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects.Outputs only the main feature audio stream so that your AV receiver can decode the audio bitstream. You will not hear BONUSVIEW audio or Navigation Sound Effects.Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into DTS bitstream.Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into Dolby digital bitstream or PCM. * If the Source Stream is 2ch, “Re-encoded Dolby D” Setting is not applied. Output will be LPCM 2ch. PCM Downsampling Lets you set 48kHz and 96kHz PCM down- sampling on or off.Off• : Select when the AV receiver connected to the player is 96kHz compatible.On• : Select when the AV receiver connected to the player is not 96kHz compatible. 96kHz signals will be down converted to 48kHz. ✎ NOTE Even when PCM Downsampling is set to ▪ Off, some discs will only output downsampled audio through the coaxial digital outputs. HDMI If your TV is not compatible with • compressed multi-channel formats (Dolby Digital, DTS), the player may output PCM 2ch downmixed audio even though you selected Bitstream (either Re-encoded or Unprocessed) in the setup menu.If your TV is not compatible with PCM • sampling rates over 48kHz, the player may output 48kHz downsampled PCM audio even though you set PCM Downsampling to Off. Dynamic Range Control You can listen at low volumes, but still hear dialog clearly. This is only active if your player detects a Dolby Digital signal.Auto • : The Dynamic Range Control will be set automatically based on the information provided by the Dolby TrueHD Soundtrack.Off• : You can enjoy the movie with the standard Dynamic Range.On• : When Movie soundtracks are played at low volume or through smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud. Downmixing Mode Select Downmix method for stereo output. Normal Stereo • : Downmix the multichannel audio into normal stereo. Choose this if you hear the sound from TV or Stereo Amplifier. Surround Compatible • : Downmix the multichannel audio into surround compatible stereo. This mode helps your AV Receiver to decode stereo into surround sound.Blu-ray Discs may include three audio streams :Main Feature Audio : The audio soundtrack -of the main feature.BONUSVIEW audio : - An additional soundtrack such as the director or actor’s commentary.Navigation Sound Effects : When you -choose a menu navigation selection, a Navigation Sound Effect may sound. Navigation Sound Effects are different on each Blu-ray Disc. ✎

NOTE Be sure to select the correct Digital Output or ▪ you will hear no sound or just loud noise.If the HDMI device (AV receiver, TV) is not ▪ compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.Regular DVDs do not have BONUSVIEW audio ▪ and Navigation Sound Effects.Some Blu-ray Discs do not have BONUSVIEW ▪ audio and Navigation Sound Effects.This Digital Output setup does not affect the ▪ HDMI audio output to your TV. It affects the coaxial and HDMI audio output when your player is connected to an AV receiver.If you play MPEG audio soundtracks, ▪ the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream).16

Network Please contact your ISP to find out if your IP address is static or dynamic. If it is dynamic - and most are - we recommend using the Auto procedure for network setup. This is easiest and will work in the majority of cases. If it is static, you must use the manual set up procedure.Network setup directions start below.

> Move " Select ' ReturnIn the Internet Protocol Setup field, select 4. Auto if it is not selected. (Press ENTER select AUTO, and then press ENTER.)The Auto Function acquires and fills in the 5. values for IP Address, Subnet Mask, etc., automatically. ✎ NOTEThis process can take up to five minutes. ▪ After the Network Function has acquired 6. the network values, press the RETURN button. Select 7. Network Test, and then press ENTER to ensure the player has connected to your network. When the Network Test is complete, press 8. the RETURN twice to return to the Main Menu.If the Network Function does not acquire 9. the network values, go to the directions for Manual Setup. Manual Network Setup Before you start manual network setup, you need the network setting values.To get the Network setting values through most Windows computers, follow these steps: ■ Windows XPRight click the Network icon on the bottom 1. right of the Windows desktop.In the pop-up menu, click Status.2. On the dialog that appears, click the 3. Support tab.On the Support tab, click the Details 4. button. The Network settings are displayed. ■ Windows 7Click the Network icon on the bottom right 1. of the Windows desktop.In the pop-up menu, click Network and 2. Sharing Center.On the dialog that appears, click the Local 3. Area Connection or Wireless Network Connection depending on your network connection.On the Support tab, click the Details 4. button. The Network settings are displayed.To enter the Network Settings into your player, follow these steps:In the Home menu, press the ◄► buttons 1. to select Settings, and then press the ENTER button.Press the ▲▼ buttons to select 2. Network, and then press the ENTER button. Press the ▲▼ buttons to select 3. Wired Network Settings, and then press the ENTER button. The Wired Network Settings screen appears. Select the Internet Protocol Setup field, 4. and then press the ENTER button. Press the ▲▼ buttons to select 5. Manual, and then press the ENTER button.Press the ▼ button to go to the first entry 6. field (IP Address).Use the number buttons on your remote 7. to enter numbers.When done with each field, use the ► 8. button to move to the next field. You can also use the other arrow buttons to move up, down, and back. Enter the 9. IP Address, Subnet Mask, and Gateway values in the same way. Press the ▼ button to go to 10. DNS. Press the ▼ button to go to the first DNS 11. entry field. Enter the numbers as above.12. Press the 13. RETURN button on your remote.Run a Network Test to ensure the player 14. has connected to your network. Network Test Use this menu item to connect to the wired network or check whether your network connection is working or not. Network Status Use to check whether a connection to the network and the Internet have been established. BD-LIVE Internet Connection Set to allow or prohibit an Internet connection when you use the BD-LIVE service. Allow (All) • : The Internet connection is allowed for all BD-LIVE contents. Allow (Valid Only) • : The Internet connection is allowed only for BD-LIVE contents containing a valid certificate. Prohibit • : No Internet connection is allowed for any BD-LIVE content. ✎ NOTEWhat is a valid certificate? ▪

When the player uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transmitted data to check if the disc is valid and sends the certificate back to the player.The Internet connection may be restricted while ▪ you are using BD-LIVE contents.17

By using the Initial Settings function, you can

set the language, Network Settings, etc.

For more information about the Initial Settings

function, refer to the Initial Settings section of

this user manual (page 12).

Anynet+ is a convenient function that offers linked

operations with other Samsung players that have

the Anynet+ feature.

To operate this function, connect this player to an

Anynet+ Samsung TV with an HDMI cable.

With Anynet+ on, you can operate this player

using a Samsung TV remote control and start

disc playback simply by pressing the PLAY

) button on the TV’s remote control.

For more information, please see the TV user

does not support CEC.

If your Samsung TV has an

then it supports the Anynet+ function.

Depending on your TV, certain HDMI output

resolutions may not work.

Please refer to the user manual of your TV.

Enables you to manage the downloaded

contents you accessed through a Blu-ray disc

that supports the BD-LIVE service and stored

You can check the device’s information

including the storage size, delete the BD

data, or change the Flash memory device

BD Data Management Screen Information :

Total memory size of the device.

Available Size• : Available memory in the

NOTE In the external memory mode, disc

may be stopped if you disconnect the USB

device in the middle of playback.

Only those USB devices formatted in FAT file

format (DOS 8.3 volume label) are supported.

We recommend you use USB devices that

support USB 2.0 protocol with 4 MB/sec or

faster read/write speed.

The Resume Play function may not work after

you format the storage device.

The total memory available to BD

Management may differ, depending on the

DivX® Video On Demand

View DivX® VOD Registration Codes to

purchase and play DivX® VOD contents.

You can select the language you prefer for the

Home menu, disc menu, etc.

On-Screen Menu• : Select the language for

the on-screen displays.

Disc Menu• : Select the language for the

Audio• : Select the language for disc audio.

Select the language for disc subtitles.

NOTE The selected language will only appear if it is ▪

supported on the disc.

When you access this function for the first

time, the password setup screen appears.

Enter a desired 4-digit password using the

number buttons. (The default password is

Prevent playback of Blu-ray Discs with specific

age ratings unless a password is entered.

Off • : BD Parental Rating is not active and

all Blu-ray discs will play in full.

On • : This will prohibit playback of Blu-ray

disc rated above Parental Rating.

This function works in conjunction with DVDs

that have been assigned an age rating or

numeric rating that indicates the maturity

level of the content. These numbers help you

control the types of DVDs that your family can

Select the rating level you want to set.

For example, if you select Level 6, discs rated

above 6 - Level 7 and 8 - will not play.

A larger number indicates more mature

Restrict the use of the YouTube service unless

a password is entered.

Off • : Turn Off YouTube lock.

On • : Turn On YouTube lock.

Change PIN Change the 4-digit password used to access

If you forgot your password

Press and hold the 2. PLAY/PAUSE (

button on the front panel for 5 seconds or

All settings will revert to the factory

NOTE When the factory default settings are restored, ▪

all the user stored BD data will be deleted.18

You can specify the time zone that is

applicable to your area.

The Software Upgrade menu allows you to

upgrade the player’s software for performance

improvements or additional services.

To upgrade By Online, follow these steps:

If you select 3. Yes, the player will turn off

automatically before restarting.

(Never turn the player on during an

The update progress popup will appear.4.

When the update is completed, the player

will turn back off automatically.

Press the 5. POWER button to turn on the

NOTE The Update is complete when the player turns

off after restarting. Press the POWER button to

turn on the updated player for your use.

Never turn the player off or back on manually

during the update process.

Samsung Electronics shall take no legal

responsibility for player malfunction caused by

an unstable Internet connection or consumer

negligence during a software upgrade.

If you want to cancel the upgrade while the

upgrade software is downloading, press the

By USB To upgrade by USB, follow these steps:

Visit www.samsung.com/bluraysupport.1.

Download the latest USB software 2.

upgrade zip archive to your computer.

Unzip the zip archive to your computer. 3.

You should have a single RUF file with the

same name as the zip file.

Copy the RUF file to a USB flash drive. 4.

Make sure there is no disc in the player, 5.

and then insert the USB flash drive into the

USB port of the player.

In the player’s menu, go to Settings > 6.

Support > Software Upgrade.

NOTE No disc should be inserted in the product when

you upgrade the software using the USB Host

When the software upgrade is done, check the

software details in the software Upgrade menu.

Do not turn off the player during the software

upgrade. It may cause the player to malfunction.

Software upgrades using the USB Host jack

must be performed with a USB flash memory

Auto Upgrade Notification

If you have connected the player to your

network, and then set Auto Upgrade

Notification on, the player automatically

notifies you when a new software version is

available for the player.

To set Auto Upgrade Notification on, follow

Select 1. Auto Upgrade Notification, and

then press the ENTER button.

Use the ▲▼ buttons to select 2. On, and

then press the ENTER button.

If there is a new software version available,

the player notifies you with a popup message.

To upgrade the firmware, select 1. Yes on the

Pop-up. The player turns off automatically,

then restarts, and begins the download.

(Never turn on the player manually here.)

The update progress popup appears. 2.

When the update is complete, the player 3.

turns off again automatically.

Press the 4. POWER button to turn on the

NOTE Update is complete when the player turns off

after restarting. Press the POWER button to turn

on the updated player for your use.

Never turn the player off or on manually during

Samsung Electronics shall take no legal

responsibility for player malfunction caused by

an unstable Internet connection or consumer

negligence during software upgrade.

Provides contact information for assistance

Terms of Service Agreement

View the general disclaimer regarding third

party contents and services.

All settings will revert to the default except for

the network settings.19

Basic Functions Playing a Video Playback Press the 1. OPEN/CLOSE ( ) button to open the disc tray.Place a disc gently into the tray with the 2. disc’s label facing up.Press the 3. OPEN/CLOSE (

) button to close the disc tray.Press the 4. PLAY ( ) button.Playback related buttons

PLAY ( ) Starts playback. STOP (

) Stops playback.If you press the button once : • The stop position is memorized. If you press the button twice• : The stop position is not memorized.PAUSE ( ) Pauses playback. ✎ NOTEFor some discs, pressing the ▪ STOP (

) button once may not memorize the stop position.Video files with high bit rates of 20Mbps or ▪ more strain the player’s capabilities and may stop playing during playback. Disc Structure The content of discs are usually divided as shown below.Blu-ray Disc, DVD-VIDEO• Audio CD (CD-DA)• MP3, WMA, DivX, MKV and MP4• Using the Disc Menu/Title Menu/Popup Menu Using the Disc Menu

hZ During playback, press the 1. DISC MENU button on the remote control.Press the ▲▼◄►2.

buttons to make a selection, and then press the ENTER button. ✎ NOTEDepending on the disc, the menu items may ▪ differ or this menu may not be available.title 1 title 2 chapter 1 chapter 2 chapter 1 chapter 2 chapter 3 folder (group) 1 folder (group) 2 file 1 file 2 file 1 file 2 file 3

track 1 track 2 track 3 track 4 track 5

Using the Title Menu

Z During playback, press the 1. TITLE MENU button on the remote control.Press the ▲▼◄► buttons to 2. make the desired selection, then press the ENTER button. ✎ NOTEDepending on the disc, the menu items may ▪ differ or this menu may not be available. Playing the Title List

z During playback, press the 1. DISC MENU or TITLE MENU button.Press the ▲▼ buttons to select 2. an entry you want to play from the Title List, and then press the ENTER button. ✎ NOTEIf your disc has ▪ a playlist, press the GREEN (B) button to go to the playlist. Using the Popup Menu

h During playback, press the 1. POPUP MENU button on the remote control.Press the ▲▼◄► buttons or 2. ENTER button to select the desired menu. ✎ NOTEDepending on the disc, the menu items may ▪ differ or this menu may not be available.Using the Search and Skip FunctionsDuring play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Searching for a Desired Scene

During playback, press the • SEARCH ( )

To return to normal speed playback, press • the PLAY ( ) button. ✎ NOTEThe player does not play sound in search mode. ▪

During playback, press the • SKIP ( ) button.If you press the SKIP ( ) button, the disc moves to the next chapter.If you press the SKIP ( ) button, the disc moves to the beginning of the chapter. One more press makes the disc move to the beginning of the previous chapter.20

1/2 To return to normal speed playback, press • the PLAY ( ) button. ✎ NOTEThe player does not play sound in Slow mode. ▪

Using the TOOLS button During playback, you can operate the disc menu by pressing the TOOLS button. ✎ NOTEDepending on the disc, the Tools menu may ▪ differ. Moving to a Desired Scene

hzZy During playback, press the 1. TOOLS button.Press the ▲▼ buttons to select 2. Title, Chapter or Playing Time.Press the ◄► or number button to select 3. the desired Title, Chapter or Playing Time, then press the ENTER button. Repeating the Title or Chapter

hzZy Lets you repeat the disc title or chapter. Depending on the disc, the Repeat function may not be available.During playback, press the 1. REPEAT button.Press the 2. ▲▼ buttons to select Chapter or Title, then press the ENTER button.To return to normal play, press the 3. REPEAT button again.Press the 4. ▲▼ buttons to select Off, then press the ENTER button. Repeating a Section

During playback, press the 1. REPEAT button.Press the 2. ▲▼ buttons to select Repeat A-B. Press the 3. ENTER button at the point where you want repeat play to start (A). Press the 4. ENTER button at the point where you want repeat play to stop (B).To return to normal play, press the 5. REPEAT button again.Press the 6. ▲▼ buttons to select Off, and then press the ENTER button. ✎ NOTEIf you set point (B) less than 5 seconds of ▪ playing time after point (A), a prohibition message appears. Depending on the disc, the menu items may ▪ differ and this menu may not be available. Selecting the Audio Language

hzZx You can also operate this function by pressing the AUDIO button on the remote control. During playback, press the 1. TOOLS button.Press the ▲▼ buttons to select 2. Audio.Press the ◄► buttons to select the 3. desired audio language. ✎ NOTEThe ◄► indicator will not ▪ appear on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.Information about the main feature/BONUSVIEW ▪ mode will also appear if the Blu-ray Disc has a BONUSVIEW section. Press the ◄► button to switch between main feature and BONUSVIEW audio modes.This function depends on the selection of audio ▪ languages encoded on the disc and may not be available.A Blu-ray ▪ Disc can contain up to 32 audio languages and a DVD up to 8.Some Blu-ray ▪ Discs may allow you to select either the PCM or Dolby digital audio soundtrack in English.If you press the ▪ AUDIO button on the remote control, the Audio bar appears. Press the RETURN button to remove the Audio bar.

Selecting the Subtitle Language

hZx You can also operate this function by pressing the SUBTITLE button on the remote control.During playback, press the 1. TOOLS button. Press the ▲▼ buttons to select 2. Subtitle. Press the ◄► buttons to select the 3. desired subtitle language. ✎ NOTEDepending on the Blu-ray ▪ Disc / DVD, you may be able to select the desired subtitle in the Disc Menu. Press the DISC MENU button.This function depends ▪ on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs.A Blu-ray ▪ Disc can contain up to 255 subtitle languages and a DVD up to 32.Information about the main feature/BONUSVIEW ▪ mode will also appear if the Blu-ray Disc has a BONUSVIEW section.This function changes both the primary and ▪ secondary subtitles at the same time.The total number of primary and secondary ▪ subtitles are displayed respectively.If you press the ▪ SUBTITLE button on the remote control, the subtitle bar appears. Press the RETURN button to remove the subtitle bar.21

Changing the Camera Angle

hZ When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.During playback, press the 1. TOOLS button.Press the ▲▼ buttons to select 2. Angle.Press the ◄► buttons to select the 3. desired Angle. Selecting the Picture Settings

hzZy This function enables you to adjust video quality when the player is connected to a TV.During playback, press the 1. TOOLS button.Press the ▲▼ buttons to select 2. Picture Setting, and then press the ENTER button.Press the ◄► buttons to select the 3. desired Picture Setting . Dynamic• : Choose this setting to increase Sharpness.Normal• : Choose this setting for most viewing applications.Movie• : This is the best setting for watching movies.User• : Lets you adjust the sharpness and noise reduction function respectively. ✎ NOTEWhen you use BD wise function, this menu will ▪ not appear. Setting BONUSVIEW

h The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the Bonusview feature. During playback, press the 1. TOOLS button.Press the ▲▼ buttons to 2. select BONUSVIEW Video or BONUSVIEW Audio.Press the ◄► buttons to select the 3. desired Bonusview. ✎ NOTE If you switch from BONUSVIEW Video, ▪ BONUSVIEW Audio will change automatically in accordance with BONUSVIEW Video. Listening to Music

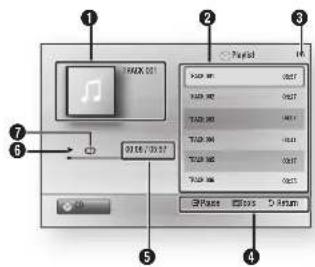

1 Displays the music information. 2 Displays the playlist. 3 Display the current track/total tracks. 4 Displays buttons available. 5 Shows the current play time/total play time. 6 Displays the current playback status. 7 Displays the repeated playback status. Repeat an Audio CD (CD-DA)/

MP3 During the Playlist playback, 1. press the TOOLS button. Select 2. Repeat Mode, and then press the ◄► buttons to select the desired repeat mode. Press the 3. ENTER button

. Repeat Modes : Off Audio CD (CD-DA)/MP3Tracks on a disc are played in the order in which they were recorded on the disc. ( ) TrackAudio CD (CD-DA)Current track is repeated. ( ) One MP3 Current track is repeated. ( ) AllAudio CD (CD-DA)/MP3All tracks are repeated. ( ) ShuffleAudio CD (CD-DA)/MP3The random option plays a disc’s tracks in random order. Playlist Insert an Audio CD (CD-DA) or an MP3 1. Disc into the disc tray.For an Audio CD (CD-DA), the first track • plays automatically.For an MP3 disc, press the ◄► buttons • to select Music, then press the ENTER button.To move to the Music List, press the 2. STOP ( ) or RETURN button. The Music List screen appears.Press the ▲▼◄► buttons to move to a 3. desired track, then press the YELLOW (C) button to check the desired track. Repeat this procedure to select additional tracks.If you want to remove a track from the 4. playlist, go to the track, and then press the YELLOW (C) button again. The track is removed. Press the 5. ENTER button to play the selected tracks. The selected tracks will play automatically.22

To go to the Music List, press the 6. STOP ( ) or RETURN button. To go to the Playlist, press the 7. ENTER button. ✎ NOTEYou can create a playlist with up to 99 tracks on ▪Audio CDs (CD-DA). Playing back Pictures

G Playing JPEG files Insert a JPEG disc into the disc tray.1. Press the ◄► buttons to 2. select Photos, and then press the ENTER button.Press the ▲▼◄► buttons to select the 3. folder you want to play, and then press the ENTER button.Press the ▲▼◄► buttons to select the 4. photo you want to play, and then press the ENTER button. ✎ NOTEYou can’t enlarge the subtitle and PG graphic in ▪ the full screen mod e.

Using the TOOLS button You can use various functions by pressing the TOOLS button. Start Slide Show• : Select to start the slide show. Stop Slide Show• : Select if you want to stop the slide show. Slide Show Speed• : Select if you want to adjust the Slide Show speed. Background Music• : Select to listen to music while viewing a slide show. Zoom• : Select to enlarge the current picture. (Enlarged up to 4 times) Rotate• : Select to rotate the picture. (This will rotate the picture either clockwise or counter clockwise.) Information• : Shows the picture information including the name and size, etc. ✎ NOTETo enable ▪ the background music function, the photo file must be in the same storage media as the music file. However, the sound quality can be affected by the bit rate of the MP3 file, the size of the photo, and the encoding method.Start Slide Show and Stop Slide Show alternate, ▪ depending on whether you are running a slide show or not. Playing Selected Photos You can select specific photos to play pressing the YELLOW (C) button on your remote. To select specific photos, follow these steps:Select the folder that contains the photos 1. you want to view, and then press the ENTER button.Press the ▲▼◄► buttons to select a 2. photo you want to play, and then press the YELLOW (C) button. A check mark appears on the photo.Repeat Step 2 for each photo you want to 3. play. ✎ NOTETo deselect a photo, press the ▲▼◄► ▪ buttons to highlight the photo, and then press the YELLOW (C) button. Press the 4. ENTER button when done. The slide show starts. Playing back a USB Storage Device You can use the USB connection to play multimedia files (MP3, JPEG, DivX, etc) located on a USB storage device. Move to the 1. Home menu. In Stop mode, connect the USB storage 2. device to the USB port on the front panel of the player. The message “Do you want to access the device?” will be displayed. Press the ◄► button to select 3. Yes, then press the ENTER button. Press the 4. RED (A) button or BLUE (D) button. If you pressed the RED (A) button, go to Step 5. If you pressed the BLUE (D) button, go to Step 4

-1 . If you pressed the BLUE (D) button, the screen below appears. Go to 5 -1

-1 . Press the ◄► buttons to select USB, then press the ENTER button. 6

-1 . Press the ▲▼ buttons to select the desired Videos, Music or Photos, then press the ENTER button.For playing back Video, Music or Photo 7. files see pages 19~22. ✎ NOTEYou must remove the USB storage device ▪ safely (by performing the “Safely Remove USB” function) in order to prevent possible damage to the USB memory. Press the MENU button to move to the Home menu, select the YELLOW (C) button, and then press the ENTER button.When the Audio-CD (CD-DA), MP3 or JPEG files ▪ are in stop mode, pressing the FULL SCREEN button on the remote will not bring up a full screen picture. If you i ▪ nsert a disc when playing a USB storage device, the device mode changes to “DVD or CD” automatically.23

Network Services You can enjoy various network services such as BD-LIVE by connecting the player to your network.Read the following instructions before using any network service.Connecting the player to the network 1. (pages 10 and 11).Configuring the network settings 2. (page 16). BD-LIVE™ Once the player is connected to the network, you can enjoy various movie-related service contents using a BD-LIVE compliant disc.Attach a USB memory stick to the USB 1. jack on the side of the player, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services.Insert a Blu-ray Disc that supports BD-2. LIVE.Select an item from various BD-LIVE 3. service contents provided by the disc manufacturer. ✎ NOTEThe way you use BD-LIVE and the provided contents ▪ may differ, depending on the disc manufacturer. Using the AllShare Function AllShare lets you play music, video, and photo files located in your PC or NAS on the player.To use AllShare with your player, you must connect the player to your network (See pages 10~11). To use AllShare with your PC, you must install AllShare software on your PC.If you have NAS, you can use AllShare without any additional software. To download AllShare software Go to Samsung.com1. Click Support, enter your player’s product 2. number in the field that appears, and then click Product.On the next screen, click Get downloads 3. under Downloads.Click Software on the next page.4. Click the icon in the AllShare line under File 5. to start the download. Playing content located in your

PC on the Blu-ray Disc Player You can view shared files of your computer to your Blu-ray Disc Player. You can get detailed instructions for using AllShare from the Samsung.com web site.AllShare ConnectionPlay back PC’s filesBlu-ray Disc Player Appendix

Troubleshooting Before requesting service, please try the following solutions.PROBLEM SOLUTIONNo operation can be performed with the remote control. Check the batteries in the remote control. They may need replacing.•

Operate the remote control at a distance of no more than 6.1m.•

Remove batteries and hold down one or more buttons for several minutes • to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again. Disc does not play. Ensure that the disc is installed with the label side facing up.•

Check the region number of the Blu-ray Disc/DVD.•

Disc Menu does not appear. Ensure that the disc has disc menus.• The prohibition message appears on the screen. This message appears when an invalid button is pressed.•

The Blu-ray Disc/DVD’s software doesn’t support the feature (e.g., angles).•

You’ve requested a title or chapter number or search time that is out of • range.Play mode differs from the Setup Menu selection. Some of the functions selected in the Setup Menu may not work properly if • the disc is not encoded with the corresponding function.The screen ratio cannot be changed. The Screen Ratio is fixed on your Blu-ray Disc/• DVD. This is not a problem with the player.• No audio. Make sure you have selected the correct Digital Output in the Audio Options • Menu. The screen is blocked If the HDMI output is set to a resolution your TV cannot support (for example, • 1080p), you may not see a picture on your TV. Press the • PLAY/PAUSE ( ) button (on front panel) for more than 5 seconds with no disc inside. All settings will revert to the factory settings. When the factory default settings are restored, • all stored user BD data is deleted.24

PROBLEM SOLUTION Forgot password

Press the • PLAY/PAUSE (

) button (on front panel) for more than 5

seconds with no disc inside. All settings including the password will revert to

the factory settings.

Don’t use this unless absolutely necessary.

When the factory default settings are restored, • all stored user BD data is

If you experience other

Go to the contents and find the section of the user manual that contains the •

explanations regarding the current problem, and follow the procedure once

If the problem still cannot be solved, please contact your nearest Samsung •

authorised service center.

The picture is noisy or

Make sure that the disc is not dirty or scratched.•

No HDMI output. Check the connection between the TV and the HDMI jack of the player.•

If random noise appears on the screen, it means that TV does not support •

HDCP (High-bandwidth Digital Content Protection).

I can see folders shared

through AllShare, but I

cannot see the files.

AllShare shows only• files corresponding to the Image, Music, and Movie

categories. Files that do not correspond to these categories may not be

Check if the network is stable. •

Check if the network cable is properly connected and if the network is not •

between Player and PC is

The IP• address under the same subnetwork should be unique. If they are not,

IP interference can cause this phenomenon.

Check if you have a firewall enabled. •

If so, disable the firewall function.

PROBLEM SOLUTION BD-LIVE I cannot connect to the BD-

Check whether the network connection is successful or not by using• the

Network Status menu.

Check whether the USB memory device is connected • to the player.

The memory device must have at least 1GB of free space to accommodate •

the BD-LIVE service.

You can check the available size in BD Data Management.

Check whethe• r the BD-LIVE Internet Connection menu is set to Allow(All).

If all above fails, contact the contents provider or • update the player to the

When using the BD-LIVE

service, an error occurs.

The memory device must have at least 1GB of free space to accommodate •

the BD-LIVE service.

You can check the available size in BD Data Management.

NOTE When the factory default settings are restored, ▪ all stored user BD data is deleted.

If you contact us to repair your player, an administration fee may be charged if either:

An engineer is called out to your home at your request and there is no defect in the product.1.

You bring the unit to a repair center and there is no defect in the product.2.

We will provide you with the amount of the administration fee before we make a home visit

or begin any work on your player.

We recommend you read this manually thoroughly, search for a solution on line at www.

samsung.com, or contact Samsung Customer Care before seeking to repair your player.25

Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 %

100BASE - TX Terminal

It is not supported when the network speed is below or equal to 10Mbps. -

Design and specifications are subject to change without prior notice. -

For the power supply and power consumption, refer to the label attached to the -

Weight and dimensions are approximate. -26

Compliance and Compatibility Notice

NOT ALL discs are compatible

Subject to the restrictions described below and those noted throughout this Manual, including the Disc Type •

and Characteristics section of this user manual, disc types that can be played are: pre-recorded commercial

BD-ROM, DVD-VIDEO, and Audio CD (CD-DA) discs; BD-RE/-R, DVD-RW/-R discs; and CD-RW/-R discs.

Discs other than the above cannot and/or is not intended to be played by this player. And some of the •

above discs may not play due to one or more reasons provided below.

Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE/-R, •

DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player may not respond to all

operating commands or operate all features of every disc. These and other disc compatibility and player

operation issues with new and existing format discs are possible because:

Blu-ray is a new and evolving format and this player may not operate all features of Blu-ray Discs because -

some features may be optional, additional features may have been added to the Blu-ray

Disc format after the production of this player, and certain available features may be subject to delayed

not all new and existing disc format versions are supported by this player; -

new and existing disc formats may be revised, changed, updated, improved and/or supplemented; -

some discs are produced in a manner that allows specific or limited operation and feature during playback; -

some features may be optional, additional features may have been added after the production of this -

player or certain available features may be subject to delayed availability;

some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and -

CD-RW/-R logos may still be non-standardized discs;

some discs may not be played depending on their physical state or recording conditions; -

problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the manufacture -

this player operates differently than a standard DVD player or other AV equipment; and/or -

for reasons noted throughout this user manual and for other reason(s) discovered and posted by -

SAMSUNG customer care centre.

If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care •

You may also contact SAMSUNG customer care centre for possible updates on this player.

For additional information on playback restrictions and disc compatibility, refer to the Precautions, Before •

Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this user manual.

For Blu-ray Disc Player progressive scan output • : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS PRODUCT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Because AACS (Advanced Access Content System) is approved as content protection system for •

Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions

are imposed on playback, analogue signal output, etc., of AACS protected contents.

The operation of this product and restrictions on this product may vary depending on your time of purchase

as those restrictions may be adopted and/or changed by AACS after the production of this product.

Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for Blu-ray Disc

format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+

protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please

contact SAMSUNG customer care centre.

Many Blu-ray Disc/DVDs are encoded with copy protection. Because of this, you should only connect •

your Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy

protected Blu-ray Disc/DVDs.

Under the U.S. Copyright laws and Copyright laws of other countries, unauthorised recording, use, display, •

distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other materials may

subject you to civil and/or criminal liability.

Cinavia Notice :• This product uses Cinavia technology to limit the use of unauthorized copies of some

commercially-produced film and videos and their soundtracks. When a prohibitet use of an unauthorized

copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center

at http://www.cinavia.com. To request additional information about Cinavia by email, send a postcard with

your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego CA, 92138,

This product incorporates proprietary technology under licence from Verance Corporation and is protected

by U.S. Patent 7,369,677 and other U.S. and worldwide patens issued and pending as well as copyright

and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance

Corporation. Copyright 2004-2010 Verance Corporation. All right reserved by Verance. Reverse engineering

or disassembly is prohibited.

Network Service Disclaimer

All content and services accessible through this device belong to third parties and are protected by copyright,

patent, trademark and/or other intellectual property laws. Such content and services are provided solely for

your personal non-commercial use. You may not use any content or services in a manner that has not been

authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised

by the applicable content owner or service provider, you may not modify, copy, republish, upload, post,

transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or

services displayed through this device.

SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO,

INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN,

OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be terminated or interrupted at any time, and Samsung makes no representation

or warranty that any content or service will remain available for any period of time. Content and services are

transmitted by third parties by means of networks and transmission facilities over which Samsung has no

control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or

liability for any interruption or suspension of any content or service made available through this device.

Samsung is neither responsible nor liable for customer service related to the content and services. Any

question or request for service relating to the content or services should be made directly to the respective

content and service providers.27

Manufactured under license from Dolby Laboratories. Dolby and the •

double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; •

6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the

Symbol, & DTS and the Symbol together are registered trademarks & DTS

2.0+Digital Out is a trademark of DTS, Inc. Product includes software.

© DTS, Inc. All Rights Reserved.

ABOUT DIVX VIDEO : DivX -

is a digital video format created by DivX,

LLC, a subsidiary of Rovi Corporation.

This is an official DivX Certified

device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your files into DivX

ABOUT DIVX VIDEO-ON-DEMAND : This DivX Certified -

device must be registered in

order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration

code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for

more information on how to complete your registration.

video up to HD 1080p, including premium content.

and associated logos are trademarks of Rovi Corporation or its

subsidiaries and are used under license.

Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; -

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are •

trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. •

Other names may be trademarks of their respective owners

Open Source License Notice•

In the case of using open source software, Open Source Licenses are available on the -

Blu-ray Disc™, Blu-ray™ and the logos are trademarks of the Blu-ray Disc Association.•Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the

www.samsung.com/be (Dutch)

(+30) 210 6897691 from mobile and land line

(+40) 21 206 01 10 from mobile and land line

ESTONIA 800-7267 www.samsung.com

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery

This marking on the battery, manual or packaging indicates that the batteries in this

product should not be disposed of with other household waste at the end of their working

life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains

mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human

health or the environment.

To protect natural resources and to promote material reuse, please separate batteries

from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection

This marking on the product, accessories or literature indicates that the product and its

electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with

other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate these items from other types of waste and recycle them

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take these items for

environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the

This product and its electronic accessories should not be mixed with other commercial

* Samplingfrequenties (in kHz) - 8, 11, 16, 22,

576p/480p 576p/480p 576p/480p

576p/480p 576p/480p14

met concerten of TV-shows.

upgrade van de software.

@ CONDITIONS DE GARANTIE
