USER MANUAL DVD-R170 SAMSUNG

Thanks you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/global/register

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

3	CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN	1
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.	CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.	This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION

THIS DVD REORDER USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE REORDER AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILizes A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTIONS

Caution : To prevent electric shock, match the wide blade of the plug to wide slot of the socket and fully insert.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

This unit can be used only where the power supply is AC 110-240V, 50/60Hz. It cannot be used elsewhere.
This DVD Recorder is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this, the DVD Recorder cannot play the disc.
This device is protected by U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
This product is covered by one or more of the following U.S. patents: 5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,474 6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729 7,286,454 7,304,938

DANGER - VISIBLE AND INAVAILABLE LASER RADIATION WHEN OPEN, AVOID DIRECT EXPOSURE TO BEAM.

CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

ATTENTION - RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS DO UVOVERTURE, EXPOSITION DANGEREUSE AU FAISCEAU.

ADVARSEL SYNLGOGUSYNLGLASERSTRALINGVEDABNING, UNGDAUSSETTLEMENTESTRALING.

VARO! -AVATTAESSA OLET ALTINIA NAKYVAA JN KAKYMATON LASERSATELYLLE, ALA KATSO SATEEEN.

VARKING -SYNLIG OCH OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNDN, BERTRAKTAJ STRALEN.

ADVARSEL SYNLG OIG USYNLG LASERSTRALING NAR DEKSEL APNES UNNGA EKSPONERING FOR STRALEN.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Service is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus. Service is also required if the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Handling Cautions

• Before connecting other components to this recorder, be sure to turn them all off.
• Do not move the recorder while a disc is being played, or the disc may be scratched or broken, and the recorder's internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the recorder.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this recorder. If this occurs, turn the DVD Recorder off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The recorder will operate normally.
• Be sure to remove the disc and turn off the recorder after use.
• Disconnect the AC power cord from the AC outlet when you don't intend to use the recorder for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

Disc Handling

• Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this DVD Recorder may be damaged.

Holding discs

• Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD±RW and DVD±R

• Clean with an optional DVD-RAM/PD disc cleaner. Do not use cleaners or cloths for CDs to clean DVD-RAM/DVD±RW/DVD±R discs.

DVD-Video, Audio CD

• Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs

• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs.

Disc Storage

Be careful not to damage the disc because the data on these discs are highly vulnerable to the environment.

• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your DVD Recorder suddenly from a cold place to a warm place, condensation may generate on the operating parts, including the lens, and cause abnormal disc playback. In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. It will work properly when condensation has evaporated.

Disc Specifications

DVD-Video

• A digital versatile disc (DVD) can contain up to 135- minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surround, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home.
• When switching from the first layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW(V)/-R(V)/+R recorded is finalized, it is playable in a standard DVD player.

Video CD

• Only CD-R disks made in the VCD format (ver 1.1 or 2.0) can be played back.
• The moving pictures for PCs can be played back only provided that they are recorded in VCD format in the CD-Recording program.
• Please contact the CD-R maker for the inquiries related to discs.

Audio CD

• An audio disc on which 44.1kHz PCM Audio is recorded.
• Plays CD-DA format audio CD-R and CD-RW discs. This unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-RW/-R

MP3 CD-RW/-R

• Only CD-R discs with MP3 files recorded with ISO9660 or JOLIET format can be played back
• Only MP3 files with the "mp3" or "MP3" extension can be used.
• Playable bitrate range is from 32 Kbps to 320Kbps.
• The unit can handle a maximum of 499 files and folders.
  DVD-RAM/±RW/±R discs that contain MP3 files can be played back.

JPEG CD-RW/-R

• Only JPEG files with the ".jpg", ".JPG" extension can be used.
• The unit can handle a maximum of 1000 files and folders.
  Maximum size of progressive JPEG is 3M pixels.
• MOTION JPEG is not supported.
  DVD-RAM/ ± RW/ ± R discs that contain JPEG files can be played back.

Using CD-RW/-R

• Use a 700MB(80 minutes) CD-RW/-R disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.
• If the CD-RW/-R disc was not recorded as a closed session, you may experience a delay in the early play-back time, and all recorded files may not play.
• Some CD-RW/-R discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on contents and discs.
• When recording from CDs for your personal use to CD-RW/-R discs, playability may vary depending on the contents and discs.

Using DivX disc

Disc:CD-RW/-R,DVD-RAM/ ± RW/ ± R
Video File with following extensions can be played. : .avi, .divx, .AVI, .DIVX
- DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
DivX Audio (Codec) Format: MP3, AC3, DTS
- Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass
Each folder can have up to 500 items including files and sub folders.
- You cannot play back the disc that is larger than a 720 × 576 pixel resolution.

DVD-RW/-R Disc Playback and Recording

• Recording and playback can be performed on DVD-R/-RW discs in both Video and VR Modes.
• Once a DVD-RW/-R is recorded in VR or Video mode and finalized, you cannot perform additional recordings.
• Once a DVD-RW/-R is recorded in Video Mode and finalized, it becomes a DVD-Video.
• In both modes, playback can be performed before and after finalization, but additional recording, deleting and editing can not be performed after finalization.
• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute format. Be careful when executing Format because all the recorded data may be lost. You can change the disc mode only one times when the unused DVD-R disc is inserted.

DVD-RW/-R (VR mode)

• You can record multiple titles, edit, delete, partial delete, create a playlist, etc.
• A disc that is recorded in this mode may not be played by existing DVD players.

DVD-RW/-R (Video mode)

• The disc can be played by an existing DVD player once it has been finalized.
• If a disc that has been recorded in Video mode by a different manufacturer's recorder but has not been finalized it cannot be played or recorded by this recorder.
• When programming is erased from a DVD-R, that space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not.

DVD-RAM Disc Playback and Recording

• For cartridge type DVD-RAM discs, remove the cartridge and use only the disc.
• You cannot play a DVD-RAM in most DVD players due to compatibility issues.
• Only DVD-RAM standard Version 2.0 discs can be played in this unit.
• DVD-RAM discs recorded on this unit may not work with other DVD Players. To determine compatibility with these DVD-RAM discs, refer to the user's manual for the player.

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD Recorder directly to your TV, not to a VCR. Connecting your recorder to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Protection

• Program-protection: See page 56 "Locking a Title"
• Disc-protection: See page 62 "Disc Protection"
• DVD-RAM/DVD-RW/DVD-R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.
• For more information on DVD recording compatibility, consult your DVD-RAM/DVD-RW/DVD-R manufacturer.
• Use of poor quality DVD-RAM/DVD-RW/DVD-R discs may cause the following unexpected problems including, recording failure, loss of recorded or edited materials, or damage to the recorder.

Do not use the following discs!

• LD, CD-G, CD-I, CD-ROM and DVD-ROM, Divx discs should not be used in this product. [Note]
• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either "No Disc" or "Playback prohibited by region code" will be displayed.
• If your DVD-RAM/DVD-RW/DVD-R disc is an illegal copy or is not in DVD video format, it may also not be playable.

Disc Compatibility

• Not all brands of discs will be compatible with this unit.
• The latest firmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com)
• If disc compatibility problems continue, or there is an issue upgrading your recorder, contact the Call Center at 0800-124-421 or 4004-0000.

GETTING STARTED

2

2 Warning
3 Precaution
10 General Features
11 Before Reading the User's Manual
12 How to use the DVD Recorder
13 Unpacking

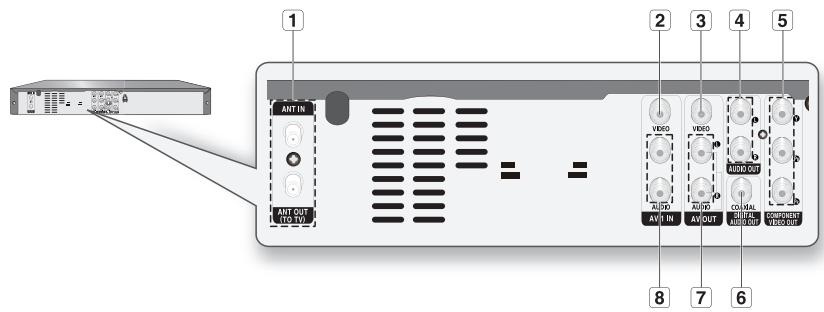

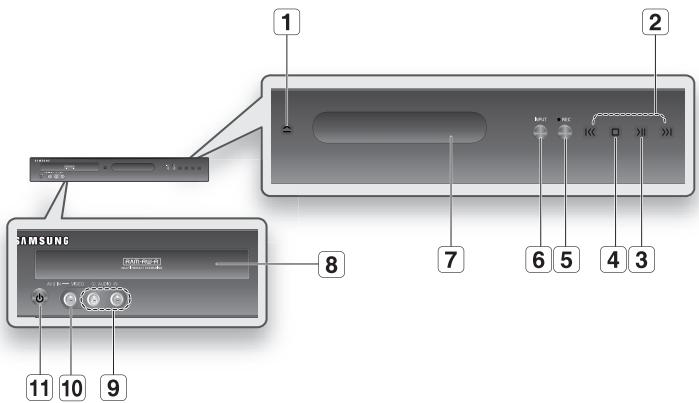

16 Description

CONNECTING & SETTING UP

18

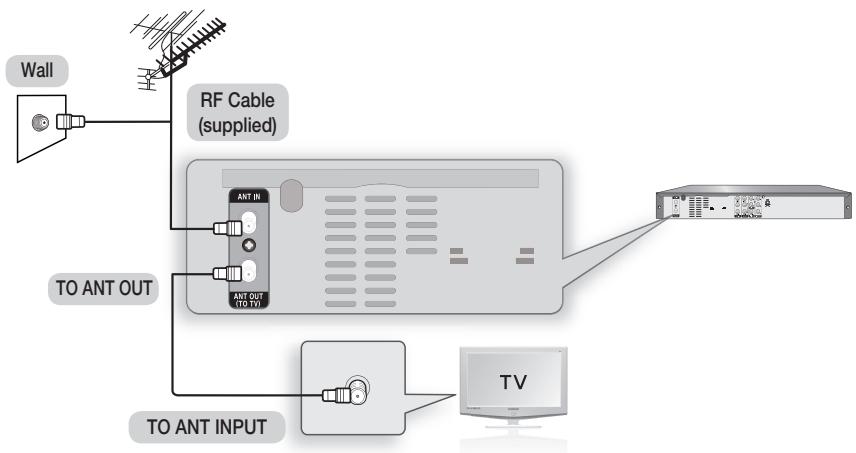

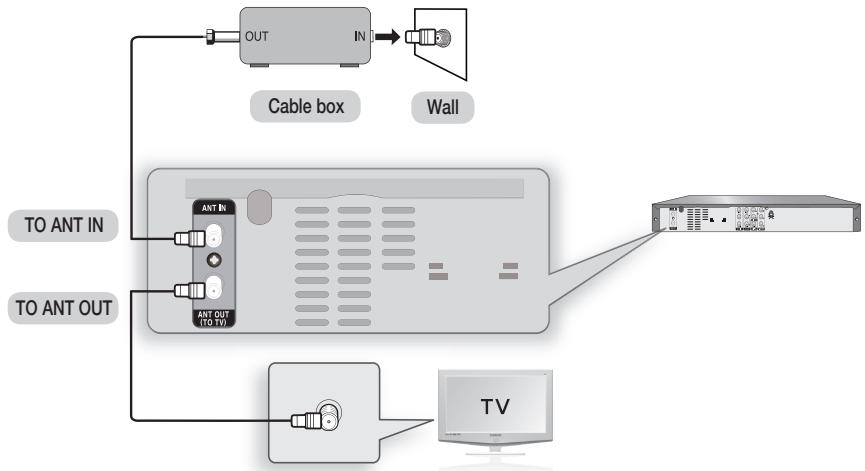

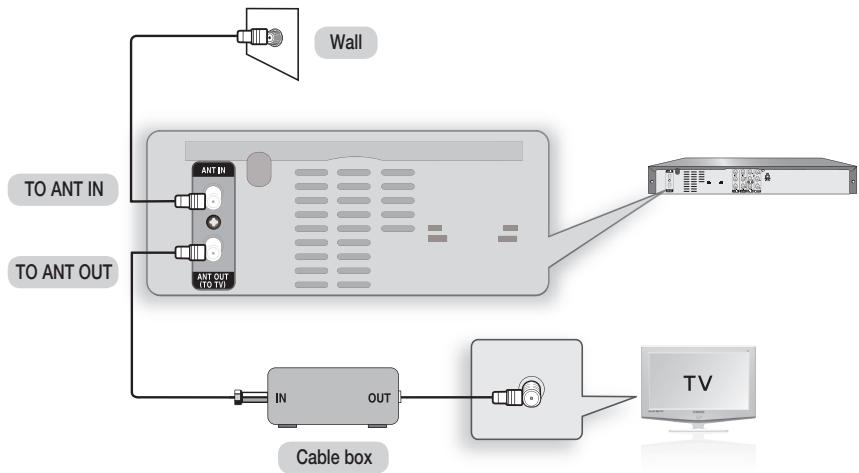

18 Connecting the Antenna Cable

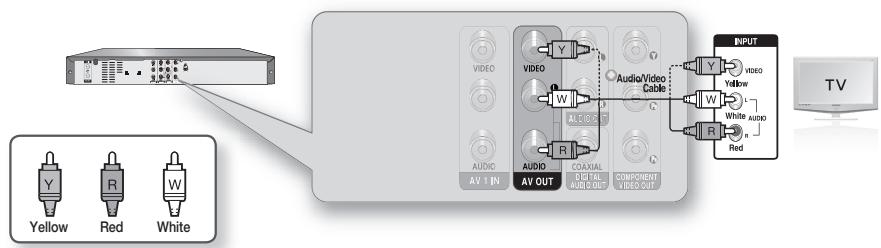

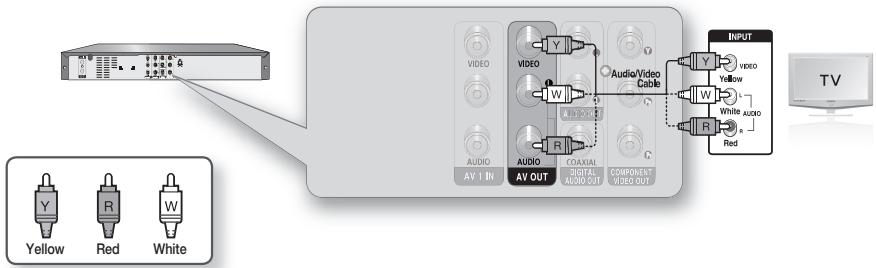

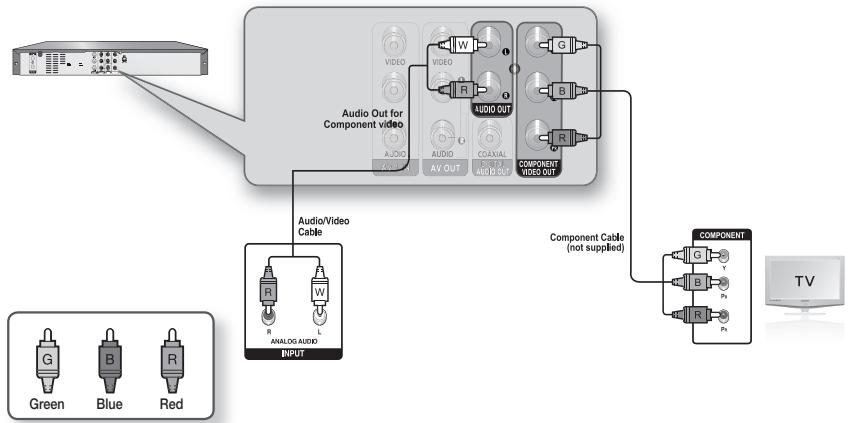

20 Connecting the Video Output

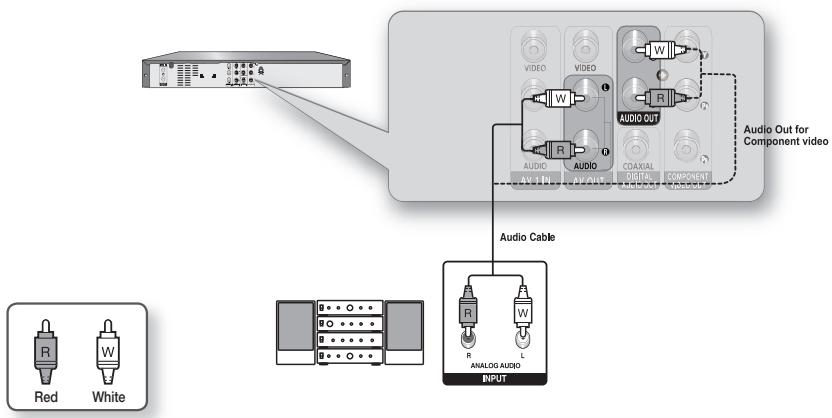

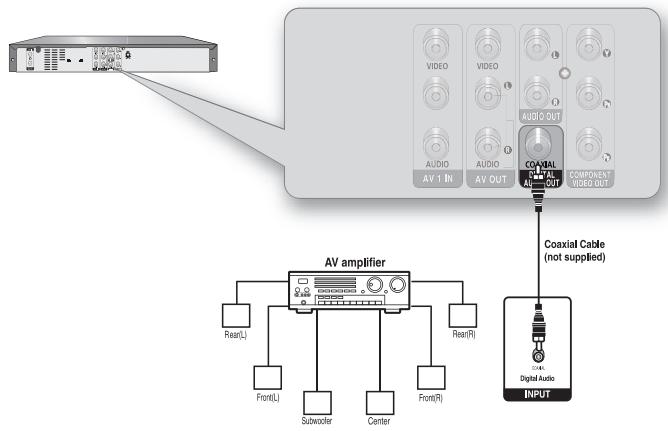

21 Connecting the Audio Cable

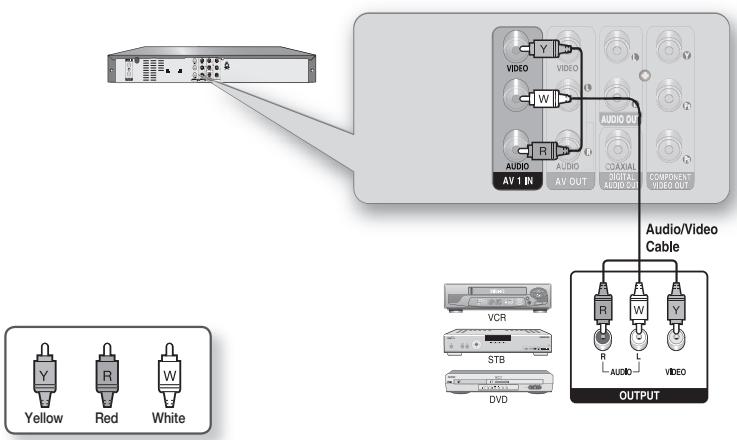

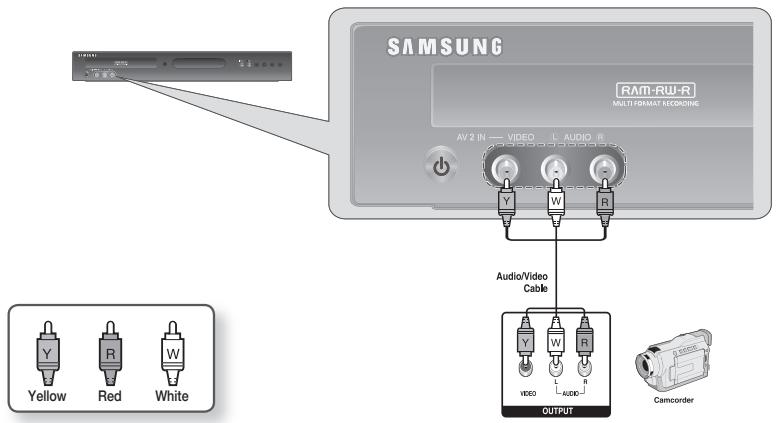

23 Connecting External Devices

SYSTEM SETUP

25

25 On-Screen Menu Navigation
25 Easy Setup
26 Tuner Preset
27Clock Set

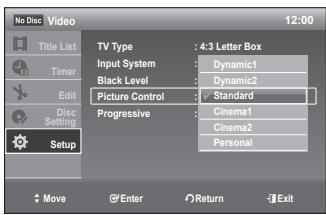

28 Setting up the Video Options

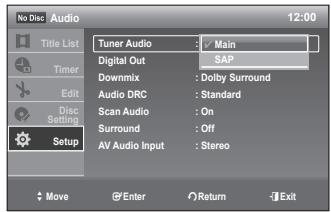

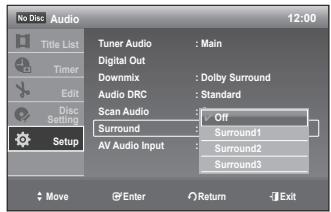

30 Setting up the Audio Options
32 Setting up the Features
35 Setting up the Options

PLAYBACK

37

37 Region code (DVD-Video only)
37 Logos of Discs that can be played
38 Disc types that can be played
39 Playing a Disc
40 Using the Disc Menu and Title Menu
40 Using the Search & Skip Functions
41 Slow Motion Play/Step Motion Play
42 Using the ANYKEY button

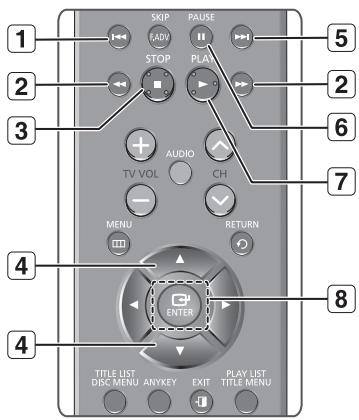

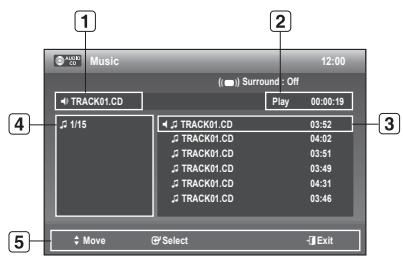

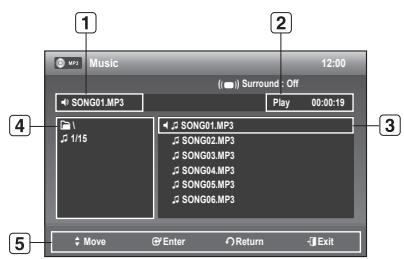

44 Playing Back an Audio CD (CD-DA)/MP3

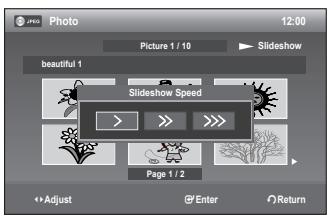

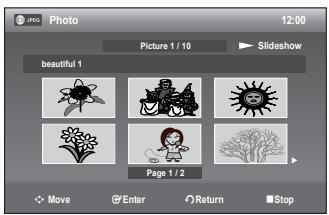

45 Playing back a Picture Disc
46 Playing a DivX Disc

RECORDING

47

47 Recordable discs
48 Recording Mode
49 Unrecordable Video
50 Recording immediately
51 Making a One Touch Recording (OTR)
52 Making a Timer Recording
53 Editing the Timer List
54 Erasing the Timer List
54 Check Remaining Time

EDITING

55

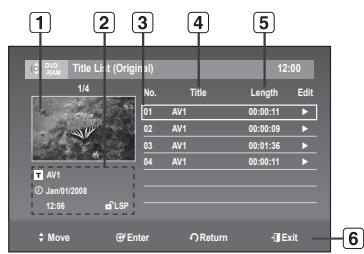

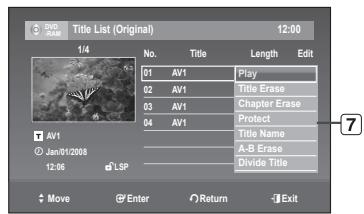

55 Playing the Title List

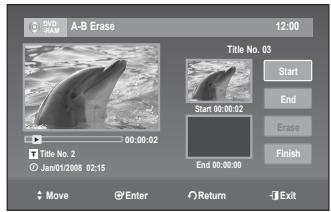

56 Basic Editing (Title List)

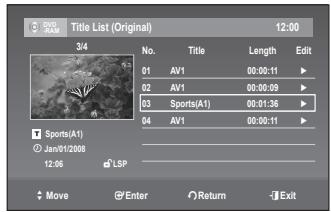

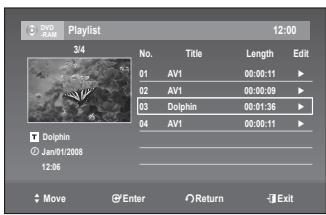

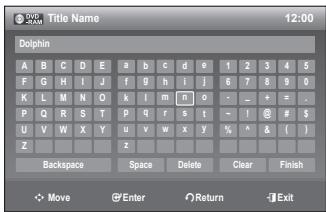

59 Advanced Editing ( Playlist)

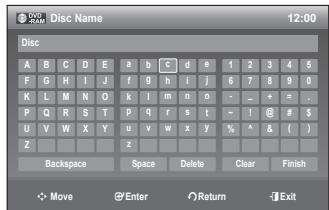

62 Disc Setting

REFERENCE

66

66 Troubleshooting (DVD-VIDEO/DVD-RAM/DVD-RW/DVD-R)
67 Troubleshooting (DVD)
68 Problems and Solutions (Display error Message)

APPENDIX

70

70 Specifications

GENERAL FEATURES

The DVD-R170 allows you to record, edit and play high quality digital video on DVD-RAM/DVD-RW/DVD-R discs.

High quality digital audio/video recording and playback

You can record up to approximately 16-hours of video on a double side 9.4 GB DVD-RAM disc, up to 15-hours on a dual-layer 8.5GB DVD-R disc, and up to 8-hours on a 4.7 GB DVD-RAM/DVD-RW/DVD-R disc, depending on the recording mode.

Creating DVD video titles using DVD-RW/DVD-R discs

With the DVD-R170, you can create your own DVD video titles on 4.7 GB DVD-RW/DVD-R or 8.5GB DVD-R discs.

A Variety of Recording Options

You can set your DVD Recorder to one of eight different recording modes, each varying in recording quality and length. Select a recording mode according to the time and picture quality you need.

For example, if picture quality is your top priority, select "HQ" (high quality).

If recording time is your priority, "SLP" may be a possible choice.

Dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs.

High quality progressive scan

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC, 2D Y/C

Separating circuitry and Time Base Corrector processor technology provide you with the highest image playback and recording quality. (See page 20.)

A variety of functions with an easy-to-use user interface

The Integrated menu systems and messaging functionality allow you to perform the desired operations easily and conveniently. With a DVD-RAM/DVD-RW/DVD-R(VR mode) disc, you can edit recorded images, create playlist, and edit videos in a specific sequence according to your needs.

DivX Certification

DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are used under licence.

• Official DivX® Certified product
• Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files

EZ Record Mode

This function allows you Finalize a disc automatically. (See page 34.)

Make sure to check the following terms before reading the user's manual.

Icons that will be used in manual

Icon	Term	Definition
DVDVIDEO	DVD	This involves a function available with DVD or DVD-R(V)/DVD-RW(V)/+R discs that have been recorded and finalized.
VCD	VCD	This involves a function available with VCD or CD-R/CD-RW discs.
DVD-RAM	RAM	This involves a function available with DVD-RAM discs.
DVD-RW	-RW	This involves a function available with DVD-RW discs.
DVD-R	-R	This involves a function available with DVD-R discs.
DVD-RW	+RW	This involves a function available with DVD+RW discs.
DVD-R	+R	This involves a function available with DVD+R discs.
CD	CD	This involves a function available with a data CD (CD-RW or CD-R).
JPEG	JPEG	This involves a JPEG function available with CD-RW/-R or DVD-RAM/DVD±RW/DVD±R discs.
MP3	MP3	This involves an MP3 function available with CD-RW/-R or DVD-RAM/DVD±RW/DVD±R discs.
DivX	DivX	This involves a function available on CD-RW/-R, DVD-RAM/DVD±RW/DVD±R discs.
!	Caution	This involves a case where a function does not operate or settings may be cancelled.
NOTE	NOTE	This involves tips or instructions on the page that help each function operate.
One-Touch button	A function that can be operated by using only one button.
ANYKEY	ANYKEY button	A function that can be operated by using the ANYKEY button.

About the use of this user's manual

1) Be sure to be familiarize yourself with the Safety Instructions before using this product. (See pages 2~7)
2) If a problem occurs, check the Troubleshooting section.

(See pages 66~67)

Copyright

©2008 Samsung Electronics Co.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

Step 1: Select the disc type

This unit can record on the following types of discs.

If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW or DVD-RAM type disc. If you want to save a recording without making any changes, choose a non-rewritable DVD-R.

Step 2: Format the disc to start recording

The recorder automatically starts formatting when an unused disc is inserted.

Using a DVD-RAM/-RW

When an unused DVD-RAM/-RW disc is first inserted, the message "Unformatted Disc. Formatting. Please wait." will be displayed.

Using a DVD-R

It is not necessary to format a new DVD-R disc. When it is inserted, it will operate in Video mode. It can also be formatted in VR mode in the setup menu.

You can change the disc mode only once when an unused DVD-R disc is inserted.

• You can only use either the VR or Video mode on a DVD-RW/-R, but not both at the same time.
• You can format a DVD-RW/-R to V or VR mode using disc setting.

It should be noted that the disc's data will be lost when changing formats.

Step 3: Recording

There are two different recording methods, Direct Recording(recording a program you are currently watching) and Timer Recording.

Timer recording is classified as follows : Recording mode : HQ (high quality mode), HSP, SP (standard quality mode), LSP, ESP, LP, EP, SLP (Long duration mode) according to the recording mode.

When recording is set in the AUTO mode, the best quality picture is recorded with regards to the remaining time on the disc.

Step 4 : Playing

To start playback, select the title you want to play from the title list.

A DVD consists of sections called titles, and sub sections called chapters.

During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically regardless of the disc type when it is set at the setup menu.

Editing on discs is easier than conventional video tapes. The recorder supports many different edit functions, possible only with DVDs.

With a simple and easy edit menu, you can operate various edit functions, such as delete, rename, lock, etc., on a recorded title.

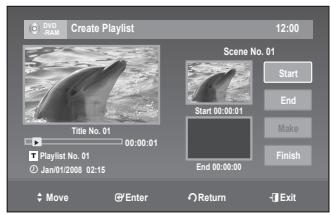

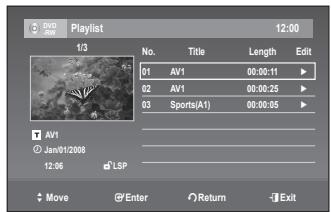

Creating a playlist (DVD-RAM/-RW/-R in VR mode)

With this recorder, you can create/edit a new playlist on the same disc without changing the original recording.

Step 6 : Finalizing & Playing on other DVD components

To play your DVD on other DVD players, finalizing may be necessary. First, finish all editing and recording operations, then finalize the disc.

When using a DVD-RW/-R disc in VR Mode

Although finalizing is generally unnecessary when playing the disc on a VR Mode compatible component, a finalized disc should be used for playback.

When using a DVD-RW/-R disc in Video Mode

The disc should be finalized first to enable playback on anything other than this recorder. No more editing or recording can be made on the disc once it has been finalized.

• You can finalize automatically using the EZ Record. (See page 34)

UNPACKING

Accessories

Check for the supplied accessories below.

Video/Audio Cable (AC39-00073A)

Batteries for Remote Control (AAA Size) (AC43-12002H)

RF Cable for TV (AC39-42001J)

Instruction Manual (AK68-01580A)

Remote Control (AK59-00061S)

Connecting the Power Cord

After all connections are complete, plug the power cord into a wall outlet.

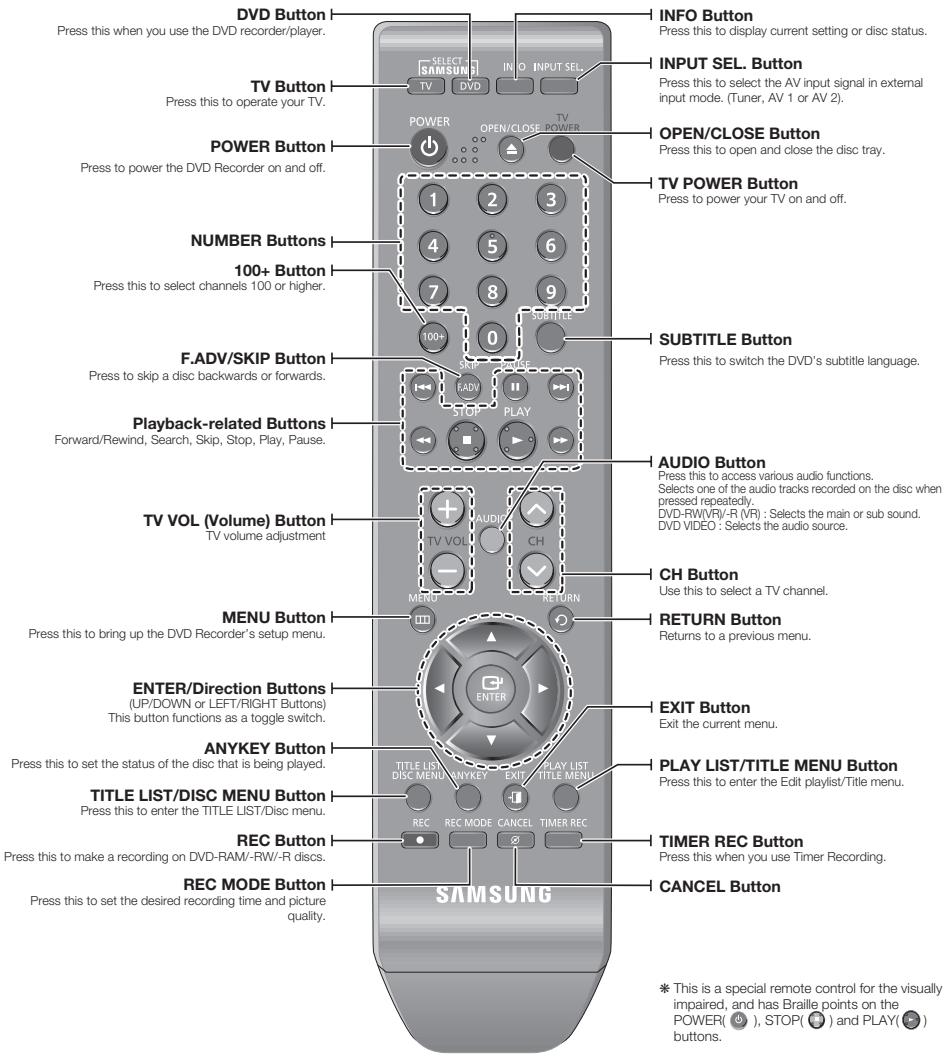

Preparing the Remote Control

Installing batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown.

2. Install two AAA size batteries. Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

3. Replace the cover. Assuming typical TV usage, the batteries last for about one year.

If the remote control does not operate properly:

• Check the polarity +/- of the batteries.
• Check if the batteries are drained.
• Check if the remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental regulations.

Do not put them in the household trash.

You can then control the television using the following buttons.

Button	Function
TV POWER	Used to switch the television on and off.
INPUT SEL.	Used to select an external source.
TV VOL +/-	Used to adjust the volume of the television.
CH (▲V)	Used to select the desired channel.
0~9	Used to input number directly.
100+ Button	Used to select channels over 100.

• You can control only Samsung TV with this remote control.
• The various functions may not be able to be controlled on all televisions. If you encounter problems, operate the television directly.

Front Panel

1 DVD OPEN/CLOSE BUTTON
4 STOP BUTTON
7 FRONT PANEL DISPLAY
VIDEO INPUT JACK (AV 2 IN)

CH ( /) ,SEARCH/SKIP BUTTON
5 REC BUTTON
8 DVD DECK
11 POWER BUTTON

3 PLAY/PAUSE BUTTON
6 INPUT BUTTON
9 AUDIO L, R INPUT JACKS (AV 2 IN)

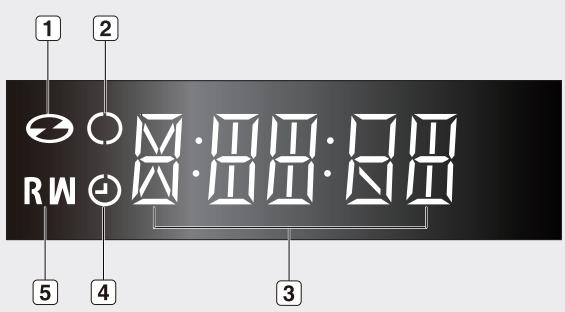

1 In Disc Indicator

2 Rec Indicator

3 STATUS Indicator

4 TIMER Indicator

5 Disc Media Indicator

Rear Panel

1 ANT IN/ANT OUT CONNECTORS

connecting & setting up

CONNECTING THE ANTENNA CABLE

There are several ways to connect your DVD Recorder. Select the antenna connection that best suits you below.

Antenna + DVD Recorder + TV:No Cable Box

You can record non-scrambled channels by selecting the channel on the DVD Recorder. Also use this method if you watch channels without a cable box.

The VHF/UHF ANT (RF) OUT jack of this product sends only signals received through the antenna. It does not output Audio/Video signals. You must connect Audio/Video cables to view Video from the unit. (i.e. DVD playback)

Antenna + Cable box + DVD Recorder + TV : Cable box with many scrambled channels

You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

The VHF/UHF ANT (RF) OUT jack of this product sends only signals received through the antenna. It does not output Audio/Video signals. You must connect Audio/Video cables to view Video from the unit. (i.e. DVD playback)

Antenna + DVD Recorder + Cable box + TV : Cable box with a few scrambled channels

You can record non-scrambled channels by selecting the channel on the DVD Recorder. You cannot record scrambled channels that require a cable box.

The VHF/UHF ANT (RF) OUT jack of this product sends only signals received through the antenna. It does not output Audio/Video signals. You must connect Audio/Video cables to view Video from the unit. (i.e. DVD playback)

CONNECTING THE VIDEO OUTPUT

There are several other ways to connect your DVD Recorder. Select one of the video connections on the following pages.

Connecting to Component Video Input Jacks (Y, P_B P_R )

Connect Component video cables (not supplied) between the COMPONENT OUT (Y, P_B, P_R) jacks on the DVD Recorder and COMPONENT IN (Y, P_B, P_R) jacks on your TV.

• You will enjoy high quality images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images.
• Connect the audio cables (white and red) between the Component AUDIO OUT jacks on the DVD Recorder and Component AUDIO IN jacks on your TV (or AV amplifier). (See pages 21-22)

• Progressive scan

• If your TV supports Progressive Scan, you can enjoy higher quality video by Progressive Scan Setting. (The component cable has to be connected.)

• Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a clearer, more stable, and flicker free image than interlaced video. The component output jack of the DVD player can be used for progressive output mode, which is only available with TVs that support progressive scan.
  Progressive Scan Output (480p)

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. If you experience 480p progressive scan picture problems, it is recommended that you switch the connection to the 'standard definition' output. If there are questions regarding TV set compatibility with this model, please contact our customer service center at 1-800-SAMSUNG.

Connecting to a Video Input Jack

Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on the DVD Recorder and VIDEO(yellow) IN jack on the TV.

• You will enjoy regular quality images.
  This connection outputs the 480i resolution to your TV.
• Connect the audio cables (white and red) between the AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on your TV (or AV amplifier). (See pages 21~22)

CONNECTING THE AUDIO CABLE

Select one of the Audio connections on the following pages.

Connecting to your TV

This connection will use your TV's speakers.

Connecting to a Stereo Amplifier with Analog Input Jacks

If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT (AV OUT) jacks.

Connecting to an AV Amplifier with a Digital Input Jack

If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See pages 30~32)

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

This allows you to connect your DVD Recorder to other external devices and view or record their outputs.

Connecting a VCR, Set top/Cable box, satellite receiver or DVD player to the AV 1 IN Jack

Connecting a VCR or external device to AV 1 IN jacks of the DVD Recorder.

You can record from connected equipment (VCR, Set top/Cable box, satellite receiver or DVD).

• You can also use the AV 2 IN jacks on the front panel of the DVD Recorder.
  Press the INPUT SEL. button to select AV1.
• Copy protected content cannot be recorded.

connecting & setting up

Connecting a Camcorder

You can record from connected equipment, such as a camcorder by using the AV2 IN jacks on front of the DVD Recorder.

• Check your camcorder's owner's manual to see how to use the camcorder in this mode.

ON-SCREEN MENU NAVIGATION

The on-screen menus allow you to enable or disable various functions on your DVD Recorder.

Press the MENU button to open the on-screen menu and then use the following buttons to navigate through the on-screen menus.

1.▲▼ Buttons

Press these buttons on the remote control to move the selection bar to cycle through the menu options.

1. ENTER Button

Press this button on the remote control to confirm any new settings.

1. RETURN Button

Press this button on the remote control to return to the previous menu screen displayed or to exit the on-screen menu.

1. EXIT Button

Press this button to exit the on-screen menu.

EASY SETUP

After plugging in the recorder, the first time you press the POWER button, easy setup comes up. You can set this menu by using setup menu.

Follow the steps below to make the minimum number of basic adjustments for using the recorder. Settings are made in the following order.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Easy Setup, then press the ENTER button.

The message "Follow the guide to make initial settings. Before you start, Check that you have made all necessary connections." is displayed.

1. Press the buttons to select Start.
2. Press the ENTER button.

The setup display for selecting the language used in the on-screen display appears.

1. Press the buttons to select the desired language, then press the ENTER button.

The message "Press [ENTER] to start scanning Analog channels."

system setup

1. Press the ENTER button.

Press the buttons to select the desired broadcasting system, then press the ENTER button.

Start the auto scanning, and then for clock setting appears.

1. Press the buttons to select the Current Date and Time, then press the ENTER button.

For details see page 28.

1. Press the buttons to select the desired TV screen type, then press the ENTER button.

The message "Easy Setup is finished." is displayed.

1. Press the ENTER button.

Easy setup is finished. All connections and setup operations are complete.

TUNER PRESET

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Tuner Preset, then press the ENTER button.

Antenna/Cable

You do not need to preset the stations if you have already set them automatically (See Easy Setup on pages 25~26).

Select the broadcasting system from the RF cable.

To setup, follow steps 1~3

Antenna
- Cable

Auto Preset

Auto Preset will automatically seek and store all active channels in your area.

The DVD Recorder will automatically search for all available channels in the selected tuner band. This procedure may take a few minutes to complete.
- When finished, the lowest channel will be displayed.
If you want to stop or cancel scanning, press the ENTER button.

Manual Set

Use this feature if Auto Preset missed a channel that you would like to add or if you wish to remove a channel.

1. Press the buttons to select Manusl Set, then press the ENTER button.

2. Press the or number buttons to select the channels you want to add or erase on the Select channel screen. Then, press the ENTER button.

3. Using CH (V/Λ) buttons for channel selection allows the user to add/erase one channel at a time.

4. Using buttons for channel selection jumps to the next channel memorized in Auto Preset.

1. Press the buttons to select Add, Erase or Exit, then press the ENTER button.

CLOCK SET

This menu is used to set the current time. You need to set the time to use timer recording.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the buttons to select Setup, then press ENTER button.
3. Press the buttons to select Clock Set, then press ENTER button.
4. Press the buttons to select the Current Date and Time, then press the ENTER button.

When the current time is stored in memory and then the set is powered off, the current time will appear in the front panel display.

: Sets the value

You can set the value using the number (0~9) buttons.

:Moves to items

SETTING UP THE VIDEO OPTIONS

This function allows you to setup the video setting.

This function depends on disc type. It may not work for some disc types.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Video, then press the ENTER button.

Video setup menu will be displayed.

1. Press the buttons to select the desired video option shown on the next few pages, then press the ENTER button.
2. Press the buttons to select the desired item, then press the ENTER button.

• Press the RETURN button to return to the previous menu. Press the EXIT (0) button to exit the menu.

TV Type

Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)

• 16:9 : You can view the full 16:9 picture on your wide screen TV.
• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan Scan : Select this for conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

Input System

You can select the required system standard. Otherwise, the system automatically selects the reception standard when you select Auto.

• Auto
  PAL-M
• NTSC

Black Level

Adjusts the black level of the screen.

• On : This is the standard NTSC reference black level for consistent brightness/contrast across all sources. Select this when you want to make the screen darker.
• Off : This will enhance the black level for increased brightness/contrast when viewing DVDs. Select this when you want to make the screen lighter.

Picture Control

Selects the picture control for the video signals output from the AV output jacks.

You can adjust the DVD video signal from the recorder to obtain the picture quality you want.

Select the setting that best suits the program you are watching.

• This function can only be used when you have the Video Out(AV out) jacks connected and does not work with Component.
• Dynamic 1 : Produces a bold dynamic picture by increasing the picture contrast and the color.
• Dynamic 2 : Produces a more dynamic picture than "Dynamic 1" by further increasing the picture contrast and the color.
• Standard : Displays a standard picture (function turned off ).
• Cinema 1: White colors become brighter and black colors become richer, and the color contrast is increased.
• Cinema 2 : Enhances detail in dark areas by increasing the black level.
• Personal : Adjusts Contrast, Brightness, Color and Hue using buttons.

Progressive Scan

This function is available when video output is component. This setting enables you to select a desired progressive mode. To view 'Progressive scan mode', first connect the component cable. (See page 20) Be sure the Component cables are connected properly.

On
- Off

• Progressive setting is only available when the Recorder is in stop mode.

SETTING UP THE AUDIO OPTIONS

This function allows you to set up the Audio options.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Audio, then press the ENTER button.
4. Press the buttons to select the desired audio option shown on the next few pages, then press the ENTER button.
5. Press the buttons to select the desired item, then press the ENTER button.

Press the RETURN button to return to the previous menu.

Press the EXIT ( ) button to exit the menu.

Tuner Audio

• Main: Select Main if you want to hear the normal sound. The main sound generally means the normal broadcast audio signal.
• SAP: When there is bilingual broadcast program, you may select SAP to listen to the SAP(Secondary Audio Program) sound. Please make sure that the program you received includes SAP signal.

Digital Out

Selects audio options for signals output from the DIGITAL AUDIO OUT (COAXIAL).

The following setup items switch the method of outputting audio signals when you connect a component such as an amplifier (receiver) with a digital input jack. For connection details, see "AV Receiver Connections" on page 22.

If you connect a component that does not accept the selected audio signal, a loud noise (or no sound) will come out from the speakers, and may affect your ears or cause speaker damage.

Dolby Digital (DVDs only)

Selects the type of Dolby Digital signal.

• D-PCM : Select this when the recorder is connected to an audio component that does not have a built-in Dolby Digital decoder.
• Dolby Digital : Select this when the recorder is connected to an audio component with a built-in Dolby Digital decoder.

DTS (DVD VIDEOs only)

Selects whether or not to output DTS signals.

• On : Select this when the recorder is connected to an audio component with a built-in DTS decoder.
• Off : Select this when the recorder is connected to an audio component without a built-in DTS decoder.

Downmix (DVDs only)

Switches the method for mixing down to two channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format.

• Dolby Surround : Select this setting to enjoy Multi-channel DVDs over two channels.
• Normal : Multi-channel audio signals are downmixed to two channels for use with your stereo.

To enjoy the surround effect of Dolby Digital, turn off the surround settings of this recorder.

Audio DRC (Dynamic Range Control) (DVDs only)

Makes the sound clearer when the volume is turned down when playing a DVD.

• Standard: Normal setting.
• TV Mode: Makes low sounds clear even if you turn the volume down.
• Wide Range : Gives you the feeling of being at a live performance.

Scan Audio (DVDs only)

• On : Outputs audio signals during FF1 fast-forward of a DVD disc with Dolby Digital soundtracks.
• Off: Turns off the function. No sound is output during FF1 fast-forward.

Sound will be interrupted during Scan Audio.
If the audio format is LPCM, this function is not supported.

Surround

Turns on the surround function to create virtual rear speakers from a stereo TV or two separate front speakers.

• Off: No surround effect
• Surround 1 : Creates one set of virtual surround speakers.
• Surround 2 : Creates two sets of virtual surround speakers.
• Surround 3 : Creates three sets of virtual surround speakers.

• When the playback signal does not contain surround audio signals, the surround effects will not be heard.
• When you select one of the surround modes, turn off the surround settings of the connected TV or amplifier (receiver).

AV Audio Input

When recording from equipment connected to the AV input jacks to a DVD disc in this recorder, select AV input audio.

• Stereo: Records stereo sound only.
• Main/Sub : You can record audio from two different sources on the left and right channels with DVD-RWs/(VR mode) and DVD-Rs/(VR mode). You can select either the Main(left) or Sub(right) soundtrack when playing back. Please refer to the AUDIO button. (See page 15)

SETTING UP THE FEATURES

This function allows you to setup the Features setting.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Features, then press the ENTER button.
4. Press the buttons to select the desired features options shown on the next few pages, then press the ENTER button.
5. Press the buttons to select the desired item, then press the ENTER button.

A DVD-Video consists of 'Titles' and 'Chapters'.

When you record one program, it makes one Title.

If you use this function, the Title will be divided into Chapters.

A recording(a title) is automatically divided into chapters by inserting chapter markings at specified intervals. The markings are inserted while the recording is being made.

1. Press the buttons to select DVD Auto Chapter, then press the ENTER button.

2. Press the buttons to select Off, 5Min or 15Min, then press the ENTER button.

3. Off: No chapter mark is inserted.

4. 5Min : Inserts chapter marks at approximately 5 minute intervals.
5. 15Min : Inserts chapter marks at approximately 15 minute intervals.

Press the EXIT button to exit the menu.

1. Press the REC button to start recording. (See page 48 about how to set the recording mode)
2. Press the STOP button to stop recording.
3. During playback, you can check the created chapters by pressing the ANYKEY button.

You can create up to 99 chapters.

Format DVD-RW

When inserting a unused DVD-RW disc, you can select a recording format (VR mode or Video mode) according to your needs(Please refer to page 6).

• VR: Automatically formats the disc in VR mode
• Video : Automatically formats the disc in Video mode

EZ Record

This function allows you finalize a disc automatically.

(V-mode)

1. Press the buttons to select EZ Record, then press the ENTER button.
2. Press the buttons to select On, then press the ENTER button. Press the EXIT button to exit the menu.
3. Insert a disc. If the disc is a new DVD-RW, it is initialized to V mode automatically.
4. Press the REC (●) button.

1. EZ Record function will automatically finalize the disc under the following conditions.

2. When you press the OPEN/CLOSE button on your DVD Recorder after recording on at least 30% of the disc. The tray will open after the disc has been finalized.

3. The above feature is available only when a DVD-RW(V)/-R(V) disc is inserted.

If you select off, you must finalize the disc manually in the Disc Setting menu. (see page 64)
The length of Recording is different according to recording mode. (see page 48)
- When the EZ Record is set to 'On', a DVD-RW disc will be formatted to V mode automatically, even if you select the VR mode in the Format DVD-RW option.

DivX Registration Code

Please use the Registration code to register this DVD Recorder with the DivX Video On Demand format. For more information, visit www.divx.com/vod

Language

If you set the language options in advance, they will come up automatically every time you watch a movie.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Options, then press the ENTER button.
4. Press the buttons to select Language, then press the ENTER button. Language setup menu will be displayed.

1. Press the buttons to select the desired language option, then press the ENTER button.

2. OSD: For the on-screen menu of your DVD Recorder.

3. Disc Menu : For the disc menu contained on the disc.
   Audio: For the disc audio language.

4. Subtitle: For the disc subtitles.

5. Press the buttons to select the desired language, then press the ENTER button.

If the selected language is not recorded on the disc, the original pre-recorded language is selected.

Setting up the Parental

The Parental function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Setup, then press the ENTER button.
3. Press the buttons to select Options, the press the ENTER button.
4. Press the buttons to select Parental, then press the ENTER button. When you operate your DVD Recorder for the first time, the "Create the password" message will be displayed.
5. Enter a 4-digit password using the number buttons on the remote control. The "Confirm the password" message will be displayed. Enter your password again.

• Press the RETURN button to return to the previous menu. Press the EXIT (⑨) button to exit the menu.

If you forgot your password

1. Remove the disc.
2. Press and hold the CH (V/AN) button on the front panel for 10 seconds or more. The tray opens and password reverts to the factory settings. See the next page to create a new password.

Setting the Rating Level

1. Press the buttons to select Rating Level, then press the ENTER button.
2. Press the buttons to select the Rating Level you want, then press the ENTER button.

For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

A larger number indicates that the program is intended for adult use only.

Changing the Password

1. Press the buttons to select Change Password, then press the ENTER button. The "Enter your password" message will be displayed.
2. Enter a new 4-digit password using the number buttons on the remote control. The "Confirm the password" message will be displayed.
3. Enter your new password again using the number buttons on the remote control.

Factory Setting

Allows you to return the setup setting to their factory defaults.

All of your previous settings will be lost.

1. Press the buttons to select Factory Setting, then press the ENTER button.
2. Select Start and press ENTER button.

The setup settings return to their factory defaults.

1. The message "Settings are complete." will be displayed.

Press the ENTER button.

playback

This section introduces basic functions of playback and playback by disc type.

Read the following information before playing a disc.

Both the DVD Recorder and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this DVD Recorder is described on the rear panel of the DVD Recorder.

LOGOS OF DISCS THAT CAN BE PLAYED

Dolby Digital

Digital Out

DTS

Digital Audio

Stereo

NTSC broadcast system in U.S.A, Canada, Korea, Japan,etc.

DivX

MP3

DISC TYPES THAT CAN BE PLAYED

Disc Types	Disc Logo	Recorded content	Disc Shape or minute
DVD-VIDEO	VIDEO VIDEO	VIDEO AUDIO	Single sided(5")
			Double sided(5")
			Single sided(3.5")
			Double sided(3.5")
VIDEO-CD	VIDEO VIDEO AUDIO, AUDIO	VIDEO AUDIO	Single sided(5")
			Single sided(3.5")
AUDIO-CD	VIDEO VIDEO AUDIO	AUDIO	Single sided(5")
			Single sided(3.5")
JPEG		JPEG Image	Single sided(5")
			Single sided(3.5")
MP3		MP3 Audio	Single sided(5")
			Single sided(3.5")
DivX	DIVX	DivX Movie	Single sided(5")
			Single sided(3.5")
DVD-RAM	DVD RAM	VIDEO AUDIO	Single sided(5")
			(4.7GB)
			Double sided(5")
			(9.4GB)
DVD-RW	DVD RW	VIDEO AUDIO	5" (4.7GB)
DVD-R	DVD R	VIDEO AUDIO	Single Layer(5")
			(4.7GB)
			Double Layer(5")
			(8.5GB)
DVD+RW	RW DVD+RW	VIDEO AUDIO	5" (4.7GB)
DVD+R	RW DVD-R	VIDEO AUDIO	Single Layer(5")
			(4.7GB)
			Double Layer(5")
			(8.5GB)

Discs That Cannot be Played

DVD-Video with a region number other than "4" or "ALL
3.9 GB DVD-R Disc for Authoring.
- A DVD-RW(V)/-R(V)/+R disc which has been recorded and not finalized in a different manufacturer's recorder.
PAL discs
DVD-ROM/PD/MV-Disc, etc.
CVD/SVCD/CD-ROM/CDV/CD-G/CD-I

This DVD Recorder can only operate with discs that are compatible with DVD-RAM Standard Version 2.0.
- Playback and/or recording may not work for some types of discs or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the disc is written in detail on the box. Please refer to this if necessary.
- Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches and deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.
DVD-RAM/-RW/-R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.
Discs with PAL programs recorded on them cannot be played using this product.

PLAYING A DISC

1. Press the OPEN/CLOSE button.

2. Place a disc gently into the tray with the disc's label facing up.

3. Press OPEN/CLOSE button to close the disc tray.

4. Your DVD Recorder closes the disc tray and plays the disc automatically.

5. The recorder does not play discs automatically after initially being powered on.
6. When the recorder is powered on and a disc is in the tray, the unit will be activated and wait in stop mode. Press the PLAY (C) button to start playback.

7. Power on the unit with the PLAY (▶) button if you wish to automatically play a disc in the recorder while it is powered off.

8. Press the STOP (C) button to stop playback.

• When you stop playing the disc, the DVD Recorder remembers where you stopped. When you press the PLAY (●) button again, it will pick up where you left off. (unless the disc is removed, the DVD Recorder is unplugged, or if you press the STOP (●) button twice.) This function is only applicable to DVD-VIDEO, DVD-RAM, DVD±RW, DVD±R or Audio CDs (CD-DA).

• Do not move your DVD Recorder while playing, as this may cause damage to the disc.
  Make sure to press the OPEN/CLOSE button to open or close the disc tray.
• Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction.
• Do not place foreign materials on or in the disc tray.
• Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case.
  Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes.
  After turning the power on, it will take a few seconds until the DVD Recorder operates.

USING THE DISC MENU AND TITLE MENU

Some discs contain a dedicated menu system that allows you to select special functions for title, chapters, audio track, subtitles, film previews, information on characters, etc.

For DVD-VIDEO Discs

Disc Menu : Press the DISC MENU button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation.
• You can select audio language and subtitle etc., provided by the disc.
• When playing a VCD2.0, you can choose Menu On or Menu Off by using the DISC MENU button.

Title Menu : Press the TITLE MENU button to move to the title menu of the disc.

• Use this button if the disc contains more than one title. Some discs may not support the title menu functionality.
• VCD and CD do not support the title menu.

For DVD-RAM/DVD±RW/DVD±R Discs

Title List

Press the TITLE LIST button. The Title List is simply a list of titles on a disc. If a title is deleted, that title cannot be played again.

[ \text{Playlist} ] (DVD-RAM/-RW(VR)/-R(VR))

Press the PLAY LIST button. A playlist is a custom-made list of titles. When one playlist is played, only the titles within the playlist will play and then stop. Even if that playlist is deleted, the original recording will not be deleted.

USING THE SEARCH & SKIP FUNCTIONS

Searching Through a Chapter or Track

During playback, press the SEARCH (▶) button on the remote control.

Each time you press the SEARCH button, the playback speed will change as follows.

DVD-VIDEO/VIDEO-CD/DVD-RAM/DVD±RW/DVD±R/DivX	FF1/←FR1 → FF2/←FR2→ FF3/←FR3 → FF1/←FR1
AUDIO CD (CD-DA)	FF1/←FR1 → FF2/←FR2→ FF1/←FR1

• You can scan the program in reverse order.

To return to normal speed playback, press the PLAY (C) button.

• You can hear sound during forward search (FF1) in DVD-VIDEO/DVD-RAM/±RW/±R disc.
  The speed marked in this function may be different from the actual playback speed.

During playback, press the SKIP (→) button on the remote control.

• If you press the SKIP (▶) button

If you press the button, it moves to the beginning of the chapter or track.

Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track.

• If you press the SKIP (▶) button

If you press the button, it moves to the next chapter or track.

Skipping Ahead 30 Seconds

During the playback, press F.ADV/SKIP button to skip ahead exactly 30 seconds.

During Pause mode, press the SEARCH (C) button on the remote control for more than 1 second.

Each time you press the SEARCH ( ) button :

→Slow3→Slow2→Slow1

Each time you press the SEARCH (O) button :

→Slow3→Slow2→Slow1

To return to normal speed playback, press the PLAY (▶) button.

The speed marked in this function may be different from the actual playback speed.
Slow motion operates only in the forward direction onVIDEO-CD/DivX discs.

Step Motion Play

During Pause mode, press the F.ADV/SKIP button on the remote control.

Each time the button is pressed, a new frame will appear.

To return to normal speed playback, press the PLAY (O) button.

No sound is heard during Step or Slow mode.

USING THE ANYKEY BUTTON

The ANYKEY functions allows you to easily search for a desired scene by accessing title, chapter, track and time. You can also change the subtitle and audio settings and set some features including Angle.

Moving to a desired scene directly

If you want to move to a certain title, chapter or time, use this function.

1. Press the ANYKEY button during playback.
2. Press the buttons to select Title, Chapter or Time.
3. Press the buttons or number (0~9) buttons to select the desired scene. (When searching a time, enter the time in the sequence of hours, minutes, seconds using the number buttons.)
4. Then, press the ENTER button.

This may not work for some discs. When an audio CD (CD-DA) or an MP3 disc is inserted, according to the disc type, the information display may not be appear.
The Time Search function does not operate on some discs.
To make the sub-menu disappear, press the ANYKEY or RETURN button again.

Selecting the Audio language

Audio languages may not work depending on the disc type. This is only available during playback. You can also operate this function by pressing the AUDIO button on the remote control.

1. Press the ANYKEY button during playback.
2. Press the buttons to select Audio, then press the buttons to select the desired audio language.
3. Press the ENTER button.

Audio languages may be different because they are disc-specific.
Some discs allow you to select the audio language for the disc menu only.
To make the sub-menu disappear, press the ANYKEY or RETURN button again.

Remain

You can check the remaining time of the current title.

1. Press the ANYKEY button during playback.

Selecting the Subtitle Language

This enables you to select the available subtitle languages on a disc.

Subtitle languages may not work depending on the disc type. This is only available during playback. You can also operate this function by pressing the SUBTITLE button on the remote control.

1. Press the ANYKEY button during playback.
2. Press the buttons to select Subtitle, then press the buttons to select the desired subtitle language.
3. Press the ENTER button.

The subtitle display may be different depending on the disc type.
If the subtitles overlap, disable the caption function on your TV.
Some discs allow you to select the language for the disc menu only.
To make the sub-menu disappear,press the ANYKEY or RETURN button again.

Changing the Camera Angle

If a DVD-VIDEO contains multiple angles of a particular scene, you can use the Angle function. If the disc contains multiple angles, the ANGLE appears on the screen.

1. Press the ANYKEY button during playback.
2. Press the buttons to select Angle, then press the buttons or number (0~9) buttons to select the desired angle scene.
3. Press the ENTER button.

This function is disc-dependent, and may not work on all DVDs.
This function does not work when a DVD has not been recorded with a multi-camera angle system.
To make the sub-menu disappear, press the ANYKEY or RETURN button again.

Buttons on the Remote Control Used for Audio CD(CD-DA)/MP3 Playback

button: Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder moves to and plays the previous track.

If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning.

Press the ( / ) buttons: Fast Play (FF1/FR1,FF2/FR2) (Audio CD only)

: Stops a track (song).

: Selects a track (song).

button: Plays the next track.

: Pauses playback.

: Plays a track (song).

ENTER button : Plays the selected track (song).

Playing an Audio CD(CD-DA)

1. Insert an audio CD (CD-DA) into the disc tray.
2. The audio CD menu appears and the tracks (songs) are played automatically.
3. Press the buttons to select the track (song) you want to hear, and then press the ENTER button.

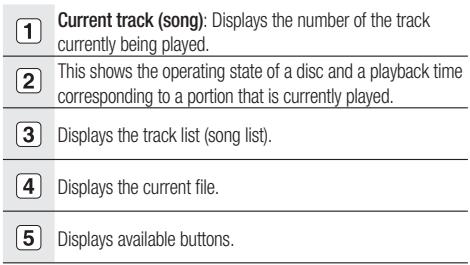

Audio CD(CD-DA) Screen Elements

Current track (song) : Displays the number of the track currently being played.

This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.

Displays the track list (song list).

Displays the current file.

Displays available buttons.

1. Insert an MP3 disc into the disc tray.
2. The menu is displayed.
3. Press the buttons to select the track you want to hear, and then press the ENTER button.

MP3 Screen Elements

If select the Music, MP3 files will only be displayed.
If there are no MP3 files, empty folder will only be displayed.

1. Insert a JPEG Disc into the disc tray.

2. The photo menu is displayed.

3. Press the buttons to select a picture.

4. To see the next 6 pictures, press the button.

5. To see the previous 6 pictures, press the button.

3-1. If you press the PLAY (▶) button, the Slide Show Speed screen will appear. Press the buttons to set the slide show speed, then press the ENTER button.
3-2. Press the ENTER button with a picture selected in the Album screen and select a display mode (Album screen ()), Slide show (图), Rotation (图) or Zoom (图)) using the buttons, then press the ENTER button.

: Returns to the Album screen.
The unit enters slide show mode. Before the slide show begins, the picture interval (Slide show speed) must be set.
Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.
Each time the ENTER button is pressed, the picture is enlarged up to 4X(Four times the normal size).
- Press the ANYKEY button to display the menu bar.
- Press the ANYKEY button again to clear the menu bar.

If select the Photo, JPEG files will only be displayed.
If there are no JPEG files, empty folder will only be displayed.

Music/Photo SimultaneousPlayback

1. Insert a Mixed disc(Music+JPEG) into the disc tray.
2. Press the buttons to select Mix, and then press the ENTER button. The track list will be displayed.
3. Press the ENTER button.

The message "Do you want to view the photo with MP3?" will be displayed.

1. Press the button to select 'Yes', then press the ENTER button.

You can listen to the music while watching the photo.

To operate this function, you have to select the disc containing both music files and photo file.

PLAYING A DivX DISC

1. Insert a DivX disc into the disc tray.
2. The menu is displayed
3. Press the buttons to select DivX, and then press the Enter button.
4. Press the buttons to select the avi file (DivX), then press the Enter or PLAY (O) button.
5. When DivX file is played, you can use following functions. Pressing the STOP (C) button once during playback will display the file list, pressing the button again will exit the menu screen.

DivX Function Description

Function	Description
Skip Scene	During play, press the SKIP (▶) buttons, it moves previous or next track.
Search Scene	During play, press the SEARCH (▶) buttons and press again to search at a faster speed. (▶ FF1/← FR1 → ▷ FF2/← FR2 → ▷ FF3/← FR3 → ▷ FF1/← FR1)
Slow Motion	In pause mode, press the SEARCH (▶) button on the remote control. (▶ Slow 3 → ▷ Slow 2 → ▷ Slow 1) Reverse Slow Motion Play is not available.
Step Motion	In pause or play mode, press the F.ADV/SKIP button on the remote control.

This unit can play the following video compression formats,
- DivX Video (Codec) Format: DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
- DivX Audio (Codec) Format: MP3, AC3, DTS
Supported subtitle file formats : .smi, .srt, .sub, .txt, .ass (The subtitle file should have exactly the same name to corresponding DivX file name)
- Some DivX files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specific cation are not supported.
- You cannot play back the disc that is larger than a 720 × 576 pixel resolution.

This section explains various DVD recording methods.

This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

RECORDABLE DISCS

This recorder can record on the following discs.

DVD-RAM	DVD-RW	DVD-R
DVD RAM	DVD RW	DVD R

DVD-RWs and DVD-RAMs are rewritable.
DVD-Rs are non-rewritable.

Discs that cannot be recorded on

-3.5" discs
DVD + / + discs

Compatibility between Samsung and other manufacturer's Recorders

• X: not possible

Disc Types	Recording format	Recording Device	Finalizing	Additional Recording in Samsung Recorder
DVD-RAM	VR Mode	Samsung	X	Recordable
		Other Company	X	Recordable
DVD-RW	VR Mode	Samsung	finalized	Not recordable
			not finalized	Recordable
		Other Company	finalized	Not recordable
			not finalized	Recordable
	V Mode	Samsung	finalized	Not recordable
			not finalized	Not recordable
		Other Company	finalized	Not recordable
			not finalized	Not recordable
DVD-R	VR Mode	Samsung	finalized	Not recordable
			not finalized	Recordable
		Other Company	finalized	Not recordable
			not finalized	Recordable
	V Mode	Samsung	finalized	Not recordable
			not finalized	Not recordable
		Other Company	finalized	Not recordable
			not finalized	Not records

Finalize

• This closes the DVD-RW/-R so no additional recording can be done.
• The DVD-RAM disc cannot be finalized.

Unfinalize

• This allows additional recording on a DVD-RW disc originally recorded on the DVD-R170.
• A DVD-RW disc that has been recorded by DAO(Disc At Once) on a PC cannot be unfinalized.
• A DVD-RW disc that has been recorded in Video Mode of a different manufacturer's recorder cannot be unfinalized.
• A DVD-R disc cannot be unfinalized.

Recording Formats

Since available functions differ depending on the disc type, select a disc that best fits your preference. When you insert an unused disc, the following message appears.

DVD-RAM/-RW: Format will be started automatically.
DVD-R: Initializing the disc is unnecessary.

DVD-RAM/-RW(VR)/-R(VR)

• This mode involves multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.).
• Various editing options using a created Playlist.

DVD-RW(V)/-R(V)

• Chapters will be created automatically when you finalize recording on DVD-R/DVD-RW discs in Video mode.
• Simple editing (erasing titles/changing title name).

RECORDING MODE

With the unit in Stop mode, select one of eight recording modes by pressing the REC MODE button repeatedly for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases.

In AUTO mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the time recording.

Recording Mode	Recording Times
	DVD-RAM/-RW/-R
HQ (high quality mode)	Approx. 1 hour
HSP	Approx. 1 hour 30 minutes
SP (standard quality mode)	Approx. 2 hours
LSP	Approx. 2 hours 30 minutes
ESP	Approx. 3 hours
LP (long recording mode)	Approx. 4 hours
EP	Approx. 6 hours
SLP (long duration mode)	Approx. 8 hours

• The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs. (See page 38.)

Pictures with copy protection cannot be recorded on this DVD Recorder. When the DVD Recorder receives a copy guard signal while recording, recording stops and the following message appears on the screen.

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never.

If you want to record a copy-once type program, use a DVD-RW with CPRM in VR Mode or DVD-RAM discs.

('O':Supported, '-':Not Supported)

Media\Signal type	Copy-Free	Copy-Once	Copy-Never
DVD-RW (Ver.1.1)	0	-	-
DVD-RW (Ver.1.1) with CPRM VR mode	0	0*	-
DVD-R	0	-	-
DVD-RAM (Ver.2.0)	0	0*	-

Once "Copy Once" has been recorded, additional recordings cannot be performed.

• compatible with CPRM.

Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded.

It is supported by some DVD Recorders, but not by many DVD players.

Each blank recordable DVD has a unique 64-bit media ID etched in the BCA(Burst Cutting Area).

When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID.

Disc contents cannot be copied to other media.

Before you start

1. Make sure the antenna cable is connected.
2. Press the OPEN/CLOSE button and place a recordable disc on the disc tray.
3. Check the remaining time on the disc. DVD-RAM/DVD-RW discs should be formatted or initialized in advance before beginning recording. Most new discs are sold unformatted. Make sure to format your unformatted discs before recording.
4. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.

Recording the current program you are watching

1. Press the CH (V/AN) buttons or number buttons to select the station you want to record.
2. Press the REC MODE button repeatedly, to select the recording Speed (quality).

$$ \left[\rightarrow H Q \rightarrow H S P \rightarrow S P \rightarrow L S P \rightarrow E S P \rightarrow L P \rightarrow E P \rightarrow S L P \right] $$

1. Press the REC button.

Recording from external equipment you are watching

1. Power on your DVD Recorder and switch to AV IN mode by prssing the INPUT SEL. button on the remote control.

$$ \boxed {\rightarrow \mathrm {A V 1} \rightarrow \mathrm {A V 2} \rightarrow \mathrm {C H}} $$

1. Press the REC MODE button repeatedly to select the recording Speed (quality).

$$ \boxed {\rightarrow H Q \rightarrow H S P \rightarrow S P \rightarrow L S P \rightarrow E S P \rightarrow L P \rightarrow E P \rightarrow S L P} $$

1. When your DVD Recorder is in the Stop mode, set the operation mode of your external devices to play mode.
2. Press the REC button on your DVD Recorder when the image from which you want to start recording is displayed.

To pause recording

Press the PAUSE (O) button to pause a recording in progress.

• Press the PAUSE (●) button again to resume recording.
• You can switch channels by pressing the CH (V/Λ) buttons while recording pauses.

To stop recording

Press the STOP button to stop a recording in progress.

• When using DVD-RAM/-RW/-R discs, the message "Updating the information of disc. Please wait for a moment." is displayed.

• You can not change the recording mode and the program while recording.
• Recording will stop automatically if there is no free space left on the disc.
  Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc.
  If the power interrupted due to power failure or other reasons, the title being recorded will not be saved onto the disc.
• Recording will stop automatically if a copy protected image is selected.
• Do not use DVD-R authoring discs with this unit.
  Refer to the user manual for your External Devices when recording from external equipment using the Audio/Video cable.

One-Touch Recording (OTR) allows you to add recording time in preset increments up to 8 hours by pressing the REC button repeatedly.

1. If you want to record a TV channel, use the CH (V/AN) buttons or number buttons to select a desired channel. If you want to record through a connected external component, press the INPUT SEL button to select an appropriate external input (AV1 or AV2).
2. Press the REC button to start recording.

3. While in Record mode, press the REC button again to activate the One-Touch Recording (OTR).

4. Record length 0:30 appears on the On-Screen Display and the DVD Recorder will record for exactly 30 minutes.

5. Continue press the REC button to add recording time in preset increments up to 8 hours.

• The DVD Recorder stops recording automatically when the time has elapsed.

To stop recording

1. Press the STOP (按钮。

The message "Press STOP button once more to cancel Timer record." is displayed.

1. Press the STOP (按钮 again.

The message "Updating the Information of disc.

Please wait for a moment." is displayed.

The timer counter decreases by the minute from the recording time set to 0:00, then the DVD Recorder stops recording.

The clock (Setup - Clock Set) must be set before proceeding with a timer recording. (See page 27)

1. Press the OPEN/CLOSE button, and place a recordable disc on the disc tray.
2. Press the OPEN/CLOSE button to close the disc tray. Wait until "LOAD" disappears from the front panel display.
3. With the unit in Stop mode, press the MENU button.
4. Press the buttons to select Timer, then press the ENTER button.
5. Press the buttons to select Timer-Standard, then press the ENTER button.

You can go to the Timer recording screen directly by pressing the TIMER REC button. The Timer Recording screen is displayed.

1. Fill in the items using the buttons.

:Moves to the previous/next item,

or 0 9 : To set or change items in the Scheduled Record List Menu.
- Date : Date that the timer recording starts
- Sets the date using button.
- To record the same program every day or the same day every week, press button.

see below :

• Start/End Time : Start and end time of the timer recording.
• Ch : The video input source(AV1 or AV2) or the broadcasting channel you want to make a timer recording from.

Recording Mode

AUTO: Select when you want to set video quality automatically. In AUTO mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in HQ, HSP, SP, LSP, ESP, LP, EP and SLP modes and you can use this mode for timer recording.

HQ:Approx.1 hour

HSP:Approx.1 hour 30 minutes

SP (standard quality) : Approx. 2 hours

LSP : Approx. 2 hours 30 minutes

ESP:Approx.3 hour

LP:Approx.4 hour

EP (extended mode) : Approx. 6 hour

SLP (long duration mode): Approx. 8 hours

The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs.

1. Press the ENTER button.

2. will appear on the front panel. It means that a timer recording is registered.

If the timer settings overlap

The first program has priority. After recording of the first program is complete, the second program starts being recorded.

1. Turn the power off to finish the timer recording.

2. will blink if a disc is not inserted.

• The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 3 minutes before the start time of the next recording.)

EDITING THE TIMER LIST

Follow these directions to edit the timer record list.

1. Press the MENU button.
2. Press the button to select Timer, then press the ENTER button.
3. Press the button to select Timer List, then press the ENTER button.

4. Press the button to select the number of the Timer List you want to edit, then press the ENTER button.

5. The Edit and Erase items are displayed.

6. Press the button to select Edit, then press the ENTER button.

7. The Timer Recording screen is displayed. Edit the items you want to modify. See the Timer Recording section for more information on Timer Recording Input items. (See pages 52~53)

8. Press the ENTER button to confirm the edited setting.

Follow these directions to erase a title from the timer record list.

1. Press the MENU button.
2. Press the button to select Timer, then press the ENTER button.
3. Press the button to select Timer List, then press the ENTER button.

4. Press the button to select the number of the scheduled record list you want to erase, and then press the ENTER button.

5. The Edit and Erase items are displayed.

1. Press the button to select erase, then press the ENTER button.
2. You will be prompted with a delete confirm message such as "Do you want to erase 'No.01'?"
3. Press the buttons to select OK, then press the ENTER button.
4. The selected title will be erased from the list.

• You can not delete programs that are currently being recorded.

CHECK REMAINING TIME

Press the INFO button on the remote control.

The following information will be displayed.

(Current deck status, recording speed, remaining time, input channel, current time.)

This section introduces basic functions of DVD editing and explains both edit functions for recording on a disc and edit functions for the entire disc.

PLAYING THE TITLE LIST

Follow these instructions to play back a scene from the Title List.

1. Press the TITLE LIST button. The Title List screen is display
2. Press the buttons to select a Title, then press the ENTER button.
3. Press the buttons to select Play to play the title list, then press the ENTER button. The selected title will be played back.
4. Press the STOP button to stop playing. To return the title list screen, press the TITLE LIST button.

Title List Screen Elements

1 Playback screen for recorded titles
2 Information window for the selected title: Title name, recording date, lock status, recording mode
3 Recorded title No.
4 Recorded title name
5 Recording Length (i.e., the playing time)
6 Button display

Chapter Erase : Erase the Selected chapter from the title. Protect : Locks or unlocks the selected title. Title Name : Changes the name of a selected title. A-B Erase : Erase the selected section (scene) from the title. Divide Title : Divide a title into two.

This may depend on the disc type.
DVD-RW(V)/-R(V) discs have limited editing functions.

Changing the Name of a Title (Title Name)

Follow these instructions to rename a title list name, i.e., to edit the title of a recorded program.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the buttons to select a title you want to rename from the Title List, then press the ENTER button.
3. Press the buttons to select Title Name, then press the ENTER button. The Title Name screen is displayed.

4. Select the desired characters using the buttons, then press the ENTER button.

5. Backspace : Moves the cursor one position backwards.

6. Space : Enters a blank and moves the cursor one forward (to the right).
7. Delete : Deletes the character at the cursor position.
8. Clear : Deletes all the character inputs.

9. Finish: Registers the character inputs.

10. Press the buttons to select Finish, and then press the Finish button. The changed title name is displayed in the title field of the selected title.

Locking (Protecting) a Title

Follow these instructions to lock a title to protect it from accidental deletion.

(VR mode)

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the buttons to select a title you want to protect in the Title List, then press the ENTER button.
3. Press the buttons to select Protect, then press the ENTER button.
4. Press the buttons to select On, then press the ENTER button. The lock icon on the information window for the selected title changes to the locked status. ( )

Follow these instructions to delete a title from the Title List.

1. Press the TITLE LIST button.

The Title List screen is displayed.

1. Press the buttons to select a title you want to erase in the

Title List, then press the ENTER button.

1. Press the buttons to select Title Erase, then press the ENTER button.

You will be prompted with a confirmation message.

DVD-RAM, DVD-RW(VR), DVD-R(VR): Since a Playlist is present, the message 'Do you want to erase "NO.01"? (If you have created a

'Playlist or Dubbing list with this title, part of that Playlist or Dubbing list will be also be erased.' is displayed. DVD-RW(V), DVD-R(V) : Since a Playlist is not present, the message 'Do you want to erase "No.01"?' is displayed.

• The message may depend on the type of disc.

1. Press the buttons to select OK, then press the ENTER button.

• You cannot erase a protected title. If you want to erase a protected title, select Off in the Title Protect menu.
  Once a title is erased from the Title List it cannot be recovered.
  Once a DVD-R, DVD-RW is finalized, it cannot be erased.
• With DVD-R discs, titles are only erased from the menu, however, the Title remains physically on the disc.

Erasing a chapter (Chapter Erase)

Follow these instructions to erase a chapter from the Title List.

(VR mode)

1. Press the TITLE LIST button.

The Title List screen is displayed.

1. Press the buttons to select a title you want to erase from the Title List, then press the ENTER button.

2. Press the buttons to select Chapter Erase, then press the ENTER button.

The Chapter Erase screen is displayed.

1. Press the buttons to select a chapter you want to erase from the Title List, then press the ENTER button. Check is selected.

To preview the chapter, press the ENTER button.

When you press the RETURN button, the display returns to Chapter Erase (Original).

1. Press the buttons to select Erase, then press the ENTER button.

You will be prompted with a confirmation message.

The Message "Do you want to erase "No. 01"?" is displayed.

1. Press the buttons to select OK, then press the ENTER button.

The selected chapter is erased from the title.

To erase other chapters, repeat from step 4.

• You can also erase chapters from a Playlist title.
  If you erase an original title used in a Playlist, that Playlist is also erased.

Erasing a section of a Title (A-B Erase)

Follow these instructions to erase a section of a Title List entry.

(VR mode)

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the buttons to select a title you want to edit from the Title List, then press the ENTER button.
3. Press the buttons to select A-B Erase, then press the ENTER button. The A-B Erase screen is displayed.
4. Press the ENTER button at the starting point. The image and starting point time are displayed in the section deletion starting point window.
5. Press the ENTER button at the end point. The image and end point time is displayed in the Section deletion ending point window.
6. Press the buttons to select Erase, then press the ENTER button.
7. Press the buttons to select OK, then press the ENTER button. The selected section has been deleted. To return to the Title List, press the buttons to select Finish.

A-B Erase Screen Elements

1 Playback bar
2 Section deletion starting point window and time
3 Playtime

Section deletion end point window and time

4 - Select the start and end points of the section you want to delete using the playback related buttons.
- Playback related buttons: (, , , , , )

The length of the section to be deleted must be at least 5 seconds long.
End point cannot be marked earlier than start point.
The section cannot be deleted when it includes a still picture.

Dividing a title into two (Divide Title)

Follow these instructions to divide a title into two.

1. Press the TITLE LIST button.

The Title List screen is displayed.

1. Press the buttons to select a title you want to divide from the Title List, then press the ENTER button.
2. Press the buttons to select Divide Title, then press the ENTER button.

The setting the dividing point screen is displayed.

Point is selected.

1. Press the ENTER button at the point where you want to divide the title. Divide is selected.
2. Press the ENTER button.

You will be prompted with a confirmation message.

The Message "Do you want to divide title "No.01"" is displayed.

To reset the dividing point, select No and press the ENTER button, then repeat from step 4.

The display asks whether you want to rename the title.

To use the same name as before, select No and press the ENTER button to finish.

1. Press the buttons to select Yes, then press the ENTER button.

The Title Name screen is displayed.

1. Follow steps 3 to 5 of Changing the Name of a Title (page 56) to complete renaming.

The divided title appears in the Title List with the new name.

(VR mode)

ADVANCED EDITING (PLAYLIST)

Creating a Playlist

Follow these instructions to create a new playlist title from a recorded title.

(VR mode)

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Edit, then press the ENTER button.
3. Press the buttons to select Create Playlist, then press the ENTER button.

The Create Playlist screen is displayed.

1. Press the ENTER button at the start point.

2. The image and time at the start point are displayed on the Start window.

3. Select the starting point of the section from which you want to create a new scene using the playback related buttons.

4. Playback related buttons: (, , , , , )

5. Press the ENTER button at the end point.

6. The image and end point time are displayed in the End window.

7. To make a new playlist -

8. Press the buttons to select Make, then press the ENTER button.

A new Make Scene screen is displayed.

A new Scene will be added to the current Playlist.

• You can check and see all the scenes on the Edit Playlist screen.
  Repeat steps 1~5 if you want to make a new playlist.
  Repeat steps 4~5 if you want to make scenes of the playlist.

• To return to Edit Playlist menu -

• Press the buttons to select Finish, then press the ENTER button. The Edit Playlist screen is displayed.

• You can create up to 99 playlist titles.
  Depending on the kind of disc, the displayed screen may be slightly different.

Playing Titles in the Playlist

Follow these instructions to play the playlist titles.

(VR mode)

1. Press the TITLE LIST button with the disc stopped, then press the PLAY LIST button.

The Edit Playlist screen is displayed.

1. Press the buttons to select the title you want to play from the Playlist, then press the ENTER button.
2. Press the buttons to select Play, then press the ENTER button.

The playlist titles will be played back.

1. Press the STOP button to stop playing.

Follow these instructions to rename a playlist title, i.e. to edit the title of a playlist title.

(VR mode)

1. Press the TITLE LIST button with the disc stopped, then press the PLAY LIST button.

The Edit Playlist screen is displayed.

1. Press the buttons to select the title you want to rename from the Playlist, then press the ENTER button.
2. Press the buttons to select Title Name, then press the ENTER button.

The Title Name screen is displayed.

1. Enter the desired characters using the buttons.

2. Back Space : Moves the cursor one position backwards.

3. Space: Enters a blank and moves the cursor one forward (to the right).
4. Delete : Deletes the character at the cursor position.
5. Clear: Deletes all the character inputs.

6. Finish: Registers the character inputs.

7. Press the buttons to select Finish, then press the ENTER button.

The changed title is displayed in the title field of the selected title.

Deleting a Playlist Title from the Playlist

1. Press the TITLE LIST button with the disc stopped, then press the PLAY LIST button.
   The Edit Playlist screen is displayed.
2. Press the buttons to select the title you want to delete from the Playlist, then press the ENTER button.
3. Press the buttons to select Title Erase, then press the ENTER button.
4. Press the buttons to select OK, then press the ENTER button.

After the delete operation is complete, it will automatically return to the Edit Playlist screen.

Menu items may vary, depending on the existence of a recorded title.

Editing the Disc Name

Follow these instructions to give a name to a disc.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER button.
3. Press the buttons to select Disc Name, then press the ENTER.

The Disc Name screen is displayed.

1. Enter the desired characters using the buttons.

2. Backspace: Moves the cursor one position backwards.

3. Space : Enters a blank and moves the cursor one forward (to the right).
4. Delete : Deletes the character at the cursor position.
5. Clear: Deletes all the character inputs.

6. Finish: Registers the character inputs.

7. Press the buttons to select Finish, then press the ENTER button.

A disc name is given to the disc.

• You may need to clear disc protection before editing.
  Depending on the kind of disc, the displayed screen may be different.

Disc Protection

Disc Protect allows you to protect your discs from being formatted or deleted due to unintended operations.

(VR mode)

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER.
3. Press the buttons to select Disc Protect, then press the ENTER.
4. Press the button to select Protected, then press the ENTER.

Use these instructions to format a disc.
Disable disc protection before formatting.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER button.
3. Press the buttons to select Disc Format, then press the ENTER button.

DVD-RAM/-RW

• You will be prompted with the confirmation message 'Select the recording format.' (When using a DVD-RAM disc, you can select VR mode only)

• You will be prompted with the confirmation message 'All of the data will be erased (even protected titles). Do you want to format this disc?'

• Press the buttons to select OK, then press the ENTER button.

The disc is formatted.

• You can change the disc mode only one time when the unused DVD-R disc is inserted.

DVD-VR and DVD-V modes are compatible with the following disc types.

	DVD-VR	DVD-V
DISC	DVD-RAM	DVD-RW
	DVD-RW	DVD-R
	DVD-R

Finalizing a Disc

After you record titles onto a DVD-RW/DVD-R disc with your DVD Recorder, it needs to be finalized before it can be played back on external devices.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER button.
3. Press the button to select Disc Finalize, then press the ENTER button.

You will be prompted with the message 'Do you want to finalize this disc?'

1. Press the buttons to select Finalize, then press the ENTER button.

You will be prompted again with the message "Disc will be finalized. Do you want to continue?"

1. Press the buttons to select OK, then press the ENTER button.

The disc is finalized.

Once a disc is finalized, you cannot delete titles from the record list.
Once a DVD-R/DVD-RW (video mode) disc is finalized, it is playable in a standard DVD player.
Depending on the disc type, the displayed screen may be different.
- Finalizing time may be different depending on the amount of data recorded on the disc.
Data on the disc will be damaged if the recorder is powered off during the finalization process.
- You can automatically finalize a disc using EZ Record. (See page 34)

Unfinalizing a disc (V/VR mode)

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER button.
3. Press the button to select Disc Unfinalize, then press the ENTER.

You will be prompted with the message 'Do you want to uninitialize disc?'

1. Press the buttons to select Uninitialize, then press the ENTER button.

You will be prompted again with the message "This disc will be unfinalized. Do you want to continue?"

1. Press the buttons to select OK, then press the ENTER button.

The disc is unfinalized.

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER button.
3. Press the buttons to select Disc Information, then press the ENTER button.

The Disc Information is displayed.

Erase All Titles

(VR mode)

1. With the unit in Stop mode, press the MENU button.
2. Press the buttons to select Disc Setting, then press the ENTER button.

3. Press the button to select Erase All Titles, then press the ENTER button.

4. You will be prompted with the confirmation message 'Do you want to erase all title lists?'

5. When Protected Title exists: The Erase All Titles function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected title, disable Protect for it on the Lock item.

6. Press the buttons to select OK, then press the ENTER button. All title lists are deleted.

TROUBLESHOOTING (DVD-VIDEO/DVD-RAM/DVD-RW/DVD-R)

If your product malfunctions, go through the check points below before contacting Samsung customer service.

PROBLEM	EXPLANATION/SOLUTION
No power.	·Check whether the power cord is securely plugged into the power outlet. ·Did you press the power button of your DVD Recorder.
The input is displayed for a while when the power turns on.	·The DVD Recorder requires some time to initialize after it is turned on.
Cannot record TV programs.	·Check whether the power cord is securely plugged into the power outlet. ·Did you set the DVD Recorder channel settings correctly? ·Check the free space on your DVD-RAM/DVD-RW/DVD-R disc.
Timer recording does not work properly.	·Check the recording time, end time and current time settings again. ·Recording will be cancelled if the power is interrupted due to a power failure or other reason during recording.
Cannot record.	·Check whether the disc is formatted. This product can record on formatted discs only. (See pages 48, 63.) ·Check whether your DVD-RAM/DVD-RW/DVD-R disc has a sufficient free space.
I pressed the REC button but there is no response.	·Recording is available on DVD-RAM/DVD-RW/DVD-R discs only. ·If a program is copy protected, you cannot record it.
I forgot the parental control password.	·Press and hold the CHV/CH^(|<< />>|) button on the front panel of your unit for more than 10 seconds with no disc, and then press the POWER OFF/ON button. All settings including the password will revert to factory settings. Only do this if it is absolutely necessary. (Note that this function is available only when there is no disc inserted.)
Cannot play the disc.	·Check whether the disc is inserted correctly with the label facing up. ·Check the regional code of your DVD disc. ·This DVD Recorder cannot playback some types of disc. (See pages 6, 39.)
No sound.	·Are you watching a program in slow or skip mode? If you are playing a program at a speed other than normal speed, sound is not output. (But, you can hear sound during forward search (FF1) in DVD-VIDEO/DVD-RAM/-RW/-R disc.) ·Check the connections and initial settings. ·Check whether the disc is damaged. ·Clean the disc, if necessary. ·Check whether the disc is inserted correctly with the label facing up.

TROUBLESHOOTING (DVD)

PROBLEM	EXPLANATION/SOLUTION
icon appears on the screen.	You cannot use the operation or function due to one of the following reasons:(1) Your DVD disc does not support the feature (for example, angles)(2) You've requested a title, chapter, or scan time that is out of the correct range.
Play mode settings are different from the settings configured with the Setting menu.	The disc does not support all the selected functions.In this case, some settings you configure on the Setting menu may not work properly.
Cannot change the aspect ratio.	Aspect ratio is fixed on DVD disc.
No audio output.	Check whether you selected the correct digital output in the Audio Output Options menu.
No video or audio output.The disc tray is ejected after 2 to 5 seconds.	Did you move your DVD Recorder suddenly from a cold place to a warm place?In this case, do not connect the plug to the power outlet and wait for two hours.Then insert the disc and try to play back again. It will work properly when condensation has evaporated.
Angle operation does not work during playback of a DVD disc.	Angle operation is available only when the disc contains images captured at different angles.
The disc revolves, but no image or bad quality images are output.	• Check whether there is damage or foreign materials on your disc.• Some discs with bad manufacturing quality may not be played back.• If the scene changes from dark to bright suddenly, the screen may jitter temporarily,but it is not defective.
Desired sound language and subtitle language are not played.	Sound languages and subtitle languages are disc-specific.Only the sound and subtitle languages contained on a DVD disc are available and displayed on the disc menu.
No progressive output.	• Check whether you selected the current Progressive options in the Video Options.
The remote control doesn't work.	• Point the remote control at the remote control sensor on your DVD Recorder.Operate within distance. (15ft)Remove obstacles between your DVD Recorder and remote control.• Check whether the batteries are depleted.
Other problems	• Read the table of contents and then find and read the sections describing your problem, and follow the directions given.• Turn the unit off and on.• If your problem still persists, contact your nearest Samsung customer service.

If you are unable to solve the problem after reading the above instructions, note:

• The model and serial number on the rear of your DVD Recorder
  The warranty information
  A clear description of the problem

Then contact SAMSUNG customer service at 0800-124-421 or 4004-0000.

PROBLEMS AND SOLUTIONS (DISPLAY ERRORMESSAGE)

Before contacting a Samsung authorized service center, perform the following simple checks.

PROBLEM	EXPLANATION/SOLUTION
You cannot record a copy protected movie.	You can't record the video since it is protected by copyright.
You cannot record. This disc is protected.
This disc cannot be formatted (the disc is protected).	The disc you are using is protected. To record on this disc or use this function, cancel the disc protection function. Refer to page 62.
This disc cannot be renamed (the disc is protected).
This disc cannot be finalized (the disc is protected).
This [Menu] is not available (the disc is protected).
The disc cannot be played, Please check the regional code of the disc.	The disc does not match the regional code for your area and cannot be played on this device.
This disc cannot be formatted. Please check the disc.
You could not format the disc because of error detection.	Make sure there are no scratches or dirt on the disc.
You could not finalize the disc because of error detection.
You could not uninitialize the disc because of error detection.
The disc cannot be played, Please check the TV system.	The disc is PAL format and cannot be played on this unit.
The disc can be neither played nor recorded.	Make sure there are no scratches or dirt on the disc.
The disc cannot be played, Please check the disc.
If the disc has invalid information, no more titles can be recorded. Please format the disc beforehand.	You can't use the disc because it contains errors from previous recordings. Use the disc after formatting.

PROBLEMS AND SOLUTIONS (DISPLAY ERRORMESSAGE)

PROBLEM	EXPLANATION/SOLUTION
Error is detected on the disc.	You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting.
System error is found. Please try it again after turning off the power.	When operating, errors happen. Turn off the device. (To turn off, press and hold the power button on the front of the device for 10 seconds.) After turning off, press the Open button and remove the disc from the device.

If you are unable to solve the problem after reading the above instructions, note:

• The model and serial number on the rear of your DVD Recorder
  The warranty information
  A clear description of the problem

Then contact SAMSUNG customer service at 0800-124-421 or 4004-0000.

SPECIFICATIONS
Audio Output

General	Power requirements	110~240V AC, 50/60Hz
	Power consumption	19 Watts
	Weight	3.3 Kg
	Dimensions	430(W) x 218(D) x 55(H)mm
	Operating temp.	5°C to 35°C
	Other conditions	Keep level when operating. Operate in less than 75% humidity
Input	Video	1.0 V p-p at 75Ω load, sync negative
	Max. Audio Input Level	2Vrms
Output	Audio	Audio output jacks
		Coaxial digital audio output support
		Min. 100 dB signal-to-noise ratio
		Max. 0.005% total harmonic distortion (T.H.D)
		at average 1 KHz
	Video	Video output jacks
		Component output (Y: 1.0Vp-p, Pb: 0.70Vp-p, Pr: 0.70Vp-p at 75Ω load)
DVD	Picture Compression format	MPEG-II
	Audio Compression format	Dolby AC-3 256kbps
	Recording Quality	HQ(Approx. 1 hour), HSP(Approx. 1 hour 30 minutes), SP(Approx. 2 hours), LSP(Approx. 2 hours 30 minutes), ESP(Approx. 3 hours), LP(Approx. 4 hours), EP(Approx. 6 hours), SLP(Approx. 8 hours)
	Video S/N Ratio	Min. 50dB at standard recording
	Audio S/N Ratio	Min. 75dB
	Audio frequency characteristics	20 Hz ~ 20 KHz

For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz.

Disc Type	DVD	VCD	AUDIO CD (CD-DA)
Analog Audio Output	48 / 96KHz	44.1KHz	44.1KHz
Digital Audio Output	48KHz	44.1KHz	44.1KHz

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Region	Country	Customer Care Center	Web Site
North America	CANADA	1-800-SAMSUNG(726-7864)	www.samsung.com/ca
	MEXICO	01-800-SAMSUNG(726-7864)	www.samsung.com
	U.S.A	1-800-SAMSUNG(726-7864)	www.samsung.com
Latin America	ARGENTINE	0800-333-3733	www.samsung.com/ar
	BRAZIL	0800-124-421, 4004-0000	www.samsung.com
	CHILE	800-SAMSUNG(726-7864)	www.samsung.com/cl
	NICARAGUA	00-1800-5077267
	HONDURAS	800-7919267
	COSTA RICA	0-800-507-7267	www.samsung.com/latin
	ECUADOR	1-800-10-7267	www.samsung.com/latin
	EL SALVADOR	800-6225	www.samsung.com/latin
	GUATEMALA	1-800-299-0013	www.samsung.com/latin
	JAMAICA	1-800-234-7267	www.samsung.com/latin
	PANAMA	800-7267	www.samsung.com/latin
	PUERTO RICO	1-800-682-3180	www.samsung.com/latin
	REP. DOMINICA	1-800-751-2676	www.samsung.com/latin
	TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	www.samsung.com/latin
	VENEZUELA	0-800-100-5303	www.samsung.com/latin
	COLOMBIA	01-8000112112	www.samsung.com.co
Europe	BELGIUM	0032 (0)2 201 24 18	www.samsung.com/be
	CZECH REPUBLIC	844 000 844 Distributor pro Českou republik: Samsung Zrt, Česka organizačni složka Vyskočilova 4, 14000 Praha 4	www.samsung.com/cz
	DENMARK	70 70 19 70	www.samsung.com.dk
	FINLAND	030-6227 515	www.samsung.com/fi
	FRANCE	3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min)	www.samsung.com
	GERMANY	01805 - SAMSUNG(726-7864) (€ 0,14/Min)	www.samsung.com
	HUNGARY	06-80-SAMSUNG(726-7864)	www.samsung.com
	ITALIA	800-SAMSUNG(726-7864)	www.samsung.com
	LUXEMBURG	0035 (0)2 261 03 710	www.samsung.com/be
	NETHERLANDS	0900-SAMSUNG(726-7864) (€ 0,10/Min)	www.samsung.com/nl
	NORWAY	815-56 480	www.samsung.com/no
	POLAND	0 801 801 881 , 022-607-93-33	www.samsung.com/pl
	PORTUGAL	80820-SAMSUNG(726-7864)	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG(726-7864)	www.samsung.com/sk
	SPAIN	902 10 11 30	www.samsung.com
	SWEDEN	0771-400 200	www.samsung.com/se
	U.K	0845 SAMSUNG (7267864)	www.samsung.com
	EIRE	0818 717 100	www.samsung.com/e
	AUSTRIA	0800-SAMSUNG(726-7864)	www.samsung.com/at
	SWITZERLAND	0800-SAMSUNG(726-7864)	www.samsung.com/ch
CIS	RUSSIA	8-800-555-55-55	www.samsung.com
	KAZAHISTAN	8-10-800-500-55-500	www.samsung.kz
	UZBEKISTAN	8-10-800-500-55-500	www.samsung.uz
	KYRGYZSTAN	00-800-500-55-500
	TADJIKISTAN	8-10-800-500-55-500
	UKRAINE	8-800-502-0000	www.samsung.com
	LITHUANIA	8-800-77777	www.samsung.li
	LATVIA	800-7267	www.samsung.com/lv
	ESTONIA	800-7267	www.samsung.ee
Asia Pacific	AUSTRALIA	1300 362 603	www.samsung.com
	NEW ZEALAND	0800-SAMSUNG(726-7864)	www.samsung.com/nz
	CHINA	800-810-5858 , 010-6475 1880	www.samsung.com
	HONG KONG	3698-4698	www.samsung.com/hk
	INDIA	3030 8282 , 1800 110011	www.samsung.com
	INDONESIA	0800-112-8888	www.samsung.com
	JAPAN	0120-327-527	www.samsung.com/jp
	MALAYSIA	1800-88-9999	www.samsung.com/my
	PHILIPPINES	1800-10-SAMSUNG(726-7864)	www.samsung.com/ph
	SINGAPORE	1800-SAMSUNG(726-7864)	www.samsung.com
	THAILAND	1800-29-3232 , 02-689-3232	www.samsung.com
	TAIWAN	0800-329-999	www.samsung.com/tw
	VIETNAM	1 800 588 889	www.samsung.com
Middle East & Africa	TURKEY	444 77 11	www.samsung.com
	SOUTH AFRICA	0860-SAMSUNG(726-7864)	www.samsung.com
	U.A.E	800-SAMSUNG (726-7864), 8000-4726	www.samsung.com

SAMSUNG

DVD

©2008 Samsung Electronics Co.

1 Témoin Disque present

2 Temoin ENR.

3 Témoin ÉTAT

4 Témoin MINUTERIE

Recording from external equipment you are watching

Erasing a chapter (Chapter Erase)

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year Parts / Ninety (90) days Labor (90 days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG is obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an "AS IS" basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTY OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTY WHEHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASERIS PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To obtain warranty hardware service, please contact SAMSUNG at:

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Region	Country	Customer Care Center	Web Site
North America	CANADA	1-800-SAMSUNG(726-7864)	www.samsung.com/ca
	MEXICO	01-800-SAMSUNG(726-7864)	www.samsung.com
	U.S.A	1-800-SAMSUNG(726-7864)	www.samsung.com
Latin America	ARGENTINE	0800-333-3733	www.samsung.com/ar
	BRAZIL	0800-124-421, 4004-0000	www.samsung.com
	CHILE	800-SAMSUNG(726-7864)	www.samsung.com/cl
	NICARAGUA	00-1800-5077267
	HONDURAS	800-7919267
	COSTA RICA	0-800-507-7267	www.samsung.com/latin
	ECUADOR	1-800-10-7267	www.samsung.com/latin
	EL SALVADOR	800-6225	www.samsung.com/latin
	GUATEMALA	1-800-299-0013	www.samsung.com/latin
	JAMAICA	1-800-234-7267	www.samsung.com/latin
	PANAMA	800-7267	www.samsung.com/latin
	PUERTO RICO	1-800-682-3180	www.samsung.com/latin
	REP. DOMINICA	1-800-751-2676	www.samsung.com/latin
	TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	www.samsung.com/latin
	VENEZUELA	0-800-100-5303	www.samsung.com/latin
	COLOMBIA	01-8000112112	www.samsung.com.co
Europe	BELGIUM	0032 (0)2 201 24 18	www.samsung.com/be
	CZECH REPUBLIC	844 000 844 Distributor pro Českou republik: Samsung Zrt., Česka organizačni složka Vyskočilova 4, 14000 Praha 4	www.samsung.com/cz
	DENMARK	70 70 19 70	www.samsung.com/dk
	FINLAND	030-6227 515	www.samsung.com/fi
	FRANCE	3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min)	www.samsung.com
	GERMANY	01805 - SAMSUNG(726-7864) (€ 0,14/Min)	www.samsung.com
	HUNGARY	06-80-SAMSUNG(726-7864)	www.samsung.com
	ITALIA	800-SAMSUNG(726-7864)	www.samsung.com
	LUXEMBURG	0035 (0)2 261 03 710	www.samsung.com/be
	NETHERLANDS	0900-SAMSUNG(726-7864) (€ 0,10/Min)	www.samsung.com/ml
	NORWAY	815-56 480	www.samsung.com/no
	POLAND	0 801 801 881 , 022-607-93-33	www.samsung.com/pl
	PORTUGAL	80820-SAMSUNG(726-7864)	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG(726-7864)	www.samsung.com/sk
	SPAIN	902 10 11 30	www.samsung.com
	SWEDEN	0771-400 200	www.samsung.com/se
	U.K	0845 SAMSUNG (7267864)	www.samsung.com
	EIRE	0818 717 100	www.samsung.com/e
	AUSTRIA	0800-SAMSUNG(726-7864)	www.samsung.com/at
	SWITZERLAND	0800-SAMSUNG(726-7864)	www.samsung.com/ch
CIS	RUSSIA	8-800-555-55-55	www.samsung.com
	KAZAHSTAN	8-10-800-500-55-500	www.samsung.kz
	UZBEKISTAN	8-10-800-500-55-500	www.samsung.uz
	KYRGYZSTAN	00-800-500-55-500
	TADJIKISTAN	8-10-800-500-55-500
	UKRAINE	8-800-502-0000	www.samsung.com
	LITHUANIA	8-800-77777	www.samsung.It
	LATvia	800-7267	www.samsung.com/lv
	ESTONIA	800-7267	www.samsung.ee
Asia Pacific	AUSTRALIA	1300 362 603	www.samsung.com
	NEW ZEALAND	0800SAMSUNG(726-7864)	www.samsung.com/nz
	CHINA	800-810-5858, 010-6475 1880	www.samsung.com
	HONG KONG	3698-4698	www.samsung.com/hk
	INDIA	3030 8282, 1800 110011	www.samsung.com
	INDONESIA	0800-112-8888	www.samsung.com
	JAPAN	0120-327-527	www.samsung.com/jp
	MALAYSIA	1800-88-9999	www.samsung.com/my
	PHILIPPINES	1800-10-SAMSUNG(726-7864)	www.samsung.com/ph
	SINGAPORE	1800-SAMSUNG(726-7864)	www.samsung.com
	THAILAND	1800-29-3232, 02-689-3232	www.samsung.com
	TAIWAN	0800-329-999	www.samsung.com/tw
	VIETNAM	1 800 588 889	www.samsung.com
Middle East & Africa	TURKEY	444 77 11	www.samsung.com
	SOUTH AFRICA	0860-SAMSUNG(726-7864)	www.samsung.com
	U.A.E	800-SAMSUNG (726-7864), 8000-4726	www.samsung.com

SAMSUNG

SIEGE SOCIAL

SAMSUNG ELECTRONIQUE CANADA INC.,

SERVICEÀLACLIENTÉLE

55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA

FABRIQUE EN COREE
