Plasma TVuser manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please

register your product at

www.samsung.com/global/register

Model _ Serial No. _.

User Instructions

Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Height

The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.

Heat on the top of the PDP TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

The product is making a 'cracking' noise.

A 'cracking' noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

Cell Defects

The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Avoid operating the TV at temperatures below 5^(41^)

A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Afterimage on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

Warranty

• Warranty does not cover any damage caused by image retention.

• Burn-in is not covered by the warranty.

Installation

Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents

General Information

User Instructions 2
Checking Parts. 4
Using the Stand-Base 4
Control Panel 5
Connection Panel. 6
Viewing the Remote Control 8

Operation

Switching Your Television On and Off. 9
Viewing the Menu. 9
Plug & Play Feature 10
Using the TOOLS Button 12
Viewing External Signal Sources 12

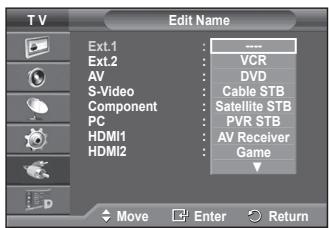

Editing Device Names. 13

Channel Control

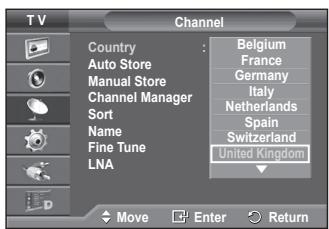

Storing Channels Automatically 13
Storing Channels Manually 14
Adding / Locking Channels 15
Sorting the Stored Channels. 16
Assigning Names to Channels. 16
Fine Tuning Channel Reception. 17
LNA (Low Noise Amplifier) 17

Picture Control

Changing the Picture Standard 18
Customizing the Picture Settings 18

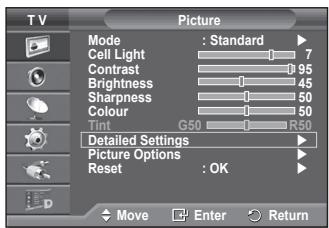

Configuring Detailed Settings on the Picture... 19
Picture Options 20

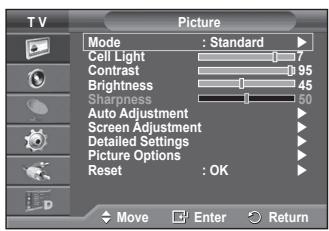

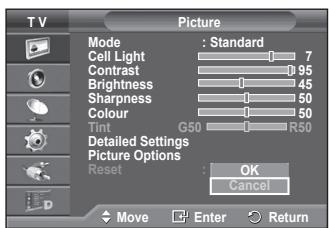

Resetting the Picture Settings to the Factory Defaults 22

Sound Control

Sound Features 23
Selecting the Sound Mode (depending on the model) 24
Connecting Headphones (Sold separately)..24

Function Description

Time Features 25
Language / Light Effect / Melody / Entertainment / Energy Saving 26

PC Display

Setting up Your PC Software (Based on Windows XP) 27
Input Mode (PC). 28
Setting the PC 29

Using the DTV Feature

Previewing the DTV Menu System 30
Displaying Programme Information 31
Operating the DTV Menu 32

Appendix

Teletext Feature (depending on the model)..42
Wall Mount Kit Specifications (VESA) 44
Wall- mount adjustment (Sold separately)....45
How to assemble the Stand-Base (depending on the model) 46
Troubleshooting 47
Specifications. 48

Symbols

Press

Important

Note

English - 3

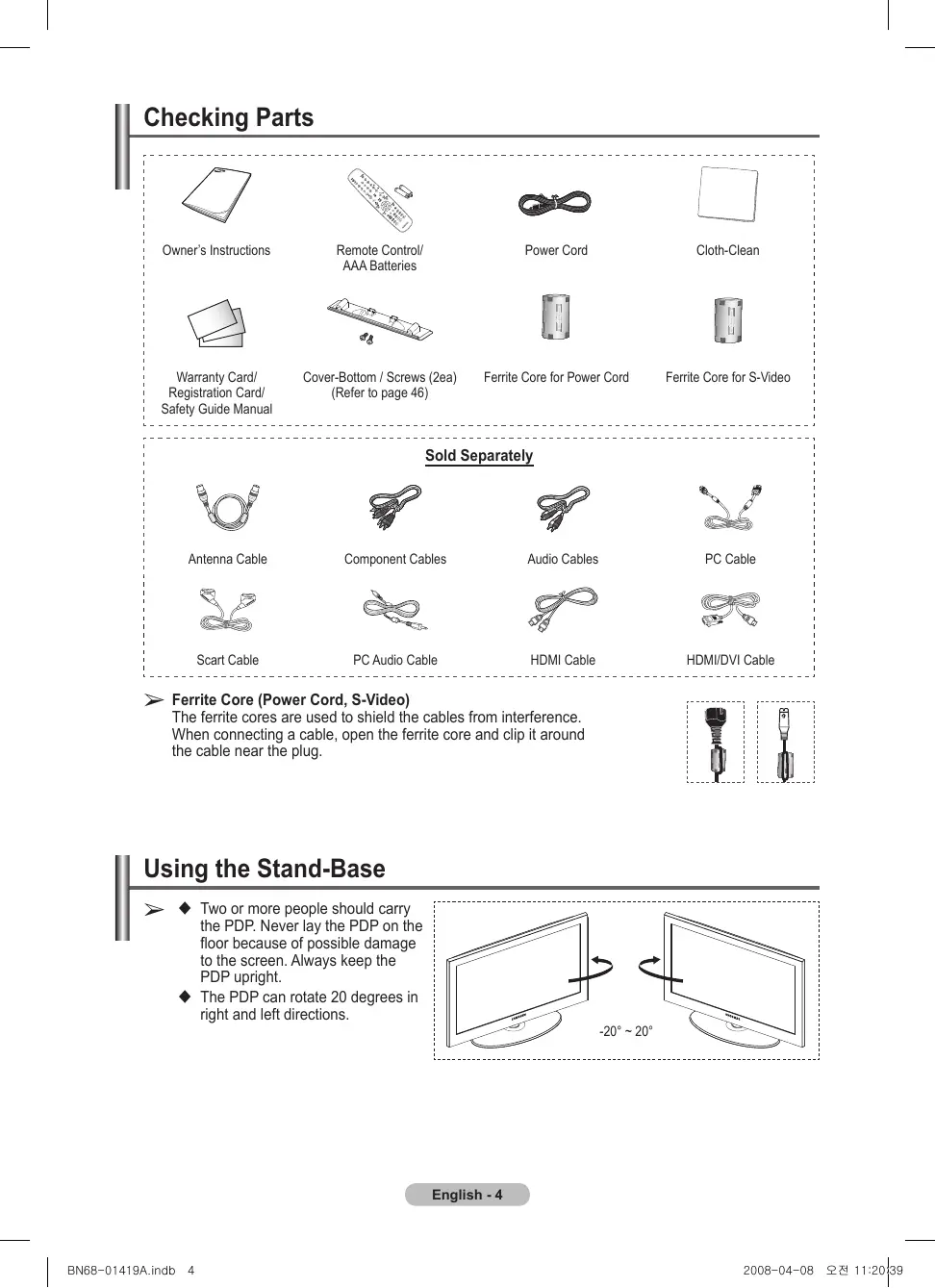

Checking Parts

Owner's Instructions

Remote Control/ AAA Batteries

Power Cord

Cloth-Clean

Warranty Card/ Registration Card/ Safety Guide Manual

Cover-Bottom / Screws (2ea) (Refer to page 46)

Ferrite Core for Power Cord

Ferrite Core for S-Video

Sold Separately

Antenna Cable

Component Cables

Audio Cables

Scart Cable

PC Audio Cable

HDMI Cable

PC Cable

HDMI/DVI Cable

Ferrite Core (Power Cord, S-Video)

The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug.

Using the Stand-Base

Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. Always keep the PDP upright.
The PDP can rotate 20 degrees in right and left directions.

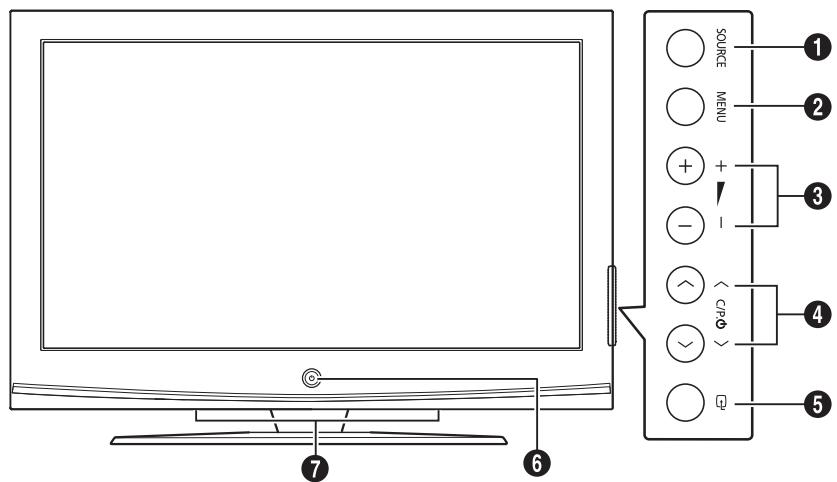

Front (or Side) Panel

The product colour and shape may vary depending on the model.

SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2 and DTV).

2 MENU

Press to see an on-screen menu of your TV's features.

3 - +

Press to increase or decrease the volume. In the on-screen menu, use the + buttons as you would use the and buttons on the remote control.

4 C/P.0

Press to change channels. In the on-screen menu, use the C/P. buttons as you would use the and buttons on the remote control.

ENTER

In the on-screen menu, use this button as you would use the ENTER button on the remote control.

6 POWER

Press to turn the TV on and off.

Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

Speakers

The product colour and shape may vary depending on the model.

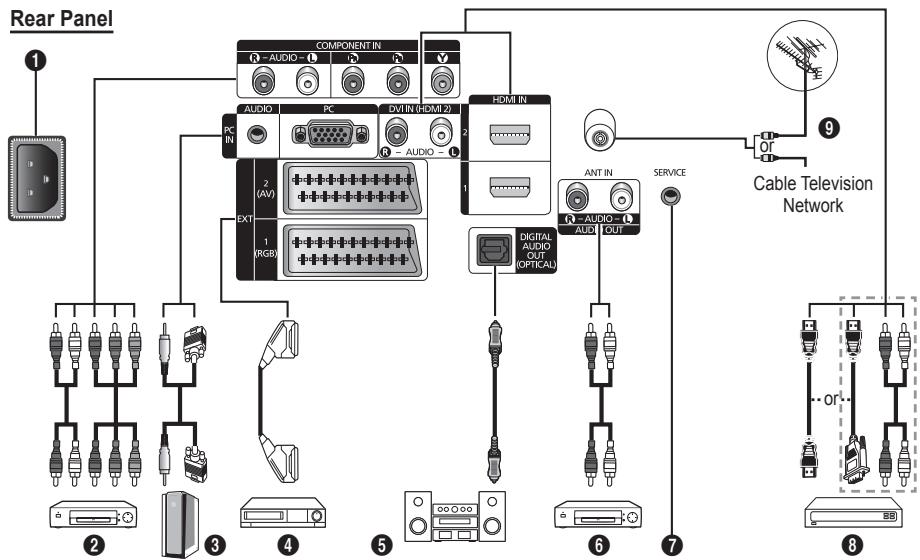

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.
When connecting an external device, match the colour of the connection terminal to the cable.

1 POWER IN

Connect the supplied power cord.

2 COMPONENT IN

Audio (AUDIO L/R) and video (Y / P_B / P_R) inputs for Component.

PC IN(PC) / (AUDIO)

Connect to the video and audio output jack on your PC.

EXT1,EXT2

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Input/Output Specification

Connector	Input			Output
	Video	Audio(L/R)	RGB	Video + Audio(L/R)
EXT 1	✓	✓	✓	Only TV or DTV output is available.
EXT 2	✓	✓		Output you can choose.

6 DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

6 Connecting external Audio Devices

Connect RCA audio signals from the TV to an external source, such as Audio equipment.

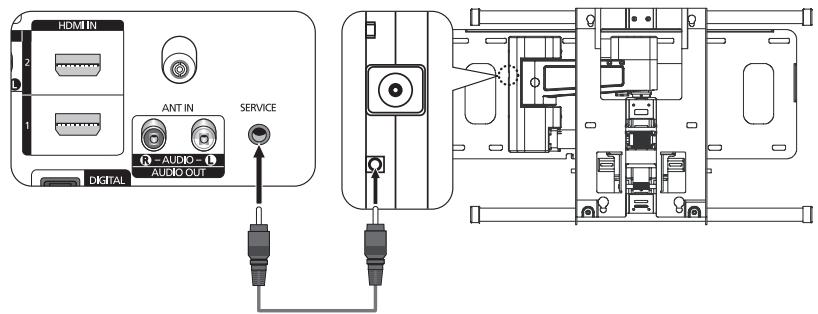

7 SERVICE

• Connector for service.
• Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control.

Continued...

HDMI IN 1,2

• No additional Audio connection is needed for an HDMI to HDMI connection.
• When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

• "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio.
• The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

DVI IN (HDMI2) AUDIO R/L

DVI audio outputs for external devices.

9 ANT IN

75Ω Coaxial connector for Aerial/Cable Network.

Supported modes for HDMI/DVI and Component

	480i	480p	576i	576p	720p	1080i
HDMI/DVI 50Hz	X	X	X	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O
Component	O	O	O	O	O	O

Side Panel

2

The product colour and shape may vary depending on the model.

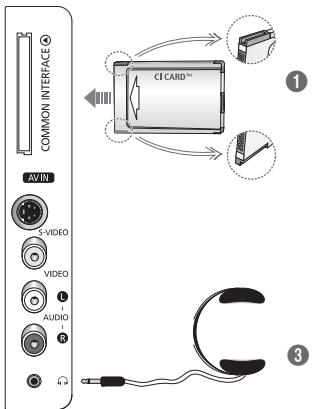

1 COMMON INTERFACE Slot

Insert CI (Common Interface) card into the slot. (refer to page 40)

• When not inserting "CI CARD" in some channels, "Scramble Signal" is displayed on the screen.
• The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.
• When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated.
  Insert the CI-Card in the direction marked on it.

Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

3 Headphones jack

You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room.

Prolonged use of headphones at a high volume may damage your hearing.

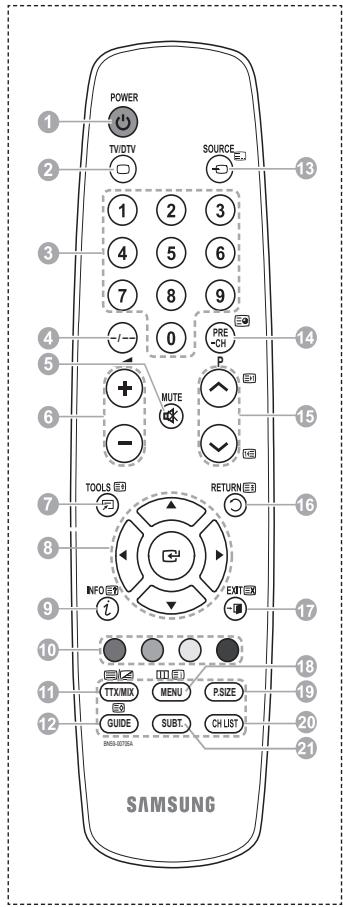

1 POWER button
(turns the TV on and off)
2 Selects the TV and DTV mode directly
Number buttons for direct channel access
One/Two-digit channel selection
5 Temporary sound switch-off
6 Volume increase Volume decrease

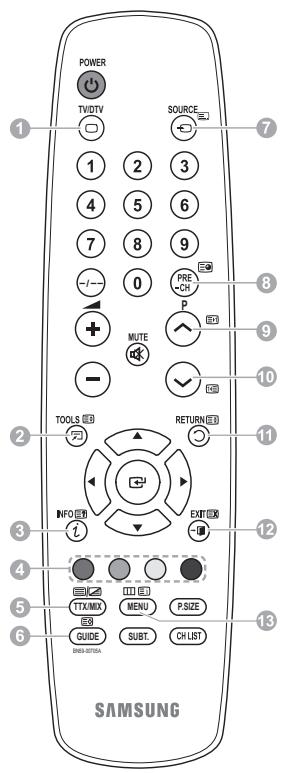

Use to quickly select frequently used functions.
Control the cursor in the menu
9 Use to see information on the current broadcast
12 Electronic Program Guide (EPG) display
Available source selection
14 Previous channel
15 Next channel Previous channel
16 Returns to the previous menu
17 Exit the on-screen menu
16 Displays the main on-screen menu
Picture size selection
20 Channel control button (Refer to page 15)
Digital subtitle display

Teletext Functions

(Refer to page 42)

Exit from the teletext display (depending on the model)
7 Teletext size
9 Teletext reveal
10 Fastext topic selection
1 Teletext display/mix both teletext information and the normal broadcast
12 Teletext store
Teletext mode selection (LIST/FLOF)
14 Teletext sub page
15 P :Teletext next page P :Teletext previous page
16 Teletext hold
17 Teletext cancel
13 Teletext index

Continued...

Installing Batteries in the Remote Control

1 Lift the cover at the back of the remote control upward as shown in the figure.
2 Install two AAA size batteries.

Make sure to match the “+” and “-” ends of the batteries with the diagram inside the compartment.
Do not mix battery types, i.e. alkaline and manganese.

3 Close the cover as shown in the figure.

Remove the batteries and store them in a cool and dry
place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work! Check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power cut, or is the power cord unplugged?
5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off

The main lead is attached to the rear of the television.

1 Plug the main lead into an appropriate socket.
The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz
2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control to switch the television on. The programme that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to "Storing Channels Automatically" on page 13 or "Storing Channels Manually" on page 14.
If the television is initially powered on, several basic customer settings proceed automatically. Refer to "Plug & Play Feature" on page 10.
3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control.
4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER button or number buttons on the remote control.

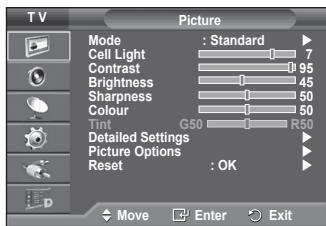

Viewing the Menus

1 Press the MENU button.
The main menu is displayed on the screen.
Its left side has six icons: Picture, Sound, Channel, Setup, Input, and Digital Menu.
2 Press the or button to select one of the icons.
Press the ENTER button to access the icon's sub-menu.
3 Press the or button to move to items in the menu.
Press the ENTER button to enter items in the menu.
4 Press the / / button to change the selected items.
Press the RETURN button to return to the previous menu.
5 Press the EXIT button to exit from the menu.

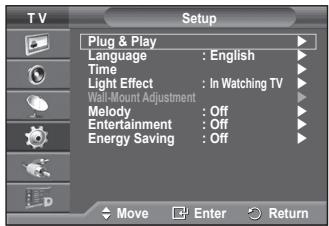

Plug & Play Feature

When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available.

If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed.
Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

1 If the television is in standby mode, press the POWER button on the remote control. The message Start Plug & Play is displayed. Press the ENTER button.
2 The Language menu will automatically appear after several seconds.
3 Select the appropriate language by pressing the or button.

Press the ENTER button. The message Select 'Home Use' when installing this TV in your home. is displayed.

4 Press the or button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed.

The default selection is Home Use.

We recommend setting the TV to Home Use mode for the best picture in your home environment.
Store Demo mode is only intended for use in retail environments.
If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button. When the volume OSD is displayed, press and hold the MENU button for 5 seconds.

5 Make sure that the antenna is connected to the TV. Press the ENTER button. The Country menu is displayed.
6 Select your country or area by pressing the or button. Press the ENTER button.

The message Some DTV functions may not be available. Digital Scan? is displayed.

This function is supported for all countries except for the following countries: France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria.

If your country supports the DTV functions, the message is not displayed. Then you can follow the instructions from step 12. When the local service provider does not support DTV broadcasting but you choose a DTV supporting country, it enters the DTV Plug & Play but DTV functions may not work properly. When No is selected, follow the instructions from step 7 to 10. When Yes is selected, follow the instructions from step 11.

Continued...

7 Select No pressing the or button, then press the ENTER button. Auto Store menu is displayed.

8 Press the ENTER button to start search the channels. The channel search will start and end automatically. After all the available channels are stored, Clock Set menu is automatically displayed. Press the ENTER button.

To stop the search before it has finished, press the ENTER button with Stop selected.

9 Press the or button to select Month, Day, Year, Hour, or Minute. Set these by pressing the or button.

You can set the Month, Day, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control.

10 Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

11 Select Yes pressing the or button, then press the ENTER button. Auto Store menu is displayed.

12 Press the ENTER button to start search the analog channels. The analog channel search will start and end automatically. After all the available analog channels are stored, the screen for searching digital channels is automatically displayed.

To stop the search before it has finished, press the ENTER button with Stop selected.

13 Press the ENTER button to start search the digital channels. The digital channel search will start and end automatically. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country.

To stop the search before it has finished, press the ENTER button with Stop selected.
If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV.
For detailed descriptions about DTV channel update, refer to page 32 of this manual.

14 Press the or button to select required time zone, then press the ENTER button. The screen for setting the time is displayed. Press the ENTER button.

15 Press the or button to select Month, Day, Year, Hour, or Min. Set these by pressing the or button.

You can set the Month, Day, Year, Hour, or Min directly by pressing the numeric buttons on the remote control.

16 Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

If you want to reset this feature ...

1 Press the MENU button to display the menu.
2 Press the or button to select Setup, then press the ENTER button.
3 Press the ENTER button again to select Plug & Play. The message Start Plug & Play is displayed.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The "TOOLS" menu changes depending on which external input mode you are viewing.

1 Press the TOOLS button. The TOOLS menu will appear
2 Press the or button to select a menu, then press the ENTER button.
3 Press the / / ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

• Picture Mode, see page 18
  Sound Mode, see page 23
• Sleep Timer, see page 25
  SRS TS XT, see page 23
  Energy Saving, see page 27
  Dual I-II, see page 24

Viewing External Signal Sources

You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source (broadcast or cable).

1 Press the MENU button to display the menu.
2 Press the or button to select Input, then press the ENTER button.
3 Press the ENTER button again to select Source List.
4 Press the or button to select the signal source, then press the ENTER button.

Available signal sources: TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, DTV

You can choose only those external devices that are connected to the TV.
You can select these options simply by pressing the SOURCE button on the remote control.
To watch television programme again, press the TV/DTV button and select the channel number required.

Editing Device Names

You can give a name to the external source.

1 Press the MENU button to display the menu.
2 Press the or button to select Input, then press the ENTER button.
3 Press the or button to select Edit Name, then press the ENTER button.
4 Press the or button to select the external source to be edited, then press the ENTER button.
5 Select the required device by pressing or , then press the ENTER button.

Available device names: VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA.

6 Press the EXIT button to exit.

Storing Channels Automatically

Not available in DTV or external input mode.

You can scan for the frequency ranges available to you (availability depends on your country).

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch.

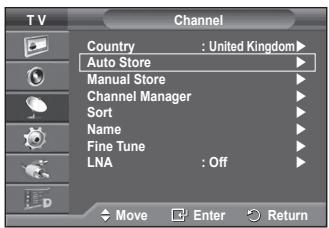

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.
3 Press the ENTER button again. The available countries are listed.
4 Select your country by pressing the or button, then press the ENTER button.

Even though you have changed the country setting in this menu, the country setting for DTV is not changed. Use the Plug & Play function to change the country setting for DTV. (Refer to pages 10 to 11)

5 Press the or button to select Auto Store, then press the ENTER button.
6 Press the ENTER button again to start the search.

The search will end automatically.

To stop the search before it has finished, press the MENU or the ENTER button.

Storing Channels Manually

Not available in DTV or external input mode.

You can store television channels, including those received via cable networks.

When storing channels manually, you can choose:

Whether or not to store each of the channels found.
The programme number of each stored channel which you wish to identify.

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.

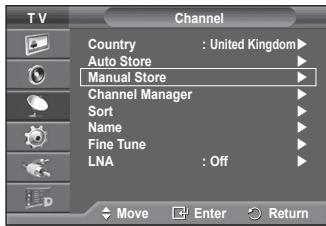

3 Press the or button to select Manual Store, then press the ENTER button.
4 Select the required option by pressing the or button, then press the ENTER button.
5 When you are satisfied with your setting, press the ENTER button.

6 Press the EXIT button to exit.

Programme (Programme number to be assigned to a channel)

• Press the or button until you find the correct number.

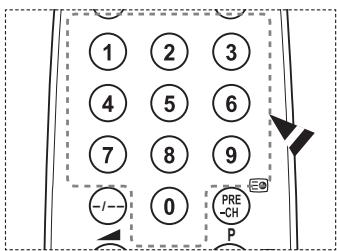

  You can also select the channel number directly by pressing the numeric buttons (0~9).

Colour System: Auto/PAL/SECAM/NTSC4.43

• Press the or button to select the required colour standard.

Sound System:BG/DK/I/L

• Press the or button to select the required sound standard.

Channel (When you know the number of the channel to be stored)

• Press the or button to select C (Air channel) or S (Cable channel).
• Press the button, then press the or button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9).
If there is abnormal sound or no sound, re-select the sound standard required.

Search (When you do not know the channel numbers)

• Press the or button to start the search.
• The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number)

• Set to OK by pressing the ENTER button.

Channel mode

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.
C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Adding / Locking Channels

Not available in DTV or external input mode.

Using the Channel Manager, you can conveniently lock or add channels.

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.

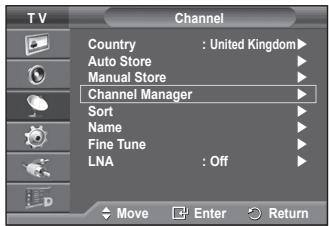

3 Press the or button to select Channel Manager, then press the ENTER button.
Adding channels

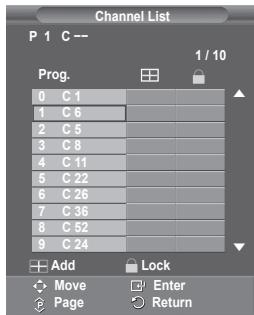

Using the Channel List, you can add channels.

4 Select Channel List by pressing the ENTER button.
5 Move to the () field by pressing the / / buttons, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER button again, the () symbol next to the channel disappears and the channel is not added.

Locking channels

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

6 Press the or button to select Child Lock, then press the ENTER button.
7 Select On by pressing the or button, then press the ENTER button.
8 Press the or button to select Channel List, then press the ENTER button.
9 Move to the ( ) field by pressing the / / buttons, select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the (√) symbol next to the channel disappears and the channel lock is canceled.
A blue screen is displayed when Child Lock is activated.

10 Press the EXIT button to exit.

You can select these options simply by pressing the CH LIST button on the remote control.

Sorting the Stored Channels

Not available in DTV or external input mode.

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.

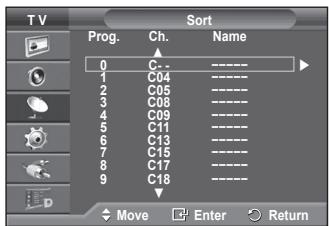

3 Press the or button to select Sort, then press the ENTER button.
4 Select the channel that you wish to move by pressing the or button, then press the ENTER button.
5 Select the number of the programme to which the channel is to be moved by pressing the or button.

Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly.

6 Repeat steps 4 to 5 until you have moved all the channels to the required programme numbers.
7 Press the EXIT button to exit.

Assigning Names to Channels

Not available in DTV or external input mode.

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.

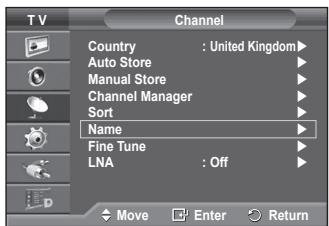

3 Press the or button to select Name, then press the ENTER button.
4 Press the or button to select the channel to be assigned to a new name, then press the ENTER button.
5 Press the or button to select a letter, a number, or a symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank). Move on to the previous or next letter by pressing the or button, then press the ENTER button.
6 Repeat steps 4 to 5 for each channel to be assigned to a new name.
7 Press the EXIT button to exit.

Fine Tuning Channel Reception

Not available in DTV or external input mode.

If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation.

If the signal is weak or distorted, you may have to fine tune the channel manually.

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.

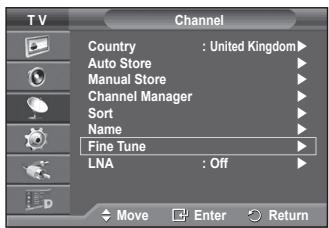

3 Press the or button to select Fine Tune, then press the ENTER button.
4 To obtain a sharp, and clear picture and good sound quality, press the or button until you reach the optimal setting. Press the ENTER button.

Fine Tune Store will change the colour of the Channel OSD (On Screen Display) from White to Red and add the "*" mark.
To reset the fine tuning to 0, select Reset by pressing the or button. Press the ENTER button.

5 Press the EXIT button to exit.

This function is very useful in the situation that the TV is used in weak signal.

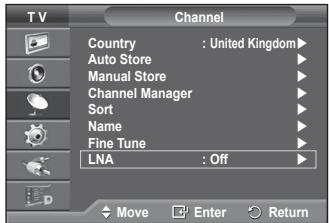

LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal.

1 Press the MENU button to display the menu.
2 Press the or button to select Channel, then press the ENTER button.
3 Press the or button to select LNA, then press the ENTER button.
4 Select Off or On by pressing the or button, then press the ENTER button.
5 Press the EXIT button to exit.

Depending on areas, factory mode of LNA, will be set up as On or Off.

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ENTER button again to select Mode.
4 Select the required mode by pressing the or button, then press the ENTER button.

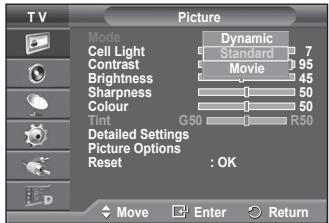

Available modes: Dynamic, Standard, Movie

The settings values may vary depending on the input source.

5 Press the EXIT button to exit.

Choose Dynamic for viewing the TV during the day or when there is bright light in the room.

Choose Standard for general TV watching mode.

Choose Movie when viewing the movie.

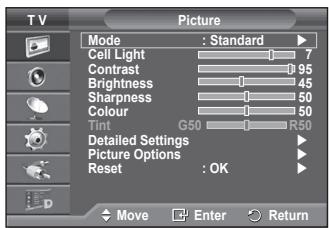

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select Picture Mode.
3 Press the or button to select the required option.

Customizing the Picture Settings

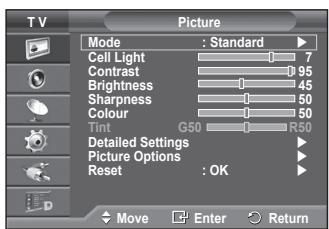

Your television has several setting options that allow you to control the picture quality.

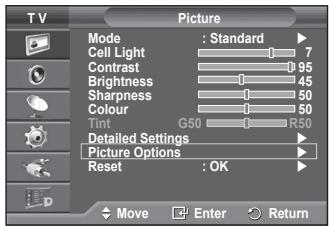

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ENTER button again to select Mode.
4 Select the required mode by pressing the or button, then press the ENTER button.

Available modes: Dynamic, Standard, Movie

5 Select the required option by pressing the or button, then press the ENTER button.
6 When you are satisfied with your setting, press the ENTER button.
7 Press the EXIT button to exit.
Cell Light - Contrast - Brightness - Sharpness - Colour - Tint

In Analog TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function.
In PC mode, you can only make changes to Cell Light, Contrast, and Brightness.

Press the or button until you reach the optimal setting.

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the or button to select Detailed Settings, then press the ENTER button.
4 Select the required option by pressing the or button, then press the ENTER button.

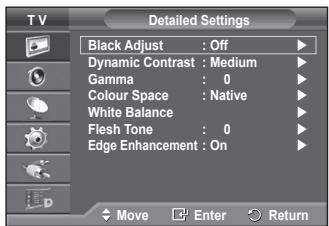

Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, E Enhancement

5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.

Detailed Settings is available in Standard or Movie mode.

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance from among the Detailed Settings items.

Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High
You can adjust the screen contrast so that the optimal contrast is provided.
Gamma: -3 +3

You can adjust the middle brightness of pictures.

Press the or button until you reach the optimal setting.

Colour Space: Auto/Native/Custom

Colour space is a colour matrix composed of red, green and blue colours.

Select your favorite colour space to experience the most natural colour.

• Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources.
• Native: Native Colour Space offers deep and rich colour tone.
• Custom: Adjusts the colour range to suit your preference. (see "Customizing the Colour Space")

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

Colour is available when Colour Space is set to Custom.

Press the or button to select Red, Green, Blue, Yellow, Cyan or Magenta.

Press the ENTER button.

• Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour.

Press the or button to select Red, Green or Blue to change it. Press the ENTER button.

Press the or button to decrease or increase the value of a particular item.

Press the ENTER button.

• Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the color temperature for more natural picture colors.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the or button, then press the ENTER button.

Press the or button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone:-15~+15

You can emphasize the pink tone in the picture.

Press the or button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement: Off/On

You can emphasize object boundaries.

Picture Options

You can set detailed picture settings.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.

3 Press the or button to select Picture Options, then press the ENTER button.
4 Select the required option by pressing the or button, then press the ENTER button.
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.

In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection from among the items in Picture Options.
Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.
Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

• Auto Wide: Expanding and pulling up the picture from 4:3 to 16:9 ratio.
• 16:9: Sets the picture to 16:9 wide mode.
• Wide Zoom: Magnify the size of the picture more than 4:3. Move the screen up/down using the or button after selecting the by pressing the or ENTER button.
• Zoom: Magnify the size of the picture vertically on screen.
• 4:3: Sets the picture to 4:3 normal mode.
• Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i), Component (1080i) or DTV (1080i) signals are input.

After selecting Just Scan in HDMI (1080i) or Component (1080i) mode:

Press the or button to select, then press the ENTER button.

Press the , , or button to move the picture up, down, left and right.

Reset: Press the or button to select Reset, then press the ENTER button. You can initialize the setting.

With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen.

For an HDMI (1080p) connection of 24, 25, 30, 50, and 60Hz , and for a Component (1080p) connection of 50 and 60Hz , only the input source is supported.

You can change the picture size simply by pressing the P.SIZE button on the remote control.

Depending on the input source, the picture size options may vary.
The items available may differ depending on the selected mode.
Auto Wide function is available only in TV, DTV, Ext.1, Ext.2, AV, and S-Video mode.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.

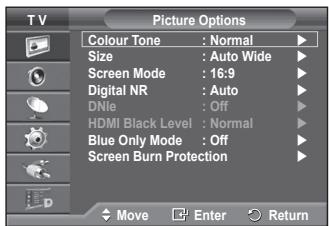

Positioning and Sizing the screen using Zoom

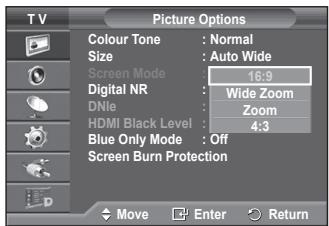

Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction using the or button as well as the screen size.
Move the screen up/down using the or button after selecting the by pressing the or button.
Resize the screen vertically using the or button after selecting the by pressing the or button.

Continued...

Screen Mode: 16:9/Wide Zoom/Zoom/4:3

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

• 16:9: Sets the picture to 16:9 wide mode.
• Wide Zoom: Magnify the size of the picture more than 4:3.
• Zoom: Magnify the size of the picture vertically on screen.
• 4:3: Sets the picture to 4:3 normal mode.
  This function is available in Auto Wide mode.
  This function is not available in Component or HDMI mode.

Digital NR: Off/Low/Medium/High/Auto

If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNle: Off/Demo/On

This TV includes the DNlte function so as to provide a high visual quality. If you set DNlte to on, you can view the screen with the DNlte feature activated. If you set the DNlte to Demo, you can view the applied DNlte and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNleTM (Digital Natural Image engine) DNle

This feature brings you more detailed image with 3D noise reduction, detail enhancement, ntrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNlTe™ technology will fit every signal into your eyes.

This cofunction is not available in PC mode.
DNlle is only available in Dynamic mode.

HDMI Black Level: Normal/Low

Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low color, etc.) is encountered by the HDMI input for RGB limited range (16 to 235).
This function is active only when the external input connects to HDMI(RGB signals).

Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

Blue Only Mode is available when the picture mode is set to Movie or Standard.

Screen Burn Protection

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.

• Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

• Set Pixel Shift to On by pressing the or button, then press the ENTER button.

• Select the required option by pressing the or button, then press the ENTER button.

Available options: Horizontal Dot, Vertical Line, Time

Continued...

Optimum condition for pixel shift;

	PC	TV/Ext/AV/Component /HDMI/DTV
Horizontal Dot	1	2
Vertical Line	1	2
Time (minute)	2	2 min

The Pixel Shift value may differ depending on the monitor size (inches) and mode.
This function is not available in the Just Scan mode.

• White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.
• Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.
• Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.

Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

To remove after images on the screen, use either White or Scrolling function. Although both of the two functions remove after images on the screen, Scrolling is more effective.
The after image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after images on the screen. If after image is not improved after the execution of the function, repeat the function again.

Press any button on the remote control to cancel this feature.

Resetting the Picture Settings to the Factory Defaults

You can set detailed picture settings.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the or button to select Reset, then press the ENTER button.
4 Press the or button to select OK or Cancel then press the ENTER button.

Each mode can be reset.

Sound Features

1 Press the MENU button to display the menu.
2 Press the or button to select Sound, then press the ENTER button.

3 Select the required option by pressing the or button, then press the ENTER button.

Available options: Mode, Equalizer, SRS TS XT, Auto Volume, TV Speaker.

4 When you are satisfied with your setting, press the ENTER button.
5 Press the EXIT button to exit.
Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select Sound Mode.
3 Press the or button to select the required option.

Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The television has several settings which allow you to control the sound quality.

If you make any changes to these settings, the sound mode is automatically switched to Custom.

SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers.

TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

TruSurround XT

TruSurround XT, SRS and () Symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select SRS TS XT.
3 Press the or button to select Off or On.

Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is

changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On

If you don't want to hear the sound through TV speaker, set the TV speaker to Off.

The +, - and MUTE buttons do not operate when TV Speaker is set to Off.
When TV Speaker is set to Off, the Sound menus cannot be adjusted.

Selecting the Sound Mode (depending on the model)

The DUAL I-II button displays/controls the processing and output of the audio signal. When power is switched on, the mode is automatically preset to either "DUAL-I" or "Stereo", depending on the current transmission.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select Dual I-II.
3 Press the or button to select the required option.

	Type of broadcast	On-screen indication
NICAM Stereo	Regular broadcast (Standard audio)	Mono (Normal use)
	Regular + NICAM Mono	NICAM	←→	Mono (Normal)
	NICAM Stereo	NICAM stereo	←→	Mono (Normal)
	NICAM DUAL-I/II	NICAM dual-1	→ NICAM dual-2	Mono (Normal)
A2 Stereo	Regular broadcast (Standard audio)	Mono (Normal use)
	Bilingual or DUAL-I/II	Dual I	←→	Dual II
	Stereo	Stereo	←→	Mono (Forced mono)

If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono.
If the stereo signal is weak and automatic switching occurs, switch to Mono.
This function is only available in Analog TV mode.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing other people in the room.

When you insert the head set jack into the corresponding port, you can operate only Auto Volume in Sound menu.
Prolonged use of headphones at a high volume may damage your hearing.
You will not hear sound from the speakers when you connect headphones to the TV.
The headphone volume and TV volume are adjusted separately.

TV Side Panel

Time Features

1 Press the MENU button to display the menu.
2 Press the or button to select Setup, then press the ENTER button.
3 Press the or button to select Time, then press the ENTER button.
4 Select the required option by pressing the or button, then press the ENTER button.

Available options: Clock Set, Sleep Timer, Timer 1, Timer 2, Timer 3

5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.

Clock Set

You can set the television clock so that the current time is displayed when pressing the INFO button on the remote control. You must also set the time if you wish to use the automatic on or off timers.

• Press the or button to select Month, Day, Year, Hour, or Minute. Set these by pressing the or button.

  You can set the Month, Day, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control.
  In the event of a power interruption or the set being turned off at the supply, the settings for the Clock will be lost.

Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

• Select the preset time interval (Off, 30, 60, 90, 120, 150, or 180) for staying on by pressing the or button.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select Sleep Timer.
3 Press the or button to select the minute, then press the ENTER button.

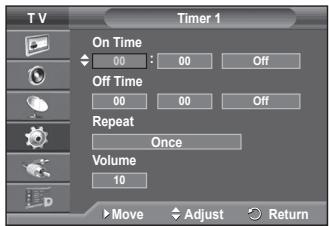

Timer 1 / Timer 2 / Timer 3

You can set the On/Off timers so that the television will switch on or off automatically at the time you select.

You must set the clock first.

• Press the or button to select the required item below.

Press the or button to adjust to the setting satisfied.

On Time : Select hour, minute, and On/Off. (To activate timer with the setting satisfied, set to On.)

Off Time : Select hour, minute, and On/Off. (To activate timer with the setting satisfied, set to On.)

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun.

Volume : Select the required volume level.

You can set the hour, minute, directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer "On", the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer "On" mode and prevents overheating, which may occur if a TV is on for too long time.

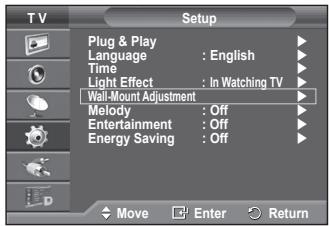

Language / Light Effect / Melody / Entertainment / Energy Saving

1 Press the MENU button to display the menu.
2 Press the or button to select Setup, then press the ENTER button.
3 Select the required option by pressing the or button, then press the ENTER button.

Available options: Language, Light Effect, Melody, Entertainment, Energy Saving

4 When you are satisfied with your setting, press the ENTER button.
5 Press the EXIT button to exit.

Language

It is variable depending on the model. When you start using the television for the first time, you must select the language which will be used for displaying menus and indications.

Light Effect: Off/In Standby/In Watching TV/Always

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

• Off: The blue LED is always off.
• In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on.
• In Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off.
• Always: The blue LED always lights.

Set the Light Effect to Off to reduce the power consumption.

Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Entertainment: Off/Sports/Cinema/Game

Entertainment mode enables you to select the optimal display and sound for sports, cinema and games.

• Off: Switches the Entertainment function off.
• Sports: Provides the optimal picture and sound quality for sports.
  Cinema: Provides the optimal picture and sound quality for movie watching.

You can experience a richer picture and enhanced sound.

• Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off.
The Entertainment settings are saved for each input source.

Continued...

Energy Saving: Off/Low/Medium/High

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

• Off: Switches off the Energy Saving mode.
• Low: Operates in standard mode regardless of the surrounding illumination.
  Medium: Enters Medium power saving mode regardless of the surrounding illumination.
• High: Enters maximum power saving mode regardless of the surrounding illumination.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select Energy Saving.
3 Press the or button to select the required option.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

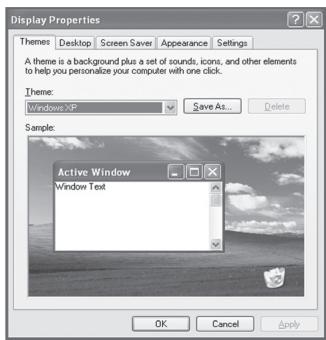

1 Right click the mouse on the Windows Desktop, then click on Properties.
The Display Properties will be displayed.
2 Click on Settings tab, then set the Display Mode with reference to the Display Modes Table. You do not need to change the Colours settings.
3 Click on Advanced. A new settings dialog box will be displayed.
4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the Screen refresh rate.
5 Click on OK to close the window, then Click on OK button to the Display Properties window. Automatic re-booting may commence at this moment.

Input Mode (PC)

Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported:

D-Sub Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)	PS42A416	PS50A416
IBM	640 x 350	31.469	70.086	25.175	+/-	✓	✓
	720 x 400	31.469	70.087	28.322	-/+	✓	✓
VESA	640 x 480	31.469	59.940	25.175	-/-	✓	✓
	640 x 480	37.861	72.809	31.500	-/-	✓	✓
	640 x 480	37.500	75.000	31.500	-/-	✓	✓
	800 x 600	37.879	60.317	40.000	+/+	✓	✓
	800 x 600	48.077	72.188	50.000	+/+	✓	✓
	800 x 600	46.875	75.000	49.500	+/+	✓	✓
	1024 x 768	48.363	60.004	65.000	-/-	✓	✓
	1024 x 768	56.476	70.069	75.000	-/-	✓	✓
	1024 x 768	60.023	75.029	78.750	+/+	✓	✓
	1360 x 768	47.712	60.015	85.500	+/+		✓

HDMI/DVI Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)	PS42A416	PS50A416
VESA	640 x 480	31.469	59.940	25.175	- / -	✓	✓
	800 x 600	37.879	60.317	40.000	+ / +	✓	✓
	1024 x 768	48.363	60.004	65.000	- / -	✓	✓
	1360 x 768	47.712	60.015	85.500	+ / +		✓

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
For the PS42A416, PC text quality is optimum in VESA mode(1024 x 768@60Hz).
For the PS50A416, PC text quality is optimum in VESA mode (1360 x 768@60Hz).

Setting the PC

Preset to the PC mode by pressing the SOURCE button.

1 Press the MENU button to display the menu.
2 Press the or button to select Picture, then press the ENTER button.
3 Select the required option by pressing the or button, then press the ENTER button.
4 When you are satisfied with your setting, press the ENTER button.
5 Press the EXIT button to exit.

Auto Adjustment :

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal.

The values of fine, coarse and position are adjusted automatically.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the or button to select Auto Adjustment, then press the ENTER button.

Screen Adjustment: Coarse/Fine/Position/Image Reset Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise.

If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again.

After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

1 Press the or button to select Coarse or Fine, then press the ENTER button.
2 Press the or button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button.

Position

Adjust the PC's screen positioning if it does not fit the TV screen.

1 Adjust the position by pressing the / / button.
2 Press the ENTER button.

Image Reset

You can replace all image settings with the factory default values.

Previewing the DTV Menu System

The company does not guarantee the normal operation of the DTV menu for countries other than the 8 supported countries (United Kingdom, France, Germany, Italy, Netherlands, Spain, Switzerland, Austria) because only these country standards are supported. In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel List, etc. may not be displayed properly.
Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration.

Press the MENU button to display the menu.

Press the or button to select Digital Menu, then press the ENTER button.

Guide

→ Now & Next Guide
Full Guide
Scheduled List
Default Guide Now/Next Full Guide

Digital Channel

Country
Auto Store
→ Manual Store
Edit Favourite Channels
Channel List All

Favourites Default/All/Favourites

Setup

→Menu Transparency High Medium Low Opaque

Change PIN
Parental Lock Parental Rating
→ Subtitle → Off
→Subtitle Mode Normal Hard of hearing
Audio Format PCM Dolby Digital
Audio Description Audio Description Volume
Digital Text Disable Enable
Time Zone
Common Interface
System Product Information Signal Information Software Upgrade Reset

Language

Audio Language
Subtitle Language
Teletext Language

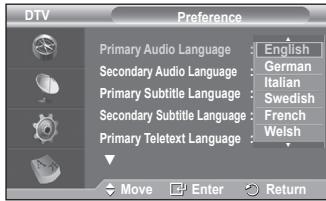

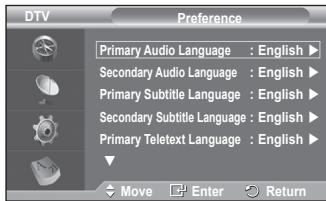

Preference

Primary Audio Language
Secondary Audio Language
Primary Subtitle Language
Secondary Subtitle Language
Primary Teletext Language
Secondary Teletext Language (depending on the Country)

Displaying Programme Information

While viewing a channel, additional information about the current programme may be displayed.

While viewing a programme, press the INFO button. The programme information is displayed.

The information is displayed:
- Parental Rating
Video Type: SD, HD, Radio
Audio Type: Mono, Stereo, Dual, Dolby Digital
- Existence of Teletext or DVB Subtitle
Audio Language
To exit from banner information, press the INFO button.

Operating the DTV Menu

Viewing the DTV Menu

After installing your antenna system and TV with appropriate connectors.

Plug in the AC main power and switch on the TV.
Press the MENU button to display the menu.

Press the or button to select Digital Menu, then press the ENTER button.

The main menu appears on the screen. Its left side has four icons: Guide, Digital Channel, Setup, and Language.

1. Digital Channel

This menu consists of 5 sub-menus:

Country, Auto Store, Manual Store, Edit Favourite Channels, and Channel List.

Press the or button to select Channel, then press the ENTER button. The Channel menu is displayed.

1.1 Country

Press the ENTER button. The Country menu is displayed. Select your country by pressing the or button, then press the ENTER button.
Even though you have changed the country setting in this menu, the country setting for Analog TV is not changed.(Refer to page 10)

1.2 Auto Store

You can update the channel list when the broadcaster adds new services or if you move the TV to a new location.

Press the ENTER button to select Auto Store. Press the ENTER button again to start the search. When it has finished, the number of scanned services will be displayed.

• The existing favourite channel list will not be deleted when the channel list is updated.
• To stop the scan before it has finished, press the ENTER button with Stop selected.
  If the signal status is poor, No service found! Check the aerial connection. message is displayed.

1.3 Manual Store

You can specify the channel for a fast channel search.

• Channel

Press the , or numeric buttons (0~9) to select a channel.

The available channels are 21~68. The corresponding frequency for the selected channel is automatically set.

Frequency

If you do not know the exact frequency, follow the above step to select the frequency automatically using channel.

• Bandwidth

The available bandwidths are 7 and 8MHz

Continued...

Press the red button to start the scan for digital services. When it has finished, channels are updated in the channel list.
You can input by pressing the button on the remote control.

You can not change only frequency and when changing a channel the Frequency will be automatically changed.

1.4 Edit Favourite Channels

You can edit your favourite channels using the colour buttons.

In the case of DTV mode, OK or Select can be used as the ENTER button.
Press the red button in the Edit Favourite Channels menu to display all currently stored channels.
Press the or button to select a channel you want. Press the ENTER button. A "★" icon is shown next to the selected channel and the channel will be added to the favourites list.

To undo, press the ENTER button again.

Select All: Select all channels currently displayed.
Select None: Deselect all selected channels.
Preview: Displays (a) currently selected channel(s).

If The Favourite Channels settings have been completed.

Add

You can use this function when one or more favourite channels have been selected.

• Press the red button in the Edit Favourite Channels menu. To add more channels, refer to the previous section.
• To add all channels to the favourites channel list, press the red button.
• To remove all channels, press the green button.
  Preview: Displays (a) currently selected channel(s).
• Press the CH LIST button to display the favourite channel list.

Renumber (depending on the Country)

• In the Edit Favourite Channels menu, press the or button to select the required channel.
• Press the green button.

The space for entering the number is a blank.

• Enter the new channel number. Press ENTER button to store or RETURN button to cancel.

Press the button to delete an entered digit.
If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel.

That is, the two numbers are exchanged.

The favorite channels are automatically sorted in ascending order of channel numbers.

Preview

• In the Edit Favourite Channels menu, press the or button to select the channel to be previewed.
• Press the yellow button. Displays currently selected channel.

Delete

• In the Edit Favourite Channels menu, press the or button to select the channel to be deleted from the favourite channels list.
• Press the blue button. The selected channel and number will be deleted.

To add a deleted channel back in to the favourite channel list, see Add.

Continued...

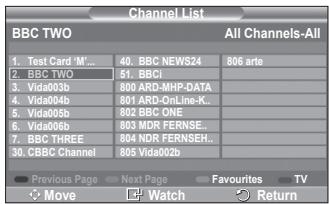

1.5 Channel List

You can display a list of all channels or your favourite channels.

Press the or button to select Channel List, then press the ENTER button.

It can be displayed simply by pressing the CH LIST button.

Press the yellow button to toggle between your favourite channels and all channels.

Your favourite channels are only displayed if they were previously set in the Edit Favourite Channels menu (refer to page 33).

Press the red or green button to display the previous or next channel list page.
Press the or button to select a channel to be tuned, then press the ENTER button.

The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a icon if the channel is one of the favourite channels.

Press the blue or CH LIST button to exit from the channel list.

2. Guide

This menu consists of 4 sub-menus:

Now & Next Guide, Full Guide, Scheduled List, and Default Guide.

2.1 Now & Next Guide / Full Guide

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel.

The display will dynamically update as soon as new information becomes available.

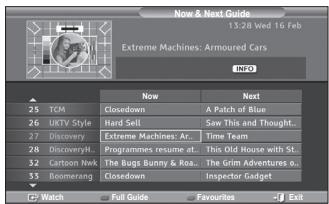

- Now & Next Guide

For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information.

Full Guide

Displays the programme information as time ordered 1 hour segments. 2 hours of programme information is displayed which may be scrolled forwards or backwards in time.

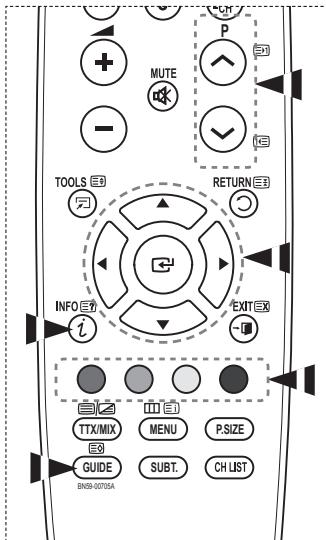

Press the or button to select Now & Next Guide or Full Guide. Press the ENTER button. The selected guide menu is displayed.

• Press the red button to toggle between Now & Next Guide or Full Guide.
• Press the green button to display Favourites or All Channels list.
• Press the yellow button to scrolls backwards quickly (24 hours).
• Press the blue button to scrolls forwards quickly (24 hours).

You can also display the guide menu simply by pressing the GUIDE button.

To watch a programme in the EPG list, press the / / button to select a programme of your choice, then press the ENTER button.

If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the section.

Continued...

To view programme information, press the / / button to select a programme of your choice, then press the INFO button.

Information such as the channel number, programme title and running time, status bar, and brief summary of the highlighted programme will be displayed in the top right corner of the screen. If there is a lengthy summary, "... will be displayed. Press the INFO button for the full summary text.
Six channels are displayed. To scroll between channels, move to a channel using the or button. To display page by page, use the P or button.

2.2 Scheduled List

If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled program at the scheduled time even if you are watching another program.

Press the red button to add a new programme. The menu for adding a programme is displayed with Channel selected.
Press the / and ENTER buttons to set the required channel, time, date, and frequency. When you are satisfied with your settings, save the adjusted schedule by pressing the red button.
If you want to edit the scheduled programme, select a programme by pressing the or button, then press the green button. If necessary, select the programme to be deleted by pressing the or button, then press the blue button.

When watching analog TV, the reserved DTV channel cannot be changed. The channel is only changed automatically to the reserved channel when you are watching DTV.

Scheduling programme only functions with the television already turned on, and not from standby mode. For details about switching the television on and off automatically, refer to page 9.

2.3 Default Guide

You can preset the default guide style.

Press the or button to select the required option (Now/Next or Full Guide), then press the ENTER button. The selected option for default guide is displayed on the EPG menu and the channel list appears.

Continued...

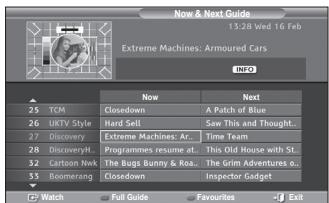

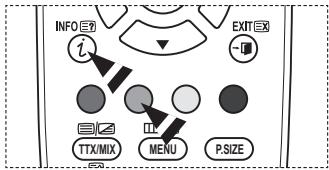

2.4 All Channels and Favorite Channels

In the EPG menu, you can display all channels or favourite channels.

Press the green button repeatedly to toggle between the all and favourite channels list.

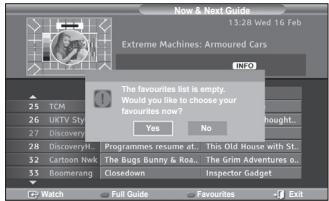

When the favorite channel list has not been set up:

• The favorite list is empty. Would you like to choose your favorite now? message is displayed.
• Select Yes. The Edit Favourite Channels menu is displayed. If you select No, all channels will remain unchanged.
• To edit the favourite channels, refer to page 33 for more details.

All Channels is the list of channels that have been scanned by the channel list update. All channels are displayed in the all channel mode.

Favourites (favourite channels) is the list of channels that has been set in the Edit Favourite Channels menu (refer to page 33).
When there is no channel information, the No Data message will be displayed and you will not be able to change the channel even if you press the ENTER button.

When the No Data message appears and you cannot change the channel, press the channel number directly using the numeric buttons.

3. Language

This menu consists of 4 sub-menus: Audio Language, Subtitle Language, Teletext Language, and Preference.

3.1 Audio Language / Subtitle Language / Teletext Language You can change the default value for subtitle, audio and teletext languages.

Press the or button to select required menu (Audio Language, Subtitle Language, or Teletext Language), then press the ENTER button. The options of the selected menu are displayed.

Continued...

3.2 Preference

This menu consists of 6 sub-menus:

Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, and Secondary Teletext Language (depending on the Country). Using this feature, users can select one of the languages (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Spanish, Dutch). The language selected here is the default when the user selects a channel.

Press the or button to select required menu (Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, or Secondary Teletext Language), then press the ENTER button. The options of the selected menu are displayed.
Press the or button to select required option (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Spanish, Dutch), then press the ENTER button.

If you change the language setting, the Audio Language, Subtitle Language, and the Teletext Language of the Language menu (refer to page 36) are automatically changed to the selected language.
The Audio Language, Subtitle Language, and the Teletext Language of the Language menu show a

list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Audio Language, Primary Subtitle Language, or the Primary Teletext Language of the Preference menu.

Continued...

4. Setup

This menu consists of 11 sub-menus:

Menu Transparency, Change PIN, Parental Lock, Subtitle, Subtitle Mode, Audio Format, Audio Description, Digital Text, Time Zone, Common Interface and System.

4.1 Menu Transparency

You can set the translucency of the on-screen menu.

Press the or button to select required option (High, Medium, Low, or Opaque), then press the ENTER button.

4.2 Change PIN / Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user.

The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

Enter your current 4-digit PIN code by using the numeric buttons (0~9). The Parental Lock menu are displayed with the Parental Rating selected.

The default PIN code for a new TV set is 0000. If you enter an invalid PIN code, the Invalid PIN code. Please try again. message is displayed
Press the ENTER button. Press the or button to select the age rating you want to lock out, then press the ENTER button.
If you want to change the PIN code, press the or button to select Change PIN, then press the ENTER button.

• Enter your new PIN code by using the numeric buttons (0~9). The Confirm New PIN is displayed.
• Re-enter your new PIN code to confirm by using the numeric buttons (0~9). The Your PIN code has been changed successfully. message is displayed.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off) MUTE 8 2 4 POWER (On).

Continued...

4.3 Subtitle / Subtitle Mode / Audio Format / Audio Description / Digital Text

You can use various settings to suit your personal preferences.

Press the or button to select required menu (Subtitle, Subtitle Mode, Digital Text or Audio Format), then press the ENTER button. The options of the selected menu are displayed.
Press the or button to select required option, then press the ENTER button.

- Subtitle: On/Off

You can select these options simply by pressing the SUBT. button on the remote control.

• Subtitle Mode : Normal (basic subtitle) / Hard of hearing (subtitle for a hearing-impaired person)

If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even though Hard of hearing mode is selected.

Audio Format

You can only hear Dolby Digital sound through the audio receiver connected through an optical cable. You can only hear PCM sound through the main speaker.

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

Even if you have selected PCM or Dolby Digital in Audio Format, when the input signals are any format of PCM and Dolby Digital, the input format is applied regardless of the setting. If the input signals are not any of those, the setting is not applied.

Audio Description

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

- Digital Text: Enable / Disable (UK only)

If the programme is broadcast with digital text, this feature is enabled.

MHEG (Multimedia and Hypermedia Information Coding Experts Group)? An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games.

4.4 Time Zone (Spain only)

You can select the time zone where you are located.

This menu is only enabled when you select a country supported by the time zone.

Continued...

4.5 Common Interface

- Installing the CI Card

u Purchase the CI CAM module by visiting your nearest dealer or by phone. u Insert the CI CARD into the CAM in the direction of the arrow until it fits. u Insert the CAM with the CI CARD installed into the common interface slot.

Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.

u Check if you can see a picture on a scrambled signal channel.

You can install the CAM anytime whether the TV is ON or OFF.

- Application Info.

This contains information on CAM inserted in the CI slot and displays it.

u Press the ENTER button to display the information for your application.

- CI Menu

This helps the user select an item from the CAM-supported menu.

u Press the ENTER button. The options of the selected menu are displayed.

Press the or button to select the required option, then press the ENTER button.

Select the CI Menu based on the PC Card menu.

4.6 System

This menu consists of 5 sub-menus:

Product Information, Signal Information, Software Upgrade, and Reset.

Product Information

You can view your product information. For service or repair, please contact a Samsung approved dealer.

Press the ENTER button with Product Information selected. The product information menu is displayed.

• Software Version / Firmware Version

- Signal Information

You can get information about the signal status.

Press the ENTER button with Signal Information selected. The technical information for signal status is displayed.

Service / Service ID / Multiplex / Network / Bit error level / Signal Strength

Continued...

- Software Upgrade (Option)

To keep your product up-to-date with new digital television features then software upgrades are periodically broadcast as part of the normal television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

Software Inforamtion

Press the ENTER button, then the current software version is shown. To display the software version information, press the ENTER button again.

Manual Upgrade

Press the ENTER button to search for new software from the currently broadcasting channels.

Standby Mode upgrade:On/Off

Press the ENTER button. To continue software upgrade with master power on, Select On by pressing the or button.

45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the PDP product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

- Reset

You can reset the values stored to the factory default values.

The Reset operation deletes all channel information and user preferences returning all values to their default factory state.

Press the ENTER button with Reset selected. The Enter PIN is displayed.
Enter your current 4-digit PIN code by using the numeric buttons (0~9). The warning message is displayed. All values will be reset by pressing the coloured buttons (red, green, yellow, and blue) in turn.

The default PIN of a new TV set is "0-0-0-0".

When PIN is changed in Child Lock, the PIN for resetting automatically changes.

When reset is complete, it operates DTV Plug & Play (DTV Auto Store, Time Zone-depending on the country, Time Setting) and exits from the digital TV mode without changing to the analog TV mode. (Refer to page 10)

Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

1 TV/DTV

Exit from the teletext display (depending on the model)

2 size

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

3 2(reveal)

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

Coloured buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way.

To display the previous or next page, press the corresponding coloured button.

5 [teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

6 store)

Used to store the teletext pages.

7 ③ (mode)

Press to select the teletext mode (LIST/FLOF).

If you press it in the LIST mode, it switches into the List save mode.

In the List save mode, you can save teletext page into list using the 三 (store) button.

8 (sub-page)

Used to display the available sub-page.

9 (page up)

Used to display the next teletext page.

10 (page down)

Used to display the previous teletext page.

13 (hold)

Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

12 (cancel)

Used to display the broadcast when searching for a page.

13 (index)

Used to display the index (contents) page at any time while you are viewing teletext.

You can change teletext pages by pressing the numeric buttons on the remote control.

Continued...

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.
	FASTEXT information.

Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

Entering the page number
Selecting a title in a list
Selecting a coloured heading (FASTEXT system)

Press the TV/DTV button to exit from the teletext display.

Install your wall mount on a solid wall perpendicular to the floor.

When attaching to other building materials, please contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

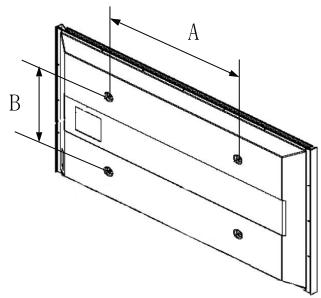

Product Family	inch	VESA Spec. (A * B)	Standard Screw	Quantity
LCD-TV	23 ~ 26	200 * 100	M4	4
	32 ~ 40	200 * 200	M6
	46 ~ 52	400 * 400600 * 400	M8
	57	700 * 400(No VESA)
	57 ~ 70	800 * 4000
	80 ~	1400 * 800
PDP-TV	42 ~ 58	400 * 400600 * 400	M8	4
	63	676 * 407(No VESA)		6
	63 ~ 70	800 * 400		4
	80 ~	1400 * 800		4

We provided the standard dimensions for wall mount kits as shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Once the auto wall mount is installed, the position of your TV can be easily adjusted.

Rear Panel

Serial Cable(1P to 1P)(Not supplied)

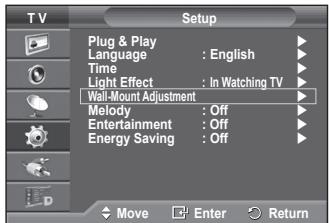

Entering the menu

1 Press the , , or button on your remote control.

The Wall Mount Adjustment screen is displayed.
If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU button to display the menu. Press the or button to select Setup, then press the ENTER button.
• Press the or button to select Wall-Mount Adjustment, then press the ENTER button.

Remembering the Position

2 Adjust to the desired position using the , , , buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.

Press the INFO button to reset. Press the or button to select Yes, then press the ENTER button. The position is initialized to the default setting.

3 Press the blue button.

Press the and buttons to select a save mode from either Position1, Position2 or Position3 in order to save the current position.

To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Color buttons.

4 Press the ENTER button to save.

When Position1 is selected, the message Current position saved as Position1 is displayed.
5 Press the ENTER button.
The saved Position appears on the left side of the OSD.

Moving to the remembered position

1 Complete Step 1 of Entering the menu.
2 Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
If you adjust the positon after moving to a pre-set position, the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
42 inches model is not compatible with the older wall mount model (WMN5090A).

How to assemble the Stand-Base (depending on the model)

Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.)

Warning

Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen.

Always store the TV upright.

In case of installing your TV on the wall, close the cover (0) on the stand-base connection part using two screws for hiding.

Troubleshooting

Before contacting the Samsung after-sales service, perform the following simple checks.

If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer.

No sound or picture

Check that the mains lead has been connected to a wall socket.
Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER button on the remote control.
Check the picture contrast and brightness settings.
Check the volume.
Check if TV Speaker is set to Off.

Normal picture but no sound

Check the volume.
Check whether the volume MUTE button on the remote control has been pressed.

No picture or black and white picture

Adjust the colour settings.
Check that the broadcast system selected is correct.

Sound and picture interference

Try to identify the electrical appliance that is affecting the television, then move it further away.
Plug the television into a different main socket.

Blurred or snowy picture, distorted sound

Check the direction, location and connections of your aerial. This interference often occurs due to the use of an indoor aerial.

Remote control malfunctions

Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check that the "+" and "-" ends of the batteries are inserted correctly.
Check that the batteries are drained.

Screen is black and power indicator light blinks steadily

On your computer check; Power, Signal Cable.
The TV is using its power management system.
Move the computer's mouse or press any key on the keyboard.
On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
The TV is using its power management system.
Press the Source button on the panel or remote control.
Turn the TV off and on.

The damaged picture appears in the corner of the screen.

If Just Scan is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.

The "Reset all settings to the default values" message appears.

This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

Specifications

The descriptions and characteristics in this booklet are given for information purposes only and are subject to modification without notice.

Model Name		PS42A416	PS50A416
Screen Size (Diagonal)		42 inch	50 inch
PC Resolution		1024 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound (Output)		10 W + 10 W	10 W + 10 W
Dimension (WxHxD)	Body	1055 x 700 x 95 mm	1231 x 770 x 95 mm
	With stand	1055 x 760 x 316 mm	1231 x 822 x 316 mm
Weight	Body	28 kg	34 kg
	With stand	32 kg	37 kg
Environmental Considerations
Operating Temperature		10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity		10% to 80%, non-condensing
Storage Temperature		-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity		5% to 95%, non-condensing

This device is a Class B digital apparatus.
Design and specifications are subject to change without prior notice.
For the power supply and Power Consumption, refer to the label attached to the product.

This page is intentionally left blank.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Sommaire

Informations generales

DIGITAL AUDIO OUT (OPTICAL)

Volume auto: Arret/Marche

Description audio (AD)

4.5 Common Interface

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Nederlandsls - 2

Inhoud

6 DIGITAL AUDIO OUT (OPTICAL)

Entertainment: Uit/Sport/Film/Spelcomputer

Contains video with AFD O; coded frame

Stereo

Ondertiteling

Nederlandds

INFO Sluiten

(Applicable in the European Union and other European countries with separate collection systems)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Italiano - 2

Summario

DIGITAL AUDIO OUT (OPTICAL)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Índice

Información general

Cable Scart (Euroconector)

Cable de audio de PC

Cable HDMI

Cable HDMI/DVI

Nucleo de ferrita (cable de alimentacion, S-Video)

DIGITAL AUDIO OUT (OPTICAL)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Índice

Informações gerais

DIGITAL AUDIO OUT (OPTICAL)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Slovenscina - 2

Vsebina

Splošne informacije

6 DIGITAL AUDIO OUT (OPTICAL)

Povežite z digitalno avdio componento.

Cell Light - Contrast - Brightness - Sharpness - Colour - Tint

V načinih Analogno, TV, Zun., AV in S-VideoSYSTEMA PAL ni mogoće uporabljati funkcjije obarvanosti.
V načinu PC lahko spreminjate samo možnosti Cell Light, Contrast in Brightness.

Pritiskajte gumb ali , da dosezete optimalno nastavitev.

Black Adjust: Off/Low/Medium/High

Colour Space: Auto/Native/Custom

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Prilagodi barvni obseg po zeiji.

Digital NR: Off/Low/Medium/High/Auto

Blue Only Mode: Off/On

	PC	TV/Ext/AV/Component/HDMI/DTV
Horizontal Dot	1	2
Vertical Line	1	2
Time (minute)	2	2 min

Auto Volume: Off/On

Repeat: Izberite Once, Everyday, Mon~Fri, Mon~Sat ali Sat~Sun.

Volume: Izberite Želeno glasnost.

Language/Light Effect/Melody/ Entertainment/Energy Saving

1 Pritisnite gumb MENU, da prikažete meni.
2 S pritiskom gumba ali izberite Setup, nato pa pritisnite gumb ENTER.
3 S pritiskom gumba ali izberite zeneno moznost, nato pa pritisnite gumb ENTER.

Možnosti, ki so na voljo: Language, Light Effect, Melody, Entertainment, Energy Saving

Light Effect: Off/In Standby/In Watching TV/Always

Melody: Off/Low/Medium/High

Entertainment: Off/Sports/Cinema/Game

Način razvedrila vam omogoca, da izberete optimalni prikaz in zvok za športne oddaje, kino in igre.

• Off: Izklopi funkcjio Entertainment (Razvedrilo).
• Sports: Zagotavlja optimalno kakovost slike in zvoka za športne oddaje.
  Cinema: Zagotavlja optimalno kakovost slike in zvoka za这部电影.

Energy Saving: Off/Low/Medium/High

Auto Adjustment:

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal.

The values of fine, coarse and position are adjusted automatically.

Easy Setting

1 Pritisnite gumb TOOLS na daljinskem upravljalniku.
2 Pritisnite gumb ▲ ali▼ da izberete Auto Adjustment, in pritisnite gumb ENTER.

Screen Adjustment: Coarse/Fine/Position/Image Reset

Coarse/Fine Namen nastavitve kakovosti sileje odstriniti ali zmanjsati šum silek.

Če šum ni odstranjen s fino naravnavo, Čim bolje (grobo) nastavite frekvenco in znova fino naravnajte.

Po zmanji sanju šumov znova nastavite sliko tak, da bo poravnana na sredinizaslona.

1 S pritiskom gumba ali izberite Coarse ali Fine, nato pa pritisnite gumb ENTER.
2 Za nastavitev kakovosti slike pritsinite gumb alihko se pojavijo navpične crte ali motna slika. Pritisnite gumb ENTER.

Position

Primary Audio Language
Secondary Audio Language
Primary Subtitle Language
Secondary Subtitle Language
Primary Teletext Language
Secondary Teletext Language (odvisno od drzave)

Prikaz informacij o programu

Guide, Digital Channel, Setup in Language.

1. Digital Channel

Country, Auto Store, Manual Store, Edit Favourite Channels in Channel Manger.

S pritiskom gumba ali izberite Channel, nato pa pritisnite gumb ENTER. Prikaze se meni Channel.

1.1 Country

Pritisnite gumb ENTER. Prikaze se meni Country. S pritiskanjem na gumb ali izberite drzavo in pritisnite gumb ENTER.

Čeprav ste v tem meniju spremenili nastavitev države, sprememba ne vpliva na analogni televizor. (Oglejte si 10. stran.)

1.2 Auto Store

Ce so signali sibki, se prikaze sporocilo No service found! Check the aerial connection.

1.3 Manual Store

1.4 Edit Favourite Channels

Now & Next Guide, Full Guide, Scheduled List in Default Guide.

2.1 Now & Next Guide/Full Guide

2.4 All Channels and Favorite Channels

Audio Language, Subtitle Language, Teletext Language in Preference.

3.1 Audio Language/Subtitle Language/Teletext Language

Spremenite lako privzete vrednosti za jezik podnapisov, avdia in teleteksta.

Za izbiroŽelenega menija (Audio Language, Subtitle Language ali Teletext Language) pritisnite gumb

Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language in Secondary Teletext

Language. (odvisno od drzave)

Menu Transparency, Change PIN Parental Lock, Subtitle, Subtitle Mode, Digital Text, Time Zone, Audio Format, Audio Description, Common Interface, in System.

4.1 Menu Transparency

4.2 Change PIN / Parental Lock

Ta funkcjca preprecuje gledanje neprimernega programa nepooblašenim uporabnikom (na primer otrokom) tak, da jim dodeli Štirimestno kodo PIN za dostop, ko jo dolovi uporabnik. V meniju na zaslonu boste dobili navodila za dodeljevanje kode PIN (po potrebjo lo hako pozneje splimenite).

S stevilskimi gumbi (0-9) vnesite trenutno 4-mestno kodo PIN. Prikazan je meni Parental Lock z izbrano postavko Parental Rating.

Privzeta koda PIN za nov televizor je 0000.
Ce vnesete neveljavno kodo PIN, se prikaze sporocilo Invalid PIN code. Please try again.

Pritisnite gumb ENTER. Z gumbom ali izberite starostno skupino, za katero zelite zakleniti program, nato pa pritsinite gumb ENTER.
Če Želite spremeniti kodo PIN, z gumbom▲ ali▼ izberite Change PIN in nato pritsinite gumb ENTER.

• S stevilskimi gumbi (0-9) vnesite novo kodo PIN. Prikaze se sporocilo Confirm New PIN.
• S stevilskimi gumbi (0-9) znova vnesite novo kodo PIN, da jo potrdite. Prikaze se sporocilo Your PIN code has been changed successfully.

Ce kodo PIN pozabite, pritsnite gumbe na daljinskem upravlajniku v naslednjem zaporedju, s cimer jo ponastavite na 0-0-0-0: POWER(Off) MUTE 8 2 4 POWER(On).

se nadaljuie ...

4.3 Subtitle/Subtitle Mode/Audio Format/ Audio Description Digital Text

4.5 Common Interface

Namestitev kartice CI

Product Information, Signal Information, Software Upgrade in Reset.

Product Information

Service/Service ID/Multiplex/Network/Bit error level/Signal Strength

- Software Upgrade (Option)

Standby Mode Upgrade: On / Off

Pritisnite gumb ENTER. Če Želite nadaljevati nadgradnjio programske opreme z vklopljenim glavnim napajanjem, s pritiskom gumba ▲ ali▼ izberite On.

Ce izberete Position1, se prikaze sporocilo Current position saved as Position1.

5 Pritisnite gumb ENTER.

Shranjeni položaj se prikaze na levi strani prikaza nazaslonu.

The "Resetss all settings to the default values" message appears.

This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

Prikaze se sporocilo "Resetss all settings to the default values"
