USER MANUAL LE32S67BD SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Owner's Instructions

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

ON-SCREEN MENUS PC DISPLAY CTURE IN PICTURE (PIP) TELETEXT

This device is a Class B digital apparatus. Register your product at www.samsung.com/global/register

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

- Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as "screen burn".

To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

- Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

CONNECTING AND PREPARING YOUR TV

■ List of Parts.... 2
■ Installing the Stand 2
■ Installing the Wall Mount Kit.... 2
■ Viewing the Control Panel 3
■ Viewing the Connection Panel.... 4
■ Viewing the Remote Control.... 6
■ Installing Batteries in the Remote Control 6
■ Switching On and Off.... 7
■ Placing Your Television in Standby Mode.... 7
■ Plug & Play 7

SETTING THE CHANNELS

■ Storing Channels Automatically 8
■ Storing Channels Manually.... 8

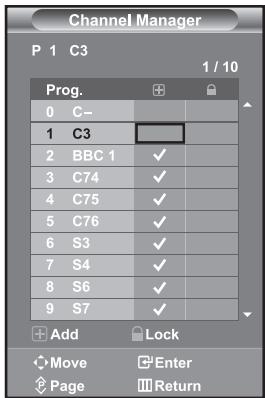

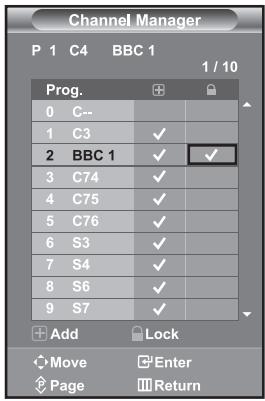

■ Setting the Channel Manager.... 9
■ Activating the Child Lock....10
■ Sorting the Stored Channels.... 10
- Assigning Channels Names...... 11
■ Fine Tuning Channel Reception 11

SETTING THE PICTURE

■ Changing the Picture Standard.... 12
■ Adjusting the Custom Picture 12
■ Changing the Colour Tone.... 12
■ Resetting the Picture Settings to the Factory Defaults.... 13
■ Changing the Picture Size 13
■ Freezing the Current Picture.... 13
■ Digital Noise Reduction 13
■ DNle Demo (Digital Natural Image engine)...... 14
■ Viewing the Picture In Picture (PIP) 14

SETTING THE SOUND

■ Changing the Sound Standard....15
■ Adjusting the Sound Settings....15
■ Setting the TruSurround XT (SRS TSXT) ...... 16
■ Adjusting the Volume Automatically .... 16
■ Selecting the Internal Mute....16
■ Listening to the Sound of the Sub Picture......17
■ Resetting the Sound Settings to the Factory Defaults ....17
■ Connecting Headphones....17

Symbol

Press

Important

Note

One-Touch Button

SETTING THE TIME

■ Setting and Displaying the Current Time......17
■ Setting the Sleep Timer....18
■ Switching the Television On and Off Automatically....18

SETTING THE OTHERS

■ Choosing Your Language....19
■ Using Game Mode .... 19
■ Setting the Blue Screen Mode / Selecting the Melody .....19
■ Using the Energy Saving Feature ....20
■ Selecting the Source 20
■ Editing the Input Source Names ....20

USING THE TELETEXT FEATURE

■ Teletext Decoder....21
■ Displaying the Teletext Information .....21
■ Selecting a Specific Teletext Page 22
■ Using Fastext to Select a Teletext Page ......22

SETTING THE PC

■ Setting up Your PC Software (Based on Windows XP)....23
■ Display Modes....23
■ Setting the PC 24

RECOMMENDATIONS FOR USE

■ Using the Anti-Theft Kensington Lock....25
■ Troubleshooting: Before Contacting Service Personnel .....25
■ Technical and Environmental Specifications .....26

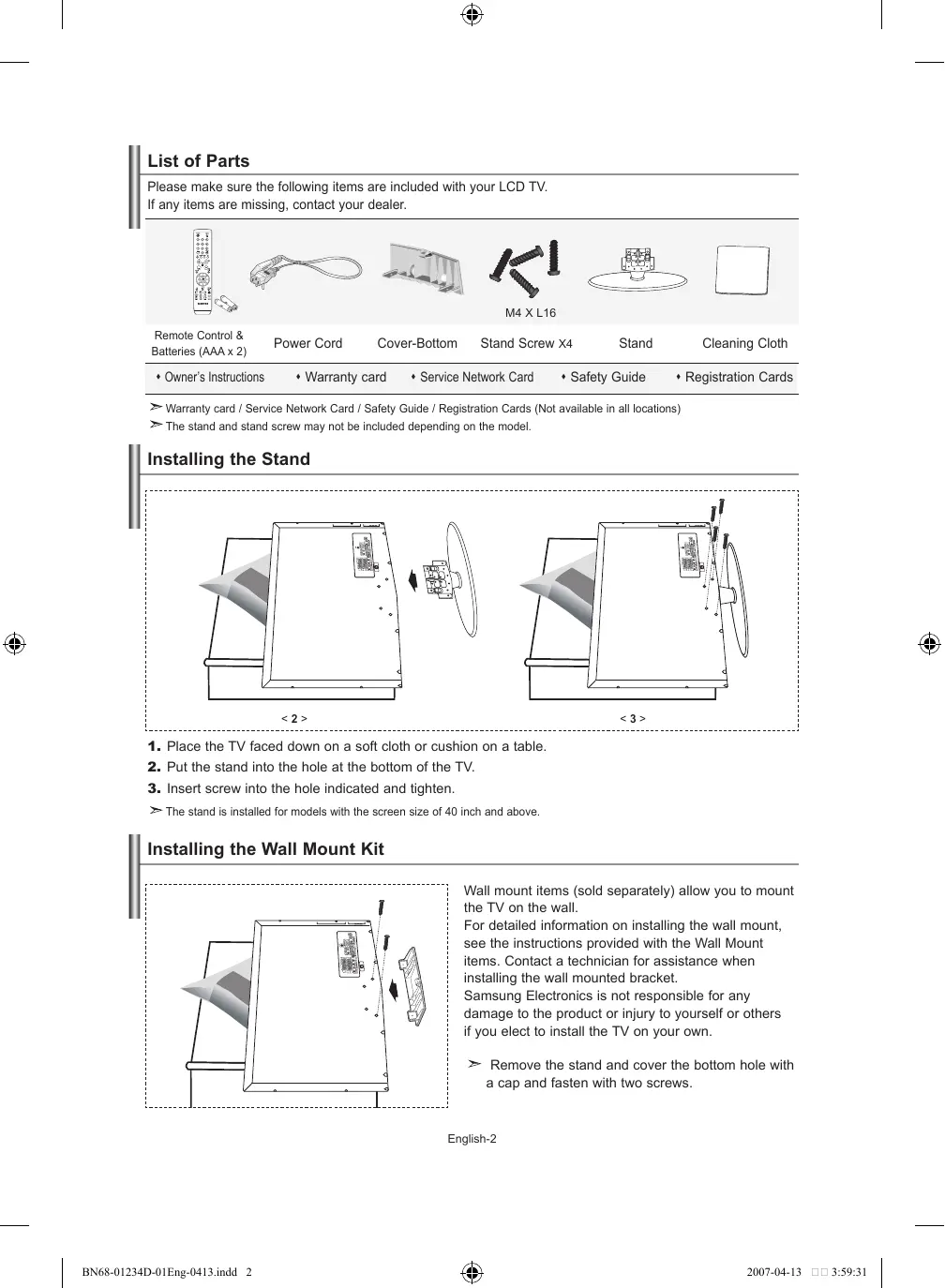

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)	Power Cord	Cover-Bottom	Stand Screw x4	Stand	Cleaning Cloth
♦ Owner's Instructions	♦ Warranty card	♦ Service Network Card	♦ Safety Guide	♦ Registration Cards

Warranty card / Service Network Card / Safety Guide / Registration Cards (Not available in all locations)

The stand and stand screw may not be included depending on the model.

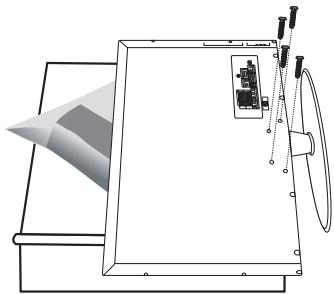

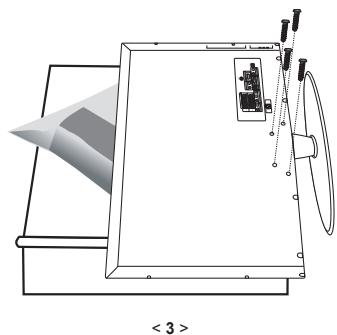

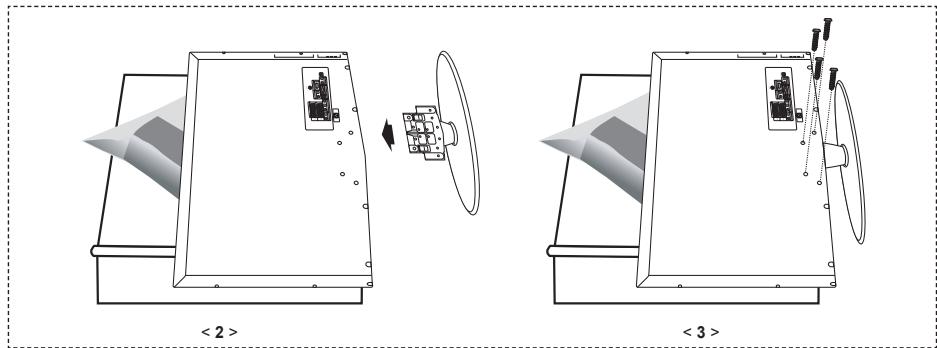

Installing the Stand

<2> <3>

1. Place the TV faced down on a soft cloth or cushion on a table.
2. Put the stand into the hole at the bottom of the TV.
3. Insert screw into the hole indicated and tighten.

The stand is installed for models with the screen size of 40 inch and above.

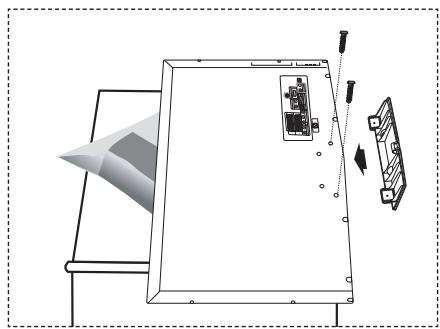

Installing the Wall Mount Kit

Diagram of a device with a screen and a mechanical component, showing no text or symbols

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

➢ Remove the stand and cover the bottom hole with a cap and fasten with two screws.

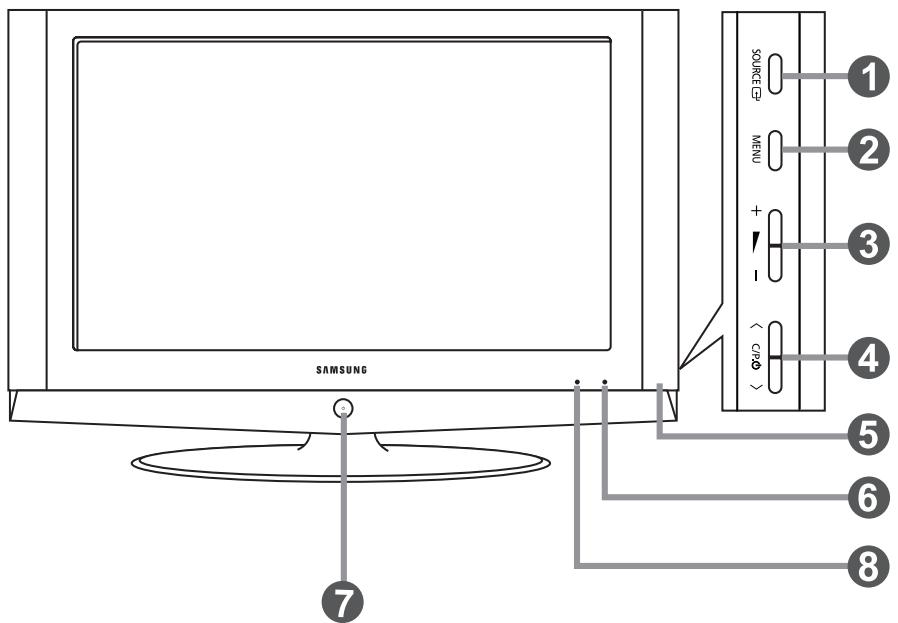

SAMSUNG SOURCE MENU + - - COSO 1 2 3 4 5 6 7 8

The product colour and shape may vary depending on the model.

1 SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI). In the on-screen menu, use this button as you use the ENTER button on the remote control.

② MENU

Press to see an on-screen menu of your TV's features.

③ + ▲ -

Press to decrease or increase the volume. In the on-screen menu, use the + ▶ - buttons as you use the ◀ and ▶ buttons on the remote control.

4 < C/P. ⏻ >

Press to change channels.

In the on-screen menu, use the < C/P. ⊕ > buttons as you use the ▼ and ▲ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

5 Speakers

6 Remote Control Sensor

Aim the remote control towards this spot on the TV.

7 ⏻ (Power)

Press to turn the TV on and off.

8 Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

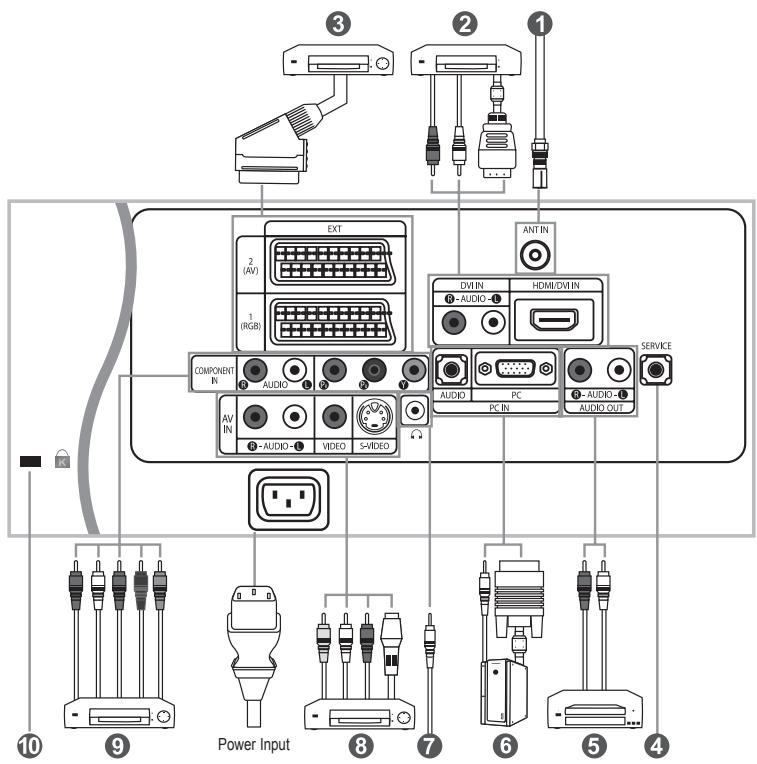

① ② ③ ① EXT 2 (AV) 1 (RGB) COMPONENT IN AUDIO AV IN - AUDIO-1 VIDEO S-VIDEO ANT IN DVI IN AUDIO-1 HDMI/DVI IN AUDIO PC PC IN - AUDIO-1 AUDIO OUT SERVICE ⑩ ⑨ Power Input ⑧ ⑦ ⑥ ⑤ ④

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.

1 Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

2 Connecting HDMI/DVI

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).

- No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

- "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio (5.1 channels).

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

➢ You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the "R - AUDIO - L" terminal on DVI for sound output.

- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture.

▶ Supported modes for DVI or HDMI

- Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card. (This will result in a blank screen being displayed)

3 Connecting Set-Top Box, VCR or DVD

- Connect the VCR or DVD SCART cable to the SCART connector of the VCR or DVD.

- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set.

4 SERVICE

- Service connection for qualified service engineer.

5 Connecting AUDIO

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater.

6 Connecting Computer

- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer.

- Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer.

8 Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output (⑦) on the rear of your set. While the headphone is connected, the sound from the built-in speakers will be disabled.

9 Connecting Component Devices (DTV/DVD)

- Connect component video cables (optional) to component connector ("P R ", "P B ", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set.

- The P_R , P_B and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

- This LCD TV displays its optimum picture resolution in 720p mode.

- This LCD TV displays its maximum picture resolution in 1080i mode.

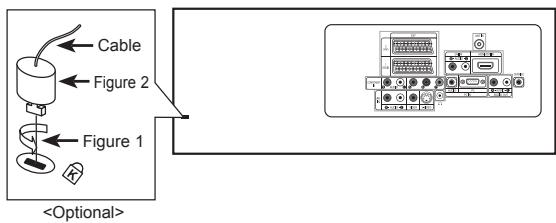

10 Kensington Lock

- The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

- If you want to use a locking device, contact the dealer where you purchased the TV.

- The place of the Kensington Lock may be different depending on its model.

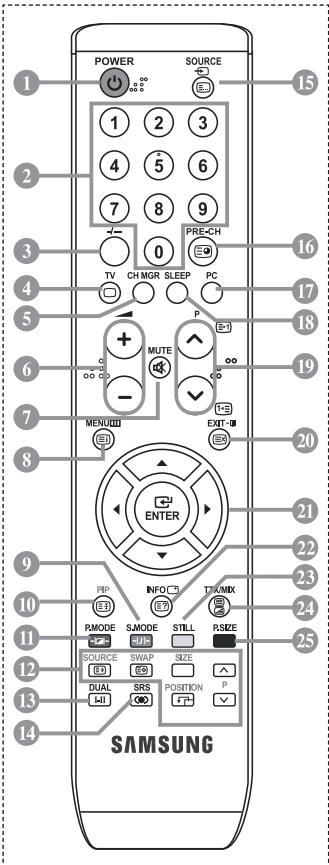

POWER SOURCE 1 2 3 4 5 6 7 8 9 PRE-CH TV CH MGR SLEEP PC P MUTE C - MENU EXIT-B ENTER PIP INFO TCMIX RMODE SMODE STILL RSIZE SOURCE SWAP SIZE DUAL SRS POSITION P M10 SAMSUNG

1 Television Standby button

2 Number buttons for direct channel access

3 One/Two-digit channel selection

4 Selects the TV mode directly

⑤ It display “Channel Manager” on the screen.

6 + Volume increase - Volume decrease

⑦ Temporary sound switch-off

8 Menu display and change confirmation

9 Sound mode selection

⑩ Picture-In-Picture On / Off

11 Picture effect selection

12 PIP FUNCTIONS

SOURCE: Input source selection SWAP: Interchange the main and sub picture

SIZE: PIP size selection

POSITION: PIP position selection

P: Next channel

P□: Previous channel

13 Sound effect selection

14 SRS TSXT selection

15 Available source selection

16 Previous channel

17 Selects the PC mode directly

18 Automatic Power-off

19 P ⬇: Next channel P ⬇: Previous channel

20 Exit the OSD

21 Control the cursor in the menu

22 Use to see information on the current broadcast

23 Picture freeze

25 Picture size selection

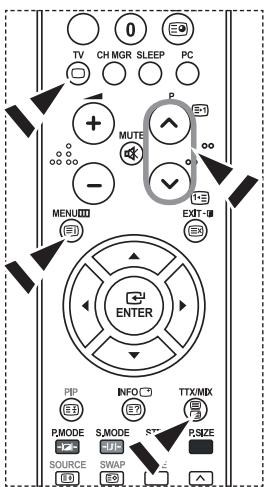

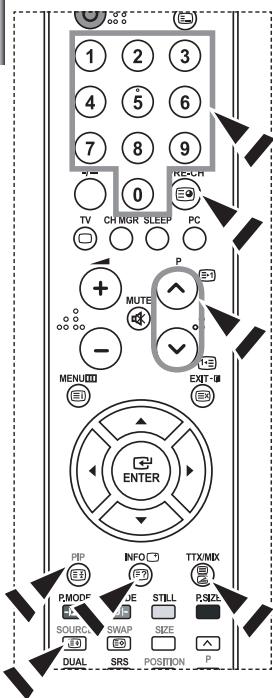

Teletext Functions

4 Exit from the teletext display

8 Teletext index

10 Teletext hold

12 SOURCE: Teletext size selection

12 SWAP: Teletext store

15 Teletext mode selection (LIST/FLOF)

16 Teletext sub page

19 P ⬇: Teletext next page P ⬇: Teletext previous page

20 Teletext cancel

22 Teletext reveal

24 Alternately select Teletext, Double, or Mix.

9 11 23 25

Fastext topic selection

The performance of the remote control may be affected by bright light.

This is a special remote control for the visually impaired, and has Braille points on the Power, Channel and Volume buttons.

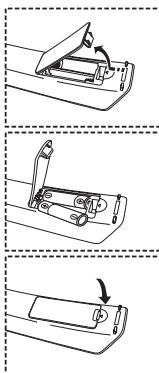

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batteries.

Make sure to match the “+” and “−” ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

1. Press the ⏻ button on the front of the set.

➢ You also can press the POWER ⏻ button or the TV (◎) button on the remote control to turn the TV on.
The programme that you were watching last is reselected automatically.

1. Press the numeric button (0\~9) or channel up/down (○/▽) button on the remote control or

< C/P. ⏻>button on the right side of the set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

1. To switch your set off, press the POWER ⏻ button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER ⏻ button on the remote control.

The screen is turned off and a red standby indicator appears on the front of your set.

1. To switch your set back on, simply press the POWER ⏻, numeric buttons (0\~9) or channel up/down (♡/♡) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

Plug & Play

Plug & Play Start Plug & Play. OK Enter Exit

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control. The message "Start Plug & Play" is displayed with "OK" selected.
2. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.
3. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.

➢ Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER← button to confirm your choice.
2. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically.
After all the available channels are stored, the "Clock Set" menu appears.
➢ Press the ENTER button at any time to interrupt the memorization process.

1. Press the ENTER← button.

Select the "Hour" or "Minute" by pressing the ◀ or ▶ button.

Set the "Hour" or "Minute" by pressing the ▲ or ▼ button.

➢ You can also set the hour and minute by pressing the number buttons on the remote control.

1. Press the ENTER button to confirm your setting.

♦ Language: Select your language.
- Country: Select your country.
- Auto Store: Automatically scans for and stores channels available in the local area.
- Clock Set: Sets the current time for the TV clock.

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Metody : Off PC Energy Saving : Off Move Enter Return

If you want to reset this feature...

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER→ button.
2. Press the ENTER button again, to select "Plug & Play".
3. The message to "Start Plug & Play" is displayed.

T V Channel Country : Belgium > Auto Store > Manual Store > Channel Manager > Sort > Name > Fine Tune > Move Enter Return

• Storing Channels Automatically
• Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.

2. Press the ENTER button to select "Country".

3. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER← button to confirm your choice.

1. Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.

2. Press the ENTER← button.

The TV will begin memorizing all of the available channels.

➢ Press the ENTER button at any time to interrupt the memorization process and return to the “Channel” menu.

1. After all the available channels are stored, the "Sort" menu appears.

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks.

When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found.
◆ The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.

1. Press the ▲ or ▼ button to select "Manual Store", then press the ENTER button.

2. Press the ENTER button to select "Programme".

3. To assign a programme number to a channel, find the correct number by pressing the ▲ or ▼ button and then press the ENTER button.

➢ You can also set a programme number by pressing number buttons on the remote control.

1. Press the ▲ or ▼ button to select "Colour System", then press the ENTER button.

2. Select the colour standard required by pressing the ▲ or ▼ button then, press the ENTER button.

3. Press the ▲ or ▼ button to select "Sound System", then press the ENTER button.

4. Select the sound standard required by pressing the ▲ or ▼ button, then press the ENTER button. ➢ If there is an abnormal sound or no sound, re-select the sound system required.

5. If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel". Press the ENTER☐ button. Select C (Air channel) or S (Cable channel) by pressing the ▲ or ▼ button. Press the ▶ button to select channel. Select the required number by pressing the ▲ or ▼ button and then press the ENTER☐ button.

➢ Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode)

➢ You can also set a channel number by pressing number buttons on the remote control.

1. If you do not know the channel numbers, press the ▲ or ▼ button to select "Search". Press the ENTER button. Search by pressing the ▲ or ▼ button and then press the ENTER button.

2. Press the ▲ or ▼ button to select "Store". Press the ENTER← button to select "OK".

3. Repeat steps 3 to 11 for each channel to be stored.

♦ Programme: Selects a program number for the channel.

♦ Colour System: Sets the colour supporting system.

- Sound System: Sets the sound supporting system.

- Channel: Selects a channel.

- Search: Scans for the frequency value for the channel.

- Store: Saves your settings.

Setting the Channel Manager

Channel Manager P 1 C3 1 / 10 Prog. 0 C- 1 C3 2 BBC 1 ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

Set the channels according to your preference.

You can easily delete, add, or lock the channel you want.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
3. Press the ENTER button again, to select "Channel Manager".
4. Press the ▶ button to select “⊕” line.
5. Press the ▲ or ▼ button to select the undesired channel, then press the ENTER☐ button to cancel.
6. Repeat steps 5 for each channel to be selected or canceled
7. Press the EXIT button to exit.

“🔒” is active when “Child Lock” is selected to “On”.

TV CH MGR SLEEP PC + MUTE 3-1

You can select these options by simply pressing the CH MGR button on the remote control.

Channel Manager Channel Manager Child Lock : Off On Move Enter Return

Channel Manager P 1 C4 BBC 1 1 / 10 Prog. 0 C-- 1 C3 ✓ 2 BBC 1 ✓ ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side.

Only the remote control can release the Child Lock setting, so keep the remote control away from children.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Child Lock", then press the ENTER← button.
4. Press the ▲ or ▼ button to select "On". Press the ENTER← button.
5. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
6. Press the ▶ button to select " 🔊" line.
7. Press the ▲ or ▼ button to select the channels you want to lock, then press the ENTER button.
8. Repeat steps 7 for each channel to be locked or unlocked.
9. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "🔒" to be active or inactive.

Sorting the Stored Channels

TV Sort Prog. Ch. Name 0 C- 1 C3 2 C4 3 C74 4 C75 Move Enter Return

You can exchange the numbers of two channels, in order to:

◆ Modify the numeric order in which the channels have been automatically stored.
- Give easily remembered numbers to the channels that you watch most often.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Sort", then press the ENTER◀ button.
3. Select channel number that you wish to change by pressing the ▲ or ▼ button repeatedly. Press the ENTER← button.

The selected channel number and name are moved to right side.

1. Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER button.
   The selected channel is exchanged with the one previously stored to the chosen number.
2. Repeat steps 3 to 4 for another channel to be sorted.
3. Press the EXIT button to exit.

T V Name Prog. Ch. Name 0 C- 1 C3 2 C4 3 C74 4 C75 Move Enter Return

Channel names will be assigned automatically when channel information is broadcast.

These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Name", then press the ENTER button.
3. If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button.
   The selection bar is displayed around the name box.

To...	Then...
Select a letter, number or symbol	Press the ▲ or ▼ button
Move on the next letter	Press the ▶ button
Move back the previous letter	Press the ◀ button
Confirm the name	Press the ENTER 📊 button

The characters available are :

Letters of the alphabet (A\~Z) / Numbers (0\~9) / Special characters (-, space)

1. Repeat steps 3 to 4 for each channel to be assigned to a new name.

2. Press the EXIT button to exit.

Fine Tuning Channel Reception

Fine Tune P 1 0 Reset Adjust Save Return

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button.
4. Press the ◀ or ▶ button to adjust the fine tuning. Press the ENTER button.
5. Press the EXIT button to exit.

➢ Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner. And the channel number turns red.

To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

Changing the Picture Standard

T V Mode Dynamic Contrast Standard 100 Brightness Movie 50 Sharpness Custom 75 Colour 55 Tint G 50 R 50 Colour Tone Cool1 Reset Move Enter Return

PIP INFO TTX/MIX P.MODE S.MODE STILL P.SIZE SOURCE SW. SIZE

You can also press the P.MODE button on the remote control to select one of the picture settings.

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ENTER button again, to select "Mode". Press the ENTER button again.
3. Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.
4. Press the EXIT button to exit.

♦ Dynamic: Selects the picture for high-definition in a bright room.
- Standard: Selects the picture for optimum display in a normal environment.
♦ Movie: Selects the picture for comfortable display in a dark room.
- Custom: Select to view your favorite display settings. (Refer to "Adjusting the Custom Picture")

The Picture mode must be adjusted separately for each input source.

You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 13)

Adjusting the Custom Picture

TV Mode Mode : Dynamic > Brightness 100 Sharpness 50 Colour 75 Tint G 50 R 50 Colour Tone : Cool Reset Move Enter Return

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 4.
2. Press the ▲ or ▼ button to select a particular item. Press the ENTER button.
3. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER button.

4. Press the EXIT button to exit.

5. Contrast: Adjusts the lightness and darkness between objects and the background.
   ♦ Brightness: Adjusts the brightness of the whole screen.

6. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
   ♦ Colour: Adjusts the colours, making them lighter or darker.
7. Tint (NTSC only): Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.
In PC Mode, Only "Contrast", "Brightness" and "Colour" can be adjusted

Changing the Colour Tone

TV Mode Dynamic Contrast 100 Brightness Cool 2 50 Sharpness Cool 1 75 Colour Normal 55 Tint G 50 Warm1 50 Colour Tone : Warm2 Reset Move Enter Return

You can select the most comfortable colour tone to your eyes.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 4
2. Press the ▲ or ▼ button to select "Colour Tone", then press the ENTER button.

3. Press the ▲ or ▼ button to select the desired colour tone setting. Press the ENTER button.

4. Press the EXIT button to exit.

5. Cool2: Makes the colour temperature bluer than “Cool1” menu.
   ♦ Cool1: Makes whites bluish.
   ♦ Normal: Keeps whites white.

♦ Warm1: Makes whites reddish.
♦ Warm2: Makes the colour temperature redder than “Warm1” menu.

The adjusted values are stored according to the selected Picture mode.

Resetting the Picture Settings to the Factory Defaults

TV Mode Mode : Dynamic > Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Reset Move Enter Return

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 4 on page 12.
2. Press the ▲ or ▼ button to select "Reset", then press the ENTER button.
3. Press the EXIT button to exit.

The "Reset" will be set for each picture mode.

Changing the Picture Size

TV Size Auto Wide 16:9 Zoom 4:3 Move Enter Return

You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Size", then press the ENTER button.
3. Select the required option by pressing the ▲ or ▼ button. Press the ENTER button.
4. Press the EXIT button to exit.

PIP INFO TTX/MIX PMODE S.MODE STILL P.SIZE SOURCE SWAP

- Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

• 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
  ♦ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
  ♦ 4:3: This is the default setting for a video movie or normal broadcasting.

You can select these options by simply pressing the P.SIZE button on the remote control.

“Auto Wide” function is available only in "TV", "Ext1", "Ext2", "AV", and "S-Video" mode.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.
Select by pressing the ◀ or ▶ buttons. Use the ▲ or ▼ button to move the picture up and down. After selecting 📄, use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

Freezing the Current Picture

P.MODE S.MODE STILL P.SIZE SOURCE SIZE

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

Digital Noise Reduction

TV Picture Mode : Dynamic Size : Auto Wide Digital NR : Off DNMe Demo : On PIP Move Enter Return

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Digital NR", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

DNle Demo (Digital Natural Image engine)

TV Picture Mode : Dynamic Size : Auto Wide Digital NR : On DNMe Demo : Off PIP : On Move Enter Return

Samsung's new technology brings you more detailed images with contrast and white enhancement. A new image compensation algorithm gives viewers brighter and clearer images. DNle technology will match every signal to your eyes. You can see how DNle improves the picture by setting DNle Demo mode to On.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "DNle Demo", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.

These functions don't work in PC mode.
The DNle Demo is designed to show the difference between the regular and DNle pictures.
By default, the product displays the picture with DNle applied.

Viewing the Picture In Picture (PIP)

T V PIP PIP : On Source : HDMI Swap Size : Position : Programme : P 1 Move Enter Return

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

PIP INFO TTX/MIX PMODE S.MOGL STILL PSIZE SOURCE SWAP SIZE DUAL SRS POSITION P HI OK F✓

Press the PIP button on the remote control repeatedly to activate or deactivate the "PIP".

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "PIP", then press the ENTER← button.
3. Press the ENTER button again.

Press the ▲ or ▼ button to select "On", then press ENTER← button.

If the PIP is activated, the size of the main picture turns to "16:9".

1. Press the ▲ or ▼ button to select "Source",

then press ENTER button. Select a source of the sub picture by pressing the ▲ or ▼ button and press the ENTER button.

The sub picture can serve different source selections based on what the main picture is set to.

1. Press the ▲ or ▼ button to select "Swap".

To interchange the main picture and the sub picture, select "Swap" option and press the ENTER button.

The main picture and the sub picture are interchanged.
If main picture is in "PC" mode, "Swap" is not available.

1. Press the ▲ or ▼ button to select "Size" of the sub picture and then press the ENTER☑ button. Select a size of the sub picture by pressing the ▲ or ▼ button and then press the ENTER☑ button.

If main picture is in "PC" mode, "Size" is not available.

1. Press the ▲ or ▼ button to select "Position", then press the ENTER button. Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER button.

Continued...

1. Press the ▲ or ▼ button to select "Programme" and then press the ENTER☑ button. You can select the channel that you want to view through sub picture by pressing the ▲ or ▼ button.

Press the ENTER← button.

The "Programme" can be active when the sub picture is set to TV.

1. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

• Source: Used to select a source of the sub picture. - Size: Used to select a size of the sub picture.
• Swap: Used to interchange the main picture and
• Position: Used to move the sub picture.
  the sub picture. ♦ Programme: Used to Change the sub picture.

➢ PIP Settings (O: PIP operates, X: PIP doesn't operate)

Main\Sub	TV	Ext.1	Ext.2	AV	S-Video	Component	PC	HDMI
TV	X	X	X	X	X	X	X	O
Ext.1	X	X	X	X	X	X	X	O
Ext.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Video	X	X	X	X	X	X	X	O
Component	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

Changing the Sound Standard

T V Sound Mode Equalizer SRS TSXT Auto Volume Internal Mute Sound Select Reset Move Enter Return Standard Music Movie Speech Custom P.MODE S.MODE STILL P.SIZE SWAP SIZE

You can also select these options by simply pressing the S.MODE button on the remote control.

You can select the type of the special sound effect to be used when watching a given broadcast.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ENTER button again, to select "Mode".
3. Select the required sound effect by pressing the ▲ or ▼ button repeatedly and then press the ENTER button.
4. Press the EXIT button to exit.

- Standard: Selects the normal sound mode.

- Custom: Selects your custom sound settings.

♦ Music: Emphasizes music over voices.

(Refer to "Adjusting the Sound Settings")

♦ Movie: Provides live and full sound for movies.

- Speech: Emphasizes voices over other sounds.

Adjusting the Sound Settings

TV Equalizer L/R 100Hz 300Hz 1kHz 3kHz 10kHz R L Move Adjust Return

The sound settings can be adjusted to suit your personal preferences.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Equalizer", then press the ENTER button.

3. Press the ◀ or ▶ button to select a particular item. Press the ENTER button.

4. Press the ▲ or ▼ button to reach the required setting. Press the ENTER button.

5. Press the EXIT button to exit.

If you make any changes to these settings, the Sound Mode is automatically switched to "Custom".

Setting the TruSurround XT (SRS TSXT)

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : On Internal Mute : Off Sound Select : Main Reset Move Enter Return

P:MODE "S:MODE" STILL "P:SIZE" SOURCE SWAP SIZE SRS POSITION P HII

You can also set these options simply by pressing the SRS button on remote control.

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers.

TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "SRS TSXT", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.

SRS (●)

TruSurround XT, SRS and Ⓑ symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

TruSurround XT

Adjusting the Volume Automatically

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : Off Internal Mute : On Sound Select : Main Reset Move Enter Return

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Auto Volume", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

Selecting the Internal Mute

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : Off Internal Mute : Off Sound Select : On Reset Move Enter Return

If you want to hear the sound through separate speakers, cancel the internal amplifier.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Internal Mute", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.
   When "Internal Mute" is set to "On", the Sound menus except for "Sound Select" (in PIP mode) cannot be adjusted.

Listening to the Sound of the Sub Picture

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Sub Move Enter Return

During the PIP features activation, you can listen to the sound of the sub picture.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Sound Select", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Sub". Press the ENTER button.

4. Press the EXIT button to exit.

5. Main: Used to listen to the sound of the main picture.
   Sub: Used to listen to the sound of the sub picture.

You can select this option when the "PIP" is set to "On".

Resetting the Sound Settings to the Factory Defaults

TV Sound Mode : Custom > Equalizer > SRS TSXT : Off > Auto Volume : Off > Internal Mute : Off > Sound Select : Main > Reset Move Enter Return

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Reset", then press the ENTER← button.
3. Press the EXIT button to exit.
   You can select this option when the "Game Mode" is set to "On".

Connecting Headphones

Illustration of headphones connected via a cable to a volume slider (no text or symbols on devices)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "Internal Mute" and "Sound Select" (in PIP mode) in Sound menu.
➢ Prolonged use of headphones at a high volume may damage your hearing.
You will not receive sound from the speakers when you connect headphones to the system.

Setting and Displaying the Current Time

TV Clock Set Hour 00 Minute 00 Move Adjust Return

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER← button.
3. Press the ENTER← button to select "Clock Set".

4.

To...	Press the...
Move to “Hour” or “Minute”	◀ or ▶ button.
Set the “Hour” or “Minute”	▲ or ▼ button.
Press the ENTER button.

1. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.
➢ You can also set hour and minute by pressing the number buttons on the remote control.

TV Clock Set : Off Sleep Timer : 30 On Timer : 60 Off Timer : 90 120 150 180 Move Enter Return

TV CH MGR SLEEP PC P 8-1

Press the SLEEP button on the remote control repeatedly until the appropriate time interval appears.

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button.
4. Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.
5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer reaches 0.

Switching the Television On and Off Automatically

TV On Timer Hour 00 Minute 00 Programme 01 Volume 10 Activation No Move Adjust Return

TV Off Timer Hour Minute Activation 00 00 No Move Adjust Return

You can set the On/Off timers so that the set will:

◆ Switch on automatically and tune to the channel of your choice at the time you select.
◆ Switch off automatically at the time you select.
The first step is to set the television's clock.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On Timer", then press the ENTER button.
4. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTERG button to return.
5. Press the ▲ or ▼ button to select "Off Timer", then press the ENTER◀ button.
6. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTER▶ button to return.
7. Press the EXIT button to exit.

You can also set hour and minute by pressing the number buttons on the remote control.

The "Activation" setting must be set to "Yes" in order for the timers to work.

T V Setup Plug & Play Language : English Time Game Mode Blue Screen Melody PC Energy Saving Move Enter Return

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTERG button.

2. Press the ▲ or ▼ button to select "Language", then press the ENTER button.

3. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button.

▶ You can choose one of 21 languages.

1. Press the EXIT button to exit.

Using Game Mode

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : On Melody : Off PC Energy Saving : Off Move Enter Return

When connecting to a game console such as PlayStation ^™ or Xbox ^™ , you can enjoy a more realistic gaming experience by selecting game menu.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Game Mode", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.

To disconnect the game console and connect another external device, cancel game mode in the picture menu.

If you display the TV menu in Game mode, the screen shakes slightly.
Game Mode is not available in TV mode.
If Game Mode is On:

• Picture Mode and Sound Mode are automatically changed to Custom and users can not change the mode.
• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

Setting the Blue Screen Mode / Selecting the Melody

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : On Melody : On PC Energy Saving : Off Move Enter Return

Blue Screen:

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Melody:

You can hear melody sound when the television is powered on or off.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Blue Screen" or "Melody". Press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Low PC : Medium Energy Saving : High Move Enter Return

This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving" mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Energy Saving", then press the ENTER button.
3. Select the required option (Off, Low, Medium, High) by pressing the ▲ or ▼ button. Press the ENTER button.
4. Press the EXIT button to exit.

Selecting the Source

TV Source List TV Ext.1 : ----- Ext.2 : ----- AV : ----- S-Video : ----- Component : ----- PC : ----- HDMI : ----- Move Enter Return

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Input".
2. Press the ENTER button again, to select "Source List". ➢ When no external device is connected to your set, only "TV", "Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI" are activated only when they are connected to your set.
3. Select the required device by pressing the ▲ or ▼ button. Press the ENTER button.

Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV button, number buttons(0\~9), and the P 🔊/💡 button on the remote control. But it cannot be selected using the SOURCE button.

You can select PC mode by simply pressing the PC button on the remote control.

Editing the Input Source Names

TV Edit Name Ext.1 : — Ext.2 : VCR AV : DVD S-Video : D:\VHS Component : Cable STB PC : HD STB HDMI : Satellite STB Move Enter Return

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Input".
2. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button.
3. Press the ▲ or ▼ button to select the device that you wish to edit. Press the ENTER button.
4. Press the ▲ or ▼ button to select the required device. Press the ENTER button.
5. Press the EXIT button to exit.

A B C D E F

Most set channels carry “teletext”, pages of written information that provide information such as:

♦ Television programme times.
◆ News bulletins and Weather forecasts.
◆ Sports results.
Subtitles for the hard of hearing.

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting station identity.
C	Current page number or search status.
D	Date and time.
E	Text.
F	Status information.

Displaying the Teletext Information

TV CH MGR SLEEP PC MUTE P MENU EXIT ENTER PIP INFO TTX/MIX PMODE S.MODE ST R/SIZE SOURCE SWAP

You can display teletext information at any time, but signal reception must be good. Otherwise:

◆ Information may be missing.
◆ Some pages may not be displayed.

To activate the teletext mode and display the contents page:

1. Using the P Ⓧ (≡→1) or P Ⓧ (1≡) button, select the channel providing the teletext service.

2. Press the TTX/MIX (☐/☑) button to activate the teletext mode.

The contents page is displayed. It can be redisplayed at any time by pressing the MENU (☐i) button.

1. Press the TTX/MIX (☐/☑) button again.

The actual broadcast will be displayed with "Teletext", "Double", and "Mix" in order on the screen.

1. Press the TV(☐) button to exit from the Text display.

If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the "Setup" menu mode. If both languages are different, select the same language with the Text language on the "Setup" menu.

1 2 3 4 5 6 7 8 9 0 TV CH MGR SLEEP PC MUTE P MENU EXIT-B ENTER PIP INFO TTX/MIX E1 E2 E3 PMODE JE STILL PSIZL SOURCE SWAP SIZE DUAL SRS POSITION P

Press the number buttons on the remote control to enter the page number directly:

1. Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons.

2. If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the PIP (≡) button. Press the PIP (≡) button again to resume.

3. Using the various display options:

To display...	Press the...
Both teletext information and the normal broadcast	TTX/MIX (≡/≡)
Hidden text (answers to quiz games, for example)	INFO (≡?)
The normal screen	INFO (≡?)
A secondary page, by entering its 4-digit number	PRE-CH (≡)
The next page	P ⚠ (≡1)
The previous page	P ⚡ (≡3)
Double-size letters in the:	SOURCE (≡1)
♦ Upper half of the screen	♦ Once
♦ Lower half of the screen	♦ Twice
Normal screen	♦ Three times

Using Fastext to Select a Teletext Page

PIP INFO TTX/MIX PMODE S.MC CLL PSIZE PMODE S.MODE STILL PSIZE SOURCE WAP SIZE TV CH SEP PC P

The various topics included in the teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control.

1. Display the teletext contents page by pressing the TTX/MIX (☐/☑) button.
2. Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).
3. Press the Red button to display the previous page. Press the Green button to display the next page.
4. Press the TV(☐) button to exit from the Text display.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

Display Properties Themes Desktop Screen Screen Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Screen resolution More Low 130 by 700 pixels Color quality Highest (12.66) Disinhibition Advanced OK Cancel Apply

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum-1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 480	31.469	59.940	25.175	- / -
	720 x 400	31.469	70.087	28.322	- / +
VESA	640 x 480	37.861	72.809	31.500	- / -
	640 x 480	37.500	75.000	31.500	- / -
	800 x 600	37.879	60.317	40.000	+ /+
	800 x 600	48.077	72.188	50.000	+ /+
	800 x 600	46.875	75.000	49.500	+ /+
	1024 x 768	48.364	60.000	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1024 x 768	60.023	75.029	78.750	+ /+
	1360 x 768	47.712	60.015	85.800	+ /+

The interface mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
DVI does not support PC function.
Separate and Composite modes are supported. SOG is not supported.

TV Image Lock Coarse 50 Fine 0 Move Enter Return

TV CH MGR SLEEP PC E-1

Press the PC button on the remote control to select the PC mode.

Coarse and Fine Tuning of the Image (Image Lock):

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

1. Preset: Press the PC button to select PC mode.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
3. Press the ▲ or ▼ button to select "PC", then press the ENTER button.
4. Press the ENTER← button to select "Image Lock".
5. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER button.
6. Press the ◀ or ▶ button to adjust the screen quality. Press the ENTER button.
7. Press the EXIT button to exit.

TV Position Move Enter Return

Changing the Image Position (Position):

Adjust the PC's screen positioning if it does not fit the TV screen.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Position", then press the ENTER button.
3. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◀ or ▶ button to adjust the Horizontal-Position. Press the ENTER▶ button.
4. Press the EXIT button to exit.

TV PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

Adjusting the PC Screen Automatically (Auto Adjustment):

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER button.
3. Press the EXIT button to exit.

PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

Initializing the Image Settings (Image Reset):

You can replace all image settings with the factory default values.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Image Reset", then press the ENTER← button.
3. Press the EXIT button to exit.

The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

Cable Figure 2 Figure 1 (Optional)

The place of the Kensington Lock may be different depending on its model.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).
2. Connect the Kensington lock cable.
3. Fix the Kensington lock to a desk or a heavy stationary object.

Troubleshooting: Before Contacting Service Personnel

No sound or picture	Check that the mains lead has been connected to a wall socket.Check that you have pressed thebuttons on the front of the set.Check the picture contrast and brightness settings.Check the volume.
Normal picture but no sound	Check the volume.Check whether theMUTEbutton has been pressed on the remote control.Check if “Internal Mute” is off
No picture or black and white picture	Adjust the colour settings.Check that the broadcast system selected is correct.
Sound and picture interference	Try to identify the electrical appliance that is affecting the set and move it further away.Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound	Check the direction, location and connections of your aerial.This interference is often due to the use of an indoor aerial.
Remote control malfunctions	Replace the remote control batteries.Clean the upper edge of the remote control (transmission window).Check the battery terminals.
“Check signal cable.” message is displayed.	Check that the signal cable is firmly connected to the PC or video sources.Check that the PC or video sources are turned on.
On PC mode, “Mode Not Supported.” message is displayed.	Check the maximum resolution and the frequency of the video adaptor.Compare these values with the data in the Display Modes.

The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model Name	LE32S62
Screen Size (Diagonal)	32 inch
Power Supply	AC 220-240 V 50 Hz
Power Consumption	152 W
PC Resolution	1360 x 768 @ 60 Hz
Sound Output	10 W X 2
Dimension (WxDxH)
Body	892.5 x 82.0 x 544.0 mm
With stand	892.5 x 249.0 x 615.0 mm
Weight
With stand	13.9 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing

Model Name	LE37S62	LE40S62
Screen Size (Diagonal)	37 inch	40 inch
Power Supply	AC 220-240 V 50 Hz	AC 220-240 V 50 Hz
Power Consumption	170 W	205 W
PC Resolution	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound Output	10 W X 2	10 W X 2
Dimension (WxDxH)
Body	1026.5 × 94.1 × 626.1 mm	1100.5 x 95.0 x 661.0 mm
With stand	1026.5 × 330.0 × 698.8 mm	1100.5 x 330.0 x 732.5 mm
Weight
With stand	22.5 kg	23.7 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing

Table des matières

CONNEXION ET PREPARATION DE VOTRE TELEVISEUR

Diagram of a device with a central component and an adjacent circular component, showing no text or symbols.

< 2 >

Technical line drawing of a mechanical assembly with no visible text or symbols

< 3 >

Diagram of a device with a screen and two components, no visible text or symbols

Three-step diagram showing a mechanical assembly with arrows indicating motion (no text or symbols)

Plug & Play Start Plug & Play. OK Enter Exit

TV CH MGR SLEEP PC + MUTE E-I

Principal\Secondary	TV	Ext.1	Ext.2	AV	S-Vidéo	Composant	PC	HDMI
TV	X	X	X	X	X	X	X	O
Ext.1	X	X	X	X	X	X	X	O
Ext.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Vidéo	X	X	X	X	X	X	X	O
Composant	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

P:MODE "S:MODE" STILL "P:SIZE" SOURCE SWAP SIZE SRS POSITION P HI F T

Illustration of a pair of headphones connected to a charging plug (no text or symbols)

TV CH MGR SLEEP PC P S-1

Display Properties Themes Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA GeForce Fi 5200 Screen resolution More Low 130 by 700 pixels Color quality Highest (12 bit) Disas Sudan Advanced OK Cancel Apply

TV CH MGR SLEEP PC E-1

Câble Figure 2 Figure 1

Diagram of a device with a labeled component and an arrow indicating rotation, no text or symbols present

Diagram of a mechanical device with a conical component and a hanging gear, no text or symbols present

Diagram of a device setup with a screen, panel, and control panel (no text or symbols)

Three-step diagram showing a mechanical assembly with a lever and adjustment mechanism (no text or symbols)

Plug & Play Start Plug & Play. OK Enter Exit

TV CH MGR SLEEP PC E-1 MUTE

Hauptsender\PIP-Sender	TV	Ext.1	Ext.2	AV	S-Video	Komp.	PC	HDMI
TV	X	X	X	X	X	X	X	O
Ext.1	X	X	X	X	X	X	X	O
Ext.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Video	X	X	X	X	X	X	X	O
Komp.	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

Tonwiedergabestandard ändern

PROD "SMO" STILL "PSIZE" SOURCE SWAP SIZE SRS POSITION P

Illustration of a pair of headphones connected to a plug (no text or symbols)

TV CH MGR SLEEP PC P E-1

Drücken Sie auf der

Display Properties Themes Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA GeForce Fi 5200 Screen resolution More Low 130 by 700 pixels Color quality Highest (12 bit) Options Advanced OK Cancel Apply

TV CH MGR SLEEP PC E-1

Diagram of a device with a lens and internal components, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a device with a screen and a mechanical component, no visible text or symbols

Three-step diagram showing a mechanical assembly with a clip, a bracket, and a handle (no text or symbols)

Plug & Play Start Plug & Play. OK Enter Exit

TV CH MGR SLEEP PC MUTE 3-1

DNle-demo (Digital Natural Image engine)

TV Modus : Dynamisch Formaat : Auto-breed Dig. ruisfilter : Aan DNLe-demo : Uit PIP Aan Verpl. Enter Terug

Hoofd\Omfengestiel	TV	Ext.1	Ext.2	AV	S-Video	Component	PC	HDMI
TV	X	X	X	X	X	X	X	O
Ext.1	X	X	X	X	X	X	X	O
Ext.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Video	X	X	X	X	X	X	X	O
Component	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

P:MODE "S:MODE" STILL "P:SIZE" SOURCE SWAP SIZE SRS POSITION P HI F T

Illustration of a pair of headphones connected to a medical device (no text or symbols visible)

TV CH MGR SLEEP PC P S-1

Display Properties Themes Desktop Screen Screen Appearance Settings Display: Default Monitor on NVIDIA GeForce Fi 5200 Screen resolution More Low 1362 by 780 pixels Display quality Highest (20 MB) Options Advanced OK Cancel Apply

TV CH MGR SLEEP PC E-1

Diagram of a device with a sensor array and antenna, no text or symbols present

< 2 >

Technical line drawing of a mechanical assembly with no visible text or symbols

< 3 >

Diagram of a device with a screen and a mechanical component, no visible text or symbols

Three-step diagram showing a mechanical assembly with arrows indicating motion (no text or symbols)

Plug & Play Start Plug & Play. OK Enter Exit

TV CH MGR SLEEP PC + MUTE E-1

Principal\Secundaria	TV	Ext.1	Ext.2	AV	S-Video	Component	PC	HDMI
TV	X	X	X	X	X	X	X	O
Ext.1	X	X	X	X	X	X	X	O
Ext.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Video	X	X	X	X	X	X	X	O
Component	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

Illustration of headphones connected to a plug with volume slider (no text or symbols on devices)

TV CH MGR SLEEP PC P 8-1

Display Properties Themes Desktop Screens Screen Appearance Settings Display: Default Monitor on NVIDIA GeForce Fi 5200 Screen resolution Line: 1360 by 780 pixels Display quality Highest (20 MB) Timeout/Refresh Advanced OK Cancel Apply

TV CH MGR SLEEP PC E-1

Diagram of a device with a central component and an external fan, showing no text or symbols.

< 2 >

Technical line drawing of a mechanical assembly with no visible text or symbols

< 3 >

Diagram of a device with a screen and antenna, showing internal components and directional arrows (no text or symbols)

20 Cancelar teletexto

22 Teletexto - exibir

Colocar as pilhas no telecomando

Three-step diagram showing a mechanical assembly with a handle and a curved arrow indicating motion (no text or symbols)

Plug & Play Start Plug & Play. OK Enter Exit

TV CH MGR SLEEP PC MUTE E-1

SubPrincipal	TV	Ext.1	Ext.2	AV	S-Video	Componente	PC	HDMI
TV	X	X	X	X	X	X	X	O
Ext.1	X	X	X	X	X	X	X	O
Ext.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Video	X	X	X	X	X	X	X	O
Componente	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

Definir TruSurround XT (SRS TSXT)

P:MODE "S:MODE" STILL "P:SIZE" SOURCE SWAP SIZE SRS POSITION P HII F T V

Illustration of a pair of headphones connected to a charging plug (no text or symbols)

TV CH MGR SLEEP PC P S-1

PIP INFO TTX/MIX PMODE SMC SIZE RMODE SMODE STILL RSIZE SOURCE WAP SIZE TV CHM EP PC P

Display Properties Themes Desktop Screen Screen Appearance Settings Display: Default Monitor on NVIDIA GeForce Fi 5200 Screen resolution More Low 1367 by 780 pixels Color quality Highest (20 MB) Baseline Advanced OK Cancel Apply

TV CH MGR SLEEP PC E-1

Diagram of a device with a central component and a circular base, showing no text or symbols.

< 2 >

Diagram of a device with a screen and control panel, no visible text or symbols

< 3 >

Diagram of a device setup with a screen, lens, and control panel (no text or symbols)

Three-step diagram showing a mechanical assembly with a lever and a base, no text or symbols present.

Plug & Play Start Plug & Play. OK Enter Exit

TV CH MGR SLEEP PC + MUTE E-1

Sub Main	TV	Est.1	Est.2	AV	S-Video	Comp.	PC	HDMI
TV	X	X	X	X	X	X	X	O
Est.1	X	X	X	X	X	X	X	O
Est.2	X	X	X	X	X	X	X	O
AV	X	X	X	X	X	X	X	O
S-Video	X	X	X	X	X	X	X	O
Comp.	X	X	X	X	X	X	X	O
PC	O	O	O	O	X	X	X	X
HDMI	O	O	O	O	O	O	X	X

Illustration of a pair of headphones connected to a plug inserted into a socket (no text or symbols)

TV CH MGR SLEEP PC P S-1

Display Properties Themes Desktop Screen Scan Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Screen resolution Myo 1360 by 780 pixels Color quality Highest (32 bit) Defaultset Advanced OK Cancel Apply

TV CH MGR SLEEP PC E-1

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
