USER MANUAL LE32R86BD SAMSUNG

Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

ON-SCREEN MENUS PC DISPLAY PICTURE IN PICTURE (PIP)

TELETEXT Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference. ▪ Model _______________ ▪ Serial No. _______________

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen. • Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. • Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. • Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Eng-0313.indd 1

2007-03-13 �� 10:01:20

Connecting and Preparing Your TV  List of Parts 3  Installing the Stand 3  Installing the Wall Mount Kit 3  Viewing the Control Panel 4  Viewing the Connection Panel 5  Viewing the Remote Control 7  Installing Batteries in the Remote Control 8  Switching On and Off 8  Placing Your Television in Standby Mode 8  Plug & Play 9

Setting the Channels

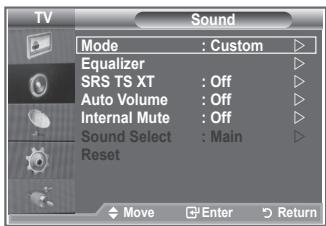

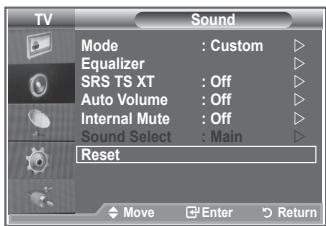

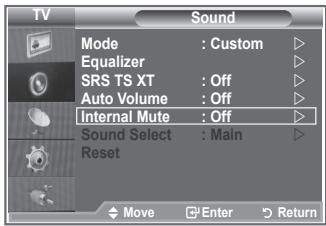

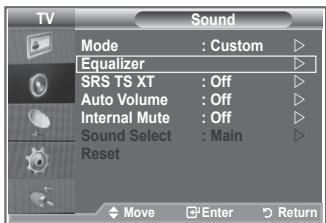

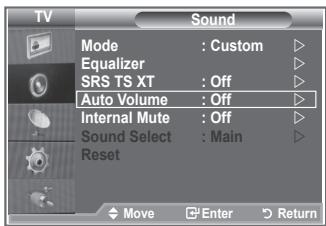

 Changing the Sound Standard 22  Adjusting the Sound Settings 23  Setting the TruSurround XT (SRS TS XT) 23  Connecting Headphones 24  Selecting the Sound Mode 24  Adjusting the Volume Automatically 24  Selecting the Internal Mute 25  Listening to the Sound of the Sub Picture 25  Resetting the Sound Settings to the Factory Defaults 26

 Storing Channels Automatically 10

 Storing Channels Manually11  Setting the Channel Lists 12  Activating the Child Lock 12  Sorting the Stored Channels 13  Assigning Channels Names 13  Fine Tuning Channel Reception 14  LNA (Low Noise Amplifier) 14

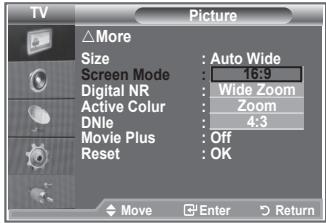

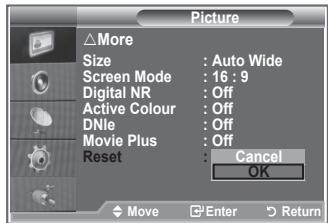

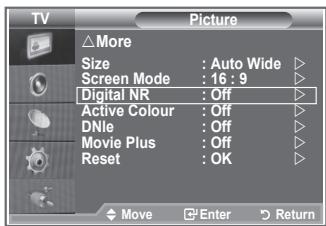

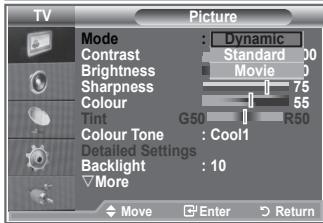

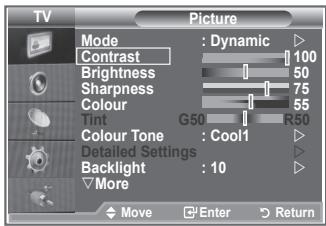

 Changing the Picture Standard 15  Adjusting the Custom Picture 15  Changing the Colour Tone 16  Activating Backlight 16  Configuring Detailed Settings on the Picture.... 17  Changing the Picture Size 18  Freezing the Current Picture 19  Selecting the Screen Mode 19  Resetting the Picture Settings to the Factory Defaults 19  Digital NR / Active Colour / DNIe / Movie Plus . 20  Viewing the Picture In Picture (PIP) 21  HDMI Black Level 22

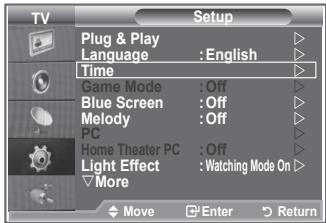

 Setting and Displaying the Current Time 26

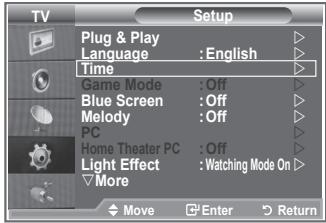

 Setting the Sleep Timer 27  Switching the Television On and Off Automatically 27

Function Description

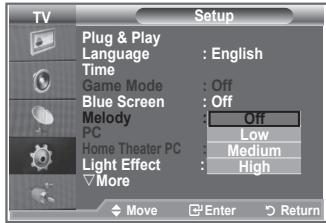

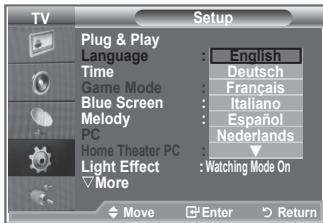

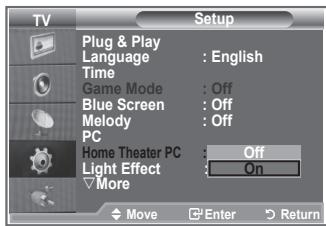

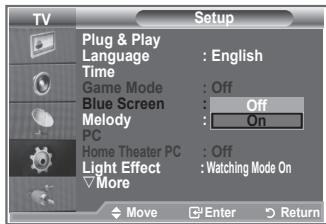

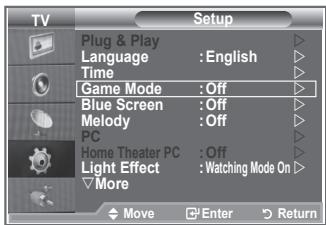

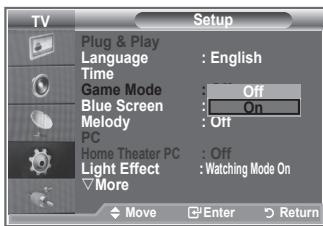

 Choosing Your Language 28  Using Game Mode 28  Setting the Blue Screen Mode / Selecting the Melody . 29  Setting the Home Theater PC 29  Setting the Light Effect 30  Using the Energy Saving Feature 30  Selecting the Source 31  Editing the Input Source Names 31

BN68-01169B-Eng-0313.indd 1

2007-03-13 �� 10:01:21

USING The DTV FeATuRe

Using the Teletext Feature

 Previewing the DTV Menu System 32

 Updating the Channel List Automatically 33  Updating the Channel List Manually 33  Editing Your Favourite Channels 34  Selecting Channel List 36  Displaying Programme Information 36  Viewing the EPG (Electronic Programme Guide) Information 37  Using the Scheduled List 38  Setting the Default Guide 38  Viewing All Channels and Favourite Channels 39  Adjusting the Menu Translucency 40  Setting up the Parental Lock 40  Setting the Subtitle 41  Setting the Subtitle Mode 41  Selecting the Audio Format 41  Selecting the Digital Text (UK only) 42  Selecting the Time Zone (Spain only) 42  Viewing Product Information 42  Checking the Signal Information 43  Upgrading the Software 43  Viewing Common Interface 44  Selecting the CI (Common Interface) Menu 44  Resetting 45  Selecting the Preferred Language (Audio, Subtitle or Teletext) 45  Preference 46

 Teletext Decoder 46

 Displaying the Teletext Information 47  Selecting a Specific Teletext Page 47  Using Fastext to Select a Teletext Page 48  Setting Up Your Remote Control 48  Remote Control Codes 49

 Setting up Your PC Software (Based on Windows XP) 52  Display Modes 52  Setting the PC 53  Wall-Mount Adjustment (LE40R8) (Sold separately) 54

 What is Anynet+? 55  Connecting Anynet+ Devices 55  Setting Up Anynet+ 56  Scanning and Switching between Anynet+ Devices 56  Recording 57  Listening through a Receiver 58  Check Points before Requesting Service 58

Recommendations For Use

 Using the Anti-Theft Kensington Lock 59  Troubleshooting: Before Contacting Service Personnel 59  Technical and Environmental Specifications .... 60

BN68-01169B-Eng-0313.indd 2

2007-03-13 �� 10:01:21

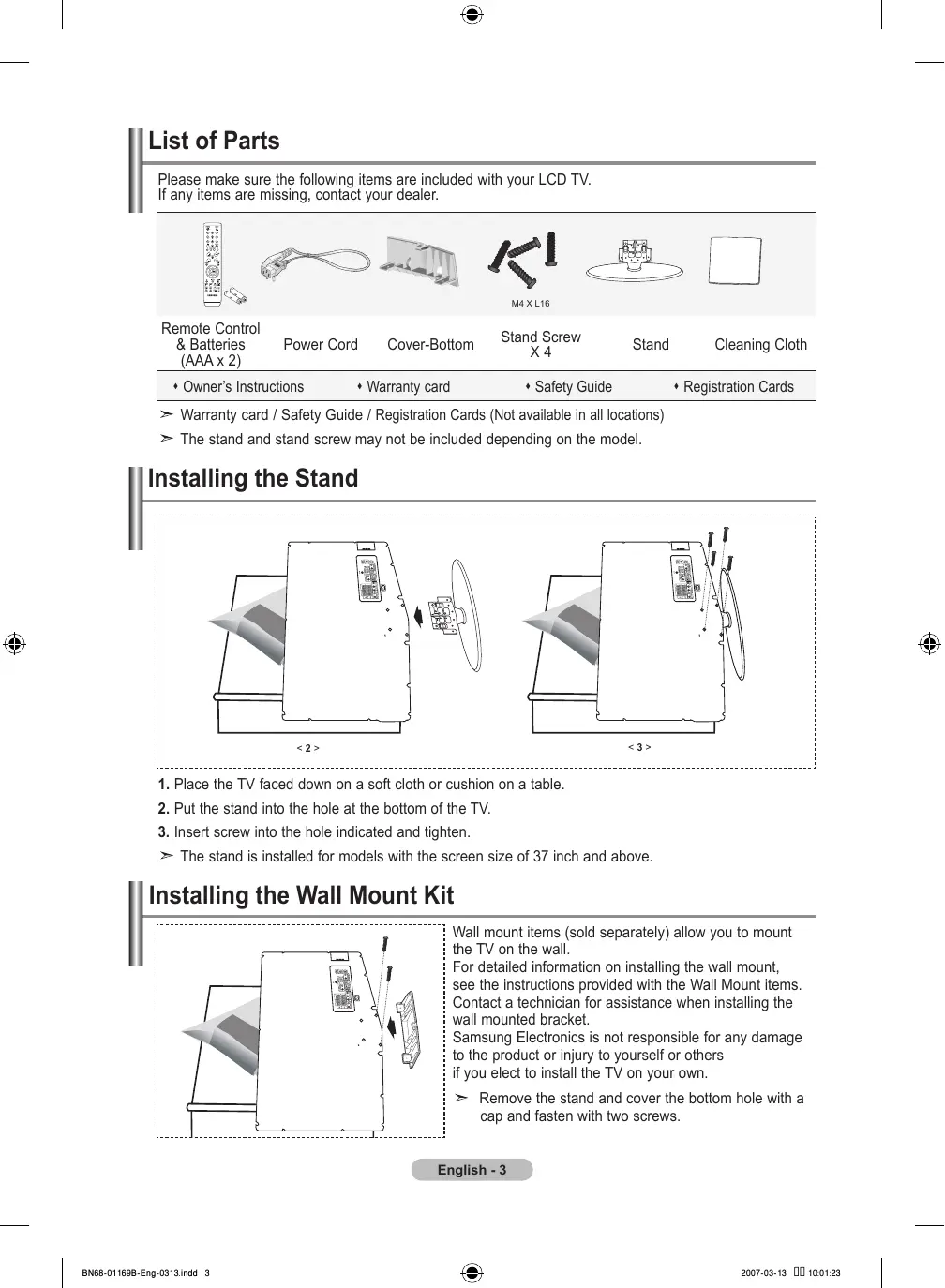

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

& Batteries (AAA x 2)

 Owner’s Instructions

 Registration Cards

Warranty card / Safety Guide / Registration Cards (Not available in all locations)

The stand and stand screw may not be included depending on the model.

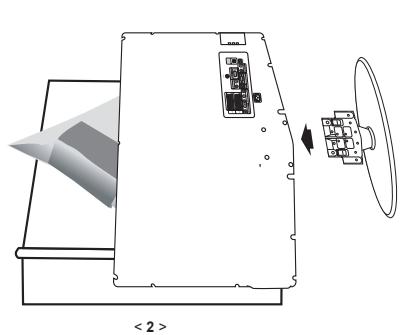

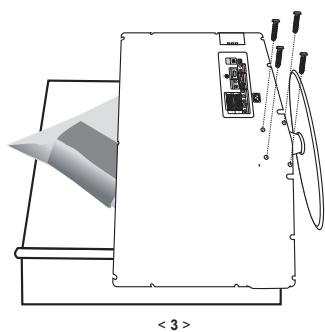

Installing the Stand

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV. 3. Insert screw into the hole indicated and tighten. The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Remove the stand and cover the bottom hole with a cap and fasten with two screws. English -

BN68-01169B-Eng-0313.indd 3

2007-03-13 �� 10:01:23

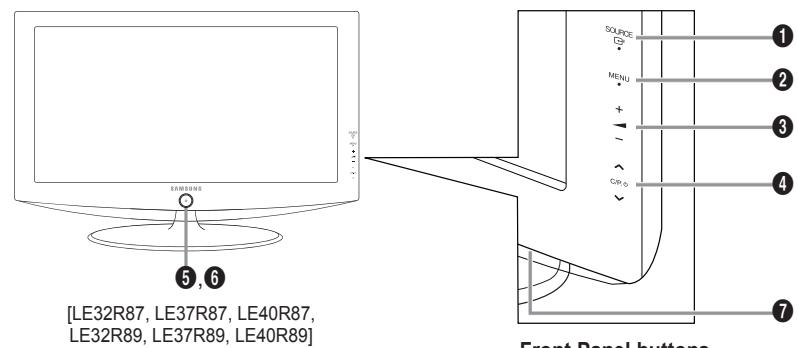

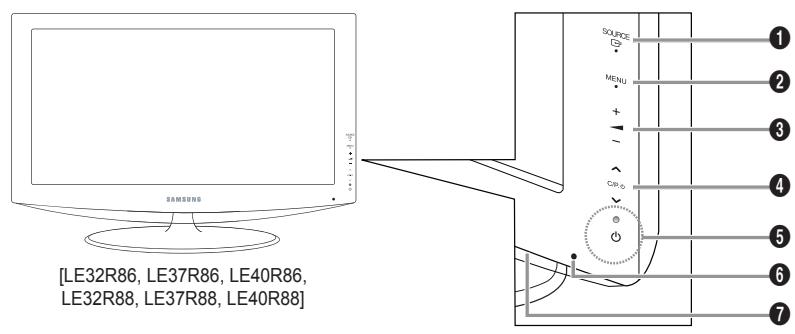

Touch the right side of each button to operate.

The product colour and shape may vary depending on the model.

1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, DTV). In the on-screen menu, use this button as you use the ENTER/OK button on the remote control.

2 MENU Press to see an on-screen menu of your TV’s features.

In case of DTV mode, the DTV menu appears.

6 Remote Control Sensor

Aim the remote control towards this spot on the TV.

Press to decrease or increase the volume.

In the on-screen menu, use the buttons as you use the  and  buttons on the remote control.

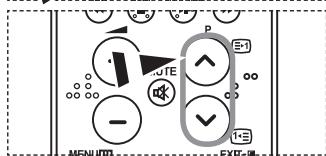

Press to change channels.

In the on-screen menu, use the buttons as you use the 5 and 6 buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.) (Power) Press to turn the TV on and off. Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

BN68-01169B-Eng-0313.indd 4

2007-03-13 �� 10:01:25

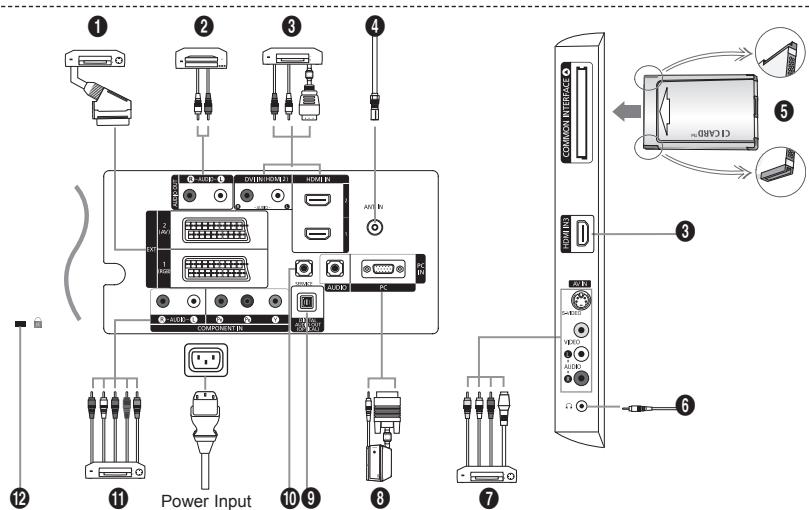

Viewing the Connection Panel

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable.

1 Connecting Set-Top Box, VCR or DVD Connector

Input Output EXT 1 EXT 2

RGB Video + Audio (L/R)

Only TV or DTV output is available. Output you can choose.

-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

2 Connecting AUDIO - Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater. 3 HDMI IN 1,HDMI IN 2, HDMI IN 3 - Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) - No additional Audio connection is needed for an HDMI to HDMI connection. What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio (5. 1 channels). - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. DVI IN (HDMI 2) (AUDIO R/L) - When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture. - When using an HDMI/DVI cable connection, it is only possible from the HDMI 2 terminal. You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the “R - AUDIO - L” terminal on DVI for sound output. Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component

BN68-01169B-Eng-0313.indd 5

2007-03-13 �� 10:01:26

4 Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network 5 Connecting CI (Common Interface) CARD - When not inserting "CI CARD" in some channels,"Scrambled Signal" is displayed on the screen. - The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. - When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated. You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it. Insert the CI-Card in the direction marked on it. 7 Connecting External A/V Devices - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corre sponding audio out connectors on the A/V device. - Headphone may be connected to the headphone output (6) on the rear of your set. While the head phone is connected, the sound from the built-in speakers will be disabled. 8 Connecting Computer - Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer. - Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer. 9 DIGITAL AUDIO OUT (OPTICAL) - Connect to a Digital Audio Component. 0 SERVICE - Service connection for qualified service engineer. ! Connecting Component Devices (DTV/DVD) - Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set. -T he PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD. - This LCD TV displays its optimum picture resolution in 720p mode. - This LCD TV displays its maximum picture resolution in 1080i mode. @ Kensington Lock -T he Kensington lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The place of the Kensington Lock may be different depending on its model.

BN68-01169B-Eng-0313.indd 6

2007-03-13 �� 10:01:26

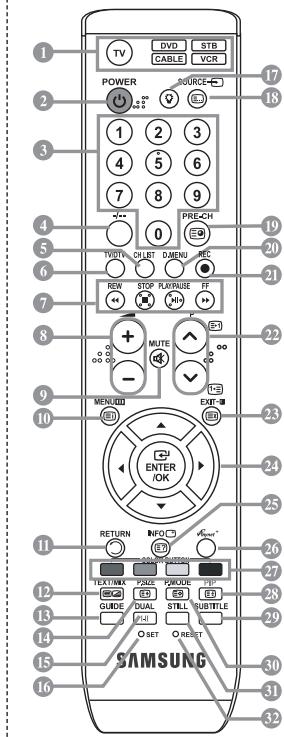

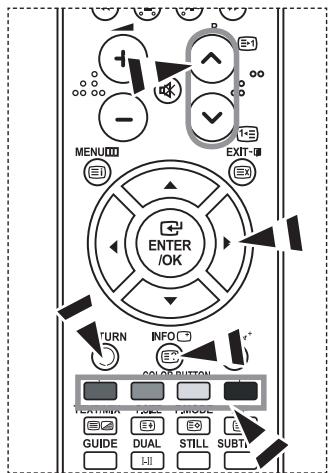

Viewing the Remote Control

1 Selects a target device to be controlled by the Samsung remote control (TV, DVD, STB, CABLE, VCR) (Refer to page 49~51) 2 Television Standby button 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 It display "Channel List" on the screen. 6 Selects the TV and DTV mode directly 7 VCR/DVD Functions Rewind, Stop, Play/Pause, Fast/Forward 8 Volume increase Volume decrease 9 Temporary sound switch-off 0 Menu display and change confirmation ! Returns to the previous menu # Electronic Program Guide (EPG) display $ Picture size selection % Sound effect selection ^ Adjusts 5 separate devices - TV, DVD, STB, CABLE, or VCR. & When pressing this button, a number of buttons on the remote control (e.g. Selects a target device, volume, channel buttons) light up for a few seconds and then turn off to save power. This function is to conveniently use the remote control at night or when dark. * Available source selection ( Previous channel ) DTV menu display a Records for Live Broadcasting (Anynet+ function only) (Refer to page 57)

P : Previous channel c Exit the OSD d Control the cursor in the menu e Use to see information on the current broadcast f Runs the Anynet view functions and sets up Anynet devices. g Colour buttons : Press to add or delete channels and to store channels to the favorite channel list in the “Channel List” menu. h Picture-In-Picture On / Off i Digital subtitle display j Picture effect selection k Picture freeze l When your remote does not work, change the batteries and press the "RESET" button for 2-3 seconds before use. Teletext Functions 6 Exit from the teletext display 0 Teletext index @ Alternately select Teletext, Double, or Mix. $ Teletext size selection * Teletext mode selection (LIST/FLOF) ( Teletext sub page b P : Teletext next page P : Teletext previous page c Teletext cancel e Teletext reveal g Fastext topic selection h Teletext hold j Teletext store

The performance of the remote control may be affected by bright light.

This is a special remote control for the visually impaired, and has Braille points on the Power, Channel, STOP, PLAY/PAUSE and Volume buttons. English -

BN68-01169B-Eng-0313.indd 7

2007-03-13 �� 10:01:27

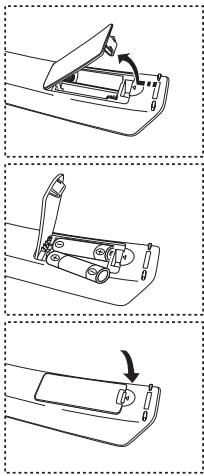

Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work, check the following: 1. Is the TV power on? 2. Are the plus and minus ends of the batteries reversed? 3. Are the batteries drained? 4. Is there a power outage, or is the power cord unplugged? 5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set. 1.

Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

Press the button on the front of the set.

You also can press the POWER button or the TV/DTV button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically. 3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or button on the right side of the set. When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed. 4.

To switch your set off, press the POWER

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example). 1.

Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on the front of your set.

To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

BN68-01169B-Eng-0313.indd 8

2007-03-13 �� 10:01:28

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. 1.

Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

Select the appropriate language by pressing the ▲ or ▼ buttons.

Press the ENTER/OK button to confirm your choice.

Press the ◄ or ► buttons to select “Shop” or “Home”, then the ENTER/OK button.

We recommend setting the TV to Home mode for the best picture in your home environment. Shop mode is only intended for use in retail environments. If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode, press the Volume button and then hold down the MENU button for five seconds on the side panel of the TV. 4.

The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER/OK button. Please check that the antenna cable is connected correctly.

Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER/OK button to confirm your choice.

6. The message “Some DTV functions may not be available. Digital Scan” is displayed.

Press the ◄ or ► button to select “Yes” or “No”, then press the ENTER/OK button.  Yes: First an ATV search is performed and then a DTV ch. auto search is performed.  No: Only an ATV search is performed. This function is supported for all countries except for the following 6 countries: the United Kingdom, Austria, France, Germany, Italy and Spain. 7.

The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER/OK button.

The channel search will start and end automatically. The DTV channel scan menu appears and the DTV channel is automatically updated. If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV. After all the available channels are stored, the "Clock Set" menu appears. Press the ENTER/OK button at any time to interrupt the memorization process. For detailed descriptions about DTV channel update, refer to page 33 of this manual. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country. 8.

Press the ENTER/OK button.

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► buttons. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ buttons. You can also set the hour and minute by pressing the number buttons on the remote control.

9. Press the ENTER/OK button to confirm your setting.

 Language: Select your language.

 Country: Select your country.  Auto Store: Automatically scans for and stores channels available in the local area.  Clock Set: Sets the current time for the TV clock. English -

BN68-01169B-Eng-0313.indd 9

2007-03-13 �� 11:43:17

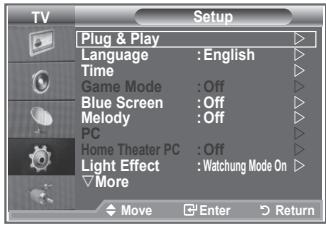

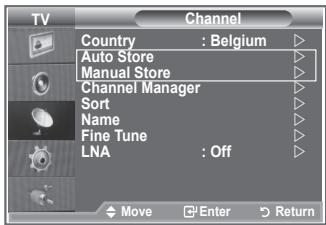

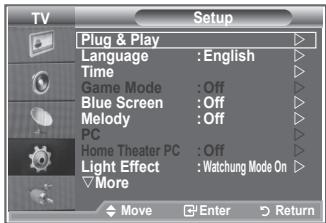

If you want to reset this feature...

Press the ENTER/OK button again, to select "Plug & Play".

The message "Start Plug & Play" is displayed.

- Storing Channels Automatically

- Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch. 1.

Press the ENTER/OK button to select "Country".

Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER/OK button to confirm your choice. Even though you have changed the country setting in this menu, the country setting for DTV is not changed. Use the Plug & Play function to change the country setting for DTV. (Refer to page 9)

Press the ENTER/OK button.

The TV will begin memorizing all of the available channels. Press the ENTER/OK button at any time to interrupt the memorization process and return to the "Channel" menu.

After all the available channels are stored, the "Sort" menu appears.

BN68-01169B-Eng-0313.indd 10

2007-03-13 �� 10:01:30

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose: Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify. 1.

Press the ENTER/OK button to select "Programme".

To assign a programme number to a channel, find the correct number by pressing the ▲ or ▼ button and then press the ENTER/OK button.

You can also set a programme number by pressing number buttons on the remote control.

Press the ▲ or ▼ button to select "Colour System", then press the ENTER/OK button.

Select the colour standard required by pressing the ▲ or ▼ button then, press the ENTER/OK button.

Press the ▲ or ▼ button to select "Sound System", then press the ENTER/OK button.

Select the sound standard required by pressing the ▲ or ▼ button, then press the ENTER/OK button.

If there is an abnormal sound or no sound, re-select the sound system required.

If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel".

Press the ENTER/OK button. Select C (Air channel) or S (Cable channel) by pressing the  or  button. Press the  button to select channel. Select the required number by pressing the ▲ or ▼ button and then press the ENTER/OK button. Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode) You can also set a channel number by pressing number buttons on the remote control.

10. If you do not know the channel numbers, press the ▲ or ▼ button to select "Search".

Press the ENTER/OK button. Search by pressing the ▲ or ▼ button and then press the ENTER/OK button. 11. Press the ▲ or ▼ button to select "Store". Press the ENTER/OK button to select "OK". 12. Repeat steps 3 to 11 for each channel to be stored.  Programme: Selects a program number for the channel.  Colour System: Sets the colour supporting system.  Sound System: Sets the sound supporting system.  Channel: Selects a channel.  Search: Scans for the frequency value for the channel.  Store: Saves your settings.

BN68-01169B-Eng-0313.indd 11

2007-03-13 �� 10:01:30

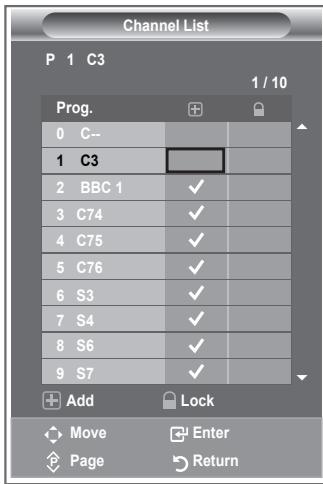

Setting the Channel Lists

Set the channels according to your preference. You can easily delete, add, or lock the channel you want. 1.

Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER/OK button.

Press the ENTER/OK button again, to select "Channel

Press the ► button to select "

Press the ▲ or ▼ button to select the undesired channel, then press the ENTER/OK button to cancel.

Repeat steps 5 for each channel to be selected or canceled

Press the EXIT button to exit.

" is active when "Child Lock" is selected to "On".

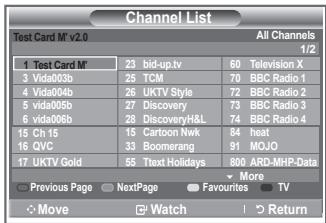

You can select these options by simply pressing the CH LIST button on the remote control

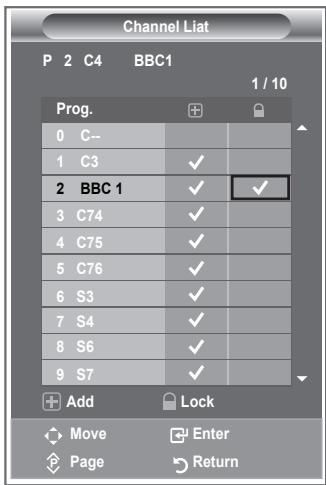

Activating the Child Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children. 1.

Channel List Child Lock : Off On

TV Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Child Lock", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "On" or "Off". Press the

Press the ▲ or ▼ button to select "Channel List", then press the ENTER/OK button.

Press the ► button to select " " line.

Press the ▲ or ▼ button to select the channels you want to lock, then press the ENTER/OK button.

Repeat steps 7 for each channel to be locked or unlocked.

Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive.

6 S3 7 S4 8 S6 9 S7 Add

BN68-01169B-Eng-0313.indd 12

2007-03-13 �� 10:01:32

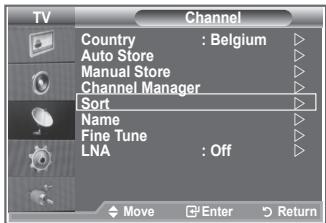

Sorting the Stored Channels

You can exchange the numbers of two channels, in order to: 

TV Modify the numeric order in which the channels have been automatically stored.

Give easily remembered numbers to the channels that you watch most often.

Press the ▲ or ▼ button to select "Sort", then press the

Select the channel number that you wish to change by press ing the ▲ or ▼ button repeatedly. Press the ENTER/OK button.

The selected channel number and name are moved to right side.

Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER/OK button.

The selected channel is exchanged with the one previously stored to the chosen number. 5. Repeat steps 3 to 4 for another channel to be sorted. 6.

TV Press the EXIT button to exit.

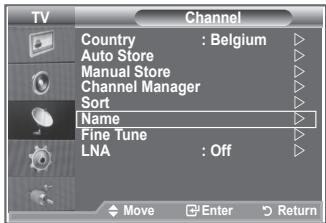

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names. 1.

Press the ▲ or ▼ button to select "Name", then press the

If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER/OK button.

The selection bar is displayed around the name box. To...

Select a letter, number or symbol

Move on the next letter

Move back the previous letter

Press the ENTER/OK button

TV The characters available are : Letters of the alphabet (A~Z) / Numbers (0~9) /

Special characters ( -, space) 5.

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Press the EXIT button to exit.

BN68-01169B-Eng-0313.indd 13

2007-03-13 �� 10:01:34

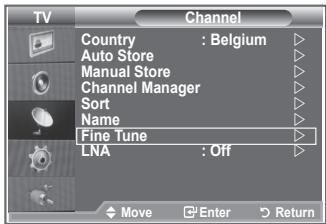

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception. 1.

Use the number buttons to directly select the channel that you want to fine tune.

Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER/OK button.

Press the ◄ or ► button to adjust the fine tuning.

Press the ENTER/OK button.

Press the EXIT button to exit.

TV Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

To reset the fine-tuning, select "Reset" by pressing the

▲ or ▼ button and then press the ENTER/OK button.

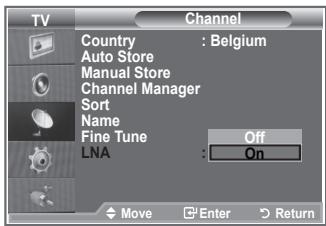

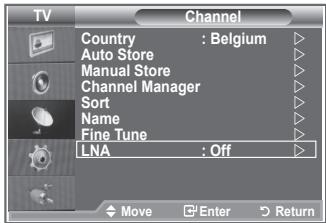

LNA (Low Noise Amplifier)

If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). 1.

Press the ▲ or ▼ button to select "LNA", then press the

Press the ▲ or ▼ button to select "On" or "Off".

Press the ENTER/OK button.

Press the EXIT button to exit.

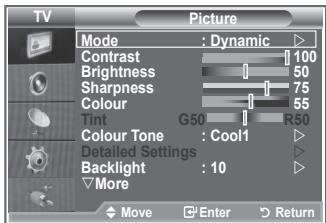

TV Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements. 1.

Press the MENU button to display the menu.

Press the ENTER/OK button, to select "Picture".

Press the ENTER/OK button again, to select "Mode".

Press the ▲ or ▼ button to select the desired picture effect.

Press the ENTER/OK button.

Press the EXIT button to exit.

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

 Dynamic: Selects the picture for high-definition in a bright room.

 Standard: Selects the picture for optimum display in a normal environment.  Movie: Selects the picture for comfortable display in a dark room. The Picture mode must be adjusted separately for each input source. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19)

Dynamic Mode : Dynamic Standard 100 Contrast Movie 50 Brightness Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move

You can also press the

P.MODE button on the remote control to select one of the picture settings.

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality. 1.

To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

Press the ▲ or ▼ button to select a particular item. Press the

Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER/OK button.

Press the EXIT button to exit.

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

 Contrast: Adjusts the lightness and darkness between objects and the background.

 Brightness: Adjusts the brightness of the whole screen.  Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.  Colour: Adjusts the colours, making them lighter or darker.  Tint (NTSC or DTV only): Adjusts the colour of objects, making them more red or green for a more

The adjusted values are stored according to the selected Picture mode. In PC Mode, Only "Contrast" and "Brightness" can be adjusted. “Tint” function is available only in “HDMI” and “Component” mode.

BN68-01169B-Eng-0313.indd 15

2007-03-13 �� 10:01:38

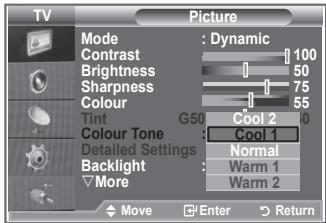

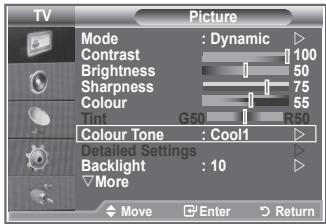

Changing the Colour Tone

You can select the most comfortable colour tone to your eyes. 1.

To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3. (On page 15)

Press the  or  button to select "Colour Tone", then press the ENTER/OK button.

Press the  or  button to select the desired colour tone setting. Press the ENTER/OKbutton.

Press the EXIT button to exit

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

TV Makes the colour temperature bluer than "Cool1" menu.

Makes whites bluish. Keeps whites white. Makes whites reddish. Makes the colour temperature redder than "Warm1" menu.

Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Cool 2 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm 1 sMore Warm 2 Move

The adjusted values are stored according to the selected Picture mode.

When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.

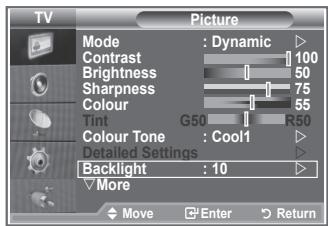

Activating Backlight

You can adjust the screen brightness by adjusting the LCD backlight brightness. (0~10) 1.

To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3. (On page 15)

Press the ▲ or ▼ button to select “Backlight”, then press the

Press the ◄ or ► button to decrease or increase the value of a particular item.

Press the ENTER/OK button.

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

Press the EXIT button to exit.

BN68-01169B-Eng-0313.indd 16

2007-03-13 �� 10:01:40

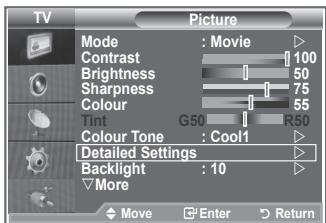

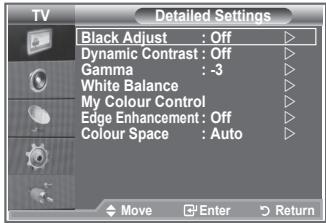

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

Press the ENTER/OK button, to select "Picture".

Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER/OK button.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button.

Available options: Black Adjust, Dynamic Contrast, Gamma, White Balance, My Colour Control, Edge Enhancement, Colour Space

When you are satisfied with your setting, press the

ENTER/OK button. Press the EXIT button to exit.

Mode : Movie  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

When the picture mode is set to Movie or Standard, Detailed

Settings can be selected.

If DNIe is Off, the Detailed Settings cannot be selected when the Picture mode is in Standard mode.

 Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth.  Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.  Gamma: -3 ~ 3 You can adjust the middle brightness of pictures. Press the ◄ or ► button until you reach the optimal setting.  White Balance: R Offset/G Offset/B Offset/R Gain/G Gain/B Gain/Reset You can adjust the color temperature for more natural picture colors. R Offset/G Offset/B Offset/R Gain/G Gain/B Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults.  My Colour Control: Pink/Green/Blue/White/Reset This setting can be adjusted to suit your personal preferences. Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted colours will be reset to the factory defaults.  Edge Enhancement: Off/On You can emphasize object boundaries.  Colour Space: Auto/Wide You can set the color reproduction space for the input signal to Auto or Wide.

BN68-01169B-Eng-0313.indd 17

2007-03-13 �� 9:38:54

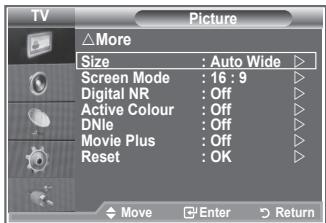

Changing the Picture Size

You can select the picture size which best corresponds to your viewing requirements. 1.

Press the MENU button to display the menu.

Press the ENTER/OK button, to select "Picture".

Press the ▲ or ▼ button to select "Size", then press the

Select the required option by pressing the ▲ or ▼ button.

Press the ENTER/OK button.

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

TV Press the EXIT button to exit.

 Auto Wide: Automatically adjusts the picture size to the "16:9"

 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.  Wide Zoom: Magnify the size of the picture more than 4:3.  Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.  4:3: This is the default setting for a video movie or normal broadcasting.  Just Scan: Displays the input scenes as they are without any cutoff when HDMI 720p,1080i signals are input. "Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Zoom : Select by pressing the ◄ or ► buttons. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

You can select these options by simply pressing the P.SIZE button on the remote control.

Wide Zoom : Move the screen up/down using the▲ or ▼ buttons after selecting the by pressing the ► or

BN68-01169B-Eng-0313.indd 18

2007-03-13 �� 9:38:56

Freezing the Current Picture

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

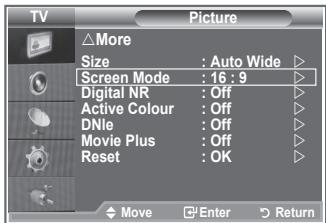

Selecting the Screen Mode

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it. 1.

Press the MENU button to display the menu.

Press the ENTER/OK button, to select “Picture”.

Press the ▲ or ▼ button to select "Screen Mode", then press the ENTER/OK button.

Select the required option by pressing the ▲ or ▼ button.

Press the ENTER/OK button. Available options: 16:9, Wide Zoom, Zoom, 4:3  16:9: Sets the picture to 16:9 wide mode.  Wide Zoom: Magnify the size of the picture more than 4:3.  Zoom: Magnify the size of the picture vertically on screen.  4:3: Sets the picture to 4:3 normal mode.

Press the EXIT button to exit.

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move Move

TV Picture Size is available in Auto Wide mode

This function is not available in PC or Component, HDMI mode.

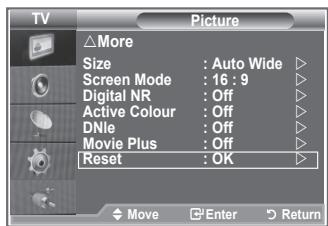

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings. 1.

To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3 on page 15.

Press the ▲ or ▼ button to select "Reset", then press the

Press the ▲ or ▼ button to select "OK" or "Cancel".

Press the ENTER/OK button.

Press the EXIT button to exit.

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

The "Reset" will be set for each picture mode.

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

Digital NR / Active Colour / DNIe / Movie Plus

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. 1.

Press the MENU button to display the menu.

Press the ENTER/OK button, to select “Picture”.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button.

Available options: Digital NR, Active Colour, DNIe, Movie Plus.

When you are satisfied with your setting, press the ENTER/OK button.

Press the EXIT button to exit.

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

 Digital NR: Off/Low/Medium/High/Auto

If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. This function is not available in PC mode.  Active Colour: Off/On If you turn on this option, the colors of the sky and grass will be stronger and clearer for a more vivid on-screen picture. This function is not available in PC mode. This function is not available in Movie and Standard mode.  DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is not available in PC mode. This function is not available in Movie mode  Movie Plus: Off/On You can view more natural skin and clear text even in fast moving scenes. Use this function when watching movies. The Wide Zoom, Zoom and Just Scan mode is not supported. This function is not available in PC mode.

BN68-01169B-Eng-0313.indd 20

2007-03-13 �� 9:38:59

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture. 1.

Press the ▲ or ▼ button to select "PIP", then press the

Press the ENTER/OK button again.

Press the ▲ or ▼ button to select "On", then press ENTER/OK button. If the PIP is activated, the size of the main picture turns

Press the ▲ or ▼ button to select "Source",then press

ENTER/OK button. Select a source of the sub picture by pressing the ▲ or ▼ button and press the ENTER/OK button. The sub picture can serve different source selections

based on what the main picture is set to.

Press the ▲ or ▼ button to select "Size" of the sub picture

Press the PIP button on the and then press the ENTER/OK button. Select a size of the remote control repeatedly to actisub picture by pressing the ▲ or ▼ button and then press the vate or deactivate the "PIP". ENTER/OK button. If main picture is in "PC" and "Component" mode, "Size" is not available.

Press the ▲ or ▼ button to select "Position", then press the ENTER/OK button.

Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Programme" and then press the ENTER/OK button.

You can select the channel that you want to view through sub picture by pressing the ▲ or ▼ button. Press the ENTER/OK button. The "Programme" can be active when the sub picture is set to TV.

Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.  Source: Used to select a source of the sub picture.  Size: Used to select a size of the sub picture.  Position: Used to move the sub picture.  Programme: Used to Change the sub picture.

O: PIP operates, X: PIP doesn’t operate

X X X X X X HDMI X X X PC X X X TV digital

BN68-01169B-Eng-0313.indd 21

2007-03-13 �� 10:01:48

You can directly select the black level on the screen to adjust the screen depth. 1.

Press the ▲ or ▼ button to select "HDMI Black Level", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Normal" or "Low", then press the ENTER/OK button.

TV Press the EXIT button to exit.

This Function is active only when the externel input connects HDMI (RGB siginal).

 Normal: The screen gets brighter.

 Low: The screen gets darker.

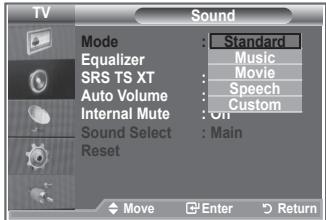

Changing the Sound Standard

You can select the type of the special sound effect to be used when watching a given broadcast. 1.

Press the ENTER/OK button again, to select "Mode".

Select the required sound effect by pressing the ▲ or ▼ button repeatedly and then press the ENTER/OK button.

Press the EXIT button to exit.

 Standard: Selects the normal sound mode.

 Music: Emphasizes music over voices.  Movie: Provides live and full sound for movies.  Speech: Emphasizes voices over other sounds.  Custom: Selects your custom sound settings.

(Refer to "Adjusting the Sound Settings")

Standard Mode : Custom Music Equalizer Movie SRS TS XT : Off Speech Auto Volume : Off Custom Internal Mute : Off Sound Select : Main Reset Move

BN68-01169B-Eng-0313.indd 22

2007-03-13 �� 10:01:50

Adjusting the Sound Settings

The sound settings can be adjusted to suit your personal preferences. 1.

Press the ▲ or ▼ button to select "Equalizer", then press the

Press the ◄ or ► button to select a particular item.

Press the ENTER/OK button.

Press the ▲ or ▼ button to reach the required setting.

Press the ENTER/OK button.

Press the EXIT button to exit.

TV If you make any changes to these settings, the Sound Mode is automatically switched to "Custom".

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

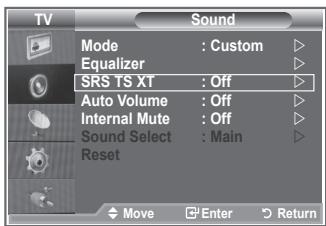

Setting the TruSurround XT (SRS TS XT)

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling,virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. 1.

Press the ▲ or ▼ button to select "SRS TS XT", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "On" or "Off". Press the

Press the EXIT button to exit.

TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

TV Connecting Headphones

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room. When you insert the head set jack into the corresponding port, you can operate only "SRS TS XT" and "Auto Volume" in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently.

Selecting the Sound Mode

You can set the sound mode by pressing the “DUAL” button. When you press it, the current sound mode is displayed on the screen.

Mono Stereo Dual Mono Stereo Dual

Automatic change DUAL 1 Automatic change

You can also set these options simply by pressing the DUAL button on remote control.

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

Adjusting the Volume Automatically

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. 1.

Press the ▲ or ▼ button to select "Auto Volume", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "On" or "Off". Press the

Press the EXIT button to exit.

TV Selecting the Internal Mute

If you want to hear the sound through separate speakers, cancel the internal amplifier. 1.

Press the ▲ or ▼ button to select "Internal Mute", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "On" or "Off". Press the

TV Press the EXIT button to exit.

When "Internal Mute" is set to "On", the Sound menus except for "Sound Select" (in PIP mode) cannot be adjusted.

Listening to the Sound of the Sub Picture

During the PIP features activation, you can listen to the sound of the sub picture. 1.

Press the ▲ or ▼ button to select "Sound Select", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Sub".

Press the ENTER/OK button.

Press the EXIT button to exit.

 Main : Used to listen to the sound of the main picture.

 Sub : Used to listen to the sound of the sub picture. You can select this option when the “PIP” is set to “On”.

Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Main Sound Select : Main Sub Reset Move

BN68-01169B-Eng-0313.indd 25

2007-03-13 �� 10:01:56

Resetting the Sound Settings to the Factory Defaults

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults. 1.

Press the ▲ or ▼ button to select "Reset", then press the

Press the EXIT button to exit.

TV You can select this option when the "Game Mode" is set to "On".

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers. 1.

Press the ▲ or ▼ button to select "Time", then press the

Press the ENTER/OK button to select "Clock Set".

Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.

You can also set Year, Month, Day, Hour and Minute by pressing the number buttons on the remote control.

BN68-01169B-Eng-0313.indd 26

2007-03-13 �� 10:01:58

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode. 1.

Press the ▲ or ▼ button to select "Time", then press the

Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER/OK button.

Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180).

Press the ENTER/OK button.

Press the EXIT button to exit.

TV The TV automatically switches to standby mode when the timer reaches 0.

Off 30 60 90 120 150 180

Switching the Television On and Off Automatically

Press the ▲ or ▼ button to select "Time", then press the

Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the ENTER/OK button.

Press the ▲ or ▼ buttons to adjust “Hour”, then press the ► button to move to the next step.

Set other items using the same method as above. Yes/ No

Press the ▲or▼ button

Select a Once, Everyday,

Mon-Fri, Mon-Sat, SatSun

Press the ▲or▼ button

Press the ▲or▼ button

Press the ▲or▼ button

TV When finished, press the RETURN button to return.

• The current time will appear every time you press the INFO button. •Y ou can set the hour, minute, directly by pressing the number buttons on the remote control. 5.

Press the EXIT button to exit.

BN68-01169B-Eng-0313.indd 27

2007-03-13 �� 10:02:00

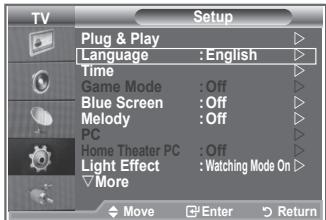

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications. 1.

Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Language", then press the ENTER/OK button.

Select a particular language by pressing the ▲ or ▼ button repeatedly.

Press the ENTER/OK button. You can choose one of 17 languages.

Press the EXIT button to exit.

When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu. 1.

Press the ▲ or ▼ button to select "Game Mode", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "On" or "Off". Press the

Press the EXIT button to exit.

TV To disconnect the game console and connect another external device, cancel game mode in the setup menu.

If you display the TV menu in Game mode, the screen shakes slightly. Move Enter Return Game Mode is not available in TV mode. If Game Mode is On: • Picture Mode changes to Standard and Sound Mode changes to Custom automatically. The user cannot change these to other modes. • Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer. • The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

BN68-01169B-Eng-0313.indd 28

2007-03-13 �� 11:43:19

Setting the Blue Screen Mode / Selecting the Melody

Blue Screen: If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

You can hear melody sound when the television is powered on or off. 1.

Press the ▲ or ▼ button to select "Blue Screen" or "Melody".

Press the ENTER/OK button.

When you are satisfied with your setting, press the ENTER/OK button.

 Blue Screen: Off/On  Melody: Off/Low/Medium/High 4.

Press the EXIT button to exit.

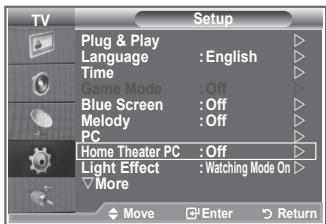

Setting the Home Theater PC You can view higher quality pictures by configuring the screen settings in PC Mode.

If you set the Home Theater PC function to On, you can configure the Detail Settings (when Picture Mode is set to Standard or Movie) as in PC Mode. 1.

Press the ▲ or ▼ button to select "Home Theater PC".

Press the ENTER/OK button.

Press the ▲ or ▼ button to select "Off" or "On".

Press the ENTER/OK button.

Press the EXIT button to exit.

This function is available only in PC mode.

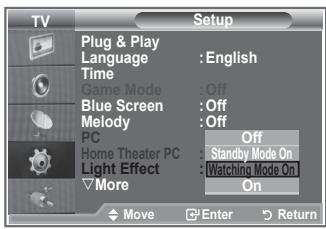

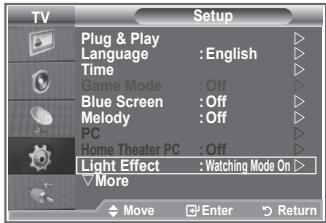

TV Setting the Light Effect

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes. 1.

TV Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Light Effect", then press the ENTER/OK button.

Select the required option (Off, Standby Mode On,

Watching Mode On, On) by pressing the ▲ or ▼ button. Press the ENTER/OK button.

 Off: LED will not come on.

 Standby Mode On: Turns the LED on in standby mode.  Watching Mode On: Turns the LED on while watching

 On: LED will come on after you turn the TV off. 4.

Press the EXIT button to exit.

Using the Energy Saving Feature

This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption. 1.

Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Energy Saving", then press the ENTER/OK button.

Select the required option (Off, Low, Medium, High, Auto) by pressing the ▲ or ▼ button. Press the ENTER/OK button.

Press the EXIT button to exit.

: Off Energy Saving : Off Internal Mute HDMI Black Level :: Off Low Reset

Off HDMI Black Level : Low Low PIP Medium High Auto

BN68-01169B-Eng-0313.indd 30

2007-03-13 �� 10:02:07

Selecting the Source

You can select among external sources connected to your TV’s input jacks. 1.

TV Press the ENTER/OK button again, to select "Source List".

When no external device is connected to your

set, only "TV", "Ext.1", "Ext.2" are activated in the

"HDMI1", "HDMI2","HDMI3","DTV" are activated only

when they are connected to your set.

3. Select the required device by pressing the ▲ or ▼ button. Press the ENTER/OK button.

Press the SOURCE button on the remote control to toggel between all the available source.

TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P / button on the remote control. But it cannot be selected using the SOURCE button.

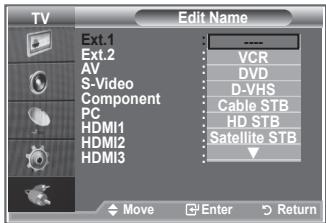

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier. 1.

Press the ▲ or ▼ button to select the device that you wish to edit.

Press the ENTER/OK button. Press the ▲ or ▼ button to select the required device. Press the ENTER/OK button. Press the EXIT button to exit.

Previewing the DTV Menu System

T he company does not guarantee the normal operation of the DTV menu for countries other than the 6 supported countries (United Kingdom, Germany, France, Italy, Spain, Austria) because only these country standards are supported. In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel Manager, etc. may not be displayed properly.  Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on screen menu system and adjust the various settings available, refer to the following illustration.

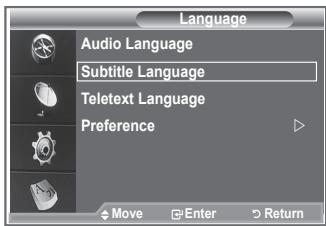

Audio Language Subtitle Language Teletext Language Preference

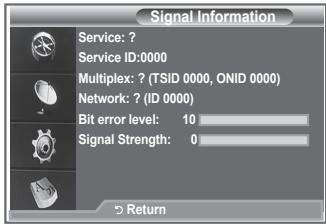

Signal Information Software Upgrade Common Interface Reset

High, Medium, Low, Opaque

Enter PIN Off, On Normal, Hard of hearing PCM, Dolby Digital Disable, Enable

Auto Store  Manual Store  Edit Favourite Channels   Channel List

Auto Store Manual Store Edit Favourite Channels Channel List Setup Menu Transparency Parental Lock Subtitle Subtitle Mode Audio Format Digital Text Time Zone System

Audio Language Subtitle Language Teletext Language Preference 

You can select these options by simply pressing the

D.MENU button on the remote control.

Primary Audio Language

Secondary Audio Language Primary Subtitle Language Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language

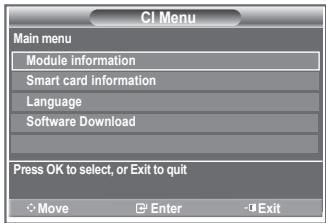

The sub-items of the CI Menu may vary depending on the CAM model.

BN68-01169B-Eng-0313.indd 32

2007-03-13 �� 5:16:32

Updating the Channel List Automatically

You can update the channel list when the broadcaster adds new Services or if you move the TV to a new location. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button.

 Auto: Custom Store Equalizer  SRS TS XT : Off  Auto Volume : Off Scanning for digital services...  Internal Mute : Off  35% Reset Services found: 24 Channel: 38 Stop Move Enter

3. Press the ENTER/OK button again, to select "Auto Store".

Press the ENTER/OK button.

4. When it has finished, the number of scanned services will be displayed.

The existing favourite channel list will not be deleted when the channel list is updated. To stop the scan before it has finished, press the ENTER/OK button with "STOP" selected. 5. Press the EXIT button to exit. If the signal status is poor, the "No Service found! Check the aerial connection" message is displayed.

Updating the Channel List Manually

You can specify the channel for a fast channel search. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Manual Store", then press the ENTER/OK button.

4. Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button.

• Channel: Channel "5" to "69" in sequence are displayed (depending on the country)

• Frequency: The frequency available in the Channel group is displayed.

• Bandwidth: The available bandwidths are 7 and 8 MHz.

5. When it has finished, the number of scanned services will be displayed.

6. Press the EXIT button to exit.

BN68-01169B-Eng-0313.indd 33

2007-03-13 �� 10:02:14

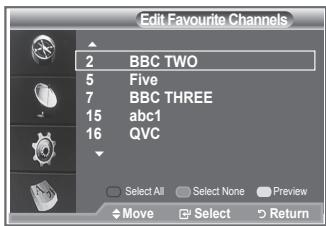

Editing Your Favourite Channels

You can edit your favourite channels using the four colour buttons. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Edit Favourite Channels", then press the ENTER/OK button. 4. Press the red button to display all currently stored channels. 5. Press the ▲ or ▼ button to select a channel you want. Press the ENTER/OK button. A "" icon is shown next to the selected channel and the

channel will be added to the favourite channel list.

• To undo, press the ENTER/OK button again. • Select All: Select all channels currently displayed.

• Select None: Deselect all selected channels.

• Preview: Displays (a) currently selected channel(s).

The Favorite Channels settings have been completed.

6. Press the EXIT button to exit. Add You can use this function when one or more favourite channels have been selected. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Edit Favourite Channels", then press the ENTER/OK button. 4. Press the red button in the "Edit Favourite Channels" menu. To add more channels, refer to the step 5 on the previous description. 5. If you want to check the channel to be stored, press D.MENU button. Press the EXIT button to exit. • To add all channels to the favourite channel list, press the red button. • To remove all channels, press the green button. • Preview : Displays (a) currently selected channel(s). • Press the CH LIST button to display the favourite channel manager.

Edit Favourite Channels

Edit Favourite Channels

BBC THREE abc1 QVC Move Enter Select All

Edit Favourite Channels

Return Add Move Prewiew Delete Move

Edit Favourite Channels

Select All Select None

BN68-01169B-Eng-0313.indd 34

2007-03-13 �� 10:02:17

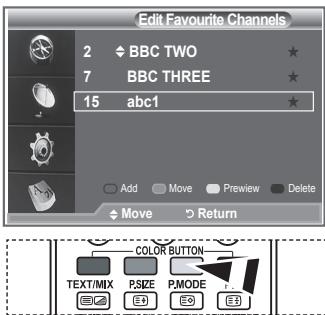

1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Edit Favourite Channels", then press the ENTER/OK button. 4. Select the required channel using the  or  button. 5. Press the green button. A " " icon is displayed on the left side of the channel name. 6. Press the ▲ or ▼ button to select the channel that you want to move, and press the green or ENTER/OK button. 7. Press the EXIT button to exit. Preview 1. In the "Edit Favourite Channels" menu, select the channel to be previewed by pressing the ▲ or ▼ button. 2. Press the yellow button. The selected channel is displayed on the screen.

Edit Favourite Channels

Return Add Move Prewiew Delete Move

Edit Favourite Channels

Return Add Move Prewiew Delete Move

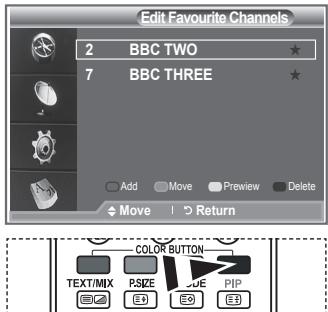

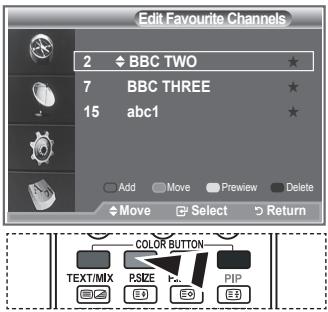

1. In the "Edit Favourite Channels" menu, select the channel to be deleted from the favourite channels list by pressing the ▲ or ▼ button. 2. Press the blue button. The selected channel and number will be deleted. To add a deleted channel back in to the favourite channel list, see "Add" on page 34.

Edit Favourite Channels

Return Add Move Prewiew Delete Move

BN68-01169B-Eng-0313.indd 35

2007-03-13 �� 10:02:19

Selecting Channel List

You can exclude the channels you have chosen from the Channel List All Channels Test Card M' v2.0 channels you have scanned.When you scan through the 1/2 23 bid-up.tv 60 Television X 1 Test Card M' stored channels, those you have chosen to skip are not 25 TCM 70 BBC Radio 1 3 Vida003b displayed. All channels that you do not specifically choose to 26 UKTV Style 72 BBC Radio 2 4 Vida004b 27 Discovery 73 BBC Radio 3 5 vida005b skip are displayed during scanning. 28 DiscoveryH&L 74 BBC Radio 4 6 vida006b 15 Cartoon Nwk 84 heat 15 Ch 15 33 Boomerang 91 MOJO 16 QVC 1. Press the D.MENU button to display the DTV menu. 55 Ttext Holidays 800 ARD-MHP-Data 17 UKTV Gold 6 More 2. Press the ▲ or ▼ button to select "Channel", then press the Previous Page NextPage Favourites TV ENTER/OK button. Move Watch Return 3. Press the ▲ or ▼ button to select "Channel List". Press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "All", "Favourites" or "Default". Press the ENTER/OK button. 5. Press the yellow button to toggle between your favourite channels and all channels. Your favourite channels are only displayed if they were previously set in the "Editing Your

Favourite Channels" menu (refer to page 34).

6. Press the red or green button to display the previous or next channel List page. 7. Press the ▲ or ▼ button to select a channel to be tuned. Press the ENTER/OK button. The channel number, name and an icon are displayed in the top left corner while changing the

channel. The channel number and name are displayed if the channel is one of the all channels,

and a icon if the channel is one of the favourite channels.

8. Press the blue button to toggle between your TV, Radio, Data/Other and All. 9. Press the CH LIST button to exit from the channel List.

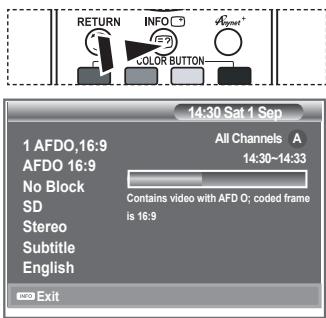

Displaying Programme Information

While viewing a channel, additional information about the current programme may be displayed. 1. While viewing a programme, press the INFO button. The programme information is displayed. 2. To exit from banner information, press the INFO button.

14:30~14:33 AFDO 16:9 No Block Contains video with AFD O; coded frame SD is 16:9 Stereo Subtitle English Move Enter Return Exit

BN68-01169B-Eng-0313.indd 36

2007-03-13 �� 10:02:20

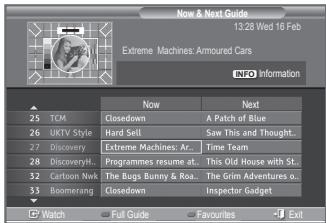

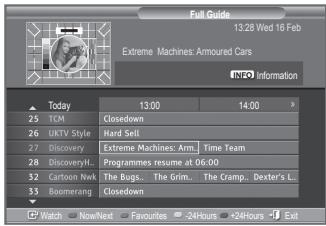

Viewing the EPG (Electronic Programme Guide) Information

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. Now & Next Guide For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information. Full Guide Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled forwards or backwards in time. 1. Press the D.MENU button to display the DTV menu. 2. Press the ENTER/OK button, to select "Guide". 3. Press the ▲ or ▼ button to select "Now & Next Guide" or "Full Guide". Press the ENTER/OK button.

You can also display the guide menu simply by pressing the GUIDE button.

Watch a programme in the EPG list

• Select a programme by pressing the 5, 6, 3, 4 button.

13:28 Wed 16 Feb Extreme Machines: Armoured Cars

Extreme Machines: Armoured Cars

• Press the ENTER/OK button.

If the next program is selected, it is scheduled with the clock icon displayed. If the ENTER/OK button is pressed again, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the next page. • Select a programme of your choice by pressing the 5, 6, 3, 4 button. View programme information

• Press the INFO button when the programme of your choice is highlighted.

Toggle between the "Now & Next

Guide" or "Full Guide"

• Press the red button repeatedly.

Display the "Favourites" and the "All

• Press the green button repeatedly.

Scrolls backwards quickly (24 hours).

• Press the yellow button repeatedly.

Scrolls forward quickly (24 hours).

• Press the blue button repeatedly.

The programme title is on the upper part of the screen center. Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality

Information(HD/SD), Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and brief summary of the highlighted programme are included on the detailed information. "..." will be appeared if the summary is long. Six channels are displayed. To scroll between channels, move to a channel using the ▲ or ▼ button. To display page by page, use the P or button. English - 37

BN68-01169B-Eng-0313.indd 37

2007-03-13 �� 10:02:21

Using the Scheduled List

If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled program at the scheduled time even if you are watching another program. 1. Press the D.MENU button to display the DTV menu. 2. Press the ENTER/OK button, to select "Guide". 3. Press the ▲ or ▼ button to select "Scheduled List", then press the ENTER/OK button. 4. Press the red button. The channel will be switched to the scheduled program. 5. Press the ENTER/OK button to select an item and adjust with the ◄ or ► button . You can also set hour and minute by pressing the number buttons on the remote control. • Channel: Set the channel. • Time: Set the time. • Date: Set Year, Month and Day. • Frequency: Set the frequency.

("Once", "Daily", or "Weekly")

6. After setting the schedule, Press the red button. 7. Press the EXIT button to exit. • Save: Save the adjusted schedule. • Cancel: Cancel the adjusted schedule. • Add Programme: Add a new schedule. • Edit: Re-adjust the selected schedule. • Delete: Delete the selected schedule.

Setting the Default Guide

You can preset the default guide style. 1. Press the D.MENU button to display the DTV menu. 2. Press the ENTER/OK button, to select "Guide". 3. Press the ▲ or ▼ button to select "Default Guide", then press the ENTER/OK button. 4. Select "Now/Next" or "Full Guide" using the ▲ or ▼ button, and press the ENTER/OK button. 5. Press the EXIT button to exit.

You can select these options by simply pressing the GUIDE button on the remote control.

BN68-01169B-Eng-0313.indd 38

2007-03-13 �� 10:02:23

Viewing All Channels and Favourite Channels

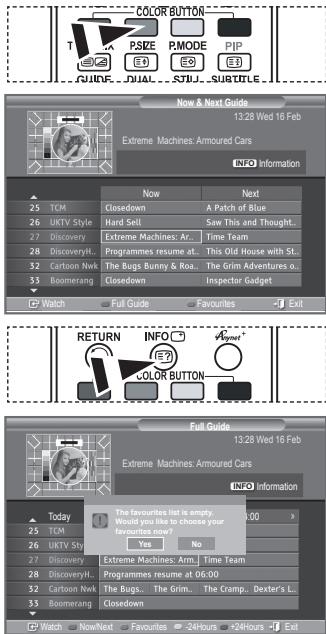

In the EPG menu, you can display all channels or favourite channels. 1. Press the D.MENU button to display the DTV menu. 2. Press the ENTER/OK button again, to select "Guide". 3. Select the your required guide ("Now & Next Guide" or "Full Guide") by pressing the ▲ or ▼ button. 4. Press the ENTER/OK button. 5. Press the green button. All the channel lists and the favorite channel lists will be toggled. 6. Select a programme of your choice by pressing the ▲, ▼, ◄, or ► button. 7. Press the INFO button to display information about the highlighted programme. 8. When the Edit Favourite Channels list has not been set up: • "The favourites list is empty. Would you like to choose your favourites now?" message is displayed. • Select "Yes". The "Edit Favourite Channels" menu is displayed. If you select "No", all channels will remain unchanged. • To edit the favourite channels, refer to page 34 for more details. 9 . Press the EXIT button to exit.

13:28 Wed 16 Feb Extreme Machines: Armoured Cars

Extreme Machines: Armoured Cars

INFO The favourites list is empty. 13:00 Would you like to choose your favourites now?

"All Channels" is the list of channels that have been scanned by the channel list update.

All channels are displayed in the all channel mode. "Favourites" (favourite channels) is the list of channels that has been set in the "Edit Favourite Channels" menu (refer to page 34).

BN68-01169B-Eng-0313.indd 39

2007-03-13 �� 10:02:24

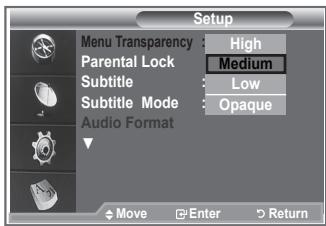

Adjusting the Menu Translucency

You can set the translucency of the menu. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Menu Transparency" then press the ENTER/OK button. 4. Select the required option ("High", "Medium", "Low", or "Opaque") by pressing the ▲ or ▼ button, and press the ENTER/OK button to change the setting. 5. Press the EXIT button to exit.

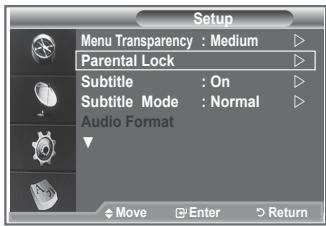

Setting up the Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary). 1. Press the D.MENU button to display the DTV menu. 2. Press the  or  button to select "Setup", then press the ENTER/OK button. 3. Press the  or  button to select "Parental Lock.", then press the ENTER/OK button. 4. The "Enter PIN" is displayed. 5. Enter your current 4-digit PIN code by using the numeric buttons (0~9). The options available in the "Parental Lock" group are displayed with the "Parental Rating" selected. The default PIN code for a new TV set is 0000. If you enter an invalid PIN code,the "Invalid PIN code.

Please try again." message is displayed.

6. Press the ENTER/OK button. 7. Press the  or  button to select the age rating you want to lock out. Press the ENTER/OK button. 8. If you want to change the PIN code,select "Change PIN" by pressing the  or  button. Press the ENTER/OK button. The "Enter New PIN" is displayed. 9. Enter your new PIN code by using the numeric buttons (0~9). The "Confirm New PIN" is displayed. 10. Re-enter your new PIN code to confirm by using the numeric buttons (0~9). The Your PIN code has been changed successfully message is displayed. 11. Press the ENTER/OK button. 12. Press the EXIT button to exit. If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On).

Enter PIN Enter PIN Return

▲ Parental Rating: No Block No Block No Block Change PIN 3 4 5 6 7 Move Enter▼ Return Move

Change PIN Confirm New PIN Your PIN code has been changed successfully.

BN68-01169B-Eng-0313.indd 40

2007-03-13 �� 10:02:27

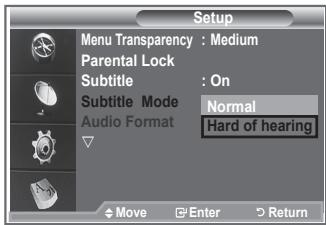

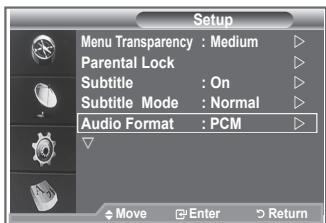

Setting the Subtitle

You can activate and deactivate the subtitles. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Subtitle ", then press the ENTER/OK button. 4. Select "On" by pressing the ▲ or ▼ button. Press the ENTER/OK button. 5. Press the EXIT button to exit.

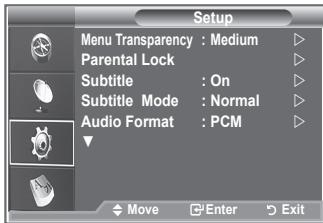

Menu Transparency : Medium Parental Lock Subtitle : On Off Subtitle Mode : Normal On Audio Format  Move Enter Move

Setting the Subtitle Mode

Use this menu to set the Subtitle Mode. "Normal" under the menu is the basic subtitle and "Hard of hearing" is the subtitle for a hearing-impaired person. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Subtitle Mode", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "Normal" or "Hard of hearing". Press the ENTER/OK button. 5. Press the EXIT button to exit. If the programme you are watching does not support the "Hard of hearing" function, "Normal" automatically activates even though "Hard of hearing" mode is selected.

Menu Transparency : Medium Parental Lock : On Subtitle Subtitle Mode : Normal Normal Audio Format Hard of hearing  Move Enter Move

Selecting the Audio Format

You can only hear Dolby Digital sound through the audio Setup Menu Transparency : Medium  receiver connected through an optical cable. You can only Parental Lock  hear PCM sound through the main speaker. Subtitle : On  When sound is emitted from both the main speaker and the Subtitle Mode : Normal  audio receiver, a sound echo may occur due to the decoding Audio Format : PCM  speed difference between the main speaker and the audio  receiver. In this case, use the internal mute function. 1. Press the D.MENU button to display the DTV menu. Move Enter Return 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Audio Format", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "PCM" or "Dolby Digital". Press the ENTER/OK button. 5. Press the EXIT button to exit. The Audio Format appears according to the broadcasting signal. Dolby digital sound is only available when the TV is connected with an external speaker using an optical cable. English - 41

BN68-01169B-Eng-0313.indd 41

2007-03-13 �� 10:02:29

Selecting the Digital Text (UK only)

If the programme is broadcast with digital text, this feature is Setup  enabled. Digital Text : Enable Disable 1. Press the D.MENU button to display the DTV menu. Time Zone Enable System 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Digital Text", then press the ENTER/OK button. Move Enter Return 4. Press the ▲ or ▼ button to select "Disable" or "Enable". Press the ENTER/OK button. 5. Press the EXIT button to exit. MHEG(Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games.

Selecting the Time Zone (Spain only)

Select the time zone where locate 1. Press the D.MENU button. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Time Zone", then press the ENTER/OK button. 4. Select the time zone where you locate by pressing the ▲ or ▼ button. Press the ENTER/OK button. he following options are available T The Iberian Peninsula and Balears Islands Canarian Islands 5. Press the EXIT button to exit.

Viewing Product Information

You can view your product information. For service or repair, please contact a Samsung approved dealer. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "System", then press the ENTER/OK button. 4. Press the ENTER/OK button again, to select "Product Information". The Product Information menu is selected. - Software Version, Firmware Version 5. Press the EXIT button to exit.

The Iberian Peninsula and Balears Islands Canarian Islands

Software Version: T_BDXPDEU00_0700 Firmware Version: T_STDEU7_102c

BN68-01169B-Eng-0313.indd 42

2007-03-13 �� 10:02:31

Checking the Signal Information

You can get information about the signal status. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "System", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "Signal Information", then press the ENTER/OK button. 5. Press the EXIT button to exit. If the signal status is poor, the "No signal." message is displayed.

Service: ? Service ID:0000 Multiplex: ? (TSID 0000, ONID 0000) Network: ? (ID 0000) Bit error level: 10 Signal Strength: 0

Upgrading the Software

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "System", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "Software Upgrade", then press the ENTER/OK button. 5. Press the ▲ or ▼ button to select "Software Infomation", "Manual Upgrade" or "Satandby Mode upgrade". Press the ENTER/OK button.  Software Inforamtion Press the ENTER/OK button, then the current software version is shown. To display the software version information, press the ENTER/OK button again.  Manual Upgrade Press the ENTER/OK button to search for new software from the currently broadcasting channels.  Standby Mode Upgrade : On / Off Press the ENTER/OK button. To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed. 6. Press the EXIT button to exit.

Signal Information Software Upgrade Common Interface Reset

Software Information

Manual Upgrade Standby Mode upgrade : On

Software Information

Manual Upgrade Standby Mode upgrade : On

Software Information Manual Upgrade Standby Mode upgrade : On

BN68-01169B-Eng-0313.indd 43

2007-03-13 �� 10:02:33

Viewing Common Interface

This contains information on CAM inserted in the CI slot and displays it. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "System", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "Common Interface", then press the ENTER/OK button. 5. Press the ENTER/OK button to display the information for your application. 6. Press the EXIT button to exit. The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF. 1. Purchase the CI CAM module by visiting your nearest dealer or by phone. 2. Insert the CI CARD into the CAM in the direction of the arrow until it fits. 3. Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.) 4. Check if you can see a picture on a scrambled signal channel.

Type : CA Manufacturer : Channel Plus

Info : Top Up TV Return

Selecting the CI (Common Interface) Menu

This enables the user to select from the CAM-provided menu. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "System", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "Common Interface", then press the ENTER/OK button. 5. Select to "CI Menu" by pressing the ▲ or ▼ button, and press the ENTER/OK button. 6. Select the required option by pressing the ▲ or ▼ button, and press the ENTER/OK button. 7. Press the EXIT button to exit. Select the CI Menu based on the menu PC Card.

Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Move

BN68-01169B-Eng-0313.indd 44

2007-03-13 �� 10:02:35

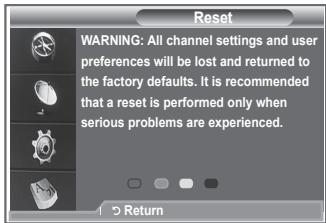

You can reset the values stored to the factory default values. The Reset operation deletes all channel information and user preferences returningall values to their default factory state. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "System", then press the ENTER/OK button. 4. Press the ▲ or ▼ button to select "Reset", then press the ENTER/OK button. 5. The "Enter PIN" screen will appear. 6. Enter your current 4-digit PIN code by using the numeric buttons (0~9). T he warning message is displayed.All values will be reset by pressing the coloured buttons (red, green, yellow, and blue)in turn. 7. Press the EXIT button to exit.

Enter PIN Enter PIN Return

WARNING: All channel settings and user preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced.

Selecting the Preferred Language (Audio, Subtitle or Teletext)

You can change the default value for subtitle, audio teletext languages. Displays the language information for the incoming stream. 1. Press the D.MENU button to display the DTV menu. 2. Press the ▲ or ▼ button to select "Language", then press the ENTER/OK button. 3. Press the ▲ or ▼ button to select "Audio Language", "Subtitle Language" or "Teletext Language". Press the ENTER/OK button. 4. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER/OK button. English is the default in cases where the selected language is unavailable in the broadcast. 5. Press the EXIT button to exit. While viewing a programme, the subtitle can be selected. While viewing a programme, audio languages can be selected.

Audio Language Subtitle Language Teletext Language Preference 

Audio Language Subtitle Language Teletext Language Preference 

Audio Language Subtitle Language Teletext Language Preference 

BN68-01169B-Eng-0313.indd 45

2007-03-13 �� 10:02:37

This menu consists of 6 sub-menus: Primary Subtitle Language, Secondary Subtitle Language, Primary Audio Language, Secondary Audio Language, Primary Teletext Language, and Secondary Teletext Language. Using this feature, users can select one of the languages (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Norwegian, Spanish, Czech, and Greek). The language selected here is the default when the user selects a channel.

Audio Language Subtitle Language Teletext Language Preference  Move Enter Move

 Press the ▲ or ▼ button to select required menu (Primary Subtitle Language, Secondary Subtitle

Language, Primary Audio Language, Secondary Audio Language, Primary Teletext Language, or Secondary Teletext Language), then press the ENTER/OK button. The options of the selected menu are displayed.  Press the ▲ or ▼ button to select required option (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Norwegian, Spanish, Czech, or Greek), then press the ENTER/OK button.  If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu (refer to page 45) are automatically changed to the selected language.  The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu.

Most set channels carry " teletext ", pages of written information that provide information such as: Television programme times. News bulletins and Weather forecasts. Sports results. Subtitles for the hard of hearing. The teletext pages are organized according to six categories: Part

A B C D E F Contents

Selected page number. Broadcasting station identity. Current page number or search status. Date and time. Text. Status information.

BN68-01169B-Eng-0313.indd 46

2007-03-13 �� 10:02:38

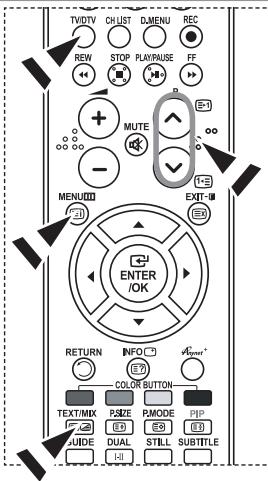

Displaying the Teletext Information

You can display teletext information at any time, but signal reception must be good. Otherwise: Information may be missing. Some pages may not be displayed. To activate the teletext mode and display the contents page: 1.

Using the P ( ) or P the teletext service.

) button, select the channel providing

Press the TEXT/MIX (

) button to activate the teletext mode. The contents page is displayed. It can be redisplayed at any time by pressing the MENU ( ) button. 3.

Press the TEXT/MIX ( The actual broadcast will be displayed with "Teletext", "Double", and "Mix" in order on the screen. 4.

Press the TV/DTV button to exit from the Text display.

If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the "Setup" menu mode. If both languages are different, select the same language with the Text language on the "Setup" menu.

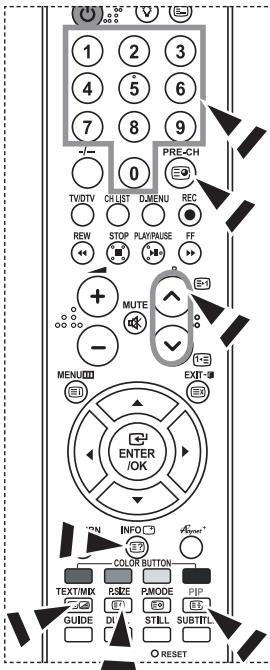

Selecting a Specific Teletext Page

Press the number buttons on the remote control to enter the page number directly: 1. Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons. 2. If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the PIP ( ) . Press the PIP ( ) button again to resume. 3.

Both teletext information and the normal broadcast

Hidden text (answers to quiz games, for example)

A secondary page, by entering its 4-digit number

P P Double-size letters in the:

 Upper half of the screen  Lower half of the screen

BN68-01169B-Eng-0313.indd 47

2007-03-13 �� 10:02:39

Using Fastext to Select a Teletext Page

The various topics included in the teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control. 1.

Display the teletext contents page by pressing the TEXT/MIX ( button.

Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).

Press the Red button to display the previous page.

Press the Green button to display the next page.

Press the TV/DTV button to exit from the Text display.

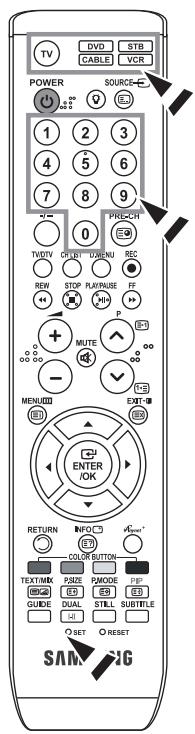

Setting Up Your Remote Control

After it has been set up properly, your remote control can operate in five different modes: TV, DVD, Cable, Set-Top Box, VCR. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose. The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes. Setting Up the Remote to Operate Your VCR, CABLE, DVD and STB 1.

Turn off your VCR, CABLE, DVD and STB.

2. Press the VCR, CABLE, DVD and STB button on your TV’s remote control.

Press the SET button on your TV’s remote control.

4. Using the number buttons on your remote control, enter three digits of the

VCR code listed on pages 49~51 of this manual for your brand of VCR. Make sure you enter three digits of the code, even if the first digit is a "0". (If more than one code is listed, try the first one.) 5.

Press the POWER button on the remote control.

Your VCR should turn on if your remote is set up correctly. If your VCR does not turn on after set up, repeat steps 2, 3, and 4, but try one of the other codes listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080.

BN68-01169B-Eng-0313.indd 48

2007-03-13 �� 10:02:40

Remote Control Codes

VCR Brand SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DB DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar)

LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Code

000 001 002 003 004 005 077 078 079 020 025 004 027 032 007 026 018 022 002 003 006 008 015 055 021 056 002 003 006 008 015 055 007 002 024 002 007 008 017 021 025 056 064 066 003 010 011 012 013 014 015 016 007 026 017 025 034 001 003 006 021 022 025 030 032 034 040 047 050 052 060 063 065 066 067 069 073 018 024 028 029 048 051 061 025 002 005 017 021 056 002 007 019 025 041 042 074 021 002 007 018 019 021 026 037 041 054 056 007 008 018 021 026 037 081 082 083 007 008 018 021 026 037 070 036 006 007 008 009 010 025 038 025 021 056 059 007 008 018 021 026 037 062 006 021 006 021 024 025 034 005 019 041 075 019 034 041 046

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. 2.

First, click on "Control Panel" on the Windows start menu.

When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear. 3. When the control panel window appears, click on "Display" and a display dialog-box will appear. 4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum- 1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported) D-Sub Input Mode

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

(H/V) +/-/+ -/+/+ -/+/+

640×350 720×400 640×480 800×600 1024×768 1360×768

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. English - 52

BN68-01169B-Eng-0313.indd 52

2007-03-13 �� 10:02:42

Setting the PC Coarse and Fine Tuning of the Image (Image Lock):

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

TV Preset: Press the SOURCE button to select PC mode.

Press the ▲ or ▼ button to select "PC", then press the ENTER/OK button.

Press the ENTER/OK button to select "Image Lock".

Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER/OK button.

Press the ◄ or ► button to adjust the screen quality.

Press the ENTER/OK button.

Press the EXIT button to exit.

Changing the Image Position:

Adjust the PC’s screen positioning if it does not fit the TV screen. 1.

Follow the "Coarse and Fine Tuning of the Image

(Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Position", then press the

Press the ▲ or ▼ button to adjusting the Vertical-Position.

Press the ◄ or ► button to adjust the Horizontal-Position. Press the ENTER/OK button.

Press the EXIT button to exit.

Adjusting the PC Screen Automatically (Auto Adjustment):

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. 1.

Follow the "Coarse and Fine Tuning of the Image

(Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER/OK button.

Press the EXIT button to exit.

Follow the "Coarse and Fine Tuning of the Image

(Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Image Reset", then press the ENTER/OK button.

Press the EXIT button to exit.

Position Auto Adjustment Image Reset

Initializing the Image Settings (Image Reset):

You can replace all image settings with the factory default values.

Position Auto Adjustment Image Reset

BN68-01169B-Eng-0313.indd 53

2007-03-13 �� 10:02:45

Wall-Mount Adjustment (LE40R8) (Sold separately)

Once the wall mount is installed, the position of your TV can be easily adjustable.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER/OK button. 2. Press the ▲ or ▼ buttons to select “Wall-Mount Adjustment”, then press the ENTER/OK button. 3. Adjust to the desired position using the ▲,▼,◄,► buttons. 4. Press the EXIT button to exit. If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.

: Custom Setup Equalizer More SRS TS XT : Off Wall-Mount Adjustment Auto Volume : Off Energy Saving : Off Internal Mute : Off HDMI Black Level : Low Reset

PIP When you turn the power off, your TV moves to the initial installation position.

When you turn the power on, your TV moves to the last remembered position you adjusted.

Using the Remote Control Buttons

Wall-mount angle adjustment

Tilt Up, Tilt Down, Move right, Move left

Moves to the initial installation position

Remembering the position and moving to the remembered position

Remembers 3 positions with the Red, Green and

Yellow buttons. Moves to the remembered position using these 3 color buttons.

For installation, refer to the Installation Manual provided.

For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer

BN68-01169B-Eng-0313.indd 54

2007-03-13 �� 10:02:46

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.

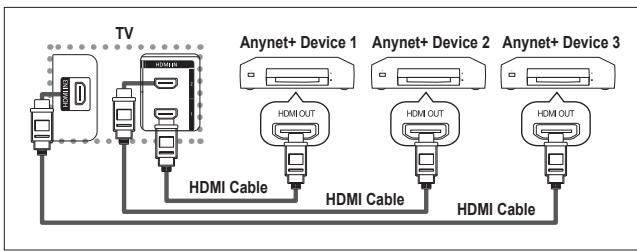

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To directly connect to TV TV Connect the [HDMI 1], [HDMI

2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

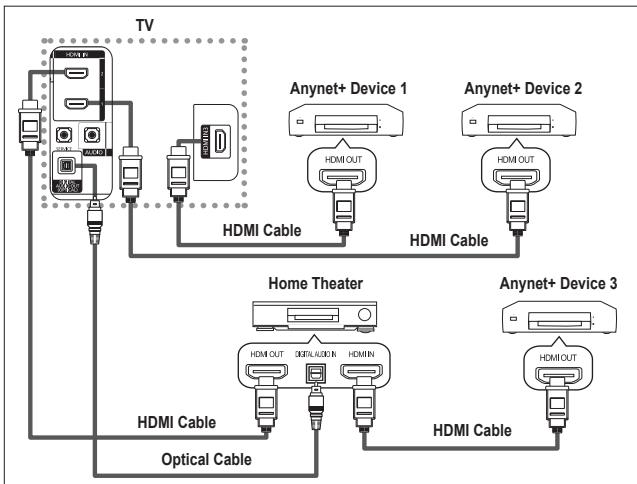

To connect to Home Theater

Connect the [HDMI 1],

[HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the receiver.

Connect only one receiver. You can listen to 5.1 channel sound through the home theater’s speakers. Otherwise, you can only listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theater and the TV correctly to listen to TV sound through the home theater. However, you cannot listen to sound from the BD recorder that is sent to the home theater via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theater. You can connect an Anynet+ device using the HDMI Cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. English - 55

BN68-01169B-Eng-0313.indd 55

2007-03-13 �� 10:02:47

The following settings are to use Anynet+ functions. Using the Anynet+ Function 1. 2. 3.

View TV Press the Anynet+ button.

Press the ▲ or ▼ button to select Setup, then press the ENTER/OK button. Press the ENTER/OK button to select Anynet+ (HDMI-CEC), then press the ENTER/OK button. Press the ▲ or ▼ button to select On, then press the ENTER/ OK button. The Anynet+ (HDMI-CEC) function is enabled. If you select Off, Anynet+ (HDMI-CEC) is disabled. When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Searching Connections

Turning an Anynet+ Device Off Automatically when the TV is Turned Off

1. Press the ▲ or ▼ button to select Auto Turn Off, then press Setup the ENTER/OK button. Anynet+ (HDMI-CEC) : On 2. Press the ▲ or ▼ button to select On, then press the ENTER/ Auto Turn Off : Off OK button. Off

The Auto turn off function is enabled.

If you select Off, the Auto turn off function is canceled.

Press the EXIT button to exit.

Searching Connections

The Select Device setting of the TV remote control is to be set to

TV to use the Anynet+ function. If you set Auto Turn Off to On, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

Scanning and Switching between Anynet+ Devices

Press the Anynet+ button.

Press the ▲ or ▼ button to select Select Device, then press the ENTER/OK button. Press the ▲ or ▼ button to select to a particular device and press the ENTER/OK button. It is switched to the selected device. If you cannot find a device you want, press the ▲ or ▼ button to select Searching Connections, then press the ENTER/OK button. The meassage Configuring Anynet+ connection... is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu.

View TV Select Device

Switching to the selected devices may take up to 2 minutes. You

Anynet+ (HDMI-CEC) : On  cannot cancel the operation during the switching operation. : On  The time required to scan for devices is determined by the number Auto Turn Off of connected devices. Searching Connections  When the device scan is complete, the number of found devices is not displayed. Move Enter Return Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Anynet+ button. English - 56

BN68-01169B-Eng-0313.indd 56

2007-03-13 �� 10:02:48

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup

Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file

Device with built-in Tuner

After switching to the device, when you are watching a TV program

When Receiver is activated

The Anynet+ function only works when the remote control is set to TV.

The REC button works only while in the recordable state. You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the color buttons may not work properly. The ◄◄, ►► operations may differ depending on the device.

You can make a recording of a TV program using a recorder. Press the REC button. Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV program is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded.

You can also record the source streams by selecting Record after pressing the Anynet+ button. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual. English - 57

BN68-01169B-Eng-0313.indd 57

2007-03-13 �� 10:02:48

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker. 1. Press the Anynet+ button. Air 28 Press the ▲ or ▼ button to select Receiver, then press the View TV ENTER/OK button. Select Device 2. Press the ◄ or ► button to select to On, then press the Record ENTER/OK button. Menu on Device Now you can listen to sound through the receiver. Device Operation 3. Press the EXIT button to exit. Receiver :On

When the receiver is set to On, you can listen to the TV sound

Setup  through the 2-channel receiver. Move Enter Exit If the receiver is exclusively for a home theater only (supporting audio only), it may not appear in the device list. Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work. In case of a content with copyright problem, listening through the receiver may not properly operate. When listening through the receiver, there are restrictions for using the PIP and audio-related menu.

Check Points before Requesting Service

Anynet+ does not work.

I want to exit Anynet+. ■

■ ■ The Connecting to Anynet+ device… message appears on the screen. The Anynet+ device does not play. The connected device is not displayed.

The TV program cannot be recorded.

The TV sound is not output through the receiver.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI Cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work at a certain condition. (Searching channels) When connecting or removing the HDMI Cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the Anynet+ button to show the Anynet+ menu and select a menu you want. Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of CH, CH LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete.

You cannot use the play function when Plug & Play is in progress.

Check whether or not the device supports Anynet+ functions.

Check whether or not the HDMI Cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI Cable only. Some HDMI cables may not support Anynet+ functions.

Check whether the antenna jack on the recording device is properly connected.

Connect the optical cable between TV and the receiver. English - 58

BN68-01169B-Eng-0313.indd 58

2007-03-13 �� 10:02:48

Using the Anti-Theft Kensington Lock

The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use. 1.

Insert the locking device into the Kensington slot on the

LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

Connect the Kensington lock cable.

Fix the Kensington lock to a desk or a heavy stationary object.

The place of the Kensington Lock may be different depending on its model.

Troubleshooting: Before Contacting Service Personnel

 Check that the mains lead has been connected to a wall socket.

 Check that you have pressed the POWER buttons on the front of the set.  Check the picture contrast and brightness settings.  Check the volume.

Normal picture but no sound

 Check whether the MUTE button has been pressed on the remote control.  Check if "Internal Mute" is off

No picture or black and white picture

 Adjust the colour settings.

 Check that the broadcast system selected is correct.

Sound and picture interference

 Try to identify the electrical appliance that is affecting the set and move it further away.

 Plug your set into a different mains socket.

Blurred or snowy picture, distorted sound

 Check the direction, location and connections of your aerial.

This interference is often due to the use of an indoor aerial.

Remote control malfunctions

 Replace the remote control batteries.

 Clean the upper edge of the remote control (transmission window).  Check the battery terminals.

"Check signal cable." message is displayed.

 Check that the signal cable is firmly connected to the PC or video sources.

 Check that the PC or video sources are turned on.

On PC mode, "Not Supported  Check the maximum resolution and the frequency of the video adaptor.

Mode." message is displayed.  Compare these values with the data in the Display Modes. The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English - 59

BN68-01169B-Eng-0313.indd 59

2007-03-13 �� 10:02:49

Technical and Environmental Specifications

Screen Size (Diagonal)

Sound Output Dimension (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Design and specifications are subject to change without prior notice.

This device is a Class B digital apparatus. For the power supply, refer to the label attached to the product.

BN68-01169B-Eng-0313.indd 60

2007-03-13 �� 10:02:49

This page is intentionally left blank.

BN68-01169B-Eng-0313.indd 61

2007-03-13 �� 10:02:50

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Fre-0313.indd 1

2007-03-13 �� 9:51:23

Installation du support

Installation du support mural

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Ajouter

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Ajouter

BN68-01169B-Fre-0313.indd 12

2007-03-13 �� 9:51:34

--------------------Entrer

Régler les “Mois”, “Date”, “Année”,

BBC THREE abc1 QVC nMove r u

13:28 Mer 16 Fév Extreme Machines: Armoured Cars

Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Déplacer

BN68-01169B-Fre-0313.indd 44

2007-03-13 �� 9:52:34

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

Adjust Beenden INFO Center

150 W 1360 x 768 @ 60 Hz

170 W 1360 x 768 @ 60 Hz

190 W 1360 x 768 @ 60 Hz

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Ger-0313.indd 1

2007-03-13 �� 9:59:11

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add

BN68-01169B-Ger-0313.indd 12

2007-03-13 �� 9:59:22

--------------------Eingabe

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

BBC THREE abc1 QVC Move

Favoriten bearbeiten

AII Channels A Extreme Machines: Armoured Cars

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

(H/V) +/-/+ -/+/+ -/+/+

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Dut-0313.indd 1

2007-03-13 �� 10:04:26

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

“Maand”, “Date”, “Jaar”, “Uur” of “min” instellen

BBC THREE abc1 QVC Move

BBC THREE abc1 QVC Move

BN68-01169B-Dut-0313.indd 34

2007-03-13 �� 10:05:20

Extreme Machines: Armoured Cars

Codes afstandsbediening

VCR Merk SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DB DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar)

LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Code

000 001 002 003 004 005 077 078 079 020 025 004 027 032 007 026 018 022 002 003 006 008 015 055 021 056 002 003 006 008 015 055 007 002 024 002 007 008 017 021 025 056 064 066 003 010 011 012 013 014 015 016 007 026 017 025 034 001 003 006 021 022 025 030 032 034 040 047 050 052 060 063 065 066 067 069 073 018 024 028 029 048 051 061 025 002 005 017 021 056 002 007 019 025 041 042 074 021 002 007 018 019 021 026 037 041 054 056 007 008 018 021 026 037 081 082 083 007 008 018 021 026 037 070 036 006 007 008 009 010 025 038 025 021 056 059 007 008 018 021 026 037 062 006 021 006 021 024 025 034 005 019 041 075 019 034 041 046

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

640×350 720×400 640×480 800×600 1024×768 1360×768

Receiver Instellingen

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Ita-0313.indd 1

2007-03-13 �� 10:08:13

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Impostare “Mese”, “Data”, “Anno”, “Ora” o “Minuto”

Imposta Ora Timer stand-by Timer 1 Timer 2 Timer 3

30 60 90 120 150 180

BBC THREE abc1 QVC Move

14:30~14:33 AFDO 16:9 Sbloccato Contains video with AFD O; coded frame SD is 16:9 Stereo Sottotitolo Inglese Move Enter Return Esci

BN68-01169B-Ita-0313.indd 36

2007-03-13 �� 10:09:12

13:28 Mer 16 Feb Extreme Machines: Armoured Cars

13:28 Mer 16 Feb Extreme Machines: Armoured Cars

Immetti PIN Immetti PIN Ritorno

Codici del telecomando

Videoregistratore Marca SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DB DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar)

LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Codice

000 001 002 003 004 005 077 078 079 020 025 004 027 032 007 026 018 022 002 003 006 008 015 055 021 056 002 003 006 008 015 055 007 002 024 002 007 008 017 021 025 056 064 066 003 010 011 012 013 014 015 016 007 026 017 025 034 001 003 006 021 022 025 030 032 034 040 047 050 052 060 063 065 066 067 069 073 018 024 028 029 048 051 061 025 002 005 017 021 056 002 007 019 025 041 042 074 021 002 007 018 019 021 026 037 041 054 056 007 008 018 021 026 037 081 082 083 007 008 018 021 026 037 070 036 006 007 008 009 010 025 038 025 021 056 059 007 008 018 021 026 037 062 006 021 006 021 024 025 034 005 019 041 075 019 034 041 046

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

Satellite STB HDD COMBO Premium CABLE STB HDD COMBO Standard CABLE STB HDD COMBO Premium Ground wave STB HDD COMBO Standard Ground wave STB HDD COMBO Premium

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Spa-0313.indd 1

2007-03-13 �� 10:11:30

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Añadir

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Añadir

BN68-01169B-Spa-0313.indd 12

2007-03-13 �� 10:11:41

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

BBC THREE abc1 QVC Move

BBC THREE abc1 QVC Move

BN68-01169B-Spa-0313.indd 34

2007-03-13 �� 10:12:24

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Por-0313.indd 1

2007-03-13 �� 10:14:29

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

BBC THREE abc1 QVC Move

BBC THREE abc1 QVC Move

BN68-01169B-Por-0313.indd 34

2007-03-13 �� 10:15:25

13:28 Qua 16Fev Extreme Machines: Armoured Cars

13:28 Qua 16Fev Extreme Machines: Armoured Cars

Códigos do telecomando

Videogravador Marca SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DB DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar)

LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Código

000 001 002 003 004 005 077 078 079 020 025 004 027 032 007 026 018 022 002 003 006 008 015 055 021 056 002 003 006 008 015 055 007 002 024 002 007 008 017 021 025 056 064 066 003 010 011 012 013 014 015 016 007 026 017 025 034 001 003 006 021 022 025 030 032 034 040 047 050 052 060 063 065 066 067 069 073 018 024 028 029 048 051 061 025 002 005 017 021 056 002 007 019 025 041 042 074 021 002 007 018 019 021 026 037 041 054 056 007 008 018 021 026 037 081 082 083 007 008 018 021 026 037 070 036 006 007 008 009 010 025 038 025 021 056 059 007 008 018 021 026 037 062 006 021 006 021 024 025 034 005 019 041 075 019 034 041 046

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

030 075 085 072 070 071 074 086 083 084 088 111 112 114 062 074 122 123 027 077 078 079 082 080 125 081 065 095 066 146 067 068 090 060 061 089 133 135 069 074 074 064 113 071 073 091 110 089

Satellite STB HDD COMBO Premium CABLE STB HDD COMBO Standard CABLE STB HDD COMBO Premium Ground wave STB HDD COMBO Standard Ground wave STB HDD COMBO Premium

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01169B-Sln-0313.indd 1

2007-03-13 �� 10:18:41

UPORABA FUNKCIJE DTV-JA UPORABA FUNKCIJE TELETEKSTA Vhod

OK Start Plug & Play.

P 1 C3 1 / 10 Prog. 0

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add

Channel List Child Lock : Off On

4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add

BN68-01169B-Sln-0313.indd 12

2007-03-13 �� 10:18:52

Pritisnite gumb  ali 

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

Dynamic Mode : Dynamic Standard 100 Contrast Movie 50 Brightness Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Enter

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 Cool 2 R50 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm 1 sMore Warm 2 Move

Mode : Dynamic  Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1  Detailed Settings  Backlight : 10  sMore Move

BN68-01169B-Sln-0313.indd 16

2007-03-13 �� 10:19:00

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

Size Screen Mode Digital NR Active Colour DNle Movie Plus Reset Move

: Off Energy :: Off Internal Saving Mute Off Normal HDMI Reset Black Level : Low Low

Standard Mode : Custom Music Equalizer Movie SRS TS XT : Off Speech Auto Volume : Off Custom Internal Mute : Off Sound Select : Main Reset Move

BN68-01169B-Sln-0313.indd 22

2007-03-13 �� 10:19:09

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Main Sound Select : Main Sub Reset Move

BN68-01169B-Sln-0313.indd 25

2007-03-13 �� 10:19:15

TV Pritisnite gumb  ali 

Pritisnite gumb  ali 

Prilagodite od 0–100

Pritisnite gumb  ali 

Pritisnite gumb  ali 

 Blue Screen: Off/On

: Custom Setup Equalizer More SRS TS XT : Off Auto Volume Off Energy Saving ::Off Internal Mute Off HDMI Black Level ::Low Reset

Off HDMI Black Level : Off Low PIP Medium High Auto

BN68-01169B-Sln-0313.indd 30

2007-03-13 �� 10:19:26

: Custom Input Equalizer Source :: TV SRS TS List XT Off Edit Name Auto Volume : Off Anynet+(HDMI-CEC) Internal Mute : Off Reset

Auto Store Manual Store Edit Favourite Channels Channel List Setup Menu Transparency Parental Lock Subtitle Subtitle Mode Audio Format Digital Text Timer Zone System

High, Medium, Low, Opaque

Enter PIN Off, On Normal, Hard of hearing PCM/Dolby Digital Disable, Enable Product Information Signal Information Software Upgrade Common Interface Reset

Audio Language Subtitle Language Teletext Language Preference

Auto Store  Manual Store  Edit Favourite Channels   Channel List

Audio Language Subtitle Language Teletext Language Preference 

Edit Favourite Channels

Edit Favourite Channels

BBC THREE abc1 QVC Select All

Edit Favourite Channels

Edit Favourite Channels

Edit Favourite Channels

Edit Favourite Channels

BN68-01169B-Sln-0313.indd 35

2007-03-13 �� 10:19:37

14:30~14:33 AFDO 16:9 No Block Contains video with AFD O; coded frame SD is 16:9 Stereo Subtitle English Move Enter Return Exit

BN68-01169B-Sln-0313.indd 36

2007-03-13 �� 10:19:38

13:28 Wed 16 Feb Extreme Machines: Armoured Cars

Extreme Machines: Armoured Cars

The favourites list is empty.

Would you like to choose your favourites now?

BN68-01169B-Sln-0313.indd 39

2007-03-13 �� 10:19:42

Service: ? Service ID:0000 Multiplex: ? (TSID 0000, ONID 0000) Network: ? (ID 0000) Bit error level: 10 Signal Strength:

Signal Information Software Upgrade Common Interface Reset

Software Information

Manual Upgrade Standby Mode upgrade : On

Software Information

Manual Upgrade Standby Mode upgrade : On

Software Information Manual Upgrade Standby Mode upgrade : On

BN68-01169B-Sln-0313.indd 43

2007-03-13 �� 10:19:51

Type : CA Manufacturer : Channel Plus

Info : Top Up TV Return

Enter PIN Enter PIN Return

WARNING: All channel settings and user preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced.

Audio Language Subtitle Language Teletext Language Preference 

Audio Language Subtitle Language Teletext Language Preference 

Audio Language Subtitle Language Teletext Language Preference 

BN68-01169B-Sln-0313.indd 45

2007-03-13 �� 10:19:54

Meni je sestavljen iz 6 podmenijev: Language Primary Subtitle Language (Primarni jezik podnaslovov), Audio Language Secondary Subtitle Language (Sekundarni jezik podnaslovov), Subtitle Language Primary Audio Language (Primarni jezik avdia), Secondary Teletext Language Audio Language (Sekundarni jezik avdia), Primary Teletext Preference  Language (Primarni jezik teleteksta) in Secondary Teletext Language (Sekundarni jezik teleteksta). Move Enter Return S to funkcijo lahko uporabniki izberejo enega od jezikov (angleščina, Move Enter Return nemščina, italijanščina, švedščina, francoščina, valizijski jezik, galščina, irščina, danščina, finščina, norveščina, španščina, češčina in grščina). Tukaj izbrani jezik je privzeti jezik, ko uporabnik izbere kanal.  Press the ▲ or ▼ button to select required menu (Primary Subtitle Language, Secondary Subtitle Language,Primary Audio Language, Secondary Audio Language, Primary Teletext Language, or Secondary Teletext Language), then press the ENTER/OK button. The options of the selected menu are displayed.  Press the ▲ or ▼ button to select required option (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Norwegian, Spanish, Czech, or Greek), then press the ENTER/OK button. ➣ If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu (refer to page 45) ➣ The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu.

Teletekst in TV-program

Home Theater VCR COMBO HDD Recorder COMBO TWIN TRAY COMBO STB DVD COMBO DVD Receiver AV Receiver

014 015 016 017 018 019 020 021

+/+ +/+ +/+ -/-/+/+ + /+ +/+ -/+

VESA GTF PC Image Lock

Position Auto Adjustment Image Reset

Position Auto Adjustment Image Reset

BN68-01169B-Sln-0313.indd 53

2007-03-13 �� 10:20:01

: Custom Setup Equalizer More SRS TS XT : Off Wall-Mount Adjustment Auto Volume Off Energy Saving ::Off Internal Mute Off HDMI Black Level ::Low Reset

Searching Connections

Searching Connections Move

View TV Select Device

Ko gledate TV-program

View TV Select Device
