USER MANUAL LE23R81W SAMSUNG

Owner's Instructions

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

ON-SCREEN MENUS

PC DISPLAY

PICTURE IN PICTURE (PIP)

TELETEXT

Register your product at www.samsung.com/global/register

Record your Model and Serial number here for future reference.

- Model ____ - Serial No. ____

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

  • Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn".
    To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

- Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

- Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Contents

CONNECTING AND PREPARING YOUR TV

◆ List of Parts....2
◆ Installing the Stand 2
◆ Installing the Wall Mount Kit....2
◆ Viewing the Control Panel....3
◆ Viewing the Connection Panel 4
◆ Viewing the Remote Control ......7
◆ Installing Batteries in the Remote Control......8
◆ Switching On and Off....8
◆ Placing Your Television in Standby Mode .....8

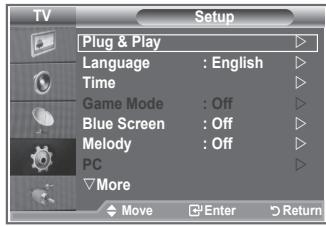

◆ Plug & Play 9

SETTING THE CHANNELS

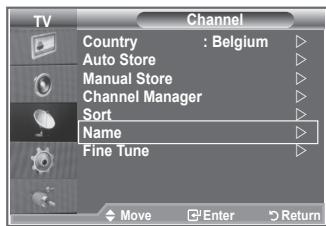

◆ Storing Channels Automatically .....10
◆ Storing Channels Manually 11

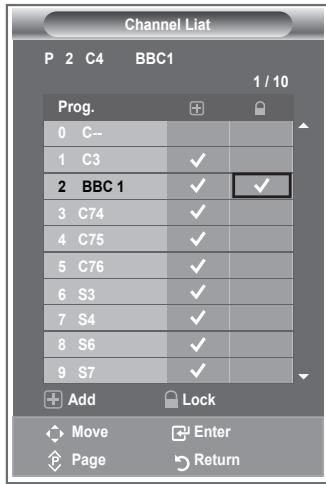

◆ Setting the Channel Manager .....12
◆ Activating the Child Lock....12

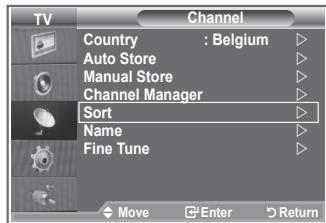

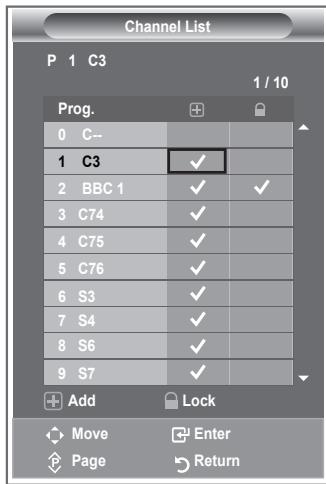

◆ Sorting the Stored Channels....13
◆ Assigning Channels Names......13
◆ Fine Tuning Channel Reception....14

SETTING THE PICTURE

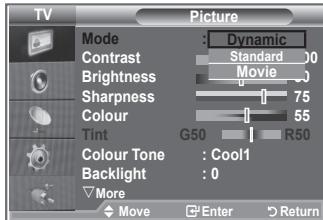

◆ Changing the Picture Standard....14

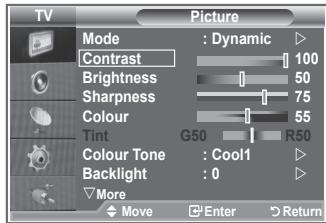

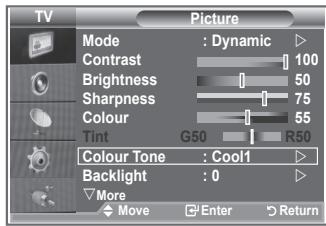

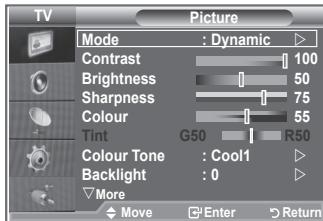

◆ Adjusting the Custom Picture....15

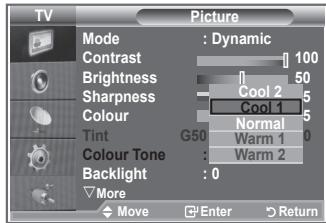

◆ Changing the Colour Tone ....15

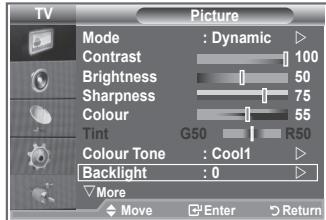

◆ Activating Backlight....16

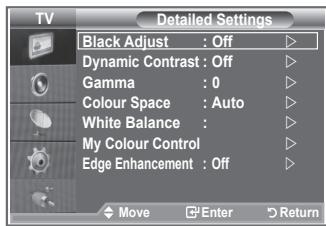

◆ Configuring Detailed Settings on the Picture ..17
◆ Changing the Picture Size ....18
◆ Freezing the Current Picture....19

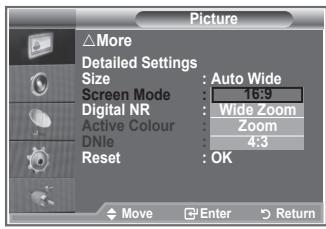

◆ Selecting the Screen Mode....19
◆ Resetting the Picture Settings to the Factory Defaults....19

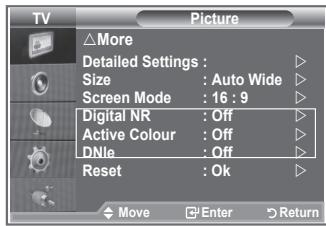

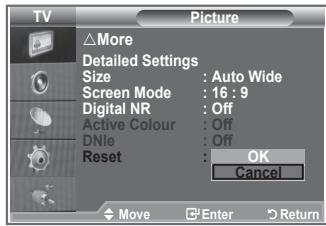

◆ Digital NR / Active Colour / DNle .....20

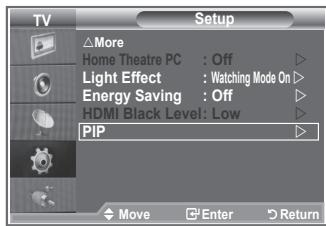

◆ Viewing the Picture In Picture (PIP)......21
◆ PIP Settings ......21
◆ HDMI Black Level 22

SETTING THE SOUND

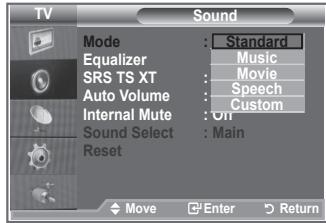

◆ Changing the Sound Standard....22

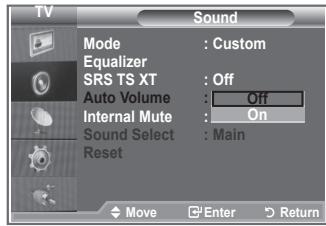

◆ Adjusting the Sound Settings......23

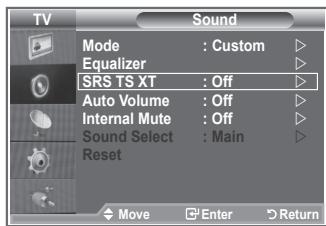

◆ Setting the TruSurround XT (SRS TS XT) .....23
◆ Connecting Headphones ......24
◆ Selecting the Sound Mode......24

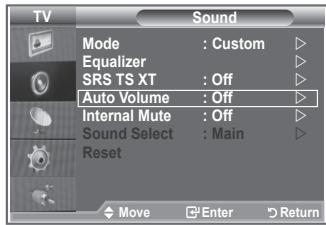

◆ Adjusting the Volume Automatically .....24

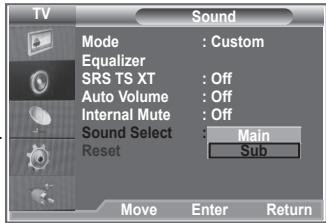

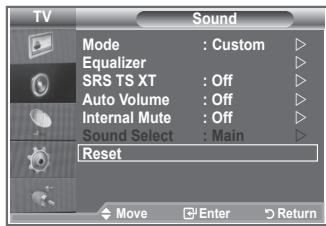

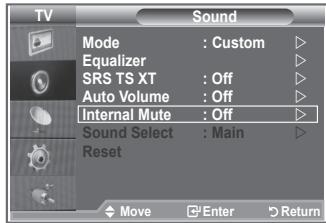

◆ Selecting the Internal Mute .....25
◆ Listening to the Sound of the Sub Picture.....25
◆ Resetting the Sound Settings to the Factory Defaults....26

SAMSUNG LE23R81W - SETTING THE SOUND - 1

Symbol

Press

SAMSUNG LE23R81W - SETTING THE SOUND - 2

Important

SAMSUNG LE23R81W - SETTING THE SOUND - 3

Note

SAMSUNG LE23R81W - SETTING THE SOUND - 4

One-Touch Button

SETTING THE TIME

◆ Setting and Displaying the Current Time .....26
◆ Setting the Sleep Timer....27

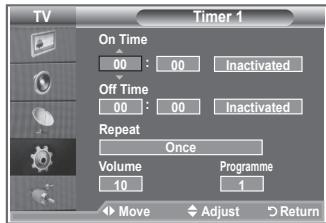

◆ Switching the Television On and Off Automatically....27

FUNCTION DESCRIPTION

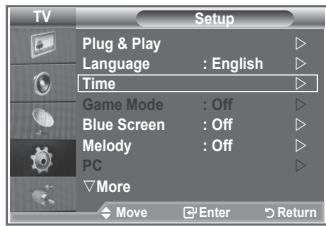

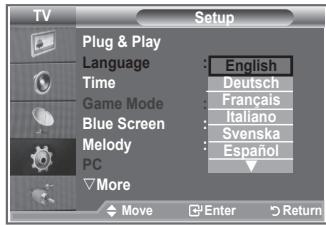

◆ Choosing Your Language......28

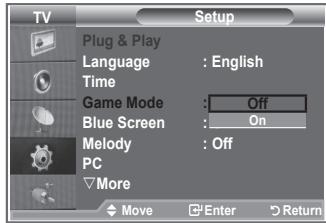

◆ Using Game Mode 28

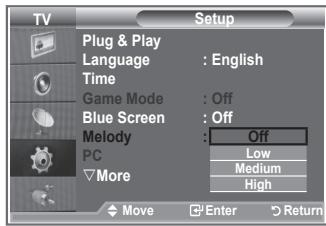

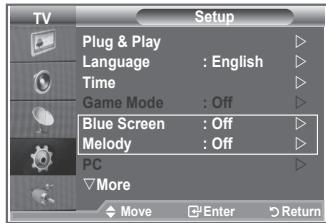

Setting the Blue Screen Mode / Selecting the Melody 29

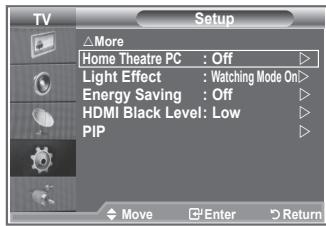

Setting the Home Theatre PC....29

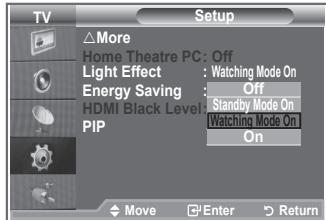

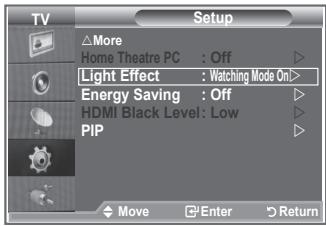

◆ Setting the Light Effect....30

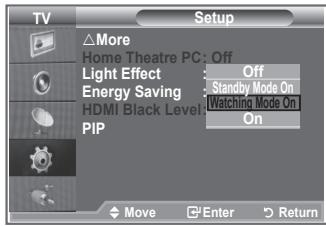

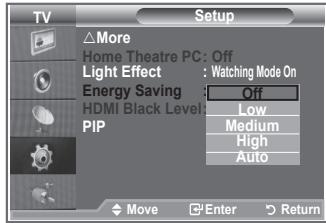

◆ Using the Energy Saving Feature ....30
◆ Selecting the Source....31

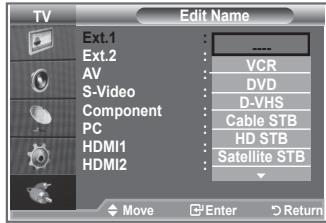

◆ Editing the Input Source Names ....31

USING THE TELETEXT FEATURE

◆ Teletext Decoder 32
◆ Displaying the Teletext Information ....32
◆ Selecting a Specific Teletext Page....33
◆ Using Fastext to Select a Teletext Page ......33

SETTING THE PC

Setting up Your PC Software (Based on Windows XP)....34
◆ Display Modes ....34
Setting the PC....35

RECOMMENDATIONS FOR USE

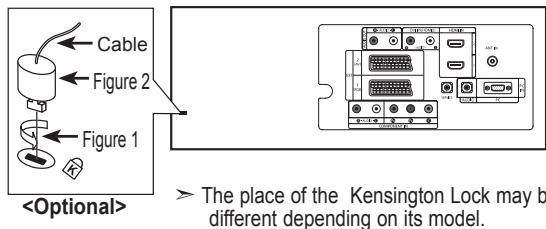

◆ Using the Anti-Theft Kensington Lock......36
◆ Troubleshooting: Before Contacting Service Personnel......36
◆ Technical and Environmental Specifications ..37

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)Power CordCover-BottomStand Screw X 4StandCleaning Cloth
·Owner's Instructions·Warranty card·Safety Guide·Registration Card

Warranty card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.

Installing the Stand

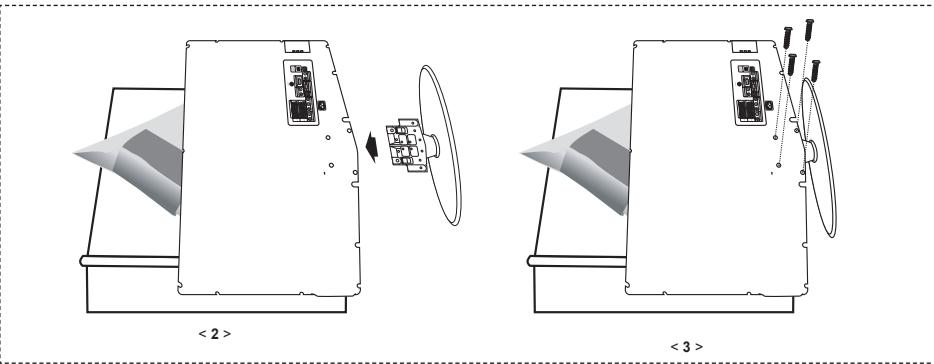

< 2 > < 3 >

  1. Place the TV faced down on a soft cloth or cushion on a table.
  2. Put the stand into the hole at the bottom of the TV.
  3. Insert screw into the hole indicated and tighten.

The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit

SAMSUNG LE23R81W - Installing the Wall Mount Kit - 1

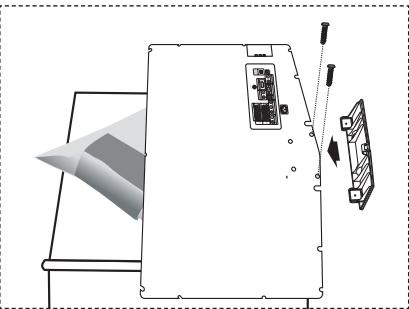

natural_image Diagram showing a device with a screen and a separate panel, no text or symbols present

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

SAMSUNG LE23R81W - Installing the Wall Mount Kit - 2

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

SAMSUNG LE23R81W - Installing the Wall Mount Kit - 3

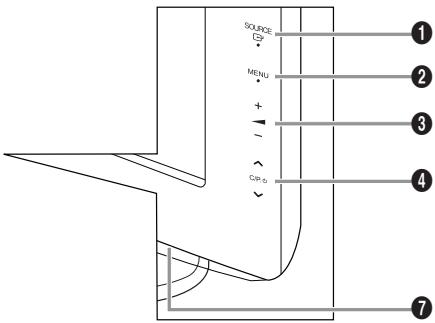

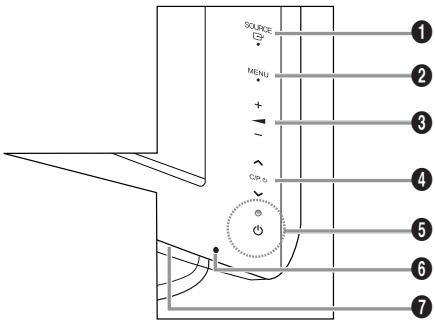

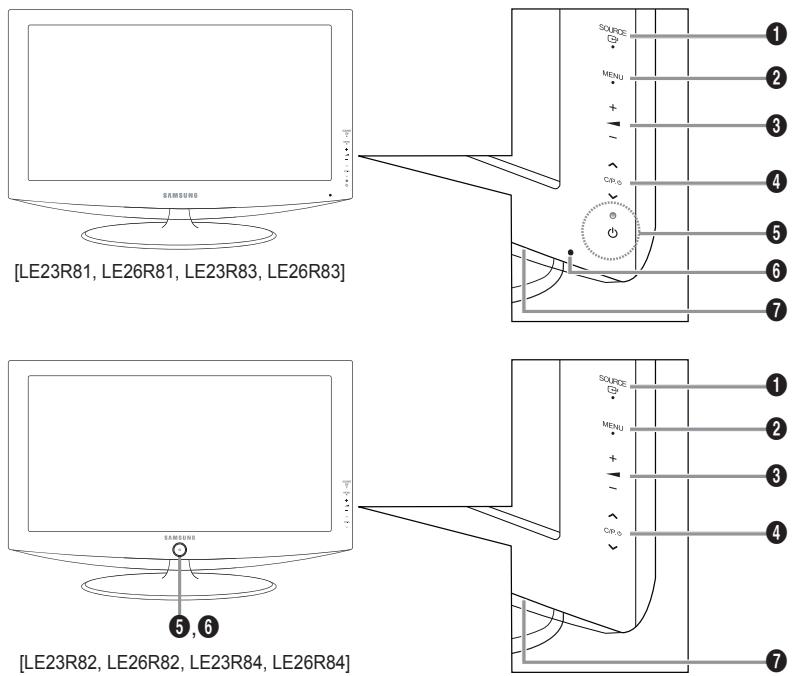

Front Panel buttons
Touch the right side of each button to operate.

The product colour and shape may vary depending on the model.

① SOURCE

Toggles between all the available input sources (TV, Ext1, Ext2, AV, S-Video, Component, PC, HDMI1, HDMI2,).

In the on-screen menu, use this button as you would use the ENTER button on the remote control.

② MENU

Press to see an on-screen menu of your TV's features.

③ + ▲ -

Press to increase or decrease the volume. In the on-screen menu, use the + ▶ - buttons as you would use the ◀ and ▶ buttons on the remote control.

4 < C/P. ⊙ >

Press to change channels.

In the on-screen menu, use the buttons as you would use the ▲ and ▼ butons on the remote control.

⑤ ⏻ (POWER)

Press to turn the TV on and off. POWER INDICATOR

Blinks and turns off when the power is on and lights up in stand-by mode.

⑥ REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

⑦ SPEAKERS

SAMSUNG LE23R81W - ⑦ SPEAKERS - 1
10

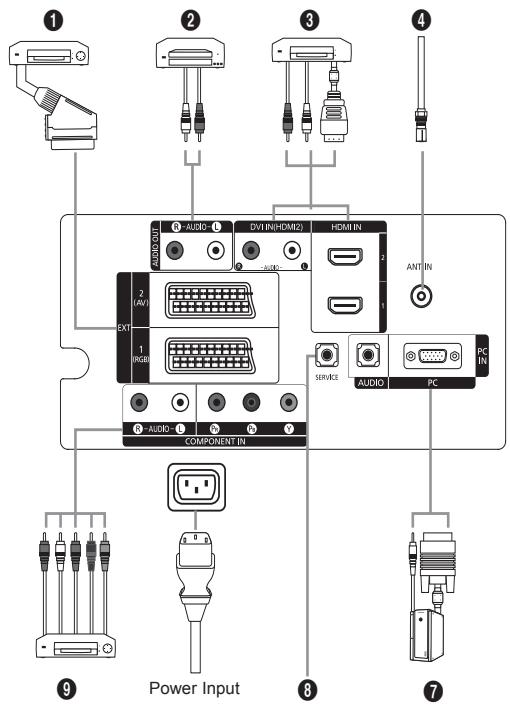

① ② ③ ④ AUDIO-1 DV(INI+HDMI) HDMI IN 2 (AV) EXT 1 (RGB) COMPONENT IN ⑤ AUDIO-1 ⑥ ⑦ ANTIN SERVICE AUDIO PC PC IN ⑧ ⑨ Power Input

AVIN 5+VIDEO VIDEO AUDIO Ω ⑤ ⑥

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.

① Connecting Set-Top Box, VCR or DVD

ConnectorInputOutput
VideoAudio (L/R)RGBVideo + Audio (L/R)
EXT 1OOOOnly TV
EXT 2OOOutput you can choose.

-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

② Connecting AUDIO

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater.

③ HDMI IN 1, HDMI IN 2

  • Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
  • No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

  • "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio (5.1 channels).
  • The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

DVI IN (HDMI IN 2) / (AUDIO R/L)

  • When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture.
  • When using an HDMI/DVI cable connection, it is only possible from the HDMI 2 IN terminal.

➢ You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the "R-AUDIO - L" terminal on DVI for sound output.

➢ Supported modes for HDMI/DVI and Component

480i480p576i576p720p1080i
HDMI/DVI 50HzXXXOOO
HDMI/DVI 60HzXOXXOO
ComponentOOOOOO

4 Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

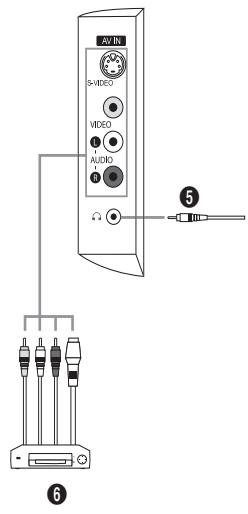

⑥ Connecting External A/V Devices

  • Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
  • Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.
  • Headphone may be connected to the headphone output (5) on the rear of your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

⑦ Connecting Computer

  • Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer.
  • Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer.

8 SERVICE

- Service connection for qualified service engineer.

⑨ Connecting Component Devices (DTV/DVD)

  • Connect component video cables (optional) to component connector ("P R ", "P B ", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.
  • If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("P R ", "P B ", "Y") on your set.
  • The P_R , P_B and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
  • Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.
  • This LCD TV displays its optimum picture resolution in 720p mode.
  • This LCD TV displays its maximum picture resolution in 1080i mode.

⑩ Kensington Lock

  • The Kensington lock (optional) is a device used to physically fix the system when used in a public place.
  • If you want to use a locking device, contact the dealer where you purchased the TV.
  • The place of the Kensington Lock may be different depending on its model.

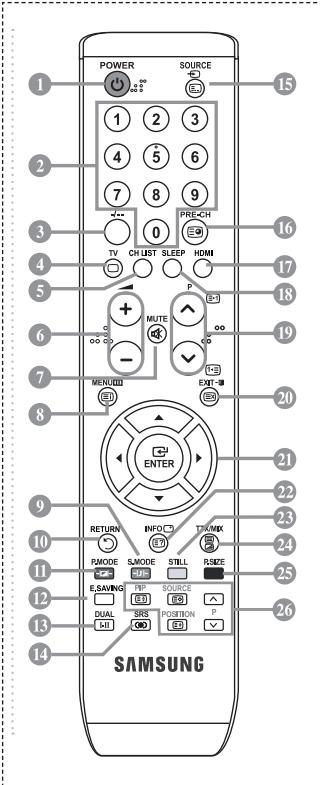

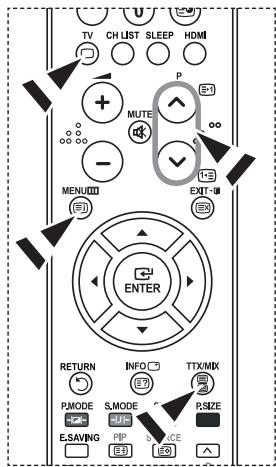

Viewing the Remote Control

① Television Standby button
② Number buttons for direct channel access
③ One/Two-digit channel selection
4 Selects the TV mode directly
⑤ Used to display Channel Lists on the screen.
6 + Volume increase - Volume decrease
⑦ Temporary sound switch-off
8 Menu display and change confirmation
9 Sound mode selection
10 Returns to the previous menu.
11 Picture effect selection
12 Adjusts screen brightness to save energy.
13 Sound effect selection
14 SRS TSXT selection
15 Available source selection
16 Previous channel
17 Selects the HDMI mode directly.
18 Automatic Power-off
19 P: Next channel P: Previous channel
20 Exit the OSD

21 Control the cursor in the menu
22 Use to see information on the current broadcast
23 Picture freeze
25 Picture size selection
26 PIP: Picture-In-Picture On / Off SOURCE: Input source selection POSITION: PIP position selection P□: Next channel P▼: Previous channel

Teletext Functions

④ Exit from the teletext display
8 Teletext index
15 Teletext mode selection (LIST/FLOF)
16 Teletext sub page
19 P ⬇: Teletext next page P ⬇: Teletext previous page
20 Teletext cancel
22 Teletext reveal
24 Alternately select Teletext, Double, or Mix.

9 11 23 25 Fastext topic selection

26 PIP:Teletext Hold 26 SOURCE: Teletext Store 26 POSITION: Teletext size selection

POWER SOURCE 1 2 3 4 5 6 7 8 9 0 PRE-CH TV CHUST SLEEP HDMI MUTE - MENU ENTER RETURN INFO TIME FMODE SMODE STILL RMDE E.SAVING SOURCE DUAL SRS POSITION P SAMSUNG 20 21 22 23 24 25 26

Installing Batteries in the Remote Control

  1. Lift the cover at the back of the remote control upward as shown in the figure.
  2. Install two AAA size batteries.

Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.
3. Replace the cover.
Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work, check the following:

  1. Is the TV power on?
  2. Are the plus and minus ends of the batteries reversed?
  3. Are the batteries drained?
  4. Is there a power outage, or is the power cord unplugged?
  5. Is there a special fluorescent light or neon sign nearby?

SAMSUNG LE23R81W - Installing Batteries in the Remote Control - 1

natural_image Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

SAMSUNG LE23R81W - Installing Batteries in the Remote Control - 2

natural_image Technical line drawing of a mechanical component with no visible text or symbols

SAMSUNG LE23R81W - Installing Batteries in the Remote Control - 3

natural_image Simple line drawing of a device handle with an arrow indicating direction (no text or symbols)

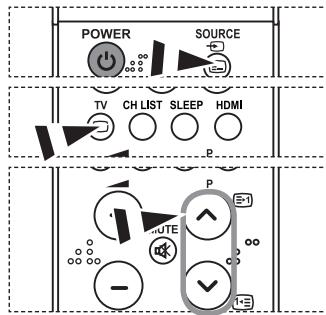

Switching On and Off

The mains lead is attached to the rear of your set.

  1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

  1. Press the ⏻ button on the front of the set.

➢ You also can press the POWER ⏻ button or the TV button on the remote control to turn the TV on.
The programme that you were watching last is reselected automatically.

  1. Press the numeric button (0\~9) or channel up/down ( / ) button on the remote control or C/P. button on the right side of the set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

  1. To switch your set off, press the POWER ⏻ button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

  1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on the front of your set.

  1. To switch your set back on, simply press the POWER, numeric buttons (0\~9), TV button or channel up/down (⊗/⊗) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial.

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

  1. Press the POWER button on the remote control. The message "Start Plug & Play" is displayed with "OK" selected.

  2. Select the appropriate language by pressing the ▲ or ▼ but tons.

Press the ENTER button to confirm your choice.

  1. Press the ◀ or ▶ buttons to select "Shop" or "Home", then the ENTER button.

We recommend setting the TV to Home mode for the best picture in your home environment.
➢ Shop mode is only intended for use in retail environments.
If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode, press the Volume button and then hold down the MENU button for five seconds on the side panel of the TV.

  1. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button.

➢ Please check that the antenna cable is connected correctly.

  1. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER button to confirm your choice.

  1. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically.
After all the available channels are stored, the "Clock Set" menu appears.
➢ Press the ENTER button at any time to interrupt the memorization process.

  1. Press the ENTER button.

Select the "Month", Year", "Day", Hour" or "Minute" by pressing the ◀ or ▶ buttons.

Set the "Month", Year", "Day", Hour" or "Minute" by pressing the ▲ or ▼ buttons.

➢ You can also set the hour and minute by pressing the number buttons on the remote control.

Press the ENTER button to confirm your setting.

♦ Language: Select your language.
- Country: Select your country.
- Auto Store: Automatically scans for and stores channels available in the local area.
♦ Clock Set: Sets the current time for the TV clock.

Plug & Play Start Plug & Play. OK Enter Exit

If you want to reset this feature...

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ENTER button again, to select "Plug & Play".
  3. The message to "Start Plug & Play" is displayed.

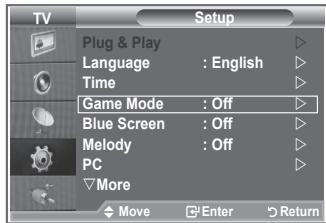

Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

Plug & Play Start Plug & Play. OK Enter Return

  • Storing Channels Automatically
  • Storing Channels Manually

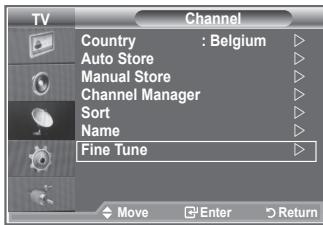

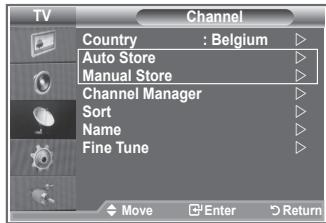

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
  2. Press the ENTER button to select "Country".
  3. Select the appropriate country by pressing the ▲ or ▼ button.
    Press the ENTER button to confirm your choice.

  4. Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.

  5. Press the ENTER button.

The TV will begin memorizing all of the available channels.
➢ Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

  1. After all the available channels are stored, the "Sort" menu appears.

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks.

When storing channels manually, you can choose:

◆Whether or not to store each of the channels found.
◆The programme number of each stored channel which you wish to identify.

  1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

  1. Press the ▲ or ▼ button to select "Manual Store", then press the ENTER button.
  2. Press the ENTER button to select "Programme".
  3. To assign a programme number to a channel, find the correct number by pressing the ▲ or ▼ button and then press the ENTER button.

➢ You can also set a programme number by pressing number buttons on the remote control.

  1. Press the ▲ or ▼ button to select "Colour System", then press the ENTER button.
  2. Select the colour standard required by pressing the ▲ or ▼ button then, press the ENTER button.
  3. Press the ▲ or ▼ button to select "Sound System", then press the ENTER button.
  4. Select the sound standard required by pressing the ▲ or ▼ button, then press the ENTER button.

If there is an abnormal sound or no sound, re-select the sound system required.

  1. If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel".

Press the ENTER button. Select C (Air channel) or S (Cable channel) by pressing the ▲ or ▼ button. Press the ▶ button to select channel.

Select the required number by pressing the ▲ or ▼ button and then press the ENTER button.

➢ Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode)
➢ You can also set a channel number by pressing number buttons on the remote control.

  1. If you do not know the channel numbers, press the ▲ or ▼ button to select "Search".

Press the ENTER button. Search by pressing the ▲ or ▼ button and then press the ENTER button.

  1. Press the ▲ or ▼ button to select "Store". Press the ENTER button to select "OK".
  2. Repeat steps 3 to 11 for each channel to be stored.

♦ Programme: Selects a program number for the channel.
♦ Colour System: Sets the colour supporting system.
- Sound System: Sets the sound supporting system.
- Channel: Selects a channel.
♦ Search: Scans for the frequency value for the channel.
♦ Store: Saves your settings.

Setting the Channel Lists

Set the channels according to your preference.

You can easily delete, add, or lock the channel you want.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
  3. Press the ENTER button again, to select "Channel List".
  4. Press the ▶ button to select "⊕" line.
  5. Press the ▲ or ▼ button to select the undesired channel, then press the ENTER button to cancel.
  6. Repeat steps 5 for each channel to be selected or canceled
  7. Press the EXIT button to exit.

"> " 🔒 " is active when "Child Lock" is selected to "On".

You can select these options by simply pressing the CH LIST button on the remote control.

Channel List P 1 C3 1 / 10 Prog. 0 C-- 1 C3 ✓ 2 BBC 1 ✓ ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

TV CH LIST SLEEP HDMI P E-1

Activating the Child Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "Child Lock", then press the ENTER button.
  4. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
  5. Press the ▲ or ▼ button to select "Channel List", then press the ENTER button.
  6. Press the ▶ button to select "☐" line.
  7. Press the ▲ or ▼ button to select the channels you want to lock, then press the ENTER button.
  8. Repeat steps 7 for each channel to be locked or unlocked.
  9. Press the EXIT button to exit.

➢ Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "☐" to be active or inactive.

TV Channel Manager Channel List Child Lock : Off On Move Enter Return

Channel List P 2 C4 BBC1 1 / 10 Prog. 0 C-- 1 C3 ✓ 2 BBC 1 ✓ ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

Sorting the Stored Channels

You can exchange the numbers of two channels, in order to:

◆ Modify the numeric order in which the channels have been automatically stored.
- Give easily remembered numbers to the channels that you watch most often.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Sort", then press the ENTER button.
  3. Select the channel number that you wish to change by pressing the ▲ or ▼ button repeatedly. Press the ENTER button.

The selected channel number and name are moved to right side.

  1. Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER button.

The selected channel is exchanged with the one previously stored to the chosen number.

  1. Repeat steps 3 to 4 for another channel to be sorted.
  2. Press the EXIT button to exit.

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

TV Sort Prog. Ch. Name 0 C-- 1 C23 2 C16 3 C3 4 S1 Move Enter Return

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Name", then press the ENTER button.
  3. If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button.

The selection bar is displayed around the name box.

4.To...Then...
Select a letter, number or symbolPress the ▲ or ▼ button
Move on the next letterPress the ▶ button
Move back the previous letterPress the ◀ button
Confirm the namePress the ENTER button

The characters available are : Letters of the alphabet (A\~Z) / Numbers (0\~9) / Special characters (-, space)

  1. Repeat steps 3 to 4 for each channel to be assigned to a new name.
  2. Press the EXIT button to exit.

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

TV Prog. Ch. Name 0 C-- ---- 1 C23 ---- 2 C16 ---- 3 C3 ---- 4 S1 ---- Move Enter Return

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

  1. Use the number buttons to directly select the channel that you want to fine tune.
  2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button.
  4. Press the ◀ or ▶ button to adjust the fine tuning. Press the ENTER button.
  5. Press the EXIT button to exit.

    Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.
    To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

TV Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return

Fine Tune P 1 0 Reset Adjust Save Return

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

  1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
  2. Press the ENTER button again, to select "Mode".
  3. Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.

  4. Press the EXIT button to exit.

  5. Dynamic: Selects the picture for high-definition in a bright room.

  6. Standard: Selects the picture for optimum display in a normal environment.
    ♦ Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.
➢ You can return to the factory defaults picture settings by selecting the "Reset".
(Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19)

TV Picture Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Backlight : 0 More Move Enter Return

TV Picture Mode : Dynamic Contrast Standard 00 Brightness Movie 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Backlight : 0 More Move Enter Return

P.MODE E.SAVING DUAL SRS SOURCE POSITION E?? STILL P.SIZE P

SAMSUNG LE23R81W - You can select the type of picture which best corresponds to your viewing requirements. - 4

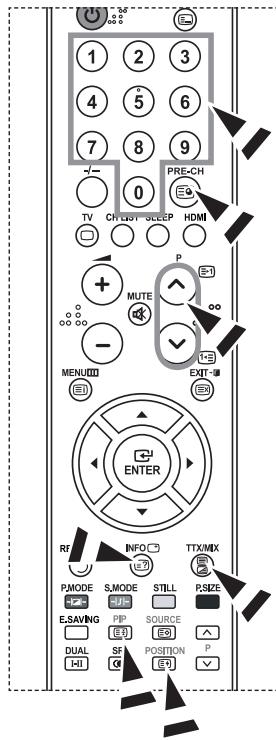

You can also press the P.MODE button on the remote control to select one of the picture settings.

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

  1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (on page 14)
  2. Press the ▲ or ▼ button to select a particular item. Press the ENTER button.
  3. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER button.

  4. Press the EXIT button to exit.

  5. Contrast: Adjusts the lightness and darkness between objects and the background.
    ♦ Brightness: Adjusts the brightness of the whole screen.

  6. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
    ♦ Colour: Adjusts the colours, making them lighter or darker.
  7. Tint(NTSC only): Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.
In PC Mode, Only "Contrast", "Brightness" can be adjusted.
“Tint” function is available only in “HDMI” and “Component” mode.

Changing the Colour Tone

You can select the most comfortable colour tone to your eyes.

  1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (on page 14)
  2. Press the ▲ or ▼ button to select "Colour Tone", then press the ENTER button.
  3. Press the ▲ or ▼ button to select the desired colour tone setting. Press the ENTERbutton.

  4. Press the EXIT button to exit

  5. Cool2: Makes the colour temperature bluer than "Cool1" menu.
    ♦ Cool1: Makes whites bluish.
    ♦ Normal: Keeps whites white.
    ♦ Warm1: Makes whites reddish.
    ♦ Warm2: Makes the colour temperature redder than "Warm1" menu.

The adjusted values are stored according to the selected Picture mode.
When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.

TV Picture Mode : Dynamic ▷ Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 ▷ Backlight : 0 ▷ ▼More Move Enter Return

TV Picture Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Backlight : 0 More Move Enter Return

TV Picture Mode : Dynamic Contrast 100 Brightness 50 Sharpness Cool 2 5 Colour Cool 1 5 Tint G50 Normal 0 Colour Tone Warm 1 Backlight Warm 2 More 0 Move Enter Return

Activating Backlight.

You can adjust the screen brightness by adjusting the LCD backlight brightness. (0\~10)

  1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 14)
  2. Press the ▲ or ▼ button to select "Backlight", then press the ENTER button.
  3. Press the ◀ or ▶ button to decrease or increase the value of a particular item.
    Press the ENTER button.
  4. Press the EXIT button to exit.

TV Picture Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Backlight : 0 More Move Enter Return

Backlight 5 Adjust Return

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1 Press the MENU button to display the menu.
2 Press the ENTER button, to select "Picture".
3 Press the ▲ or ▼ button to select Detail Settings, then press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, My Colour Control, Edge Enhancement
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.

When the picture mode is set to Movie or Standard, Detailed Settings can be selected.
➢ If DNle is Off, the Detailed Settings cannot be selected when the Picture mode is in Standard mode.

TV Picture More Detailed Settings : Size : Auto Wide Screen Mode : 16 : 9 Digital NR : On Active Colour : Off DNle : Off Reset : Ok Move Enter Return

TV Detailed Settings Black Adjust : Off Dynamic Contrast : Off Gamma : 0 Colour Space : Auto White Balance : My Colour Control Edge Enhancement : Off Move Enter Return

◆ Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

◆ Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

◆ Gamma: -3 \~ +3

You can adjust the middle brightness of pictures.

Press the ◀ or ▶ button until you reach the optimal setting.

◆ Colour Space: Auto/Wide

You can set the colour reproduction space for the input signal to Auto or Wide.

◆ White Balance: R Offset/G Offset/B Offset/R Gain/G Gain/B Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R Offset/G Offset/B Offset/R Gain/G Gain/B Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Press the ◀ or ▶ button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

◆ My colour Control: Pink/Green/Blue/White/Reset

This setting can be adjusted to suit your personal preferences.

Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Press the ◀ or ▶ button until you reach the optimal setting.

➢ Reset: The previously adjusted colours will be reset to the factory defaults.

◆ Edge Enhancement: Off/On

You can emphasize object boundaries.

Changing the Picture Size

You can select the picture size which best corresponds to your viewing requirements.

  1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture"
  2. Press the ▲ or ▼ button to select "Size", then press the ENTER button.
  3. Select the required option by pressing the ▲ or ▼ button. Press the ENTER button.

  4. Press the EXIT button to exit.

  5. Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

  6. 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
  7. Wide Zoom: Magnify the size of the picture more than 4:3.
  8. Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
    ♦ 4:3: This is the default setting for a video movie or normal broadcasting.
  9. Just Scan : Displays the input scenes as they are without any cutoff when HDMI 720p,1080i signals are input.

"Auto Wide" function is available only in "TV", "Ext1", "Ext2", "AV", and "S-Video" mode.
➢ In PC Mode, only "16:9" or "4:3" mode can be adjusted.
Zoom : Select ☐ by pressing the ◀ or ▶ buttons. Use the ▲ or ▼ button to move the picture up and down. After selecting ☐, use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.
Wide Zoom : Move the screen up/down using the ▲ or ▼ buttons after selecting the ☑ by pressing the ▶ or ENTER button.

TV Picture △More Detailed Settings Size : Auto Wide Screen Mode : 16 : 9 Digital NR : Off Active Colour : Off DNle : Off Reset : Ok Move Enter Return

TV Size Auto Wide 16:9 Wide Zoom Zoom 4:3 Just Scan Move Enter Return

RETURN INFO TTX/MIX P.MODE S.MODE STILL P.SIZE E.SAVING PIP SOURCE

You can select these options by simply pressing the P.SIZE button on the remote control.

Freezing the Current Picture

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

P.MODE S.MODE STILL P.SIZE E.SAVING PIP SOURCE

Selecting the Screen Mode

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

  1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
  2. Press the ▲ or ▼ button to select "Screen Mode", then press the ENTER button.

  3. Select the required option by pressing the ▲ or ▼ button. Press the ENTER button.
    Available options: 16:9, Wide Zoom, Zoom, 4:3
    ◆ 16:9: Sets the picture to 16:9 wide mode.
    ◆ Wide Zoom: Magnify the size of the picture more than 4:3. Move the screen up/down using the ▲ or ▼ button after selecting the ☐ by pressing the ▶ or ENTER button.
    ◆ Zoom: Magnify the size of the picture vertically on screen.
    ◆ 4:3: Sets the picture to 4:3 normal mode.

  4. Press the EXIT button to exit.

➢ Picture Size is available in Auto Wide mode.
This function is not available in PC, HDMI or Component mode.

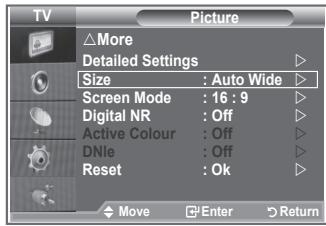

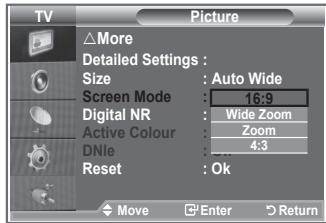

TV Picture △More Detailed Settings : Size : Auto Wide ▶ Screen Mode : 16 : 9 ▶ Digital NR : Off ▶ Active Colour : Off ▶ DNle : Off ▶ Reset : Ok ▶ Move Enter Return

TV Picture △More Detailed Settings : Size : Auto Wide Screen Mode : 16:9 Digital NR : Wide Zoom Active Colour : Zoom DNle : 4:3 Reset : Ok Move Enter Return

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

  1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 (on page 14.)
  2. Press the ▲ or ▼ button to select "Reset", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button.
  4. Press the EXIT button to exit.
    The "Reset" will be set for each picture mode.

TV Picture △More Detailed Settings Size : Auto Wide Screen Mode : 16 : 9 Digital NR : Off Active Colour : Off DNle : Off Reset : Ok Move Enter Return

TV Picture △More Detailed Settings Size : Auto Wide Screen Mode : 16:9 Digital NR : Off Active Colour : Off DNle : Off Reset : OK Cancel Move Enter Return

Digital NR / Active Colour / DNle

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

  1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

  1. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Available options: Digital NR, Active Colour, DNle.

  1. When you are satisfied with your setting, press the ENTER button.

  2. Press the EXIT button to exit.

◆ Digital NR: Off/Low/Medium/High/Auto

If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen.

This function is not available in PC mode.

Active Colour: Off/On

If you turn on this option, the colours of the sky and grass will be stronger and clearer for a more vivid on-screen picture.

This function is not available in PC mode.

This function is not available in Movie and Standard mode.

DNle : Off/Demo/On

This TV includes the DNle function so as to provide a high visual quality. If you set DNle to on, you can view the screen with the DNle feature activated. If you set the DNle to Demo, you can view the applied DNle and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNle^TM (Digital Natural Image engine) DNle^TM

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNle™ technology will fit every signal into your eyes.

This function is not available in PC mode.

This function is not available in Movie mode.

TV Picture △More Detailed Settings : Size : Auto Wide Screen Mode : 16 : 9 Digital NR : Off Active Colour : Off DNle : Off Reset : Ok Move Enter Return

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "PIP", then press the ENTER button.
  3. Press the ENTER button again. Press the ▲ or ▼ button to select "On", then press ENTER button.

➢ If the PIP is activated, the size of the main picture turns to "16:9".

  1. Press the ▲ or ▼ button to select "Source", then press ENTER button. Select a source of the sub picture by pressing the ▲ or ▼ button and press the ENTER button.

The sub picture can serve different source selections based on what the main picture is set to.

  1. Press the ▲ or ▼ button to select "Size" of the sub picture and then press the ENTER button.

Select a size of the sub picture by pressing the ▲ or ▼ button and then press the ENTER button.

If main picture is in "Component" and "PC" mode, "Size" is not available.

  1. Press the ▲ or ▼ button to select "Position", then press the ENTER button. Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Programme" and then press the ENTER button. You can select the channel that you want to view through sub picture by pressing the ▲ or ▼ button. Press the ENTER button.

The "Programme" can be active when the sub picture is set to TV.

  1. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

  • Source: Used to select a source of the sub picture.
    ♦ Size: Used to select a size of the sub picture.
    ♦ Position: Used to move the sub picture.
    ♦ Programme: Used to Change the sub picture.

TV Setup △More Home Theatre PC : Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

TV PIP PIP : On Source : TV Size : ▶ Position : ▶ Programme : P 1 Move Enter Return

P.MODE S.MODE STILL P.SIZE E.SAVING PI3 SOURCE DUAL SRS PO4 P I-II O E9 √

Press the PIP button on the remote control repeatedly to activate or deactivate the "PIP".

PIP Settings

O: PIP operates, X: PIP doesn't operate

Main\SubTV analogExt.1Ext.2AVS-VideoComponentHDMIPCTV digital
ComponentOOOOXXXXX
HDMIOOOOXXXXX
PCOOOOXXXXX

You can directly select the black level on the screen to adjust the screen depth.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

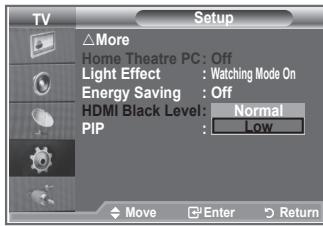

  2. Press the ▲ or ▼ button to select "HDMI Black Level", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "Normal" or "Low", then press the ENTER button.
  4. Press the EXIT button to exit.

This function is active only when the external input connects to HDMI(RGB signals).

♦ Normal: The screen gets brighter.

- Low: The screen gets darker.

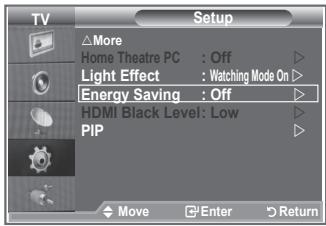

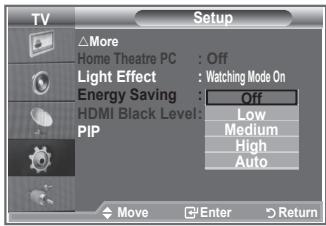

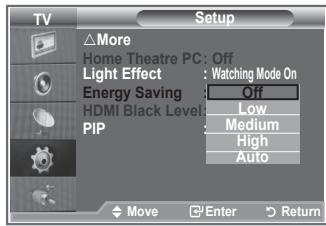

Setup More Home Theatre PC : Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

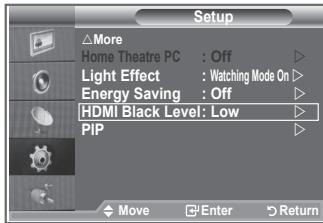

Setup △More Home Theatre PC : Off Light Effect : Off Energy Saving : Off HDMI Black Level: Normal PIP Low Move Enter Return

Changing the Sound Standard

You can select the type of the special sound effect to be used when watching a given broadcast.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
  2. Press the ENTER button again, to select "Mode".
  3. Select the required sound effect by pressing the ▲ or ▼ button repeatedly and then press the ENTER button.

  4. Press the EXIT button to exit.

  5. Standard: Selects the normal sound mode.
    ♦ Music: Emphasizes music over voices.
    ♦ Movie: Provides live and full sound for movies.
    ♦ Speech: Emphasizes voices over other sounds.

  6. Custom: Selects your custom sound settings. (Refer to "Adjusting the Sound Settings")

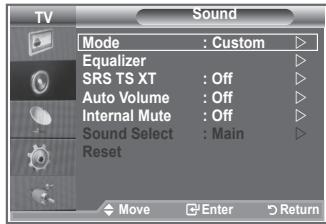

TV Sound Mode : Custom ▶ Equalizer ▶ SRS TS XT : Off ▶ Auto Volume : Off ▶ Internal Mute : Off ▶ Sound Select : Main ▶ Reset Move Enter Return

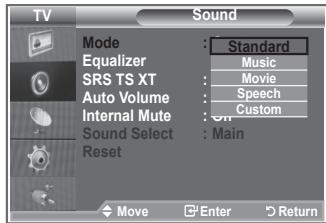

TV Sound Mode : Standard Equalizer : Music SRS TS XT : Movie Auto Volume : Speech Internal Mute : Custom Sound Select : Main Reset Move Enter Return

Adjusting the Sound Settings

The sound settings can be adjusted to suit your personal preferences.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Equalizer", then press the ENTER button.
  3. Press the ◀ or ▶ button to select a particular item. Press the ENTER button.
  4. Press the ▲ or ▼ button to reach the required setting. Press the ENTER button.
  5. Press the EXIT button to exit.
    If you make any changes to these settings, the Sound Mode is automatically switched to "Custom".

TV Sound Mode : Custom ▶ Equalizer ▶ SRS TS XT : Off ▶ Auto Volume : Off ▶ Internal Mute : Off ▶ Sound Select : Main ▶ Reset Move Enter Return

TV Equalizer R + 0 - L Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return

Setting the TruSurround XT (SRS TS XT)

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "SRS TS XT", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
  4. Press the EXIT button to exit.

SAMSUNG LE23R81W - Setting the TruSurround XT (SRS TS XT) - 1

TruSurround XT, SRS and ⬇ symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

TV Sound Mode : Custom ▶ Equalizer ▶ SRS TS XT : Off ▶ Auto Volume : Off ▶ Internal Mute : Off ▶ Sound Select : Main ▶ Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : On Internal Mute : Off Sound Select : Main Reset Move Enter Return

DUAL I-II SRS CCC POSITION P SAMSUNG

You can also set these options simply by pressing the SRS button on remote control.

Connecting Headphones

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "SRS TS XT" and "Auto Volume" in Sound menu.
➢ Prolonged use of headphones at a high volume may damage your hearing.
➢ You will not receive sound from the speakers when you connect headphones to the system.
The headphone volume and TV volume are adjusted differently.

SAMSUNG LE23R81W - Connecting Headphones - 1

natural_image Illustration of a pair of headphones connected by a cable to a wall-mounted connector (no text or symbols)

Selecting the Sound Mode

You can set the sound mode by pressing the "DUAL" button. When you press it, the current sound mode is displayed on the screen.

Audio TypeDUAL 1/2Default
FM StereoMonoMONOAutomatic change
StereoSTEREO ↔ MONO
DualDUAL 1 ↔ DUAL 2DUAL 1
NICAM StereoMonoMONOAutomatic change
StereoMONO ↔ STEREO
Dual MONO ↔ DUAL 1—DUAL 2←DUAL 1

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

E.SAVING PIP SOURCE DUAL POSITION P

You can also set these options simply by pressing the DUAL button on remote control.

Adjusting the Volume Automatically

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Auto Volume", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
  4. Press the EXIT button to exit.

TV Sound Mode : Custom ▶ Equalizer ▶ SRS TS XT : Off ▶ Auto Volume : Off ▶ Internal Mute : Off ▶ Sound Select : Main ▶ Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : On Sound Select : Main Reset Move Enter Return

Selecting the Internal Mute

If you want to hear the sound through separate speakers, cancel the internal amplifier.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Internal Mute", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
  4. Press the EXIT button to exit.
    When "Internal Mute" is set to "On", the Sound menus except for "Sound Select" (in PIP mode) cannot be adjusted.

TV Sound Mode : Custom ▶ Equalizer ▶ SRS TS XT : Off ▶ Auto Volume : Off ▶ Internal Mute : Off ▶ Sound Select : Main ▶ Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Sound Select : On Reset Move Enter Return

Listening to the Sound of the Sub Picture

During the PIP features activation, you can listen to the sound of the sub picture.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Sound Select", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "Sub".
    Press the ENTER button.

  4. Press the EXIT button to exit.

  5. Main : Used to listen to the sound of the main picture.
    Sub : Used to listen to the sound of the sub picture.

You can select this option when the "PIP" is set to "On".

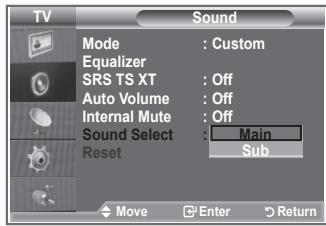

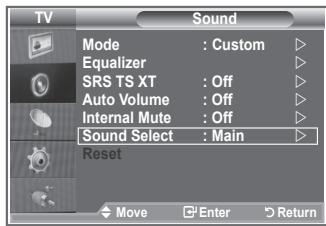

TV Sound Mode : Custom ▷ Equalizer ▷ SRS TS XT : Off ▷ Auto Volume : Off ▷ Internal Mute : Off ▷ Sound Select : Main ▷ Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Sub Move Enter Return

Resetting the Sound Settings to the Factory Defaults

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Sound", then press the ENTER button.

  2. Press the ▲ or ▼ button to select "Reset", then press the ENTER button.

  3. Press the EXIT button to exit.

➢ You can select this option when the "Game Mode" is set to "On".

TV Sound Mode : Custom ▶ Equalizer ▶ SRS TS XT : Off ▶ Auto Volume : Off ▶ Internal Mute : Off ▶ Sound Select : Main ▶ Reset Move Enter Return

Setting and Displaying the Current Time

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

  2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.

  3. Press the ENTER button to select "Clock Set".

4.

To...Press the...
Move to Month, Day, Year, Hou or Minute◀ or ▶ button.
Set the Month, Day, Year, Hou or Minute▲ or ▼ button.
Press the ENTER button.
  1. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.
➢ You can also set Year, Month, Day, Hour and Minute by pressing the number buttons on the remote control.

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

TV Clock Set Month Day Year 01 01 2007 Hour Minute 00 00 Move Adjust 5 Return

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button.
  4. Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.
  5. Press the EXIT button to exit.
    The TV automatically switches to standby mode when the timer reaches 0.

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

TV Clock Set : 00 : 00 Sleep Timer : Off Timer 1 : 30 Timer 2 : 60 Timer 3 : 90 120 150 180 Move Enter Return

Switching the Television On and Off Automatically

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Time", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2", "Timer 3", then press the ENTER button.
  4. Press the ▲ or ▼ buttons to adjust "Hour", then press the ▶ button to move to the next step.
    Set other items using the same method as above.
Activate or InactivatePress the ▲or▼ button
RepeatSelect a Once, Everyday, Mon-Fri, Mon-Sat, Sat-SunPress the ▲or▼ button
VolumeAdjust a 0~100Press the ▲or▼ button
ProgrammeAdjust a ProgrammePress the ▲or▼ button

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

TV Timer 1 On Time 00 : 00 Inactivated Off Time 00 : 00 Inactivated Repeat Once Volume 10 Programme 1 Move Adjust Return

When finished, press the RETURN button to return.

  • The current time will appear every time you press the INFO button.

  • You can set the hour, minute, channel, and directly by pressing the number buttons on the remote control.

  • Press the EXIT button to exit.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

  1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Language", then press the ENTER button.
  3. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button. ➤ You can choose one of 17 languages.
  4. Press the EXIT button to exit.

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

Setup Plug & Play Language : English Time : Deutsch Game Mode : Français Blue Screen : Italiano Melody : Svenska PC : Español More Move Enter Return

Using Game Mode

When connecting to a game console such as PlayStation ^™ or Xbox ^™ , you can enjoy a more realistic gaming experience by selecting game menu.

  1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Game Mode", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
  4. Press the EXIT button to exit.

To disconnect the game console and connect another external device, cancel game mode in the setup menu
➢ If you display the TV menu in Game mode, the screen shakes slightly.
Game Mode is not available in TV mode.
▶ If Game Mode is On:

  • Picture Mode changes to Standard and Sound Mode changes to Custom automatically. The user cannot change these to other modes.
  • Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
  • The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : On Melody : Off PC More Move Enter Return

Setting the Blue Screen Mode / Selecting the Melody

Blue Screen:

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Melody:

You can hear melody sound when the television is powered on or off.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Blue Screen" or "Melody". Press the ENTER button.
  3. When you are satisfied with your setting, press the ENTER button.
    Blue Screen: Off/On
    ◆ Melody: Off/Low/Medium/High
  4. Press the EXIT button to exit.

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Move Enter Return

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : On PC More Move Enter Return

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC More Low Medium High Move Enter Return

Setting the Home Theatre PC

You can view higher quality pictures by configuring the screen settings in PC Mode.

If you set the Home Theatre PC function to On, you can configure the Detail Settings (when Picture Mode is set to Standard or Movie) as in PC Mode.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Home Theatre PC". Press the ENTER button.
  3. Press the ▲ or ▼ button to select "Off" or "On". Press the ENTER button.
  4. Press the EXIT button to exit.
    ➢ This function is available only in PC mode.

TV Setup △ More Home Theatre PC : Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

TV Setup △More Home Theatre PC : Off Light Effect : On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

Setting the Light Effect

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

  1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Light Effect", then press the ENTER button.

  3. Select the required option (Off, Standby Mode On, Watching Mode On, On) by pressing the ▲ or ▼ button. Press the ENTER button.

  4. Off: LED will not come on.

  5. Standby Mode On: Turns the LED on in standby mode.
    ♦ Watching Mode On: Turns the LED on while watching TV.

  6. On: LED will come on after you turn the TV off.

  7. Press the EXIT button to exit.

TV Setup △More Home Theatre PC : Off Light Effect : Watching Mode On > Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

TV Setup △More Home Theatre PC : Off Light Effect : Off Energy Saving : Standby Mode On HDMI Black Level: Watching Mode On PIP On Move Enter Return

SAMSUNG

[LE23R81, LE26R81, LE23R83, LE26R83]

Using the Energy Saving Feature

This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving" mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

  1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  2. Press the ▲ or ▼ button to select "Energy Saving", then press the ENTER button.
  3. Select the required option (Off, Low, Medium, High, Auto) by ▲ or ▼ button. Press the ENTER button.
  4. Press the EXIT button to exit.

TV Setup △More Home Theatre PC : Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

TV Setup △More Home Theatre PC : Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Low PIP Medium High Auto Move Enter Return

Selecting the Source

You can select among external sources connected to your TV's input jacks.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Input", then press the ENTER button
  2. Press the ENTER button again, to select "Source List".
    When no external device is connected to your set, only "TV", "Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2", are activated only when they are connected to your set.
  3. Select the required device by pressing the ▲ or ▼ button. Press the ENTER button.

Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV button, number buttons(0\~9), and the P◎/◎ button on the remote control. But it cannot be selected using the SOURCE button.

TV Input Source List : TV Edit Name Move Enter Return

TV Source List TV Ext.1 : ---- Ext.2 : ---- AV : ---- S-Video : ---- Component : ---- PC : ---- HDMI1 : ---- HDMI2 : ---- Move Enter Return

POWER SOURCE TV CH LIST SLEEP HDMI P +1 -

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

  1. Press the MENU button to display the menu.
    Press the ▲ or ▼ button to select "Input", then press the ENTER button
  2. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button.
  3. Press the ▲ or ▼ button to select the device that you wish to edit.
    Press the ENTER button.
  4. Press the ▲ or ▼ button to select the required device.
    Press the ENTER button.
  5. Press the EXIT button to exit.

TV Source List : TV Edit Name Move Enter Return

TV Edit Name Ext.1 Ext.2 AV S-Video Component PC HDMI1 HDMI2 VCR DVD D-VHS Cable STB HD STB Satellite STB Move Enter Return

Teletext Decoder

Most set channels carry "teletext", pages of written information that provide information such as:

◆Television programme times.
◆News bulletins and Weather forecasts.
◆Sports results.
◆ Subtitles for the hard of hearing.

The teletext pages are organized according to six categories:

A B C D E F

PartContents
ASelected page number.
BBroadcasting station identity.
CCurrent page number or search status.
DDate and time.
EText.
FStatus information.

Displaying the Teletext Information

You can display teletext information at any time, but signal reception must be good. Otherwise:

◆Information may be missing.
◆Some pages may not be displayed.

To activate the teletext mode and display the contents page:

  1. Using the P ⚙ (≡1) or P ⚧ (1≡) button, select the channel providing the teletext service.
  2. Press the TTX/MIX (☐/☐) button to activate the teletext mode. ➢ The contents page is displayed. It can be redisplayed at any time by pressing the MENU (☐) button.
  3. Press the TTX/MIX (☐/☐) button again. ➢ The actual broadcast will be displayed with "Teletext", "Double", and "Mix" in order on the screen.
  4. Press the TV button to exit from the Text display.

If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the "Setup" menu mode. If both languages are different, select the same language with the Text language on the "Setup" menu.

TV CH LIST SLEEP HDMI P MUTE MENU EXIT ENTER RETURN INFO TTX/MX PMODE S.MODE P.SIZE E.SAVING PIP SERVICE

Selecting a Specific Teletext Page

Press the number buttons on the remote control to enter the page number directly:

  1. Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons.

  2. If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the PIP (≡) . Press the PIP (≡) button again to resume.

  3. Using the various display options:

To display...Press the...
Both teletext information and the normal broadcastTTX/MIX (☐/☐)
Hidden text (answers to quiz games, for example)INFO (☐?)
The normal screenINFO (☐?)
A secondary page, by entering its 4-digit numberPRE-CH (☐)
The next pageThe previous pageP ⬇ (☐1)P ⬇ (☐2)
Double-size letters in the:• Upper half of the screen• Lower half of the screenPOSITION (☐1)• Once• Twice
Normal screen• Three times

1 2 3 4 5 6 7 8 9 PRE-CH 0 TV CH QST SCEEP HDMI MUTE P MENU EXIT ENTER RF NFO TTX/MX PMODE SJMODE STILL PSIZE E.SAVING PIP SOURCE DUAL SF POSITION P HI EI

Using Fastext to Select a Teletext Page

The various topics included in the teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control.

  1. Display the teletext contents page by pressing the TTX/MIX (☐/☑) button.
  2. Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).
  3. Press the Red button to display the previous page. Press the Green button to display the next page.
  4. Press the TV button to exit from the Text display.

RETURN INFO TTX/MIX P.MODE S.MODE RSIZE P.MODE S.MODE STILL RSIZE S.SAVING PIP SOURCE TV CH EEP HDMI P

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

Display Properties Theme Desktop Screen Server Appearance Settings Display: Default Monitor on NVIDIA Golf area FX 5200 Screen resolution More Color quality Low 1300 by 700 pixels (Highest: 52 Mb) E:\EnableView\Advanced OK Cancel Apply

  1. First, click on "Control Panel" on the Windows start menu.
  2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

  3. When the control panel window appears, click on "Display" and a display dialog-box will appear.

  4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum-1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

D-Sub Input

ModeResolutionH-Freq.(kHz)V-Freq.(Hz)Pixel Clock Freq.(MHz)Sync Polarity (H/V)
IBM640×35031.46970.08625.175+/-
720×40031.46970.08728.322-/+
640×48031.46959.94025.175-/-
VESA640×48037.86172.80931.500-/-
640×48037.50075.00031.500-/-
640×48043.26985.00836.000-/-
800×60037.87960.31740.000+/+
800×60048.07772.18850.000+/+
800×60046.87575.00049.500+/+
800×60053.67485.06156.250+/+
1024×76848.36360.00465.000-/-
1024×76856.47670.06975.000-/-
1024×76860.87575.02978.750+/+
1024×76868.67784.99794.500+/+
1024×76848.36460.00065.000- / -
1024×76860.02375.02978.750+/+
1360×76847.71260.01585.800+/+
1152×86453.78359.95981.750-/+
VESA GTF640×48035.00070.00028.560-/+
800×60043.75070.00045.500-/+
1024×76857.67272.00078.434-/-

HDMI/DVI Input

ModeResolutionH-Freq.(kHz)V-Freq.(Hz)Pixel Clock Freq.(MHz)Sync Polarity (H/V)
IBM640×35031.46970.08625.175+/-
720×40031.46970.08728.322-/+
640×48031.46959.94025.175-/-
VESA800×60037.87960.31740.000+/+
1024×76848.36460.00065.000-/-
1360×76847.71260.01585.800+/+

The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.

Setting the PC

Coarse and Fine Tuning of the Image (Image Lock):

The purpose of picture quality adjustment is to remove or reduce picture noise.

If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again.

After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

  1. Preset: Press the SOURCE button to select PC mode.
  2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
  3. Press the ▲ or ▼ button to select "PC", then press the ENTER button.
  4. Press the ENTER button to select "Image Lock".
  5. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER button.
  6. Press the ◀ or ▶ button to adjust the screen quality. Press the ENTER button.
  7. Press the EXIT button to exit.

Changing the Image Position:

Adjust the PC's screen positioning if it does not fit the TV screen.

  1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
  2. Press the ▲ or ▼ button to select "Position", then press the ENTER button.
  3. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◀ or ▶ button to adjust the Horizontal-Position. Press the ENTER button.
  4. Press the EXIT button to exit.

Adjusting the PC Screen Automatically (Auto Adjustment): Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

  1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
  2. Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER button.
  3. Press the EXIT button to exit.

Initializing the Image Settings (Image Reset):

You can replace all image settings with the factory default values.

  1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
  2. Press the ▲ or ▼ button to select "Image Reset", then press the ENTER button.
  3. Press the EXIT button to exit.

TV PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

TV Image Lock Coarse 50 Fine 50 Move Enter Return

TV Position Move Enter Return

TV PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

TV PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

Using the Anti-Theft Kensington Lock

The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

  1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).
  2. Connect the Kensington lock cable.
  3. Fix the Kensington lock to a desk or a heavy stationary object.

Cable Figure 2 Figure 1 The place of the Kensington Lock may be different depending on its model.

Troubleshooting: Before Contacting Service Personnel

No sound or picture♦ Check that the mains lead has been connected to a wall socket.♦ Check that you have pressed the ⏻ button on the front of the set.♦ Check the picture contrast and brightness settings.♦ Check the volume.
Normal picture but no sound♦ Check the volume.♦ Check whether the MUTE ⚠button has been pressed on the remote control.♦ Check if "Internal Mute" is off
Screen is black and power indicator light blinks steadily♦ On your computer check; Power, Signal Cable.♦ The TV is using its power management system.♦ Move the computer's mouse or press any key on the keyboard.
No picture or black and white picture♦ Adjust the colour settings.♦ Check that the broadcast system selected is correct.
Sound and picture interference♦ Try to identify the electrical appliance that is affecting the set and move it further away.♦ Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound♦ Check the direction, location and connections of your aerial.This interference is often due to the use of an indoor aerial.
Remote control malfunctions♦ Replace the remote control batteries.♦ Clean the upper edge of the remote control (transmission window).♦ Check the battery terminals.
"Check signal cable." message is displayed.♦ Check that the signal cable is firmly connected to the PC or video sources.♦ Check that the PC or video sources are turned on.
On PC mode, "Not Supported Mode." message is displayed.♦ Check the maximum resolution and the frequency of the video adaptor.♦ Compare these values with the data in the Display Modes.

The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model NameLE23R8LE26R8
Screen Size (Diagonal)23 inch26 inch
PC Resolution1360 x 768 @ 60 Hz1360 x 768 @ 60 Hz
Sound Output3 W X 25 W X 2
Dimension (WxDxH)
Body586 x 79 x 406 mm666 x 75 x 461 mm
With stand586 x 216 x 446 mm666 x 216 x 500 mm
Weight
With stand8 kg10 kg
Environmental Considerations
Operating Temperature10 °C to 40 °C (50 °F to 104 °F)10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity10 % to 80 %, non-condensing10 % to 80 %, non-condensing
Storage Temperature-20 °C to 45 °C (-4 °F to 113 °F)-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity5 % to 95 %, non-condensing5 % to 95 %, non-condensing

➢ Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For the power supply and Power Consumption, refer to the label attached to the product.

natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Using the Anti-Theft Kensington Lock - 2

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

<3>

Installation du support mural

SAMSUNG LE23R81W - Installation du support mural - 1

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)
natural_image Illustration of a pair of headphones connected to a charging plug (no text or symbols)
natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Installation du support mural - 2

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)

The product colour and shape may vary depending on the model.

① SOURCE

Ein-und Ausschalten

natural_image Illustration of a pair of headphones connected by a cable to a small electronic device (no text or symbols visible)

Tonmodus wählen

Anzeigemodi

natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Anzeigemodi - 1

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

<3>

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)
natural_image Diagram of a mechanical assembly with an arrow indicating rotation or force direction (no text or symbols)

SAMSUNG LE23R81W - Anzeigemodi - 2

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

SAMSUNG LE23R81W - Anzeigemodi - 3

In- en uitschakelen

Picture in Picture (PIP)

natural_image Illustration of a pair of headphones connected by a cable to a lock (no text or symbols)

TV CH LIST SLEEP HDMI P

SAMSUNG LE23R81W - Picture in Picture (PIP) - 2

Weergavestanden

natural_image Diagram showing a device with a screen and a speaker, no text or symbols present

<2>

SAMSUNG LE23R81W - Weergavestanden - 1

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)
natural_image Diagram of a mechanical assembly with an arrow indicating rotation or force direction (no text or symbols)

SAMSUNG LE23R81W - Weergavestanden - 2

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

Plug & Play Start Plug & Play. OK Enter Exit

◆ Bilan bianco: R Offset/G Offset/B Offset/R Gain/G Gain/B Gain/Reset

natural_image Illustration of a pair of headphones connected by a cable to a lock (no text or symbols)

    B --> M["DSI5105 CPU DEMUX MPEG A/V-DECODER PAL ENCODER HOST-INTERFACE PERIPHERALS"]
    M --> N["FILTER"]
    N --> O["ANALOG MUX MM74HC"]
    O --> P["Main Part"]

    M --> Q["MT8202C (388-BGA)"]
    Q --> R["Micom 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
    R --> S["FLASH MEMORY"]
    S --> T["(PDP option) LOGIC CONTROL 74LCX157."]
    T --> U["UART MAX232EC"]
    U --> V["Main/DTV Service Jack"]

    R --> W["DDR ESMT"]
    W --> X["EEPROM"]
    X --> Y["PWM/ANA Dimming"]
    Y --> Z["DIMING/SW 74LCX157"]
    Z --> AA["OP AMP LM358D"]
    AA --> AB["Display Panel 1366 x 768 (1024 x 768)"]

    R --> AC["FAFISH 4MB"]
    AC --> AD["Xtal 27MHz"]
    AD --> AE["Rx,Tx"]

    subgraph MT8202C
        B
        Q
        R
    end

    subgraph Micom 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process
        R
        S
        T
        U
        V
        W
        X
        Y
        Z
        AA
        AB
        AC
        AD
        AE
        AF
        AG
        AH
        AI
        AJ
        AK
        AL
        AM
        AN
        AO
        AP
        AQ
        AR
        AS
        AT
        AU
        AV
        AW
        AX
        AY
        AZ
        BA
        BB
        BC
        BD
        BE
        BF
        BG
        BH
        BI
        BJ
        BK
        BL
        BM
        BN
        BO
        BP
        BPB
        BPCC
        BPCCB
        BPCCBCC
        BPCCBCCCC
        BPCCBCCCCCC
    end

    subgraph MT8202C
            M["MT8202C (388-BGA)"]
            R
            S["RAMS: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> T["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> U["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> V["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> W["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> X["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> Y["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> Z["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AA["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AB["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AC["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AD["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AE["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AF["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AG["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AH["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AI["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AJ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AK["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AL["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AM["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AN["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AO["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AP["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AQ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AR["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AS["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AT["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AU["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AV["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AW["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AX["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AY["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> AZ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BA["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BB["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BC["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BD["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BE["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BF["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BG["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BH["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BI["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BJ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BK["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BL["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BM["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BN["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BO["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BP["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BQ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BR["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BS["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BT["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BU["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BV["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BW["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BX["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BY["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> BZ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CA["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CB["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CC["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CD["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CE["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CF["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CG["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CH["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CI["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CJ["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CK["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CL["DRAM: HDMI 3D Comb Multi Decoder De-interlacer Scaler LVDS Out WXGA Output Caption/TTX 10bit process"]
            S --> CD
    end

    subgraph MT8202C
                D
                RT
                VT
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB
                WB

    subgraph MT8202C_Process_Output_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_Blocking_SPIFF_OUT

    subgraph MT8202C_Peal_Splitudes_VinJ-Shack_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Sputations

    subgraph MT8202C_Peal_Splitudes_VinJ-Shack_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Splitudes_Rx_Tx_Sputations

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Sputations

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Splitutes_Rx_Tx_Sputations

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_Bus_Bus_Bus_Bus_Bus_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitudes_Rx_Tx_Splitutes_Bus_BuSSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitudes_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Situde_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Splitude_VinJ-Splitude_RbSinkout

    subgraph MT8202C_Peal_Spolar_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_LPsiR

    end

    subgraph MT8202C_Peal_Spolar_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_LPsiR

    end

    subgraph MT8202C_Poel_Peal_Splitutes_VinJ-Shack_Splitutes_RbSinkout

    subgraph MT8202C_Poel_Splitutes_VinJ-Shack_Splitutes_RbSinkout

    end

    subgraph MT8202C_Poel_Splitutes_VinJ-Shack_Splitutes_RbSinkout

    subgraph MT8202C_Poel_Splitutes_VinJ-Shack_Splitutes_RbSinkout

    end

    subgraph MT8202C_Poel_Spolar_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_Lumin_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAMP_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmp_UmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUumpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUmpAmpUumpAmpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm AumpUpm Aumpeauux]

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Feal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Feal_Splitutes_VinJ-Shack_Wkginkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Feal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8202C_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_Circuit_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_Performance_ Performance_Aumpeauux

    end

    subgraph MT82O_Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_WKgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT82O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_WKgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit Pecal_Peal_Splitutes_VinJ-Shack_Wkgsinkout

    end

    subgraph MT8O_C Circuit Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pecal_Pucarate

    end
natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Weergavestanden - 4

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

<3>

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)

20 Cancelar teletexto

22 Mostrar teletexto

natural_image Diagram of a printer or printer holder with an open lid and internal structure, showing no text or symbols.

SAMSUNG LE23R81W - Weergavestanden - 5

natural_image Technical line drawing of a mechanical assembly with rollers and a handle (no text or symbols)

SAMSUNG LE23R81W - Weergavestanden - 6

Encendido y apagado

natural_image Close-up of a pair of headphones connected by a cable to a small black connector (no text or symbols visible)
natural_image Diagram showing a device with a screen and a speaker, no text or symbols present

<2>

SAMSUNG LE23R81W - Encendido y apagado - 1

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

natural_image Diagram showing a device with a screen and antenna, no text or symbols present
natural_image Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

SAMSUNG LE23R81W - Encendido y apagado - 2

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

SAMSUNG LE23R81W - Encendido y apagado - 3

Ligar e desligar

natural_image Illustration of a pair of headphones connected by a cable to a small electronic device (no text or symbols visible)

Seleccionar o modo de som

TV CH LIST SLEEP HDMI P

SAMSUNG LE23R81W - Seleccionar o modo de som - 2

Editar os nomes das fontes de entrada

natural_image Diagram showing a device with a screen and a speaker, no text or symbols present

<2>

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 1

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

natural_image Diagram of a device layout with a cone, screen, and camera (no text or symbols)
natural_image Diagram of a mechanical device with an open lid and rotating arm (no text or symbols)

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 2

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

Plug & Play Start Plug & Play. OK Enter Exit

natural_image Illustration of a pair of headphones connected by a cable to a plug (no text or symbols)

TV CH LIST SLEEP HDMI

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 5
natural_image Diagram showing a device with a cone-shaped base and a speaker emitting sound waves (no text or symbols)

<2>

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 6

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

natural_image Diagram of a printer or printer with a paper airplane and internal components, no text or symbols present
natural_image Diagram of a mechanical assembly with an arrow indicating rotation or force direction (no text or symbols)

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 7

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

Plug & Play Start Plug & Play. OK Enter Exit

natural_image Close-up of a pair of headphones connected to a small metallic connector (no text or symbols visible)
natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 9

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)
natural_image Diagram of a mechanical device with an open lid and rotating arm (no text or symbols)

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 10

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

SAMSUNG LE23R81W - Editar os nomes das fontes de entrada - 11

Zapnutí a vypnutí

natural_image Illustration of a pair of headphones connected by a cable to a wall-mounted connector (no text or symbols)
natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Zapnutí a vypnutí - 1

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

<3>

natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)
natural_image Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

SAMSUNG LE23R81W - Zapnutí a vypnutí - 2

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

SAMSUNG LE23R81W - Zapnutí a vypnutí - 3

Zapínanie a vypínanie

TV CH LIST SLEEP HDMI P

Channel List P 2 C4 BBC1 1 / 10 Prog. 0 C-- 1 C3 ✓ 2 BBC 1 ✓ ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

TV PIP PIP : On Source : TV Size : Position : Programme : P 1 Move Enter Return

P.MODE S.MODE STILL P.SIZE E.SAVING PIP SOURCE DUAL SRS POS. N P

Na dial'kovom ovládaní opakovane stlačte tlačidlo PIP, aby ste spustili alebo vypli "PIP".

TV Setup △More Home Theatre PC: Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Normal PIP : Low Move Enter Return

TV Equalizer R + 0 - L Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return

Nastavenie funkcie TruSurround XT (SRS TS XT)

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : On Internal Mute : Off Sound Select : Main Reset Move Enter Return

E.SAVING PIP SOURCE DUAL SRS POSITION P I-II

natural_image Close-up of a pair of headphones connected to a small electrical plug (no text or symbols visible)

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : On Sound Select : Main Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Sound Select : On Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Sub Move Enter Return

TV Setup △More Home Theatre PC: Off Light Effect : On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

TV Setup △More Home Theatre PC: Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Standby Mode On PIP : Watching Mode On On Move Enter Return

SAMSUNG

[LE23R81, LE26R81, LE23R83, LE26R83]

TV Setup △More Home Theatre PC: Off Light Effect : Watching Mode On Energy Saving Off HDMI Black Level Low PIP Medium High Auto Move Enter Return

Výber zdroja

TV Image Lock Coarse 50 Fine 50 Move Enter Return

natural_image Diagram showing a device with a screen and a camera, no text or symbols present

<2>

SAMSUNG LE23R81W - Výber zdroja - 2

natural_image Diagram of a camera setup with lens, screen, and camera components (no text or labels)

< 3 >

  1. Postavite navzdol obrnjen televizor na mehko blago ali blazino na mizi.
  2. Podstavek vstavite v luknjo na dnu televizorja.
  3. V prikazano luknjo vstavite vijak in ga privijte.
natural_image Diagram of a device layout with labeled components and connectors (no text or symbols)
natural_image Line drawing of a Samsung monitor with a stand (no text or symbols on the screen)

[LE23R81, LE26R81, LE23R83, LE26R83]

SOURCE MENU + - CIP-0 ① ② ③ ④ ⑤ ⑥ ⑦

SAMSUNG LE23R81W - Výber zdroja - 4

[LE23R82, LE26R82, LE23R84, LE26R84]

SOURCE MENU + - CIP_G ① ② ③ ④ ⑦

Gumbi na sprednji plošči
Gumb, ki ga želite uporabiti, pritisnite na desni strani.

Barva in oblika izdelka sta odvisni od modela.

① SOURCE ↩ (VIR)

natural_image Diagram of a mechanical assembly with an open lid and a curved arrow indicating rotation (no text or symbols)

SAMSUNG LE23R81W - Výber zdroja - 6

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

SAMSUNG LE23R81W - Výber zdroja - 7

Vklop in izklop

  1. S pritiskom gumba ▲ ali ▼izberite ustrezni jezik.

Za potrditev izbora pritisnite gumb ENTER (ENTER/V REDU).

  1. Prikaže se sporočilo "Check antenna input." (Preverite vhod antene.) s potrjenim "OK" (V redu).

Pritisnite gumb ENTER (ENTER/V REDU).

TV CH LIST SLEEP HDMI P

Channel List P 2 C4 BBC1 1 / 10 Prog. 0 C-- 1 C3 ✓ 2 BBC 1 ✓ ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

Picture △More Detailed Settings Size : Auto Wide Screen Mode : 16:9 Digital NR : Wide Zoom Active Colour : Zoom DNle : 4:3 Reset : OK Move Enter Return

TV PIP PIP : On Source : TV Size : □ Position : □ Programme : P 1 Move Enter Return

P.MODE S.MODE STILL P.SIZE E.SAVING PIP SOURCE DUAL SRS PO... P I-II

TV Setup △More Home Theatre PC: Off Light Effect : Watching Mode On Energy Saving : Normal HDMI Black Level: Low PIP Move Enter Return

Sprememba zvočnega standarda

TV Sound Mode : Standard Equalizer : Music SRS TS XT : Movie Auto Volume : Speech Internal Mute : Custom Sound Select : On Reset : Main Move Enter Return

TV Equalizer R + 0 - L Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return

Nastavitev TruSurround XT (SRS TS XT)

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : On Internal Mute : Off Sound Select : Main Reset Move Enter Return

DUAL I-II SRS POSITION P SAMSUNG

natural_image Illustration of a pair of headphones connected by a cable to a wall-mounted connector (no text or symbols)

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : On Sound Select : Main Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Sound Select : On Reset Move Enter Return

TV Sound Mode : Custom Equalizer SRS TS XT : Off Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Sub Move Enter Return

TV Setup △More Home Theatre PC: Off Light Effect : On Energy Saving : Off HDMI Black Level: Low PIP Move Enter Return

TV Setup △More Home Theatre PC: Off Light Effect Off Energy Saving Standby Mode On HDMI Black Level: Watching Mode On PIP On Move Enter Return

SAMSUNG

[LE23R81, LE26R81, LE23R83, LE26R83]

TV Setup △More Home Theatre PC: Off Light Effect : Watching Mode On Energy Saving : Off HDMI Black Level: Low PIP : Medium High Auto Move Enter Return

Izbira vira

TV Image Lock Coarse 50 Fine 50 Move Enter Return

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

SAMSUNG LE23R81W - Correct Disposal of This Product (Waste Electrical &amp; Electronic Equipment) - 1

SAMSUNG LE23R81W - Correct Disposal of This Product (Waste Electrical &amp; Electronic Equipment) - 2

natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present
natural_image Symbol of a trash bin crossed with a diagonal line, no text or labels present
natural_image Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)
natural_image Symbol of a trash bin crossed with a diagonal line, no text or labels present
natural_image Symbol of a trash bin crossed with a diagonal line, no text or labels present
natural_image Symbol of a trash bin crossed with a diagonal line, no text or labels present

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SAMSUNG

Model : LE23R81W

Category : TV
